Next Article in Journal
Deformation Structure and Mechanical Properties of Pure Titanium Produced by Rotary-Die Equal-Channel Angular Pressing
Next Article in Special Issue
High-Yield One-Pot Recovery and Characterization of Nanostructured Cobalt Oxalate from Spent Lithium-Ion Batteries and Successive Re-Synthesis of LiCoO2
Previous Article in Journal
Self-Propagating High Temperature Synthesis of TiB2–MgAl2O4 Composites
Previous Article in Special Issue
Enhanced Surface Precipitates on Ultrafine-Grained Titanium in Physiological Solution
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Metals 2017, 7(8), 296;

Effects of SiC Nanoparticles on the Properties of Titanium-Matrix Foams Processed by Powder Metallurgy

Department of Metallurgical and Materials Engineering, Faculty of Engineering, Ferdowsi University of Mashhad, Mashhad 9177948974, Iran
Author to whom correspondence should be addressed.
Received: 9 June 2017 / Revised: 17 July 2017 / Accepted: 24 July 2017 / Published: 3 August 2017
(This article belongs to the Special Issue Synthesis and Properties of Bulk Nanostructured Metallic Materials)
View Full-Text   |   Download PDF [5258 KB, uploaded 3 August 2017]   |

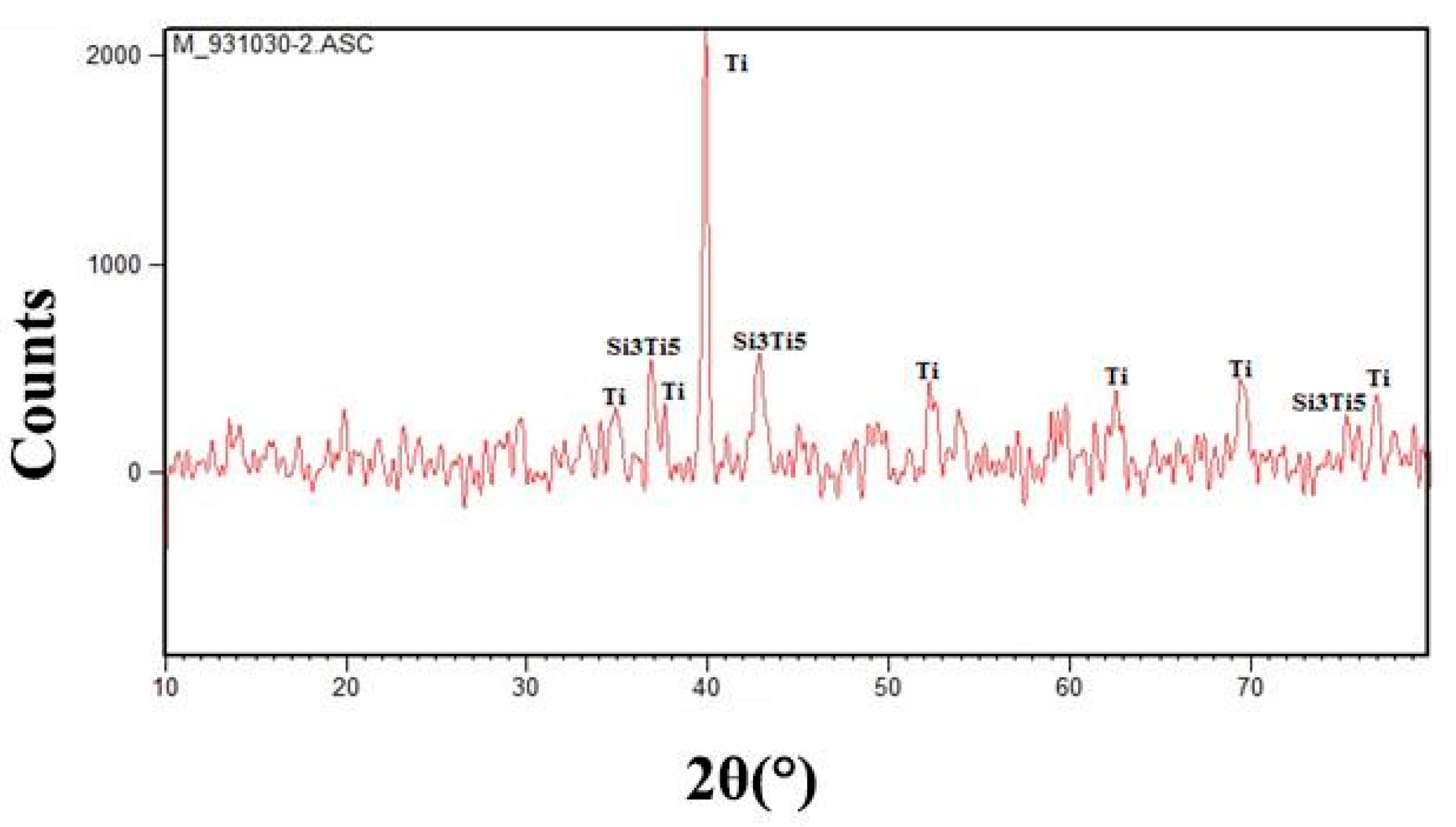

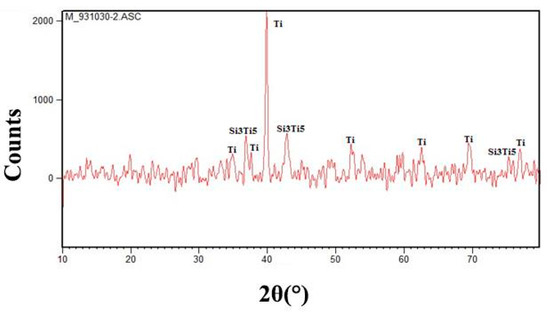

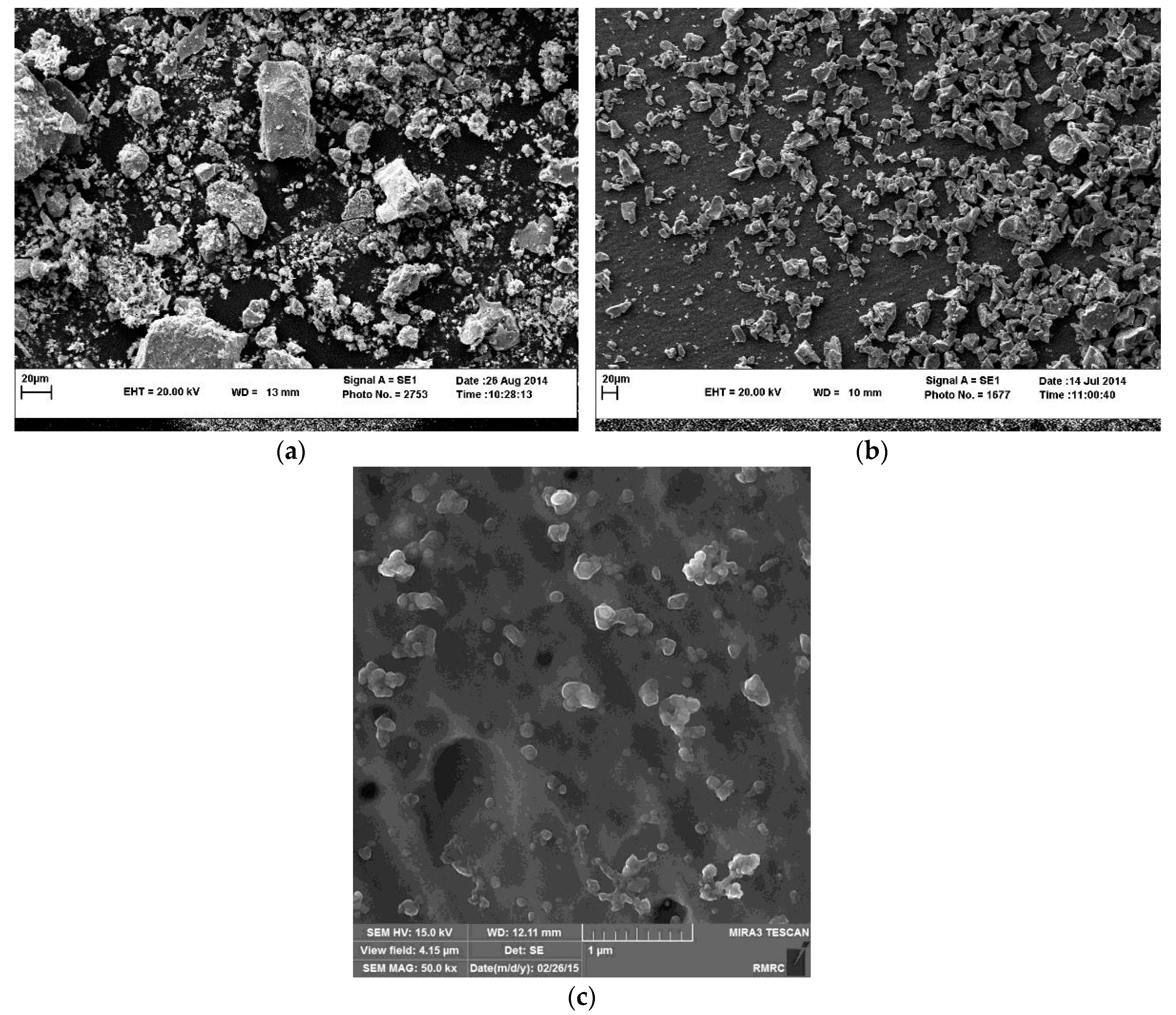

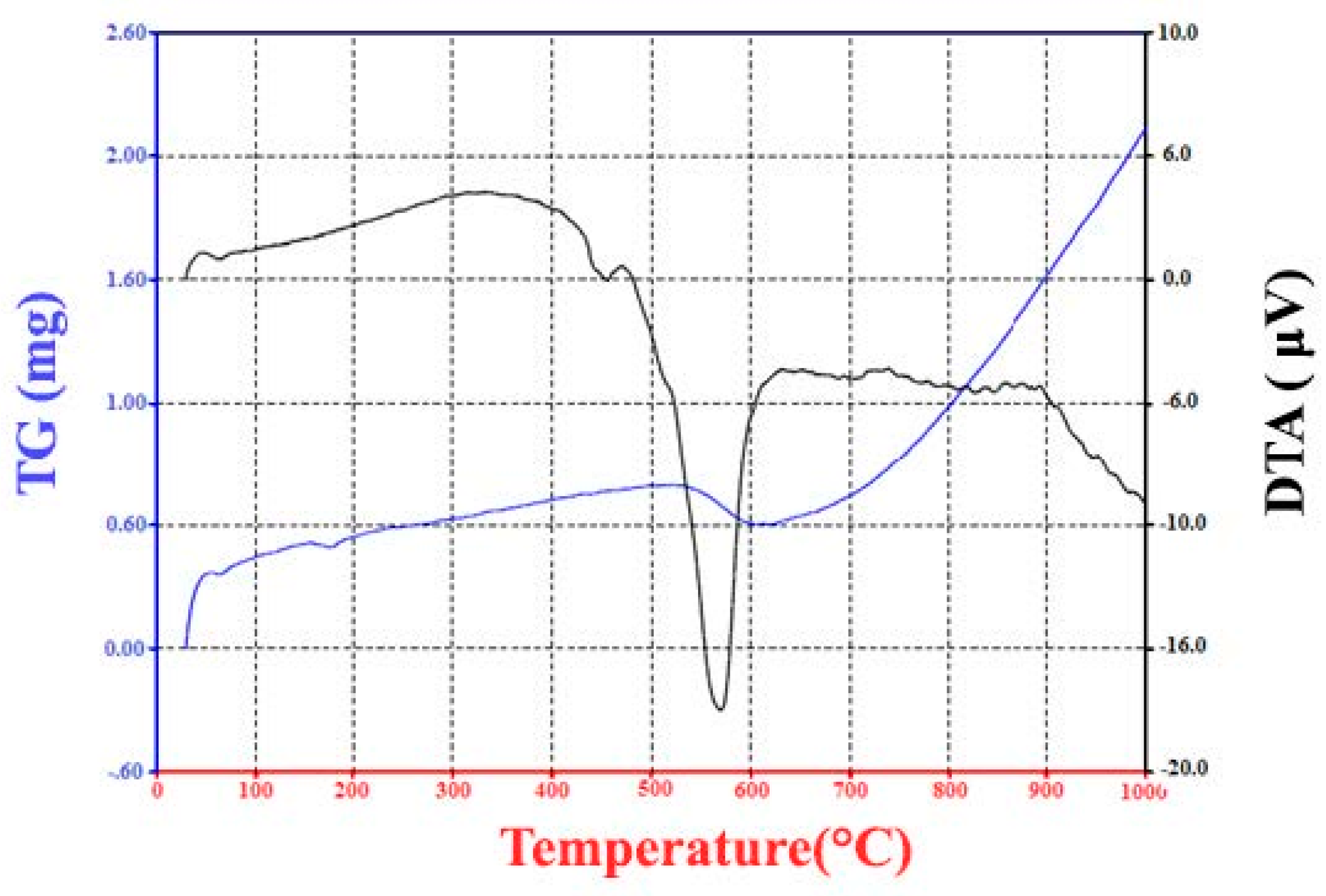

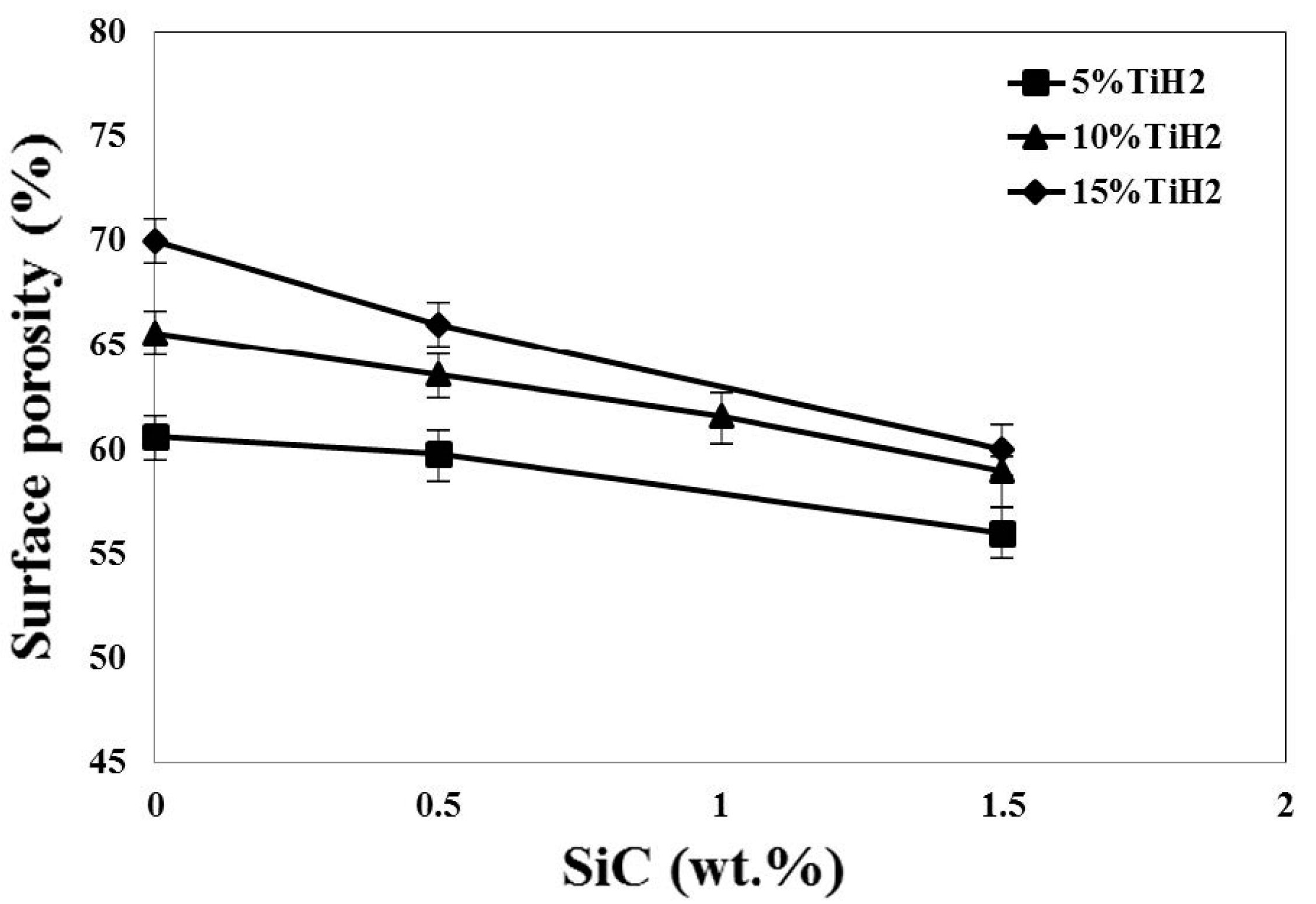

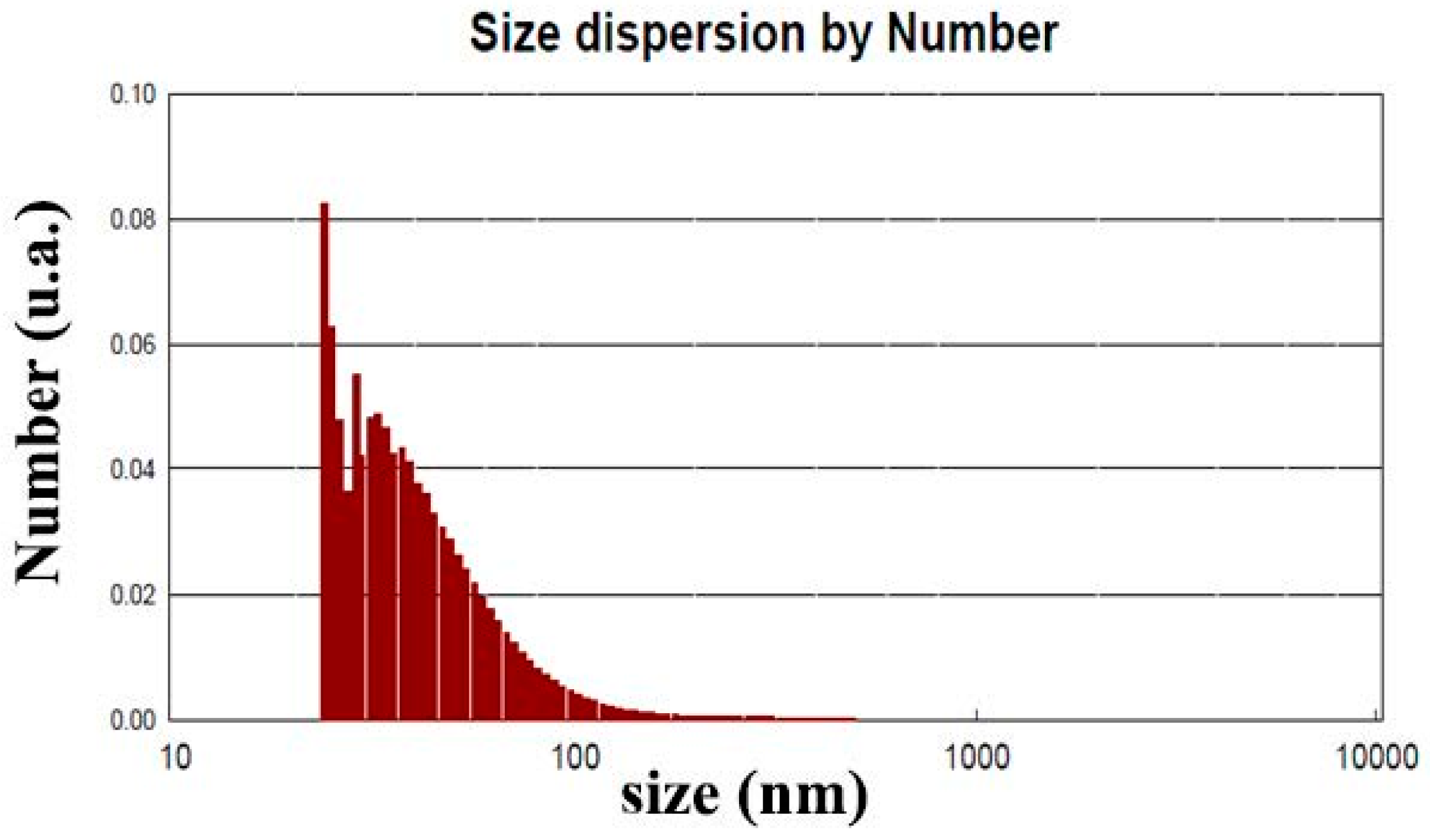

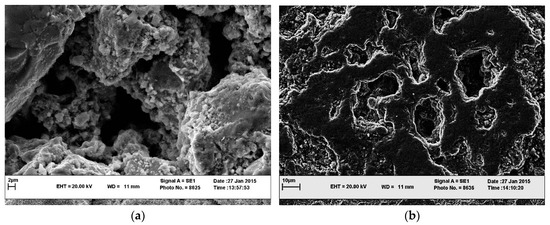

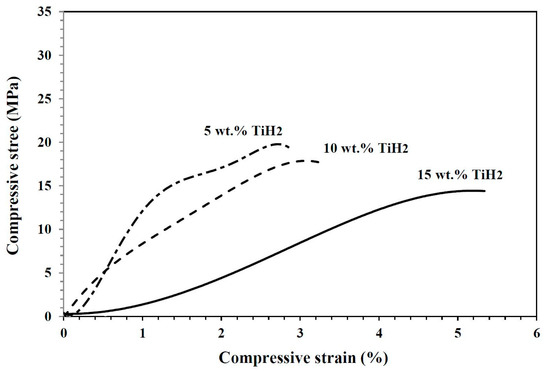

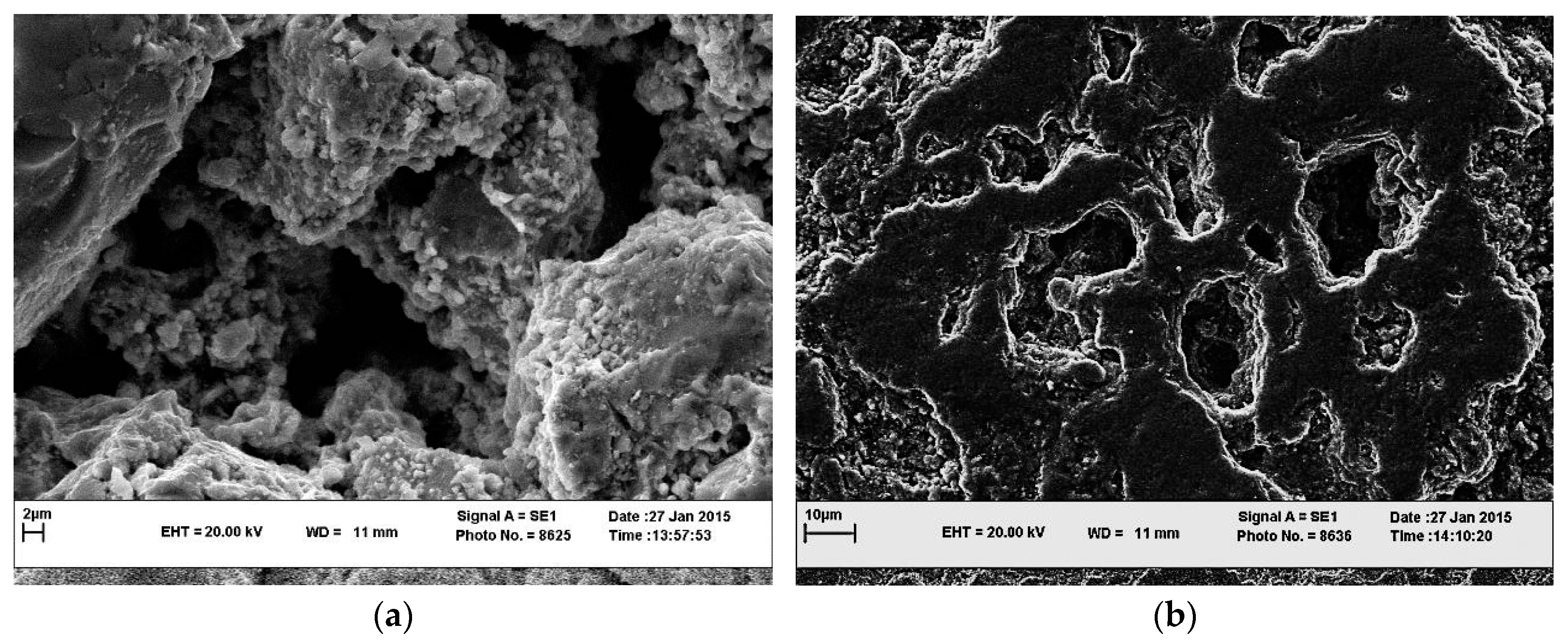

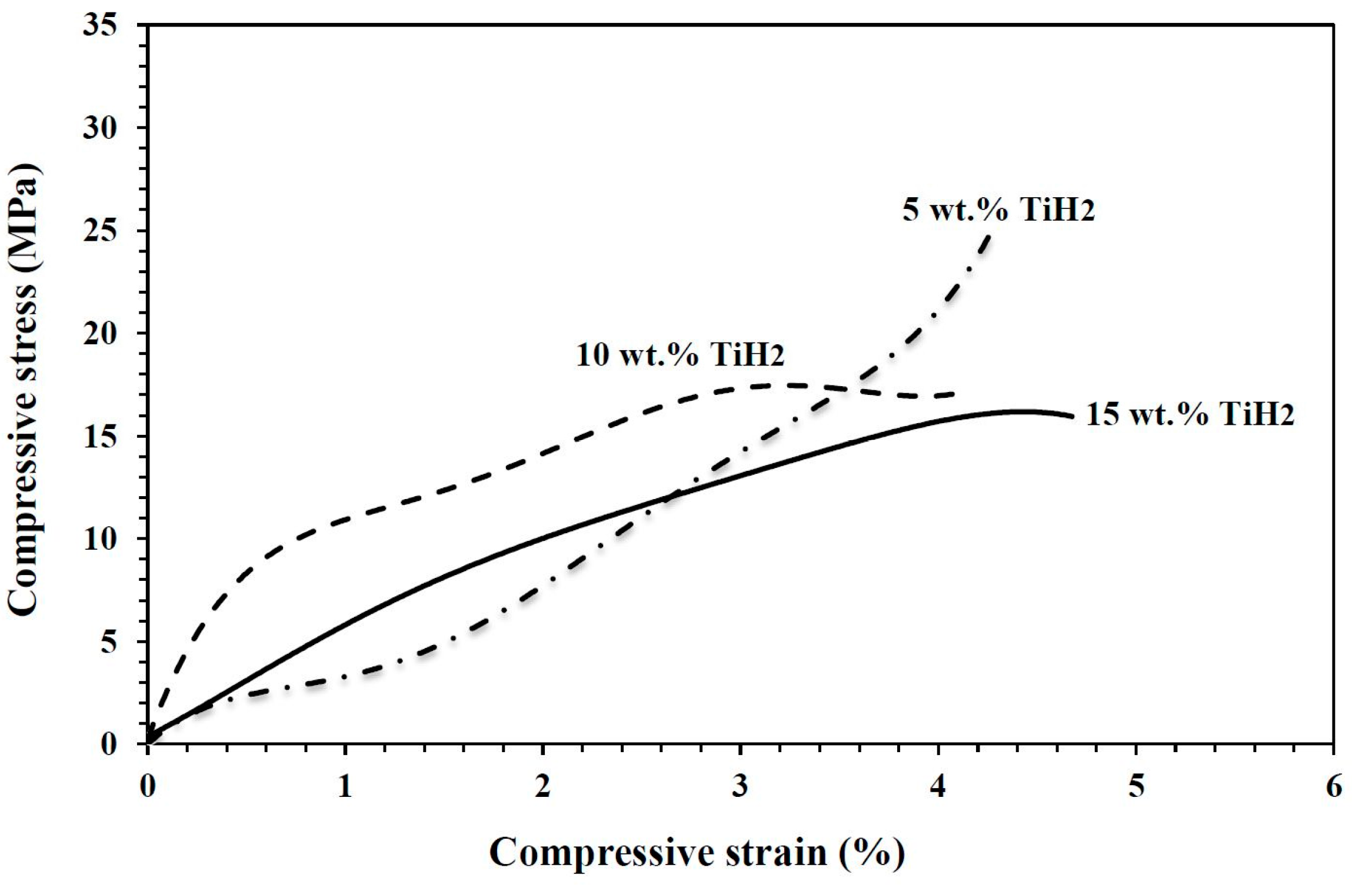

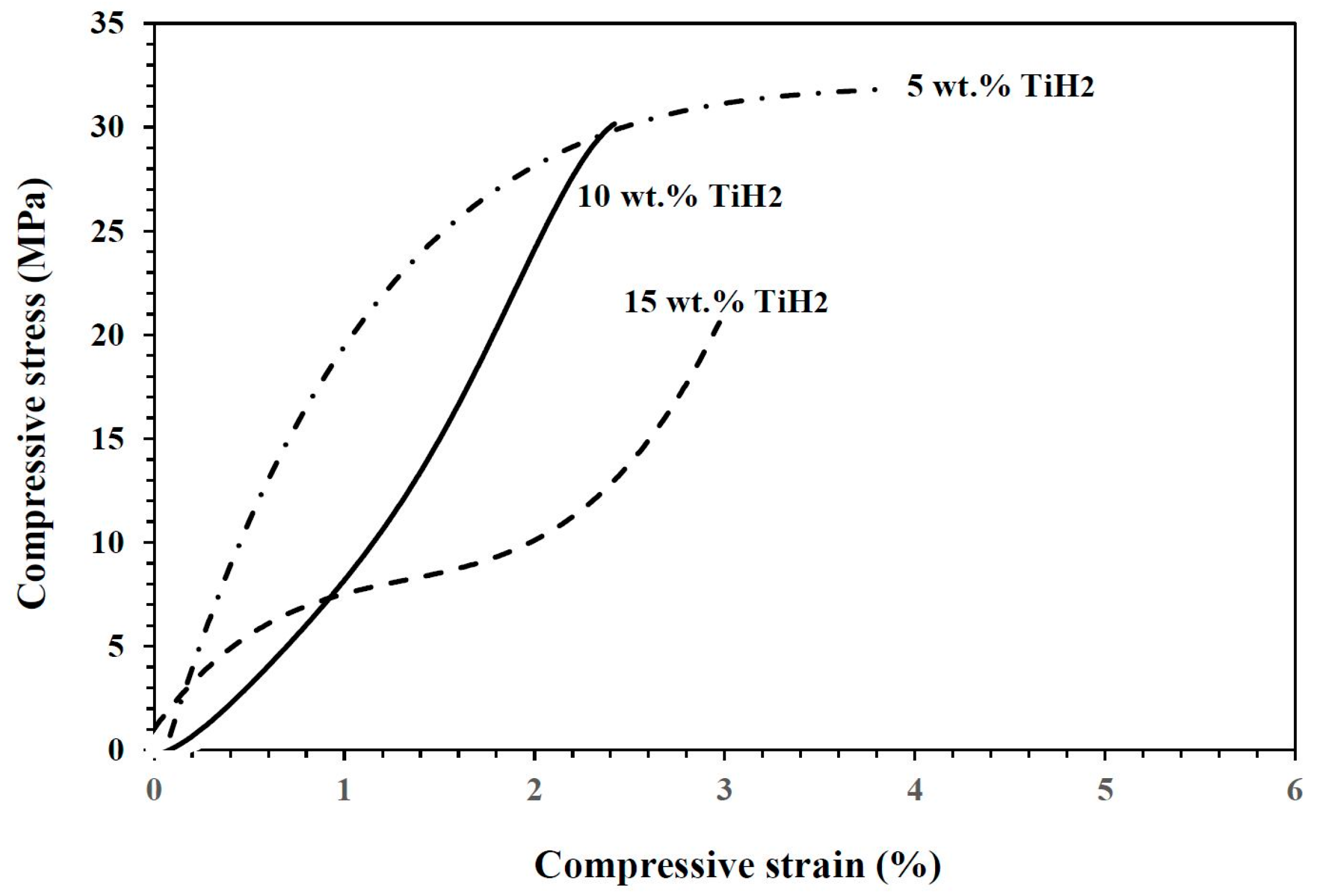

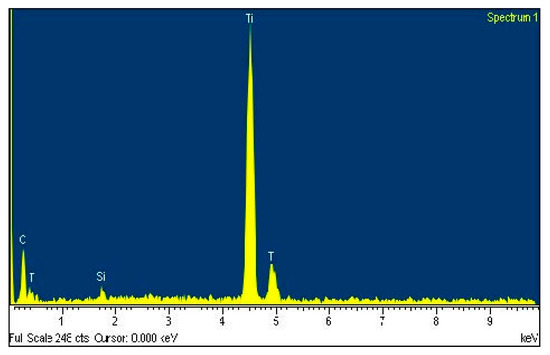

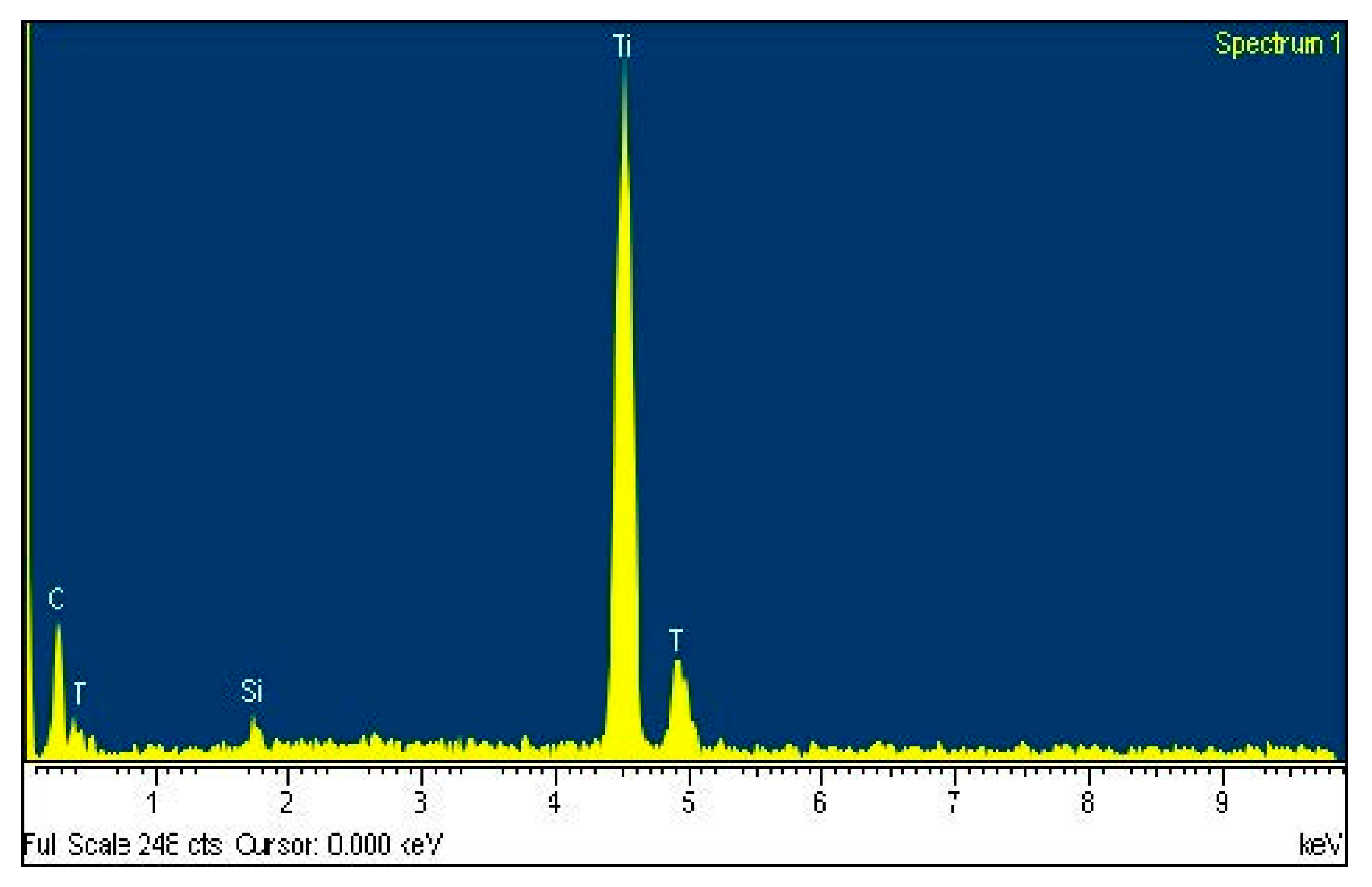

Metal-matrix foams are used widely for structural applications such as impact energy absorption, vibration resistance and weight reduction. In this study titanium nanocomposite foams with different porosity percentages were produced using TiH2, as foaming agent, by powder metallurgy technique. At first, raw materials including titanium powder and different weight percentages of SiC nanoparticles were mixed and then different amounts of TiH2 were added to the mixture. The mixture was compacted at 200 MPa. The samples were heat treated in two stages, first at 400 °C for 1 h, as a partial sintering, and then at 1050 °C for 2 h, as foaming treatment. Mechanical and structural properties such as compressive strength, energy absorption, porosity percentage and relative density of samples were measured and compared together. Thermo gravimetric analysis (TGA), differential thermal analysis (DTA), scanning electron microscopy (SEM) and X-ray diffraction (XRD) were performed on foaming agent and samples. The results showed uniform distribution of SiC nanoparticles in titanium matrix and also homogenous pore structure. It was concluded that with increasing SiC weight percent, relative density is increased to 0.43 in the sample with 1.5 wt % SiC. Besides, the measured compressive strength of samples was in the range of 14.4–32.3 MPa. Moreover, it was concluded that the energy absorption of samples increases with increasing SiC nano particles up to 33.09 MJ/m3. View Full-Text
Keywords: foam; titanium-matrix composite; SiC nanoparticles; Ti-SiC; powder metallurgy foam; titanium-matrix composite; SiC nanoparticles; Ti-SiC; powder metallurgy

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Edalati, E.; Sajjadi, S.A.; Babakhani, A. Effects of SiC Nanoparticles on the Properties of Titanium-Matrix Foams Processed by Powder Metallurgy. Metals 2017, 7, 296.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
