Next Article in Journal
Precipitate Stability in a Zr–2.5Nb–0.5Cu Alloy under Heavy Ion Irradiation
Next Article in Special Issue
Sintering Behavior and Microstructure of TiC-Me Composite Powder Prepared by SHS
Previous Article in Journal / Special Issue
Microstructural Evolution during Pressureless Sintering of Blended Elemental Ti-Al-V-Fe Titanium Alloys from Fine Hydrogenated-Dehydrogenated Titanium Powder
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Metals 2017, 7(8), 286;

Effects of Trace Si Addition on the Microstructures and Tensile Properties of Ti-3Al-8V-6Cr-4Mo-4Zr Alloy

Institute of Metal Research, Chinese Academy of Sciences, 72 Wenhua Road, Shenyang 110016, China
Author to whom correspondence should be addressed.
Received: 16 June 2017 / Revised: 21 July 2017 / Accepted: 24 July 2017 / Published: 27 July 2017
(This article belongs to the Special Issue Titanium Alloys 2017)
View Full-Text   |   Download PDF [11650 KB, uploaded 27 July 2017]   |

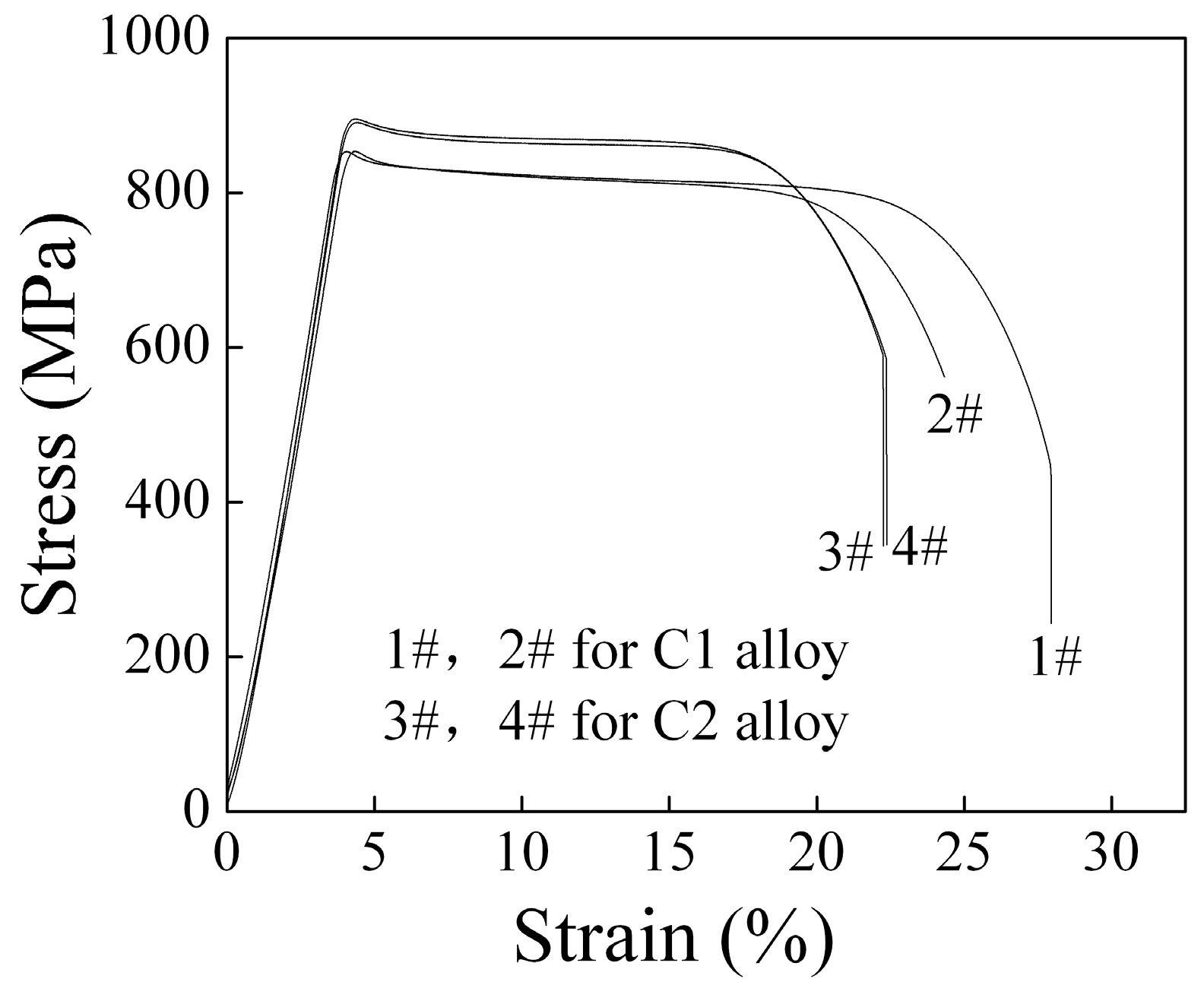

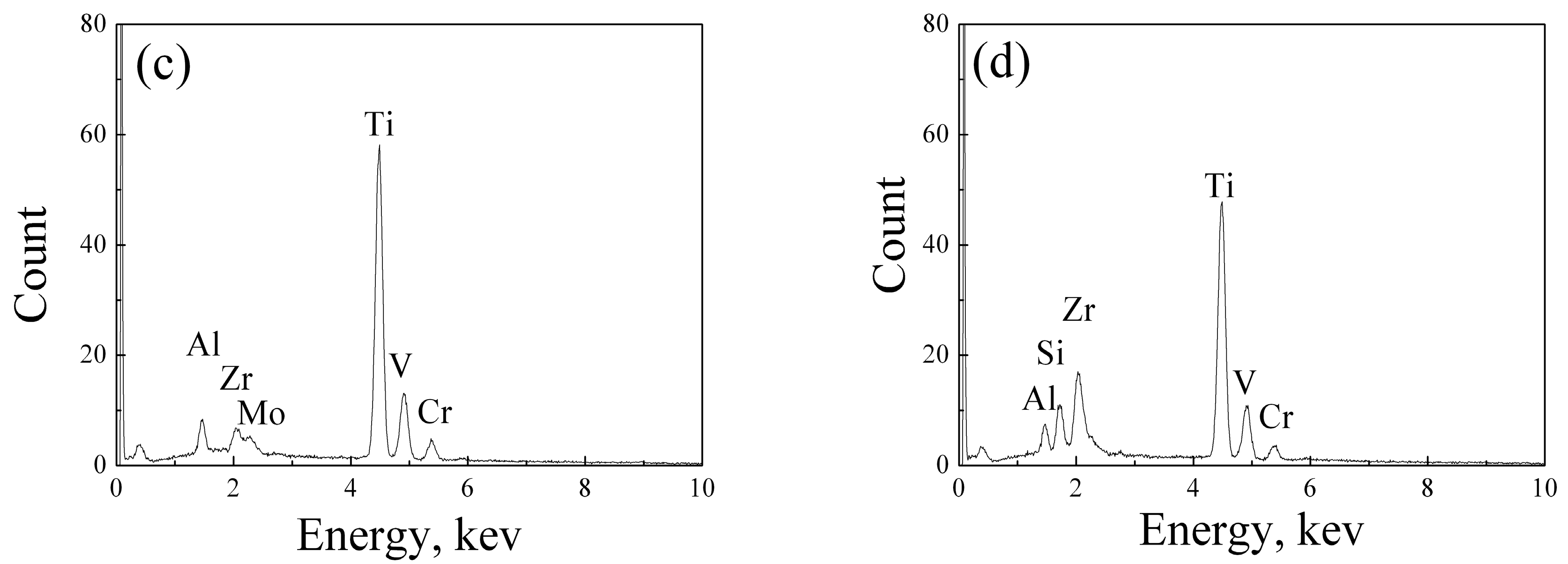

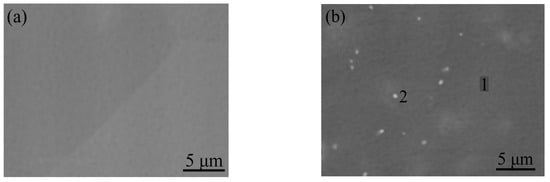

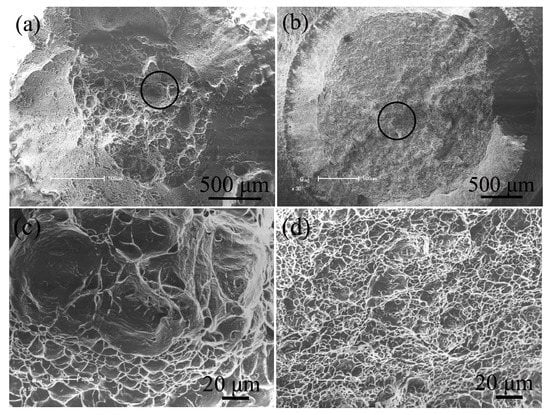

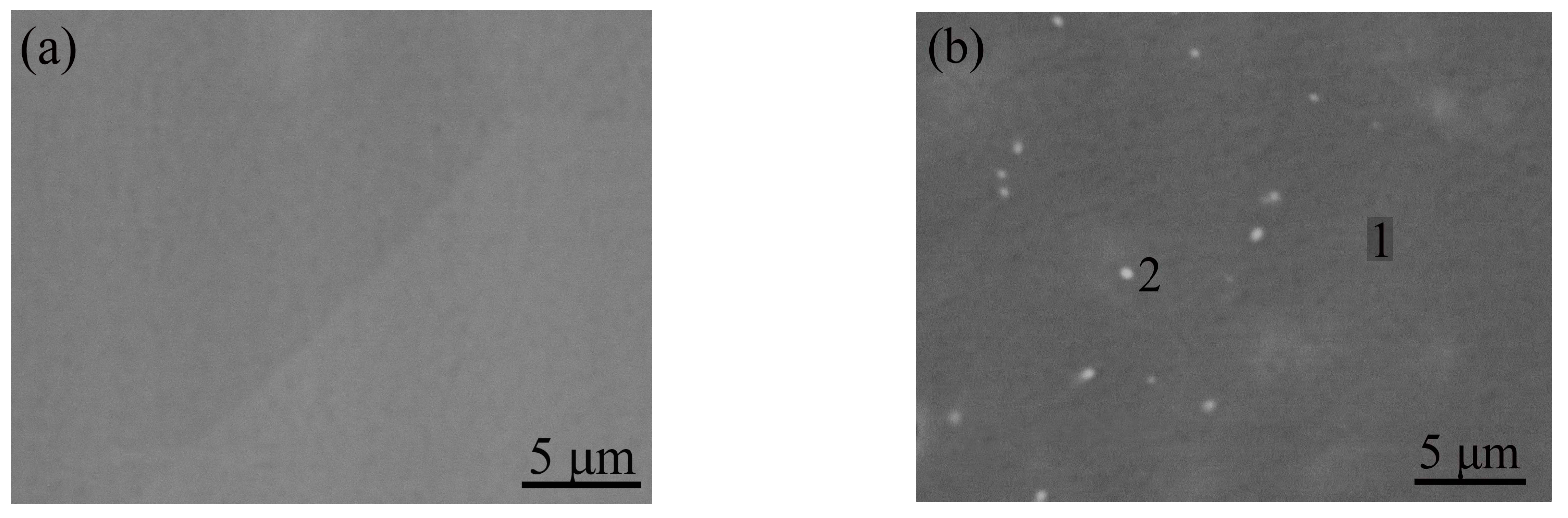

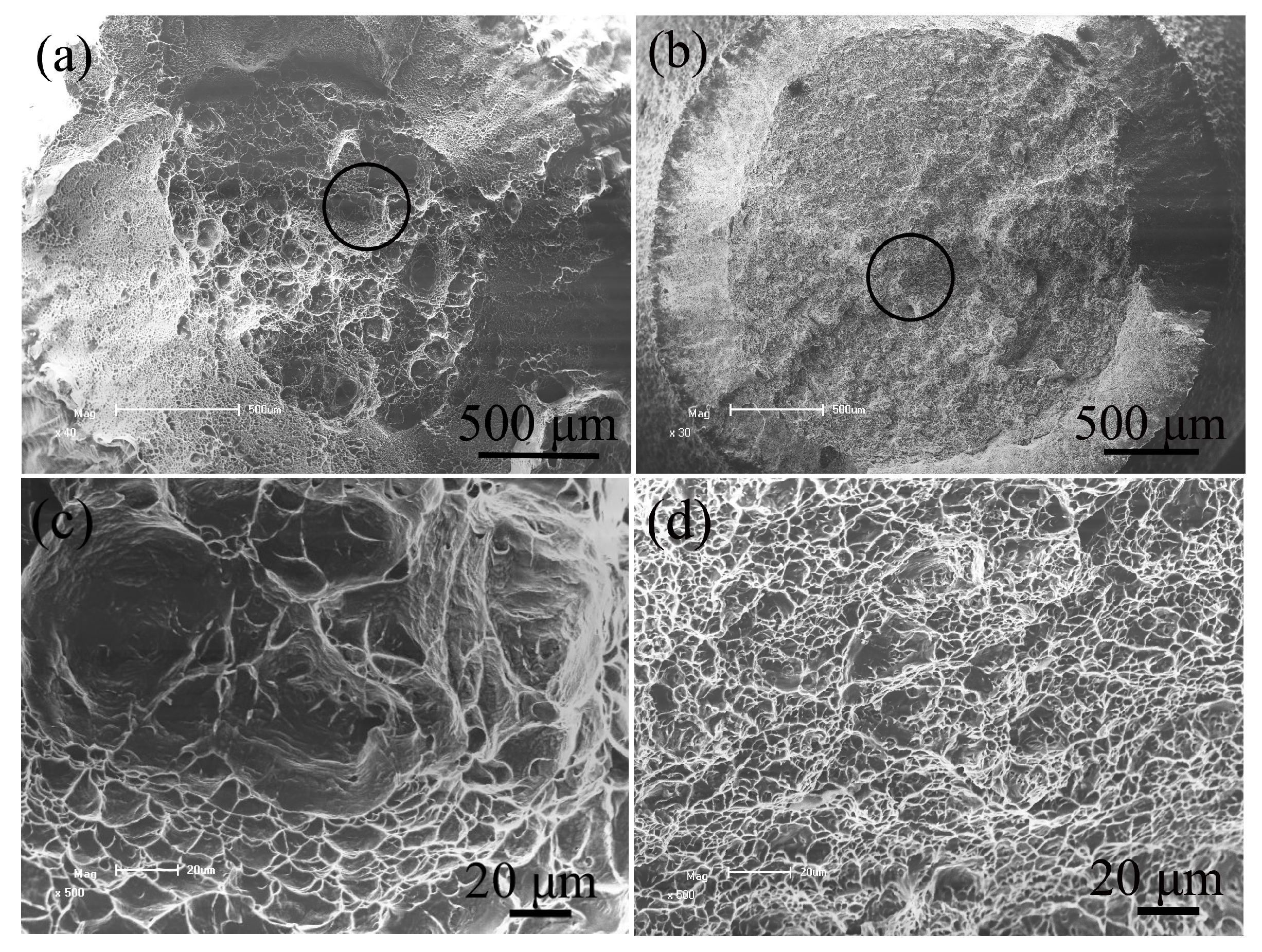

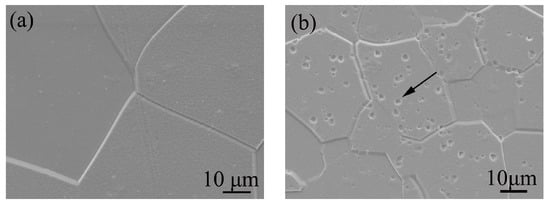

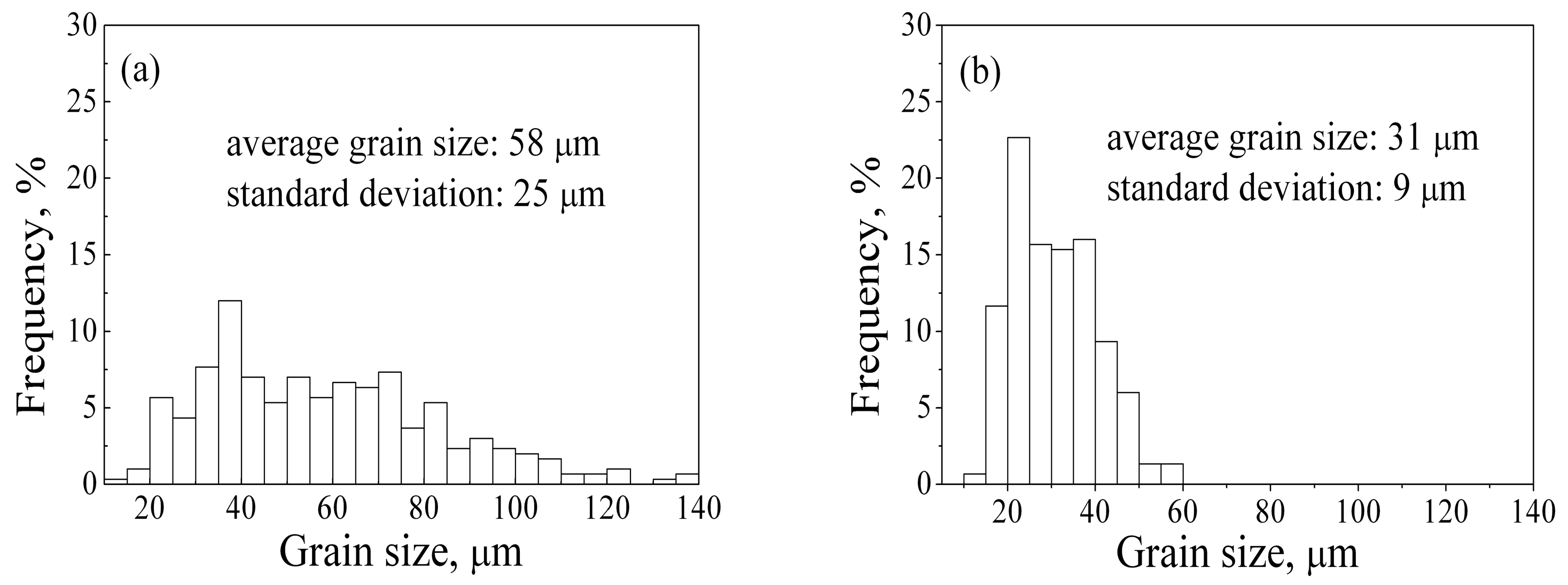

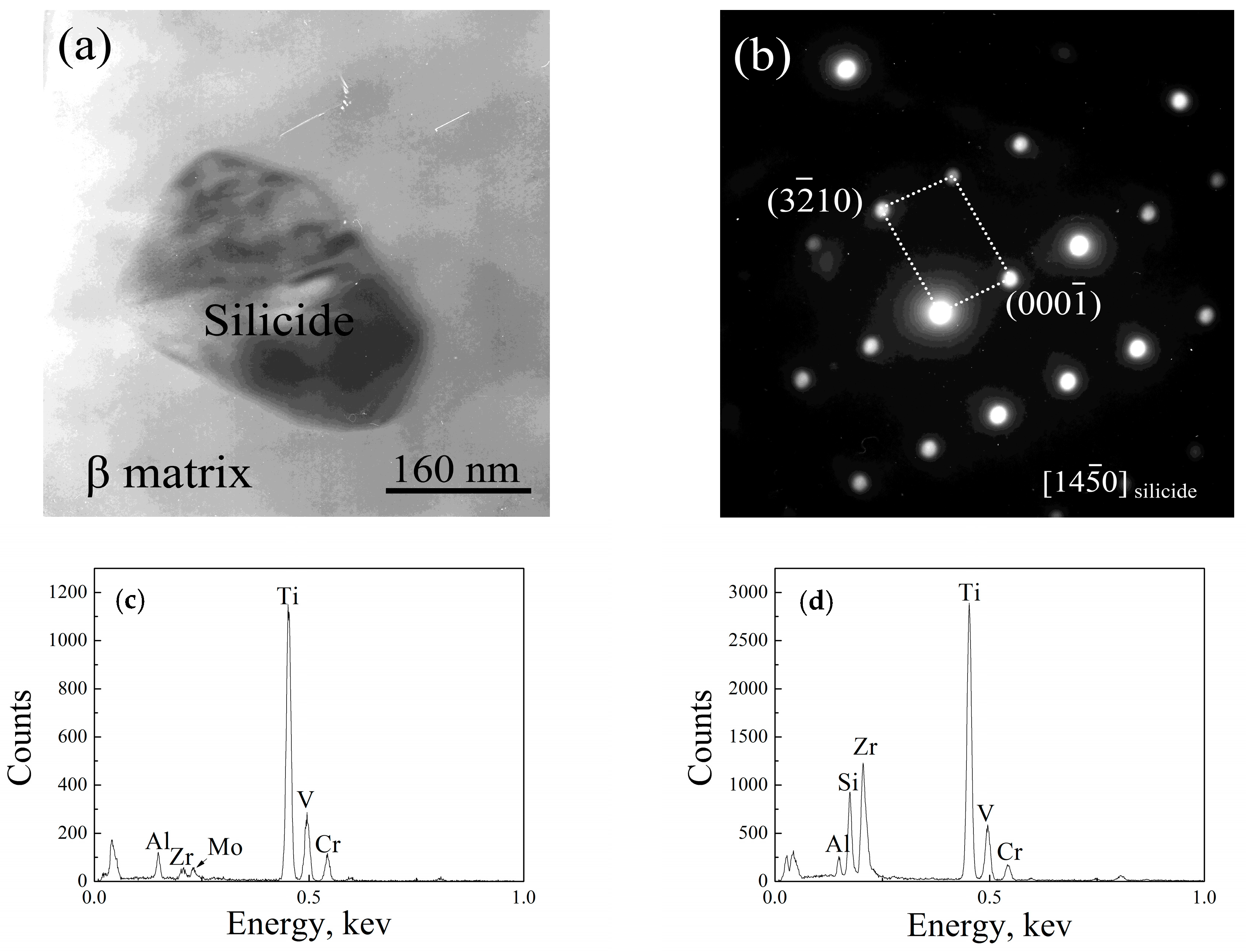

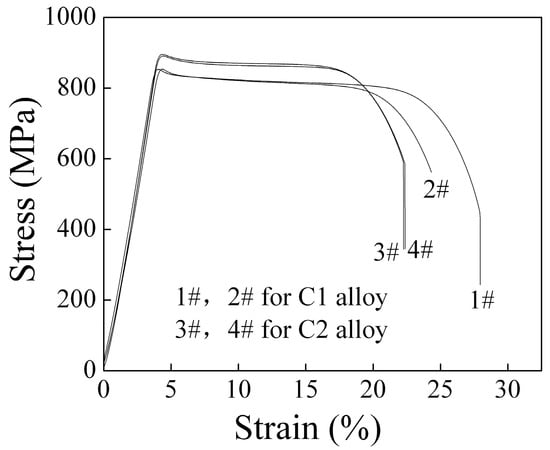

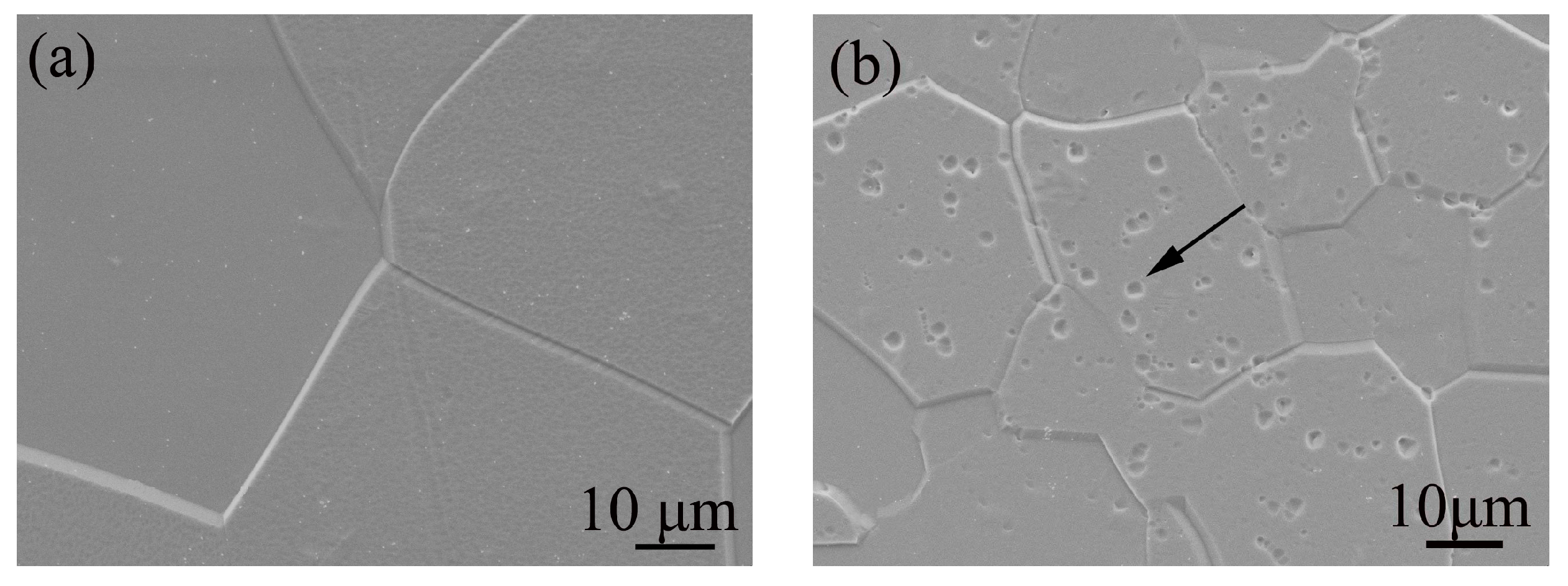

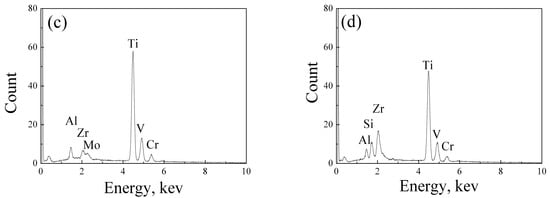

The microstructural evolution and tensile properties of Ti-3Al-8V-6Cr-4Mo-4Zr titanium alloys with various Si contents were investigated. The results revealed that the addition of trace Si and the presence of Zr induced the formation of (TiZr)6Si3 silicides, in the size range from 100 nm to 300 nm. The fine silicide precipitates refined β grains. The tensile strength increased about 40 MPa due to precipitation strengthening and grain refinement, and the ductility of the two alloys was similar. The tensile fracture mode of the alloys was dimple ductile fracture. View Full-Text
Keywords: titanium alloy; microstructure; silicide; tensile properties titanium alloy; microstructure; silicide; tensile properties

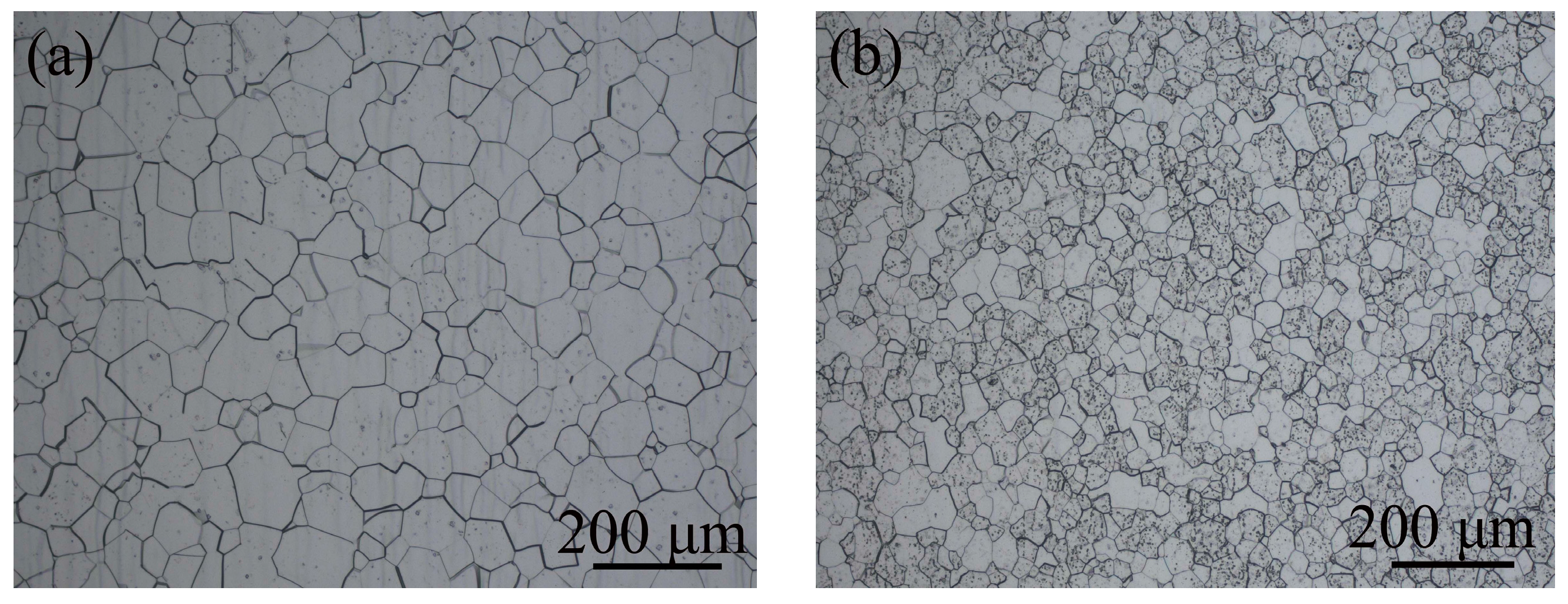

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ba, H.; Dong, L.; Zhang, Z.; Lei, X. Effects of Trace Si Addition on the Microstructures and Tensile Properties of Ti-3Al-8V-6Cr-4Mo-4Zr Alloy. Metals 2017, 7, 286.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
