Open AccessFeature PaperArticle
Metals 2017, 7(6), 225; doi:10.3390/met7060225

Enhanced Adsorption Removal of Pb(II) and Cr(III) by Using Nickel Ferrite-Reduced Graphene Oxide Nanocomposite

Department of Environmental Engineering, Kwangwoon University, Seoul 01897, Korea
Department of Integrated Environmental Systems, Pyeongtaek University, Gyeonggi-Do 17869, Korea
Ingenium College of Liberal Arts, Kwangwoon University, Seoul 01897, Korea
Authors to whom correspondence should be addressed.
Received: 12 April 2017 / Revised: 12 June 2017 / Accepted: 13 June 2017 / Published: 19 June 2017
(This article belongs to the Special Issue Heavy Metal Determination and Removal)
View Full-Text   |   Download PDF [4696 KB, uploaded 19 June 2017]   |

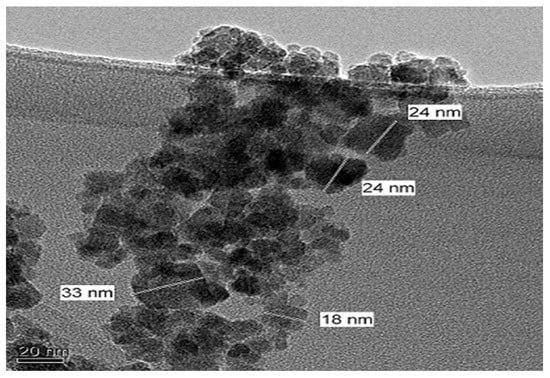

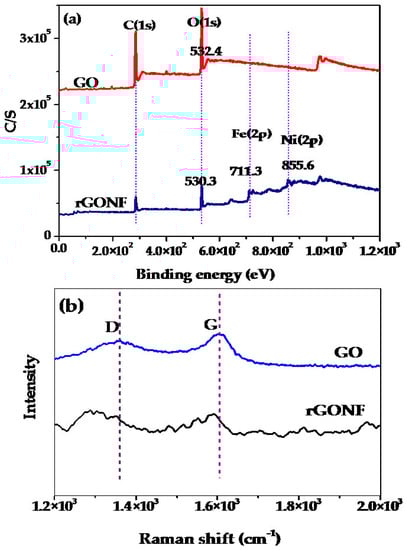

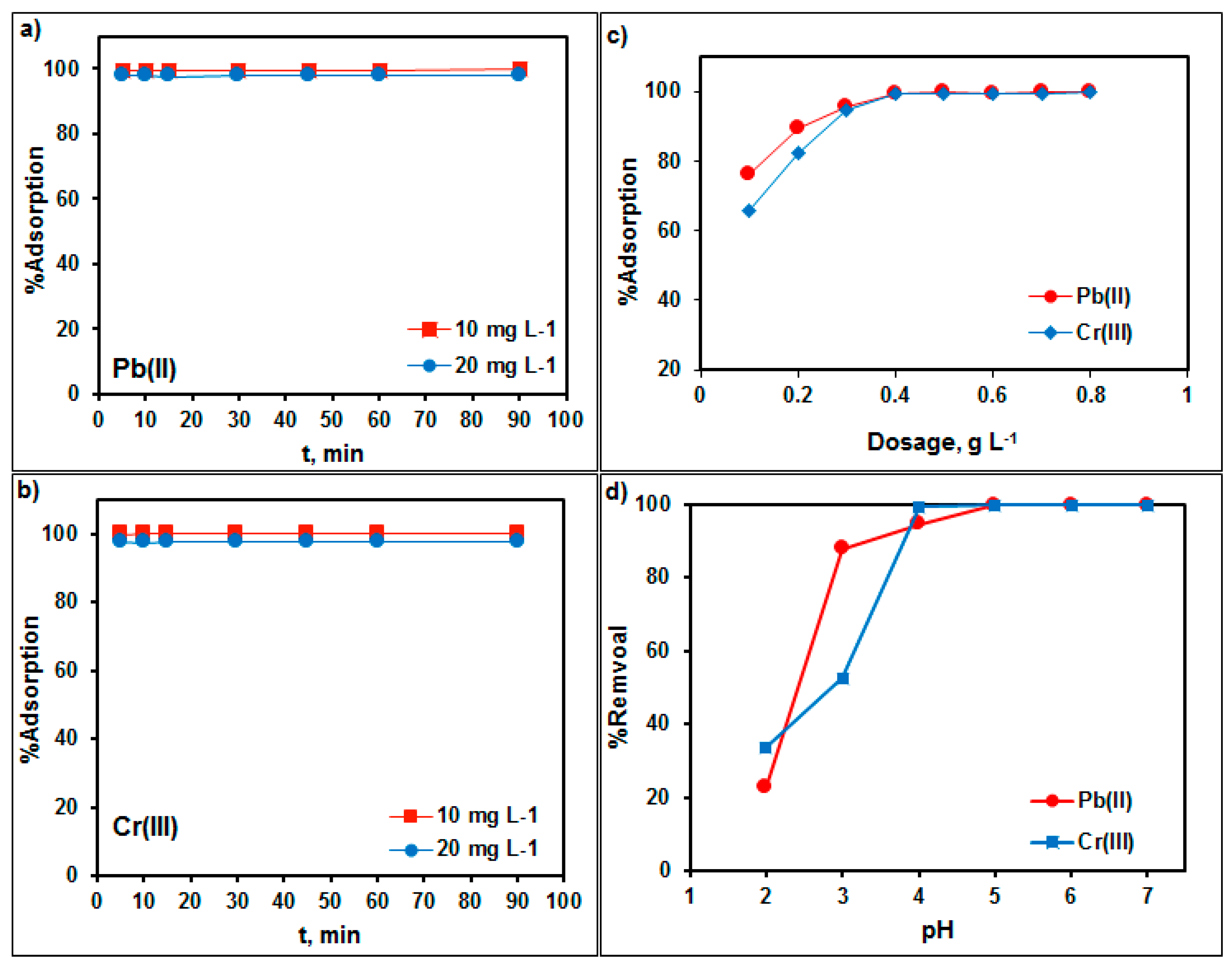

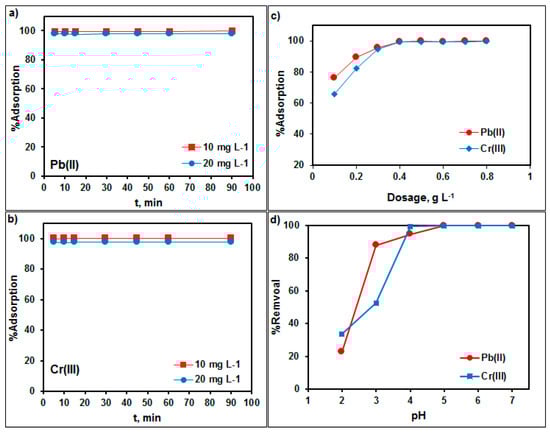

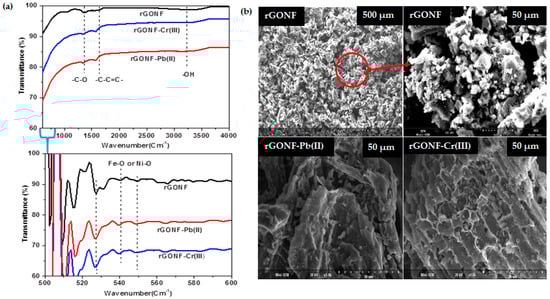

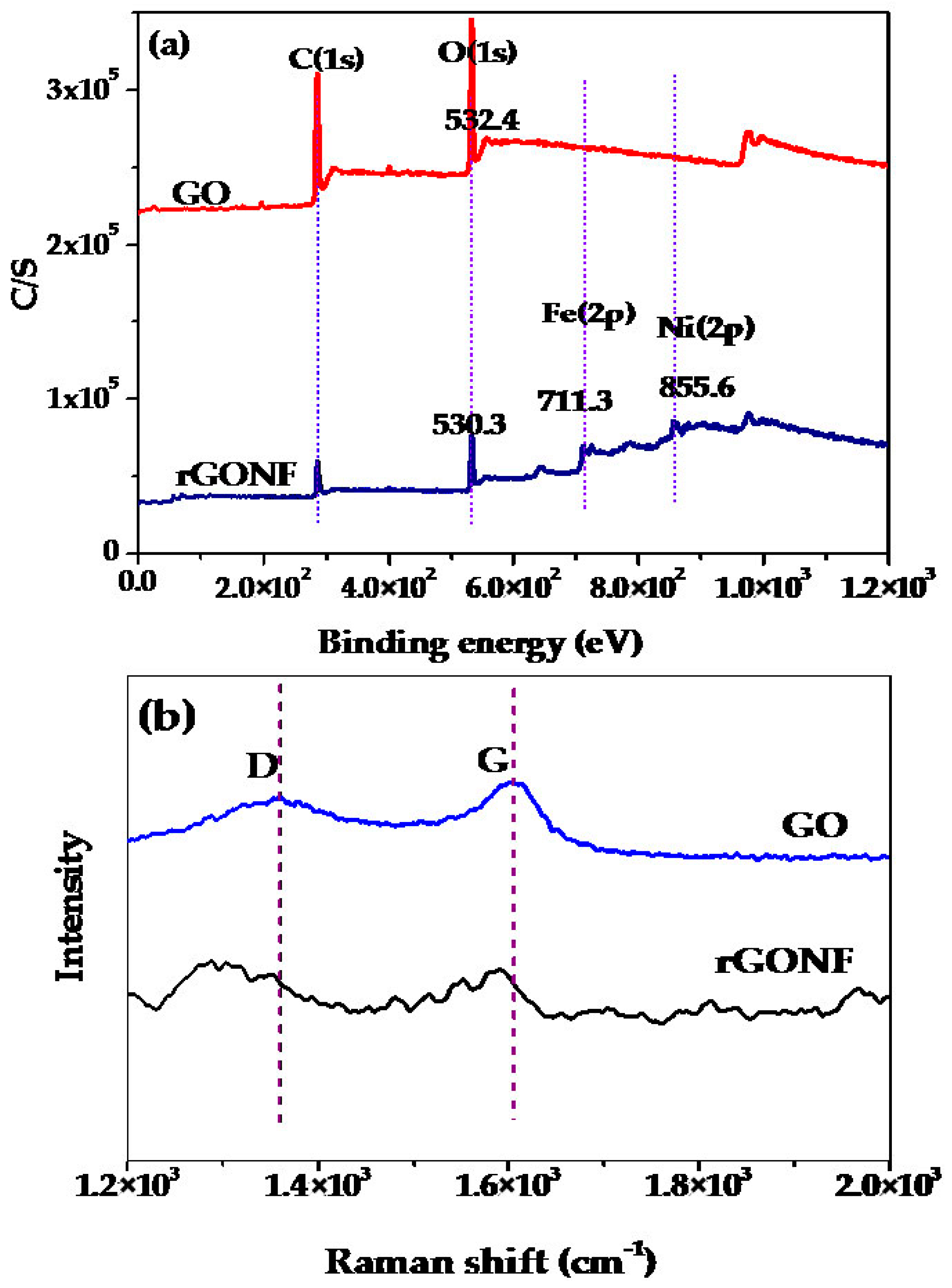

The heavy metals, such as Pb(II) and radioisotope Cr(III), in aqueous solutions are toxic even at trace levels and have caused adverse health impacts on human beings. Hence the removal of these heavy metals from the aqueous environment is of the utmost importance to protect biodiversity, hydrosphere ecosystems, and human beings. In this study, the reduced graphene oxide based inverse spinel nickel ferrite (rGONF) nanocomposite has been prepared and was utilized for the removal of Pb(II) and Cr(III) from aqueous solutions. The prepared rGONF has been confirmed by X-ray photoelectron (XPS) and Raman spectroscopy. The surface characteristics of rGONF were measured by scanning electron microscopy (SEM), High-Resolution Transmission Electron Microscope (HR-TEM), and Brunauer-Emmett-Teller (BET) surface analysis. The average particle size of rGONF was found to be 32.0 ± 2.0 nm. The surface site density for the specific surface area (Ns) of rGONF was found to be 0.00238 mol·g−1, which was higher than that of the graphene oxide (GO) and NiFe2O4, which was expected. The prepared rGONF has been successfully applied for the removal of Pb(II) and Cr(III) by batch mode. The batch adsorption studies concluded that the adsorption of Pb(II) and Cr(III) onto rGONF was rapid and the adsorption percentage was more than 99% for both metal ions. The adsorption isotherm results found that the adsorptive removal of both metal ions onto rGONF occurred through monolayer adsorption on a homogeneous surface of rGONF. The pH-edge adsorption results suggest the adsorption occurs through an inner-sphere surface complex, which is proved by 2-pKa-diffusion model fitting, where the pH-edge adsorption data was well fitted. The adsorption of metal ions increased with increasing temperature. The overall obtained results demonstrated that the rGONF was an effective adsorbent for Pb(II) and Cr(III) removal from wastewater. View Full-Text
Keywords: adsorption; heavy metals; reduced graphene oxide; nickel ferrite; magnetic materials; nanocomposites adsorption; heavy metals; reduced graphene oxide; nickel ferrite; magnetic materials; nanocomposites

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
