Next Article in Journal
Surface Characteristics and Fatigue Behavior of Gradient Nano-Structured Magnesium Alloy
Next Article in Special Issue
Comparison of Single Ti6Al4V Struts Made Using Selective Laser Melting and Electron Beam Melting Subject to Part Orientation
Previous Article in Journal
DFT Investigation of the Effects of Coexisting Cations and Complexing Reagents on Ni(II) Adsorption by a Polyvinylidene Fluoride-Type Chelating Membrane Bearing Poly(Amino Phosphonic Acid) Groups
Previous Article in Special Issue
Selective Laser Melting of Magnesium and Magnesium Alloy Powders: A Review
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Metals 2017, 7(2), 64; doi:10.3390/met7020064

Investigation on Porosity and Microhardness of 316L Stainless Steel Fabricated by Selective Laser Melting

1
Materials Research Group, Faculty of Engineering and the Environment, University of Southampton, Southampton SO17 1BJ, UK
2
VIS X-Ray Imaging Centre, Faculty of Engineering and The Environment, University of Southampton, Southampton SO17 1 BJ, UK
*
Author to whom correspondence should be addressed.
Received: 5 January 2017 / Accepted: 15 February 2017 / Published: 20 February 2017
(This article belongs to the Special Issue 3D Printing of Metals)
View Full-Text   |   Download PDF [4243 KB, uploaded 23 February 2017]   |

Abstract

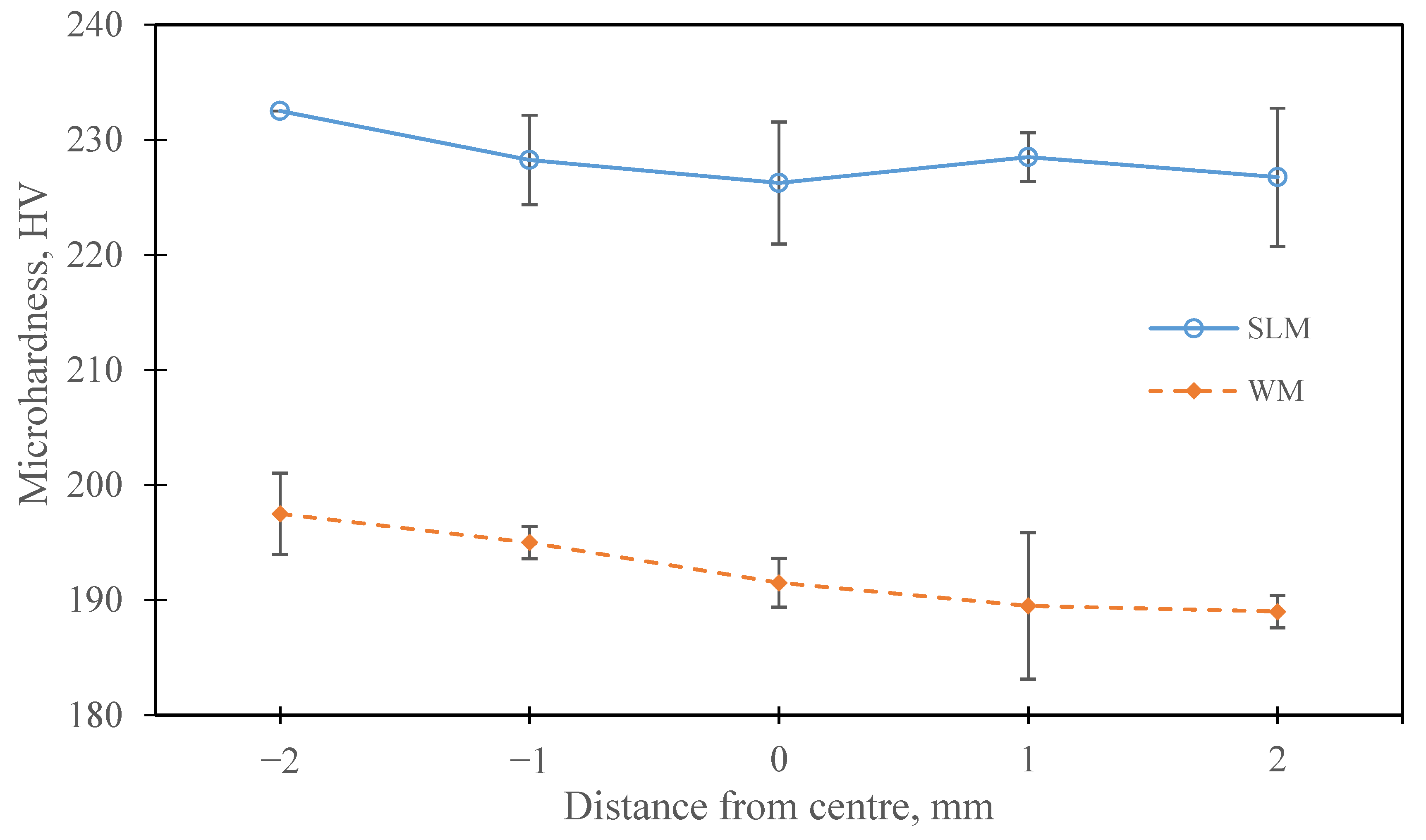

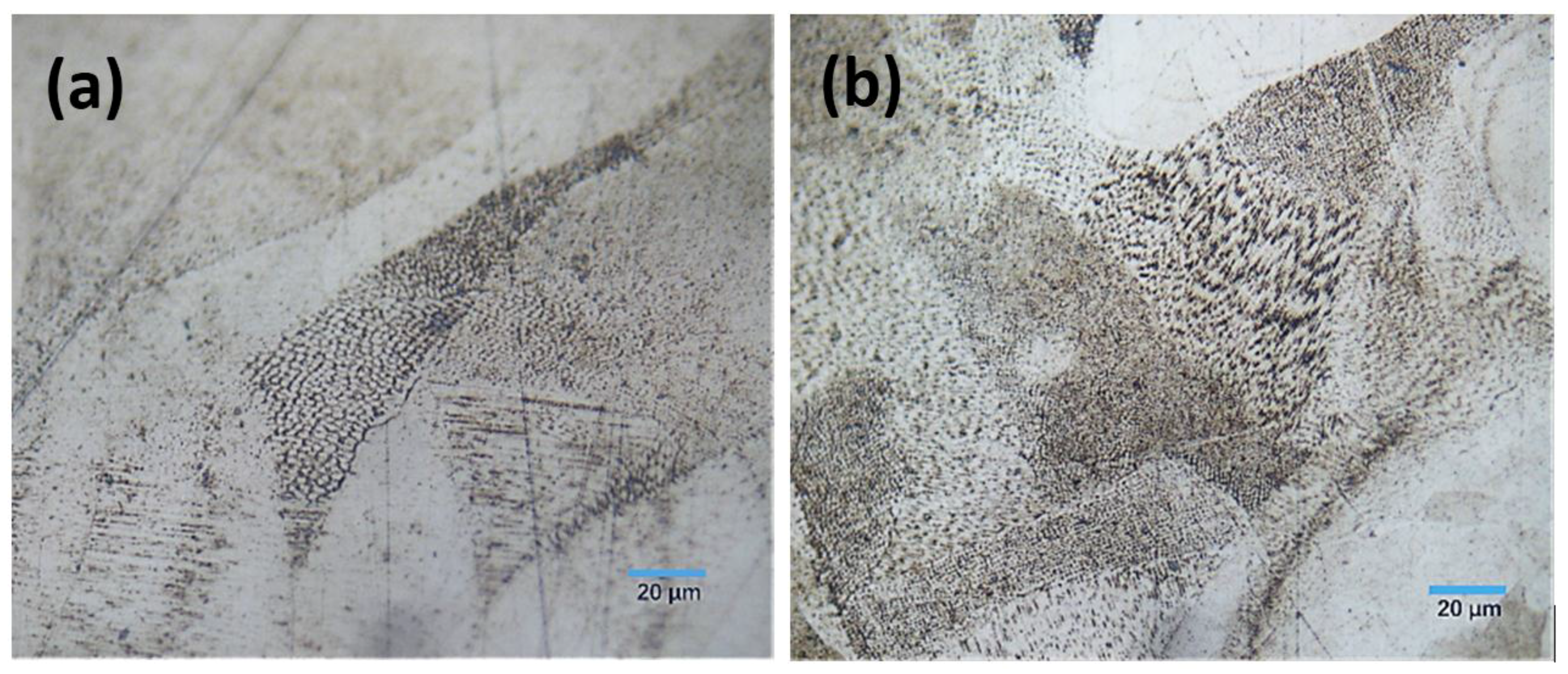

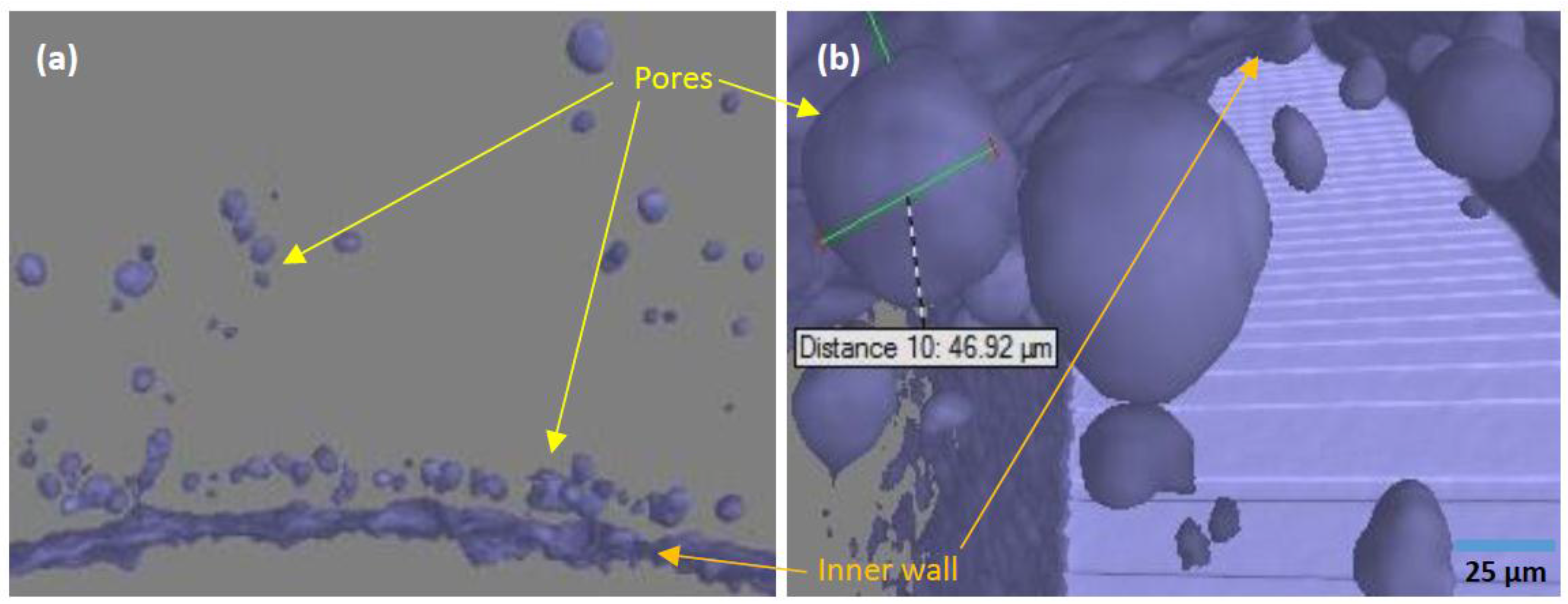

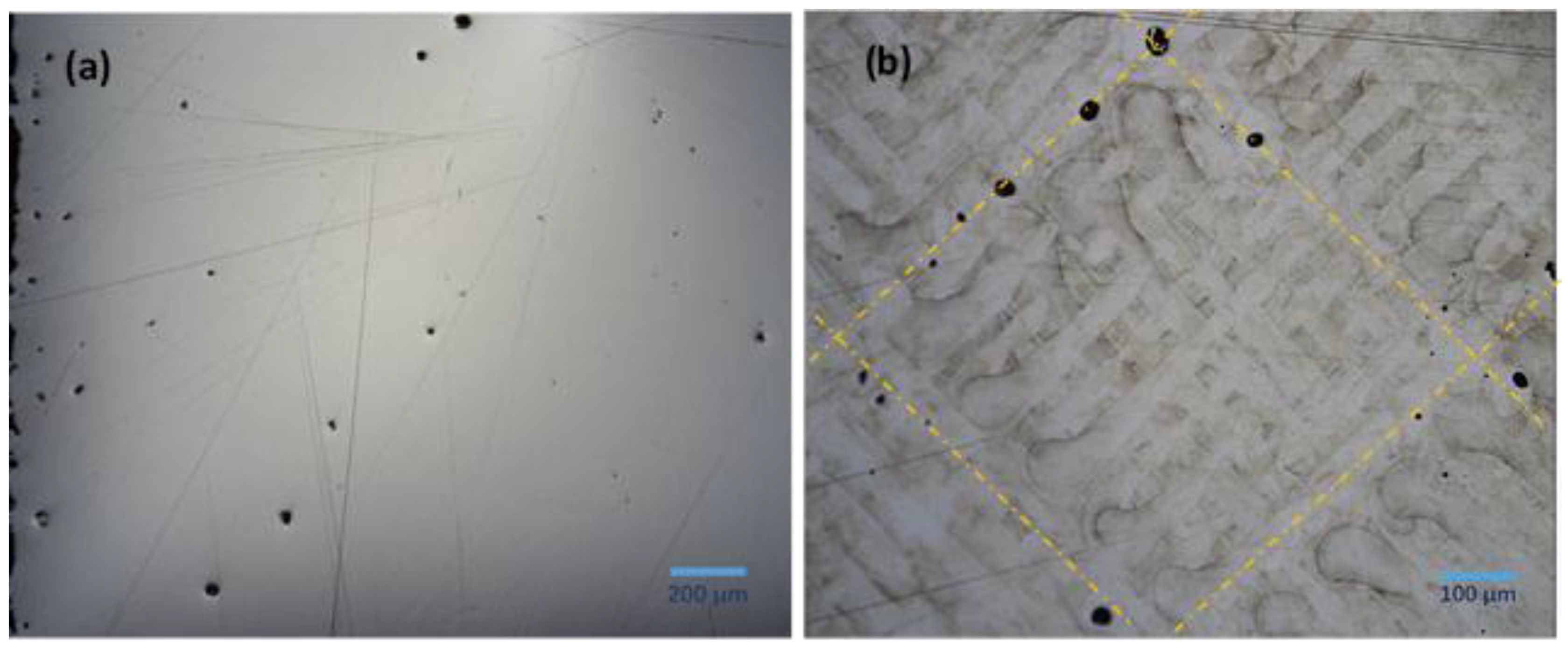

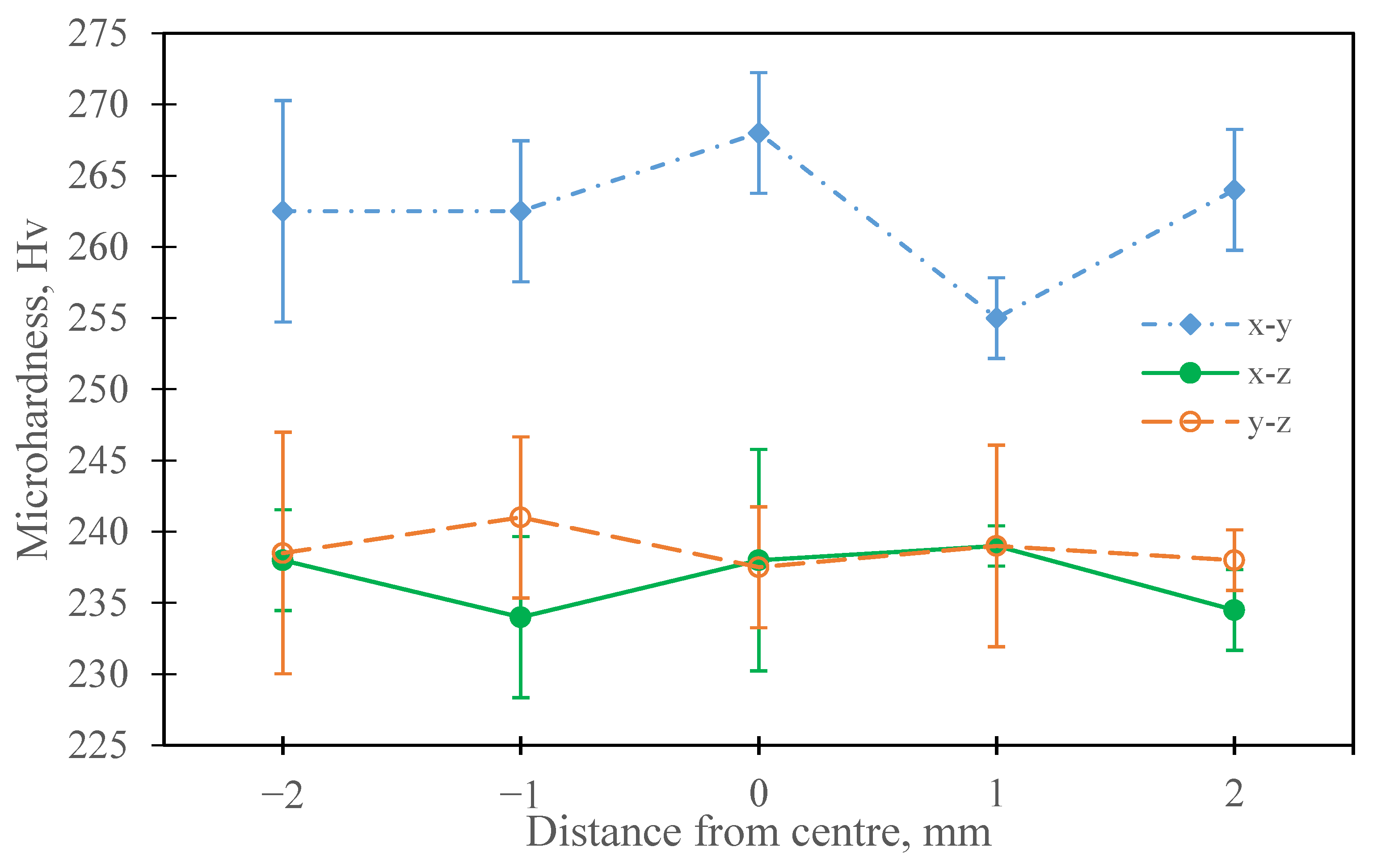

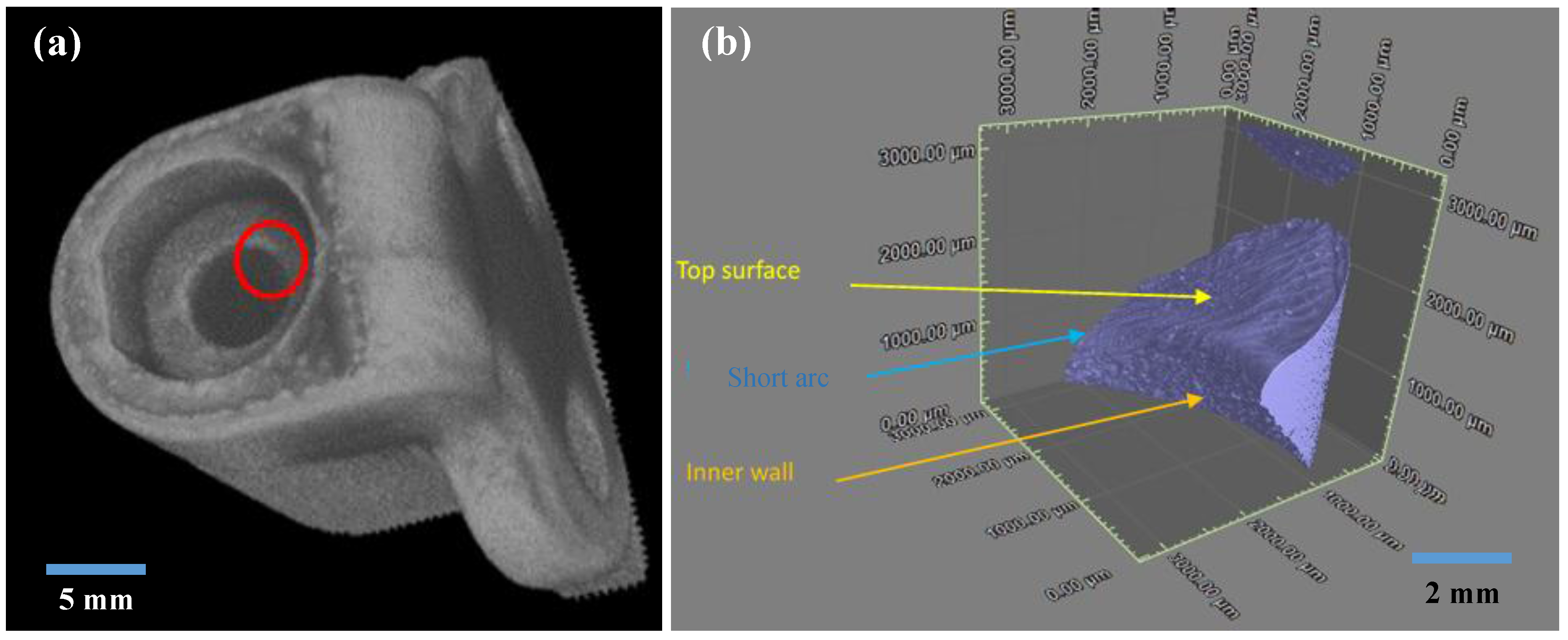

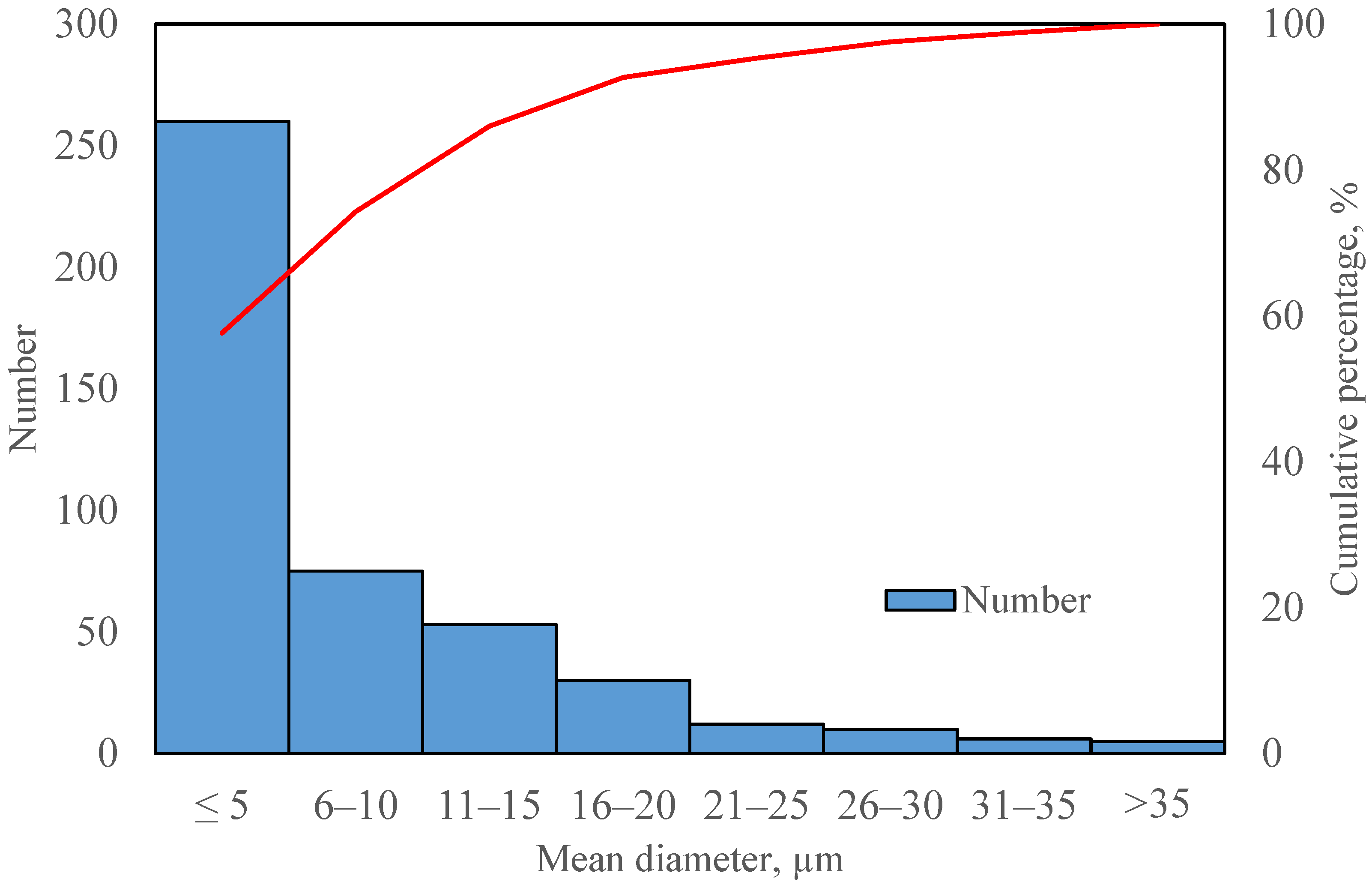

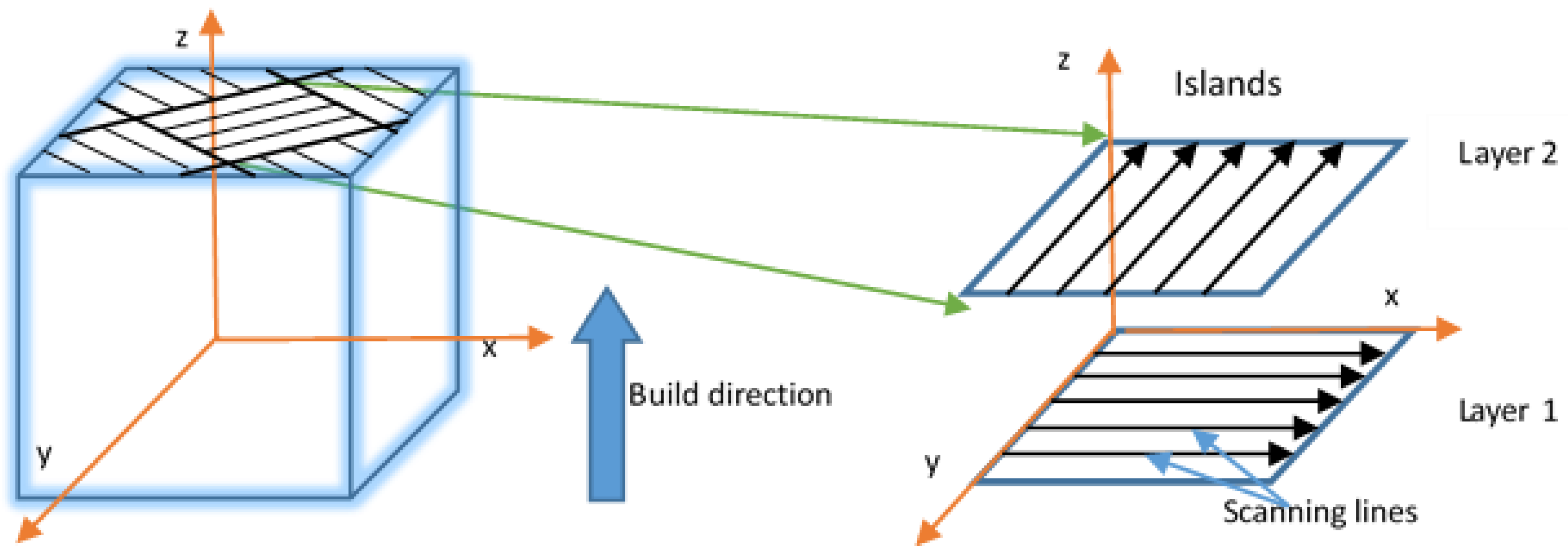

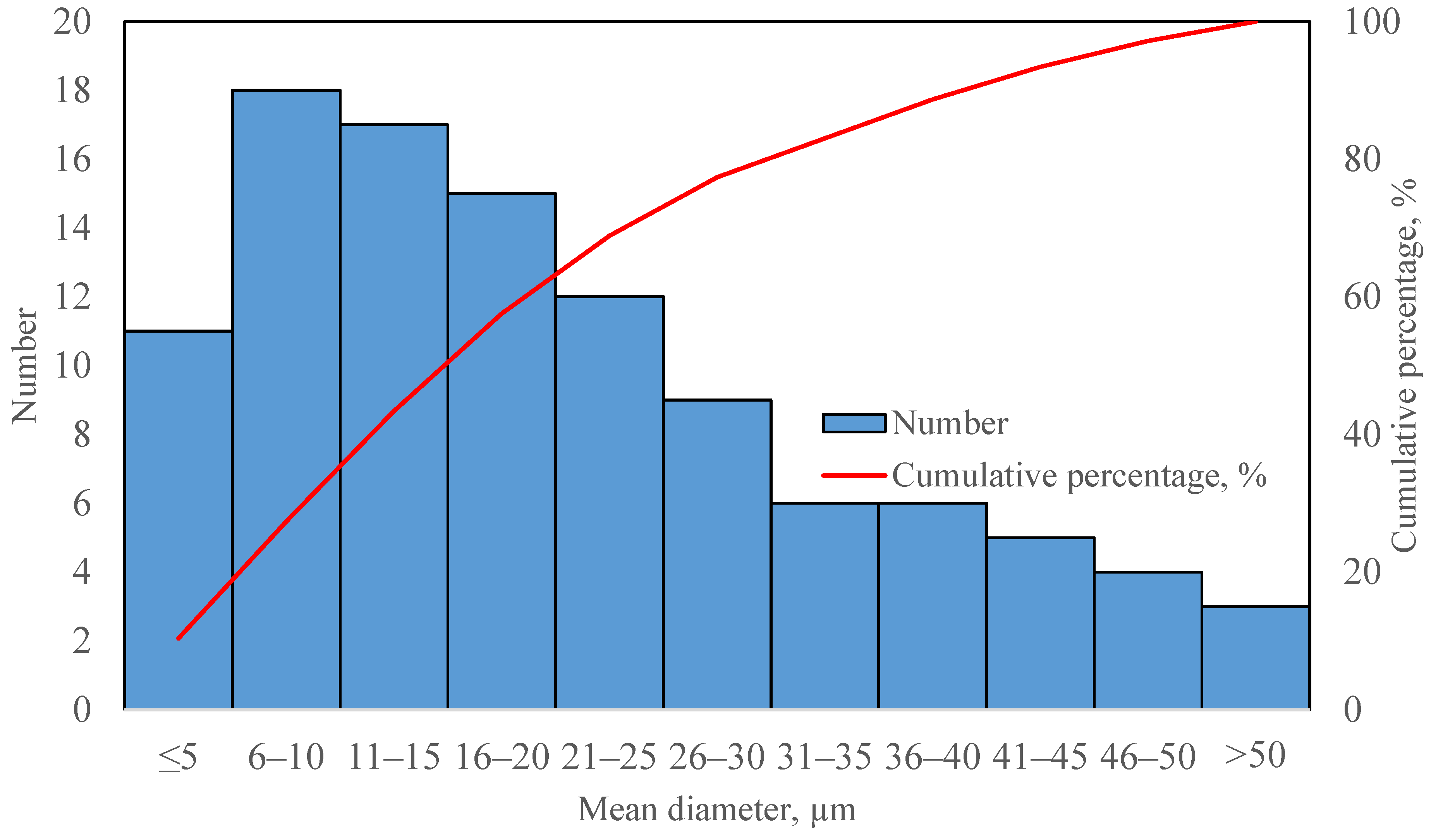

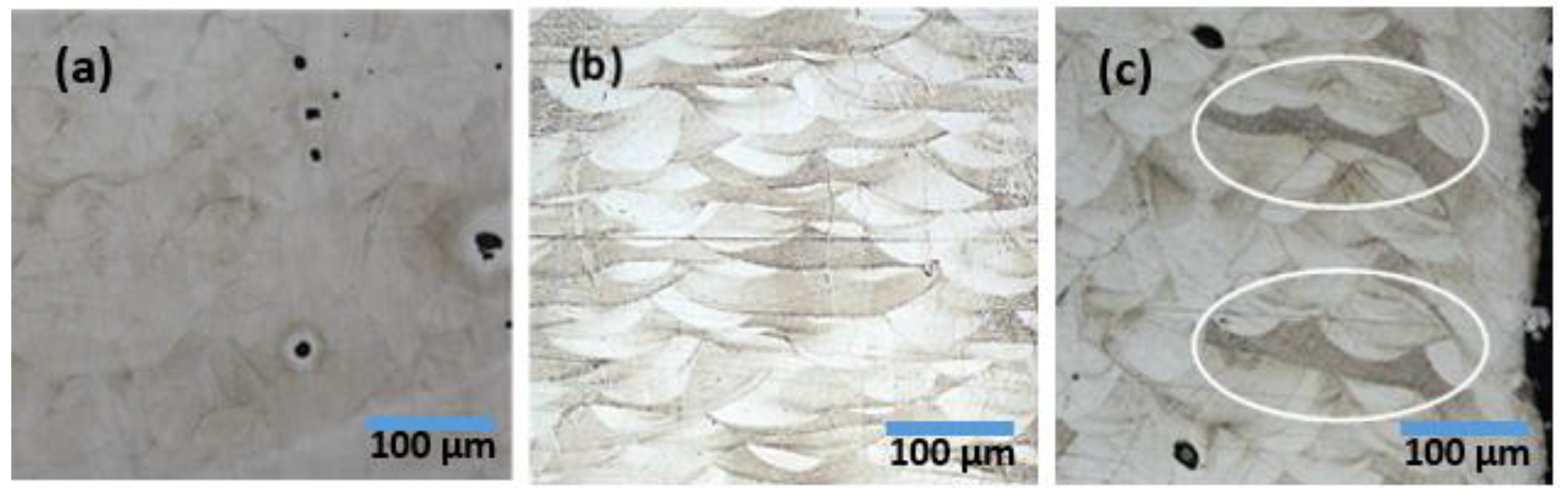

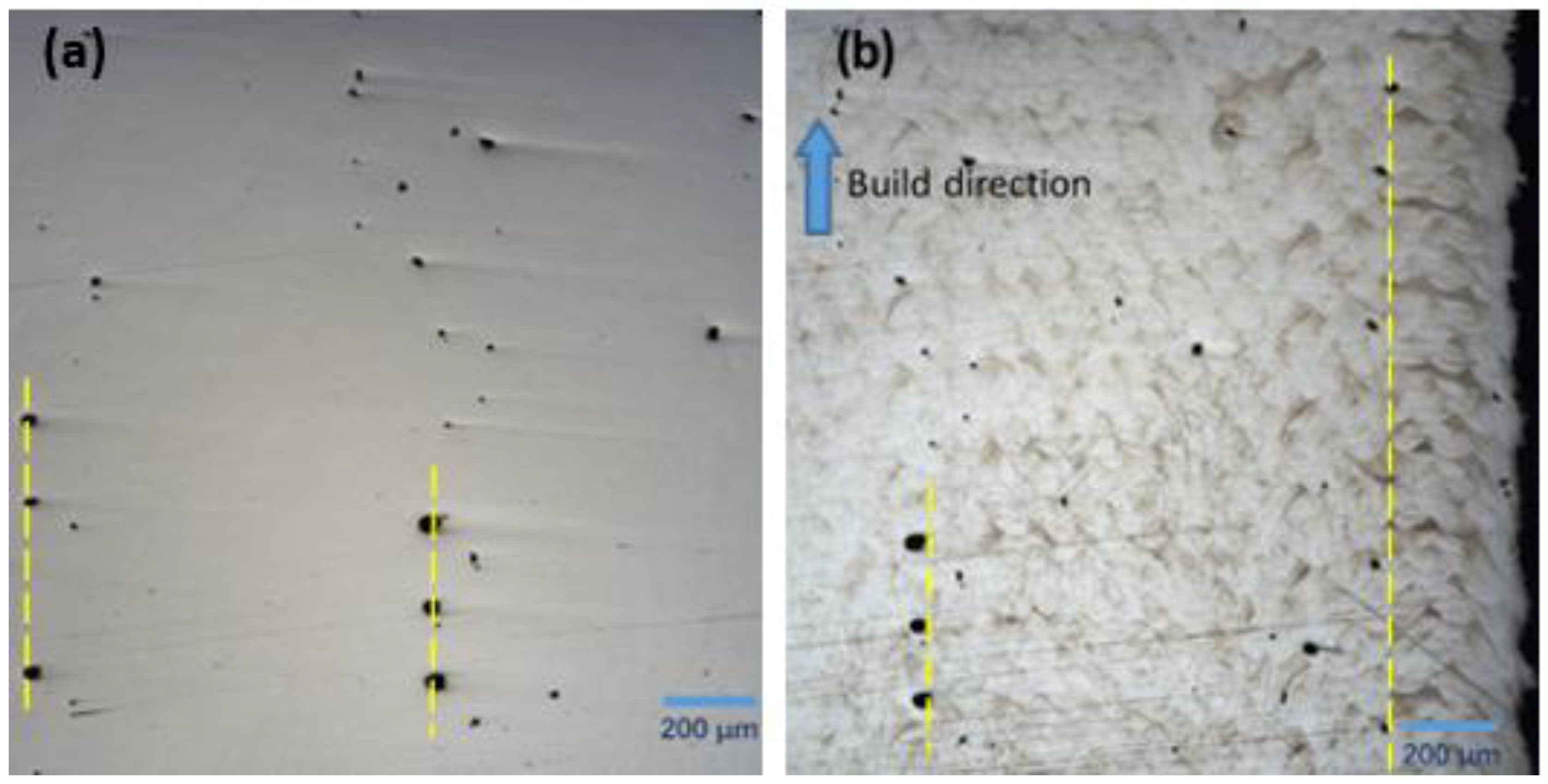

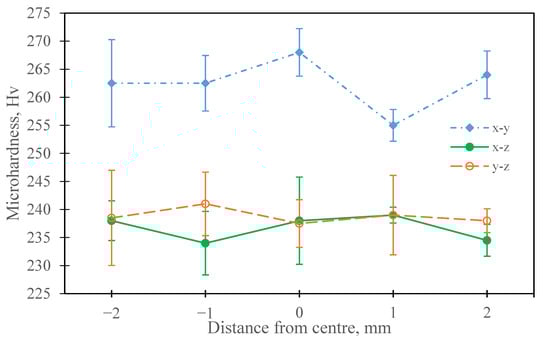

This study investigates the porosity and microhardness of 316L stainless steel samples fabricated by selective laser melting (SLM). The porosity content was measured using the Archimedes method and the advanced X-ray computed tomography (XCT) scan. High densification level (≥99%) with a low average porosity content (~0.82%) were obtained from the Archimedes method. The highest porosity content in the XCT-scanned sample was ~0.61. However, the pores in the SLM samples for both cases (optical microscopy and XCT) were not uniformly distributed. The higher average microhardness values in the SLM samples compared to the wrought manufactured counterpart are attributed to the fine microstructures from the localised melting and rapid solidification rate of the SLM process. View Full-Text
Keywords: porosity; microhardness; Selective Laser Melting (SLM); advanced X-ray computed tomography (XCT) porosity; microhardness; Selective Laser Melting (SLM); advanced X-ray computed tomography (XCT)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Yusuf, S.M.; Chen, Y.; Boardman, R.; Yang, S.; Gao, N. Investigation on Porosity and Microhardness of 316L Stainless Steel Fabricated by Selective Laser Melting. Metals 2017, 7, 64.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
