Nanoporous Microtubes via Oxidation and Reduction of Cu–Ni Commercial Wires

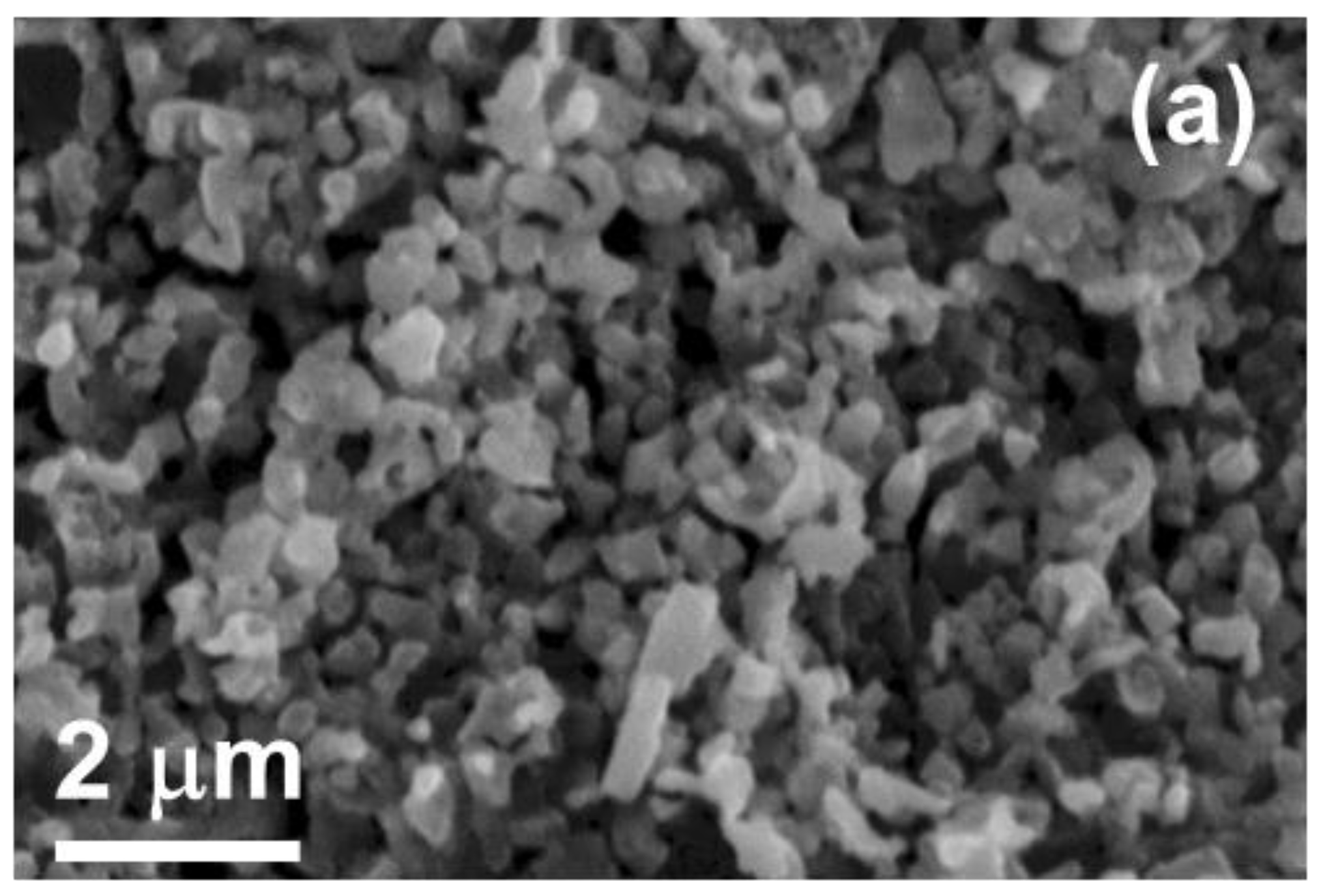

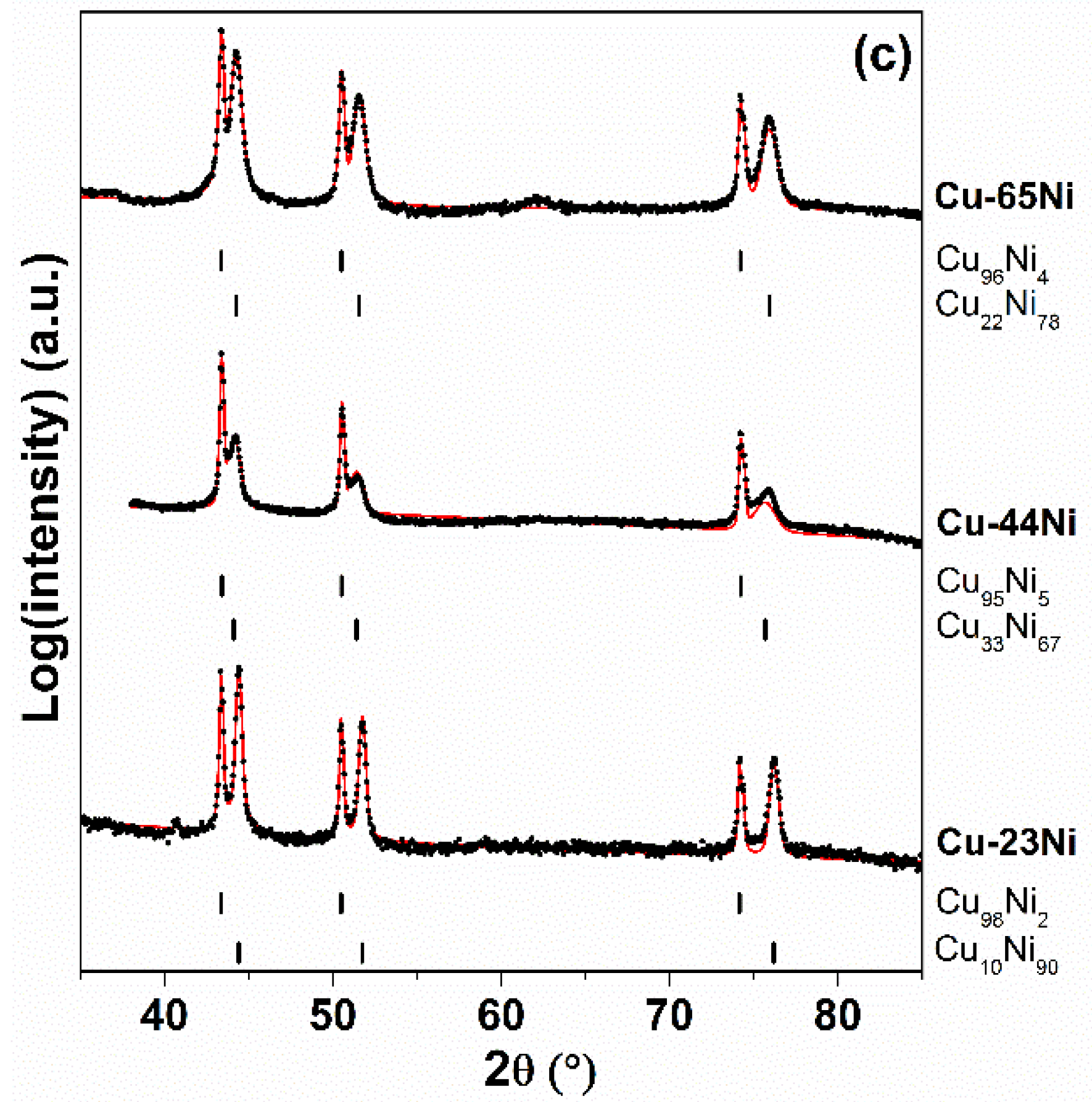

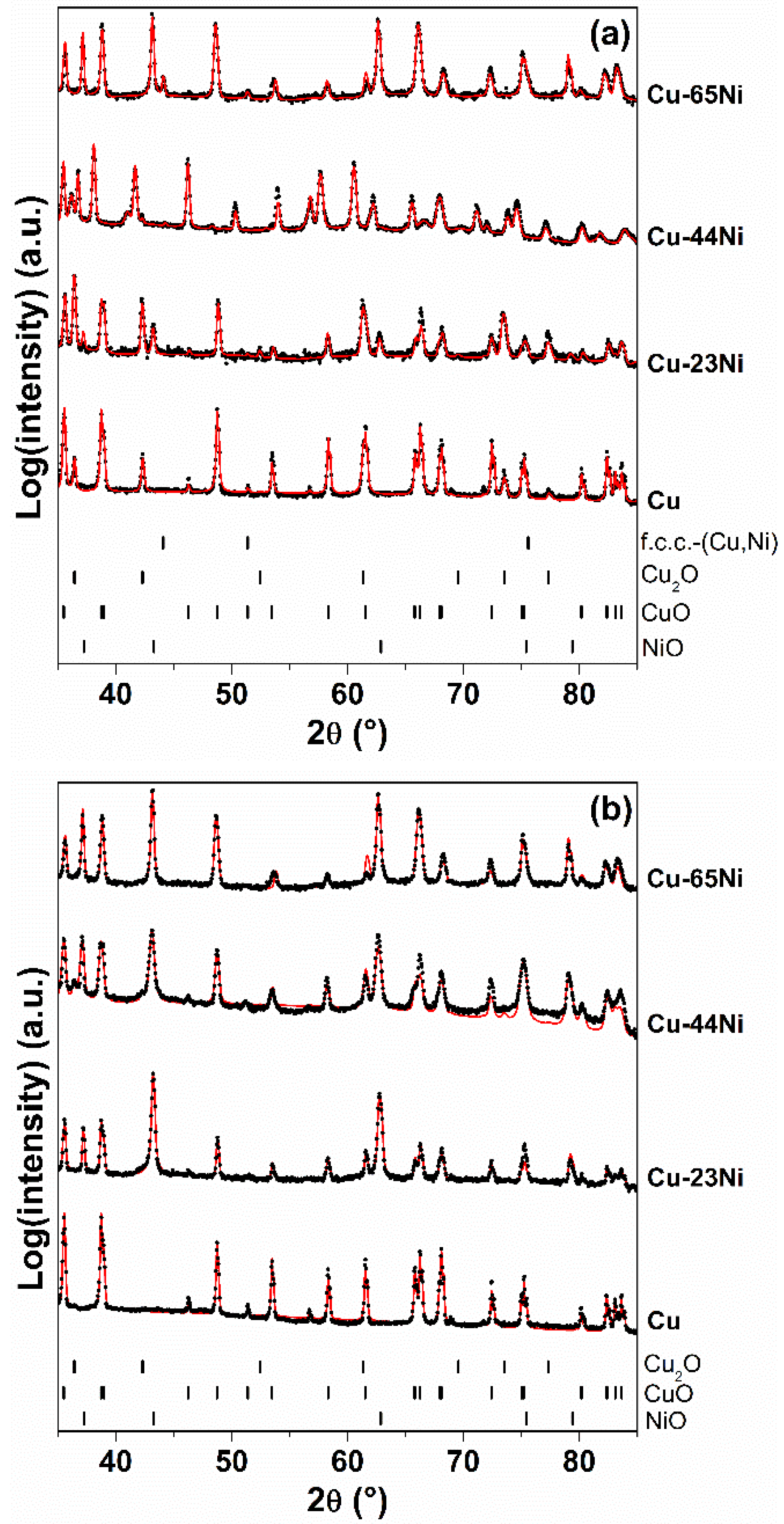

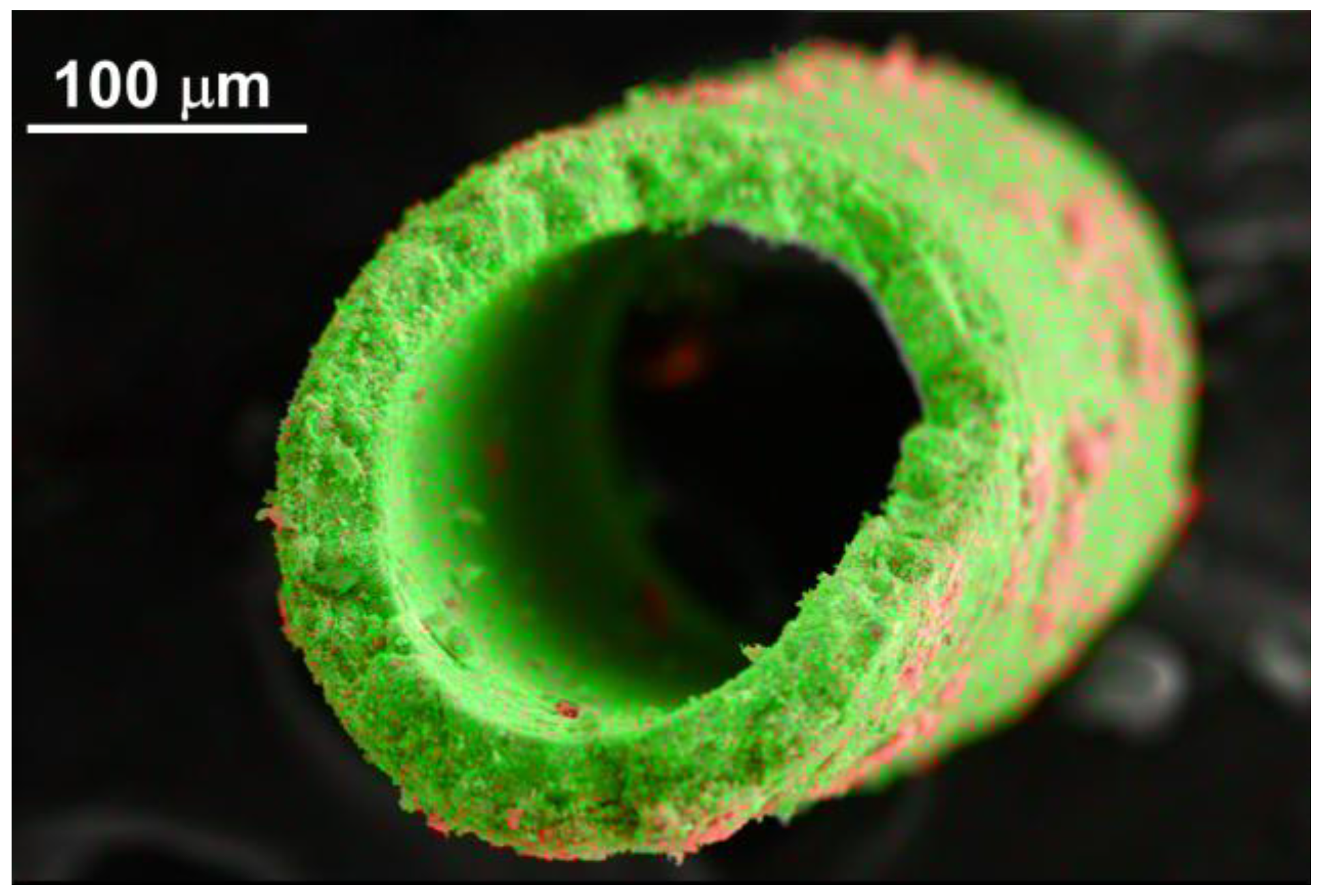

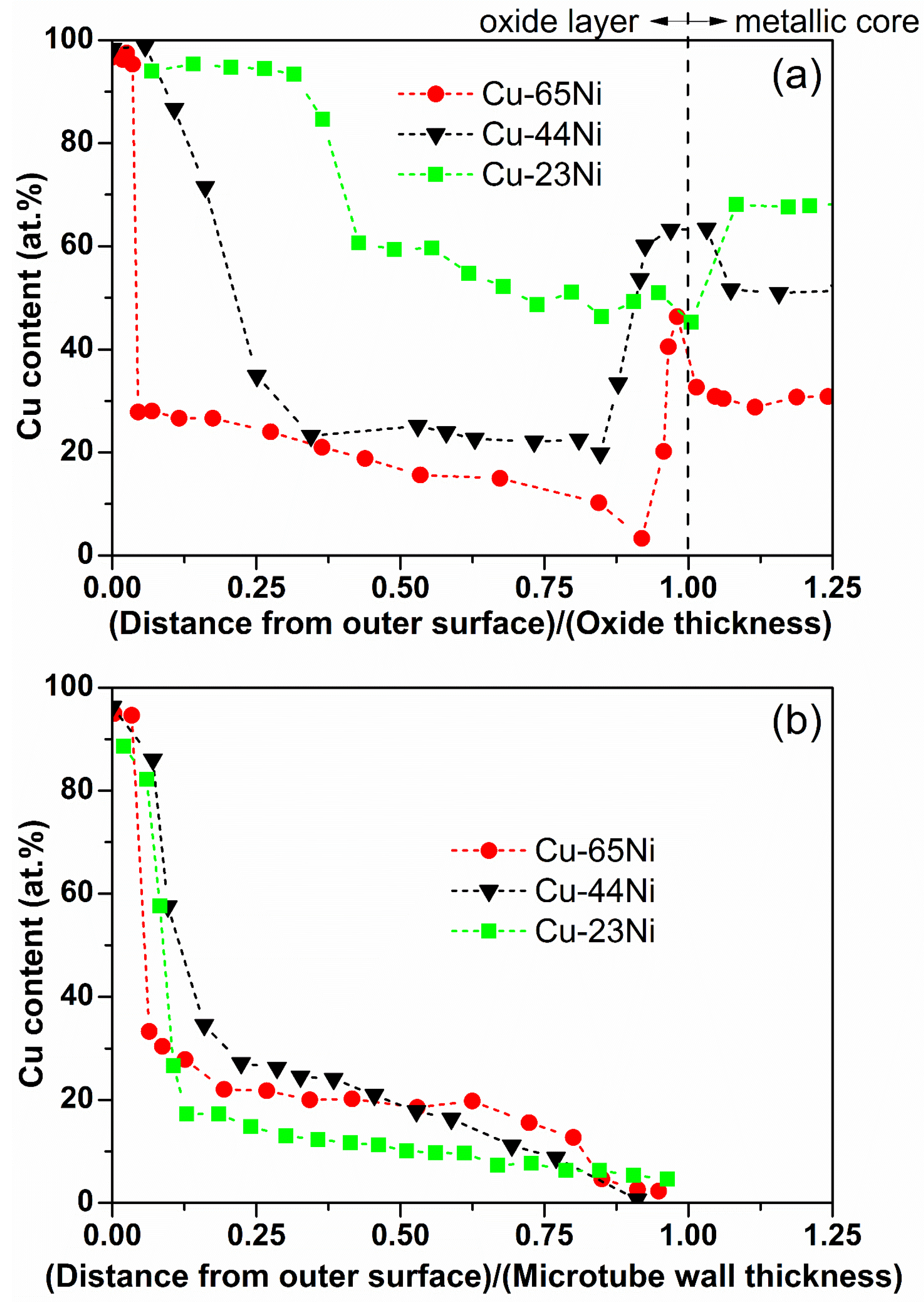

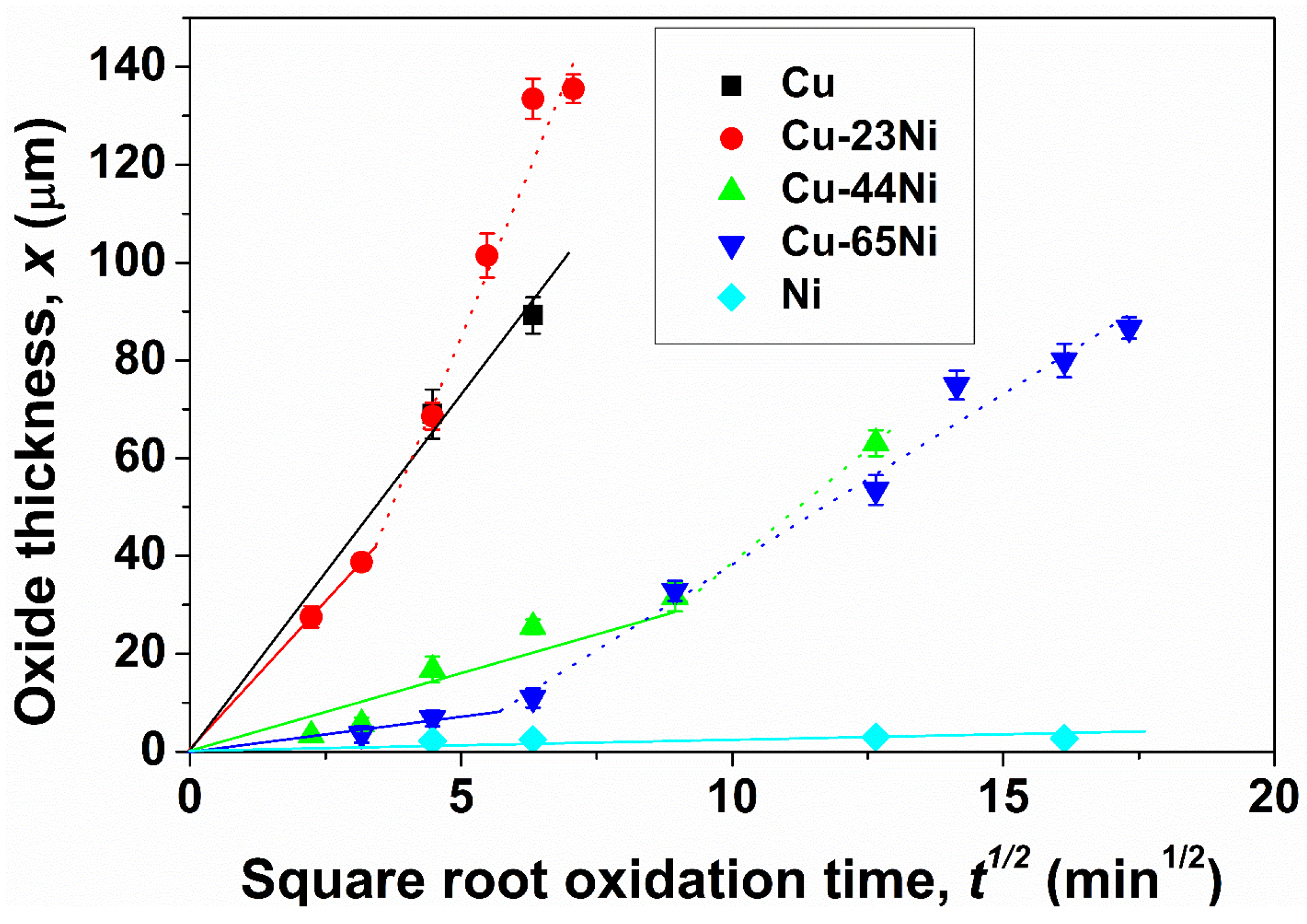

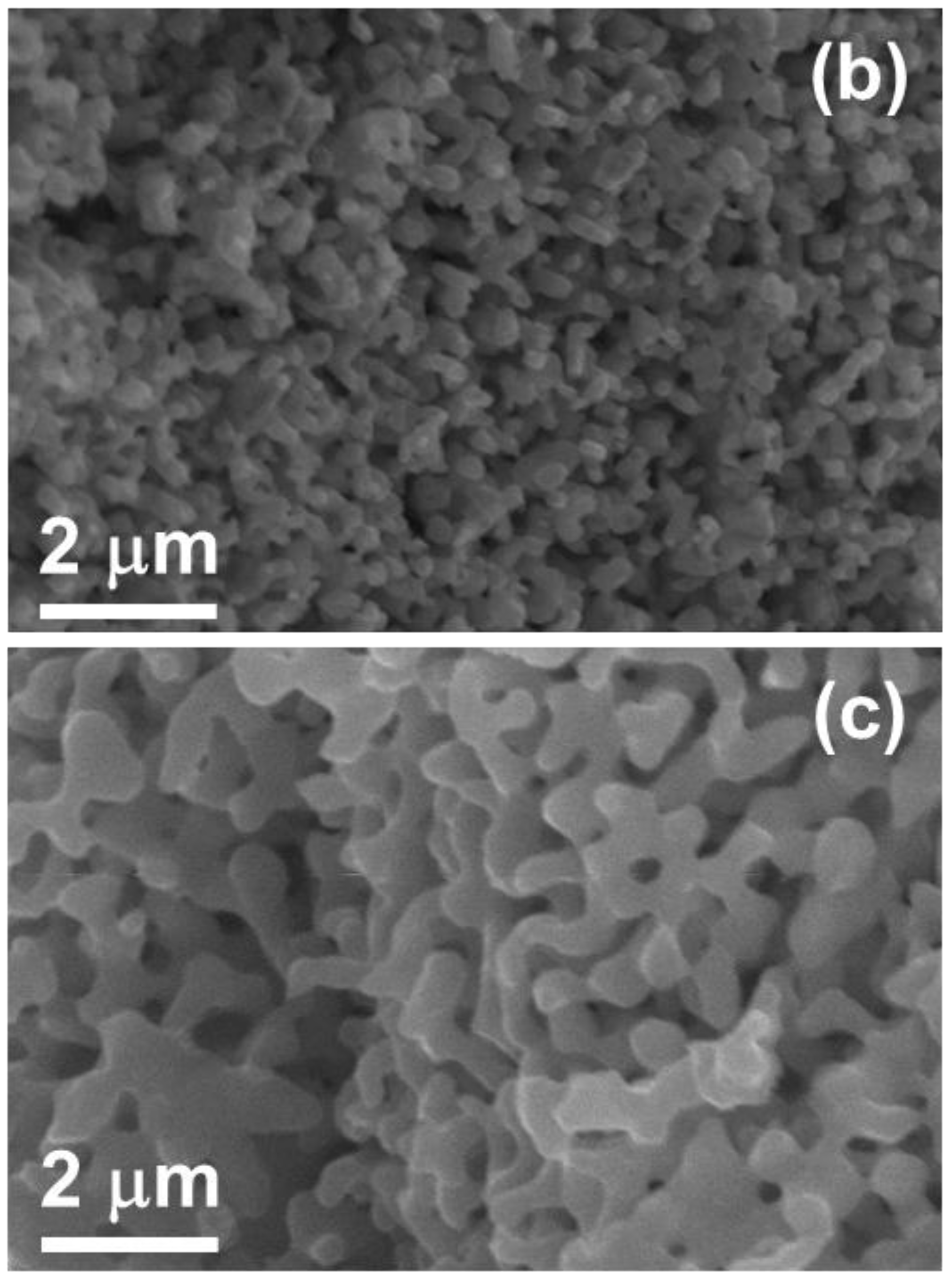

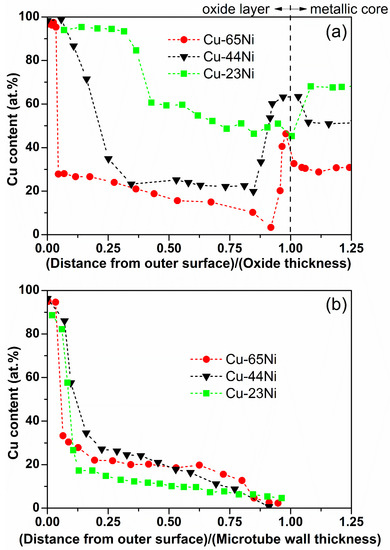

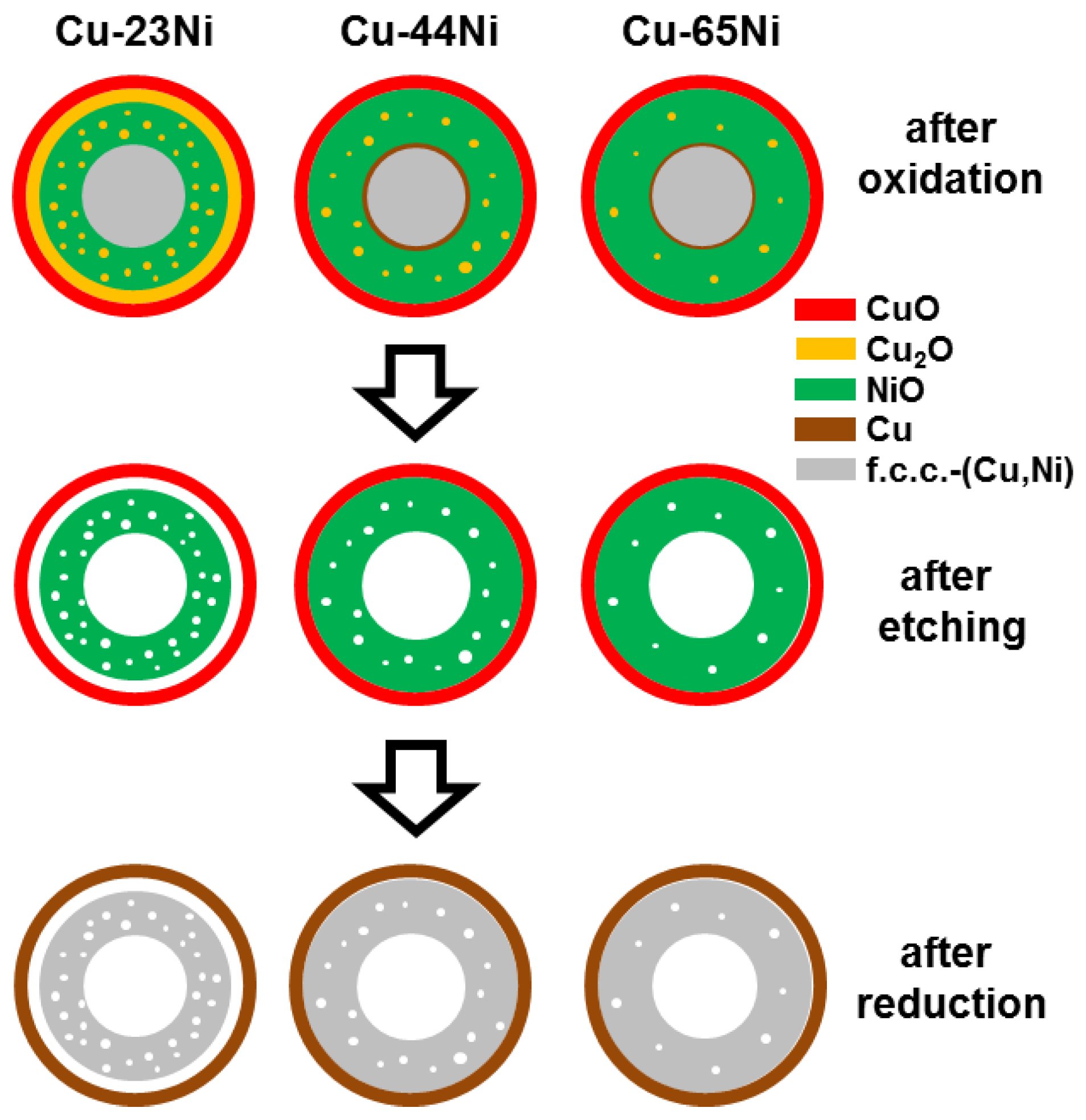

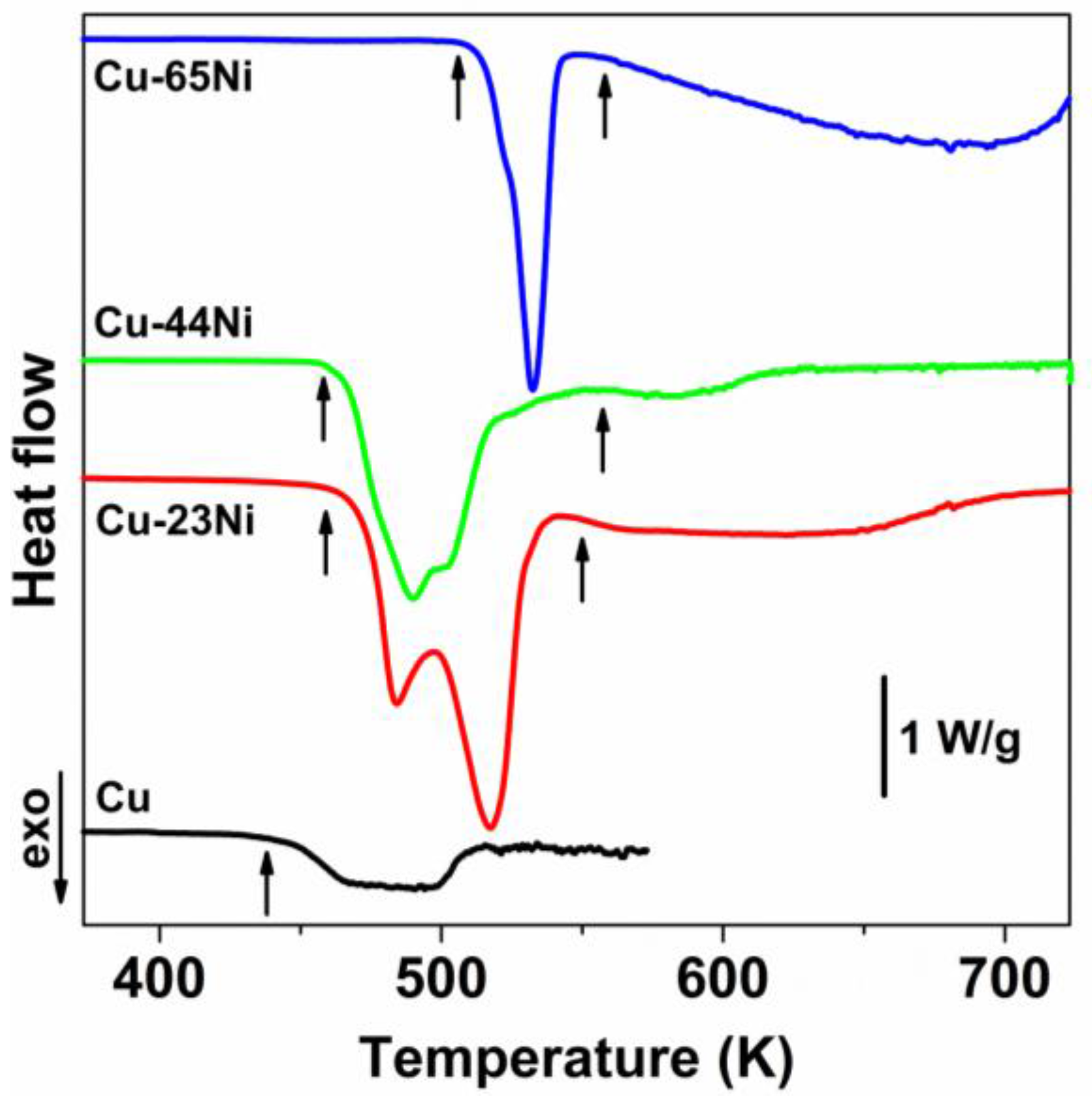

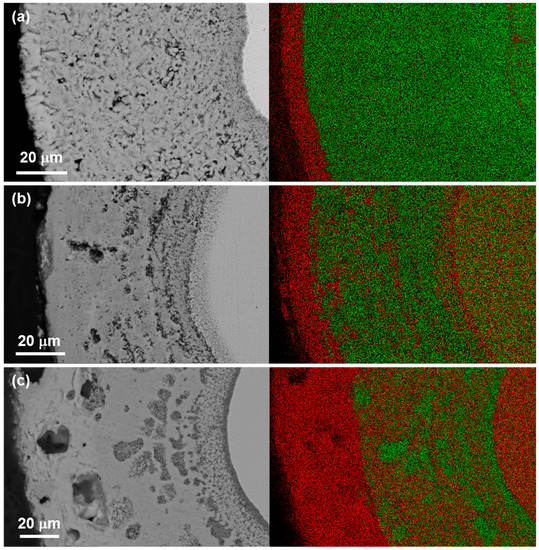

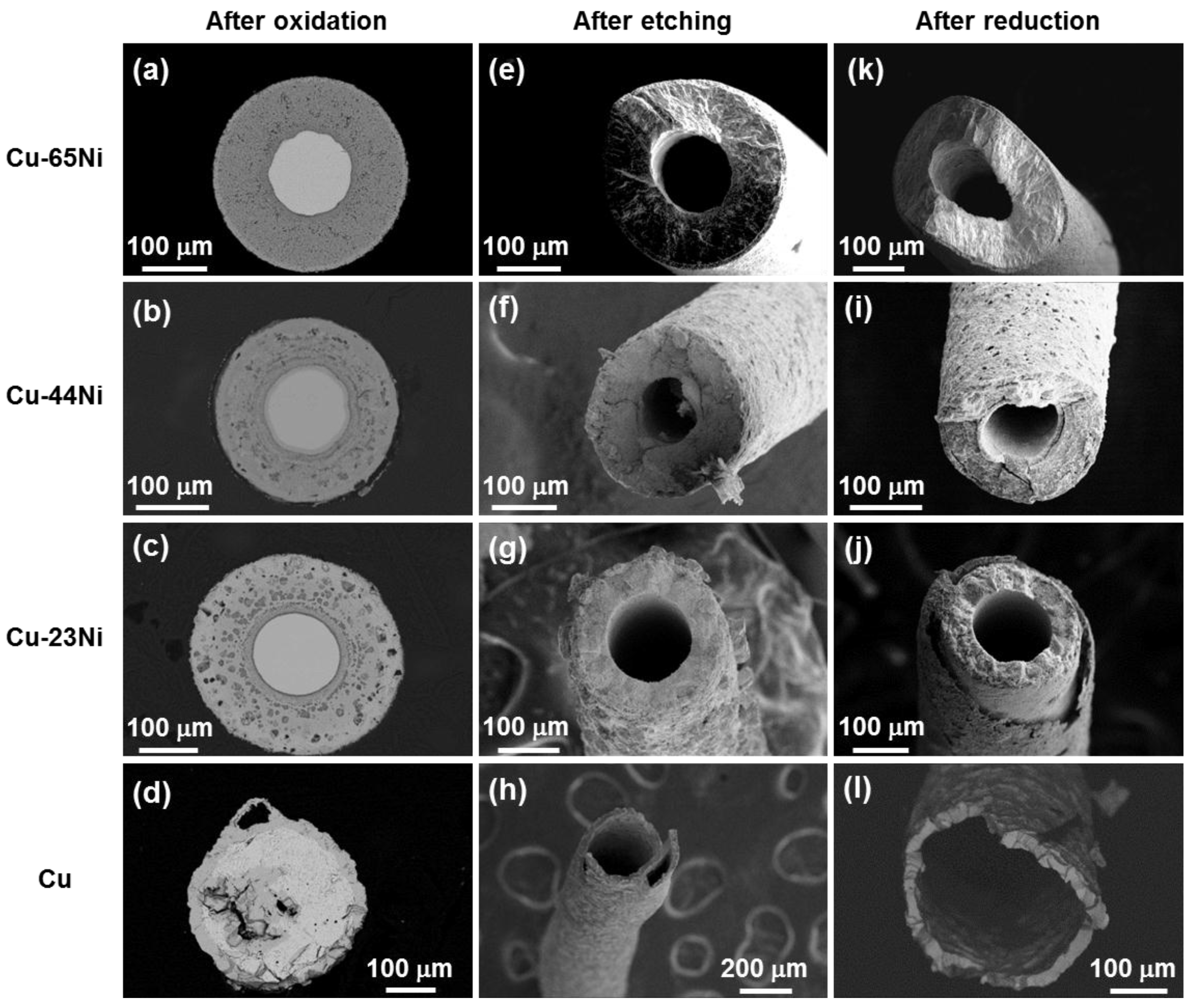

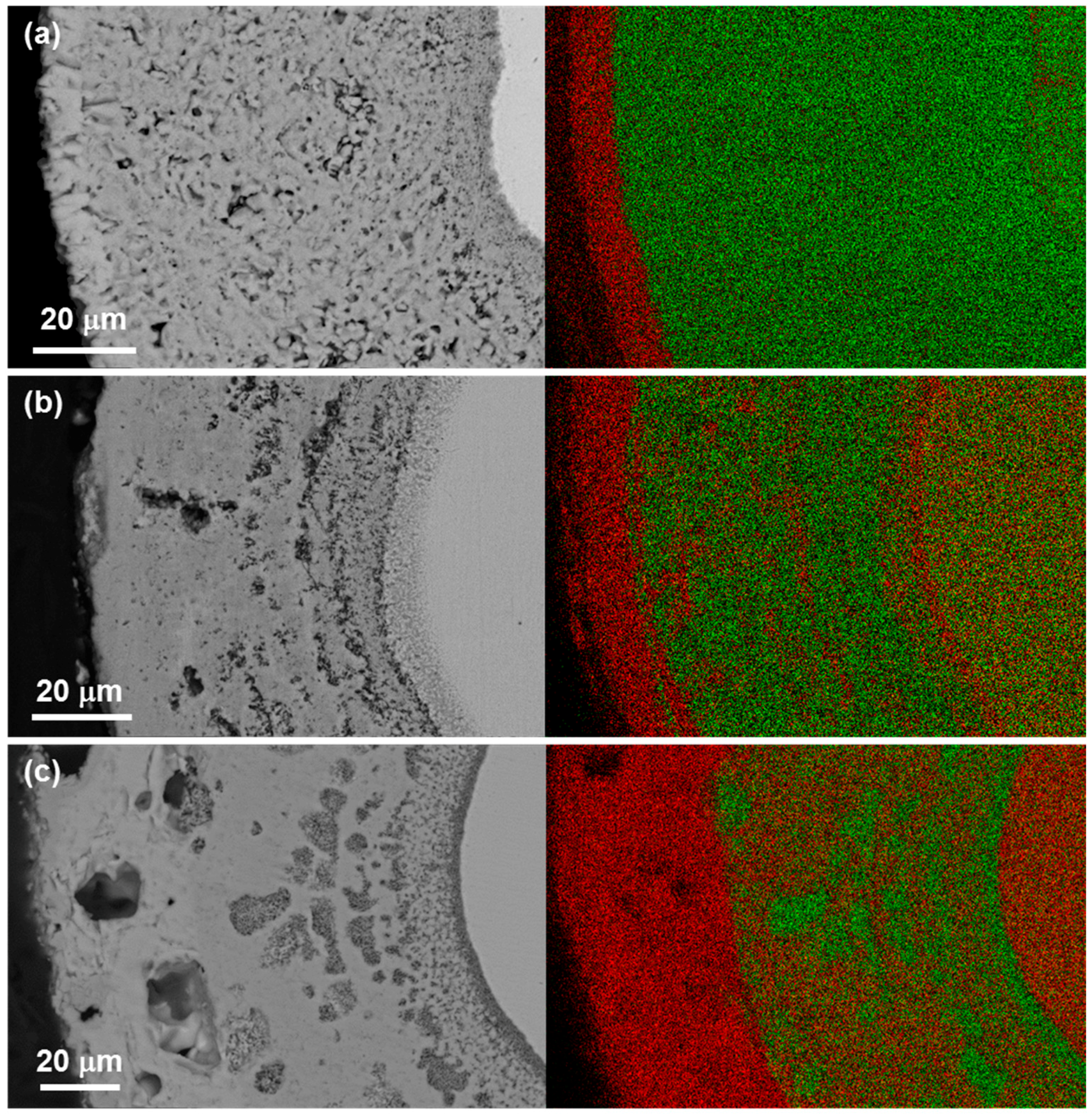

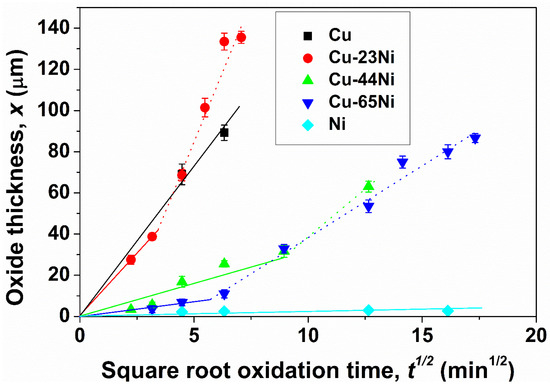

AbstractMetallic porous microtubes were obtained from commercial wires (200–250 µm diameter) of Cu-65Ni-2Fe, Cu-44Ni-1Mn and Cu-23Ni, alloys (wt. %) by surface oxidation at 1173 K in air, removal of the unoxidized core by chemical etching, and reduction in annealing in the hydrogen atmosphere. Transversal sections of the partially oxidized wires show a porous layered structure, with an external shell of CuO (about 10 μm thick) and an inner layer of NiO (70–80 μm thick). In partially oxidized Cu-44Ni-1Mn and Cu-23Ni, Cu2O is dispersed in NiO because the maximum solubility of Cu in NiO is exceeded, whereas in Cu-65Ni-2Fe, a Cu2O shell is present between CuO and NiO layers. Chemical etching removed the unoxidized metallic core and Cu2O with formation of porous oxide microtubes. Porosity increases with Cu content because of the larger amount of Cu2O in the partially oxidized wire. After reduction, the transversal sections of the metallic porous microtubes show a series of f.c.c.-(Cu,Ni) solid solutions with different compositions, due to the segregation of CuO and NiO during oxidation caused by the different diffusion coefficients of Ni and Cu in the respective oxides. Pore formation occurs at each step of the process because of the Kirkendall effect, selective phase removal and volume contraction. View Full-Text
Share & Cite This Article
Marano, E.F.; Castellero, A.; Baricco, M. Nanoporous Microtubes via Oxidation and Reduction of Cu–Ni Commercial Wires. Metals 2017, 7, 46.
Marano EF, Castellero A, Baricco M. Nanoporous Microtubes via Oxidation and Reduction of Cu–Ni Commercial Wires. Metals. 2017; 7(2):46.Chicago/Turabian Style
Marano, Emanuele F.; Castellero, Alberto; Baricco, Marcello. 2017. "Nanoporous Microtubes via Oxidation and Reduction of Cu–Ni Commercial Wires." Metals 7, no. 2: 46.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
