Contact Properties and Wear Behaviour of Nickel Based Superalloy René 80

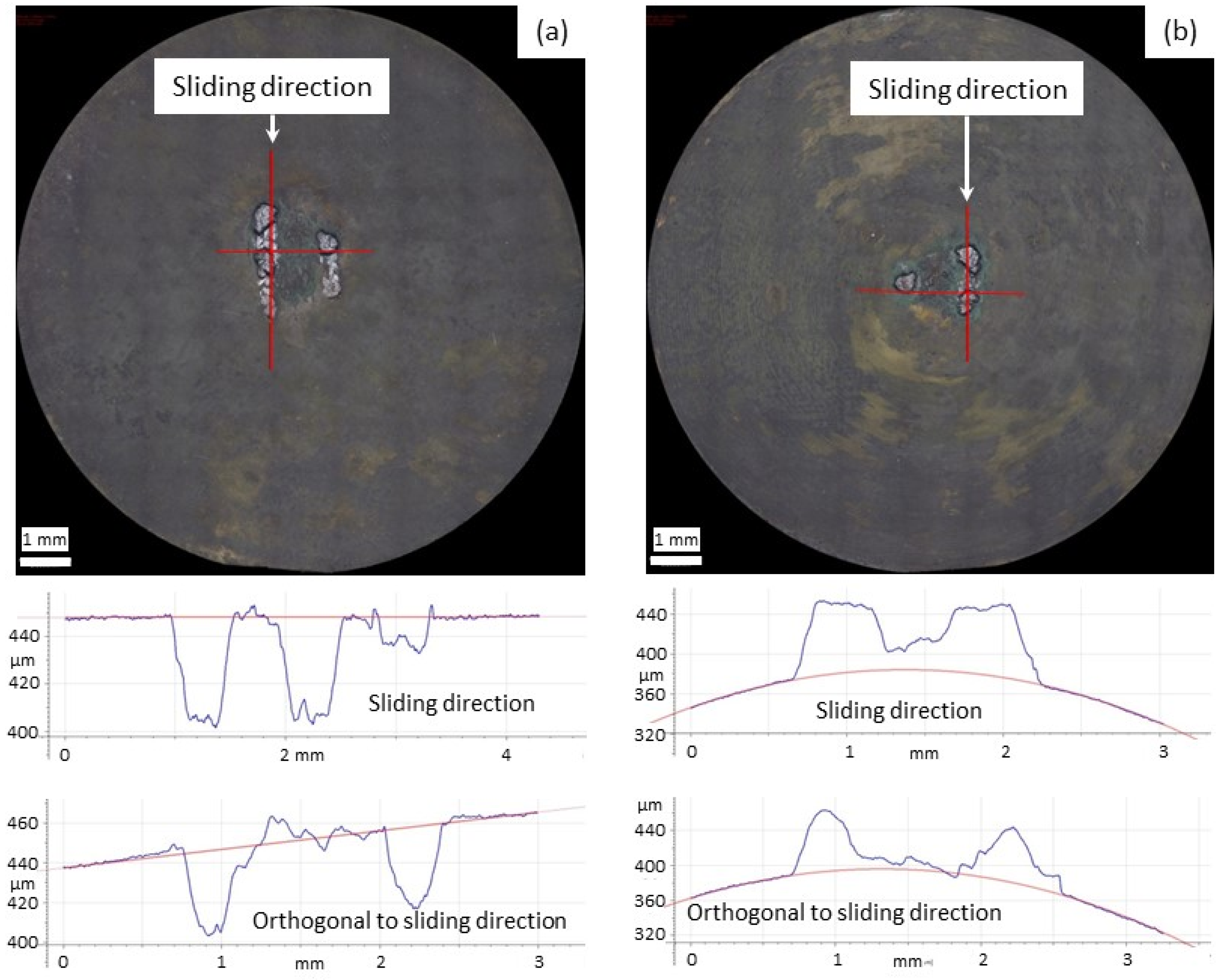

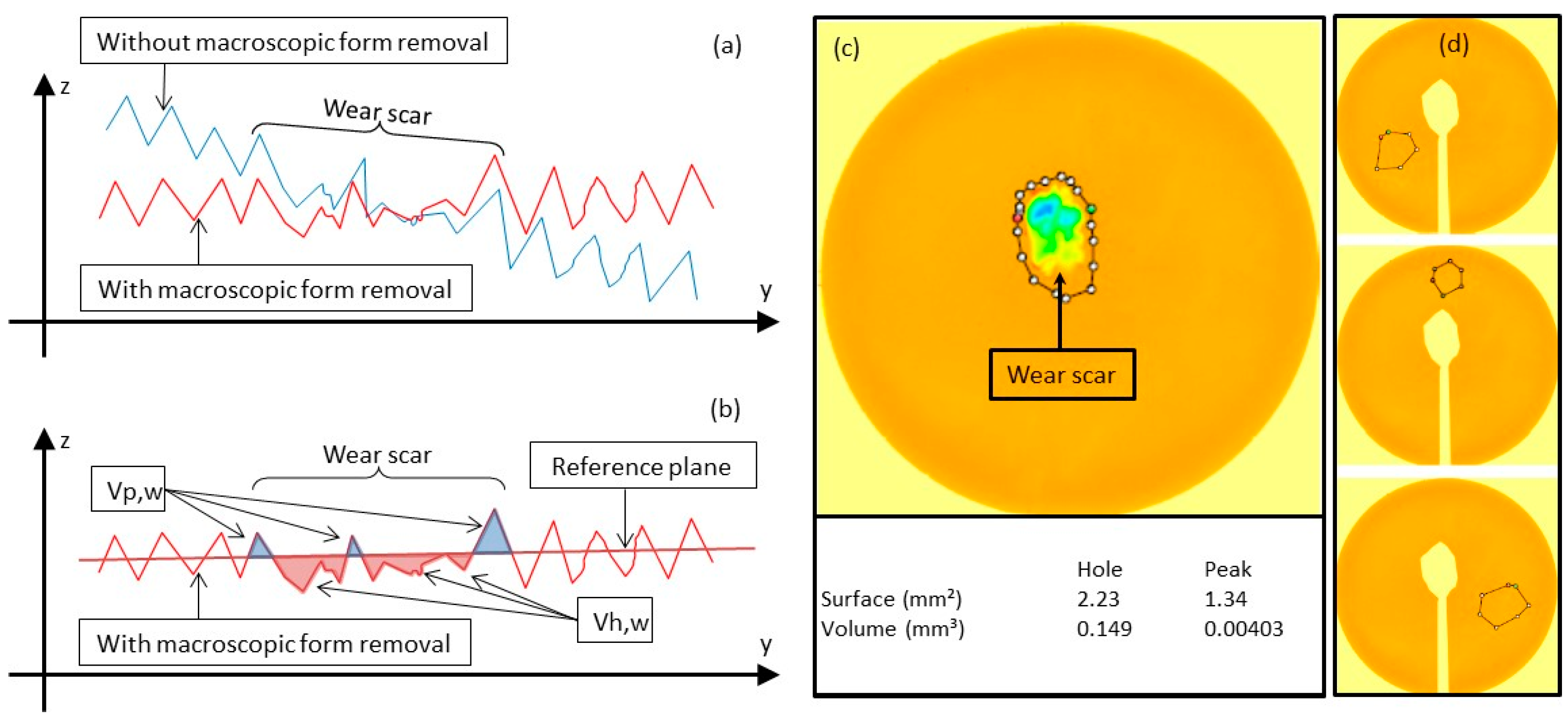

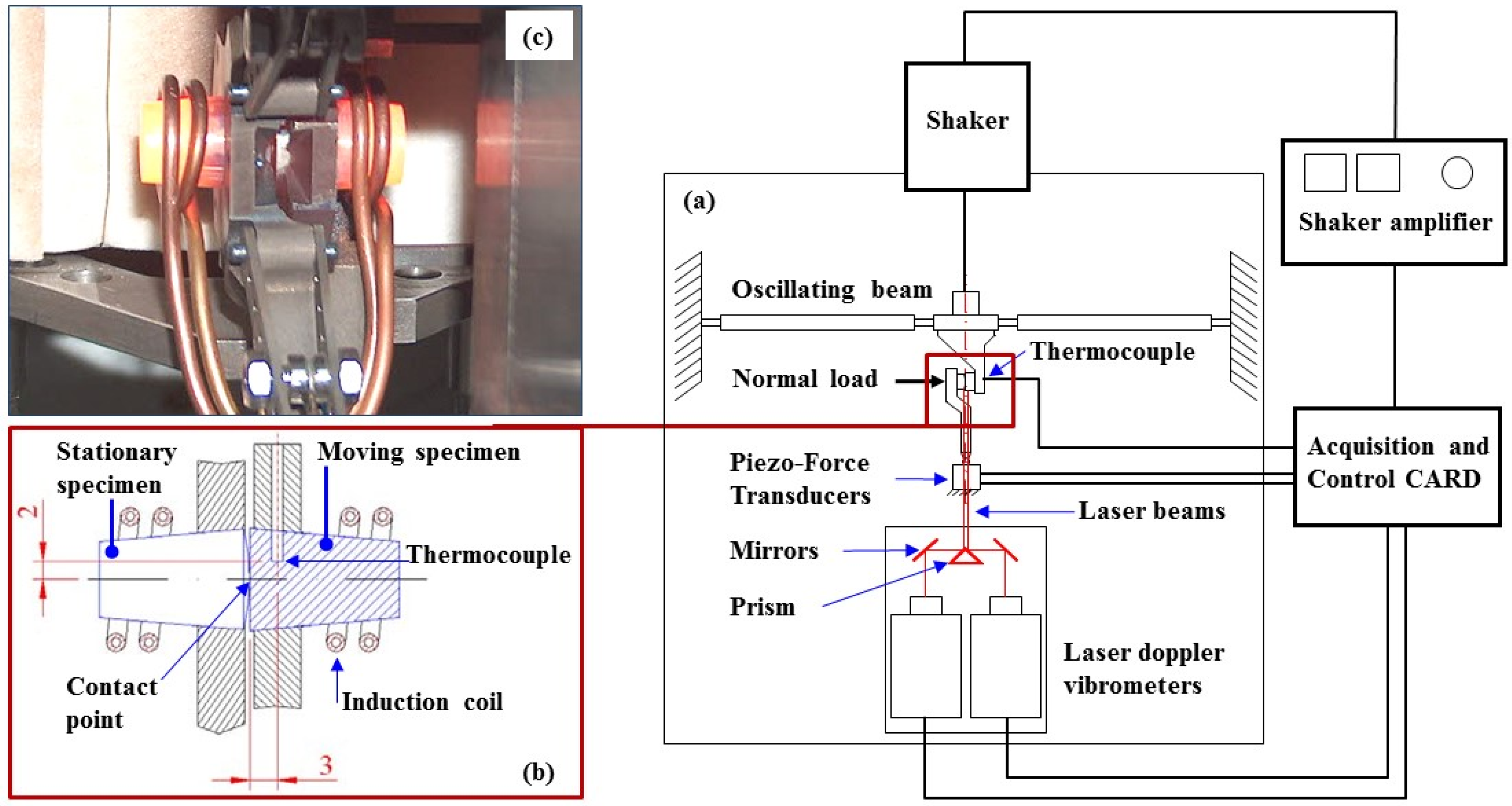

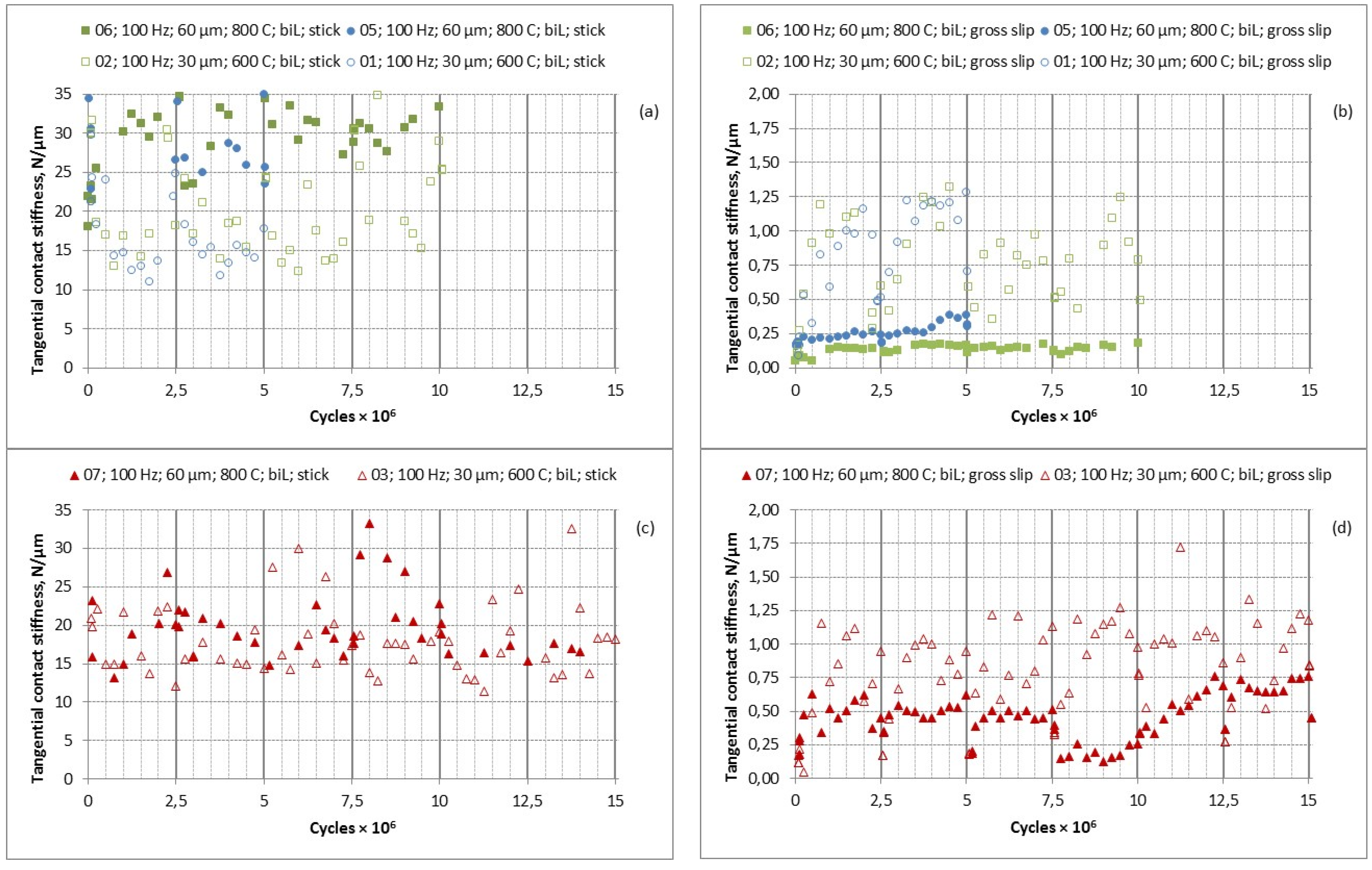

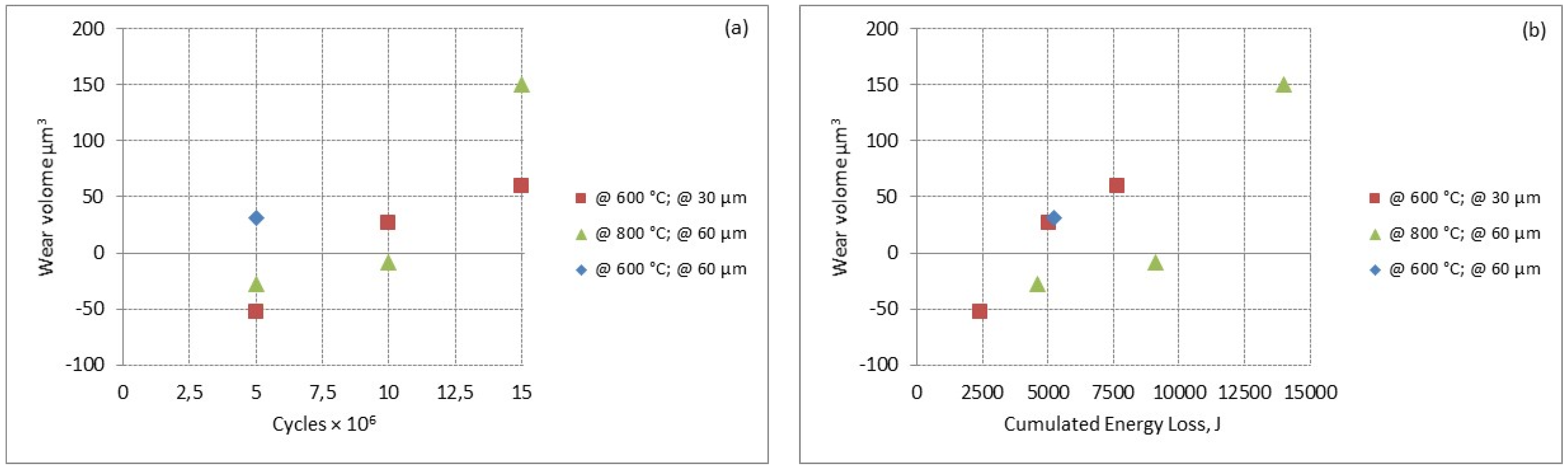

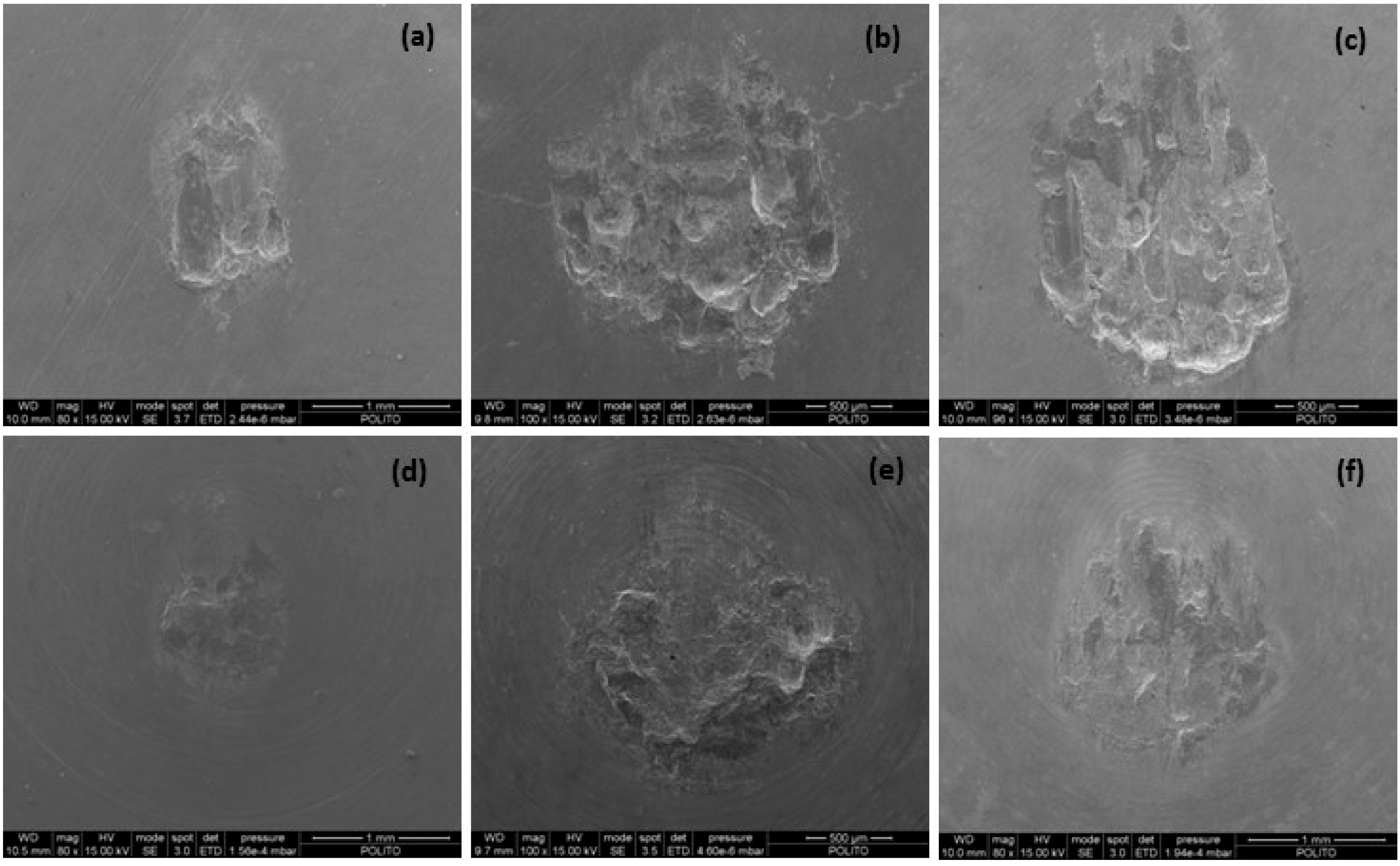

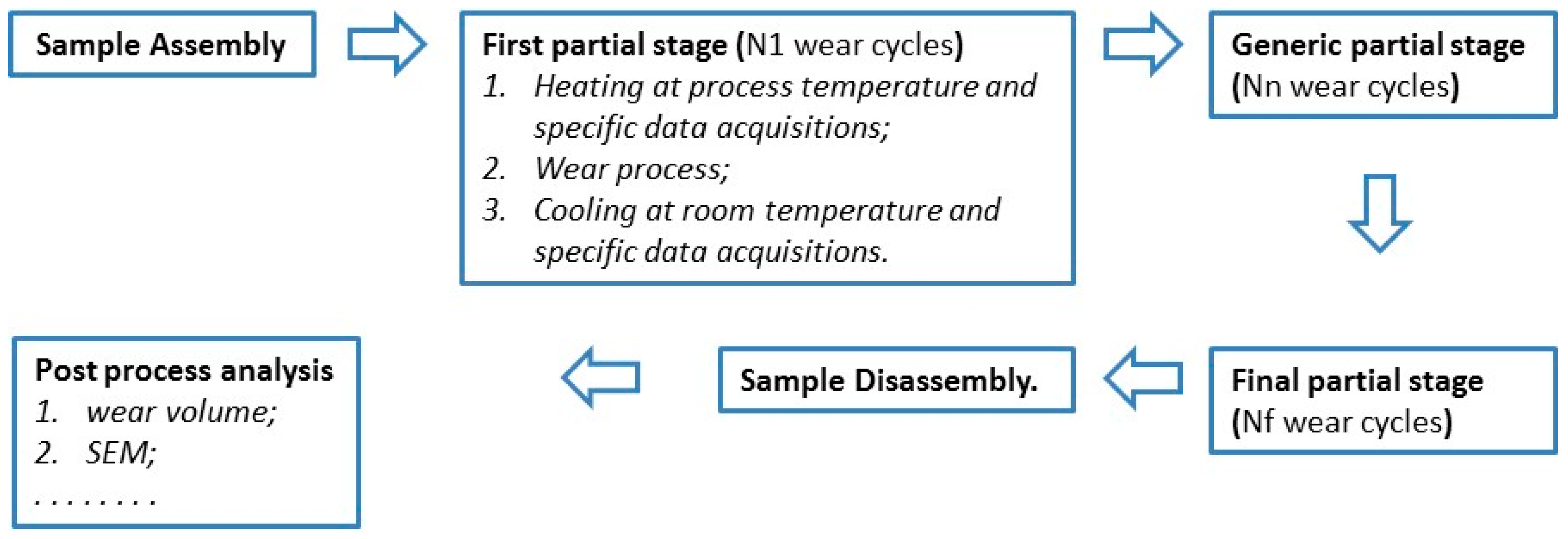

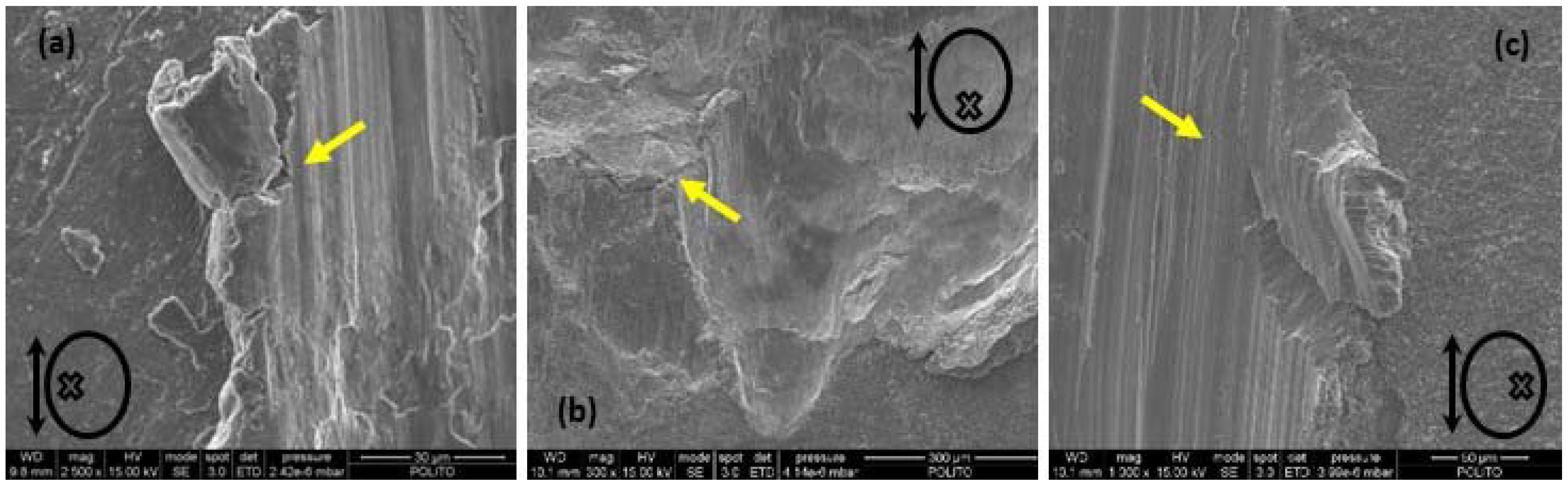

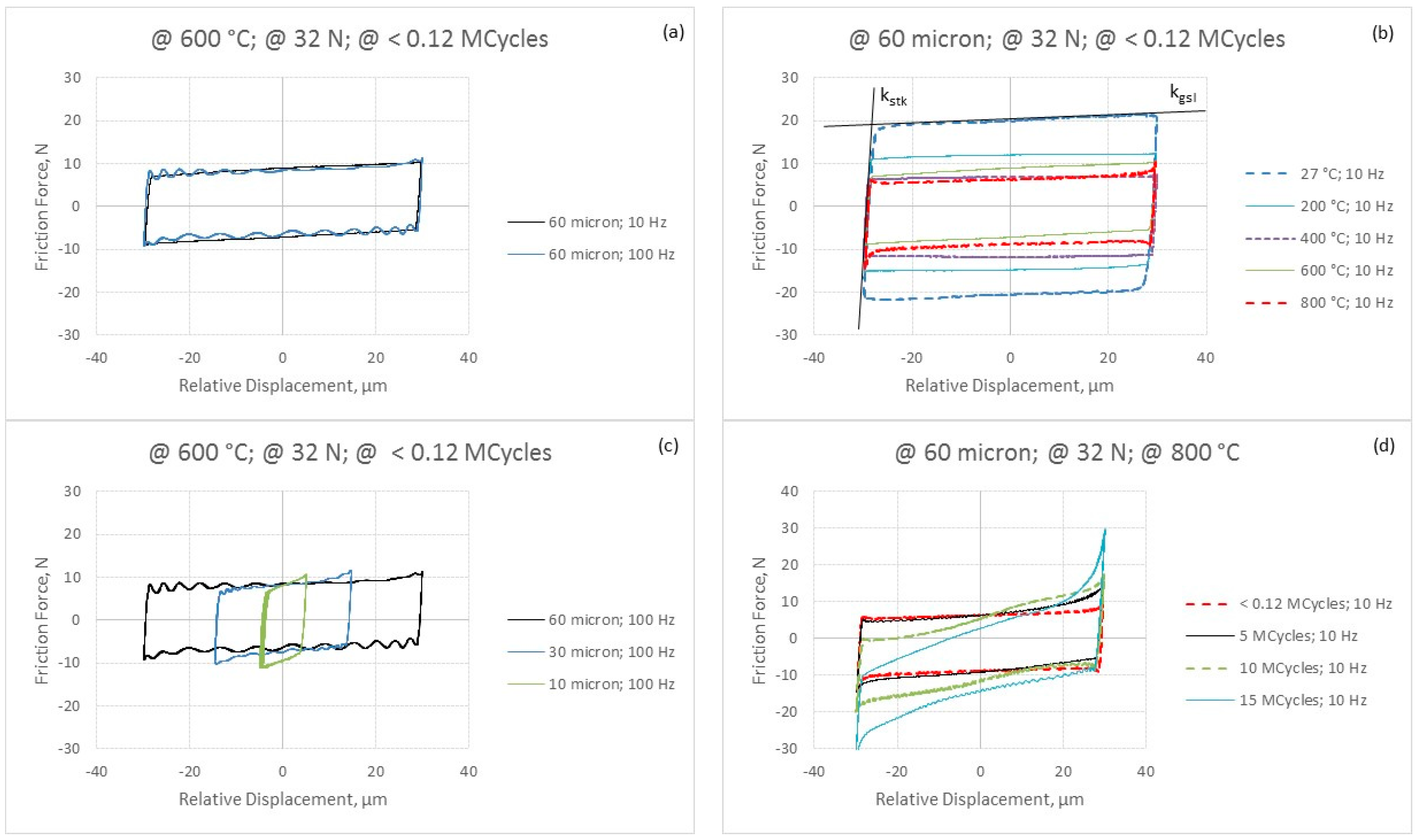

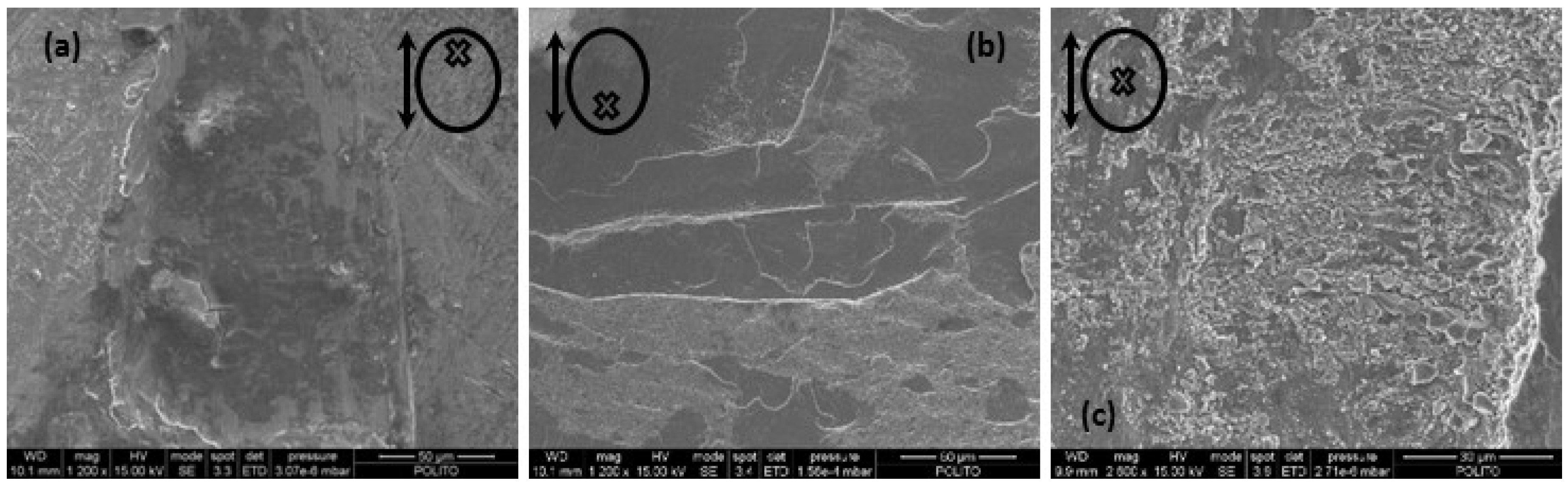

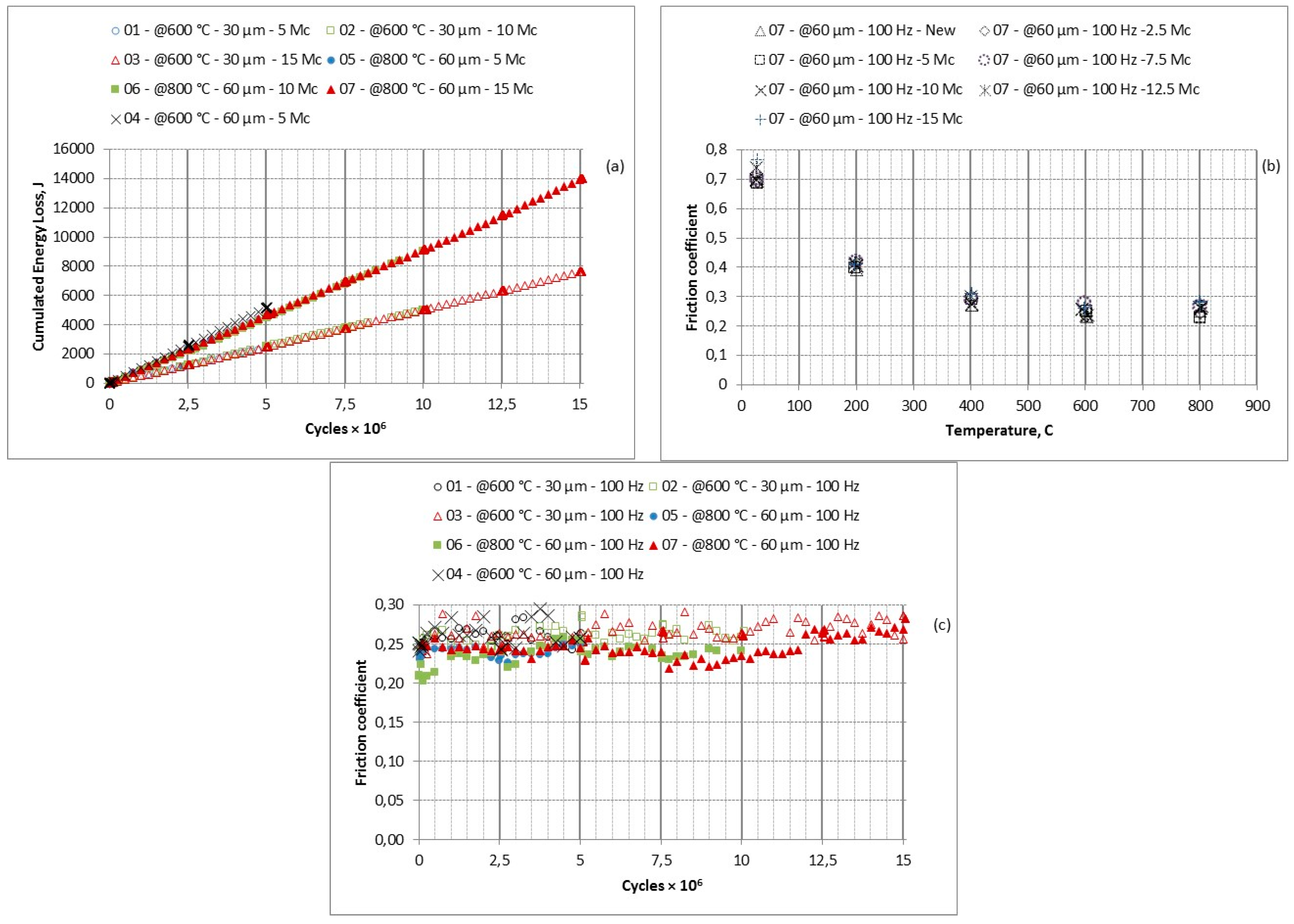

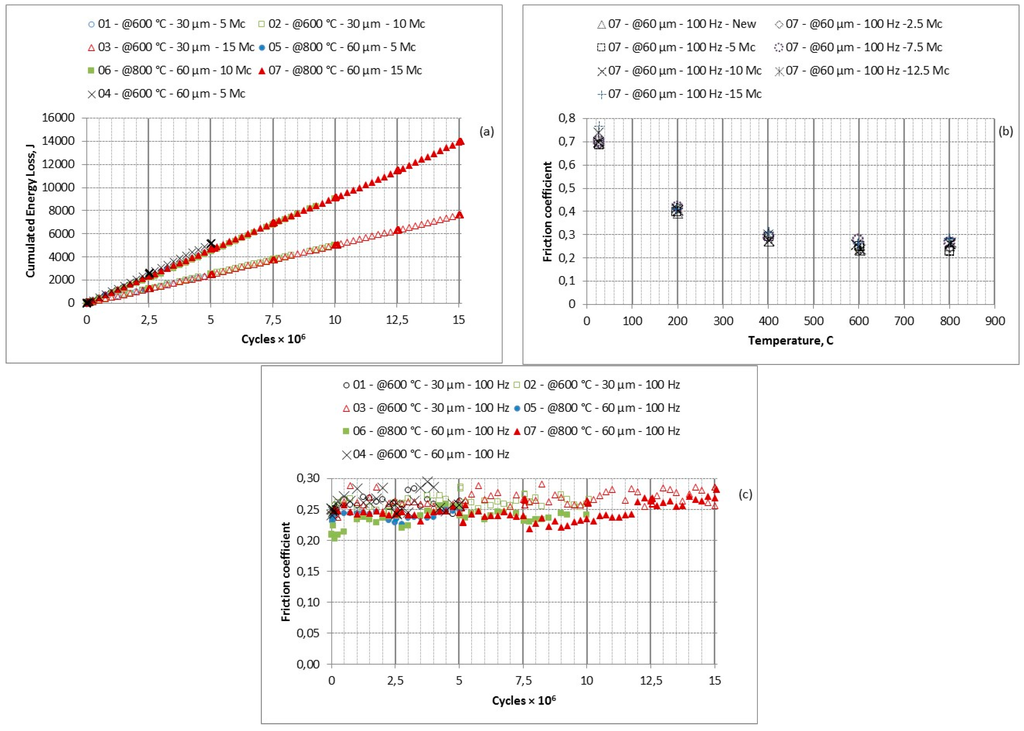

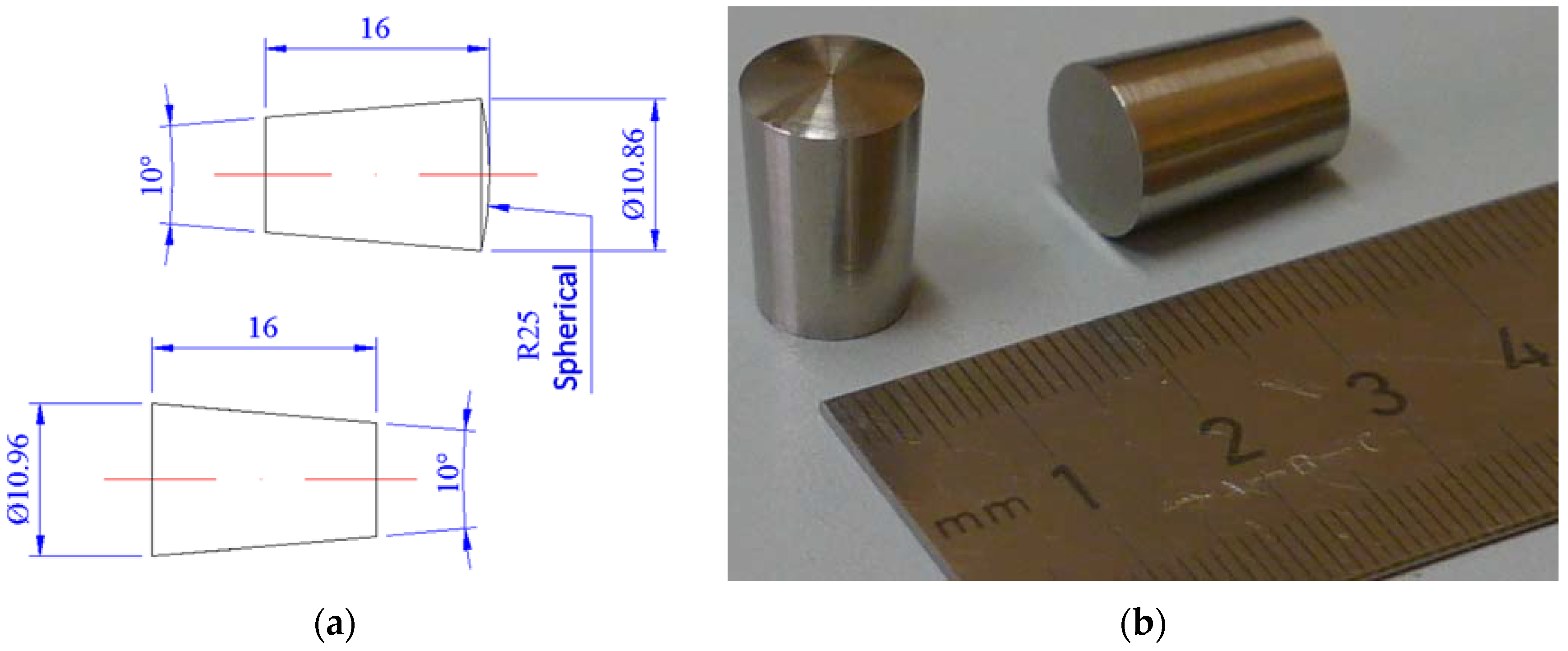

AbstractA superalloy traditionally offers excellent mechanical strength, resistance to thermal creep deformation, good surface stability and resistance to corrosion or oxidation. However, a superalloy often also needs performance in terms of fretting resistance. Experimental results regarding fretting wear and contact properties of the superalloy René 80 are illustrated and discussed. The widespread applications of superalloys in jointing with friction as in the jointing of a turbine blade, is the main motivation for characterizing their fretting behaviour. The fretting experiments were performed at 100 Hz for two temperatures (600, 800 °C), and two sliding amplitudes (30, 60 µm). These temperatures and strokes are typical at the medium stage of a low-pressure gas turbine. Wear volume and the contact properties such as friction coefficient and tangential contact stiffness were measured and analysed. Results show that the lowest friction coefficient was measured at the temperature of 800 °C. This temperature hence appears to be an optimum working condition for the fretting wear of René 80. With regard to wear mechanism, a fundamental role of the sliding amplitude was found. In particular, the ratio between the sliding amplitude and the characteristic contact length has a significant influence upon the oxide growth on contact surfaces. View Full-Text
Share & Cite This Article
Lavella, M. Contact Properties and Wear Behaviour of Nickel Based Superalloy René 80. Metals 2016, 6, 159.
Lavella M. Contact Properties and Wear Behaviour of Nickel Based Superalloy René 80. Metals. 2016; 6(7):159.Chicago/Turabian Style
Lavella, Mario. 2016. "Contact Properties and Wear Behaviour of Nickel Based Superalloy René 80." Metals 6, no. 7: 159.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
