Next Article in Journal
Phase Evolution of the AlxNbTiVZr (x = 0; 0.5; 1; 1.5) High Entropy Alloys
Next Article in Special Issue
Laser-Driven Ramp Compression to Investigate and Model Dynamic Response of Iron at High Strain Rates
Previous Article in Journal
Tensile Strength Reliability Analysis of Cu48Zr48Al4 Amorphous Microwires
Previous Article in Special Issue
Residual Stress Distribution and Microstructure Evolution of AA 6061-T6 Treated by Warm Laser Peening
Article Menu

Export Article

Open AccessFeature PaperArticle
Metals 2016, 6(12), 297;

Nanocrystallization in the Duplex Ti-6Al-4V Alloy Processed by Multiple Laser Shock Peening

Department of Mechanical Engineering, Jiangsu University, Zhenjiang 212013, China
Laser Processing Research Centre, School of Mechanical, Aerospace and Civil Engineering, The University of Manchester, Manchester M13 9PL, UK
Authors to whom correspondence should be addressed.
Academic Editor: Patrice Peyre
Received: 14 October 2016 / Revised: 18 November 2016 / Accepted: 22 November 2016 / Published: 24 November 2016
(This article belongs to the Special Issue Laser Shock Processing on Metal)
View Full-Text   |   Download PDF [2905 KB, uploaded 24 November 2016]   |

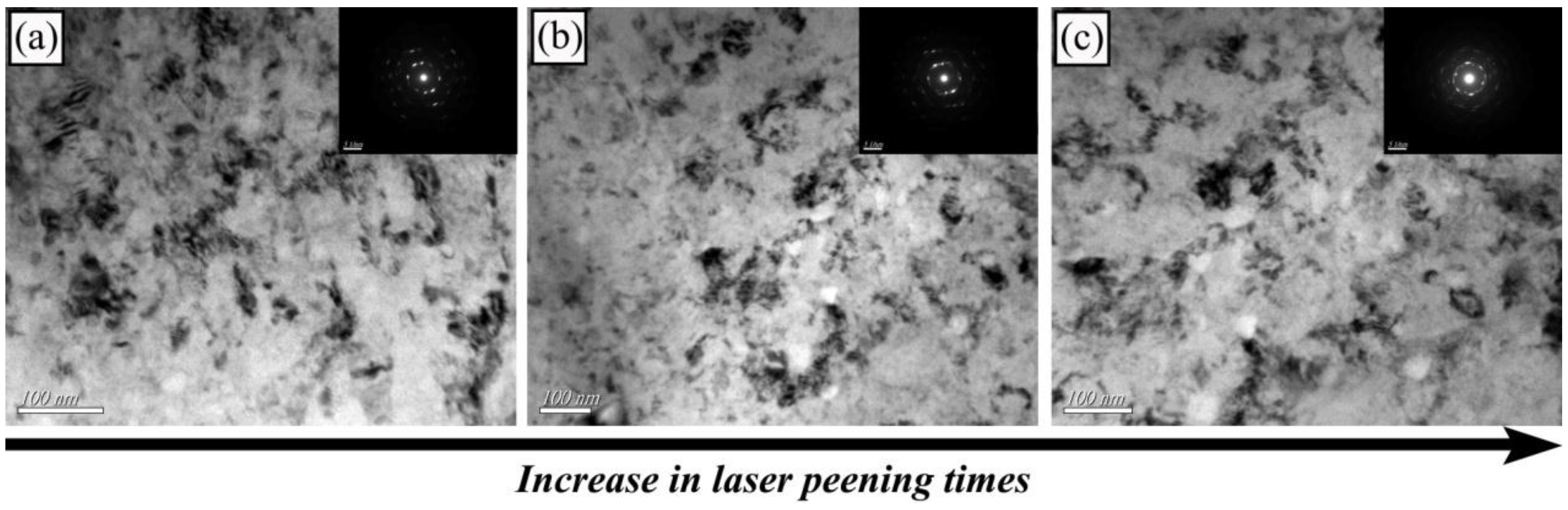

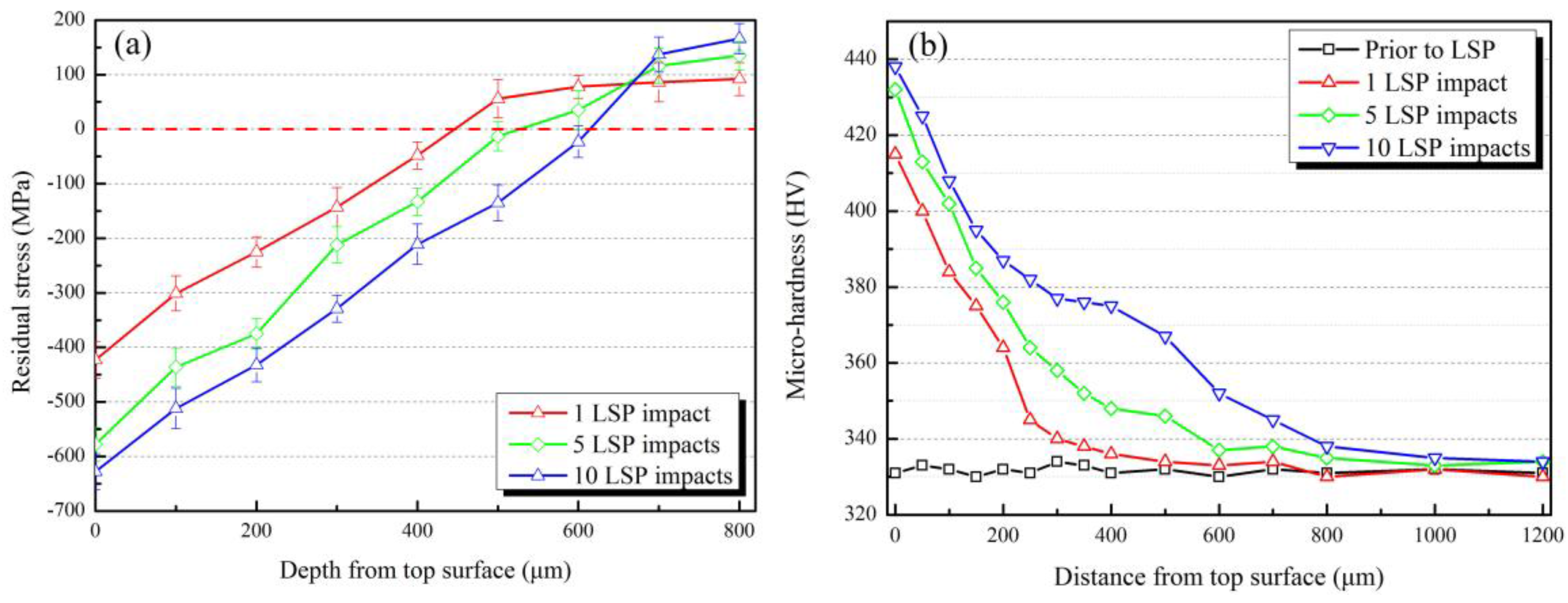

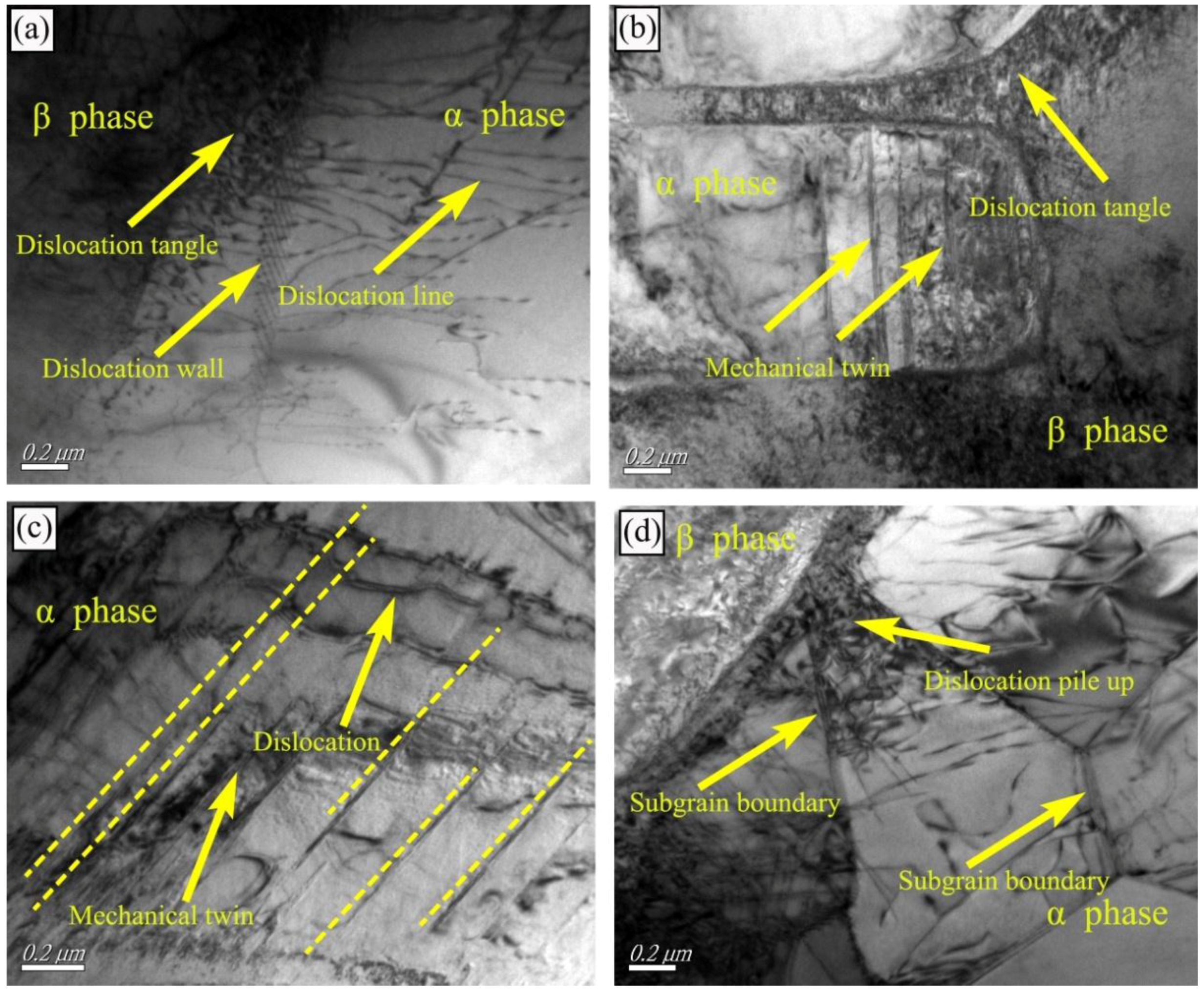

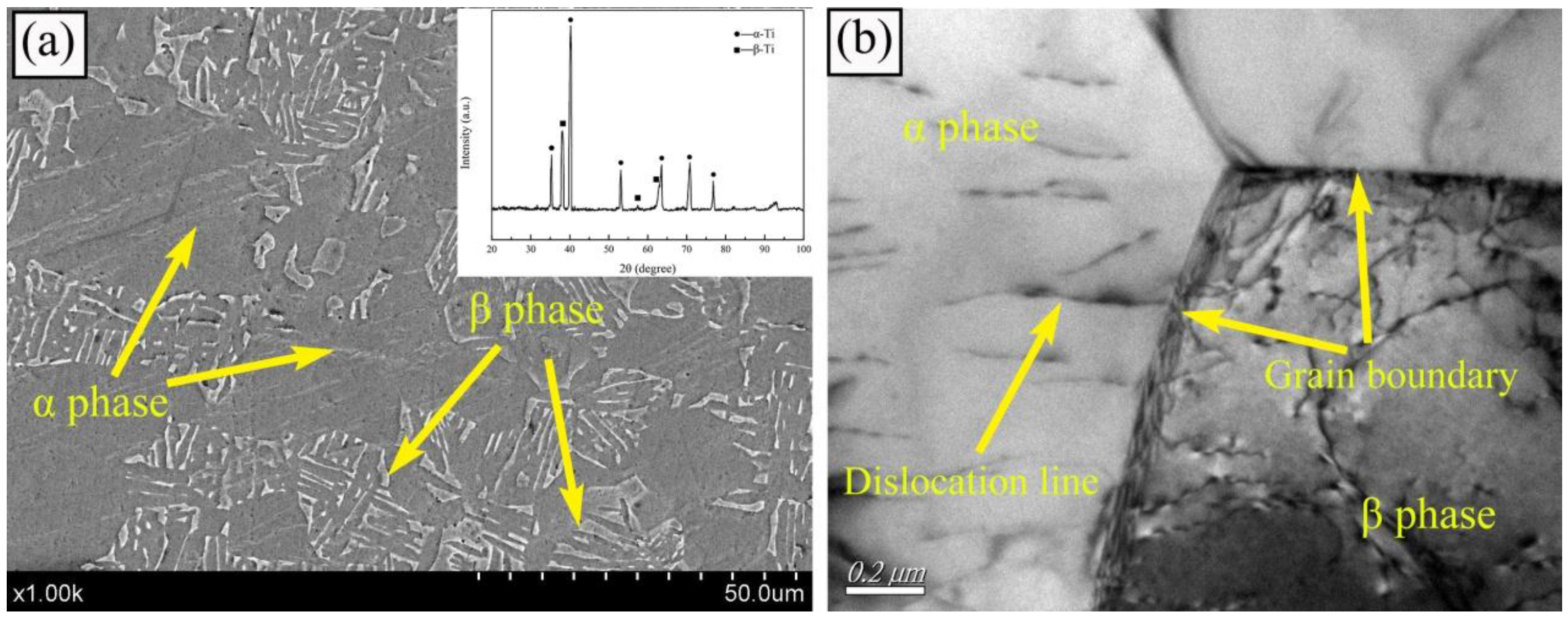

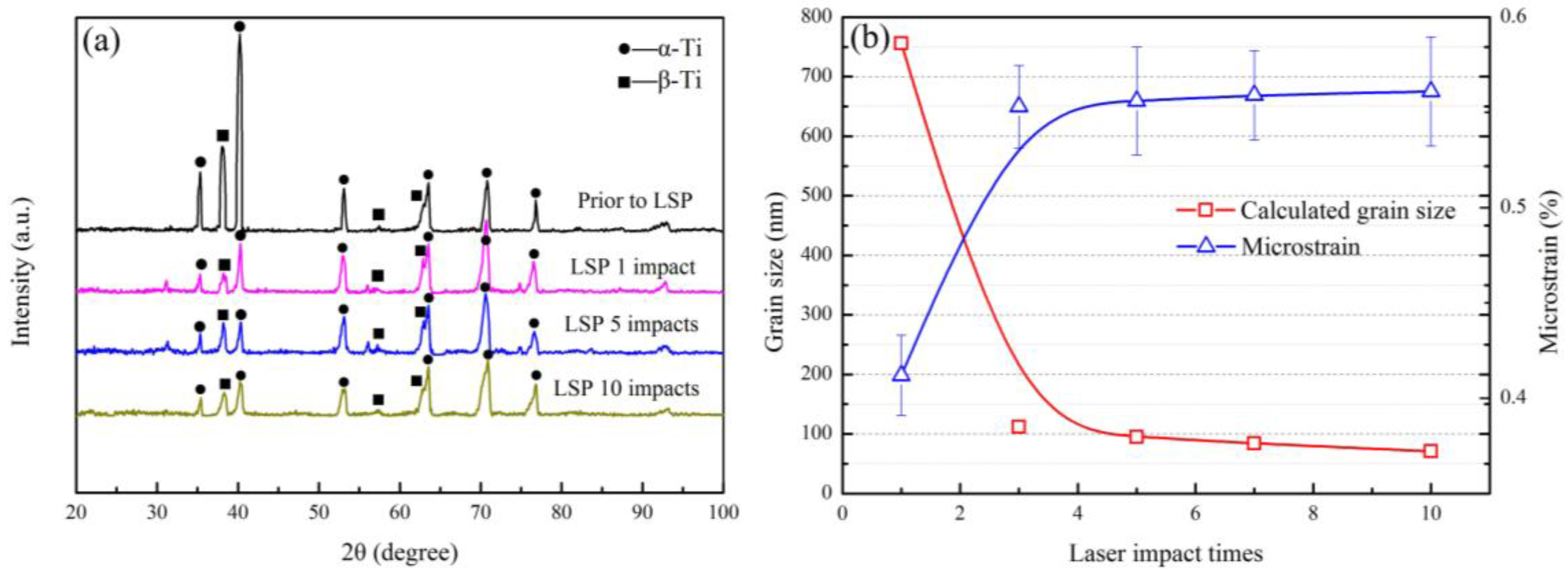

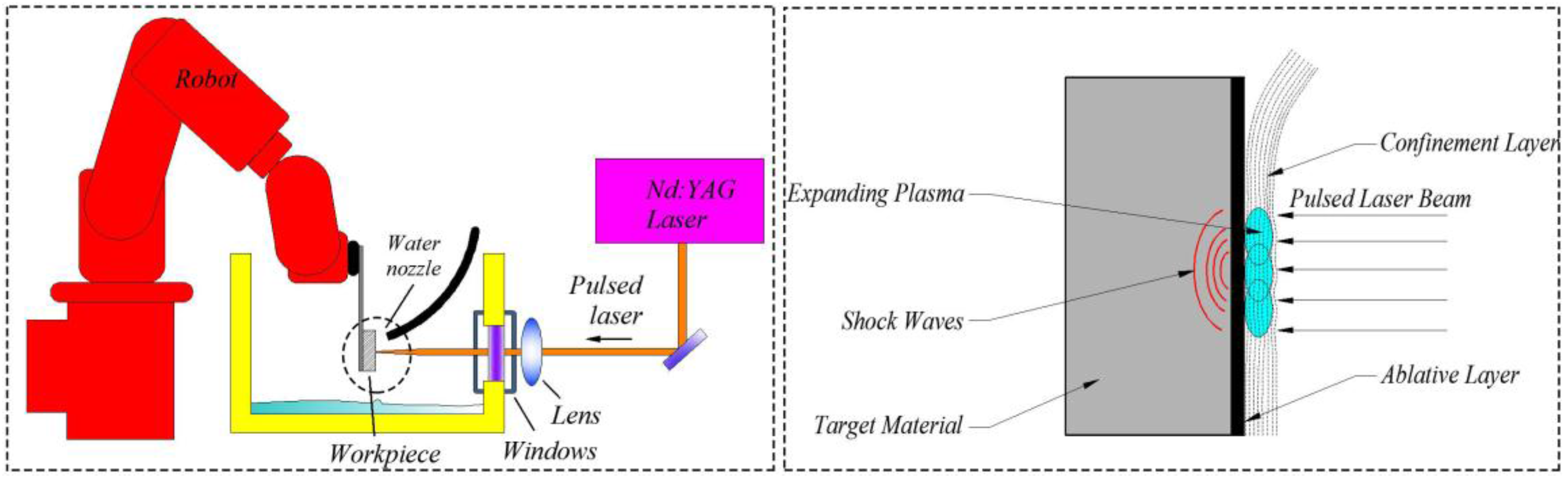

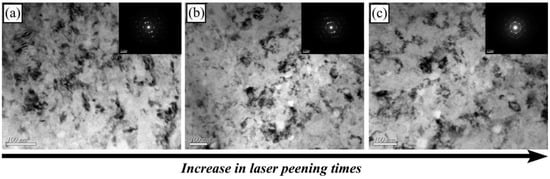

Laser shock peening of titanium alloys has been widely applied in the aerospace industry. However, little is known of the nanocrystalline formation characteristics and mechanisms. In this investigation, a nanocrystalline layer was formed in the duplex Ti-6Al-4V titanium alloy surface region by means of multiple pulsed laser shock peening (LSP). The phase transition and residual stress characteristics of LSP samples were analyzed with X-ray diffraction (XRD) and scanning electron microscopy (SEM). Transmission electron microscopy (TEM) was used to characterize the microstructure and morphologies. As the number of laser pulses increased for each location, higher grain refinement was observed. Micro-hardness testing showed that hardness increased with the number of pulses delivered to each location due to the formation of nanocrystalline layers and high dislocation density in the samples, and a gradient variation of the micro-hardness was obtained. In addition, mechanical twins and different dislocation configurations were formed in the α phase region while only dense dislocation tangles were observed in the β phase region after multiple laser pulse impacts. View Full-Text
Keywords: surface nanocrystallization; laser shock peening; dislocation; titanium alloy surface nanocrystallization; laser shock peening; dislocation; titanium alloy

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Zhou, W.; Ren, X.; Liu, F.; Ren, Y.; Li, L. Nanocrystallization in the Duplex Ti-6Al-4V Alloy Processed by Multiple Laser Shock Peening. Metals 2016, 6, 297.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
