Next Article in Journal
Tensile Strength Reliability Analysis of Cu48Zr48Al4 Amorphous Microwires
Previous Article in Journal
Digestion of Alumina from Non-Magnetic Material Obtained from Magnetic Separation of Reduced Iron-Rich Diasporic Bauxite with Sodium Salts
Previous Article in Special Issue
Guideline for Forming Stiffened Panels by Using the Electromagnetic Forces
Article Menu

Export Article

Open AccessArticle
Metals 2016, 6(12), 295; doi:10.3390/met6120295

Influence of Laser Welding Speed on the Morphology and Phases Occurring in Spray-Compacted Hypereutectic Al-Si-Alloys

1
Karlsruhe Institute of Technology, Institute for Micro Process Engineering, P.O. Box 3640, 76021 Karlsruhe, Germany
2
Karlsruhe Institute of Technology, Institute for Applied Materials, P.O. Box 3640, 76021 Karlsruhe, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Nong Gao
Received: 27 June 2016 / Revised: 3 November 2016 / Accepted: 17 November 2016 / Published: 24 November 2016
(This article belongs to the Special Issue Aluminum Alloys)
View Full-Text   |   Download PDF [6485 KB, uploaded 24 November 2016]   |

Abstract

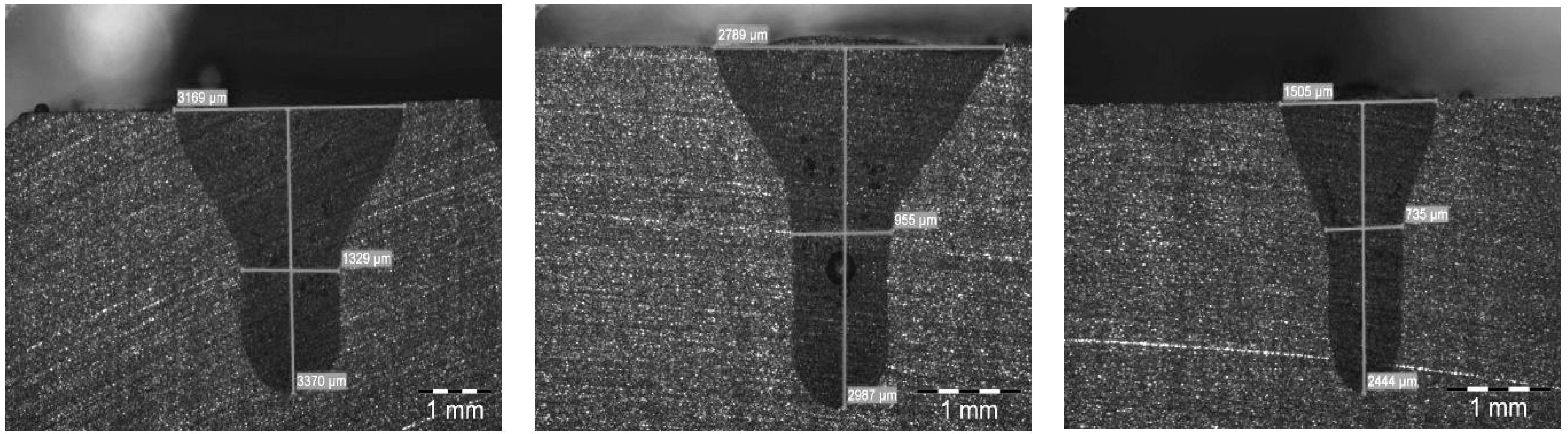

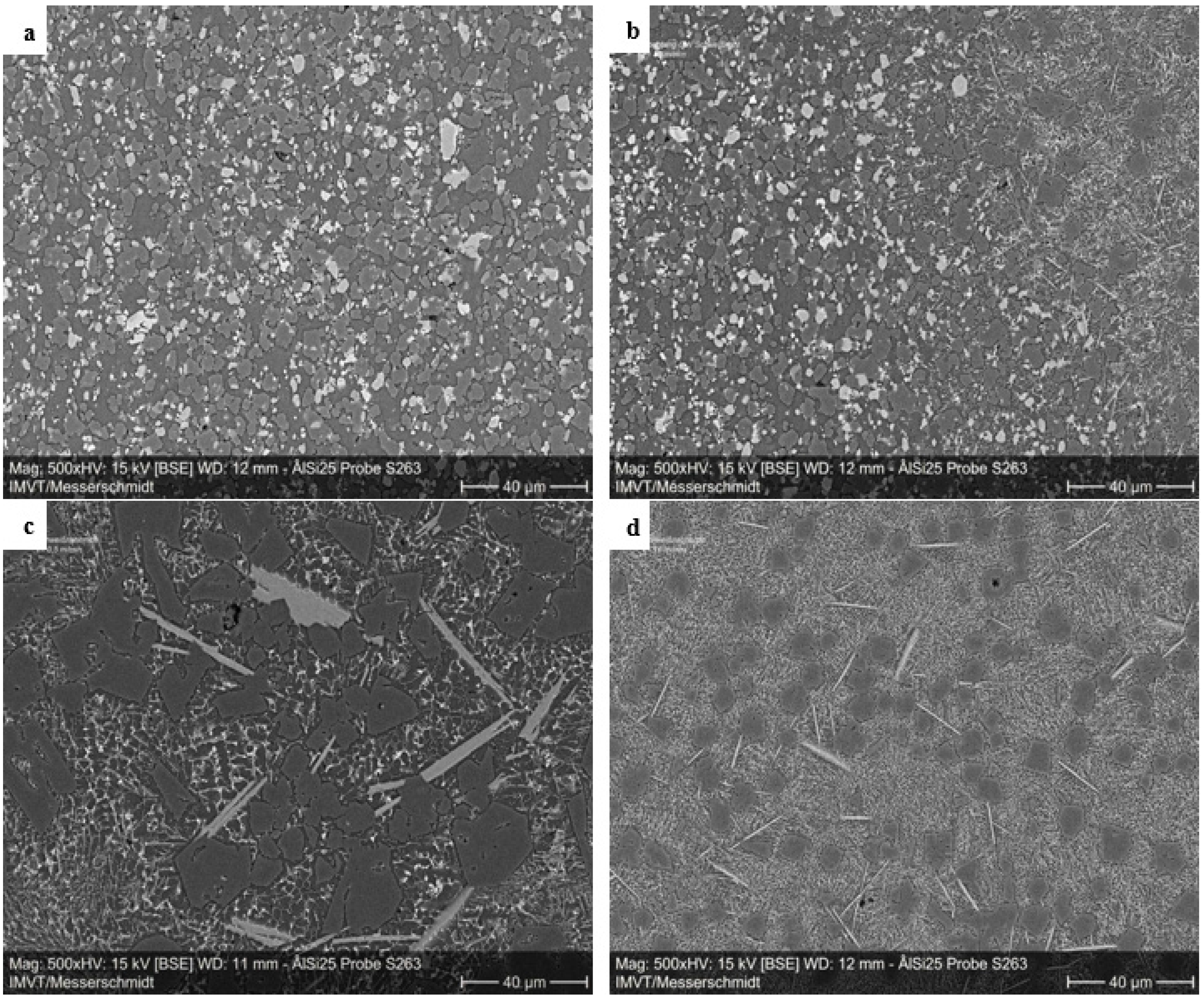

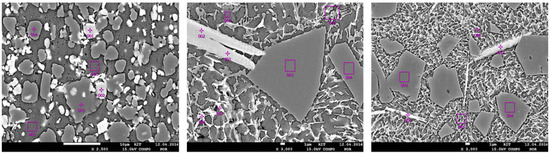

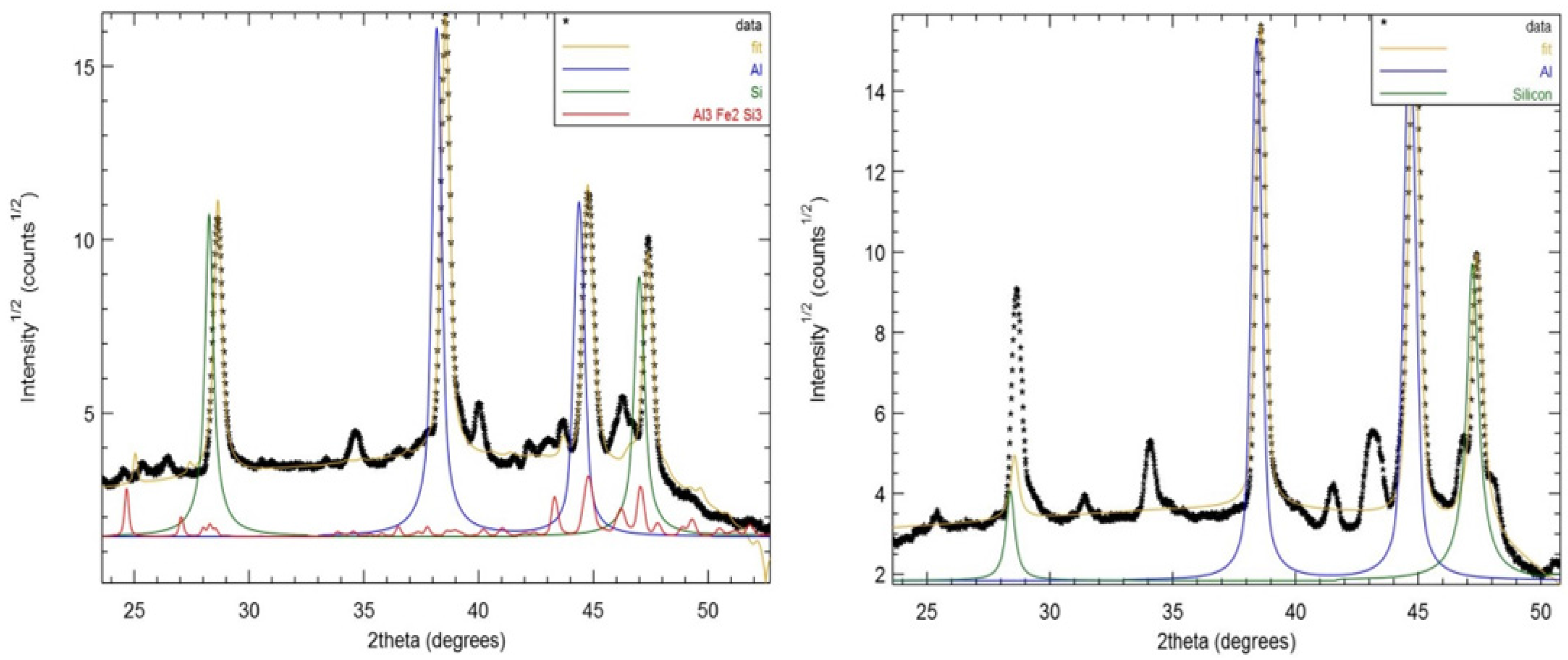

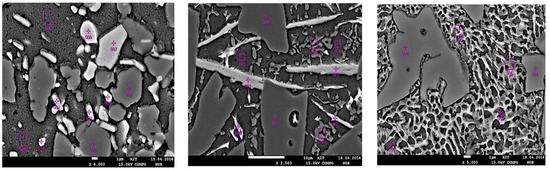

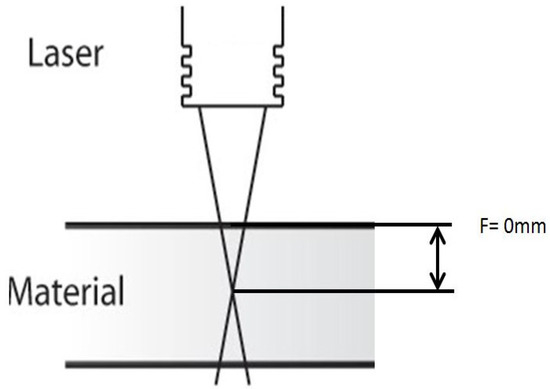

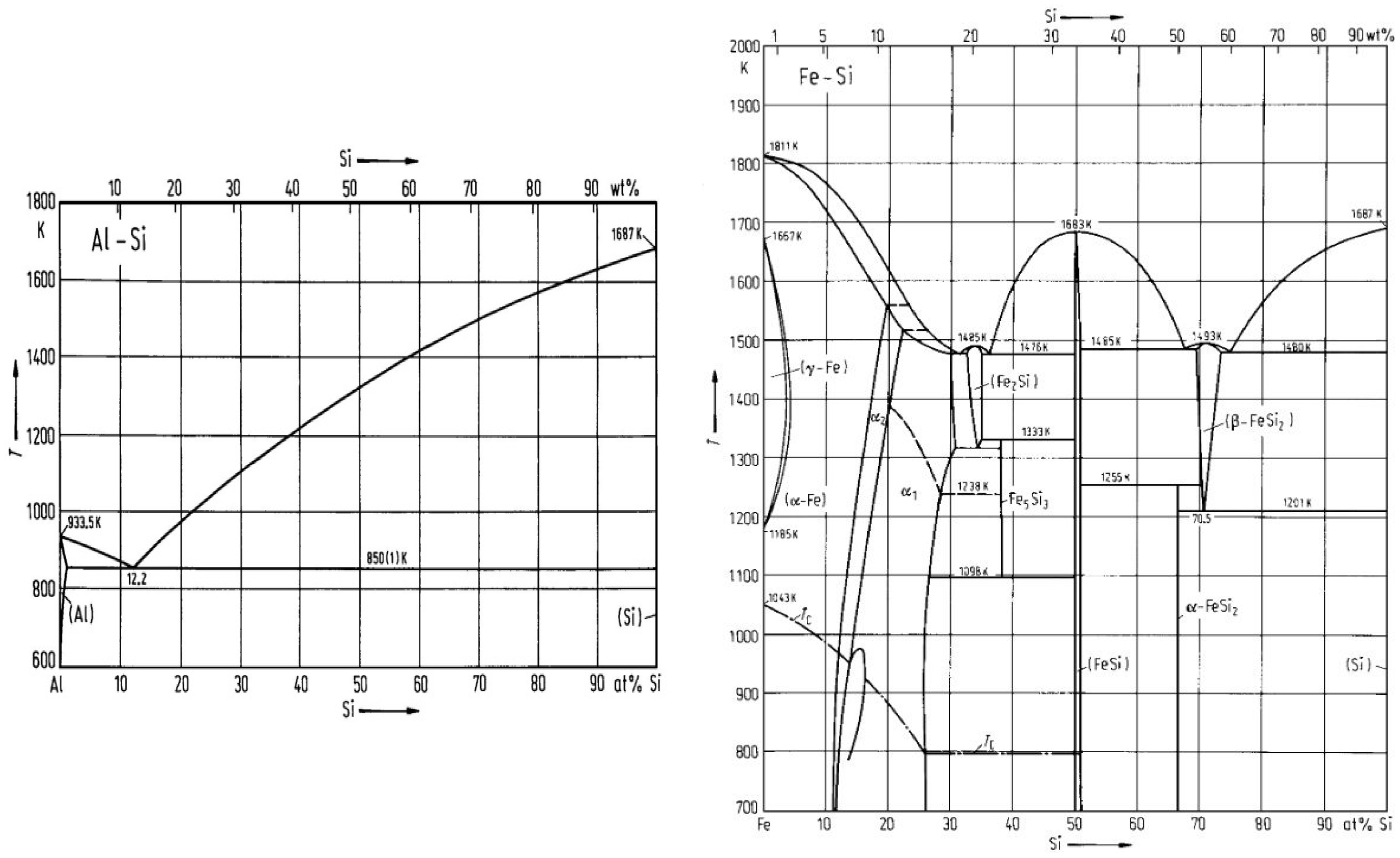

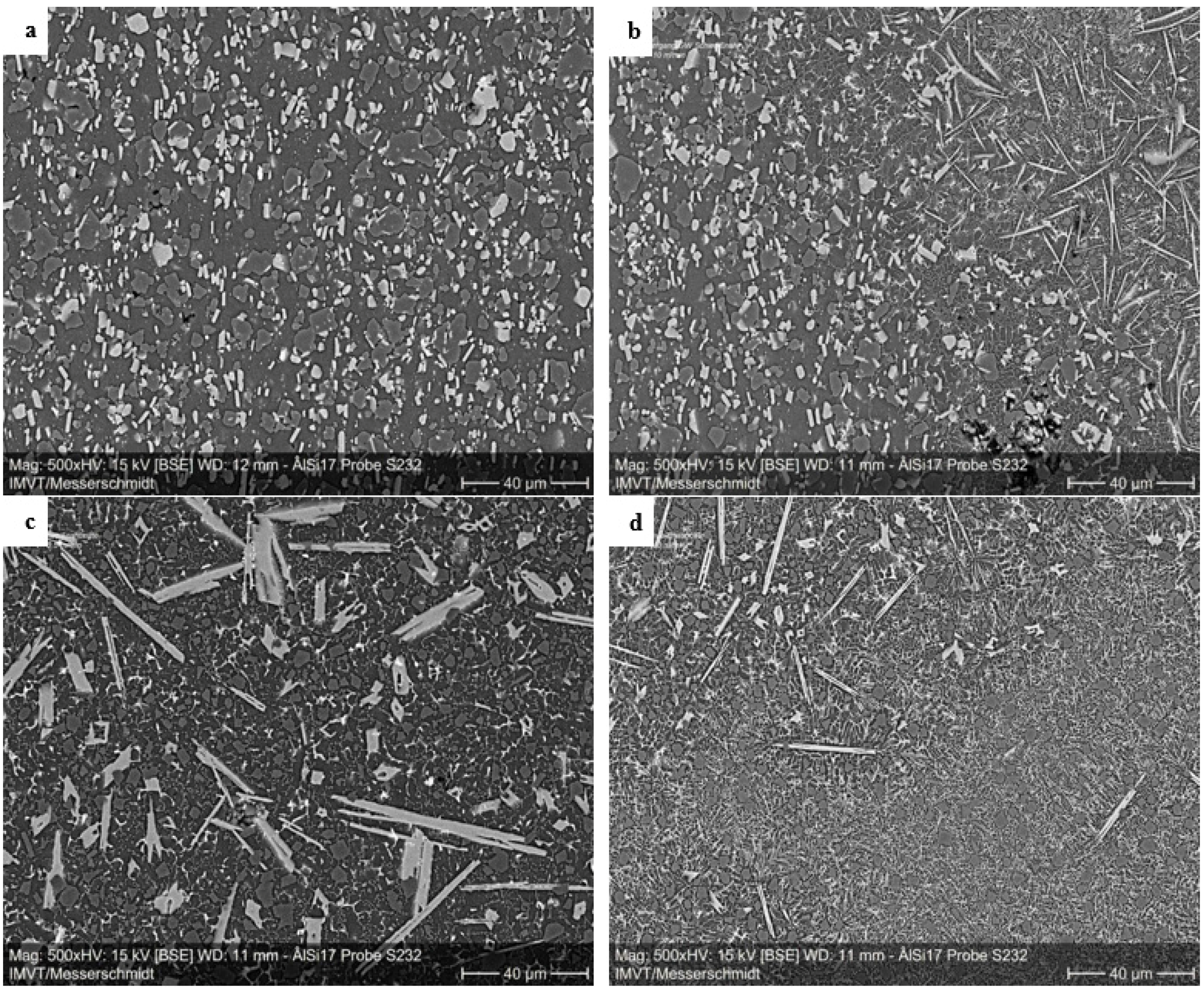

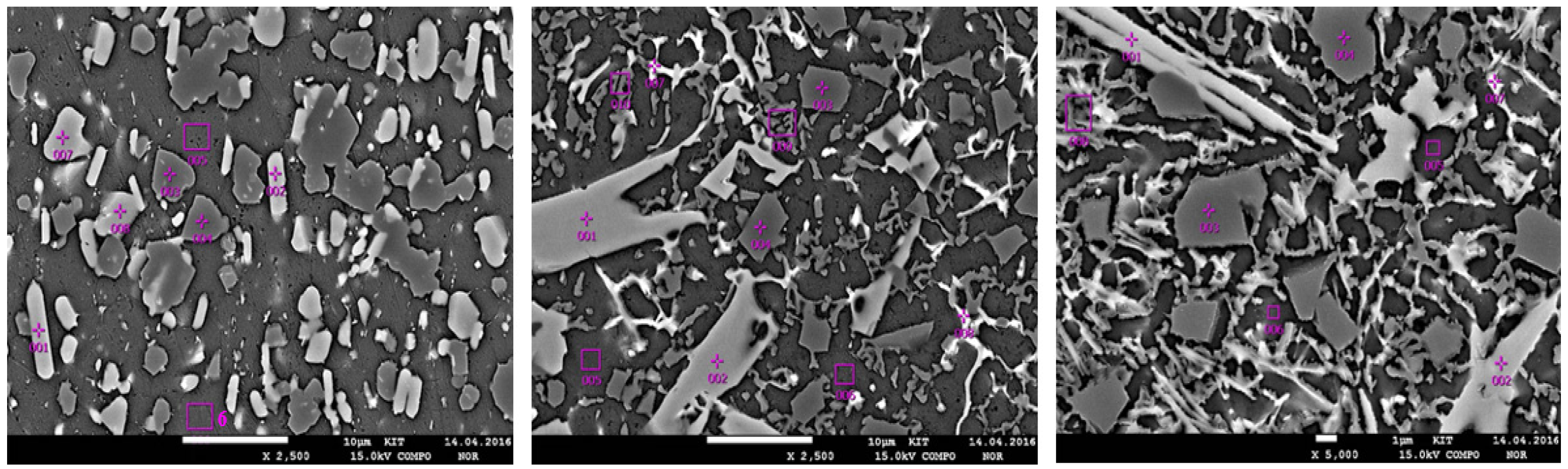

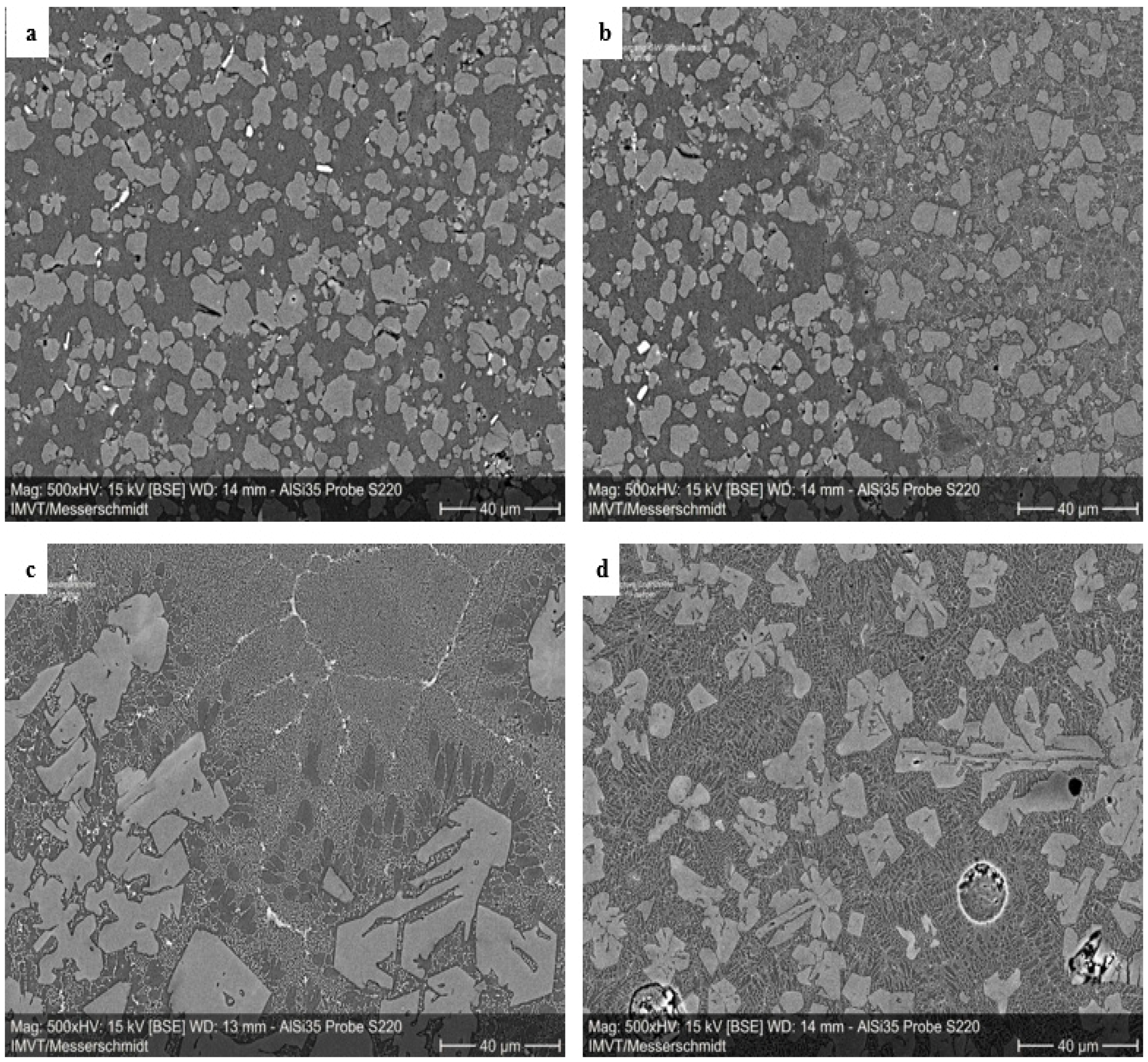

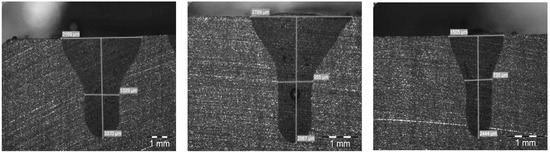

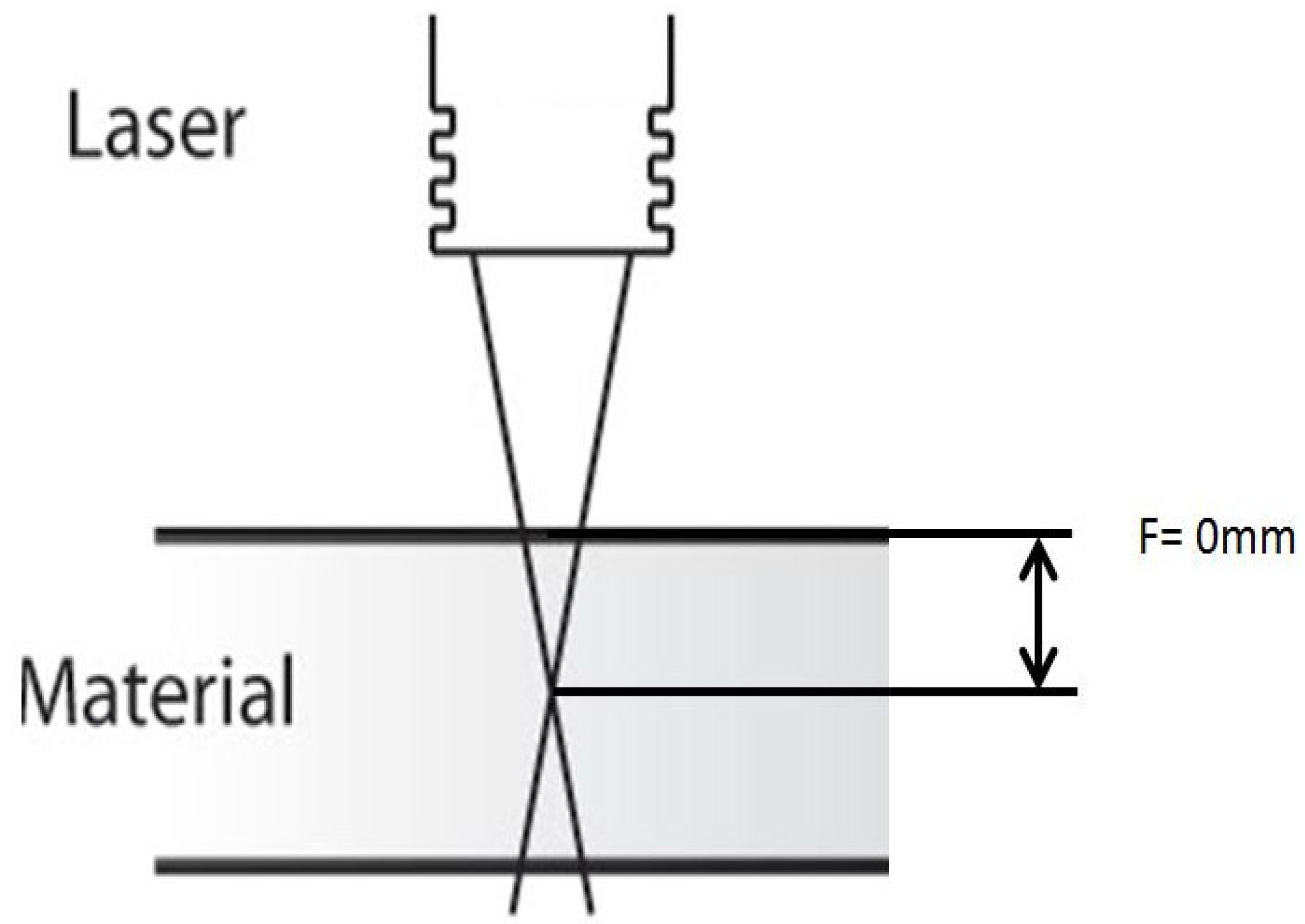

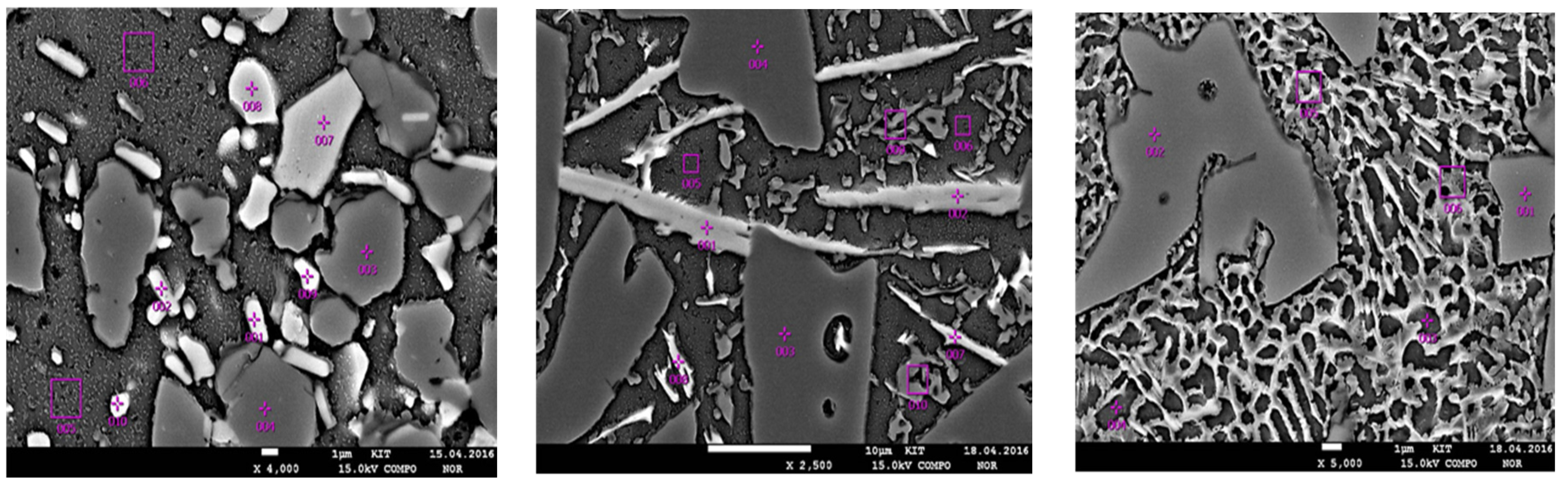

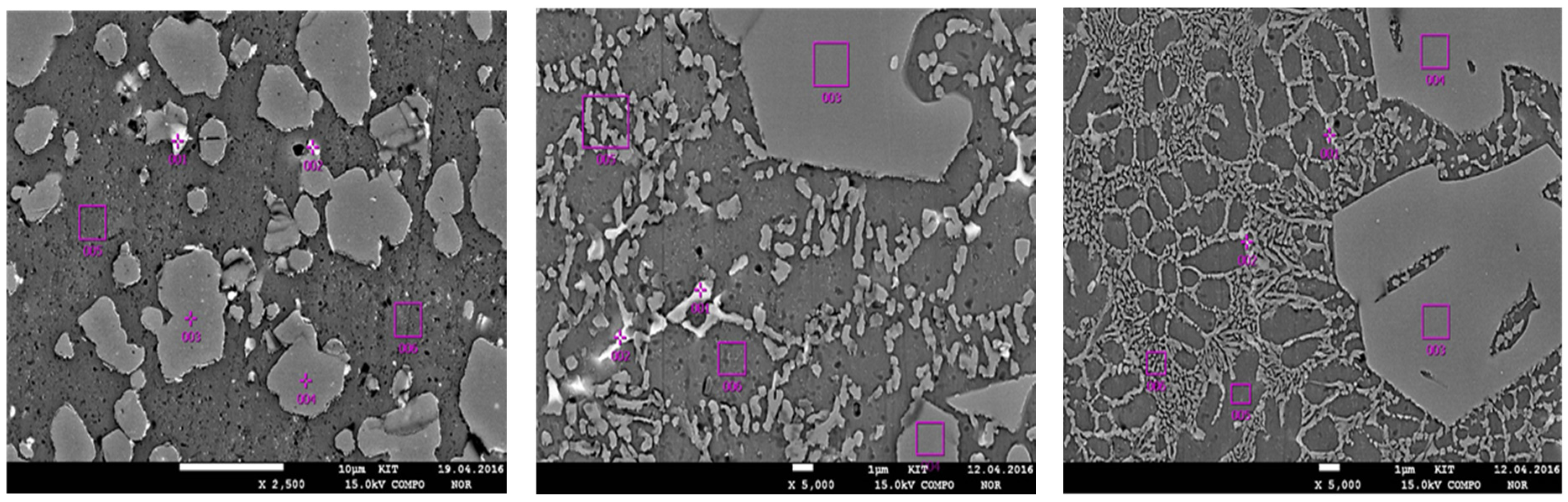

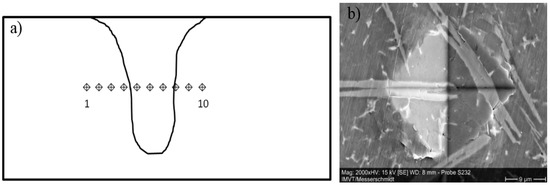

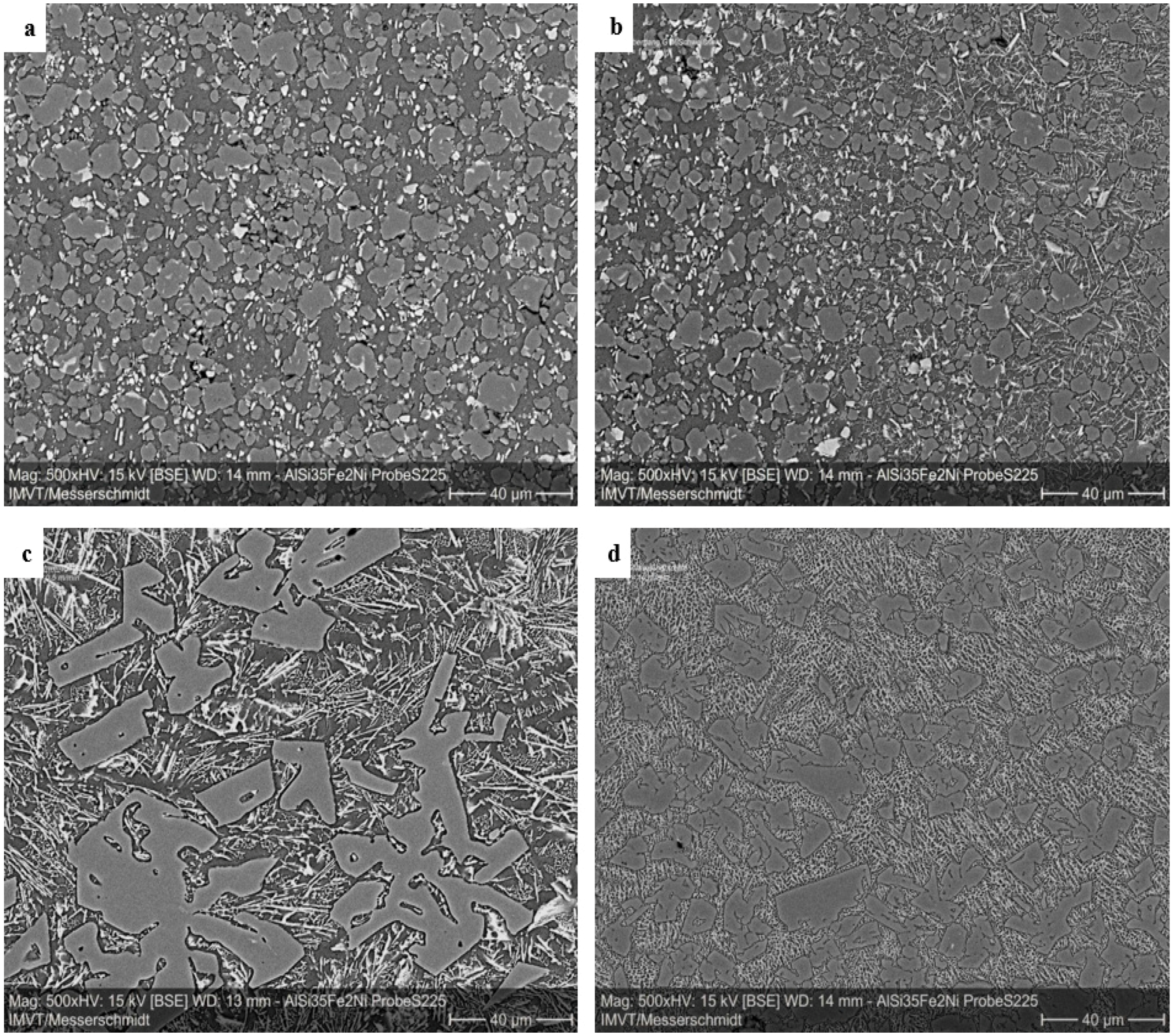

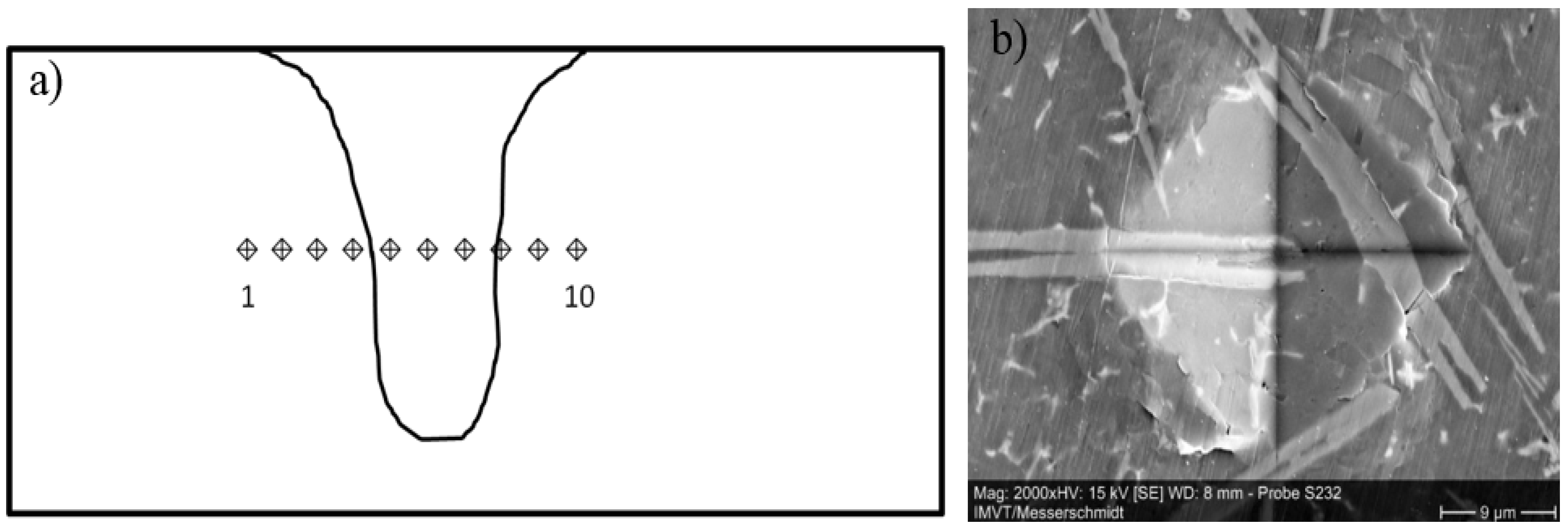

Normally, the weldability of aluminum alloys is ruled by the temperature range of solidification of an alloy according to its composition by the formation of hot cracks due to thermal shrinkage. However, for materials at nonequilibrium conditions, advantage can be taken by multiple phase formation, leading to an annihilation of temperature stress at the microscopic scale, preventing hot cracks even for alloys with extreme melting range. In this paper, several spray-compacted hypereutectic aluminum alloys were laser welded. Besides different silicon contents, additional alloying elements like copper, iron and nickel were present in some alloys, affecting the microstructure. The microstructure was investigated at the delivery state of spray-compacted material as well as for a wide range of welding speeds ranging from 0.5 to 10 m/min, respectively. The impact of speed on phase composition and morphology was studied at different disequilibrium solidification conditions. At high welding velocity, a close-meshed network of eutectic Al-Si-composition was observed, whereas the matrix is filled with nearly pure aluminum, helping to diminish the thermal stress during accelerated solidification. Primary solidified silicon was found, however, containing considerable amounts of aluminum, which was not expected from phase diagrams obtained at the thermodynamic equilibrium. View Full-Text
Keywords: hypereutectic aluminum alloy; DISPAL; laser welding; nonequilibrium solidification hypereutectic aluminum alloy; DISPAL; laser welding; nonequilibrium solidification
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Gietzelt, T.; Wunsch, T.; Messerschmidt, F.; Geßwein, H.; Gerhards, U. Influence of Laser Welding Speed on the Morphology and Phases Occurring in Spray-Compacted Hypereutectic Al-Si-Alloys. Metals 2016, 6, 295.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
