Metals 2016, 6(1), 10; doi:10.3390/met6010010

Review
In Situ Characterization Techniques Based on Synchrotron Radiation and Neutrons Applied for the Development of an Engineering Intermetallic Titanium Aluminide Alloy
1
Recipient of a DOC Fellowship of the Austrian Academy of Sciences at the Department of Physical Metallurgy and Materials Testing, Montanuniversität Leoben, Roseggerstraße 12, 8700 Leoben, Austria
2
Department of Physical Metallurgy and Materials Testing, Montanuniversität Leoben, Roseggerstraße 12, 8700 Leoben, Austria
3
Institute of Materials Research, Helmholtz-Zentrum Geesthacht, Max Planck-Straße 1, 21502 Geesthacht, Germany
4
The Bragg Institute, Australian Nuclear Science and Technology Organisation, New Illawarra Road, Lucas Heights, NSW 2234, Australia
Current address: ABB Corporate Research Center, Segelhofstrasse 1K, 5405 Baden-Dättwil, Switzerland
Current address: Böhler Edelstahl GmbH & Co KG, Mariazellerstraße 25, 8605 Kapfenberg, Austria
*
Author to whom correspondence should be addressed.
Academic Editor: Hugo F. Lopez
Received: 30 November 2015 / Accepted: 23 December 2015 / Published: 4 January 2016

Abstract

: Challenging issues concerning energy efficiency and environmental politics require novel approaches to materials design. A recent example with regard to structural materials is the emergence of lightweight intermetallic TiAl alloys. Their excellent high-temperature mechanical properties, low density and high stiffness constitute a profile perfectly suitable for their application as advanced aero-engine turbine blades or as turbocharger turbine wheels in next-generation automotive engines. As the properties of TiAl alloys during processing as well as during service are dependent on the phases occurring, detailed knowledge of their volume fractions and distribution within the microstructure is of paramount importance. Furthermore, the behavior of the individual phases during hot deformation and subsequent heat treatments is of interest to define reliable and cost-effective industrial production processes. In situ high-energy X-ray diffraction methods allow tracing the evolution of phase fractions over a large temperature range. Neutron diffraction unveils information on order-disorder transformations in TiAl alloys. Small-angle scattering experiments offer insights into the materials’ precipitation behavior. This review attempts to shine a light on selected in situ diffraction and scattering techniques and the ways in which they promoted the development of an advanced engineering TiAl alloy.
Keywords:
titanium aluminides based on γ-TiAl; high-energy X-ray diffraction; phase transformations; neutron diffraction; order/disorder transformations; small-angle scattering; thermo-mechanical processing; heat treatments; microstructure evolution

1. Introduction

Presently, jet engines are the prevalent form of propulsion systems in commercial airplanes. Increasing economic and environmental pressure, however, has triggered an ever-rising awareness of the issues associated with the consumption of fossil fuels. As a result, a growing demand for environmentally-friendly engine options has emerged. Substantial improvements in fuel efficiency, noise and greenhouse gas emissions can be effected by reducing the weight of selected components. This end can be achieved either by adapting the overall design or by implementing advanced structural materials that exhibit mechanical properties equal to conventional materials while having lower densities. The latter approach has been realized successfully, for instance, by installing intermetallic titanium aluminide turbine blades in the last stages of the low-pressure turbine of the GEnx™ engine by General Electrics [1]. In this way, the twice as heavy nickel-base superalloy blades could be replaced. Pratt & Whitney recently introduced TiAl turbine blades in their so-called Geared Turbofan™ engine, which will be used to power the Airbus A320neo family besides other aircrafts [2,3].

Intermetallic titanium aluminides based on the ordered γ-TiAl phase provide a set of properties well suited for structural high-temperature applications. At a density of about 4 g·cm−3, they combine a high melting point with a high elastic modulus. Strength and creep properties, as well as oxidation and burn resistance are good, even at high temperatures [4,5,6,7,8,9]. Capable of withstanding extreme conditions, titanium aluminides have found applications in the automotive and aircraft engine industry, as reported in [10,11]. As engine valves in sports and racing cars, as turbocharger turbine wheels and as low-pressure turbine blades in jet engines, they are expected to replace conventional high-temperature materials of high density in a temperature range up to 750 °C [4,6,7,8,10,11,12,13,14,15,16,17,18,19]. During the last few decades, considerable efforts have been made to develop γ-TiAl-based alloys suitable for service in these demanding areas, while being economically competitive at the same time. Various processing routes and alloy compositions have been studied intensively [9,12,20,21].

Among the recently-developed third-generation titanium aluminide alloys, the β-solidifying TNM alloys in particular strive to overcome processing-related difficulties inherent to brittle intermetallic materials [11,20]. With a nominal composition of Ti–43.5Al–4Nb–1Mo–0.1B (at. %), their distinct characteristic is an adjustable β/βo phase fraction, which is stabilized by the alloying elements Nb and Mo (hence the name TNM) [20,22]. At elevated temperatures, a substantial volume fraction of the disordered β-Ti(Al) phase (A2 structure) is obtained [23]. The presence of this phase improves the material’s hot workability by providing a sufficient number of independent slip systems [7,24,25,26,27]. Furthermore, it allows near-conventional hot-die forging due to an enlarged processing window [28,29]. At service temperatures, however, the ordered βo-TiAl phase (B2 structure) reduces the material’s creep strength significantly [11,25]. Heat treatments must be applied after forging to reduce the βo phase fraction to a minimum. By simultaneously adjusting the material’s microstructure, attractive mechanical properties can be tailored.

Depending on the temperature profile of the heat treatment applied, as well as on the material’s chemical composition, different microstructural features can be adjusted in TiAl alloys, ranging from near gamma (NG) and duplex (D) microstructures over nearly-lamellar (NL) to fully-lamellar (FL) microstructures [6,7,10,30]. FL microstructures exhibit the best creep properties at the expense of a diminished room-temperature ductility [31,32]. NL microstructures offer the most balanced properties, providing strong creep resistance and moderate ductility at ambient temperature [33]. In Figure 1a, the NL microstructure of a heat-treated TNM alloy is shown. The image was obtained by means of scanning electron microscopy (SEM). In the back-scatter electron (BSE) mode, the three main phases α2, βo and γ can be distinguished by their differing contrast: βo appears brightest, γ darkest and α2 in an intermediate contrast. The insert in the right upper corner represents a high-resolution transmission electron microscopy (HRTEM) image of the lamellae within an α2/γ colony.

A further outstanding characteristic of TNM alloys is their solidification pathway via the β phase [28]. Due to an intrinsic grain refinement, the solidified microstructure appears equiaxed and free from a significant casting texture [34]. Additionally, as opposed to the microstructure after peritectic solidification, the material is nearly segregation-free. In spite of the given advantages, cast microstructures are frequently rather coarse. Optimized heat treatments are necessary to adjust the material’s microstructure [21,35,36] and properties [37].

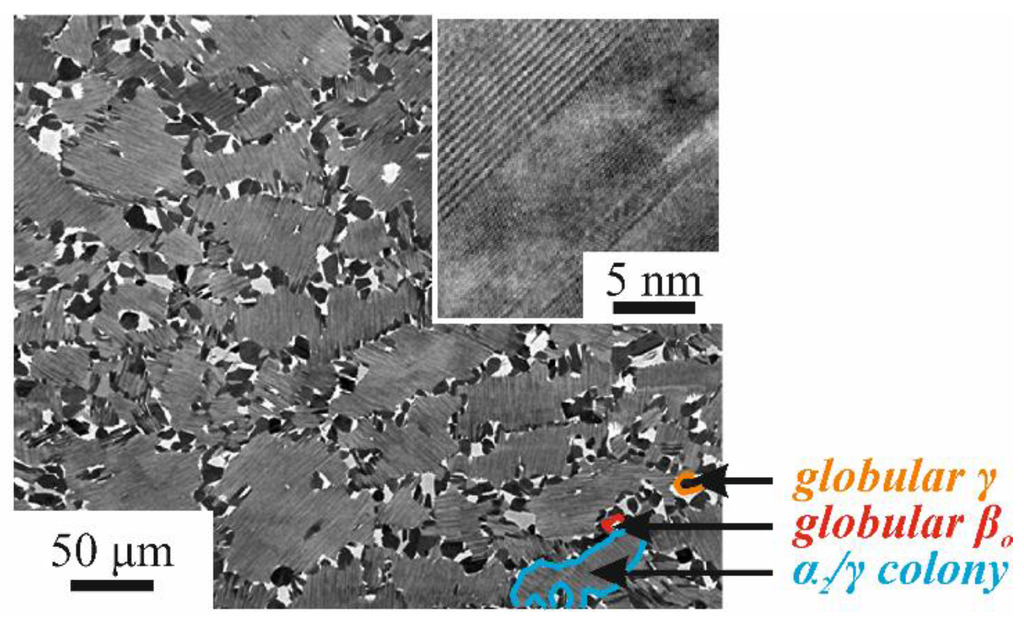

Figure 1. Nearly lamellar microstructure of a nominal TNM alloy (SEM-back-scatter electron (BSE) image) The microstructure, which was arranged during a two-step heat treatment, consists of lamellar α2/γ colonies surrounded by globular γ and βo grains (dark and bright contrast, respectively). The insert (HRTEM image) features a lamellar colony. (Reproduced with permissions from Reference [11]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2013).
Figure 1. Nearly lamellar microstructure of a nominal TNM alloy (SEM-back-scatter electron (BSE) image) The microstructure, which was arranged during a two-step heat treatment, consists of lamellar α2/γ colonies surrounded by globular γ and βo grains (dark and bright contrast, respectively). The insert (HRTEM image) features a lamellar colony. (Reproduced with permissions from Reference [11]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2013).
Metals 06 00010 g001 1024

Currently, so-called TNM+ alloys are attracting notice, as the creep properties, as well as the microstructural stability can be increased as compared to regular TNM alloys. To this end, harmonized additions of C and Si are accommodated in the alloy composition [38,39]. Carbon and Si are known to act as solid solution strengtheners [40,41]. In addition to this, precipitates (cubic Ti3AlC, hexagonal Ti2AlC or Ti5Si3) tend to form during high-temperature creep experiments [42,43,44]. Detailed knowledge of the associated precipitation processes, however, is still needed for their deliberate application to improve a material’s high-temperature properties.

The basis for addressing such research questions is provided by a profound understanding of the thermodynamics and kinetics of the phase transformations occurring. The resultant control over the composition and arrangement of the phases prevalent in a material allows the targeted adjustment of its properties. In the case of TiAl alloys, conventional ex situ characterization methods, although generally available and rather cost effective, encounter certain difficulties. First, the alloy system itself is rendered complex by a multitude of phases and phase transformations, whose occurrence and exact transformation temperatures are strongly dependent on the material’s chemical composition [28]. Thermodynamic calculations cannot, at present, be consulted, except for trends, since commercially-available Ti–Al databases have been found to be unreliable in describing phase diagrams containing high amounts of β/βo-stabilizing elements [11]. Secondly, ordering reactions exhibit extremely fast kinetics [45]. Thus, the disordered high-temperature state cannot be preserved for study at room temperature even by rapid quenching. Phase fractions might change as well, introducing errors in the attempted investigation of high-temperature states in heat-treated and water-quenched specimens [46]. For detailed information on the advantages and limitations of the method of quantitative phase evaluation through microscopic images, the reader is referred to [47]. Thirdly, SEM and X-ray diffraction using laboratory X-ray sources usually suffer from the restriction to the surface or to near-surface areas of the specimens. These areas might in some cases not yield sufficient grain statistics or, following extended heat treatments, be affected by the formation of an α case, an Al-depleted near-surface region of several μm in thickness [48,49,50]. Transmission electron microscopy (TEM) is also restricted to small sample volumes.

Diffraction and scattering techniques using high-energy X-rays and neutrons have been shown to overcome most of the problems mentioned above [48,49,51,52]. Having been used as a tool for material characterization since the early beginnings of research activities on TiAl alloys [46,53,54,55,56,57,58,59], they have successfully promoted the development of the alloy in various aspects (Figure 2). In this review, selected in situ characterization techniques shall be presented through a set of recent examples, highlighting the ways in which they contributed to the development of TNM alloys. The topics addressed range from fundamental research questions, such as the establishment of phase diagrams or the investigation of transformation and precipitation kinetics, to processing- or application-related problems, such as the hot deformation behavior of TNM alloys or the adjustment of optimized microstructures during heat treatments (Figure 2).

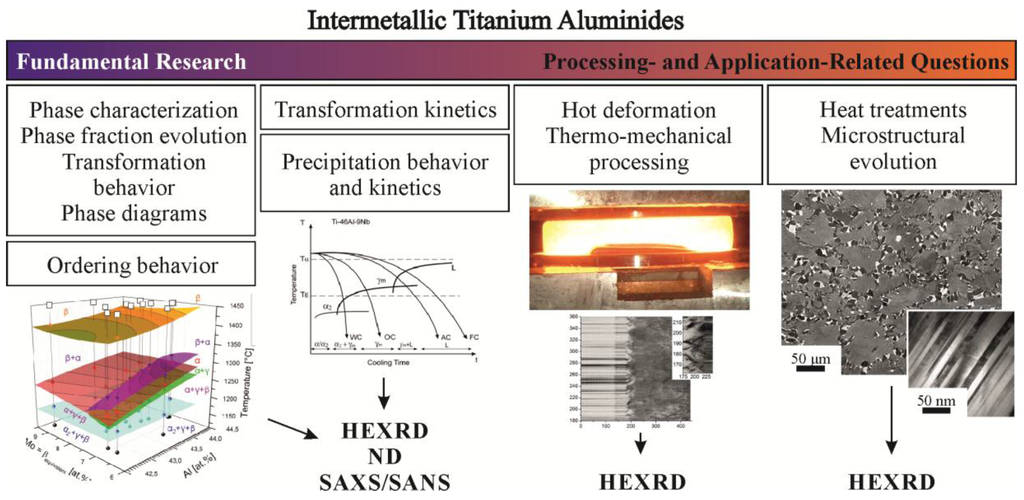

Figure 2. Scheme of the application range of in situ characterization techniques based on synchrotron radiation and neutrons in the development of intermetallic titanium aluminides. Neutron diffraction (ND), high-energy X-ray diffraction (HEXRD), and small-angle scattering methods (small-angle X-ray scattering (SAXS)/small-angle neutron scattering (SANS)) address a wide variety of aspects, which cover fundamental research questions, as well as processing- or application-related problems. All aspects, which are illustrated by representative images, are discussed in the present review with a focus on β-solidifying TNM alloys.
Figure 2. Scheme of the application range of in situ characterization techniques based on synchrotron radiation and neutrons in the development of intermetallic titanium aluminides. Neutron diffraction (ND), high-energy X-ray diffraction (HEXRD), and small-angle scattering methods (small-angle X-ray scattering (SAXS)/small-angle neutron scattering (SANS)) address a wide variety of aspects, which cover fundamental research questions, as well as processing- or application-related problems. All aspects, which are illustrated by representative images, are discussed in the present review with a focus on β-solidifying TNM alloys.
Metals 06 00010 g002 1024

2. Peculiarities in the Investigation of Titanium Aluminide Alloys Using X-rays and Neutrons

Their different nature notwithstanding, X-rays and neutrons are both suited for diffraction and scattering experiments in materials science [60]. While neutrons, which possess a mass, are described as particle waves, massless X-rays (photons) represent electromagnetic radiation. Consequently, their modes of interaction with the material under investigation differ. Neutrons interact predominantly with the nuclei of the atoms. X-rays, on the other hand, are scattered by their electrons. This leads to different cross-sections and atomic form factors, while the mathematics derived to describe the scattering of X-rays and neutrons from matter are basically the same.

The description of the scattering of X-rays and neutrons from condensed matter includes the contributions of all atoms in the form of a discrete sum. Thereby, the phase difference due to different positions of the atoms within the ensemble is embraced. If several elements are distributed randomly on a crystal lattice, a virtual atom with a mean scattering length is conceived for the calculation of the structure factor Fhkl( G ). G is the scattering vector with Miller indices hkl. Superstructure reflections forbidden by the structure factor do not appear in disordered crystals. The disordered state results in phase factors of equal magnitude, but of opposite sign, causing the corresponding reflections to vanish. For ordered structures, each atom is included in the calculation of Fhkl( G ) regarding its specific position in the crystal. If different elements possess different scattering lengths, the structure factor for the formerly forbidden reflections hence attains a finite value. This case defines so-called superstructure reflections, which can be observed in the diffraction pattern.

In this regard, TiAl alloys feature an additional, yet useful peculiarity. Since the neutron scattering lengths of Ti (−3.438 fm) and Al (3.449 fm) [61] happen to be almost equal in magnitude but of opposite sign, disordered phases, in which the ratio Ti:Al is close to one, yield only very weak diffraction peaks, because the average scattering length approaches zero. In ordered Ti–Al crystals, the calculated Fhkl( G ) are close to zero if scattering lengths add up, i.e., for fundamental reflections. The calculation of Fhkl( G ) for superstructure reflections, however, results in large structure factors, because they contain the difference of scattering lengths of each site. High intensities are obtained, emphasizing the presence of ordered structures (Figure 3a). When X-rays are used to probe the material (Figure 3b), an inverse situation emerges, as the X-ray scattering lengths of Ti and Al are of equal sign, but, due to their different atomic numbers (ZTi = 22, ZAl = 13), of different magnitude. Superstructure reflections exhibit low intensities, whereas fundamental reflections appear strong. Since these statements are valid for all prevalent phases, neutron and X-ray diffraction are in fact most complementary techniques if applied to intermetallic TiAl alloys. While neutron diffraction offers distinct advantages for the investigation of order/disorder transitions, X-ray diffraction can be employed to study phase transformations and phase fraction evolutions, in which the fundamental reflections play a major role.

Figure 3. Diffraction patterns of a TNM alloy obtained by (a) neutron and (b) X-ray diffraction at elevated temperatures (top), as well as at room temperature (bottom) [62]. Differences between the patterns of the ordered βo phase at room temperature and of its disordered form β at 1250 °C are exemplarily accentuated. In the case of neutron scattering, the β-(100) superstructure peak appears strong, whereas the fundamental β-(110) peak is hardly discernible from the background. In the case of X-rays, the fundamental peak exhibits a high intensity, while the superstructure peak at room temperature shows only a small intensity.
Figure 3. Diffraction patterns of a TNM alloy obtained by (a) neutron and (b) X-ray diffraction at elevated temperatures (top), as well as at room temperature (bottom) [62]. Differences between the patterns of the ordered βo phase at room temperature and of its disordered form β at 1250 °C are exemplarily accentuated. In the case of neutron scattering, the β-(100) superstructure peak appears strong, whereas the fundamental β-(110) peak is hardly discernible from the background. In the case of X-rays, the fundamental peak exhibits a high intensity, while the superstructure peak at room temperature shows only a small intensity.
Metals 06 00010 g003 1024

3. In Situ Studies of Phase Evolutions

3.1. HEXRD: State-of-the-Art Instrumental Setup

For in situ investigations of the phase transformation behavior of titanium aluminides, high-energy X-ray diffraction (HEXRD) has evolved into a powerful and versatile tool [48,50,51,63,64,65,66]. At synchrotron radiation sources, a white X-ray beam is produced by the deflection of charged particles, either electrons or positrons, by means of a bending magnet or an insertion device, i.e., a wiggler or an undulator, as shown in Figure 4 [67]. A monochromator is used to select a narrow energy range from the broad spectrum. For titanium aluminides, energies in the range of 87 to 120 keV, corresponding to wavelengths of 0.143 to 0.103 Å, and wave numbers of 44.1 to 60.1 Å−1 have been shown to yield good diffraction results for specimens of 5 mm in thickness [51].

Specimens are investigated in transmission geometry (Figure 4), as the high-energy X-rays can penetrate relatively large sample volumes. Due to their small wavelengths, they yield narrow Debye-Scherrer cones according to Braggʼs law. Thus, large parts of the diffraction patterns, i.e., the diffraction rings, can be recorded at once with the aid of flat-panel area detectors. The latter provide a high temporal resolution, enabling the performance of real-time in situ experiments. Poly- and mono-crystalline materials can be investigated by means of HEXRD, as well as texturized or strained materials. As ideally whole diffraction rings are covered, even single diffraction spots from monocrystalline samples can be detected. For conventional powder diffraction purposes, the rings are azimuthally integrated, while anisotropic, directionally-dependent properties can be studied by limiting the integration to segments of the azimuthal angle [68]. Basic aspects and common sources of error in the powder diffraction approach are discussed in [69]. For detailed information on features specific to data collection from neutron and synchrotron radiation sources, the reader is referred to [70].

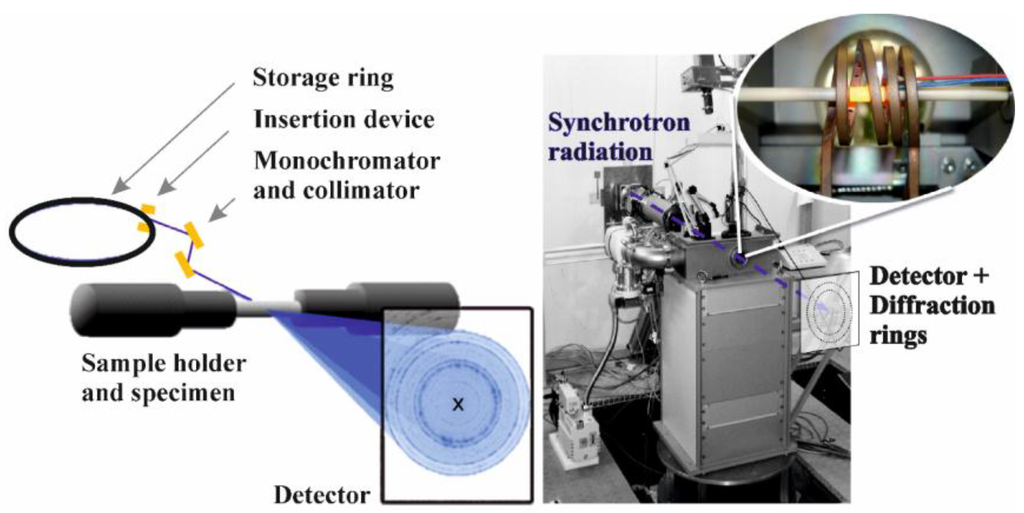

Figure 4. Typical experimental setup for HEXRD. The scheme to the left illustrates the pathway of high-energy X-rays (blue) from their generation at an insertion device in the storage ring, up to their diffraction from the specimen in the sample holder. An area detector at the front captures sets of Debye-Scherrer rings [52]. The photograph on the right shows the quenching and deformation dilatometer [64,66] as an example of a versatile sample environment installed at the PETRA III High Energy Materials Science (HEMS) beamline. In the insert at the top, a heated specimen is glowing during an in situ experiment. (Reproduced with permissions from Reference [52]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2011).
Figure 4. Typical experimental setup for HEXRD. The scheme to the left illustrates the pathway of high-energy X-rays (blue) from their generation at an insertion device in the storage ring, up to their diffraction from the specimen in the sample holder. An area detector at the front captures sets of Debye-Scherrer rings [52]. The photograph on the right shows the quenching and deformation dilatometer [64,66] as an example of a versatile sample environment installed at the PETRA III High Energy Materials Science (HEMS) beamline. In the insert at the top, a heated specimen is glowing during an in situ experiment. (Reproduced with permissions from Reference [52]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2011).
Metals 06 00010 g004 1024

For in situ diffraction experiments, specific conditions concerning temperature, pressure and atmosphere must be adjusted at the sample position. For this purpose, a variety of sample holders and furnaces is currently available. For a large part of the HEXRD experiments presented in this review, a quenching and deformation dilatometer supplied by Bähr Thermoanalyse GmbH, Germany (now TA Instruments), with built-in windows for the X-ray beam, was used (see the photograph in Figure 4) [64]. In this setup, thermal expansion curves and diffraction patterns can be measured simultaneously. Furthermore, thermo-mechanical processing and heat treatments on specimens can be investigated in an in situ manner. The dilatometer setup is currently available for high-energy X-rays at the HZG-operated High Energy Materials Science (HEMS) beamline (P07) at PETRA III at DESY in Hamburg, Germany [66]. In the near future, a dilatometer will also be available for neutron scattering at the Heinz Maier-Leibnitz Zentrum (MLZ) in Garching, Germany.

3.2. Studies of Phase Evolutions in TNM Alloys

Knowledge of phase fraction evolutions as a function of temperature and time has adopted a key role in the design and further development of advanced materials. It can be applied to evaluate an alloy’s potential regarding future processing routes and applications. The alloy’s chemical composition can be optimized as its influence on phase fractions, transition temperatures and kinetics is analyzed. The accuracy of predicted phase diagrams can be verified. If necessary, thermodynamic databases can be modified on the basis of experiments and thermodynamic models improved. Process- and application-related questions can be addressed, treating, for example, the alloy’s deformation behavior or its response to heat treatments.

In situ diffraction techniques provide a valuable tool to collect pieces of this fundamental information. Shull et al. [46] conducted high-temperature X-ray diffraction experiments on TiAl alloys for phase identification at elevated temperatures. The equipment used comprised a θ-2θ diffractometer and a linear position-sensitive proportional counter. Specimens were heated in a furnace chamber. The in situ experiments proved the presence of the eutectoid reaction for a Ti–45Al (at. %) alloy and allowed the investigation of the α + γ phase field region. Novoselova et al. [48] applied synchrotron X-ray diffraction to a Ti–46Al–1.9Cr–3Nb (at. %) alloy using a two-circle high-resolution powder diffractometer and an X-ray energy of approximately 9.55 keV. Samples were heated in steps to temperatures ranging from 20 to 1450 °C. Diffraction patterns were acquired under isothermal conditions. In this way, phase fraction evolutions as a function of temperature could be derived in an in situ manner for every phase in a titanium aluminide alloy. Nowadays, phase fraction evolutions are often determined by means of in situ HEXRD (Section 3.1) while working on a heating ramp. All experimental approaches offer distinctive advantages, but also possess inherent limitations and sources of error. General considerations on data collection and evaluation are provided in [69,70,71]. For further details on the respective methods, the reader is referred to the original publications cited throughout this work.

In terms of TNM alloys, in situ HEXRD studies on phase fraction evolutions have played an important role in the alloy design and the establishment of the phase diagram. Calculated phase diagrams were found to indicate trends, but to be unreliable in two main aspects [72]. First, the level of the eutectoid temperature Teu was underestimated, and the position of the eutectoid point was shifted concerning its Al concentration. Secondly, in contrast to thermodynamic calculations, experimental data proved the existence of a single α phase field in TNM alloys containing more than 42 at. % Al. On this account, the phase diagram has been verified by Boeck [73] on the basis of heat treatment studies. These studies, in combination with differential scanning calorimetry (DSC), conventional XRD and HEXRD experiments, provided data for the eventual modification of the phase diagram [37,72,74].

In Figure 5a, the experimentally-verified quasi-binary section through the TNM alloying system is given [37]. An exemplary phase fraction evolution of a TNM alloy is shown in Figure 5b [37]. The investigated alloy possesses an exact chemical composition of Ti–43.67Al–4.08Nb–1.02Mo–0.1B (at. %). The in situ experiments for the determination of the phase fraction evolution were conducted at the HZG-operated beamline HARWI II at DESY. Due to a low diffusivity at low temperatures, which entails retarded kinetics, as well as due to poor grain statistics related to excessive grain growth close to single phase field regions at high temperatures, the temperature range for the quantitative determination of phase diagrams by means of HEXRD is restricted. HEXRD experiments were, thus, conducted covering temperatures ranging from 1100 °C to 1350 °C. Phase fraction evolutions above 1350 °C were estimated as qualitative trends by means of thermodynamic calculations. The temperature range below 1100 °C was studied by means of long-term heat treatments and ex situ XRD measurements. From the evolution of experimentally-determined phase fractions, transition temperatures could be extracted with high accuracy. Measurements on several model alloys of differing chemical compositions provided the basis for the establishment of a phase diagram.

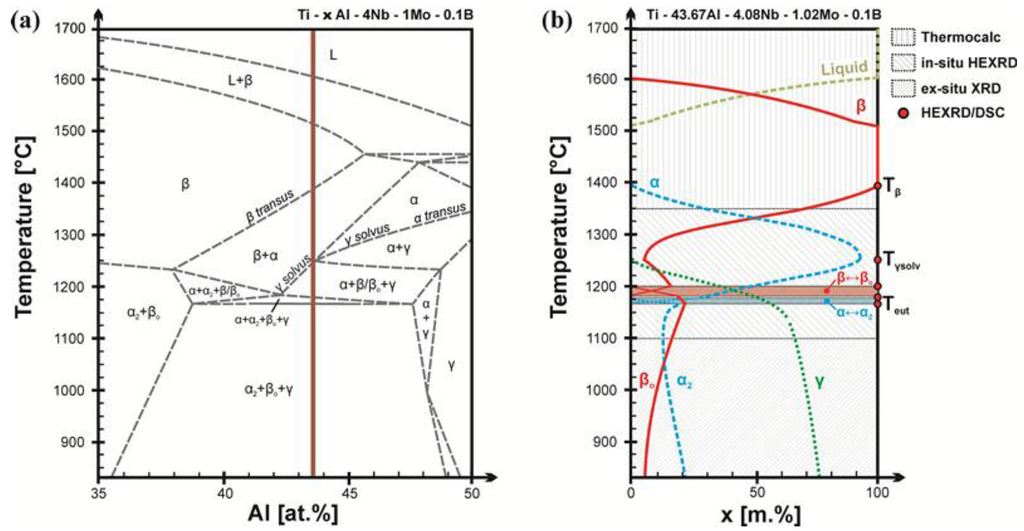

Figure 5. Quasi-binary section through the TNM alloying system (a) and experimentally-determined evolution of phase fractions of a Ti–43.67Al–4.08Nb–1.02Mo–0.1B (at. %) alloy (b). (Reprinted from Reference [37], Copyright (2014), with permission from Elsevier).
Figure 5. Quasi-binary section through the TNM alloying system (a) and experimentally-determined evolution of phase fractions of a Ti–43.67Al–4.08Nb–1.02Mo–0.1B (at. %) alloy (b). (Reprinted from Reference [37], Copyright (2014), with permission from Elsevier).
Metals 06 00010 g005 1024

To investigate the influence of different amounts of β-stabilizing alloying elements, in situ and ex situ HEXRD experiments were conducted on three TNM alloys, two of them containing elevated amounts of Nb or Mo, respectively [74]. Phase fraction evolutions were evaluated by means of quantitative Rietveld analysis. The diffraction experiments were performed at the beamline ID-15B at the European Synchrotron Radiation Facility (ESRF) in Grenoble, France. The samples were slowly heated in a temperature range of 1100 to 1400 °C. DSC measurements and quantitative metallography were performed as complementary characterization techniques. The evolution of the experimentally-acquired phase fractions clearly shows that increased amounts of Nb and Mo shift the β/βo minimum at elevated temperatures, which is a characteristic of TNM alloys (Figure 5), to larger phase fractions [74]. A comparison with ex situ experiments, however, indicates that the quantitative amount of the β phase at its minimum might be overestimated by the results of the HEXRD experiments on the two modified TNM alloy variants. The heating rate during the in situ experiments was chosen as a compromise between limited beam time, avoidance of grain coarsening and time for the achievement of thermodynamic equilibrium conditions. It might have been too high to fully reach thermodynamic equilibrium, especially as the β phase, stabilized by slowly diffusing elements Nb and Mo, exhibits a prolonged dissolution behavior. Nevertheless, Schloffer et al. [75] showed that phase fractions retrieved from light-optical microscopy, conventional XRD and in situ HEXRD are in good agreement, at least up to the dissolution temperature of the γ phase (Tγ,solv).

3.3. Neutron Diffraction Studies on Order/Disorder Transformations in TNM Alloys

Ordering phenomena strongly affect the mechanical behavior of the phases present in a material and, thus, the mechanical properties of the material as a whole. In TiAl alloys, for instance, the disordered β phase is known to improve hot workability at elevated temperatures [26,76,77], while the ordered βo phase has a negative impact on ductility at ambient temperature [78], as well as on creep strength at service temperature [29]. Consequently, the experimental determination of ordering temperatures is of great interest. Using laboratory X-ray sources, ex situ studies have been conducted to investigate the site occupancy within different ordered phases [54,79,80]. Complementary investigations of the ordering behavior were conducted by means of TEM [45]. HEXRD experiments were performed to investigate, for example, the site occupancy within the α/α2 phase in a Ti–45Al–7.5Nb–0.5C (at. %) alloy [81]. A sudden rearrangement of the atomic site occupancies provided evidence for the disordering temperature of the α2 phase.

Due to short diffusion pathways, ordering reactions are characterized by extremely fast kinetics. The preservation of the disordered states of the α and β phase to room temperature is, thus, impeded, even if the specimens are water-quenched [45,82]. Consequently, the ordering behavior of TiAl alloys can only be investigated at those temperatures, at which the ordering reactions occur, i.e., in an in situ manner.

As explained in Section 2, neutron diffraction offers particular benefits regarding the investigation of ordering transitions in TiAl alloys. Hence, the α ↔ α2 and β ↔ βo ordering/disordering temperatures in a TNM alloy (termed Teu and Tβ,ord in the Ti–Al system) were examined at the structure powder diffractometer SPODI [83,84] at the neutron source FRM II at the MLZ [85]. Specimens were heated in steps ranging from 1000 °C to 1450 °C. Isothermal segments of 3 h allowed the acquisition of diffraction patterns at selected temperatures (Figure 6). Due to the system’s peculiarity regarding structure factor considerations, all peaks in the patterns represent superstructure reflections. The Nb-(110) peak, which is indicated in grey, stems from the sample holder.

At temperatures ranging from room temperature to 1100 °C, superstructure reflections of all three phases (α2, βo and γ) are visible. All phases are present in their ordered state. At 1200 °C, the α2 reflections have vanished, the α2 phase has disordered. The transition temperature Teu must therefore lie in the temperature range between 1100 and 1200 °C. Between 1200 and 1250 °C, the βo ↔ β ordering reaction takes place, the βo reflections vanish. Only γ superstructure peaks can be observed at 1250 °C. At 1275 °C, also the γ reflections have disappeared. As the γ phase does not disorder, the disappearance of its superstructure reflections implies its dissolution at Tγ,solv. Thus, at 1275 °C, the material consists of the disordered phases α and β, as earlier work has proven for temperatures above 1300 °C [23].

Figure 6. Neutron diffraction patterns of a TNM alloy obtained during isothermal segments at selected temperatures [85]. Between 1100 and 1200 °C, the α2 reflections vanish, while the βo phase disorders between 1200 and 1250 °C. The γ phase, which shows no disordering, dissolves in the temperature range between 1250 and 1275 °C.
Figure 6. Neutron diffraction patterns of a TNM alloy obtained during isothermal segments at selected temperatures [85]. Between 1100 and 1200 °C, the α2 reflections vanish, while the βo phase disorders between 1200 and 1250 °C. The γ phase, which shows no disordering, dissolves in the temperature range between 1250 and 1275 °C.
Metals 06 00010 g006 1024

Due to the extensive pattern acquisition times at SPODI, only a few datasets could be generated. These sets could be used for a rough determination of the temperature ranges in which the order transitions of the α/α2 and β/βo phases occur. For a more accurate determination of the ordering/disordering temperatures, neutron diffraction experiments were performed at WOMBAT at the OPAL reactor of the Australian Nuclear Science and Technology Organization (ANSTO) in Lucas Heights, Australia [74,86]. The facility hosts a two-dimensional position-sensitive detector, which is optimized for high-intensity rather than high-resolution measurements and, thus, permits fast data acquisition rates. At heating/cooling rates of 0.166 K·s−1, the temperatures at which order transitions occur could be determined accurately [74]. An extract of the results obtained in the course of the heating experiments is given in Figure 7. Normalized intensities of the α2-(10-11) and βo-(100) superstructure peaks are presented as a function of temperature. The sharp decrease in intensity indicates the loss of order at relatively fast disordering kinetics. For nominal TNM alloys, Teu was determined to lie at 1174 °C, while Tβ,ord was located at 1225 °C [74]. These findings are in perfect agreement with the results obtained previously at SPODI [85].

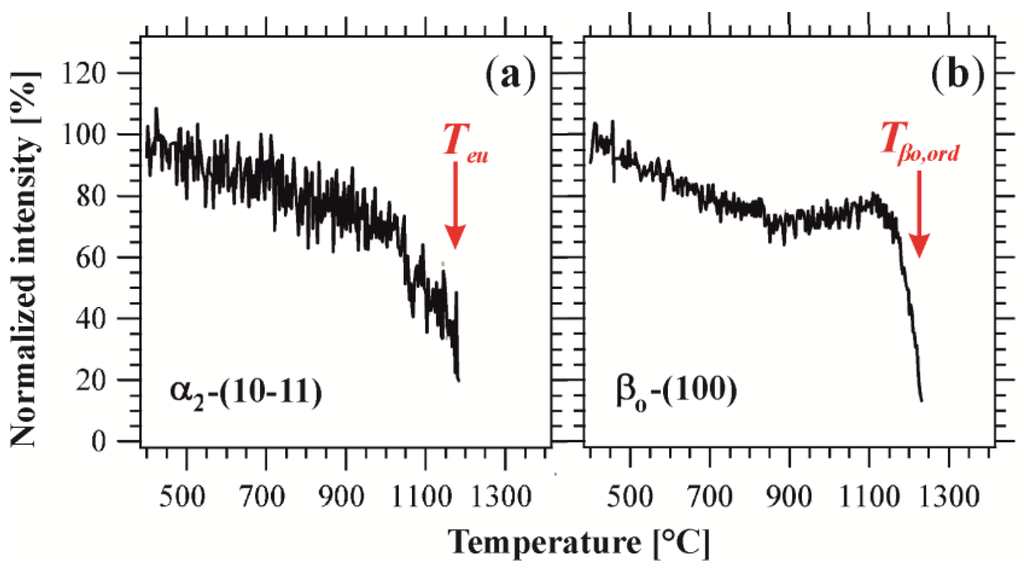

Figure 7. Intensity evolutions of the α2-(10-11) (a) and βo-(100) (b) superstructure peaks during heating The loss of order is indicated through the sharp decrease in intensity. The intensities, which are plotted as a function of temperature, are normalized to the intensity observed at 400 °C and given in %. (Reproduced with permissions from Reference [52]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2011).
Figure 7. Intensity evolutions of the α2-(10-11) (a) and βo-(100) (b) superstructure peaks during heating The loss of order is indicated through the sharp decrease in intensity. The intensities, which are plotted as a function of temperature, are normalized to the intensity observed at 400 °C and given in %. (Reproduced with permissions from Reference [52]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2011).
Metals 06 00010 g007 1024

For the sake of completeness, it should be noted that with an increasing brilliance of today’s synchrotron radiation sources, ordering and disordering reactions in TiAl alloys can also be studied by means of in situ HEXRD experiments. Due to the structure factor, however, the intensities of superstructure reflections are generally very weak [87].

3.4. Recent Advancements in the Alloy Development: The Introduction of Carbon to TNM Alloys

The increasing demand for lightweight high-temperature construction materials, higher efficiency and better performance has sparked the need for even more creep-resistant γ-TiAl-based alloys. To meet the requirements, advanced TNM alloys are developed that exhibit good creep resistance and a stable microstructure well above the usual application limit of about 750 °C [38,39].

An increase in creep resistance has often been linked primarily to improvements in the chemical composition of an alloy [10,11,12,21]. For γ-TiAl-based alloys, a positive effect on creep properties has been reported for the addition of β-stabilizing substitutional solid solution hardening elements (e.g., Nb, Mo, Ta, W), as well as for the addition of interstitial hardening elements (e.g., C, N), which can also form carbides and nitrides. In high Nb- and Mo-containing alloys, solid solution hardening has been shown to be a dominating hardening effect in the γ-TiAl phase. Furthermore, the alloying elements Nb and Mo have been shown to reduce diffusivity and retard thermally-activated dislocation climb during creep [88]. Below their solubility limit, a solid solution hardening effect is also attributed to additions of C and N, albeit these elements are solved interstitially [40,41,89]. Carbon, in particular, has been suggested to impede the growth of α grains due to segregation and to decrease the rate of diffusion in the α phase in cast γ-TiAl-based alloys [21]. Concerning mechanical properties, additions of C and N were found to increase the yield and fracture stresses by the mechanisms of grain refinement, solid solution and precipitation hardening [90]. Especially the precipitation of fine carbides has been shown to considerably increase the high-temperature strength of TiAl alloys [91]. Cubic perovskite Ti3AlC (p-type) carbides have been reported to enhance strength and creep performance for a variety of γ-TiAl-based alloys [10,12,44,91,92,93,94]. Hexagonal Ti2AlC (h-type) carbides, on the contrary, are thermodynamically stable at higher temperatures, but are known to be less efficient regarding the impediment of dislocation mobility [10,91]. However, they can act as efficient grain refiners during solidification, yielding a nearly texture-free solidification microstructure, as reported in [38].

Generally, an increase in creep resistance is linked to a decrease in dislocation mobility. However, at room temperature, the ductility of a material may be lost. Therefore, in the course of alloy development, ways of adjusting balanced mechanical properties have to be established. Furthermore, the interplay between different alloying effects has to be considered. Carbon acts as a strong stabilizer of the hexagonally-close-packed α phase and significantly increases the eutectoid temperature Teu. To preserve the solidification pathway via the β phase, the amount of β-stabilizing elements, such as Nb and Mo, has to be corrected, i.e., slightly increased [38]. Thus, grain refinement, minimum segregation and almost texture-free solidification microstructures can still be obtained in C-containing TNM alloys. In this regard, in situ diffraction techniques offer a valuable tool to investigate the influence of alloying additions on the solidification behavior of a material, the phase fractions present, as well as their evolution as a function of temperature and time, as reported in [38].

For the investigation of the influence of C additions on the phase evolution in TNM alloys, TNM variants containing 0, 0.25, 0.5, 0.75 and 1 at. % C, respectively, were produced by melting, hot isostatic pressing (HIP), near-conventional forging and subsequent heat treatments [38]. In situ HEXRD experiments were conducted at the HZG beamline HARWI II at DORIS III in Hamburg, Germany. Specimens of 5 mm in diameter and 10 mm in length were heated in a modified quenching and deformation dilatometer (Section 3.1; Figure 4). First, the specimens were heated rapidly to 1100 °C. An isothermal segment of 10 min allowed the approach of conditions near thermodynamic equilibrium. Afterwards, the specimens were heated to 1300 °C at a slow heating rate of 2 K·min−1. From 1300 °C to 1425 °C, they were heated at higher rates again to avoid excessive grain growth, which would result in poor grain statistics and the risk of thermocouple tear-off.

The data on the phase fractions as a function of temperature, combined with the results from SEM, were used to derive the quasi-binary phase diagram given in Figure 8 [38]. TNM alloys with a C content below roughly 0.5 at. % still solidify via the β phase (i.e., L → L + β → β → β + α → …), as is known from standard TNM alloys. Thus, intrinsic grain refinement occurs, which stems from the β → α phase transformation according to the Burgers orientation relationship. Increasing C content entails a change of the solidification pathway from β to peritectic solidification (i.e., L → L + β → L + β + α → β + α → …), as can be observed in the TNM alloys with C contents of 0.5 at. % and above. The peritectic solidification leads to a coarse-grained columnar microstructure with a sharp solidification texture. In the TNM-1C alloy, however, a grain-refining effect was reported to occur due to the formation of h-type carbides, which lead to enhanced heterogeneous nucleation during subsequent solid-state phase transformations [38]. Although peritectically solidified, TNM-1C alloys exhibit a fine-grained and texture-free microstructure.

Figure 8. Experimentally-determined quasi-binary section of the TNM-(0–1)C (at. %) system. Evidently, C acts as a strong α stabilizer [38]. (Reprinted from Reference [38], Copyright (2014), with permission from Elsevier).
Figure 8. Experimentally-determined quasi-binary section of the TNM-(0–1)C (at. %) system. Evidently, C acts as a strong α stabilizer [38]. (Reprinted from Reference [38], Copyright (2014), with permission from Elsevier).
Metals 06 00010 g008 1024

3.5. Small-Angle Scattering Experiments on Carbide Precipitation in TNM Alloys

In a forged and heat-treated TNM alloy containing 1 at. % C (in the following termed TNM-1C), Ti2AlC h-type carbides were found (see the previous section), whereas no Ti3AlC p-type carbides could be detected. TEM investigations confirmed the absence of both h- and p-type carbides within cast/HIP, as well as forged and heat-treated alloy variants containing lower amounts of C. In these alloys, the solubility limit of C may not have been exceeded. In this regard, it has to be noted that the overall composition of the alloys may impact the results concerning the presence and type of carbides. Small-angle neutron scattering (SANS) studies proved the presence of p-type precipitates in a Ti–48.5Al–0.4C (at. %) alloy after a solution treatment for 4 h at 1250 °C followed by ageing for 24 h at 750 °C and quenching [42]. As a result of the precipitation-hardening treatment, the material’s high-temperature strength was improved. Further SANS experiments, which targeted the effect of an addition of 0.5 at. % C to Ti–45Al–5Nb (at. %) alloys, showed that in contrast to the Nb-free alloys, the Nb-containing alloys exhibit no strengthening precipitates, but rather a homogeneous C distribution with a few C-enriched regions [43]. Investigations on a powder-metallurgically produced TNB alloy, on the other hand, which differs in its Al and Nb content from the TNM specimens and is moreover Mo-free, evidenced the presence of p-type carbides at 0.75 at. % C [95]. Recently, Wang et al. [96] systematically investigated the nucleation, growth and coarsening of carbides in C-containing Ti–45Al–5Nb (at. %) alloys by means of HEXRD and TEM studies.

Generally, not only the chemical composition, but also the heat treatment history determines if, which type and to what extent carbides are present in a material. In a follow-up study on a TNM-1C alloy, the precipitation behavior and thermal stability of the Ti3AlC p-type carbides during isothermal annealing and subsequent re-heating to 1200 °C were quantified [44]. HEXRD experiments were conducted to study the phase transformation and precipitation behavior of the carbides from a supersaturated matrix. Thereby, the matrix was formed by ultrafine γ lamellae, which precipitated themselves during the heat treatment in supersaturated α2 grains, building up hierarchical structures on the nanoscale. In situ small-angle X-ray scattering (SAXS) experiments using synchrotron radiation were conducted to gain a deeper insight into the size distribution, precipitation kinetics and thermal stability of the carbide precipitates.

The SAXS experiments were conducted at the HEMS beamline at PETRA III [44]. In Figure 9, the experimental setup is schematically illustrated. In principle, it resembles closely the HEXRD setup described in Section 3.1. A major difference, however, lies in the fact that the sample-to-detector distance must be larger for SAXS experiments, as the X-rays scattered at small angles are studied with high resolution. As indicated in Figure 9, a second area detector might be positioned in the optical path of the diffracted X-rays to record the HEXRD pattern at times or to record part of the diffraction rings simultaneously to the in situ SAXS experiment.

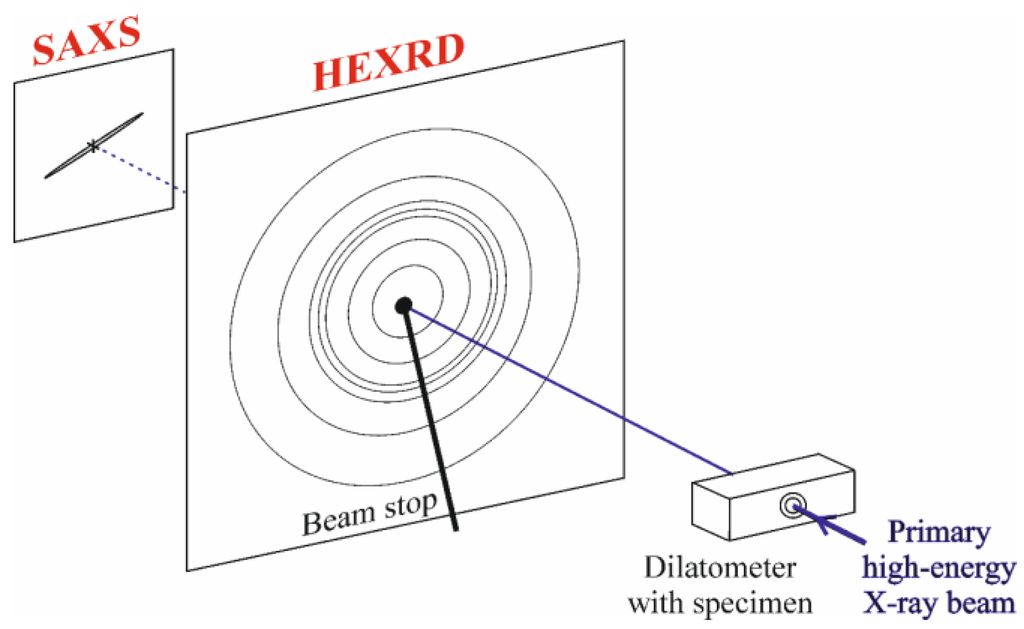

Figure 9. Schematic of the experimental setup for SAXS experiments conducted on C-containing TNM alloy variants [44]. The primary X-ray beam impinges on the specimen within the dilatometer (see Figure 4) and is subsequently scattered/diffracted. Two-dimensional detectors record the SAXS (and if desired, the HEXRD) signal.
Figure 9. Schematic of the experimental setup for SAXS experiments conducted on C-containing TNM alloy variants [44]. The primary X-ray beam impinges on the specimen within the dilatometer (see Figure 4) and is subsequently scattered/diffracted. Two-dimensional detectors record the SAXS (and if desired, the HEXRD) signal.
Metals 06 00010 g009 1024

For the in situ investigation of the carbide precipitation behavior in the TNM-1C alloy, cylindrical specimens of 5 mm in diameter and 10 mm in length were inductively heated in an adapted quenching and deformation dilatometer (Section 3.1; Figure 4). The recorded diffraction patterns were azimuthally integrated using the software program Fit2D [97]. The derived scattering curves were fit within SANSFit based on a least-squares method iteration, as conducted in [42]. The p-type carbides were modelled as elongated ellipsoids of revolution. A random orientation of particles was suggested, obeying a lognormal size distribution.

Figure 10 illustrates the time-temperature profile of the conducted heat treatment. The first annealing step, which consisted of an isothermal segment of 1 h in the (α + β) phase field region at 1415 °C followed by quenching, was performed ex situ in a high-temperature furnace to avoid thermocouple tear-off. The resulting microstructure at room temperature consisted primarily of supersaturated α2 grains, as well as a small amount of ordered βo phase that additionally contained martensitic α2′. The subsequent isothermal stabilization or precipitation annealing and the ensuing re-heating were conducted in the dilatometer in the optical path of the synchrotron beam, while the SAXS and HEXRD signals were continuously recorded. Regarding the microstructure, the isothermal annealing at 750 °C for 4 h provoked the transformation of the supersaturated α2 grains to lamellar α2/γ colonies as γ lamellae precipitated obeying the Blackburn orientation relationship [98]. Furthermore, lens-shaped γ particles precipitated within βo according to a modified Kurdjumov-Sachs orientation relationship. P-type Ti3AlC carbides occurred in the γ phase according to the orientation relationship reported in [91]. The precipitation of p-type carbides was attributed to the low solubility of C in the γ phase, which was found to be six-times lower than in the α2 phase, while the βo phase exhibits in general almost no solubility for C [38,41]. The re-heating of the specimens from 750 to 1200 °C yielded a fine-grained α2/γ phase arrangement due to the occurrence of discontinuous coarsening (cellular reaction) [99]. As the thermal activation of diffusion processes is enhanced with increasing temperature, the microstructural instability becomes increasingly pronounced. The p-type carbides dissolve in γ as the C solubility increases.

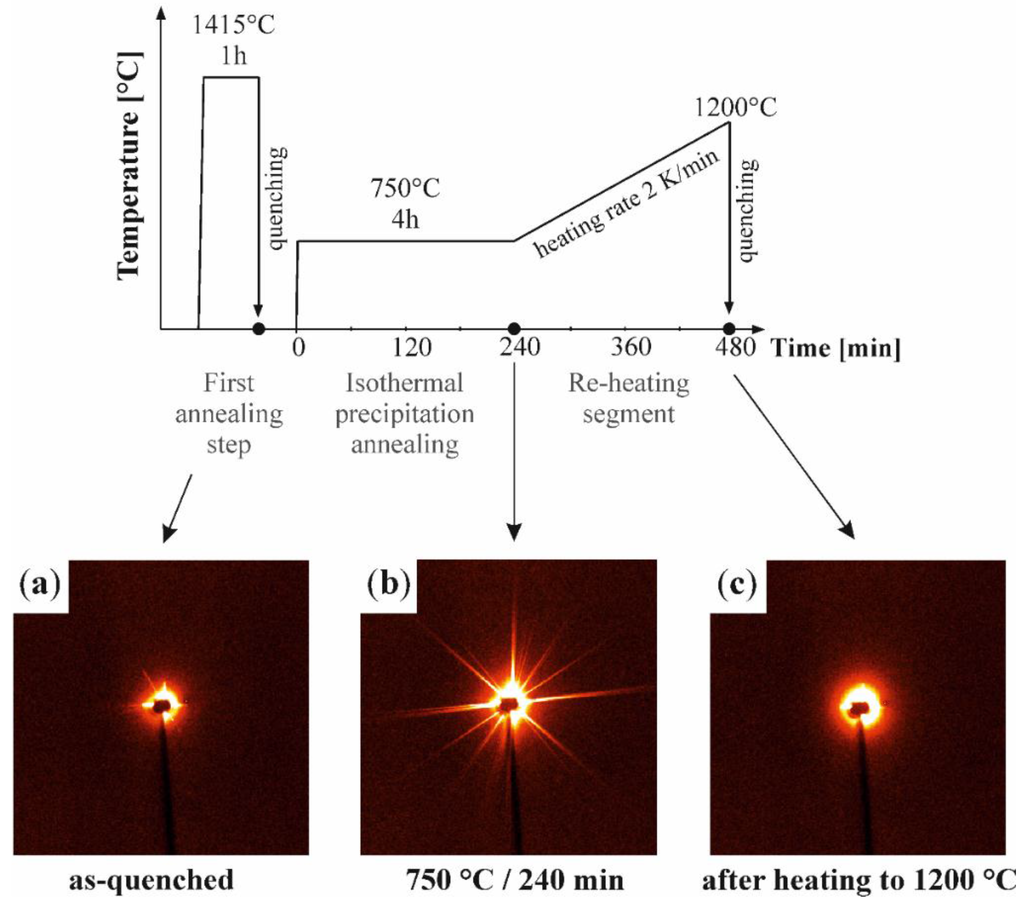

Figure 10. Time-temperature profile of the heat treatment conducted as described in [44]. Dots at certain stages of the profile correspond to the SAXS detector images displayed below (a,b,c). See the text for details.
Figure 10. Time-temperature profile of the heat treatment conducted as described in [44]. Dots at certain stages of the profile correspond to the SAXS detector images displayed below (a,b,c). See the text for details.
Metals 06 00010 g010 1024

In Figure 10, SAXS detector images recorded at selected stages during the in situ experiment (indicated as dots on the time scale of the heat treatment plot) are shown. In all cases, a pronounced small-angle scattering signal is visible around the beam stop. Figure 10a corresponds to the quenched and supersaturated state after the first annealing step at 1415 °C. Small streaks in the SAXS signal are attributed to the martensitic structure of α2′ in βo, as described in [44]. During the initial stage of the annealing segment at 750 °C, these streaks vanish. After an incubation time of roughly 30 min, however, new streaks can be observed. Appearing more pronounced, they are assigned to smaller structural features within the hierarchical structure. Furthermore, the incubation time for nucleation indicates that the streaking does not stem from ultrafine γ lamellae, which form directly after thermal activation at 720 °C, but rather from the p-type carbides precipitating in γ-laths. Figure 10b shows the SAXS signal at the end of the isothermal precipitation segment. Heating to 1200 °C leads to the disappearance of the streaks (Figure 10c), which can be attributed to the dissolution of the p-type carbides within the γ-lamellae.

The SAXS detector images were evaluated regarding the carbide precipitation kinetics as well as their thermal stability. In Figure 11, selected averaged scattering curves during isothermal annealing and subsequent heating are shown. The time specifications are given in accordance with the time scale set in Figure 10, i.e., 0 min refers to the beginning of the isothermal segment. The magnitude of the scattering vector q inversely corresponds to the characteristic dimensions (e.g., radii) of the precipitated particles, while the macroscopic scattering cross-section dΣ/dΩ is directly proportional to the fraction and number of p-type carbide precipitations. After a distinct incubation time of roughly 30 min, the scattering curves increase in dΣ/dΩ, indicating an increase of the precipitate volume fractions. After 333 min, the specimen has already entered the heating segment (at a temperature of 936 °C), and an inverse trend begins to manifest itself. This means that the p-type carbides begin to dissolve, provoked by the increasing temperature (see the time-temperature profile in Figure 10). From the scattering curves, the number density, volume fraction and characteristic dimensions of the precipitates can be estimated [44].

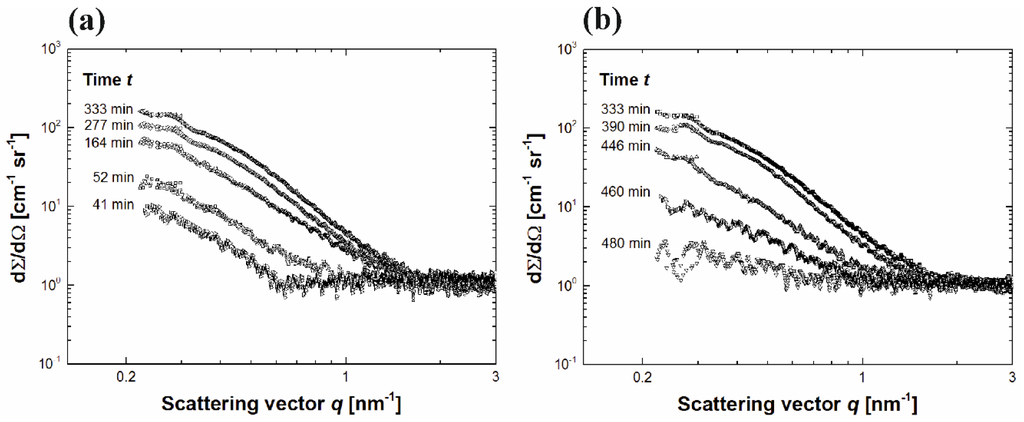

Figure 11. Selected averaged scattering curves during isothermal annealing and subsequent heating. Until 333 min (936 °C), p-type carbides precipitate in the γ laths of the α2/γ colonies (a). Afterwards, their volume fraction decreases again (b). The indicated time specifications refer to the time scale set in the time-temperature profile depicted in Figure 10. (Reprinted from Reference [44], Copyright (2014), with permission from Elsevier).
Figure 11. Selected averaged scattering curves during isothermal annealing and subsequent heating. Until 333 min (936 °C), p-type carbides precipitate in the γ laths of the α2/γ colonies (a). Afterwards, their volume fraction decreases again (b). The indicated time specifications refer to the time scale set in the time-temperature profile depicted in Figure 10. (Reprinted from Reference [44], Copyright (2014), with permission from Elsevier).
Metals 06 00010 g011 1024

4. TNM Alloys during Processing at Elevated Temperatures

4.1. General Considerations on the Mapping of Deformation, Recovery and Recrystallization

For the investigation of the structure and structural changes in crystalline materials, a multitude of methods based on X-ray diffraction exists. Conventional powder diffraction methods that average over many crystallites offer information on lattice parameters, phase fractions, texture and internal stresses. If monochromatic radiation is used, a fine-grained and homogeneous material will yield a diffraction pattern related to the intersection of the detector (point, line or plane) with the created Debye-Scherrer cones. In transmission geometry, Debye-Scherrer rings will, for example, appear on an area detector. If a monochromatic beam impinges only on a small number of crystallites, be it due to a small beam cross-section or due to a coarse-grained microstructure, information on individual crystallites can be extracted from the resulting reflection spots, which sit on the according positions on the Debye-Scherrer rings [77]. In this regard, three-dimensional X-ray diffraction microscopy (3DXRD) has emerged as a powerful technique enabling the tracking of reflections of individual grains over time [100,101,102,103]. Depending on the selected setup, nucleation and growth studies, grain-by-grain volumetric mapping or orientation imaging microscopy can be performed to study undeformed or deformed material regarding recrystallization, grain growth and grain orientations.

Alternatively, if only a few grains are illuminated, white-beam Laue diffraction can be applied. The result is a Laue pattern characteristic of the crystal lattice and its orientation with respect to the incident beam. A typical field of application of the white-beam Laue technique is the adjustment of the orientation of TiAl single crystals as performed by Inui et al. [104]. The advantage of this method lies in the fact that reflections of the lattice planes stay visible in the Laue pattern if the crystal is rotated about an arbitrary axis. Using a monochromatic beam, only lattice planes in the diffraction condition are visible [101]. Consequently, the Laue technique is well suited for the investigation of the deformation and recrystallization behavior of single crystals [105,106]. However, it is less advantageous for the investigation of fine-grained polycrystalline samples. In these samples a large number of grains is illuminated at once, resulting in complex Laue patterns that are difficult to evaluate.

In these cases, it may be favorable to conduct HEXRD experiments using monochromatic X-rays (Section 3.1; Figure 4). To study recovery, recrystallization and grain growth processes, the intensity distribution of one or more Debye-Scherrer rings can be evaluated as a function of time. If a large number of grains is illuminated by the incident beam, information concerning texture [107] and strain can be derived from the inhomogeneity along the Debye-Scherrer rings. If reflections from single grains can be distinguished, the patterns can be evaluated regarding a variety of additional parameters, such as the number of spots, their morphology, their arrangement and their evolution with time [50]. Information regarding grain sizes, grain refinement or coarsening, mosaic spread and grain orientations can be retrieved. In terms of heat treatments, for instance, the rearrangement of differently-oriented grains in a massively-transformed TiAl sample has been studied upon heating [82,108]. Careful analysis of single diffraction patterns even allowed tracing the phase transformations of single grains, as diffuse streaking between the parent and the newly-formed grains was observed in a TiAl alloy, as reported in [109]. Individual reflection spots might also transform characteristically during an experiment emulating, for example, hot deformation. A simplified model of the development of reflection spots during hot working is proposed in [52]. The way in which the diffraction pattern is affected depends on the processes dominating in the material, e.g., whether a material or phase predominantly shows recovery or rather recrystallization under the conditions applied. The evaluation of diffraction patterns can help to distinguish these processes and to characterize the evolution of polycrystalline materials undergoing thermo-mechanical processing.

An intuitive approach to visualize the evolution of reflection spots pertaining to one crystallographic plane is to plot the diffracted intensity along the azimuthal angle of a specific ring as a function of time (azimuthal angle vs. time (AT) plot) [50]. For this plot, an integration over a small Bragg-angle range has to be performed, which includes only the Debye–Scherrer ring of interest. Yan et al. [110] used this form of data representation to illustrate the formation of texture during the deformation of an initially coarse-grained Cu sample. In a similar experimental setup, recovery and recrystallization processes were studied in a Zr alloy during hot compression [111]. Mosaicity was derived from the azimuthal angle spread of single reflection spots. The formation of subgrains was studied as single spots of large angular spread split into many sharp reflections separated by small angles. Recrystallization was identified at a later stage of the experiment by the rapid appearance or disappearance of reflection spots.

4.2. HEXRD Studies on the Hot Deformation Behavior of TNM Alloys

The approach of creating AT plots (Section 4.1) was adopted to study the hot deformation behavior of a TNM alloy [112]. HEXRD experiments were conducted at the ID15 beamline at ESRF. Cylindrical specimens of 4 mm in diameter and 8 mm in length were heated resistively to 1300 °C between the anvils of an electro-thermo-mechanical tester supplied by Instron, Norwood, USA, and subsequently compressed. In Figure 12, the AT plots of two selected Debye–Scherrer rings are given. Figure 12a illustrates the evolution of the α2/α-(20-21) ring, Figure 12b the one of βo/β-(002). In Figure 12c, the temperature profile, as well as true stress and true strain curves are given as a function of time.

At the beginning of the experiment, the evolution of the individual reflection spots over time results in distinct lines in the AT plots, which are in the following referred to as timelines. For both phases, α2/α and βo/β, continuous timelines are observed during heating. While the specimen is held at 1300 °C within the (α + β) phase field region, the α reflections remain steady, while the β phase reflections fluctuate. Upon the onset of deformation, the intensity distribution immediately changes for both phases. Concerning the α phase, diverting, yet continuous timelines are discernible, which exhibit a blurred appearance. The β phase reflections, on the other hand, broaden partly and become sharp spots. After 215 s, the sample was unloaded for 30 s to investigate the material’s response. Upon this, the α phase timelines remain again continuous, but blurred, while the β phase reflections fluctuate fast and yield sharp timelines.

The inserts in the respective figures highlight the material’s behavior from the start of deformation up to the end of the interim unloading period. Diverted timelines stem from the rotation of a crystal lattice of a grain about an axis parallel to the incident beam. In contrast to this, the broadening of a reflection indicates an increasing defect density within the grain [113]. Sharp dots, which relate to one original reflection and occur within a small angular range, are caused by subgrains stemming from a dynamic recovery process [77,111]. As peak broadening followed by the formation of new reflection spots can be observed in the insert of Figure 12b, fast dynamic recovery processes are suggested to dominate the β phase. In the α phase, however, the reflections are diverted around small azimuthal angles and appear blurred, indicating the deformation by dislocation slip and the presence of high defect densities. The absence of reflections with low angular spread points to slow recovery processes instead of discontinuous recrystallization processes [77]. For the validation of the results of the presented in situ HEXRD experiment, electron-backscatter diffraction (EBSD) measurements were performed on the deformed specimens. These investigations, which are elaborately described in [52,112], have confirmed the results derived from the in situ experiments. No indication of appreciable dynamic recrystallization was found for both phases α/α2 and β/βo.

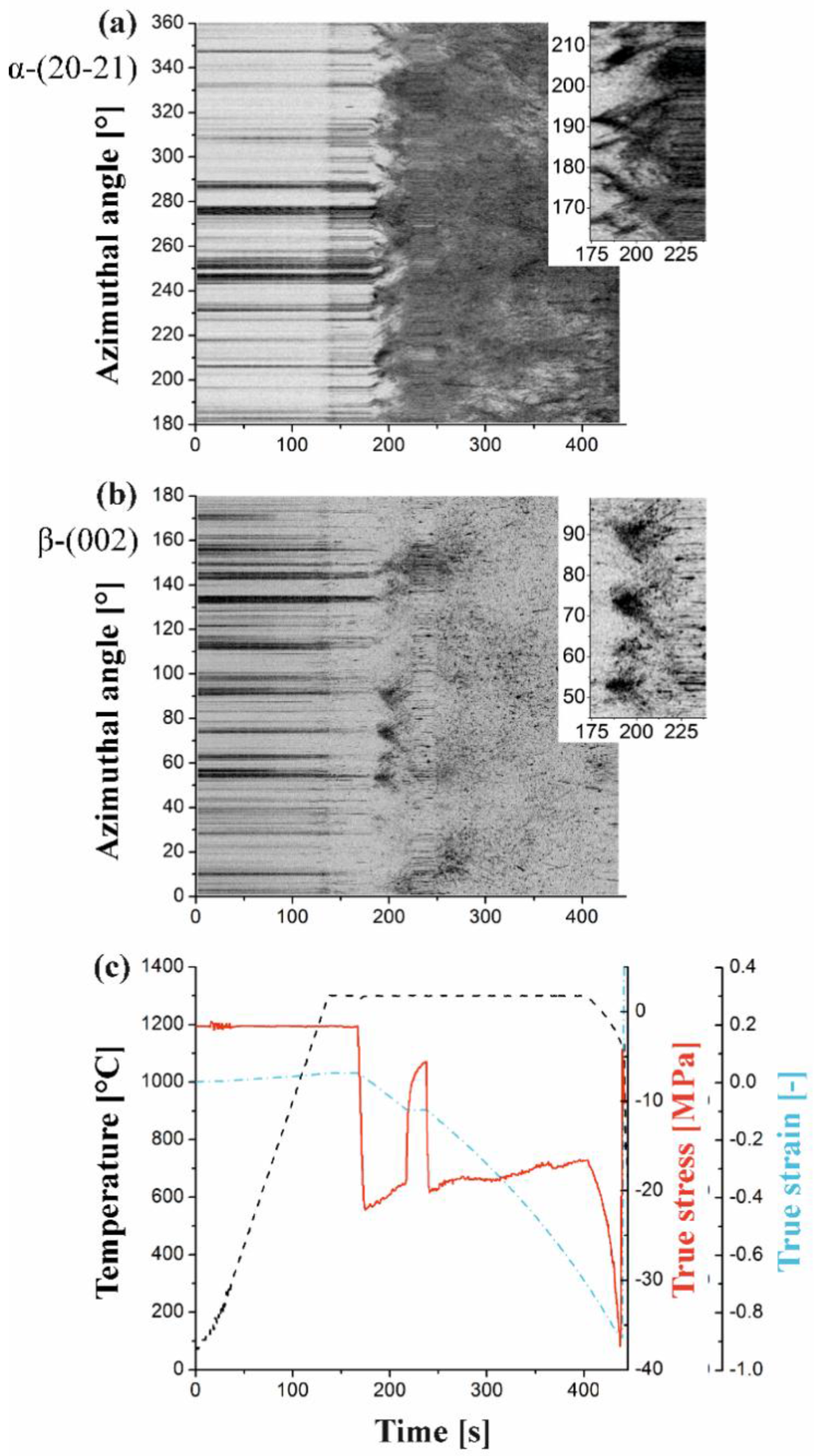

Figure 12. Azimuthal angle vs. time (AT) plots of the α2/α-(20-21) (a) and the βo/β-(002) reflections (b) illustrating the hot deformation behavior of a TNM alloy. The temperature profile, true stress and true strain are given as a function of time (c). The in situ deformation experiment was conducted within the (α + β) phase field region [112]. (Reproduced with permissions from Reference [52]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2011).
Figure 12. Azimuthal angle vs. time (AT) plots of the α2/α-(20-21) (a) and the βo/β-(002) reflections (b) illustrating the hot deformation behavior of a TNM alloy. The temperature profile, true stress and true strain are given as a function of time (c). The in situ deformation experiment was conducted within the (α + β) phase field region [112]. (Reproduced with permissions from Reference [52]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2011).
Metals 06 00010 g012 1024

In situ HEXRD experiments during deformation were also conducted on TNM alloys containing minor additions of C and Si [114]. For this purpose, the deformation unit of the quenching and deformation dilatometer (Section 3.1) was used at the HZG beamline HARWI II at DESY. Phase fraction and texture evolutions, as well as temperature uncertainties arising during compression, were studied. The information retrieved complemented uniaxial compressive hot-deformation tests performed on a Gleeble 3500 simulator at temperatures ranging from 1150 to 1300 °C and strains rates between 0.005 and 0.5 s−1.

5. Heat Treatments for Balanced Mechanical Properties

5.1. Microstructural Evolution: The Formation of Lamellar α2/γ Colonies in a TNM Alloy

For the adjustment of optimized properties, the control over the phases present in a material, specifically in terms of composition, volume fraction and arrangement, is indispensable. Processes taking place during phase transformations, such as the precipitation or dissolution of phases, offer opportunities for targeted manipulation. Knowledge of these transformations is, thus, of great technological importance. Comprehensive insight into the prevailing processes can be gained, for example, by taking a two-fold approach. While in situ diffraction and scattering techniques offer information on the evolution of phase fractions and kinetic aspects, complementary in situ or ex situ studies of the microstructure (e.g., by means of SEM or TEM) unveil the arrangement of the various phases in real space.

In TiAl alloys, mechanical properties strongly depend on the occurrence and structure of lamellar α2/γ colonies [31,32,115,116]. For this reason, the α → α2/γ transformation has been the subject of thorough investigation, both from technological and scientific points of view [4,48,52,109,117,118,119]. In TiAl alloys, the γ phase dissolves upon heating at Tγ,solv. Depending on the chemical composition, the alloy then enters the (α + β) or the single α phase field region (Figure 5). If the specimen is again cooled down from this phase field region, γ lamellae tend to form within supersaturating α grains [5,118,120]. The cooling rate has been proven to be a decisive parameter for the lamellar spacing within the forming α2/γ colonies [118,121]. However, if the alloy is cooled at a sufficiently high rate, the microstructure present at elevated temperatures is roughly preserved, and the formation of the γ phase is suppressed. Ordering reactions take place, but the α2 grains remain in a supersaturated state. In the course of a subsequent heat treatment, (ultra)fine γ lamellae can precipitate in the supersaturated α2 grains [28,109,122,123]. In this case, the lamellar spacing strongly depends on the temperature profile during the heat treatment, i.e., the heating rate and maximum temperature during continuous heating or the holding temperature in isothermal heat treatments [116,124]. The formation of fine γ lamellae improves the mechanical properties of a material in terms of strength, plastic fracture strain, fracture toughness and creep resistance at service temperature [5,10,11,53,116,120,122,125].

To study the onset of the γ lamellae precipitation in the course of continuous heating in a Ti–45Al–7.5Nb (at. %) alloy, in situ experiments were conducted at the beamline ID15A/B at the ESRF [109]. A two-dimensional detector enabled the investigation of diffuse and inter-Bragg peak scattering. The reflections recorded in reciprocal space were observed to form streaks, which correlated with the precipitation and formation of ultrafine γ lamellae. High temperature laser scanning confocal microscopy was used as a complementary technique to verify the obtained results [109]. In situ TEM studies of the initial stages of lamellae formation in a Ti–45Al–7.5Nb (at. %) alloy were performed by Cha et al. [126]. During heating, γ laths were found to precipitate at roughly 750 °C according to the Blackburn relationship [98], following the formation and motion of dislocations next to interfaces at 730 °C. As in situ TEM, however, comprises many experimental difficulties, the majority of reported TEM studies is restricted to ex situ characterizations. Nevertheless, valuable data on lamellae thickness and spacing can be obtained, which are generally not accessible by means of other characterization methods.

To investigate the precipitation of γ lamellae in TNM alloys, specimens were subjected to a two-step heat treatment (Figure 13) while being simultaneously probed by means of HEXRD [52]. The first step in the heat treatment was designed to create supersaturated α2 grains through rapid quenching from 1230 °C. The second heat treatment step consisted of a continuous heating ramp, during which fine γ lamellae precipitated in the α2 grains [28,72]. In Figure 13a, the temperature profile of the heat treatment is shown superimposed by the intensity evolution of the γ-(200) peak, which was evaluated by fitting a Gaussian to the relevant q-range of the azimuthally-integrated diffraction patterns. The rapid heating of the specimen during the first heat treatment step results in a decreasing peak intensity, indicating a strong decrease in the amount of γ phase with increasing temperature. During the isothermal segment at 1230 °C, the γ phase fraction further decreases as the phase approaches thermodynamic equilibrium. After 300 s, the specimen is quenched to room temperature. Upon this, an increase in peak intensity is observed, indicating a small increase in the amount of γ phase. The precipitation and growth of the γ phase has not completely been suppressed. However, the hindrance was sufficient to create supersaturated α2 grains, which contain only a few γ lamellae (Figure 13b, top). After quenching, the specimen is continuously heated at a low heating rate. Until about 765 °C, no major changes are observed in the peak intensity evolution. At temperatures well above 865 °C, however, the γ phase fraction increases rapidly. This increase is attributed to the precipitation of fine γ lamellae (Figure 13b, bottom). Ex situ TEM studies performed by Cha et al. [115,116] document that an average interface spacing in the range of 5 to 40 nm can be adjusted in heat-treated TiAl alloys.

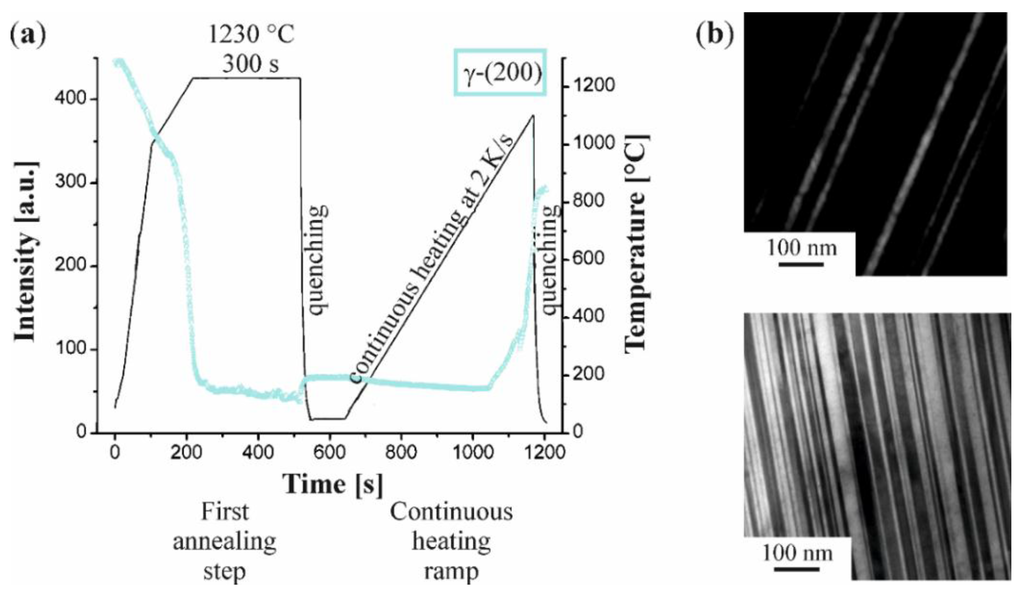

Figure 13. Temperature profile applied during the heat treatment of a TNM alloy, shown superimposed by the intensity evolution of the γ-(200) peak (blue) (a). The heat treatment was conducted in two steps and resulted in the precipitation of fine γ lamellae. Exemplary TEM images show the presence of only few γ lamellae in the supersaturated α2 grains after quenching (b, top). After annealing, the number and volume fraction of fine γ lamellae has significantly increased (b, bottom). (Reproduced with permissions from Reference [52]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2011).
Figure 13. Temperature profile applied during the heat treatment of a TNM alloy, shown superimposed by the intensity evolution of the γ-(200) peak (blue) (a). The heat treatment was conducted in two steps and resulted in the precipitation of fine γ lamellae. Exemplary TEM images show the presence of only few γ lamellae in the supersaturated α2 grains after quenching (b, top). After annealing, the number and volume fraction of fine γ lamellae has significantly increased (b, bottom). (Reproduced with permissions from Reference [52]. Copyright © Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2011).
Metals 06 00010 g013 1024

5.2. Studies Enabling the Targeted Optimization of Heat Treatment Steps

In TNM alloys, heat treatments must be applied after hot deformation as high amounts of the ordered βo phase would deteriorate the material’s properties at room and service temperature [11,20,25,29,127]. Adapted post-forging heat treatments have been reported in [20,28,29,115,116,128,129,130]. These heat treatments typically comprise three steps [131]. In the first heat treatment step, the material is homogenized as reported in [129]. Subsequently, a high-temperature annealing step is conducted either in the (α + β + γ) or in the (α + β) phase field region. The aim is the minimization of the β phase fraction, the setting of the volume fraction of globular γ grains and the adjustment of the size of α grains, which act as precursors of the lamellar α2/γ colonies. The third annealing step represents a stabilization treatment near 900 °C and is followed by furnace cooling. According to the Blackburn orientation relationship [98], γ lamellae precipitate in supersaturated α2 grains or α2/γ colonies (Section 5.1), causing an increase in hardness. The lamellar spacing within the colonies is usually attempted to be kept small to gain a substantial increase in strength through a modified Hall-Petch relationship [115,116]. For detailed information regarding the mechanical properties of TNM alloys, the reader is referred to [11,28,37,114]. In ultrafine lamellae, however, the driving force for discontinuous coarsening (cellular reaction) is greatly increased, which has a negative impact on the material’s creep properties [39,99,132]. Processing parameters, such as annealing temperatures or heating and cooling rates, have to be carefully selected to obtain balanced properties [115,133,134].

As the mechanical properties of TNM alloys are determined by the precipitation of γ lamellae during the third annealing step, the adjustment of a favorable starting condition during the second heat treatment step, i.e., supersaturated α2 grains for a maximum driving force in γ precipitation, is of great importance. The microstructural evolution upon cooling has been thoroughly studied in several γ-TiAl-based alloys [109,118,133,135,136,137,138,139]. The influence of varying cooling rates on the grain size and the appearance of lamellar structures in particular was studied and linked to the resulting mechanical properties. The applied methods included short- and long-term heat treatments combined with metallography, dilatometry, differential scanning calorimetry, micro-hardness testing and TEM. Diffraction methods, such as HEXRD, have been used for the investigation of phase fraction evolutions as a function of temperature and time [50,51,65,77,82,128,130].

To investigate the influence of technologically relevant cooling rates on the evolution of the γ phase during the second heat treatment step, a TNM alloy with increased amounts of β-stabilizing alloying elements Nb and Mo was studied by means of in situ HEXRD [87]. The diffraction experiments were conducted partly at HARWI II and partly at PETRA III. In a dilatometer setup in the synchrotron beam (Section 3.1; Figure 4), forged and homogenized specimens were annealed for 10 min at 1235 °C in the (α + β + γ) phase field region below the γ-solvus temperature Tγ,solv and subsequently subjected to linear cooling rates ranging from 35 to 1200 K·min−1. After reaching 600 °C, the specimens were quenched at the highest rate possible. The correlation between the linear cooling rates, the phase fraction evolutions and the resulting microstructures was investigated.

In accordance with [118,133,138], the resulting α/α2 phase fractions upon cooling were found to increase significantly with increasing cooling rate. At high cooling rates, the time available for diffusion-controlled processes is shorter, and a larger fraction of the untransformed, supersaturated α2 phase remains. With the aid of the in situ HEXRD experiments, the phase fractions could be accurately quantified. Furthermore, the increase in the amount of α/α2 phase was observed to occur primarily at the expense of the γ phase, whose phase fractions decreased with increasing cooling rate. From these results, a plot analogous to a continuous-cooling-transformation (CCT) diagram was derived (Figure 14), including all investigated cooling rates. In this plot, broad black lines confine regions in which the indicated γ phase fraction is exceeded. Experimental points representing conditions close to thermodynamic equilibrium were obtained from preliminary diffraction experiments [87].

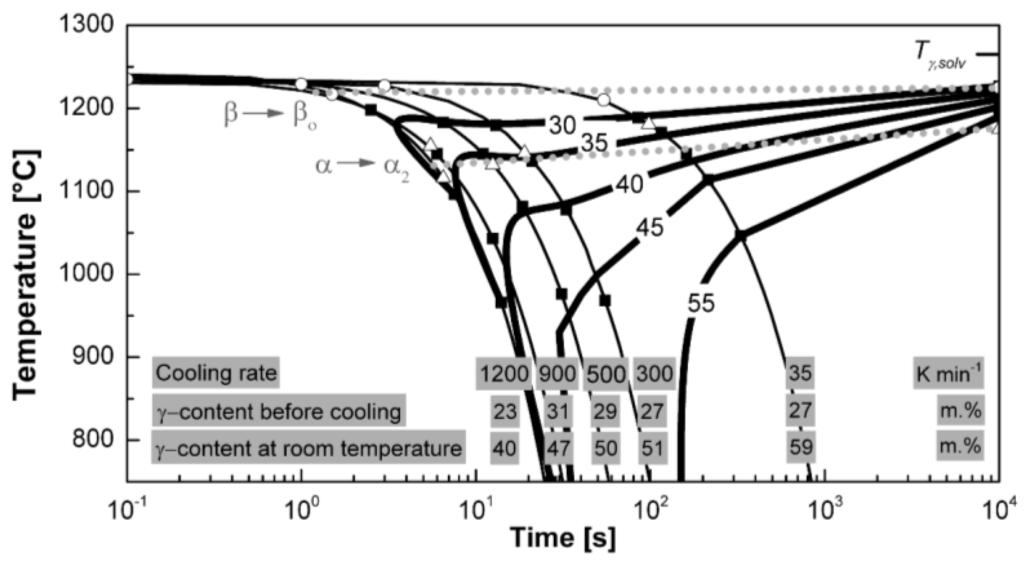

Figure 14. Continuous-cooling-transformation (CCT) diagram for the γ phase precipitation during the heat treatment of a TNM alloy. Broad black lines confine regions in which the given γ phase fraction (in m %) is certainly exceeded. The cooling paths plotted as narrow black lines result from the linear cooling rates of 35, 300, 500, 900 and 1200 K·min−1, respectively. Thus, the influence of technologically relevant cooling rates on the quantitative gain in the γ phase can be derived [87]. Actual γ phase fractions (in m %) before and after cooling are indicated in the boxes at the bottom. (Reprinted from Reference [87], Copyright (2015), with permission from Elsevier).
Figure 14. Continuous-cooling-transformation (CCT) diagram for the γ phase precipitation during the heat treatment of a TNM alloy. Broad black lines confine regions in which the given γ phase fraction (in m %) is certainly exceeded. The cooling paths plotted as narrow black lines result from the linear cooling rates of 35, 300, 500, 900 and 1200 K·min−1, respectively. Thus, the influence of technologically relevant cooling rates on the quantitative gain in the γ phase can be derived [87]. Actual γ phase fractions (in m %) before and after cooling are indicated in the boxes at the bottom. (Reprinted from Reference [87], Copyright (2015), with permission from Elsevier).
Metals 06 00010 g014 1024

The temperatures at which specific amounts of γ phase are present decrease in accordance with [135] with increasing cooling rate, while the phenomenon is enhanced for higher cooling rates. The γ phase fractions determined at the end of the isothermal annealing segment, i.e., before cooling and after cooling to room temperature, are given in Figure 14. Comparing the four specimens that were cooled at constant cooling rates in the range of 35 to 900 K·min−1, the quantitative gain in γ phase upon cooling generally decreases as the cooling rate increases. The specimen cooled at 1200 K·min−1 exhibits at room temperature, as expected, the lowest γ phase fraction (40 m %). The quantitative gain in γ phase, however, is slightly elevated when compared to the specimen cooled at 900 K·min−1 (from 31 to 47 m %). This behavior is attributed to the fact that this specimen exhibited with 23 m % the lowest γ phase fraction at the end of the isothermal annealing segment, corresponding to a higher actual annealing temperature. Due to differences in the actual starting temperatures, the gain in γ phase as a quantity is not suitable as an absolute means of comparison. Comparison of the γ phase fractions at room temperature is more reliable.

As all specimens were cooled from the (α + β + γ) phase field region, a certain amount of the γ phase is present in the specimens from the beginning. From Figure 14, it can be concluded that even at cooling rates as high as 1200 K·min−1 further gain in γ phase cannot be suppressed. During cooling, the overall amount of the γ phase increases. At high cooling rates, however, a sufficient amount of supersaturated α/α2 grains can be obtained, rendering possible the formation of fine lamellar structures in an ensuing annealing step, as described at the beginning of this section. Investigation of the resulting microstructures by means of SEM and TEM offers additional information for the design of a suitable time-temperature profile in the second heat treatment step typical of TNM alloys.

6. Summary

In situ diffraction and scattering techniques based on synchrotron radiation and neutrons offer unique opportunities for the development of advanced structural materials. They enable the exploration of a multitude of aspects, which are usually not accessible with the aid of conventional methods. The present review attempts to shine a light on selected in situ diffraction and scattering techniques, highlighting the ways in which they promoted the development of intermetallic TNM alloys based on the γ-TiAl phase.

In situ studies of phase evolutions, as discussed in Section 3, provide answers to fundamental research questions. They reveal phase fractions and transition temperatures and allow to study influencing parameters under controlled experimental conditions. Measurements on several model alloys of differing chemical compositions provide the basis for the establishment of phase diagrams [37]. Furthermore, the specific influence of certain alloying elements can be studied. For instance, it was found that the amount and type of β-stabilizing alloying elements significantly influences the phase evolution character of the β phase, which plays a decisive role in post-forging heat treatments [65]. Diffraction techniques also promoted the development of TNM alloys containing harmonized additions of C and Si, as they enabled the investigation of the influence of the alloying additions on the solidification behavior and phase fraction evolution within the material [38]. SAXS and SANS studies offered insights into the carbide precipitation behavior of these advanced alloys [44]. For the investigation of order/disorder transitions, typically, neutron diffraction experiments are conducted. Due to peculiarities in the structure factors of titanium aluminide alloys (Section 2), they offer distinct advantages. In situ studies are again indispensable, as ordering reactions are characterized by extremely fast kinetics. Consequently, the ordering behavior of TiAl alloys can only be investigated at those temperatures at which the ordering reactions occur [65,85].

The second part of the present review exemplarily introduces approaches to processing- and application-related questions. For the investigation of the hot deformation behavior, for example, AT plots can be applied (Section 4). With this technique, an understanding of the processes prevailing in TNM alloys during hot working could be established [112]. After hot deformation, heat treatments are applied to TNM alloys to adjust balanced mechanical properties (Section 5). For this purpose, control over the phases present in the material, specifically in terms of composition, volume fraction and arrangement, is indispensable. To extend the necessary knowledge bases, the formation of lamellar α2/γ colonies was investigated from a diffraction point of view and complemented by the results from conventional characterization techniques [52]. Finally, in situ HEXRD techniques were used as a tool for the targeted optimization of heat treatments [87].

Continuous progress in hardware development, especially detector technology, as well as the construction of dedicated diffraction beamlines of increasing brilliance provide the necessary base for in situ experiments at high frame rates. Simultaneously to this development, new techniques are emerging that comprise valuable tools for a multitude of applications in materials science. Besides HEXRD, neutron diffraction and SAXS/SANS, great potential for future investigations is seen, for example, in nano-beam experiments and in the 3DXRD technique. Diffraction and scattering methods have significantly contributed to the characterization and development of advanced multi-phase γ-TiAl-based alloys during the last 25 years. Undoubtedly, also in the future, characterization techniques based on synchrotron radiation and neutrons will promote the understanding of this class of innovative, lightweight, high-temperature materials.
