Next Article in Journal
Effect of Ultrasonic Treatment in the Static and Dynamic Mechanical Behavior of AZ91D Mg Alloy
Next Article in Special Issue
Modeling of TiAl Alloy Grating by Investment Casting
Previous Article in Journal
Study of the Tensile Damage of High-Strength Aluminum Alloy by Acoustic Emission
Previous Article in Special Issue
Experimental and Numerical Studies on Self-Propagating High-Temperature Synthesis of Ta5Si3 Intermetallics
Article Menu

Export Article

Open AccessArticle
Metals 2015, 5(4), 2200-2209;

Effect of Ceramic Content on the Compression Properties of TiB2-Ti2AlC/TiAl Composites

Key Laboratory of Automobile Materials (Ministry of Education), Department of Materials Science and Engineering, Jilin University, Changchun 130025, China
State Key Laboratory of Luminescence and Applications, Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130012, China
Department of Mechanical Engineering, Oakland University, Rochester, MI 48309, USA
Authors to whom correspondence should be addressed.
Academic Editor: Ana Sofia Ramos
Received: 29 September 2015 / Revised: 1 November 2015 / Accepted: 6 November 2015 / Published: 25 November 2015
(This article belongs to the Special Issue Intermetallics 2016)
View Full-Text   |   Download PDF [737 KB, uploaded 25 November 2015]   |


In situ synthesized TiB2-reinforced TiAl composites usually possess high strength. However, it is very expensive to use B powder to synthesize TiB2 particles. Moreover, the strength enhancement of TiB2/TiAl composite is generally at the cost of plasticity. In this study, in situ dual reinforcement TiB2-Ti2AlC/TiAl composites were fabricated by using B4C powder as the B and C source, which greatly reduces the potential production cost. The 6 vol. % TiB2-Ti2AlC/TiAl composite fabricated by using the Ti-Al-B4C system shows greatly improved compressive properties, i.e., 316 MPa and 234 MPa higher than those of TiAl alloy and with no sacrifice in plasticity. View Full-Text
Keywords: TiAl; intermetallics; composite; compression properties TiAl; intermetallics; composite; compression properties

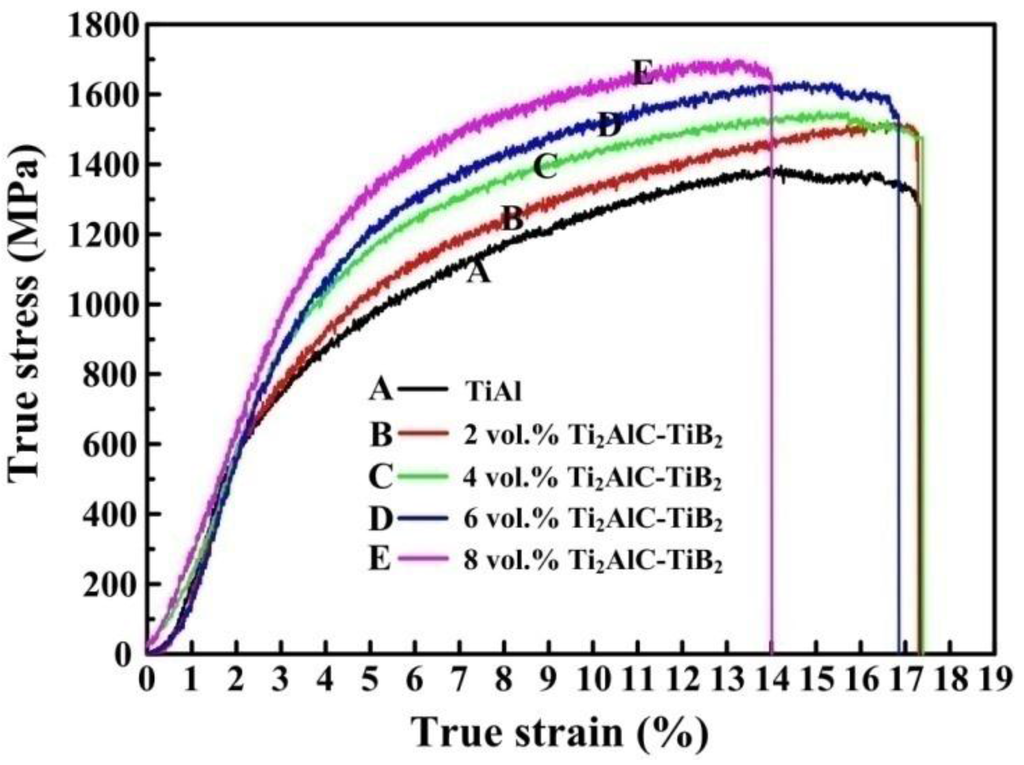

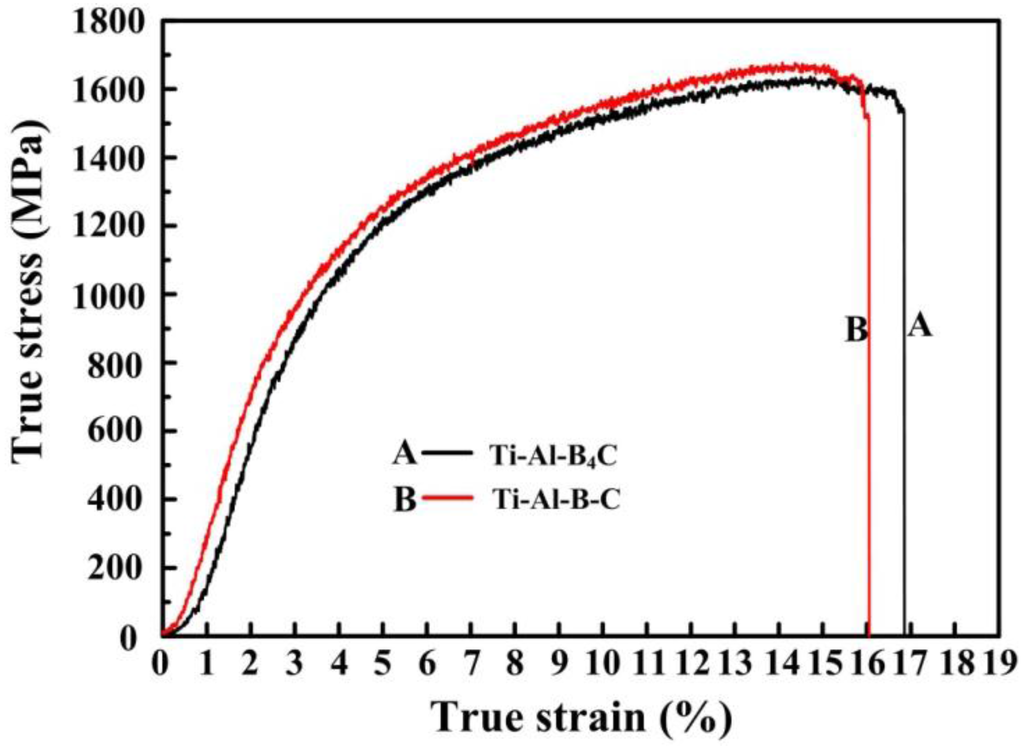

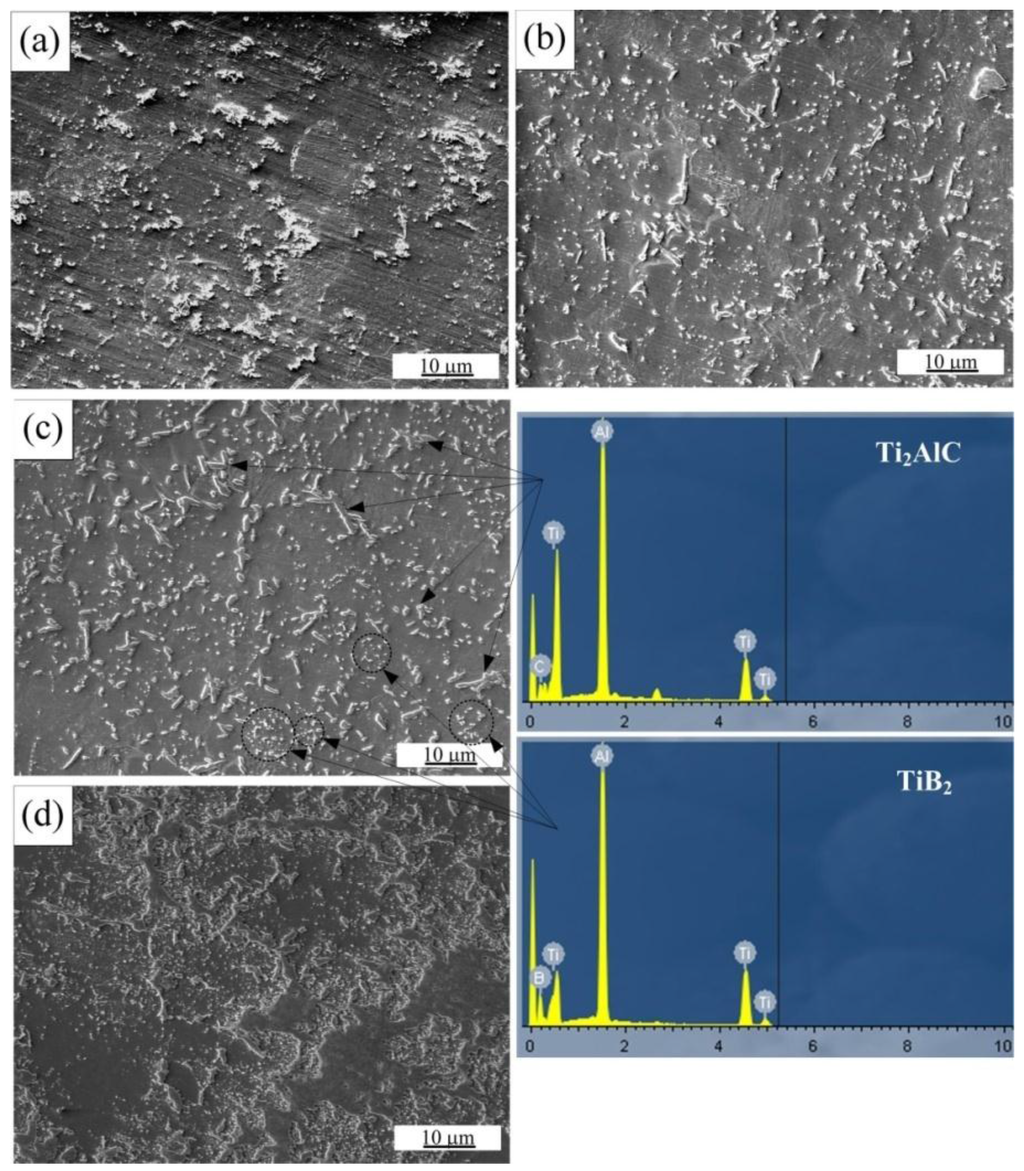

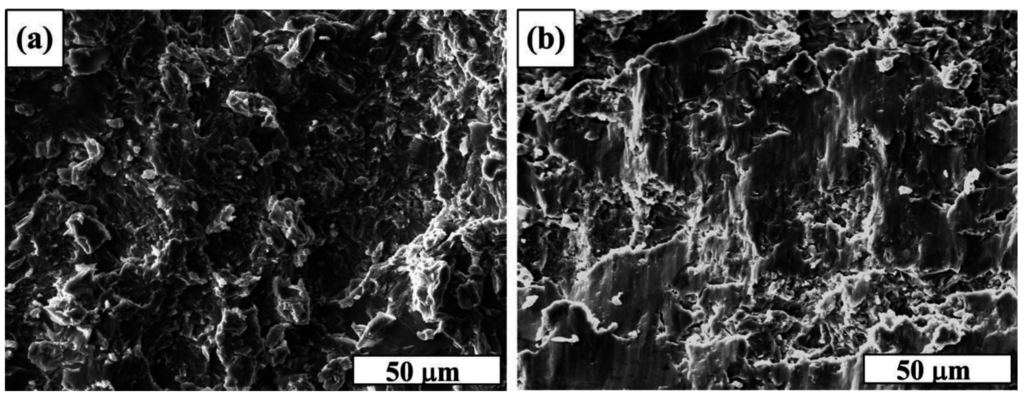

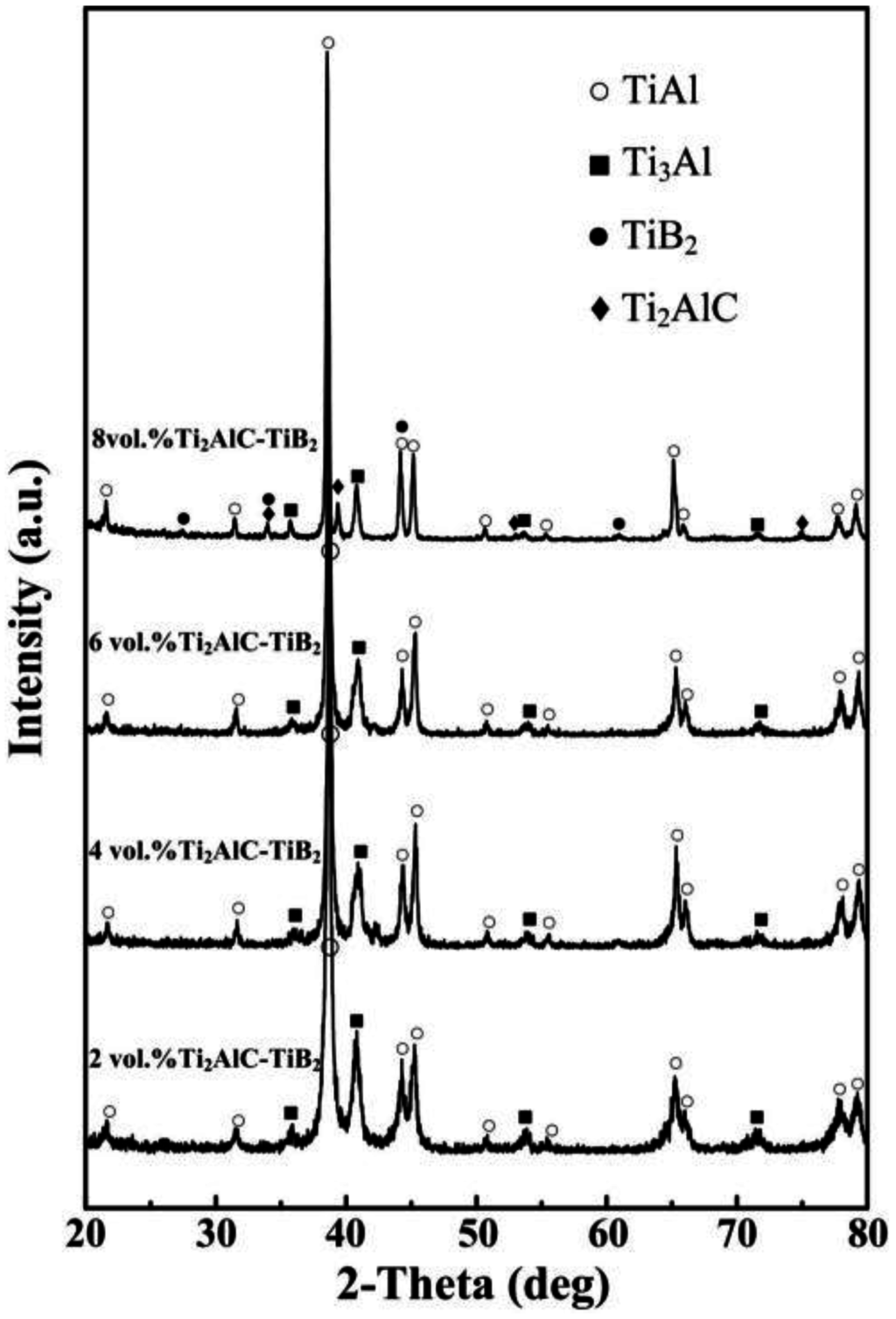

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Shu, S.; Tong, C.; Qiu, F.; Jiang, Q. Effect of Ceramic Content on the Compression Properties of TiB2-Ti2AlC/TiAl Composites. Metals 2015, 5, 2200-2209.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
