Next Article in Journal
CFD Modelling of Flow and Solids Distribution in Carbon-in-Leach Tanks
Next Article in Special Issue
Cyclic Oxidation of High Mo, Reduced Density Superalloys
Previous Article in Journal / Special Issue
Investigation of the Undercoolability of Ni-Based Alloys Using High Temperature Thermal Analysis
Article Menu

Export Article

Open AccessArticle
Metals 2015, 5(4), 1984-1996;

Microstructures and Wear Performance of PTAW Deposited Ni-Based Coatings with Spherical Tungsten Carbide

School of Materials Science and Engineering, Dalian University of Technology, Dalian 116024, China
R & D Division of Shenyang Blower Works Group Corporation, Shenyang 110869, China
Department of Industrial Engineering, Texas Tech University, Lubbock, TX 79409-3061, USA
Author to whom correspondence should be addressed.
Academic Editor: Johan Moverare
Received: 26 August 2015 / Revised: 26 September 2015 / Accepted: 20 October 2015 / Published: 26 October 2015
(This article belongs to the Special Issue Superalloys)
View Full-Text   |   Download PDF [1669 KB, uploaded 26 October 2015]   |

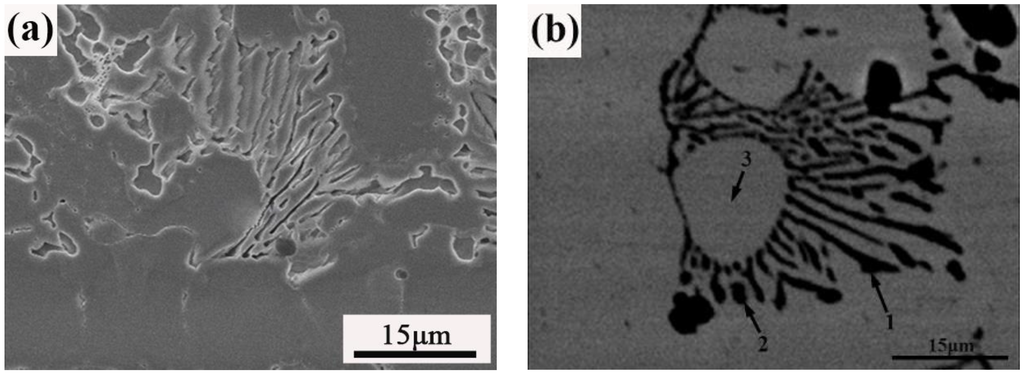

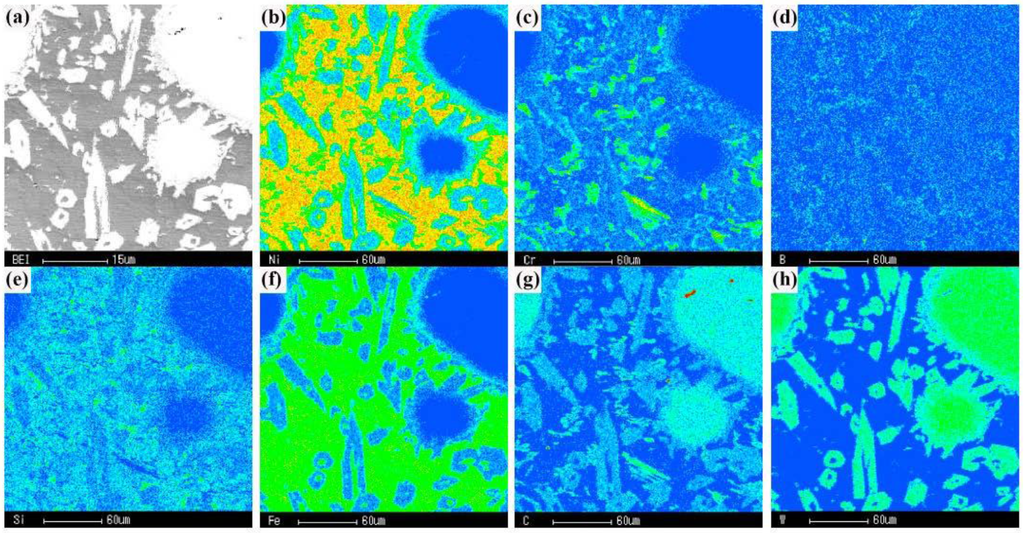

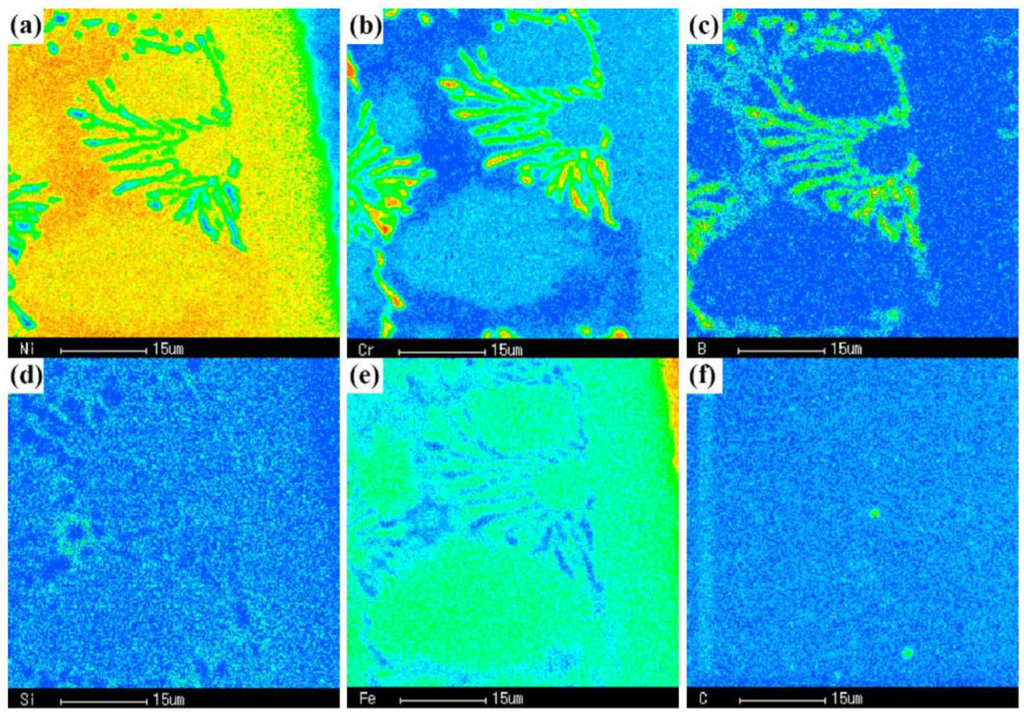

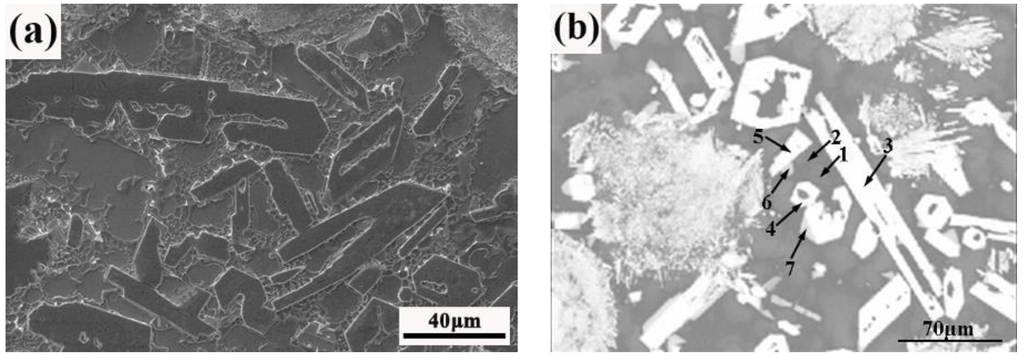

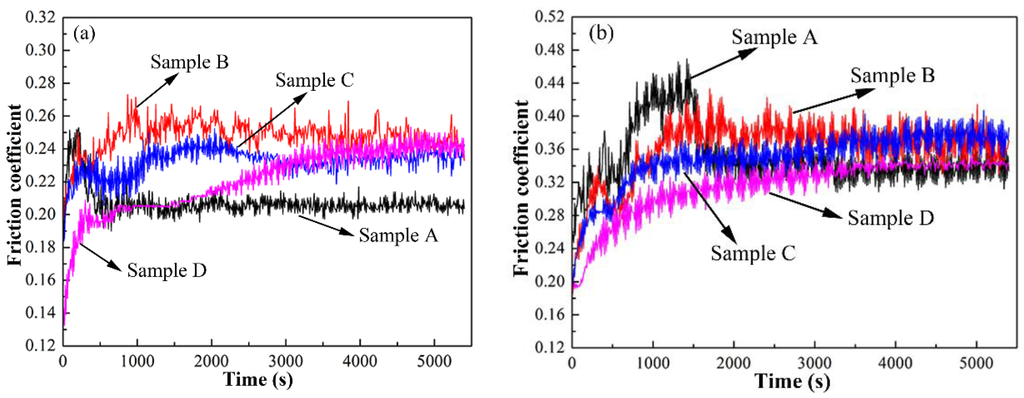

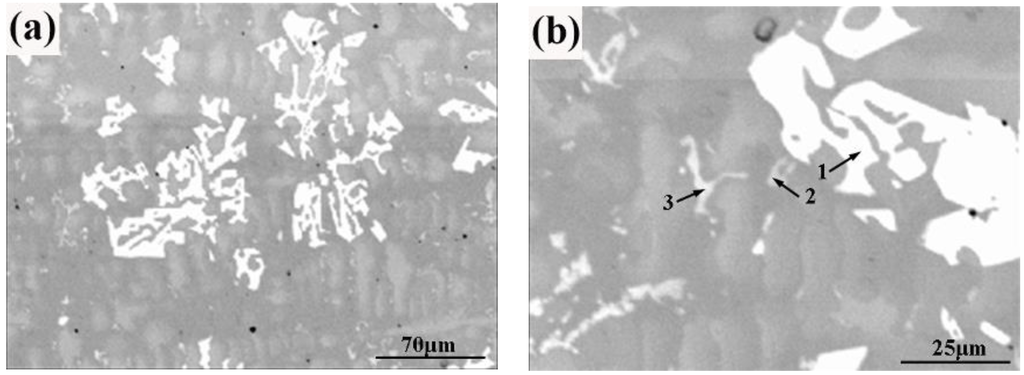

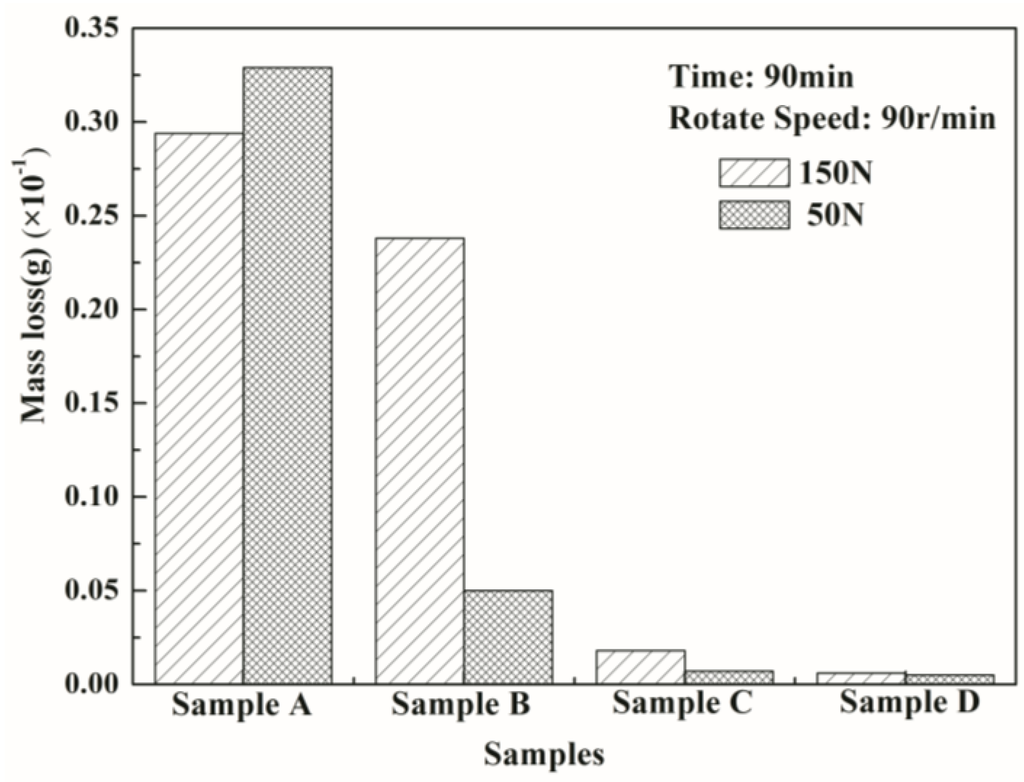

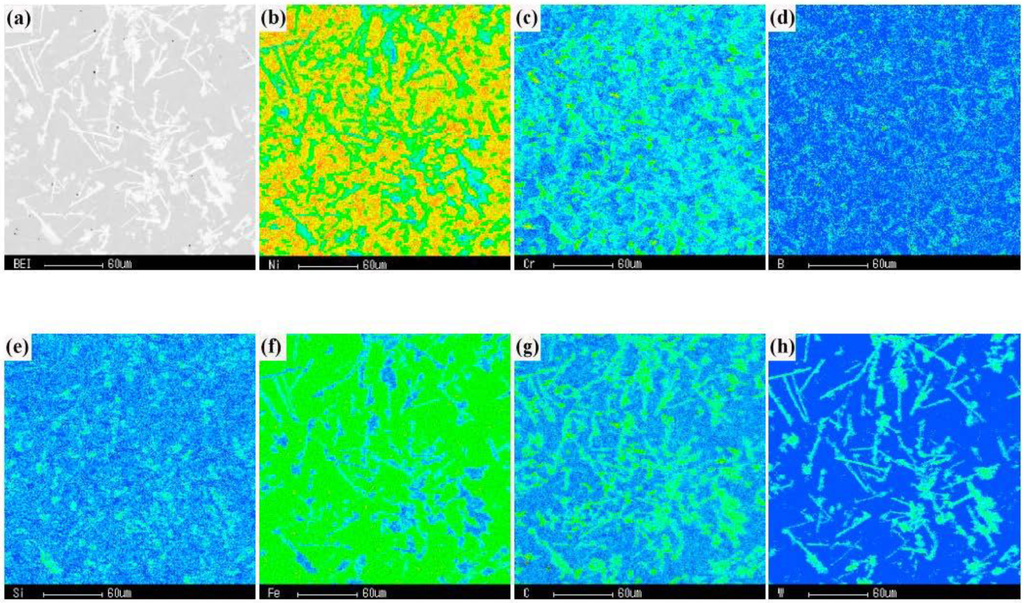

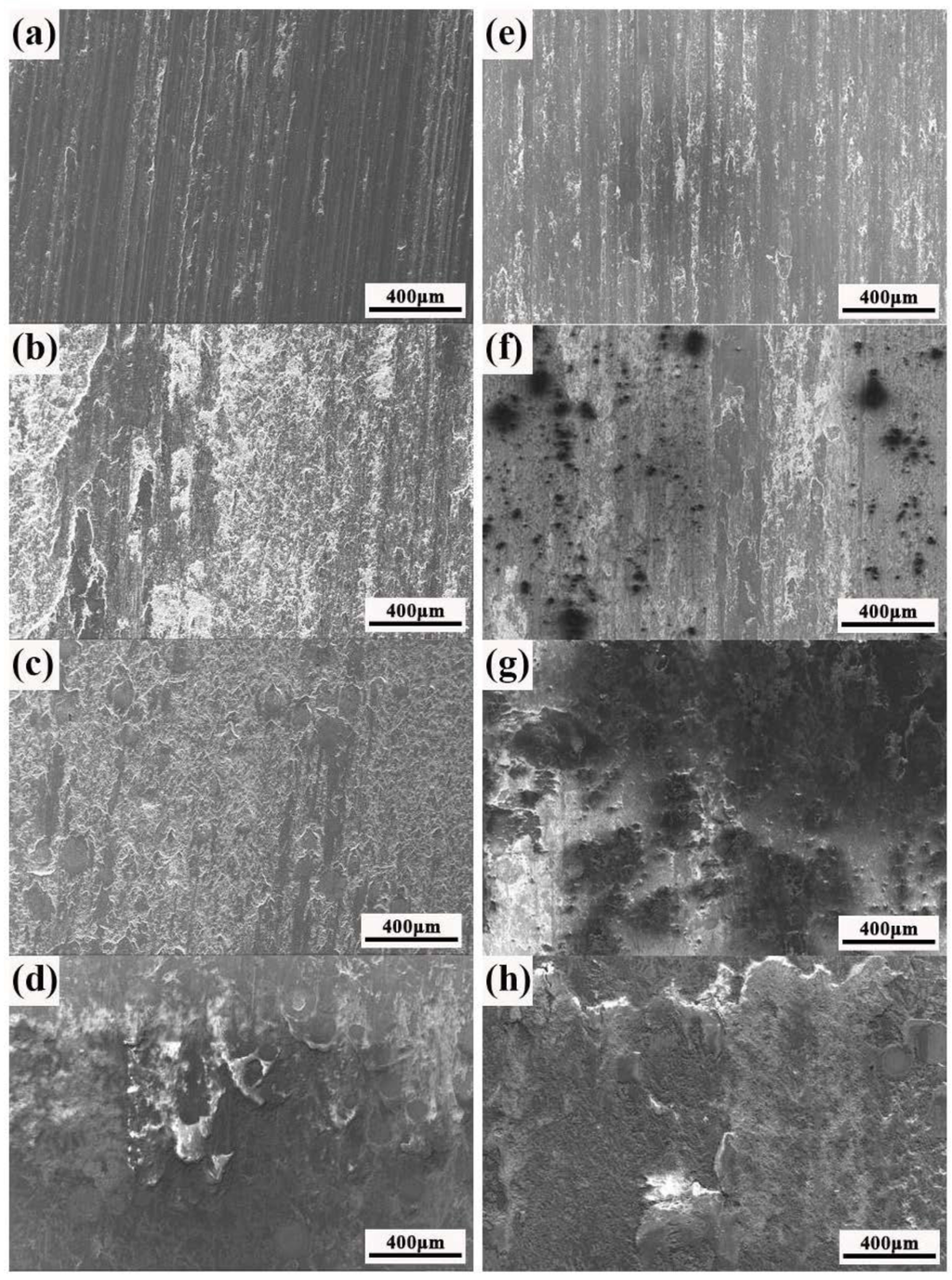

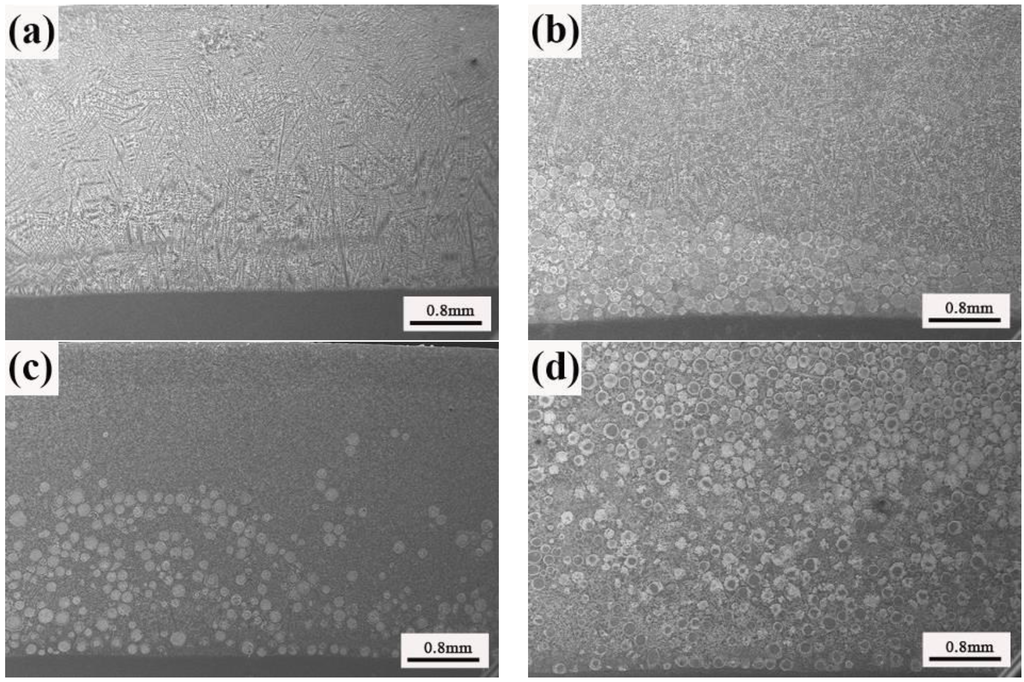

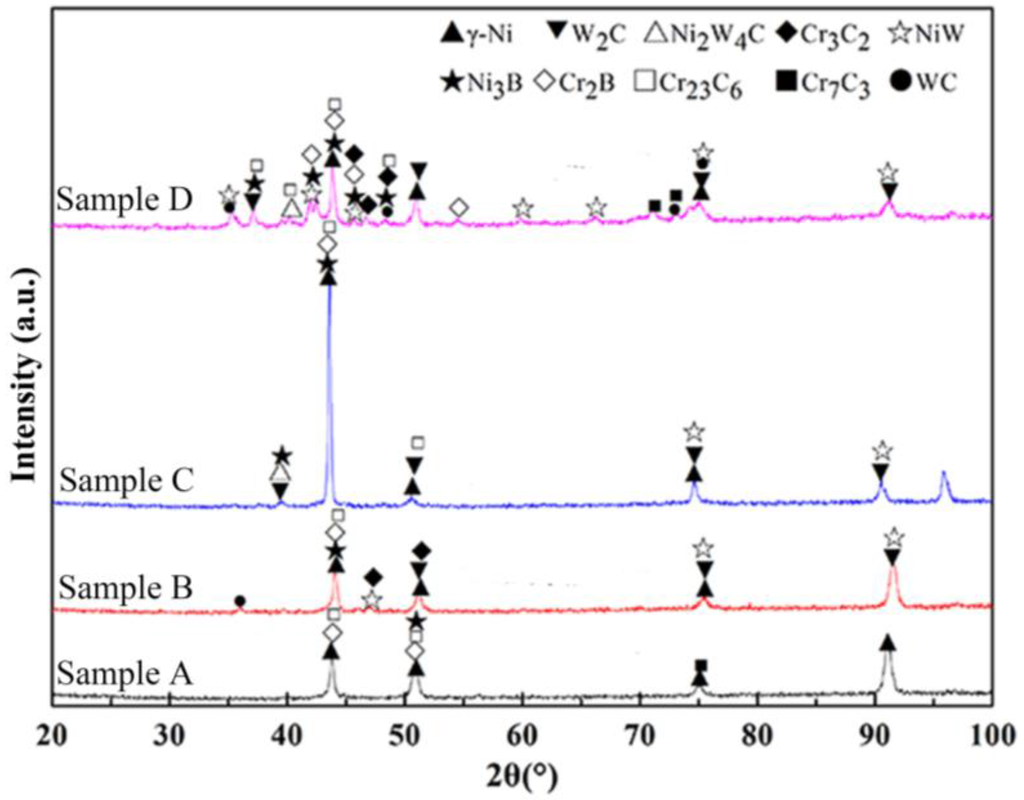

The Ni-based coatings with different content of spherical tungsten carbide were deposited by plasma transfer arc welding (PTAW) method on 304 austenitic stainless steel sheets in this study. The microstructure and wear property of spherical tungsten carbide particle reinforced composite coatings were investigated by means of optical microscope, scanning electron microscope (SEM), X-ray diffraction (XRD), electron probe microanalysis (EPMA) and sliding wear test. It is shown that the fraction of spherical tungsten carbides has an important influence on microstructure of Ni-based overlay. The Ni40 overlay consists of γ-Ni dendrites with interdendritic Ni-based eutectics, borides and carbides improving the wear resistance. In the case of composite coatings with different content of tungsten carbide, many new phases are observed, such as Ni2W4C and NiW. In addition, there are a large number of irregular structures in composite coatings, such as acicular structure and irregular stripe organization. The results of sliding wear test indicate that the mass loss of coatings is influenced by the content of tungsten carbide. The mass loss decreases with the increase of tungsten carbide fraction. At high load, the abrasive resistance of composite coating with 60 wt. % tungsten carbide is improved about 50-fold compared to that of Ni40 overlay. View Full-Text
Keywords: Ni-based; spherical tungsten carbide; PTAW; microstructure; wear resistance Ni-based; spherical tungsten carbide; PTAW; microstructure; wear resistance

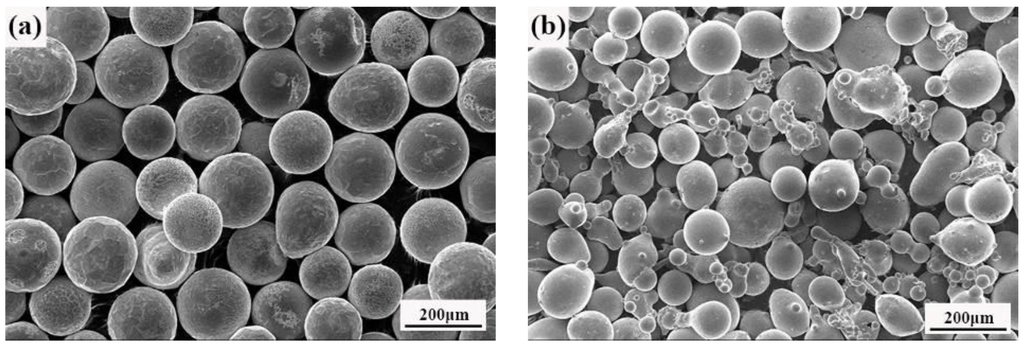

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Deng, D.; Zhang, L.; Niu, T.; Liu, H.; Zhang, H. Microstructures and Wear Performance of PTAW Deposited Ni-Based Coatings with Spherical Tungsten Carbide. Metals 2015, 5, 1984-1996.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
