The Effect of Grinding and Roasting Conditions on the Selective Leaching of Nd and Dy from NdFeB Magnet Scraps

1
Minerals Resource Research Division, Korea Institute of Geoscienece & Mineral Resources (KIGAM), Daejeon 305-350, Korea
2
Department of Energy & Resources Engineering, Korea Maritime and Ocean University (KMOU), Busan 606-791, Korea
3
Metal Extraction & Forming Division, CSIR-National Metallurgical Laboratory, Jamshedpur 831007, India
*
Author to whom correspondence should be addressed.
Metals 2015, 5(3), 1306-1314; https://doi.org/10.3390/met5031306
Submission received: 7 June 2015 / Revised: 10 July 2015 / Accepted: 14 July 2015 / Published: 17 July 2015
(This article belongs to the Special Issue Hydrometallurgy)

Abstract

:
The pretreatment processes consisting of grinding followed by roasting were investigated to improve the selective leaching of Nd and Dy from neodymium-iron-boron (NdFeB) magnet scraps. The peaks of Nd(OH)3 and Fe were observed in XRD results after grinding with NaOH as the amount of water addition increased to 5 cm3. These results indicate that the components of Nd and Fe in NdFeB magnet could be changed successfully into Nd(OH)3 and Fe, respectively. In the roasting tests using the ground product, with increasing roasting temperature to 500 °C, the peaks of Nd(OH)3 and Fe disappeared while those of Nd2O3 and Fe2O3 were shown. The peaks of NdFeO3 in the sample roasted at 600 °C were observed in the XRD pattern. Consequently, 94.2%, 93.1%, 1.0% of Nd, Dy, Fe were leached at 400 rpm and 90 °C in 1 kmol·m−3 acetic acid solution with 1% pulp density using a sample prepared under the following conditions: 15 in stoichiometric molar ratio of NaOH:Nd, 550 rpm in rotational grinding speed, 5 cm3 in water addition, 30 min in grinding time, 400 °C and 2 h in roasting temperature and time. The results indicate that the selective leaching of Nd and Dy from NdFeB magnet could be achieved successfully by grinding and then roasting treatments.

Graphical Abstract

1. Introduction

Neodymium-iron-boron (NdFeB) magnets were developed in the early 1980s due to the important discovery that modifying Nd2Fe17 produces the ternary compound Nd2Fe14B [1,2]. The NdFeB magnets could substitute samarium-cobalt magnets because neodymium is more abundant than samarium and the use of iron as transition metal is lower-cost than that of cobalt [1]. The NdFeB magnets have been widely used in various applications such as motors for hard disk and hybrid electric vehicle and magnetic generators for magnetic resonance imaging (MRI) [3,4,5]. Since most Nd is imported into Korea, there is an increasing demand for recycling process of waste NdFeB magnets.
It has been well known that Nd could be obtained from NdFeB magnet scraps by sulfuric acid leaching followed by precipitation of Nd salts [6,7,8]. Because this method dissolves iron as well as neodymium, there are disadvantages such as high consumption of sulfuric acid and large amount of wastewater discharged. Many methods have been reported to extract selectively Nd from waste NdFeB magnets such as roasting followed by sulfuric acid leaching [9], selective chlorination of Nd using NH4Cl [4], selective extraction of Nd using molten Mg [5,10] and slag materials [6], and leaching with hydrochloric acid and oxalic acid [11]. These methods require strong acid or should be performed at high temperature over 700 °C. In this study, it was important to change the solid phase of NdFeB magnets for selective recovery of Nd.
High-energy ball milling processes result in repeatedly fracturing and cold welding during collision between balls or ball and inner wall of mill container, so mechanical solid phase reaction could occur during milling [12]. Kim et al. reported that they improved the yield of La, Nd and Sm in monazite to around 85% by 120 min-milling with NaOH [12]. Greenberg submitted an application to the US patent regarding Nd recovery where NdFeB magnets are ground mechanically, then leached with acetate, and finally Nd was precipitated selectively as NdF3 [13]. However, the experimental conditions and results were not reported in detail.
This study is aimed at developing the pretreatment process for selective recovery process of Nd and Dy from waste NdFeB magnets. The magnet scraps were ground with NaOH and water, and then roasted under atmosphere conditions. The effects of various conditions such as milling time, milling interval, amount of water and NaOH added, and roasting temperature were investigated. Finally, acetate leaching tests were performed to investigate the selective leaching of Nd.

2. Experimental

2.1. Materials

The NdFeB magnet scraps were obtained from a Korean magnet company, and the chemical composition shows 22.8% Nd and 71.8% Fe as main components and 0.9% B and 0.03% Dy as minor components. The scraps were crushed with a jaw crusher to less than 2 mm before grinding. Pellet-type NaOH (sodium hydroxide) and acetic acid (CH3COOH) are of reagent-grade (Wako Pure Chemicals, Co., Osaka, Japan).

2.2. Grinding and Roasting

The crushed scraps and NaOH were mixed with predetermined stoichiometric ratio, and then 6.4 g of the mixture was introduced into an 80-cm3 stainless steel jar with 10 stainless steel balls with 15-mm diameter, based on the preliminary tests. The jar was set in the planetary ball mill (Pulverisette 6, Fritsch GmbH, Idar-Oberstein, Germany) and the scraps were ground under the atmosphere conditions with various experimental factors such as adding 0 cm3 to 5 cm3 of water, 30 min to 240 min of grinding time, and 15 in stoichiometric ratio of NaOH to Nd. The ground product was washed with deionized-distilled water to remove the remaining NaOH after grinding. After drying at 80 °C for 24 h, the ground powder was roasted at 300 °C to 600 °C for 2 h under the atmosphere conditions.

2.3. Leaching Procedures

The leaching tests of as-received scraps and roasted powder in acetic acid solution were performed in a 500 dm3 three-necked Pyrex glass reactor using a heating mantle to maintain temperature. The reactor was fitted with an agitator and a reflux condenser. The reflux condenser was inserted in one port to avoid solution loss at high temperatures. In a typical run, 200 dm3 of solution (1 kmol·m−3 acetic acid) was poured into the reactor and allowed to reach the thermal equilibrium (90 °C). Two grams of the samples was then added to the reactor in the experiments, and the agitator was set at 400 rpm. During the experiment, 3 cm3 of the solution sample was withdrawn periodically at a desired time interval (30−180 min) with a syringe. The sample was filtered with membrane filter and then the filtrate was diluted with 5% HNO3 solution.

2.4. Analytical Methods

The concentrations of Nd, Fe, and Dy were measured by an inductively coupled plasma-atomic emission spectrometry (ICP-AES, OPTIMA 8300DV; PerkinElmer Inc., Waltham, MA, USA). The samples were also characterized by X-ray Diffraction (Smartlab, Rigaku Co., Tokyo, Japan) with Cu target under the following conditions: 30 kV, 200 mA, 20–80°/2θ in angle range, step scanning methods.

3. Results and Discussion

In this study, the pretreatment process consists of grinding and roasting for selective leaching of Nd and Dy from the magnet leaving Fe component as leach residue. The Fe component should be oxidized to ferric ion (Fe3+), since the solubility products (Ksp) of Fe(OH)3 and Fe(OH)2 are 10−36.51 and 10−14.18, respectively, using standard Gibbs free energy data in Table 1 [14], which means that the solubility of ferric ion (Fe3+) is much lower than that of ferrous ion (Fe2+). The roasting tests were performed to oxidize the Fe, but, since Kim et al. reported that the magnet scraps were not oxidized sufficiently at less than 500 °C [15], the grinding tests were conducted to increase the specific surface area of magnet powder and change the solid phase before roasting.
Table 1. Standard Gibbs free energies of species at 25 °C [14].
Table 1. Standard Gibbs free energies of species at 25 °C [14].
SpeciesFe2+Fe3+Fe(OH)2Fe(OH)3OH
ΔG0 (kJ/mol)−91.2−16.7−486.6−696.6−157.293
The NdFeB magnet scraps were ground with 0 to 5 cm3 under the following conditions: 15 in stoichiometric molar ratio of NaOH:Nd, 550 rpm in rotational speed, 30 min in grinding time. Figure 1 shows the effect of water addition on the formation of Nd(OH)3 during grinding. When samples were ground without water, XRD peaks show little difference from the as-received sample, while the peaks of Fe and Nd(OH)3 arose as the amount of water addition increased. It has been found that Nd could be oxidized with H2O as the following equation.
2Nd + 6H2O = 2Nd(OH)3 + 3H2
The standard reduction potentials of Nd (Nd3+ + 3e = Nd) and water (2H2O + 2e = H2 + 2OH) are −2.32 V [16] and −0.83 V [17], respectively, and because the standard electrode potential of Equation (1) is calculated to be 1.49 V, the reaction must be spontaneous. Therefore, 5 cm3-water addition could accelerate the formation of Nd(OH)3 as shown in Figure 1. However, iron could not be oxidized by water addition, so iron peaks were observed by adding 3 cm3 or 5 cm3 water. These results indicate that Nd and Fe of Nd2Fe14B was changed successfully into Nd(OH)3 and Fe, respectively.

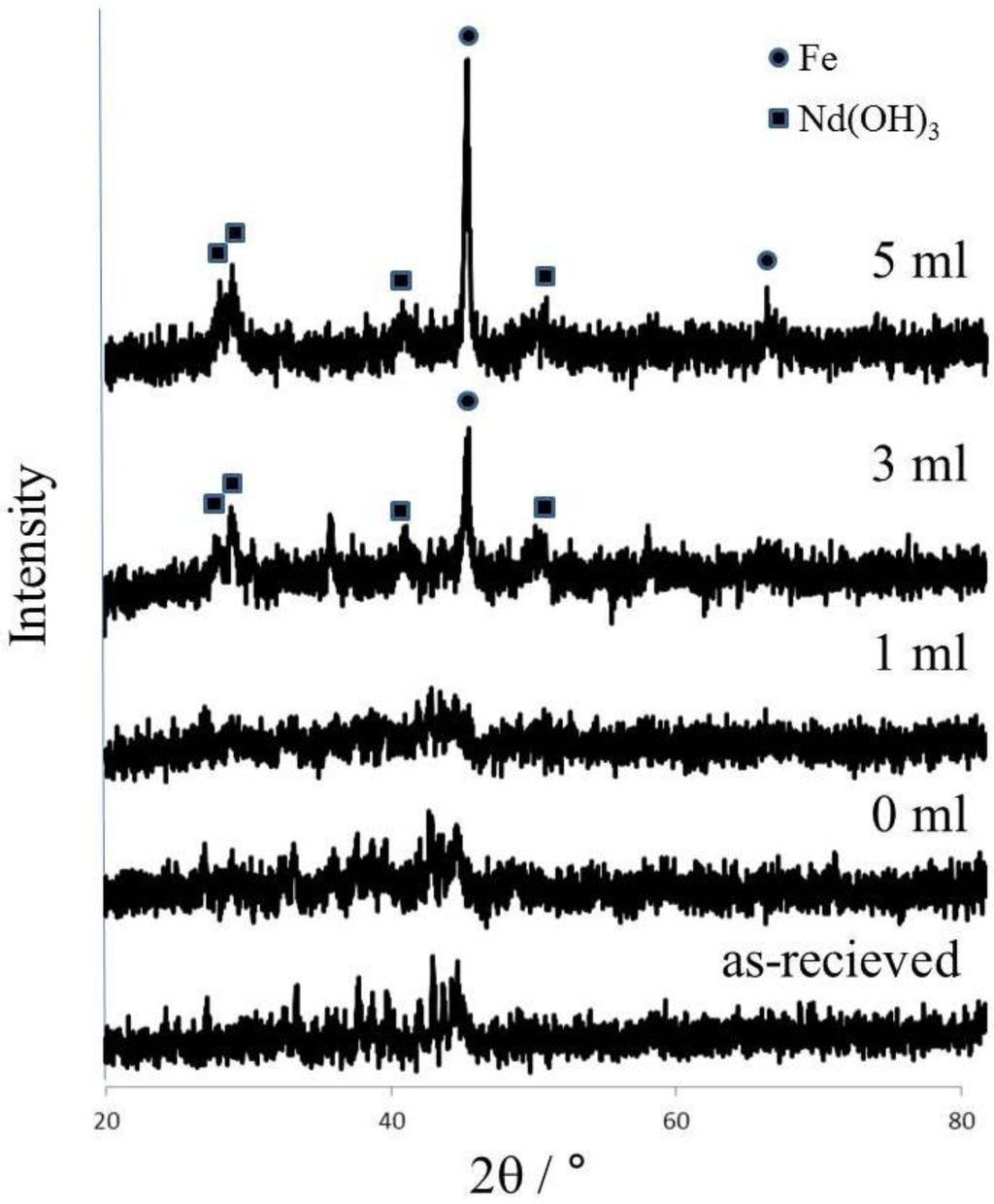

Figure 1. XRD patterns of ground products with water addition (Grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 30 min in grinding time).
Figure 1. XRD patterns of ground products with water addition (Grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 30 min in grinding time).
Metals 05 01306 g001
Greenburg proposed the recycling process of NdFeB magnet scraps [13], where Nd was selectively leached after grinding with NaOH. Figure 2 shows XRD patterns of products ground for 30 min and 240 min. However, the intensity of the Fe peak decreased with increasing the grinding time, since Fe remained after 240 min grinding and Fe could be dissolved by acetic acid leaching; therefore, it is difficult to expect selective leaching of Nd. Furthermore, in the preliminary experiments with 30 in stoichiometric molar ratio, the peaks of Fe were observed (data not shown).

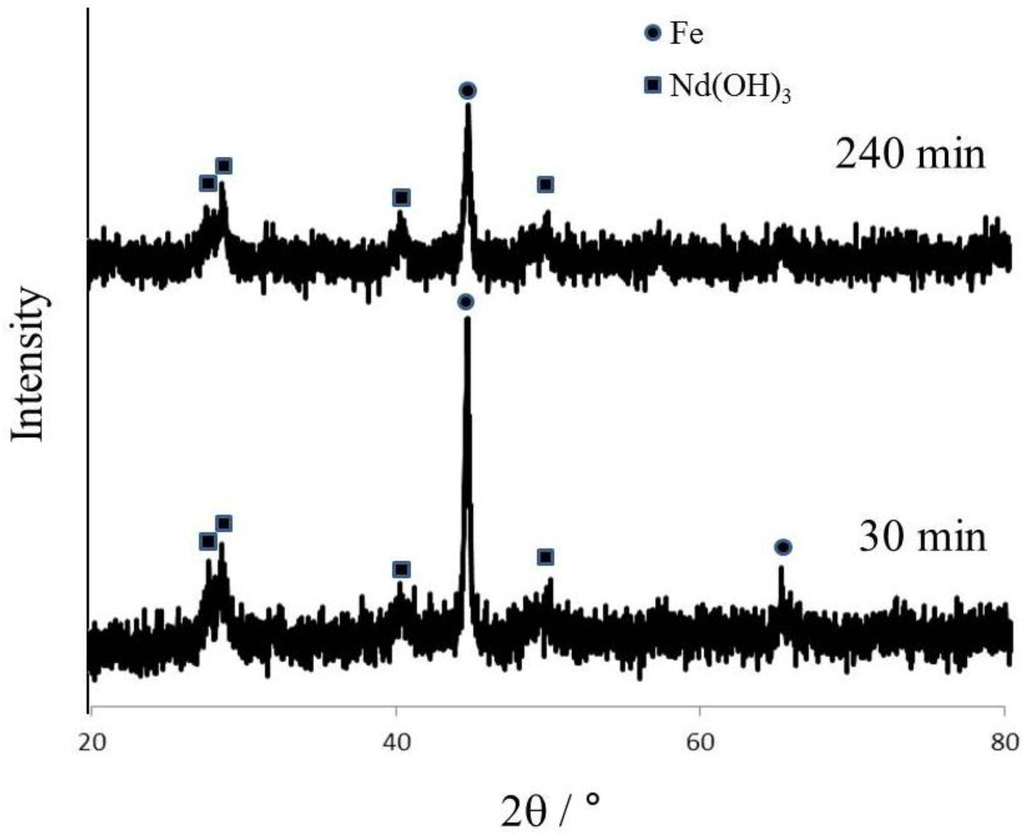

Figure 2. XRD patterns of ground products with grinding time (Grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 5 cm3 in water addition).
Figure 2. XRD patterns of ground products with grinding time (Grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 5 cm3 in water addition).
Metals 05 01306 g002
Therefore, in this study, the magnet scraps were roasted after grinding to oxidize Fe for improving selective leaching efficiency. The ground products were prepared under the conditions such as 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 30 min in total grinding time, and 5 cm3 in water addition, and then was roasted at 300 °C to 600 °C for 2 h. As shown in Figure 3, the peaks of Fe2O3 and Nd2O3 as well as Nd(OH)3 and Fe were shown after roasting at 300 °C. After roasting at 400 °C and 500 °C, the peaks of Nd(OH)3 and Fe disappeared, and only peaks of Fe2O3 and Nd2O3 were observed. The peaks of NdFeO3 emerged after roasting at 600 °C, and the reaction was given as the following equation [9].
2Nd + 6H2O = 2Nd(OH)3 + 3H2
These results indicate that iron could be oxidized at 400 °C and 500 °C, and the components of Nd and Fe were changed into NdFeO3 at 600 °C.
The selective leaching with acetic acid was tested using the roasted product. Figure 4 shows the leaching efficiencies of Nd, Fe, and Dy using product ground under the following conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time and roasted at 400 °C. The leaching efficiencies of Nd and Dy increased rapidly to more than 90% and remained almost constant after 60 min, and that of Fe remained at less than 1.5%, which indicates that Nd and Dy were selectively leached from scraps. Therefore, the leaching efficiencies measured at 60 min were used for further discussion.

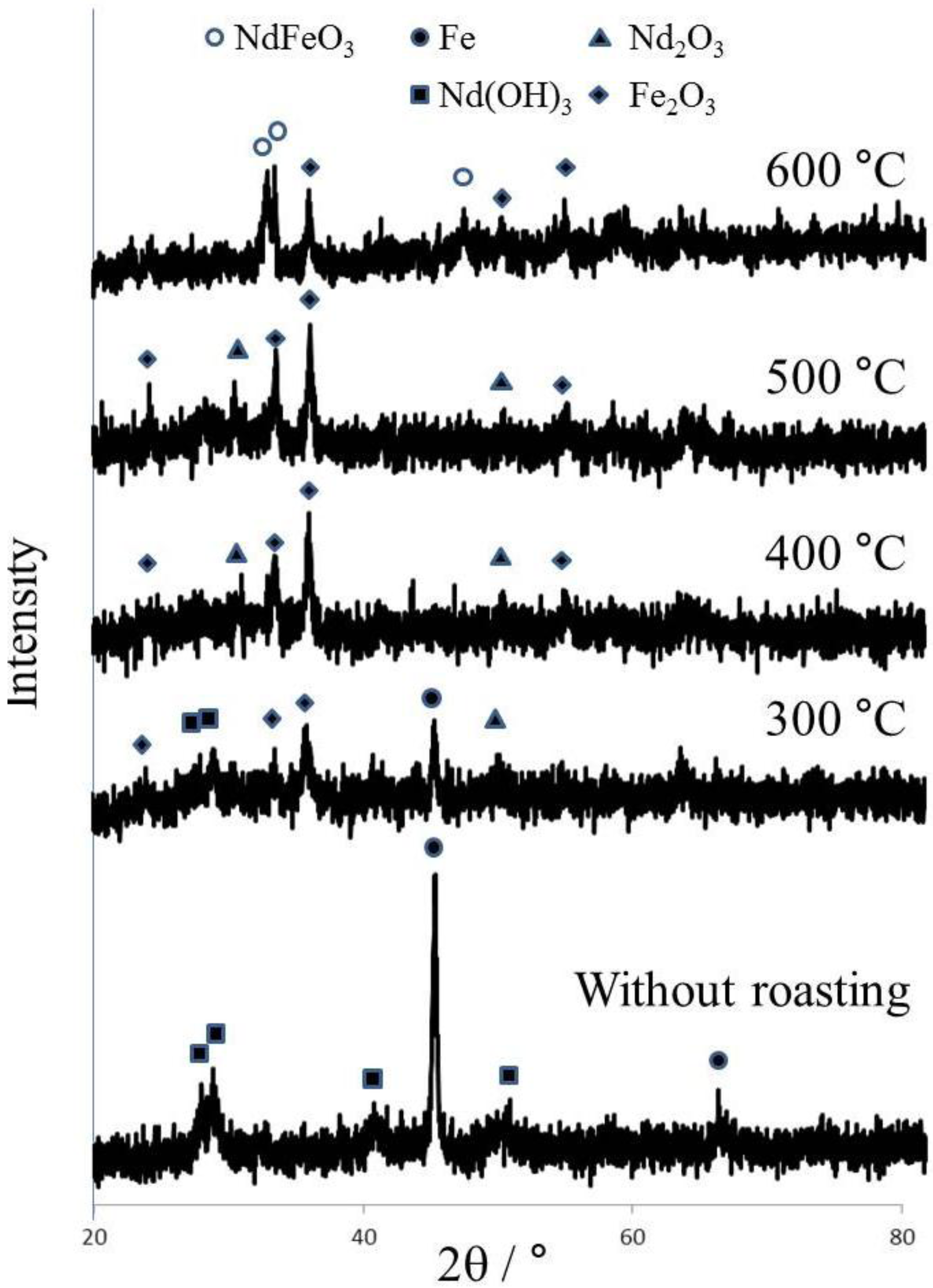

Figure 3. XRD patterns of roasted sample with temperature (Grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time).
Figure 3. XRD patterns of roasted sample with temperature (Grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time).
Metals 05 01306 g003

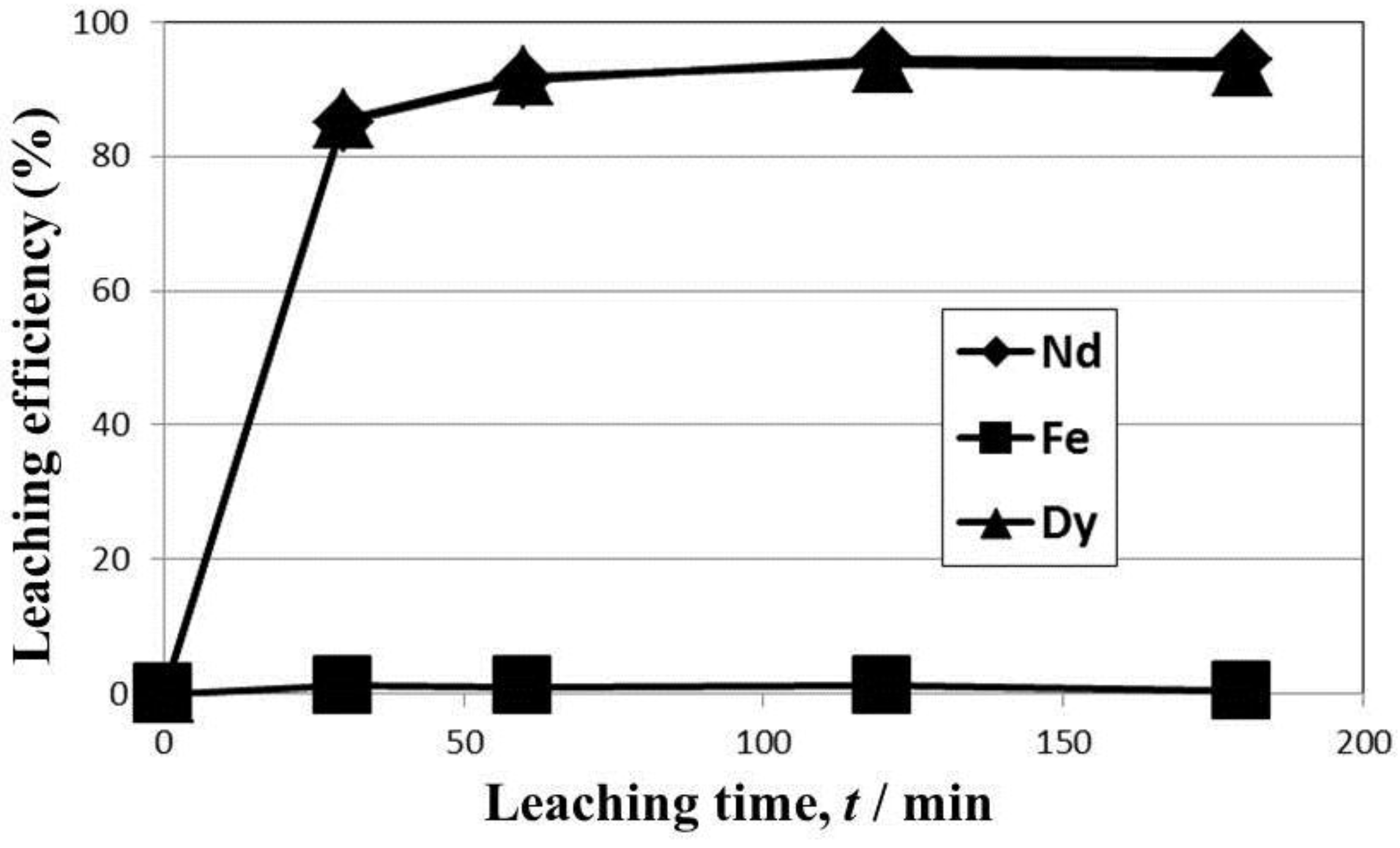

Figure 4. Leaching efficiencies of Nd, Fe, Dy with leaching time (Grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time, roasting condition; 2 h at 400 °C, leaching conditions: 400 rpm, 1 kmol·m−3 acetic acid, 90 °C).
Figure 4. Leaching efficiencies of Nd, Fe, Dy with leaching time (Grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time, roasting condition; 2 h at 400 °C, leaching conditions: 400 rpm, 1 kmol·m−3 acetic acid, 90 °C).
Metals 05 01306 g004
Figure 5 shows the effect of roasting temperature on the leaching efficiencies of Nd, Fe and Dy. The samples were prepared under the grinding conditions: 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time and 15 in stoichiometric ratio, and then were leached under the conditions: 1% in pulp density, 1 kmol·m−3 in acetic acid, 400 rpm in agitation speed, and 90 °C in temperature. The leaching efficiencies of Nd and Dy decreased rapidly with increasing temperature from 500 °C to 600 °C, and that of Fe decreased and then increased gradually with increasing roasting temperature. The decrease in leaching efficiencies of Nd and Dy would be formation of NdFeO3 shown in Equation (2).

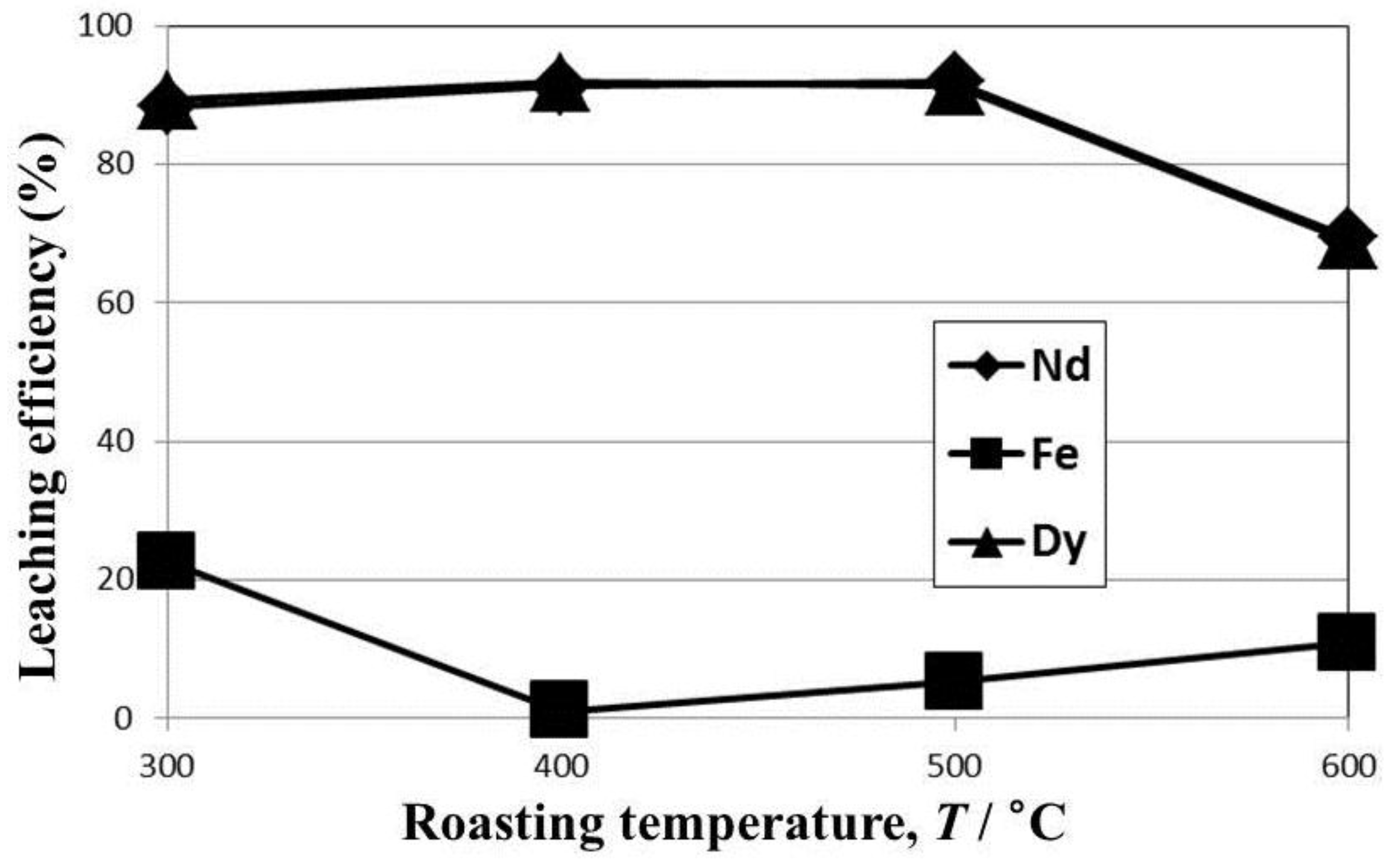

Figure 5. The effect of roasting temperature on the leaching efficiency (Grinding conditions: 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time, 15 in stoichiometric molar ratio).
Figure 5. The effect of roasting temperature on the leaching efficiency (Grinding conditions: 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time, 15 in stoichiometric molar ratio).
Metals 05 01306 g005

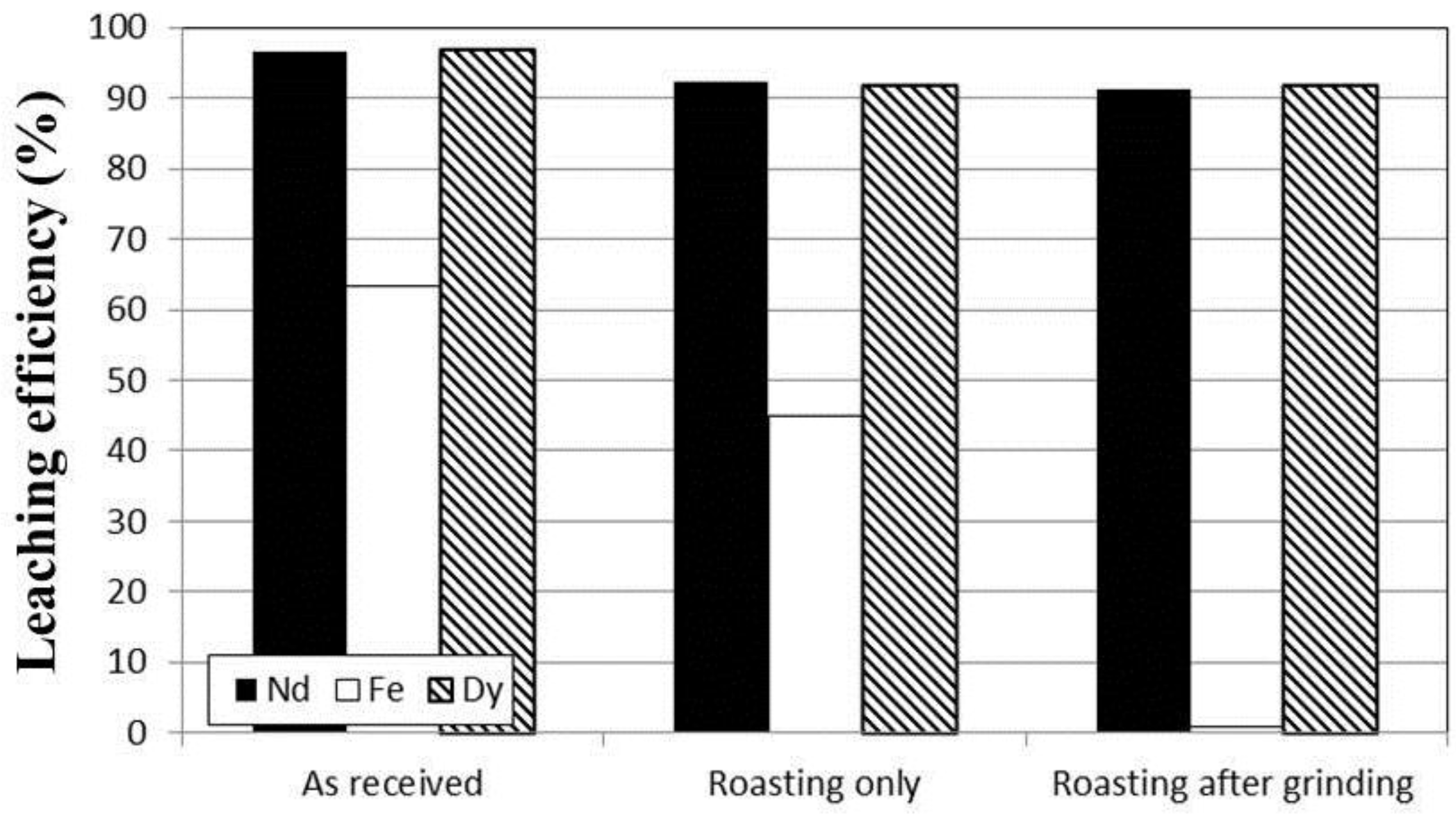

Figure 6. The comparison of leaching efficiencies using samples as as-received, only roasted, and roasted after being ground.
Figure 6. The comparison of leaching efficiencies using samples as as-received, only roasted, and roasted after being ground.
Metals 05 01306 g006
Figure 6 shows the comparison of leaching efficiencies using samples such as “as-received”, “roasting only”, which was roasted at 400 °C for 2 h using “as-received” sample, and “roasting after grinding”, which was prepared under the grinding conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational speed, 5 cm3 in water addition, 30 min in grinding time and roasting conditions: 400 °C in temperature and 2 h in roasting time. The leaching efficiency of Fe is calculated to be more than 40% in the cases of “as-received” and “only roasting” samples, and the results indicate that Nd and Dy were not leached selectively from the scraps. The dissolution of Fe would result from insufficient oxidation of Fe as reported by Kim et al. [15] However, 30-min grinding with NaOH changes the components of Nd and Fe into Nd(OH)3 and Fe, respectively, which could oxidize Fe easily during roasting. Finally, more than 90% of Nd and Dy could be leached but the leaching efficiency of Fe was 1% at 60 min leaching time, which indicates that selective leaching of Nd and Dy could be achieved by roasting after grinding but not by only roasting or by only grinding. The leaching efficiencies of Nd and Dy increased to 94.2% and 93.1%, respectively, with increasing time to 180 min. These results indicate that the selective leaching of Nd and Dy was achieved successfully.

4. Conclusions

The pretreatment methods consisting of grinding and roasting for the selective leaching of Nd and Dy from NdFeB magnet scraps was investigated for recycling of waste NdFeB magnet. The magnet scraps were ground with NaOH and water, and then roasted under the atmosphere condition to decrease the leaching efficiency of Fe and to accelerate the selectivity of Nd and Dy leaching.
The peaks of Nd(OH)3 and Fe were shown by increasing the amount of water addition in the grinding test. When the ground products were roasted at 400 °C and 500 °C, the peaks of Nd(OH)3 and Fe disappeared while those of Nd2O3 and Fe2O3 were observed in the XRD results. Consequently, 94.2%, 93.1%, 1.0% of Nd, Dy, Fe were leached, respectively, under the following conditions: 15 in stoichiometric molar ratio, 550 rpm in rotational grinding speed, 5 cm3 in water addition, 30 min in grinding time, 400 °C and 2 h in roasting temperature and time, 90 °C in leaching time, 1 kmol·m−3 in acetic acid concentration, 400 rpm in leaching agitation speed, 1% in leaching pulp density, and 180 min in leaching time.

Acknowledgments

The authors express appreciation for support of “R&D Center for Valuable Recycling” (Global-Top R&BD Program) funded by Korea Ministry of Environment (Project No. GT-11-C-01-100-0).

Author Contributions

Yoon and Yoo wrote the paper and contributed to all activities. Kim and Chung performed crushing and roasting samples. Jeon and Park conducted grinding and leaching tests and analyses. Jha contributed to interpretation and discussion of the experimental results.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Campbell, P. Permanent Magnet Materials and Their Application; Cambridge University Press: New York, NY, USA; Melbourne, Australia, 1994; pp. 45–51. [Google Scholar]
  2. Gupta, C.K.; Krishnamurthy, N. Extractive Metallurgy of Rare Earths; CRC Press: Boca Raton, FL, USA; London, UK; New York, NY, USA, 2005; pp. 396–411. [Google Scholar]
  3. Lee, K.; Yoo, K.; Yoon, H.S.; Kim, C.J.; Chung, K.W. Demagnetization followed by remagnetization of waste NdFeB magnet for reuse. Geosystem Eng. 2013, 16, 286–288. [Google Scholar] [CrossRef]
  4. Itoh, M.; Miura, K.; Machida, K. Novel rare earth recovery process on Nd-Fe-B magnet scrap by selective chlorination using NH4Cl. J. Alloys Compd. 2009, 477, 484–487. [Google Scholar] [CrossRef]
  5. Okabe, T.H.; Takeda, O.; Fukuda, K.; Umetsu, Y. Direct extraction and recovery of neodymium metal from magnet scrap. Mater. Trans. 2003, 44, 798–801. [Google Scholar] [CrossRef]
  6. Saito, T.; Sato, H.; Ozawa, S.; Yu, J.; Motegi, T. The extraction of Nd from waste Nd-Fe-B alloys by the glass slag method. J. Alloys Compd. 2003, 353, 189–193. [Google Scholar] [CrossRef]
  7. Lee, C.H.; Chen, Y.J.; Liao, C.H.; Popuri, S.R.; Tsai, S.L. Selective leaching process for neodymium recovery from scrap Nd-Fe-B magnet. Metall. Mater. Trans. A 2013, 44, 5825–5833. [Google Scholar] [CrossRef]
  8. Binnemans, K.; Jones, P.T.; Blanpain, B.; Gerven, T.V.; Yang, Y.; Walton, A.; Buchert, M. Recycling of rare earths: A critical review. J. Clean. Prod. 2013, 51, 1–22. [Google Scholar] [CrossRef]
  9. Lee, J.C.; Kim, W.B.; Jeong, J.; Yoon, I.J. Extraction of neodymium from Nd-Fe-B magnet scraps by sulfuric acid. Korean J. Met. Mater. 1998, 36, 967–972. [Google Scholar]
  10. Xu, Y.; Chumbley, L.S.; Laabs, F.C. Liquid metal extraction of Nd from NdFeB magnet scrap. J. Mater. Res. 2000, 15, 2296–2304. [Google Scholar] [CrossRef]
  11. Itakura, T.; Sasai, R.; Itoh, H. Resource recovery from Nd-Fe-B sintered magnet by hydrothermal treatment. J. Alloys Compd. 2006, 408–412, 1382–1385. [Google Scholar] [CrossRef]
  12. Kim, W.; Bae, I.; Chae, S.; Shin, H. Mechanochemical decomposition of monazite to assist the extraction of rare earth elements. J. Alloys Compd. 2009, 486, 610–614. [Google Scholar] [CrossRef]
  13. Greenberg, B. Neodymium Recovery Process. U.S. Patent 5,362,459, 8 November 1994. [Google Scholar]
  14. Bard, A.J.; Parsons, R.; Jordan, J. Standard Potentials in Aqueous Solution; Marcel Dekker, Inc.: New York, NY, USA; Basel, Switzerland, 1985; pp. 51, 392–394. [Google Scholar]
  15. Kim, C.J.; Yoon, H.S.; Chung, K.W. The Leaching of Nd Using Dipping Method. KR Patent 10-1147643, 4 May 2012. [Google Scholar]
  16. Dean, J.A. Lange’s Handbook of Chemistry; McGraw-Hill, Inc.: New York, NY, USA, 1992; pp. 8–130. [Google Scholar]
  17. Brett, C.M.A.; Brett, A.M.O. Electrochemistry, Principles, Methods, and Applications; Oxford University Press Inc.: New York, NY, USA, 2004; p. 418. [Google Scholar]
