Exotic Alloys Obtained by Condensation of Metallic Vapors
R. J. Slobodrian
Département de physique, de génie physique et d’optique, Faculté de sciences et de génie, Université Laval, Québec QC G1V0A6, Canada; E-Mail: rjslobodrian@hotmail.com or rjslobod@phy.ulaval.ca; Tel.: +1-418-656-3869; Fax: +1-418-656-2040
Received: 18 August 2013; in revised form: 11 September 2013 / Accepted: 16 September 2013 /
Published: 24 September 2013

Abstract

: New methods of producing small quantities of exotic alloys from immiscible metals (and elements in general) are described with two examples: An alloy of aluminium with silver and one of aluminium with tungsten. There is no limit to the number of components that can form special alloys by this method and their applications can be foreseen to be quite useful in the future.
Keywords:
alloys; metallic vapors; condensation

1. Introduction

Alloys of metals pervade many areas of present day technologies, providing special characteristics not available by metals in their pure state. Traditional methods for the production of alloys consist in the mixture of liquid metals or sintering of metallic particles. Here we describe procedures based in the condensation of metallic vapors that may allow the production of alloys with any number of components, independently of their individual liquid state threshold temperatures. In essence they consist in the interaction of vapors produced by ohm heating or of atomic beams produced by laser abrasion. Non metals can be added to these alloys without limitations. Here the production of small quantities of alloys are described: aluminium (Al) with silver (Ag) and (Al) with tungsten (W). However it is possible to envisage techniques for the production of macroscopic quantities of alloys by methods based on the interactions of metals in the vapor phase.

2. Ohmic Heating Evaporation

Ground Based System

The experimental apparatus is shown in Figure 1 [1,2,3,4]. It is stationary and used in a ground based laboratory. For experiments in a gravity reduced environment, on board of aircraft in parabolic flight a portable version was developed. Basically it consists of a large glass enclosed volume and evaporation crucibles made of elements with high melting temperatures, Ta and/or W. The evaporation takes place within an atmosphere of inert gases. Helium, argon and krypton were used to slow down the vaporized atoms and allow their condensation, with pressures below one atmosphere. A vacuum system allowed to get residual pressures of 10−6 tor before proceeding to inject the inert gas. It was essential to remove any residual oxygen and this was accomplished by repeated flushing of the volume with an inert gas (up to four times). The crucibles and elements to be evaporated were out gassed heating them to high temperatures before introducing the inert gas for each experiment.

Metals 03 00312 g001 200

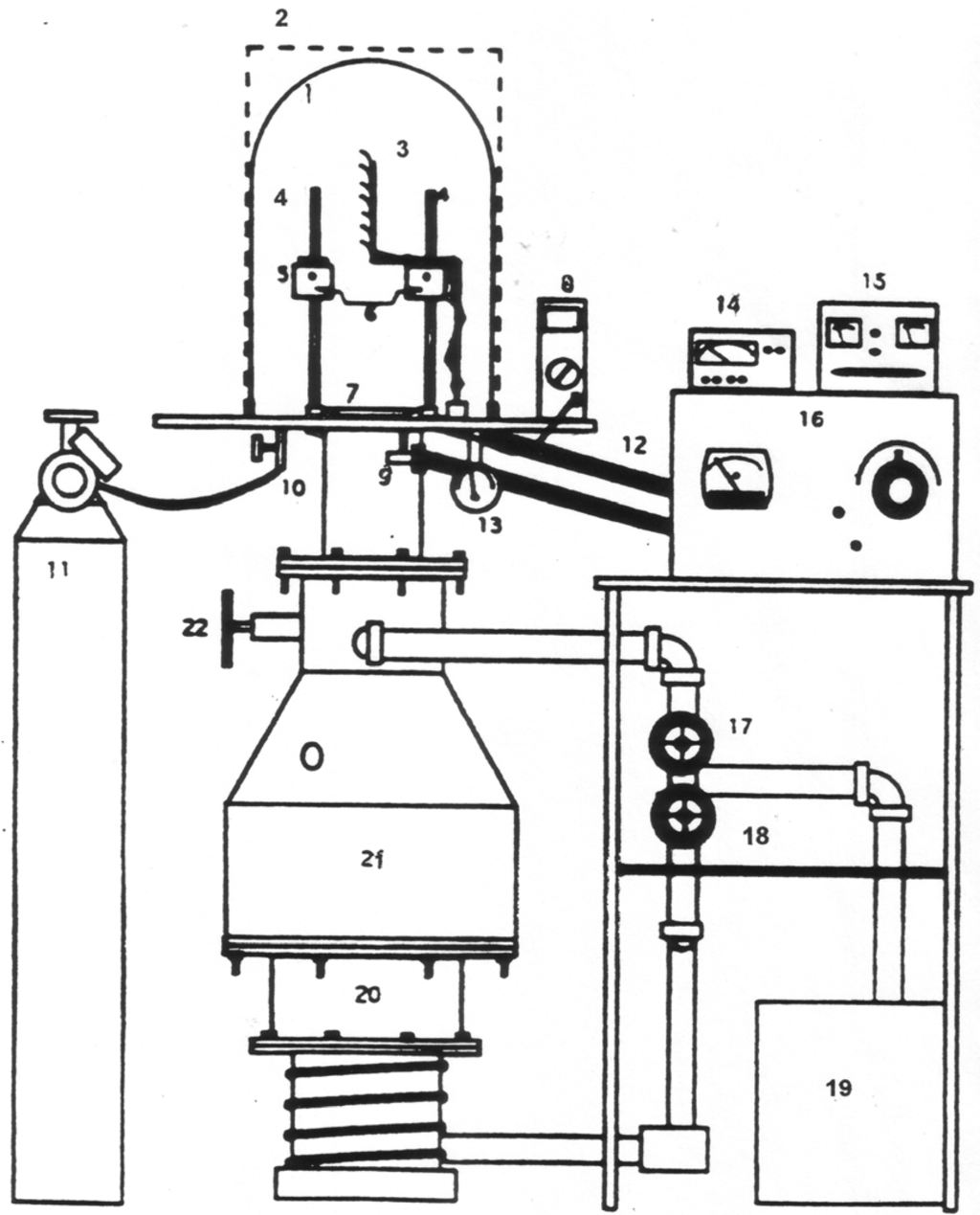

Figure 1. Ohmic evaporation, condensation apparatus. 1, Bell jar; 2, Protective grid; 3, Thermocouple support; 4, Electrodes; 5, Crucible support; 6, Crucible; 7, Recovery Plate; 8, Temperature gauge; 9, Vent valve; 10, Filling gas valve; 11, Gas container; 12, Conducting rod; 13–15, Pressure gauge; 16, Power supply; 17–18, Vacuum valve; 19, Mechanical pump; 20, Diffusion pump; 21, Liquid nitrogen trap; 22, By-pass valve.

Click here to enlarge figure

Figure 1. Ohmic evaporation, condensation apparatus. 1, Bell jar; 2, Protective grid; 3, Thermocouple support; 4, Electrodes; 5, Crucible support; 6, Crucible; 7, Recovery Plate; 8, Temperature gauge; 9, Vent valve; 10, Filling gas valve; 11, Gas container; 12, Conducting rod; 13–15, Pressure gauge; 16, Power supply; 17–18, Vacuum valve; 19, Mechanical pump; 20, Diffusion pump; 21, Liquid nitrogen trap; 22, By-pass valve.
Metals 03 00312 g001 1024

The salient aspects of the evaporation are shown in Figure 2. A high density particle region is formed above the crucible due to a circular spiraling of the atoms within the gas. The resultant condensations fall to the plate at the bottom of the glass jar. They are recovered once the evaporation is finished and analyzed with scanning electron microscopes (SEM’s) and mass analyzers. A SEM image of the results is shown in Figure 3. A mass spectrum of a monomer is shown in Figure 4.

Metals 03 00312 g002 200

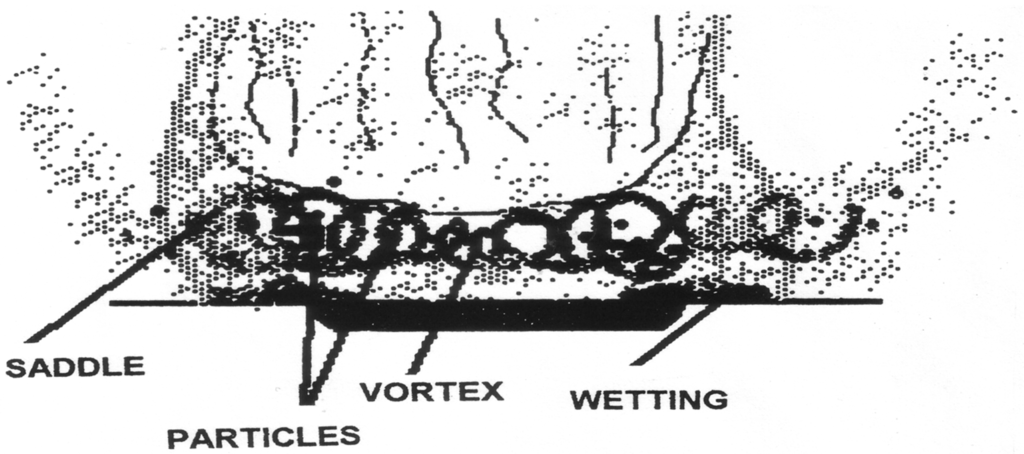

Figure 2. Operation of a crucible.

Click here to enlarge figure

Figure 2. Operation of a crucible.
Metals 03 00312 g002 1024
Metals 03 00312 g003 200

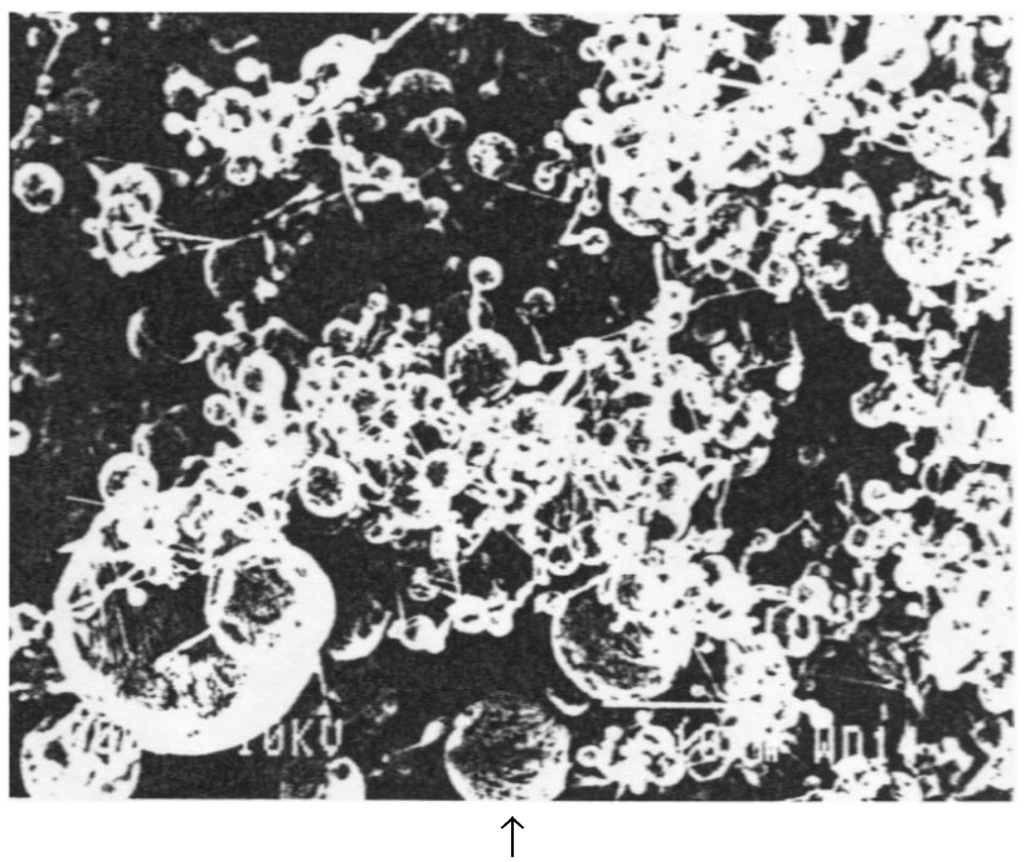

Figure 3. Al–Ag condensation SEM image.

Click here to enlarge figure

Figure 3. Al–Ag condensation SEM image.
Metals 03 00312 g003 1024
Metals 03 00312 g004 200

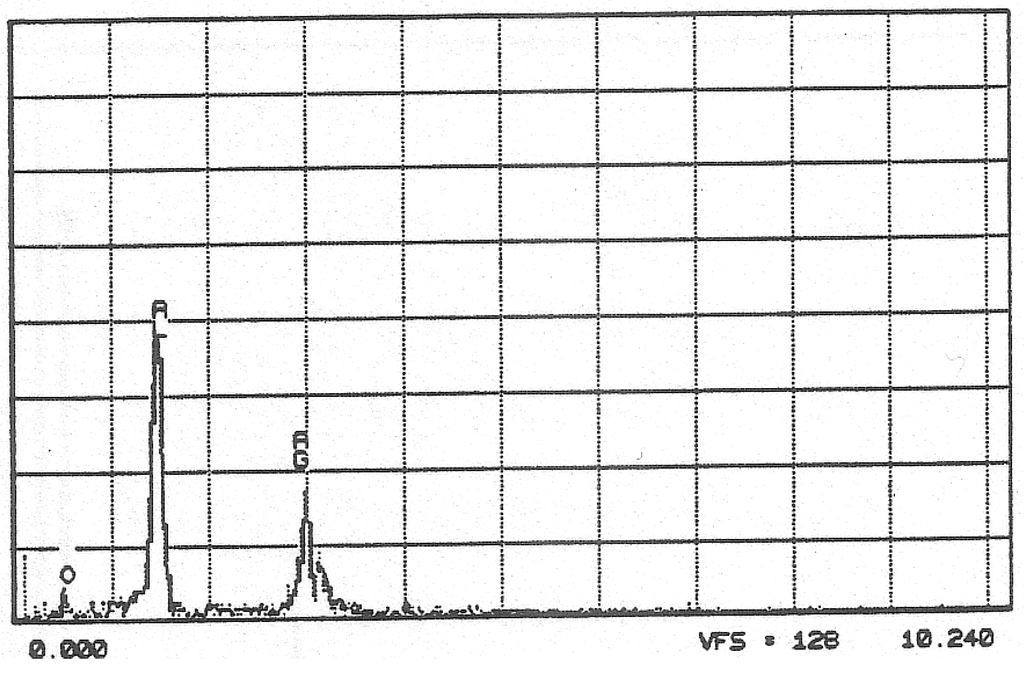

Figure 4. Mass spectrum of the monomer over the arrow in Figure 3.

Click here to enlarge figure

Figure 4. Mass spectrum of the monomer over the arrow in Figure 3.
Metals 03 00312 g004 1024

3. Evaporation by Laser Beam Abrasion

This method has several advantages over ohmic heating: Self supporting samples can be used avoiding contacts with crucibles which may introduce impurities into the vapors. The support gas is not significantly heated by the laser beam and thus convection is reduced, allowing the vaporized particles to remain in a defined volume as will be seen later.

3.1. Laser Characteristics

The laser used for evaporations was an Excimer Pulse Master PM-848 KrF. Optimum parameters are given in Table 1.

Table 1. Laser characteristics.

Click here to display table

Table 1. Laser characteristics.
ParametersNominal valuesValues used
Wavelength (nm)248248
Maximum energy per pulse (mJ)450120 to 240
Mean energy maximum (W)801 to 2.5
Repetition rate (pps)20010
Length of pulse (ns)12 to 2012 to 20
Size of the beam (mm)8 − 12 × 258 − 12 × 25
Divergence of the beam (mrad)1 × 31 × 3

The evaporation cube is shown in Figure 5. It was machined from a single block of duraluminium and is provided with four windows and a valve for vacuum and gas filling.

Metals 03 00312 g005 200

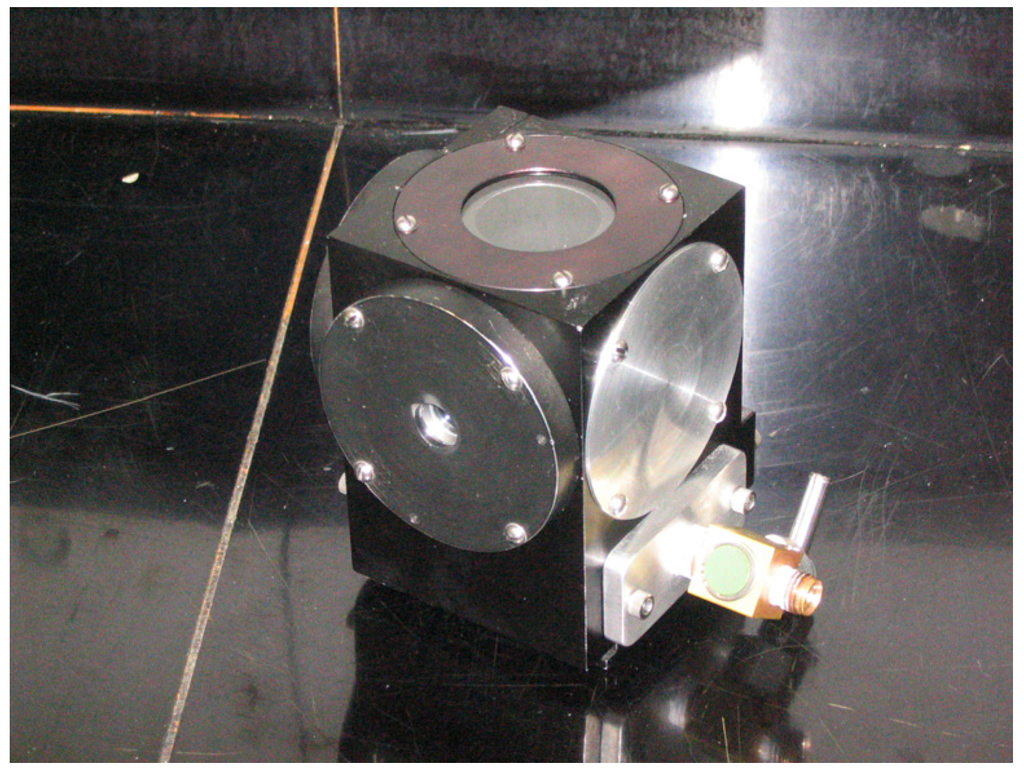

Figure 5. Image of the evaporation cube.

Click here to enlarge figure

Figure 5. Image of the evaporation cube.
Metals 03 00312 g005 1024
Metals 03 00312 g006 200

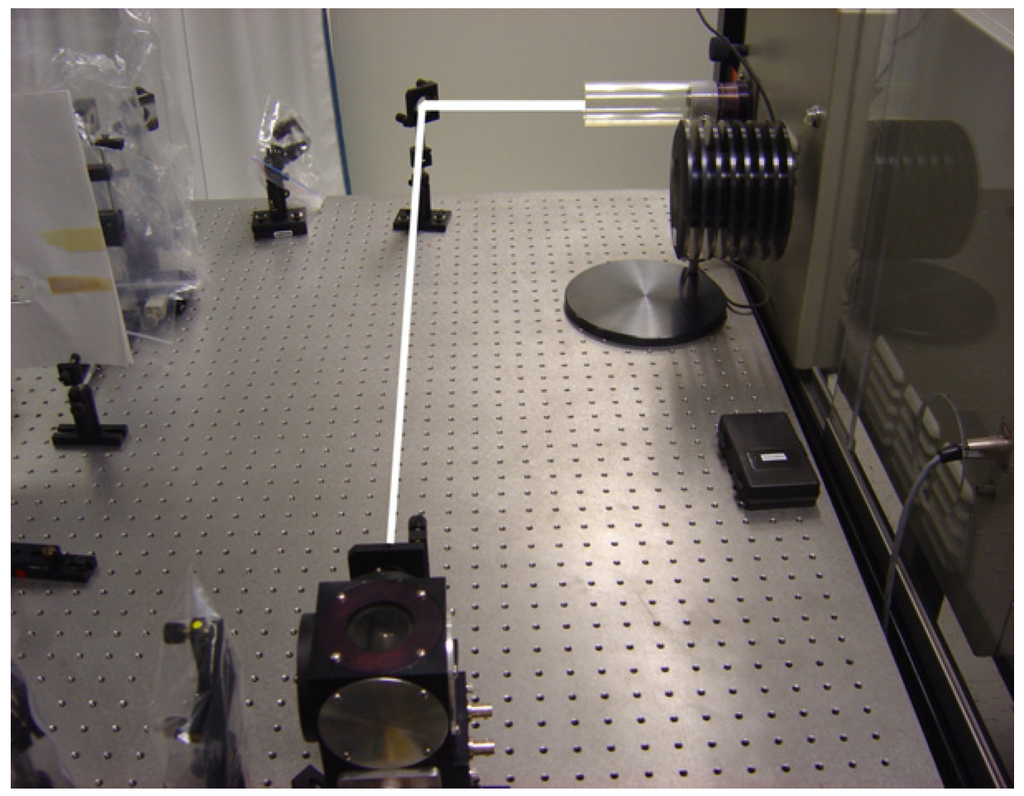

Figure 6. Single element evaporation, the EC is at the bottom.

Click here to enlarge figure

Figure 6. Single element evaporation, the EC is at the bottom.
Metals 03 00312 g006 1024

A single element evaporation is shown in Figure 6. The simultaneous evaporation of two elements was effected splitting the beam in two, as shown in Figure 7. A mirror beam splitter was used.

Metals 03 00312 g007 200
Figure 7. The beam is split and impinges the EC at right angles upon the targets.

Click here to enlarge figure

Figure 7. The beam is split and impinges the EC at right angles upon the targets.
Metals 03 00312 g007 1024

3.2. Alloy of Al and Tungsten

The basic idea consists to obtain the interaction of vapors of Al and W obtained through laser abrasion in order to produce alloys.

Figure 8 is a photograph of the perpendicularly colliding beams in the EC.

Metals 03 00312 g008 200

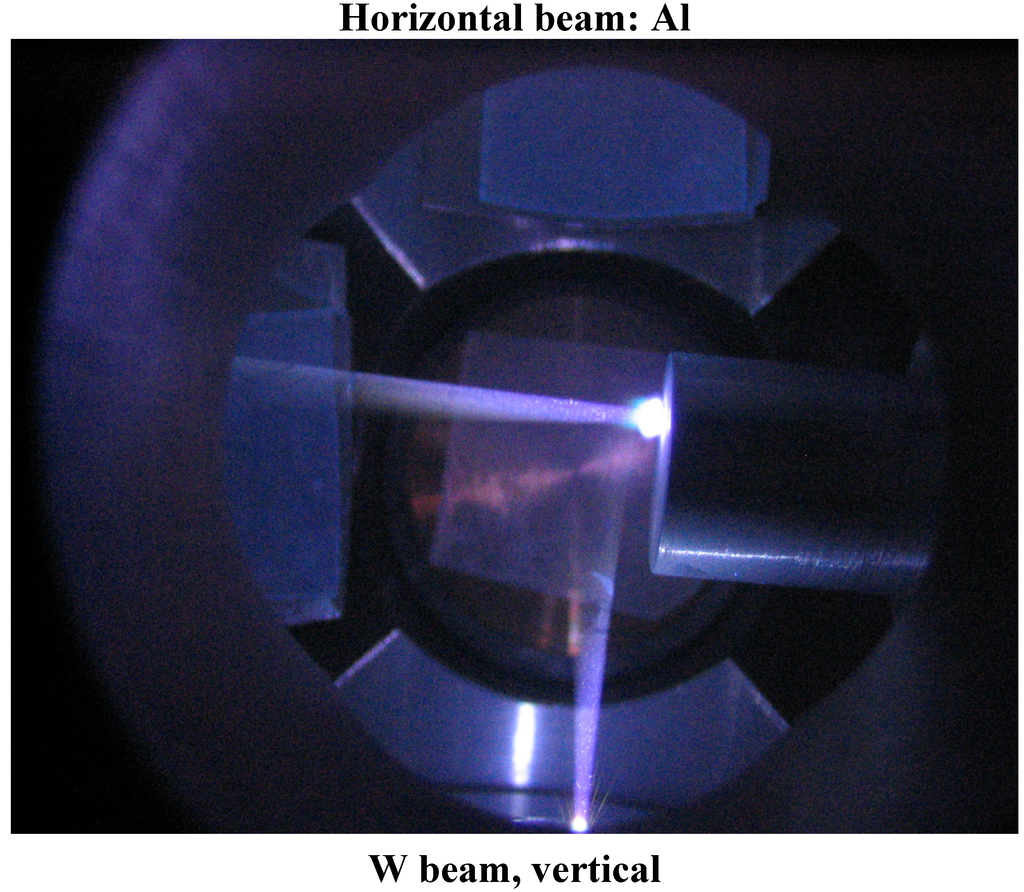

Figure 8. Particle beams ejected from the targets.

Click here to enlarge figure

Figure 8. Particle beams ejected from the targets.
Metals 03 00312 g008 1024

The configuration shown in Figure 8 proved to produce small alloys of aluminium and tungsten (Figure 9 and Figure 10). A collinear beam configuration was inadequate for use with the EC. Similar results were obtained consistently during these experiments.

Metals 03 00312 g009 200
Figure 9. Electron microscope image of condensed particles.

Click here to enlarge figure

Figure 9. Electron microscope image of condensed particles.
Metals 03 00312 g009 1024
Metals 03 00312 g010 200

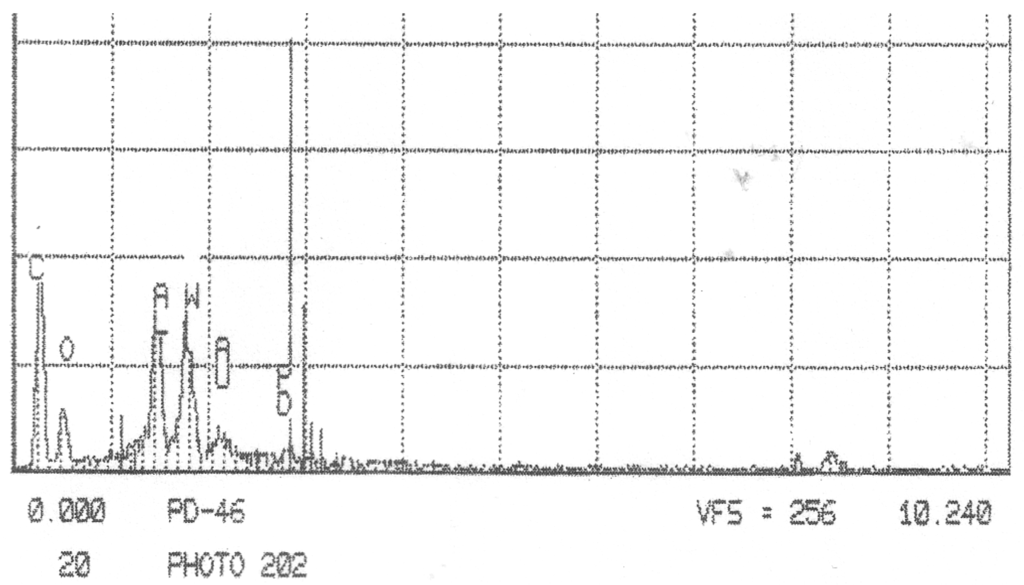

Figure 10. Mass spectrum of the circled drop of Figure 9. A, Aluminium; W, Tungsten.

Click here to enlarge figure

Figure 10. Mass spectrum of the circled drop of Figure 9. A, Aluminium; W, Tungsten.
Metals 03 00312 g010 1024

4. Concluding Remarks

According to the evidence provided here there is no limit in the possibilities provided by the evaporation condensation of elements in order to produce alloys or combinations of atoms. It should be possible to produce alloys of multiple elements by the intersection of several atomic beams. The properties of some exotic alloys thus obtained may allow a variety of novel applications.
