CiteULike
Facebook
Mendeley
Twitter
This article is- freely available
- re-usable
Metals 2012, 2(3), 219-228; doi:10.3390/met2030219
Article
Dehydrogenation Kinetics and Modeling Studies of MgH2 Enhanced by Transition Metal Oxide Catalysts Using Constant Pressure Thermodynamic Driving Forces
Department of Chemistry, Delaware State University, Dover, DE 19901, USA
* Author to whom correspondence should be addressed.
Received: 27 May 2012; in revised form: 13 June 2012 / Accepted: 14 June 2012 / Published: 25 June 2012
(This article belongs to the Special Issue Magnesium Technology)
Download PDF Full-Text [554 KB, uploaded 25 June 2012 15:28 CEST]

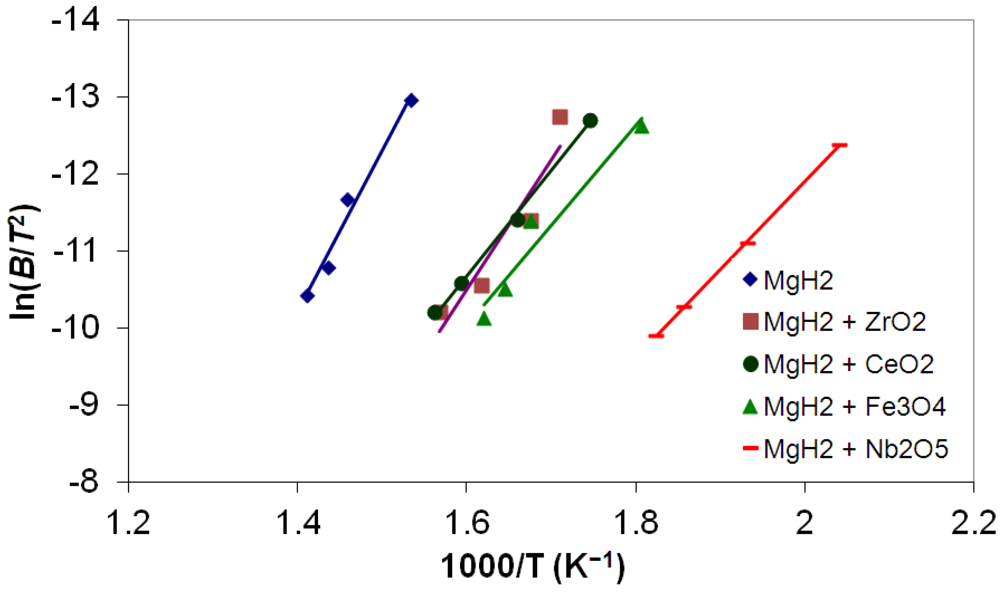

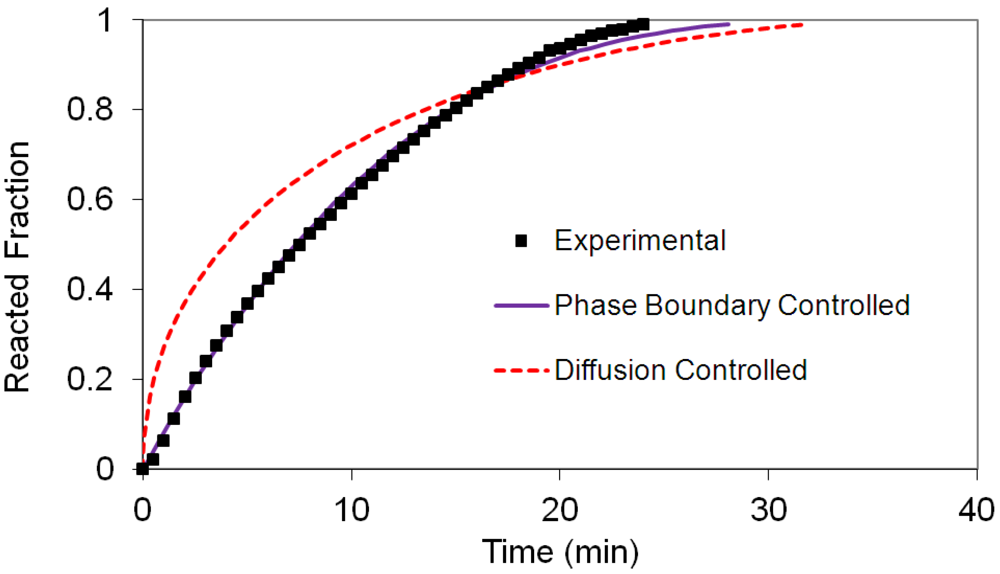

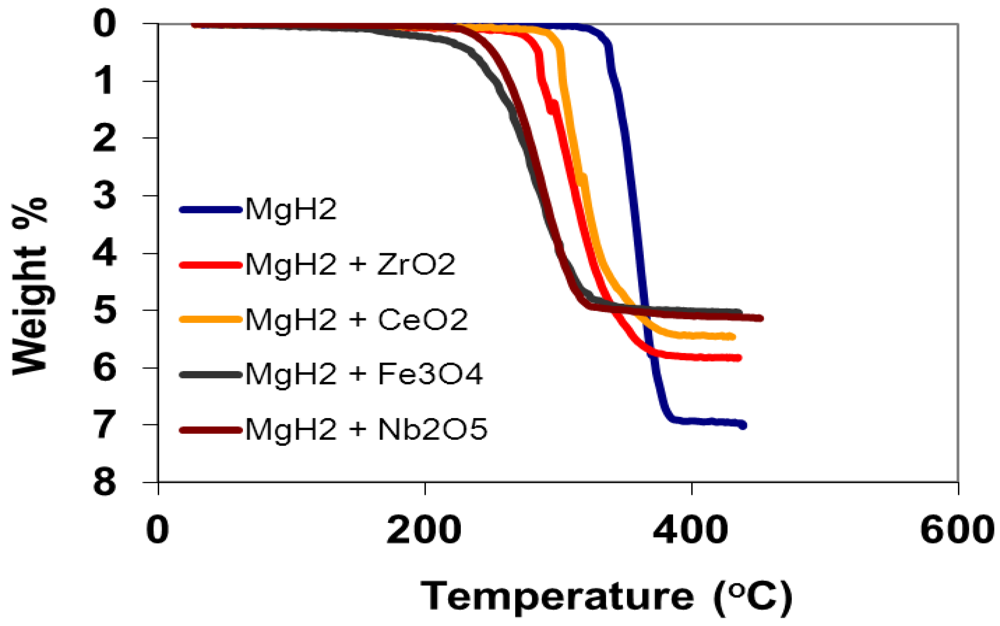

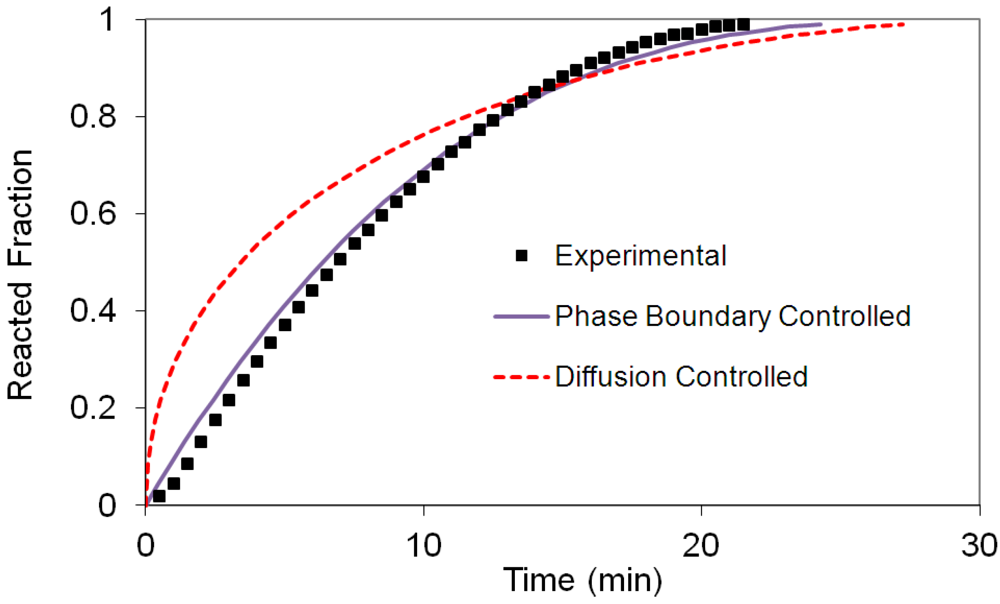

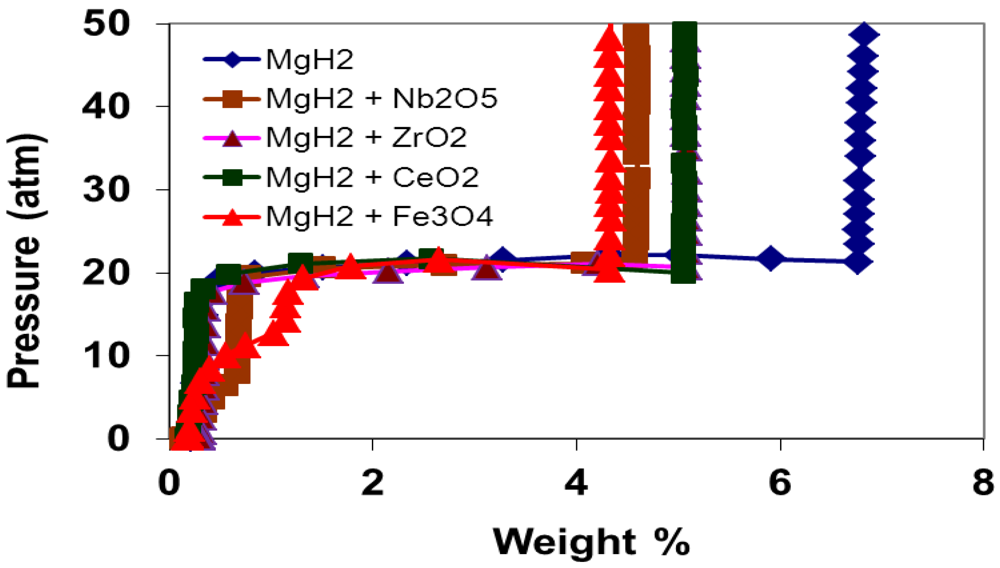

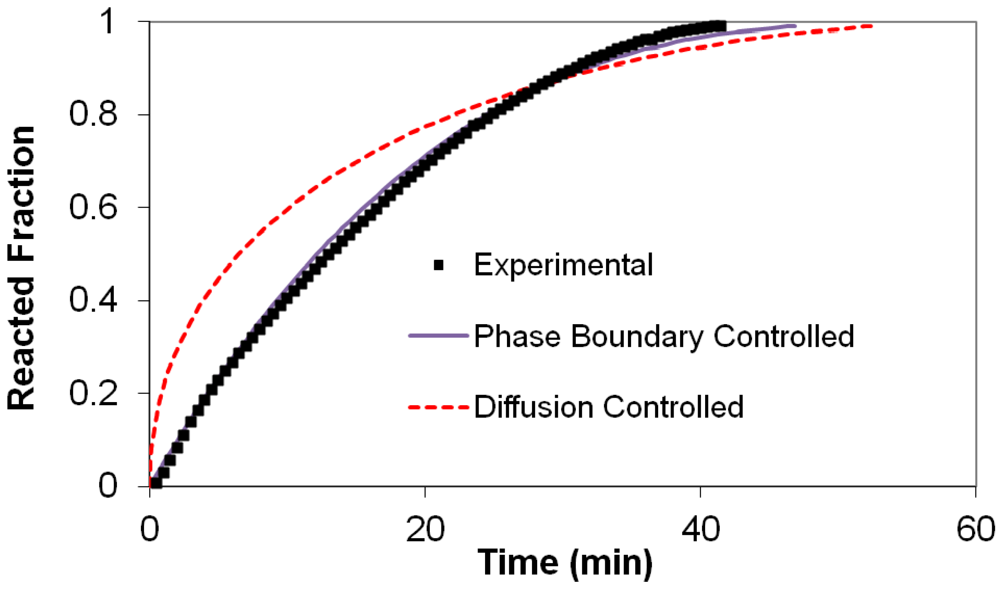

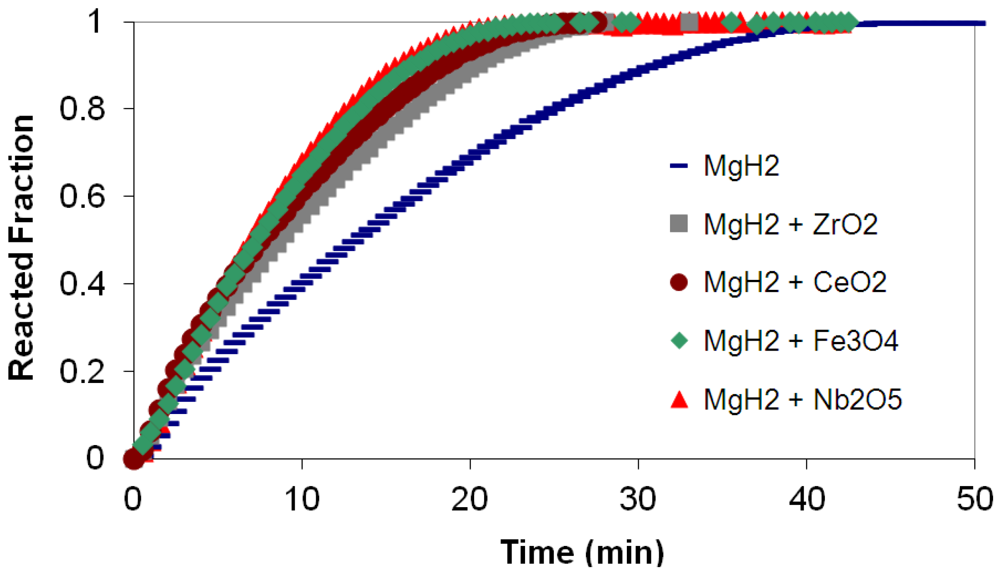

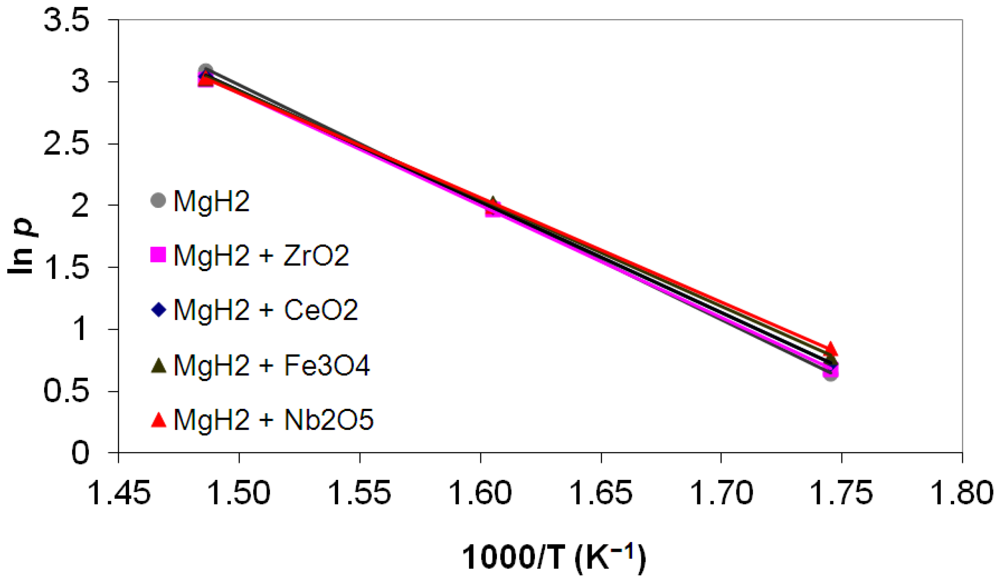

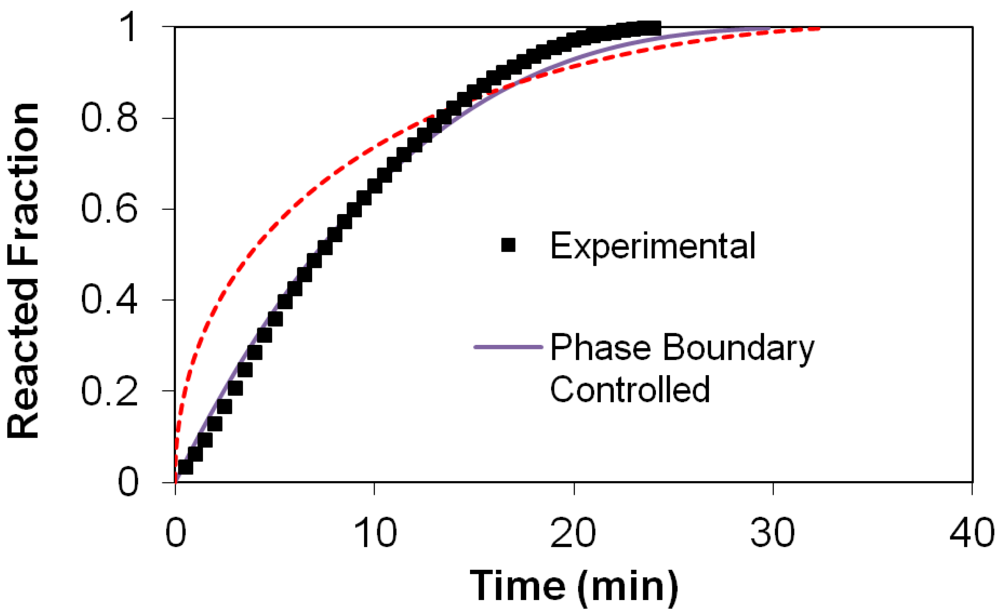

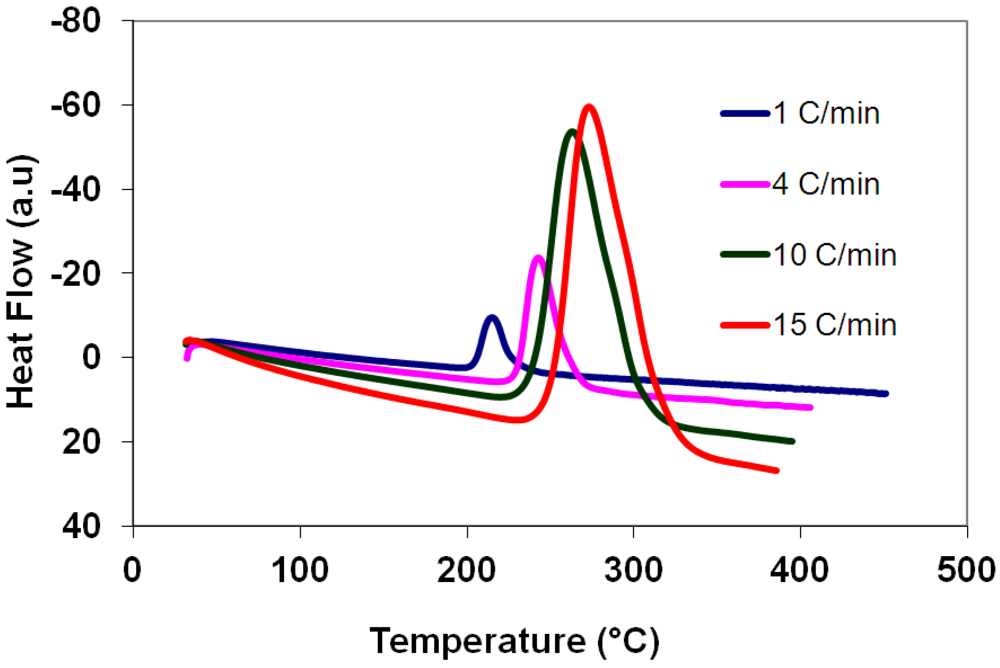

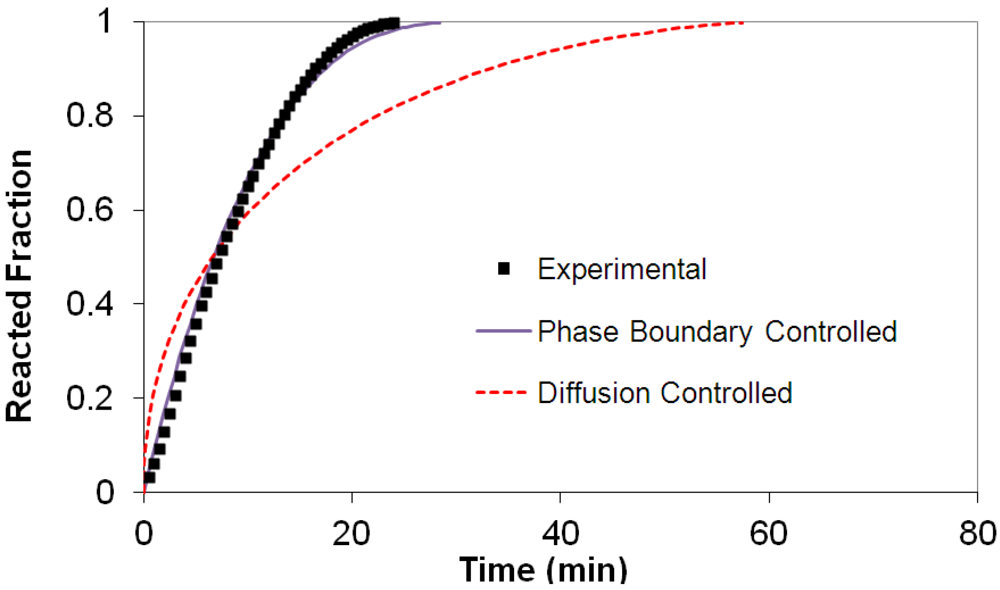

Abstract: The influence of transition metal oxide catalysts (ZrO2, CeO2, Fe3O4 and Nb2O5) on the hydrogen desorption kinetics of MgH2 was investigated using constant pressure thermodynamic driving forces in which the ratio of the equilibrium plateau pressure (pm) to the opposing plateau (pop) was the same in all the reactions studied. The results showed Nb2O5 to be vastly superior to other catalysts for improving the thermodynamics and kinetics of MgH2. The modeling studies showed reaction at the phase boundary to be likely process controlling the reaction rates of all the systems studied.
Keywords: hydrogen storage; magnesium hydride; kinetics; modeling
Article Statistics
Click here to load and display the download statistics.Cite This Article
MDPI and ACS Style
Sabitu, S.T.; Goudy, A.J. Dehydrogenation Kinetics and Modeling Studies of MgH2 Enhanced by Transition Metal Oxide Catalysts Using Constant Pressure Thermodynamic Driving Forces. Metals 2012, 2, 219-228.
AMA StyleSabitu ST, Goudy AJ. Dehydrogenation Kinetics and Modeling Studies of MgH2 Enhanced by Transition Metal Oxide Catalysts Using Constant Pressure Thermodynamic Driving Forces. Metals. 2012; 2(3):219-228.
Chicago/Turabian StyleSabitu, Saidi Temitope; Goudy, Andrew J. 2012. "Dehydrogenation Kinetics and Modeling Studies of MgH2 Enhanced by Transition Metal Oxide Catalysts Using Constant Pressure Thermodynamic Driving Forces." Metals 2, no. 3: 219-228.
