Production and Characterization of Brass-matrix Composites Reinforced with Ni59Zr20Ti16Si2Sn3 Glassy Particles
Jin Young Kim 1, Sergio Scudino 1,*, Uta Kühn 1, Bum Sung Kim 2, Min Ha Lee 2 and Jürgen Eckert 1,3
1
IFW Dresden, Institut für Komplexe Materialien, Postfach 270116, Dresden D-01171, Germany; Email: jinyoung.kim@ifw-dresden.de (J.Y.K.); u.kuehn@ifw-dresden.de (U.K.); j.eckert@ifw-dresden.de (J.E.)
2
Advanced Materials Division, Korea Institute of Industrial Technology, Incheon 406-840, Korea; Email: bskim15@kitech.re.kr (B.S.K.); mhlee1@kitech.re.kr (M.H.L.)
3
TU Dresden, Institut für Werkstoffwissenschaft, Dresden D-01062, Germany
*
Author to whom correspondence should be addressed; Email: s.scudino@ifw-dresden.de; Tel.: +49-351-4659-838; Fax: +49-351-4659-452.
Received: 12 April 2012 / Accepted: 8 May 2012 / Published: 15 May 2012

Abstract

: Brass-matrix composites reinforced with 40 and 60 vol.% of Ni59Zr20Ti16Si2Sn3 glassy particles were produced by powder metallurgy. The crystallization behavior and the temperature dependence of the viscosity of the glass reinforcement were studied in detail to select the proper sintering parameters in order to avoid crystallization of the glassy phase during consolidation. The brass-glass powder mixtures were prepared through manual blending as well as by ball milling to analyze the effect of the matrix ligament size on the mechanical properties of the composites. The powder mixtures were then consolidated into highly-dense bulk specimens at temperatures within the supercooled liquid region by hot pressing followed by hot extrusion. The preparation of the powder mixtures has a strong influence on the mechanical behavior of the composites. The strength increases from 500 MPa for pure brass to 740 and 925 MPa for the blended composites with 40 and 60vol.% of glass reinforcement, while the strength increases to 1,240 and 1,640 MPa for the corresponding composites produced by ball milling. Modeling of the mechanical properties indicates that this behavior is related to the reduced matrix ligament size characterizing the milled composites.
Keywords:
composites; metallic glasses; powder metallurgy; mechanical properties

1. Introduction

Among current innovative materials, metallic glasses are of increasing interest for functional and structural applications due to their yield stress and elastic strain, which are remarkably high for metallic materials [1,2]. Although some highly deformable metallic glasses have been recently developed [3,4,5], the room temperature plastic deformation of these materials is generally very limited due to the formation of highly localized shear bands, which finally leads to catastrophic failure soon after yielding [1,2].

A way to overcome the limited room temperature plastic deformation of metallic glasses is the development of glass-composites containing ductile phases [6]. These glass-composites can be classified as in-situ and ex-situ composites. The in-situ composites are produced from their melts directly during solidification and generally consist of ductile precipitates in a residual glassy matrix [7,8]. Although these composites have been found to be successful in combating catastrophic shear banding, the preparation of in-situ composites necessitates the careful selection of the alloy composition and the proper choice of the processing parameters to control size, morphology, volume fraction and elastic constants of the second phases [6]. This, in turn, restricts the application of the in-situ composite approach to a limited number of suitable systems.

More freedom in terms of suitable systems and of microstructure control of the phases (e.g., volume fraction, size and morphology of matrix and reinforcement) can be achieved through the ex-situ approach. Among the different techniques, powder metallurgy (P/M) through solid-state sintering is one of the most successful processing routes for the production of ex-situ glass-composites [9,10]. In this method, the glass-composite powders are consolidated into bulk specimens with nearly full density by taking advantage of the reduced viscosity of the glassy particles at temperatures above the glass transition [11,12,13,14]. However, the consolidation of glassy powders is not an easy task and the accurate control of the sintering parameters, e.g., pressure, temperature and holding time, is crucial in order to obtain fully dense specimens without inducing the crystallization of the glass reinforcement [9,10,11,12,13,14]. To reach this aim, the crystallization behavior of the glassy phase has to be known in detail.

In this work, the mechanical behavior of brass-matrix composites reinforced with 40 and 60 vol.% of Ni59Zr20Ti16Si2Sn3 glassy particles produced by powder metallurgy has been investigated. The crystallization behavior and the temperature dependence of the viscosity of the glass reinforcement were carefully studied to select the proper sintering parameters in order to avoid crystallization of the glassy phase during consolidation. The brass-glass powder mixtures were prepared through manual blending as well as by ball milling to analyze the effect of the matrix ligament size on the mechanical properties of the composites. The brass-glass powder mixtures were then consolidated through uni-axial hot pressing followed by hot extrusion and the mechanical properties of the bulk specimens were evaluated by room temperature compression tests.

2. Results and Discussion

Figure 1(a) shows the isochronal DSC (30 K/min) scan of the Ni59Zr20Ti16Si2Sn3 gas-atomized powder (100 vol.% glass). The DSC curve exhibits the typical features characteristic of glassy materials, namely, a distinct glass transition (Tg), followed by the supercooled liquid (SCL) region before a single exothermic event due to crystallization occurs at higher temperature (Tx). The glass transition temperature is 810 K, whereas the crystallization temperature Tx, which gives the upper limit for the sintering temperature, is 875 K. The SCL region, ΔTx = TxTg, is 65 K and the enthalpy of crystallization related to the exothermic DSC peak is ΔH = 104 J/g.

Metals 02 00079 g001 200

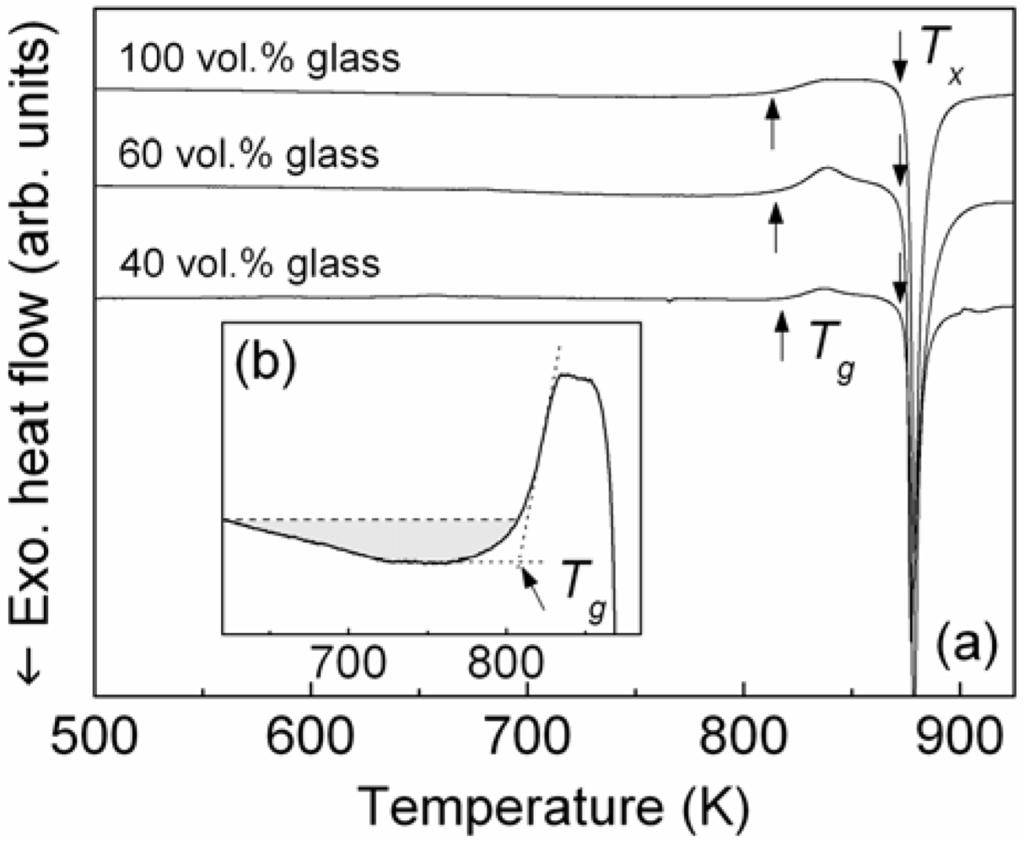

Figure 1. (a) DSC scans (heating rate 30 K/min) of the as-atomized Ni59Zr20Ti16Si2Sn3 powder (100 vol.% glass) and brass-matrix composites with 60 and 40 vol.% of glass reinforcement; (b) broad exothermic event below Tg (shadowed area) related to structural relaxation.

Click here to enlarge figure

Figure 1. (a) DSC scans (heating rate 30 K/min) of the as-atomized Ni59Zr20Ti16Si2Sn3 powder (100 vol.% glass) and brass-matrix composites with 60 and 40 vol.% of glass reinforcement; (b) broad exothermic event below Tg (shadowed area) related to structural relaxation.
Metals 02 00079 g001 1024

Glassy powders can be consolidated into bulk samples by taking advantage of their reduced viscosity at temperatures within the SCL region [11,12,13,14]. When metallic glasses are heated at temperatures between the glass transition and the crystallization temperatures, they behave as undercooled liquids exhibiting a deformation regime characterized by a viscous flow behavior [12]. Above the glass transition temperature, the glass transforms into a SCL, which displays a strong decrease of viscosity [15]. At higher temperatures, when the crystallization starts, the material loses the liquid-like behavior and the viscosity suddenly increases with increasing temperature toward the typical values of a solid phase [15]. A similar behavior can also be observed in the Ni59Zr20Ti16Si2Sn3 glassy powder (Figure 2). The glassy powder displays a rather constant value of viscosity (2 × 107 Pa·s) up to about 625 K (Trel). At temperatures exceeding 625 K, the viscosity deviates from linearity and it decreases with increasing temperature up to about 875 K (Tx), where the viscosity abruptly increases due to the crystallization. In the temperature range between 625 and 875 K, the powder shows two distinct softening behaviors. The first occurs in the range 625–820 K, where the viscosity decreases relatively slowly through a concave downwards behavior. Most likely, this is only apparent softening due to the structural relaxation of the amorphous structure and to the resulting annihilation of excess free volume, which occurs at temperatures below Tg [16]. The viscosity curve shown in Figure 2 was derived from the change of the height of the sample (see inset in Figure 2) through the Stefan’s equation [15,17] and, therefore, any reduction of volume/height of the sample might result in an apparent decrease of viscosity. Structural relaxation can generally be observed in an isochronal DSC scan as a broad exothermic event occurring at temperatures below Tg [16]. Indeed, the DSC scan of the Ni59Zr20Ti16Si2Sn3 glassy powder is characterized by a broad exothermic signal at temperatures in the range 600–800 K (see shadowed area in Figure 1(b)), corroborating that the decrease of viscosity occurring at temperatures between 625 and 820 K is an apparent softening effect due to structural relaxation. The second softening effect visible in Figure 2 occurs in the range 820–875 K. Here, the viscosity decreases with a steeper slope compared to the apparent softening between 625 and 820 K and with a concave upwards behavior. By extrapolating the concave upwards curve (dotted curve in Figure 2) to the viscosity value of the solid glass (2 × 107 Pa·s; dashed line in Figure 2), a glass transition temperature of about 810 K is obtained. This value is remarkably similar to that obtained by DSC measurements (Figure 1(a)).

Metals 02 00079 g002 200

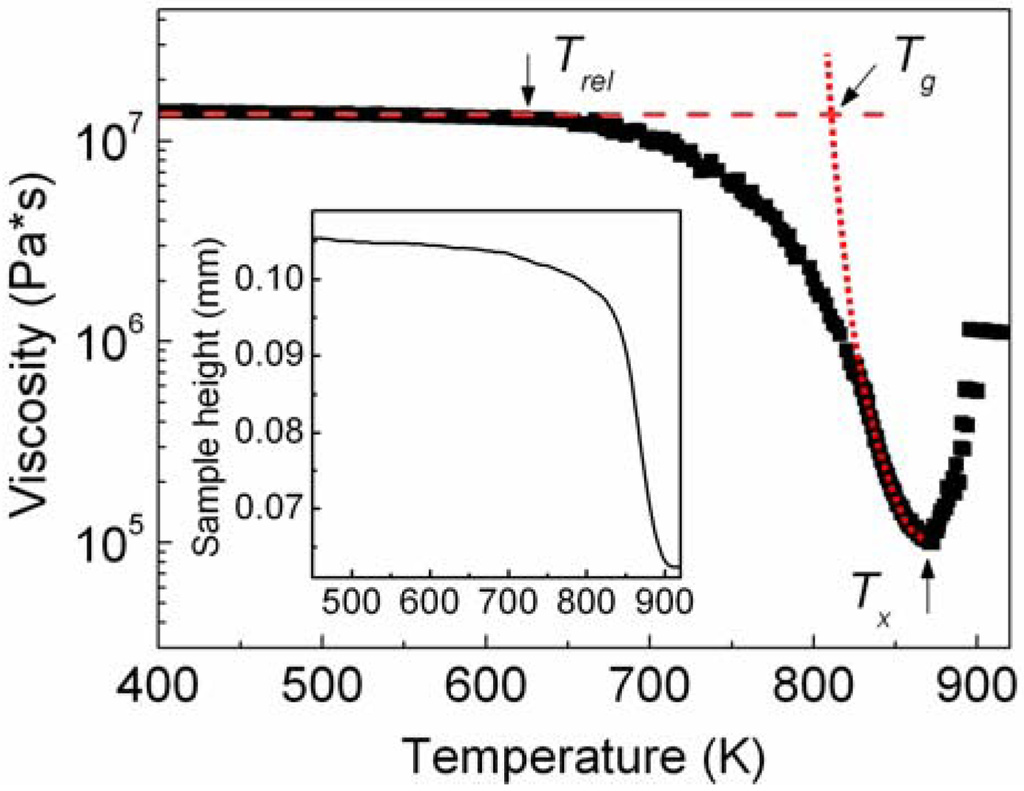

Figure 2. Temperature dependence (heating rate 30 K/min) of the viscosity of the supercooled liquid for the as-atomized Ni59Zr20Ti16Si2Sn3 powder and (inset) characteristic TMA measurement consisting of the change of the height of the sample as a function of temperature.

Click here to enlarge figure

Figure 2. Temperature dependence (heating rate 30 K/min) of the viscosity of the supercooled liquid for the as-atomized Ni59Zr20Ti16Si2Sn3 powder and (inset) characteristic TMA measurement consisting of the change of the height of the sample as a function of temperature.
Metals 02 00079 g002 1024

In order to find the proper temperature-time window for consolidation of the glass avoiding crystallization, the crystallization behavior was also investigated in isothermal mode at different annealing temperatures within the SCL region. The isothermal DSC scans (Figure 3(a)) are symmetric bell-shaped curves with an incubation time (i.e., the time needed to start the crystallization process) that increases with decreasing the annealing temperature (Figure 3(b)). For annealing at 865 K crystallization sets in within one minute. The incubation time increases to about four minutes for annealing at 845 K. The extrusion step necessitates a period of about one hour; therefore, such a short incubation time is insufficient for performing the extrusion avoiding crystallization. However, the incubation time can be drastically extended for annealing at 823 K, where crystallization is not observed for holding times exceeding 90 minutes.

The DSC and viscosity investigations were used to find the best compromise between temperature, viscosity and holding time for the consolidation of the composites reinforced with Ni59Zr20Ti16Si2Sn3 glassy particles. These glass-reinforced composites were synthesized by hot pressing followed by hot extrusion of brass powder manually blended with different amounts (40 and 60 vol.%) of Ni59Zr20Ti16Si2Sn3 gas-atomized powder. Hot pressing (sintering temperature 673 K; sintering pressure 500 MPa; holding time 3 min) was used as a pre-compaction step for the following hot extrusion. Extrusion was carried out at 823 K, in order to take advantage of the material softening within the supercooled liquid regime, using a pressure of about 500 MPa. At this temperature, the viscosity of the glass is reduced to 8 × 105 Pa s and the incubation time is longer than 90 min, which permits to carry out the extrusion of the previously hot-pressed pre-compacts avoiding the crystallization of the glass (see Figure 3). For comparison purposes, a bulk specimen was produced by extrusion of pure brass powder using the same consolidation parameters as used for the glass-reinforced composites.

Metals 02 00079 g003 200

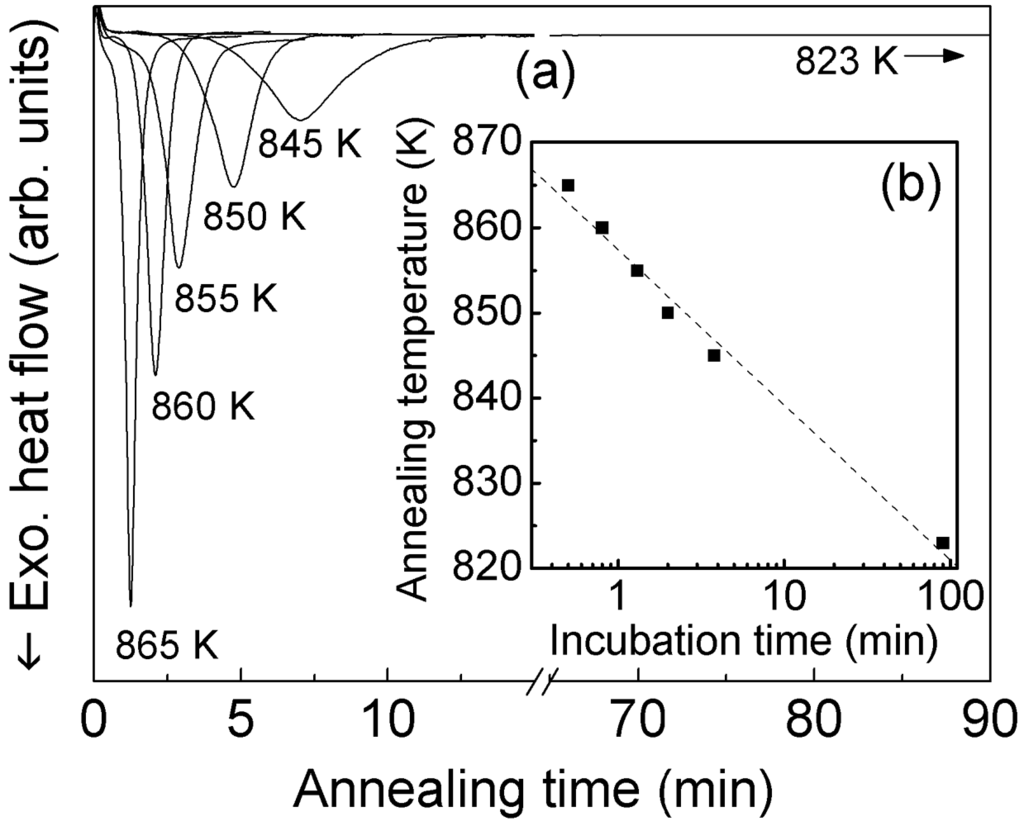

Figure 3. (a) Isothermal DSC scans taken at different annealing temperatures for the as-atomized Ni59Zr20Ti16Si2Sn3 powder; (b) corresponding incubation times.

Click here to enlarge figure

Figure 3. (a) Isothermal DSC scans taken at different annealing temperatures for the as-atomized Ni59Zr20Ti16Si2Sn3 powder; (b) corresponding incubation times.
Metals 02 00079 g003 1024

The DSC scans of the extruded composites produced by blending brass with 40 and 60 vol.% of glass powder are shown in Figure 1(a). Due to the optimized consolidation parameters, the extruded specimens display a very similar crystallization behavior compared to the parent gas-atomized powder. Tg and Tx are 813 and 874 K for the composite with 40 vol.% glass and 812 and 873 K for the sample with 60 vol.% glass (Tg = 810 K and Tx = 875 K for the parent as-atomized powder). The enthalpies of crystallization are ΔH = 43 J/g for the sample with 40 vol.% glass and ΔH = 59 J/g for the composite containing 60 vol.% glass, therefore smaller with respect to the as-atomized powder (ΔH = 104 J/g). However, after normalization of the crystallization enthalpies to the wt.% of brass, which does not contribute to the crystallization enthalpy, the values of enthalpy for the composites are very similar to that observed for the as-atomized Ni59Zr20Ti16Si2Sn3 glassy powder. This clearly indicates that the extrusion process does not induce any significant crystallization of the glassy phase.

The absence of glass crystallization during compaction is corroborated by the XRD patterns in Figure 4. The patterns display few narrow diffraction peaks due to brass together with the broad maximum belonging to the glassy phase at about 2θ = 49° (see pattern of the as-atomized glass for reference). No diffraction peaks belonging to additional phases are detected within the sensitivity limits of XRD.

Extrusion at 823 K not only permits the consolidation of the composites avoiding crystallization of the glass reinforcement, but it also leads to bulk samples with relative density exceeding 99%. As expected for highly dense specimens, the density of the composites closely follows the rule of mixture (dashed line in Figure 5) and decreases linearly with increasing vol.% of glass.

Metals 02 00079 g004 200

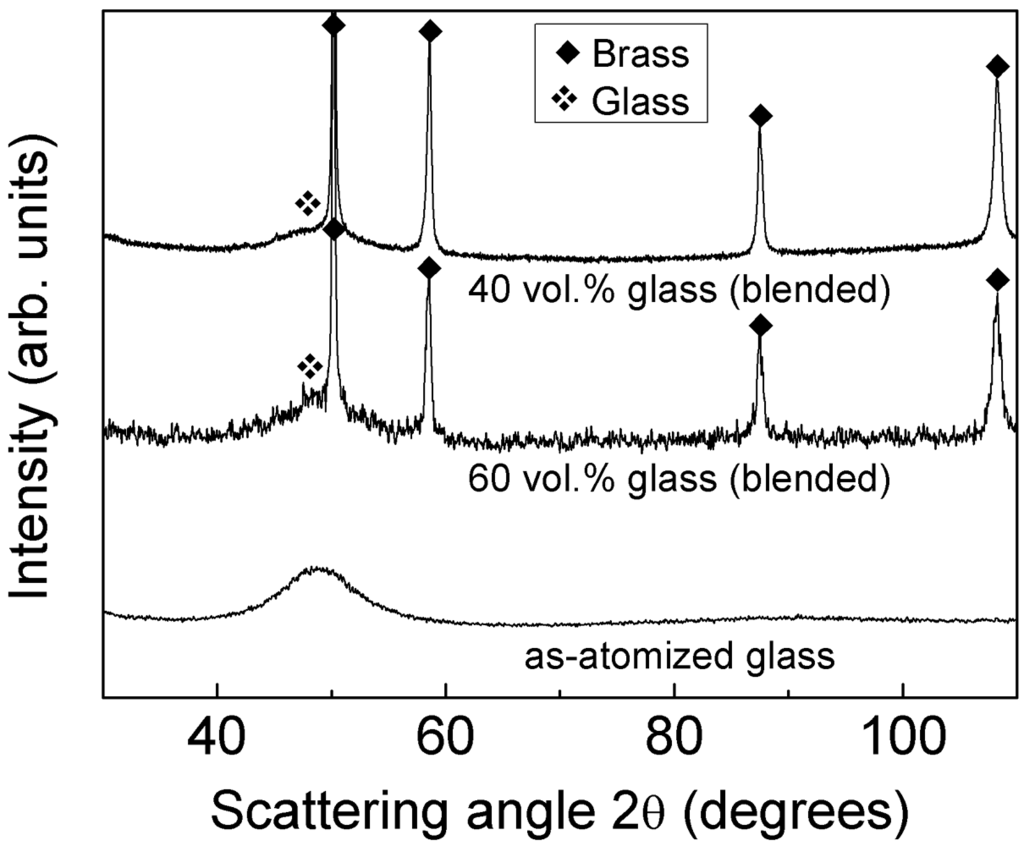

Figure 4. XRD patterns (Co-Kα radiation) for the as-atomized Ni59Zr20Ti16Si2Sn3 powder and for the consolidated blended composites with 40 and 60 vol.% of glass reinforcement.

Click here to enlarge figure

Figure 4. XRD patterns (Co-Kα radiation) for the as-atomized Ni59Zr20Ti16Si2Sn3 powder and for the consolidated blended composites with 40 and 60 vol.% of glass reinforcement.
Metals 02 00079 g004 1024
Metals 02 00079 g005 200

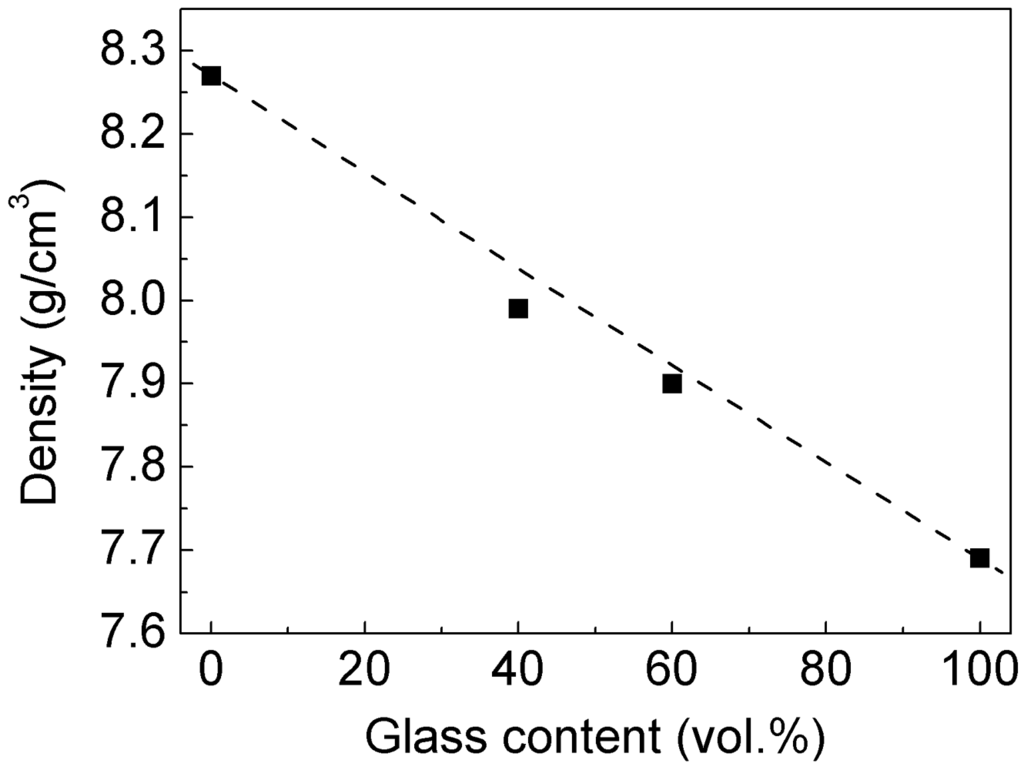

Figure 5. Densities of the consolidated blended composites as a function of the volume fraction of glass reinforcement.

Click here to enlarge figure

Figure 5. Densities of the consolidated blended composites as a function of the volume fraction of glass reinforcement.
Metals 02 00079 g005 1024

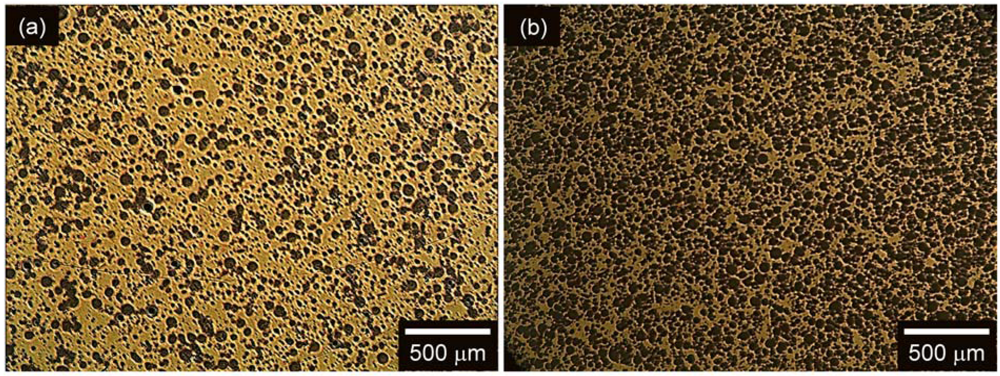

Figure 6(a,b) show the OM micrographs of the composites produced by blending brass with 40 and 60 vol.% of glass reinforcement. The micrographs display a homogeneous distribution of dark particles (the Ni59Zr20Ti16Si2Sn3 glass) dispersed in a continuous bright matrix (i.e., brass). No porosity is visible, further corroborating the high density of the extruded specimens evaluated by density measurements.

The mechanical properties of the glass-reinforced (blended) composites were investigated by room temperature compression tests and the corresponding stress-strain curves are presented in Figure 7 along with the curve for pure brass extruded using the same consolidation parameters as used for the glass-reinforced composites. The addition of the glass reinforcement remarkably improves the strength of the material. The compressive strength (the maximum compressive stress which the material is capable of sustaining [18]) increases from about 500 MPa for pure brass to 740 and 925 MPa for the (blended) composites reinforced with 40 and 60 vol.% of glassy particles, respectively. In contrast, the plastic deformation of the extruded materials decreases from about 40 % for pure brass to 28 and 9 % for the composites containing 40 and 60 vol.% glassy particles.

Metals 02 00079 g006 200
Figure 6. OM micrographs for the consolidated blended composites with (a) 40 vol.% and (b) 60 vol.% glass reinforcement.

Click here to enlarge figure

Figure 6. OM micrographs for the consolidated blended composites with (a) 40 vol.% and (b) 60 vol.% glass reinforcement.
Metals 02 00079 g006 1024

Beside through the variation of the volume fraction of reinforcement, the strength of a composite can be enhanced through the optimization of microstructural features such as size and morphology of matrix and reinforcement particles or interparticle distance [19,20,21]. For composites consisting of a soft matrix reinforced with hard particles, the distance between the particles, also referred to as the matrix ligament size λ, is a key parameter. This is particularly important for composites containing large volume fractions of reinforcement, where the matrix is constrained by the hard particles into regions (i.e., the matrix ligament size) having size that decreases with increasing volume fraction of reinforcement [21]. In analogy with the strengthening effect resulting from grain refinement, the reduction of λ can give a considerable contribution to the strength of the composites because the matrix/particle interface can effectively reduce the movement of dislocations [21,22].

Metals 02 00079 g007 200

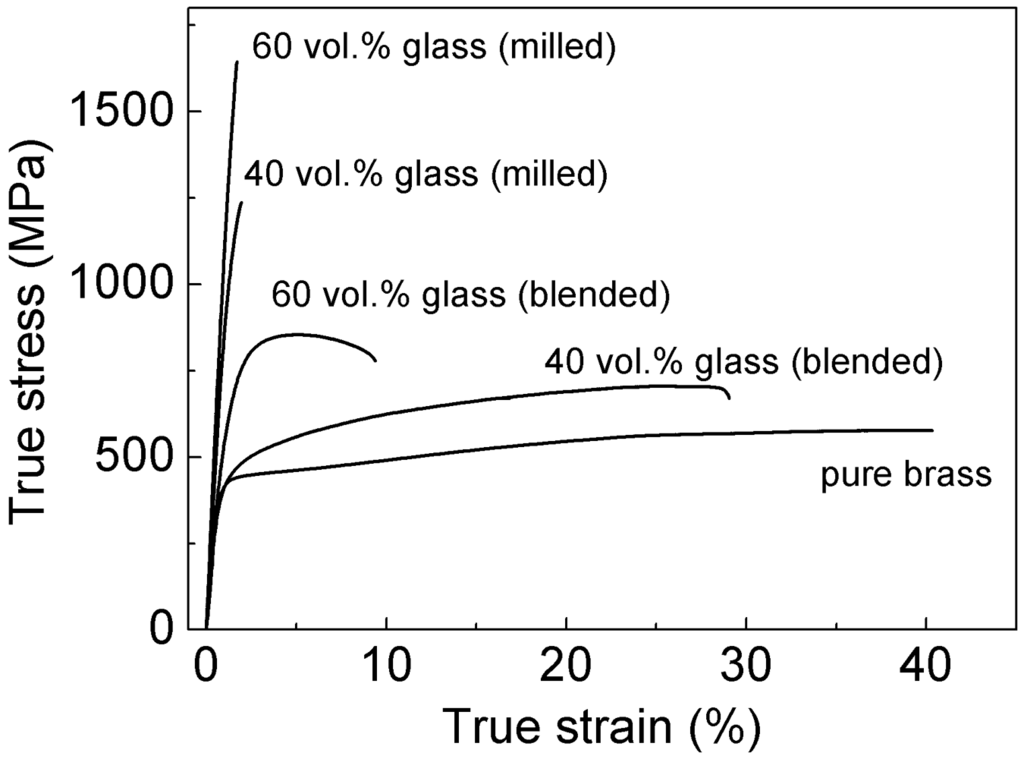

Figure 7. Room temperature compression stress-strain curves for the consolidated pure brass and blended and milled composites with 40 and 60 vol.% of Ni59Zr20Ti16Si2Sn3 glass reinforcement.

Click here to enlarge figure

Figure 7. Room temperature compression stress-strain curves for the consolidated pure brass and blended and milled composites with 40 and 60 vol.% of Ni59Zr20Ti16Si2Sn3 glass reinforcement.
Metals 02 00079 g007 1024

In this work, the matrix ligament size of the glass-reinforced composites was reduced by ball milling of two different mixtures of powders consisting of brass with 40 and 60 vol.% of Ni59Zr20Ti16Si2Sn3 glass. During milling the particles are cold-welded and plastically deformed, leading to a characteristic layered structure consisting of various combinations of the starting constituents with the thickness of the individual layers that decreases with increasing the milling time [23]. This behavior can be observed in Figure 8, which shows the OM micrographs of the glass-brass composite powders with 40 and 60 vol.% glass milled for 20 h. The milled powders are characterized by a rather heterogeneous microstructure (Figure 8(a,b)). Small particles (<200–300 μm) display a microstructure consisting of layers of brass (bright areas) alternating with glass layers (dark areas) (Figure 8(c,d)). Larger particles display the glass-brass alternating layered structure only on the surface of the composite particles, whereas the core consists of relatively less deformed glass particles embedded into a continuous brass matrix (Figure 8(e,f)).

Metals 02 00079 g008 200

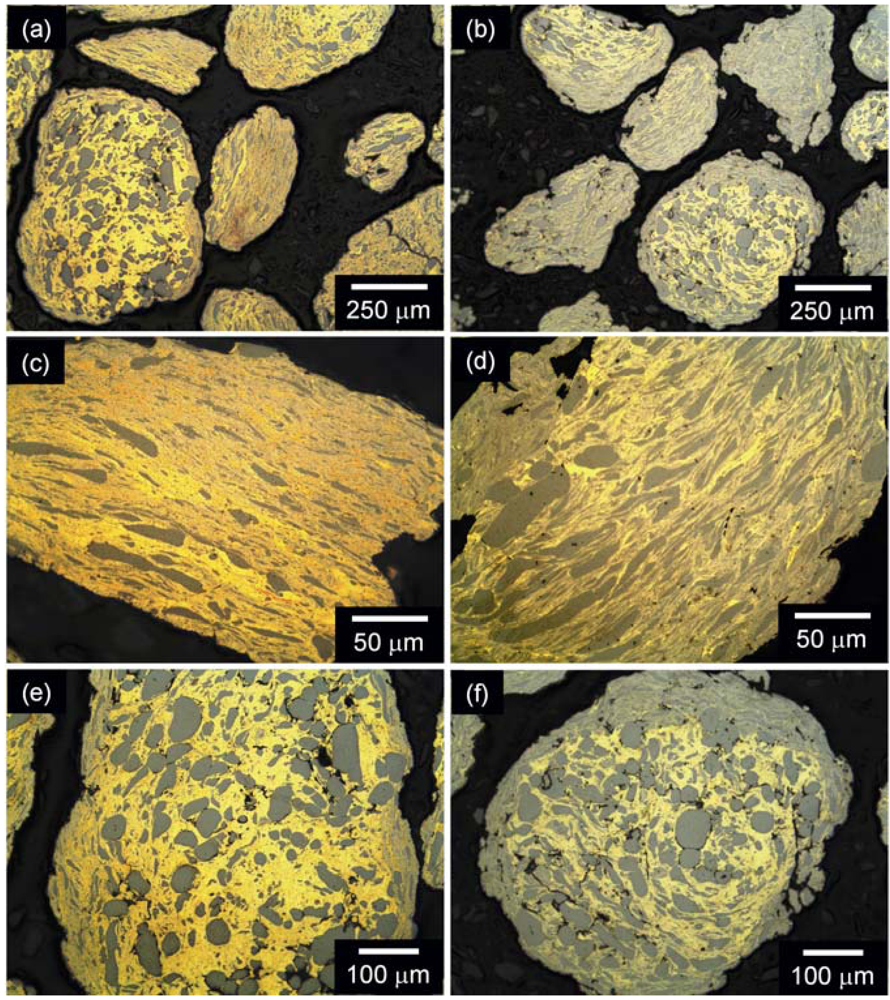

Figure 8. OM micrographs of the glass-brass composite powders milled for 20 h: (a,c,e) composite with 40 vol.% glass and (b,d,f) composite with 60 vol.% glass reinforcement.

Click here to enlarge figure

Figure 8. OM micrographs of the glass-brass composite powders milled for 20 h: (a,c,e) composite with 40 vol.% glass and (b,d,f) composite with 60 vol.% glass reinforcement.
Metals 02 00079 g008 1024

The effect of milling on the thermal stability of the glass-brass composite (milled) powders with 40 and 60 vol.% glass is shown in Figure 9. The crystallization temperature is not influenced by the mechanical treatment. The values of Tx for the powders with 40 and 60 vol.% glass are 878 and 877 K, respectively, therefore, only slightly increase compared to the as-atomized glassy powder (875 K). On the other hand, the crystallization enthalpy of the powder with 40 vol.% glass decreases from about 40 J/g for the blended powder to 20 J/g for the material milled for 20 h. A similar decrease can be observed in the powder with 60 vol.% glass, where the enthalpy drastically decreases from about 60 J/g for the blended powder to 31 J/g for the powder milled for 20 h. This would suggest that about 50% of glassy phase crystallizes during milling.

Metals 02 00079 g009 200

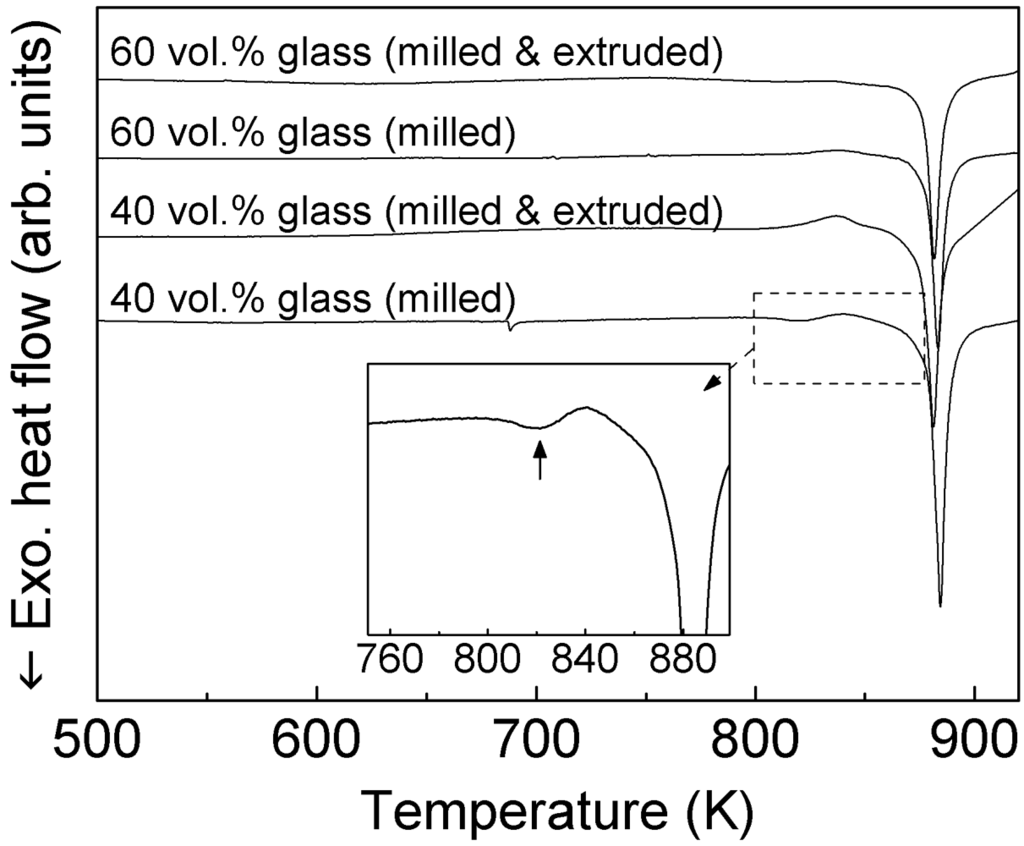

Figure 9. DSC scans (30 K/min) of the glass-brass composite powders milled for 20 h (milled) and of the corresponding bulk composites consolidated by hot extrusion (milled and extruded).

Click here to enlarge figure

Figure 9. DSC scans (30 K/min) of the glass-brass composite powders milled for 20 h (milled) and of the corresponding bulk composites consolidated by hot extrusion (milled and extruded).
Metals 02 00079 g009 1024

Besides the decrease of crystallization enthalpy, the DSC curves of the milled powder reveal the presence of a small exothermic peak at about 820 K (indicated by an arrow in the inset in Figure 9), which might suggest that a reaction between the glassy phase and brass takes place at this temperature. Reaction between the powder components may occur during the DSC measurement due to the combination of the small diffusion distances (i.e., the interlayer spacing), the high density of lattice defects in the powder, and the heating provided during measurement [23]. A reaction between the two components would consume some amount of glassy phase, therefore, explaining the reduced crystallization enthalpy observed for the milled material. However, XRD analysis of the milled powder reveals that mechanical deformation does not induce visible crystallization of the glass, as illustrated by the XRD patterns in Figure 10. The pattern reveals a strong broadening of the diffraction peaks belonging to brass and no further peaks due to additional phases can be detected beside the signals due to brass and the broad maximum due to the glassy structure.

As a typical example of the influence of milling on the viscosity of the milled powders, Figure 11 shows the viscosity vs. temperature for the glass-brass composite powders milled for 20 h. Milling remarkably influences the viscosity of the SCL. The single viscosity drop characterizing the viscosity of the as-atomized powder (Figure 2) splits into two different signals in the milled powder. The viscosity drop at low temperature occurs at about 800 K, which is in the same temperature range of the small exothermic peak observed in the DSC measurements (Figure 9). The strong decrease of the crystallization enthalpy for the milled powder and the appearance of the exothermic effect at low temperatures along with the occurrence of two distinct viscosity drops suggest that a complex transformation (e.g., reaction between glassy phase and brass along with glass crystallization) rather than simple crystallization occurs in the milled powders. This is most likely assisted by the layered microstructure characterizing the milled powder and, consequently, by the reduction of the diffusion distances between the different phases.

Metals 02 00079 g010 200

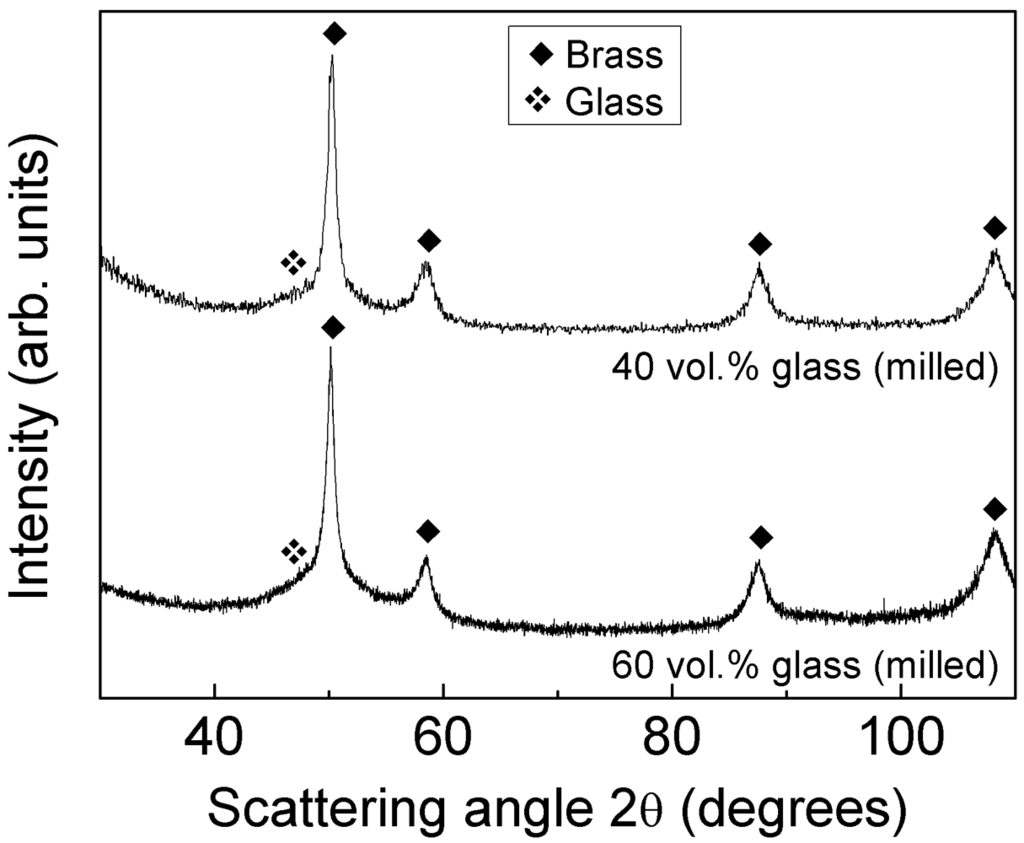

Figure 10. XRD patterns (Co-Kα radiation) for the glass-brass composite powders milled for 20 h.

Click here to enlarge figure

Figure 10. XRD patterns (Co-Kα radiation) for the glass-brass composite powders milled for 20 h.
Metals 02 00079 g010 1024
Metals 02 00079 g011 200

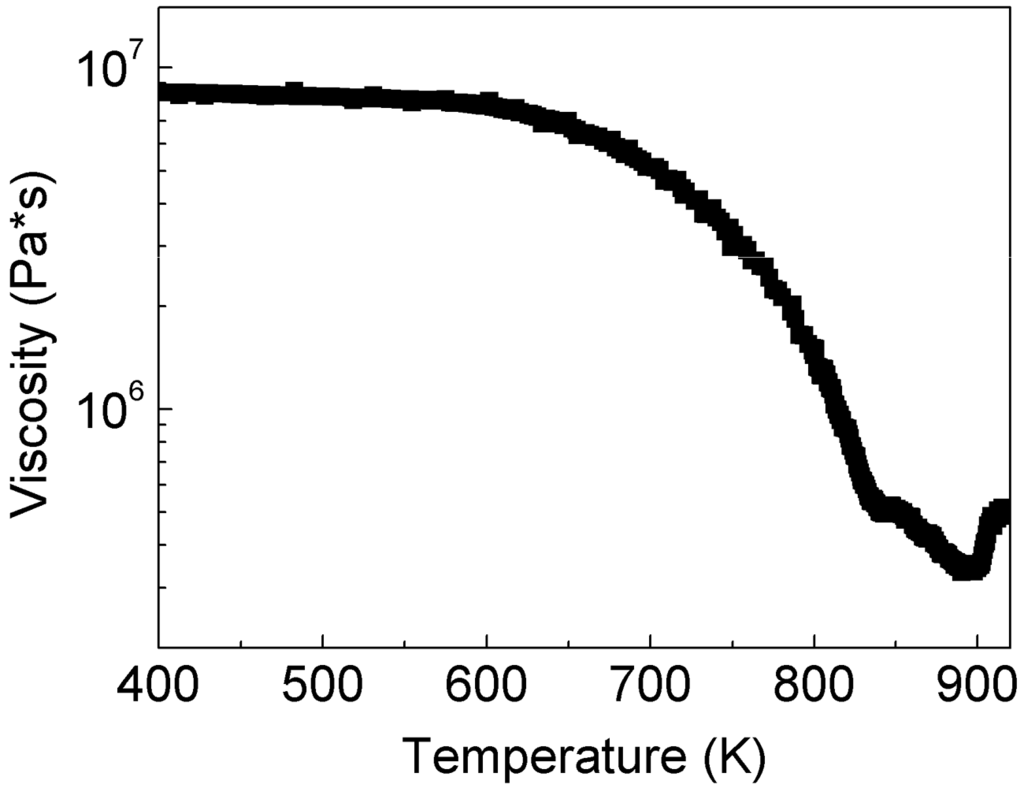

Figure 11. Temperature dependence (heating rate 30 K/min) of the viscosity of the supercooled liquid for the glass-brass composite powder with 60 vol.% glass milled for 20h.

Click here to enlarge figure

Figure 11. Temperature dependence (heating rate 30 K/min) of the viscosity of the supercooled liquid for the glass-brass composite powder with 60 vol.% glass milled for 20h.
Metals 02 00079 g011 1024

The crystallization behavior of the milled powders was also investigated in isothermal mode. Similarly to the as-atomized glassy powder (Figure 3), the isothermal DSC scans of the milled powder (not shown here) indicate that the incubation time for annealing at 823 K exceeds 90 minutes. Accordingly, bulk composites were produced by hot pressing and hot extrusion of brass powder milled together with 40 and 60 vol.% of Ni59Zr20Ti16Si2Sn3 glass using the same consolidation parameters as used for the blended composites.

Figure 12 shows the OM micrographs of the consolidated composites produced from the glass-brass milled powders. The microstructure of the sample with 40 (Figure 12(a)) and 60 (Figure 12(b)) vol.% of glass reinforcement both displays the same features that resemble those observed for the as-milled powders (Figure 8): a matrix consisting of alternating layers of glass and brass with interlayer spacing of 2–5 μm and large and isolated agglomerates of relatively less deformed glassy particles embedded into a continuous brass matrix.

Metals 02 00079 g012 200

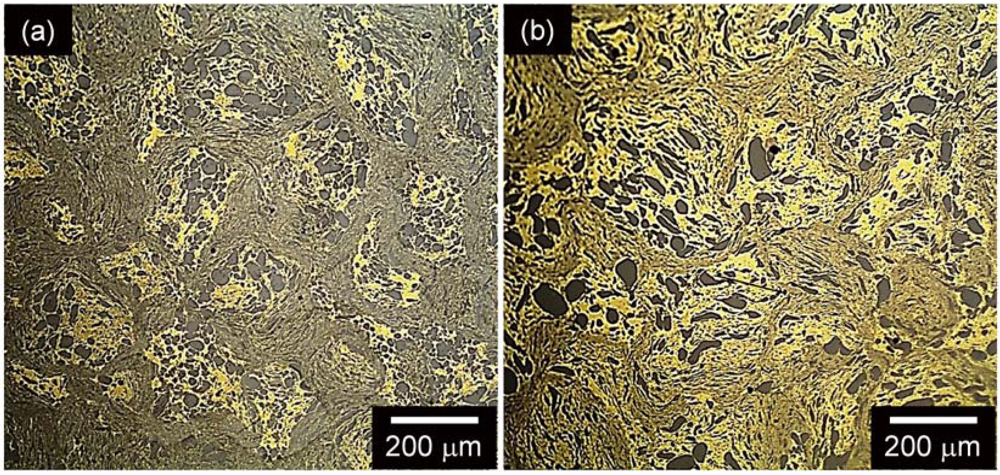

Figure 12. OM micrographs for the consolidated milled composites with (a) 40 vol.% and (b) 60 vol.% glass reinforcement.

Click here to enlarge figure

Figure 12. OM micrographs for the consolidated milled composites with (a) 40 vol.% and (b) 60 vol.% glass reinforcement.
Metals 02 00079 g012 1024

The mechanical properties of the glass-reinforced (milled) composites are shown in Figure 7. The layered microstructure induced a significant improvement of strength with respect to the blended composites. The strengths of the milled composites with 40 and 60 vol.% are 1,240 and 1,640 MPa. Therefore, respectively increased by about 500 and 700 MPa compared to the blended composites with the same composition.

The driving force behind the development of metal matrix composites is the possibility to design their properties to meet specific requirements through the proper combination of the constituents (i.e., matrix and reinforcement) as well as by the optimization of the microstructure features (e.g., volume fraction, size and morphology of matrix and reinforcement) [19,20]. In order to achieve this aim, the prediction of the properties of a composite from the properties of the single constituents is a necessary prerequisite.

The strength of the present glass-reinforced composites was modeled using the rule of mixtures (ROM). The ROM is the simplest and most intuitive method for estimating the mechanical properties of a composite [9,20,24,25]. It derives the properties of the composite from the volume-weighted averages of the properties of the single constituents and assumes that the composite constituents are non-interacting during deformation [24].

The compressive strength of the blended and milled composites as a function of the volume fraction of the Ni59Zr20Ti16Si2Sn3 glass reinforcement is shown in Figure 13 along with the strength values for pure brass and for the single-phase Ni59Zr20Ti16Si2Sn3 metallic glass [26]. Two ROM methods were used to model the strength of the composites: the iso-strain and the iso-stress models. The iso-strain model assumes that matrix and reinforcement both experience the same strain during deformation [24]. This represents the upper bound and it is given by [25]:

Metals 02 00079 i001

where σ is the strength, V is the volume fraction and the subscripts c, m and r indicate the composite, the brass matrix and, the glass reinforcement, respectively. On the other hand, the iso-stress model, which gives the lower bound, is based on the assumption that both matrix and reinforcement exhibit the same stress during deformation [24]. This can be written as [25]:

Metals 02 00079 i002

Metals 02 00079 g013 200

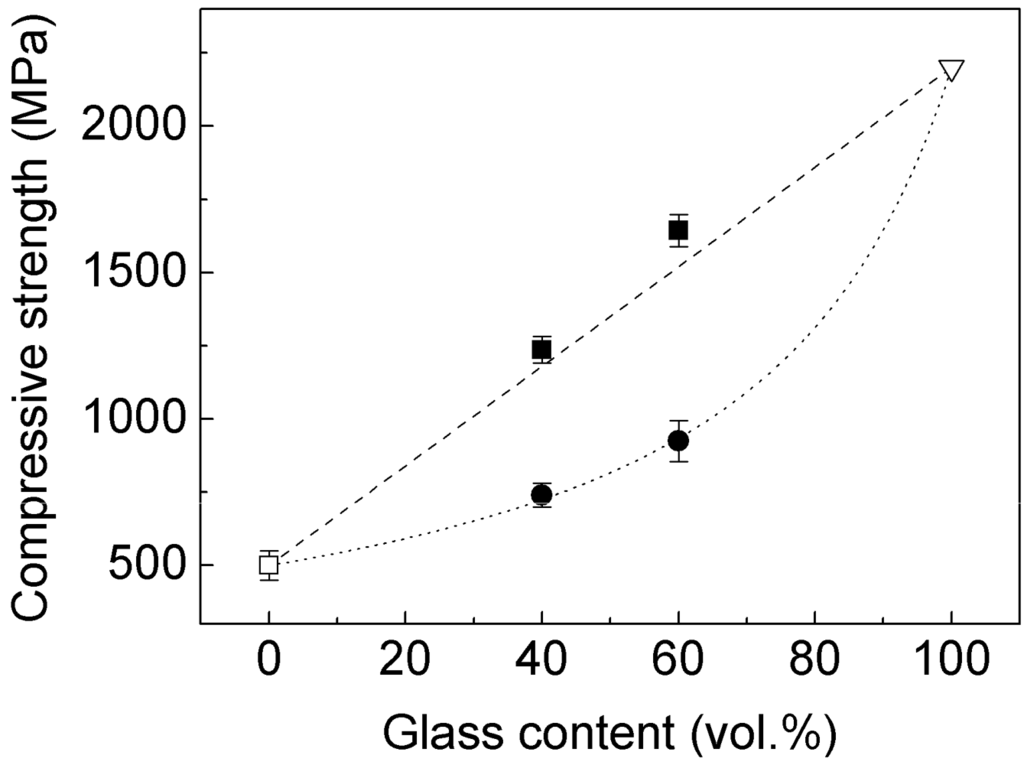

Figure 13. Compressive strength (evaluated from Figure 7) as a function of volume fraction V of glass reinforcement for: (□) pure brass, (●) blended and (■) milled composites, (▽) single-phase Ni59Zr20Ti16Si2Sn3 glass and values calculated through the iso-strain (dashed line) and iso-stress (dotted line) models through Equations (1) and (2).

Click here to enlarge figure

Figure 13. Compressive strength (evaluated from Figure 7) as a function of volume fraction V of glass reinforcement for: (□) pure brass, (●) blended and (■) milled composites, (▽) single-phase Ni59Zr20Ti16Si2Sn3 glass and values calculated through the iso-strain (dashed line) and iso-stress (dotted line) models through Equations (1) and (2).
Metals 02 00079 g013 1024

The results shown in Figure 13 reveal that the compressive strength of the blended composites (full circles) strictly follows the iso-stress model (dotted line). On the other hand, the strength of the milled composites (full squares) can be properly modeled using the iso-strain model (dashed line). This indicates that models based exclusively on the volume fraction cannot be used for predicting the mechanical properties of the present glass-brass composites.

A different model, which simultaneously considers the effects of both volume fraction and particle size on the strength of a material ( Metals 02 00079 i004), has been proposed by Gurland [27] for WC-Co alloys. This can be rewritten as

Metals 02 00079 i003

to take into account the effect of the matrix ligament size.

In Figure 14, the compressive strength of the blended and milled composites are plotted versus V1/3λ−1/2. The relationship between strength and V1/3λ−1/2 is approximately linear, which corroborates the validity of Equation (3) and demonstrates that the strength of the present composites can be accurately modeled by taking into account the combined effect of the volume fraction of reinforcement and the matrix ligament size.

Metals 02 00079 g014 200

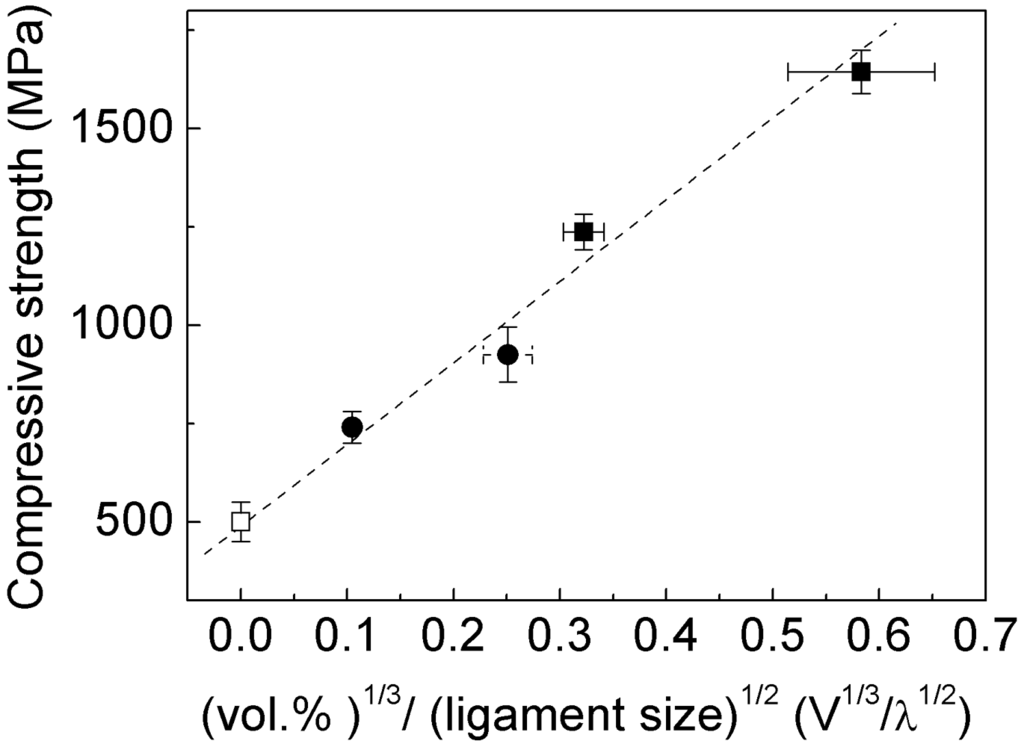

Figure 14. Compressive strength as a function of volume fraction and matrix ligament size ( Metals 02 00079 i004) for: (□) pure brass, (●) blended and (■) milled composites.

Click here to enlarge figure

Figure 14. Compressive strength as a function of volume fraction and matrix ligament size ( Metals 02 00079 i004) for: (□) pure brass, (●) blended and (■) milled composites.
Metals 02 00079 g014 1024

3. Experimental Section

A master ingot with nominal composition Ni59Zr20Ti16Si2Sn3 (at.%) was prepared by induction melting high-purity elemental constituents (electron beam melted Ni 99.999%, crystal bar Zr 99.99%, Ti sponge 99.99%, Si 99.9%, and Sn 99.9%) in a yttria-stabilized zirconia crucible under an Ar gas atmosphere. The homogenized molten alloy was bottom pour cast into a 5-cm diameter water-cooled Cu mold. The Ni59Zr20Ti16Si2Sn3 powders were produced by high pressure Ar gas atomization at a dynamic pressure of 2.8 MPa after heating to 1,623 K using a close coupled annular nozzle having a melt delivery inner diameter of 3.2 mm. Following atomization, the spherical powders were first screened to below 106 μm and further screened into different particle size fractions. The size of the glassy powders used in the present study is d < 63 μm (d is the diameter of the powder particles). Milling experiments starting from powder mixtures consisting of brass powder blended with 40 and 60 vol.% of glassy Ni59Zr20Ti16Si2Sn3 were performed using a Retsch PM400 planetary ball mill equipped with hardened steel balls and vials and without any process controlling additive agents. The powders were milled up to 20 h at a milling intensity of 150 rpm, as a sequence of 15 min milling intervals interrupted by 15 min break to avoid a strong temperature rise during milling. The starting material for the milling experiments (typically 30 g) was charged in the milling vials sealed with a flexible “O”-ring, together with 10 mm-diameter steel balls to give a ball-to-powder mass ratio of about 10:1. To avoid or minimize possible atmosphere contamination during milling, vial charging and any subsequent sample handling was carried out in a Braun MB 150B-G glove box under a purified argon atmosphere (less than 1 ppm O2 and H2O). Matrix composites consisting of brass powder blended or milled with 40 and 60 vol.% Ni59Zr20Ti16Si2Sn3 powders were synthesized by uni-axial hot pressing followed by hot extrusion under an argon atmosphere. Hot pressing was done at 673 K and 500 MPa with holding time of 3 minutes. Hot extrusion was carried out at 823 K and 500 MPa. The extrusion ratio was 6:1. For comparison purposes, a bulk specimen was produced by hot pressing and hot extrusion of the pure brass matrix. The density of the consolidated samples was evaluated by the Archimedes principle. The phases and the microstructure of the samples were characterized by X-ray diffraction (XRD) using a Philips PW 1050 diffractometer (Co Kα radiation) and by optical microscopy (OM) using a Zeiss Axioskop 40. The matrix ligament size (λ) was measured by superposing random lines on the OM micrographs of the composites and its value was determined from the number of matrix region intercepts per unit length of test line, N, and the total length fell into the matrix (L) as λ = L/N [28]. Ten random lines were superposed on each micrographs and a minimum of three micrographs was used per composite. The thermal stability of the samples was investigated by differential scanning calorimetry (DSC) with a Perkin-Elmer DSC7 calorimeter at 30 K/min heating rate under a continuous flow of purified argon. Al2O3 crucibles were used as sample holders. The calibration of the DSC system was done using zinc and indium standards. For each individual sample, two successive DSC runs were recorded at a heating rate of 30 K/min followed by cooling down to room temperature at 100 K/min. The second run of the specimen served as a baseline. Subtraction of this baseline from the first run realized the correction for the apparatus specific baseline shift. The viscosity of the supercooled liquid as a function of temperature was measured isochronally (heating rate 30 K/min) by parallel plate rheometry using a Perkin-Elmer TMA7 thermal mechanical analyzer under a purified argon atmosphere. According to the ASTM E9-89aR00 standard for compression testing [29], cylinders with a length/diameter ratio of 2.0 (8 mm length and 4 mm diameter) were prepared from the extruded samples. The specimens were tested with an INSTRON 8,562 testing facility under quasistatic loading (strain rate ~1 × 10−4 s−1) at room temperature. Both ends of the specimens were polished to make them parallel to each other prior to the compression test. The strain during compression was measured directly on the specimen using a Fiedler laser-extensometer.

4. Conclusions

High-strength glass-composites were synthesized through powder metallurgy by consolidation of brass powder reinforced with 40 and 60 vol.% of Ni59Zr20Ti16Si2Sn3metallic glass particles. The sintering parameters were chosen after careful analysis of the crystallization behavior of the glass reinforcement to avoid its crystallization during consolidation. The composites with two different amounts of glass reinforcements were consolidated into highly dense bulk specimens by hot pressing followed by hot extrusion at temperatures within the supercooled liquid region, where the glassy phase displays a strong decrease of viscosity. In order to analyze the effect of the matrix ligament size on the mechanical properties of the composites, the brass-glass powder mixtures to be consolidated were prepared using two different approaches: (i) manual blending; and (ii) ball milling.

The different methods for the preparation of the powder mixtures remarkably affect the mechanical behavior of the composites. The strength of the composites increases from 500 MPa for pure brass to 740 and 925 MPa for the composites with 40 and 60 vol.% of glass reinforcement prepared by manual blending. The strength further increases to 1,240 and 1,640 MPa for the corresponding composites produced by ball milling.

Models based exclusively on the volume fraction of the reinforcement cannot be used for predicting the mechanical properties of the present glass-brass composites. On the other hand, the strength of the composites can be accurately described through a simple model which simultaneously considers the effects of both volume fraction and matrix ligament size. This indicates the importance of the matrix ligament size for the strengthening of the composites.
