Next Article in Journal
Approaches to Modeling of Recrystallization
Next Article in Special Issue
Nanocrystalline Metal Hydrides Obtained by Severe Plastic Deformations
Previous Article in Journal
Welcome to Metals––a New Open Access Journal for a Growing Scientific Community
Metals 2011, 1(1), 3-15; doi:10.3390/met1010003

Evolution of Morphology and Microstructure in Electrodeposited Nanocrystalline Al–Mg Alloy Dendrites

*  and
Materials Science and Engineering Department, University of Florida, Gainesville, FL 32611, USA
* Author to whom correspondence should be addressed.
Received: 8 August 2011 / Revised: 23 August 2011 / Accepted: 29 August 2011 / Published: 5 September 2011
(This article belongs to the Special Issue Nanocrystalline Metals and Alloys)
View Full-Text   |   Download PDF [1143 KB, uploaded 5 September 2011]   |

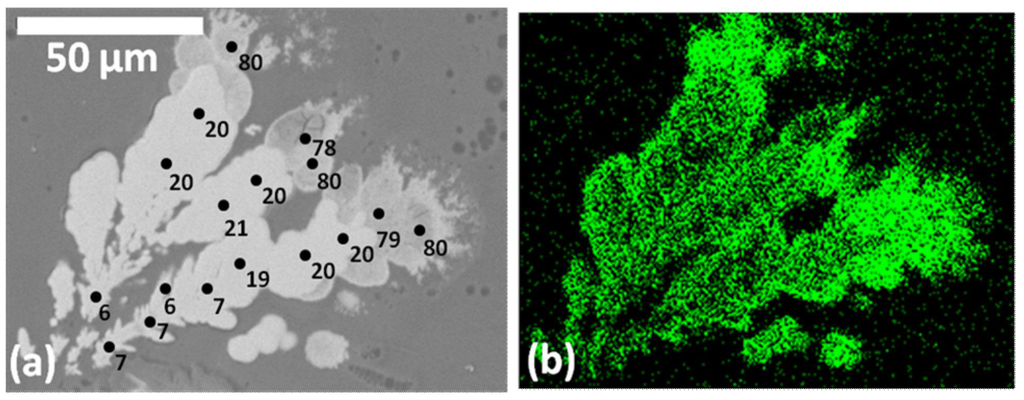

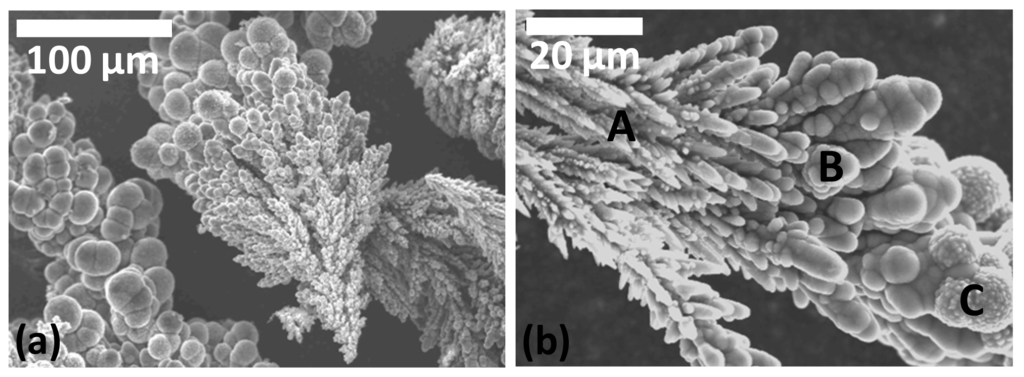

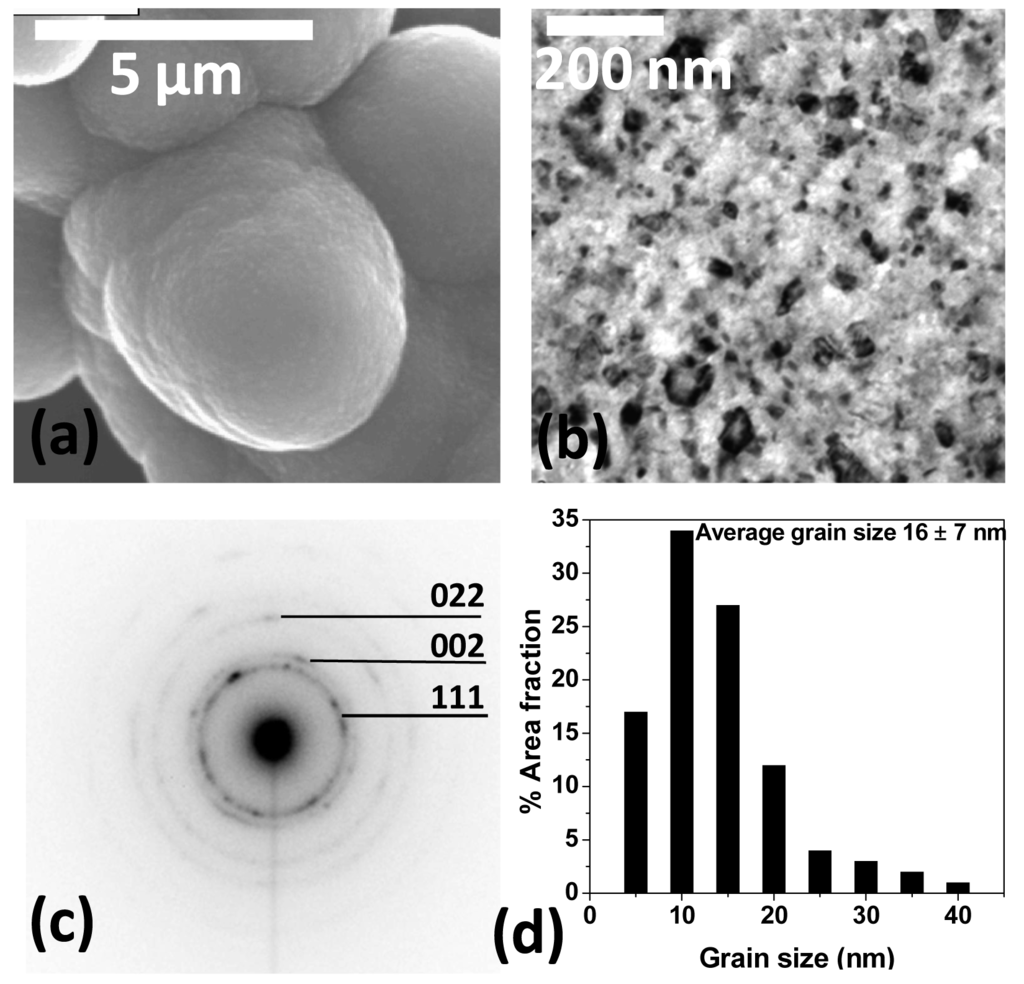

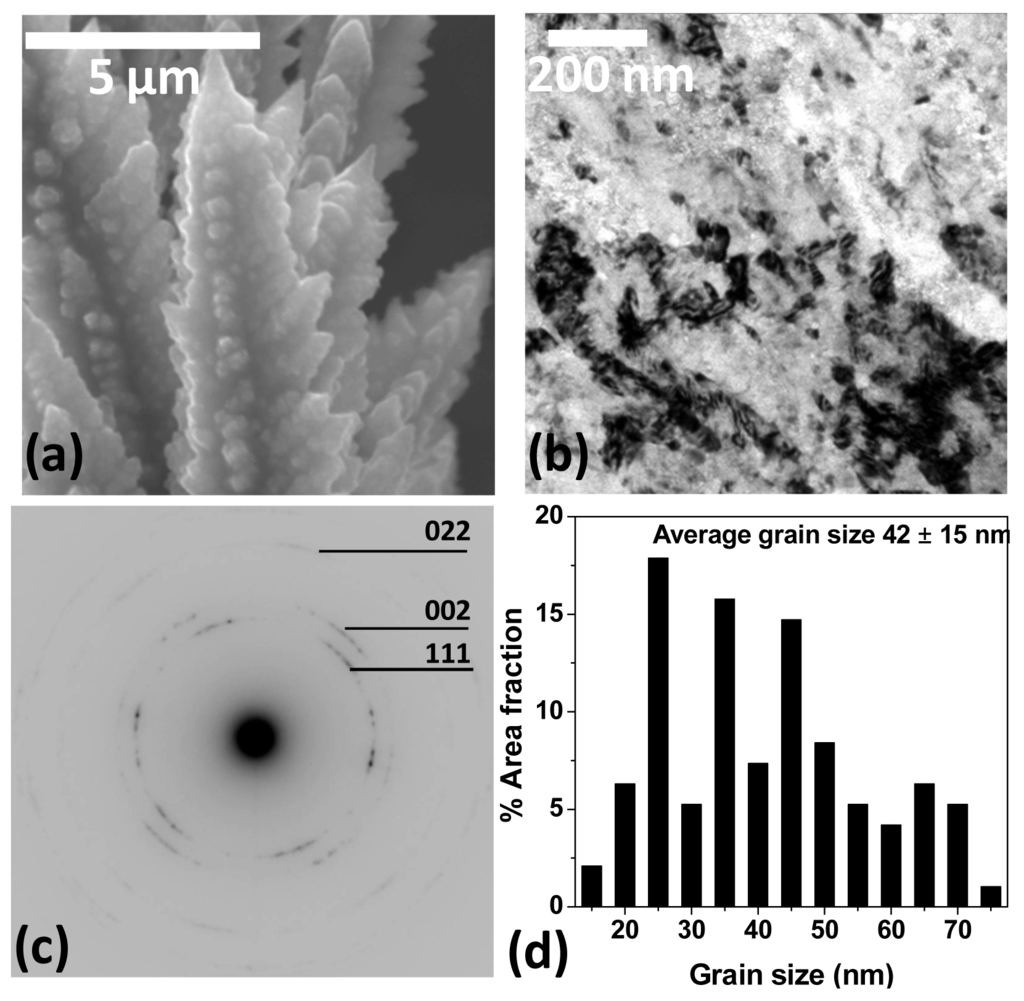

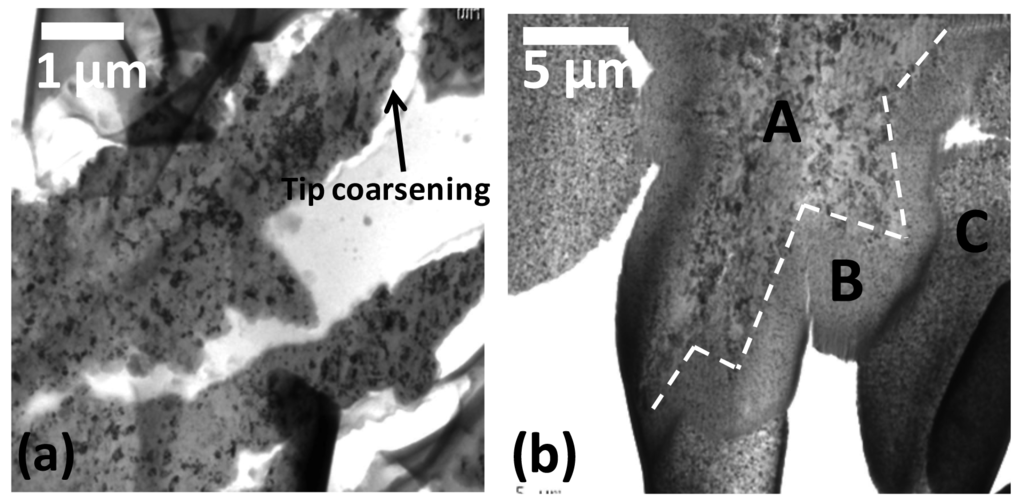

Nanocrystalline Al–Mg dendrites were fabricated through galvanostatic electrodeposition. Initially feather-like morphology was formed exhibiting morphological evolution to smooth globules at its tips. With eventual deposition, rough globules formed over the smooth ones. The feather-like and smooth globules possessed supersaturated face centered cubic (fcc)–Al(Mg) phase with ~7 and ~20 at.% Mg respectively. The rough globules contained hexagonal close packed (hcp)–Mg(Al) phase with ~80 at.% Mg. Microstructural examinations revealed that the feather-like and rough globules possessed grain sizes of ~42 ± 15 and ~36 ± 12 nm respectively. The region, which exhibited morphological evolution from feather-like to smooth globules, possessed ~16 ± 7 nm grain size. The observed microstructural and compositional features were attributed to the local current density values. The formation of the Al–Mg dendrites is discussed in this paper.
Keywords: Al–Mg; nanocrystalline; dendrites; morphology; microstructure Al–Mg; nanocrystalline; dendrites; morphology; microstructure
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote |
MDPI and ACS Style

Tatiparti, S.S.V.; Ebrahimi, F. Evolution of Morphology and Microstructure in Electrodeposited Nanocrystalline Al–Mg Alloy Dendrites. Metals 2011, 1, 3-15.

View more citation formats

Related Articles

Article Metrics

For more information on the journal, click here


[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
