Insects 2014, 5(1), 105-119; doi:10.3390/insects5010105

Article
Colonization of Three Maple Species by Asian Longhorned Beetle, Anoplophora glabripennis, in Two Mixed-Hardwood Forest Stands
Kevin J. Dodds 1,*, Helen M. Hull-Sanders 2, Nathan W. Siegert 1 and Michael J. Bohne 1
1
Northeastern Area State and Private Forestry, U.S. Department of Agriculture Forest Service, 271 Mast Rd., Durham, NH 03824, USA; E-Mails: nwsiegert@fs.fed.us (N.W.S.); mbohne@fs.fed.us (M.J.B.)
2
Otis Laboratory, Center for Plant Health Science and Technology, U.S. Department of Agriculture, 1398 W. Truck Rd., Buzzards Bay, MA 02452, USA; E-Mail: Helen.M.Hull-Sanders@aphis.usda.gov
*
Author to whom correspondence should be addressed; E-Mail: kdodds@fs.fed.us; Tel.: +1-603-868-7743; Fax: +1-603-868-1066.
Received: 7 November 2013; in revised form: 13 December 2013 / Accepted: 16 December 2013 /
Published: 31 December 2013

Abstract

: Asian longhorned beetle (ALB), Anoplophora glabripennis (Motschulsky), is an invasive insect that has successfully established multiple times in North America. To investigate host colonization and reproductive success (exit holes/eggs), two ALB infested forest stands were sampled in central Massachusetts, USA. Infested Acer platanoides L., Acer rubrum L., and Acer saccharum Marsh. were felled, bucked into 1 m sections and dissected to determine indications of ALB infestations, such as presence of life stages or signs of damage on trees. ALB damage was also aged on a subset of trees to determine the earliest attacks on the three Acer species. In one stand, ALB oviposition was significantly higher on the native A. rubrum and A. saccharum than the exotic A. platanoides. In the second stand, ALB oviposition was significantly higher and cumulative reproductive success was higher on A. rubrum than A. platanoides or A. saccharum. An A. saccharum had the earliest signs of attack that occurred in 2006. Acer rubrum (2007) and A. platanoides (2010) were colonized shortly thereafter. Overall, ALB was more successful in A. rubrum, where adults emerged from 53% and 64% of trees in each stand, compared to A. platanoides (11% and 18%) or A. saccharum (14% and 9%).
Keywords:
host suitability; Cerambycidae; Acer; host selection; invasive species

1. Introduction

The Asian longhorned beetle (ALB), Anoplophora glabripennis (Motschulsky) (Coleoptera: Cerambycidae), has successfully invaded urban forests in North America and Europe [1]. In North America, ALB has become established in several cities and townships, including New York, New York; Chicago, Illinois; Jersey City and Carteret, New Jersey; Toronto, Ontario; Worcester and Boston, Massachusetts and Bethel, Ohio [2,3]. The infestation in Worcester, Massachusetts is the largest detected in North America thus far, and as of December 2013 has resulted in a 285 km2 quarantine zone and over 33,000 trees removed during the ongoing eradication effort. Most recently, an ALB infestation was detected in Tate Township, Ohio, a rural area approximately 48 km east of Cincinnati. The Ohio and Massachusetts infestations are both adjacent to large areas of forests with abundant ALB host tree species, making these established populations particularly worrisome as they could provide a source for dispersal into forests of the region if not contained. ALB populations in Illinois and New Jersey have been successfully eradicated, while efforts to eliminate the beetle from other areas are ongoing.

ALB is native to China and the Korean Peninsula where it was generally considered to be innocuous until large plantations of exotic Populus matured and provided extensive areas of suitable habitat for the insect to exploit [1]. While ALB most often damaged Populus in China, other hardwood trees were also colonized [1]. However, even with the economic damage caused in parts of its native range, little is known about ALB behavior in natural forests. Unlike China, epidemic ALB populations have not been recorded in South Korea. ALB populations in South Korea also exhibit behavioral differences compared to populations in China, such as a preference to colonize Acer spp. [4]. Williams et al. [4] speculated that ALB is an edge specialist in riparian habitats and dispersal into interior forests is limited in Korea. However, relatively large dispersal distances (>1 km) have been recorded for male and female ALB in China during field-based mark-recapture experiments [5].

Forests of eastern North America are tree species rich and provide plentiful hosts, such as Acer spp., Aesculus spp., Betula spp., Ulmus spp., and Salix spp. for a polyphagous feeder like ALB. Through work in urban forest infestations in North America and common garden studies in Asia, a list of common tree genera and their suitability for ALB exists and has been used in management activities [6]. In an urban-based infestation, a greater proportion of Acer and Ulmus were infested compared to other host trees [7]. Laboratory studies have provided further insight into the suitability of North American trees for ALB development and have suggested that Acer is a preferred genus. Logs of Acer platanoides L. had significantly more oviposition than Acer rubrum L. or Salix nigra Marsh. in a no-choice study [8]. In another study, ALB larval weight gain was compared among commonly encountered urban trees with results suggesting Ulmus and Acer provided the best habitat for growth from those tested [9]. Higher numbers of oviposition pits and larvae were found on Acer saccharum Marsh. compared to A. rubrum, Fraxinus pennsylvanica Marsh., or Quercus rubra L. in a greenhouse study [10]. While previous studies and observations during survey suggest ALB may either oviposit more often on, or perform better on Acer, there are currently no published studies comparing ALB survivorship and reproductive success in naturally colonized Acer growing in forested environments.

Prior to the infestation in Worcester, Massachusetts, ALB infestations in North America had been confined to urban areas. ALB has now been found in several forest stands in and around Worcester, providing opportunities to collect information on behavior in forested areas before eradication efforts commence. Sampling from infested forest stands in Worcester documented that Acer spp. were the only trees attacked by ALB during early stages of forest invasion even though other host genera were present [11]. In terms of specific Acer species, A. rubrum was attacked more frequently than A. platanoides or A. saccharum but it is unknown if A. rubrum was also more intensively colonized by ALB compared to the other Acer spp. present. The objective of this study was to investigate ALB attack densities, densities of different life stages, and cumulative reproductive success among three forest grown Acer spp. in Massachusetts hardwood forests. Knowledge of ALB success in forest trees is critical to understanding potential impacts, enhancing survey protocols in forested settings, and developing future management techniques.

2. Materials and Methods

Site descriptions: We sampled two stands infested with ALB from the Worcester Massachusetts quarantine area. The Delaval stand (N 42.3120°, W −71.8089°) was identified as infested in fall 2009 and sampled from December 2009 to January 2010. Delaval was an approximately 5 ha A. rubrum-dominated stand that also contained A. saccharum and A. platanoides in the overstory. Acer rubrum accounted for 52% of the relative basal area, while A. platanoides (7%) and A. saccharum (4%) contributed less. Acer spp. were spread throughout the stand, with some pockets of A. platanoides concentrated along the eastern edge of the stand. Approximately 63% of Acer trees were infested by ALB in Delaval [11]. The stand was uneven-aged, with Acer present in most size classes (Figure 1A). Overstory trees present in the stand included Q. rubra, Quercus velutina Lam., Fraxinus americana L., Betula lenta L., and several other species. A complete stand description of Delaval was previously published [11]. All host species were removed from this stand in winter 2010.

Insects 05 00105 g001 200

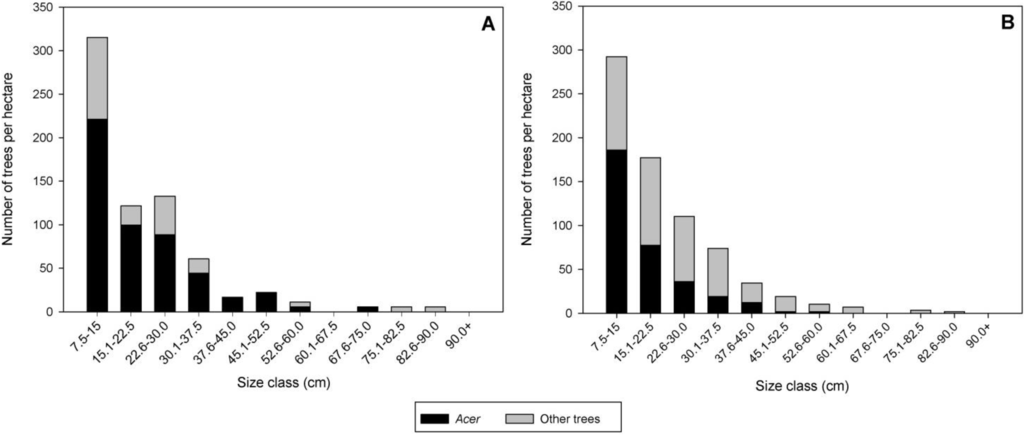

Figure 1. Distribution of Acer spp. and other hardwood trees with diameter at breast height (DBH) ≥ 7.5 cm among size classes of DBH in Delaval (A) and Boylston (B).

Click here to enlarge figure

Figure 1. Distribution of Acer spp. and other hardwood trees with diameter at breast height (DBH) ≥ 7.5 cm among size classes of DBH in Delaval (A) and Boylston (B).
Insects 05 00105 g001 1024

In the second stand, Boylston (N 42.3276°, W −71.7507°), ALB were detected in the summer 2010 and trees were sampled in November of the same year. The portion of the stand in Boylston where trees were selected for sampling was approximately 10 ha and had been surveyed by ALB program tree climbers. No prior vegetation survey had been conducted in Boylston, so 13 fixed radius plots (452 m2) were established throughout this 10 ha area to describe the forest stand. Protocols followed Dodds and Orwig [11], with tree species, diameter at breast height (DBH), crown class, living-dead, and ALB presence/absence recorded for every tree ≥7.5 cm DBH. All host species were removed from this stand shortly after sampling.

Tree selection—life stages: ALB host trees in both stands were surveyed by ALB program tree climbers. Climbers searched boles and crowns on trees and marked trees as ALB positive if an oviposition site, bark eruption, or exit hole was located (Figure 2). Trees with no indications of ALB attack or colonization were marked as uninfested. Stands were carefully examined for signs of tree mortality that could be attributed to ALB. From the available ALB-infested trees, a subset of the three Acer species present was selected for use in intensive sampling efforts. Random selection of infested Acer occurred in Boylston where there were more infested trees present than our goal of ten replicates for each Acer species. Due to the relatively low numbers of A. saccharum and A. platanoides present in the Delaval stand, the selection of these two species was not random and every available infested tree was sampled. Because higher numbers of infested A. rubrum were present in Delaval, we were able to randomly select replicates of this tree species. The majority (58%) of trees sampled were from the codominant crown class, with fewer trees sampled in intermediate or overtopped classes.

Thirty-three trees were selected for intensive sampling from each stand. Seventeen A. rubrum, seven A. saccharum, and nine A. platanoides were sampled from Delaval. Eleven each of A. rubrum, A. saccharum, and A. platanoides were sampled from Boylston. Selected trees were felled and two height measurements recorded: (1) total tree length, the distance from the base of tree to the tip of the live crown; and (2) bole length, the distance from the base of tree to the base of live crown. Length of live crown was then calculated by subtracting bole length from total tree length. The bole was cut into 1 m long log sections. Diameter at midpoint of each 1 m section was measured using calipers. The live crown was often cut into smaller sections to facilitate sampling, but data were pooled for analysis. Tree characteristics are detailed in Table 1.

Damage age on infested trees: In addition to the 33 trees sampled from Boylston, seven A. rubrum, nine A. platanoides, and 13 A. saccharum were felled and examined for “old damage”. Old damage was defined as ALB oviposition pits or exit holes where some level of callous tissue had formed or another sign or symptom indicated relatively older damage. Sections of tree boles with the oldest apparent damage were removed from trees for further dissection under laboratory conditions. Samples were taken to USDA APHIS PPQ Center for Plant Health Science and Technology, Otis Laboratory, Buzzards Bay, Massachusetts and dried in an ESPEC Platinous Sterling temperature and humidity chamber at 80 °C overnight. Log sections were removed from the chamber and allowed to rest for ≥24 h. Calloused ALB exit holes or oviposition pits were identified, removed by band saw from the larger log section, sanded using a belt sander and examined under the microscope to determine the number of tree growth rings since initial damage had occurred. This provided an accurate estimate of when the tree was infested or when a cohort emerged.

Insects 05 00105 g002 200
Figure 2. Log section with bark removed from oviposition pits (A). Older (left) and recent (right) Asian longhorned beetle (ALB) oviposition pits on infested maple (B). Calloused ALB oviposition pit (C). Dissection of oviposition pit showing egg (D). Dissected oviposition pit with ALB larva and indications of larval feeding (E). ALB late larvae sapwood entrance holes (oval holes, center) and an exit hole (bottom, left) (F). Calloused ALB exit hole (G,H). Infested tree cross section following ALB development through to an exit hole (I).

Click here to enlarge figure

Figure 2. Log section with bark removed from oviposition pits (A). Older (left) and recent (right) Asian longhorned beetle (ALB) oviposition pits on infested maple (B). Calloused ALB oviposition pit (C). Dissection of oviposition pit showing egg (D). Dissected oviposition pit with ALB larva and indications of larval feeding (E). ALB late larvae sapwood entrance holes (oval holes, center) and an exit hole (bottom, left) (F). Calloused ALB exit hole (G,H). Infested tree cross section following ALB development through to an exit hole (I).
Insects 05 00105 g002 1024
Table 1. Mean (±SE) diameter, total height, bole length, and crown length of trees sampled for Asian longhorned beetle in Delaval (2009) and Boylston (2010).

Click here to display table

Table 1. Mean (±SE) diameter, total height, bole length, and crown length of trees sampled for Asian longhorned beetle in Delaval (2009) and Boylston (2010).
SpeciesNMean Diameter (cm)Mean total height (m)Mean bole length (m)Mean crown length (m)
Delaval
Acer rubrum1717.0 ± 1.215.5 ± 0.97.3 ± 0.58.2 ± 0.7
Acer saccharum718.6 ± 1.913.5 ± 1.56.7 ± 0.86.8 ± 1.1
Acer platanoides921.9 ± 1.715.1 ± 1.37.8 ± 0.77.3 ± 1.0
Boylston
Acer rubrum1119.2 ± 2.317.4 ± 1.28.2 ± 0.99.2 ± 0.8
Acer saccharum1120.5 ± 2.320.3 ± 1.210.7 ± 0.99.5 ± 0.8
Acer platanoides1120.1 ± 2.318.9 ± 1.210.5 ± 0.98.3 ± 0.8

Note: No significant differences (p > 0.05) among the three Acer species were found in Delaval and Boylston.

Life stage sampling: Sampling methods varied slightly between the two ALB infested stands. In Delaval, four indicators of ALB presence were defined (oviposition pit, early larva, late larva, and exit hole), while five were defined in Boylston (oviposition pit, egg, early larva, late larva, and exit hole). Severe winter temperatures made sampling eggs difficult and inconsistent in Delaval. Thus, egg estimates were not included in any analyses from this stand. All 1 m log sections and each tree crown were searched for indicators of ALB presence (Figure 2A). ALB re-attacks brood trees over multiple years [12,13], therefore, sample trees generally contained evidence from multiple cohorts. Consequently, a combination of ALB life stages (i.e., egg, early larvae, and late larvae) and historical evidence (i.e., oviposition pits, phloem/sapwood staining, sapwood entrance holes, and exit holes) were used to estimate life stage densities over the entire period trees were attacked. The cumulative number of each ALB sign or life stage was recorded for each log section.

ALB oviposition pits (Figure 2B) are generally distinct oval pits chewed through the bark into the phloem, but can also be much smaller vertical slits through thinner bark areas of trees [12]. Older oviposition pits are often swollen or erupted areas on the bark caused by the wound response and lack the characteristic shape often used for ALB diagnosis (Figure 2C). However, mandible marks made during pit excavation were still present and usually discernible. In this study, bark was carefully examined for oviposition pits and when encountered each one was tallied and then removed with a chisel or hatchet to expose the phloem. Pits were then examined for the presence of an egg, a distinct stain associated with an egg in older pits [8] living or dead early larvae, or evidence of larval feeding activity in the oviposition pit area (Figure 2D,E).

Early larvae were defined behaviorally as larvae that had only fed in the phloem/sapwood interface and had not horizontally entered the sapwood. If frass was present directly under the oviposition pit or, in older pits, a larger area of staining and/or gallery occurred, this indicated the presence of an early larva (Figure 2E). Often older oviposition pits (3 + years) did not contain frass, but staining in the shape of larval-feeding galleries was present indicating an early larva had been present under the oviposition pit.

Late larvae were differentiated from early larvae by the presence of an oval sapwood entrance hole in the phloem/sapwood feeding gallery (Figure 2F). ALB larvae pass through several instars in the phloem before entering the sapwood where they complete development [12]. These sapwood entrance holes are distinct and easily recognizable based on their shape and location within a feeding gallery.

The presence of exit holes indicated complete development and emergence of ALB in a section of tree. Exit holes varied considerably from obvious round holes exiting the sapwood to older calloused wounds (Figure 2G,H). For any suspect exit hole that was calloused, log sections were further sectioned into small “cookies” to follow the wound (Figure 2I). Calloused round holes that connected to or aligned with sapwood galleries were then tallied as exit holes for the log section.

When feeding activity obscured evidence of specific life stages, counts were estimated based on a combination of life stage presence and expert opinion. No attempt was made to differentiate the age of ALB evidence by year and all counts were combined into one estimate of cumulative life stage densities for the signs and life stages. Traditional life table analysis was not appropriate due to the inability to differentiate among cohorts within a tree. For trees in the Boylston stand, an estimate of cumulative reproductive success for each tree was determined by dividing number of exit holes by number of eggs in each tree. Cumulative reproductive success could not be estimated because eggs were not counted from all trees in Delaval.

Statistical analyses: The two stands were analyzed separately given the unique conditions present in each forest. Tree variables (DBH, total tree height, bole length, and crown length) were compared among species with a generalized linear mixed model (PROC GLIMMIX) via maximum likelihood estimation technique (SAS Institute Inc., v. 9.3, 2011, Cary, NC, USA). Because the dependent data were continuous and normally distributed, the normal distribution and identity link were used for analysis. Estimates of life stage densities were summed by tree for inter-tree comparisons. The mean number of oviposition pits, eggs, early larvae, late larvae, and exit holes per tree were also analyzed using a generalized linear mixed model (PROC GLIMMIX) via maximum likelihood estimation technique. Tree species was a fixed effect, and because data were non-normal, the negative binomial distribution with log link was used for analysis. Mean differences for all tests were separated using Tukey’s HSD. Cumulative reproductive success was not statistically analyzed due to the large number of zero counts in the dataset. Mean and standard errors (SE) are reported for cumulative reproductive success from the Boylston stand.

3. Results

Delaval—2009: Mean diameter (F = 2.8, d.f. = 2, 30; p = 0.07), total tree height (F = 0.7, d.f. = 2, 30; p = 0.5), bole length (F = 0.6, d.f. = 2, 30; p = 0.6), and crown length (F = 0.7, d.f. = 2, 30; p = 0.5) were not statistically different among the three Acer species (Table 1), allowing for direct comparisons of life stage estimates among the tree species. Of the 33 trees categorized as positive for ALB by tree climbers, evidence of an ALB life stage or damage was located on every tree during dissection. No tree mortality was observed.

The number of oviposition pits on trees ranged from 1 to 208, but the majority of trees had few attacks (Figure 3A). While none of the A. platanoides sampled had >40 oviposition pits, seven of the 17 A. rubrum and four of the seven A. saccharum sampled had >40 oviposition pits (Figure 3A). Acer rubrum had 73% and A. saccharum had 83% more oviposition pits compared to A. platanoides (F = 4.4, d.f. = 2, 30; p = 0.02; Table 2). The number of oviposition pits on A. rubrum and A. saccharum were not statistically different. Early larvae (F = 4.2, d.f. = 2, 30; p = 0.03) followed a similar pattern to oviposition pits, with significantly more found on A. rubrum and A. saccharum compared with A. platanoides (Table 2). There were significantly more late larvae (F = 9.3, d.f. = 2, 30; p = 0.0007) and exit holes (F = 6.0, d.f. = 2, 30; p = 0.006) per tree in A. rubrum than A. saccharum and A. platanoides (Table 2). Over 85% of individual A. saccharum and A. platanoides trees produced no adults, while 47% of A. rubrum did not (Figure 4A).

Insects 05 00105 g003 200
Figure 3. Number of Asian longhorned beetle oviposition pits per tree by Acer species in Delaval (A) and Boylston (B).

Click here to enlarge figure

Figure 3. Number of Asian longhorned beetle oviposition pits per tree by Acer species in Delaval (A) and Boylston (B).
Insects 05 00105 g003 1024
Table 2. Mean (±SE) estimates of life stages and signs of Asian longhorned beetle per tree in three Acer species from the Delaval stand. Means followed by the same superscript letter within a row are not significantly different (Tukeys HSD, p > 0.05).

Click here to display table

Table 2. Mean (±SE) estimates of life stages and signs of Asian longhorned beetle per tree in three Acer species from the Delaval stand. Means followed by the same superscript letter within a row are not significantly different (Tukeys HSD, p > 0.05).
VariableAcer rubrumAcer saccharumAcer platanoidesp-value
Oviposition pits44.5 ± 13.9 a70.9 ± 34.5 a11.9 ± 5.2 b0.02
Early larvae21.8 ± 7.3 a20.3 ± 10.7 a4.2 ± 2.1 b0.03
Late larvae6.3 ± 2.0 a1.0 ± 0.6 b0.3 ± 0.2 b0.0007
Exit holes4.1 ± 1.8 a0.4 ± 0.4 b0.1 ± 0.1 b0.006

Boylston—2010: There were 723 stems/ha and 35.3 m2/ha of basal area distributed among 14 tree species in the Boylston stand (Table 3). Acer saccharum represented 24% of the stand basal area and had the highest relative importance value (30.8) followed by F. americana (19.9), Q. velutina (13.5), and Q. rubra (12.2). This stand was uneven-aged and contained host trees in multiple size classes (Figure 1B). The ALB infestation was not as extensive in Boylston as in Delaval with approximately 14% of Acer host trees infested.

Average diameter (F = 0.09, d.f. = 2, 30; p = 0.9), total tree height (F = 1.32, d.f. = 2, 30; p = 0.3), bole length (F = 2.3, d.f. = 2, 30; p = 0.1), and crown length (F = 0.6, d.f. = 2, 30; p = 0.5) were not statistically different among the three Acer species (Table 1). Of the 33 trees categorized as positive for ALB, all had evidence of an ALB life stage or sign present. No tree mortality was observed.

Insects 05 00105 g004 200
Figure 4. Number of Asian longhorned beetle exit holes per tree by Acer species for sampled trees in Delaval (A) and Boylston (B).

Click here to enlarge figure

Figure 4. Number of Asian longhorned beetle exit holes per tree by Acer species for sampled trees in Delaval (A) and Boylston (B).
Insects 05 00105 g004 1024
Table 3. Mean diameter, basal area, density, and importance values for trees sampled in Boylston.

Click here to display table

Table 3. Mean diameter, basal area, density, and importance values for trees sampled in Boylston.
Tree SpeciesMean ± SE DBH (cm)Basal area (m2/ha)Stems /haRelative basal area (%)Relative density (%)Importance value **
Acer saccharum *17.8 ± 0.75.015924. 337.430.8
Fraxinus americana21.2 ± 0.83.79317.921.919.9
Quercus velutina31.8 ± 1.63.64117.39.613. 5
Quercus rubra37.3 ± 3.33.72817.96.612.2
Pinus strobus36.1 ± 5.22.31711.14.07.6
Acer rubrum *13.8 ± 1.40.5282.66.64.6
Ulmus sp. *11.3 ± 0.70.3301.67.14.3
Quercus alba31.7 ± 5.41.1115.42.64.0
Fagus grandifolia25.4 ± 5.40.241.10.91.0
Acer platanoides *11.0 ± 1.30.0770.31.61.0
Juglans nigra15.1 ± 0.10.0420.20.50.3
Malus sp.12.0 ± 0.40.0220.10.50.3
Ostrya virginiana9.6 ± 1.00.0120.070.60.3
Betula populifolia *8.6 ± 0.00.00510.030.20.1
Total 20.5425
Total/ha 35.3723

* Tree genus listed as preferred host in the USA [6]; ** Importance Value = (relative basal area + relative density)/2.

The earliest evidence of ALB colonization was found on the two native Acer species (Figure 5). An exit hole on an A. saccharum was aged to 2007, suggesting it was first successfully colonized in 2005 or 2006 depending on generation time. Infestation dates ranged from 2007–2010 for A. rubrum with evidence of both exit holes (2008) and oviposition pits. All sampled A. platanoides were found to have only oviposition pits dated to 2010.

Insects 05 00105 g005 200
Figure 5. Distribution of age of earliest Asian longhorned beetle attack by Acer species in Boylston.

Click here to enlarge figure

Figure 5. Distribution of age of earliest Asian longhorned beetle attack by Acer species in Boylston.
Insects 05 00105 g005 1024

The number of oviposition pits ranged from 1 to 340, with the majority of trees having between 1 and 10 (Figure 3B). Only one each of A. platanoides and A. saccharum had >50 oviposition pits (Figure 3B). Significantly more oviposition pits (F = 9.4, d.f. = 2, 30; p = 0.0007), eggs (F = 10.5, d.f. = 2, 30; p = 0.0003), and early larvae (F = 8.8, d.f. = 2, 30; p = 0.001) per tree were found on A. rubrum compared to A. saccharum or A. platanoides (Table 4). Percentage of oviposition pits with eggs varied in Boylston, with A. rubrum (89%) and A. platanoides (75%) much higher than A. saccharum (24%). Acer saccharum had a similar number of sapwood entrance holes as A. rubrum and A. platanoides, while A. rubrum had higher numbers than A. platanoides (F = 4.4, d.f. = 2, 30; p = 0.02; Table 4). More exit holes were found in A. rubrum per tree compared to A. saccharum and A. platanoides (F = 4.5, d.f. = 2, 30; p = 0.02; Table 4). Most A. saccharum (91%) and A. platanoides (82%) produced no adults, while only 36% of A. rubrum did not (Figure 4B). On average, almost four times the number of adults were produced from A. rubrum than A. saccharum or A. platanoides (Figure 6).

Table 4. Mean (±SE) estimates of life stages and signs of Asian longhorned beetle in three Acer species from the Boylston stand. Means followed by the same superscript letter within a row are not significantly different (Tukeys HSD, p > 0.05).

Click here to display table

Table 4. Mean (±SE) estimates of life stages and signs of Asian longhorned beetle in three Acer species from the Boylston stand. Means followed by the same superscript letter within a row are not significantly different (Tukeys HSD, p > 0.05).
VariableAcer rubrumAcer saccharumAcer platanoidesp-value
Oviposition pits65.3 ± 21.5 a9.3 ± 3.2 b14.4 ± 4.8 b0.0007
Eggs55.0 ± 21.9 a3.9 ± 1.7 b11.7 ± 4.8 b0.0003
Early larvae48.6 ± 21.9 a3.2 ± 1.5 b9.6 ± 4.4 b0.001
Late larvae14.7 ± 8.2 a3.0 ± 1.7 a,b1.4 ± 0.8 b0.02
Exit holes6.7 ± 4.7 a0.7 ± 0.6 b0.3 ± 0.2 b0.02
Insects 05 00105 g006 200

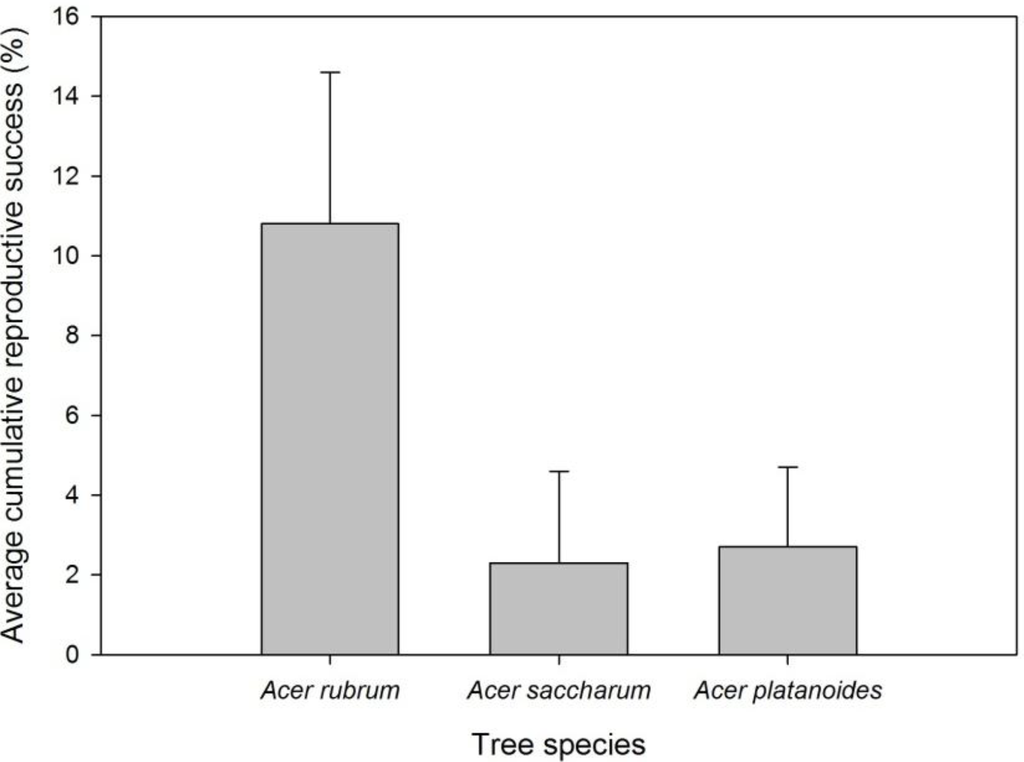

Figure 6. Mean cumulative reproductive success of Asian longhorned beetle by tree species in Boylston. Reproductive success was determined by dividing the number of eggs by exit holes.

Click here to enlarge figure

Figure 6. Mean cumulative reproductive success of Asian longhorned beetle by tree species in Boylston. Reproductive success was determined by dividing the number of eggs by exit holes.
Insects 05 00105 g006 1024

4. Discussion

ALB is an effective invader that has established populations outside of its native range in North America and Europe on various hardwood tree species [2]. Repeated detections of ALB in urban settings of North America have raised concerns for this species becoming permanently established in hardwood forests. Estimated costs for ALB impacts in the U.S. have been as high as $669 billion [14]. While eradication efforts attempt to eliminate current populations in Massachusetts and elsewhere, it is important to gather information on ALB behavior in North American forests when opportunities arise. To date, these opportunities have been limited in forested settings. The two stands sampled in this study were dominated by different Acer species and represented important forest types in the region. While sampling in these two stands provided important information, care must be taken in drawing broader conclusions on ALB behavior and possible impacts based solely off of results from a limited sample.

Stand structure: The two stands sampled for this study were mixed hardwood stands with Acer and other tree species present in the overstory. Both stands contained A. platanoides, A. rubrum, and A. saccharum and these trees were the only species attacked by ALB at the time of discovery. Stand structure in Boylston varied slightly from those previously recorded for Delaval [11]. Boylston was dominated by A. saccharum, with F. americana and Quercus spp. as important overstory species. Acer platanoides and A. rubrum had relatively low importance values in Boylston. In comparison, Delaval was dominated by A. rubrum, with Quercus spp. as important overstory components. Acer platanoides was a relatively important tree species in Delaval. Both stands contained non-Acer ALB hosts, including Betula spp. and Ulmus sp.

Age of attacks: Timing of attack may confound comparisons of ALB life stages on the three Acer species. Age-related damage estimates were only collected in Boylston. These data provide some insight into ALB colonization of the three hosts. The earliest indication of ALB presence in Boylston was found on an A. saccharum with an exit hole that occurred in 2007 suggesting the tree was first colonized in 2005 or 2006 depending on generation time in Massachusetts. Anecdotal evidence observed during tree dissections suggested a two-year life cycle may be occurring in Massachusetts (K.J.D., personal observation), but it is unknown how common this is. While data suggest that A. saccharum was the first tree colonized in the stand, the majority of this tree species were first colonized in 2010. Conversely, the majority (57%) of A. rubrum were attacked in 2007–2008, with remaining trees first attacked in 2010. Acer platanoides that were aged were not colonized until 2010. However, two trees dissected for life stages contained recent exit holes, suggesting these trees were attacked in 2008 or 2009.

Unfortunately, due to destructive sampling for the age determination and life stage sampling and working under the constraints of an impending eradication cut, very few trees were used for both data sets. Consequently, some age related data may have been lost during tree dissections and vice versa. While the data that were generated for the aging provides some information on ALB colonization patterns in Boylston, it does not provide a complete picture of the infestation pattern. The sequence of attacks on Acer species is an important issue when considering ALB reproductive estimates among host trees as it appears that asynchronous colonization of the three tree species occurred. More A. rubrum were colonized for a longer period of time than A. saccharum or A. platanoides even though A. saccharum was the first tree colonized in the stand. Detailed examination of ALB host selection and spatial attack pattern in forested environments is needed.

Life stage comparisons: For the experimental trees, diameter, total height, bole height, and crown length of the three Acer spp. at both sites were similar suggesting that available resources for ALB were equal among the tree species. However, there was variation in the average number of oviposition pits among the three Acer spp. examined in our study. Acer rubrum was consistently one of the tree species with the most oviposition pits in both stands. This is counter to previous studies that found ALB oviposition was greater on A. platanoides [8] and A. saccharum [10] compared to other hosts, including A. rubrum in laboratory studies.

Asynchronous host colonization could partially explain the higher abundance of oviposition pits on A. rubrum. However, A. saccharum was at least initially attacked by ALB before the other host species. In the two years following the attack on A. saccharum, ALB colonization apparently shifted to A. rubrum. Acer platanoides was colonized later than the two native species, but had statistically the same number of pits as A. saccharum, a species with a longer attack history. It is unknown why the two native Acer, and especially A. rubrum, frequently had higher numbers of ovipositon pits, but differences in host defenses [15] or volatile profiles [16] among the trees may be factors.

In terms of life stages sampled, A. rubrum generally had greater evidence of beetle presence than A. saccharum or A. platanoides. While A. rubrum was always statistically separated from A. platanoides, Acer saccharum often fell somewhere in between life stage estimates of the two other Acer species. Equal numbers of early larvae were found on A. saccharum and A. rubrum in Delaval, but only similar numbers of late larvae in Boylston. All other life stage estimates were lower in A. saccharum than A. rubrum. In addition, the percentage of oviposition pits with eggs was lowest on A. saccharum, suggesting that this species might be tested by ALB, but not chosen as a reproductive resource as often as A. rubrum.

Evidence of multiple generations (e.g., new and old oviposition pits, calloused exit holes, and larval galleries in various conditions) was present in sampled trees and was not temporally differentiated. Consequently, age-specific survivorship could not be determined from this data set and care must be taken in drawing conclusions on stage-specific survivorship or mortality factors. High stage-specific mortality has been noted in ALB larvae developing in Populus from Chinese infestations [17]. A similar pattern of high larval mortality was observed in this study. In both stands, it appears that significant mortality occured between the early to late larvae development period. Further study into possible causal agents of this mortality could be beneficial to gaining insights into ALB population regulation mechanisms. The high levels of larval mortality may explain the lack of host tree mortality noted in both stands.

While it was not possible for cumulative reproductive success estimates to be statistically compared because of the large numbers of zeros in the data set, some insights into ALB success in the three Acer spp. were apparent. First, reproductive success was low in A. platanoides, suggesting this species is a poor host for ALB in forests or a suboptimal host early in the invasion process. This finding differs from previous work in which A. platanoides was considered an intermediate host species in an urban infestation [7]. In laboratory studies, Smith et al. [8] evaluated oviposition on cut bolts under a no-choice experimental design and reported higher daily and lifetime oviposition by ALB on A. platanoides compared to A. rubrum. Studies conducted in a forested environment, as reported herein, indicate that A. platanoides is less suitable for completion of development from egg to adult than A. rubrum, at least at the beginning of colonization. Second, reproductive success was high in A. rubrum in Boylston, providing evidence that this species is a suitable host as well as producing relatively greater numbers of adults. Reproductive success in A. saccharum was much lower than A. rubrum in Boylston, but in one tree the number of adult exit holes was relatively high, indicating this tree species is good habitat for ALB.

5. Conclusions

Information from both stands implied that the geographically and ecologically widespread A. rubrum is a good host tree for ALB. Not only did higher numbers of adults emerge from A. rubrum compared to other Acer spp. present in the stand, but also successful reproduction from egg to adult happened more often on this tree. Fifty-three percent and 64% of A. rubrum in Delaval and Boylston, respectively, produced at least one adult per tree. In comparison, only 14% and 9% of the A. saccharum produced adults in Delaval and Boylston, respectively. A similar pattern was found for A. platanoides, where only 11% and 18% of the sampled trees produced adults in Delaval and Boylston, respectively. Acer rubrum was attacked more frequently than other Acer spp. [11] and results from this study suggest that it is often attacked more intensively as well, even when it is not a dominant tree in a stand.

Given that large areas of eastern North America are at risk to ALB invasion [18], various state and federal agencies expend considerable resources surveying high risk environments for this insect. Gathering as much data as possible from infested stands is important for providing information that may be helpful to the eradication program or detection surveys outside of regulated areas. Working within the confines of a large eradication program is often difficult, but data collected from these opportunities is critical for gaining a better understanding of invasive species behavior in native forests. ALB detection surveys generally consist of ground-based efforts often with binoculars, bucket trucks to access tree crowns, and/or professional tree climbers [12]. Outside of quarantine areas where all known host trees are surveyed, high risk sites such as high visitation campgrounds where recreationists may have moved firewood, areas adjacent to businesses importing large quantities of material, or port areas where introductions could occur are often prioritized for survey. However, within these high risk sites information on how to prioritize survey is generally lacking with the exception of focusing on known host species. It is unclear from this work if A. rubrum is a more suitable host than other Acer species or if it is generally colonized before other host species. While other Acer spp. should not be ignored during survey efforts, extra attention to A. rubrum may be beneficial for determining ALB presence in an area.

Acknowledgments

We wish to thank our colleagues in the Forest Health Protection group in Durham, NH, for assistance during field work including Bob Cooke, Garret Dubois, Molly Heuss, Angie Maddux-Hammond, and Dennis Souto. Alan Sawyer (USDA APHIS—retired) for wood collection and aging processing. Bill Panagakos and Audra Baker (USDA APHIS) both assisted with field collections. John Stanovick (USFS NRS) provided statistical advice for data analysis. Michael Smith (USDA ARS) helped in the field and provided insight to ALB biology in trees. Ken Gooch (Massachusetts DCR) and Clint McFarland (USDA APHIS) helped facilitate access to sites and trees. Kevin Freeman, Jesse St. Andre, and the rest of the USDA APHIS, Massachusetts DCR and U.S. Forest Service tree climbers who diligently surveyed trees making our work possible. Ryan Hanavan (USFS), David Orwig (Harvard Forest), and three anonymous reviewers provided comments on an earlier version of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, J.; Angell, S.; Schuetz, S.; Luo, Y.; Hajek, A.E. Ecology and management of exotic and endemic Asian longhorned beetle Anoplophora glabripennis. Agric. For. Entomol. 2009, 11, 359–375, doi:10.1111/j.1461-9563.2009.00443.x.
  2. Haack, R.A.; Hérard, F.; Sun, J.; Turgeon, J.J. Managing invasive populations of Asian longhorned beetle and citrus longhorned beetle: A worldwide perspective. Annu. Rev. Entomol. 2010, 55, 521–546, doi:10.1146/annurev-ento-112408-085427.
  3. N.A.P.P.O. (North American Plant Protection Organization). Asian Longhorned Beetle (Anoplophora glabripennis) Confirmed in Clermont County, Ohio. Available online: http://www.pestalert.org/oprDetail.cfm?oprID=491&keyword=ALB/ (accessed on 19 August 2013).
  4. Williams, D.W.; Lee, H.-P.; Kim, I.-K. Distribution and abundance of Anoplophora glabripennis (Coleoptera: Cerambycidae) in natural Acer stands in South Korea. Environ. Entomol. 2004, 33, 540–545, doi:10.1603/0046-225X-33.3.540.
  5. Smith, M.T.; Bancroft, J.; Li, G.; Gao, R.; Teale, S. Dispersal of Anoplophora glabripennis (Cerambycidae). Environ. Entomol. 2001, 30, 1036–1040, doi:10.1603/0046-225X-30.6.1036.
  6. Wang, B. Asian Longhorned Beetle: Annotated Host List. USDA-APHIS-PPQ, Center for Plant Health Science and Technology, Otis Laboratory. Available online: http://www.aphis.usda.gov/plant_health/plant_pest_info/asian_lhb/downloads/hostlist.pdf (accessed on 19 August 2013).
  7. Haack, R.A.; Bauer, L.S.; Gao, R.; McCarthy, J.J.; Miller, D.L.; Petrice, T.R.; Poland, T.M. Anoplophora glabripennis within-tree distribution, seasonal development, and host suitability in China and Chicago. Great Lakes Entomol. 2006, 39, 169–183.
  8. Smith, M.T.; Bancroft, J.; Tropp, J. Age-specific fecundity of Anoplophora glabripennis (Coleoptera: Cerambycidae) on three tree species infested in the United States. Environ. Entomol. 2002, 31, 76–83, doi:10.1603/0046-225X-31.1.76.
  9. Bancroft, J.S.; Smith, M.T.; Chaput, E.K.; Tropp, J. Rapid test of the suitability of host-trees and the effects of larval history on Anoplophora glabripennis (Coleoptera: Cerambycidae). J. Kansas Entomol. Soc. 2002, 75, 308–316.
  10. Morewood, W.D.; Neiner, P.R.; McNeil, J.R.; Sellmer, J.C.; Hoover, K. Oviposition preference and larval performance of Anoplophora glabripennis (Coleoptera: Cerambycidae) in four eastern North American hardwood tree species. Environ. Entomol. 2003, 32, 1028–1034, doi:10.1603/0046-225X-32.5.1028.
  11. Dodds, K.J.; Orwig, D.A. An invasive urban forest pest invades natural environments—Asian longhorned beetle in northeastern US hardwood forests. Can. J. For. Res. 2011, 41, 1729–1742, doi:10.1139/x11-097.
  12. Turgeon, J.J.; Ric, J.; de Groot, P.; Gasman, B.; Orr, M.; Doyle, J.; Smith, M.T.; Dumouchel, L.; Scarr, T. Détection des signes et des symptômes d’attaque par le longicorne étoilé: Guide de formation; Service canadien des forêts, Ressources naturelles: Ottawa, ON, Canada, 2007.
  13. Parker, B.L.; Skinner, M.; Dodds, K.; Bohne, M. Asian Longhorned Beetle and Its Host Trees; United States Department of Agriculture Forest Service. Northeastern Area State and Private Forestry: Newtown Square, PA, USA, 2012. NA-PR-05–12.
  14. Nowak, D.J.; Pasek, J.E.; Sequeira, R.A.; Crane, D.E.; Mastro, V.C. Potential effect of Anoplophora glabripennis (Coleoptera: Cerambycidae) on urban trees in the United States. J. Econ. Entomol. 2001, 94, 116–122, doi:10.1603/0022-0493-94.1.116.
  15. Morewood, W.D.; Neiner, P.R.; Sellmer, J.C.; Hoover, K. Behavior of adult Anoplophora glabripennis on different tree species under greenhouse conditions. J. Insect Behav. 2004, 17, 215–226, doi:10.1023/B:JOIR.0000028571.52739.50.
  16. Nehme, M.E.; Keena, M.A.; Zhang, A.; Baker, T.C.; Hoover, K. Attraction of Anoplophora glabripennis to male-produced pheromone and plant volatiles. Environ. Entomol. 2009, 38, 1745–1755, doi:10.1603/022.038.0628.
  17. Zhao, R.-L.; Lu, Z.-S.; Lu, X.-H.; Wu, X.-G. Life table study of Anoplophora glabripennis (Coleoptera: Cerambycidae) natural populations. J. Beijing For. Univ. 1993, 15, 125–129.
  18. Peterson, A.T.; Scachetti-Pereira, R.; Hargrove, W.W. Potential geographic distribution of Anoplophora glabripennis (Coleoptera: Cerambycidae) in North America. Am. Midl. Nat. 2004, 151, 170–178, doi:10.1674/0003-0031(2004)151[0170:PGDOAG]2.0.CO;2.
