Insects 2013, 4(2), 217-229; doi:10.3390/insects4020217

Article
Laboratory and Simulated Field Bioassays to Evaluate Larvicidal Activity of Pinus densiflora Hydrodistillate, Its Constituents and Structurally Related Compounds against Aedes albopictus, Aedes aegypti and Culex pipiens pallens in Relation to Their Inhibitory Effects on Acetylcholinesterase Activity
Dong Chan Lee 1 and Young-Joon Ahn 2,*
1
International Course, Hankuk Academy of Foreign Studies, Yongin 449-854, Korea; E-Mail: stjohndlee@hafs.hs.kr
2
WCU Biomodulation Major, Department of Agricultural Biotechnology, Seoul National University, Seoul 151–921, Korea
*
Author to whom correspondence should be addressed; E-Mail: yjahn4871@snu.ac.kr; Tel.: +82-10-4751-0153; Fax: +82-31-7801-109.
Received: 1 April 2013; in revised form: 24 April 2013 / Accepted: 25 April 2013 /
Published: 30 May 2013

Abstract

: The toxicity of Pinus densiflora (red pine) hydrodistillate, its 19 constituents and 28 structurally related compounds against early third-instar larvae of Aedes albopictus (Ae. albopictus), Aedes aegypti (Ae. aegypti) and Culex pipiens palles (Cx. p. pallens) was examined using direct-contact bioassays. The efficacy of active compounds was further evaluated in semi-field bioassays using field-collected larval Cx. p. pallens. Results were compared with those of two synthetic larvicides, temephos and fenthion. In laboratory bioassays, Pinus densiflora hydrodistillate was found to have 24 h LC50 values of 20.33, 21.01 and 22.36 mg/L against larval Ae. albopictus, Ae. aegypti and Cx. p. pallens respectively. Among the identified compounds, thymol, δ-3-carene and (+)-limonene exhibited the highest toxicity against all three mosquito species. These active compounds were found to be nearly equally effective in field trials as well. In vitro bioassays were conducted to examine the acetylcholinesterase (AChE) inhibitory activity of 10 selected compounds. Results showed that there is a noticeable correlation between larvicidal activity and AChE inhibitory activity. In light of global efforts to find alternatives for currently used insecticides against disease vector mosquitoes, Pinus densiflora hydrodistillate and its constituents merit further research as potential mosquito larvicides.
Keywords:
Pinus densiflora; botanical larvicide; disease vector mosquitoes; insecticide resistance; AChE inhibition

1. Introduction

The task of controlling mosquito populations is of the utmost importance in the fields of public health because mosquitoes serve as the major vector for many diseases such as malaria, dengue fever, filariasis and yellow fever [1]. In 2004, it was estimated that approximately 3.2 billion people were exposed to the risks of malaria infection and that some 350–500 million people contracted the disease, with at least a million deaths incurred annually [2]. Nearly 925 million people in tropical regions live in the dangers of dengue infection [3]. Aedes albopictus (Ae. albopictus) and Aedes aegypti (Ae. aegypti) are two main species of mosquitoes responsible for the transmission of dengue fever, Chikungunya and yellow fever, and Culex pipiens palles (Cx. p. pallens) carry Japanese encephalitis, meningitis and West Nile virus.

Mosquito larvae control against these species has been achieved mainly by the use of organophosphorus (OP) insecticides, insect growth regulators and bacterial larvicides [4]. However, indiscriminate use of these larvicides has disrupted natural biological control systems and led to resurgence of mosquitoes [5] and has often resulted in widespread development of resistance [6]. Increasing levels of resistance to commonly used insecticides have invariably led to multiple treatments and excessive doses, posing serious threats to both the environment and human health. In light of such trends around the globe, the urgent need for the development of selective mosquito control alternatives that can help to procure an effective resistance management strategy should be addressed adequately and promptly.

As alternative sources for disease vector control products, plant extracts have drawn a great deal of attention because they are considered to be a potential source of bioactive chemical compounds that are relatively safe with few side effects on the environment and human health [7,8,9]. They often act at various novel target sites [10,11] and thus significantly reduce the possibility of resistance development in mosquitoes.

Recently, it was found out that the hydrodistillate of red pine (Pinus densiflora) needles and their active compounds exhibit high toxicity against house dust mites (Dermatophagoides farinae) and have the potential of being developed into commercial insecticides against house dust mites [12]. However, no information was yet available regarding the potential insecticidal activity of Pinus densiflora against mosquitoes.

In the present study, the potential toxicity of P. densiflora hydrodistillate (PD-HD), its 19 constituents [12] and 28 structurally related compounds against early third-instar larvae of Ae. albopictus, Ae. aegypti and Cx. p. pallens was evaluated and then compared with that of two synthetic larvicides, temephos and fenthion. Semi-field bioassays were conducted using field-collected larval Cx. p. pallens. In addition, 10 compounds were selected from among all the compounds tested for their larvicidal activity, and their inhibitory effects on acetylcholinesterase (AChE) activity were further examined with the aim of developing a deeper understanding of their modes of action.

2. Materials and Methods

2.1. Chemicals

A total of 47 commercially available pure organic compounds examined in this study are listed in Table 1, with their sources indicated accordingly. Temephos (97.3% [AI]) and fenthion (98.4% [AI]) were purchased from Riedel (Seelze, Germany) and Supelco (Bellefonte, CA, USA) respectively. Triton X-100 was purchased from Shinyo Pure Chemicals (Osaka, Japan). All the other chemicals used in this study were of a reagent-grade quality and were commercially available.

Table 1. 47 commercially available pure organic compounds examined in this study.

Click here to display table

Table 1. 47 commercially available pure organic compounds examined in this study.
CompoundSourceCompoundSource
α-humulene a,cTCI dCaryophyllene oxide aS-A
α-terpinene aS-A e1,8-cineole cS-A
Carveol cS-ACitral c,*S-A
NerolTCIp-cymeneS-A
(S)-(+)-carvoneS-AGeraniolS-A
(+)-β-citronellolS-AGeranyl acetateWK h
(−)-β-citronellolS-A(+)-limonene a,bTCI
(+)-citronellalFA fLinalool aS-A
(−)-citronellalFALinanyl acetate cWK
(−)-myrtenal cS-AMenthol cS-A
(−)-cis-myrtanolS-Aβ-myrcene aTCI
(−)-myrtenolSC gα-phellandrene aTCI
CarvacrolS-A(1R)-(+)-α-pinene aTCI
(−)-verbenoneFA(1S)-(−)-α-pinene aS-A
(S)-cis-verbenolS-A(1R)-(+)-β-pinene aS-A
o-cymeneS-A(1S)-(−)-β-pinene a,bS-A
m-cymeneS-Aγ-terpinene aS-A
Aromadendrene aS-Aα-terpineolS-A
Borneol aS-A(+)-terpinen-4-olTCI
Bornyl acetate aS-A(−)-terpinen-4-olTCI
Camphene aS-Aα-terpinolene a,bTCI
CamphorS-ATerpinyl acetateTCI
δ-3-carene a,b,cS-AThymol b,cS-A
β-caryophyllene a,cTCI

a Constituents of Pinus densiflora as reported by Lee et al. [12]. b Compounds tested in semi-field bioassays. c Compounds tested in AChE inhibition assays. d Purchased from Tokyo Chemical Industry (Tokyo, Japan). e Purchased from Sigma-Aldrich (St Louis, MO). f Purchased from Fluka (Buchs, Switzerland). g Purchased from SAFC Supply Solutions (St. Louis, MO, USA). h Purchased from Wako (Osaka, Japan). * Neral: Geranial = 1:1.

2.2. Hydrodistillate Preparation

Fresh P. densiflora needles were collected at Mt. Gwanak (Seoul) in early July, 2012. The needles (500 g) were finely ground by a blender and were subjected to hydrodistillation at 100 °C for 6 h, using Clevenger-type apparatus. The volatile oil was dried over anhydrous sodium sulfate and was stored in a sealed vial at 4 °C until use. The yield of the hydrodistillate was 1.11% based on dried weight of the plant.

2.3. Mosquitoes

Stock cultures of Ae. albopictus, Ae. aegypti and Cx. p. pallens, originally obtained from the National Institute of Health, Korea Centers for Disease Control and Prevention (Seoul, Korea) in 1999, were maintained in the laboratory without any exposure to any known insecticide. Adult mosquitoes were maintained on a 10% sugar solution and blood fed on live mice. Larvae were reared in plastic trays (24 by 35 by 5 cm) containing 0.5 g of sterilized diet (40-mesh chick chow powder/yeast, 4:1 by weight). All three species were reared at 26–28 °C, 65–75% RH, and a photoperiod of 16:8 (L:D) h.

Larvae of wild mosquitoes were field-collected from irrigated rice fields in Yongin, Korea in early August 2012. A satellite view of the larvae collection site is included in Figure 1 [13]. Through species identification based on polymerase chain reaction (PCR) [14], it was revealed that the collected larvae belong to Cx. p. pallens.

Insects 04 00217 g001 200

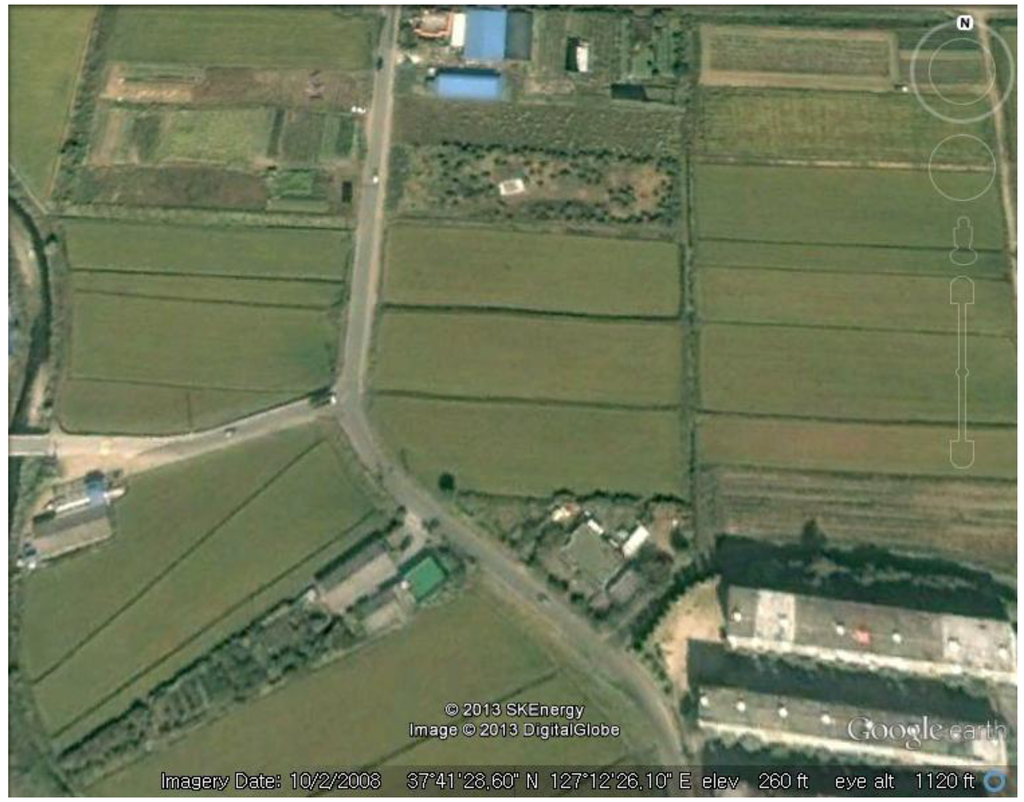

Figure 1. A satellite view of Cx. p. pallens larvae collection site & venue for semi-field bioassays.

Click here to enlarge figure

Figure 1. A satellite view of Cx. p. pallens larvae collection site & venue for semi-field bioassays.
Insects 04 00217 g001 1024

2.4. Bioassays

Direct-contact mortality bioassays [15] were employed to evaluate the toxicity of all compounds, using early third-instar larvae of each mosquito species. Each compound was dissolved in methanol, and then further diluted in distilled water containing Triton X-100 (20 µL/L). Groups of 20 mosquito larvae of each species were put into separate paper cups (270 mL), each containing different compound solutions (250 mL). The toxicity of each compound was determined by repeating this experimental procedure with different concentrations, ranging from 5 to 200 mg/L. Temephos and fenthion served as standard references and were similarly formulated as well. Controls contained only methanol-Triton X-100 carrier solution in distilled water.

Both treated and control larvae were kept under the same conditions as those used for colony maintenance. Larvae were considered to be dead only if they did not show any signs of movement when prodded with a fine wooden dowel at 24 h post-treatment. Due to certain constraints arising from the number of available larvae, all necessary bioassays could not be conducted simultaneously and thus, treatments were conducted over a period of time, with a separate control treatment included each time. Freshly prepared compound solutions were used for each round of bioassays [16]. All bioassays were repeated three times.

2.5. Semi-Field Bioassays

The efficacy of P. densiflora hydrodistillate and its five most toxic constituents as potential larvicides was further verified in semi-field bioassays. For each selected concentration, as guided by the results observed in above-described bioassays, of each test compound, three buckets of water from irrigated rice fields were prepared, and a batch of 20 field-collected larvae of Cx. p. pallens was released into each bucket. The buckets were treated with test compounds and covered with nylon mesh screen to prevent other mosquitoes and insects from laying eggs. The buckets were then placed back at the initial collection site and were allowed to stand for 24 h, after which the mortality data were recorded. Temephos and fenthion served as standard references.

2.6. AChE Inhibition Assays

Among all the compounds tested for their larvicidal activity, a total of 10 compounds were carefully selected in such a way that their demonstrated LC50 values represent a wide scope of evenly dispersed values ranging from some of the lowest (i.e., strong toxicity) to some of the highest (i.e., low or no toxicity).

For each species, larvae frozen at −20 °C were decapitated and 100 heads were homogenized in 5 mL of ice-cold 0.1 M sodium phosphate buffer (pH 8.0), using a Teflon glass tissue homogenizer. The homogenate was centrifuged at 10,000 × g at 4 °C for 20 min. The supernatant was filtered by a 0.22 µm-Millex-GV filter (Millipore, Cork, Ireland) and was used as the AChE preparation. Protein concentrations were determined by the Bradford dye method [17] using BSA as the standard. A microplate AChE assay was carried out following the method of Moores et al. [18] adapted from Ellman et al. [19]. The reaction mixture consisted of 80 µL of the crude enzyme preparation, 10 µL of 7.5 mM DTNB in phosphate buffer (pH 7.0) and 100 µL of the selected test compounds of various concentrations in 2.5% acetone. The reaction mixture was incubated at 30 °C for 5 min and 10 µL of 6.25 mM ATChI was then added to the mixture. The absorbance was recorded at 414 nm, using a Molecular Devices VersaMax microplate reader (Sunnyvale, CA, USA). All AChE inhibition assays were repeated three times in triplicates.

2.7. Data Analysis

Concentration-mortality data were subjected to probit analysis using SAS [20]. The LC50 values of each species, and their treatments, were considered to be significantly different from one another only if their 95% confidence limits failed to overlap. Compounds that have LC50 > 150 mg/L were considered to be ineffective. The IC50 (the concentration required to inhibit the AChE activity by 50%) values for compounds tested in AChE inhibition assays were determined using GraphPad Prism five (GraphPad Software, San Diego, CA, USA). Furthermore, for the compounds tested in AChE inhibition assays, a correlation analysis between their LC50 values and IC50 values was conducted using SAS [20].

3. Results

3.1. Larvicidal Activity of Test Compounds

The toxicity of P. densiflora hydrodistillate (PD-HD) and two commercially available synthetic larvicides against early third-instar larvae of three mosquito species was evaluated using a direct-contact mortality bioassay. Against Ae. albopictus, Ae. aegypti and Cx. p. pallens, PD-HD exhibited 24 h LC50 values of 20.33, 21.01 and 22.36 mg/L respectively (Table 2). PD-HD was demonstrated to have significantly strong, albeit much weaker than either temephos or fenthion, larvicidal activity, against all of the three species, with LC50 values lower than 25 mg/L.

Table 2. Toxicity of Pinus densiflora hydrodistillate (PD-HD), 19 PD-HD constituents, 28 structurally related compounds and two commercially available synthetic larvicides against early third-instar larvae of Ae. albopictus, Ae. aegypti and Cx. p. pallens after 24 h exposure.

Click here to display table

Table 2. Toxicity of Pinus densiflora hydrodistillate (PD-HD), 19 PD-HD constituents, 28 structurally related compounds and two commercially available synthetic larvicides against early third-instar larvae of Ae. albopictus, Ae. aegypti and Cx. p. pallens after 24 h exposure.
CompoundLC50 (Ae. albopictus), mg/L (95% CL a)LC50 (Ae. aegypti), mg/L (95% CL a)LC50 (Cx p. pallens), mg/L (95% CL a)
PD-HD20.33 (16.49–24.72)21.01 (17.24–25.31)22.36 (18.33–27.04)
α-humulene>150>150>150
α-terpinene21.88 (18.29–26.24)24.85 (20.96–29.18)23.87 (19.63–29.20)
Carveol121.22 (106.48–143.40)123.97 (111.02–142.51)113.58 (101.09–129.69)
Nerol111.59 (96.03–133.34)120.83 (104.33–147.41)111.48 (97.78–129.50)
(S)-(+)-carvone43.83 (41.78–45.91)42.14 (39.62–44.62)46.19 (43.54–49.12)
(+)-β-citronellol90.89 (83.26–99.00)93.46 (85.80–101.82)87.81 (80.62–95.50)
(−)-β-citronellol71.99 (64.67–80.37)75.31 (68.31–83.22)66.26 (59.63–73.33)
(+)-citronellal46.39 (41.08–52.95)48.23 (42.42–55.64)49.47 (43.52–57.04)
(−)-citronellal41.06 (38.44–43.59)37.46 (34.19–40.50)41.90 (39.07–44.69)
(−)-myrtenal137.86 (119.15–173.91)>150139.61 (122.92–169.77)
(−)-cis-myrtanol>150>150>150
(−)-myrtenol>150>150>150
Carvacrol95.05 (77.66–120.51)101.06 (84.95–124.54)91.93 (75.83–114.29)
(−)-verbenone89.39 (82.78–96.07)96.78 (89.76–104.20)89.07 (82.69–95.50)
(S)-cis-verbenol136.86 (121.92–161.87)>150140.41 (124.89–167.57)
o-cymene48.57 (42.14–55.77)39.60 (33.25–46.71)47.78 (40.96–55.39)
m-cymene62.05 (54.45–70.02)69.70 (61.83–78.37)59.35 (52.20–66.67)
Aromadendrene129.21 (118.02–145.97)>150147.91 (127.93–188.26)
Borneol>150>150>150
Bornyl acetate>150>150>150
Camphene79.09 (68.89–90.41)72.92 (65.75–80.81)80.06 (72.21–88.87)
Camphor>150>150>150
δ-3-carene9.33 (8.27–10.38)12.10 (10.36–13.81)10.11 (8.72–11.74)
β-caryophyllene39.52 (36.51–42.85)38.58 (36.17–41.09)47.79 (41.47–54.25)
Caryophyllene oxide107.62 (99.82–116.81)113.00 (104.54–123.59)126.28 (110.92–158.13)
1,8-cineole73.50 (69.80–77.70)73.30 (68.56–77.97)72.88 (68.99–76.68)
Citral41.63 (38.71–44.48)49.19 (45.19–54.06)47.80 (43.91–51.84)
p-cymene32.83 (28.23–38.63)33.46 (29.27–37.78)29.66 (25.22–34.29)
Geraniol68.17 (64.13–72.27)73.44 (68.48–78.23)56.96 (51.05–63.85)
Geranyl acetate33.01 (30.60–35.49)21.39 (17.37–25.63)30.33 (27.17–33.83)
(+)-limonene10.77 (9.80–11.87)15.31 (12.69–18.51)10.76 (9.27–12.54)
Linalool129.04 (117.54–146.31)113.47 (101.40–128.73)144.16 (123.66–186.95)
Linanyl acetate98.12 (91.30–105.44)97.76 (90.78–106.32)96.96 (89.59–104.00)
Menthol69.61 (64.26–74.80)81.20 (75.05–87.04)67.26 (59.30–74.32)
Myrcene35.98 (30.30–42.14)39.51 (32.70–46.68)41.31 (37.50–45.37)
α-phellandrene16.86 (14.43–19.69)19.35 (16.31–22.66)14.04 (12.09–16.50)
(1R)-(+)-α-pinene55.65 (52.49–59.18)51.28 (46.32–56.56)60.84 (58.55–63.28)
(1S)-(−)-α-pinene28.61 (26.09–31.65)39.98 (34.62–46.52)31.98 (28.39–35.68)
(1R)-(+)-β-pinene23.44 (19.88–27.27)24.06 (20.61–27.80)24.02 (20.11–28.36)
(1S)-(−)-β-pinene15.35 (12.76–18.15)17.33 (14.35–20.50)16.17 (13.26–19.75)
γ-terpinene16.25 (12.49–20.32)20.48 (16.63–24.64)17.75 (13.89–22.21)
α-terpineol131.79 (120.10–149.75)>150106.32 (97.22–115.84)
(+)-terpinen-4-ol98.28 (91.85–105.07)78.73 (71.24–85.73)86.25 (78.22–95.55)
(−)-terpinen-4-ol92.16 (84.28–101.24)72.36 (66.33–78.22)85.66 (75.71–97.28)
α-terpinolene13.86 (11.31–16.58)15.32 (12.67–18.19)10.62 (8.24–13.58)
Terpinyl acetate72.39 (65.05–80.55)96.32 (89.89–103.04)58.27 (52.60–64.82)
Thymol11.45 (10.12–12.80)11.72 (9.77–13.87)10.79 (9.50–12.31)
Temephos b0.010 (0.009–0.011)0.015 (0.013–0.018)0.013 (0.010–0.016)
Fenthion b0.012 (0.010–0.015)0.022 (0.019–0.024)0.027 (0.023–0.031)

a Confidence limit. b Commercially available synthetic larvicides.

The toxic effects of PD-HD constituents and its structurally related compounds on the three mosquito species were similarly compared. Against the larvae of Ae. albopictus, the most toxic compound was δ-3-carene (LC50, 9.33 mg/L), followed by (+)-limonene, thymol, α-terpinolene, (1S)-(−)-β-pinene, γ-terpinene, α-phellandrene, α-terpinene and (1R)-(+)-β-pinene, ranging in their LC50 values from 10.77 to 23.44 mg/L (Table 2).

Thymol was the most toxic compound against larval Ae. aegypti (LC50, 11.72 mg/L), followed by δ-3-carene, (+)-limonene, α-terpinolene, (1S)-(−)-β-pinene, α-phellandrene, γ-terpinene, geranyl acetate, (1R)-(+)-β-pinene and α-terpinene, ranging in their LC50 values from 12.10 to 24.85 mg/L (Table 2).

As for the larvae of Cx. p. pallens, δ-3-carene showed the highest toxicity (LC50, 10.11 mg/L), followed by α-terpinolene, (+)-limonene, thymol, α-phellandrene, (1S)-(−)-β-pinene, γ-terpinene, α-terpinene and (1R)-(+)-β-pinene, ranging in their LC50 values from 10.62 to 24.02 mg/L (Table 2).

Among the compounds not specified here, some exhibited moderate toxicity (100 mg/L > LC50 > 25 mg/L) and some showed low toxicity (150 mg/L > LC50 > 100 mg/L), while the others were considered to have toxicity of insignificant magnitudes (LC50 > 150 mg/L).

Chi-square values for each of the determined LC50 values are given in a separate table (Table 3).

Table 3. Chi-square values for the determined LC50 values.

Click here to display table

Table 3. Chi-square values for the determined LC50 values.
Compoundχ2 for LC50 (Ae. albopictus)χ2 for LC50 (Ae. aegypti)χ2 for LC50 (Cx p. pallens)
PD-HD3.452.192.32
α-humulene1.732.412.82
α-terpinene1.822.092.52
Carveol1.063.214.29
Nerol1.591.202.95
(S)-(+)-carvone5.072.913.27
(+)-β-citronellol3.893.461.92
(−)-β-citronellol3.473.824.62
(+)-citronellal4.102.483.70
(−)-citronellal2.401.374.19
(−)-myrtenal2.222.434.09
(−)-cis-myrtanol3.425.663.86
(−)-myrtenol4.092.223.87
Carvacrol5.051.011.93
(−)-verbenone2.981.082.96
(S)-cis-verbenol2.615.032.04
o-cymene3.003.412.10
m-cymene2.702.973.59
Aromadendrene2.292.101.47
Borneol3.413.993.70
Bornyl acetate2.872.473.11
Camphene4.011.083.42
Camphor2.241.541.71
δ-3-carene2.241.031.81
β-caryophyllene2.851.095.42
Caryophyllene oxide5.114.133.04
1,8-cineole3.573.372.88
Citral1.641.943.91
p-cymene2.323.342.66
Geraniol4.133.471.38
Geranyl acetate2.972.132.47
(+)-limonene1.982.692.67
Linalool1.044.314.46
Linanyl acetate2.193.204.96
Menthol2.642.182.67
Myrcene3.951.595.38
α-phellandrene4.193.514.41
(1R)-(+)-α-pinene1.871.281.83
(1S)-(−)-α-pinene2.602.252.93
(1R)-(+)-β-pinene1.871.471.76
(1S)-(−)-β-pinene5.283.711.61
γ-terpinene1.652.843.51
α-terpineol3.792.364.15
(+)-terpinen-4-ol2.893.772.56
(−)-terpinen-4-ol1.242.361.75
α-terpinolene1.111.351.62
Terpinyl acetate1.283.122.75
Thymol1.122.272.31
Temephos a1.642.972.24
Fenthion a3.624.463.03

a Commercially available synthetic larvicides.

3.2. Field Trials

The toxicity of PD-HD and 5 of its constituents/structurally related compounds against the field-collected larval Cx. p. pallens was evaluated and compared with the results observed in previous bioassays conducted with laboratory-reared Cx. p. pallens (Table 4). The performance of temephos and fenthion in semi-field bioassays was also recorded. Despite high levels of resistance that the field-collected larvae have developed toward temephos and fenthion (resistance ratios of 129.23 and 115.56 respectively) as compared to the laboratory-reared ones, PD-HD and its constituents exhibited potency of similar magnitudes against both field-collected and laboratory-reared larvae. Detailed chemical structures of the five most toxic constituents/structurally related compounds used in semi-field bioassays are shown in Figure 2.

Table 4. Toxicity of Pinus densiflora hydrodistillate (PD-HD), five selected compounds and two commercially available synthetic larvicides against early third-instar larvae of field-collected and laboratory-reared Cx. p. pallens.

Click here to display table

Table 4. Toxicity of Pinus densiflora hydrodistillate (PD-HD), five selected compounds and two commercially available synthetic larvicides against early third-instar larvae of field-collected and laboratory-reared Cx. p. pallens.
Field-collectedLaboratory-reared
CompoundLC50, mg/LLC50, mg/LResistance ratio
PD-HD21.0222.360.94
δ-3-carene12.6710.111.25
(+)-limonene10.5410.760.98
(1S)-(−)-β-pinene16.8016.171.04
α-terpinolene13.9210.621.31
Thymol11.2510.791.04
Temephos a1.680.013129.23
Fenthion a3.120.027115.56

a Commercially available synthetic larvicides.

Insects 04 00217 g002 200

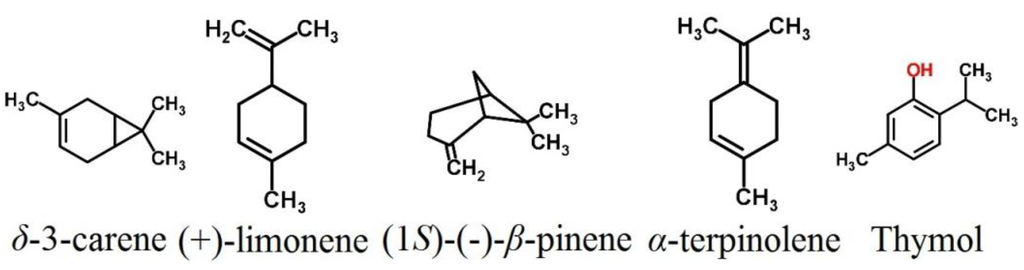

Figure 2. Chemical structures of the five most active test compounds that were used in semi-fieldbioassays.

Click here to enlarge figure

Figure 2. Chemical structures of the five most active test compounds that were used in semi-fieldbioassays.
Insects 04 00217 g002 1024

3.3. AChE Inhibition

The AChE inhibitory activity of the selected compounds for each of the three mosquito species is recorded in Table 5. In general, thymol and δ-3-carene were found out to be the strongest inhibitors of AChE in all three species (IC50 < 2 mM). The other compounds exhibited either moderate (IC50 < 15 mM) or low (IC50 > 15 mM) AChE inhibitory activity.

Table 5. In vitro inhibition of acetylcholinesterase (AChE) extracted from the heads of larval Ae. albopictus, Ae. aegypti and Cx. p. pallens by 10 selected compounds.

Click here to display table

Table 5. In vitro inhibition of acetylcholinesterase (AChE) extracted from the heads of larval Ae. albopictus, Ae. aegypti and Cx. p. pallens by 10 selected compounds.
CompoundIC50, mM (Ae. albopictus)IC50, mM (Ae. aegypti)IC50, mM (Cx. p. pallens)
Thymol1.481.961.57
δ-3-carene1.201.451.90
β-caryophyllene32.7636.0329.97
Citral8.0714.2712.48
Menthol20.6718.6225.78
1,8-cineole62.4574.3368.26
Linalyl acetate24.3829.8237.92
Carveol43.0249.1442.10
(−)-myrtenal23.7334.0331.62
α-humulene47.5958.1162.32

4. Discussion

It is indeed widely acknowledged that certain plant extracts and their constituents have the potential of being developed into products that are suitable for integrated arthropod disease vector management because they can be selective and environmentally non-persistent, unlike the synthetic pesticides currently in use, and have very few toxic effects on non-target organisms [8,9]. They can also be used in conjunction with various other means of biological control [8]. Essential oils extracted from plants are made up of highly complex mixtures of oxygenated compounds (alcohols, aldehydes, ketones, phenols, oxides, esters and etc.) and hydrocarbons (mostly terpenoids) [21]. Their efficacy against various arthropod disease vectors is manifested in both behavioral (repellence and feeding deterrence) and physiological (acute toxicity and growth inhibition) aspects [8,9]. Certain plant extracts and their constituents have been well noted for their insecticidal activity against mosquitoes and proposed as possible alternatives to the synthetic mosquito insecticides currently in use. For example, plant extracts from eight different Cinnamomum species were reported to have significant larvicidal activity against dengue vector mosquitoes [22], and volatile compounds identified in the roots of Asarum heterotropoides, such as (−)-asarinin, methyleugenol and pellitorine, were shown to be effective against three species of mosquitoes [23].

The present study provides the first report of insecticidal activity of Pinus densiflora hydrodistillate and its active compounds against mosquitoes. In the present study, potent toxicity against Ae. albopictus, Ae. aegypti and Cx. p. pallens was obtained from both PD-HD and many of its constituents and structurally related compounds, including δ-3-carene, (+)-limonene, thymol, α-terpinolene, (1S)-(−)-β-pinene, γ-terpinene, α-phellandrene, α-terpinene and (1R)-(+)-β-pinene. No significant difference in toxicity against the three mosquito species was observed. Although PD-HD and its constituents were of much lower toxicity than the synthetic larvicides, temephos and fenthion, they were found to be equally effective against both laboratory-reared and field-collected larvae, the latter of which have developed high levels of resistance to currently used synthetic larvicides. Thus, it is safe to conclude that PD-HD holds much promise for the development of alternative larvicides that can be effective even against the insecticide-resistant mosquito populations.

It should be noted that some of the compounds tested in this study exhibited potency of different magnitudes from those observed in other studies. In a previous study conducted by Eleni et al. [24], for instance, linalyl acetate was found to possess higher potency than in the present study and according to a study by Giatropoulos et al. [25], (+)-limonene exhibited lower potency. Such differences in LC50 values may be accounted for by considering the fact mosquitoes used in the experiments, although they might belong to the same species, were of different strains.

Moreover, in light of the above-mentioned concerns that several mosquito species are showing signs of increasing resistance to currently used insecticides, investigations on the modes of action of natural insecticidal products are of critical importance to the development of a successful resistance management strategy. As such, several active compounds identified in PD-HD were tested for their AChE inhibitory activity (Table 5) in the hope that results from such experiments would shed new light on the modes of action of the compounds. The observed AChE inhibitory activity (IC50) was then correlated with the larvicidal activity (LC50). Results are summarized in Table 6. The correlation coefficients were 0.617, 0.604 and 0.720 for Ae. albopictus, Ae. aegypti and Cx. p. pallens respectively. Based on these results, there seems to be a relatively strong positive correlation between LC50 and IC50 of the test compounds. Although some studies have failed to find a direct correlation between insect toxicity and AChE inhibition by terpenoids [26], the findings of the present study are consistent with and thus corroborate the report of Ryan and Byrne [27] that there is a significant relationship between insecticidal and AChE (extracted from electric eels) inhibitory activities of terpenoids. Although there is not yet enough evidence to come to a definite conclusion, it is likely that AChE is the major site of action for the compounds tested. In the future, more detailed experiments are indeed needed to fully understand the exact modes of action of these compounds.

Table 6. Correlation analysis between LC50 and IC50 values of 10 selected compounds.

Click here to display table

Table 6. Correlation analysis between LC50 and IC50 values of 10 selected compounds.
SpeciesCorrelation coefficient, r
Ae. albopictus0.617
Ae. aegypti0.604
Cx. p. pallens0.720

5. Conclusions

In conclusion, PD-HD and compounds described herein could be of practical use as larvicides in the control of disease vector mosquito populations. In order for these test materials to be developed as novel larvicides, further research is required to validate their safety to mammalian and human health, non-target aquatic organisms and the surrounding environment. In addition, formulations need to be investigated that can improve potency and stability, thereby reducing the costs of production involved.

Acknowledgments

This work was made possible through and was supported by an internship program at College of Agriculture and Life Sciences, Seoul National University.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. James, A. Mosquito molecular genetics: The hands that feed bite back. Science 1992, 257, 37–38.
  2. World Health Organization (WHO). A 5-minute Briefing on the World Malaria Report 2005 from WHO and UNICEF; WHO: Geneva, Switzerland, 2005.
  3. United Nations (UN). World Urbanization Prospects: The 2001 Revision Data Tables; UN: New York, NY, USA, 2002.
  4. Rozendaal, J.A. Mosquitoes and other Biting Diptera. In Vector Control; World Health Organization: Geneva, Switzerland, 1997.
  5. Croft, B.A.; Brown, A.W.A. Responses of arthropod natural enemies to insecticides. Ann. Rev. Ent. 1975, 20, 285–335.
  6. World Health Organization (WHO). Vector Resistance to Pesticides, Technical Report Series 818; WHO: Geneva, Switzerland, 1992.
  7. Sukumar, K.; Perich, M.J.; Boobar, L.R. Botanical derivatives in mosquito control: Review. J. Am. Mosq. Control. Assoc. 1991, 7, 210–237.
  8. Isman, M.B. Botanical insecticides, deterrents, and repellents in modern agriculture and an increasingly regulated world. Annu. Rev. Entomol. 2006, 51, 45–66, doi:10.1146/annurev.ento.51.110104.151146.
  9. Ahn, Y.J.; Kim, S.I.; Kim, H.K.; Tak, J.H. Naturally occurring house dustmites control agents: Development and commercialization. Adv. Phytomed. 2006, 3, 269–289.
  10. Kostyukovsky, M.; Rafaeli, A.; Gileadi, C.; Demchenko, N.; Shaaya, E. Activation of octopaminergic receptors by essential oil constituents isolated from aromatic plants: Possible mode of action against insect pests. Pest Manag. Sci. 2002, 58, 1101–1106.
  11. Priestley, C.M.; Elizabeth, M.; Williamson, K.; Wafford, A.; David, B.S. Thymol, a constituent of thyme essential oil, is a positive allosteric modulator of human GABAreceptors and a Homo-oligomeric GABA Receptor from. Br. J. Pharmacol. 2003, 140, 1363–1372, doi:10.1038/sj.bjp.0705542.
  12. Lee, J.H.; Kim, J.R.; Koh, Y.R.; Ahn, Y.J. Contact and fumigant toxicity of pinus densiflora needle hydrodistillate constituents and related compounds and efficacy of spray formulations containing the oil to dermatophagoides farinae. Pest. Manag. Sci. 2012, 10, 3421.
  13. Google Earth. Computer SoftwareVersion 7. N.p., n.d. Web. Available online: http://www.google.com/earth/index.html/ (accessed on 11 February 2013).
  14. Kasai, S.; Komagata, O.; Tomita, T.; Sawabe, K.; Tsuda, Y.; Kurahashi, H.; Ishikawa, T.; Motoki, M.; Takahashi, T.; Tanikawa, T.; et al. PCR-based Idenification of Culex Pipiens Complex Collected in Japan. Jpn. J. Infect. Dis. 2008, 61, 184–191.
  15. Kim, N.J.; Byun, S.G.; Cho, J.E.; Chung, K.; Ahn, Y.J. Larvicidal activity of kaempferia galanga rhizome phenylpropanoids towards three mosquito species. Pest Manag. Sci. 2008, 64, 857–862, doi:10.1002/ps.1557.
  16. Robertson, J.L.; Haiganoush, K. Preisler. In Pesticide Bioassays with Arthropods; CRC: Boca Raton, FL, USA, 1992.
  17. Bradford, M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254, doi:10.1016/0003-2697(76)90527-3.
  18. Moores, G.D.; Devonshire, A.L.; Ian, D. A microtitre plate assay for characterizing insensitive acetylcholinesterase genotypes of insecticide-resistant insects. Bull. Entomol. Res. 1988, 78, 537, doi:10.1017/S0007485300013286.
  19. Ellman, G.; Courtney, K.; Andresjr, V.; Featherstone, R. A new and rapid colorimetric determination of acetylcholinesterase activity. Biochem. Pharmacol. 1961, 7, 88–95.
  20. SAS. Computer software SASVersion 9.2. N.p., n.d. Web. Available online: http://www.sas.com/?gclid=CL2vrJKcgbcCFSo6pgod1RcALQ/ (accessed on 11 February 2013).
  21. Lawless, J. The Encyclopedia of Essential Oils; Thorsons: London, UK, 2002.
  22. Jantan, I.B.; Mira, F.Y.; Nazni, W.A.; Jamia, A.J. Insecticidal activities of the leaf oils of eight cinnamomum species against aedes aegypti and aedes albopictus. Pharm. Biol. 2005, 43, 526–532, doi:10.1080/13880200500220771.
  23. Perumalsamy, H.; Chang, K.S.; Park, C.; Ahn, Y.J. Larvicidal activity of asarum heterotropoides root constituents against insecticide-susceptible and -resistant culex pipiens pallens and aedes aegypti and ochlerotatus togoi. J. Agric. Food Chem. 2010, 58, 10001–10006, doi:10.1021/jf102193k.
  24. Eleni, M.; Antonios, M.; George, K.; Alexios-Leandros, S.; Prokopios, M. High quality begamot oil from greece: chemical analysis using chiral gas chromatography and larvicidal activity against the west nile virus vector. Molecules 2009, 14, 839–849.
  25. Giatropoulos, A.; Papachristos, D.P.; Kimbaris, A.; Koliopoulos, G.; Polissiou, M.G.; Emmanouel, N.; Michaelakis, A. Evaluation of bioefficacy of three Citrus essential oils against the dengue vector Aedes. albopictus (Diptera: Culicidae) in correlation to their components enantiomeric distribution. Parasitol. Res. 2012, 111, 2253–2263, doi:10.1007/s00436-012-3074-8.
  26. Grundy, D. Inhibition of Acetylcholinesterases by Pulegone-1,2-epoxide. Pestic. Biochem. Phys. 1985, 23, 383–388, doi:10.1016/0048-3575(85)90100-2.
  27. Ryan, M.F.; Byrne, O. Plant-insect coevolution and inhibition of acetylcholinesterase. J. Chem. Ecol. 1988, 14, 1965–1975, doi:10.1007/BF01013489.
Insects EISSN 2075-4450 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
