Insects 2012, 3(3), 719-726; doi:10.3390/insects3030719

Article
Screening Commercially Available Entomopathogenic Biocontrol Agents for the Control of Aethina tumida (Coleoptera: Nitidulidae) in the UK
Andrew G. S. Cuthbertson *, James J. Mathers , Lisa F. Blackburn , Michelle E. Powell , Gay Marris , Stephane Pietravalle , Mike A. Brown and Giles E. Budge
The Food and Environment Research Agency, National Bee Unit, Sand Hutton, York YO41 1LZ, UK; james.mathers@fera.gsi.gov.uk (J.J.M.); lisa.blackburn@fera.gsi.gov.uk (L.F.B.); michelle.powell@fera.gsi.gov.uk (M.E.P.); gay.marris@fera.gsi.gov.uk (G.M.); stephane.pietravalle@fera.gsi.gov.uk (S.P.); mike.brown@fera.gsi.gov.uk (M.A.B.); giles.budge@fera.gsi.gov.uk (G.E.B.)
*
Author to whom correspondence should be addressed; Email: andrew.cuthbertson@fera.gsi.gov.uk; Tel.: +44-0-1904-462201; Fax: +44-0-1904-462111.
Received: 3 July 2012; in revised form: 24 July 2012 / Accepted: 6 August 2012 /
Published: 9 August 2012

Abstract

: The Small hive beetle, Aethina tumida, is an invasive pest of honey bees. Indigenous to sub-Saharan Africa, it has now become established in North America and Australia. It represents a serious threat to European honey bees. Commercially available entomopathogenic agents were screened for their potential to control beetle larvae. Entomopathogenic fungi investigated had minimal impact. The nematodes Steinernema kraussei and S. carpocapsae provided excellent control with 100% mortality of larvae being obtained. Sequential applications of the nematodes following larvae entering sand to pupate also provided excellent control for up to 3 weeks. The information gained supports the development of contingency plans to deal with A. tumida should it occur in the UK, and is relevant to the management of Small hive beetle where it is already present.
Keywords:
Aethina tumida; Apis mellifera; biological control; entomopathogenic agents

1. Introduction

In its native range the Small hive beetle (Aethina tumida Murray, Coleoptera: Nitidulidae) (SHB) is an occasional parasite and scavenger of honey bee colonies indigenous to sub-Saharan Africa [1,2]. However, as an invasive species it has caused much economic damage, and since 1996 has become established in North America and Australia [2,3,4]. It has also recently been discovered in Hawaii. The SHB has yet to be reported in Europe, South America or Asia.

The SHB lifecycle consists of a pupation stage that occurs outside the beehive in the surrounding soil. Depending on temperature this life-stage can last for varying periods of time. For example, at temperatures ranging between 20–30 °C, Cuthbertson et al. [5] showed adult beetles to begin emerging from soil following 18 days and continuing up until 84 days. Small hive beetle development is known to be slower at lower temperatures [6]. Both larvae and pupae can be found in the soil. Therefore, there is an opportunity for control measures to be applied at this stage that will not have any impact upon the bees in the hive. Beekeepers have traditionally used pesticides containing permethrin to control larvae and pupae in the soil [7], however continued use of this can give rise to resistance [8] and undesirable side effects on both honey bees and humans [9,10]. Therefore, there is much demand to improve the range of products available for the control of the larvae and pupae stages. Such alternative control agents include entomopathogenic nemadodes (EPN) and fungi (EPF), which have successfully been used against other invertebrate pests [11,12,13]. In regards to A. tumida, the infectivity of three species of nematodes towards wandering larvae (the larval stage that is actively seeking a pupation site) was shown to be moderate [12]. This study aimed to screen species of entomopathogenic agents that are commercially available in the UK for their potential to be used against Small hive beetle.

2. Results and Discussion

Direct exposure demonstrated a significant treatment effect on the wandering larvae when compared to the control (p < 0.001), however neither entomopathogenic fungus caused mortality above that seen in the water controls (Figure 1). The entomopathogenic nematodes showed more promise; S. carpocapsae achieved significantly higher mortality than S. kraussei and S. feltiae (p < 0.05), which in turn achieved significantly higher mortality than the control after 2 weeks. Upon dissecting the larvae, nematodes freely emerged from the body cavity confirming their ability to infect the larvae (Figure 2). It has been stated that susceptibility of insects to control agents generally declines with increasing insect size. This has been demonstrated with mermithid nematodes against mosquito larvae [14]. However, as nematodes enter through the natural openings of the larvae, Gaugler and Molloy [15] showed that susceptibility was a function of larval size with larger larvae being more susceptible to nematode infection, simply due to the fact that it was easier for nematodes to enter the natural openings.

Treating the sand before adding the larvae exposes the SHB to the biocontrol agents during pupation, and more closely simulates how beekeepers might apply such products in the field. Indirect exposure demonstrated a significant treatment effect on SHB mortality when compared to the control (p < 0.001), however, once again neither entomopathogenic fungus caused mortality above that seen in the water controls (Figure 3). Treating the sand produced excellent results for S. kraussei and S. carpocapsae where total mortality of A. tumida was achieved. No adults emerged from either of these two treatments and neither did sieving the sand yield any remains of developing beetles, suggesting the larvae became infected, died and their remains dissolved during the 6 week test. Also, S. feltiae achieved significantly higher mortality than the control (p < 0.05; Figure 3).

Insects 03 00719 g001 1024

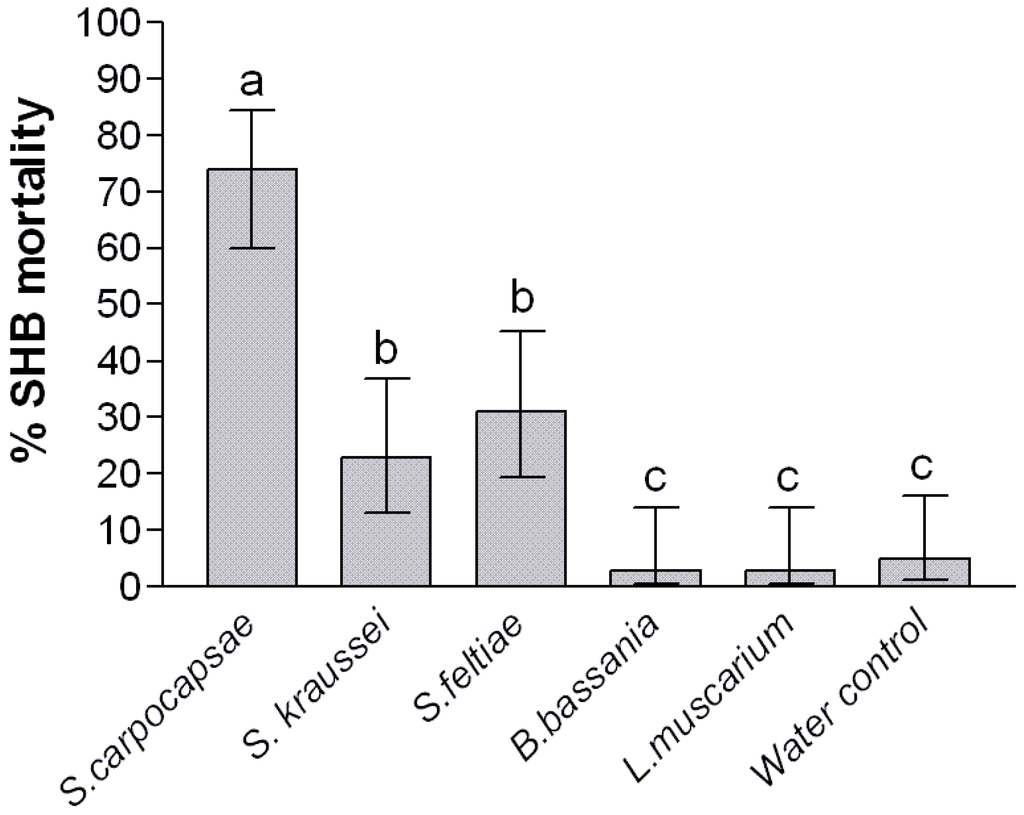

Figure 1. Impact of direct exposure of control agents on Aethina tumida wandering larvae after 2 weeks. Error bars represent the 95% confidence intervals. Means were separated using least significant differences after adjusting for multiple comparisons. Significantly different means (5% significant level) are represented by suffixes a–c.

Click here to enlarge figure

Figure 1. Impact of direct exposure of control agents on Aethina tumida wandering larvae after 2 weeks. Error bars represent the 95% confidence intervals. Means were separated using least significant differences after adjusting for multiple comparisons. Significantly different means (5% significant level) are represented by suffixes a–c.
Insects 03 00719 g001 1024
Insects 03 00719 g002 1024
Figure 2. Dissected Aethina tumida larvae releasing the entomopathogenic nematode Steinernema carpocapsae.

Click here to enlarge figure

Figure 2. Dissected Aethina tumida larvae releasing the entomopathogenic nematode Steinernema carpocapsae.
Insects 03 00719 g002 1024
Insects 03 00719 g003 1024

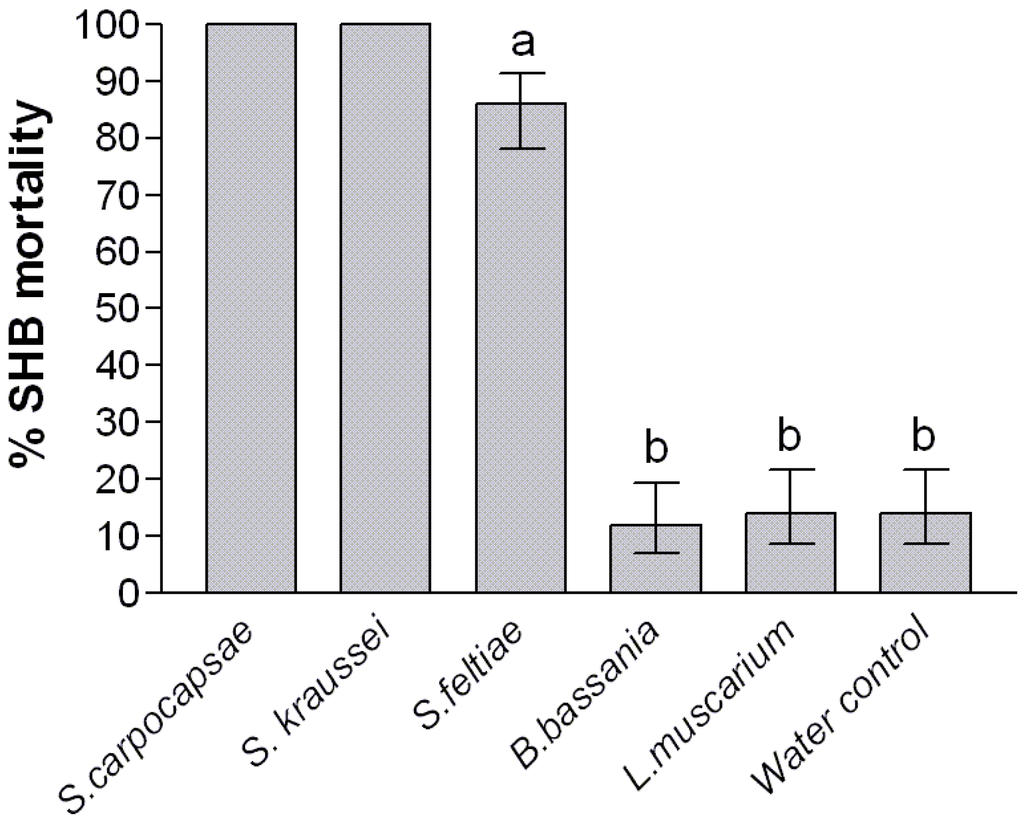

Figure 3. Impact of in-direct exposure of control agents on Aethina tumida wandering larvae. Error bars represent the 95% confidence intervals. Means were separated using least significant differences after adjusting for multiple comparisons. Significantly different means (5% significant level) are represented by suffixes a and b.

Click here to enlarge figure

Figure 3. Impact of in-direct exposure of control agents on Aethina tumida wandering larvae. Error bars represent the 95% confidence intervals. Means were separated using least significant differences after adjusting for multiple comparisons. Significantly different means (5% significant level) are represented by suffixes a and b.
Insects 03 00719 g003 1024

Following sequential application of the nematodes, significant reduction in adult beetle emergence was obtained (p < 0.001; Figure 4) for up to 3 weeks following larvae entering the sand to pupate. Under laboratory conditions the nematodes were deemed viable in the sand following 1 week after application. Nematodes were observed under a light microscope moving between the sand grains [16].

Insects 03 00719 g004 1024

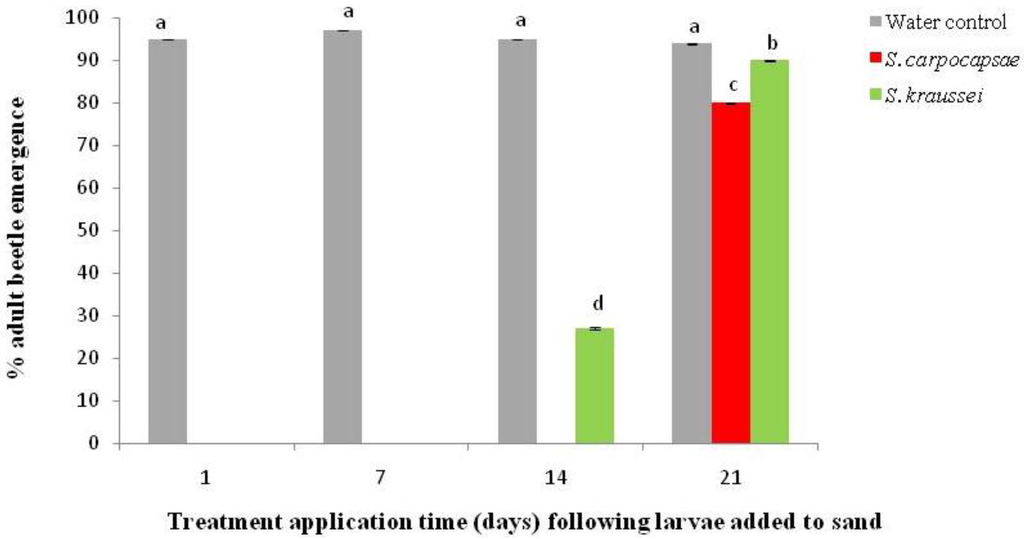

Figure 4. Impact of sequential applications of entompathogenic nematodes on Aethina tumida wandering larvae following their submergence in sand. Beetle emergence assessed after 6 weeks following larvae being added to sand. Error bars represent the 95% confidence intervals. Means were separated using least significant differences after adjusting for multiple comparisons. Significantly different means (5% significant level) are represented by suffixes a–d.

Click here to enlarge figure

Figure 4. Impact of sequential applications of entompathogenic nematodes on Aethina tumida wandering larvae following their submergence in sand. Beetle emergence assessed after 6 weeks following larvae being added to sand. Error bars represent the 95% confidence intervals. Means were separated using least significant differences after adjusting for multiple comparisons. Significantly different means (5% significant level) are represented by suffixes a–d.
Insects 03 00719 g004 1024

The data from our screening trials are consistent with those of Cabanillas and Elzen [12] and Ellis et al., [17] who demonstrated that A. tumida larvae and pupae are susceptible to entomopathogenic nematodes. In our study nematode efficacy varied with nematode species. In general the nematodes are known to penetrate the host and feed/reproduce for approximately 14 days [18]. After this period new infective juveniles emerge from the host and begin to seek a new host. Nematodes are thought to be better at locating hosts when they are dispersing from a host, showing evidence of a programming process in regards to host preference [19]. Therefore, it would be suggested that as long as A. tumida pupae are available as a food source, any applied inoculant nematode population would be more likely to be self-sustaining. However, any break in host availability may demand the soil be retreated with nematodes.

The fungi in our study had limited effect. Reasons for this are unclear. The fungal genera Beauveria and Lecanicillium are generalist entomopathogens, with species and strain-dependent differences in specificity and virulence against a range of insect groups [20]. They also have a cosmopolitan distribution and can be isolated from insects, mites, soil and a variety of other substrates [21]. Therefore, Beauveria and Lecanicillium would seem ideal candidates for the control of A. tumida. Temperature and humidity are important factors in fungi growth and germination. The ground surrounding beehives can vary greatly in moisture content. Our laboratory studies aimed to mimic conditions as closely as possible as to what is found surrounding beehives. Muerrle et al. [22] obtained promising mortality of A. tumida using B. bassiana. Ellis et al. [23] suggested that the fungi Aspergillus flavus and A. niger can cause mortality of larvae and pupae of A. tumida. However, these two fungi are known to cause mortality of larval and adult honey bees [24]. Therefore, further investigations would require the testing of more species and individual strains of fungi that have the potential to be commercially available in the UK for the control of A. tumida.

3. Experimental Section

3.1. Insect Rearing and Control Agents

Aethina tumida were cultured and maintained as described by Cuthbertson et al. [5] under strict quarantine conditions. Final instar (wandering) larvae were used for all experimental trials. The control agents investigated are all commercially available products in the UK and across Europe and comprised 3 EPN’s: Steinernema feltiae (Nemasys), S. kraussei (NemasysL), S. carpocapsae (Capsanem) and 2 EPF’s: Lecanicillium muscarium (Mycotal) and Beauveria bassiana (Naturalis). The impact of direct and in-direct exposure along with sequential application of the agents showing most potential were investigated in separate experiments.

3.2. Direct Exposure of Larvae to Control Agents

For direct exposure trials, individual wandering larvae were dipped in recommended dose rates of the fungi (108 conidia/mL) and nematode products (10,000 infective juveniles/mL) for 3 seconds. They were then placed on moist filter paper within 9 cm diameter Petri dishes and maintained at 20 °C, 65% R.H. and 16:8 h light:dark regime. Ten larvae were placed in each dish with 10 dishes per treatment product. Larvae dipped in water and placed on moist filter paper in Petri dishes acted as controls. Mortality for all treatments was assessed after 2 weeks.

3.3. Indirect Exposure of Larvae to Control Agents

For indirect exposure, 7 cm diameter by 15 cm tall plastic containers were filled with sand (8% moisture content). 50 mL of control product (500,000 nematode IJ or 509 fungal conidia) was added over the surface of the sand at the same dose rates as in the direct trials. Once the solution had soaked down into the sand, ten wandering larvae were added to the surface. The containers were then sealed and maintained at the conditions described above. There were ten containers per treatment. Controls consisted of wandering larvae added to containers in which the sand had been treated with 50 mL of water. Treatments were maintained for 6 weeks in order to allow adult beetles to emerge. Mortality was calculated as the number of beetles that failed to emerge. In order to confirm the fate of those individuals that did not emerge as adult beetles, at the end of each trial the sand substrate was sieved and searched for insect debris.

3.4. Sequential Application of Nematodes against Beetle Larvae

For sequential application trials using the two nematode species (S. carpocapsae and S. kraussei), containers as described above were prepared. Batches of ten wandering SHB larvae were added to each container. Following 24 hours the first batch of nematode solution was added to 10 containers. Then at weekly intervals, nematode treatments were added (at the same dose rate as before; 50 mL of product (500,000 IJ’s)) to separate batches of the original larvae infested containers. There were 10 replicates per nematode treatment per application date (four application dates in total). Control containers received an equal volume (50 mL) of water. Following treatment all containers were maintained in a CE room (23 °C, 65% r.h.) for 6 weeks to allow beetles ample opportunity to emerge. Nematode controls (sand pots with no beetle larvae present) were also maintained to determine their longevity in the sand.

3.5. Analysis of Data

The data was analysed using a Generalized Linear Model (GLM) with a binomial distribution and logit link function. 95% confidence intervals were calculated on the logit scale, then back-transformed (as proportions) and the treatments were grouped, following pairwise testing (at the 5% significance level) using means separating groups on the logit scale.

4. Conclusions

In conclusion, our trials demonstrate that commercially available entomopathogenic nematodes in the UK can infest and kill A. tumida wandering larvae. Furthermore, these products are available across Europe, and so have the potential to be used as control agents should the Small hive beetle expand its range to this continent. Further work is now required to determine economic dose rates and time spans between applications to ensure full control of A. tumida. The information gathered all supports the development of contingency plans to deal with A. tumida should it ever be located within the UK [25].

Acknowledgements

The work of culturing and maintaining A. tumida was funded by the Department of Environment, Food and Rural Affairs under the conditions required for quarantine licence number: PHL 251D/6473(01/2011). The nematodes and fungi were supplied by Koppert UK Ltd., Becker Underwood Ltd. and Intrachem Production S.r.L., Italy.

References

  1. Lundie, A.E. The Small Hive Beetle, Aethina tumida; Science Bulletin; Department of Agriculture and Forestry: Stellenbosch, Western Cape Province, South Africa, 1940.
  2. Neumann, P.; Elzen, P.J. The biology of the small hive beetle (Aethina tumida, Coleoptera: Nitidulidae): Gaps in our knowledge of an invasive species. Apidologie 2004, 35, 229–247. [Google Scholar] [CrossRef]
  3. Spiewok, S.; Pettis, J.S.; Duncan, M.; Spooner-Hart, R.; Westervelt, D.; Neumann, P. Small hive beetle, Aethina tumida, populations I: Infestation levels of honey bee colonies, apiaries and regions. Apidologie 2007, 38, 595–605. [Google Scholar] [CrossRef]
  4. Cuthbertson, A.G.S.; Brown, M.A. Issues affecting British honey bee biodiversity and the need for conservation of this important ecological component. Int. J. Environ. Sci. Tech. 2009, 6, 695–699. [Google Scholar]
  5. Cuthbertson, A.G.S.; Mathers, J.J.; Blackburn, L.F.; Wakefield, M.E.; Collins, L.E.; Luo, W.; Brown, M.A. Maintaining Aethina tumida (Coleoptera:Nitidulidae) under quarantine laboratory conditions in the UK and preliminary observations on its behaviour. J. Apicult. Res. 2008, 47, 192–193. [Google Scholar]
  6. De Guzman, L.I.; Frake, A.M. Temperature affects Aethina tumida (Coleoptera: Nitidulidae) development. J. Apicult. Res. 2007, 46, 88–93. [Google Scholar] [CrossRef]
  7. Hood, W.M. The small hive beetle, Aethina tumida: A review. Bee World 2004, 85, 51–59. [Google Scholar]
  8. Hemingway, J.; Ranson, H. Insecticide resistance in insect vectors of human diseases. Annu. Rev. Entomol. 2000, 45, 371–391. [Google Scholar] [CrossRef]
  9. Hassan, S.A.; Bigler, F.; Bogenschütz, H. Results of the second joint pesticide testing programme by the IOBC/WPRS-Working Group “Pesticides and Beneficial Arthropods”. Z. Ang. Entomol. 1983, 95, 151–158. [Google Scholar]
  10. World Health Organization (WHO). Permethrin. (Environmental Health Criteria 94); World Health Organization, United Nations Environment Program and International Labour Organization: Geneva, Switzerland, 1990; pp. 76–78.
  11. Glazer, I.; Salame, L.; Goldenberg, S.; Blumberg, D. Susceptibility of sap beetles (Coleoptera: Nitidulidae) to entomopathogenic nematodes. Biocontrol Sci. Technol. 1999, 9, 259–266. [Google Scholar] [CrossRef]
  12. Cabanillas, H.F.; Elzen, P.J. Infectivity of entomopathogenic nematodes (Steinernematidae and Heterorhabditidae) against the small hive beetle Aethina tumida (Coleoptera: Nitidulidae). J. Apic. Res. 2006, 45, 49–50. [Google Scholar]
  13. Cuthbertson, A.G.S.; Blackburn, L.F.; Eyre, D.P.; Cannon, R.J.C.; Millar, J.; Northing, P. Bemisia tabaci: The current situation in the UK and the prospect of developing strategies for eradication using entomopathogens. Insect Sci. 2011, 18, 1–10. [Google Scholar]
  14. Petersen, J.J.; Willis, O.R. Some factors affecting parasitism by mermithid nematodes in southern house mosquito larvae. J. Econ. Entomol. 1970, 63, 175–178. [Google Scholar]
  15. Gaugler, R.; Molloy, D. Instar susceptibility of Simulium vittatum (Diptera: Simuliidae) to the entomogenous nematode Neoaplectana carpocapsae. J. Nematol. 1981, 13, 1–5. [Google Scholar]
  16. Cuthbertson, A.G.S.; Mathers, J.J. Personal Communication. The Food and Environment Research Agency: Sand Hutton, York, UK, 2011. [Google Scholar]
  17. Ellis, J.D.; Spiewok, S.; Delaplane, K.S.; Buchholz, S.; neumann, p.; Tedders, W.L. Susceptibility of Aethina tumida (Coleoptera: Nitidulidae) larvae and pupae to entomopathogenic nematodes. J. Econ. Entomol. 2010, 103, 1–9. [Google Scholar]
  18. Shapiro-Ilan, D.I.; Gaugler, R.; Tedders, W.L.; Brown, I.; Lewis, E.E. Optimization of inoculation for in vivo production of entomopathogenic nematodes. J. Nematol. 2002, 34, 343–350. [Google Scholar]
  19. Shapiro-Ilan, D.I. Personal Communication. United States Department of Agriculture, Southeastern Fruit and Tree Nut Research Laboratory: Byron, GA, USA, 2011. [Google Scholar]
  20. Lacey, L.A.; Frutos, H.K.; Vail, P. Insect pathogens as biological control agents: Do they have a future? Biol. Control 2001, 21, 230–248. [Google Scholar] [CrossRef]
  21. Boucias, D.G.; Pendland, J.C. Principles of Insect Pathology; Kluwer: Boston, MA, USA, 1998; pp. 1–147. [Google Scholar]
  22. Muerrle, T.M.; Neumann, P.; Dames, J.F.; Hepburn, H.R.; Hill, M.P. Susceptibility of adult Aethina tumida (Coleoptera: Nitidulidae) to entomopathgenic fungi. J. Econ. Entomol. 2006, 99, 1–6. [Google Scholar] [CrossRef]
  23. Ellis, J.D.; Rong, I.H.; Hill, M.P.; Hepburn, H.R.; Elzen, P.J. The susceptibility of small hive beetle (Aethina tumida Murray) pupae to fungal pathogens. Am. Bee J. 2004, 144, 486–488. [Google Scholar]
  24. Morse, R.A.; Flottum, K. Honey Bee Pests, Predators and Diseases; Root Company: Medina, OH, USA, 1997; pp. 1–137. [Google Scholar]
  25. Cuthbertson, A.G.S.; Mathers, J.J.; Blackburn, L.F.; Brown, M.A.; Marris, G. Small hive beetle: The next threat to British honey bees? Biologist 2010, 57, 35–39. [Google Scholar]
