Insects 2012, 3(3), 601-615; doi:10.3390/insects3030601

Article
How Varroa Parasitism Affects the Immunological and Nutritional Status of the Honey Bee, Apis mellifera
Katherine A. Aronstein 1,*, Eduardo Saldivar 1, Rodrigo Vega 2, Stephanie Westmiller 2 and Angela E. Douglas 2
1
Honey Bee Research Unit, USDA-ARS, Weslaco, TX 78596, USA; Email: Ed.Saldivar@ars.usda.gov
2
Department of Entomology, Cornell University, Ithaca, NY 14853, USA; Email: rrv9@cornell.edu (R.V.); st342@cornell.edu (S.W.); aes326@cornell.edu (A.E.D.)
*
Author to whom correspondence should be addressed; Email: kate.aronstein@ars.usda; Tel.: +1-956-373-8546; Fax: +1-956-969-5033.
Received: 18 April 2012; in revised form: 25 May 2012 / Accepted: 18 June 2012 /
Published: 27 June 2012

Abstract

: We investigated the effect of the parasitic mite Varroadestructor on the immunological and nutritional condition of honey bees, Apis mellifera, from the perspective of the individual bee and the colony. Pupae, newly-emerged adults and foraging adults were sampled from honey bee colonies at one site in S. Texas, USA. Varroa‑infested bees displayed elevated titer of Deformed Wing Virus (DWV), suggestive of depressed capacity to limit viral replication. Expression of genes coding three anti-microbial peptides (defensin1, abaecin, hymenoptaecin) was either not significantly different between Varroa-infested and uninfested bees or was significantly elevated in Varroa-infested bees, varying with sampling date and bee developmental age. The effect of Varroa on nutritional indices of the bees was complex, with protein, triglyceride, glycogen and sugar levels strongly influenced by life-stage of the bee and individual colony. Protein content was depressed and free amino acid content elevated in Varroa-infested pupae, suggesting that protein synthesis, and consequently growth, may be limited in these insects. No simple relationship between the values of nutritional and immune-related indices was observed, and colony-scale effects were indicated by the reduced weight of pupae in colonies with high Varroa abundance, irrespective of whether the individual pupa bore Varroa.
Keywords:
Apismellifera; deformed wing virus; honey bee; nutritional response to parasite; Varroa mite

1. Introduction

It is widely accepted that the nutritional and immunological responses of animals to parasitization are not independent [1,2]. Both responses are demanding on nutritional reserves, such that an animal’s capacity to mount an immunological response can be critically dependent on its nutritional status [3,4], and parasite-mediated immunosuppression can have complex effects on the nutritional condition of its host [5]. Some effects appear to be mediated by a trade-off between the allocation of resources to immune function and nutritional reserves, or via changes to the animal’s regulatory network, especially the insulin/TOR signaling cascade, which links food intake to growth and metabolism and various aspects of immune function [6]. The detail of the “trialogue” between host nutrition and immune function and a parasitic infection, including the significance of the interaction between nutritional and immunological effects, is likely to vary widely among different host-parasite interactions.

The focus of this study is the interaction between the honey bee, Apis mellifera, and the mite Varroa destructor [7], an ectoparasite that feeds on the hemolymph of larvae, pupae and adult bees [8,9]. Varroa infestation is recognized as one of the most urgent problems facing the beekeeping industry [10,11,12]. There is evidence that Varroa mites depress both the nutritional condition and immunological capacity of honey bees [13,14]. Specifically, Varroa-infested bees have reduced weight and lifespan, elevated incidence of deformed wings and related phenotypes (shortened abdomen, miscoloration and paralysis) caused by high titers of the Deformed Wing Virus (DWV), and reduced immunological response to bacterial infection as quantified by expression levels of several antimicrobial peptides and immunity-related enzymes [15,16,17,18,19]. Nonetheless, the data are fragmentary and not entirely consistent. It is becoming increasingly apparent that an integrated understanding of Varroa effects requires analysis of the various indices in the same study populations of honey bees.

The purpose of this study was to quantify the impact of experimental Varroa infestation on the immune response and nutritional status of honey bee colonies. The investigation was conducted on managed bee colonies in a nutritionally challenging habitat representative of commercial honey bee populations used in low intensity agricultural settings of southern Texas, USA. In this habitat, honey bee colonies are supported by the diverse flora with strong nectar flow in the spring, but they are vulnerable under the hot and dry conditions during summer and fall months that provide scarce nutritional resources. Focusing on colonies under the environmentally stressful conditions in August and September, we tested four hypotheses. (1) Varroa-infested bees have altered immunological status, as assessed by the expression of key immune-related genes, and DWV titer; (2) Varroa-infested bees are in poor nutritional condition, as indicated by reduced protein and amino acid content, and depressed reserves of lipid and glycogen; (3) The nutritional and immunological condition of the insects is correlated, such that the most nutritionally-deficient Varroa-infested insects are also the most immunologically-deficient; (4) Uninfested insects in colonies with high levels of Varroa infestation have depressed immunological and nutritional indices relative to colonies with low or no Varroa infestation, as a consequence of the poor overall condition of the colony.

Our sampling strategy to test these hypotheses was dictated by the biology of the Varroa mites. Themites enter a brood cell (prior to capping of the cell), they attach to the larva and feed on the hemolymph continuously as the larva develops and pupates. The mites remain attached to their host as the newly emerged bee leaves the brood cell, and then they move among the worker bees in the hive, continuing to feed [8,9]. Our analysis focused principally on pupae and newly-emerged bees, to ensure that the scoring of insects as Varroa-infested or uninfested accurately reflected the infestation history of that insect. Insects that have borne Varroa since larvae and display clinical signs of DWV die or are removed from the colony as young adults. Foraging bees, in general, have lower levels of Varroa incomparison to brood and nurse bees [8,9]. Supplementary analyses of foraging bees were conducted to assess how the nutritional condition of these bees varies with the level of Varroa in the colony.

2. Experimental Section

2.1. The Insects and Sampling Procedure

The experimental colonies were derived from source colonies in TX apiaries that had been treated with Apiguard (thymol gel) to reduce Varroa population one year (2009) prior to this study. The experimental colonies were established in March 2010, using 10 three-pound packages of bees from source colonies along with a caged Kona Italian queens in each package. Packages were installed into new bee equipment (10 frame hive body, bottom board and migratory cover, 10 frames with the new wax coated plastic foundations). New colonies were placed in a new apiary and fed high-fructose corn syrup and MegaBee protein patties on ad lib basis. Kona queens were replaced by Koehnen Italian queens in April, 2010. Five experimental colonies were selected at random for Varroa infestation; a half frame of sealed brood comb infested with Varroa mites (14.5 mites per 100 bees) was introduced in May 2010.

Samples were collected from the colonies on 13 July, 17 August and 8 September 2010: pink/purple-eyed pupae (n = 60), newly emerged adults (n = 72), and foragers (n = 72) as they entered the colony. With the exception of foragers, each insect was scored for the presence of Varroa mites and then transferred individually to a 1.5 mL vial and the fresh weight recorded ±1 μg accuracy. Samples were frozen and stored at −80 °C. In parallel, the level of Varroa infestation was determined using the alcohol shake method in samples of 280 bees per colony [20,21] and estimated as a number of mites per 100 adult bees.

The indices of immunological nutritional status were conducted on bees collected on 17 August and 8 September. By this date in the season, three of the 10 colonies had died out, and sufficient bees for analysis were available from 6 of the remaining colonies for all assays except for the gene expression study, which was conducted on 5 colonies.

2.2. Molecular Analysis

Total RNA was isolated from each bee sample using TRIzol® (Life Technologies, Carlsbad, CA, USA) following the manufacturer’s protocol. To test for residual DNA contamination, 1 μL RNA was used as template in PCR, using primers that amplify a defensin 1 gene fragment that includes a 286 bp intron. Samples that tested positive for the presence of the intron were treated with DNA-free™ Kit (Ambion-Life Technologies, Carlsbad, CA, USA) until DNA was not detectable. Poly-A RNA was purified from the total RNA samples using MicroPoly(A)Purist™ (Ambion-Life Technologies, Carlsbad, CA, USA) following manufacturer’s protocol, and its purity was checked on a 1.0% denaturing agarose/formaldehyde gel before quantification using an Eppendorf BioPhotometer. Double-stranded cDNA was synthesized with 500 ng poly-A RNA template, SuperScript™ Double-Stranded cDNA Synthesis Kit (Invitrogen-Life Technologies, Carlsbad, CA, USA), and oligo-dT primers according to the manufacturer’s protocol.

The expression levels of defensin1, abaecin, hymenoptaecin, vitellogenin and hexamerin 70b, and the abundance of DWV [13] were determined by qRT-PCR normalized to ß-actin using CFX96™ Real-Time PCR Detection System (BioRad, Inc.), following evidence that this gene is stably expressed and the reference gene of choice [22,23]. Amplification was performed in 10 μL reaction volumes, containing 0.5 U of GoTaqR Flexi DNA polymerase (Promega Co., Madison, WI, USA) with the colorless 5× GoTaqR Flexi buffer, 0.38 mM dNTP mix, 5.0 mM MgCl2, 0.35 μM of each primer (Table 1), 0.33 μL SYBR-Green (Invitrogen., 1/1,000 stock dilution), and 1 μL cDNA. Reactions were run for 40 cycles at 95 °C (5 s) and 60 °C (30 s) after initial denaturing at 95 °C for 3 minutes, and with a final extension of 72 °C (2 min) followed by a melt curve analysis. All experiments included two technical replicates of three biological replicates (for each developmental stage, colony and Varroa-category) andtemplate-free controls.The qRT-PCR data was analyzed using the comparative delta delta Ct method, with Ct values normalized to ß-actin. Fold change in expression of the target genes was quantified as by Pfaffl [24], using the equations for relative standard curves and relative efficiency plots calculated by GraphPad Prism software (GraphPad Software, Inc., La Jolla, CA, USA).

Table Table 1. List of PCR primers.

Click here to display table

Table 1. List of PCR primers.
Primer names and GenBank Accession [#]Primers 5′→3′
Deformed wing virus [AB605386] DWV_F DWV_R GACAAAATGACGAGGAGATTGTT ACTACCTGTAATGTCGTCGTGTT
Defensin 1 [U15955] Def1_F Def1_R GTTGAGGATGAATTCGAGCC TTAACCGAAACGTTTGTCCC
Abaecin [U159554] Abaecin_F Abaecin_R GGTAGTGATATTTATCTTCGC TTGAGGCCATTTAATTTTCGG
Hymenoptaecin [U15956] Hymenoptaecin_F Hymenoptaecin_R ATGGATTATATCCCGACTCG TCTAAATCCACCATTTATTCC
Hexamerin70b [NM_001011600] Hex70b_F Hex70b_RCCGCTCTTCAAATGTGGTCTAC GATAGGTAAAAGGTTTGTGGTTC
Vitellogenin [NM_001011578] Vg_FVg_R TGGCTCTGGACGGTGAAC CCCTCGCATTGGTTACTGAT
Actin [AB023025] Actin_F Actin_R TGAAGTGCGATGTCGATATC GAGATCCACATCTGTTGGAA

2.3. Nutritional Indices

Each pupa or bee was thawed on ice, and then homogenized in 1 mL ice-cold buffer comprising 10 mM Tris, 1 mM EDTA pH 8.0 and 0.1% (v/v) Triton-X-100 with hand-held homogenizer, and centrifuged at 7,000 g at 4 °C for 10 min. The supernatant was used for analysis of protein, triglyceride and carbohydrates using coupled colorimetric assays with an xMarkTM microplate spectrophotometer, following manufacturer’s instructions (5 replicates per assay). The assay kits were the triglyceride assay kit of Sigma (catalogue number TG-5-RB); the Coomassie Brilliant Blue microassay method of BioRad (catalogue number 500-0201), with bovine serum albumin as standard (1.25–25 mg protein mL−1)for protein; and the glucose assay kit of Sigma (catalogue number GAGO20) for glucose and, following trehalase (3.7 U mL−1) and amyloglucosidase (2 U mL−1) treatment, for trehalose and glycogen, respectively. The sugar analyses (glucose and trehalose) were restricted to pupae because datasets for adult bees were confounded by endogenous trehalase activity and sugars in the gut contents of some individuals.

For the amino acid analysis, 1 μL supernatant was brought to 20 μL in PBS, incubated on ice for 30 min with 20 μL 40 mM HCl, and centrifuged at 18,000 g for 15 min at 4 °C. The supernatant was filtered through a 0.45 μm filter plate (Millipore) by centrifugation at 1,500 g for 10 min, and 5 μL filtrate was derivatized with AccQ Tag (Waters), following manufacturer’s protocol, and injected into Waters Acquity UPLC with PDA detector and AccQ-Tag Ultra 2.1 × 100 mm column. The gradient was: 0–10 min, 99% A; 10–35 min, linear gradient to 65% A; 35–40 min, 65% A; 40–42 min, linear gradient to 100% B, where A is 90% AccQ-Taq Ultra Eluent in water, and B is Accq-Taq Ultra Eluent B. Amino acids were determined by comparison to standards, 1–100 pmol protein-amino acids μL−1 (Waters amino acid hydrolysate standard #088122, supplemented with asparagine, tryptophan and glutamine).

2.4. Statistical Analysis

All data were checked for normality by the Anderson-Darling test and homogeneity of variance by Levene’s test, and data that did not meet these criteria were analyzed by non-parametric methods. The abundance of Varroa in uninfested colonies and colonies experimentally infested with Varroa was compared by the MannWhitney U test for each of the four test months (July-September). The fold-change of gene expression in Varroa-infested bees relative to uninfested bees was compared to the null hypothesis of no change by t-tests, with Bonferroni correction for multiple tests.Preliminary analysis revealed no significant correlations between nutritional indices obtained for either pupae or hive bees in September (Pearson’s correlation analysis). Therefore, the insect weight and nutritional density data were analyzed by individual ANOVA tests, with three main factors: Vbee (whether the insect bore Varroa); Vcolony (whether the Varroa abundance was above the recommended treatment threshold of 15 mites per 100 bees); and individual Colony nested within Vcolony. The principal components analysis of free amino acids in the pupae and hive bees used a correlation matrix to standardize variables, with axes selected to display separation of Varroa-infested and uninfested bees. Linear regression analysis was used to investigate the relationship between nutritional indices of uninfested bees and Varroa abundance in the same colony, and the relationship between immune-related indices and nutritional indices.

3. Results

3.1. Abundance of Varroa in the Honey Bee Colonies

Varroa was not detected in the mitocide-treated colonies set up in May 2010, but was present in all colonies tested in July, August and September, 2010. The median abundance of Varroa was significantly higher in untreated colonies than experimentally-infested colonies in July (Mann Whitney U: W = 38, p < 0.05), but did not differ between the two colony types in August (W = 18, p = 0.59) or September (W = 14.5, p = 0.72) (Figure 1).

Insects 03 00601 g001 200

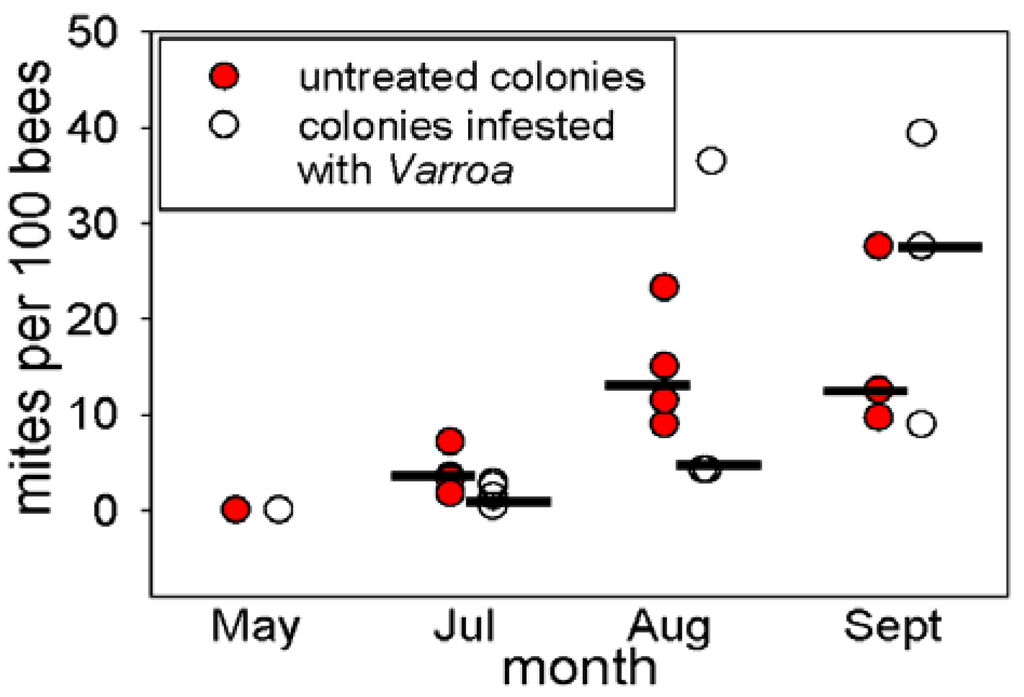

Figure 1. The abundance of Varroa in the honey bee colonies (median shown as black bar). The economic threshold for intervention is 15 mites per 100 bees.

Click here to enlarge figure

Figure 1. The abundance of Varroa in the honey bee colonies (median shown as black bar). The economic threshold for intervention is 15 mites per 100 bees.
Insects 03 00601 g001 1024

3.2. Effect of Varroa on DWV Titer and Immune-Related Indices of Bees

The titer of Deformed Wing Virus (DWV) in pupae and newly-emerged bees was quantified in August and September, when there were sufficient Varroa-infested insects for analysis. DWV was detected in all samples, and the DWV titer was significantly elevated in Varroa-infested insects, relative to uninfested pupae and newly-emerged bees (Figure 2a, Supplementary Table S1), with differences ranging from less than two-fold to >300,000-fold. Significant among-colony variation in the ratio of DWV titer in infested/uninfested insects was obtained for pupae in August (F4,14 = 21.90, p < 0.001) but not in pupae in September or in newly-emerged bees. Foragers in general bore a very low titer of the virus (data not shown).

Our approach to investigate further the impact of Varroa on the immune status of the honey bees was to quantify the expression level of three antimicrobial peptide (AMP) genes, defensin1, abaecin and hymenoptaecin in pupae and newly-emerged adults sampled in August and September. Individuals bearing Varroa had significantly higher transcript abundance of these immune-related genes for at least two of the four datasets, with the mean fold-difference varying between two-fold and >30-fold (Figure 2b–d, Supplementary Table S1). No instance of a significant reduction in gene expression was identified in Varroa-infested bees. Across the full dataset, the expression levels did not differ between colonies with Varroa infestation above or below the threshold (15 mites per 100 bees) for intervention (p > 0.05) and significant among-colony variation was restricted to two AMPs, abaecin and defensin1 in August pupae (F4,14 = 10.06, p = 0.002; F4,14 = 21.90, p < 0.001).

Insects 03 00601 g002 200
Figure 2. Impact of Varroa infestation of pupae and newly-emerged adults on (a) the titer of deformed wing virus; expression of anti-microbial peptides: defensin1 (b), abaecin (c) and hymenoptaecin (d); and expression of storage proteins: hexamerin 70b (e) and vitellogenin (f). Mean values of log2 (Varroa-infested/uninfested)of three replicate samples from each colony are shown, and values significantly different from zero (after Bonferroni correction for four tests) are indicated *. Full statistical analysis is shown in Supplementary Table S1.

Click here to enlarge figure

Figure 2. Impact of Varroa infestation of pupae and newly-emerged adults on (a) the titer of deformed wing virus; expression of anti-microbial peptides: defensin1 (b), abaecin (c) and hymenoptaecin (d); and expression of storage proteins: hexamerin 70b (e) and vitellogenin (f). Mean values of log2 (Varroa-infested/uninfested)of three replicate samples from each colony are shown, and values significantly different from zero (after Bonferroni correction for four tests) are indicated *. Full statistical analysis is shown in Supplementary Table S1.
Insects 03 00601 g002 1024

The relationship between AMP expression and DWV titer was investigated by correlation analysis. The log2 fold difference in DWV titer between Varroa-infested and uninfested pupaewas significantly correlated with the log2-fold-difference in transcript abundance of defensin1, but not abaecin or hymenoptaecin in August (r = 0.998, p < 0.001). No significant correlations were identified in newly-emerged bees in August or September, or for pupae in September.

3.3. Effect of Varroa on Nutritional Status of Bees

The weight of pupae and hive bees bearing Varroa was significantly depressed relative to Varroa-free individuals (Figure 3a,e, Supplementary Table S2a). For pupae, but not newly-emerged adults, mean weight was also depressed in colonies with high (i.e., above treatment threshold) Varroa abundance, irrespective of whether the individual bore Varroa, and the magnitude of this effect varied with colony.

Insects 03 00601 g003 200

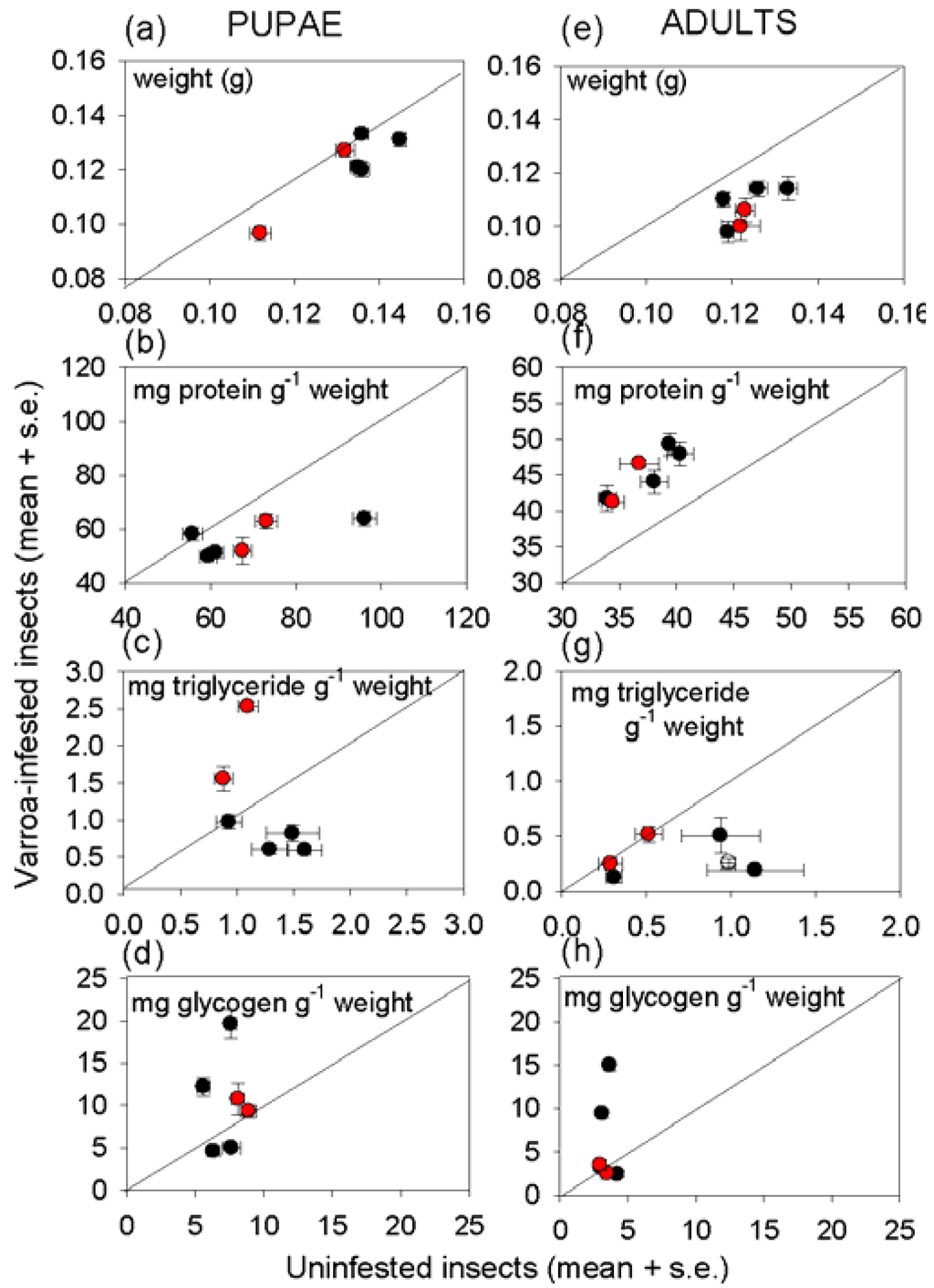

Figure 3. The weight and nutritional indices of uninfested and Varroa-infestedinsects (mean ± s.e, 12 replicates); with the diagonal line of equivalence; (a-d) showing nutritional conditions of pupae; and (e-h) newly emerged adult bees. Data for colonies with Varroa above the threshold for intervention are shown in red, and colonies below the threshold in black. The statistical analysis is shown in Supplementary Table S2.

Click here to enlarge figure

Figure 3. The weight and nutritional indices of uninfested and Varroa-infestedinsects (mean ± s.e, 12 replicates); with the diagonal line of equivalence; (a-d) showing nutritional conditions of pupae; and (e-h) newly emerged adult bees. Data for colonies with Varroa above the threshold for intervention are shown in red, and colonies below the threshold in black. The statistical analysis is shown in Supplementary Table S2.
Insects 03 00601 g003 1024

The nutritional condition of the insects was significantly affected by Varroa (Figure 3, Supplementary Table S2), although the effects differed between pupae and newly emerged bees. The protein density (i.e., protein content per unit weight) was significantly depressed in Varroa-infested pupae, but elevated in Varroa-infested hive bees (Figure 3b,f), although this was not generally reflected in the expression levels of two key storage protein genes, hexamerin70b and vitellogenin (Figure 2e,f). The effect of Varroa infestation on triglyceride density varied with the Varroa status of the colony, being elevated in Varroa-infestedpupae (but not newly emerged adult bees) from colonies with high Varroa infestation, and reduced in Varroa-infested adult bees (but not pupae) from colonies with low Varroa infestation (Figure 3c,g).

The single most consistent determinant of the nutritional indices was the colony from which the insects were sampled; every nutritional index scored varied significantly with colony or the interaction between colony and whether the insect bore Varroa (Supplementary Table S2). Colony effects were particularly marked for glycogen density, which was significantly elevated in pupae and newly-emerged bees bearing Varroa in two of the four colonies (colonies 1 and 4) with low Varroa abundance (Figure 3d,h).

The metabolite analysis focused on two key sugars, glucose and trehalose, and the 20 amino acids that contribute to protein (Figure 4a–c). Individual colony effects were important for the sugars. Varroa-infestedpupae had significantly reduced trehalose density (Figure 4b), especially in colonies with low Varroa abundance; and the glucose density (Figure 4a) was significantly elevated in pupae bearing Varroa in two of the four colonies with low Varroa abundance (colonies 1 and 4: the same colonies with elevated glycogen contents). The total amino acid density of pupae was significantly elevated by Varroa infestation, at the level of both the individual insect and colony (Figure 4c); but no significant effect was obtained for newly-emerged adults (Supplementary Table S2).

Insects 03 00601 g004 200

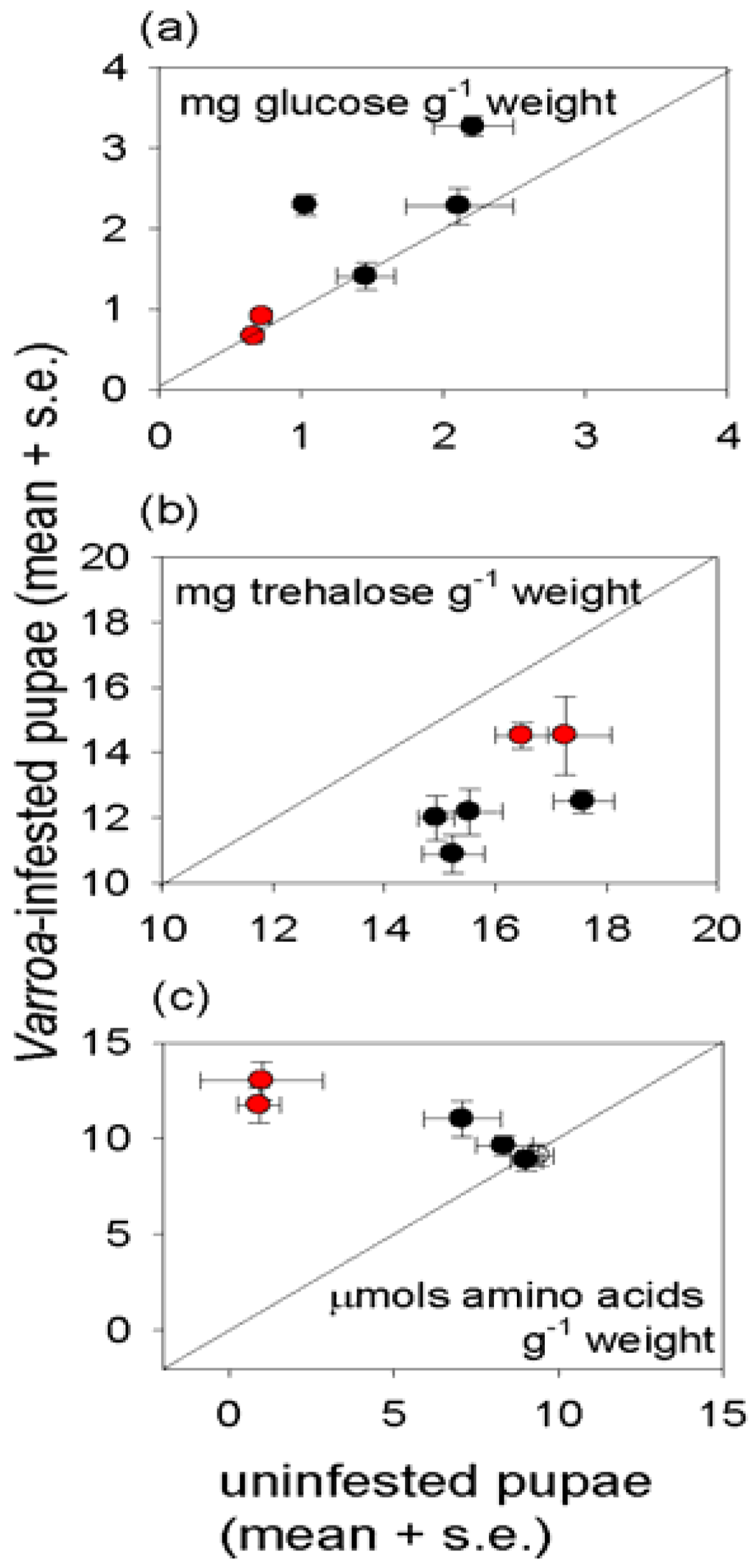

Figure 4. Free metabolites in uninfested and Varroa-infestedhoney bees (mean ± s.e, 12 replicates), with the diagonal line of equivalence. Data for colonies with Varroa above the threshold for intervention are shown in red, and colonies below the threshold in black. The statistical analysis is shown in Supplementary Table S2.

Click here to enlarge figure

Figure 4. Free metabolites in uninfested and Varroa-infestedhoney bees (mean ± s.e, 12 replicates), with the diagonal line of equivalence. Data for colonies with Varroa above the threshold for intervention are shown in red, and colonies below the threshold in black. The statistical analysis is shown in Supplementary Table S2.
Insects 03 00601 g004 1024

Principal components analysis of the composition of the free amino acid pools of the insects (Supplementary Table S3) yielded near-separation along two axes between Varroa-infested and Varroa-free insects, for both pupae (Figure 5a) and newly-emerged adults (Figure 5c), accounting for 58% and 72% of the variance, respectively. Individual ANOVAs (with Bonferroni correction for 20 tests) (Supplementary Table S3) confirmed the inspection of the PC coefficients (Figure 5b) that a set of 11 AAs contributed to the elevated FAA titers in Varroa-infested pupae. This set includes 9 of the 10 essential amino acids (all but tryptophan). Exceptionally, aspartate was significantly depressed in Varroa-infested pupae. The amino acid titers of newly-emerged adult bees displayed a similar trend, although with weaker separation of Varroa-infested and uninfested bees and significant elevated titers of just two amino acids, arginine and methionine (Figure 5d, Supplementary Table S3).

Insects 03 00601 g005 200

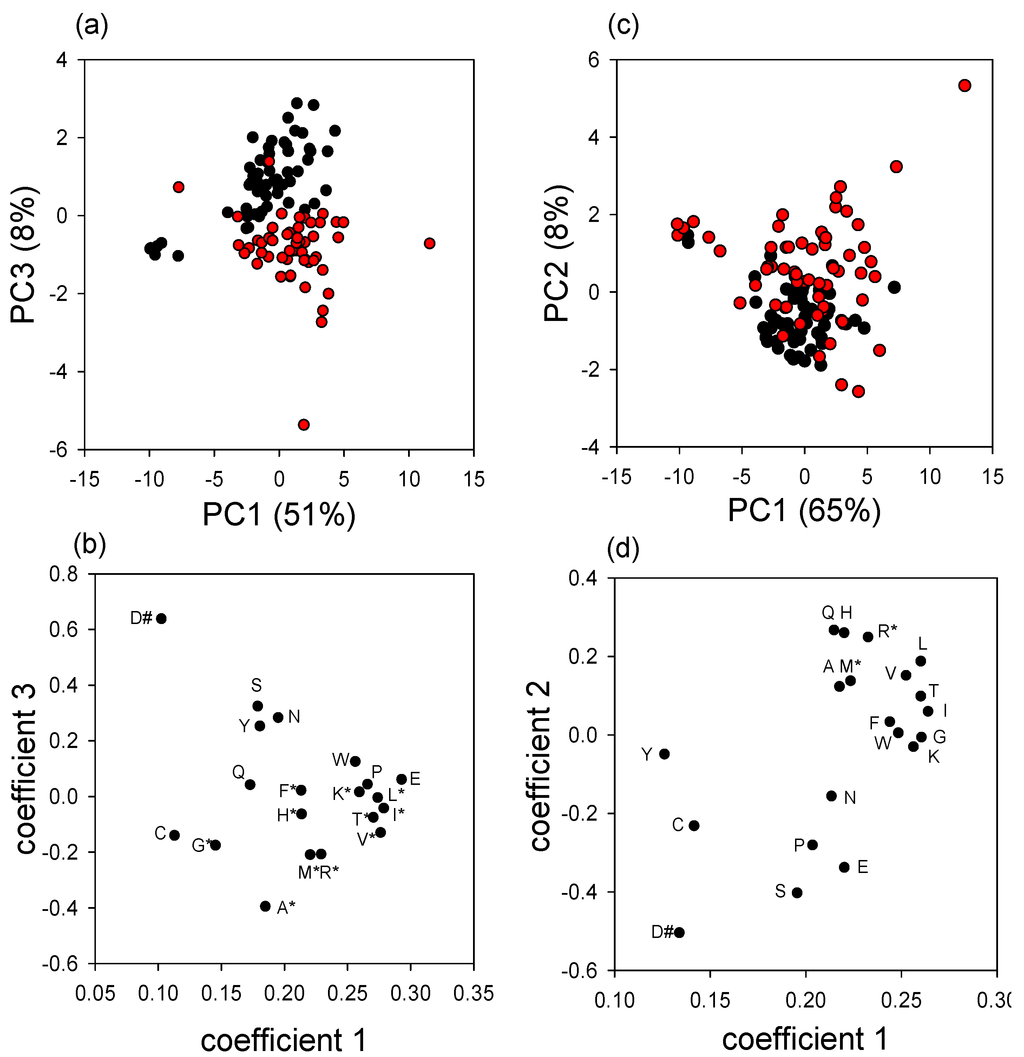

Figure 5. Principal components analysis of the free amino acid content of the honey bees (with open symbols uninfested and closed symbols Varroa-infested insects). Data for colonies with Varroa above the threshold for intervention are shown in red, and colonies below the threshold in black. (a) principal components 1 and 3 of pupae; (b) coefficients for pupae; (c) principal components 1 and 2 of newly-emerged bees; (d) coefficients for newly-emerged bees [#significantly elevated in uninfested insects; * significantly elevated in Varroa-infested insects].

Click here to enlarge figure

Figure 5. Principal components analysis of the free amino acid content of the honey bees (with open symbols uninfested and closed symbols Varroa-infested insects). Data for colonies with Varroa above the threshold for intervention are shown in red, and colonies below the threshold in black. (a) principal components 1 and 3 of pupae; (b) coefficients for pupae; (c) principal components 1 and 2 of newly-emerged bees; (d) coefficients for newly-emerged bees [#significantly elevated in uninfested insects; * significantly elevated in Varroa-infested insects].
Insects 03 00601 g005 1024

To investigate the effect of Varroa abundance on the nutritional condition of the bees further, the nutritional indices for uninfested pupae, newly-emerged bees and foragers was regressed on Varroa abundance quantified in the same month and, for August and September, in the previous month. None of the regressions were statistically significant, indicating that the level of Varroa infestation in the colony does not have a consistent effect on any tested nutritional index of the bees. The relationship between nutritional indices and immune-related indices (DWV titer and AMP transcript abundance) was also investigated by correlation analysis: no significant correlation between any nutritional and immune-related index was identified.

4. Discussion and Conclusions

An important factor contributing to the threat posed by Varroa to honey bee populations is the high incidence of among-colony transmission due to the drifting bees (i.e., foraging bees that return to the “wrong” colony) [25]. The capacity for rapid among-colony transmission of Varroa is illustrated by this study, in which five initially mite-free colonies had acquired Varroa within 8 weeks, despite no experimental introduction of Varroa. The source(s) of the Varroa in these colonies was not investigated, but could have included foraging bees from the nearby experimentally-infested colonies or feral bees. The incidence of Varroa in feral honey bees is high in the area of S. Texas, USA, used in this study. In other studies in the same region, untreated honey bee colonies have collapsed within five months, apparently due to Varroa infestation [26]. Together with the finding here that the abundance of Varroa in the untreated colonies was significantly higher than in the experimentally-infested colonies at the first time of assay (Figure 1), these consideration suggest that the Varroa in the colonies were likely predominantly of environmental origin.

Consistent with previous reports [13,14,15,17,27], DWV titer was significantly elevated in Varroa-infested insects, a result that has been interpreted previously [13] to indicate that Varroa may reduce the immunological capacity of the honey bee to limit replication of DWV. For example, honey bee defenses based on RNAi may be impaired in Varroa-infested bees. Intriguingly, expression of the autophagic-specific gene 18 (Atg18) is reduced in Varroa-infested bees [28]. This could be indicative that elements of the defensive response against DWV are intact because the autophagic vacuole can act as a site of replication for certain RNA viruses, e.g., dengue virus, in insects [29,30]. Alternatively, activation of virus replication in Varroa infested bees has been discussed by [27,31]. Moreover, the co-infection of DWV with another single-stranded RNA virus, Varroa destructor-1 virus (VDV-1) and/or their recombinants were implicated in facilitating virus transmission and replication in the host [32,33].

We had predicted that Varroa-infested bees would display reduced expression of the AMP genes defensin1, abaecin and hymenoptaecin (see Introduction), based on published evidence that the expression of these genes in newly-emerged bees challenged with E. coli was elevated to a greater extent in uninfested bees than Varroa-infested bees [13]. Contrary to our prediction, expression of these AMP genes was not reduced by Varroa infestation in this study (Figure 2). Our results are, however, consistent with one report of no significant changes in expression of immune-related genes in Varroa parasitized bees [28]. Taken together, these studies suggest that the impact of Varroa on AMP expression may be variable, being influenced for example by honey bee genotype and environmental conditions.

Varroa-infested honey bees are profoundly unhealthy, as indicated by their lower weight and reduced density of multiple nutrients, relative to uninfested bees of the same developmental stage (Figure 3, Figure 4).Nevertheless, the impact of Varroa on honey bee nutrition is complex, and no individual index of nutritional condition could be related to any individual index of immunological condition of the honey bees tested in this study. Despite the evidence for a relationship between immune function and nutritional condition in insects and other animals (see Introduction), attempts to identify the patterns of interaction can easily be confounded by other factors, especially in field populations as studied here.

The protein content of the insects illustrates the complexity of nutritional responses to Varroa. Reduced protein density of Varroa-infested bees is predicted frompublished reports that Varroa depresses the protein content of newly-emerged adult bees [34] and the abundance of transcripts functioning in protein metabolism [35]. This expectation was confirmed for pupae, but not newly-emerged adults in this study. Varroa-infested pupae also had significantly elevated free amino acid content, suggesting that protein synthesis, and ultimately growth, is inhibited by factors other than the supply of amino acids. The high essential amino acid content of the free amino acids in Varroa-infested pupae would be particularly nutritious for the mites, raising the possibility that components in the Varroa saliva interfere with protein and amino acid nutrition of the honey bee to promote mite nutrition. The elevated protein content of infested adult bees suggests that these candidate effects of Varroa on honey bee metabolism may be stage-dependent.

The importance of extraneous uncontrolled factors in determining the nutritional condition of honey bees is illustrated by pervasive and profound effect of colony on insect nutritional condition, especially with respect to energy and carbon allocation. For triglyceride, this effect could be linked, at least partly, to the level of Varroa infestation of the colony. Specifically, the high triglyceride density in pupae and newly-emerged bees from colonies with above-threshold Varroa incidence (Figure 3) may reflect the impaired nutritional input to larvae, such that offspring with elevated triglyceride levels have preferential survival rates. Additionally or alternatively, offspring may respond to poor nutritional conditions by preferential allocation to triglyceride. Further research is required to investigate these possibilities because previous studies of larval malnourishment, reviewed in [36], have not addressed effects of Varroa infestation on nutritional condition of the honey bee. Glycogen and glucose densities also varied among colonies, irrespective of Varroa incidence. The multiple contributory factors may include micro-environmental variation in abiotic conditions experienced by different colonies, proximity to different food sources, and the incidence of parasites and pathogens other than Varroa.

The immune system function of the honey bee has evolved in the context of eusociality, which both increases the potential for rapid within-colony spread of pathogens and parasites, and provides the opportunity for colony-level defenses against infection [37,38]. An important element to the design of this study was the use of multiple colonies, enabling us to discriminate colony-level effects on the honey bee response to Varroa. The low weight of pupae in colonies with high Varroa abundance, irrespective of whether the individual pupa was infested, provides a firm indication that Varroa can deleteriously affect larval provisioning at the colony scale. Other colony-scale effects were generally not evident. A larger number of colonies across multiple sites would provide a stronger test of hypothesized colony-level effects on individual nutritional and immune-related indices than was possible with this study. The key conclusion of this study is, consequently, the pervasive deleterious effect of Varroa on the immunological response and nutritional condition of honey bees in an environmentally-challenging habitat.

Acknowledgments

This study was funded by the USDA NIFA-AFRI Managed Pollinator Coordinated Agricultural Project (CAP) 2009-85118-05718 to KAA and AED and the Sarkaria Institute for Insect Physiology & Toxicology (to AED) for financial support.

References

  1. Ponton, F.; Wilson, K.; Cotter, S.C.; Raubenheimer, D.; Simpson, S.J. Nutritional immunology: A multi-dimensional approach. PLoSPathog. 2011, 7, e1002223.
  2. Schneider, D. Physiological Integration of Innate Immunity. In Insect Infection and Immunity; Rolff, J., Reynolds, S.E., Eds.; Oxford University Press: Oxford, UK, 2009; pp. 106–116.
  3. Moret, Y.; Schmid-Hempel, P. Survival for immunity: The price of immune system activation for bumblebee workers. Science 2000, 290, 1166–1168.
  4. Sheldon, B.C.; Verhulst, S. Ecological immunology: Costly parasite defences and trade-offs in evolutionary ecology. Trends Ecol. Evol. 1996, 11, 317–321, doi:10.1016/0169-5347(96)10039-2.
  5. Schneider, D.S.; Ayres, J.S. Two ways to survive infection: What resistance and tolerance can teach us about treating infectious diseases. Nat. Rev. Immunol. 2008, 8, 889–895, doi:10.1038/nri2432.
  6. Grewal, S.S. Insulin/TOR signaling in growth and homeostasis: A view from the fly world. Int. J. Biochem. Cell Biol. 2009, 41, 1006–1010, doi:10.1016/j.biocel.2008.10.010.
  7. Anderson, D.L.; Trueman, J.W.H. Varroa jacobsoni (Acari: Varroidae) is more than one species. Exp. Appl. Acarol. 2000, 24, 165–189, doi:10.1023/A:1006456720416.
  8. Steiner, J.; Dittmann, F.; Rosenkranz, P.; Engels, W. The first gonocycle of the parasitic mite (Varroa juobsoni) in relation to preimaginal development of its host, the honey bee (Apis mellifra carnicar). Invertebr.Reprod. Dev. 1994, 25, 175–183.
  9. Rosenkranz, P.; Aumeier, P.; Ziegelmann, B. Biology and control of Varroa destructor. J. Invertebr. Pathol. 2010, 103, S96–S119, doi:10.1016/j.jip.2009.07.016.
  10. Williams, G.R.; Tarpy, D.R.; Engelsdorp, D.V.; Chauzat, M.-P.; Cox-Foster, D.L.; Delaplane, K.S.; Neumann, P.; Pettis, J.S.; Rogers, R.E.L.; Shutler, D. Colony collapse disorder in context. BioEssays 2010, 32, 845–846, doi:10.1002/bies.201000075.
  11. van Engelsdorp, D.; Hayes, J., Jr.; Underwood, R.M.; Pettis, J.S. A survey of honey bee colony losses in the United States, fall 2008 to spring 2009. J. Apic. Res. 2010, 49, 7–14, doi:10.3896/IBRA.1.49.1.03.
  12. Martin, S.J. The role of Varroa and viral pathogens in the collapse of honeybee colonies: A modelling approach. J. Appl. Ecol. 2002, 38, 1082–1093, doi:10.1046/j.1365-2664.2001.00662.x.
  13. Yang, X.; Cox-Foster, D.L. Impact of an ectoparasite on the immunity and pathology of an invertebrate: Evidence for host immunosuppression and viral amplification. Proc. Natl. Acad. Sci. USA 2005, 102, 7470–7475.
  14. Yang, X.; Cox-Foster, D.L. Effects of parasitization by Varroa destructor on survivorship and physiological traits of Apis mellifera in correlation with viral incidence and microbial challenge. Parasitology 2007, 134, 405–412, doi:10.1017/S0031182006000710.
  15. Chen, Y.; Pettis, J.S.; Feldlaufer, M.F. Detection of multiple viruses in queens of the honey bee Apis mellifera L. J. Invertebr. Pathol. 2005, 90, 118–121, doi:10.1016/j.jip.2005.08.005.
  16. Chen, Y.P.; Siede, R. Honey bee viruses. Adv. Virus Res. 2007, 70, 33–80, doi:10.1016/S0065-3527(07)70002-7.
  17. Miranda, J.R.D.; Genersch, E. Deformed wing virus. J. Invertebr. Pathol. 2010, 103, S48–S61, doi:10.1016/j.jip.2009.06.012.
  18. Aronstein, K.; Saldivar, E. Characterization of a honey bee Toll related receptor gene Am18w and its potential involvement in antimicrobial immune defense. Apidologie 2005, 36, 3–14, doi:10.1051/apido:2004062.
  19. Evans, J.D.; Aronstein, K.; Chen, Y.P.; Hetru, C.; Imler, J.-L.; Jiang, H.; Kanost, M.; Thompson, G.J.; Zou, Z.; Hultmark, D. Immune pathways and defense mechanisms in honey bees Apis mellifera. Insect Mol. Biol. 2006, 15, 645–656, doi:10.1111/j.1365-2583.2006.00682.x.
  20. Delaplane, K.S.; Hood, W.M. Effects of delayed acaricide treatment in honey bee colonies parasitized by Varroa jacobsoni and a late season treatment threshold for the southeastern USA. J. Apic. Res. 1997, 36, 125–132.
  21. Webster, T.C.; Delaplane, K.S. Mites of the Honey Bee; Dadant and Sons, Inc.: Hamilton, Illinois, 2001; p. 280.
  22. Scharlaken, B.; de Graaf, D.C.; Goossens, K.; Brunain, M.; Peelman, L.J.; Jacobs, F.J. Reference gene selection for insect expression studies using quantitative real-time PCR: The honeybee, Apis mellifera, head after a bacterial challenge. J. Insect Sci. 2008, 8, 1–10.
  23. Lourenco, A.P.; Mackert, A.; Cristino, A.S.; Simoes, Z.L.P. Validation of reference genes for gene expression studies in the honey bee, Apis mellifera, by quantitative real-time RT-PCR. Apidologie 2008, 39, 372–385, doi:10.1051/apido:2008015.
  24. Pfaffl, M.W. A new mathematical model for relative quantification in real-time RT-PCR. Nucleic Acids Res. 2001, 29, E45, doi:10.1093/nar/29.9.e45.
  25. Goodwin, M.R.; Perry, J.H.; Houten, A.T. The effect of drifting honey bees on the spread of American foulbrood infections. J. Apic. Res. 1994, 33, 209–212.
  26. Delaplane, K.S. The managed pollinator CAP after Three Years: Highlights and emerging trends. Am. Bee J. 2012, January, 77.
  27. Yue, C.; Genersch, E. RT-PCR analysis of Deformed wing virus in honeybees (Apis mellifera) and mites (Varroa destructor). J. Gen. Virol. 2005, 86, 3419–3424, doi:10.1099/vir.0.81401-0.
  28. Navajas, M.; Migeon, A.; Alaux, C.; Martin-Magniette, M.L.; Robinson, G.E.; Evans, J.D.; Cros-Arteil, S.; Crauser, D.; Le Conte, Y. Differential gene expression of the honey bee Apis mellifera associated with Varroa destructor infection BMC. Genomics 2008, 9, 301.
  29. Panyasrivanit, M.; Khakpoor, A.; Wikan, N.; Smith, D.R. Co-localization of constituents of the dengue virus translation and replication machinery with amphisomes. J. Gen. Virol. 2009, 90, 448–456, doi:10.1099/vir.0.005355-0.
  30. Khakpoor, A.; Panyasrivanit, M.; Wikan, N.; Smith, D.R. A role for autophagolysosomes in dengue virus 3 production in HepG2 cells. J. Gen. Virol. 2009, 90, 1093–1103, doi:10.1099/vir.0.007914-0.
  31. Gisder, S.; Aumeier, P.; Genersch, E. Deformed wing virus: Replication and viral load in mites (Varroa destructor). J. Gen. Virol. 2009, 90, 463–467, doi:10.1099/vir.0.005579-0.
  32. Moore, J.; Jironkin, A.; Chandler, D.; Burroughs, N.; Evans, D.J.; Ryabov, E.V. Recombinants between Deformed wing virus and Varroa destructor virus-1 may prevail in Varroa destructor-infested honeybee colonies. J. Gen. Virol. 2011, 92, 156–161, doi:10.1099/vir.0.025965-0.
  33. Zioni, N.; Soroker, V.; Chejanovsky, N. Replication of Varroa destructor virus 1 (VDV-1) and a Varroa destructor virus 1-deformed wing virus recombinant (VDV-1-DWV) in the head of the honey bee. Virology 2011, 417, 106–112, doi:10.1016/j.virol.2011.05.009.
  34. Bowen-Walker, P.L.; Gunn, A. The effect of the ectoparasitic mite, Varroa destructor, on adult worker honey bee (Apis mellifera) emergence weights, water, protein, carbohydrate and lipid levels. Entomol. Exp. et Appl. 2001, 101, 207–217.
  35. Alaux, C.; Dantec, C.; Parrinello, H.; Le Conte, Y. Nutrigenomics in honey bees: Digital gene expression analysis of pollen's nutritive effects on healthy and varroa-parasitized bees. BMC Genomics 2011, 12, 496, doi:10.1186/1471-2164-12-496.
  36. Brodschneider, R.; Crailsheim, K. Nutrition and health in honey bees. Apidologie 2010, 41, 278–294, doi:10.1051/apido/2010012.
  37. Fefferman, N.H.; Traniello, J.F.A.; Rosengaus, R.B.; Calleri, D.V. Disease prevention and resistance in social insects: modeling the survival consequences of immunity, hygienic behavior, and colony organization. Behav.Ecol. Soc. 2007, 61, 565–577, doi:10.1007/s00265-006-0285-y.
  38. Parker, B.J.; Barribeau, S.M.; Laughton, A.M.; Roode, J.C.D.; Gerardo, N.M. Non-immunological defense in an evolutionary framework. Trends Ecol. Evol. 2011, 26, 242–248, doi:10.1016/j.tree.2011.02.005.
