*Galaxies*
**2014**,
*2*(1),
72-80;
doi:10.3390/galaxies2010072

Published: 17 February 2014

## Abstract

**:**Dark energy with negative pressure and positive energy density is believed to be responsible for the accelerated expansion of the universe. Quite a few theoretical models of dark energy are based on tachyonic fields interacting with itself and normal (bradyonic) matter. Here, we propose an experimental model of tachyonic dark energy based on hyperbolic metamaterials. Wave equation describing propagation of extraordinary light inside hyperbolic metamaterials exhibits 2 + 1 dimensional Lorentz symmetry. The role of time in the corresponding effective 3D Minkowski spacetime is played by the spatial coordinate aligned with the optical axis of the metamaterial. Nonlinear optical Kerr effect bends this spacetime resulting in effective gravitational force between extraordinary photons. We demonstrate that this model has a self-interacting tachyonic sector having negative effective pressure and positive effective energy density. Moreover, a composite multilayer SiC-Si hyperbolic metamaterial exhibits closely separated tachyonic and bradyonic sectors in the long wavelength infrared range. This system may be used as a laboratory model of inflation and late time acceleration of the universe.

## 1. Introduction

Recent observational data have revealed accelerated expansion of the universe which cannot be explained by gravitational dynamics of ordinary matter. One of the possible explanations of these observations involves existence of a dark energy with negative pressure and positive energy density. It is assumed that gravitational repulsion due to dark energy accelerates present day expansion of the universe. Among various theoretical models of dark energy proposed so far, such as cosmological constant [1], quintessence [2], etc., tachyon-based models play a very prominent role [3,4,5,6,7]. A typically used relativistic tachyonic Lagrangian:

Our proposal is built on the recently developed hyperbolic metamaterial-based model of 2 + 1 dimensional gravity [8]. It appears that wave equation describing propagation of extraordinary light inside hyperbolic metamaterials exhibits 2 + 1 dimensional Lorentz symmetry [9]. The role of time in the corresponding effective 3D Minkowski spacetime is played by the spatial coordinate aligned with the optical axis of the metamaterial [10]. Nonlinear optical Kerr effect “bends” this spacetime resulting in effective gravitational interaction between extraordinary photons. In order for the effective gravitational constant to be positive, negative self-defocusing Kerr medium must be used [8]. These results are quite interesting given the fact that physical vacuum itself may behave as a hyperbolic metamaterial when subjected to very strong magnetic field [11,12]. Moreover, negative self-defocusing Kerr effect typically arises due to thermal expansion of the medium, which makes the effective 2 + 1 dimensional gravity a thermal effect obeying basic laws of thermodynamics. This feature of our model appears to be very attractive since recent theoretical developments strongly indicate thermodynamic origins of gravitational interaction [13,14].

## 2. Results and Discussion

Before we proceed to a model of interacting tachyonic fields, let us recall basic properties of hyperbolic metamaterials and their description using effective 2 + 1 dimensional Minkowski spacetime. Recent advances in electromagnetic metamaterials enable design of novel physical systems which can be described by effective space-times having very unusual metric and topological properties [15]. In particular, hyperbolic metamaterials (see Figure 1) offer an interesting experimental window into physics of Minkowski spacetimes, since propagation of extraordinary light inside a hyperbolic metamaterial is described by wave equation exhibiting 2 + 1 dimensional Lorentz symmetry. A detailed derivation of this result can be found in [9,10]. Assuming that the metamaterial in question is uniaxial and non-magnetic, electromagnetic field inside the metamaterial may be separated into ordinary and extraordinary waves: vector of the extraordinary light wave is parallel to the plane defined by the k–vector of the wave and the optical axis of the metamaterial. In the frequency domain (in some frequency band around ω = ω_{0}) the metamaterial may be described by anisotropic dielectric tensor having opposite signs of the diagonal components ε_{xx} = ε_{yy} = ε_{1} and ε_{zz} = ε_{2}, while all the non-diagonal components are assumed to be zero in the linear optics limit. Propagation of extraordinary light in such a metamaterial may be described by a coordinate-dependent wave function φ_{ω} = E_{z} obeying the following wave equation [9,10]:

_{1}> 0 while ε

_{2}< 0, this wave equation coincides with the Klein-Gordon equation for a massive scalar field φ

_{ω}in 3D Minkowski spacetime:

_{z}plays the role of effective energy, while vector (k

_{x},k

_{y}) plays the role of momentum. The effective mass squared m*

^{2}appears to be positive. Note that components of metamaterial dielectric tensor define the effective metric g

_{ik}of this spacetime: g

_{00}= ε

_{1}and g

_{11}= g

_{22}= −ε

_{2}. This spacetime may be made “causal” by breaking the mirror and temporal symmetries of the metamaterial, which results in one-way light propagation along the timelike spatial coordinate [16], while “gravitational bending” of the effective spacetime may lead to an experimental model of the big bang [10]. In the weak gravitational field limit the effective Einstein equation:

_{00}is identified with –ε

_{1}, Equation (8) must be translated as:

^{(2)}is the 2D Laplacian operating in the xy plane, γ* is the effective “gravitational constant”, and σ

_{zz}is the zz component of the Maxwell stress tensor of the electromagnetic field in the medium [18]:

**Figure 1.**Typical geometries of hyperbolic metamaterials: (

**a**) metal wire array structure, and (

**b**) multilayer metal-dielectric structure. The role of time in the effective 3D Minkowski spacetime is played by z coordinate aligned with the optical axis of the metamaterial, while k

_{z}behaves as an effective “energy”; depending on frequency range and materials used, both configurations may exhibit either bradyonic or tachyonic dispersion relations shown in (

**c**).

Detailed analysis performed in [8] indicates that nonlinear corrections to ε_{1} due to Kerr effect lead to effective gravitational interaction between the extraordinary photons, and the sign of the third order nonlinear susceptibility χ^{(3)} of the hyperbolic metamaterial must be negative for the effective gravity to be attractive. It is also interesting to note that in the strong gravitational field limit this model contains 2 + 1 dimensional black hole analogs in the form of subwalength solitons [8].

Let us analyze how the basic framework outlined above can be extended to the tachyonic case. Very recently it has been noted [19] that depending on the frequency range and materials used, extraordinary photons in both hyperbolic metamaterial configurations shown in Figure 1a,b may exhibit a tachyonic dispersion relation. Let us analyze solutions of Equation (4) in the case where ε_{1} < 0 while ε_{2} > 0. It is clear that extraordinary photon propagation through such a metamaterial may still be described using an effective 2 + 1 dimensional Minkowski spacetime. However, the effective metric coefficients g_{ik} of this spacetime change to g_{00} = ε_{1} and g_{11} = g_{22} = ε_{2}, and the dispersion law of extraordinary photons changes to:

^{eff}

_{ik}which coincides with the Maxwell stress tensor:

The contributions to σ_{ik} which are made by a single extraordinary plane wave propagating inside the hyperbolic metamaterial may be calculated similar to [8]. Assuming without a loss of generality that the B field of the wave is oriented along y direction, the other field components may be found from Maxwell equations as:

Taking into account the dispersion law Equation (11) of the extraordinary wave, the contributions to σ_{zz} and σ_{xx} from a single plane wave are:

_{yy}= 0, leading to tachyonic negative TrT

^{eff}=−B

^{2}/4π.

Similar to [8], nonlinear optical Kerr effect leads to gravity-like self-interaction of the tachyonic field. Taking into account that g_{00} = ε_{1}, the Einstein Equation (8) translates into:

_{1}are assumed to be small, so that we can separate ε

_{1}into the constant background value ε

_{1}

^{(0)}and weak nonlinear corrections (note that similar to [8], second order nonlinear susceptibilities χ

^{(2)}

_{ijl}of the metamaterial are assumed to be zero). These nonlinear corrections look like the Kerr effect assuming that the extraordinary photon wave vector components are large compared to ω/c:

This assumption has to be the case if extraordinary photons may be considered as classic “particles”. Equation (17) establishes connection between the effective gravitational constant γ* and the third order nonlinear susceptibility χ^{(3)} of the hyperbolic metamaterial. Similar to the “bradyonic case” considered in [8], the sign of χ^{(3)} must be negative for the effective gravity to be attractive (since ε_{2} > 0). Since most liquids exhibit large and negative thermo-optic coefficient resulting in large and negative χ^{(3)}, and there exist readily available ferrofluid-based hyperbolic metamaterials [20], laboratory experiments with gravitationally self-interacting tachyonic fields appear to be realistic in the near future. Moreover, as we will demonstrate below, even more curious case of coexisting mutually-interacting tachyonic and bradyonic fields seems to be no more difficult to realize. Since gravitational dynamics of mutually interacting tachyonic and bradyonic fields may have contributed to inflation and late time acceleration of our universe [3,5], such experiments would be very interesting.

Let us consider a multilayer metal-dielectric metamaterial shown in Figure 1b. The diagonal components of its dielectric tensor may be obtained using Maxwell-Garnett approximation [21]:

_{1}= ε

_{xy}= nε

_{m}+ (1 − n)ε

_{d}

_{m}and ε

_{d}are the dielectric permittivities of the metal and dielectric phase, respectively. A suitable choice of n is known to lead to hyperbolic behavior in such metamaterials [21]. However, ordinary metals cannot be used in a hyperbolic metamaterial design having closely spaced tachyonic and bradyonic frequency bands due to their broadband metallic (ε

_{m}< 0) behavior. This difficulty may be overcome by using such materials as SiC, which have narrow Restsrahlen metallic bands in the long wavelength infrared (LWIR) range. Silicon carbide may be used in combination with such material as Si, which exhibits broadband dielectric behavior in the LWIR having ε

_{d}~ 10.9. Indeed, our calculations presented in Figure 2 indicate that around n ~ 0.3 a multilayer SiC-Si metamaterial does have pronounced closely spaced tachyonic and bradyonic frequency bands, while having relatively low losses. The calculated values of ε

_{1}and ε

_{2}are based on the measured optical properties of SiC reported in [22]. A somewhat similar result has been reported in [21] for a SiC-Si wire array structure, but unlike our multilayer design, fabrication of SiC-Si wire arrays may prove extremely difficult. We should also point out that such materials as SiO

_{2}, Al

_{2}O

_{3}, etc. also have pronounced Restsrahlen bands in the LWIR range, so that they can be used in the layered design with equal success. If native undoped Si is used in the metamaterial design, its nonlinearity will be dominated by negative thermo-optic coefficient due to thermal expansion. Thus, the desired negative χ

^{(3)}metamaterial will be obtained resulting in positive γ*.

We should also point out that ε and χ^{(3)} tensors of the metamaterial do not need to stay coordinate independent. Spatial behavior of the dielectric permittivity tensor components may be engineered so that the background metric may closely emulate metric of the universe during inflation [23]. On the other hand, engineered higher order nonlinear susceptibility terms χ^{(n)} may be used to emulate the desired functional form of the tachyonic potential V(ϕ) (see Equations (1–3)). As a result, various scenarios of tachyonic inflation [3] will become amenable to direct experimental testing.

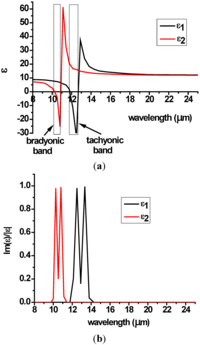

**Figure 2.**(

**a**) Calculated diagonal components of the dielectric permittivity tensor of a multilayer SiC-Si metamaterial in the long wavelength infrared (LWIR) frequency range. The volume fraction of SiC equals n = 0.3. Two closely spaced tachyonic and bradyonic hyperbolic bands arise near λ = 11 μm; (

**b**) Calculated Im(ε)/|ε| for both directions indicate low loss hyperbolic behavior inside the bands.

## 3. Conclusions

In conclusion, we have demonstrated that extraordinary photons in a composite multilayer SiC-Si hyperbolic metamaterial exhibit closely separated tachyonic and bradyonic frequency bands around λ = 11 μm. Nonlinear optical Kerr effect leads to effective gravitational interaction of photons in these bands. This interaction may be used to study gravitational dynamics of tachyonic and bradyonic fields, which is responsible for inflation and late time acceleration of the universe in the tachyonic models of dark energy. While metamaterial losses constitute an important performance-limiting issue for this model, loss compensation using gain media [24] is known to be able to overcome this problem. In our particular case loss compensation is simplified by the fact that in our metamaterial design the tachyonic and the bradyonic bands are located very close to each other.

## Conflicts of Interest

The author declares no conflict of interest.

## References

- Peebles, P.J.E.; Ratra, B. The cosmological constant and dark energy. Rev. Mod. Phys.
**2003**, 75, 559–606. - Caldwell, R.R.; Dave, R.; Steinhardt, P.J. Cosmological imprint of an energy component with general equation of state. Phys. Rev. Lett.
**1988**, 80, 1582–1585, doi:10.1103/PhysRevLett.80.1582. - Sen, A. Rolling tachyon. J. High Energy Phys.
**2002**, 2002, 048, doi:10.1088/1126-6708/2002/04/048. - Sen, A. Time evolution in open string theory. J. High Energy Phys.
**2002**, 2002, doi:10.1088/1126-6708/2002/10/003. - Gibbons, G.W. Cosmological evolution of the rolling tachyon. Phys. Lett. B
**2002**, 537, 1–4, doi:10.1016/S0370-2693(02)01881-6. - Sadeghi, A.B.J.; Khurshudyan, M.; Hakobyan, M.; Farahani, H. Phenomenological fluids from interacting tachyonic scalar fields. Int. J. Theor. Phys.
**2014**, 53, doi:10.1007/s10773-014-2025-9. - Verma, M.M.; Pathak, S.D. A thachyonic scalar field with mutually interacting components. Int. J. Theor. Phys.
**2012**, 51, 2370–2379, doi:10.1007/s10773-012-1116-8. - Smolyaninov, I.I. Analog of gravitational force in hyperbolic metamaterials. Phys. Rev. A
**2013**, 88, 033843, doi:10.1103/PhysRevA.88.033843. - Smolyaninov, I.I.; Narimanov, E.E. Metric signature transitions in optical metamaterials. Phys. Rev. Lett.
**2010**, 105, 067402, doi:10.1103/PhysRevLett.105.067402. - Smolyaninov, I.I.; Hung, Y.-J. Modeling of time with metamaterials. J. Opt. Soc. Am. B
**2011**, 28, 1591–1595, doi:10.1364/JOSAB.28.001591. - Smolyaninov, I.I. Vacuum in strong magnetic field as a hyperbolic metamaterial. Phys. Rev. Lett.
**2011**, 107, 253903, doi:10.1103/PhysRevLett.107.253903. - Smolyaninov, I.I. Planck-scale physics of vacuum in a strong magnetic field. Phys. Rev. D
**2012**, 85, 114013, doi:10.1103/PhysRevD.85.114013. - Verlinde, E. On the origin of gravity and the laws of Newton. J. High Energy Phys.
**2011**, 4, 029, doi:10.1007/JHEP04(2011)029. - Jacobson, T. Thermodynamics of spacetime: The Einstein equation of state. Phys. Rev. Lett.
**1995**, 75, 1260–1263, doi:10.1103/PhysRevLett.75.1260. - Smolyaninov, I.I. Metamaterial multiverse. J Opt.
**2011**, 13, 024004, doi:10.1088/2040-8978/13/2/024004. - Smolyaninov, I.I. Modeling of causality with metamaterials. J. Opt.
**2013**, 15, 025101, doi:10.1088/2040-8978/15/2/025101. - Landau, L.; Lifshitz, E. Field Theory; Elsevier: Amsterdam, The Netherlands, 2004.
- Landau, L.; Lifshitz, E. Electrodynamics of Continuous Media; Elsevier: Amsterdam, The Netherlands, 2004.
- Smolyaninov, I.I.; Hwang, E.; Narimanov, E.E. Hyperbolic metamaterial interfaces: Hawking radiation from Rindler horizons and spacetime signature transitions. Phys. Rev. B
**2012**, 85, 235122, doi:10.1103/PhysRevB.85.235122. - Smolyaninov, I.I.; Yost, B.; Bates, E.; Smolyaninova, V.N. Experimental demonstration of metamaterial “multiverse” in a ferrofluid. Opt. Express
**2013**, 21, 14918–14925, doi:10.1364/OE.21.014918. - Wangberg, R.; Elser, J.; Narimanov, E.E.; Podolskiy, V.A. Nonmagnetic nanocomposites for optical and infrared negative-refractive-index media. J. Opt. Soc. Am. B
**2006**, 23, 498–505, doi:10.1364/JOSAB.23.000498. - Pitman, K.M.; Speck, A.K.; Hofmeister, A.M.; Corman, A.B. Optical Properties and Applications of Silicon Carbide in Astrophysics. In Silicon Carbide-Materials, Processing and Applications in Electronic Devices; Mukherjee, M., Ed.; InTech: Rijeka, Croatia, 2011.
- Smolyaninov, I.I.; Hung, Y.J.; Hwang, E. Experimental modeling of cosmological inflation with metamaterials. Phys. Lett. A
**2012**, 376, 2575–2579, doi:10.1016/j.physleta.2012.07.010. - Xiao, S.; Drachev, V.P.; Kildishev, A.V.; Ni, X.; Chettiar, U.K.; Yuan, H.-K.; Shalaev, V.M. Loss-free and active optical negative-index metamaterials. Nature
**2010**, 466, 735–738, doi:10.1038/nature09278.
