Dynamic Disorder of Fe³⁺ Ions in the Crystal Structure of Natural Barioferrite

Abstract

A natural barioferrite, BaFe³⁺₁₂O₁₉, from a larnite–schorlomite–gehlenite vein of paralava within gehlenite hornfels of the Hatrurim Complex at Har Parsa, Negev Desert, Israel, was investigated by Raman spectroscopy, electron probe microanalysis, and single-crystal X-ray analyses acquired over the temperature range of 100–400 K. The crystals are up to 0.3 mm × 0.1 mm in size and form intergrowths with hematite, magnesioferrite, khesinite, and harmunite. The empirical formula of the barioferrite investigated is as follows: (Ba_0.85Ca_0.12Sr_0.03)_∑1(Fe³⁺_10.72Al_0.46Ti⁴⁺_0.41Mg_0.15Cu²⁺_0.09Ca_0.08Zn_0.04Mn²⁺_0.03Si_0.01)_∑11.99O₁₉. The strongest bands in the Raman spectrum are as follows: 712, 682, 617, 515, 406, and 328 cm⁻¹. The structure of natural barioferrite (P6₃/mmc, a = 5.8901(2) Å, c = 23.1235(6) Å, V = 694.75(4) ų, Z = 2) is identical with the structure of synthetic barium ferrite and can be described as an interstratification of two fundamental blocks: spinel-like S-modules with a cubic stacking sequence and R-modules that have hexagonal stacking. The displacement ellipsoids of the trigonal bipyramidal site show elongation along the [001] direction during heating. As a function of temperature, the mean apical Fe–O bond lengths increase, whereas the equatorial bond lengths decrease, which indicates dynamic disorder at the Fe2 site.

1. Introduction

Barioferrite, BaFe₁₂O₁₉, P6₃/mmc, a = 5.8921(2) Å, c = 23.1092(8) Å was described as a new mineral species from a metamorphosed baryte nodule, which was found on the southern slope of Har Ye’elim, a mountain in the Negev Desert, Israel. In this nodule, barioferrite occurs as small platy crystals up to 3 × 15 × 15 µm³, as well as their aggregates. Therefore, the unit cell dimensions of the holotype specimen were obtained only from powder X-ray diffraction data [1]. There are several descriptions of synthetic BaFe₁₂O₁₉ [2,3,4,5], whereas there are no previous single-crystal structure studies of natural BaFe₁₂O₁₉.

Barioferrite belongs to the magnetoplumbite group. This group is characterized by the general crystal chemical formula AM₁₂O₁₉, where A = Ba, Pb, K, Ca, Fe²⁺, Mn, Mg, REE and M = Fe^2+,3+, Mg, Al, Ti⁴⁺, Cr³⁺, Mn^2+,4+, Zn [6]. Minerals of the magnetoplumbite group are characterized by a modular structure composed of three-layered spinel blocks (S) interstratified with R-blocks, in which the larger A-site cations are located [7].

A natural occurrence of BaFe₁₂O₁₉ was first reported from Si-undersaturated Ca-Fe-rich buchite in porcelanite deposits at Želénky in the North Bohemian Brown Coal Basin, Czech Republic [8].

Our investigations have shown that barioferrite, occurring in small segregations intergrown with other ferrites, is a common accessory mineral of rankinite-bearing paralavas that are hosted by gehlenite hornfelses that belong to the pyrometamorphic Hatrurim Complex [9,10,11]. Pyrometamorphic rocks of the Hatrurim Complex are distributed in the territory of Israel, the Palestinian Autonomy, and Jordan along the rift of the Dead Sea [12,13,14,15].

Synthetic BaFe₁₂O₁₉ is well known under such names as barium ferrite, hexaferrite, barium hexaferrite, ferroxdure, M ferrite, and BaM [7]. An X-ray single-crystal study of synthetic BaFe₁₂O₁₉ was first undertaken by Townes [16], and the structure was reinvestigated in detail by Obradors [2]. They found that it is isostructural with magnetoplumbite, PbFe³⁺₁₂O₁₉, which was described by Aminoff (1925) [17] and structurally characterized by Adelsköld in 1938 [7]. Many authors have tried to refine the crystal structure of synthetic BaFe₁₂O₁₉ in different space groups (e.g., P-62c and P6₃mc), and all of them considered space group P6₃/mmc as the most probable one [2,3,4,5]. In space group P6₃/mmc, the Fe2 site has trigonal bipyramid coordination [18]; this site demonstrates splitting or extreme elongation of the displacement ellipsoid along the [001] direction [2]. The relative displacement of iron from the center of the FeO₅ bipyramid induces a local electric and dipole moment, which affects the paraelectric/ferroelectric properties of hexaferrites [19].

In this paper, we present the results of the single-crystal structural investigation of natural barioferrite for the first time. Also, powder diffraction data, chemical composition, and single-crystal Raman spectroscopic data are provided for the studied mineral. We pay attention to the structural deformations of the trigonal bipyramidal site at different temperatures and consider mechanisms for the incorporation of Al, Ti, and Mg into the structure of natural barioferrite.

2. Methods and Description

2.1. Geological Setting and Mineral Description

The barioferrite investigated was found in the outcrops at Har Parsa, which is located in the eastern part of the Hatrurim Basin, about 10 km southeast of Arad, Negev Desert, Israel. The Hatrurim Basin is the one of the largest units in the Hatrurim pyrometamorphic complex. It is a generally recognized fact that the terrigenous-carbonate protolith of the Hatrurim Complex was driven by combustion processes [20,21,22,23]. The geology and origin of the Hatrurim Complex have been discussed previously in some detail [21,22,23,24,25,26]. Many new minerals including aradite, zadovite [9], gurimite, hexacelsian [10], ariegilatite [27], flamite [28], shulamitite [29], barioferrite [1], silicocarnotite [30], and gazeevite [31] have been described from this locality.

Barioferrite forms platy submetallic crystals in a small paralava vein up to 1.5 cm thick in gehlenite hornfels at Har Parsa. Some barioferrite crystals reach 0.3 mm × 0.1 mm in size (Figure 1b,c). Minerals of the larnite-flamite and andradite-schorlomite series, Fe³⁺-bearing gehlenite, magnesioferrite, and khesinite, are rock-forming minerals in this paralava (Figure 1a). Barioferrite forms intergrowths with hematite, magnesioferrite MgFe₂O₄, khesinite Ca₄Mg₂Fe³⁺₁₀O₄(Fe³⁺₁₀Si₂)O₃₆ (often with Ca > Mg at the Mg site [11]), and harmunite CaFe₂O₄ (Figure 1d) and is also present as small inclusions in gehlenite (Figure 1а). Minor and accessory minerals, in addition to the above-listed ferrites, are represented by vorlanite CaUO₄, Si–Fe-bearing perovskite, P-bearing fluorellestadite, and baryte.

2.2. Methods of Investigation

The morphology and composition of barioferrite and associated minerals were studied using optical microscopy, scanning electron microscopy (Phenom-World, Eindhoven, The Netherlands)) (Phenom XL, Faculty of Earth Sciences, University of Silesia, Sosonowiec, Poland), and an electron probe microanalyzer (Cameca, Gennevilliers, France) (Cameca SX100, Institute of Geochemistry, Mineralogy and Petrology, University of Warsaw, Warsaw, Poland). Elemental analyses were carried out (WDS-mode, 15 kV, 20 nA, ~1 µm beam diameter) using the following X-ray lines (detection limit, wt %) and standards: Si Kα (0.03), Ca Kα (0.04), Mg Kα (0.03)—diopside; Al Kα (0.03)—orthoclase; Ti Kα (0.05)—TiO₂; Mn Kα (0.10)—rhodonite; Fe Kα (0.13)—Fe₂O₃; Ba Lα (0.11)—baryte; Sr Lα (0.09)—celestine; Cu Kα (0.17)—cuprite; and Zn Kα (0.23)—sphalerite_. Corrections were calculated using a PAP procedure provided by CAMECA [32].

The Raman spectra of barioferrite were recorded using a WITec alpha 300R Confocal Raman Microscope (WITec, Ulm, Germany) (Faculty of Earth Sciences, University of Silesia, Sosnowiec, Poland) equipped with an air-cooled solid-state laser (532 nm) and a CCD camera operating at −61 °C. The laser radiation was coupled to a microscope through a single-mode optical fiber with a diameter of 3.5 µm. A Zeiss LD EC Epiplan-Neofluar DIC-100/0.75NA objective was used. Raman scattered light was focused on a broadband single-mode fiber with an effective pinhole size of about 30 µm, and a monochromator with a 600 groove/mm⁻¹ grating was used. The power of the laser at the sample position was ca. 25–30 mW. Integration times of 10 s with an accumulation of 20 scans and a resolution 3 cm⁻¹ were chosen. The monochromator was calibrated using the Raman scattering line of a silicon plate (520.7 cm⁻¹). Spectra processing, such as baseline correction and smoothing, was performed using the SpectraCalc software package GRAMS (Galactic Industries Corporation, Salem, NH, USA). Band-fitting was performed using a Gauss–Lorentz cross-product function, with a minimum number of component bands used for the fitting process.

Powder X-ray diffraction patterns of barioferrite were obtained using a Rigaku R-AXIS RAPID II diffractometer (Rigaku Co., Tokyo, Japan) (Saint Petersburg State University, Saint Petersburg, Russia) equipped with a cylindrical image plate detector using the Debye-Scherrer geometry (d = 127.4 mm; Co Kα radiation) and measured at room temperature. The data were integrated using the software package Osc2Tab/SQRay [33].

The single-crystal X-ray diffraction experiments were carried out at 100, 200, 300, and 400 K using an Agilent Technologies Xcalibur Eos diffractometer (Agilent Technologies, Santa Clara, CA, USA ) (Saint Petersburg State University, Saint Petersburg, Russia) operated at 50 kV and 40 mA and equipped with an Oxford Cobra Plus system (

Table 1. Crystal data and structure refinement for barioferrite at 100, 200, 300, and 400 K.

Identification Code	100 K	200 K	300 K	400 K
Temperature (K)	100(2)	200(2)	300(2)	400(2)
Crystal system, Z	Hexagonal
Space group	P63/mmc
a (Å)	5.8920(2)	5.8901(2)	5.8901(2)	5.8992(2)
c (Å)	23.1092(7)	23.1171(7)	23.1235(6)	23.1891(9)
Volume (Å3)	694.78(5)	694.57(4)	694.75(4)	698.87(6)
ρcalc (g/cm3)	5.183	5.184	5.183	5.152
μ (mm−1)	14.131	14.136	14.132	14.049
F(000)	1017.0	1017.0	1017.0	1017.0
Crystal size (mm3)	0.20 × 0.09 × 0.07
Radiation	Mo Kα (λ = 0.71073)
2θ range (°)	7.054–64.038	7.05–63.804	7.048–61.54	7.028–64.436
hkl range	−8 ≤ h ≤ 8, −6 ≤ k ≤ 6, −33 ≤ l ≤ 33	−8 ≤ h ≤ 8, −8 ≤ k ≤ 8, −32 ≤ l ≤ 32	−7 ≤ h ≤ 7, −8 ≤ k ≤ 8, −32 ≤ l ≤ 28	−8 ≤ h ≤ 8, −7 ≤ k ≤ 8, −32 ≤ l ≤ 32
Reflections collected	3907	6363	6065	6804
Independent reflections	501 [Rint = 0.0176, Rsigma = 0.0106]	505 [Rint = 0.0300, Rsigma = 0.0148]	461 [Rint = 0.0281, Rsigma = 0.0121]	519 [Rint = 0.0279, Rsigma = 0.0118]
Data/restraints/parameters	501/0/42	508/0/42	461/0/42	519/0/42
GooF	1.229	1.270	1.288	1.268
Final R indexes [I ≥ 2σ (I)]	R1 = 0.0142, wR2 = 0.0364	R1 = 0.0207, wR2 = 0.0493	R1 = 0.0161, wR2 = 0.0425	R1 = 0.0173, wR2 = 0.0433
Final R indexes [all data]	R1 = 0.0164, wR2 = 0.0372	R1 = 0.0234, wR2 = 0.0506	R1 = 0.0179, wR2 = 0.0431	R1 = 0.0193, wR2 = 0.0440
Largest difference peak/hole (e Å−3)	0/53/−0.56	1.13/−0.99	0.43/−0.89	0.79/−1.16

). More than a hemisphere of three-dimensional data was collected using monochromatic Mo Kα X-radiation with frame widths of 1° and 40–80 s count time for each frame. The systematic absences observed are consistent with space group P6₃/mmc.

2.3. Chemical Composition and Raman Spectroscopy

To identify barioferrite, we performed electron probe microanalysis and Raman spectroscopy. Barioferrite from the paralava of Har Parsa has a relatively constant composition and contains substantial substitutional elements, including Ti⁴⁺, Al, and Са (

Table 2. Chemical composition of barioferrite from Har Parsa.

Component (wt %)	Mean (n = 17)	Range	Standard Deviation.	Calculated on 19 O
TiO2	3.05	2.90–3.27	0.09	Ba	0.85
SiO2	0.05	0.00–0.10	0.02	Ca	0.12
Fe2O3	80.47	78.89–81.53	0.72	Sr	0.03
Al2O3	2.22	2.11–2.38	0.06	Asite	1
BaO	12.32	11.56–13.41	0.46	Fe3+	10.72
MgO	0.58	0.51–0.68	0.05	Al	0.46
CaO	1.03	0.83–1.32	0.17	Ti	0.41
MnO	0.18	0.11–0.23	0.04	Mg	0.15
SrO	0.32	0.14–0.43	0.07	Cu2+	0.09
CuO	0.65	0.48–0.84	0.11	Ca	0.08
ZnO	0.33	0.19–0.47	0.08	Zn	0.04
	101.2	100.09–101.69		Mn2+	0.03
				Si	0.01
				Msites	11.99

). The presence of Cu and Zn and also the interpreted incorporation of small amounts of Ca in the spinel module is a specific feature not only of barioferrite from Har Parsa paralava, but also barioferrite and magnesioferrite from other localities of pyrometamorphic rocks of the Hatrurim Complex [11,29,34]. The positive charge caused by substituted trivalent iron by tetravalent titanium is compensated by the presence of divalent elements. The empirical crystal chemical formula of barioferrite is as follows: (Ba_0.85Ca_0.12Sr_0.03)_∑1(Fe³⁺_10.72Al_0.46Ti⁴⁺_0.41Mg_0.15Cu²⁺_0.09Ca_0.08Zn_0.04Mn²⁺_0.03Si_0.01)_∑11.99O₁₉. This composition of barioferrite is close to the end-member BaFe₁₂O₁₉.

In the barioferrite structure, the spinel blocks are composed of Fe⁽³⁾O₄ tetrahedra and Fe^(1,4)O₆ octahedra, whereas R-blocks are formed by Fe⁽²⁾O₅ trigonal bipyramids and Fe⁽⁵⁾O₆ octahedra with dodecacoordinated Ba in structural cages. The main bands observed in the Raman spectra of the studied barioferrite are associated with Fe³⁺O vibrations and shifted towards the higher Raman shift frequency in comparison with analogous bands of synthetic barioferrite (our data, Figure 2/synthetic barioferrite [35], cm⁻¹): 714/713 [A_1g, tetrahedron Fe⁽³⁾O₄]; 689/684 [A_1g, bipyramid Fe⁽²⁾O₅]; 624/614 [A_1g, octahedron Fe⁽⁵⁾O₆]; 532/527, 520/512 [A_1g, octahedron Fe⁽¹⁾O₆ and Fe⁽⁴⁾O₆]; 412/409 [A_1g, Fe⁽⁴⁾O₆ octahedron dominated]; 335/335 + 317 [E_1g + E_2g]. Similar band shifts were observed in Raman spectrum of synthetic barioferrite Ba_1−xCa_xFe₁₂O₁₉, with x = 0.1 [36]. In the studied barioferrite, 0.12 Ca pfu is present at the Ba site (Table 2), which most probably determines the band shifts. Also, we cannot exclude an influence of Al and Ti⁴⁺ impurities substituting for Fe³⁺ (Table 2) on bands position in the Raman spectrum. A similar effect was described before for Ti-bearing synthetic barioferrite [37]. Moreover, wide band centered about 1359 cm⁻¹ is overtone (Figure 2). The bands at 164 and 178 cm⁻¹ are assigned to the motion of the spinel block as a whole [35]. The band near 673 cm⁻¹ is not usually noted in barioferrite spectra [35,37]; it was observed once in the spectrum of pure barioferrite [38], and it is possible, that this band is related to Fe³⁺ in the bipyramid.

3. X-ray Diffraction Studies

3.1. Powder Diffraction Data

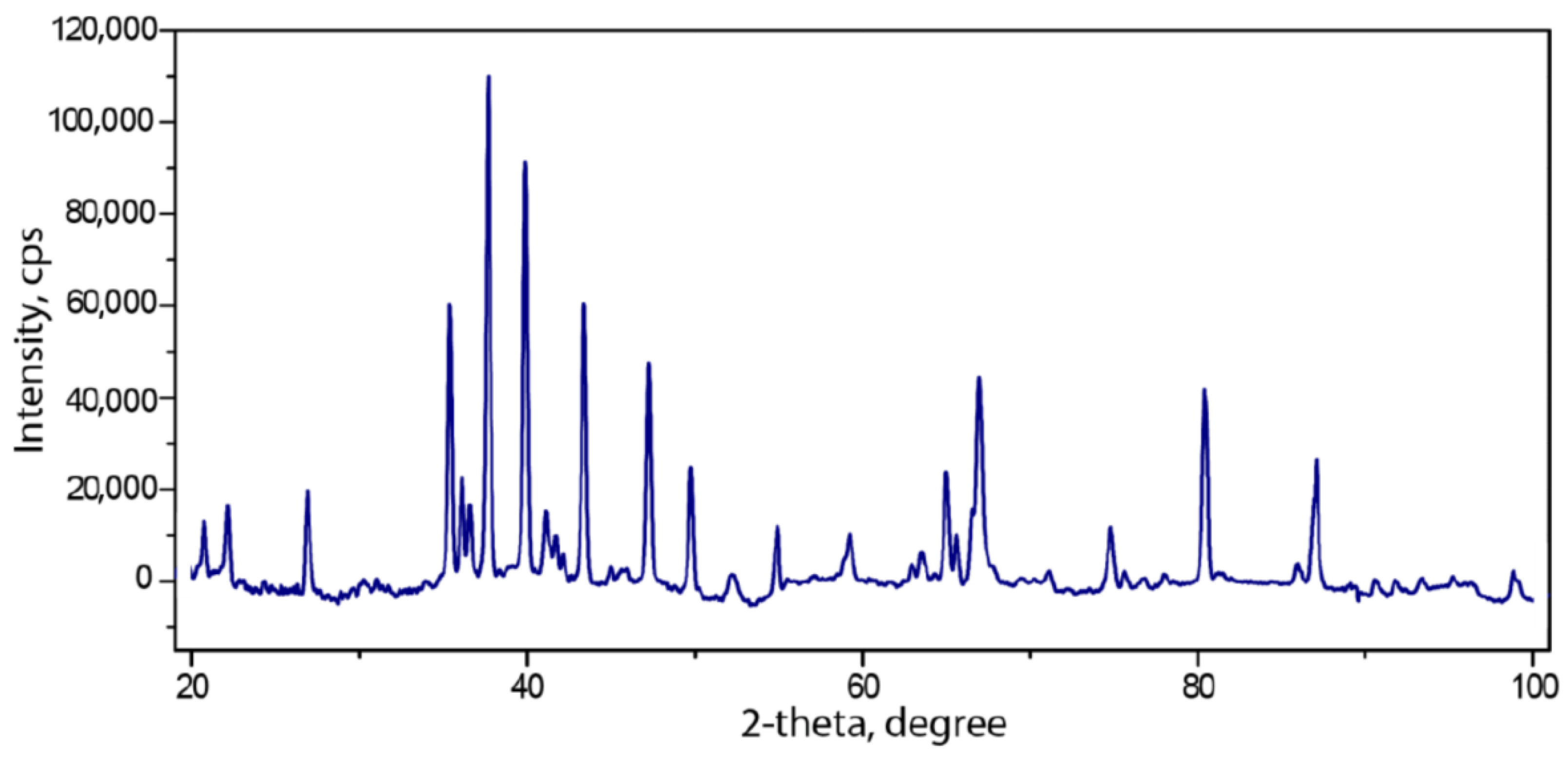

All peaks in the powder spectra (Figure 3) of barioferrite correspond to the synthetic BaFe₁₂O_0.19 (PDF-2, card number 01-084-0757). The unit-cell parameters refined from these data are as follows: P6₃/mmc, a = 5.8908(1) Å, c = 23.1334(6) Å, V = 694.91(3) ų, and Z = 2, which are in good agreement with the single-crystal data a = 5.8901(6) Å, c = 23.1235(6) Å, and V = 694.75(4) ų obtained at 300 K. There are no additional superstructure reflections, as observed in [39].

3.2. Single-Crystal X-ray Diffraction Data

A fragment of the barioferrite crystal shown in Figure 1c was used for the single-crystal structural investigations. The experimental details and crystallographic parameters are given in Table 1. The crystal structure of barioferrite was refined with the use of the SHELX program [40]. Empirical absorption corrections were applied in the CrysAlisPro [41] suite of programs using spherical harmonics, implemented in the SCALE3 ABSPACK scaling algorithm. The volumes of coordination polyhedra were calculated using the VESTA 3 program [42]. Atomic labels were assigned following the first crystal structure description [3]. The final atomic coordinates and isotropic displacement parameters are reported in

Table 3. Atomic coordinates, displacement parameters (Ų), and site occupancies for barioferrite at 100, 200, 300, and 400 K.

Temperature:	100 K					200 K
Site	population	x/a	y/b	z/c	Ueq	Population	x/a	y/b	z/c	Ueq
Ba1	Ba0.89Ca0.011	2/3	1/3	1/4	0.0038(1)	Ba0.89Ca0.011	2/3	1/3	1/4	0.0063(1)
Fe1	Fe0.69Al0.31	0	0	0	0.0020(3)	Fe0.69Al0.31	0	0	0	0.0038(2)
Fe2	Fe0.96Ti0.04	0	0	1/4	0.0116(2)	Fe0.96Ti0.04	0	0	1/4	0.0154(2)
Fe3	Fe0.94Mg0.06	1/3	2/3	0.02730(3)	0.0025(1)	Fe0.94Mg0.06	1/3	2/3	0.02729(3)	0.0043(2)
Fe4	Fe0.94Ti0.06	0.33617(8)	0.16809(4)	0.10792(2)	0.0026(1)	Fe0.94Ti0.06	0.33622(7)	0.16811(4)	0.10789(2)	0.0044(1)
Fe5	Fe	1/3	2/3	0.18977(3)	0.0031(1)	Fe	1/3	2/3	0.18974(3)	0.0047(2)
O1	O	0	0	0.1514(1)	0.0043(5)	O	0	0	0.15126(14)	0.0057(6)
O2	O	2/3	1/3	0.0555(1)	0.0037(5)	O	2/3	1/3	0.05564(15)	0.0054(6)
O3	O	0.5022(2)	0.0043(3)	0.1496(1)	0.0035(3)	O	0.5022(2)	0.0044(4)	0.14967(8)	0.0056(4)
O4	O	0.1543(2)	0.3086(3)	0.05198(5)	0.0050(3)	O	0.15399(19)	0.3080(4)	0.05197(9)	0.0062(4)
O5	O	0.1825(2)	0.3651(5)	1/4	0.0051(4)	O	0.1825(3)	0.3649(5)	1/4	0.0066(5)
Temperature:	300 K					400 K
Site	population	x/a	y/b	z/c	Ueq	population	x/a	y/b	z/c	Ueq
Ba1	Ba0.89Ca0.011	2/3	1/3	1/4	0.0082(1)	Ba0.89Ca0.011	2/3	1/3	1/4	0.0104(1)
Fe1	Fe0.69Al0.31	0	0	0	0.0049(2)	Fe0.69Al0.31	0	0	0	0.0063(2)
Fe2	Fe0.96Ti0.04	0	0	1/4	0.0184(3)	Fe0.96Ti0.04	0	0	1/4	0.0222(3)
Fe3	Fe0.94Mg0.06	1/3	2/3	0.0272(3)	0.0052(2)	Fe0.94Mg0.06	1/3	2/3	0.02729(3)	0.0066(1)
Fe4	Fe0.94Ti0.06	0.33623(7)	0.16811(4)	0.10789(2)	0.00563(14)	Fe0.94Ti0.06	0.33624(7)	0.16812(4)	0.10789(2)	0.00720(11)
Fe5	Fe	1/3	2/3	0.18975(3)	0.0055(1)	Fe	1/3	2/3	0.18972(3)	0.00744(14)
O1	O	0	0	0.15107(13)	0.0063(6)	O	0	0	0.1509(1)	0.0079(6)
O2	O	2/3	1/3	0.0557(1)	0.0063(6)	O	2/3	1/3	0.0557(1)	0.0076(6)
O3	O	0.5022(2)	0.0044(3)	0.14958(7)	0.0064(4)	O	0.5024(2)	0.0048(4)	0.14951(8)	0.0083(3)
O4	O	0.1541(2)	0.3082(4)	0.05206(8)	0.0073(4)	O	0.1542(2)	0.3084(4)	0.05187(8)	0.0088(3)
O5	O	0.1821(3)	0.3643(5)	1/4	0.0080(5)	O	0.1820(3)	0.3639(5)	1/4	0.0098(5)

The refined formula is: (Ba_0.89Ca_0.11)_1.00(Fe_11.17Ti_0.40Al_0.31Mg_0.12)_12.00O₁₉.

, selected interatomic distances are in

Table 4. Selected bond distances (Å) for the crystal structures of barioferrite at 100, 200, 300, and 400 K.

Temperature Bond		100 K Mean	Temperature Bond		200 K Mean	Temperature Bond		300 K Mean	Temperature Bond	400 K Mean
Ba1‒O3	x6	2.8624(16)	Ba1‒O3	x6	2.8624(19)	Ba1‒O3	x6	2.8646(18)	Ba1‒O3	x6	2.8711(18)
Ba1‒O5	x6	2.9505(2)	Ba1‒O5	x6	2.9495(2)	Ba1‒O5	x6	2.9493(16)	Ba1‒O5	x6	2.9537(2)
<Ba1‒O>		2.9061	<Ba1‒O>		2.906	<Ba1‒O>		2.907	<Ba1‒O>		2.913
Fe1‒O4	x6	1.980(2)	Fe1‒O4	x6	1.9782(19)	Fe1‒O4	x6	1.9796(19)	Fe1‒O4	x6	1.9822(18)
Fe2‒O1	x2	2.278(3)	Fe2‒O1	x2	2.283(3)	Fe2‒O1	x2	2.288(3)	Fe2‒O1	x2	2.298(3)
Fe2‒O5	x3	1.863(2)	Fe2‒O5	x3	1.862(3)	Fe2‒O5	x3	1.858(3)	Fe2‒O5	x3	1.859(3)
<Fe2‒O>		2.028	<Fe2‒O>		2.030	<Fe2‒O>		2.041	<Fe2‒O>		2.034
Fe3‒O2		1.914(3)	Fe3‒O2		1.917(4)	Fe3‒O2		1.916(2)	Fe3‒O2		1.922(3)
Fe3‒O4	x3	1.914(2)	Fe3‒O4	x3	1.917(2)	Fe3‒O4	x3	1.915(4)	Fe3‒O4	x3	1.9167(19)
<Fe3‒O>		1.914	<Fe3‒O>		1.917	<Fe3‒O>		1.917	<Fe3‒O>		1.919
Fe4‒O1		1.9886(5)	Fe4‒O1		1.9867(17)	Fe4‒O1		1.9847(16)	Fe4‒O1		1.9866(17)
Fe4‒O2		2.0757(17)	Fe4‒O2		2.074(2)	Fe4‒O2		2.0750(19)	Fe4‒O2		2.0783(19)
Fe4‒O3	x2	1.9399(10)	Fe4‒O3	x2	1.9394(12)	Fe4‒O3	x2	1.9385(12)	Fe4‒O3	x2	1.9406(12)
Fe4‒O4	x2	2.0956(12)	Fe4‒O4	x2	2.0943(15)	Fe4‒O4	x2	2.0949(13)	Fe4‒O4	x2	2.1013(14)
<Fe4‒O>		2.022	<Fe4‒O>		2.021	<Fe4‒O>		2.020	<Fe4‒O>		2.025
Fe5‒O3	x3	1.9562(16)	Fe5‒O3	x3	1.9560(19)	Fe5‒O3	x3	1.9574(19)	Fe5‒O3	x3	1.9629(18)
Fe5‒O5	x3	2.0749(18)	Fe5‒O5	x3	2.076(2)	Fe5‒O5	x3	2.078(12)	Fe5‒O5	x3	2.0847(19)
<Fe5‒O>		2.016	<Fe5‒O>		2.016	<Fe5‒O>		2.018	<Fe5‒O>		2.024

, and anisotropic displacement parameters are given in the

Table 5. Anisotropic displacement parameters (Ų) for the structure of barioferrite.

100 K							200 K
Atom	U11	U22	U33	U23	U13	U12	U11	U22	U33	U23	U13	U12
Ba1	0.00371(12)	0.00371(12)	0.00389(17)	0.000	0.000	0.00186(6)	0.00695(15)	0.00695(15)	0.0050(2)	0.000	0.000	0.00348(8)
Fe1	0.0024(2)	0.0024(2)	0.0010(4)	0.000	0.000	0.00121(12)	0.0051(3)	0.0051(3)	0.0014(4)	0.000	0.000	0.00253(15)
Fe2	0.0012(2)	0.0012(2)	0.0323(6)	0.000	0.000	0.00062(11)	0.0032(3)	0.0032(3)	0.0400(7)	0.000	0.000	0.00159(14)
Fe3	0.00195(17)	0.00195(17)	0.0037(3)	0.000	0.000	0.00097(8)	0.0042(2)	0.0042(2)	0.0043(3)	0.000	0.000	0.00212(11)
Fe4	0.00195(16)	0.00214(13)	0.00356(16)	−0.00001(6)	−0.00003(11)	0.00098(8)	0.0042(2)	0.00473(17)	0.0041(2)	−0.00010(6)	−0.00021(12)	0.00211(10)
Fe5	0.00272(17)	0.00272(17)	0.0038(3)	0.000	0.000	0.00136(8)	0.0052(2)	0.0052(2)	0.0039(3)	0.000	0.000	0.00258(10)
O1	0.0032(7)	0.0032(7)	0.0064(12)	0.000	0.000	0.0016(4)	0.0054(9)	0.0054(9)	0.0064(14)	0.000	0.000	0.0027(4)
O2	0.0030(7)	0.0030(7)	0.0051(12)	0.000	0.000	0.0015(4)	0.0061(9)	0.0061(9)	0.0042(14)	0.000	0.000	0.0030(5)
O3	0.0022(5)	0.0034(7)	0.0054(7)	0.0009(6)	0.0004(3)	0.0017(3)	0.0051(6)	0.0059(8)	0.0059(9)	0.0011(6)	0.0005(3)	0.0030(4)
O4	0.0049(5)	0.0053(7)	0.0050(7)	0.0010(6)	0.0005(3)	0.0026(4)	0.0068(6)	0.0073(9)	0.0047(9)	0.0008(7)	0.0004(3)	0.0036(5)
O5	0.0052(8)	0.0033(10)	0.0062(10)	0.000	0.000	0.0016(5)	0.0092(10)	0.0055(13)	0.0039(12)	0.000	0.000	0.0028(6)
300 K							400 K
Atom	U11	U22	U33	U23	U13	U12	U11	U22	U33	U23	U13	U12
Ba1	0.00855(16)	0.00855(16)	0.0075(2)	0.000	0.000	0.00428(8)	0.01059(14)	0.01059(14)	0.01000(19)	0.000	0.000	0.00529(7)
Fe1	0.0060(3)	0.0060(3)	0.0026(4)	0.000	0.000	0.00300(15)	0.0074(3)	0.0074(3)	0.0041(4)	0.000	0.000	0.00371(14)
Fe2	0.0036(3)	0.0036(3)	0.0480(8)	0.000	0.000	0.00179(14)	0.0044(3)	0.0044(3)	0.0579(8)	0.000	0.000	0.00219(13)
Fe3	0.0050(2)	0.0050(2)	0.0056(3)	0.000	0.000	0.00251(11)	0.00611(19)	0.00611(19)	0.0076(3)	0.000	0.000	0.00305(9)
Fe4	0.0048(2)	0.00538(17)	0.00608(19)	−0.00019(7)	−0.00037(13)	0.00239(10)	0.00589(18)	0.00685(14)	0.00853(18)	−0.00031(6)	−0.00062(12)	0.00295(9)
Fe5	0.0062(2)	0.0062(2)	0.0056(3)	0.000	0.000	0.00312(11)	0.00755(18)	0.00755(18)	0.0072(3)	0.000	0.000	0.00377(9)
O1	0.0054(9)	0.0054(9)	0.0083(13)	0.000	0.000	0.0027(5)	0.0068(8)	0.0068(8)	0.0100(13)	0.000	0.000	0.0034(4)
O2	0.0066(9)	0.0066(9)	0.0057(14)	0.000	0.000	0.0033(5)	0.0075(8)	0.0075(8)	0.0079(13)	0.000	0.000	0.0038(4)
O3	0.0060(6)	0.0060(9)	0.0074(8)	0.0020(7)	0.0010(3)	0.0030(4)	0.0068(5)	0.0078(8)	0.0107(8)	0.0025(6)	0.0012(3)	0.0039(4)
O4	0.0077(6)	0.0078(9)	0.0065(8)	0.0005(7)	0.0003(3)	0.0039(5)	0.0091(6)	0.0093(8)	0.0081(8)	0.0006(6)	0.0003(3)	0.0047(4)
O5	0.0104(10)	0.0054(13)	0.0066(11)	0.000	0.000	0.0027(6)	0.0125(9)	0.0062(12)	0.0085(11)	0.000	0.000	0.0031(6)

.

Table 6. Data of polyhedral volumes in the crystal structure of barioferrite at 100, 200, 300, and 400 K.

Polyhedron	Vol. (Å3) 100 K	Vol. (Å3) 200 K	Vol. (Å3) 300 K	Vol. (Å3) 400 K
Ba1	57.060	57.045	57.124	57.463
Fe1	10.318	10.273	10.304	10.340
Fe2	6.847	6.849	6.841	6.877
Fe3	3.591	3.606	3.596	3.615
Fe4	10.908	10.886	10.882	10.941
Fe5	10.680	10.687	10.720	10.815

provides information on the polyhedral volumes of cations.

The site labels and atomic positions were taken from [3], and the crystal structure was refined anisotropically to R₁ = 0.014, 0.021, 0.016, and 0.017 for 501, 508, 461, and 519 unique observed reflections with |F_o| ≥ 4σ_F at 100, 200, 300, and 400 K, respectively (Supplementary materials). The thermal ellipsoid of the Fe2 site shows elongation along the [001] direction (Table 5) at 100 K, and additional experiments at 200, 300, and 400 K were performed in order to check the thermal behavior of this site. In contrast to hibonite [43], the model where Fe2 split into two 4e sites does not improve R₁ values. In the split model, during refinement, both 4e sites shift into the central 2b position. In this model, the anisotropic displacement parameters will be more reasonable in character, but due to the short Fe2–Fe2 distance of 0.277(2) Å, their thermal ellipsoids overlapped. Because modern refinements of magnetoplumbite-type structures use a split model, we choose the model with the one central Fe2 atom for convenience of calculation of the polyhedral volumes.

The crystal structure of barioferrite belongs to the magnetoplumbite-type structure (Figure 4). In the terms of close packing, it can be described as the stacking of cubic and hexagonal pack layers in the sequence …BAB’ABCAC’AC… along the [001] direction [5]. The layers A, B, and C consist exclusively of oxide ions, while the layers B′ and C′ are represented by the (BaO₃)^4‒ layers [5,44]. In the view of modular crystallography, the crystal structure of barioferrite consist of two fundamental blocks (Figure 4): spinel-like S-modules with a cubic stacking sequence of close packed layers and R-modules with a hexagonal stacking sequence [2]. S-modules consist of a spinel structure fragment, which is based on the two identical sheets of edge-shared Fe4 octahedra and one octahedral (Fe1)/tetrahedral (Fe3) layer embedded between two octahedral layers. The S-module contains three independent iron Fe1 (2a), Fe3 (4f), and Fe4 (12k) sites. The Al atoms are incorporated onto the Fe1 site, for which the refined occupancy at 100 K is Fe_0.69Al_0.31. The polyhedral volume of the Fe1 octahedron is significantly smaller than the other octahedral sites (Figure 5), and the Fe1–O bond length is 1.980 Å (100 K), also consistent with the admixture of aluminum. The tetrahedral Fe3 and octahedral Fe4 sites have admixtures of Mg and Ti, respectively. Their mean Fe–O bond lengths are 1.915 and 2.022 Å (at 100 K) and are consistent with the refined occupancies of Fe_0.94Mg_0.06 and Fe_0.94Ti_0.06. These bond lengths are close to those theoretically expected, 1.87 and 2.05 Å [45], respectively, and close to those observed in synthetic barioferrite: 1.888 and 2.007 Å, respectively [2].

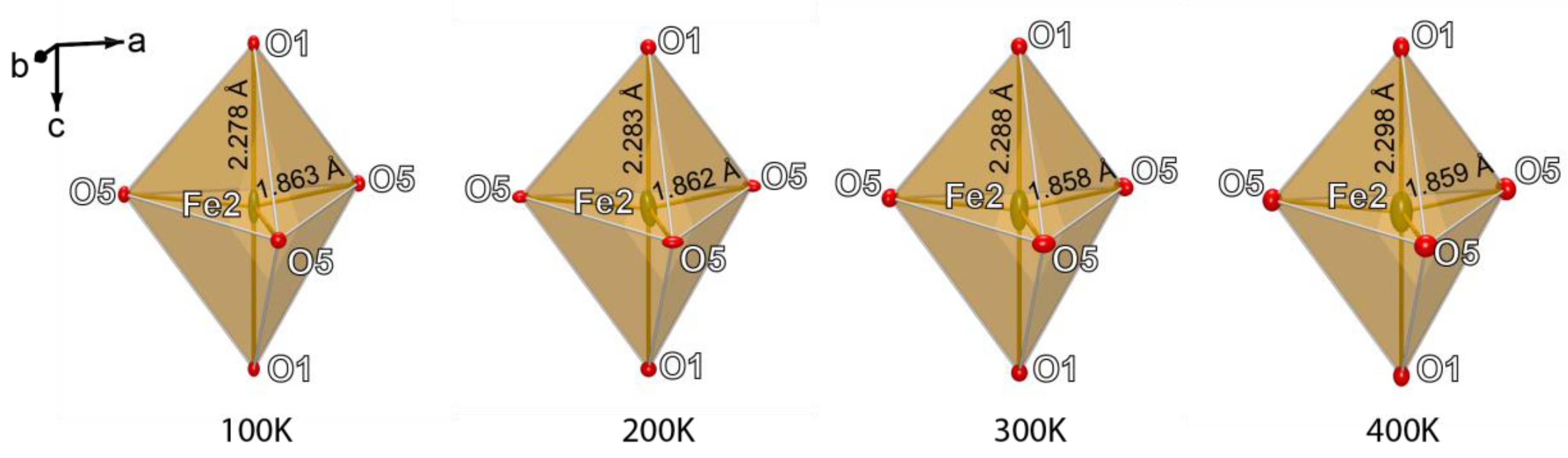

Each R-module contains layers formed by face-shared (Fe₂O₉) octahedra (Fe5 site) that are connected by their apical vertexes with (FeO₅) trigonal bipyramids (Fe2 site). These layers include cavities 5.89 × 5.89 Å filled by Ba (Ba1) cations. The twelve-coordinated Ba1 site (2d) has an admixture of Ca, its refined occupancy is Ba_0.904Ca_0.096 at 100 K. The refined occupancy of the Fe2 site is Fe_0.96Ti_0.04. The Fe5 (4f) and Fe2 (2b) sites have mean Fe–O bond lengths of 2.016 and 2.028 Å, which are consistent with magnetoplumbite-type compounds [5,18,46]. The admixtures of Sr, Cu, Ca, Zn, Mn, and Si with an amount lower than 0.1 apfu were not determined during refinement; their incorporation is discussed below.

The refined formula of barioferrite can be written as ^Ba1(Ba_0.89Ca_0.11)^Fe1(Fe_0.69Al_0.31)^Fe2(Fe_0.96Ti_0.04)^Fe3(Fe_1.88Mg_0.12)^Fe4(Fe_5.64Ti_0.36)^Fe5(Fe_2.00)O₁₉ or simplified as (Ba_0.89Ca_0.11)_1.00(Fe_11.17Ti_0.40Al_0.31Mg_0.12)_12.00O₁₉.

4. Discussion

The natural samples of hexaferrites are of interest to chemists and mineralogists due to the wide range of substitutions, which affect the physical-chemical properties of the titled compounds [43,47]. The present study confirms the incorporation of Mg into the tetrahedral Fe3 site as suggested in [43,48] The mean Fe3–O bond length of 1.914 Å was slightly higher than that in the synthetic barioferrite of 1.888 Å [2]. The incorporation of Ti into magnetoplumbite-like compounds are widely discussed in the literature; according to this data Ti orders into M2 and M4 [49,50] or Fe4 > Fe3 > Fe2 [5]. In our case, Ti is allocated in the Fe2 and Fe4 sites. The polyhedral volume of Fe4 octahedra is significantly larger than other octahedral sites (Figure 5) because of the presence of admixtures of divalent cations, such as Cu, Ca, Zn, and Mn.

With the increase of temperature over the range of 100–300 K, most polyhedra in the structure of natural barioferrite do not significantly change in volume (Table 5 and Table 6). That is in agreement with the observations of the magnetoelectric effect in some magnetoplumbite-like compounds at temperatures up to ambient [51]. However, the local negative thermal expansion (NTE) of Fe1 and Fe4 octahedra in the S-block of the structure at the temperatures 100–200 and 100–300 K, respectively—probably, due to local structure deformations—requires further investigation.

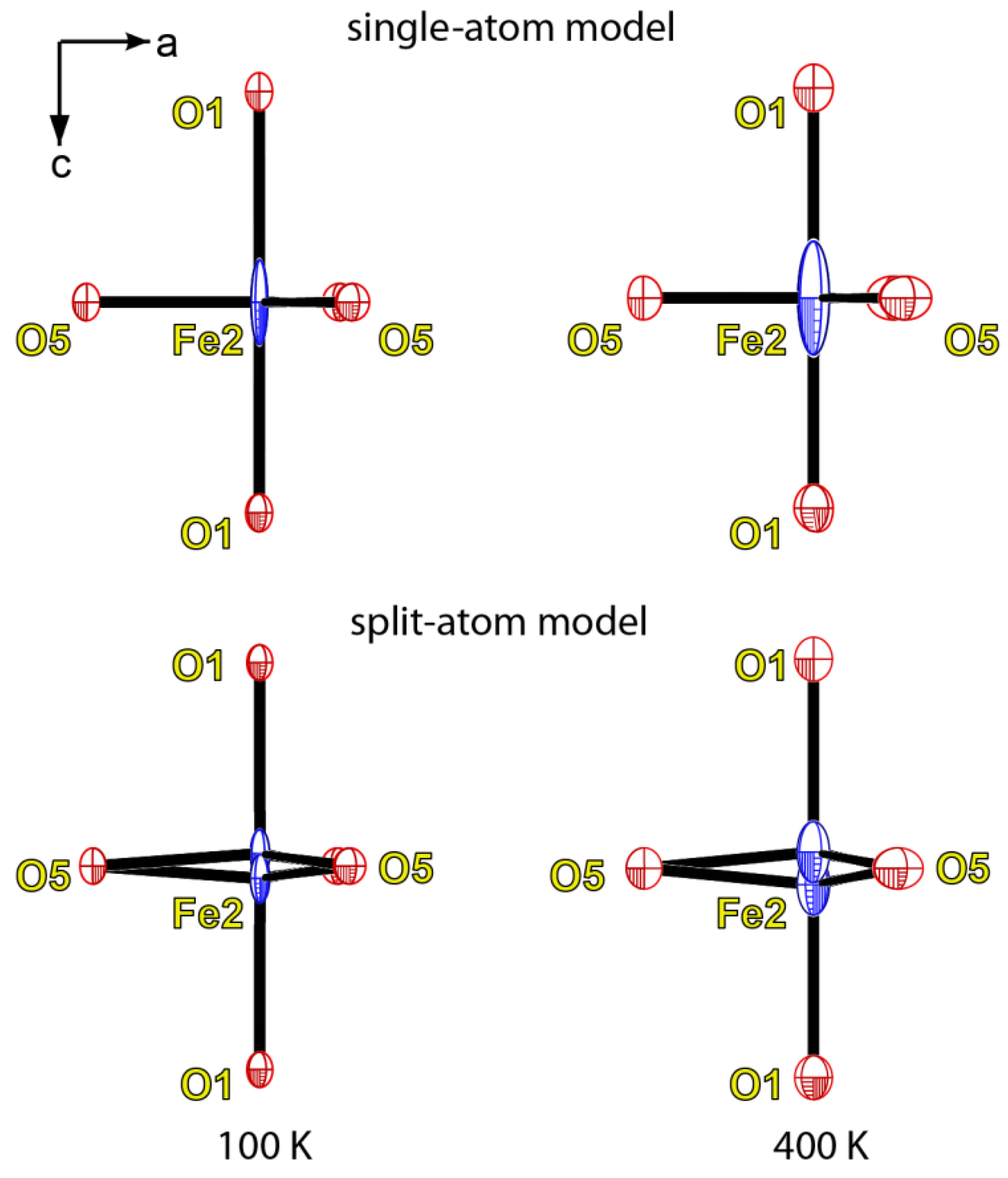

The most difficult question is the character of the disorder in the Fe2 site (Figure 6). According to [2,5,52], there are three different models, which can be considered for the structural and dynamic characteristics of the bipyramidal Fe³⁺ ions: (1) a non-disordered configuration, (2) a static disorder between two adjacent pseudotetrahedral sites, and (3) a dynamical disorder between these sites (Figure 7).

It seems that both refinement models support a dynamic disorder character (Figure 8). In the single-atom model, the elongation of the displacement ellipsoid of the iron atom in the trigonal bipyramid along the [001] direction increased with temperature (Table 5). The decrease of the Fe2–O5 distances from 1.862(3) at 100 K to 1.857(3) Å at 400 K was correlated to the increase of the Fe2–O1 distances from 2.279(3) at 100 K to 2.300(3) Å at 400 K. According to our data, the iron atoms were randomly displaced from the center of the trigonal bipyramid. In this case, both structural models were appropriate (Figure 7). In the split-atom model, the Fe2–Fe2 distance increased from 0.277(2) at 100K to 0.358(7) Å at 400 K. In the static model of disorder, the site on the one side of the triangle (O5–O5–O5) plane is occupied by tetrahedrally coordinated Fe, whereas the site on the other side of the plane is vacant. In our case, the changes of the bond lengths of the FeO₅ polyhedra are significantly smaller for the static model of splitting the Fe2 site, and all attempts to refine the model with a split Fe2 site (situated on the center of the tetrahedra) leads to a significant increase of the R-values. We consider that the disorder at the trigonal bipyramid in the barioferrite crystal structure has an exclusively dynamic disorder character.

In conclusion, it should be noted that although barioferrite was first discovered in an altered baryte nodule and considered to be a very rare mineral [1], it turned out to be a common accessory mineral of high-calcium paralavas and gehlenite hornfelses [9,11]. The natural occurrence of the Ca-analogue of barioferrite (or Fe-analogue of hibonite) CaFe₁₂O₁₉ has been recently reported [11], and in addition to barioferrite with a S/R = 3:1 module ratio, a barium ferrite with the S/R = 5:1 ratio Ba(Fe²⁺,Mg)₂Fe₁₆O₂₇ also exists [53].
