Article

Sulfide Breccias from the Semenov-3 Hydrothermal Field, Mid-Atlantic Ridge: Authigenic Mineral Formation and Trace Element Pattern

by
Irina Melekestseva
1,*,
Valery V. Maslennikov
1,2,
Nataliya P. Safina
1,2,
Paolo Nimis
3,
Svetlana Maslennikova
1,
Victor Beltenev
4,
Irina Rozhdestvenskaya
4,
Leonid Danyushevsky
5,
Ross Large
4,
Dmitry Artemyev
1,
Vasily Kotlyarov
1 and
Luca Toffolo
3
1
Institute of Mineralogy, Urals Branch of Russian Academy of Sciences, Chelyabinsk District, Miass 456317, Russia
2
Faculty of Geology, South-Urals State University, 8 Iyulya st. 10, Chelyabinsk District, Miass 456301, Russia
3
Dipartimento di Geoscienze, Università degli Studi di Padova, Via Gradenigo 6, 35131 Padova, Italy
4
Polar Marine Geosurvey Expedition, Pobedy st. 24, Lomonosov, St. Petersburg 198412, Russia
5
CODES ARC Centre of Excellence in Ore Deposits, University of Tasmania, Private Bag 51, Hobart TAS, 7001, Australia
*
Author to whom correspondence should be addressed.
Minerals 2018, 8(8), 321; https://doi.org/10.3390/min8080321
Submission received: 14 May 2018 / Revised: 13 July 2018 / Accepted: 23 July 2018 / Published: 27 July 2018
(This article belongs to the Special Issue Deep-Sea Minerals and Gas Hydrates)
Browse Figures
Versions Notes

Abstract

:
The aim of this paper is the investigation of the role of diagenesis in the transformation of clastic sulfide sediments such as sulfide breccias from the Semenov-3 hydrothermal field (Mid-Atlantic Ridge). The breccias are composed of marcasite–pyrite clasts enclosed in a barite–sulfide–quartz matrix. Primary hydrothermal sulfides occur as colloform, fine-crystalline, porous and radial marcasite–pyrite clasts with inclusions or individual clasts of chalcopyrite, sphalerite, pyrrhotite, bornite, barite and rock-forming minerals. Diagenetic processes are responsible for the formation of more diverse authigenic mineralization including framboidal, ovoidal and nodular pyrite, coarse-crystalline pyrite and marcasite, anhedral and reniform chalcopyrite, inclusions of HgS phase and pyrrhotite–sphalerite–chalcopyrite aggregates in coarse-crystalline pyrite, zoned bornite–chalcopyrite grains, specular and globular hematite, tabular barite and quartz. The early diagenetic ovoid pyrite is enriched in most trace elements in contrast to late diagenetic varieties. Authigenic lower-temperature chalcopyrite is depleted in trace elements relative to high-temperature hydrothermal ones. Trace elements have different modes of occurrence: Se is hosted in pyrite and chalcopyrite; Tl is related to sphalerite and galena nanoinclusions; Au is associated with galena; As in pyrite is lattice-bound, whereas in chalcopyrite it is related to tetrahedrite–tennantite nanoinclusions; Cd in pyrite is hosted in sphalerite inclusions; Cd in chalcopyrite forms its own mineral; Co and Ni are hosted in chalcopyrite.

1. Introduction

Over the recent decades, great progress has been achieved in understanding trace element behavior in sulfide minerals from oceanic hydrothermal fields [1,2,3,4,5,6,7,8]. One of the reasons has been the development of laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) and its application in mineral geochemistry [1,2,3,4,5,6,7,8,9,10]. Most studies of oceanic hydrothermal fields concern the geochemistry of sulfides from smoker chimneys, diffusers, and massive or colloform ores, which are the result of medium- to high-temperature hydrothermal processes. Little attention, however, has been paid to the study of the products of erosion of massive sulfide bodies (clastic sulfide sediments), although some massive sulfide bodies host significant amounts of clastic sulfides, e.g., Bent Hill, Middle Valley of the North Juan de Fuca Ridge [11]. Fossil volcanic-hosted massive sulfide (VHMS) deposits may completely be composed of clastic layers produced by vigorous erosion of massive sulfide mounds [12,13,14,15,16]. The lithified clastic sulfides mostly consist of fragments of hydrothermal sulfides from chimneys, diffusers, massive, colloform and stringer-disseminated sulfides, which underwent diagenetic alteration with formation of new (i.e., authigenic, cf. [17]) mineral assemblages and redistribution (remobilization) of valuable components between primary hydrothermal and authigenic minerals. Of special interest are authigenic sulfide nodules, because they exhibit zonal morphological and geochemical structures related to the trace elements in the course of diagenesis [18,19].
Another key point of seafloor hydrothermal sulfide fields is their possible future mining. Concern about environmental hazards (even for exploration of inactive hydrothermal fields) and the relatively small sizes, tonnages and grades of seafloor sulfide bodies compared to many on-land VHMS deposits [9,20,21,22,23] have generated skepticism about the real mining potential of marine resources, although first steps have already been made to approach their possible exploitation [24,25]. In seafloor hydrothermal sites, the valuable base and precious metals are mostly contained in Cu–(Fe) (chalcopyrite, isocubanite, covellite and related minerals) and Zn (sphalerite, wurtzite) sulfides, but Fe sulfides make up a significant part of both seafloor and subseafloor ores [4,10,26,27,28,29,30,31,32,33,34,35,36,37]. This circumstance should be taken into account during seafloor mining and extraction of valuable components, since pyrite can host up to a few percents of Cu and Zn, as well as noticeable contents of As, Co, Ni, Se, Hg, etc. (see review in [9]).
The aim of this paper is the investigating of the role of diagenesis in the transformation of clastic sulfide sediments such as pyrite-rich sulfide breccias from the Semenov-3 hydrothermal field (Mid-Atlantic Ridge). We will illustrate that diagenetic processes are responsible for (i) the formation of more diverse authigenic mineralization relative to primary hydrothermal massive sulfides and (ii) morphological and geochemical differences between primary hydrothermal and authigenic sulfides. The detailed examination of sulfide breccias from the Semenov-3 hydrothermal field allowed prediction of the presence of Cu-rich massive sulfides in this area and identification of different mode of occurrence of trace elements in pyrite, marcasite and chalcopyrite.

2. Geological Background

The Semenov-3 hydrothermal sulfide field is part of a giant eponymous hydrothermal sulfide cluster located at 13°30′ N on the Mid-Atlantic Ridge, which was discovered in 2007 during the 30th cruise of the Russian research vessel Professor Logatchev by the Polar Marine Geosurvey Expedition (PMGE) jointly with VNIIOkeangeologiya [38]. The cluster consists of four inactive (1, 3, 4 and 5) and one active (2) hydrothermal fields with possible massive sulfide resources estimated at ~40 Mt [35]. The Semenov cluster is located between the Fifteen Twenty and Marathon transform fracture zones on the western wall of the Mid-Atlantic Ridge (MAR), on an EW-trending seamount ~10 km-long and 4.5 km-wide (Figure 1) [38]. This seamount is an oceanic core complex (OCC), which comprises a smooth, corrugated and striated dome with a rougher western part [39]. Serpentinized ultramafic rocks, fresh and moderately hydrothermally altered pillow basalts, dolerites, gabbros, tonalites, diorites, plagiogranites, as well as talcites, talc–chlorite rocks and amphibolites were recovered from the OCC surface [38,39,40,41].

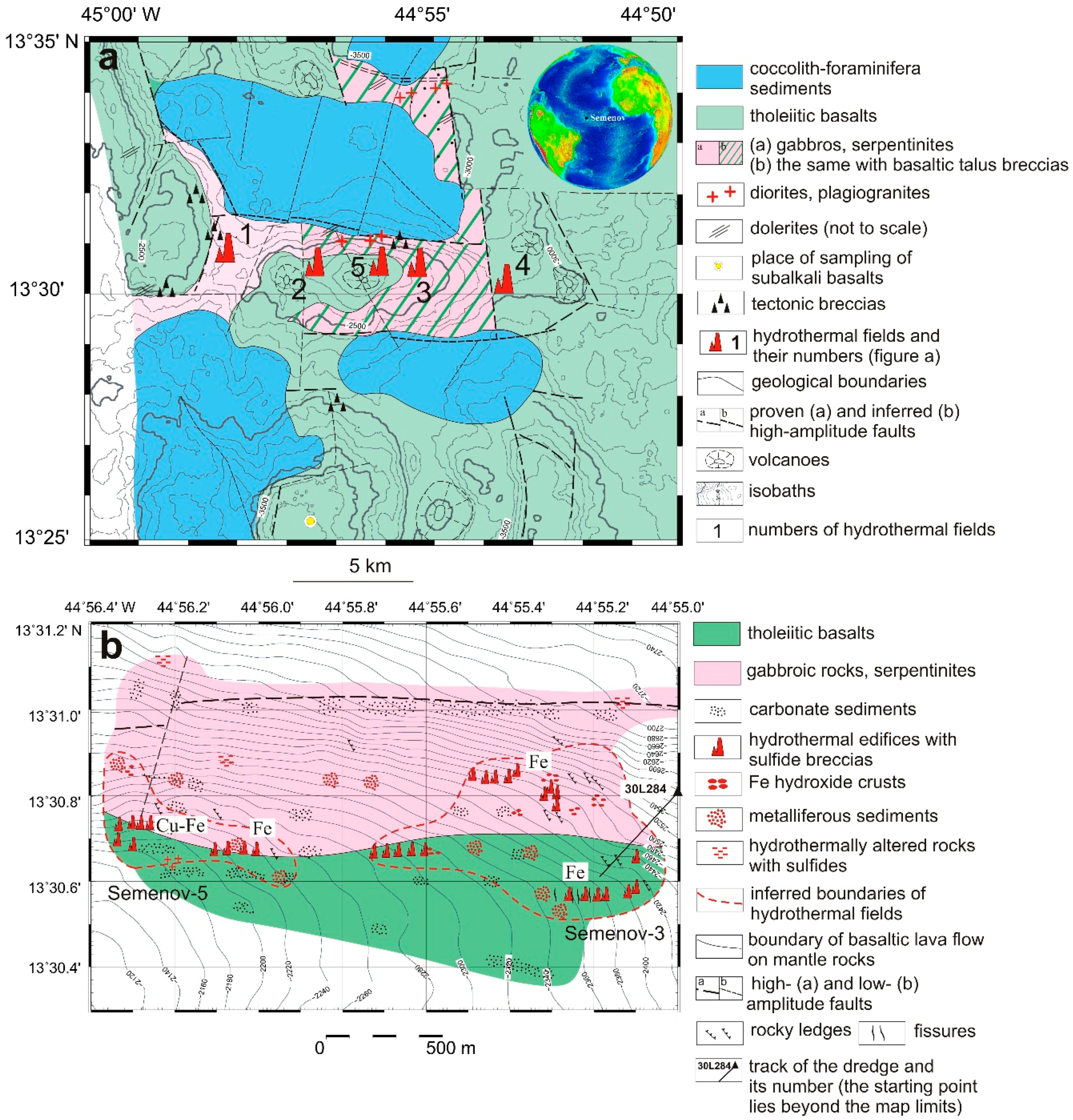

The Semenov-3 field (13°30.70′ N, 44°55.00′ W) is located on the northeastern slope of the seamount at depths of 2400–2600 m and is associated with altered basalts (Figure 1). Sulfide breccias containing marcasite–pyrite clasts enclosed by a sulfide–quartz matrix, with numerous fractures and cavities encrusted with barite crystals, were recovered from the seafloor in 2007, while massive sulfides dominated by pyrite and marcasite were dredged in 2009 [38,40]. The 230Th/234U age of sulfide samples dredged in 2007 ranges from 35.5 to 90.3 thousand years [42].

3. Samples and Analytical Techniques

Sulfide breccias from the Semenov-3 hydrothermal field were collected during the 30th cruise of the research vessel Professor Logachev using dredge station 30L284 (hereafter, st. 284) (Table 1). Nine hand specimens were studied macroscopically on-board and twenty polished sections were studied by reflected light at the Institute of Mineralogy (IMin UB RAS), Miass (Russia).
The contents of major and selected trace elements in five PMGE (collected by PMGE staff) and five IMin (collected by I.M.) bulk samples of sulfide breccias (Table 2) were determined by titration (Fe, Ca, Mn), gravimetric analysis (Si, Ba and S) and atomic absorption spectrometry in air-acetylene flame on a Perkin-Elmer 3110 spectrometer (Cu, Zn, Pb, Ni, Co, Mo, Cd, Sn, Au, and Ag) (PerkinElmer, Waltham, MA, USA) at the State Geological Enterprise Sevzapgeologiya (St. Petersburg) and IMin UB RAS. Two IMin samples of sulfide breccias (Table 3) were also analyzed for selected trace elements (V, Cr, Mn, Co, Ni, Cu, Zn, Ga, Ge, As, Se, Sr, Mo, Cd, Sn, Sb, Te, Ba, Tl, Pb, Bi, Th, U) on an ELAN 9000 (PerkinElmer, Waltham, MA, USA) ICP-MS quadrupole mass-spectrometer at the Institute of Geology and Geochemistry (IGG UB RAS), Yekaterinburg, Russia, calibrated against the USGS rock standard BCR-2, using In as an internal standard.
The chemical compositions of pyrite, chalcopyrite and bornite were analyzed on a CAMECA “CAMEBAX” electron microprobe (CAMECA, Gennevilliers Cedex, France) equipped with four vertical WDS spectrometers at the IGG-CNR, University of Padova, Italy. Analytical standards were pyrite (for S and Fe), pure elements (for Cu, Co, Ni, Se and Au) and a synthetic arsenic–gallium alloy (for As). Analyses were carried out using a 1 μm electron beam, 15 nA beam current, 15 kV accelerating voltage, and a counting time of 10 s for peak and 10 s for background. Detection limits for minor elements were ca. 0.06 wt % for Co and Ni, 0.07 wt % for Cu and Se, 0.12 wt % for As, and 0.20 wt % for Au. The chemical compositions of rutile, jarosite, HgS phase and plagioclase were analyzed using a REMMA-202M SEM (Selmi, Sumy, Ukraine) equipped with a Link energy-dispersive spectrometer (EDS) with 1 μm electron beam, 15 nA beam current, 20 kV accelerating voltage and a counting time of 120 s for peaks; the standard used was MINM-25-53 from ASTIMEX Scientific Limited (mineral mount No. 01-044).
Quantitative LA-ICP-MS analysis of pyrite, marcasite and chalcopyrite for major (65Cu, 66Zn) and selected trace elements (51V, 55Mn, 59Co, 60Ni, 65Cu, 66Zn, 75As, 77Se, 95Mo, 107Ag, 111Cd, 117Sn, 121Sb, 125Te, 182W, 197Au, 205Tl, 208Pb, 209Bi, 238U) was carried out on a New Wave 213-nm solid-state laser microprobe coupled to an Agilent 7700 quadrupole ICP-MS housed (Agilent Technologies, Santa Clara, CA, USA) at the CODES LA ICP MS analytical facility, University of Tasmania. The analyses were performed by ablating spots ranging in size from 40 to 60 μm. Laser repetition rate was 5 Hz and laser beam energy at the sample was maintained between 4 and 5 J/cm2. The analysis time for each spot was 100 s, comprising a 30-s measurement of background (laser off) and a 70-s measurement with laser on. Acquisition time for all masses was set to 0.02 s. Data reduction was undertaken according to standard methods [43]. Iron was used as the internal standard for quantification of pyrite and chalcopyrite and Zn was used as the internal standard for quantification of sphalerite. Concentrations of the internal standard were calculated assuming stoichiometry. Detection limits were calculated as three times the standard error for the count rates of the instrument background signal (laser-off). An in-house Li-borate fused glass of a pyrite/sphalerite mixture [44] was used as the primary calibration standard. To account for the instrument drift, the standard was analyzed twice every one hour and a half, using a 100 μm beam and a repetition rate of 10 Hz, thus closely maintaining the aspect ratio between ablation craters on the samples and on the standard. The LA-ICP-MS analyses of pyrite and marcasite were processed in Statistica v. 6.0 program using correlation analysis and correlation matrices at confidence level of 95% are presented as Supplementary Materials.
LA-ICP-MS mapping of nodular pyrite was conducted on an Agilent 7700x mass spectrometer (Agilent Technologies, Santa Clara, CA, USA) equipped with a New Wave Research UP 213-nm solid-state laser and MassHunter software hosted at the IMin UB RAS at a laser beam energy of 3.5–4.5 J/cm2, a laser repetition rate of 10 Hz, a carrier gas of He, and a flow rate of 0.65 L/min. The mass spectrometer was calibrated against standard multielemental solutions. The trace element maps were plotted with the Iolite program and are based on signal intensity during consecutive ablation of the nodule area with a laser beam of 12 µm moving at a rate of 10 µm/s and a distance between ablation profiles of 12 µm. Both line and map analyses of pyrite were calibrated against MASS-1, a U.S. Geological Survey reference material, using values published in [45]. Iron was the internal standard.

4. Results

4.1. Textures, Structures, and Mineralogy of Sulfide Breccias

Sulfide breccias from the Semenov-3 hydrothermal field were briefly described by Safina et al. [46]. Here, we significantly expand this description providing textural-structural relationships between sulfide clasts and authigenic mineral assemblages.

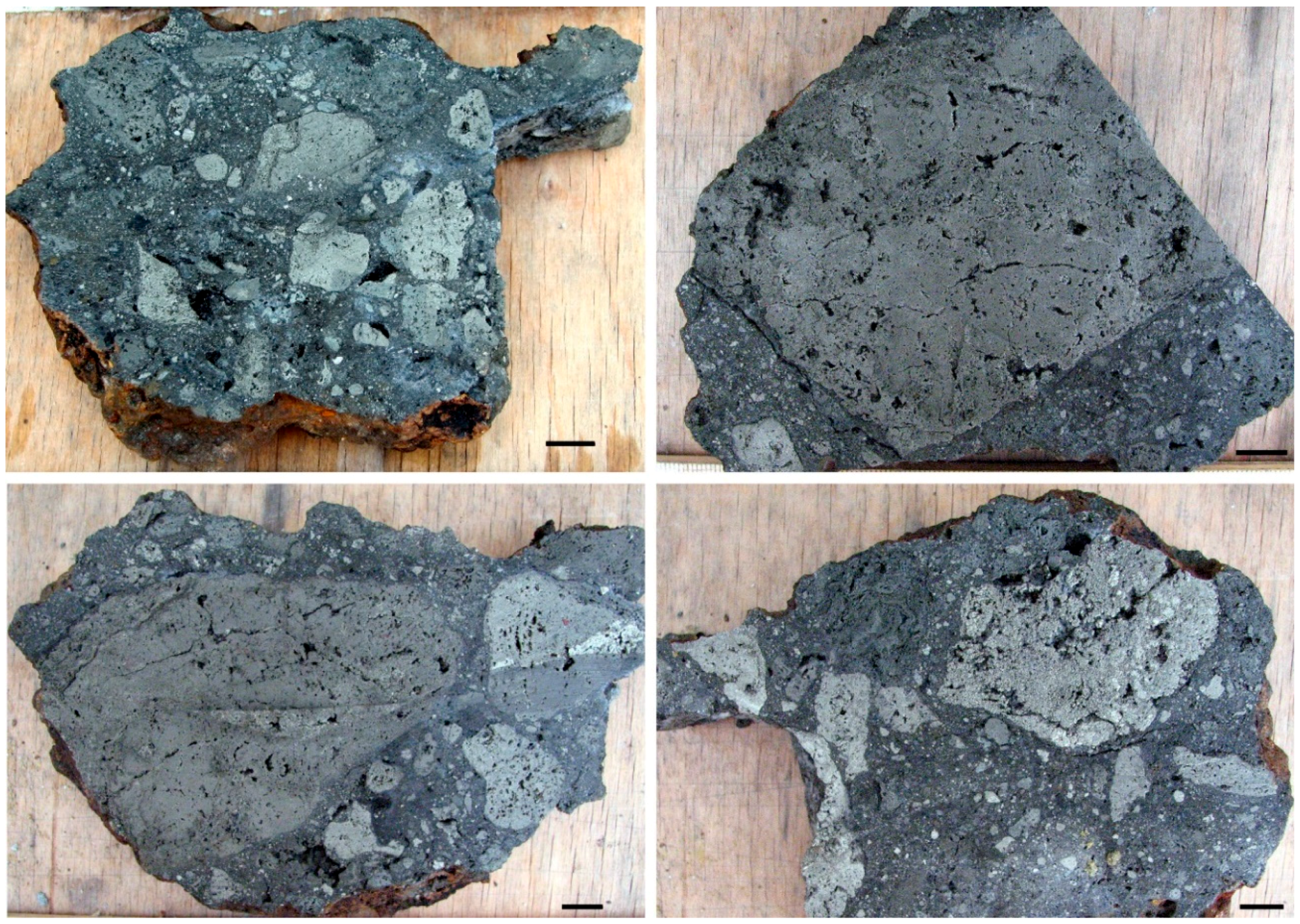

Sulfide breccias are composed of angular clasts of marcasite–pyrite aggregates up to 10 cm across and rare angular fragments of strongly altered volcanic rocks ~1 cm in size (Figure 2). The clastic material is devoid of sorting and gradation bedding (Figure 2). The breccia matrix mostly consists of quartz accompanied by small (<1 cm) sulfide aggregates. These aggregates include clasts similar to large ones and newly formed sulfides. The major minerals of the breccias are pyrite, marcasite, and quartz, which are accompanied by barite and rare chalcopyrite, hematite, jarosite, bornite, sphalerite, pyrrhotite, covellite, HgS phase, rutile, chlorite and plagioclase.

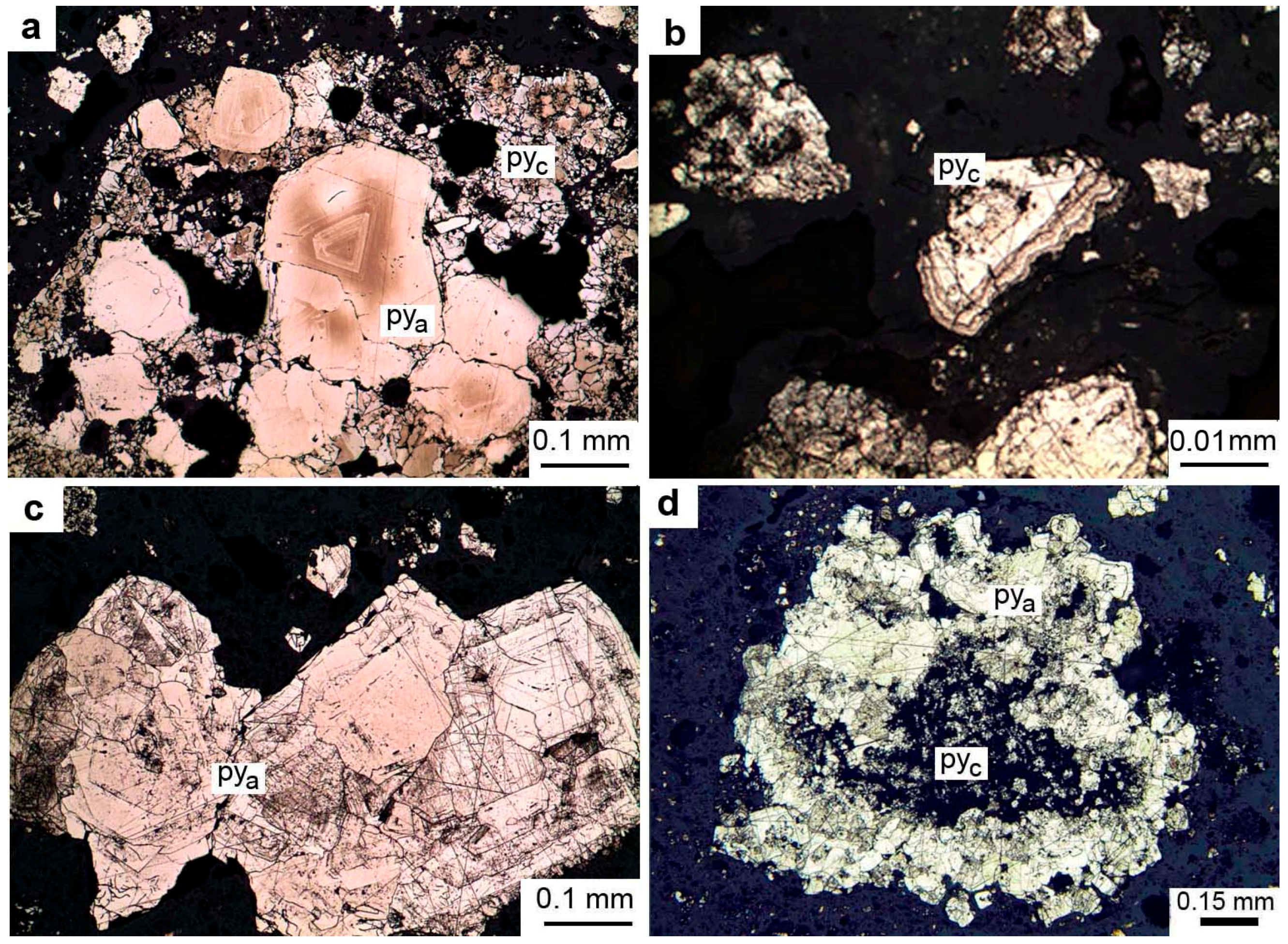

Marcasite–pyrite clasts exhibit colloform, concentric-zonal, massive, radial and porous structures. Colloform and concentric-zonal clasts consist of aggregates of dendritic, fine-grained and fine-crystalline pyrite and marcasite (Figure 3a–c). Locally, the clasts contain small inclusions of chalcopyrite, sphalerite and barite. In concentric-zonal aggregates, marcasite typically overgrows pyrite (Figure 3a,d,f) or occurs as fragments of radial aggregates up to 1 mm in size made of spear-like crystals (Figure 3f).
In the breccia matrix, pyrite and marcasite occur as small clasts or as individual crystals and their aggregates; pyrite also forms framboids, ovoids and nodules. Individual pyrite framboids or their coalesced aggregates are locally overgrown by crystalline pyrite (Figure 4a). Lens-like, ovoid or round porous fine-crystalline pyrite aggregates are composed of extremely small (1 to 3 µm) cubic crystals, often with round areas interpreted as former pyrite framboids (Figure 4b). Rare nodular pyrite aggregates are composed of two domains: a strongly porous center with inclusions of barite and quartz and a more compact exterior, which is made up of small intimately intergrown crystals of pyrite and less abundant marcasite, with fine (<5 μm) inclusions of sphalerite, chalcopyrite, and pyrrhotite (Figure 4c and Figure 5). Coarse-crystalline Fe disulfides are dominated by pyrite and contain minor marcasite. Coarse-crystalline pyrite is observed as euhedral to subhedral crystals and their aggregates in both the breccia matrix (Figure 3a,e and Figure 4d–f) and within the pores of fine-grained clasts (Figure 5). Coarse-crystalline pyrite replaces clasts of fine-grained pyrite and is host to inclusions of pyrrhotite, chalcopyrite, sphalerite, and quartz (Figure 3d and Figure 4e,f). Some pyrite crystals contain “shadows” of earlier barite crystals (Figure 4d).
Chalcopyrite in sulfide breccias occurs as (i) small subhedral to euhedral crystals and their aggregates in the breccia matrix and altered volcanic clasts (Figure 4a and Figure 6a); (ii) individual acicular crystals and their radial aggregates in the breccia matrix (Figure 6b); (iii) zonal crystalline intergrowths with sphalerite in quartz (Figure 6c); (iv) small round grains and their aggregates in the breccia matrix, which replace and overgrow bornite from the rims, and rims around bornite and lamella inside it (Figure 6d,e); (v) rare inclusions in marcasite–pyrite clasts (Figure 3c); (vi) intergrowths with pyrrhotite and sphalerite inside crystalline pyrite crystals (Figure 6f); (vii) relatively large anhedral aggregates in the breccia matrix (Figure 6g); and (viii) single reniform aggregates (Figure 6h), which show radial structure after etching indicating possible replacement of radial marcasite aggregates abundant in sulfide breccias.
Bornite occurs as small (~10 μm) isometric grains in the breccia cement and quartz rims around pyrite crystals (Figure 6d,e). It is typically associated with chalcopyrite, which forms lamellae inside bornite grains or rims around them. Covellite replaces the chalcopyrite grains and bornite–chalcopyrite intergrowths (Figure 6f). Pyrrhotite is observed as small (<10 μm) individual anhedral grains or intergrowths with chalcopyrite and sphalerite, which fill the pores inside crystalline pyrite (Figure 4f and Figure 6g), and as rare inclusions in crystalline chalcopyrite. Sphalerite forms crystalline aggregates in assemblage with crystalline chalcopyrite (see above) or subhedral grains up to 10 μm in crystalline pyrite (Figure 4e and Figure 6g). Hematite is found as globules ~20 μm in size in the quartz rims around pyrite clasts or as single specular crystals up to 70 μm long and ~5 μm wide in the breccia cement (Figure 7a,b). A mineral with approximate composition HgS (cinnabar?) was found under the electron microscope as tiny (~1 μm in size) round grains in chalcopyrite and pyrite crystals in the breccia cement (Figure 7c–e). Quartz composes most part of the breccia matrix also overgrowing the pyrite clasts and the barite crystals (Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7). Tabular barite crystals up to 1 mm in size fill fractures in the sulfide clasts, are present in the breccia matrix and form druses up to 0.5 cm thick (Figure 4d and Figure 7f). Barite is locally associated with chalcopyrite. Jarosite replaces the marcasite–pyrite clasts from the margins (Figure 7g). Rutile, chlorite and plagioclase were found as inclusions (~20 μm in size) in the coarser-crystalline pyrite.

4.2. Bulk Chemistry

Representative bulk major- and trace-element compositions of the massive sulfide breccias are shown in Table 2 and Table 3. ICP-MS and atomic absorption analyses yielded comparable results. The dominant elements are Fe and S, the contents of which vary from 25.81 to 63.06 wt % for Fe and from 22.21 to 46.22 wt % for S. The contents of the most valuable elements are low, reaching wt % concentrations of 0.21 for Cu, 0.15 for Zn and 0.02 for Pb. The concentrations of trace metals are also low (max): 0.003 wt % Ni, 0.013 wt % Co, 0.001 wt % Mo, 11.25 ppm Cd, 48.58 ppm Sn, 20.4 ppm Ag and 0.63 ppm Au. The breccias also contain Si, Ba, Ca and Mg (Table 2).

4.3. Trace Element Composition of Sulfides

According to microprobe analyses, pyrite does not contain significant Cu, As, Ni and Se, which are all below their respective detection limits (Table 4). Chalcopyrite is locally characterized by the presence of detectable Co and Ni (≤0.06 wt %), Se (≤0.30 wt %), and Au (≤0.43 wt %) (Table 4). The LA-ICP-MS analyses (Table 5) allow us to describe in better detail the different associations of minor and trace elements in major minerals: clastic fine-crystalline, ovoid fine-crystalline and coarse-crystalline pyrite, marcasite and authigenic reniform chalcopyrite.

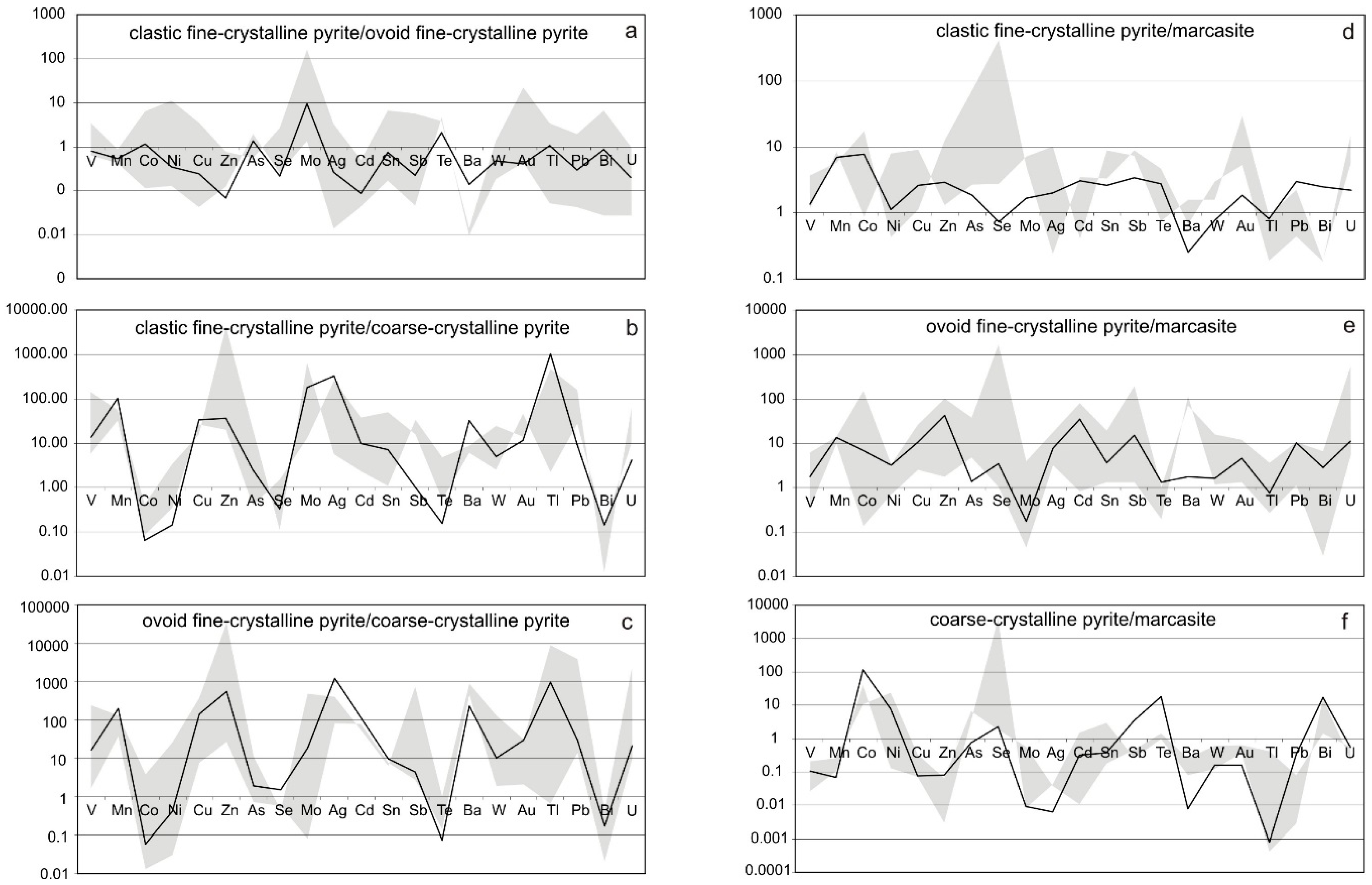

The ovoid fine-crystalline pyrite has high median contents (>1000 ppm) of Cu and Zn, moderate median contents (>100 ppm) of Mn, As and Pb, low median contents (>10 ppm) of Se and Ag, and very low median contents (<10 ppm) of other elements (Table 5). The ovoid pyrite exhibits several distinct correlations between different trace elements (Supplementary Materials, Figure 8). In this pyrite, V is positively correlated with Pb and Au. Lead is positively correlated with Co, Ni, Cu, Zn, Se, Ag, Sn and Bi. Gold is only correlated with Sb. Cobalt and Ni are mutually correlated and have correlations with Sn, Cu, Se, Te, Pb and Bi. Nickel is also correlated with Mn and Sb. Manganese has correlations with Se, Sn, Ni and Bi. In addition to above mentioned correlations with Ni, Co, Se, Pb and Bi, Cu is also positively correlated with Zn and U. Zinc is positively correlated with Cd, Cu and Pb and, as well as Cd, is negatively correlated with As and W, which have positive correlation between each other. Selenium is correlated with Mn, Co, Ni, Cu, Ag, Sn, Sb, Pb and Bi. Silver is correlated with Se, Pb and Bi. Molybdenum and Tl show no correlations with any element.
The clastic fine-crystalline pyrite is characterized by moderate median contents (>100 ppm) of Cu, Zn and As, low median contents (>10 ppm) of Mn, Mo and Ag, and very low median contents (<10 ppm) of other elements (Table 5). The contents of Tl and Bi are similar in ovoid and clastic fine-crystalline pyrite. The fine-crystalline pyrite is characterized by a number of positively correlated trace element pairs, such as Cu–Ni, Cu–Se, Cu–Sn, V–As, V–Cd, Zn–Se, Zn–W, Se–Ag, Se–Au, Mo–Tl, Ag–Sb, Ag–Sn, Sn–Sb, Te–Cu, Te–Pb, Bi–Te, Bi–U, U–Au and others (Supplementary Materials, Figure 9). Manganese has no correlations with any element. Relative to ovoidal fine-crystalline pyrite, the fine-crystalline pyrite is enriched in Co, As, Mo, and Te, and poorer in V, Mn, Ni, Cu, Zn, Se, Ag, Cd, Sn, Sb, W, Au, Pb and U (Figure 10a).
The coarse-crystalline pyrite has a moderate median content (>100 ppm) of Co, low median contents (>10 ppm) of Ni, Cu, As and Se, and very low (<10 ppm) contents of other trace elements (Table 5). In coarse-crystalline pyrite, V and Ni are correlated with W; Mn has correlations with As, Ag, Au and Pb (Supplementary Materials, Figure 11). Copper and Zn are mutually correlated and are also correlated with Tl, Zn, Mo, Ag, Bi and U. Arsenic has correlations with Mn, Au and Pb. Molybdenum, as well as Ag, is correlated with Cu, Zn, Ag, Tl, Bi and U. Tin is only correlated with W, whereas Sb has correlation with Pb. Thallium and Bi are correlated with Cu, Zn, Mo, Ag, Bi and U. Lead and U have correlations with each other and with Mn, As, Ag, Sb and Au. Cobalt, Se, Te and Cd have no correlations with other elements. Relative to clastic pyrite, coarse-crystalline pyrite is enriched in Co, Ni, Te and Se and depleted in almost in all trace elements (V, Mn, Cu, Zn, As, Se, Mo, Ag, Cd, Sn, Sb, W, Au, Tl, Pb, Bi, U) (Figure 10b,c).
Marcasite has a moderate median content (>100 ppm) of Cu, low median contents (>10 ppm) of Mn, Zn, As, Se, Mo, Tl, and Pb, and very low median contents (<10 ppm) of other elements. The compositions of clastic and crystalline marcasite are indistinguishable. Marcasite is generally depleted in trace elements relative to ovoid and clastic fine-crystalline pyrite and enriched in trace elements relative to coarser-crystalline pyrite (Figure 10d–f). In marcasite, Co is closely associated with Bi and Te, as well as Ni, Au, Se, Cu, Mo, Ag and Sb (Supplementary Materials). Nickel is correlated with all these elements except for Ag. Copper and Se are correlated with all above elements except for Mo and Ag (Cu) and Mo (Se). Zinc is correlated with Cd and Sn. Arsenic has negative correlation with Tl. Silver is correlated with Co, Se, Te, Au, Bi and U. Tin is associated with Zn and Cd, as well as with Se, Au and U. Te has high correlation with Bi and Co and weaker correlations with Ni, Cu, Se, Mo, Ag, Sb and Au. W is only correlated with Pb. Uranium is correlated with Se, Ag and Sn.
Reniform chalcopyrite is characterized by moderate median contents (>100 ppm) of Zn, As, and Pb, a low median content (>10 ppm) of Ag, and very low median contents (<10 ppm) of other elements (Table 5). In reniform chalcopyrite, Mn is positively correlated with W and Tl and is negatively correlated with Mo (Supplementary Materials, Figure 12). Zinc is negatively correlated with Cd and is positively correlated with W and Tl, whereas W is positively correlated with Tl, Zn, Pb and Mn. Arsenic has positive correlation with Se, Mo and Ag. Molybdenum is correlated with As, Se and Sb and has negative correlation with Mn. High correlations exhibit some couples of elements: Sn–Pb, Sb–Mo, Te–U and Au–Pb. Clastic crystalline chalcopyrite is more enriched in Ag (>100 ppm) and V, Mo, Sb, and W (>10 ppm) and, in general, in most trace elements relative to the reniform variety (Table 5).

4.4. Trace Element Zoning in Nodular Pyrite

The trace element zoning in coarse-crystalline pyrite was determined for a nodular pyrite aggregate (hereafter, “nodule” for the sake of simplicity) showing two distinct concentric zones under an optical microscope (Figure 4c). LA-ICP-MS compositional maps were acquired for Na, Mg, Al, Si, P, S, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, As, Se, Sr, Mo, Ag, Cd, In, Sn, Sb, Te, Ba, W, Au, Hg, Tl, Pb and Bi. The maps for the most representative major and trace elements (Fe, S, Co, Bi, Mo, Te, U, Cu, Ag, As, Pb, Tl, Zn, In, Ge, Cd, Sb) are shown in Figure 13. The maps for the other elements are not shown, because they are related to non-sulfide minerals. Some trace elements (Ni, Ga, Se, Sn, W, Au, Hg) had very low contents and showed no zoning inside the nodule (Figure 13).
The two major elements of the nodule (Fe and S) are uniformly distributed within the zones (Figure 13). The more compact external domain contains a fine outer zone, which is enriched in Co, Bi, Mo, Te, and U. Copper is mostly concentrated in the central domain of the nodule, as well as in neighbor clasts of porous pyrite. The distribution of Ag mostly mimics that of Cu; an additional small Ag-rich area occur in the right part of the nodule and in numerous areas outside it, where they correspond to increased concentrations of Pb in porous pyrite clasts. The lowest Ag contents within the nodule, which are expressed by dark-blue spots in its external portion, correspond to a fine discontinuous marcasite-rich zone (Table 5). Arsenic is typically confined to the outer crystalline part of the nodule. Lead exhibits a patchy distribution inside the crystalline part of the nodule, which partially matches those of As and Ag; the highest Pb contents are observed in fragments of clastic porous pyrite outside the nodule, where also the highest Ag contents are found. Thallium is enriched in small pyrite grains and aggregates of porous pyrite outside the nodule, where it is sometimes associated with high Pb and As, and in some Zn-rich areas inside the nodule. The bright Zn spots mark areas saturated with sphalerite microinclusions. One Zn-rich area to the right of the nodule coincides with increased contents of In, Ge, Cd and Sb.

5. Discussion

5.1. Textures, Structures, and Mineralogy of Sulfide Breccias

In the Semenov-3 sulfide breccias, the sulfide clasts have only occasional contacts, lack any sorting or bedding and show a variety of textures typical of primary hydrothermal ores. According to the morphological analysis of the massive sulfide bodies developed for the Uralian VHMS deposits [47,48], these features are characteristic of proximal sulfide breccias, which have been transported for some distance from the place of erosion. In well-preserved sulfide mounds from the Urals (e.g., Yaman-Kasy, Saf’yanovskoe, Dergamysh VHMS deposits [3,49]), these breccias occur at a distance of at least ~25 m from the center of the interpreted sulfide mounds.
Pyrite and marcasite in the sulfide breccias represent a variety of morphological aggregates. Their clasts contain occasional inclusions of chalcopyrite, sphalerite, and barite. Their clastic nature is mainly indicated by cutting-off of their textural pattern and zoning, as well as by the similarity of their internal structure with that of larger sulfide clasts (Figure 3). The colloform, radial, and concentric-zonal structures and the mineralogical composition are similar to those of colloform, porous, and massive Ba-rich sulfides from the adjacent Semenov-1 hydrothermal field [4].
The sulfide breccias from the Semenov-3 hydrothermal field underwent a series of lithification processes, involving congelation, recrystallization, crystallization, compaction and cementation (cf. [17]). The presence of some indicative morphological varieties of pyrite is evidence for their diagenetic origin (Figure 14). In sedimentary rocks, framboidal pyrite is a typical product of early diagenesis [50,51,52]. The next stage of diagenetic process, when framboids join together and are being recrystallized, is most likely marked by the formation of ovoid fine-crystalline (former framboidal) pyrite aggregates and by the replacement of framboids by crystalline pyrite (Figure 14). Nodular pyrite, which is characterized by a porous core and a polycrystalline exterior, and subhedral to euhedral coarse-crystalline pyrite were formed during late diagenesis (Figure 14). Their authigenic origin is supported by the larger size of individual crystals relative to clastic fine-crystalline pyrite, the euhedral to subhedral morphology, fine zoning visible after etching, and the presence of numerous inclusions of other minerals (Figure 3a, Figure 4 and Figure 5). In fossil VHMS deposits, the pyrite nodules are typical of ore-controlling fine-clastic (pelitic) sediments around massive sulfide bodies and have not been described in sulfide breccias yet [18,19,53,54].

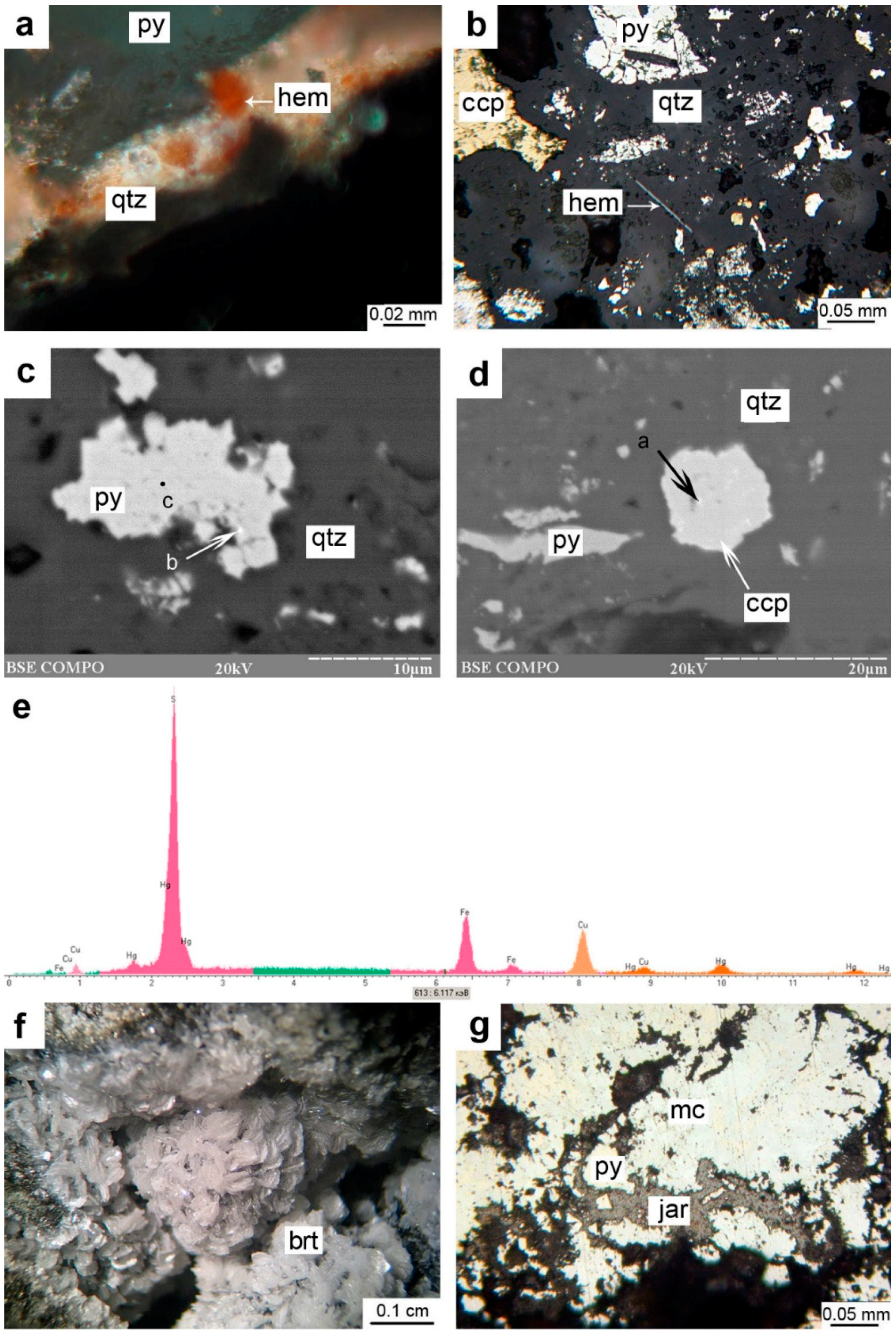

The diverse morphology and mineral assemblages of accessory minerals the Semenov-3 sulfide breccias are also indicative of their clastic and authigenic origin. Subhedral to euhedral isometric chalcopyrite crystals in the breccia matrix and altered volcanic clasts could represent the fragments of Cu-rich stringer–disseminated mineralization from high-temperature feeder zones of the sulfide mound (cf. [28]). Chalcopyrite inclusions in pyrite–marcasite clasts are most likely of primary hydrothermal origin similar to numerous chalcopyrite inclusions in Fe-rich massive sulfides from the adjacent Semenov-1 hydrothermal field [4]. The acicular chalcopyrite crystals and zoned crystalline intergrowths with sphalerite and bornite resemble the fragments of black smoker chimneys [3,55,56,57]. Their high-temperature origin is also supported by chemistry of crystalline chalcopyrite (see below). The finding of clastic Cu- and Zn-rich mineral assemblages in sulfide breccias indicates the erosion of primary Cu–Zn sulfides within the Semenov-3 hydrothermal field, including a black smoker complex, which have not been discovered yet. The resorbed margins of many chalcopyrite crystals (Figure 6a–c) are evidence of their dissolution during sedimentation. Dissolution of primary hydrothermal chalcopyrite results in the formation of authigenic one from Cu-bearing diagenetic fluids. In contrast to primary hydrothermal chalcopyrite, the authigenic one is observed as inclusions in authigenic coarse-crystalline pyrite, anhedral aggregates in the breccia matrix, and pseudomorphic reniform aggregates after radial marcasite (Figure 14).
Similar to chalcopyrite, sphalerite and pyrrhotite associated with hydrothermal chalcopyrite are hydrothermal in origin, whereas those found in authigenic coarse-crystalline pyrite, are authigenic (Figure 14). Euhedral morphology of the hematite crystals, its presence in the breccia cement and assemblage with quartz most likely indicate its authigenic origin. The fact that crystalline hematite is never in contact with authigenic chalcopyrite, bornite, pyrrhotite and sphalerite indicates its probable crystallization during late diagenesis (Figure 14).
Barite, which is associated with pyrite–marcasite clasts, is most likely hydrothermal in origin, similar to barite from Ba-rich massive sulfides from the adjacent Semenov-1 hydrothermal field [4]. The well-formed barite laths in the breccia matrix likely formed during early diagenesis were further replaced by late diagenetic coarse-crystalline pyrite (Figure 4d and Figure 14). Finally, the previously studied druses of large euhedral barite crystals with formation temperatures of 265–335 °C indicate a late high-temperature hydrothermal overprint [46].

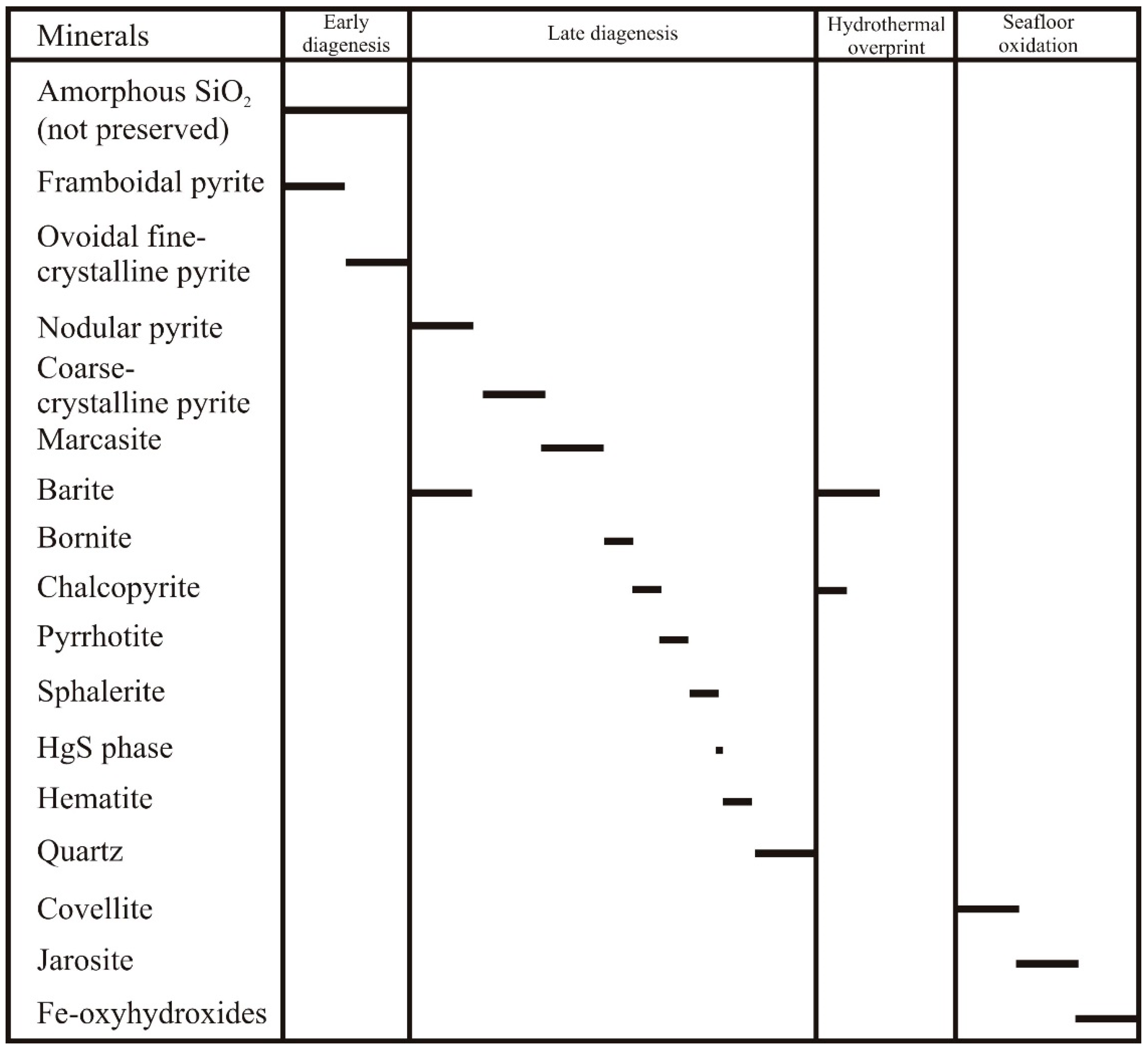

Thus, the diagenetic processes occurred within the sulfide breccias from the Semenov-3 hydrothermal field are responsible for the formation of more diverse authigenic mineralization with various morphological types of pyrite and marcasite, new generations of barite, chalcopyrite, pyrrhotite, sphalerite and bornite, newly formed HgS phase, hematite and quartz.

5.2. Mineral Geochemistry

The generally low contents of valuable trace elements of the Semenov-3 sulfide breccias are consistent with the relatively “clean” compositions of individual sulfides. The highest contents of trace elements are detected in authigenic ovoid fine-crystalline (former framboidal) pyrite (Table 5). This is similar to the enrichment of early diagenetic framboids described in VHMS deposits of the Urals (e.g., Saf’yanovskoe and Yaman-Kasy) [54]. The enrichment of early diagenetic pyrite from these deposits is explained by its precipitation from diagenetic fluids rich in trace elements because of the dissolution of small clasts of primary hydrothermal minerals. The low-temperature fast growth during early diagenesis allows the trace elements to be incorporated into pyrite in solid solution or as very small (<5 μm) inclusions [58].
Similar to late diagenetic euhedral pyrite crystals from fine-clastic sediments of the Uralian VHMS deposits [53,54], the late diagenetic coarse-crystalline pyrite is depleted of trace elements in comparison with early diagenetic pyrite, except for a relative enrichment in Co and Ni (Table 5, Figure 8). The depletion of late diagenetic coarse-crystalline pyrite indicates its crystallization from diagenetic fluids depleted in trace elements [53,54] at relatively higher temperatures, which allowed the trace elements to be partitioned into separate sulfide phase [59] such as chalcopyrite and sphalerite associated with the Semenov-3 coarse-crystalline pyrite. The enrichment of coarse-crystalline pyrite in Co and Ni may thus reflect higher crystallization temperatures (cf. [2]).

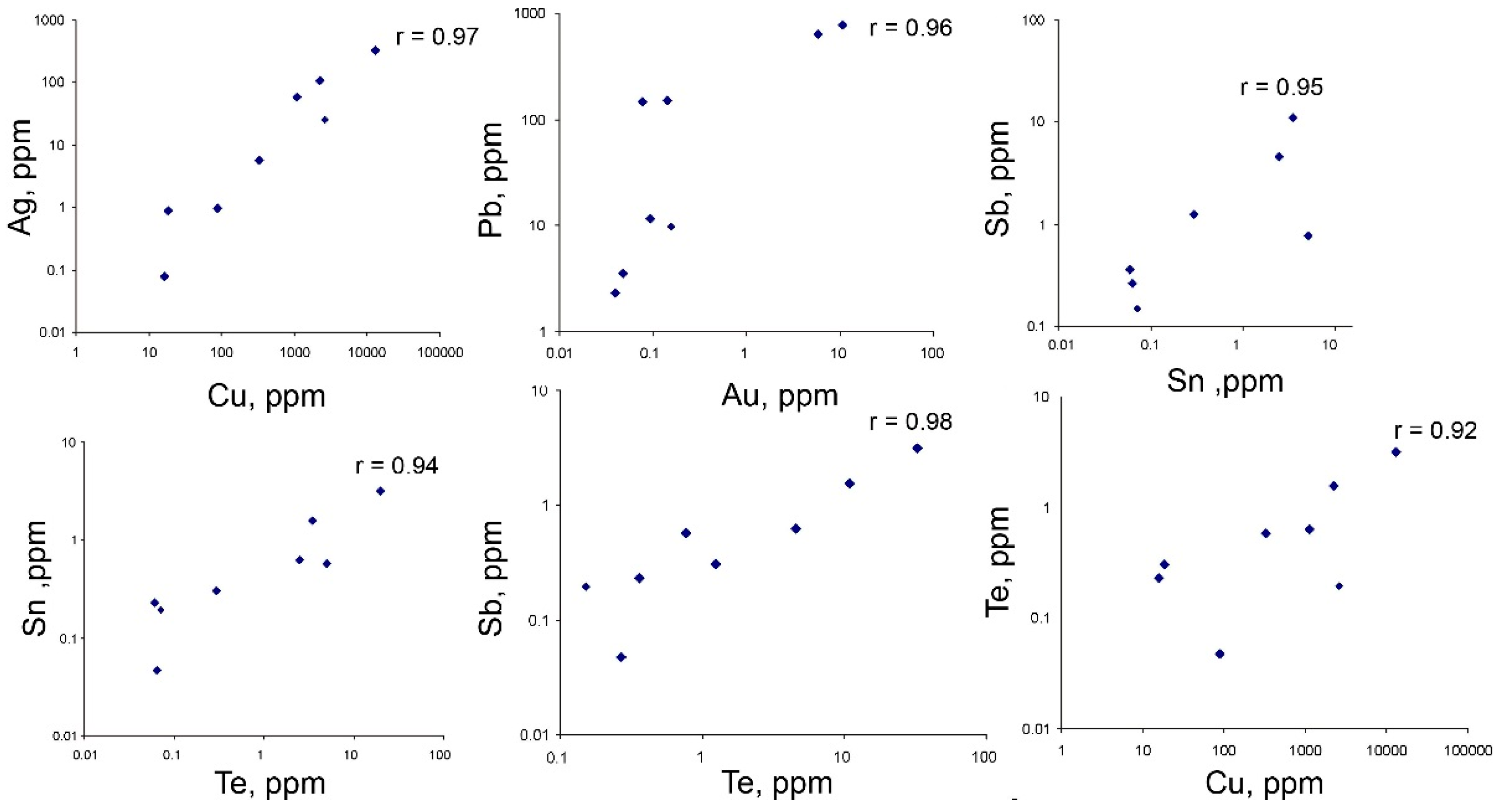

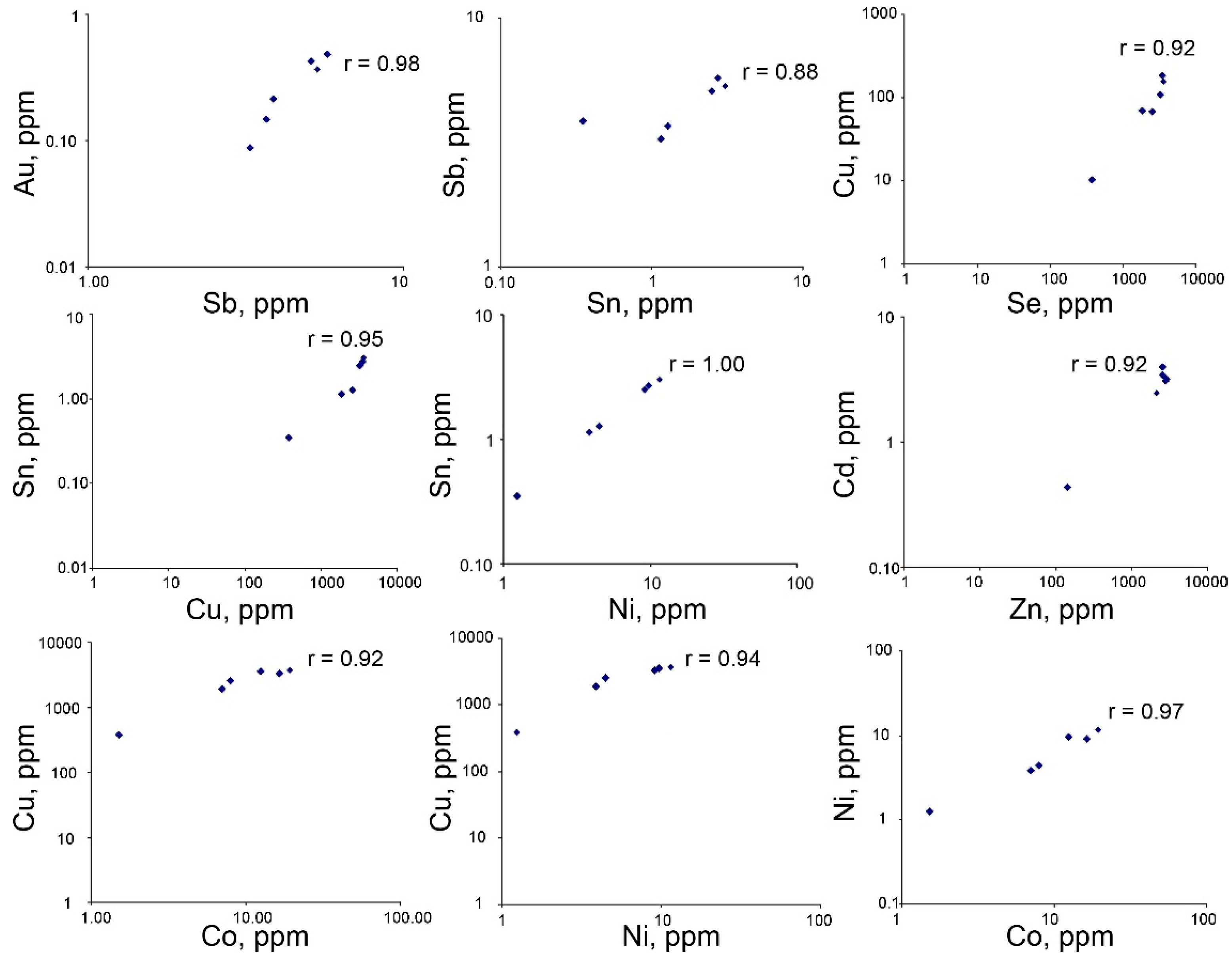

The correlation of Ag, Sb, Sn, Ni and Te with Cu in clastic fine-crystalline pyrite suggests their incorporation in chalcopyrite inclusions. The absence of correlation between Se and Cu in this pyrite type suggests that Se could be pyrite-hosted. In ovoid fine-crystalline pyrite, the positive correlation between Cu and a number of elements (Au, Sb, Sn, Co, Ni, Se) again indicates their likely association with chalcopyrite, whereas the negative correlation with As indicates that As is pyrite-hosted. Zinc and Cd can be ascribed to the presence of sphalerite inclusions. The association of Au with Pb in clastic fine-crystalline and authigenic coarse-crystalline pyrite, marcasite and chalcopyrite suggests that Au in sulfide breccias from the Semenov-3 hydrothermal field is preferentially associated with nanoinclusions of galena. Preferential partitioning of trace metals including Pb, Bi, Sb, Au, Ag, Ni, Te, Hg, and As into nanoparticles less than 20 nm in size has recently been reported from various hydrothermal, diagenetic and groundwater systems dominated by reducing conditions [59].
The correlation of Ag, As and Se in authigenic chalcopyrite suggests their combined isomorphic substitution for Cu, Fe3+ and S, respectively [60]. The local anomalies of As and Sb and positive correlation between these two elements reflect the presence of tetrahedrite–tennantite nanoinclusions. The Pb–Tl, Tl–W and Pb–Au correlations again suggest the presence of Tl–W-bearing galena–native gold assemblage. The negative correlation between Zn and Cd indicates that Cd is not hosted in sphalerite. The absence of any correlation of Cd with other elements suggests its presence in native or sulfide form. Native cadmium, for instance, was reported from the Logatchev-1 hydrothermal field, MAR [61]. Greenockite (CdS) inclusions were found in chalcopyrite of black smoker chimneys from the Yaman-Kasy VHMS deposit, Southern Urals [2].
The enrichment of crystalline chalcopyrite in trace elements, especially Se, is considered the evidence for high-T and reducing conditions [2,62,63]. This is another proof of its high-temperature hydrothermal origin, most likely, within the black smoker complex. In contrast, reniform chalcopyrite, like authigenic coarse-crystalline pyrite, is depleted in most trace elements.
The diagenetic processes thus resulted in redistribution (remobilization) of valuable components between primary hydrothermal and authigenic minerals. The early diagenetic pyrite is enriched in trace elements relative to late diagenetic one indicating exhausting early to late diagenetic pore fluids. The lower trace element composition of late diagenetic chalcopyrite relative to primary hydrothermal one reflects the depletion of lower-temperature diagenetic pore fluids in trace elements in comparison with high-temperature hydrothermal fluids.

5.3. Trace Element Zoning of the Pyrite Nodule

The association of Cu with Ag in the porous core of the authigenic pyrite nodule may reflect the entrapment of ultramicroscopic inclusions of primary hydrothermal Ag-bearing chalcopyrite (up to 1106 ppm Ag, Table 5). Arsenic, which is concentrated in the more compact outer rim of the pyrite nodule, is most probably isomorphically incorporated in pyrite. Association of Tl with Ag and Pb outside the pyrite nodule may indicate incorporation of Tl in submicroscopic galena (cf. [64]). The association of Zn with In, Ge, Cd, Sb and, locally, Tl inside the nodule suggests that these elements are hosted in sphalerite inclusions. The association between Tl and Zn has previously been found in VHMS, Carlin-type gold, thallium and Zn–Pb–Ag deposits [65] and references therein.
In the absence of detailed descriptions of similar nodules from oceanic hydrothermal sulfide fields, we have compared the pyrite nodule from the Semenov-3 breccias with analogues from fossil VHMS deposits (Bracemac-McLeod deposit in Canada, Lahanos deposit in Turkey, and Saf’yanovka and Yubileynoe deposits in the Urals), in which Fe disulfide nodules have been found in illite–hematite gossanites (cf. [66]), tuffites and sedimentary host rocks [18,19,65,67]. The main features of pyrite nodules in these deposits are summarized in Table 6. Despite the different host rocks and types of mineral inclusions, the nodules from all localities are similar in morphology exhibiting a central domain with inclusions of both ore and non-opaque minerals (described as “poikilitic” pyrite by some authors [18,19,67]), an intermediate crystalline zone, and a fine crystalline rim. Locally, the rim is made of marcasite, as in the Lahanos deposit [18]. This morphological similarity points to a common diagenetic process, which may occur in sediments composed of various-sized clasts, from coarse-clastic breccias (Semenov-3 field) to fine clastic sediments.
In both fossil and present-day examples, the pyrite nodules exhibit a compositional differentiation between the different zones. It was recently shown [53,54,68] that the composition of the associated sedimentary rocks and of the massive sulfide clasts, as well as their size, is responsible for the formation of specific authigenic mineral assemblages. In contrast to the mineralogically more complex Uralian examples, the simple pyrite-dominated composition of primary hydrothermal ores from the Semenov-3 hydrothermal field and the coarse size of the sediments resulted in formation of monotonous authigenic minerals. This is also reflected in the geochemical features of the pyrite nodules. Fossil pyrite nodules are enriched in most trace elements in the central porous zone because of the more diverse mineral composition of clasts of primary massive sulfide ores, which were dissolved during halmyrolysis [18,19,67]. The composition of authigenic pyrite nodules may thus be a proxy for the composition of the initial massive sulfide bodies.

5.4. Possible Exploration Guidelines

The sulfide breccias from the Semenov-3 hydrothermal field are mostly composed of Fe disulfides and, thus, are of little economic interest. Among valuable minerals, however, they contain chalcopyrite, bornite, covellite, and sphalerite, some of which (Cu–Fe and Cu sulfides) occur mostly in the breccia cement rather than as inclusions in Fe disulfides, which would make them easier to separate during ore processing. The inactive state of the hydrothermal field makes it more suitable for potential mining, albeit this would require elaboration of effective techniques of extraction of valuable components from pyrite- and marcasite-rich ores. The effective leaching of pyrite-rich massive sulfides (25.8–45.3 wt % Fe) from the TAG hydrothermal field, MAR, was recently shown in [69]. The finding of primary hydrothermal clasts of chalcopyrite and sphalerite in sulfide breccias from the Semenov-3 hydrothermal field indicates the presence of Cu–Zn massive sulfides in this area.
The knowledge of accessory minerals and trace element contents of massive sulfides is important not only from the processing viewpoint, but also for the possible environmental hazard. In particular, the finding of HgS phase in the sulfide breccias from the Semenov-3 hydrothermal field was unexpected posing a question of potential environmental impact, since Hg is known to be one of most toxic heavy metals [70]. Among seafloor hydrothermal fields, Hg mineral (e.g., cinnabar) was identified in polymetallic massive sulfides from the JADE hydrothermal field in Okinawa Trough [71]. Although Hg sulfides are insoluble and stable [72], the lattice-bound mode of Hg occurrence in sulfides or sulfosalts (e.g., sphalerite, tennantite–tetrahedrite) is more dangerous due to their solubility. Mercury was detected in sphalerite (up to 1.0 wt %), enargite (up to 0.15 wt %), tennantite–tetrahedrite (up to 0.54 wt %) and covellite (up to 0.02 wt %) of hydrothermal precipitates from the Hook Ridge of the Bransfield Strait [73]. In the Uralian VHMS deposits, Hg is also mostly concentrated in sphalerite and, to a lesser extent, tennantite–tetrahedrite and native gold [74]. According to LA-ICP-MS analyses, sphalerite from the nearby Semenov-2 hydrothermal field contains 9 to 47 ppm Hg (in-house unpublished data). Thus, we can speculate that the source of Hg for authigenic HgS phase from the Semenov-3 hydrothermal field was primary Hg-bearing sphalerite, although we do not exclude some contribution of Hg from possible nanoinclusions of tennantite–tetrahedrite or galena.
The geochemical analysis of pyrite, marcasite and chalcopyrite from the Semenov-3 sulfide breccias has revealed the different mode of occurrence of some trace elements, which means their different behavior during possible recovery. In particular, valuable components (e.g., Cu, Zn, Pb, Au), which occur as inclusions (even ultramicroscopic), can effectively be extracted due to galvanic couples (e.g., [69]), whereas lattice-bound elements (e.g., Ag, Te, Se) would require additional efforts and costs for their recovery [75].

6. Conclusions

The sulfide breccias from the Semenov-3 hydrothermal field contain primary hydrothermal clasts of colloform, radial, porous and fine-crystalline pyrite–marcasite aggregates, isometric and acicular chalcopyrite crystals and zoned intergrowths of chalcopyrite with sphalerite and bornite, as well as barite crystals. The textural–structural features of the Semenov-3 breccias are characteristic of proximal breccias, which have been transported for relatively small (≥25 m) distance from the place of erosion. The presence of primary high-temperature chalcopyrite and associated sphalerite and pyrrhotite in altered volcanic clasts and in the cement indicates the deep erosion of primary Cu–Zn sulfides within the Semenov-3 hydrothermal field.
The study of sulfide breccias from the Semenov-3 hydrothermal field showed that diagenesis played a key role in transformation of coarse-clastic sulfide sediments. Diagenetic transformation of sulfide clasts into a lithified rock has resulted in the formation of the following more diverse authigenic mineral assemblages: framboidal pyrite; ovoid fine-crystalline (former framboidal) pyrite; nodular pyrite; coarse-crystalline pyrite; zoned bornite–chalcopyrite grains; pyrrhotite–sphalerite–chalcopyrite inclusions in coarse-crystalline pyrite; anhedral and reniform chalcopyrite; specular and globular hematite, HgS phase in authigenic chalcopyrite and pyrite; quartz. Seafloor oxidation of sulfide breccias produced covellite after chalcopyrite and bornite, as well as jarosite and Fe-oxyhydroxides after pyrite and marcasite.
Diagenetic processes within the sulfide breccias also resulted in redistribution (i.e., evolution) of trace elements, which is evident from geochemical differences between primary hydrothermal and authigenic sulfides. The early diagenetic ovoid fine-crystalline pyrite is enriched in most trace elements relative to late diagenetic coarse-crystalline pyrite, similar to pyrite varieties from fine-clastic sedimentary rocks associated with Uralian VHMS deposits. Authigenic chalcopyrite and coarse-crystalline pyrite are depleted in most trace elements. The early diagenetic pore fluids circulated within clastic sediments were enriched in trace elements relative to late diagenetic fluids but were depleted in trace elements relative to hydrothermal fluids as well. Depletion of authigenic minerals in trace elements reflecting a depletion of pore diagenetic fluids in trace elements is also typical of fossil VHMS deposits.
The authigenic pyrite nodules of sulfide breccias from the Semenov-3 hydrothermal field and fossil VHMS deposits are similar in morphology and exhibit (i) a central porous domain with inclusions of sulfide and rock-forming minerals, (ii) an intermediate crystalline zone and (iii) a fine crystalline rim. In both fossil and present-day examples, the pyrite nodules show a compositional differentiation between the zones. These features point to a common diagenetic process, which occurred in Cenozoic and Paleozoic sediments composed of clasts of variable size, from coarse-clastic breccias to fine-clastic sediments. The composition of the associated sedimentary rocks and of the massive sulfide clasts, as well as their size, is responsible for the formation of specific authigenic mineral assemblages. The composition of authigenic pyrite nodules may be a proxy for the composition of the massive sulfide bodies.
Trace elements of sulfide breccias from the Semenov-3 hydrothermal field are characterized by different modes of occurrence: lattice-bound Se is hosted in pyrite and chalcopyrite; Tl is probably related to nanoinclusions of galena and sphalerite; Au is preferentially associated with nanoinclusions of galena; As in pyrite is lattice-bound, whereas in chalcopyrite it can also be related to tiny inclusions of tetrahedrite–tennantite; Cd in pyrite is hosted in sphalerite inclusions and forms its own mineral in chalcopyrite; correlation of Co and Ni with Cu and other trace elements suggests that they are hosted in chalcopyrite, even when this mineral is included in pyrite. These data should be taken into consideration during the economic evaluation and potential processing of similar massive sulfides. The finding of Hg-bearing phase in sulfide breccias from the Semenov-3 hydrothermal field opens a problem of possible environmental hazardousness of similar eroded pyrite-rich ores and primary massive sulfides.
