Open AccessArticle
Minerals 2017, 7(3), 33; doi:10.3390/min7030033

Mechanism of Enhancing Extraction of Vanadium from Stone Coal by Roasting with MgO

1,2,3,* , 1,2,3,* , 1,2,3
,
1,2,3
and
1,2,3
1
College of Resource and Environment Engineering, Wuhan University of Science and Technology, Wuhan 430081, China
2
Hubei Provincial Engineering Technology Research Center of High Efficient Cleaning Utilization for Shale Vanadium Resource, Wuhan 430081, China
3
Hubei Collaborative Innovation Center for High Efficient Utilization of Vanadium Resources, Wuhan 430081, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Saeed Chehreh Chelgani
Received: 12 January 2017 / Revised: 3 February 2017 / Accepted: 23 February 2017 / Published: 27 February 2017
View Full-Text   |   Download PDF [3760 KB, uploaded 27 February 2017]   |

Abstract

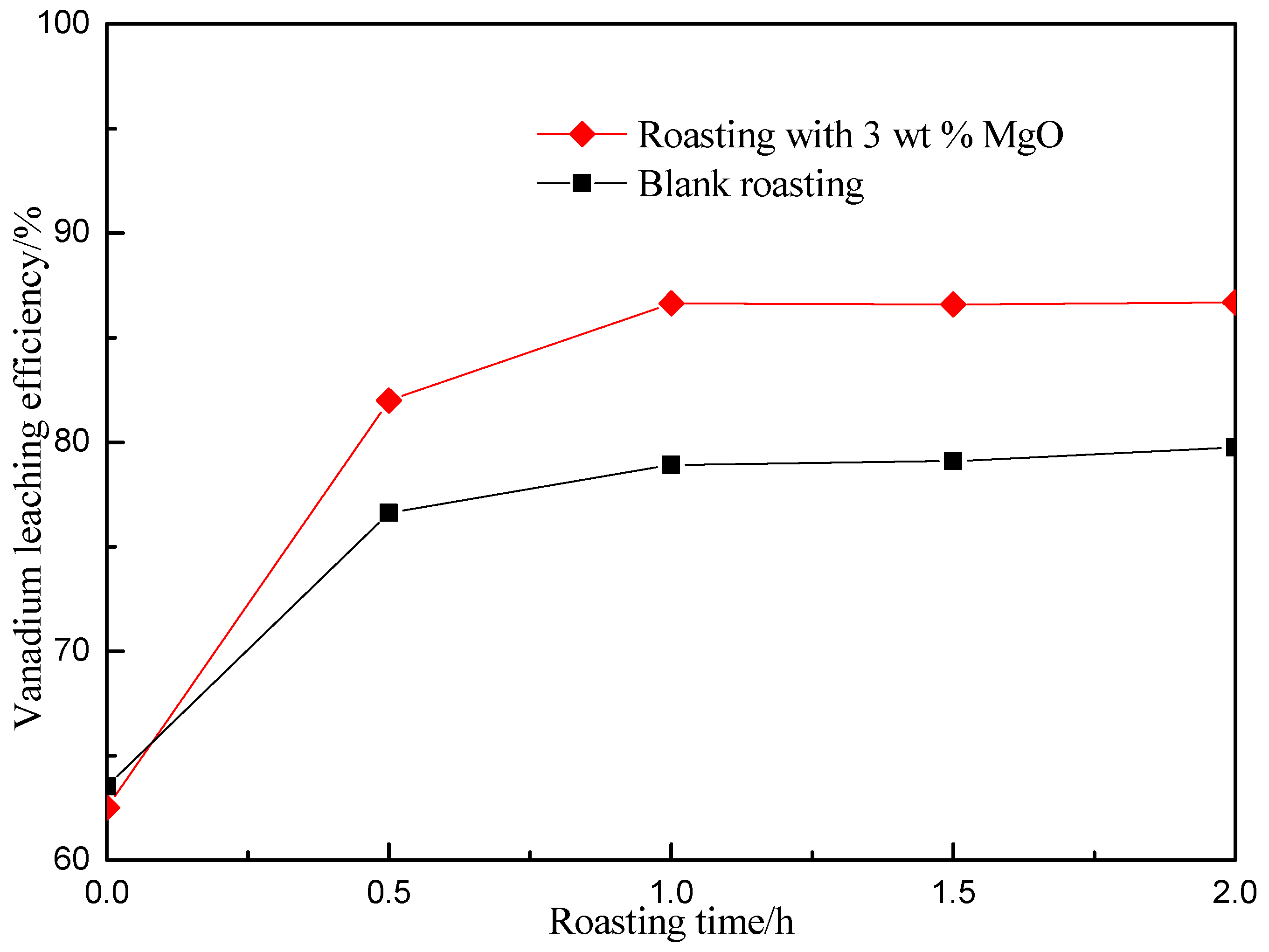

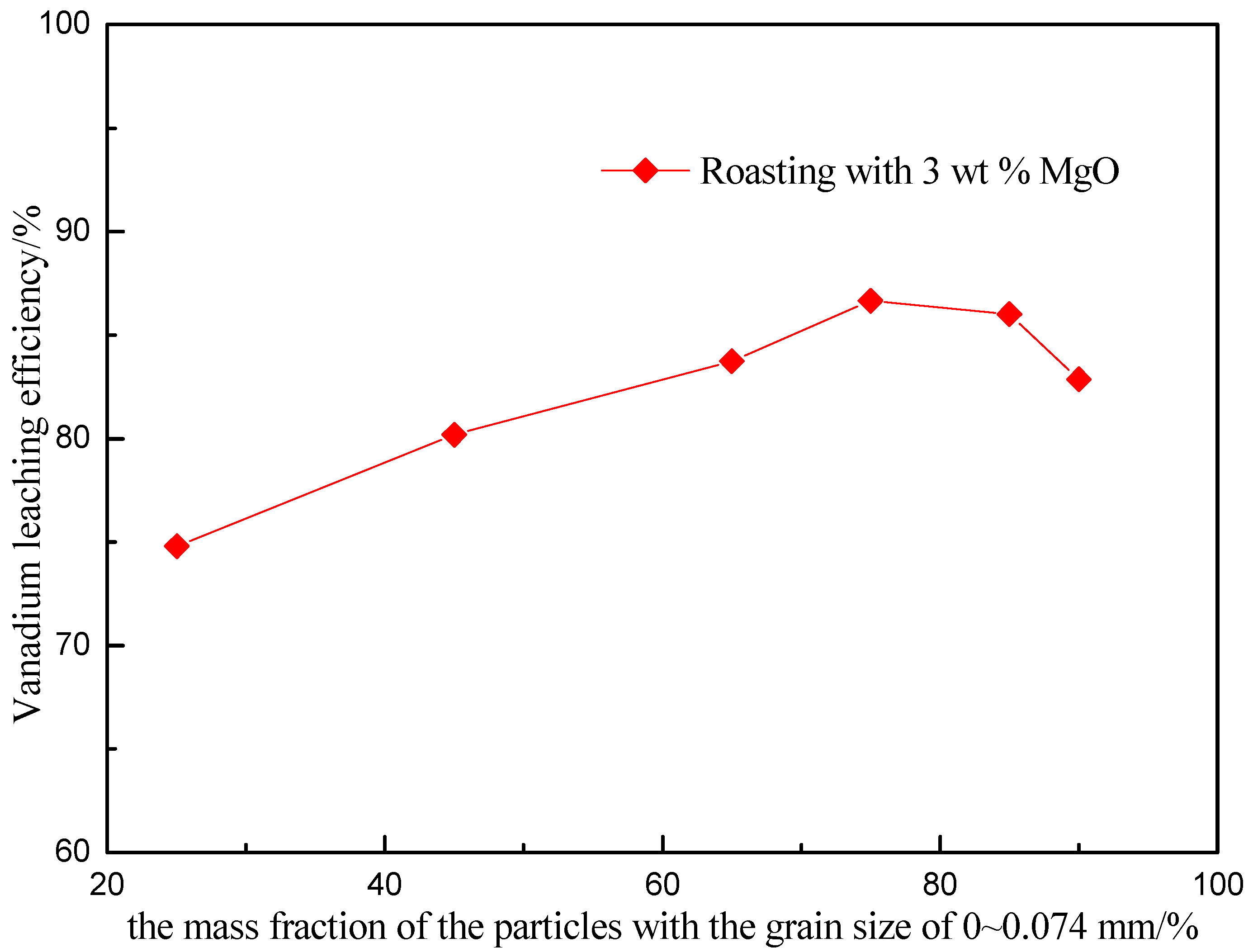

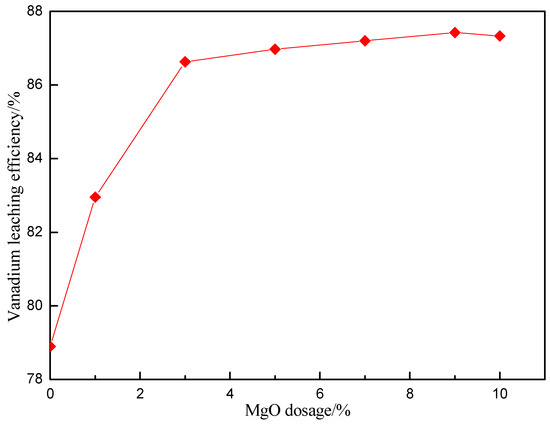

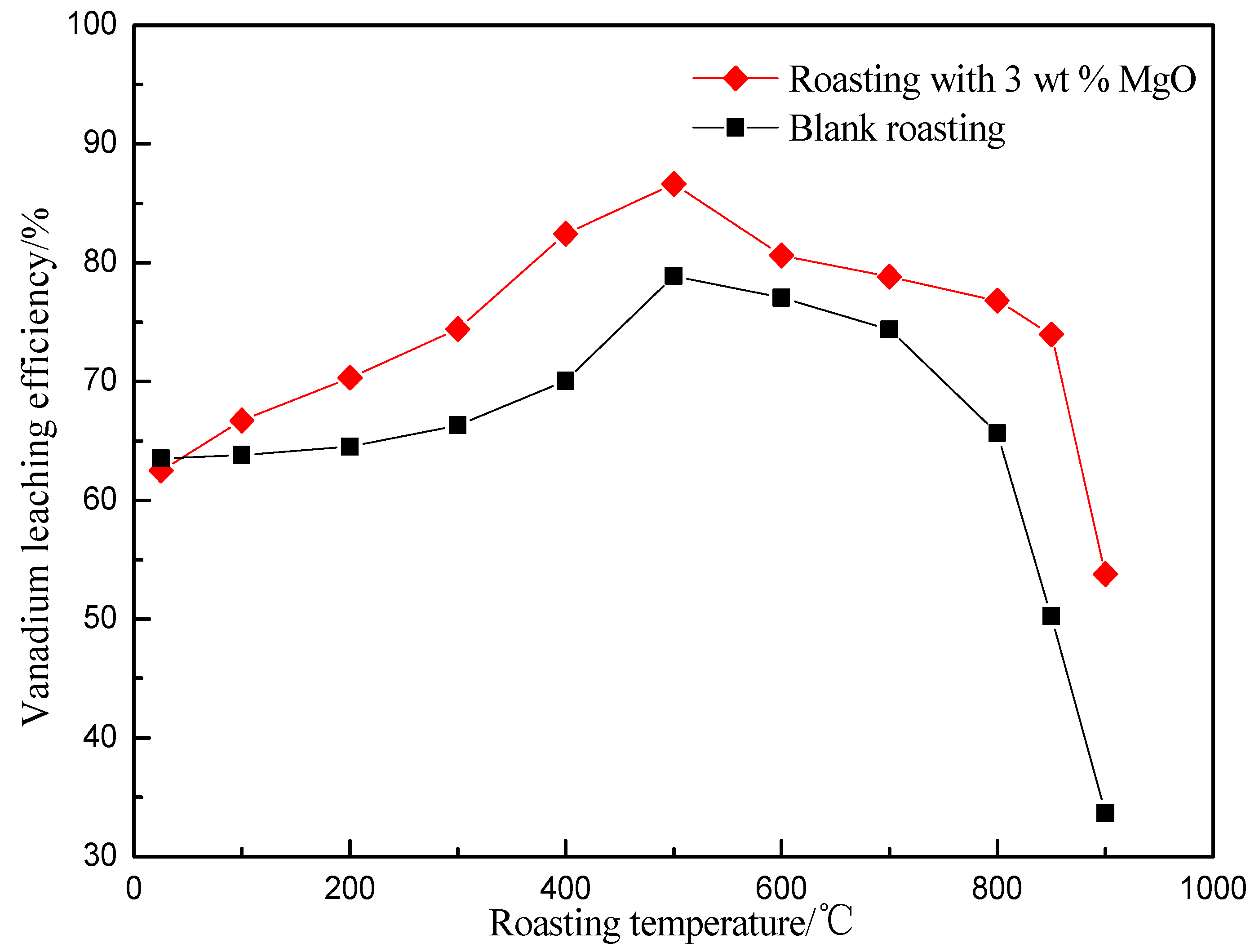

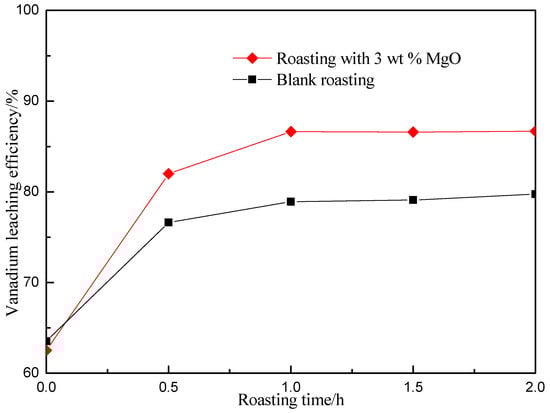

In this paper, the extraction of vanadium from stone coal by roasting with MgO and leaching with sulfuric acid has been investigated, and the mechanism analysis of stone coal roasting with MgO was studied. The results indicated that under the conditions that the mass fraction of the particles with grain size of 0–0.074 mm in raw ore was 75%, the roasting temperature was 500 °C, the roasting time was 1 h, MgO addition was 3 wt %, the sulfuric acid concentration was 20 vol %, the liquid-to-solid ratio was 1.5 mL/g, the leaching temperature was 95 °C, and leaching time was 2 h, resulting in a vanadium leaching efficiency of 86.63%, which increased by 7.73% compared with that of blank roasting. The mechanism analysis showed that the degree of calcite decomposition was low and, thus, magnesium vanadate was more easily formed than calcium vanadate below 500 °C. Moreover, magnesium vanadate was easier to dissolve than calcium vanadate during the sulfuric acid leaching process. Thus, the vanadium leaching efficiency was enhanced by using MgO as a roasting additive below 500 °C. Additionally, at high temperature the formation of tremolite would consume calcium oxide produced from the decomposition of calcite, thus, the formation of calcium vanadate was hindered, and V2O5 would react with MgO to form magnesium vanadate. Therefore, the vanadium leaching efficiency of roasting with MgO was higher than that of blank roasting at high temperature. View Full-Text
Keywords: stone coal; vanadium; MgO; mechanism analysis stone coal; vanadium; MgO; mechanism analysis
