Dissolution and Sorption Processes on the Surface of Calcite in the Presence of High Co²⁺ Concentration

Abstract

The interaction of the calcite surface with Co²⁺-rich aqueous solutions ([Co²⁺_aq]_initial = 1000 ppm, i.e., ca. 17 mM) was investigated by means of macroscopic experiments and surface spectroscopic techniques. In the case of the macroscopic experiments, calcite powder and monocrystals were immersed into solutions for different time periods (from 1 min to one month). The Ca concentrations in the filtrates was measured by means of atomic absorption spectrometry (AAS) while the interacted solids were studied using a combination of X-ray photoelectron spectroscopy (XPS) and ¹²C-rutherford backscattering spectrometry (¹²C-RBS). The macroscopic data showed a characteristic surface dissolution process, in parallel to the surface sorption processes. Adsorption and co-precipitation were seen for almost the entire immersion period for both calcite powder and monocrystals. The surface study by XPS (analyzed at a depth of approximately 12 nm) suggested that adsorption takes place in the first hour of the interaction, followed by incorporation of Co²⁺ into calcite surface layers, leading to the formation of a Co²⁺-bearing surface (co)precipitate, which occurs over a period of hours and days. The ¹²C-RBS measurements on calcite {$10\overline{1}4$} indicated that the thickness of this surface co-precipitate was 270 nm after one day and then stabilized at 320 nm after more than a week.

1. Introduction

Cobalt makes up only about 0.0025 wt % of the Earth’s crust [1], but is essential for our health as it forms the active center of cobalamins. Cobalamins are a group of coenzymes, the most important of which is vitamin B₁₂. Cobalt can also be toxic at high concentrations. The presence of cobalt in the environment is related mainly to anthropogenic activity resulting from mining, the pigment industry and the dumping of Co-Li batteries. The maximum recommended exposure is 1 × 10⁻⁴ mg·cobalt/m³ and 1 × 10⁻² mg/Kg·day for inhalation and oral exposure, respectively [2]. The agency for toxic substances and disease registry (ATSDR) report also takes into account the hazards involved with the artificial radioactive ⁶⁰Co isotope, which is used in many applications (e.g., medicine, sterilization and industrial radiography). The release of this radiogenic isotope into the environment is harmful to humans, animals and marine life. It is also the most stable artificial isotope with a half-life of 5.27 years, leading to its accumulation in the environment. Since Co²⁺ is soluble, its mobility in water is high which can lead to the contamination of soils and groundwater and the incorporation of the metal into the trophic chain [3].

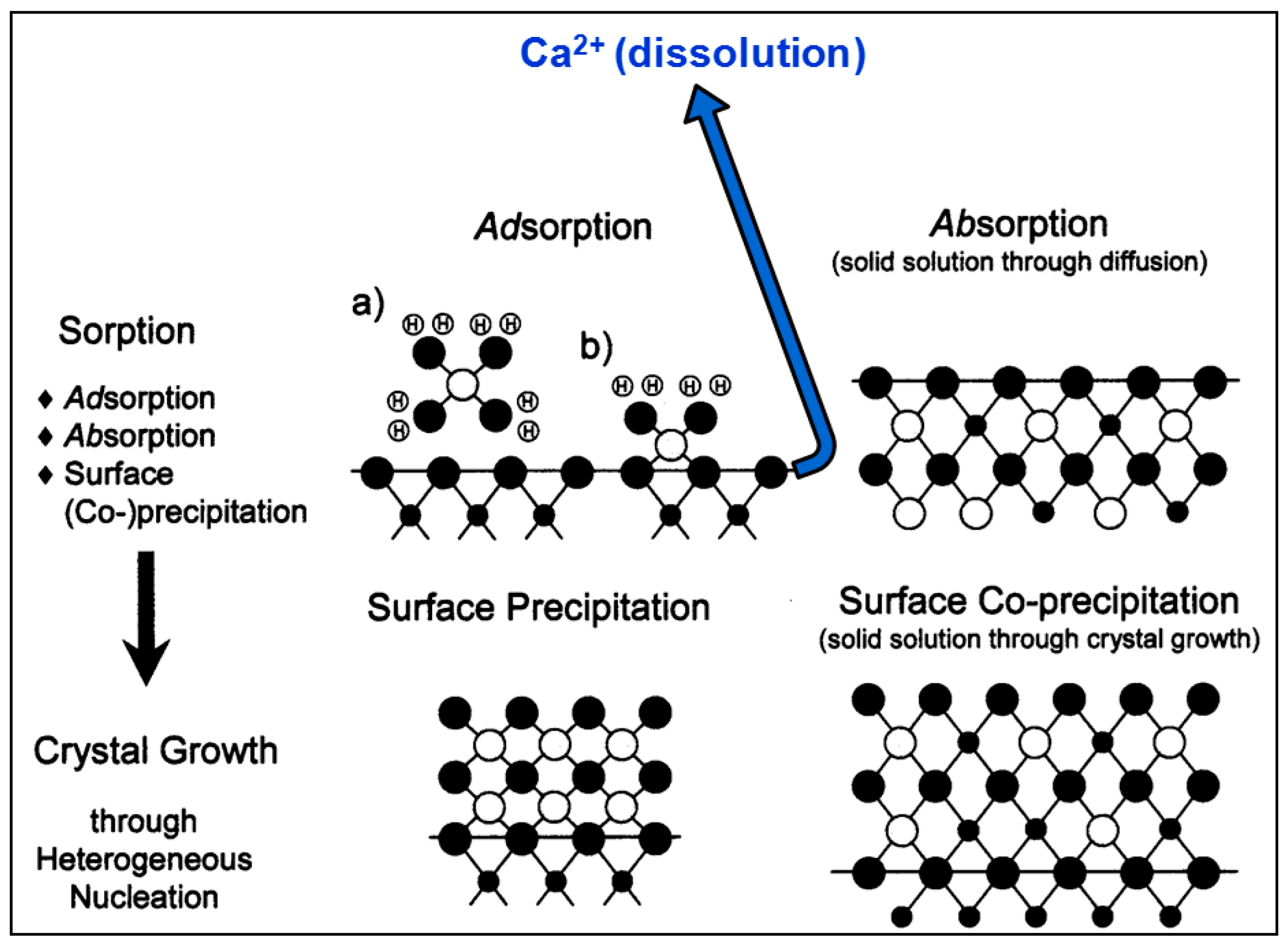

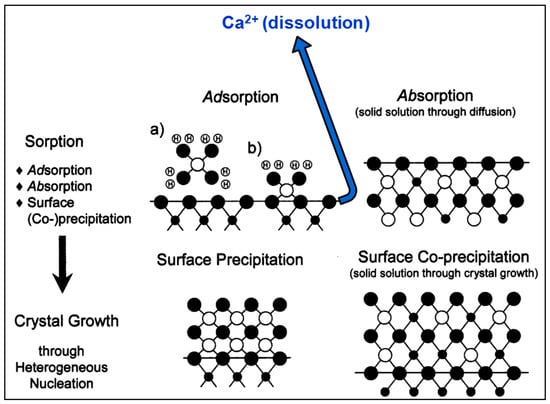

Certain mineral structures can remove heavy metals from the environment. Sorption processes onto mineral phases, and particularly onto carbonates [4], frequently control the immobilization of contaminants and govern their dispersion and accumulation. The main mechanisms involved in metal sorption processes are absorption (including ion exchange), adsorption and co-precipitation, finally leading to surface crystal growth [5] (Figure 1). The adsorption only involves the formation of chemical bonds onto the mineral surface sites. Absorption implies the incorporation of dissolved metal ions onto mineral surface layers. On the other hand, co-precipitation fundamentally leads to the formation of a new phase, which is not necessarily related to the bulk mineral composition and structure. Many studies have focused on remediation technologies with natural minerals such as zeolites, sulphates and carbonates in the last two decades [6,7,8]. Among these minerals, carbonates are the most widely used, particularly calcite, which has been employed due to its widespread availability and reactivity [9].

Kornicker et al. [10] measured the sorption process of an aqueous solution of Co²⁺ ([Co²⁺_aq]_initial < 60 ppm) onto calcite and concluded that only adsorption occurs. No CoCO₃ was found to be precipitated onto the calcite or aragonite surfaces. Xu et al. [11] investigated the interaction of Co²⁺ ([Co²⁺_aq]_initial < 6 ppm) with both calcite-cleaved monocrystals and powder by means of X-ray photoelectron spectroscopy (XPS). They reported that initially the incorporation of Co into calcite occurred at a fast rate (up to 7.2 nmol/min·mg) and is attributed to adsorption. This was followed by a co-precipitation mechanism and the formation of a (Co,Ca)CO₃ solid solution with the Co content related to the initial pH and the calcite saturation index. They also indicated that no oxidation of Co²⁺ takes place during the interaction. Furthemore, Cheng et al. [12] studied the interaction of the calcite surface with Co ([Co²⁺_aq]_initial = 29.47 ppm) using surface-extended X-ray absorption fine structure (SEXAFS) and X-ray standing wave (XSW). Their results indicated that Co replaces Ca atoms in the M–O octahedron at the surface and also that at the top of the surface, the Co²⁺ ions are bounded to OH groups in order to maintain the octahedral coordination observed in XSW. In addition, Braybrook et al. [13] carried out both experimental and computational work based on calcite growth in the presence of aqueous Co²⁺. Both their simulations and experiments provided support for the conclusion that synthetic calcite growth occurs. Their simulations showed interference between the {$10\overline{1}4$} and {$01\overline{1}1$} planes, thus suggesting Co incorporation on the <$44\overline{8}1$> acute steps. However, they claimed that both experimental and computational results indicated that Co accumulation only occurs on the calcite mineral surface. Freij et al. [14] performed a series of experiments ([Co²⁺_aq]_initial < 600 ppm) using atomic force microscopy (AFM) and concluded that a Co_xCa_1−xCO₃ micro-layer is formed, covering the entire calcite surface. Further, Katsikopoulos et al. [15] studied the crystal growth from a (Co,Ca)CO₃ solid solution using silica gel double diffusion and direct precipitation experiments. They demonstrated that a large amount of Co (up to 33 mol % of Co) entered the CaCO₃ structure, but experiments were conducted far from equilibrium due to supersaturation; thus, the Co incorporation into calcite could occur in a metastable state. Moreover, Lee et al. [16], in a paper significant for medical applications, investigated the influence of citrate and phthalate on the growth of calcite in the presence of Co²⁺ and found that citrate and phthalate inhibit the precipitation of calcite. Recently, González-López et al. [17] reported the thermochemistry of (Ca,Co)CO₃ solid solutions from density functional theory simulations and concluded that many Ca_1−xCo_xCO₃ mineral solid solutions (with observed compositions of up to x = 0.027, and above x = 0.93) are metastable with respect to phase separation. Finally, Xu et al. [18] studied the interaction of calcite with solutions with a very low Co²⁺ concentration ([Co_aq]_initial = 1–10 ppm) using AFM and XPS. They suggested that that the lattice misfit between CoCO₃ and CaCO₃ is too large to allow heteroepitaxial growth of a pure cobalt carbonate phase in ambient conditions.

This present work attempts to understand the interaction between the calcite surface and aqueous solutions with a high Co²⁺ concentration ([Co²⁺_aq]_initial = 1000 ppm, ~17 mM). For this purpose, different sets of experiments were designed. Macroscopic experiments of calcite powder and monocrystals were immersed into solutions for varying time periods (from 1 min to one month), with the aim of observing surface dissolution processes (analysis of the filtrates for Ca by atomic absorption spectrometry (AAS)). Surface spectroscopic experiments were conducted to obtain a novel spectroscopic “3D image” of the interactions using a combination of surface-sensitive techniques (XPS and ¹²C-rutherford backscattering spectrometry (¹²C-RBS)) and also to analyze the distribution of Co onto the calcite surface and resolve the potential sorption mechanisms.

2. Materials and Methods

2.1. Macroscopic Experiments

Natural pure calcite (transparent Iceland spar) was held in solution with the salt Co(NO₃)₂·6H₂O at room temperature. The initial concentration of aqueous cobalt was kept high at 1000 ppm ([Co²⁺_aq]_initial = 1000 ppm). The calcite mineral was tested in two different forms: as a fine powder obtained using an agate mortar, and as freshly cleaved {$10\overline{1}4$} monocrystals with a base size of ~0.5 × 0.5 and a height of 0.1 cm. In the powder experiments, 50 mg of calcite were mixed with 50 mL (Solid/Liquid ratio = 1 mg/mL) of the initial Co solution ([Co²⁺_aq]_initial = 1000 ppm, ~17 mM) and placed into 30 mm × 115 mm polypropylene ( PPN) tubes with a screw tap (Greiner Bio-One). The mixture was stirred vigorously at the start. The solutions were keep stable for different reaction times (1 and 12 h, and 1, 7, 14, 21, 30 and 60 days). The solids were separated from the aqueous solution by filtration using a Nalgene^® dispositive filter (Thermo Fisher Scientific, Cambridge, UK) and Millipore^® 0.45 µm filter (Millipore Corp., Bedford, MA, USA) which were carefully rinsed with distilled water. The filtrates from each experiment were analyzed for their Ca content using AAS (Perkin-Elmer 2380 Ca lamp with a wavelength of 422.7 nm, Perkin Elmer, Wellesley, MA, USA). For the monocrystals 20 mL of the initial solution ([Co²⁺_aq]_initial = 1000 ppm, ~17 mM) was added to a 50 mL glass beaker where the single crystals were immersed. As the crystals were immersed into the solution, they were agitated for a few seconds using Teflon^® tweezers to ensure the interaction between crystals and solution. Then, the vessels were covered to prevent contamination from external sources. Experiments with monocrystals were carried out for shorter interaction times, compared to powder experiments. They were immersed for 1, 5, 15 and 30 min, 1 and 12 h, one and two days, one week, and one month (

Table 1. Data of the macroscopic experiments of the immersed calcite monocrystals.

Monocrystal Experiments
Interaction Time	Surface Area (cm2)	Weigh (g)	Geometric Specific Surface Area (cm2/g)
1 min	75.90	0.085	897.15
5 min	45.47	0.040	1142.44
15min	81.33	0.105	774.58
30 min	67.62	0.068	1000.22
1 h	73.93	0.106	697.44
12 h	78.92	0.115	668.06
1 day	85.53	0.099	861.34
2 days	111.13	0.181	613.64
1 week	56.23	0.064	878.66
1 month	66.56	0.050	1344.63

). The surface area was obtained geometrically, by measuring the height and width of each rhombohedron. After the interaction the crystals were carefully removed and rinsed with distilled water before being dried in air and then characterized by XPS (Leybold-SPECS, Berlin/Cologne, Germany) and ¹²C-RBS.

2.2. Surface Spectroscopic Characterization of the Interacted Solids (XPS and ¹²C-RBS)

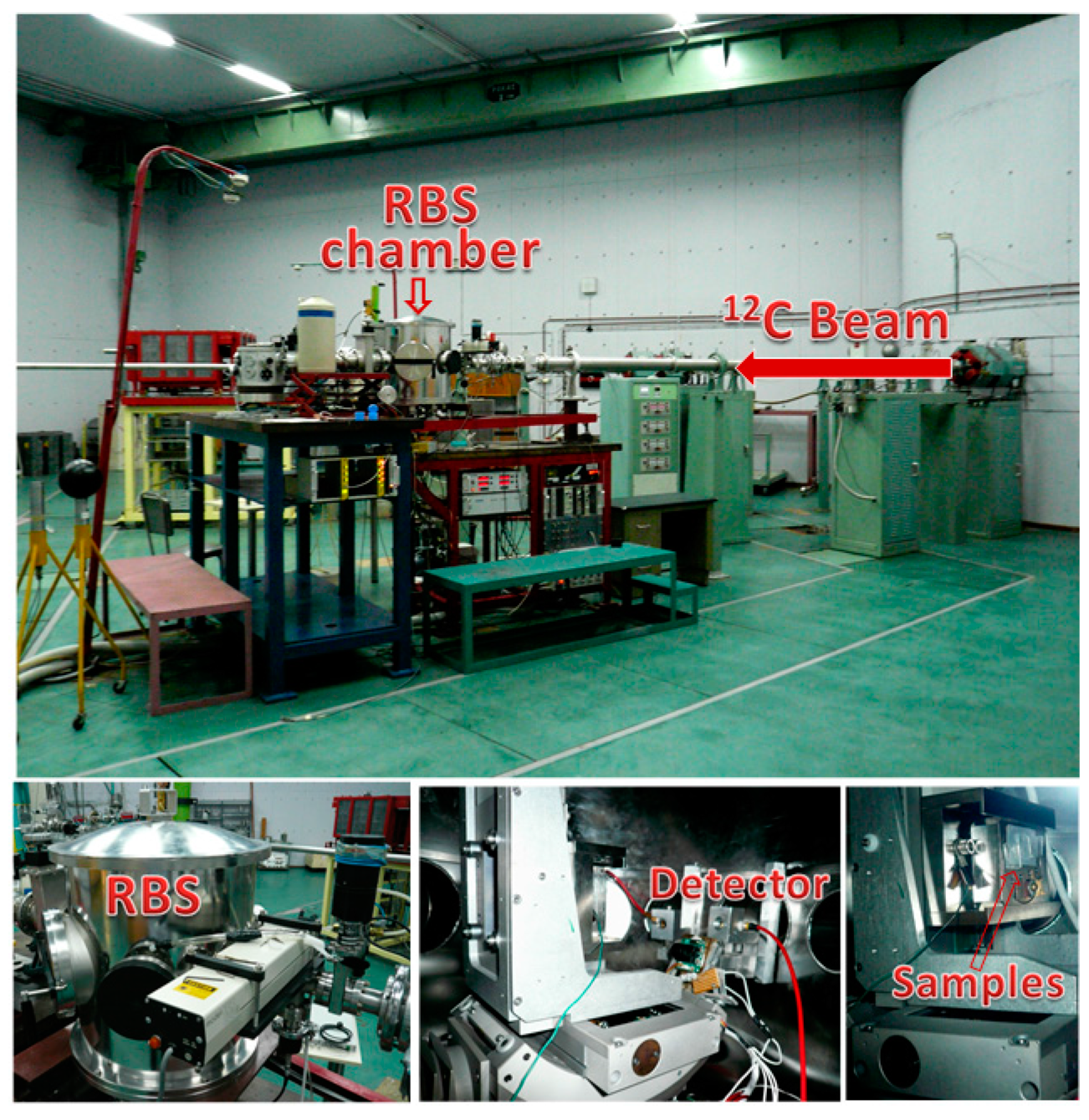

XPS measurements were carried out on monocrystals interacted for 1 h, one day and one week. They were placed into the chamber of a MAX200 system (Leybold, Cologne, Germany), at room temperature and ~10⁻⁸ mbar pressure. Non-monochromatic Mg K_α X-rays and a Hemispherical Electron Energy Analyser (EA200 detector, SPECS, Berlin, Germany) with Multi-Channel Detection and were calibration certified (ISO15472 and ISO24237 [19,20]). The analyser operated under conditions optimized for the optimal signal intensity (constant pass energy of 100 eV, maximum lens aperture, analysis along the specimen surface normal). The analysed depth of the sample, was about 12 nm and signal intensity decreased roughly exponentially with increasing depth. A surface of 10 mm × 10 mm which was to be analyzed was first subjected to light argon-ion sputtering (1.5 keV ion beam energy, ~0.9 μA sample current and x-y rastering), with the aim to remove some of the superficial ‘carbon’ contamination layer. The ¹²C-RBS measurements were carried out, in the case of monocrystals which had been immersed for 1 h, one day, one week and one month, using the 5.5 MV Tandem Accelerator at NCSR “DEMOKRITOS” located in Athens (Greece) with an 8 MeV ¹²C-beam (Figure 2). RBS can be used to obtain composition profiles of the lower surface layers of the calcite crystals. The use of heavier ions (¹²C), rather than typical protons, enhances the analytical depth resolution.

3. Results and Discussion

3.1. Macroscopic Data—Dissolution of Calcite in the Presence of Co²⁺

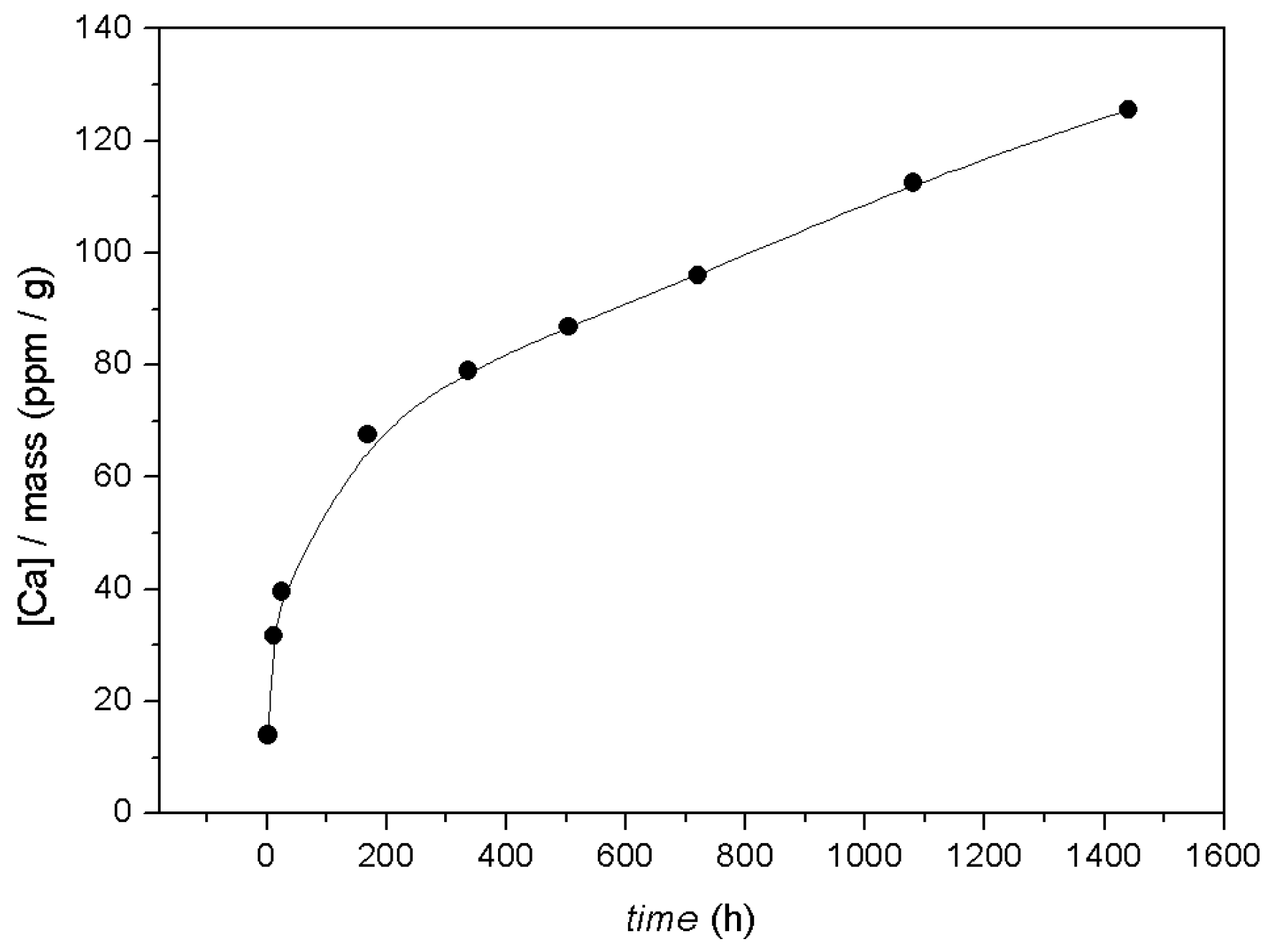

The release of Ca²⁺ (ppm of Ca per g of the solid), when powdered calcite was immersed in the initial Co²⁺ aquous solution as a function of time, is shown in Figure 3. The results clearly indicate a progressive surface dissolution process [21,22], running in parallel with the metal sorption processes (which were confirmed by XPS and ¹²C-RBS and are described in the next section). It is obvious that the dissolution of calcite depends on the S/L ratio (1 mg/mL in our case). The process starts from the surface, where Co²⁺ also interacts, and theoretically may alter the entire crystal structure. In the case of the experiments with calcite monocrystals it was feasible to correlate—in the presence of [Co²⁺_aq]_initial = 1000 ppm in the solution—the release of Ca²⁺ per geometric specific surface area as a function of time.

It is also evident that dissolution depends significantly on the specific surface area of the carbonate mineral particles. The smaller the crystal size, the higher the dissolution rate. This is clearly seen when the high dissolution rates for the powdered experiments are compared with the single-crystal experiments. There was a rapid increase of the Ca concentration in the solution in short time steps after immersion. This was eventually stabilized after one week, reaching a value of 3.8 × 10⁻³ ppm/g·cm⁻². The equivalent total Ca²⁺ release in ppm for the monocrystals after one week of interaction was 3.2 ppm. Ca²⁺ release in the powder experiments differed greatly from the monocrystal experiments due to the differences in the surface reactivity. In the powder experiments, Ca²⁺ liberation never reached an asymptotic maximum value (see Figure 3). This suggests that calcite powder is dissolved during the entire interaction time, together with surface replacement of Ca²⁺ by Co²⁺. The cause of this behavior is the fact that not only one monocristal is in place, but there is an accumulation of microcrystals which significantly increase the global surface reactivity. In this way, the total Ca²⁺ released after immersion for one week with approximately 0.5 g of calcite powder was 33.8 ppm, and assuming the average mass of all monocrystal experiments, the calculated calcium concentration was 6.6 ppm, rather higher than the previous Ca²⁺ total. Therefore, for the same mass of calcite powder, dissolution was faster. Indeed, it is suggested that the initial fast increase of Ca²⁺ in the aqueous solution was driven by the coupled dissolution and sorption process; this is supported by the modeling experiments using the PHREEQC code [23] (the total Ca²⁺ released into the solution was only 23.21 ppm, and thus the approximately 35 ppm of Ca²⁺ at the end of the first rise exceeded the calcite dissolution equilibrium). On the contrary, the last linear trend in Ca²⁺ release was only presumably caused by sorption which involves the surface replacement of Ca²⁺ by Co²⁺ towards the formation of a Cobalt-bearing co-precipitate.

3.2. Spectroscopic Data—Sorption of Co²⁺ on the Surface of Calcite

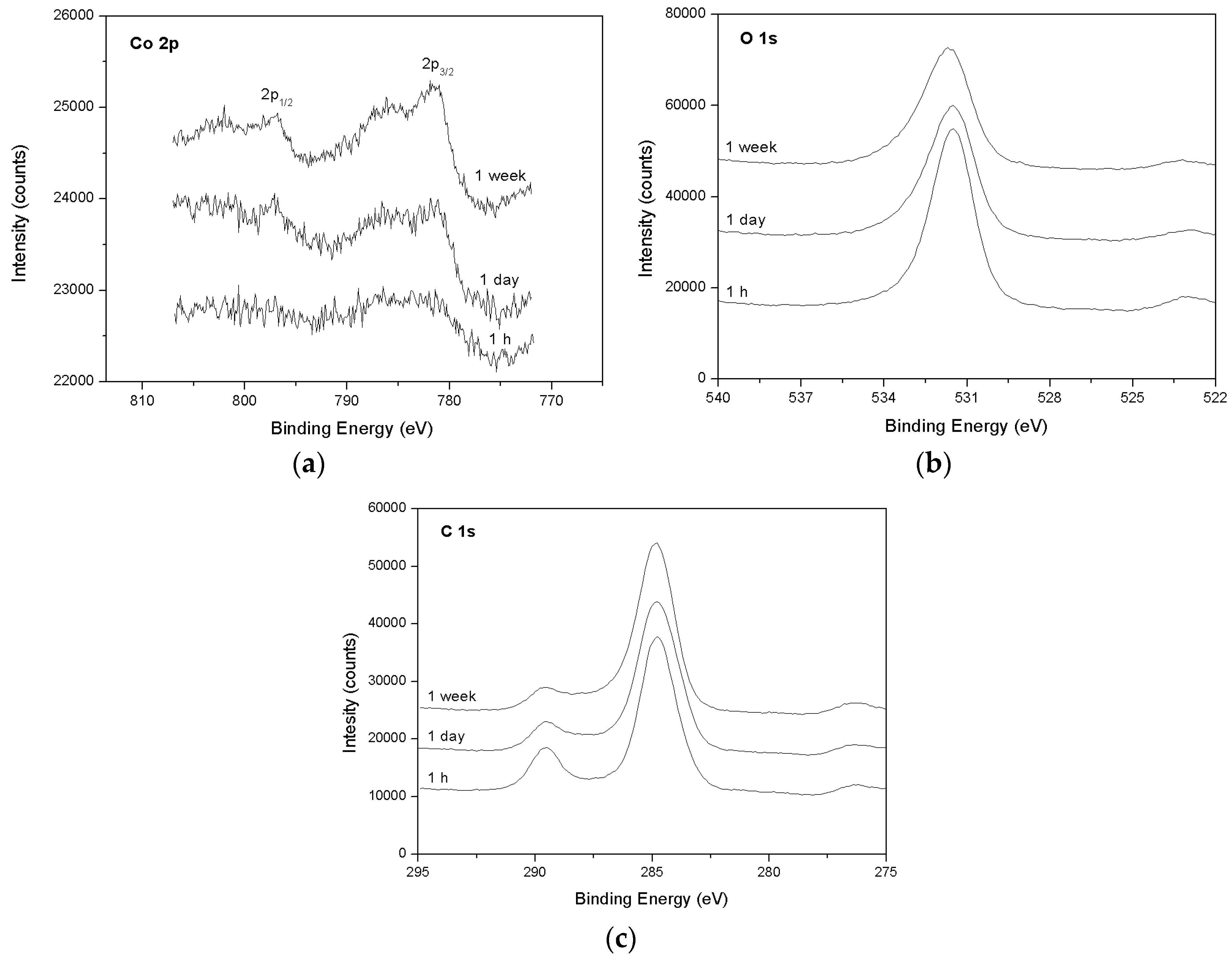

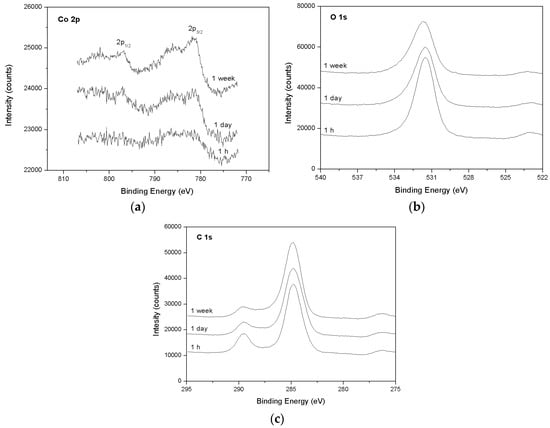

The XPS spectra for interacted calcite monocrystals (after 1 h, one day and one week of interaction) are shown in Figure 4. The Co 2p3/2 and 2p1/2 photoelectron peaks correspond to binding energies (BE) of 781.4 and 796.9 eV, respectively. These are characteristic of many Co compounds [11]. However, Co³⁺ or mixed Co²⁺ and Co³⁺ compounds seem not to be present due to the strong satellites of both Co 2p peaks. It is well known that these satellites are characteristic for octahedrally coordinated Co²⁺ phases [24]. Moreover, the intensity of the peaks reveals that, for the samples immersed for one day and one week, there was evidence of Co incorporation into the calcite near-surface layers. The peaks indicate that there was a correlation between the intensity and the interaction time. Although the peak for 1 h is small, we cannot ignore the possibility that almost all adsorption of Co on the calcite surface was reached. In fact, since the O 1s photoelectron peak (531.6 eV) was assigned to both CaCO₃ and surface OH groups, and furthermore there was an excess of oxygen over the 1:3 stoichiometry for CaCO₃ (1:3.3), the existence of Co–OH bonds has been suggested as cobalt is adsorbed onto the surface after 1 h of interaction. O 1s peaks show a large tail because of the presence of some organic oxygen together with carbon. Given that XPS is a highly sensitive surface technique, organic carbon and oxygen, ubiquitous at any conditions, were detected. In addition, the decrease of the intensity of the O 1s peaks with time suggests that fewer Co–OH bonds are formed at the calcite surface and, instead, a surface layer of a mixed Co²⁺ compound could been have been precipitated after one day of interaction. However, the analyzed depth was ~12 nm and therefore deeper incorporation of Co cannot be excluded (for this purpose ¹²C-RBS was conducted, as discussed below). The C 1s photoelectron peak at 289.6 eV has a distinct hydrocarbon signal (284.8 eV), and is recognized as characteristic of CaCO₃ for all samples. The peak’s intensity decreases with time, similar to that of O 1s, revealing again a Co-bearing surface layer replacing the calcite surface. On the other hand, the one week sample which had been slightly sputtered with light argon ions allowed the removal of the first atomic layers, and we found that, in addition to hydrocarbon surface reduction, the Co/Ca ratio was reduced considerably (from 0.33 to 0.09). This is in agreement with the over-layer formation proposed for interaction times longer than 1 h.

As mentioned above, XPS gives information about Co speciation and distribution at near-surface layers (up to 12 nm) of the immersed calcite crystals. It is unclear whether Co²⁺ ions, except for adsorption, have been incorporated into deeper layers of the dissolved calcite surface structure, forming a real co-precipitate. The complementary use of RBS (e.g., [25]), particularly of ¹²C-RBS having a higher resolution, may yield a surface spectroscopic “3D image” of the metal. The same methodology has been previously applied in the case of the interaction of calcite with Pb in aqueous solutions [26]. It is known that the shapes of the RBS peaks are related to the metal distribution at varying depths. Sharp peaks reveal the formation of a metal-rich thin layer on the calcite surface (i.e., adsorption), while asymmetrical peaks and plateaus indicate metal incorporation onto calcite bulk (i.e., absorption) [25]. The ¹²C-RBS spectra, showing Co distributions on surfaces at varying depths for the samples immersed for one day and one week, are shown in Figure 5 and Figure 6, respectively. The RBS from calcite {$10\overline{1}4$} interacted for 1 h, and gave no evidence of Co due to detection limits, in contrast to XPS which is more sensitive for near-surface layers.

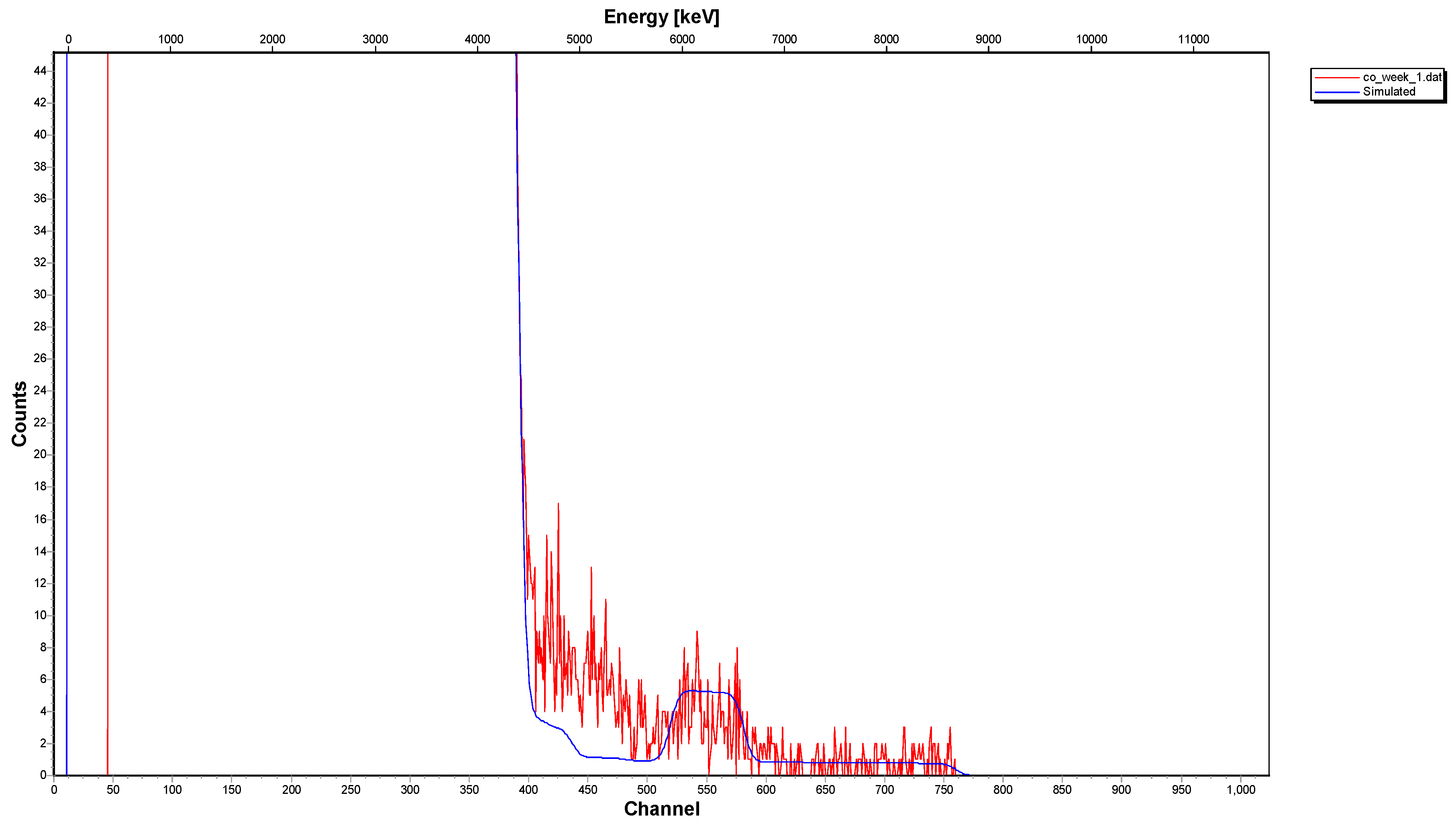

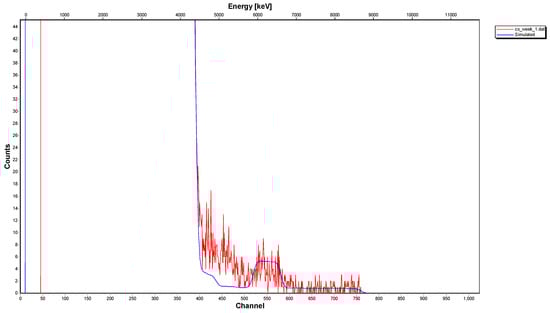

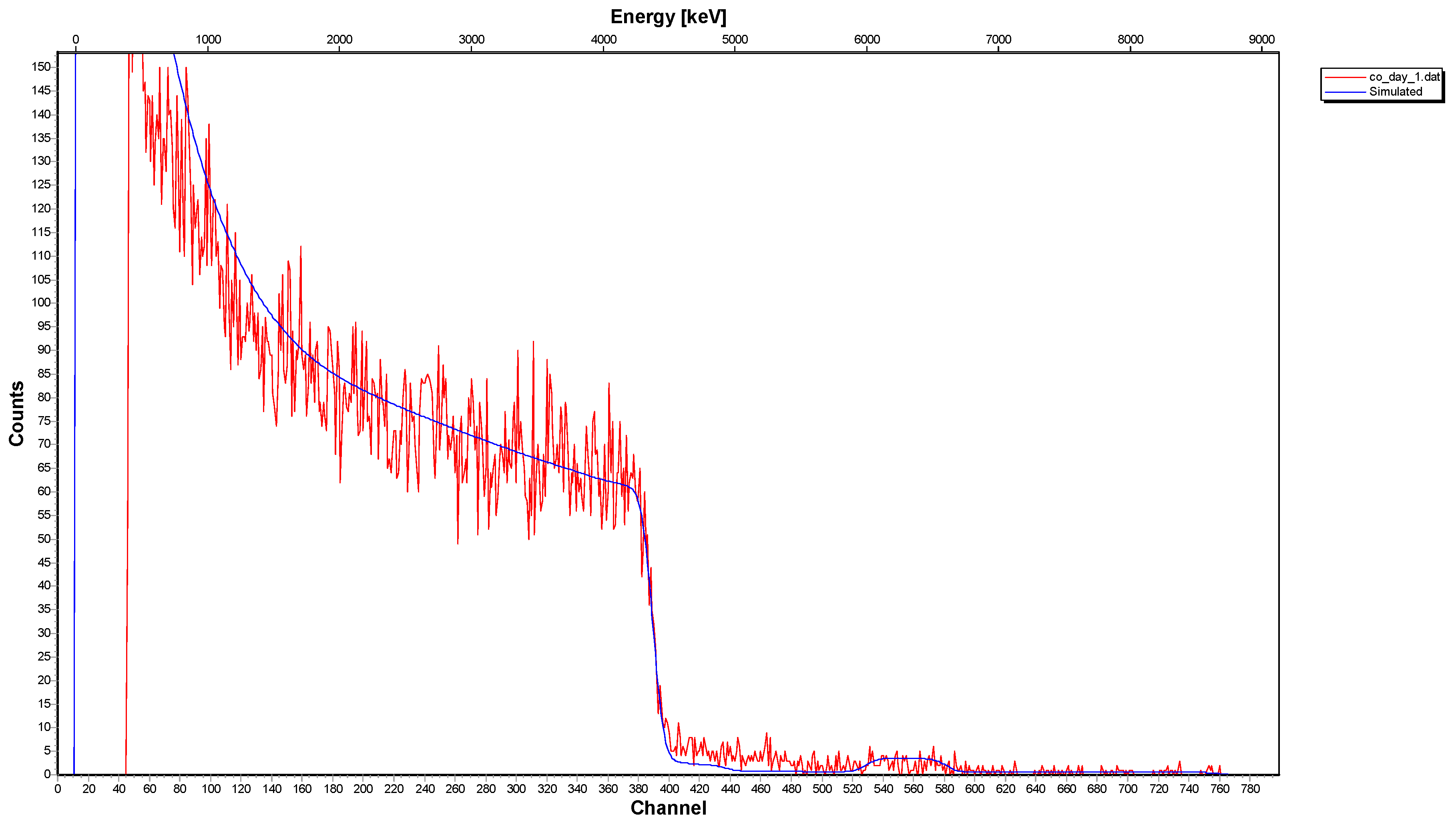

According to the ¹²C-RBS data, the surface layer of calcite was affected by Co²⁺ after an interaction of one day, reaching a depth of 270 nm. That proves that after the initial adsorption, which occurs on a short timescale as indicated by XPS, metal incorporation takes place and a true co-precipitate is formed. Furthermore, after one week of interaction, the depth of this co-precipitate was apparently stabilized, reaching a thickness of 320 nm (almost the same thickness was recorded in the case of calcite immersed for one month). It is therefore argued that Co is removed from the aqueous medium, in the beginning via adsorption onto the dissolving surface, and later on by co-precipitation. A similar behavior has been observed in the case of the interaction of Co²⁺ with the surface of dolomitic marble, also studied by XPS and RBS [27].

4. Conclusions

The main findings of this work can be summarized in the following points:

• According to macroscopic results, for both calcite powder and monocrystals interacted in an aqueous solution with a high Co²⁺ concentration ([Co_aq]_initial = 1000 ppm, ~17 mM), dissolution occurs on the surface, causing systematic release of Ca²⁺ into solution. This runs in parallel to surface Co²⁺ sorption processes.
• The XPS surface study (analyzed at a depth of around 12 nm) confirmed that, indeed, sorption occurs at near-surface layers of calcite, initially by adsorption of Co–OH units and later by surface (co-)precipitation.
• The ¹²C-RBS measurements on calcite {$10\overline{1}4$} indicated that co-precipitation is related to a Co²⁺-bearing surface layer under the calcite surface, showing a thickness of 270 nm after one day of interaction and reaching 320 nm after one week and/or month.
