Minerals 2017, 7(12), 250; https://doi.org/10.3390/min7120250

Chemical Force Microscopy Study on the Interactions of COOH Functional Groups with Kaolinite Surfaces: Implications for Enhanced Oil Recovery

Department of Earth Sciences, Durham University, Durham DH1 3LE, UK
*
Author to whom correspondence should be addressed.
Received: 10 November 2017 / Revised: 5 December 2017 / Accepted: 12 December 2017 / Published: 19 December 2017
(This article belongs to the Special Issue Organo-Mineral Interactions)
Full-Text   |   PDF [3787 KB, uploaded 20 December 2017]   |

Abstract

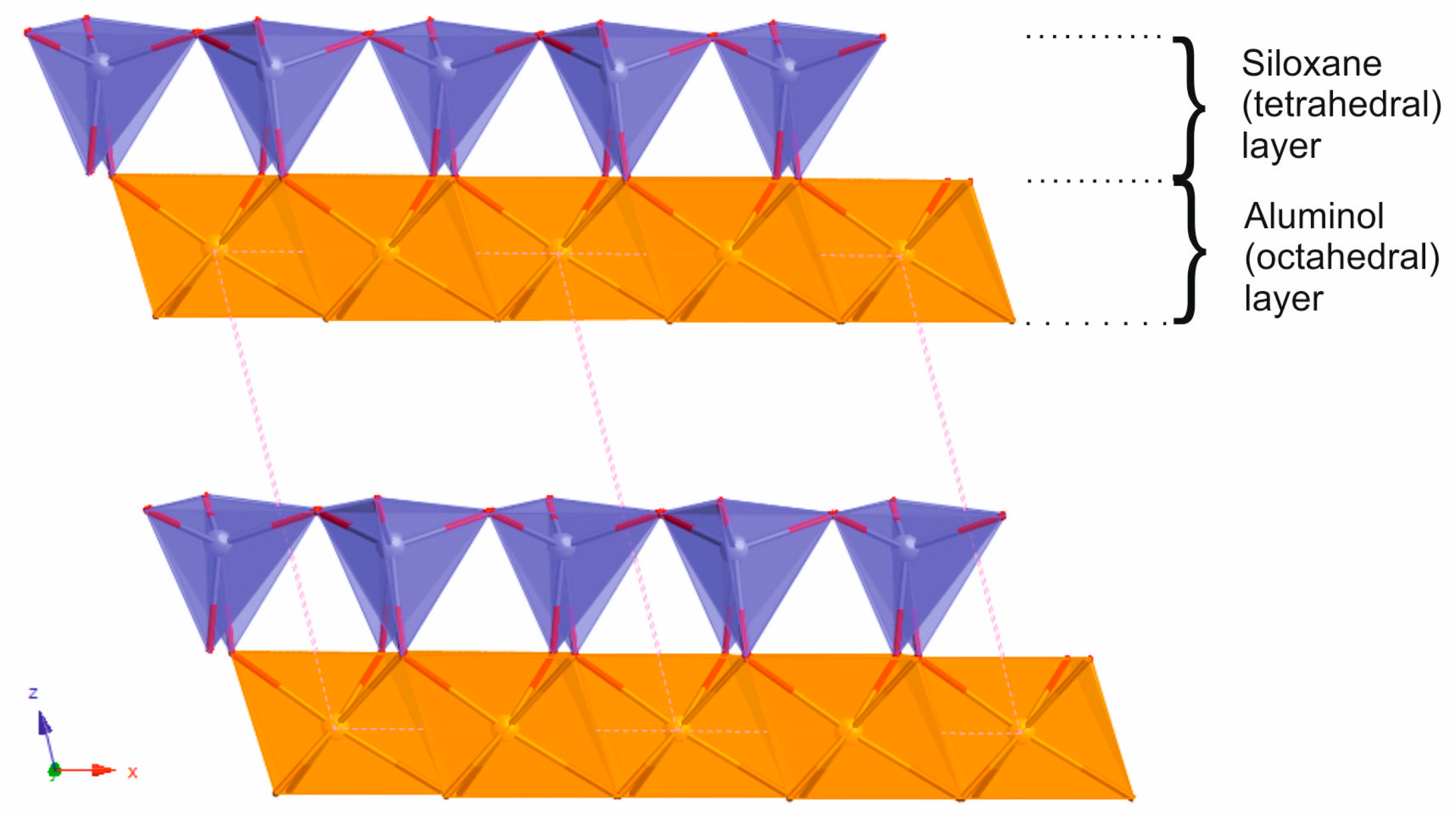

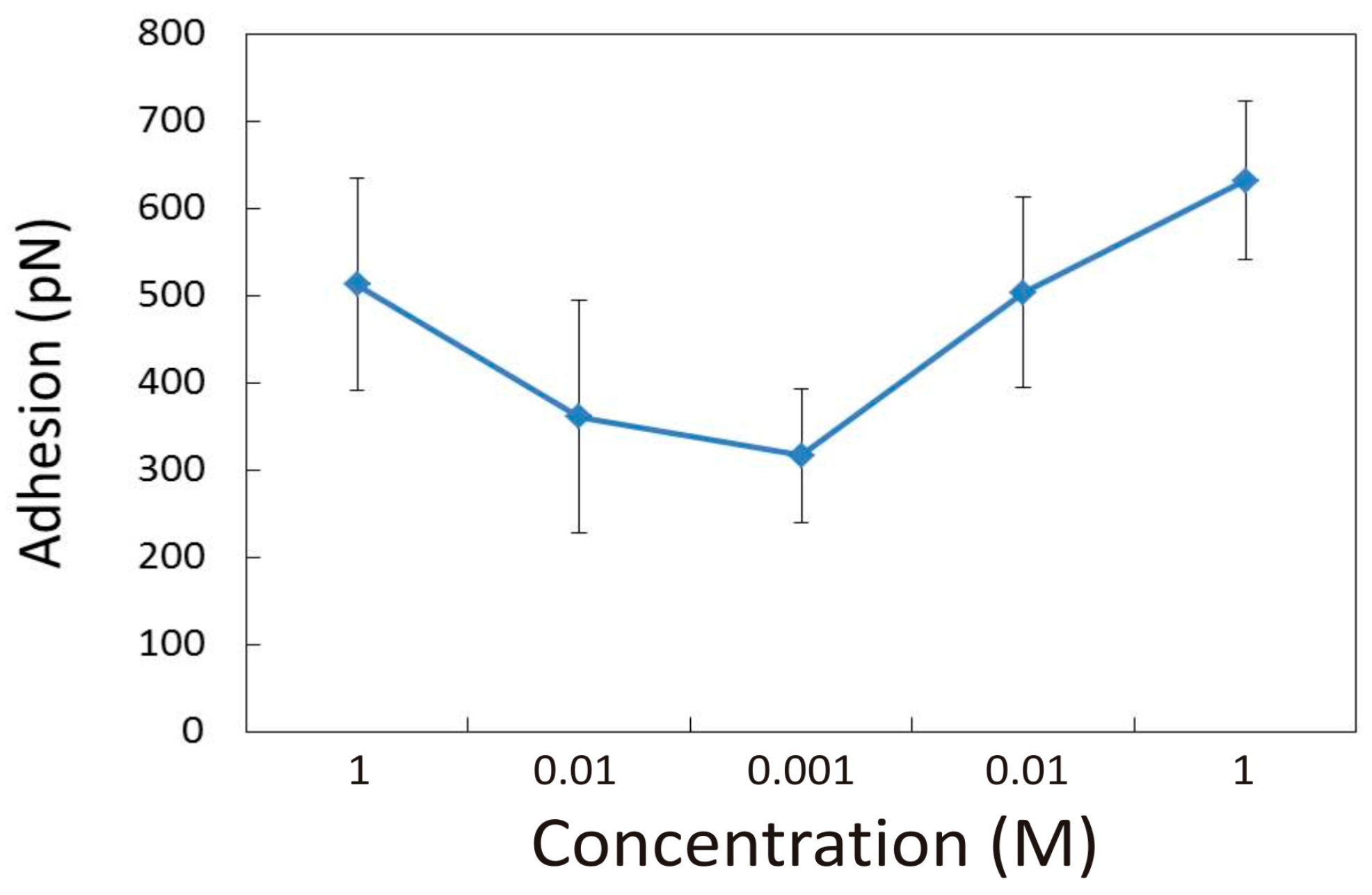

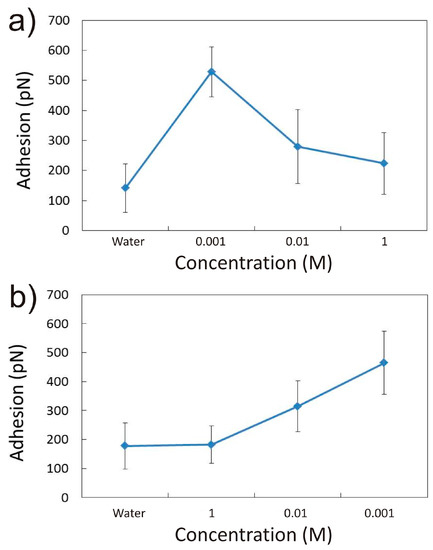

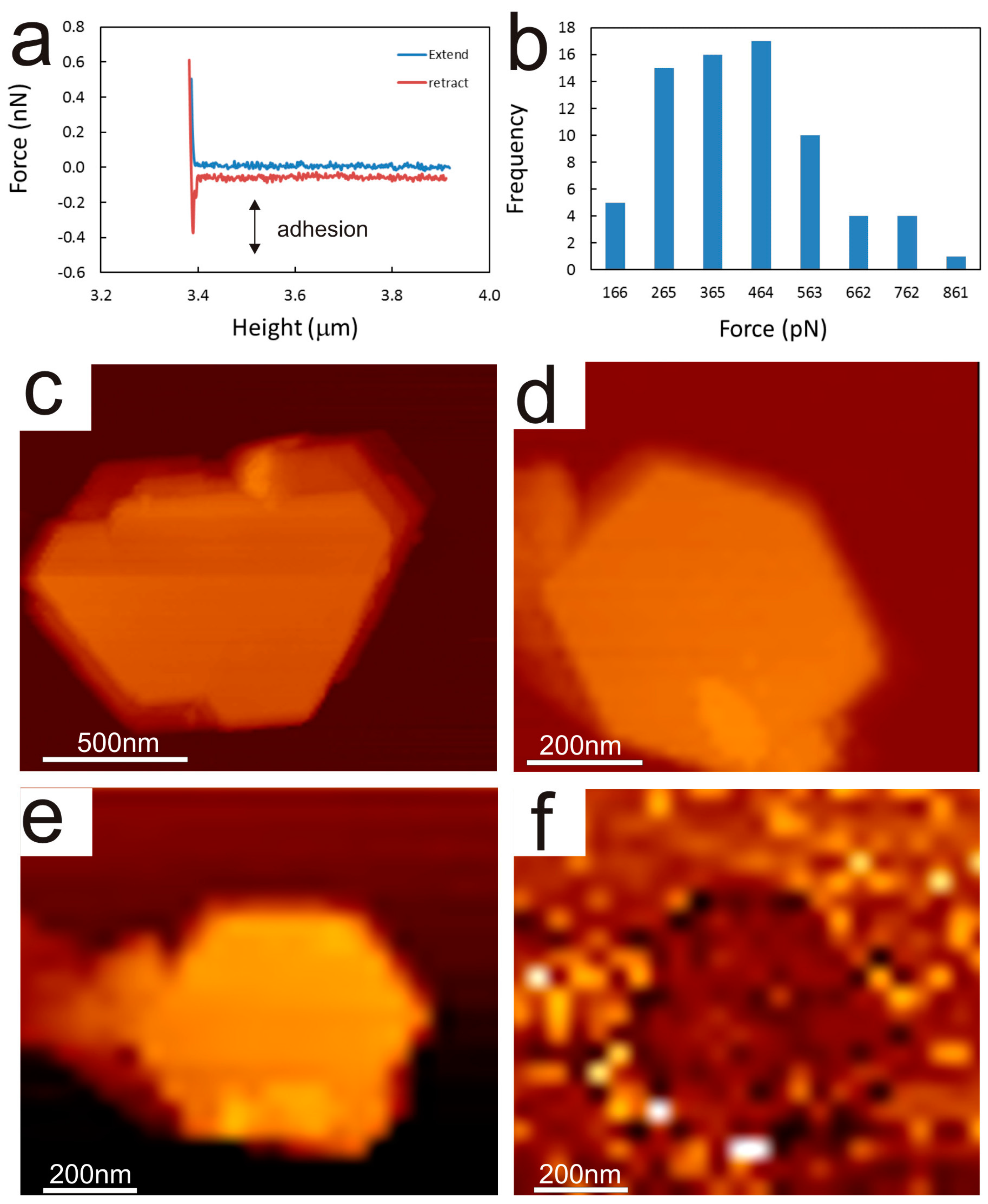

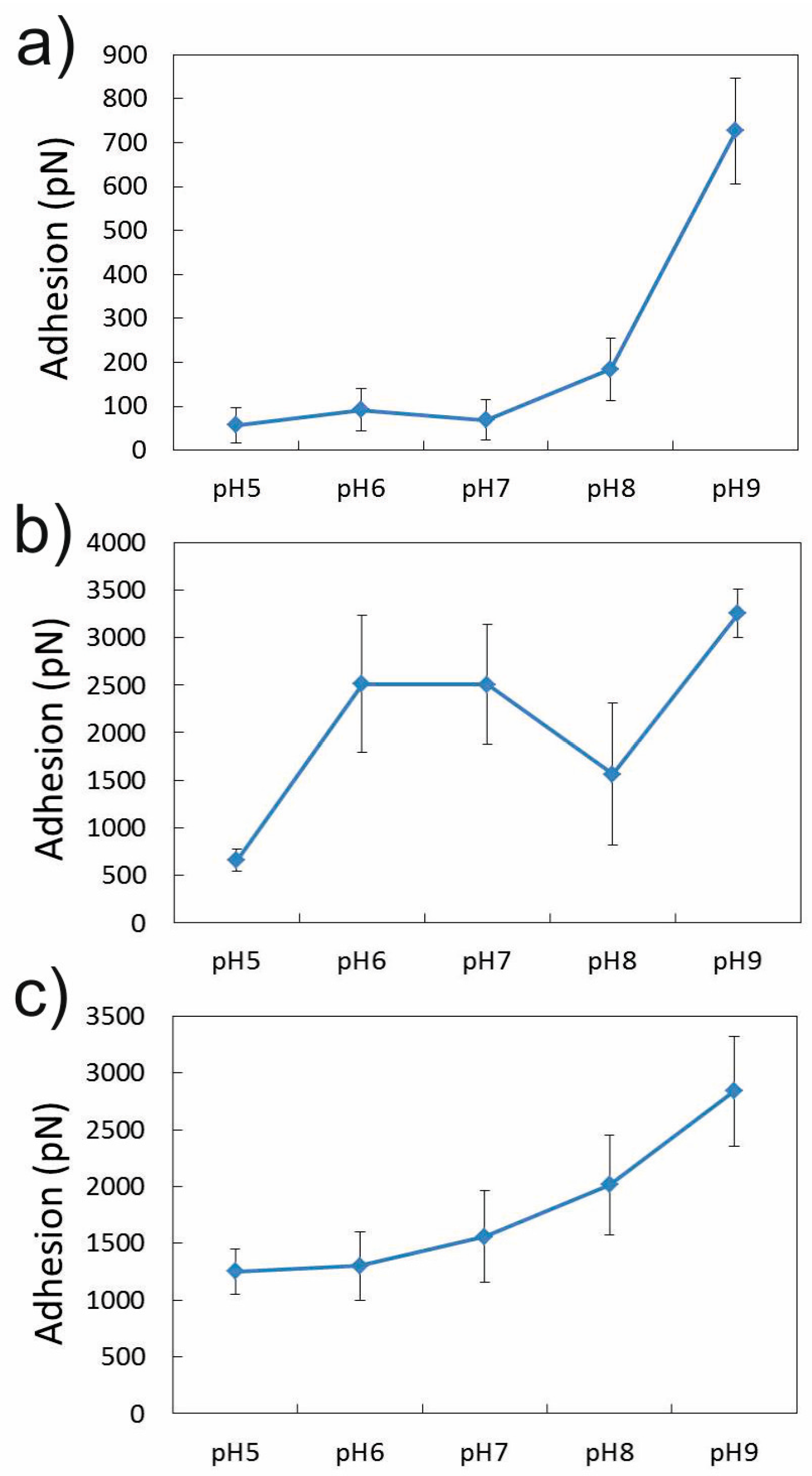

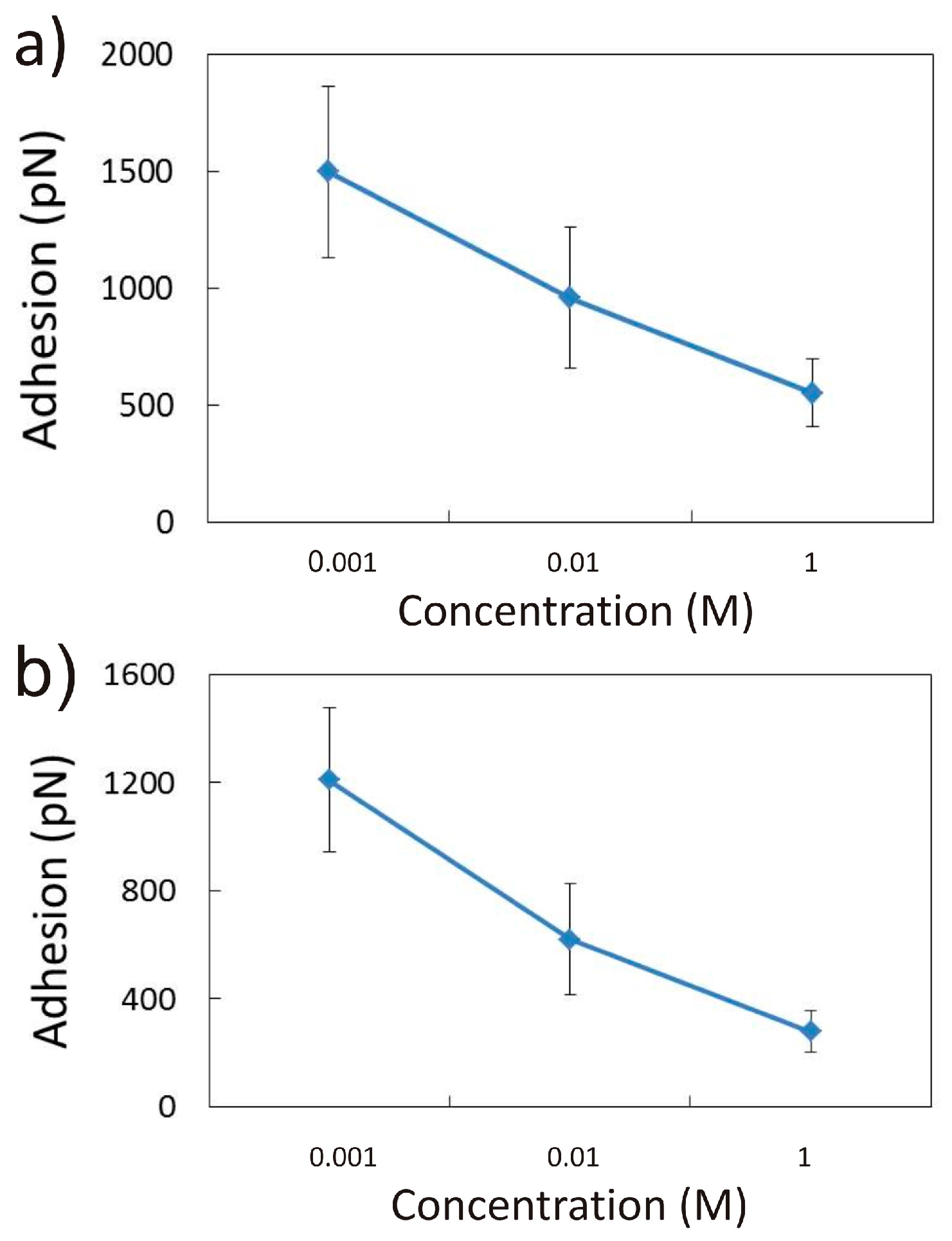

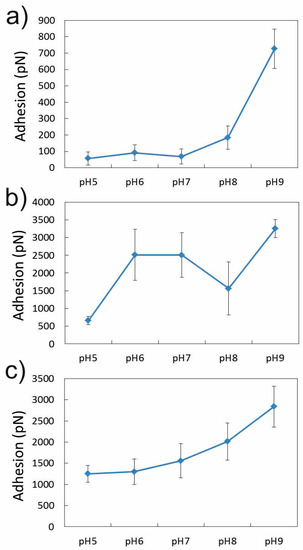

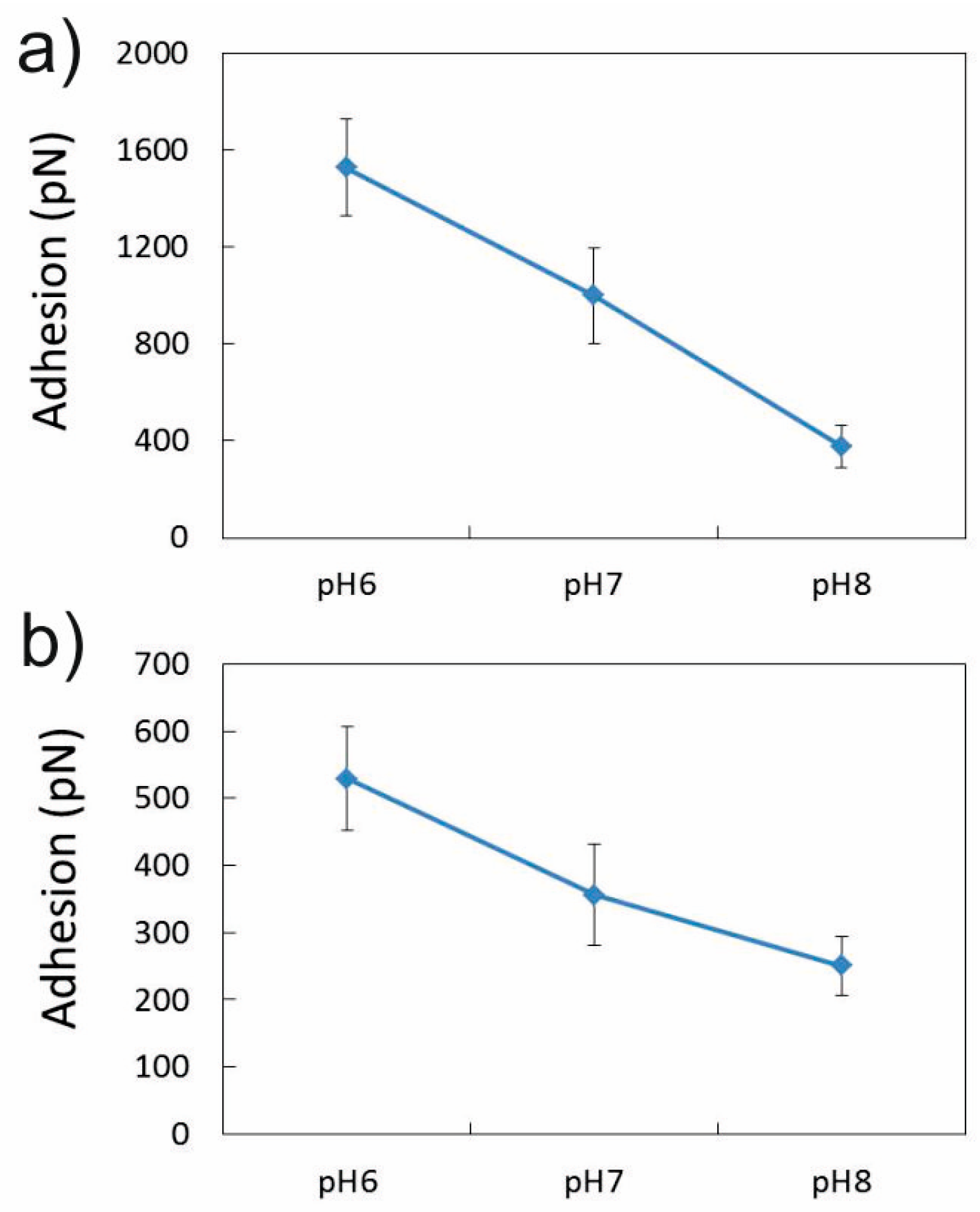

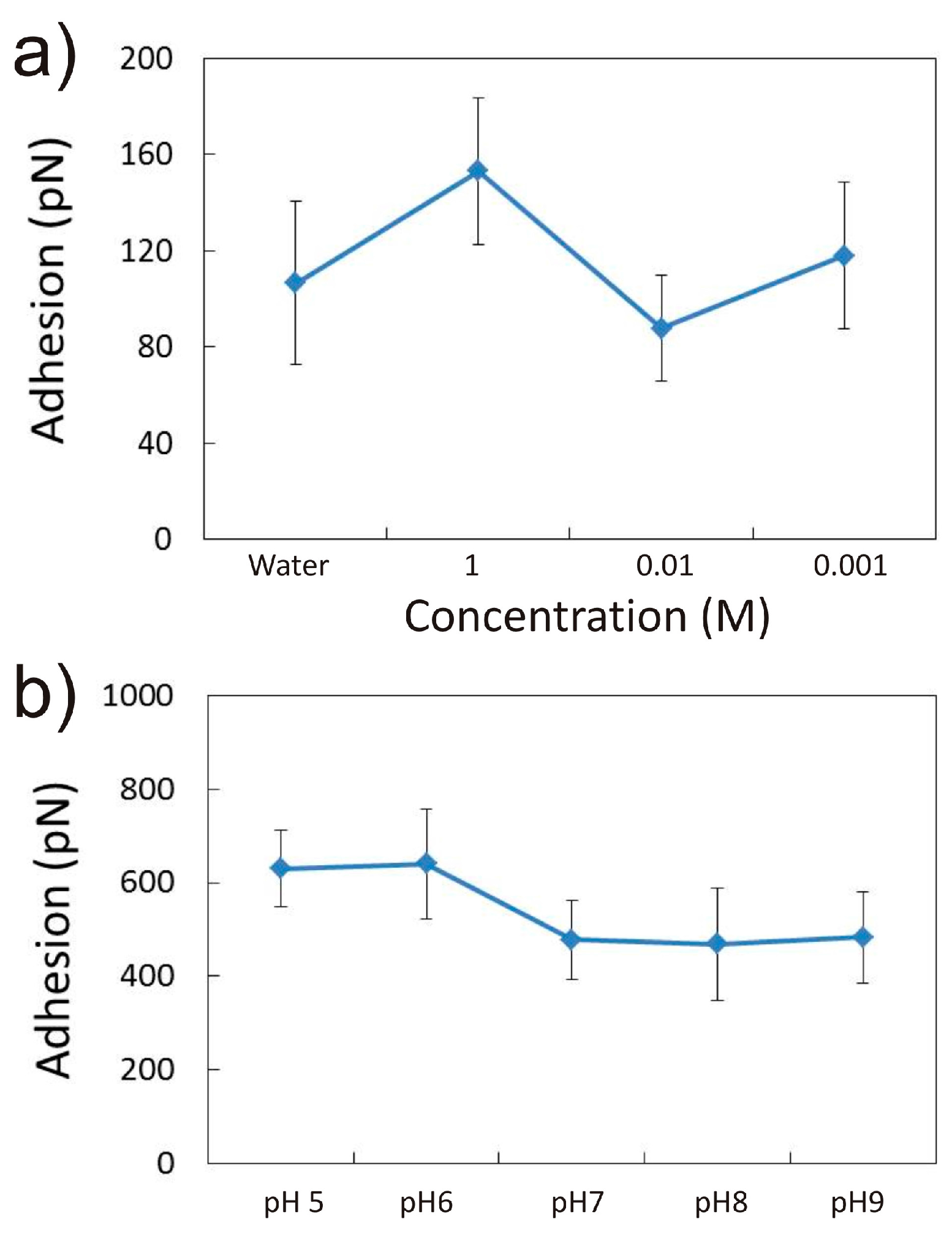

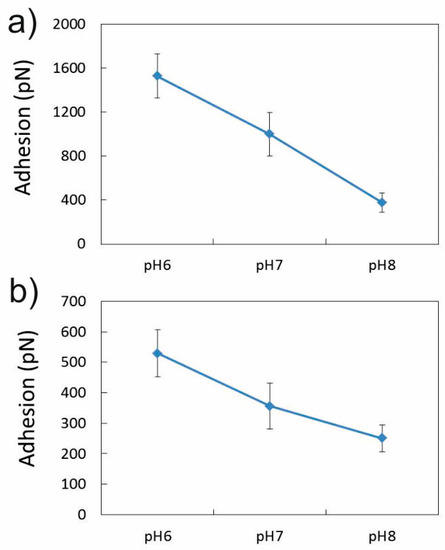

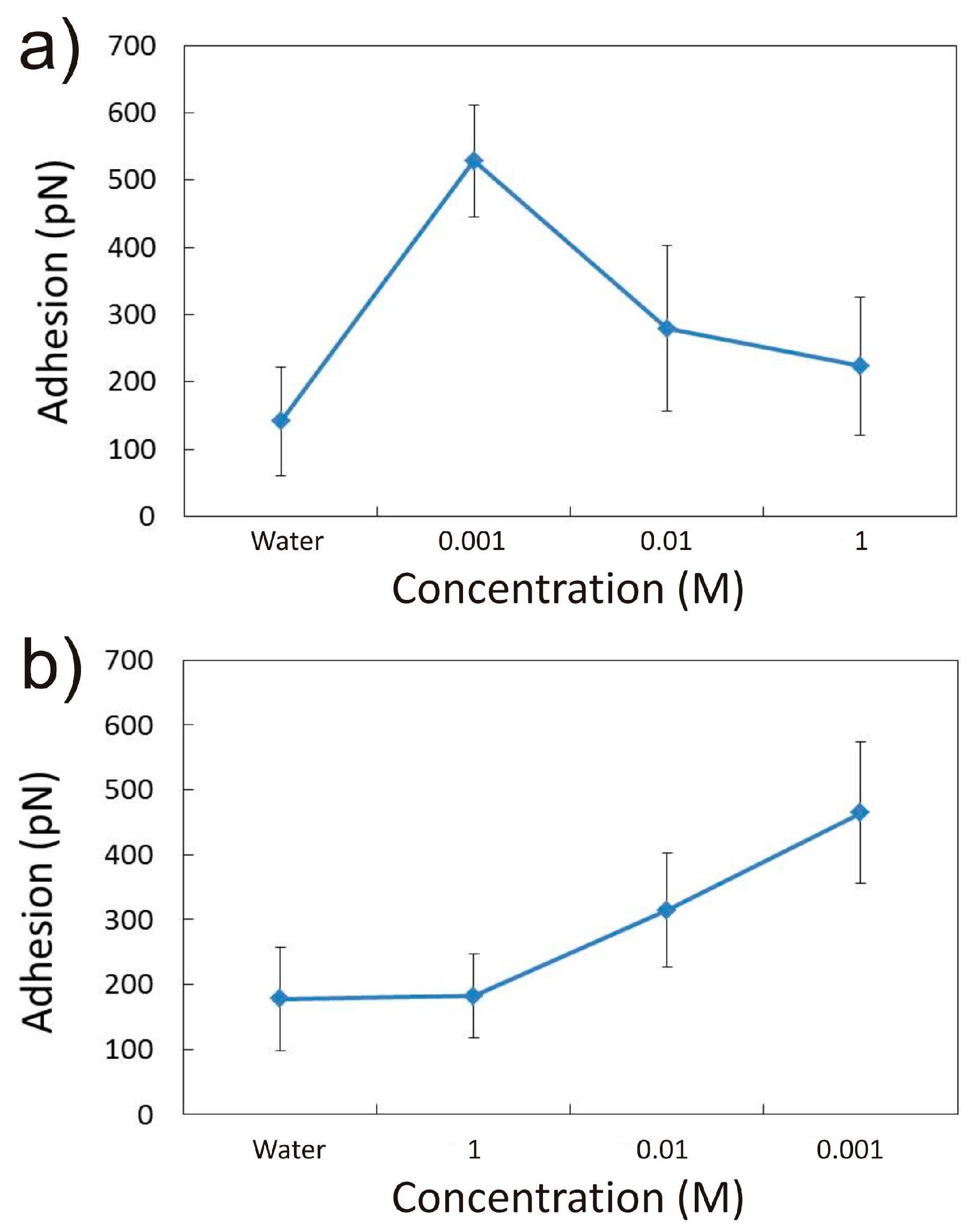

Clay–oil interactions play a critical role in determining the wettability of sandstone oil reservoirs, which, in turn, governs the effectiveness of enhanced oil recovery methods. In this study, we have measured the adhesion between –COOH functional groups and the siloxane and aluminol faces of kaolinite clay minerals by means of chemical force microscopy as a function of pH, salinity (from 0.001 M to 1 M) and cation identity (Na+ vs. Ca2+). Results from measurements on the siloxane face show that Ca2+ displays a reverse low-salinity effect (adhesion decreasing at higher concentrations) at pH 5.5, and a low salinity effect at pH 8. At a constant Ca2+ concentration of 0.001 M, however, an increase in pH leads to larger adhesion. In contrast, a variation in the Na+ concentration showed less effect in varying the adhesion of –COOH groups to the siloxane face. Measurements on the aluminol face showed a reverse low-salinity effect at pH 5.5 in the presence of Ca2+, whereas an increase in pH with constant ion concentration resulted in a decrease in adhesion for both Ca2+ and Na+. Results are explained by looking at the kaolinite’s surface complexation and the protonation state of the functional group, and highlight a more important role of the multicomponent ion exchange mechanism in controlling adhesion than the double layer expansion mechanism. View Full-Text
Keywords: atomic force microscopy; clay minerals; enhanced oil recovery; kaolinite; chemical force microscopy; low-salinity EOR atomic force microscopy; clay minerals; enhanced oil recovery; kaolinite; chemical force microscopy; low-salinity EOR
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Santha, N.; Cubillas, P.; Saw, A.; Brooksbank, H.; Greenwell, H.C. Chemical Force Microscopy Study on the Interactions of COOH Functional Groups with Kaolinite Surfaces: Implications for Enhanced Oil Recovery. Minerals 2017, 7, 250.
