Minerals 2017, 7(10), 190; https://doi.org/10.3390/min7100190

The Force of Crystallization and Fracture Propagation during In-Situ Carbonation of Peridotite

1
HPT-Laboratory, Department of Earth Sciences, Utrecht University, P.O. Box 80021, 3508 TA Utrecht, The Netherlands
2
Department of Environmental Technology, Institute for Energy Technology, Instituttveien 18, 2007 Kjeller, Norway
3
Department of Earth Sciences, Utrecht University, P.O. Box 80021, 3508 TA Utrecht, The Netherlands
4
Shell Innovation, Research and Development, Houston, TX 77082-3101, USA
*
Author to whom correspondence should be addressed.
Received: 29 August 2017 / Revised: 25 September 2017 / Accepted: 6 October 2017 / Published: 11 October 2017
(This article belongs to the Special Issue Carbon Capture and Storage via Mineral Carbonation)
View Full-Text   |   Download PDF [42507 KB, uploaded 12 October 2017]   |

Abstract

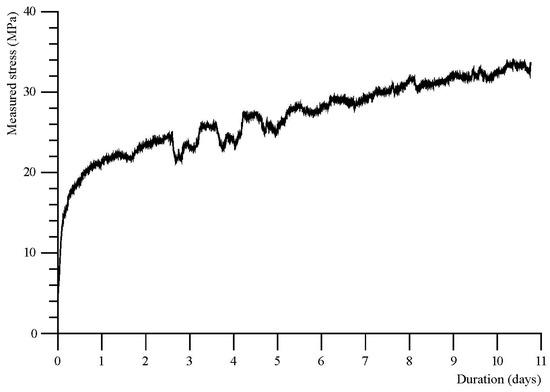

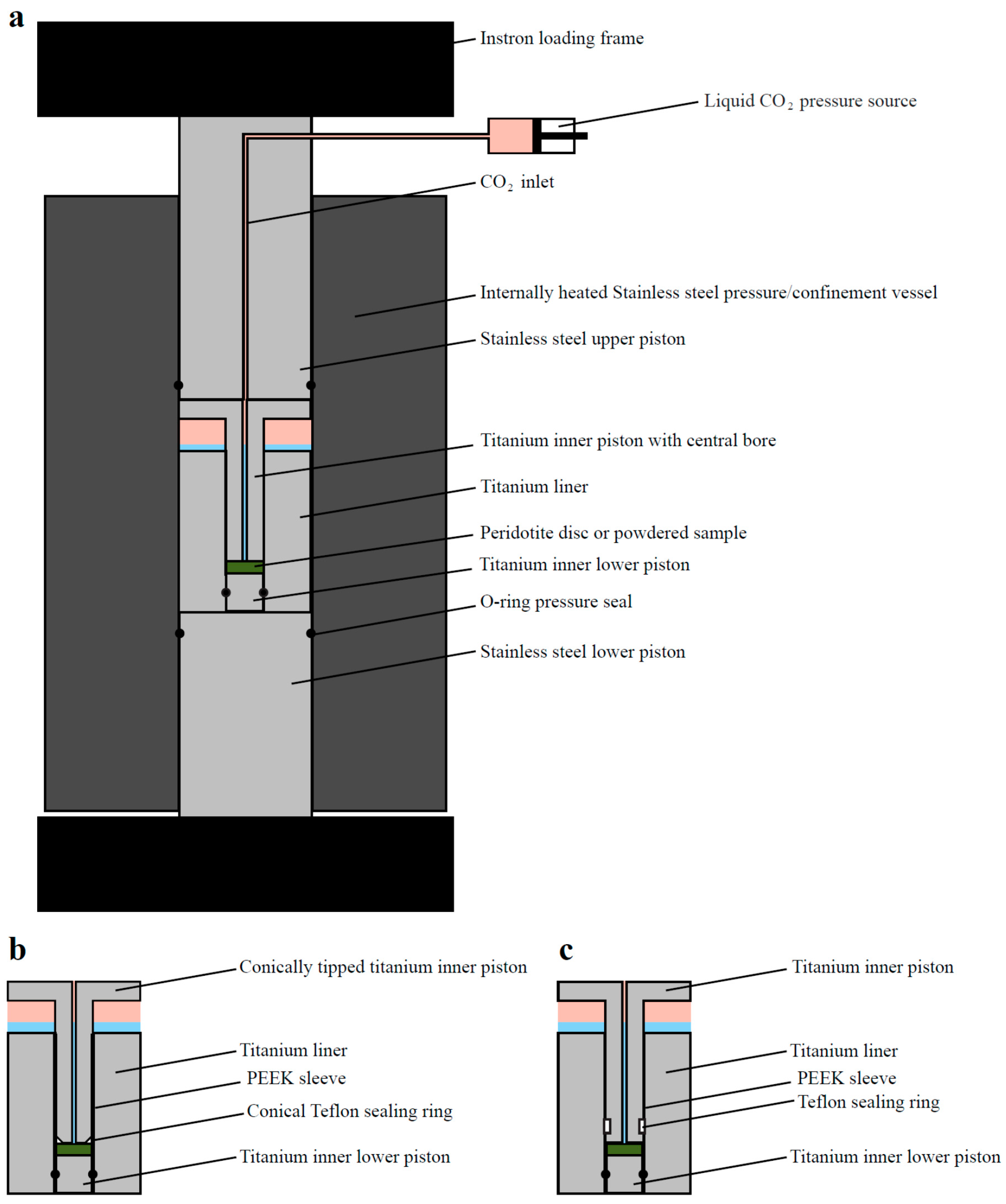

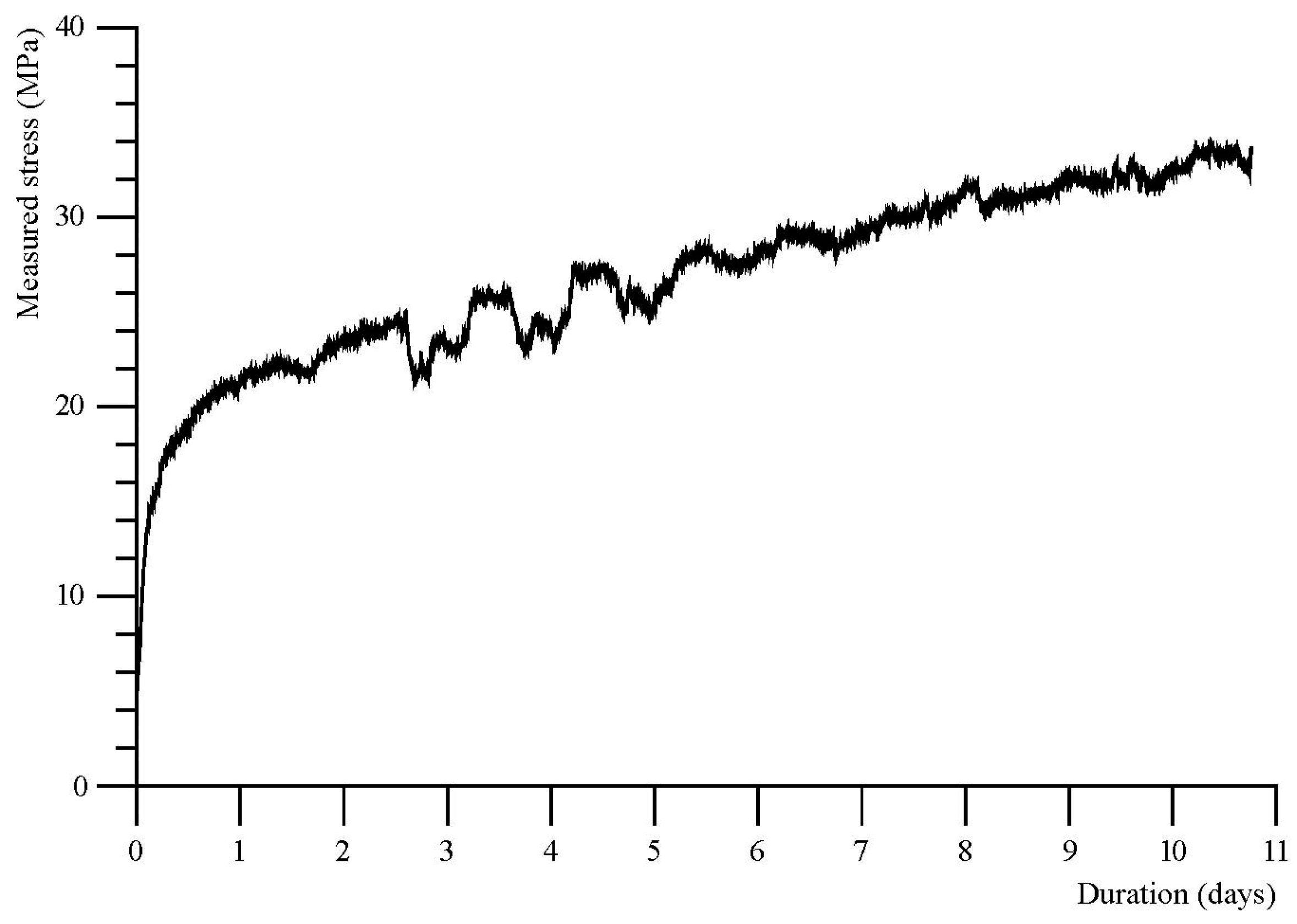

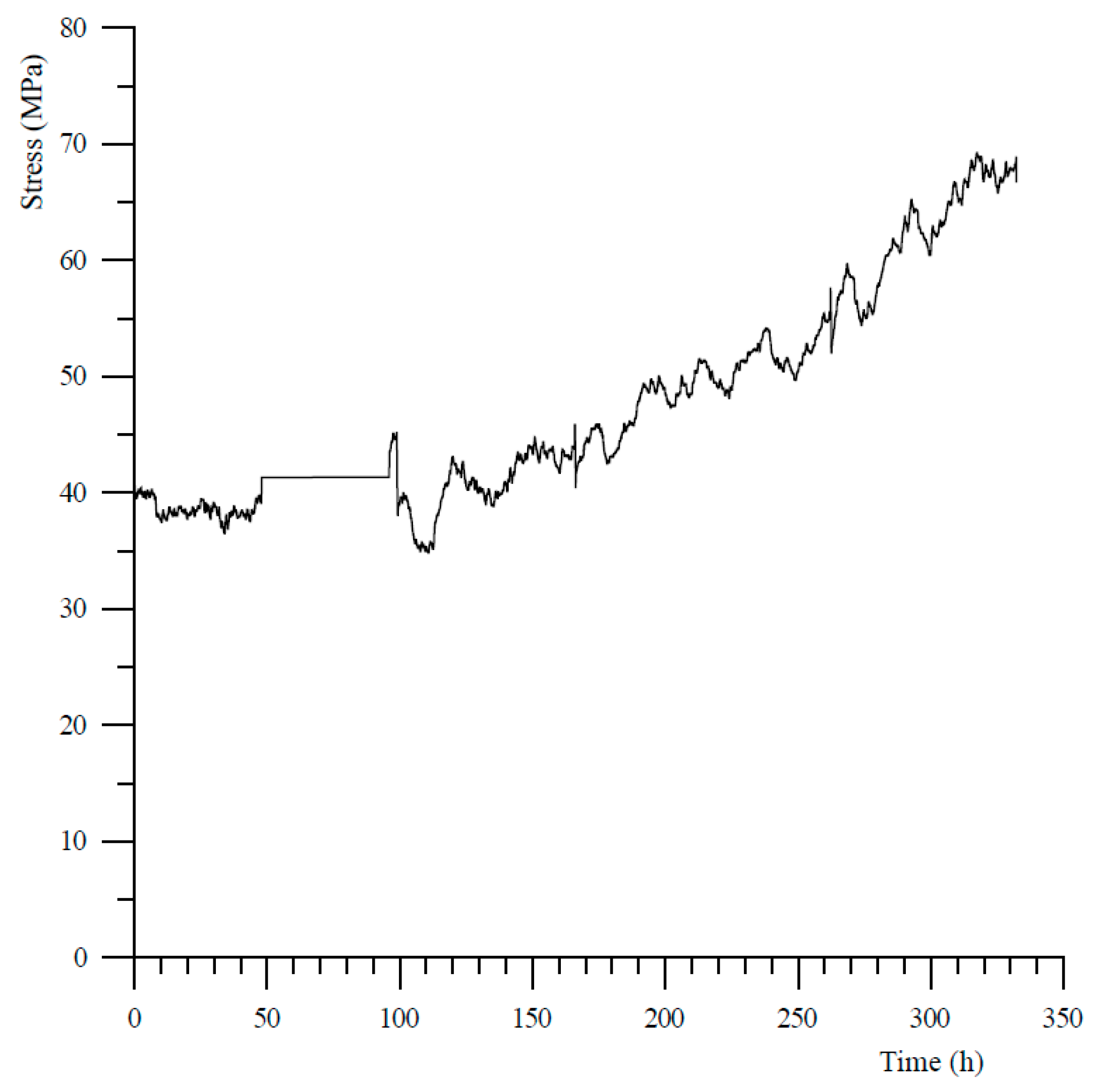

Subsurface mineralization of CO2 by injection into (hydro-)fractured peridotites has been proposed as a carbon sequestration method. It is envisaged that the expansion in solid volume associated with the mineralization reaction leads to a build-up of stress, resulting in the opening of further fractures. We performed CO2-mineralization experiments on simulated fractures in peridotite materials under confined, hydrothermal conditions, to directly measure the induced stresses. Only one of these experiments resulted in the development of a stress, which was less than 5% of the theoretical maximum. We also performed one method control test in which we measured stress development during the hydration of MgO. Based on microstructural observations, as well as XRD and TGA measurements, we infer that, due to pore clogging and grain boundary healing at growing mineral interfaces, the transport of CO2, water and solutes into these sites inhibited reaction-related stress development. When grain boundary healing was impeded by the precipitation of silica, a small stress did develop. This implies that when applied to in-situ CO2-storage, the mineralization reaction will be limited by transport through clogged fractures, and proceed at a rate that is likely too slow for the process to accommodate the volumes of CO2 expected for sequestration. View Full-Text
Keywords: mafic and ultramafic rocks carbonation; CO2 capture and storage; force of crystallization; olivine; ophiolite; peridotite; in-situ mineral carbonation; mineral dissolution kinetics; mineral precipitation kinetics mafic and ultramafic rocks carbonation; CO2 capture and storage; force of crystallization; olivine; ophiolite; peridotite; in-situ mineral carbonation; mineral dissolution kinetics; mineral precipitation kinetics
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

van Noort, R.; Wolterbeek, T.K.T.; Drury, M.R.; Kandianis, M.T.; Spiers, C.J. The Force of Crystallization and Fracture Propagation during In-Situ Carbonation of Peridotite. Minerals 2017, 7, 190.
