Minerals 2013, 3(1), 36-48; doi:10.3390/min3010036

Review
Towards a Model for Albitite-Type Uranium
Andy Wilde
Geology and Mining Department, Paladin Energy Ltd., Subiaco, Western Australia 6008, Australia; E-Mail: andy.wilde@paladinenergy.com.au; Tel.: +61-(8)-9381-4366; Fax: +61-(8)-9381-4978
Received: 22 August 2012; in revised form: 21 December 2012 / Accepted: 4 January 2013 /
Published: 17 January 2013

Abstract

: Albitite-type uranium deposits are widely distributed, usually of low grade (<1% U3O8), but are often large and collectively contain over 1 million tonnes of U3O8. Uranium is hosted in a wide range of metamorphic lithologies, whose only common characteristic is that they have been extensively mylonitised. Ore minerals are disseminated and rarely in megascopic veins, within and adjacent to albitised mylonites. Grain size is uniformly fine, generally less than 50 microns. Scanning electron microscopy reveals that spatial association between uranium and various Ti-bearing phases is common. Gangue minerals include albite, carbonates (calcite and dolomite), and sodic pyroxene and amphibole. The ore rarely contains economic metals apart from uranium, phosphorous at Itataia being an exception. There is widespread evidence of hydrothermal zirconium mobility and hydrothermal zircon and other Zr phases are frequent and in some cases abundant gangue minerals. Positive correlations are noted between uranium and various high field strength elements. The group remains poorly described and understood, but a link to iron-oxide copper-gold (IOCG) deposits and/or carbonatite and/or alkaline magmatism is plausible.
Keywords:
uranium; albitite; low-grade; Proterozoic; high field strength elements; mylonite

1. Introduction

Albitite-type uranium deposits (also known as metasomatite- or Na-metasomatite-type deposits) are widely distributed and collectively contain as much uranium as the better known unconformity-type deposits, although at grades which are typically an order of magnitude or more lower. Mines exploiting albitite-type deposits currently operate in the Kirovograd-Krivoi Rog district of the Ukraine and at Lagoa Real in Brazil and have operated historically in the Beaverlodge district of Canada. It is thus clear that the deposit class is economically significant. Exploration and development of these deposits, however, is hampered by relatively sparse literature and albitite-type uranium deposits are among the least well understood uranium deposits. In this paper I have attempted to review key literature and to present a largely descriptive model, but emphasise that more research is needed in order to better understand the genesis of this deposit group and to develop predictive exploration paradigms.

Figure 1 illustrates the distribution of major albitite-type uranium deposits. Some of the main districts and deposits are listed in Table 1. Probably the type area for this type of deposit is the Kirovograd-Krivoi Rog district of the Ukraine. Mines in this area have been in production since the nineteen sixties and overall uranium endowment probably exceeds 250,000 t U. The Novokonstaninovsk deposit alone contains over 93,600 t U at 0.14% U. Other major deposits and districts include Itataia (Santa Quiteria) and Lagoa Real in Brazil, the Central Mineral Belt of Labrador, Canada, the Mount Isa district in Queensland, Australia, and the Beaverlodge district of Saskatchewan, Canada. Sparse data suggest that the massive Elkon district (>300 million tonnes U3O8) in Russia may also be of albitite-type. Thus the total contained resource of the deposit group is probably in excess of 1 million tonnes.

Minerals 03 00036 g001 1024

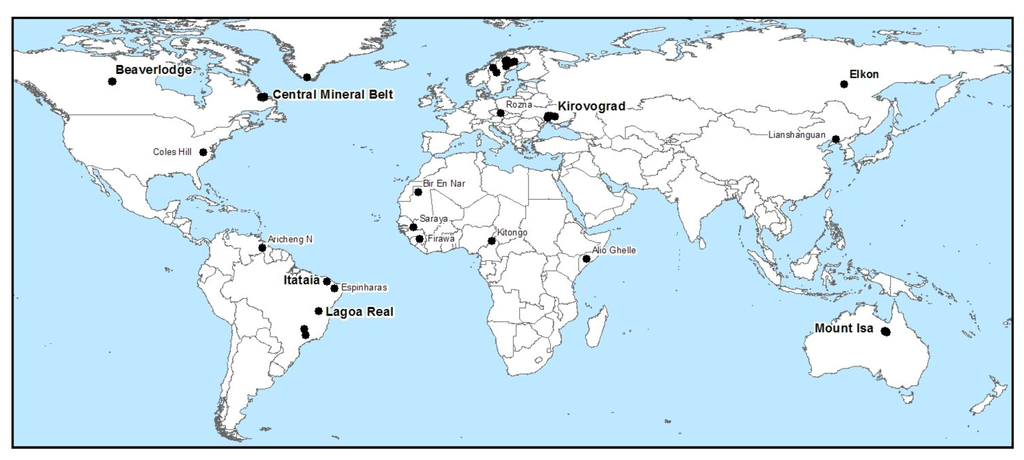

Figure 1. Location of albitite-type (and related) uranium deposits.

Click here to enlarge figure

Figure 1. Location of albitite-type (and related) uranium deposits.
Minerals 03 00036 g001 1024
Table Table 1. Some details for some major albitite-type uranium provinces. Note that many deposits were probably deposited at ca. 1.8 Ga, perhaps synchronous with the volcanic host-rocks to the Central Mineral Belt and Mount Isa district.

Click here to display table

Table 1. Some details for some major albitite-type uranium provinces. Note that many deposits were probably deposited at ca. 1.8 Ga, perhaps synchronous with the volcanic host-rocks to the Central Mineral Belt and Mount Isa district.
District or DepositCountryEndowment (kt U3O8)Host-RockHost-Rock AgeOre Age (Ga)Main Deposits
Kirovo- GradUkraine>250Gneiss, granite, iron-rich rocksArchaean–Orosirian1.90–1.70Novaya, SeverinskoyeNovokonstantinovskoye
ItataiaBrazil142Mylonitic marble, calc-silicate rock and gneissOrosirian–StratherianNo DataItataia
Lagoa RealBrazil100Mylonitised gneiss (large scale ductile shear zone)Orosirian1.87 ± 0.07 0.6 ± 0.2Cachoeira, Rabicha
Central Mineral BeltCanada74Mylonitised meta- rhyolite, meta- volcaniclastic rocks and metasedimentsOrosirian1.83 ± 0.03 Michelin, Jacque’s Lake, Kitts, Moran Lake
Mount IsaAustralia57Mylonitised meta- basalt and meta- siltstoneOrosirian1.56–1.51Valhalla, Odin, Skal, Bikini
Beaver- LodgeCanada30Mylonitised and/or cataclased granitic gneiss and amphiboliteArchaean to Orosirian1.86–1.78 ± 0.02Fay, Ace, Verna, Gunnar

2. Host Rocks & Structural Setting

Albitite-type uranium deposits and districts are exclusively located in Proterozoic metamorphic terranes, particularly those dominated by Orosirian rocks (1.8 Ga to 2.05 Ga). Almost all descriptions associate the deposits with zones of mylonitisation and/or cataclasis. Deposits in the Kirovograd-Krivoi Rog district, for example, are localised adjacent to deep-penetrating faults that extend over 100 km at surface and are marked by a combination of pegmatite intrusion, cataclasis and mylonitisation [1,2]. The Beaverlodge district is another example where deposits are hosted within a major fault zone, the St Louis Fault, defined by wide zones (>1 km) of mylonitisation and also by relatively late brittle structures. In the Mount Isa district, deposits are widely scattered, but the largest deposits (Valhalla, Odin, Skal and Bikini) are within kilometers of the regionally extensive Mt Isa fault zone, which is marked by prominent magnetic and gravity gradients, and which can be recognised in potential field data at depths of over 5 km. At surface the manifestation of this major fault zone is limited to sporadic outcrops due to weathering and transported cover. Uranium at Lagoa Real is finely disseminated in discontinuous tabular albitites developed along shear zones [3,4]. Mineralization at Aricheng (Guyana) occurs in two sub-parallel, east-west trending fault breccia zones in albitized granodiorite and monzonite of the Kurupung Batholith [5,6].

Structural controls on deposit location deserve more research. It is apparent that one crucial factor is the presence of major zones of mylonitisation. In those cases where information is available on orebody morphology it can be seen that the ore zones typically form steeply plunging and flattened linear bodies within the mylonite zones. Uranium at Valhalla (Queensland) and Michelin (Labrador) occurs as remarkably similar, south-plunging, steeply plunging shoots within a planar north-south to north-east striking zone of albitisation (Figure 2). At Valhalla this structurally-controlled uranium mineralisation is hosted in greenschist facies metabasalt and interbedded meta-siltstone and a major control on ore shoot disposition appears to be the intersection of lithological contacts between meta-basalt and meta-siltstone and the discordant albitite (mylonite) zone. Alteration intensity in the deposits of the Kirovograd region has been related to the degree of interbedding, with alteration only weakly developed in homogeneous rocktypes [1].

Minerals 03 00036 g002 1024

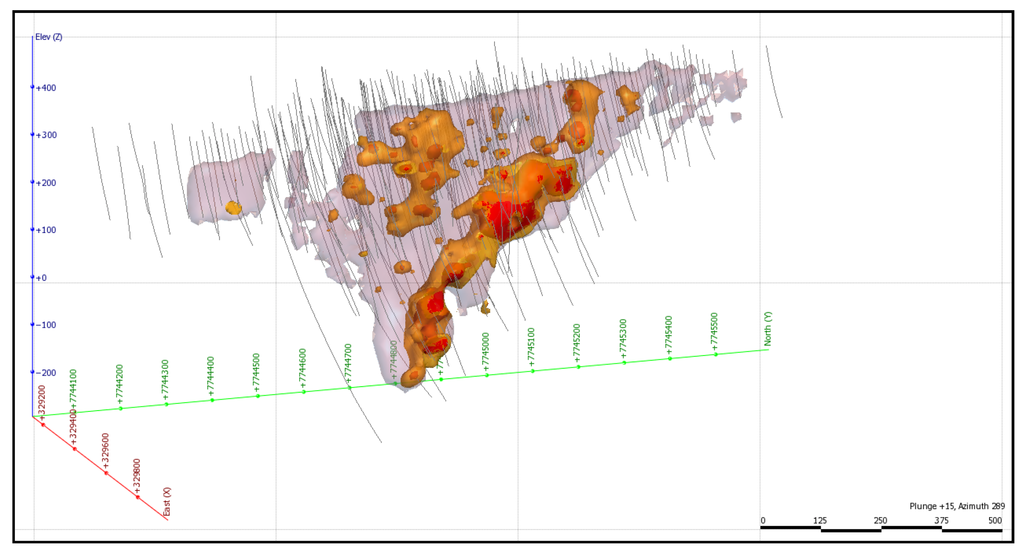

Figure 2. Morphology of the Valhalla orebody. Pink–albitite; Yellow–low grade ore; Red–high grade ore.

Click here to enlarge figure

Figure 2. Morphology of the Valhalla orebody. Pink–albitite; Yellow–low grade ore; Red–high grade ore.
Minerals 03 00036 g002 1024

A wide range of lithologies contain economic mineralization, ranging from gneissic granite to iron-rich meta-sediments, meta-basalt and meta-rhyolite. The group shows lack of preference for a specific rock-type and there appears to be little in common either chemically or mineralogically between the various host-rocks. Twenty deposits of the Kirovograd region are hosted in albitised granites and granitic gneiss complexes [7]. At the Novaya mine, uranium is associated with albitite developed in magnetite amphibole schist, alkaline amphibole rocks and mica schist [8]. It is not clear, however, the degree to which these rocks have been modified by hydrothermal alteration processes. More than thirty U and P deposits and prospects occur within albitised granite gneisses, amphibolite gneisses, marbles and migmatitic granite of the Early Proterozoic Santa Quiteria Massif in Brazil [9]. The giant Itataia (or Santa Quiteria) U-P deposit is hosted by Early Proterozoic marble (containing graphite, phlogopite, diopside and tremolite) and sillimanite-garnet-biotite gneiss [10]. Deposits at Lagoa Real in are also hosted in granitoid gneiss [3]. The Aricheng deposit is hosted in the Early Proterozoic Kurupung batholith which consists of monzogabbro, monzonite, monzogranite and peraluminous leucogranites [5].

A number of deposits are hosted in metamorphosed volcanic rocks. Michelin and Jacque’s Lake of the Central Mineral Belt of Labrador are hosted within rhyolitic to intermediate meta-volcanic and volcaniclastic rocks. The Valhalla, Odin, Bikini and Skal deposits of the Mount Isa uranium district (Queensland, Australia) are hosted within meta-basalt and interbedded meta-siltstones of the Eastern Creek Volcanics.

3. Albitites and Uranium

A defining characteristic of these deposits is the almost ubiquitous association of economic uranium with albitite. This implies a fundamental link between uranium emplacement and the processes of albitisation. Unfortunately, there is a paucity of data on the regional distribution of albitites within the various mineralised terranes, the exception being Lagoa Real. Figure 3 demonstrates that albitites of the Lagoa Real district are far more extensive than the associated uranium mineralization. At Mount Isa, albitites are similarly extensive, and a spatial and temporal association has been noted not only between albitite and uranium but also between albitite and copper and gold of IOCG type [11]. Most albitites in the Mount Isa region appear to be devoid of either uranium or copper and gold. Kalyaev [12] noted of the Kirovograd deposits that “albitisation is necessary for uranium mineralization but is not sufficient by itself: other conditions are also necessary”. These “other conditions” remain poorly defined.

Minerals 03 00036 g003 1024
Figure 3. Relationship of uranium deposits to regional albititisation, Lagoa Real district of Brazil. Modified after [3]. Distribution of albitites shown in red.

Click here to enlarge figure

Figure 3. Relationship of uranium deposits to regional albititisation, Lagoa Real district of Brazil. Modified after [3]. Distribution of albitites shown in red.
Minerals 03 00036 g003 1024

Albitites are often readily identifiable in the field because of various shades of red and pink, often contrasting markedly with the host-rocks. In some works albitised granitoid rocks are referred to as “episyenite” [9]. Red or pink colouration is due to the presence of fine-grained disseminated hematite or hydrothermal apatite. A common feature is vuggy porosity, but this is by no means universal. This porosity can be a reflection of dramatic bulk chemical changes, including almost complete removal of K and depletion in Si due to quartz and K-feldspar dissolution. For example, vugs resulting from the removal of quartz at Aricheng were filled sequentially by albite, carbonate minerals, chlorite and crypto-crystalline silica [6]. In the Beaverlodge district (Gunnar deposit), however, vuggy texture is considered to be the result of dissolution of carbonate minerals in the near surface environment [13].

Uranium is disseminated in albitite and only rarely forms veins that are visible to the naked eye (Figure 4A). There are some examples, however, such as the Jacque’s Lake deposit (Central Mineral Belt) and the Ace-Fay-Verna deposits (Beaverlodge District) in which the bulk of uranium is vein-hosted [13,14,15,16]. Breccia textures are common and uranium tends to occupy breccia matrix. Figure 4B shows an example of breccia ore from the Valhalla deposit that is cemented by a matrix of hydrothermal zircon and uranium. Figure 4C,D illustrate textures common in the deposits at Mount Isa. Elongate fragments of albitite are enclosed in a schistose matrix dominated by riebeckite. It would appear that the albitite fragments deformed by fracturing (with subsequent infilling by calcite) whereas the matrix deformed in more ductile fashion.

Uranium can be demonstrated in many (perhaps most) cases to have been introduced after pervasive albitisation of the host-rocks and to be spatially and temporally associated with micro-fracturing or complete brecciation of the albitite [1,2,17,18,19]. Thus, brecciation appears to be a key factor in generating porosity and permeability in the albitites [1]. Indeed, measurements appear to indicate that albitites are today significantly more porous and permeable than the host rocks [2]. Chemical dissolution has probably contributed also to the generation of abnormal porosity and permeability.

Minerals 03 00036 g004 1024
Figure 4. Relationship of uranium deposits to regional albititisation. (A) typical mylonite ore; (B) hydrothermal breccia ore with zircon-U matrix; (C) Early albitite fragments in riebeckite schist with later calcite veins; (D) An example similar to (C) with more intense carbonate veining. Ab–albite, Zr–zircon, Rb–riebeckite, cc–calcite.

Click here to enlarge figure

Figure 4. Relationship of uranium deposits to regional albititisation. (A) typical mylonite ore; (B) hydrothermal breccia ore with zircon-U matrix; (C) Early albitite fragments in riebeckite schist with later calcite veins; (D) An example similar to (C) with more intense carbonate veining. Ab–albite, Zr–zircon, Rb–riebeckite, cc–calcite.
Minerals 03 00036 g004 1024

4. The Ores at the Microscopic Scale

The ores have several key microscopic features. One is the fine grain size (typically < 50 microns) of uranium minerals. Scanning electron microscopy is desirable in order to identify ore minerals with confidence, and in some instances even the spatial resolution of the scanning electron microscope (SEM) is inadequate [19]. Another feature is the wide range of primary uranium minerals, including uraninite, coffinite, wolsendorfite, brannerite, nenadkevite (a uranium silicate possibly equivalent to thorite (U,Th)SiO4), fourmarierite, hawaiite, uraniferous zircon, zircon “gel”, as well as uraniferous titanite, rutile, ilmenite and magnetite [1,2,5,6]. A third feature of the ore is the frequent spatial association of U and Ti. A significant portion (5%–10%) of uranium at many of the deposits occurs in U-Ti phases including what is referred to as brannerite (Figure 5). Field emission gun electron probe microanalysis of minerals described as brannerite from Valhalla, Skal and Bikini yield non-stoichiometric analyses and these may be an unnamed mineral [19]. Uranium also frequently occurs as inclusions in titanite, rutile and less commonly ilmenite.

Minerals 03 00036 g005 1024
Figure 5. SEM Images of ore from Jacque’s Lake showing typical occurrence of uranium as inclusions in titanite (TIT) magnetite and albite (ALB). Andy Wilde unpublished data. (A) Intimate association of uranium with zircon as inclusions in titanate; (B) Uranium as wolsendorfite inclusions in titanate; (C) Uranium as wolsendorfite (WOL) associated with riebeckite (RBK) and barytes (BAR) included in albite; (D) Uranium as wolsendorfite inclusions in titanite and magnetite.

Click here to enlarge figure

Figure 5. SEM Images of ore from Jacque’s Lake showing typical occurrence of uranium as inclusions in titanite (TIT) magnetite and albite (ALB). Andy Wilde unpublished data. (A) Intimate association of uranium with zircon as inclusions in titanate; (B) Uranium as wolsendorfite inclusions in titanate; (C) Uranium as wolsendorfite (WOL) associated with riebeckite (RBK) and barytes (BAR) included in albite; (D) Uranium as wolsendorfite inclusions in titanite and magnetite.
Minerals 03 00036 g005 1024

There appears to be two main modes of occurrence of uranium minerals. One is as inclusions in a variety of phases but typically titanite and amphibole (Figure 5), the other is as microveinlets (Figure 6).

Gangue phases include albitic feldspar, quartz, calcite, dolomite, sodic amphibole (riebeckite and magnesio-riebeckite), sodic pyroxene (aegirine), chlorite, biotite, epidote (and/or allanite), magnetite, hematite, titanite, ilmenite, zircon and apatite [1,2,5,6,19]. The Itataia deposit is extremely rich in apatite and apatite is a significant hydrothermal phase in most if not all albitite type uranium deposits. There is consistent evidence of hydrothermal Zr mobility in the deposits. At Aricheng, hydrothermal zircon occurs with albite in vugs and as veins up to 1 cm wide in albitised host rocks [6]. Hydrothermal zircon makes up to 80% of the rock in some parts of the deposit [5]. Massive zircon cements breccias at the Valhalla deposit (Figure 5B). Sulphide minerals are generally present only in trace quantities.

Minerals 03 00036 g006 1024

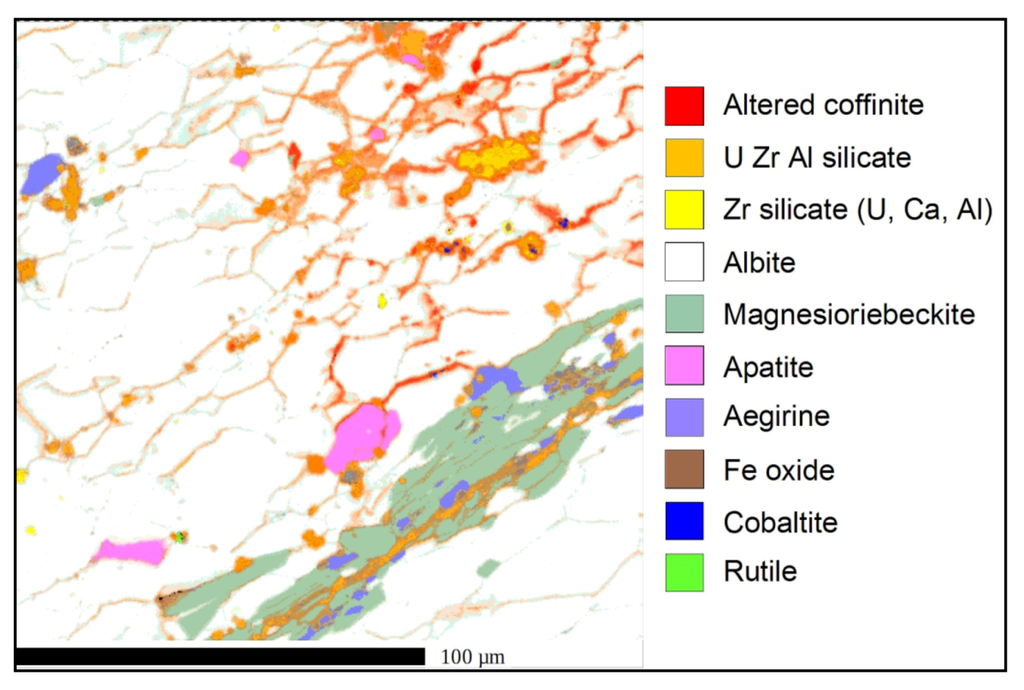

Figure 6. FEG-SEM Images of ore from Valhalla showing typical occurrence of uranium [19].

Click here to enlarge figure

Figure 6. FEG-SEM Images of ore from Valhalla showing typical occurrence of uranium [19].
Minerals 03 00036 g006 1024

Alteration zonation over 1.5 km vertical depth has been documented in the Kirovograd deposits [20]. High temperature phases such as riebeckite and aegirine are common at depth but give way to chlorite and epidote in the upper 700 m. Aegirine increases in abundance relative to riebeckite with depth. At Mount Isa the highest ore tonnages are associated with riebeckite and aegirine dominant alteration, notably at Valhalla and Odin, while other deposits contain much higher chlorite and lesser albitite (Skal and Bikini). A minor portion of the overall uranium resource in the Lagoa Real district is hosted within granoblastic epidosite [3]. The observed hydrothermal alteration zonation has been attributed to falling temperature as hydrothermal fluids moved upwards, coupled with increased pH and lower Na activity [20].

5. Chemical Characteristics of the Ores

Table 2 presents bulk chemical data for several albitite-type uranium deposits. I have distinguished between ore-grade samples and those with less than 500 ppm U. While correlations differ between deposits, there are many consistent positive correlations, particularly with some or all of the high field strength elements (Zr, Nb, Hf, REE, Th, U, Ta). REE concentrations are generally anomalous, but seldom to the point of being considered to be an economic byproduct to uranium. Silver is another element that consistently correlates with uranium.

Table Table 2. Summary of bulk chemical characteristics of selected albitite-type uranium deposits. (Paladin Energy unpublished data, except Lagoa Real and Itataia [9,21]. Note that analytical suites, methods and detection limits vary between deposits).

Click here to display table

Table 2. Summary of bulk chemical characteristics of selected albitite-type uranium deposits. (Paladin Energy unpublished data, except Lagoa Real and Itataia [9,21]. Note that analytical suites, methods and detection limits vary between deposits).
DepositSample Population# SamplesCorrelation Coefficients with U >0.50Correlation Coefficients with U 0.50–0.35Comments
Lagoa RealAll available samples Major Elements39MgO (0.69), CaO (0.52)TiO2 (0.37), Na2O (0.36)Suite of 15 minor elements analysed for, including V, Y & Nb. REE not analysed for.
All available samples Minor Elements39Pb (0.77), Nb (0.85)Th (0.58), V (0.48), Ni (0.43), Zr (0.40)
ItataiaAll available samples Major Elements86CO2 (0.78), S (0.73)Fe2O3 (0.42), P2O5 (0.38), CaO (0.34)Only U and Zr of minor elements were analysed for and not in all samples.
ValhallaU > 500 ppm2425Be (0.57), Y (0.57), Sr (0.51), Ag (0.51)Zr (0.47), Ce (0.41)Ga, Hf not analysed. Bi, Nb & Ta consistently BLD.
All available samples Major Elements94No correlationNa2O (0.44), LOI (0.36)
All available samples Minor Elements12173Pb (0.72), Yb (0.58), Th (0.56), Zr (0.56)Dy (0.48), Y (0.38), Sr (0.42), V (0.43), As (0.43)
MichelinU > 500 ppm1464Ag (0.76), Pb (0.66), Ga (0.55)Zr (0.37)Cs, Hf, Nb, Sn, most REE, Y, Yb analysed in only 214 samples (i.e., about 5% of total samples).
All available samples Major Elements214No correlationNa2O (0.49), Al2O3 (0.44)
All available samples Minor Elements5138Ag (0.80), Pb (0.77), Zr (0.65), Hf (0.56), Y (0.53)Gd, Dy, Ho, Tb (~0.50)
Aricheng NorthU > 500 ppm988Nb (0.53), Y (0.51)Sn (0.47), Sc (0.43), La (0.38), Bi (0.38), Ta (0.36), Ag (0.34)SiO2 not analysed. Yb, Ga not analysed. Many Zr analyses of ore samples above UDL of 2000 ppm, thus correlation coefficient (0.18) could be greater.
All available samples Major Elements5790No correlationNo correlation
All available samples Minor Elements5790Pb (0.95)Bi (0.48), Y (0.42), Zr (0.42), Nb (0.32)
Jacque’s LakeU > 500 ppm Minors793Pb (0.90), Zr (0.88), Ag (0.71), Th (0.67), Hf (0.66), Ge (0.64), REE (0.50–0.65), Nb (0.59), Ce (0.53)Sn (0.50), Y (0.47), Ta (0.42), Yb (0.41)Few analyses (29) for most REE, Hf, Sn, Ta, Th, Y, Yb & Zr. (Only 6 analyses in high grade samples).
All available samples Major Elements29No correlationNa2O (0.35)
All available samples Minor Elements4456Pb (0.94), Th (0.83), Hf (0.7), Ge (0.67)Ag (0.44), Ga (0.39), V (0.34), REE (~0.35)
RainbowU > 500 ppm42REE (0.96–0.78), Nb (0.93), Y (0.93), Sn (0.67), Th (0.65), Ta (0.60), Sr (0.54)Mo (0.50)Few analyses (17) for most REE, Hf, Sn, Ta, Th, Y, Yb & Zr. Only 8 analyses in high grade samples therefore correlations possibly unreliable.
All available samples Major Elements17CaO (0.57)No correlation
All available samples Minor Elements353Pb (0.82), Eu (0.81), Hf (0.7), Ag (0.69), Zr (0.68), Y (0.66), REE (~0.55–0.40)Mo (0.36)
OdinU > 500 ppm140Pb (0.8)No correlationOnly 17 elements were analysed for. Suite did not include key elements such as Ag, Be, Nb, REE, Hf, Sn, Y, Ta & Th
All available samples Major Elements669P (0.6)No correlation
All available samples Minor Elements669Pb (0.84), V (0.56)Zr (0.37) Sr (0.39)
Duke BatmanU > 500 ppm4Na2O (0.86), Al2O3 (56), K2O (0.67), CaO (0.56), Sr (0.97), Zr (0.55), Th (0.98), Co (0.6), Y (0.56), Ba (0.56), Hf (0.53), REE (>0.45)Nb (0.44), Ta (0.44)
All available samples Major Elements14No correlationNo correlation
All available samples Minor Elements14Th (0.98), Ni (0.69), Zn (0.62), Y (0.85), Hf (0.63), REE (0.77–0.80, except Nd)Nb (0.41)Many key elements not analysed for, e.g., Ag, Mo, Se, Be, Ge, etc.

6. Discussion

A defining characteristic of this deposit type is the association of uranium ore with albitites, although I note that not all apparently co-genetic uranium deposits in a given district may be hosted by albitite. Albitisation is frequently related to structures of regional and substantial depth extent and is always associated with mylonitisation, cataclasis and brecciation suggesting multiple movements under varying pressure, temperature and depth. It is important to note that albitites are considerably more widespread than uranium deposits they contain and in some instances are associated with IOCG type Cu and Au mineralisation rather than with uranium. A genetic link between albitite uranium and IOCG deposits has yet to be demonstrated.

Another consistent observation is that uranium mineralization post-dates albitisation. This has been attributed to higher intrinsic permeability and porosity of albitised rocks together with superimposed later fracturing [1,2,7,12]. Higher permeabilities and porosities may have been enhanced by dissolution of quartz and K-feldspar, leaving in some cases vuggy cavities. Albitisation probably occurred during ductile deformation (mylonitisation) while uranium seems to have been introduced close to the brittle-ductile transition. Albitisation shows no preference it seems for specific host-rocks, and thus it would appear that the mineralogical nature of the host-rock is irrelevant. Perhaps more significant were the mechanical properties of albitite relative to the host rocks, that may have contributed to enhanced porosity and permeability.

The presence of substantial volumes of fluorapatite and hydrothermal zircon is a common feature of these deposits. Furthermore, carbonate minerals, particularly Ca- and Mg-rich varieties, are a ubiquitous component of Albitite-type uranium deposits. Bulk Ca abundance can exceed that of Na, tending to invalidate the use of “Na Metasomatite” nomenclature. Bulk chemical analysis generally reveals major loss in SiO2 and near complete removal of K2O from host rocks, and good correlation between uranium and a suite of high field strength elements including REE, Nb, Hf and Ta. These elements are seldom present in economic abundance, however, and their mineralogical residence is often poorly documented.

Alteration phases also show a remarkable similarity, with riebeckite, aegirine, garnet, magnetite, hematite, hydrothermal zircon and apatite typically present. Phyllosilicates and epidote tend to be more abundant in the upper parts of zoned orebodies [20]. Presumably higher temperature minerals such as riebeckite, aegirine tend to be present at depth and grade upwards to lower temperature phyllosilicate and/or epidote-rich assemblages.

In most cases, there is no obvious relationship between uranium deposit formation and contemporaneous magmatic intrusions, although the chemical signature of the deposits evokes a carbonatite or possibly alkaline magmatic source. A link to metamorphism has been proposed due to the spatial association of ore deposition with “thermal domes” and generally lower uranium contents of high grade metamorphic rocks, suggesting uranium removal during metamorphism [1]. Clearly, however, further research is needed to confirm or refute the origin of the deposits and their association with metamorphism and magmatism.

Aqueous uranium-sodium-carbonate and phosphate complexes have been proposed to explain transport of uranium into albitite-type deposits [1,16]. The frequent association of uranium with HFSE and dissolution of Si from host-rocks, however, can be rationalised as the product of F-rich gas and/or aqueous fluid [21]. Therefore uranium may have been introduced as a complex with F rather than, or as well as, PO4 or CO2. But the nature of the ore-bearing fluids remains poorly defined, partly because quartz is uncommon and fluid inclusions are rare.

Possible depositional mechanisms are likewise ill-defined. Falling temperature has been implicated to explain the change from paragenetically early pyroxene and amphibole at depth to later chlorite and epidote in upperparts of some orebodies [12]. Thus cooling is a potential depositional mechanism, but cooling alone is probably not a satisfactory means of generating ore grade uranium. Another possible depositional mechanism is drop in aqueous CO2 resulting from the evolution of a CO2-rich gas phase due to pressure fluctuations, and/or carbonate mineral formation, perhaps as upward moving fluid encountered zones of intense fracturing [1]. Violent phase separation (“boiling”) is not likely to be important owing to the lack of indicative mineral textures, and likely formation at substantial depth and therefore confining pressure.

The presence of magnetite and hematite together with anomalous copper in several deposits has led some to infer a genetic link between albitite-type uranium and the IOCG deposit style. There is, however, little evidence of substantial iron addition associated with uranium deposition and albitite-type deposits as a group do not have an affinity for iron-rich host-rocks. Magnetite and hematite in albitite-type uranium deposits may be prograde metamorphic rather than hydrothermal phases. It is possible that dissolved uranium, in some cases, was precipitated due to reaction with reduced iron, for example, in magnetite. There is no evidence for this, indeed there is a general absence of mineralogical and textural evidence for wall-rock alteration paragenetically related to uranium deposition.

7. Conclusions

Albitite-type uranium deposits account for a substantial portion of the world’s potential uranium supply, albeit at relatively low grade. Aspects of the deposits that are reasonably well understood include their structural setting, gangue mineralogy and bulk chemistry. The fine-grained nature of the uranium minerals, however, requires research using tools capable of sub-micron spatial resolution, such as FEG-SEM. Perhaps the biggest unknowns are the nature of the ore-forming fluids and consequently, depositional mechanisms. The ultimate source of the ore-forming fluids is also a key to unlocking the question of whether there is a relationship between albitite-type deposits and carbonatite magmatism or regional metamorphic devolatilisation and focusing along regional fault zones. More data are needed to assess the possibility of a genetic link with IOCG deposits.
