Land 2013, 2(1), 60-80; doi:10.3390/land2010060
Published: 28 February 2013
Abstract: Water is both a key and limited resource in the Okavango Catchment of Southern Africa. It is vital for the ecosystem and the three riparian states Angola, Botswana and Namibia who use the water of the catchment for multiple purposes including pastoralism, farming and tourism. Socioeconomic changes, primarily strong population growth and increasing development demands pose significant challenges for the Okavango Catchment and its Integrated Water Resource Management (IWRM). In this paper, we first review the socioeconomic background and the current and projected water situation. Against this background, we analyze the dependence of the riparian states and the local livelihoods on the Okavango Catchment. Third, we discuss the implications of socioeconomic changes and increased water demand for the IWRM in the catchment. We review the scientific literature and relevant reports. Further we utilize (geo-spatial) analysis of socioeconomic, livelihood and hydrological data, supplemented by a field visit to Namibia and Botswana. Our findings suggest that strong population growth and the stabilization of Angola are likely to increase the pressure to develop the region along the Okavango. The central challenge for IWRM is hence to enable Angola to meet its development needs without limiting livelihood and economic prospects in Botswana and Namibia.
The Okavango River in southern Africa is about 1,100 km long and shared by three countries . The ‘lifeline’  originates in a semitropical drainage network on the humid Bie Plateau of Central Angola, about 1,200 meters above sea level before it crosses the Caprivi Strip in Namibia and disperses into a complex series of heavily vegetated channels and shallow basins of the Okavango Delta in Botswana [3,4]. With an area of about 15,000 km2, the Okavango Delta only constitutes a small part of the entire catchment area of about 430,000 km2  which is facing rapid socioeconomic changes and an uncertain future of water supply from groundwater and rainfall. Water demands are likely to increase mostly because of population growth. Agriculture and other human activity such as tourism have the potential to interfere with the ecosystems by introducing pollutants and nutrients to a mainly hypotrophic (nutrient poor) environment .
The three states sharing the Okavango Catchment could hardly be more different. In the north, ‘resource cursed’ Angola slowly recovering from 27 years of civil war which ended in 2002 . In the southwest, Namibia flanked by the Namib and Kalahari deserts and one of the most arid countries in the world. And in the southeast of the Okavango Catchment, Botswana, often depicted as a ‘role model of democracy for Africa’ since its independence from the UK in 1966 . As diverse as the riparian states are, they are all interconnected, depending on the ecosystem of the Okavango Catchment to varying degrees and for different reasons. An effective management of the catchment is not only important to enable economic prosperity and to mitigate overuse but also to prevent conflict among the riparian states . For this purpose the three riparian states established the Permanent Okavango River Basin Water Commission (OKACOM) who in the mid 1990’s developed an Integrated Water Resource Management (IWRM) strategy geared to balance economic interests and ecological sustainability in the catchment area [8,9].
Against this background the article pursues three objectives: First, to describe the socioeconomic background and the current and projected water situation; second, to analyze the dependence of the riparian states and the local livelihoods on the Okavango Catchment; and, third, to discuss the implications of these changes for the Integrated Water Resource Management (IWRM) in the catchment. To achieve these objectives we review the scientific literature as well as reports by local, national and regional institutions. Further we analyze socioeconomic, livelihood and hydrological data from a variety of sources and at different scales. We produce a map which combines (to our knowledge for the first time) the farming and livestock activity in the Okavango Catchment (Figure 1, Figure 2). A field visit to Namibia and Botswana in 2010 complements our research which is part of the ongoing ‘The Future Okavango’ (TFO) project, a cooperation between several European and local institutions and universities to promote sustainable land use and resource management in the region (see ).
The article proceeds as follows. First we describe the methods, including our approach and the data used (Section 2). Second we analyze the socioeconomic background of Angola, Botswana and Namibia (Section 3). Against this background we discuss the dependence of the riparian states on the Okavango Catchment (Section 4) before Section 5, Section 6 review the current and future water situation in the catchment and its implications for the IWRM. Section 7 ties the previous aspects together and concludes.
To explore the interplay between demand, development and dependence and its implications for the Integrated Water Resource Management in the Okavango Catchment we start with a review of the scientific literature supplemented by reports of local, national and regional institutions (see for example, [11,12,13]). The combination of these sources is promising to understand issues of economic development and water demand (management) from different perspectives. To visualize the livelihood dependence and to identify potential areas of conflicting usages in the Okavango Catchment, we utilize geo-referenced data (see top part of Table 1). Figure 1 shows the series of panel maps which were used to produce the map in Figure 2 (see Section 4 for discussion). In addition to the literature review and the geo-referenced data we analyze socioeconomic and hydrological data from national and international institutions.
As shown in Table 1, the majority of our data sources are bodies of the United Nations, the World Bank and the Central Intelligence Agency of the United States of America. The advantage of relying on these well-established agencies is the high level of data quality and its homogenous collection and calculation method which allows for comparisons between countries. On the downside, the data is only available on national scale. Hence any conclusion drawn from this data should be interpreted as a background since the Okavango Catchment only compromises limited parts of each national territory. Nonetheless national developments as captured by national data are likely to impact the Okavango Catchment especially when they are as rapid and extensive as the population growth in Angola (see following section).
Besides the limitations in geographical scope, the up-to-dateness of some of the data needs to be pointed out. For instance, the most recent data of the Food and Agriculture Organization of the United Nations (FAO) on the total freshwater withdrawal dates back to 2000. As this figure is both central for the water management and likely to have changed over the past 12 years, more recent estimates are needed. For some indicators the data refers to different years for each country. In parts this problem is minimized by combining sources. For example the latest Gini index for Namibia as given by the World Bank  refers to the year 2004, for Botswana it is even 1994. To avoid comparing data which is more than a decade apart, we used national surveys (see Table 1). Hence the following sections rely on the most recent data available today.
|Table 1. Overview of used data (in order of occurrence in the article).|
|Data for Map of the Okavango Catchment|
|Name||Source||Refers to Year(s)||Scale|
|Cattle density||Environmental Information Service Namibia 2002 ||2002||subnat.|
|Crop zones||Environmental Information Service Namibia 2004 ||2004||subnat.|
|Catchment/river drainage||Environmental Information Service Namibia 2004 ||2004||reg.|
|Satellite image with shaded relief||Natural Earth 2013 ||2013||reg.|
|Socioeconomic and Water Data|
|Name||Source||Refers to Year(s)||Scale|
|GDP in millions||CIA 2013 [18,19,20]||2012 (est.)||nat.|
|GDP per capita||CIA 2013 [18,19,20]||2012 (est.)||nat.|
|Gini index||World Bank 2013 , Republic of Botswana 2004 , Republic of Namibia 2012 (in )||2000, 2002/03,2009/10||nat.|
|Human development index||UNDP 2011 ||2011||nat.|
|Pop. living < 1.25 USD/day||UNDP 2011 ||2000, 2004, 2005||nat.|
|Population in 2011||FAO 2012 [24,25,26]||2011||nat.|
|Population projection for 2020 and 2050||UN 2011 ||2020, 2050||nat.|
|Agriculture percentage of GDP (2011)||World Bank 2013 ||2011||nat.|
|Agriculture percentage of labor||CIA 2013 [18,20], UN 2012 ||2003, 2005, 2008||nat.|
|Tourist arrivals at national borders (2010)||World Bank 2013 ||2010||nat.|
|Total renewable water resources (km3/yr)||FAO 2012 [24,25,26]||long term average||nat.|
|Total freshwater withdrawal||FAO 2012 [24,25,26]||2000||nat.|
|Water poverty index (2002)||Ahlenius 2005 ||2002||nat.|
|Projected growth in consumptive water demand||Ashton 2003 ||2000, 2010 (proj.), 2020 (proj.)||nat.|
nat. = national, subnat. = subnational, reg. = regional, proj. = projection.
3. Socioeconomic Background
3.1. Economy and Development
Table 2 summarizes the key economic and development indicators. In absolute terms Angola has by far the highest gross domestic product (GDP), while when measured per capita Angola ranks behind Namibia and Botswana. In all three countries the income is highly unequally distributed across households as indicated by the Gini index. And while Botswana and Namibia have reached a medium level of human development, significant portions of the population in each country and particularly in Angola still live in absolute poverty. The lower level of development and higher poverty in Angola are the result of nearly three decades of civil war which has cost up to 1.5 million lives, destroyed significant parts of the infrastructure, drove inflation, fuelled corruption and displaced millions of people within and beyond the borders of the country [18,31,32].
|Table 2. Economy and development in Angola, Botswana and Namibia [17,18,19,20,21,23].|
|GDP in Billions (ppp 2012 est.)||GDP per Capita (ppp 2012 est.)||Gini Index||HDI (2011)||Pop. Living < 1.25 USD/day|
|Angola||126.2 USD||6,200 USD||58.6 (2000)||0.486||54.3% (2000)|
|Botswana||31.5 USD||16,800 USD||57.3 (2002/03)||0.633||23.1% (2005)|
|Namibia||16.8 USD||7,800 USD||59.6 (2009/10)||0.625||31.9% (2004)|
ppp = purchasing power parity, pop. = population, USD = United States dollar.
Surveys conducted in the Angolan part of the Okavango Basin have revealed not only high levels of malnutrition but also widespread malaria, diarrhea, anemia and tuberculosis [31,33]. Perhaps the most crucial problem the Angolan people and government have to cope with, are an estimated eight to ten million landmines, both anti-tank and anti-personnel, which have been laid during the war in mostly unmarked minefields across some 50% of Angola’s territory, making it one of the most heavily mined countries in the world [31,34]. Nevertheless, a postwar reconstruction boom, the resettlement of displaced people and, most of all, high prices for oil on the world market have led to high growth rates in construction and agriculture as well as an overall economic growth rate of more than 17% between 2004 and 2008 .
Based on the country’s richness in renewable (land, forests, fishing grounds) and non-renewable resources (oil, gas, diamonds, iron ore, gold) as well as its high hydropower potential, Angola is often portrayed as southern Africa’s ‘economic powerhouse’ of the future . Today, Botswana is generally seen as the African ‘success story’ having achieved nearly four decades of economic growth, multi-party democracy and low levels of corruption . Among the three riparian states Namibia has the youngest economy, gaining independence from South Africa in 1990 .
3.2. Population Growth
Figure 3 shows the medium population projection of the United Nations until 2050. Angola’s current population of about 19.6 million (population density 15.7 people per km2) is expected to more than double by 2050 . For Namibia a population growth of about 55%, and for Botswana 23% are projected until 2050 but from lower current populations and population densities. Namibia is one of the least densely populated countries in Sub-Saharan Africa with an average density of only 2.8 people per km2 . In Botswana the population density is higher with 3.5 people per km2. The urban centers along the Okavango River include Maun located just inside the lower margin of the delta, Rundu in Namibia and Menongue in Angola . Overall the additional 25.5 million people until 2050 are expected to increase the pressure on the Okavango Catchment, especially in Angola.
4. Dependence of the Riparian States on the Okavango Catchment
Each of the three riparian states depends on the Okavango Catchment to varying degrees but mostly for two reasons. On the one hand the Okavango Catchment offers job opportunities in agriculture and tourism which contribute to the national GDP. On the other hand it serves as a livelihood base for mostly subsistence agriculture, pastoralism and production of local products.
4.1. Economic Dependence
With respect to the national economies, agriculture only plays a minor role for the GDPs of the riparian states but it is an important source of employment, especially in Angola and Botswana (Table 3). For Botswana the Okavango is an essential resource for the tourism sector which has grown significantly over the past decades [37,38]. In Namibia tourism is the third highest foreign currency earner, contributing about 4.7% to the GDP in 2011 [39,40].
|Table 3. Agriculture and tourism in Angola, Botswana and Namibia [17,18,19,20,28].|
|Agriculture Percentage of GDP (2011)||Agriculture Percentage of Labor||Tourist Arrivals at National Borders (2010)|
In Botswana tourism is the second largest economic sector after mining, contributing about 4.5% to the country’s GDP through expenditures on accommodation and service providers [7,32,41]. It is estimated that the delta has a total of 107 accommodation establishments . The approximately 120,000 tourists who visit the Okavango Delta annually, increase the environmental pressure on the Okavango through increased water demand and production of waste. In the Rundu area, for example, the monthly average water use increases by 50% to 70% during the high season of tourism .
The government of Botswana requires lodge operators to install treatment systems for waste water, but environmental standards, for instance for septic tanks, are often not met or sewage is directly disposed into the Okavango or groundwater reserves [42,44]. According to Mbaiwa , the average per capita waste water generated across the camps in the Okavango Delta is 200 liters per person per day.
4.2. Livelihood Dependence
Beyond the tourism sector the Okavango is an important livelihood resource for the local pastoral and farming communities (Figure 2). The majority (77%) of the Okavango basin population is rural . Over 95% of the approximately 125,000 people living in and around the Okavango Delta in Botswana directly depend on the natural resources to sustain their livelihoods through fishing, collection of various plants and ‘molapo’ farming . This type of flood recession farming makes use of the fields, called ‘molapo’ (or plural ‘melapo’) that are located near or in the floodplains of the Okavango River .
Among the many natural resources that are harvested in the Okavango Delta are palm fibers obtained from Hyphaene petersiana, which are used to produce baskets. Two types of river reed, Phragmites australis and Phragmites mauritianus are harvested for sale or used as building material . The core part of the Okavango Delta (large green area in Figure 2) was declared a game reserve. The reserve is fenced off with veterinary cordon fences to prevent the spreading of livestock diseases from wildlife in the reserve to bordering areas hosting cattle reared mostly for the European beef market. As the migratory routes of wildlife such as zebras, giraffes and buffalo are blocked by the fences, they have been criticized for contributing to a loss of wildlife .
Throughout the delta molapo farming is practiced . Towards the border to Namibia millet farming dominates. In Namibia, the Okavango mainly supports rearing of cattle while in Angola the river is predominantly used for subsistence farming of maize, manioc and millet. The underutilization of the Okavango on the Angolan side of the Angolan-Namibian border can be explained mainly by the civil war and land mines that were placed here in the process. Once the area, located in the province of Cuando-Cubango, is cleared of landmines, increased agricultural and pastoral activity can be expected.
5. Current and Future Water Situation in the Riparian States
In none of the three riparian states is the situation of water supply currently stressed or scarce, when measured in total renewable water resources (TRWR) per capita (Figure 4). This even applies to mainly arid Namibia because of the country’s low total population (see previous section).
Table 4 shows that the TRWR and its withdrawal is highest in Angola followed by Namibia and Botswana. If a wider approach to water supply is taken, the water situation based on the physical water availability is partly reversed. According to water poverty index (WPI) which takes into account measurements of water access, capacity and environment in addition to the physical water availability, Angola shows the highest level of water poverty, followed by Botswana and Namibia (Table 4, see also Figure 4).
|Table 4. Water resources, withdrawal and water poverty in Angola, Botswana and Namibia [24,25,26,29]|
|Total Renewable Water Resources (km3/yr)||Total Freshwater withdrawal (2000) (km3)||Water Poverty Index (2002)*|
a higher water provision.ppp = purchasing power parity, pop. = population, USD = United States dollar; * The WPI ranges from 0 and 100. Lower scores indicate higher water poverty.
The following sections describe the current and projected water situation in each country in more detail.
Currently, Angola does not have a water problem because of the high level of annual precipitation of about 1,000 mm (2007–2011 average) it receives and the aftermath of the civil war limiting economic development and population density in the upper basin of the nearly pristine Cuando-Cubango province [50,51,52]. In the near future though, the manipulation of water resources is likely to emerge as a compelling strategy to improve living standards and boosting both industry and agriculture in Angola [32,51]. A primary objective will presumably be the stimulation of the diamond industry, which requires a significant amount of energy and water . Despite the partly unreliable data for this region, it is very likely that subsistence agriculture and animal husbandry are the dominant economic activities among residents in the Cuando-Cubango province. The water usage here is limited to supplies to villages and some small-scale floodplain irrigation . Turton  worries that agricultural development on a larger scale may result in seepage of agro-chemicals into the aquatic system. Ellery and McCarthy  argue that the introduction of leached fertilizers, phosphates and nitrates through extensive agriculture in the predominantly sandy soils of the catchment could lead to the eutrophication of the water downstream and disrupt the balance between different plant communities in the delta, impacting profoundly on the structure and functioning of the ecosystem. Cuando-Cubango being the traditional stronghold of Jonas Savimbi’s UNITA (União Nacional para a Independência Total de Angola) rebel movement and subject to a major government offensive from 2001 to early 2002 , it was for a long time almost impossible for the government to make comprehensive socioeconomic plans for the region, let alone implement them . The end of the civil war provides an opportunity for development in general and for the Cuando-Cubango province in particular.
In total, Botswana shares four river basins with its neighboring countries: the Limpopo, Orange, Zambezi and Okavango. This results in a situation where 94% of its theoretically accessible freshwater resources originate outside its borders , making water resource management complex and contributing to the vulnerability of the country in multiple ways. The development of surface water in Botswana is further constrained by a number of factors such as its low and erratic run-off, lack of available dam sites and high evaporation rates. Since the beginning of the nineteenth century, several attempts have been made to develop large-scale arable and irrigation projects in and around the Okavango Delta. A number of surveys have been carried out but due to ecological concerns, high transport costs and the unreliability of water inflow, these commercial plans have all been abandoned except for two irrigation schemes south of Shakawe .
Only approximately 35% of Botswana’s total water supply is from surface water, whereas the remainder (65%) is from groundwater . An estimated 21,000 boreholes are scattered across Botswana to ensure water supply in many parts of the country  and about 60 additional boreholes are drilled each year to meet the increasing demand . Botswana faces problems with groundwater salinity and high concentrations of fluorides, nitrates and other contaminations mainly caused by fecal material from septic tanks and pit latrines . There is some evidence which suggests that groundwater is used at a much higher rate than the rate of replenishment [58,61]. Recharge rates of groundwater aquifers range from 40 mm/yr in the extreme north to virtually zero in the central and western parts of the country. The average recharge is only around 3 mm/yr . At the current rates of abstraction, resource lifetime may be limited to decades rather than centuries .
Studies for the Botswana National Water Master Plan showed that by 2020, all of Botswana’s internal water resources will be fully utilized and the country will have no option but to resort to international water resources to augment local supplies . The studies also revealed that urban water demands were growing at a much faster rate than rural water demand, corresponding to population growth trends (Figure 3).
Water consumption in the villages is heavily subsidized by the government, giving little incentive to conserve water at individual level. Until 1993, water supply to farmers was free of charge . Current pricing policies of water for major village are aimed only at recovering the operating costs of the supply schemes, which has in most cases not been achieved yet due to poor billing and revenue collection and the small consumer base. For smaller villages, tariffs are aimed at the recovery of 33% of the costs . The supply situation is also complicated by problems of distribution: system water losses average 15% to 25% but may run as high as 35% when older pipes are used .
Being one of the most arid countries in sub-Saharan Africa, Namibia lacks permanent natural water bodies or perennial rivers originating within its territory. About 42.5 mm of the average annual rainfall of only 250 mm is lost to evapotranspiration . To cope with irregular surface flow, the country invested in facilities to capture and store the episodic runoff in its ephemeral rivers. Ten dams yield nearly half of Namibia’s estimated surface water from non-shared rivers . Surface storage is complimented by groundwater pumping (around 300 million m3/yr). However, in densely populated Central Namibia, both surface and groundwater availability is very limited and despite all efforts of irrigation, less than 5% of the country is arable. Enjoying relative political and economic stability since its independence, Namibia was the first country in the world to incorporate environmental protection into its constitution. Nearly 6% of the land is nationally protected, including large portions of coastal areas of the Namib Desert .
As the Okavango River flows along the border of Angola and Namibia, both states consider they have a ‘riparian right’ to abstract water from this section of the river. In Namibia, the Okavango River provides the main water supply for the town of Rundu and the commercial irrigation schemes in the northernmost part of the country . About 16.5 million m3 of water per year are taken for irrigating 1,100 ha in the Kavango region and approximately 5.5 million m3 per year are taken for domestic water supply to Rundu and villages along the river . One hectare of irrigated land uses about as much water as 1,000 cattle or 1,600 rural residents . Past attempts of Namibian officials to pursue the large-scale abstraction of surface water from the Okavango and to extend the water supply to the central part of the country via pipelines were perceived strongly negative and have ultimately failed due to resistance from the public. Main causes of concern were the possible effects on tourism at the Okavango River in Namibia and the delta in Botswana as well as the resulting income loss for local residents .
In the past, hand-dug wells with a depth rarely exceeding 10 m represented the most important source of drinking water in the rural regions of Namibia, but this method fails to provide an adequate water supply for the growing population. Treated wastewater is used more and more often for applications that do not require drinking water quality, such as landscape irrigation. In Namibia, reuse of water is practiced in many urban areas such as Swakopmund, Walvis Bay, Tsumeb, Otjiwarongo, Okahandja, Mariental, Oranjemund and Windhoek . Another possibility is the tapping of a deeper water table (at a depth of about 60 to 80 m), which has turned out to be very saline, though, especially in the more densely populated areas. Groundwater salinity in Namibia ranges from low saline freshwater lenses up to over 5,000 mg/L TDS (total dissolved solids), a value at which water is too saline (sodium, fluorine, sulphate) for any possible use. A maximum salinity of 1,000 mg/L TDS has been identified by the World Health Organization as the maximum possible level for drinking water, whereas water with a salinity between 1,000 and 5,000 mg/L TDS is only acceptable for watering livestock. Therefore, the most pressing water problem in northern Namibia is not the general availability of groundwater, but above all the water quality .
5.4. Projected Water Situation

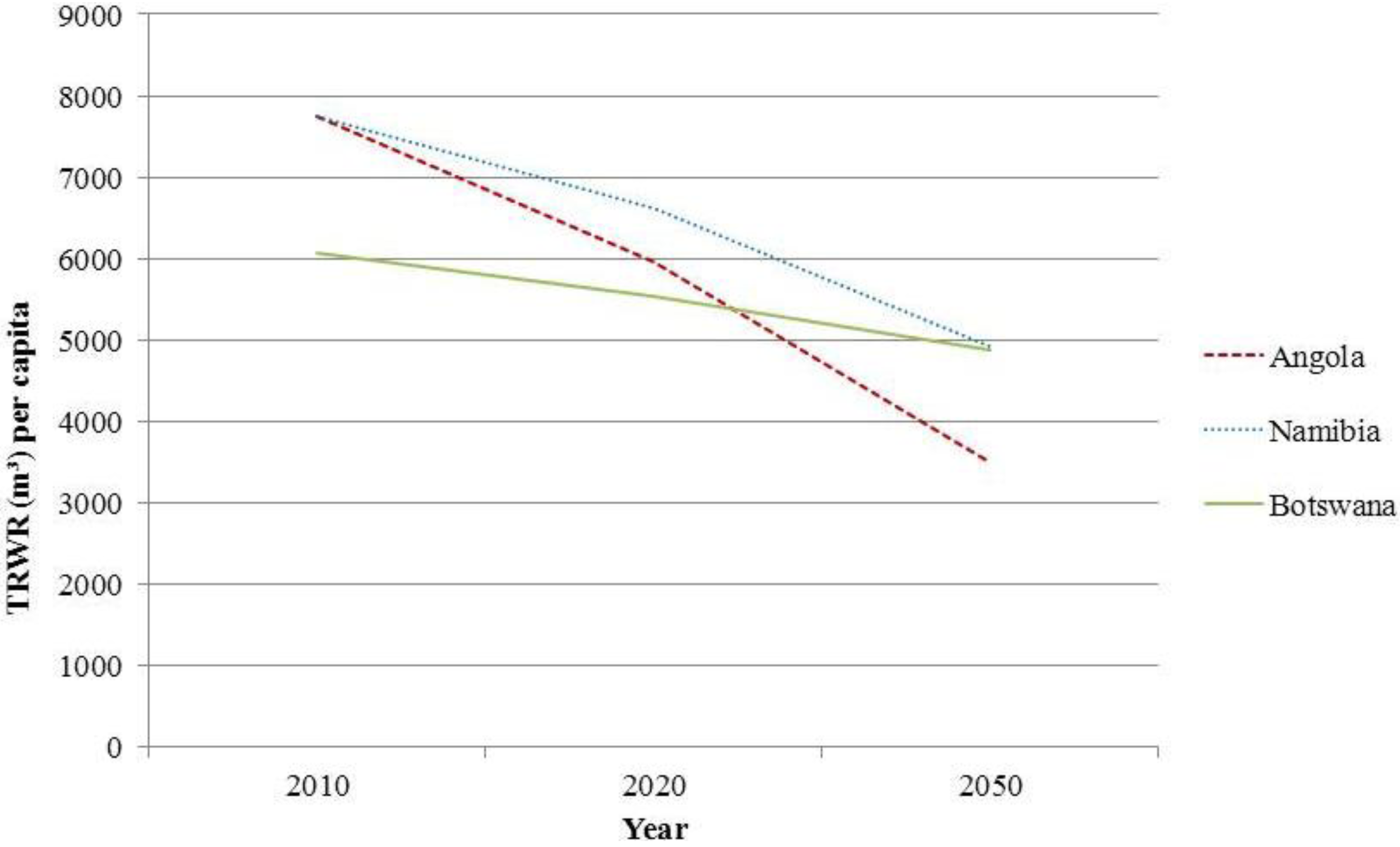

Assuming that the TRWR (Table 4) remain the same, the expected population growth shown in Figure 3 will decrease the per capita water supply until 2050 in all three countries (Figure 4). In Angola the per capita water supply is projected to be less than half of the current state. Namibia could experience a decrease of more than 2,800 m3 per capita. The smallest decreases are expected in Botswana. The decreasing per capita water availability will contribute to an increase in water poverty in all countries (see Table 4, Figure 4). Climatic changes are expected to have a limited effect on the physical water availability until 2050 but for the period 2070 to 2099 flow decreases in the Okavango Basin of up to 26% are projected .

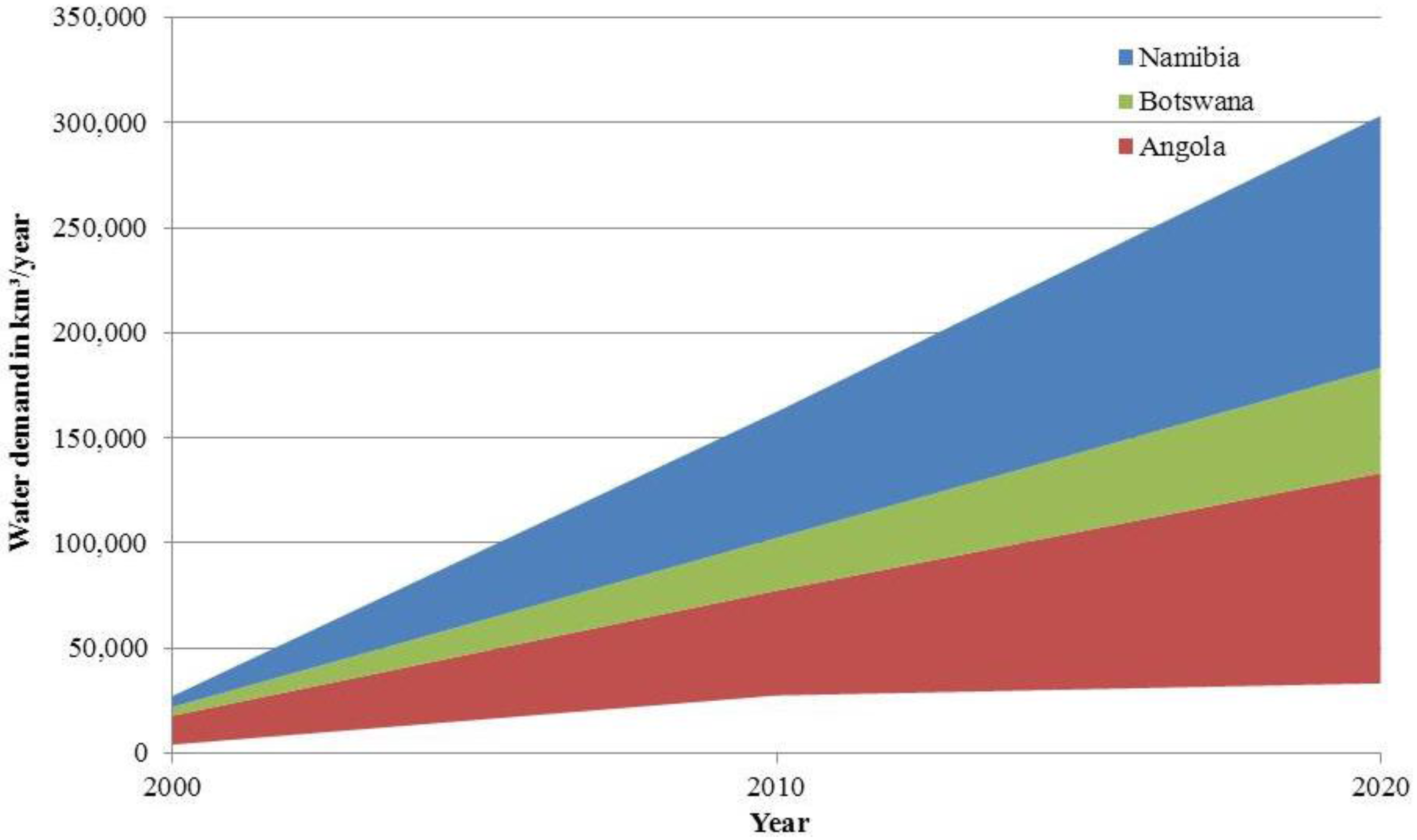

The future consumptive water demand was estimated by Ashton  who developed a projection based on two scenarios. Figure 5 shows the range between the high and the low scenario for each country. The high scenario considers potential new developments including irrigation schemes and water transfers from the Okavango. The low scenario keeps the current per capita water use pattern unchanged but population growth is taken into account which would increase total water needs by 44% . Overall, Figure 5 shows a wide range between the two scenarios which illustrates the high uncertainty about future demand. While demand increases are projected for all three countries, the most significant increases are expected in Namibia and Angola.
6. Implications for IWRM: Chances and Challenges
6.1. General Challenges, Principles and Key Strategies
Integrated Water Resource Management (IWRM) has emerged as an alternative to the traditional sector-by-sector, top-down resource management approach [8,69]. The Global Water Partnership (GWP) defines IWRM as ‘a process which promotes the coordinated development and management of water, land and related resources, in order to maximize the resultant economic and social welfare in an equitable manner without compromising the sustainability of vital ecosystems’ . Gaining broad attention following the international conferences on water and environmental issues in Dublin and Rio de Janeiro in 1992 , the approach has recently been criticized for its broadness and its similarity to the ecosystem service approach [70,71]. However, supporters and critics alike emphasize that the success of IWRM depends on its implementation.
Whereas some IWRM principles (as discussed below) may be commonly applicable, independent of context and stage of economic or social development, there is no universal blueprint as to how such principles can be put into practice. Factors such as natural conditions, character and intensity of water problems, human resources, institutional capacities, the relative strengths and characteristics of the public and private sectors, the cultural setting and many others, differ greatly between countries and regions. Therefore, practical implementation of the concept of IWRM must reflect such variations and thus will necessarily take a variety of forms . Also, past experience shows that implementation of IWRM is usually a slow process that could take several decades to be fully effective.
The following general challenges have been identified by the GWP :
Securing water for people and food production;
Protecting vital ecosystems;
Dealing with variability of water in space and time;
Managing water-associated risks;
Creating popular awareness and understanding;
Forging the political will to act;
Ensuring collaboration across sectors and boundaries.
To overcome these challenges, consistent progress on multiple ‘fronts’ is necessary. Four central concepts are suggested to guide the implementation of IWRM .
In contrast to sectoral approaches, IWRM emphasizes the horizontal integration of sectors that use and/or affect water. In order to effectively coordinate water supply and sanitation, agriculture use, energy generation, industrial use, environmental protection and other sectors, new institutions and policies are often required. Furthermore, vertical integration is needed to coordinate efforts between local, regional, national and international water users and institutions.
The second key concept of IWRM is to place responsibility for water resource management at the lowest effective administrative level. River basin organizations provide a means of decentralizing management authority from national governments to the basin or sub-basin level, where special attention can be paid to specific local problems. Whereas the appropriate level of decentralization depends on the nature of the specific water management problem in question, IWRM seeks to strike a balance between top-down and bottom-up management.
The third approach of IWRM is to strengthen community-based organizations, water user associations and stakeholders to give them a greater role in management decisions. Full and effective participation requires gender awareness and special efforts to allow women and vulnerable groups to participate in management decisions, in accordance with the Dublin Principles.
Economic and Financial Stability
A long-term goal of IWRM is full economic sustainability, with proper attention given to the economic value of water. Xie  calls it inevitable that, to achieve this goal, water is priced at its full cost, at minimum accounting for the cost of withdrawing and delivering the water. Also, laws and policies should establish clear water use rights.
6.2. Chances and Challenges for the Okavango Catchment
The three riparian countries have all been colonies or protectorates under different foreign powers, resulting in different administrative cultures. They also have different official languages and particularly Angolan delegations have to rely on translators . Communication processes in the basin are not only complicated by language barriers. Electronic media (e.g., radio programs) are used to inform communities living in more remote regions, a process working well in Namibia and Botswana but less effectively in Angola due to the lack of communication infrastructure . There is also a general tendency to promote economic development at the expense of the environment . Unclear and overlapping jurisdictions in and between the involved institutions are obstacles for policy implementation [60,74]. In Namibia for example, the private company NamWater provides the long-distance water supply to the urban areas and their surroundings through its own distribution network. In rural areas however water supply is controlled by the Ministry of Agriculture, Water and Forestry who owns the water infrastructure here. The differences in ownership result in frequent interruptions of water supply.
Beyond the institutional challenges in each country, the previously described socioeconomic developments and projected water situations pose two main challenges for the IWRM in the Okavango Catchment. First, the increasing demand for water and second the shifting power relations. In Angola, the demand for water is mainly driven by strong population growth. The additional 23 million people until 2050 will increase the pressure to utilize the fertile land along the Okavango. How fast the southern part of the Cuando-Cubango province will be populated depends on the progress made clearing the mines in the area . While in Botswana a population growth of ‘only’ 23% between 2011 and 2050 is expected, the government’s effort to promote tourism is likely to increase the per capita water demand, especially in the Okavango Delta [76,77]. In Namibia, the projected 55% population growth (2011 to 2050) will increase the demand for fresh water while water resources for non-human consumption will be less stressed.
The political stabilization and strengthening economic power of Angola generally make the country a more reliable and stable partner within the Permanent Okavango River Basin Water Commission (OKACOM) Agreement. However, Angola’s increasing water demand and its position as an upstream state are likely to lead to an increased use of the Okavango.
Despite the apparent conflict potential, outbreak of violence over water resources in the region is unlikely. So far, water conflicts in the Okavango River Basin have centered on verbal disagreements, particularly between Namibia and Botswana [7,78]. Of 261 international river basins only 55 have treaty mechanisms to guide joint management  and the Okavango River Basin is one of them. With the aim of managing the basin as a single entity, the three sovereign states of Angola, Botswana and Namibia agreed to sign the ‘OKACOM Agreement’ in 1994. The agreement commits the member states to a coordinated and environmentally sustainable development of regional water resources, while addressing the legitimate social and economic needs of each of the riparian states. The three countries recognize the implications that developments upstream of the river can have on the resource downstream. The agreement also established the OKACOM as a technical advisor on matters relating to the conservation, development and utilization of the resources of common interest to the basin members. The role of OKACOM is to anticipate and reduce those unintended, unacceptable and often unnecessary impacts that occur due to uncoordinated resources development. The 1994 agreement gives OKACOM several legal responsibilities including to determine the long term safe yield of the river basin, to estimate reasonable demand from the consumers, as well as to prepare criteria for conservation, equitable allocation and sustainable utilization of water resources . OKACOM can be regarded as pivotal to overcome the challenges of increasing demand and shifting power relations in a peaceful manner.
The Okavango Catchment is used by the three riparian states to varying degrees and for multiple purposes. In Botswana, tourism is the central use, combined with (fenced-off) cattle rearing, as well as flood recession and millet farming. On the Namibian side of the Okavango Catchment, cattle rearing is the dominant use. Across the border on the Angolan side, the cattle density decreases because of the land mines which were placed there during almost three decades of civil war. The pressure to clear the mines and to populate the Okavango Catchment is increasing as Angola’s current population of 19.6 million is expected to more than double by 2050. The Permanent Okavango River Basin Water Commission (OKACOM) and the Integrated Water Resource Management (IWRM) need to prepare for an increased demand for water in Angola but also in Botswana as a promotion of tourism is likely to increase the per capita water consumption. As Angola is increasingly recovering from the aftermath of the civil war, the country could become a more stable partner within the OKACOM Agreement. On other hand, the IWRM needs to allow Angola to develop the Cuando-Cubango province without extracting amounts of water that would limit farming, pastoralism and tourism in Botswana and Namibia. Especially in Namibia, the IWRM needs to address the issue of water quality, as water for non-human consumption is not likely to be critical in the near future. In all countries there is a need for more recent estimates of the total freshwater withdrawals. Given the level of poverty and essentiality of water for the local livelihoods in all riparian countries, it seems unrealistic and even undesirable to achieve economic sustainability through pricing of water at full cost. Finally, an outbreak of violent conflict between the riparian states is currently unlikely, however, it is critical for the IWRM to address the challenges posed by the interplay of demand, development and dependence.
We thank the reviewers for their constructive and helpful comments.
