Development of a Shared Vision for Groundwater Management to Protect and Sustain Baseflows of the Upper San Pedro River, Arizona, USA
Holly E. Richter 1,*, Bruce Gungle 2, Laurel J. Lacher 3, Dale S. Turner 1 and Brooke M. Bushman 1
1
The Nature Conservancy, 1510 E. Fort Lowell Road, Tucson, AZ 85719, USA; E-Mails: dturner@tnc.org (D.S.T.); bbushman@tnc.org (B.M.B.)
2
Arizona Water Science Center—U.S. Geological Survey, 520 N Park Avenue, Tucson, AZ 85719, USA; E-Mail: bgungle@usgs.gov
3
Lacher Hydrological Consulting, 821 S. Meyer Avenue, Tucson, AZ 85701, USA; E-Mail: LLacher1@msn.com
*
Author to whom correspondence should be addressed; E-Mail: hrichter@tnc.org; Tel.: +1-520-559-2722; Fax: +1-520-620-1799.
Received: 17 June 2014; in revised form: 14 August 2014 / Accepted: 14 August 2014 /
Published: 21 August 2014

Abstract

: Groundwater pumping along portions of the binational San Pedro River has depleted aquifer storage that supports baseflow in the San Pedro River. A consortium of 23 agencies, business interests, and non-governmental organizations pooled their collective resources to develop the scientific understanding and technical tools required to optimize the management of this complex, interconnected groundwater-surface water system. A paradigm shift occurred as stakeholders first collaboratively developed, and then later applied, several key hydrologic simulation and monitoring tools. Water resources planning and management transitioned from a traditional water budget-based approach to a more strategic and spatially-explicit optimization process. After groundwater modeling results suggested that strategic near-stream recharge could reasonably sustain baseflows at or above 2003 levels until the year 2100, even in the presence of continued groundwater development, a group of collaborators worked for four years to acquire 2250 hectares of land in key locations along 34 kilometers of the river specifically for this purpose. These actions reflect an evolved common vision that considers the multiple water demands of both humans and the riparian ecosystem associated with the San Pedro River.
Keywords:
baseflow; strategic recharge; optimization; San Pedro River; groundwater management; sustainable yield; regional groundwater; enhance baseflows; flow protection; river conservation; managed aquifer recharge

1. Introduction

Many aquifers within the United States contain an essential—yet shrinking—supply of water for both people and natural systems. Groundwater resources support the irrigation of crops, drinking water supplies, and industry. Declining groundwater levels strongly affect riparian ecosystems in the semi-arid southwestern United States, where many aquifer systems are characterized by a large volume of water in storage, but a relatively small rate of natural annual recharge and discharge [1]. Because groundwater also supports natural systems such as wetlands, riparian systems, lakes, streams, and rivers, it has become increasingly difficult for water managers in this region to meet both increasing human water demands and the water needs of natural systems under persistent drought conditions [1,2]. In Arizona, perennial streamflows have significantly declined across the state—at least seven river systems could be dewatered over time, and an additional four will experience degradation if actions are not taken to reverse these trends [2]. In other words, it is increasingly difficult to manage groundwater supplies sustainably in either short or long time frames.

Widespread acceptance/adoption of “sustainable yield,” which acknowledges long-term impacts of human pumping but tries to balance those impacts with environmental flow needs, represents a paradigm shift in groundwater management from the more common “safe yield” management paradigm that assumes it is acceptable for consumptive human uses of water to equal groundwater inflows. The name “safe yield” implies some level of security in terms of water availability, which by the very definition of the term is not afforded to water dependent natural systems if they are downstream of human water uses. Sustainable yield, on the other hand, more broadly addresses social, economic and environmental aspects of water availability. The methods for estimating sustainable yield, however, remain largely subjective and poorly understood by the general public, decision makers, and even water resources professionals.

This paper provides a regional case study of the Upper San Pedro River Basin of southeastern Arizona where groundwater management has focused for over a decade on the goal of sustainable groundwater yield, and proposes a generic framework for stakeholder engagement in this process, as well as lessons learned. While several questions and challenges persist, and the implementation of key strategies is ongoing, we present the tools and processes that have proven effective to date there. In particular, we offer a clear definition of sustainable use of groundwater, a conceptual framework for collaborative regional efforts to work toward attaining it along with an example of how the framework was applied in the basin, and examples of specific policies and projects that were developed to foster sustainable use there.

2. The Upper San Pedro Basin

The Upper San Pedro Basin lies within the Basin and Range Province of the southwestern United States and is roughly bisected by the international boundary between Mexico and the United States (Figure 1). The basin is bounded on the east, west, and south by mountains that drain to the river near the center of the alluvial valley. The basin contains up to 520 meters of fill accumulated during the late Tertiary and early Pleistocene [3]. Runoff from the mountains recharged the basin fill over millennia, creating a vast aquifer underlying the San Pedro River. Today, dry-season flows in the San Pedro River depend almost entirely on groundwater discharge. In recent years, concern over potential pumping-related depletions of fragile surface water supplies has lent urgency to efforts to integrate the management of these two connected resources.

Water 06 02519 g001 1024

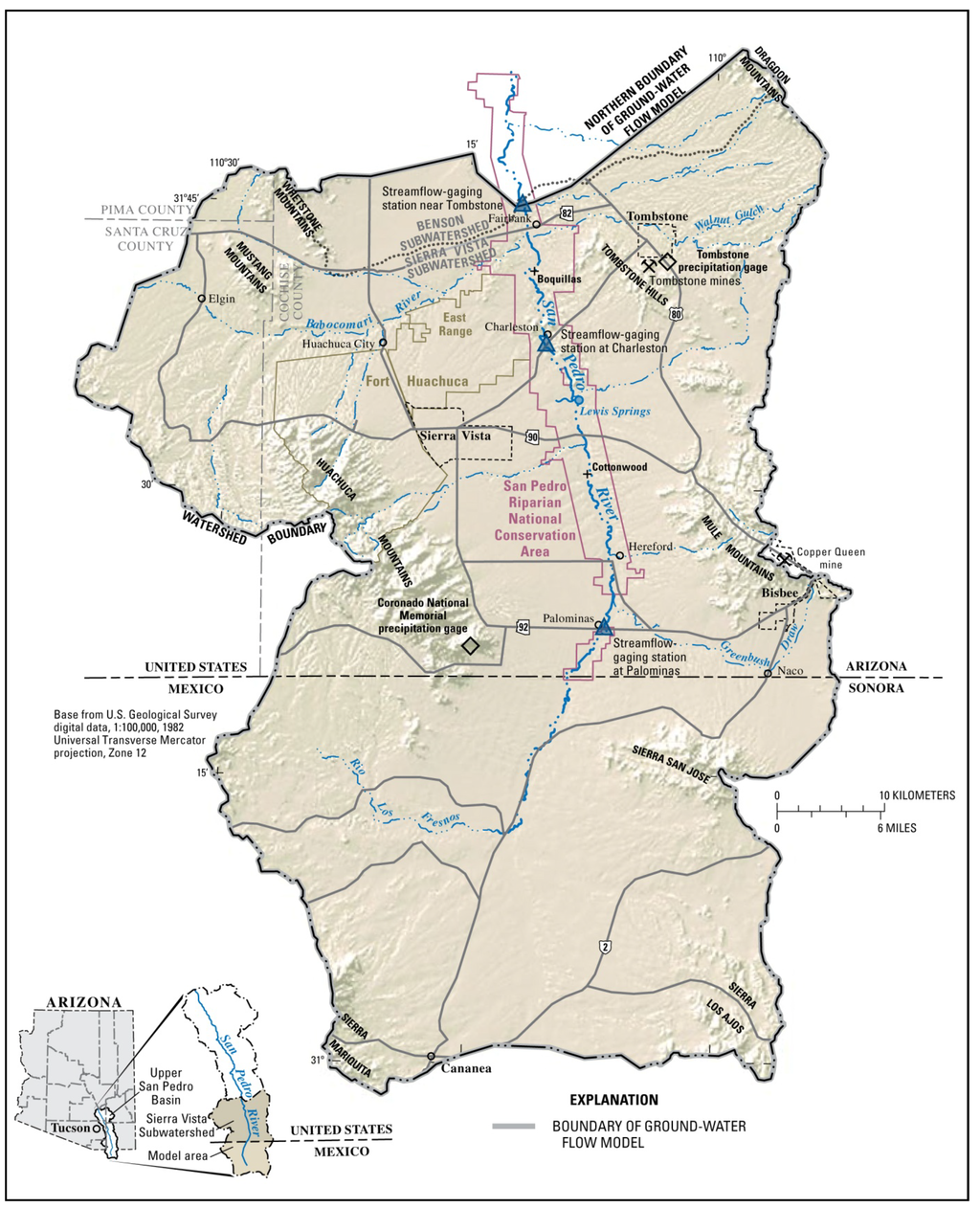

Figure 1. Map of the Upper San Pedro Basin showing the location of the San Pedro Riparian National Conservation Area managed by the U.S. Bureau of Land Management and the U.S. Army installation at Fort Huachuca within the Sierra Vista Subwatershed, just north of the United States—Mexico international boundary. From [4] (Figure 1).

Click here to enlarge figure

Figure 1. Map of the Upper San Pedro Basin showing the location of the San Pedro Riparian National Conservation Area managed by the U.S. Bureau of Land Management and the U.S. Army installation at Fort Huachuca within the Sierra Vista Subwatershed, just north of the United States—Mexico international boundary. From [4] (Figure 1).
Water 06 02519 g001 1024

Despite the fact that Arizona law generally does not recognize the hydrologic connection between groundwater and surface water, collaboration aimed at integrated groundwater-surface water management in the Upper San Pedro basin has been ongoing for decades, both within the United States and, to a lesser extent, between the United States and Mexico. The State of Arizona is in the process of delineating the “subflow zone” of river alluvium adjacent to the San Pedro River in order to protect senior surface water rights. Management, monitoring and modeling efforts focused on groundwater-surface water interactions in the Sierra Vista Subwatershed (Subwatershed) have supported vital scientific understanding of the physical basin. However, building a shared vision toward such an integrated water management approach along the binational San Pedro River is challenging for many reasons, including: differences in the political structure, economic development, cultural norms and values, water law, and language on either side of the border combined with a highly variable and complex physical system. Browning-Aiken et al. [5] laid out some of the processes used for collaborative watershed management of the San Pedro based on the principles of collective action theory, dispute resolution, adaptive management, power dynamics, and sustainability. The complex binational legal constraints pertinent to San Pedro water issues were also described by Browning-Aiken et al. [6]. This paper, however, focuses only on activities on the United States side of the border.

Within the United States, Congress created the San Pedro Riparian National Conservation Area (SPRNCA) in 1988 [7], the first Riparian National Conservation Area of its kind in the nation, and charged the U.S. Bureau of Land Management, to manage it “…in a manner that conserves, protects, and enhances the riparian area…” and other resources. This streamside riparian habitat, composed of Fremont cottonwood, Goodding willow, mesquite bosques, and sacaton floodplain grasslands, supports high levels of biodiversity and functions as a migratory bird corridor of hemispheric importance [8]. It includes approximately 64 km of the 279-km river that flows north to eventually join the Gila River, itself a tributary river to the larger Colorado River (Figure 1).

Several miles away from the SPRNCA another national asset, the U.S. Army installation at Fort Huachuca, had its own needs for groundwater to sustain its military mission associated with national security including communications testing. Fort Huachuca represents a major driver for southern Arizona’s economy as the largest employer in the region and contributes approximately $2 billion (U.S.) annually to the state’s economy [9]. Located between these two federal interests, the residents of the City of Sierra Vista and Cochise County depend upon the same limited groundwater resources as the National Conservation Area and Fort Huachuca.

In terms of the legal and regulatory context, there are no state restrictions on groundwater extraction along the San Pedro River except for pumping from the zone of subflow, typically a narrow band along the river corridor corresponding to fluvially deposited alluvium. In Arizona, the legal priority of surface water rights is governed by the claim filing date: the earlier the filing date, the more senior and defensible the water right. However, a comprehensive adjudication of water rights on the Gila River system has been ongoing for decades, including federal and other water rights claims along the San Pedro, therefore, considerable uncertainty regarding the nature of surface water rights continues to exist. However, there is a clear legal distinction between surface water rights, which can be defended against more junior competing surface claims, and groundwater use, which is almost wholly unregulated in the state outside of specifically designated Active Management Areas.

Arizona law prevents placing any use limitations—or even requiring a water meter—on wells with a maximum pump capacity of 132 liters/min or less [10], even within the state’s Active Management Areas. While the Upper San Pedro River Basin is outside of any state groundwater management area, Cochise County is one of only two counties in Arizona that have adopted requirements that subdivisions in the County must obtain a Designation of Water Adequacy. This program, administered by the Arizona Department of Water Resources (ADWR) requires water companies or subdivisions to show proof of a 100-year water supply before development is permitted. A total of twenty-seven privately owned local water utilities that depend upon groundwater supplies are regulated at the state level by the Arizona Corporation Commission and Arizona Department of Environmental Quality and operate in the area. In addition, three public water supply providers operate municipal water utilities.

3. History of Collaborative Water Management in the Basin

A consortium named the Upper San Pedro Partnership (Partnership) was created through a Memorandum of Understanding (MOU) in 1998 in response to the Arizona Department of Water Resources Rural Watershed Initiative. This collaboration also developed, at least partially, in response to a situation where “dueling hydrologists” hired by different factions provided widely varying opinions about the fate of groundwater and the San Pedro River. The Partnership provided a vehicle for local jurisdictions to work together alongside a range of federal and state agencies, as well as with non-governmental organizations and business interests. The organization’s purpose is to meet the long-term water needs of both the SPRNCA and the area’s residents [11]. According to the Partnerships mission statement, this goal is to be accomplished through the identification, prioritization, and implementation of policies and projects related to groundwater conservation and (or) enhancement [12].

One of the first objectives for the Partnership was to create a collaboratively-developed regional groundwater model on which all interests could agree and then utilize it for decision making. The model, developed by the USGS, was funded through multiple federal agency budgets, with additional supporting studies funded by other some of the other Partnership members. Over the course of the five years it took to build, USGS hydrologists provided a high level of transparency about the structure of the model and the empirical data sources used to calibrate it [8]. Ultimately, this collaborative model building process served to establish a clear context and common understanding of the complexities of the hydrogeology, surface and groundwater systems, human water demands, and riparian vegetation trends and water needs. During this time, the Partnership was also recognized (in 2003) by the U.S. Congress via Public Law 108-136, (Section 321) [13], which charged the Partnership with achieving sustainable yield of the Sierra Vista Subwatershed regional aquifer by 30 September 2011.

The Section 321 legislation also required the U.S. Secretary of the Interior to deliver nine annual reports to Congress on the water management and conservation measures necessary to restore and maintain the sustainable yield of the regional aquifer by and after 30 September 2011. Future federal appropriations to the Partnership were to depend on the Partnership’s ability to meet its annual goals for groundwater deficit reduction. On behalf of the Secretary and following Partnership decisions about methods and content, the reports were compiled and written by USGS staff of the Arizona Water Science Center with the assistance of other Partnership members. What the 321 legislation did not provide was a Congressional definition of the term “sustainable yield of the regional aquifer.”

The Partnership chose a definition of sustainable yield based on the competing objectives view of sustainability [14]

“…managing [groundwater] in a way that can be maintained for an indefinite period of time, without causing unacceptable environmental, economic, or social consequences”.

[15]

This was operationalized to mean, “…a sustainable level of groundwater pumping for the Sierra Vista subwatershed could be an amount between zero and a level that arrests storage depletion, with the understanding that to call a level of use sustainable (other than zero) will entail some consequences at some point in the future” [16].

Figure 2 summarizes the progress of the 23 member agencies in their collaborative efforts to reduce the groundwater deficit through water conservation, recharge and reuse programs after the Section 321 legislation was enacted.

Water 06 02519 g002 1024

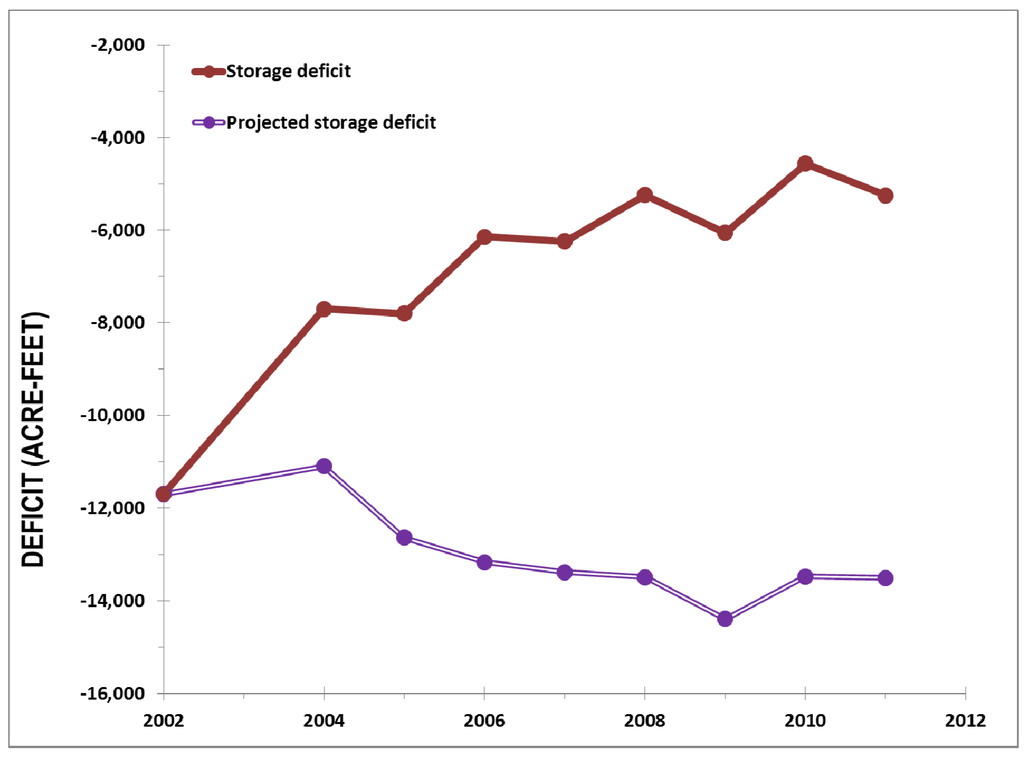

Figure 2. Estimated actual Sierra Vista subwatershed annual storage deficit and projected annual storage deficit that would have occurred had no management, conservation, or incidental yields due to human activity taken place. Incidental yields include increased recharge of runoff due to urbanization. The projected annual storage deficit is based on 2002 pumping rates and actual (not projected) population data from the State of Arizona and the U.S. Census through 2012. Modified from [17].

Click here to enlarge figure

Figure 2. Estimated actual Sierra Vista subwatershed annual storage deficit and projected annual storage deficit that would have occurred had no management, conservation, or incidental yields due to human activity taken place. Incidental yields include increased recharge of runoff due to urbanization. The projected annual storage deficit is based on 2002 pumping rates and actual (not projected) population data from the State of Arizona and the U.S. Census through 2012. Modified from [17].
Water 06 02519 g002 1024

4. Development of a Shared Vision for Sustainability

Based on the approach used along the Upper San Pedro River, we developed a generic conceptual model (Figure 3) consisting of six components for developing a shared vision for sustainable groundwater management among diverse stakeholders, and for the subsequent implementation of measures to test and refine strategies over time.

Water 06 02519 g003 1024
Figure 3. Conceptual Model for the Development of a Shared Vision of Sustainability for Integrated Water Management: The process of developing a shared vision of sustainability for regional groundwater management first requires an initial investment in building a common understanding of: the context of the water management challenge among stakeholders, the specific criteria for meeting environmental, social and economic needs, the theory of what needs to change to meet these criteria, and lastly, the strategies that will result in the desired outcomes. The subsequent implementation of projects or policies will have a better chance of providing multiple benefits and avoiding conflict when preceded by these steps.

Click here to enlarge figure

Figure 3. Conceptual Model for the Development of a Shared Vision of Sustainability for Integrated Water Management: The process of developing a shared vision of sustainability for regional groundwater management first requires an initial investment in building a common understanding of: the context of the water management challenge among stakeholders, the specific criteria for meeting environmental, social and economic needs, the theory of what needs to change to meet these criteria, and lastly, the strategies that will result in the desired outcomes. The subsequent implementation of projects or policies will have a better chance of providing multiple benefits and avoiding conflict when preceded by these steps.
Water 06 02519 g003 1024

Given the physical, economic, and social/legal/political scope and complexity of managing groundwater and surface water at the regional scale, various water managers and stakeholders typically have differing assumptions and opinions regarding management priorities, strategies, and potential outcomes. The development of a shared understanding of these multi-faceted complexities provides an essential foundation upon which to build a more collaborative approach and more robust solutions. This can be critical, especially given that the decisions of certain water managers and/or stakeholders may directly impact, either for benefit or detriment, the interests of others in terms of water availability. However, given the urgency, timing, and often political or legal sensitivities associated with some of these regional water management challenges, the initial investment in building a common understanding among various affected interests is not always made before the execution of plans, or implementation of projects or policies. Other authors have described that the “co-evolution of preferences” takes place through developing shared values and that people ultimately change their demands out of a motivation not just of helping others meet their needs, but because their perceptions and understanding of the issue have also fundamentally changed [18].

Therefore, a process that builds a common understanding of the specific criteria for meeting environmental, social, and environmental water management needs, as well as agreed upon strategies to address these criteria, is crucial to not only avoid subsequent conflict between interests but to build the most effective and robust solutions. In addition, specific desired outcomes for sustainability should be accurately defined, as well as the theory of what specifically needs to change to reach these outcomes with specific timeframes in mind. The strategies and theory of change can subsequently be tested through the collective implementation of projects and/or policies only if adequate monitoring programs are in place to do so at the appropriate spatial and temporal scales (Figure 3).

4.1. Develop a Clear Context

In our experience, the physical complexity of groundwater systems alone can be tremendous, and the simultaneous consideration of social and economic factors can seem insurmountable to stakeholders working together to identify shared solutions for regional water management. One of the key lessons learned from collaboration along the San Pedro was the pivotal step of directly engaging stakeholders early in the process to participate in defining the scope of technical investigations from their own perspectives as decision makers. However, this approach is not intuitive for scientists, who have been trained to approach problems from a purely technical perspective. Decision makers need specific types of information for making high-risk policy, finance, and political decisions. Even if risks are inherent or unavoidable, the ability of scientists to quantify the probability of certain outcomes can be very useful for decision makers to choose between various alternatives. Enabling scientists to understand the specific information most needed by decision makers early in collaborative planning processes is imperative. The subsequent steps in developing a shared vision of sustainability all depend upon getting this initial step of the process right [19].

Developing social and economic criteria related to groundwater management is sometimes hard to definitively quantify or even anticipate in a qualitative sense into the future. However, in the San Pedro example, the fact that the core interests of some of the stakeholders were conceptually defined through the development of even qualitative criteria (such as “Fort Huachuca remains operational unless for reasons unrelated to water”) helped to build a shared understanding and advanced discussions toward a possible solution set. One approach taken by the Partnership was to develop a decision support system (DSS) model based on the USGS groundwater model to help decision makers understand the impacts and cost-effectiveness of different combinations of water-conservation measures and management policies [20,21].

The primary technical tools used along the San Pedro River to explore the physical aspects of regional water management options and to aid in their development are discussed in detail by Lacher et al. [22]. While various research, data collection, and monitoring efforts were conducted from 1998 to 2014, the development of a groundwater model acceptable to all stakeholders was the overarching process that united stakeholders around a common understanding of the physical system. As stakeholders began deconstructing the complexities of the system by discussing the individual assumptions that went into that physical model, they recognized the need for improved information on which to base the model, and additional technical studies and/or predictive modeling tools were developed, such as stormwater/runoff models, evapotranspiration models, and riparian health inventories to provide better context regarding pivotal aspects of physical systems. As these types of additional studies strengthened the development of the regional groundwater model over time, it also had a secondary, but very important direct benefit for stakeholders—it improved their own common understanding of the physical system, and the eventual modeling results at the regional scale became more and more intuitive to them as well [20].

A common understanding of the legal, social and economic context of regional groundwater management issues emerged over the years from monthly Partnership meetings, multiple public opinion surveys conducted by various groups with an interest in regional water issues, and contracted studies, as well as through annual production of the “Legal Impediments” portion of the Section 321 reports to Congress. In addition, building an understanding of the relative costs for enhancing water supplies through a detailed assessment of a wide range of strategies proved essential for decision makers. The Partnership conducted a cost/yield study of 74 water management alternatives [23]. This process helped clarify the universe of all stakeholders’ preferences and ideas about possible water management solutions and put all these alternatives in a common currency of relative cost and benefit. It also reinforced the concept that no one, or even several, projects could address the existing short- and longer-term water challenges. Instead, based on an increased understanding of the physical system, stakeholders came to realize that an array of long-term demand-reduction measures would be needed along with more immediate aquifer recharge and stream flow protection measures.

4.2. Define Specific Criteria for Meeting Environmental, Social and Economic Needs

For the cost/yield study of water management activities, the Partnership defined seven environmental criteria for sustainability, including two groundwater, three surface water, and two ecological criteria, through a facilitated consensus-driven process (Table 1).

Table Table 1. The suite of criteria developed by the Upper San Pedro Partnership for sustainable yield.

Click here to display table

Table 1. The suite of criteria developed by the Upper San Pedro Partnership for sustainable yield.
Environmental needsSocial and economic needs
(1) Groundwater levels in aquifer within the San Pedro Riparian National Conservation Area maintained(1) Sufficient water quantity for human demands
(2) Regional aquifer storage increased(2) Fort Huachuca remains operational unless for reasons unrelated to water
(3) Stream baseflow and flood flows in the river are maintained(3) Cost of living, insomuch as controlled by water, remains within the means of a diverse population
(4) Water quality in the river sustained(4) Local participation in water management
(5) Springs in the San Pedro Riparian National Conservation Area continue to flow(5) Water quality maintained
(6) Overall riparian condition maintained
(7) Riparian habitat and ecologic diversity maintained

4.2.1. Environmental Criteria

In general, some of the defining environmental criteria commonly associated with sustainable yield include: (1) avoid excessive depletion of surface water and excessive reduction of groundwater discharge to springs, rivers, wetlands, and riparian vegetation (defined as capture); (2) prevent the intrusion of contaminated water to the groundwater system during induced recharge; and (3) avoid irreparable impact to any groundwater-dependent ecosystems, and prevent land subsidence from groundwater withdrawals [24].

Along the San Pedro River, the groundwater-dependent riparian habitat composed of native Fremont cottonwood and Goodding willow forest would experience increased mortality and declining recruitment and give way to invasive, non-native tamarisk if groundwater depths were to fall and persist beyond about 3 m below land surface within the riparian area [25,26]. Loss of surface flow to capture would likewise also result in the loss of wetland herbaceous plants such as rushes, sedges, and bulrush, dependent on continuously moist soils [26]. As the number and length of reaches with perennial surface flow decrease, the number and diversity of aquatic species would decrease as well [27].

Since the environmental consequences of falling groundwater elevations in near-stream locations would include the degradation of the current riparian and aquatic habitats along the San Pedro River [26] affecting species dependent on those habitats as well, maintenance of groundwater elevations was clearly a key criterion. However, in consideration of longer term time scales and larger spatial scales, the increase in storage of the surrounding regional aquifer was also considered a meaningful criterion for inclusion as well, given its connection and influence on the near-stream alluvial aquifer. Surface water availability, water quality, and riparian health considerations were also included as key criteria for environmental sustainability.

4.2.2. Social Criteria and Consequences

Typically, when the social consequences of sustainable groundwater development are discussed, it is in reference to a physical shortage of available and (or) uncontaminated groundwater supply for human use. In general, access to good quality potable groundwater supplies should be equally available to all residents; down-gradient users should have a water right equal to up-gradient users; and groundwater pumping should not damage the existing water rights to spring and surface waters [24].

For the San Pedro, not only was the physical availability of water to meet human demands one of the social criteria identified by the Upper San Pedro Partnership, but for them, the ability of the local communities to influence and control their own destiny in water management decisions was also a clear priority. The eventual establishment of a regional network of sites owned and operated by County and/or municipal governments for managed aquifer recharge purposes clearly met those criteria.

The recharge of treated wastewater effluent to sustain groundwater is a human health concern expressed by some along the San Pedro River, and sustaining water quality was identified as one of the social criteria for overall sustainability. Since 2003, the City of Sierra Vista has recharged approximately 3.1 million cubic meters per year (MCM/yr) of its treated wastewater with the aim of mitigating the effects of long-term groundwater pumping in the Sierra Vista Subwatershed. Water quality monitoring of spring discharge has been conducted near this recharge site and it was found that no constituent concentrations had exceeded any federal standards as of 2009 [28].

4.2.3. Economic Criteria and Consequences

In the United States desert southwest, most water users expect groundwater development to fulfill the water demands for agricultural irrigation, industrial uses, and residential development while maintaining an economically feasible depth to water with regard to pumping and well construction costs [29,30]. For the San Pedro, Fort Huachuca’s water use is constrained by federal law, specifically the Endangered Species Act (ESA). Two federally listed endangered species, the Huachuca water umbel (Lilaeopsis schaffneriana var. recurva), a small semi-aquatic vascular plant that grows in moist soils along the San Pedro River, and the southwestern willow flycatcher (Empidonax traillii extimus), a songbird generally associated with permanent water, rely on the surface flow and riparian system of the San Pedro River corridor for habitat. Fort Huachuca and the U.S. Fish and Wildlife Service completed a Biological Opinion in March 2014 addressing these issues for the next 10 years [31]. From the perspective of sustainable groundwater yield, then, the use of groundwater for economic development (i.e., to support the Fort’s mission) is constrained by endangered species such as the Huachuca water umbel and southwest willow flycatcher, as reflected in the ESA.

This tension between regulatory mechanisms and economic drivers reverses the normal relationship between water use and economic need. In this case, Fort Huachuca must minimize its water use in order not to cause unacceptable adverse economic impacts to the Subwatershed. Therefore the set of environmental criteria—specifically hydrological—as listed in Table 1 are also direct measures of the reduction of social and economic risks. Thus, the issue of balancing sustainable groundwater use in the Sierra Vista Subwatershed revolves around the environmental needs of the San Pedro Riparian National Conservation Area’s aquatic and riparian communities, which are inextricably linked to local economies and the federal military installation that acts as an economic engine across all of southern Arizona.

4.3. Define What Specifically Needs to Change through Strategies and Desired Outcomes

It became clear to San Pedro decision-makers and stakeholders through the process of developing the numerical groundwater model with the USGS, development of a spatially explicit Decision Support System (DSS) model based in the USGS groundwater model, and later working with consulting hydrologists who ran various simulations [22,32,33], that balancing human demands with flows in the river required not only the quantification of current withdrawal rates, but the management of impacts expressing themselves today due to water uses of the past century. In addition, predictive simulations of anticipated changes in groundwater trends over the coming century was essential to inform the decisions we make about current groundwater management. This was a much more complex and multi-dimensional view of the problem and its possible solutions, both spatially and temporally, than simply attempting to balance the current year’s groundwater budget deficit. And yet, understanding these complex relationships actually clarified and simplified the necessary strategies and outcomes by setting more realistic expectations about what could be realized in the short-term, as opposed to longer timeframes. For example, a balanced groundwater budget within the Subwatershed might not be accomplishable within the time frames of years to decades, nor would it necessarily ensure that flows would be protected. However, over longer timeframes of centuries a balanced budget will be essential, and there are actions we can begin today that will contribute toward these longer term goals.

Once the regional groundwater model was developed, specialized applications of it were also possible, including development of a regional groundwater capture map (Figure 4) to provide a comprehensive spatial view of pumping and recharge impacts or benefits at any location in the subwatershed [34]. This more-intuitive representation of the system’s physical dynamics resonated with decision makers and the public alike, and began to clearly highlight that near-stream locations had higher importance than locations closer to the regional cone of depression in terms of anticipated depletions of the river from pumping.

This understanding helped stakeholders move toward near-stream solutions that could most effectively benefit flows. While not eliminating the need to balance the overall groundwater budget throughout the subwatershed over longer time frames, strategies to sustain and enhance river flows in the short-term needed to center around near-stream locations to have the most impact. Once partners began to focus on the concept of an optimized suite of sites for both aquifer protection and recharge along the river corridor, the model was used to assess sites that could protect the most vulnerable sections of the river. This information was used to identify specific parcels of land that were feasible for acquisition. Some of those were later acquired, and subsequent groundwater modeling efforts used higher-resolution, local-area models to assess specific site and reach recharge characteristics and to simulate more specific recharge scenarios [22].

4.4. Implement Specific Projects and Policies

Member agencies of the Partnership have been implementing a wide array of projects and policies targeted at their collective goal of “the identification, prioritization, and implementation of policies and projects related to groundwater conservation and (or) enhancement” for approximately 15 years. The establishment of a dedicated fiscal agent (the City of Sierra Vista) and ongoing collaborative budget approval processes gave partners an effective way to pool resources and apply funding swiftly to key science and monitoring needs as they developed. These projects included water conservation outreach programs, residential water audits, water fixture rebate programs, construction of stormwater detention basins, and effluent reuse and recharge facilities.

However, as more predictive model simulations were run, an increased focus developed on projects that had the most immediate benefits for flows in the river: those that increased near-stream aquifer recharge. This included land acquisition and conservation easements specifically aimed at the permanent retirement of high-volume pumping over the last two decades. However, given a better understanding of the temporal and spatial dynamics of the groundwater system, Cochise County, The Nature Conservancy and Fort Huachuca recently added a new strategy to near-stream groundwater protection efforts. The addition of multiple aquifer recharge locations became a priority to complement the existing City of Sierra Vista effluent recharge facility that went into operation in 2002. The Nature Conservancy identified available land in areas believed to be the most productive for near-stream recharge, based on the groundwater capture map (Figure 4), wet-dry mapping of surface flows (described below) and other tools [22]. Thanks to funding for land acquisition made available from the U.S. Department of Defense Army Compatible Use Buffer Program, and in combination with drastically-reduced property values due to depressed market conditions in the past several years, the opportunity to acquire land previously slated for development arose at near-stream locations. Between 2011 and 2014, The Nature Conservancy purchased 2056 hectares and Cochise County purchased another 194 hectares of hydrologically sensitive land (Figure 4, Figure 5 and Figure 6). This network of four properties, totaling over 2250 hectares, and spread along 34 km of the river, far exceeds the amount of land originally envisioned as attainable for managed aquifer recharge purposes.

Water 06 02519 g004 1024
Figure 4. Groundwater capture mapping shows where managed aquifer recharge offers the greatest benefits for the riparian system within a 50-year timeframe. Dots indicate existing recharge projects. Historically most were constructed as detention basins for downstream flood control with secondary recharge benefits to the larger regional aquifer (over the warmer colors), and more recently to more directly benefit flows in near-stream locations (over the cooler colors). Outlined and numbered near-stream recharge sites are locations where aquifer recharge projects are currently under construction or being investigated as future project locations. Redrawn from [34].

Click here to enlarge figure

Figure 4. Groundwater capture mapping shows where managed aquifer recharge offers the greatest benefits for the riparian system within a 50-year timeframe. Dots indicate existing recharge projects. Historically most were constructed as detention basins for downstream flood control with secondary recharge benefits to the larger regional aquifer (over the warmer colors), and more recently to more directly benefit flows in near-stream locations (over the cooler colors). Outlined and numbered near-stream recharge sites are locations where aquifer recharge projects are currently under construction or being investigated as future project locations. Redrawn from [34].
Water 06 02519 g004 1024
Water 06 02519 g005 1024
Figure 5. One of a series of in-channel infiltration basins recently constructed at Recharge Site #1 near the San Pedro River where on-site monitoring (e.g., soil-moisture probes, pressure transducers) will be used to quantify the relative performance of the individual structures, within this constructed channel that receives surface run-off from upstream residential areas.

Click here to enlarge figure

Figure 5. One of a series of in-channel infiltration basins recently constructed at Recharge Site #1 near the San Pedro River where on-site monitoring (e.g., soil-moisture probes, pressure transducers) will be used to quantify the relative performance of the individual structures, within this constructed channel that receives surface run-off from upstream residential areas.
Water 06 02519 g005 1024
Water 06 02519 g006 1024
Figure 6. The in-channel basins under construction include infiltration trenches and drywells at Recharge Site #1, within the constructed channel. The channel is perpendicular to the river, and the river’s riparian corridor is visible in the background.

Click here to enlarge figure

Figure 6. The in-channel basins under construction include infiltration trenches and drywells at Recharge Site #1, within the constructed channel. The channel is perpendicular to the river, and the river’s riparian corridor is visible in the background.
Water 06 02519 g006 1024

After the acquisition of this recharge network, the collaborating partners are conducting site assessments that include hydrogeologic sampling, more-detailed stormwater modeling simulations, and potential source water locations. Ongoing planning by the County and local municipalities will now have additional options for managing both stormwater and effluent, at the places with the most regional benefit for river flows.

4.5. Monitor Progress toward Desired Outcomes

The member agencies of the Upper San Pedro Partnership remain committed to securing continued funding for a broad suite of monitoring activities to evaluate the response of the regional groundwater system to their ongoing project and policy development. The USGS and USDA Agricultural Research Service monitor regional and alluvial aquifer water levels, main-stem, tributary, and low-flow mountain stream gaging, storage change monitoring using micro-gravity methods, and streamflow permanence. The Nature Conservancy, in cooperation with the U.S. Bureau of Land Management, also leads an annual monitoring effort using GPS mapping of surface flows, a technique called wet/dry mapping, to determine the absence or presence of surface flows during the driest time of year (mid June in the San Pedro Basin). This 16-year dataset is used to track year-to-year variability of the length of surface flows, and used to infer changes in alluvial groundwater conditions that may provide early warning of ecological changes [22]. The USGS also continues to monitor water quality at the Charleston gaging station on the San Pedro River as part of the National Water-Quality Assessment program.

The Partnership has recently committed significant funding to a comprehensive, multiple-year analysis of progress toward sustainable groundwater use in the Subwatershed. While that analysis is not yet complete, their previous annual reports to Congress included a suite of eight indicators to measure progress toward sustainable yield, as shown in Table 2. It is important to note how strongly this suite of indicators aligns with the previously defined environmental criteria for sustainability described in Table 1.

Table Table 2. A suite of eight indicators was used to describe progress toward sustainable yield in the Section 321 reports to Congress that were prepared by the USGS (e.g., [17]). They relate directly to the environmental criteria for sustainability developed by the Partnership.

Click here to display table

Table 2. A suite of eight indicators was used to describe progress toward sustainable yield in the Section 321 reports to Congress that were prepared by the USGS (e.g., [17]). They relate directly to the environmental criteria for sustainability developed by the Partnership.
Indicators of Sustainable Yield
1.Regional aquifer water levels
2.Aquifer storage change measured with micro-gravity
3.Annual groundwater budget balance
4.Near-stream vertical gradients
5.Near-stream alluvial aquifer water levels
6.Streamflow permanence
7.Base-flow discharge on San Pedro and Babocomari Rivers
8.Springs discharge

5. Results and Conclusions

Based on the San Pedro experience, approaches such as the Partnership that directly engage affected policy makers, stakeholder organizations, regulatory agencies, and the scientific community can more effectively implement the necessary projects or policies, than if the partners were addressing the same challenge as individual interests. The involved partners more deeply understand the need for management measures, but are engaged in the actual exploration and development of possible alternatives, and witness the results and progress toward specific desired outcomes through adaptive management over time [35]. This was certainly the case for the Partnership as they first quantified the annual yield from a wide array of member agency water conservation, reuse, and recharge projects, then implemented dozens of them since 1998 [6] (Figure 2).

However, the Upper San Pedro Basin is unique in many ways. The presence of an important federal military installation and a federally protected riparian corridor within the Sierra Vista Subwatershed have brought a level of interest and involvement absent from many other basins with similar hydrogeologic conditions. The federal nexus in water issues has also resulted in significant funding to assess groundwater pumping impacts and to help mitigate those effects. Without Congressional funding for the Partnership and much of the federally-sponsored scientific research that supported development of the groundwater model, the state of the science would likely not have advanced to its current level.

Despite these unique socio-political aspects, the San Pedro Basin represents one of the best examples of riparian corridors remaining in the desert Southwest. The Gila River that drains more than 60% of the state no longer has any undammed perennially flowing segments, and is dry over most of its length. Many of the state’s once-flowing, now-dry rivers reflect the impacts of long-term groundwater pumping in the mid to late 20th century. They provide a stark reminder of how directly connected groundwater and surface water resources are for our desert rivers.

5.1. Lessons Learned

  • Lesson 1: Engage decision makers and key stakeholders early in the process to define the science and technical tools needed for an integrated water management approach.

    These needs should be tailored explicitly to the existing conceptual models of key stakeholders, and the gaps in understanding, disagreements and/or misperceptions that they hold. This approach strengthens the foundation for shaping meaningful criteria for success, the formation of effective strategies, and the definition of meaningful desired outcomes. The Upper San Pedro provides an example of a stakeholder-driven process where project implementation was driven by an evolving science-based understanding of the system, and additional financial resources and political support were generated over time in response to an enhanced understanding and appreciation of the challenges and opportunities. As stakeholders progressively learned more about the system, they were also in a better position to make the case for generating additional public and private funding to support their efforts.

  • Lesson 2: Collaboratively define desired outcomes as specifically as possible both temporally and spatially.

    The process of defining “sustainable yield” for the San Pedro is still underway more than 11 years after Congress mandated its implementation in the Subwatershed. By some measures, such as per-capita water consumption rates and managed aquifer recharge, efforts to mitigate the effects of groundwater pumping have been very successful. However, developing the predictive models to more specifically understand the response of the physical system allowed decision makers to recognize that, while their previous efforts would aid in slowing overall aquifer storage depletion, they would not necessarily protect the river from pumping-induced capture in shorter time frames (years to decades). Later efforts to initiate near-stream recharge arose from a better understanding of both the spatial and temporal aspects of the system, and strengthened the recognition that both short-term and long-term actions and effects were important.

  • Lesson 3: Stakeholders with varied interests are more likely to work successfully toward a common goal if they feel that their individual interests are represented, and can actually benefit from the process.

    Challenging economic and legal contexts should not prevent diverse parties from working toward a solution if they perceive that their interests are represented in, and perhaps even benefit from a shared vision with other interests. Even though some objectives may seem to be competing (e.g., preserving reasonable depths to groundwater for water supply wells AND preserving baseflows in the river), finding a common thread among the parties—such as preservation of a vital economic driver for the region—can lead diverse parties to define and accept a mutually beneficial outcome. Once stakeholders recognize what outcomes of a solution might look like (such as baseflow supported by near-stream recharge), they may better reach consensus about how to achieve that proposed solution. For the San Pedro, the acknowledgement of all three aspects of sustainability—economic, social and environmental—helped to build trust, agreement and eventually support among interests. In addition, it opened conversations to the consideration of more specific objectives aimed at both the short- and long-term. The parties acknowledged that preserving flow in the river was the most immediate short-term concern, while also recognizing the need for longer-term efforts to maintain supplies at municipal pumping centers.

  • Lesson 4: The importance of effective communication and two-way learning between scientists and decision makers cannot be overstated.

    While scientists and subject experts may recognize specific physical trends and processes in respect to hydrologic systems, other stakeholders may not agree on the nature or even the existence of them. Conversely, water managers and decision makers function within an operating environment that includes many dynamic political, financial, and legal factors that are not clear to scientists. Developing a shared understanding of these challenges as they relate to key water management decisions may take years. How do we help decision makers with little or no technical knowledge of complex groundwater hydrology understand that the pumping of half a century ago will manifest as declines in baseflow over the next half century? Even more problematic is trying to convince them to invest in expensive solutions to a crisis that—if the solution works—will never materialize. Accepting these hydrologic “mysteries” that are taking place in an invisible underground system they will never see requires a considerable leap of faith.

    The burden lies with both the scientific community and decision makers to invest the required time and effort communicating and learning about the environmental, social, and economic aspects of regional water management to be able to develop meaningful collaborative strategies together. The development of a set of specific criteria for meeting environmental, social, and economic needs as part of a shared vision of sustainable groundwater management is an essential first step toward the development of that understanding.
