Simplified Flood Inundation Mapping Based On Flood Elevation-Discharge Rating Curves Using Satellite Images in Gauged Watersheds
Younghun Jung 1, Dongkyun Kim 2, Dongwook Kim 3, Munmo Kim 4 and Seung Oh Lee 2,*
1
Institute of Environmental Research, Kangwon National University, Chuncheon 200-701, Korea; E-Mail: jung.younghun@gmail.com
2
School of Urban and Civil Engineering, Hongik University, Seoul 121-791, Korea; E-Mail: dekaykim@gmail.com
3
Department of Civil and Environmental Engineering, Incheon National University, Incheon 406-772, Korea; E-Mail: dwkim@incheon.ac.kr
4
Department of Civil Engineering, Shingu University, Sungnam 462-743, Korea; E-Mail: munmo310@shingu.ac.kr
*
Author to whom correspondence should be addressed; E-Mail: seungoh.lee@hongik.ac.kr; Tel.: +82-2-325-2332; Fax: +82-2-325-2332.
Received: 25 February 2014; in revised form: 23 April 2014 / Accepted: 28 April 2014 /
Published: 9 May 2014

Abstract

: This study suggests an approach to obtain flood extent boundaries using spatial analysis based on Landsat-5 Thematic Mapper imageries and the digital elevation model. The suggested approach firstly extracts the flood inundation areas using the ISODATA image-processing algorithm from four Landsat 5TM imageries. Then, the ground elevations at the intersections of the extracted flood extent boundaries and the specified river cross sections are read from the digital elevation to estimate the elevation-discharge relationship. Lastly, the flood extent is generated based on the estimated elevation-discharge relationship. The methodology was tested over two river reaches in Indiana, United States. The estimated elevation-discharge relationship showed a good match with the correlation coefficients varying between 0.82 and 0.99. In addition, self-validation was also performed for the estimated spatial extent of the flood by comparing it to the waterbody extracted from the Landsat images used to develop the elevation-discharge relationship. The result indicated that the match between the estimated and the extracted flood extents was better with higher flood magnitude. We expect that the suggested methodology will help under-developed and developing countries to obtain flood maps, which have difficulties getting flood maps through traditional approaches based on computer modeling.
Keywords:
Landsat; flood; ISODATA; digital elevation model; elevation-discharge relationship

1. Introduction

The process of flood inundation mapping is an essential component of flood risk management because flood inundation maps do not only provide accurate geospatial information about the extent of floods, but also, when coupled with a geographical information system, can help decision makers extract other useful information to assess the risk related to floods such as human loss, financial damages, and environmental degradation [1,2,3]. For these reasons, flood maps have been widely used in practice to assess the potential risk of floods. The flood management program of the United States Federal Emergency Management Agency (FEMA) is a good example, which employs the digitally formatted flood maps to assess the potential flood risks and the corresponding insurance rate regulated by the government [4].

There are several methods to obtain the spatial extent of flood. The primeval yet most certain method for obtaining the extent of flood is to integrate the flood elevation information from high water marks of floods observed at various spatial locations [5,6]. This method proves to be valid because it is based on the physical observation of the flood events and has the drawback in that it does not represent the nature of the flood events that significantly varies over time and space. With the development of computer technology and the increasing accessibility to digitally formatted hydrological data such as precipitation, surface elevation, land use, and land cover, the approach based on numerical modeling has been actively studied and widely applied [7,8,9]. The typical process of flood mapping based on numerical models starts with determining the magnitude of extreme flood with a given recurrence interval. Then, hydraulic models are used to determine the flood extent at several cross sections along the river reach assuming that the estimated extreme flood occurs in the area of interest [10,11,12,13].

For the initial application of optical remote sensing to delineate water extents or river distributions, the Landsat Multi Spectral Scanner (MSS) was mainly used for flood mitigation in the 1970s [14,15,16,17]. With the development of the Landsat Thematic Mapper (TM), waterbody delineation became more accurate due to improvement of resolution from 80 m to 30 m. For this reason, Landsat TM was applied to detect flood extents in countries with a monsoon climate [18,19]. In particular, the Landsat TM Near Infrared (NIR) band (Band 4) shows outstanding capacity to extract water bodies in dry land, but is poor in extracting water in urban areas (asphalt) [20]. This problem was solved by combining Landsat TM Bands 4 and 7 [6].

The recent advancement of remote sensing coupled with geographical information systems enabled the approach of estimating flood extents based on satellite imagery. Takeuchi et al. [21] assessed the applicability of remote-based Synthetic Aperture Radar (SAR) imagery for flood exposure by comparing the inundation areas extracted from JERS-1 SAR and Landsat TM images. Wang et al. [6] verified the effectiveness of a methodology of flood extent mapping based on the reflection difference between wet and dry clusters before and during the flood events. Töyrä and Pietroniro [22] suggested a geomatics-based approach to monitor spatial and temporal changes in the Peace-Athabasca Delta, a wetland in northern Alberta, Canada. They generated a time-series of flood maps using the combination of SAR, Landsat and SPOT satellite images with Light Detection and Ranging (LiDAR) surface elevation data and showed that the generated flood maps matched well with the spatial extent of overland floods and water levels. Gianinetto et al. [23] evaluated flood extents before and after the flood events using two Landsat-5 Thematic Mappers (TM), two Landsat-7 Enhanced Thematic Mapper Pluses, and digital elevation models (DEMs). They also assessed the damage caused by the flooding with the generated flood maps. Abdalla [24] demonstrated the efficiency of the Landsat satellite images to map spatial extents of flood inundation by analyzing water bodies using three consecutive Landsat images in the Qu’Appelle River, Canada.

Geographical Information System (GIS) enables visualizing and processing of geo-spatial data including satellite imagery and digital elevation model (DEM). DEM is a grid-formatted geospatial data of which each cell contains the numeric value of surface elevation. It can be utilized to model floods if combined with satellite images through GIS. For example, GIS enables reading the surface elevation of flood extent boundaries shown on the satellite imagery, and obtaining the relationships between the flood discharge, elevations, and extents with reasonable accuracy if the process is repeated for numerous flood events [25]. Several studies have been performed in this regard and have enlightened the prospects of the methodology of flood mapping based on satellite images and surface elevation data. For example, Sanyal and Lu [20] reviewed the application of GIS and satellite images in flood risk management and concluded that the availability of remote sensing data for flood extent delineation could be more efficient in developing countries. Qi et al. [26] used 13 Landsat images and two DEMs to simulate the inundation extents in Lake Poyang, China. Also, they estimated the relationship between inundation area and lake level using the Landsat images and DEMs and concluded that the estimated water elevations at medium-to-high flow showed higher accuracy than the ones estimated for low flow values. Khan et al. [27] used MODIS and ASTER imageries to acquire spatial extents of flooding to calibrate flood inundation areas using a distributed hydrologic model in the Lake Victoria basin.

This study was conducted to introduce a novel approach to develop elevation-discharge relationships and obtain a flood inundation area based on satellite images and DEM. Specifically, the objectives of this study are (1) to estimate flood elevation by using satellite images and DEM; (2) to establish the relationship between the flood elevation estimated from satellite images and the discharge obtained from a gauge station; and (3) to map flood inundation for discharge in the given range based on the relationship. To achieve these objectivities, 5 TM Landsat Imagery and DEM at 30-meter spatial resolution were analyzed on a GIS platform to obtain the relationship between flood magnitude and the corresponding elevation at all cross sections of the study. Then, the spatial extent of the flood was determined based on this elevation-discharge relationship. The estimated floodplain was compared with the ones directly extracted from the Landsat images to assess the conformity and uncertainties residing in the estimated floodplains. We especially targeted to identify the sources and the measures of uncertainties that could be induced while employing the suggested approach.

As a final aim of this study, we expect that the suggested methodology will help under-developed and developing countries to obtain flood maps, which experience difficulties in getting flood maps through traditional approaches based on computer modeling, which requires hydrologic and hydraulic input data that cannot be easily obtained due to financial limitations.

2. Materials and Methods

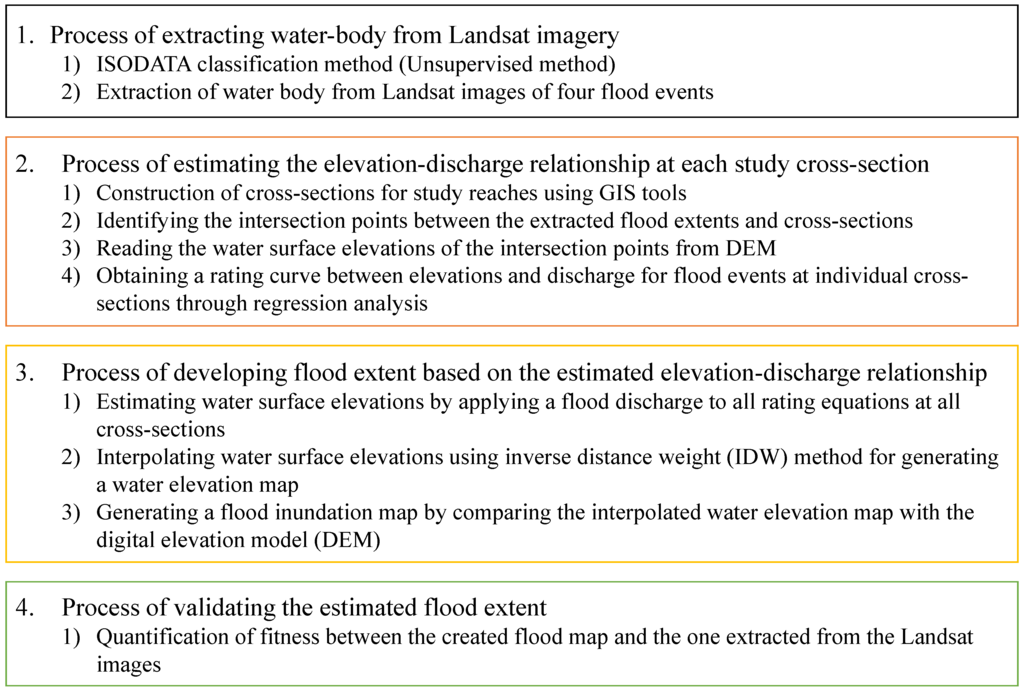

The methodology of this study is classified into the following four large categories (Figure 1): (1) the process of extracting water bodies from Landsat imagery; (2) the process of estimating the elevation-discharge relationship at each study cross-section; (3) the process of developing flood extent based on the estimated elevation-discharge relationship; and (4) the process of validating the estimated flood extent.

Water 06 01280 g001 1024
Figure 1. Procedure.

Click here to enlarge figure

Figure 1. Procedure.
Water 06 01280 g001 1024

2.1. Descriptions of Study Sites and Data

One reach of Wabash River, which drains to Mississippi River, Indiana, USA, and the other reach of White River, which drains to Wabash River were chosen as the study areas (Figure 2). We call the first Montezuma Reach and the latter Petersburg Reach for the rest of this study for convenience because these reaches pass through the cities with the according names. These two reaches were chosen for the analysis for the following reasons: Satellite images taken by Landsat 5 Thematic Mapper (TM) imaging sensors are available from the USGS [28] for most flood events that occurred after 2003 including the ones corresponding to the catastrophic flood that occurred in 2008 [29]; Each reach has distinct topographic and geomorphic settings providing good test beds for comparison: The Montezuma Reach is relatively straight and is about 8km long. The Petersburg Reach is rather meandering and is about 28 km long. The number of cross-sections for flood elevation interpolation is 18 for both reaches.

Only cloud-free Landsat images based on which clear identification of the waterbody was possible were considered for this study. Four Landsat images were obtained and analyzed for both the Montezuma Reach and the Petersburg Reach. The times at which the images were taken and the corresponding flood discharge values are summarized in Table 1.

Water 06 01280 g002 1024

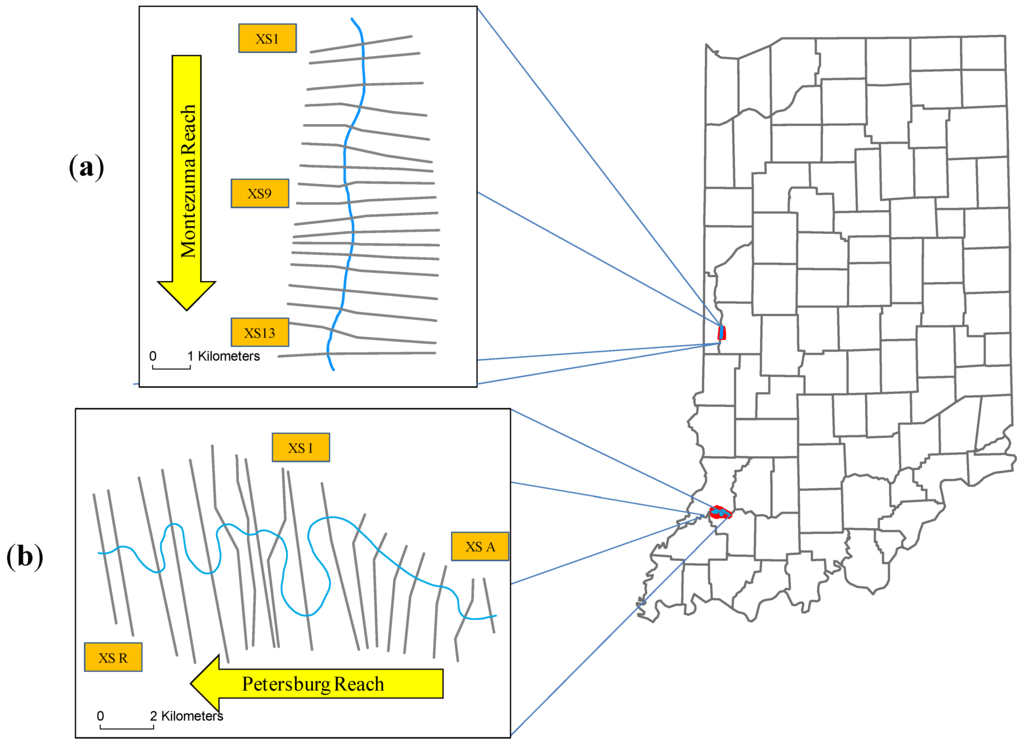

Figure 2. Study areas (a) the Montezuma reach and (b) the Petersburg reach (IN, USA).

Click here to enlarge figure

Figure 2. Study areas (a) the Montezuma reach and (b) the Petersburg reach (IN, USA).
Water 06 01280 g002 1024
Table Table 1. The Landsat Imageries used in this study.

Click here to display table

Table 1. The Landsat Imageries used in this study.
River ReachFlood eventsThe available Landsat imagesPeak flow
No.DateDischarge (m3/s)DateDischarge (m3/s)
Montezuma Reach110 April 200692920 April 20061002
25 March 200711724 March 20071203
311 June 200814508 June 20082197
411 April 2009114410 April 20091178
Petersburg Reach15 March 200712604 March 20071286
222 April 200751717 April 2007991
311 June 2008364512 June 20083738
43 July 201080830 June 20101441

Stream flow data corresponding to each image was obtained from the USGS National Water Information System [30]. The stream flow data of the USGS gage 03340500-Wabash River at Montezuma was chosen for the Montezuma Reach, and the stream flow data of the USGS gage 03374000-White River at Petersburg was chosen for the Petersburg Reach. DEM for both study reaches was obtained from the USGS Seamless Data Warehouse [31]. The spatial resolution of DEM used in the analysis is 30 m. It should be noted that all data used in this study are in the public domain.

2.2. Extraction of Waterbody from Landsat Imagery

The process of extracting a waterbody from Landsat imagery was performed based on the image processing algorithm called ISODATA (Iterative Self-Organizing Data Analysis). In ISODATA, a number of points are randomly placed on the image. Then the pixels located within a given distance from the placed points are assumed to belong to the same cluster. In a next step, the variability of the pixel values within a cluster is calculated, which functions as a standard to further divide or merge the cluster in the next iteration. The iteration repeats until the specified criteria are met. In this study, ISODATA was applied to the imagery composed of the spectral bands 1, 4 and 7 of the Landsat data, which was classified into large clusters of 20 colors [1]. This specific combination of the spectral bands was considered for the analysis because blue light (Band 1) penetrates clear water, near infrared (Band 4) is strongly absorbed in water, and mid infrared (Band 7) has spectral regions of absorption for water and reflectance for soil and rock [32]. Then, the typical visible satellite images were overlaid, and the colors corresponding to the waterbody such as lakes, rivers, and reservoirs were chosen as the final waterbody. Lastly, the clusters classified into water were merged and exported into GIS format. The shades of the objects that were mistakenly classified as water were removed using the GIS tool.

2.3. Estimation of Elevation-Discharge Relationship

The elevation-discharge relationship was estimated using the following procedures: (1) digitizing cross-sections along the river reach using ArcGIS and HEC-GeoRAS; (2) identifying the intersections between the digitized cross-sections and waterbody boundary; (3) reading the elevation from DEM at the identified cross-section-waterbody intersections and determining a single representative elevation value. In this study, the mean of the spotted elevation values was taken as the flood elevation representing the cross section; (4) identifying the flow value corresponding to the time at which the Landsat imagery was taken. These values were obtained from the SGS National Water Information System; (5) repeating the processes from (1) to (4) for the Landsat images taken at different times to obtain more data points for the elevation-discharge relationship; (6) performing regression analysis to obtain the final form of the equation. Here, the shape of the regression was chosen from one of the following mathematical functions: logarithmic, linear, and second order polynomial. The shape that produced the least residuals, and thus the highest correlation, was chosen. In this study, both river reaches had 18 cross-sections and four Landsat data. Subsequently, elevation-discharge relationship with four data points was obtained for 18 river cross sections.

2.4. Flood Map Generation

The process of flood map generation consists of the following steps: (1) identifying the flood elevation at each cross section; (2) generating the surface of flood elevation based on the identified flood elevation values at each cross section. Here, the method of inverse distance weight (IDW) was used for spatial interpolation; (3) generating a flood map using the raster subtraction geo-processing tool: Flood extent can be obtained by subtracting the surface elevation raster dataset (DEM) from the flood elevation raster dataset. Any raster cell for which the water surface elevation was greater than the surface elevation was considered as part of the flood extent.

Flood inundation maps were created for the flood discharge values corresponding to satellite images, which were used to develop the same relationship. Then, the generated flood maps were compared to the same satellite images. The comparison method with which the satellite images were taken at the other flood events was originally considered, but this method was not possible due to shortage of the data. Therefore, it has to be noted that the result of this comparison does not validate or solidify the logic of the methodology suggested by this study. Instead, the result aims to reveal the limitations of the methodologies and to discuss uncertainties that can be induced while applying them.

The goodness of fit between the created flood map and the one extracted from the Landsat satellite images was assessed by the measure of relative error and F-statistics. Relative error (Equation 1) gives an indication of how well the inundation area extracted from Landsat imagery (AL) compares to the inundation based on the estimated elevation-discharge relationship (AR). The fact that the compared areas of the flood inundation are similar to each other does not necessarily mean that they are “geospatially similar.” For example, two flood inundations with exactly the same areas but with no overlapping portion will yield a relative error of 0 according to Equation 1. The use of F-statistics can resolve this issue. F-statistics (Equation 2) is defined as the ratio of the area of the overlapping portion of the two flood inundations to the area of both flood inundations projected on the map. It has been consistently used to compare the geospatial similarity of the mapped area over various studies [33,34,35,36].

Water 06 01280 i001
Water 06 01280 i002
where Ao indicates the inundation area extracted from the Landsat images; Ap refers to the predicted flood inundation area; and Aop represents the intersection of Ao and Ap. High F-statistics indicates the goodness of fit between simulations and observations.

3. Results

3.1. Extraction of Waterbody

Figure 3 compares the satellite image based on the typical visible rays (left) and the one visualized by the spectral band used in this study (right). It can be noted that the color difference between the waterbody and the other surrounding objects in the images becomes significantly more apparent when the specified spectral band combination is used.

Water 06 01280 g003 1024
Figure 3. Comparison of the band combinations in the Montezuma reach (11 April 2009). (a) The combination of Bands 1, 2, and 3 (Red: Band 1, Green: Band 2, Blue: Band 3); (b) The combination of Bands 1, 4, and 7 (Red: Band 7, Green: Band 4, Blue: Band 1).

Click here to enlarge figure

Figure 3. Comparison of the band combinations in the Montezuma reach (11 April 2009). (a) The combination of Bands 1, 2, and 3 (Red: Band 1, Green: Band 2, Blue: Band 3); (b) The combination of Bands 1, 4, and 7 (Red: Band 7, Green: Band 4, Blue: Band 1).
Water 06 01280 g003 1024

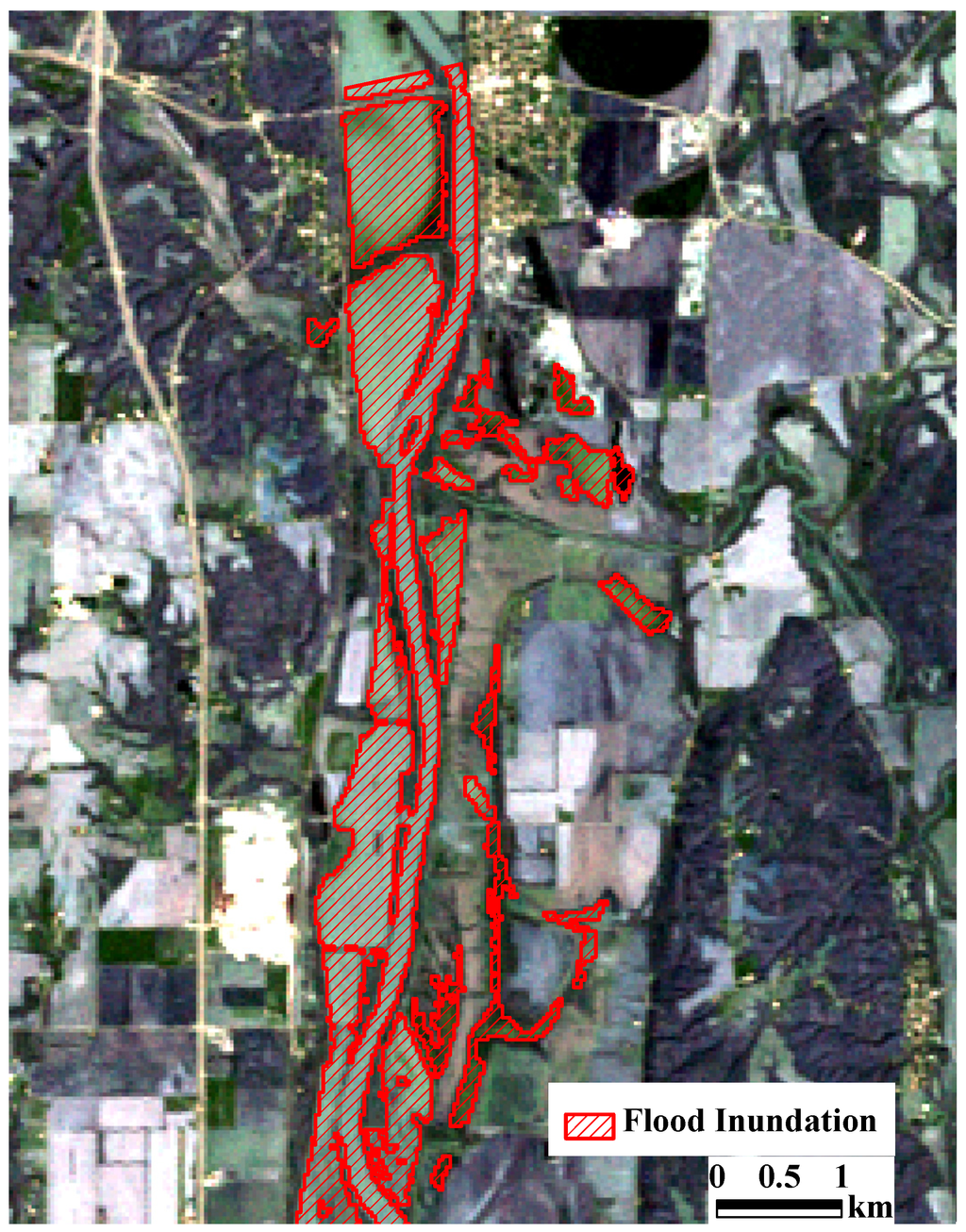

Figure 4 shows the sample result of the flood inundation area extraction performed on the Montezuma Reach for the flood event that occurred on 11 April 2009. The process of flood inundation area extraction was repeated for four satellite images for both study reaches. Then, the area of the extracted flood extent was calculated using GIS and was compared to the USGS flood discharge record corresponding to the time at which satellite image was taken. As expected, higher flood discharge produced a larger flood inundation area. The flood inundation area ranged between 3.03 and 13.2 km2 for the Montezuma Reach, and between 5.15 and 50.31 km2 for the Petersburg Reach. The Montezuma Reach, because of its relatively straighter channel geometry, displayed a narrower flood inundation area than the Petersburg Reach, which has a meandering channel geometry. Regardless of the shape of the channels, the flood inundation areas of both the reaches had rather straight shapes for the great flood of 11 June 2008. This was mainly because when the channel with the meandering shape including the surrounding floodplain was completely filled with water, the overall direction of the downward slope of the inundation area determined the flow of water.

It was observed that different areas and shapes of the floodplain could be formed even with similar discharge rates: The flood discharges that were observed in the Montezuma Reach on 5 March 2007 and on 11 April 2009 only had a 2% relative difference of 1144 m3/s and 1172 m3/s, respectively. These two flood events produced notably different shapes of the floodplain, which will be treated in Section 3.3. There are several possibilities for the source of this intriguing difference: (1) Hysteresis of water movement: even though the flood discharge in both cases was similar, the magnitude of the maximum flood that occurred before the satellite images were taken differed by 1203 m3/s and 1177 m3/s, respectively. If we assume that an elevational threshold exists between these two discharge values, there is a possibility that one flood event could overflow this threshold and fill the area during the maximum flow that cannot be filled by another. In this case, it takes more time for this separate waterbody to drain because it is isolated from the main water flow; (2) the discharge values that were used as a reference to discern the similarity of the flood magnitude reflected on the satellite images are the ones observed at one downstream gage, but not at all upstream cross sections. The assumption of flow continuity generally holds, but not always, especially as the study area is large and the terrain geometry is complex; (3) Algorithmic error in ISODATA: During the processing of images using ISODATA, image clusters could have been misclassified.

Water 06 01280 g004 1024
Figure 4. The flood inundation map extracted from Landsat Image (the Montezuma reach, 11 April 2009).

Click here to enlarge figure

Figure 4. The flood inundation map extracted from Landsat Image (the Montezuma reach, 11 April 2009).
Water 06 01280 g004 1024

3.2. Estimation of Elevation-Discharge Relationship

Elevation-discharge relationships, or rating curve equations, were developed for a total of 36 cross-sections for both study reaches (18 each). To achieve this purpose, the intersecting points between the boundaries of the identified waterbody and the stream cross-sections were identified using GIS. Then, the surface elevations at the intersecting points, which also represent the elevation of the flood, were extracted from the DEM of the study reach. Figure 5 shows the identified flood extent boundary, cross-sections, and intersections between the two overlain on the DEM of the study area for the Montezuma Reach. Since four images were analyzed for each reach, all elevation-discharge relationships at individual cross-sections were represented as four data points. Here, it is noteworthy that one cross-section has multiple intersecting points with the flood extent boundary. To maintain the simplicity of the methodology, this study took the mean value of the spotted flood elevation values. This methodology, however, could be improved to obtain a more accurate elevation-discharge relationship. For example, according to the flow hysteresis that was previously explained, the waterbodies that were isolated from the main flow did not contribute to the flow rate measured at the downstream gage. This study assumed that the number of intersections corresponding to such isolated waterbodies with regard to the total number of intersections per each cross-section was minor, thus taking the averages of all flow elevation values would not lead to a big difference from the true elevation of the flood that contributed to the main flow.

Water 06 01280 g005 1024

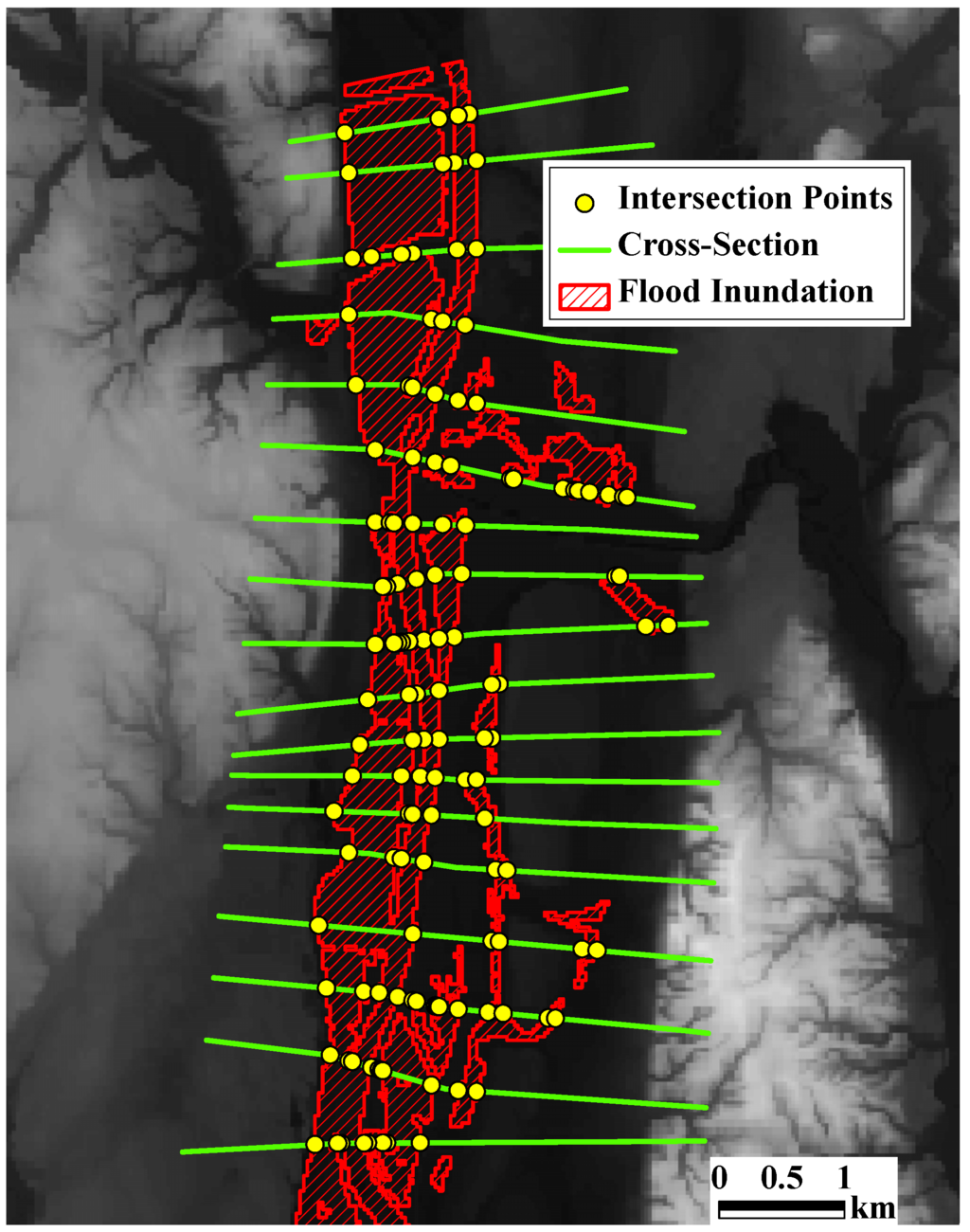

Figure 5. Intersection points for estimating the rating equations (the Montezuma reach, 11 April 2009).

Click here to enlarge figure

Figure 5. Intersection points for estimating the rating equations (the Montezuma reach, 11 April 2009).
Water 06 01280 g005 1024

Figure 6 shows the example elevation-discharge relationship and the rating curve that is obtained from the regression analysis. The correlation coefficients of rating equations at all cross-sections show high correlations ranging between 0.82 and 0.99 for the Montezuma Reach, and between 0.84 and 0.99 for the Petersburg Reach. Table 2 compares the elevation-discharge relationship obtained from the analysis of this study and the “true” rating curve used by the USGS to measure the flow rate. The result of the comparison indicates that the root mean squared error (RMSE) is 1.04 m for the Montezuma reach and 1.53 m for the Petersburg reach.

Water 06 01280 g006 1024
Figure 6. Examples of rating equations between discharges and water surface elevations. (a) Rating equation at XS9 in the Montezuma reach; (b) Rating equation at XSI in the Petersburg reach.

Click here to enlarge figure

Figure 6. Examples of rating equations between discharges and water surface elevations. (a) Rating equation at XS9 in the Montezuma reach; (b) Rating equation at XSI in the Petersburg reach.
Water 06 01280 g006 1024
Table Table 2. Comparison of water surface elevations from gauge and Landsat image.

Click here to display table

Table 2. Comparison of water surface elevations from gauge and Landsat image.
River ReachDateDischarge (m3/s)WSE from gauge (m)WSE from Landsat (m)SE (m2)RMSE (m)
Montezuma Reach19 April 2006928.793145.228144.3090.8441.04
5 March 20071172.317145.886144.7791.226
11 June 20081449.823146.472145.1881.647
11 April 20091144.001145.816145.0470.593
Petersburg Reach5 March 20071260.47128.10127.101.001.53
22 April 2007516.76125.46126.541.15
11 June 20083645.37130.05127.367.23
3 July 2010807.89126.78126.740.00

Notes: WSE indicates water surface elevations, and SE is squared error.

3.3. Flood Map Generation and Calibration

Figure 7 shows the processes of flood mapping based on the elevation-discharge relationship at individual cross-sections. Figure 8 and Figure 9 compare the flood extent that was delineated from the estimated elevation-discharge relationships and the ones directly extracted from the satellite images for the Montezuma Reach and the Petersburg Reach, respectively. The area of the simulated flood inundation ranged from 4.53 to 12.33 km2 for Montezuma Reach, and from 8.15 to 55.09 km2 for the Petersburg Reach. Table 3 summarizes the result of the comparison. For the Montezuma Reach, the RMSE between the simulated inundation areas and the ones from the satellite images was 1.4 km2, and the relative errors ranged from 11% to 50%. The relative error tends to become significant for the flood with low magnitude: a flood with a magnitude of 928 m3/s occurred on 19 April 2006 and produced a relative error of 50%. On the contrary, the comparison for the other three greater flood events had significantly less relative error, i.e. less than 20%. A similar comparison result was obtained for the Petersburg Reach. The RMSE was 3.47 km2 and the relative errors ranged from 8% to 48%. The flood event on 22 April 2007 with the discharge of 517 m3/s produced a relative error of 58%. Also, the other three flood events with greater magnitude had relative error values that were less than 25%. This seems to be based on the measure of uncertainties induced through the map generation process such as spatial resolution of satellite images and DEM with regard to flow values becoming smaller as the magnitude of flood increases.

The results from F-statistics show the spatial goodness of fit between the simulations and inundation maps extracted from Landsat images (seventh column in Table 3). For the Montezuma reach, the F-statistics for the low flood flow value (928 m3/s of 19 April 2006) was 25, while the F-statistics for the high flood flow of 1500 m3/s on 11 June 2008 was 77. Also, the larger discharge produced higher F-statistics. For the Petersburg reach, the second largest flood among the four flood events produced an F-statistics of 31 (5 March 2007). The F-statistics for the largest flood (11 June 2008) was 66. While this result based on self-validation cannot be interpreted without criticisms, the following remark may be assumed to hold in case of performing the true validations: The lower the magnitude of the flood, the greater the relative error the methodology, and vice versa. It is also noteworthy that a similar flood magnitude for different reaches can lead to significantly different geographical shapes of the floodplain: the Petersburg Reach, which has a more meandering channel shape than the Montezuma Reach yielded a wider shape of the floodplain along the channel reach.

Water 06 01280 g007 1024
Figure 7. Flood map generation: c = ab. (a) Water Surface Elevation interpolated by inverse distance weight (IDW); (b) digital elevation models (DEM); (c) Flood inundation area.

Click here to enlarge figure

Figure 7. Flood map generation: c = ab. (a) Water Surface Elevation interpolated by inverse distance weight (IDW); (b) digital elevation models (DEM); (c) Flood inundation area.
Water 06 01280 g007 1024
Water 06 01280 g008 1024

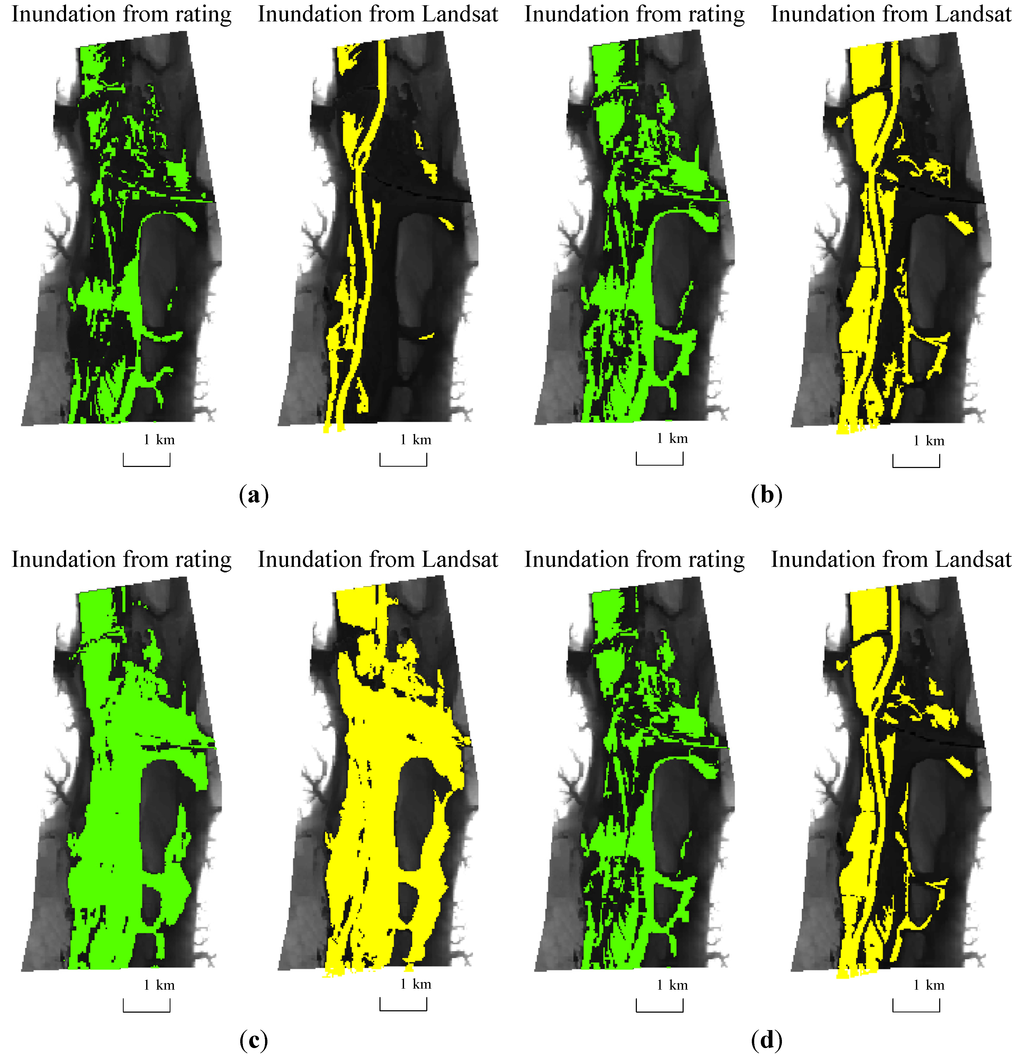

Figure 8. The comparison of inundations from rating equations and from Landsat images for the Montezuma reach. (a) Flood flow of 929 m3/s on 19 April 2006; (b) Flood flow of 1172 m3/s on 5 March 2007; (c) Flood flow of 1450 m3/s on 11 June 2008; (d) Flood flow of 1144 m3/s on 11 April 2009.

Click here to enlarge figure

Figure 8. The comparison of inundations from rating equations and from Landsat images for the Montezuma reach. (a) Flood flow of 929 m3/s on 19 April 2006; (b) Flood flow of 1172 m3/s on 5 March 2007; (c) Flood flow of 1450 m3/s on 11 June 2008; (d) Flood flow of 1144 m3/s on 11 April 2009.
Water 06 01280 g008 1024
Water 06 01280 g009 1024
Figure 9. Comparison of inundations from rating equations and from Landsat images for the Petersburg reach. (a) Flood flow of 1260 m3/s on 5 March 2007; (b) Flood flow of 517 m3/s on 22 April 2007; (c) Flood flow of 3645 m3/s on 11 June 2008; Flood flow of 808 m3/s on 3 July 2010.

Click here to enlarge figure

Figure 9. Comparison of inundations from rating equations and from Landsat images for the Petersburg reach. (a) Flood flow of 1260 m3/s on 5 March 2007; (b) Flood flow of 517 m3/s on 22 April 2007; (c) Flood flow of 3645 m3/s on 11 June 2008; Flood flow of 808 m3/s on 3 July 2010.
Water 06 01280 g009 1024
Table Table 3. Floodplain comparison summary.

Click here to display table

Table 3. Floodplain comparison summary.
River ReachFlood eventsThe available Landsat imagesArea [km2]Fitness
No.DateDischarge (m3/s)SimObsREF
Montezuma Reach119 April 20069294.533.030.5024.95
25 March 200711727.346.080.2042.87
311 June 2008145012.3313.190.0777.19
411 April 200911446.746.100.1141.46
Petersburg Reach15 March 2007126015.0119.990.2531.39
222 April 20075178.155.150.5834.63
311 June 2008364555.0950.310.1066.02
43 July 201080810.7411.680.0832.40

Notes: Sim denotes the simulations and Obs denotes the observations; RE indicates relative error.

4. Discussion

The result of the comparison suggests that the flood extents delineated by the estimated elevation-discharge relationships can significantly differ from the ones directly extracted from the satellite images. This study attempted to newly develop a flood inundation map based on rating curves without any hydraulic model. Moreover, this approach can be useful to generate flood inundation maps in ungauged or data-poor regions where bathymetry of the river valley is unavailable. However, the fact that the estimated flood extent is based on the elevation-discharge relationship that is extracted from the satellite images being compared clearly reveals the limitation of the methodologies. Here, we focus on identifying the source of these limitations.

4.1. Limited Quantity of Satellite Images

The most important factor that limits this methodology is the limited quantity of satellite images. The satellite images used in this study were taken by Landsat 5 Thematic Mapper (TM) imaging sensors with the repeat cycle of 16 days. For the images to be used in the flood analysis, this repeat cycle has to coincide with the time close to flooding. Furthermore, the presence of clouds in the images, which has a high correlation with flow values, prevented the full use of the images obtained for the flooding periods. For this reason, only four data points could be used to obtain the elevation-discharge relationship. This prevented the dependable validation of the estimated rating equations developed at the cross section passing through the flow measuring point.

It also has to be noted that not all satellite images obtained and used for the analysis were used in this study. For example, a good number of images were available for low flow value, which displays the waterbody concentrated in the main channel, but these images were not considered for further detailed elevation-discharge relationship analysis because the resolution and the accuracy of the satellite imagery and DEM did not provide enough precision within the main channel along the cross-section.

In the future, it is expected that the use of visible/infra-red or radar data for classification of land use from satellite images will been introduced into the literature. Radar satellite images provide enormous potential for open water extraction due to their cloud penetration capacity. In this regard, radar satellite images will be appropriate to monitor spatio-temporal flood extents because flood inundation areas are often covered with heavy clouds [37,38].

4.2. Spatial Resolution of the Satellite Images and DEM

Both the Landsat imagery and the DEM that were used in this study have a horizontal resolution around 30 m. Even if ISODATA is able to extract the boundaries of a flood extent from an image perfectly, this level of coarse resolution of images can cause a significant amount of uncertainty in the spatial extent of the estimated flood extent boundaries. In the meantime, it also has to be considered that the each cell of DEM contains only a single value representing the elevation of around 900 m2 of the cell area. For this reason, the flood elevation values used to develop the elevation-discharge relationship can contain a considerable amount of uncertainty. In addition to the horizontal resolution, vertical accuracy of DEM used in this study has the root mean square error of 2.44 m. This vertical error can directly be propagated to uncertainty in obtaining water surface elevation. Furthermore, it incorporates the uncertainties in the generation of the flood inundation area [39,40,41].

4.3. Some Issues with Image Processing

Extraction of a waterbody from Landsat images can be conducted either with supervised or by unsupervised methods. For both of the methods, the person running the process has to make some crucial decisions or “train” the algorithm how to differentiate one class over others at the beginning or intermediate stages of the process. ISODATA used in this study is an unsupervised method for image processing, and the detailed information on a target land cover is not needed for classification. For this reason, ISODATA has frequently been used in waterbody classification [42,43]. However, unsupervised methods are limited by spectrally homogeneous groupings identified by the classification process. Moreover, while running ISODATA, the selection threshold, the number of iterations and the number of classification have to be given at the beginning of the processing. The extracted waterbody can differ significantly according to these initial parameters. In this study, the combination of Bands 1, 4, and 7 chosen on a subjective basis for image processing could induce uncertainties in the results. In addition, the change of waterbody transparency induced by natural factors, such as suspended sediments or other inorganic materials, can make the waterbody more turbid and less reflective misleading the identification algorithm. For a similar reason, the colors at the boundary of water bodies can be misclassified. For example, the wet ground surface can be considered as waterbody in the classification processes. Moreover, flooding water extracted from the Landsat images can be veiled by vegetation or urban constructions. The water bodies extracted in this study only reflect open water distribution (e.g., Figure 2 and Figure 3).

4.4. Propagated Uncertainty in the Entire Processes

The above-mentioned limitations are sources of uncertainty for each step of this study. The final results obtained throughout many stages involve the uncertainties propagated from errors raised in each step. For example, an error in the waterbody extraction of the image processing propagates to the estimation of flood elevation with DEM, which involves horizontal and vertical errors. The regression method was used for the establishment of the relationship between discharge and flood estimation. Uncertainty in rating curves are also propagated to the generated flood inundation map.

5. Conclusions

Satellite images are widely adopted in various fields of natural sciences and engineering including meteorology, geology, forest sciences, and hydrology by providing useful geospatial information that would otherwise require significant amounts of effort for in-situ measurement and data integration. However, limitations of the analysis based on satellite images clearly exist due to the cursory and indirect nature of measurement compared to the ones performed on sites. The importance of this study is that (1) it introduces a new approach of flood inundation mapping based on satellite images and the elevation-discharge relationships that are extracted from the images; (2) it provides a measure of uncertainties expected while applying the suggested approach; and (3) it identifies the source of uncertainties requiring cautions during the application.

Even though the validation could not be fully performed due to the shortage of the satellite images, the suggested approach could develop a flood inundation map with a reasonable accuracy. The fact that the elevation-discharge relationship extracted from satellite images matches well with the “true” relationship at the USGS gauging stations proves this to a certain extent. The applicability of the methodology will be extended as more images become available, which can be either in the past or in the future. We also expect that the uncertainties to be induced by the factors stated above will significantly decrease as more satellite images become available.

The suggested flood mapping approach based on the elevation-discharge relationship requires the measured flow values at the points in time at which the satellite images were taken, which is not always possible in practice. For this reason, an approach to estimate the flow values based on satellite images to develop elevation-discharge relationship is also intriguing for future research.
