Water 2013, 5(4), 1760-1779; doi:10.3390/w5041760
Published: 1 November 2013
Abstract: The integration of water management goals in protected wetland areas agriculturally managed in an intensive manner recalls the comparison of apples (ecological values) and oranges (economic dimension of agriculture). Sustainable wetland management frequently fails if environmental features are not referred to as ecosystem services and quantified in economic terms. In our hydrological-economical study on floodplain wetlands located in the Lower Basin of the Biebrza Valley, we attempt to quantify the monetary value of water storage in the floodplain during flood phenomena as an important ecosystem service. The unit monetary value of water storage in the catchment of Biebrza Valley was assessed on the basis of small artificial water reservoirs, constructed in recent years and located in the area of research, and reached 0.53 EUR·m−3·year−1. In a GIS-based study on hydrological floodplain processes in the years 1995–2011, we assessed the average annual volume of active water storage in the floodplain which reached 10.36 M m3 year−1, giving a monetary value of EUR 5.49 million per annum. We propose that the methodology presented in our analysis could be applied as water storage subsidies in valuable floodplains, to prevent their deterioration originating from agriculture intensification.
The water storage role of wetlands has become one of the hot topics in the contemporary worldwide discussion on possible measurable benefits which come along with an appropriate status and function of those ecosystems [1,2,3]. As ecology-based messages rarely find positive feedback from stakeholders, the economic valuation of wetland functions must be implemented in environmental management to enhance the efficiency of nature conservation [4,5]. It is otherwise likely that economic gains from extensive agriculture will take over wetland management, and that increasing human pressures aimed at intensive use of wetlands will influence decision-making and possibly deteriorate wetland ecosystems. So far, the result of human-enforced adaptation of wetland ecosystems for the purpose of agriculture, industry, and urbanization has resulted in degradation for the majority of European wetlands . This has occurred mainly due to drainage. Despite numerous environmental conservation policies implemented throughout the continent (Natura 2000, National Parks, Habitat-Directive and Bird-Directive sites), drainage of well-preserved and near-natural wetlands still remains a vast challenge for their conservation in the face of increasing intensity of agriculture.

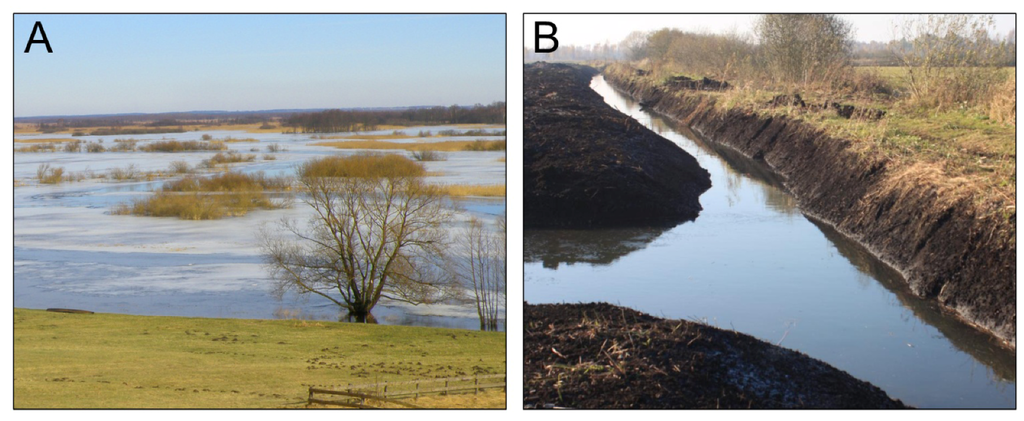

Agricultural development supported by EU funds in Central Europe (agro-environmental schemes and direct payments that reflect the implementation of the common agricultural policy) has expanded over the last decade, underpinning a serious threat to the sustainability of wetlands. Formerly abandoned wetland meadows, frequently of high ecological value, suddenly became valuable in economic terms as well—species-oriented agricultural payment schemes (e.g., for the Aquatic warbler Acrocephalus paludicola or the Corncrake Crex crex) brought these wetlands back to active management. In certain areas, such as those in northeastern Poland where the valuable wetland ecosystems (e.g., Figure 1A) cover a vast area, tens of thousands of hectares of floodplain meadows are again maintained and mowed in order to receive funds from EU agro-environmental schemes. Management policies that support the sustainable use of wetlands in general oblige payment-benefited land users to mow wetland meadows. However, this is the only prerequisite for the agro-environmental payment to be fulfilled. If the meadow is not mown, then the subsidies are limited. Such a mechanism forces land users to mow their meadows regardless of physical conditions and climatic variability. Though, flood phenomena which naturally and regularly occur in natural lowland floodplains, become a limiting factor for agriculture. Hence, as an obstacle to “regional development”, floodplains in many regions are challenged—especially in wetter years—by increasing pressure on drainage.
In the most recent decade, Central Europe faced frequent summer floods due to climatic variability, which occurred more often than in the previous five decades [7,8]. As observed in Poland, high water levels in managed wetlands during the summers of 2010 and 2011 created a series of conflicts . Even though the assumptions of the EU agro-environmental schemes are oriented towards species conservation and habitat preservation, this climatic variability caused pressures to increase drainage and undertake intensive river dredging. The result: a broad-scale degradation of aquatic ecosystems . To “dry up” the land remained a dogmatic and policy-supported goal of regional water management authorities. Despite protests by local NGOs and the start of an adaptive-management-related stakeholder dialogue, numerous (sometimes illegal) river training and drainage projects were started (Figure 1B). Support for this process had an economic origin: floods on maintained meadows (of water levels seldom exceeding 0.5 m) limit accessibility to the land and prohibit mowing, thus limiting income.
At the same time, as increasing water storage capacity in a catchment scale is required by the Water Framework Directive and numerous regional programs  implemented by member states of the EU and aimed at implementation of sustainable agriculture, the construction of water storage reservoirs has recently intensified. These small-volume reservoirs (Figure 2B) are constructed (which also qualify for EU subsidies) with a volume seldom exceeding 0.5 M m3 (normally reaching less than 100,000 m3). The ultimate goal of these reservoirs is water storage, according to the assumptions of financing bodies, designers and investors, for agriculture.
Integrated water resources management requires considering water as a benefit in a catchment scale [12,13]. Therefore, agricultural water management aimed in one particular catchment at increased water storage on one hand, and on the other at increased intensity of the drainage and drying of agriculturally maintained wetland meadows, can be considered as internally incoherent. Moreover, if drainage activities on lands receiving EU funds (Figure 1B) for biodiversity and species abundance (as is the case for most wetlands in NE Poland) are the result of farmers’ pressures, and at the same time those farmers claim the need of construction of storage reservoirs, further efforts should be taken to present this incoherence and show the true economic dimension of meadow flooding (i.e., water storage), which is profitable for a much broader audience than it appears negative for farmers.
The main goal of our study is to evaluate and assess the economic context of water storage in a lowland catchment. Our approach is as follows: (i) we evaluate the unit cost of water storage in artificial reservoirs constructed in years 2000–2010 and planned for construction in the near future within the catchment of the Biebrza River (NE Poland); (ii) we evaluate floodplain storage in the river valley on the basis of GIS analysis and hydrological data on water levels and lastly; (iii) we assess the annual monetary value of water stored in the floodplain during flood phenomena recorded in years 1995–2011. In the latter part of our paper we discuss the practical possibilities of implementing our approach in water management policies for protected floodplains in order to prevent their further ecologic deterioration by drainage, and through highlighting their role on a catchment scale by putting water storage in the floodplain in economic terms.
2. Materials and Methods
2.1. Wetlands of the Lower Biebrza Basin—Nature and Agriculture

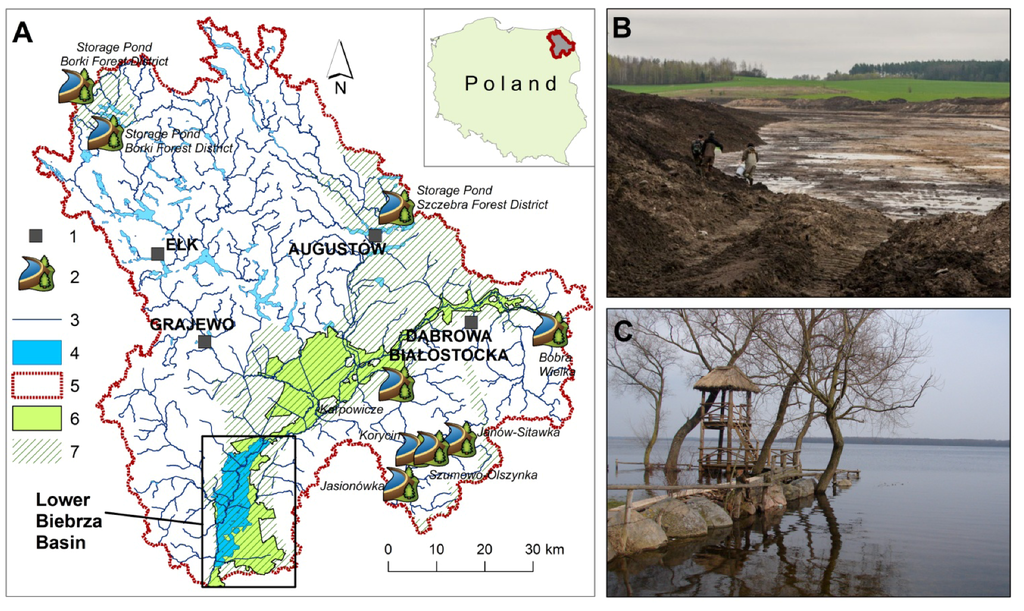

Catchment of the Biebrza River and the Biebrza Valley are located in NE Poland (Figure 2A). The Biebrza is a tributary of the Narew River. Wetlands of the Biebrza Valley remain one of the best preserved and the broadest in coherent extent within the European Lowlands . Ecological relations in ecosystems of the Biebrza Valley, and the Lower Biebrza Basin in particular, are considered as natural and related to hydrological processes, of which the seasonal flooding (in riparian wetlands) and constantly high groundwater levels (in groundwater fed fens) remain the most important processes that sustain the biodiversity [15,16].
Riparian wetland meadows located in the Lower Biebrza Basin (Figure 2C) are flooded each year as a result of the spring snowmelt floods, which occur from late February up to May [7,17]. These floods are most likely enhanced by controlled discharge from lakes located upstream in the catchment. In wet years, summer flooding also occurs. Average momentary discharge of the Biebrza reaches 22.4 m3·s−1 in the upper-most profile of the Lower Biebrza Basin (Osowiec) and 33.5 m3·s−1 in the lower-most profile of the Lower Biebrza Basin (Burzyn). The bankful discharge reaches 26.7 m3·s−1 and 40.5 m3·s−1 respectively [7,17]. Such a small difference between the average momentary discharge and the bankful discharge shows that flooding is still a relatively frequent phenomenon in the Lower Biebrza Basin, which determines intensive water and nutrient exchange within the floodplain, and is at the same time an obstacle for mechanic agricultural measures.
The Biebrza Valley is well known as one of the most important European stopover sites for migratory birds . In order to manage and protect the unique wetlands of the Biebrza Valley, the Biebrza National Park was established in 1993. Today, conservation activities are aimed at preservation and the increase of suitable habitats for rare species of flora and fauna. The majority of actions are oriented at the reduction/prevention of secondary succession of shrubs to open areas, which are considered a threat to protected birds (e.g., Aquatic Warbler Acrocephalus paludicola and the Greater Spotted Eagle Aquila clanga). Tens of hectares of wetland meadows in the Biebrza Valley are subsidized with EU funds and so must be mown on a regular basis; mostly mechanical methods of mowing are used (tractors, adjusted mowing rattracks, mechanic mowers). As approximately 40% of the Biebrza National Park’s area remains private, many conflicts arise regarding the flooding of wetland meadows .
2.2. Economic Assessment of Water Storage Cost in the Catchment of the Biebrza
The average unit cost of storage of 1 m3 of water (the Scost) in the Biebrza catchment was calculated on the basis of available data on expenses of local authorities on design, construction, and maintenance of storage reservoirs in recent years. Only those reservoirs whose sole function is “water storage” (indicated in technical documentation) were taken into consideration. Due to the limited availability of data on technical properties, budgets, and financing of such investments, only nine objects located in the catchment of Biebrza could be described in the required data configuration (Figure 2A, Table 1). The Scost in the catchment of Biebrza was calculated as a weighted mean of unit costs of water storage in each of the analyzed objects, according to the Equation (1):
|Table 1. Artificial storage ponds considered in the economic assessment of unit cost of waterstorage in the catchment of Biebrza. * Currency exchange rate used in the analysis 1 EUR =4 PLN; ** approximate value calculated on the basis of Tyszka . Explanation in text.|
|Reservoir||Year||Volume [M m3]||Approx. cost of design and construction [PLN]||Approx. cost of design and construction [EUR] *||Unit cost of water storage [EUR·m−3·year−1]|
|Storage Pond–Borki Forest District||n.a.||0.020||n.a.||n.a.||0.07 **|
|Storage Pond–Borki Forest District||n.a.||0.024||n.a.||n.a.||0.07 **|
|Storage Pond-Szczebra Forest District||n.a.||0.001||n.a.||n.a.||0.07 **|
|Statistics||-||Ʃ = 0.90||Ʃ = 29,070,478||Ʃ = 7,267,620||avg = 0.53|
2.3. Floodplain Storage Volume Assessment
The stretch of Biebrza Valley between the Osowiec and Burzyn (the Lower Biebrza Basin) was the focus of the analysis. Flood extents in this zone were comprehensively studied as to their spatial and temporal dynamics in both field monitoring [7,15,16,17] and modeling manners [20,21,22]. The research on flood dynamics and floodplain water storage was based on water levels and discharges of the Biebrza River, recorded in the period 1995–2011 by the National Institute of Meteorology and Water Management (IMGW). Basing upon previous research, and due to some constraints resulting from the uncertain accuracy of a rating curve in Burzyn (floodplain width reaches 4–8 km and lack of discharge measurements during high water level conditions), we assumed the classic approach to storage calculation expressed as the sum of momentary differences between the inflow and outflow to the floodplain will not represent reality in the analyzed case. In our approach, we analyzed flood extent in the Lower Biebrza Basin as a function of water level on the Burzyn water gauge (Figure 3 and Figure 4). On the basis of field observations, we observed that the water level of bankful flow in Lower Biebrza Basin is represented by the approximate value of 250 cm on the Burzyn gauge. Although this water level does not represent the overbank flow on the Burzyn gauge itself, it represents the threshold when the flood starts in the floodplain between the gauges of Burzyn and Osowiec .
The main aim of our approach in the floodplain storage calculation was to derive the relation between average water levels of a particular flood phenomenon and the corresponding flood extents, and so establish floodplain water storage volumes (later on referred to as H-Fvol relation). Delineation of flood extents was done in a five-step approach. Firstly, in order to cover the broadest possible range of water levels in a H-Fvol relation, we calculated values of the discharges of particular probable exceedance frequencies (FQp%) with the classic quantile-based statistical approach with the Pearson 3rd type distribution applied [24,25]. FQp%s were assessed for Osowiec and Burzyn gauges for 1, 2, 5, 10, 20 and 50 percent theoretical exceedance frequencies. Secondly, on the basis of long term data on discharges and water levels in Osowiec and Burzyn, we assessed water levels that corresponded to particular values of calculated FQp%s. Thirdly, the corresponding values of water levels for particular FQp%s were interpolated along the course of the Biebrza River between Osowiec and Burzyn. The distribution of longitudinal slopes of the water table on this river stretch was verified during numerous field measurement campaigns conducted during the spring and summer floods in 2007–2013. Fourthly, interpolated values were assigned to the cross sections distributed through the valley, downstream from Osowiec and towards Burzyn. Cross sections representing changing elevations across the valley were derived from DEM (elaborated by Świątek and Chormański , verified by Szporak et al. , and improved with data from additional topographic field measurements) every kilometer of the valley. As the analyzed floods were represented by the average water levels measured during each of the flood events (Figure 3), we assumed that the constant water levels along each of the cross sections, equal to the water levels in the river in a particular stretch, could have been assigned. Next, the automatic interpolation was applied in order to delineate the water level in the valley for particular conditions of FQp% in between the cross sections. In the fifth step, the interpolated plain of the water table was intersected with the DEM of the Lower Biebrza Basin, which allowed the delineation of the flood extents (Figure 4A,B).

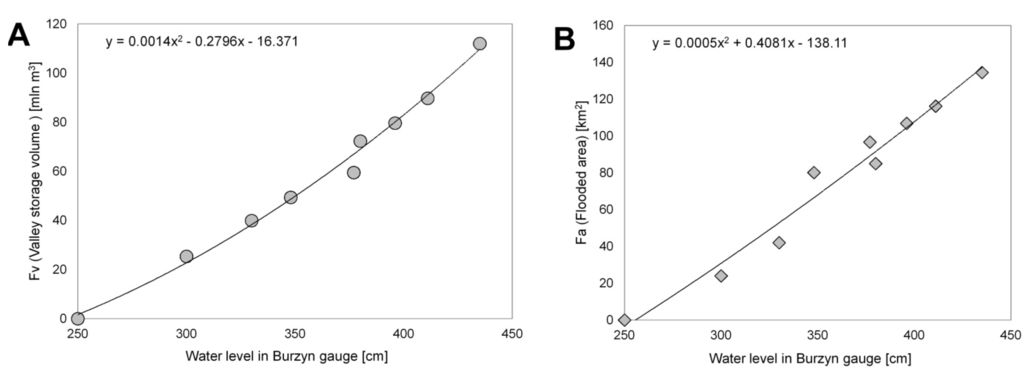

In order to get additional flood extents in the H-Fvol analysis, some field measured water elevations were interpolated and the flood extents for particular measured conditions were delineated (e.g., Figure 4C). As presented, flood extents reflect water levels derived from the river only and neglect the cross-sectional variability of the slope of the water table (on the edges of the valley water levels might be higher/lower than in the river). One can conclude that flood volumes and extents assessed for particular water levels with the presented methodology represent values close to the average conditions. The analysis of water levels, flood extents, and flood volumes allowed empirical relationships between these variables to be derived (Figure 5A,B). The authors are aware that in summer and autumn, when the floodplain vegetation develops intensively, the total volume of flood should be reduced by the volume of vegetation. However, due to a lack of precise data we decided to calculate both winter/spring and summer/autumn flood volumes with the same regression, and recommend the analysis of the influence of vegetation on flood volume in the summer/autumn periods for future research.
In total “active” storage calculations, in addition to the surface water storage (Fv) derived for the particular average water levels in flood conditions, we took into consideration the shallow groundwater stored in the peat up to the critical depth which determines the possibility of using mechanical equipment (tractors, rattracks) in agricultural practices on floodplain meadows due to too high saturation of the soil. Therefore, the total water storage capacity of the Biebrza floodplain between the profiles of Osowiec and Burzyn (StWet) was calculated as shown in the Equation (2):
It is assumed, that once the water table remains shallower than 0.15 m, then mechanical mowing is impossible because of high saturation of the peat soil. Normally above this water level, farmers claim that the drainage should be enhanced. The porosity of flooded peat soils was assessed as high as 0.85. Tf is the dimensionless index expressing the fraction of the year when the floodplain was flooded (in our approach, when the water level in Burzyn was higher than 250 cm). The term Tf in Equation (2). Represents in fact the time when active water storage in the floodplain was occurring. It reflects the duration curve, meaning that Tf = 1 represents the hypothetical situation of a flood that lasted 365 days (throughout the whole year water level in Burzyn was above 250 cm) and Tf = 0 characterizes the situation when at any day of the year the water level in Burzyn did not exceed 250 cm. In our approach, we neglect the amount of water stored in the 0.15 m depth of soil outside of the flooded range. We state that in areas not reached by the flood waters there are factors other than the flood entailing hydrological processes (e.g., groundwater discharge). Although these processes can somehow keep in the feedback with the flood, we do not consider them in our analysis. Hence, our calculations of the floodplain volume are likely to be underestimated in the catchment-scale. In our research we do not consider water stored in peat below the critical depth of 0.15 m either. This water is not mobile and in most cases does not participate in the short-term water exchange in the analyzed system. Finally, the annual floodplain storage economic value was calculated as:
This comprehensive methodology of the floodplain water storage volume assessment reflects the actual and dynamic volume of water taking part in active water exchange during floods. The proposed algorithm includes only water which is somehow problematic for farmers and land owners. Hence we conclude, that in the analyzed example of a near-natural floodplain, the calculated storage volumes can be considered as active and exchangeable water, which—although not directly maintained in a reservoir-manner—theoretically becomes an equivalent of water stored in artificial reservoirs when considered in a catchment scale.
2.5. Economic Assumptions of the Analysis
In order to compare water storage of artificial reservoirs and the floodplain during flood events in one and the same catchment, we assume that the caeteris paribus rule covers any storage within one catchment. Practically, if one is willing to pay for any design, construction, or maintenance of an artificial storage reservoir whose only goal is water storage, and the unit cost of water storage can be assessed according to Equation (1), then the floodplain storage, as is, is worth the same amount of capital. Also, if the storage-related issues are analyzed in a catchment scale (e.g., flood protection for areas located downstream of the analyzed catchment) then both the storage in artificial reservoirs and the floodplain storage during floods in one catchment provide the same output, which is reduction of the discharge to the reaches of the river located downstream from the analyzed catchment.
3.1. Unit Cost of Water Storage in Artificial Reservoirs in the Catchment of Biebrza
Data on costs of design and construction of particular minor reservoirs aimed at water storage in the catchment of Biebrza led to an estimate of the average unit cost of water storage in those reservoirs as high as 0.53 EUR·m−3·year−1 (Table 1).

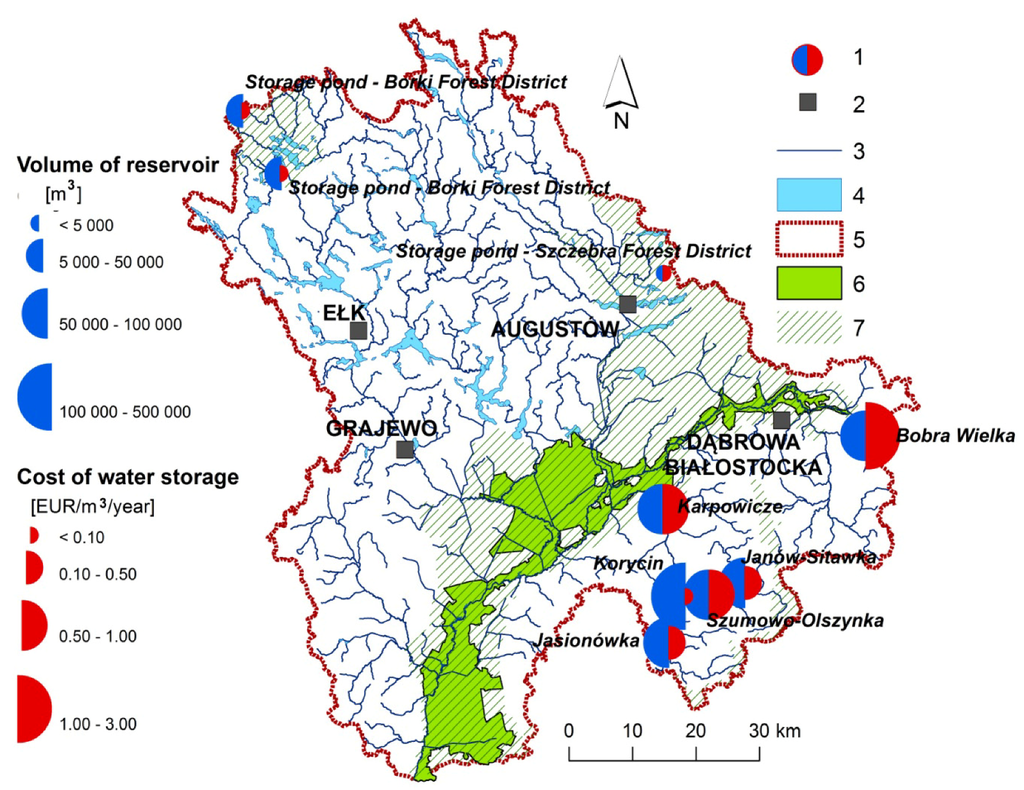

The unit cost of water storage in particular reservoirs varied from 0.04 EUR·m−3·year−1 in the case of the Korycin pond up to 2.67 EUR·m−3·year−1 in the case of the Bobra Wielka reservoir (Table 1, Figure 6). One can observe that in general the reservoirs constructed in the early 2000s store water “cheaper” than the ponds constructed later. This can be related to the accession of Poland to the EU, when additional sources of financing such as investments in storage ponds were started, and local authorities as well as regional boards of irrigation and drainage could apply for additional funding. The analysis indicated that water storage in reservoirs supervised by the State Forests of Poland (storage ponds in Borki and Szczebra Forest Districts) is more efficient in terms of economy than in the remaining reservoirs analyzed, excluding the Korycin Pond (Figure 6). Despite the differences in unit cost of water storage in the particular reservoirs analyzed, one can conclude that the given values are of a similar order of magnitude.
The total amount of water stored in the analyzed reservoirs reached nearly 1 M m3, which can be considered a relatively small value if compared to the regular size of reservoirs constructed in order to prevent floods. Moreover, the storage capacity of all analyzed reservoirs is much smaller than the capacity of the Lower Biebrza’s floodplain storage derived on the basis of algorithms and GIS analysis [Equations (1), (2) and Figure 5A].
3.2. Hydroeconomy of Water Storage in the Floodplainof the Biebrza

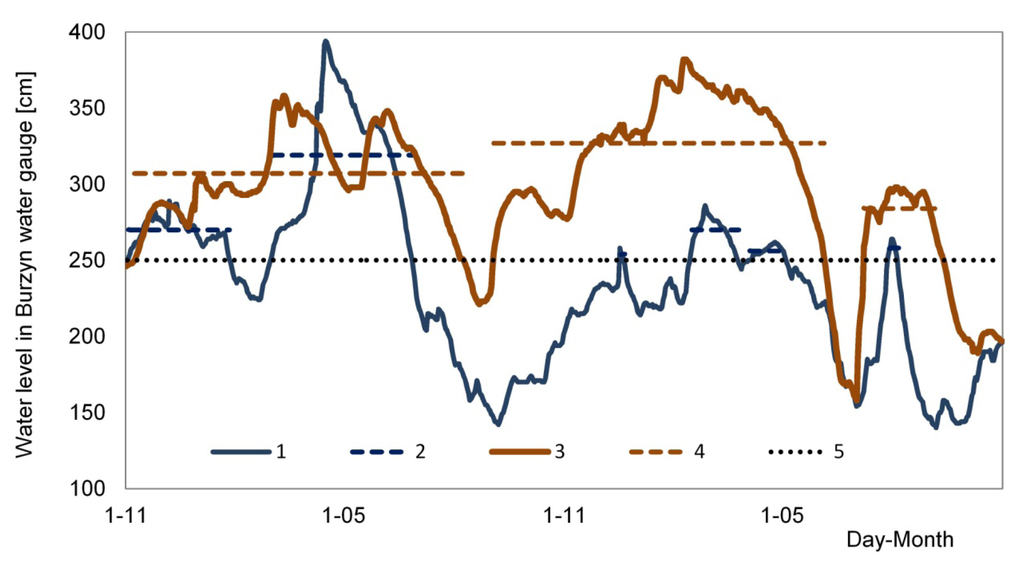

On the basis of the water level hydrograph for the Burzyn gauge, we selected all the flood events above the assumed threshold of 250 cm and the average water level for each of the flood events was calculated. Using the assumptions presented in Equation (2) and Figure 5, we evaluated the floodplain storage volume for each flood phenomenon (Table 2) and the annual active water storage in the Lower Biebrza Basin (Figure 7A).

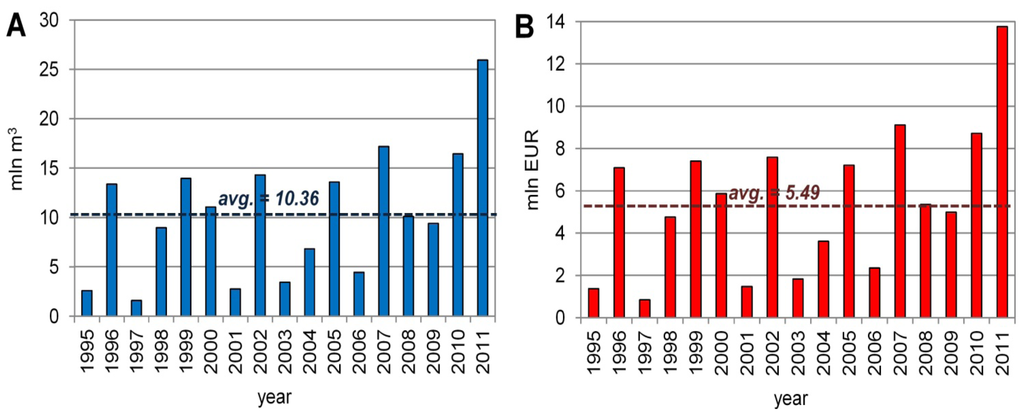

In the last step of our analysis, the total calculated floodplain water storage was multiplied by the unit cost of water storage assessed on the basis of economic evaluation of artificial reservoirs [Equation (3), Table 1], so the monetary value of water storage in the Lower Biebrza Basin for particular years between 1995 and 2011 (Figure 7B) could be estimated.
|Table 2. Calculations of the total active water storage volume in the floodplain of the Lower Biebrza Basin. Hydrological data obtained from the Institute of Meteorology and Water Management (IMGW).|
|Date of flood start||Average water level||Flood duration [days]||Tf||Season||Fv [mln m3]||Fa [km2]||StWet [mln m3]|
|3 Nov. 1995||270||85||0.23||winter/spring||10.23||6.99||2.59|
|2 Mar. 1996||319||118||0.32||winter/spring||36.76||35.19||13.34|
|17 Dec. 1996||254||4||0.01||winter/spring||2.83||1.10||0.03|
|14 Feb. 1997||270||40||0.11||winter/spring||10.14||6.89||1.21|
|4 May 1997||256||32||0.09||winter/spring||3.80||0.00||0.33|
|5 Aug. 1997||258||9||0.02||summer/autumn||2.36||0.96||0.06|
|5 Jun. 1998||296||193||0.53||summer/autumn||14.28||21.04||8.97|
|19 Jul. 1999||302||258||0.71||summer/autumn||16.58||24.86||13.96|
|11 May 2000||296||155||0.42||winter/spring||23.35||21.05||11.06|
|5 Jan. 2001||262||10||0.03||winter/spring||6.57||3.02||0.19|
|7 Feb. 2001||266||17||0.05||winter/spring||8.18||4.77||0.41|
|19 Feb. 2001||260||10||0.03||winter/spring||5.66||2.03||0.16|
|5 Mar. 2001||264||7||0.02||winter/spring||7.59||4.13||0.16|
|15 May 2001||269||65||0.18||winter/spring||9.63||6.35||1.86|
|11 May 2002||293||217||0.59||winter/spring||21.63||19.22||14.32|
|5 May 2003||271||106||0.29||winter/spring||10.91||7.72||3.45|
|9 Jan. 2004||271||21||0.06||winter/spring||10.83||7.65||0.68|
|7 Jun. 2004||291||147||0.40||summer/autumn||12.53||18.12||5.98|
|15 Oct. 2004||254||45||0.12||summer/autumn||1.22||1.00||0.17|
|29 Jun. 2005||305||236||0.65||summer/autumn||17.64||26.61||13.60|
|17 Jan. 2006||272||21||0.06||winter/spring||11.04||7.87||0.69|
|14 May 2006||279||77||0.21||winter/spring||14.44||11.53||3.36|
|28 Oct. 2006||259||50||0.14||summer/autumn||2.69||1.51||0.39|
|20 May 2007||306||192||0.53||winter/spring||29.15||27.19||17.16|
|23 Aug. 2007||253||12||0.03||summer/autumn||0.86||1.60||0.03|
|3 Jun. 2008||300||197||0.54||summer/autumn||15.72||23.43||10.10|
|9 May 2009||292||142||0.39||winter/spring||21.57||19.16||9.34|
|7 Jul. 2009||254||14||0.04||summer/autumn||1.21||1.00||0.05|
|31 Jul. 2009||251||4||0.01||summer/autumn||0.43||2.40||0.01|
|9 Aug. 2010||307||275||0.75||summer/autumn||18.30||27.69||16.44|
|5 Jun. 2011||327||276||0.76||summer/autumn||26.15||40.57||23.68|
|8 Jul. 2011||284||67||0.18||summer/autumn||10.43||14.61||2.26|

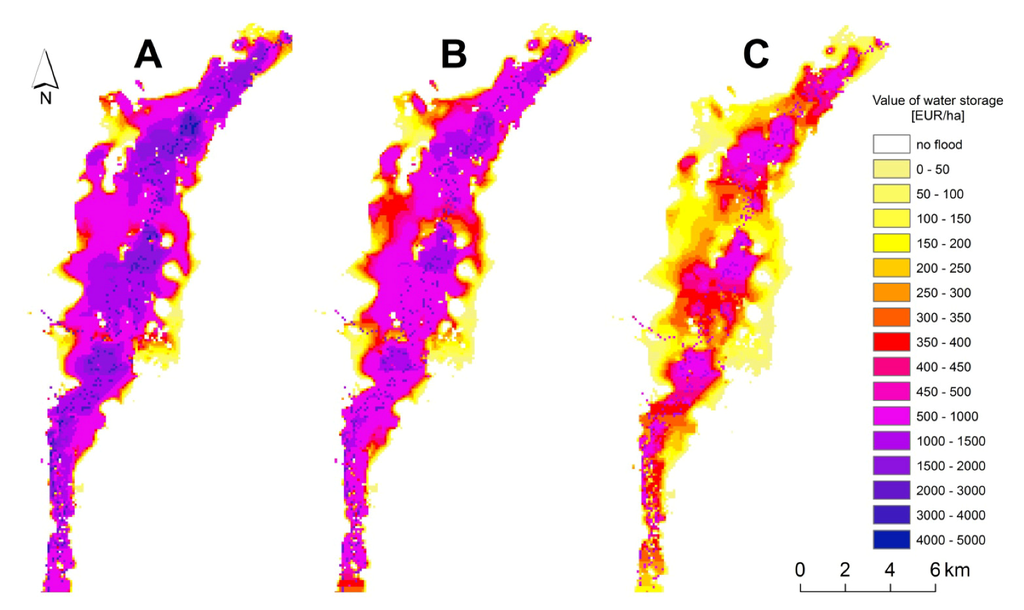

Once the unit monetary value of water storage was estimated, it was possible to assess the approximate value of the flood water storage that occurs during the FQp50% (a so-called normal flood or a 2-year flood). This phenomenon can be considered as regular and therefore representative for the analysis of the interface of flood and affected agriculture in the Biebrza Valley. With use of the FQp50% flood extent (Figure 4B) and the DEM, we could assess approximate depths of the flood and—referring to the assumption of Equations (2) and (3)—the monetary values of water storage in the analyzed floodplain. To cover the most frequent and most problematic situations for agriculture we assessed a FQp50% flood, that hypothetically lasted for 3, 2 and 1 month(s) (Figure 8A–C respectively). As the flood extent was in each case the same, only the parameter Tf [Equation (2)] determined the floodplain storage monetary value calculation.
We estimated, that during the analyzed hypothetical 2-year flood of assumed duration 1, 2 and 3 months, the average monetary values of water storage in each of the cases reached 311.58, 623.06 and 951.18 EUR·ha−1 respectively, and the total value of water stored in the analyzed stretch of the valley reached 2.52, 5.04 and 7.73 million EUR respectively (Table 3).
|Table 3. Selected monetary values of floodplain water storage.|
|Qp50% Flood duration [months]||1||2||3|
|Average storage value [EUR·ha−1]||311.58||623.06||951.18|
|Total value of water storage [M EUR]||2.52||5.04||7.73|
As shown above, water storage volume of the floodplain is greater in magnitude than all of the reservoirs summed together in our approach. Also, in terms of economy, water storage on the floodplain remains much more efficient and potentially profitable than any of the analyzed reservoirs. Moreover, as in the hydrological and GIS study presented in this paper, we focused only on a certain portion of the Biebrza Valley, neglecting the larger part of it as well as the other floodplains located within the analyzed catchment. One can conclude that numbers (cubic meters and Euros) presented are in fact underestimated in the catchment scale. It is likely that the natural flood regime and the floodplain itself, left as an area for a natural flood processes, would provide much more valuable ecosystem services, i.e., serving as a refuge to rare birds  (bringing tourists and thus income), biotope for protected plant species (biodiversity) and productivity , serving as carbon sinks (reduction of CO2 & CH4 emissions), increasing self-purification of river waters and nutrient removal from the floodplain, and acting as a desirable habitat for fish spawning —in general a diverse portfolio of ecosystem-based profits . Therefore, we consider the role of flooded floodplain broader and much more positive than just agricultural damages (that can be calculated on the basis of regional economic indicators for agricultural production , which is claimed by the local farmers and authorities as the ultimate factor resulting from the floodplain function and negatively inducing regional development).
In cases of more dynamic floodplain systems than the analyzed Biebrza Valley, it is likely that other possibly more sophisticated methods of active storage capacity calculation (e.g. based on the temporal differentiation of inflow and outflow to/from the floodplain) could be applied. However, the simplified approach of floodplain water storage assessment presented herein on the basis of average water level of the flood event, seems robust enough for cases when the storage-generating flood duration exceeds some weeks (in the presented case the average duration of an overbank flow reached approximately 97 days per year, Table 2), being not very dynamic in time. The presented approach to hydrologic aspects of floodplain water storage volume can also be improved, if the relation between water levels and flood volumes/extents (Figure 5A,B) distinguished vary from seasonal conditions of vegetation development. This is because during the peak growth period (July–August) the same flood discharge can result in a much broader flood extent than within dormant periods. Consequently, the same flood extent in summer has a lower water storage capacity than in winter/spring conditions. Therefore, we state that in order to improve the presented approach, field research on the floodplain vegetation’s volume should be developed, possibly incorporating remote sensing and hydraulic modeling techniques.
The presented approach could be improved if the precise costs of analyzed artificial reservoir post-construction maintenance were known [parameter M in the Equation (1)]. Then, undoubtedly, unit value of water storage would increase. Either way, the results of our research bring us to the conclusion that once the monetary value of water storage is even preliminarily assessed within a certain region (preferably one hydrologic system of the river basin), it can serve as an index to calculate the value of water stored on a particular share of land, i.e., a plot of land possessed by one party. On the basis of our study and through the modification of algorithm Equation (3), where water storage in the whole floodplain FloVal was substituted with the volume of water stored on one particular plot (calculated as an area of the parcel multiplied by the average depth of water + consideration of water in the superficial layer of soil) in the given time Tf, one can robustly calculate the monetary value of water storage within a particular zone (e.g., on 1 ha of the floodplain meadow). If assumed, that a particular meadow of 1 ha of area was flooded for 1 month and the average water depth reached 0.1 m (conditions similar to the flood that occurred in summer 2011), and the remaining parameters such as the soil porosity and the critical depth remain constant to the ones presented herein, then the presented algorithms [Equations (2) and (3)] allow us to assess that the value of water stored in this meadow is 100.48 EUR. This value could be used in the calculation of economic donations for land users/owners, whose lands were flooded and are temporarily impossible to be maintained in an agricultural manner. Monetary value for water storage remains on a similar order of magnitude as other EU subsidies for meadows in protected areas (mentioned agro-environmental schemes). One can suspect that if the contemporarily implemented agro-environmental schemes include nowadays subsidies for sustaining biodiversity by means of active protection (mowing, shrub removal), it is likely that in the near future (sketched by the financing perspectives of any political or decision-making body) floodplain storage on the scale of one plot could also eventually be funded. In this context, the presented methodology appears useful in comprehensive water storage assessment in a catchment scale.
We stress that the given monetary value of water storage on unit area of land should not be considered as a substitute for flood-related losses. Presented values should rather become a side in the balanced calculations of whether to drain the area (which can only temporarily improve the productivity of a meadow) or to keep it as a sustainable and living floodplain. It is likely that even the vast drainage would never totally prevent the flooding of such broad and flat floodplains as the analyzed Biebrza Valley, as the amounts and dynamics of water remain in such systems a catchment-related phenomenon. Therefore, if water storage subsidies were implemented and the level of subsidies was calculated in relation to the catchment (and henceforth vary from catchment to catchment being adapted to local hydrological and economic conditions), they could (i) prevent further deterioration of ecosystems imposed by the pressure of drainage; (ii) improve the perception of floodplains, i.e., as an income-generating system, by local stakeholders.
The relatively easy calculation algorithm provided in our analysis can successfully be applied in other areas as nearly all of the data we use in our approach can be easily obtained. Such an analysis, resulting in comparative water storage valuation on the international scale, would likely become a starting point in an international discussion on funding the key ecosystem service of floodplain wetlands, which is water storage. The applied GIS and hydrological tools are robust enough to map the economic dimension of floodplain storage. The results of our approach can be transferred to the optimization of the valuation of lands in terms of ecology and economy by indicating the areas of the most significance for water storage. This way, the presented results can remain an important aspect of the decision-making process (e.g., in setting up protection goals in protected areas or by delineating the most problematic lands because of regular flooding or high income potential, if water storage is conceived in economic terms). Such an approach is required nowadays in ecologic-economic assessments of land and processes, and remains a solid base for sustainable regional development policies [31,32,33,34] or any modern environmental management at the country level .
The authors are aware that the presented approach does not distinguish floodplain water storage and reservoirs on the level of functionality (water storage in artificial reservoirs can be regulated efficiently and remains adjustable to the current hydrologic situation; floodplains cannot). However, it is unlikely that the storage ponds of the kind analyzed here can play any important role in flood risk mitigation, as their total volume is relatively small. In this regard, the floodplain acts as one homogeneous active storage reservoir, despite the fact that the inflow/outflow to/from the floodplain is controlled mainly by natural processes. Therefore, the role of the floodplain in flood mitigation and water storage of this natural system is much more significant than the small storage reservoirs randomly distributed within a catchment.
The importance of floodplain dynamics and its interface with ecosystems and agriculture has increased recently due to the changing climate [36,37]. It is to be expected that the variability of floods in the Biebrza Valley is likely to increase, and summer floods are projected to be more frequent than at any time before . This trend, observed over the last 60 years , results from increasing polarization of summer precipitation—longer periods of drought are interrupted by short and intensive (~30 mm·day−1) rainfalls. This process, resulting from the changing climate is considered as a driver of increasing social pressure aimed at the drainage. In this context, proposed subsidies for flooded meadows can remain the ultimate measure of management adaptation to a changing climate, and also an easy to apply activity aimed at mitigation of negative climate-induced pressures to the regional economy.
The presented results, if built up on the whole sequence of other services provisioned by floods within the semi-natural floodplains, can also be useful in studies on areas with heavily modified flood regimes (e.g., downstream large dams which flatten the discharge hydrograph). The unraveled economic benefits that come along with floods in near-natural, extensively used floodplains highlight the importance of floodplain dynamics and water storage for regional societies . One can suspect that the dispersion of knowledge on more than just the ecological benefits that come along with well-preserved floodplain ecosystems and flood phenomena, including economic assessment of the floodplain storage, can bridge the economic development and environmental conservation of valuable ecosystems by sustainable water management and preservation of those unique habitats [4,5]. Certainly the enhancement of positive social perception of floods and the development of so-called “flood benefits” for farmers that maintain regularly flooded meadows can make water management goals claimed by the agriculture and environmental conservation feed back again through the economy. Hopefully, once the economic dimension of water stored during floods within the agriculturally maintained floodplains is unraveled by stakeholders, the threat of drainage of unique wetland habitats will be reduced. Hence, it is likely that the continuation of research on economic aspects of floodplain water storage in agricultural landscapes of high natural value can entail real integration in water management, making this concept—hopefully—to work better than at any time before .
The applied algorithm of economic assessment of water storage in a catchment scale, based on the economic analysis of water storage in artificial reservoirs, allows us to quantify the unit monetary value of water storage in the Biebrza River Basin that reached 0.53 EUR·m−3·year−1. Concerning the presented assumptions as to the hydrological processes, the average annual active water storage capacity of the floodplain in the Lower Biebrza Basin in years 1995–2011 equaled 10.36 M m3·year−1. The average annual monetary value of water stored in the analyzed floodplain, calculated according to the presented assumptions, reached EUR 5.49 million year−1 and varied from approximatelyEUR 1 million year−1 up to nearly EUR 14 million year−1, depending on hydrological conditions. Average annual water storage capacity of the floodplain is of the same order of magnitude as the biggest artificial reservoirs in this part of the country. We conclude that the active storage capacity of the floodplain plays a key role in flood mitigation, remaining much more important than the small reservoirs constructed to increase the storage capacity in a catchment scale considered in our analysis. If economic and hydrological criteria were considered in the efficiency assessment of water storage in a catchment scale of the presented river system, then conservation of floodplain wetlands appears to be much more efficient than construction of small water storage ponds in terms of economy, flood protection, and environmental conservation.
The presented methodology, although simplified from the point of view of dynamic flood processes and the economic aspects of water storage in a catchment scale, has proven to be robust enough in lowland systems and could be considered as a starting point for the discussions on possible implementation of EU-funds-supported “water storage subsidies” for ecologically valuable areas of floodplains (e.g., covered by the Natura 2000 program and areas of National Parks). If the water storage process on agriculturally managed areas of meadows was granted in terms of economy by the proposed subsidies, than (i) the conservation of floodplain ecosystems would benefit from the positive feedback of local stakeholders and (ii) the ultimate deterioration of remaining natural floodplains can be slowed. Either way, it seems that the presentation of water storage on wetlands in a strong economic context allows for the integration of goals of environmental conservation, water management, and agriculture. Bearing in mind the limitations of the water trade-off approaches, one can conclude that the herein presented integrated-colored water footprint  will at least focus the attention of stakeholders on water storage of agriculturally maintained semi-natural lowland floodplains, as an economically quantifiable service.
Field validation of modeled flood extents was done in the framework of the HABIT-CHANGE 2CE168P3 Project, implemented by the Biebrza National Park through the CENTRAL EUROPE Programme, co-financed by the European Regional Development Fund. Michał Fabiszewski, Grzegorz Kwiatkowski and Adam Szarnecki from the Biebrza National Park are acknowledged for help in field research. We thank editors and two anonymous reviewers for their useful comments.
Conflicts of Interest
The authors declare no conflict of interest.
