Water 2012, 4(3), 720-738; doi:10.3390/w4030720

Article
An Experimental Investigation on Inclined Negatively Buoyant Jets
Raed Bashitialshaaer 1,*, Magnus Larson 1 and Kenneth M. Persson 1,2
1
Department of Water Resources Engineering, Lund University, P.O. Box 118, SE-22100 Lund, Sweden; Email: magnus.larson@tvrl.lth.se (M.L.); kenneth_m.persson@tvrl.lth.se (K.M.P.)
2
South Sweden Water Supply (Sydvatten AB), Skeppsgatan 19, SE-21119 Malmö, Sweden
*
Author to whom correspondence should be addressed: Email: ralshaaer@yahoo.com; Tel.: +46-462-632-730; Fax: +46-462-224-435.
Received: 23 July 2012; in revised form: 11 September 2012 / Accepted: 12 September 2012 /
Published: 24 September 2012

Abstract

: An experimental study was performed to investigate the behavior of inclined negatively buoyant jets. Such jets arise when brine is discharged from desalination plants. A turbulent jet with a specific salinity was discharged through a circular nozzle at an angle to the horizontal into a tank with fresh water and the spatial evolution of the jet was recorded. Four different initial jet parameters were changed, namely the nozzle diameter, the initial jet inclination, the jet density and the flow rate. Five geometric quantities describing the jet trajectory that are useful in the design of brine discharge systems were determined. Dimensional analysis demonstrated that the geometric jet quantities studied, if normalized with the jet exit diameter, could be related to the densimetric Froude number. Analysis of the collected data showed that this was the case for a Froude number less than 100, whereas for larger values of the Froude number the scatter in the data increased significantly. As has been observed in some previous investigations, the slope of the best-fit straight line through the data points was a function of the initial jet angle (θ), where the slope increased with θ for the maximum levels (Ym) studied, but had a more complex behavior for horizontal distances.
Keywords:
lab-scale experiment; turbulent jet; negative buoyancy; desalination; brine

Notations

ACross-sectional area, m2
BoBuoyancy flux the nozzle, m4/s3
DMixing tank diameter, m
doNozzle diameter, m
gAcceleration due to gravity, m/s2
Effective acceleration due to gravity, m/s2
HMixing tank depth, m
K Constant
kSlope coeff. (kxi, ky ,kxy ,kym, kxym, kxe), m
LMixing tank length, m
lCharacteristic length scale (lM,lM)
MoMomentum flux at the nozzle, m4/s2
QoVolume flux at the nozzle, m3/s
SNozzle salinity percentage, %
uoNozzle velocity, m/s
WMixing tank width, m
XeEdge point horizontal distance, m
XiJet impact point distance, m
XyHorizontal distance to jet centerline max. level, m
XymHorizontal distance to maximum jet edge level, m
YTrajectory centerline maximum, m
YmMaximum jet edge level, m
Greek Symbols
αEmpirical coefficient
θInitial jet angle, °
ρoEffluent density, kg/m3
ρaAmbient density, kg/m3
Ψfunction
Subscripts
aAmbient
0Reference value
Exponents
mEmpirical coefficient
n Empirical coefficient
Notations
Cip.Cipollina et al. (2005)
Kik.Kikkert et al. (2007)
LALight attenuation system
LIFLaser induced fluorescence system
Non-dimensional Numbers
FJet densimetric Froude number
RJet initial Reynolds number

1. Introduction

1.1. Background and Previous Studies

In desalination, high-salinity brine is produced that needs to be discharged into a receiving water body with a minimum of environmental impact. Nowadays, brine discharge from desalination plants is the concern of all countries producing fresh water from desalination with different technologies. The brine is typically discharged as a turbulent jet [1] with an initial density that is significantly higher (salinity 4%-5%) than the density of the receiving water (ambient). Thus, a rapid mixing of the discharged brine is desirable to ensure minimum impact, which requires detailed knowledge of the jet development. Since the density of the jet is greater than the density of the receiving water, the jet is negatively buoyant and it will impinge on the bottom some distance from the discharge point depending on the initial momentum, buoyancy, and angle of the discharge, as well as the bathymetric conditions. After the jet encounters the bottom it will spread out as a gravity current with a low mixing rate, making it important to achieve the largest possible dilution rate when the jet moves through the water column.

Dense jets, being a particular type of negatively buoyant flows, have been studied by several authors, for example [1,2,3,4,5,6,7,8,9,10]. In an early study, Zeitoun et al. [11] investigated an inclined jet discharge, focusing on an initial jet angle of 60° because of the relatively high dilution rates achieved for this angle. Roberts and Toms [7] and Roberts et al. [9] also focused on the 60° discharge configuration, where both the trajectory and dilution rate were measured. A jet discharge into a moving ambient was also investigated [12]. Negatively buoyant jets are known as fountains when they are injected upwards into a less dense environment [1,2]. Measurements of the penetration height of fountains were reported (see Demetriou [13], Zhang and Baddour [10]) for a wide range of initial densimetric Froude numbers. The stable stratification formed by a fountain was studied and discussed (see Baines et al. [6]), and the effects of cross flows and the angle of injection on the fountains were investigated [14].

Cipollina et al. [15] extended the work performed in previous studies on negatively buoyant jets discharged into calm ambient by investigating flows at different discharge angles, namely 30°, 45°, and 60°, and for three densities 1055, 1095 and 1179 kg/m3. Kikkert et al. [16] developed an analytical solution to predict the behavior of inclined negatively buoyant jets, and reasonable agreement was obtained with measurements for initial discharge angles ranging from 0° to 75° and initial densimetric Froude numbers from 14 to 99. Submerged negatively buoyant jets discharged over a flat or sloping bottom, covering the entire range of angles form 0° to 90°, were investigated by Jirka [17] in order to improve design configurations for desalination brine discharges into coastal waters. Papakonstantis et al. [18] concluded that the particular experimental conditions may affect the determination of the maximum height of rise initially. This involves considerable subjective judgment, with possible related errors depending on the type and amount of dye used, the illumination level, and the sensitivity of the recording method [19].

Christodoulou and Papakonstantis [20] studied negatively buoyant jets with discharge angles between 30° and 85°. By fitting empirical equations to relevant experimental data they estimated that the trajectory of the upper boundary and the jet axis (centerline) could be approximated in non-dimensional form by a 2nd degree polynomial (parabola). Mixing and re-entrainment are both important in negatively buoyant jets. These phenomena have been experimentally studied and discussed by Ferrari and Querzoli [21]. They found that re-entrainment tends to appear if the angle exceeds 75° with respect to the horizontal, and the onset occurs for lower angles as the Froude number increases. The re-entrainment makes the jet trajectory bend on itself, causing a reduction of both the maximum height and the distance to the location where entrainment of external fluid reaches the jet axis [21]. Papakonstantis et al. [22] studied six different discharge angles for negatively buoyant jets from 45° to 90° to the horizontal. In their experiment they used a large-size tank and also measured the horizontal distance from the source to the upper (outer) jet boundary at the source elevation.

1.2. Objectives

Several experimental studies have been conducted on negatively buoyant jets, which have been briefly discussed in the previous section. The present investigation focuses on collecting data through a laboratory experiment on the evolution of a negatively buoyant jet with the purpose of: (1) increasing our understanding of the behavior of such jets; (2) developing empirical relationships for predictive purposes; and (3) calibrating and validating numerical models. Only the first two aspects are discussed in the present paper (and for numerical modeling of the collected data see [23]).

The objective of this study is to provide additional ways of estimating some of the important geometrical characteristics of negatively buoyant jets discharging at different angles. Thus, it is considered as an alternative to complete modeling or use of equations obtained from experiments with the help of dimensional analysis for specific angles. This research is carried out to study the main geometrical characteristics of inclined negatively buoyant jets for angles of 30°, 45° and 60°. In total, 72 experimental cases were carried out where four different initial jet parameters were changed, namely the nozzle diameter, the jet inclination, the jet density (or salinity), and the flow rate (or exit velocity). The measurements of the jet evolution in the tank included five geometric quantities describing the jet trajectory that are useful in the design of brine discharge systems.

In this paper experimental results are presented concerning some of the main geometrical characteristics of the negatively buoyant jets, such as the initial and final levels of rise. The heights are measured from the center of the nozzle and the results are compared with those of previous investigations. The paper focuses on features of particular practical importance for design purposes, which are (1) the maximum level of jet flow edge, to ensure that the jet does not reach the free surface; and (2) the horizontal distance to the maximum jet edge level, as it is related to the near-field environmental impact on the sea floor. A third feature was also to measure the maximum horizontal distance to the jet flow edge point, where the jet returns to the discharge level.

2. Dimensional Considerations and Review of Main Jet Properties

2.1. Dimensional Analysis of Negatively Buoyant Jets

An inclined negatively buoyant jet discharged upwards at an angle towards the horizontal is shown (see Figure 1) representing the typical case of a brine jet discharging into receiving water. The jet describes a trajectory that reaches a maximum level, after which the jet changes its upward movement and plunges towards the bottom. Since the jet is negatively buoyant, the initial vertical momentum flux driving the flow upwards is continuously reduced by the buoyancy forces until this flux becomes zero at the maximum level and the jet turns downwards.

Knowledge of the shape of the jet trajectory is important in the design of brine discharge. Major variables that previously were employed to describe the jet trajectory (with respect to the location of the jet origin based on a x-y coordinate system) are: the maximum level of the jet centerline Y and its horizontal distance Xy, the maximum level of jet flow edge Ym, and its horizontal distance Xym, Xi is the jet centerline impact point distance and Xe the maximum horizontal distance to the jet flow edge point, where the jet returns to the discharge level (see Figure 1). In general, the location of the jet edge may be defined as the maximum jet height boundary at any particular location.

Water 04 00720 g001 1024

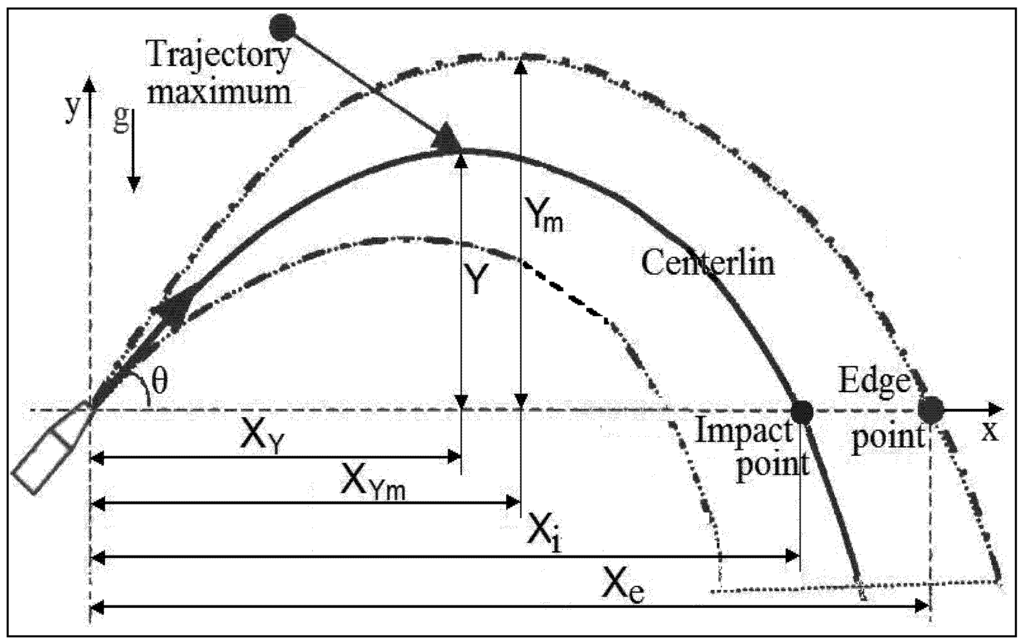

Figure 1. Definition sketch for inclined jet parameters (after Cipollina et al. [15]).

Click here to enlarge figure

Figure 1. Definition sketch for inclined jet parameters (after Cipollina et al. [15]).
Water 04 00720 g001 1024

The jet is discharged at a flow rate Qo through a round nozzle with a diameter do, yielding an initial velocity of uo, and at an angleθ to the horizontal plane. The initial density of the jet is ro and the density of the receiving water (ambient) ra, where o > ρa), giving an initial excess density in the jet of Δρ = (ρo - ρa) <<ρa (the Boussinesq approximation). Similar flow problems were previously analyzed through dimensional analysis e.g. [1,7,12,15,24]. Most previous studies assumed that the Boussinesq approximation is valid and that the flow is fully turbulent. Thus, the initial jet properties can be characterized by the volume flux Qo, the kinematic momentum flux Mo, and the buoyancy flux Bo, as defined by Fischer et al. [24], together with the initial jet angle θ (the subscript o denotes conditions at the nozzle). The leading variables in the dimensional analysis may be written for a round jet with uniform velocity distribution at the exit:

Water 04 00720 i002

where g is acceleration due to gravity; and Water 04 00720 i003 is the modified acceleration due to gravity. A dimensional analysis involving Qo, Mo, and Bo yields two length scales that may be used to normalize the above-mentioned geometric quantities and to develop empirically based predictive relationships [24]:

Water 04 00720 i004

By using the bulk quantities Qo, Mo, and Bo, the nozzle shape and the initial velocity distribution is implicitly taken into account. For a uniform velocity distribution, Water 04 00720 i005 and if the nozzle is circular Water 04 00720 i006.

The length scale lQ quantifies the distance over which the initial volume flux constitutes a significant portion of the local jet volume flux, or in other words, where the entrained ambient water and Qo is of the same order [25]. Thus, for distances from the nozzle much larger than lQ, Qo will not be of significance. The length scale lM represents the distance over which the transition from jet to plume behavior takes place in a stagnant uniform ambient [26]. At distances from the nozzle much greater than lM the effect of Mo becomes negligible and the buoyant jet has essentially become a plume. For a negatively buoyant jet discharged upwards, the initial momentum flux will always be an important parameter during the phase when the jet is moving upwards, because Mo and the buoyancy are not acting in the same direction [9]. The importance of these length scales has been discussed by several authors [24,25].

Thus, since any dependent variable describing the jet flow will be a function of Qo, Mo, and Bo only, the maximum level of the jet centerline (Y), for example, can be expressed in terms of the two length scales [7,8,9]:

Water 04 00720 i007

For lm >> lQ, the effect of Qo becomes negligible, and (Equation 3) simplifies to:

Water 04 00720 i008

where K is a constant. For a circular jet, the length scale lM may be written:

Water 04 00720 i009

where F is a densimetric Froude number defined by ( Water 04 00720 i010). Thus, (Equation 4) can be rewritten:

Water 04 00720 i011

where Water 04 00720 i012; Similar equations may be developed for the other geometric jet quantities Ym, Xy, Xym, and Xe, but with different values of the coefficient k.

2.2. Previous Results for Geometric Jet Quantities

A relationship similar to (Equation 6) was first developed by Turner [1] for the case of a heavy jet injected vertically upwards (θ = 90°) and a value of k = 1.74 was obtained (for the initial jet height). Subsequently, Abraham [2], Fan and Brooks [27] and Zeitoun et al. [28] derived k-values of 1.95, 1.9, and 1.74, respectively, also based on experimental investigations. The case of an inclined dense jet in a stagnant ambient was first studied by [28], followed by [7,9]. For an initial jet angle (θ) of 60° these three studies obtained k-values of 2.04, 2.08, and 2.2, respectively. Cipollina et al. [15] obtained k-values for different geometric quantities and initial jet angles. No significant effects of viscosity on the k-value were observed, which was also found in [9] see Table 2. Kikkert et al. [16] employed a light attenuation system (LA) and a laser-induced fluorescence system (LIF) to collect data in their experiments on inclined negatively buoyant jets. In summary, the values of the constants k vary substantially depending on the investigation. This may partly be due to measurement errors and different definitions and procedures for determining the geometric quantities.

3. Laboratory Experiments

3.1. Experimental Setup

The experiments on inclined negatively buoyant jets were carried out in the laboratory of Water Resources Engineering at Lund University. The apparatus and major equipment used in the experiment included water tanks, a flow meter, a digital frequency recorder, a digital conductivity meter, pump to fill and empty the tank, pipes, valves, nozzles and nozzle support, salt, and dye (see Figure 2). Several different tanks were used in the experiment: (1) a small tank to mix tap water with salt and a coloring dye for generating an easy to visualize negatively buoyant jet of saline water; (2) two elevated small tanks used to create the hydraulic head for generating the jet; and (3) a large tank made with glass walls filled with tap water (fresh water) where the jet was introduced through a nozzle. The small tanks were made of plastic and their volumes were 45, 70, and 90 L, whereas the maximum volume of the large tank was 540 L with bottom area dimensions of 150 cm × 60 cm and a height of 60 cm. Two of the smaller tanks were placed at a higher elevation compared to the large tank to create the necessary hydraulic head for driving the jet. These two tanks were connected by a pipe and together they had a sufficiently large capacity (i.e., surface area) to keep the water level approximately constant in the two tanks during the experiment to ensure a constant flow.

The difference in elevation between the water levels of the upper tanks and the lower tank was about 100 cm. The colored saltwater from the upper tanks was discharged through a plastic, transparent pipe directly connected to the jet nozzle, which was fixed at the bottom of the large water tank. Between the elevated tanks and the nozzle there was a valve to control the flow to the nozzle. A flow meter was installed in the pipe between the valve and the outlet from the upper tanks in order to record the initial jet flow. This meter was connected to a digital frequency recorder, from which the readings were converted into flow rates based on a previously derived calibration relationship. The employed nozzle diameters were 1.5, 2.3, 3.3, and 4.8 mm (inner diameter), and the initial jet inclination angles 30°, 45°, and 60° to the horizontal (see Figure 1). The nozzle was placed about 5 cm above the tank bottom and the depth of water above the nozzle was about 45 cm.

Water 04 00720 g002 1024

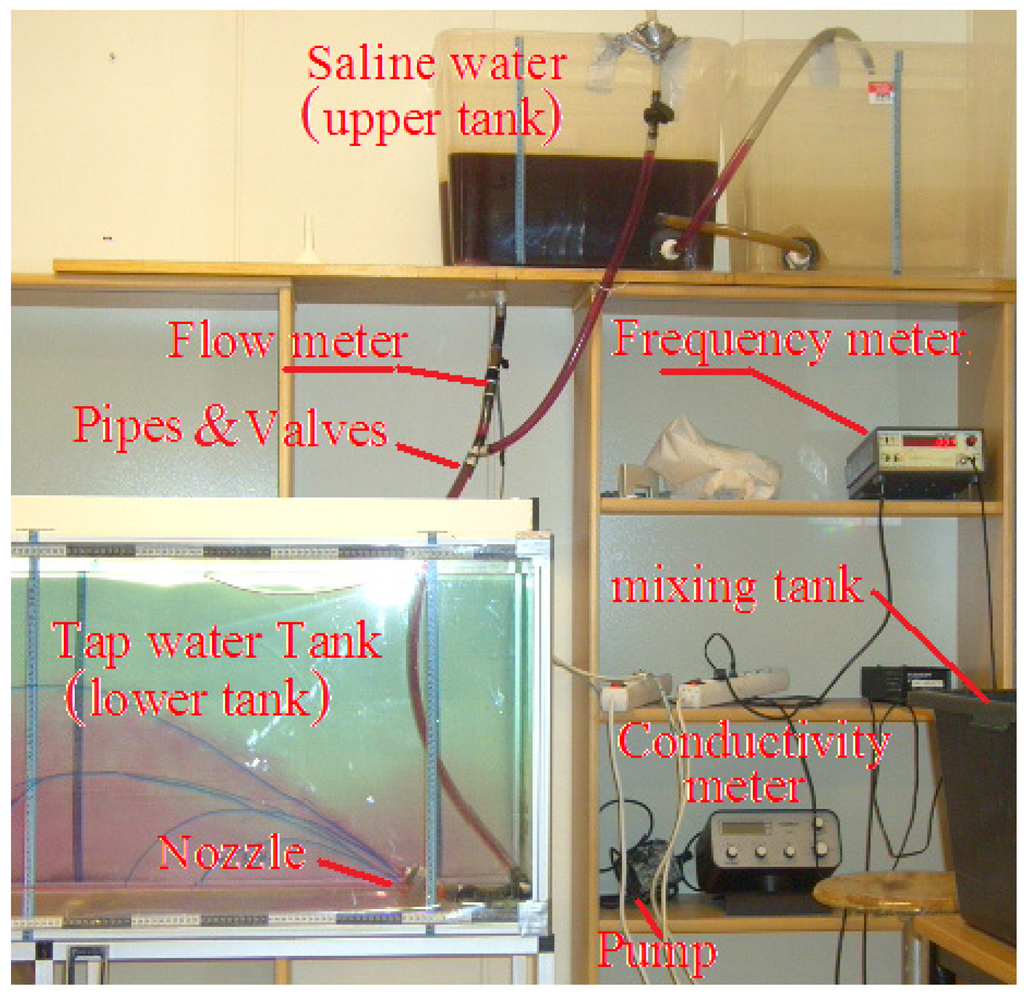

Figure 2. Experimental setup and major components.

Click here to enlarge figure

Figure 2. Experimental setup and major components.
Water 04 00720 g002 1024

3.2. Experimental Procedure and Data Collected

Before starting an experimental case, it was crucial to empty the pipe leading from the upper tanks of air. This was done by attaching a special pipe to the flow meter and discharging tap water through this pipe, forcing out the air from the system. After each experimental case a submersible water pump was used to completely empty the large tank, so that each case started with water that was not contaminated by salt. With the capacity of the pump, it took about 12 min to empty the tank. Also, the whole system was regularly washed to avoid accumulation of salt, which would disturb the experiment. As can be seen in Figure 2, the blue curves are the lines drawn on the tank to record the trajectory as an example of one experimental run.

Fine, pure sodium chloride was used with tap water to produce the saline water in the jet. The necessary water quantity was measured in a bucket and the mass of salt was measured using a balance to obtain the correct salt concentration. A conductivity meter was employed to measure the conductivity for the three different concentrations investigated. The density measurements for these concentrations yielded 1011, 1024 and 1035 kg/m3 for 2%, 4% and 6%, (20, 40, and 60 g/L), respectively. The temperature of the tap water used in this experiment was in the range 20-22 C° for all cases, implying a density of about 995.7 kg/m3. Each of the densities was the average of five different measurements based on the weight method. Differences in density were observed between the salt water used in this study and natural seawater. The chemical composition of seawater is different from the sodium chloride solutions used here, although the density varies only slightly in seawater compared to the pure sodium chloride solutions.

Potassium permanganate (KMnO4) was used to color the saline water and make the jet visible during the experiment. About 100 mg/L of dye gives the transparent water a distinct purple color. The use of a colored jet facilitated the observation of the jet trajectory and the mixing behavior in the larger water tank. The results of jar tests for different (KMnO4) concentrations showed that at a concentration of 0.3 mg/L the water is still colored, whereas at a concentration of 0.2 mg/L no color was visible to the eye.

During a specific case, the jet was discharged for a sufficiently long time to allow steady-state conditions to develop, but short enough to avoid unwanted feedback from saline water accumulating in the tank (the duration of an experimental case was normally about 3-5 min). The jet trajectory and its geometric properties were determined by tracing the observed trajectory on the glass wall of the flume. The outer edges of the jet were traced and the center line was determined as the average between these two lines. In order to minimize the influence of the subjective element in tracing the jet, a number of different people were involved in this procedure to ensure that the results were consistent, in agreement, and reproducible. Also, the experimental cases were recorded with a video camera and subsequently viewed. Three cases did not produce satisfactory data due to malfunctioning, and here the results from 69 cases are reported. As previously mentioned, five different quantities describing the jet trajectory were recorded (Y, Xy, Ym, Xym, and Xe). Table 1 gives a complete listing of the data, including the main input parameter values and the measured geometric quantities, in which S is the salinity percentage at the nozzle.

Table Table 1. Summary of results for the inclined negatively buoyant jet experiment.

Click here to display table

Table 1. Summary of results for the inclined negatively buoyant jet experiment.
Caseθ0S (%)d0 (cm)Qo (L/min)Qo × 10−5 (m3/s)uo (m/s)ρo (kg/m3)RFY (cm)Xy (cm)Ym (cm)Xym (cm)Xe (cm)
13040.480.971.60.91023.73681258.519.5112551
23060.481.202.01.11034.84458261021.513.525.547
33020.481.001.70.91011.1386134818112337
43060.330.881.51.71034.8475549113015.53557
53060.482.374.02.21034.8880552174523.55082
63040.482.053.41.91023.777795317.539224983
73020.481.752.91.61011.1675760194727.55985.5
83040.331.021.72.01023.756306715.541.5205071
93060.230.581.02.31034.844978014.52818.53253.5
103060.331.452.42.81034.87835811844254984
113040.331.412.42.71023.7778392194825.55790
123040.230.601.02.41023.747529791911.52241
134560.480.961.60.91034.83566211015.51418.536
144540.481.252.11.21023.74744321627.520.531.552
154520.481.001.70.91011.13861348121112.522.5
164560.482.384.02.21034.8884252253833.54875
174540.330.821.41.61023.7452654172921.53754
184540.482.103.51.91023.77969542544.5335281
194560.330.981.61.91034.852965517.525233157
204520.481.752.91.61011.16757602841.5374577.5
214520.330.801.31.61011.14493708131115.523.5
224560.230.520.92.11034.8403271162520.528.550
234560.331.462.42.81034.878908129.5463756.591
244540.230.511.02.01023.740398217302134.555
254540.331.402.32.71023.7772892265134.56294
264560.150.240.42.31034.82853961525192642.5
276040.481.001.70.91023.737952614.514.5181632
286060.481.222.01.11034.845322717.51523.51935
296060.330.701.21.41034.83783391718.521.521.539
306020.481.252.11.21011.14826431717.52523.536.5
316040.481.752.91.61023.766414529273734.563
326060.482.203.72.01034.881734833274131.558
336040.330.861.41.71023.7474756262634.531.553
346020.481.702.81.61011.16564583435.54342.569
356020.330.801.31.61011.144937013.5141616.529.5
366060.331.272.12.51034.86863713131.5403647
376040.331.101.82.11023.76072723835454075
386060.230.601.02.41034.846528225.52831.53152
396040.230.571.02.31023.74514922627.5313356
403020.331.202.02.31011.167391051426.5173159
413060.230.821.43.31034.86358113224127.54879
423060.150.300.52.81034.83566120824122950
433020.331.803.03.51011.11010915825.54835.566.596.5
443040.231.001.74.01023.779201622050255889.5
453060.150.420.74.01034.849931681232153963.5
463020.230.851.43.41011.16849184923.511.527.555
473020.231.001.74.01011.18058216205325.558102
483020.150.350.63.31011.143242208.523112841
493040.150.651.16.11023.778933061328163353
503040.151.001.79.41023.712143471183822.544.572
513020.150.851.48.01011.11050253521.55027.55692.5
524560.230.761.33.01034.85892104244127.54882
534520.331.452.42.81011.181431273042.54052.588.5
544520.230.601.02.41011.148351301120162640.5
554540.230.901.73.61023.771281453051.536.55798
564560.150.380.63.61034.845181522231283659
574520.230.851.43.41011.168491843249415797
584520.150.380.63.61011.14695239141717.51937
594540.150.651.16.11023.778933061824.5243049
604540.151.001.79.41023.71214347126.5373344.567.5
614520.150.801.37.51011.1988450433.546.5405390
626020.230.500.82.01011.1402910817.516.5232236
636060.150.280.52.61034.833291122019262137
646060.230.821.43.31034.863581133636454170
656020.331.352.32.61011.1758211832.5344342.529.5
666040.230.871.53.51023.7689014136394547.586.5
676020.230.701.22.81011.1564115137.534.543.54587
686060.150.490.84.61034.8582519629.527373253
696020.150.380.63.61011.146952391511.518.515.531
706040.150.601.05.71023.772862821515.5201733
716040.150.851.48.01023.7103224003028.538.534.550
726020.150.901.58.51011.11112056737.53445.541.572

4. Results and Discussion

4.1. General Jet Development

The densimetric Froude number (F) quantifies the relative importance of the kinematic momentum flux and buoyancy force. A small F-value indicates that the buoyancy force controls the jet behavior, shortening the trajectory length. On the other hand, a large F-value signifies initial dominance of momentum and a longer trajectory, although eventually the buoyancy forces will still prevail and deflect the jet towards the bottom. Analysis of the video films taken during the experiments showed that small F-values were associated with less fluctuation in the jet behavior and a more stable trajectory compared to jets with large F-values. It is expected that smaller density differences between the jet and the ambient (corresponding to larger F values) will produce a jet more prone to instability behavior resulting in a less stable trajectory. However, this observation was not as clear for the experimental cases with the smaller salinity.

4.2. Jet Trajectory Analysis

The results in Figure 3 illustrate the relationship between Ym and Y for all the cases. A very strong correlation between the two quantities is found, lending some confidence to the accuracy of the measurements. The least-square fitted line through the origin yields a slope of about 1.25, implying that Ym on average is about 25% larger than Y.

Figure 4 shows the relationship between Xy and Xym, which also indicates a strong correlation with limited scatter around the least-square fitted straight line through the origin. The slope of this line was about 1.20, which is somewhat lower than that which the relationship between Y and Ym yielded. Furthermore, the horizontal distance to the edge point of the jet (Xe) showed a rather good correlation with Xym (or Xy), as displayed in (Figure 5), although the scatter was larger than for the previously discussed relationships (e.g., Figure 3 and Figure 4). The slope of the least-square fitted line was approximately 1.65.

Figure 6 shows Y as a function of Xy with respect to different initial jet angle (θ). Since Y is closely dependent on θ, the analysis for the different angles should be performed individually. Thus, in the figure, separate lines are least-square fitted to the data for the three investigated initial jet angles (30°, 45° and 60°). The slopes of the fitted straight lines were 2.3, 1.5, and 1.0 for 30°, 45°, and 60°, respectively. If a simple ballistics model was employed to describe the jet trajectory (i.e., constant g’), the ratio between Xy and Y would be given by 2/(tan θ), which yields the following slopes for the lines: 3.5, 2.0, and 1.2. Thus, the simple ballistics model would overestimate Xy/Y, but progressively less for larger angles. The spread of the data in (Figure 6) around the regression line for each angle indicates that the trajectories are not simply scale copies of each other.

Water 04 00720 g003 1024
Figure 3. Relationship between maximum level of jet centerline (Y) and maximum edge level (Ym) for all experimental cases.

Click here to enlarge figure

Figure 3. Relationship between maximum level of jet centerline (Y) and maximum edge level (Ym) for all experimental cases.
Water 04 00720 g003 1024
Water 04 00720 g004 1024

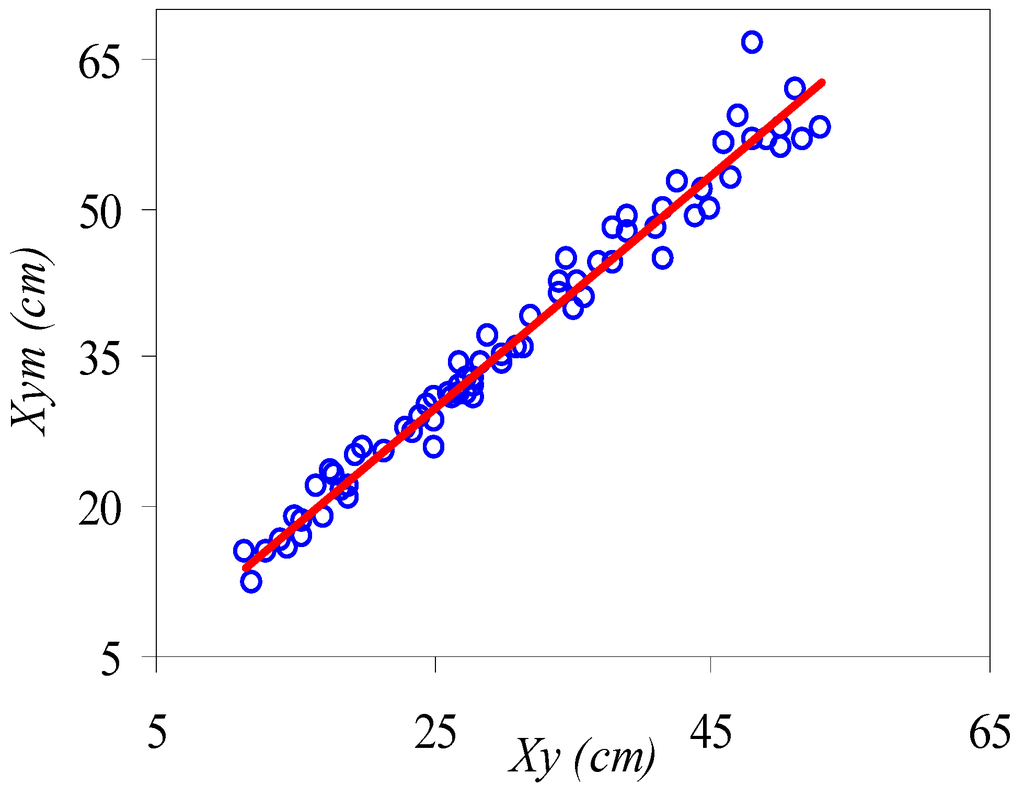

Figure 4. Relationship between horizontal distance to maximum jet centerline level (Xy) and maximum edge level (Xym) for all experimental cases.

Click here to enlarge figure

Figure 4. Relationship between horizontal distance to maximum jet centerline level (Xy) and maximum edge level (Xym) for all experimental cases.
Water 04 00720 g004 1024
Water 04 00720 g005 1024

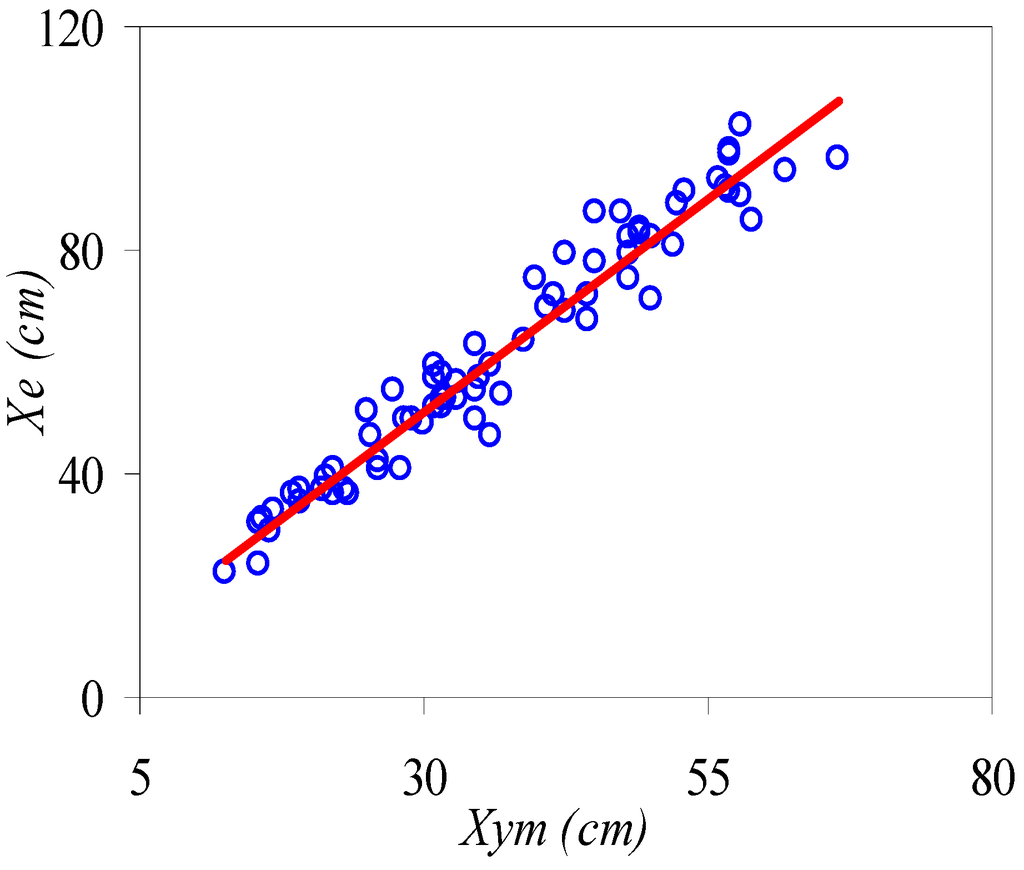

Figure 5. Relationship between horizontal distance to maximum jet edge level (Xym) and jet edge point (Xe) for all experimental cases.

Click here to enlarge figure

Figure 5. Relationship between horizontal distance to maximum jet edge level (Xym) and jet edge point (Xe) for all experimental cases.
Water 04 00720 g005 1024
Water 04 00720 g006 1024
Figure 6. Maximum jet centerline level versus its horizontal distance with respect to initial jet angle.

Click here to enlarge figure

Figure 6. Maximum jet centerline level versus its horizontal distance with respect to initial jet angle.
Water 04 00720 g006 1024

4.3. Densimetric Froude Number Dependence

The dimensional analysis carried out in Section 2.1 showed that the geometric quantities characterizing the jet trajectory should be a function of the densimetric Froude number (F). Thus, Y, Xy, Ym, and Xym were normalized with the exit jet diameter (do) and plotted versus F separately for the three initial jet angles in order to investigate possible relationships; and to compare with the theoretical analysis and the results of the previous investigation. For all jet quantities studied, there seemed to be a change in behavior at approximately F = 100; below this value the data points closely followed a linear trend, displaying little scatter around the least-square fitted line. For F > 100, the data points exhibited much more scatter.

However, if a straight line was still fitted through the data, the slope of the line was significantly smaller than for F < 100. Figure 7 illustrates Ym/do and Xym/do, as functions of F for the three initial jet angles. Separate least-square best-fitted straight lines were added for the data points above and below F = 100. All other quantities showed the same behavior as Ym/do and Xym/do.

Equation 4 indicates that there is a linear relationship between the normalized quantities that describe the jet trajectory and F. However, this is based on the assumption that lm >> lQ, otherwise Equation 3 should be employed. Developing Equation 3 by introducing the definition of the length scales yields,

Water 04 00720 i018

where Ψ = function and Y is used as an example of a geometric jet quantity. If F is small Ψ(F) → 1, whereas for large F values Y → ∞. The data indicates a relationship where Water 04 00720 i019, with n < 1. Based on the theoretical constraints and the empirical observations, the following equation was proposed to describe Y/do as a function of F over the entire range of experimental data,

Water 04 00720 i020

where a and m are empirical coefficients obtained from fitting against data. Equation 8 can be approximated with a straight line in accordance with Equation 6 for small values on a F.

Figure 8 shows an example of least-square fitting of Equation 8 against the data for the maximum jet centerline level (Y) and an initial jet angle of 30°, where the optimum values of k, a, and m were determined (1.35, 0.008, and 0.8, respectively). Overall the trend of the data points is well described, but the significant scatter for F > 100 is still present, which discredits the agreement. The other initial angles for Y and the other jet quantities could be fitted about equally well.

Water 04 00720 g007 1024

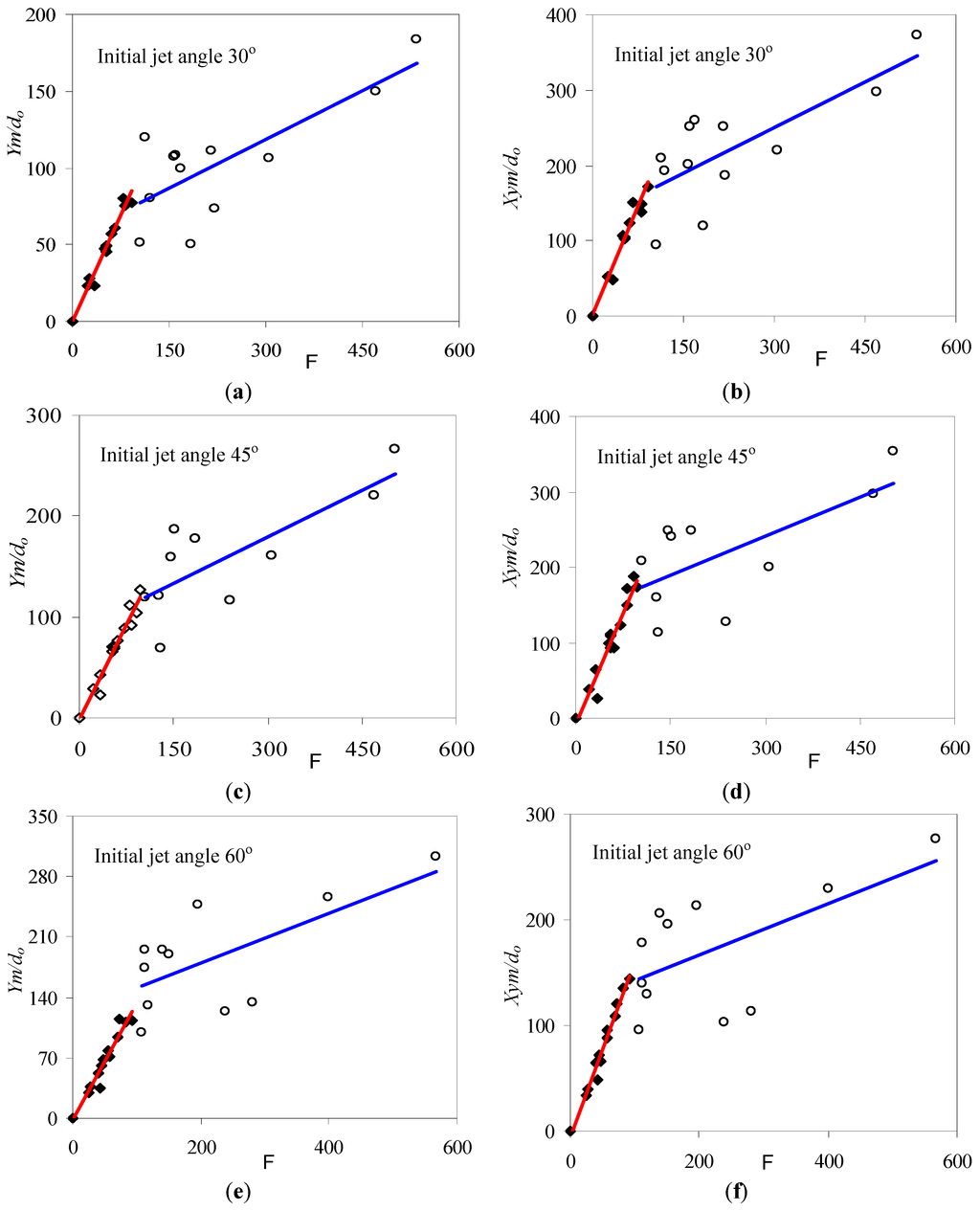

Figure 7. Non-dimensional jet quantities Ym/do and Xym/do as a function of F for different initial jet angles (a-f) together with linear regression lines fitted for F-values smaller and larger than 100.

Click here to enlarge figure

Figure 7. Non-dimensional jet quantities Ym/do and Xym/do as a function of F for different initial jet angles (a-f) together with linear regression lines fitted for F-values smaller and larger than 100.
Water 04 00720 g007 1024
Water 04 00720 g008 1024

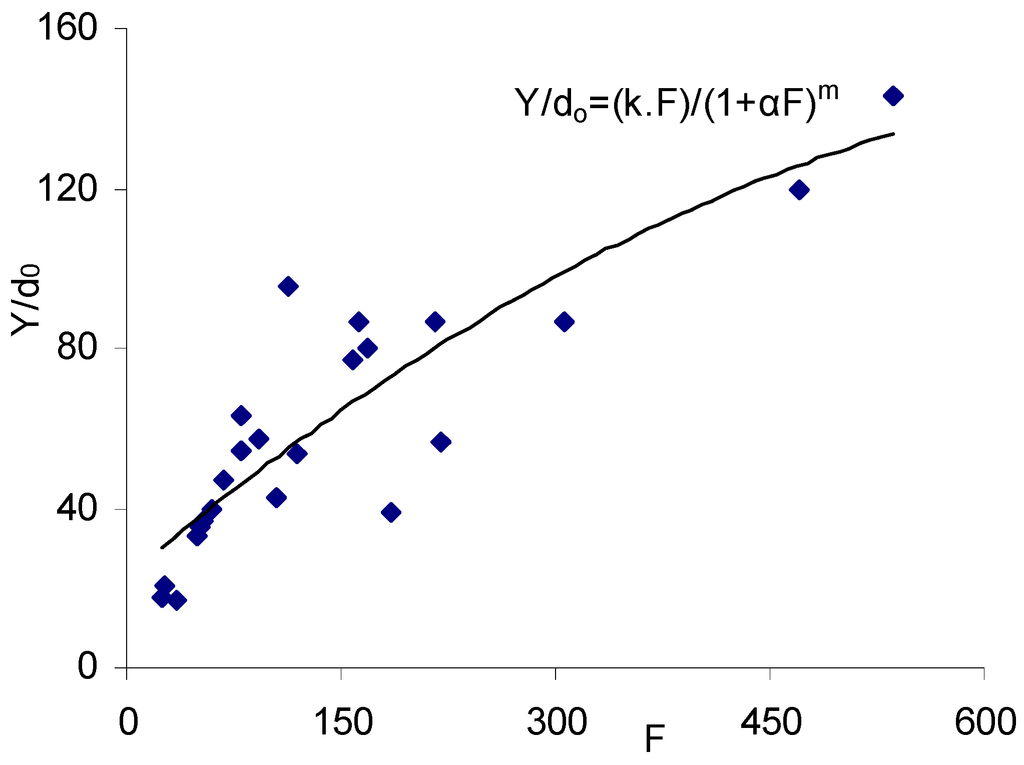

Figure 8. Normalized maximum jet centerline level as a function of the densimetric Froude number for an initial jet angle of 30°.

Click here to enlarge figure

Figure 8. Normalized maximum jet centerline level as a function of the densimetric Froude number for an initial jet angle of 30°.
Water 04 00720 g008 1024

4.4. Relationships for Jet Quantities

Over the range of studied initial jet angles, the variation in the coefficient values with θ is limited, but there is a tendency for these values to decrease with θ (from 30° to 60°). In general, the coefficients obtained in the present study are somewhat lower than those recorded in previous studies. Table 2 summarizes the coefficient values found for the vertical and horizontal distances investigated for F above and below 100 (corresponding values from previous studies are also shown in Table 2). The subscript of k in the table corresponds to the specific geometric quantities previously discussed, with the exception of Xi, which is the distance to the jet impact point (where the jet centerline encounters the level of the jet nozzle; see Figure 1).

Table Table 2. Coefficient values describing the linear dependence of normalized geometric jet quantities on the densimetric Froude number compared to previous investigations and predictions.

Click here to display table

Table 2. Coefficient values describing the linear dependence of normalized geometric jet quantities on the densimetric Froude number compared to previous investigations and predictions.
Study angle ( θ0)kykymkxe
30°45°60°30°45°60°30°45°60°
Zeitoun et al. [28]---1.041.562.13---
Lindberg [14]---1.291.582.14---
Bloomfield & Kerr [29]---0.891.241.63---
Cipollina et al. [15]0.791.171.771.081.612.323.032.822.25
Kikkert LA (1) [30]0.611.11.61.071.712.283.183.322.79
Kikkert LIF (2) [30]-1.211.761.211.782.45---
Kikkert et al. (3) [16]0.631.141.701.071.662.272.963.052.72
Papakonstantis et al. [18]----1.451.99---
Papakonstantis [31] -1.171.68-1.582.14-3.162.75
Christodoulou & Papak. [20]0.621.271.891.121.592.143.183.162.75
Papakonstantis et al. [31] ----1.582.14-3.783.57
This study: F < 1000.691.01.40.921.31.73.122.902.66
F > 1000.170.260.240.210.310.290.650.530.36

The slopes of the least-square fitted straight lines discussed in the previous section were determined for the different jet quantities, separating data points below and above F = 100. The obtained slope coefficients for the normalized maximum jet levels Y (ky) and Ym (kym) as a function of F are shown (see Figure 9). The coefficient values seem to increase with the initial jet angle in a linear manner, although the number of points was limited. Figure 9 also includes corresponding coefficient values found in earlier studies, which have reported the same trend. These values originate from four different sources [15,16] with values predicted from their analytical model, and measured by the light attenuation system (LA), and laser-induced fluorescence system (LIF).

The values for ky and kym are listed in (Table 2) with respect to the three initial jet angles (30°, 45°, and 60°). For example, the values obtained for kym at 30° were 0.92 (F < 100) and 0.21 (F > 100) compared to the value reported by Cipollina et al. [15] of 1.08, which was obtained for F < 100. Thus, for this case the agreement is good; however, for the larger angles the deviation between the coefficient values (ky and kym) obtained in this study and in previous studies is larger than for the smaller angles. As mentioned before, besides differences in experimental setups and procedures, a reason for the discrepancies between experiments may be due to the marked differences in some of the input parameters not described by the non-dimensional quantities employed. For example, Cipollina et al. [15] used densities in the jet which were much larger than in the present experiment, and also much larger than that expected in brine jets. The slope coefficients for the horizontal distance to the maximum jet centerline level (kxy), to the maximum jet edge level (kxym), and to the edge point (kxe) were also determined with regard to the initial jet angle and whether F was above or below 100 (see Figure 10).

Water 04 00720 g009 1024
Figure 9. Slope coefficient for (a) maximum jet centerline level (ky = Y/(d0F)); and (b) maximum jet edge level (kym = Ym/(d0F)) as a function of initial jet angle for densimetric Froude number below and above 100, together with results from previous studies.

Click here to enlarge figure

Figure 9. Slope coefficient for (a) maximum jet centerline level (ky = Y/(d0F)); and (b) maximum jet edge level (kym = Ym/(d0F)) as a function of initial jet angle for densimetric Froude number below and above 100, together with results from previous studies.
Water 04 00720 g009 1024
Water 04 00720 g010 1024

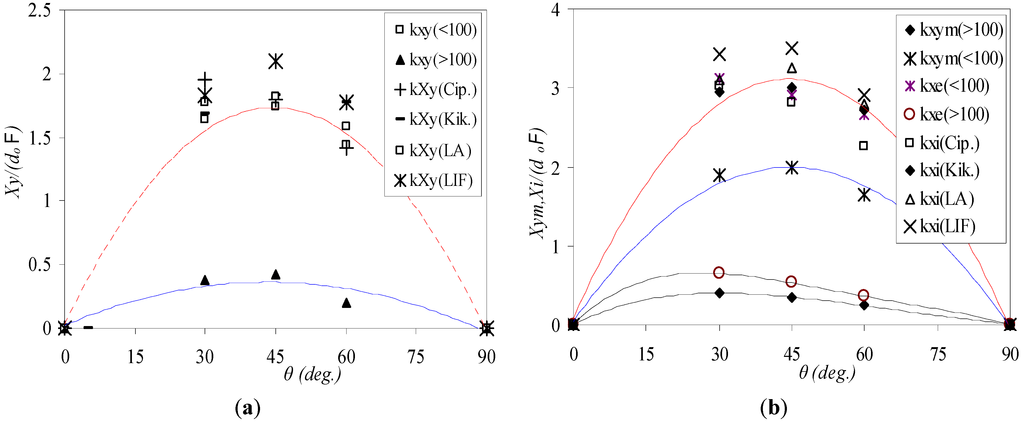

Figure 10. Slope coefficient for horizontal distance to (a) maximum jet centerline level(kxy = Xy/(d0F)); and (b) maximum jet edge level(kxym = Xym/(d0F)) as a function of jet angle for densimetric Froude number below and above 100, together with results from previous studies.

Click here to enlarge figure

Figure 10. Slope coefficient for horizontal distance to (a) maximum jet centerline level(kxy = Xy/(d0F)); and (b) maximum jet edge level(kxym = Xym/(d0F)) as a function of jet angle for densimetric Froude number below and above 100, together with results from previous studies.
Water 04 00720 g010 1024

Furthermore, previously obtained corresponding values reported in [15,16] were included for comparison. The dependence of the coefficients for the horizontal distances on the initial jet angle are quite different from the vertical distances, and two extra points may be added on theoretical grounds, namely at θ = 0° and 90° for which the distance should be zero [15]. A polynomial was fitted through the data of five points, but the shape of the curve outside the measurement points has little support. It appears that there are small differences between this study and previous study results; this may indicate that buoyancy becomes important after some distance for the discharge point. It is also possibly from the boundary interactions of the tank sides and its limited depth.

5. Conclusions

A laboratory experiment was conducted to investigate the behavior of negatively buoyant jets discharged at an angle to the horizontal into a quiescent body of water. Several of the geometric jet quantities showed strong correlation and regression relationships could be developed where one quantity could be predicted from another. If maximum levels were correlated with the corresponding horizontal distances, the angle must be taken into account when developing predictive relationships in real life projects.

Analysis of the collected data showed that this was the case for a Froude number smaller than 100, whereas for larger values the scatter in the data increased significantly. The slope of the best-fit straight line through the data points was a function of the initial jet angle, where the slope increased with angle for the maximum levels studied, but had a more complex behavior for horizontal distances. It is believed that the empirical relationships developed in this study have a potential for use in practical design where the trajectory of brine jets needs to be estimated, if the Froude number is less than 100. Equations were proposed to relate levels or horizontal distances to each other.

Inclined negatively buoyant jet is an efficient method to improve the dilution rate of brine discharged from a desalination plant into the receiver. In this study, it was observed that the initial jet angle (θ) is important as it shows a better dilution rate improvement when it is 60° than 30° or 45°. This result can easily be applied to existing and future desalination plant discharges. Thus, the effects of brine discharge should be considered in all future study and design of desalination plants.

Acknowledgments

We very much appreciate all the help provided by George Christodoulou. This study was partially funded by Center for Middle East Study (CMES) at Lund University, Sweden. David Sanchez at Water Resources Engineering, Lund University, provided invaluable assistance during the laboratory experiments.

References

  1. Turner, J.S. Jets and plumes with negative or reversing buoyancy. J. Fluid Mech. 1966, 26, 779–792. [Google Scholar] [CrossRef]
  2. Abraham, G. Jets with negative buoyancy in homogeneous fluids. J. Hydraul. Res. 1967, 5, 236–248. [Google Scholar]
  3. Tong, S.S.; Stolzenbach, K.D. Submerged Discharges of Dense Effluent; Report No. 243; Massachusetts Institute of Technology: Cambridge, MA, USA, 1979. [Google Scholar]
  4. James, W.P.; Vergara, I.; Kim, K. Dilution of a dense vertical jet. J. Environ. Eng. 1983, 109, 1273–1283. [Google Scholar] [CrossRef]
  5. McLellan, T.N.; Randall, R. Measurement of brine jet height and dilution. J. Waterw. Port Coast Ocean Eng. 1986, 112, 200–216. [Google Scholar] [CrossRef]
  6. Baines, W.D.; Turner, J.S.; Campbell, I.H. Turbulent fountains in an open chamber. J. Fluid Mech. 1990, 212, 557–592. [Google Scholar] [CrossRef]
  7. Roberts, P.J.W.; Toms, G. Inclined dense jets inflowing current. J. Hydraul. Eng. 1987, 113, 323–341. [Google Scholar] [CrossRef]
  8. Roberts, P.J.W.; Toms, G. Ocean outfall system for dense and buoyant effluents. J. Environ. Eng. 1988, 114, 1175–1191. [Google Scholar] [CrossRef]
  9. Roberts, P.J.W.; Ferrier, A.; Daviero, G. Mixing in inclined dense jets. J. Hydraul. Eng. 1997, 123, 693–699. [Google Scholar] [CrossRef]
  10. Zhang, H.; Baddour, R.E. Maximum penetration of vertical round dense jets at small and large Froude numbers. J. Hydraul. Eng. 1998, 124, 550–553. [Google Scholar] [CrossRef]
  11. Zeitoun, M.A.; Reid, R.O.; McHilhenny, W.F.; Mitchell, T.M. Model Studies of Outfall Systems for Desalination Plants; Research and Development Progress Report No. 804; Office of Saline Water,U.S. Department of the Interior: Washington, DC, USA, 1972. [Google Scholar]
  12. Pincince, A.B.; List, E.J. Disposal of brine into an estuary. J. Water Polllut. Control Fed. 1973, 45, 2335–2344. [Google Scholar]
  13. Demetriou, J.D. Turbulent Diffusion of Vertical Water Jets with Negative Buoyancy (In Greek). Ph.D. Dissertation, National Technical University of Athens, Athens, Greece, 1978. [Google Scholar]
  14. Lindberg, W.R. Experiments on negatively buoyant jets, with and without cross-flow. In Recent Research Advances in the Fluid Mechanics of Turbulent Jets and Plumes; Davies, P.A., Valente Neves, M.J., Eds.; Springer: Berlin, Germany, 1994; Volume 255, pp. 131–145. [Google Scholar]
  15. Cipollina, A.; Brucato, A.; Grisafi, F.; Nicosia, S. Bench scale investigation of inclined dense jets. J. Hydraul. Eng. 2005, 131, 1017–1022. [Google Scholar] [CrossRef]
  16. Kikkert, G.A.; Davidson, M.J.; Nokes, R.I. Inclined negatively buoyant discharges. J. Hydraul. Eng. 2007, 133, 545–554. [Google Scholar] [CrossRef]
  17. Jirka, G.H. Integral model for turbulent buoyant jets in unbounded stratified flows. Part 2: Plane jet dynamics resulting from multiport diffuser jets. Environ. Fluid Mech. 2006, 6, 43–100. [Google Scholar] [CrossRef]
  18. Papakonstantis, I.; Kampourelli, M.; Christodoulou, G. Height of rise of inclined and vertical negatively buoyant jets. In Proceedings of 32nd IAHR Congress, Venice, Italy, 1–6 July 2007 [CD-ROM]; IAHR (The International Association for Hydro-Environment Engineering and Research): Madrid, Spain, 2004. [Google Scholar]
  19. Jirka, G.H. Improved discharge configuration for brine effluents from desalination plants. J. Hydraulic Eng. 2008, 134, 116–120. [Google Scholar] [CrossRef]
  20. Christodoulou, G.C.; Papakonstantis, I.G. Simplified estimates of trajectory of inclined negatively buoyant jets. In Environmental Hydraulics; Taylor & Francis: London, UK, 2010; pp. 165–170. [Google Scholar]
  21. Ferrari, S.; Querzoli, G. Mixing and re-entrainment in a negatively buoyant jet. J. Hydraul. Res. 2010, 48, 632–640. [Google Scholar] [CrossRef]
  22. Papakonstantis, I.G.; Christodoulou, G.C.; Papanicolaou, P.N. Inclined negatively buoyant jets 1: Geometrical characteristics. J. Hydraul. Res. 2011, 49, 3–12. [Google Scholar] [CrossRef]
  23. Sanchez, M.D. Near-Field Evolution and Mixing of a Negatively Buoyant Jet Consisting of Brine from a Desalination Plant. Master’s Thesis, Water Resources Engineering, Department of Building and Environmental Technology, Lund University, Lund, Sweden, 2009. [Google Scholar]
  24. Fischer, H.B.; List, E.J.; Koh, R.C.Y.; Imberger, J.; Brooks, N.H. Mixing in Inland and Coastal Waters; Academic Press: New York, NY, USA, 1979. [Google Scholar]
  25. Wright, S.J. Buoyant jets in density-stratified crossflow. J. Hydraul. Eng. 1984, 110, 643–656. [Google Scholar] [CrossRef]
  26. Doneker, R.L.; Jirka, G.H. Cormix User Manual 6.0E: A Hydrodynamic Mixing Zone Model and Decision Support System for Pollutant Discharges into Surface Waters; U.S. Environmental Protection Agency: Washington, DC, USA, 2007. [Google Scholar]
  27. Fan, L.-N.; Brooks, N.H. Dilution of Waste Gas Discharge from Campus Buildings; Technical Memo 68-1; California Institute of Technology: Pasadena, CA, USA, 1968. [Google Scholar]
  28. Zeitoun, M.A.; McHilhenny, W.F.; Reid, R.O. Conceptual Designs of Outfall Systems for Desalination Plants; Research and Development Progress Report No. 550; Office of Saline Water, U.S. Department of the Interior: Washington, DC, USA, 1970. [Google Scholar]
  29. Bloomfield, L.J.; Kerr, R.C. A theoretical model of a turbulent fountain. J. Fluid Mech. 2000, 424, 197–216. [Google Scholar] [CrossRef]
  30. Kikkert, G.A. Buoyant Jets with Two and Three Dimensional Trajectories. Ph.D. Dissertation, University of Canterbury, Christchurch, New Zealand, 2006. [Google Scholar]
  31. Papakonstantis, I.G. Turbulent Round Negatively Buoyant Jets at an Angle in a Calm Homogeneous Ambient (in Greek). Ph.D. Dissertation, School of Civil Engineering, National Technical University of Athens, Athens, Greece, 2009. [Google Scholar]
Water EISSN 2073-4441 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
