A Hooked-Collar for Bridge Piers Protection: Flow Fields and Scour

1
Innovation and Development Centre of Sustainable Agriculture (IDCSA), Department of Soil and Water Conservation, National Chung Hsing University, Taichung City 402, Taiwan
2
Department of Soil and Water Conservation, National Chung Hsing University, Taichung City 402, Taiwan
3
Geotechnical Engineering Office, Public Works Department, Taipei City 110, Taiwan
4
Department Civil Engineering, National Central University, Taoyuan City 320, Taiwan
*
Author to whom correspondence should be addressed.
Received: 30 July 2018 / Revised: 11 September 2018 / Accepted: 12 September 2018 / Published: 14 September 2018
(This article belongs to the Section Hydraulics)
Full-Text   |   PDF [2821 KB, uploaded 17 September 2018]   |

Abstract

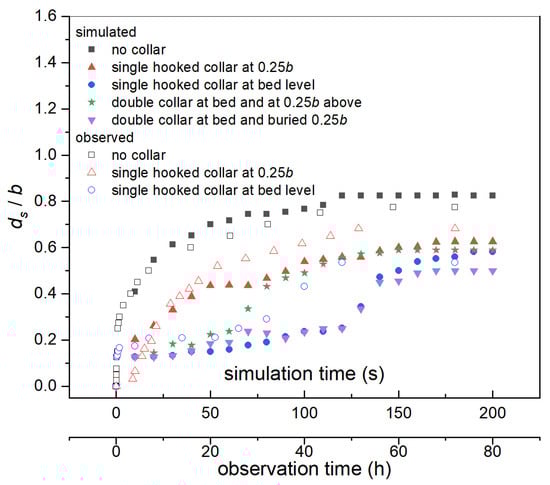

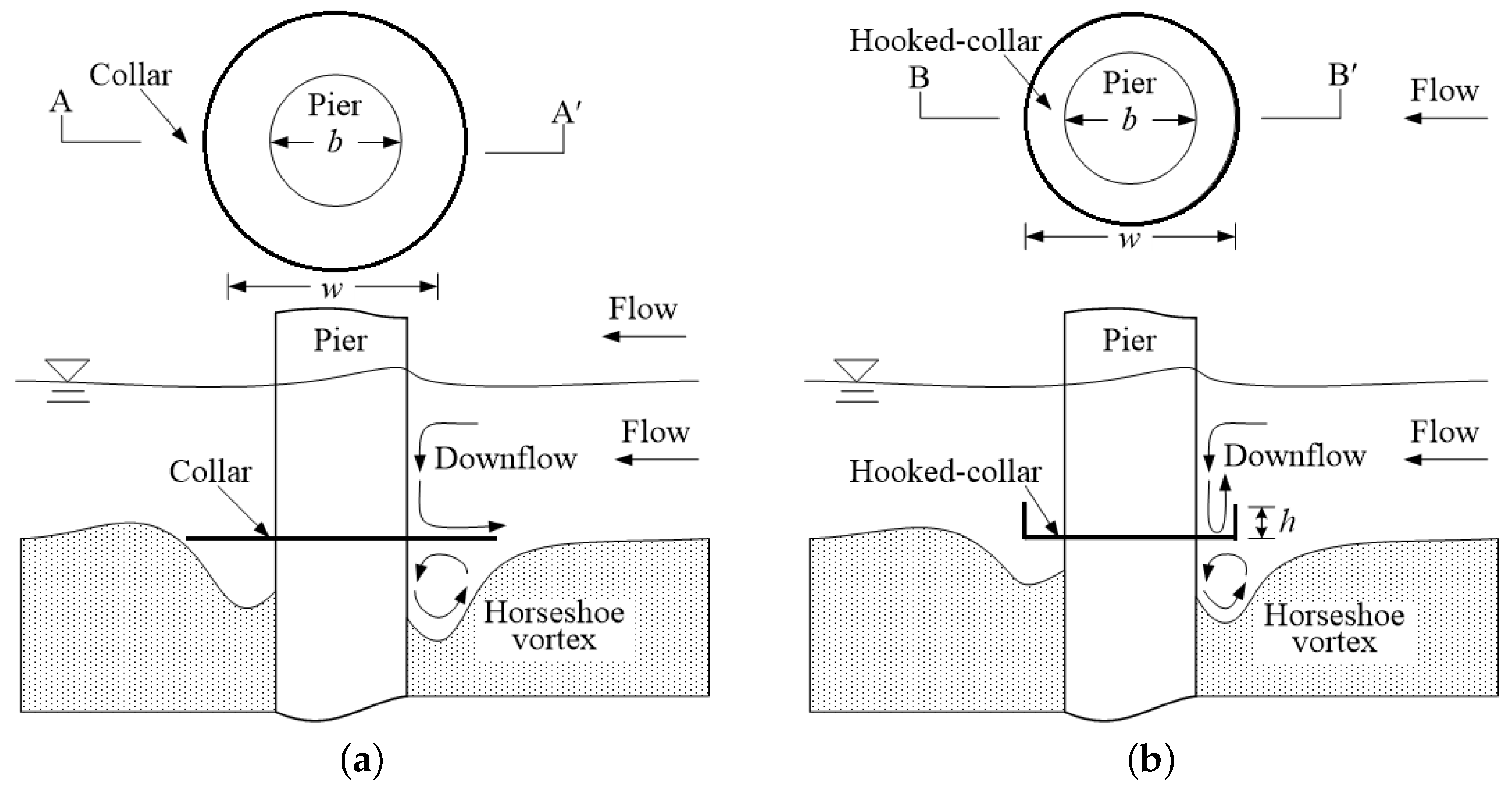

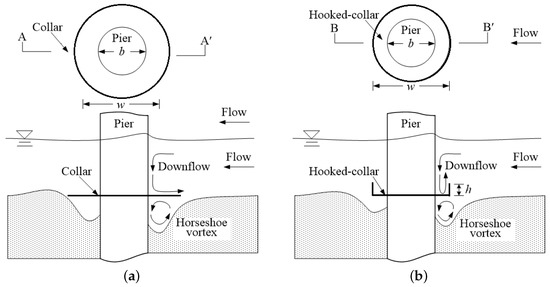

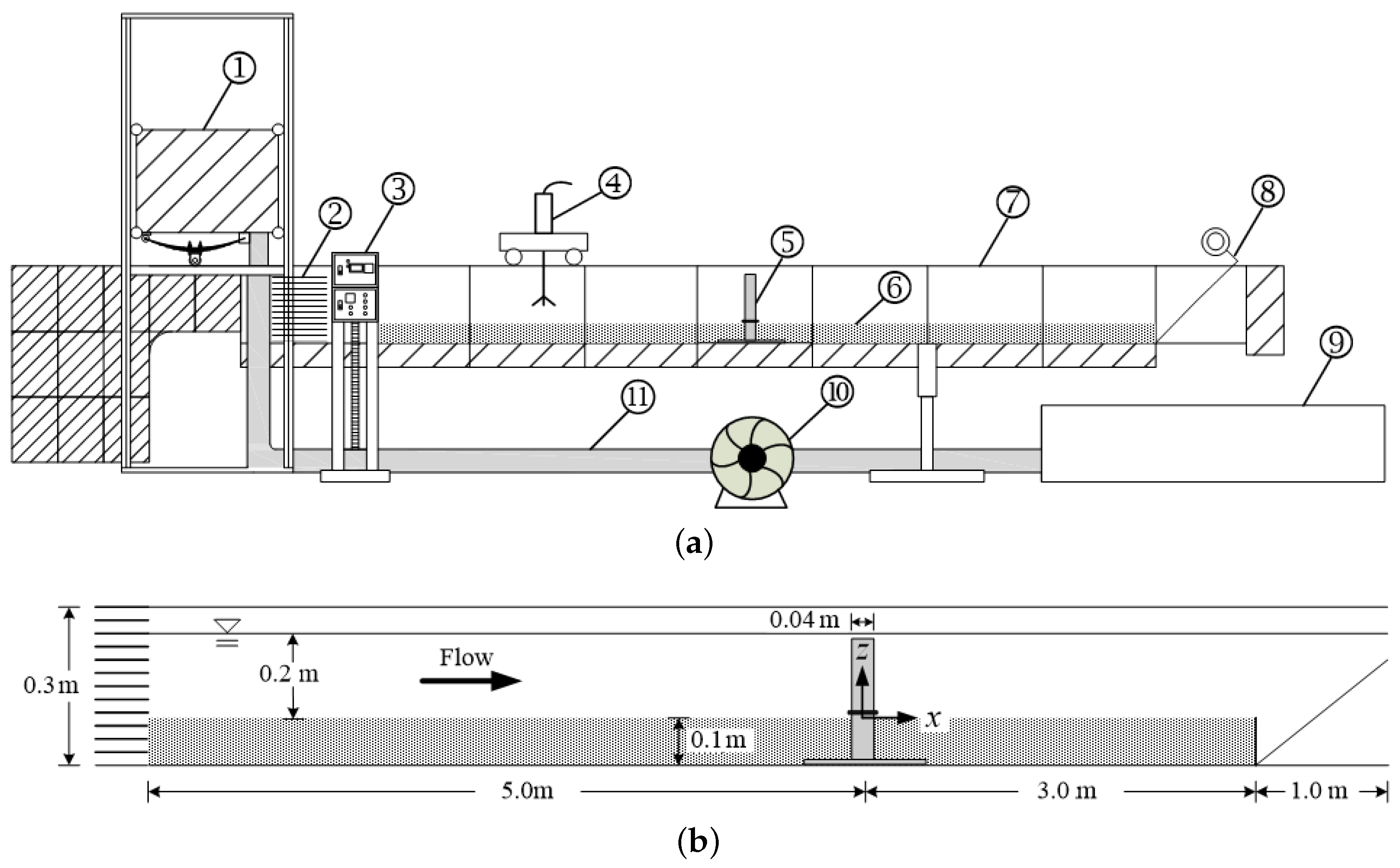

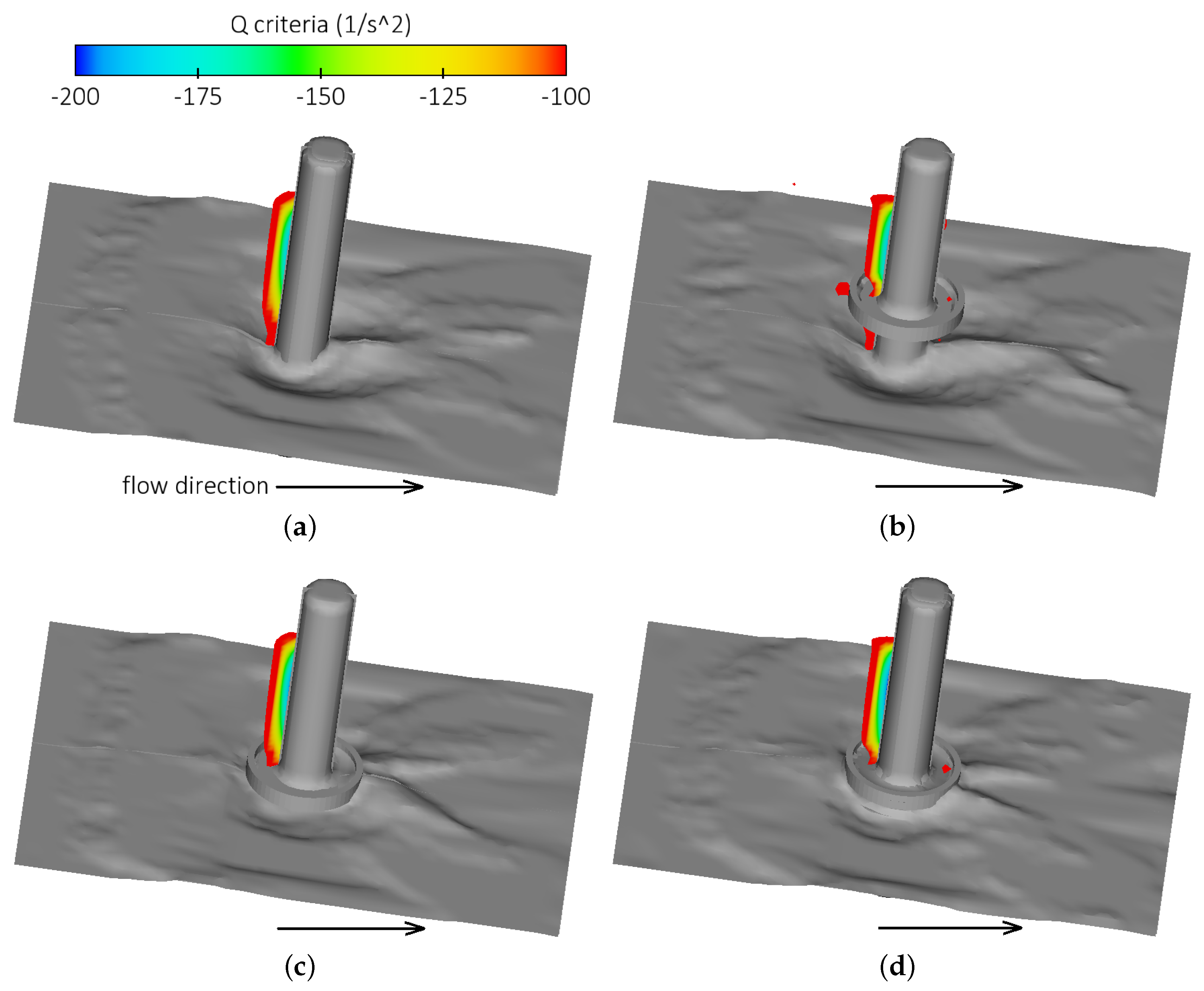

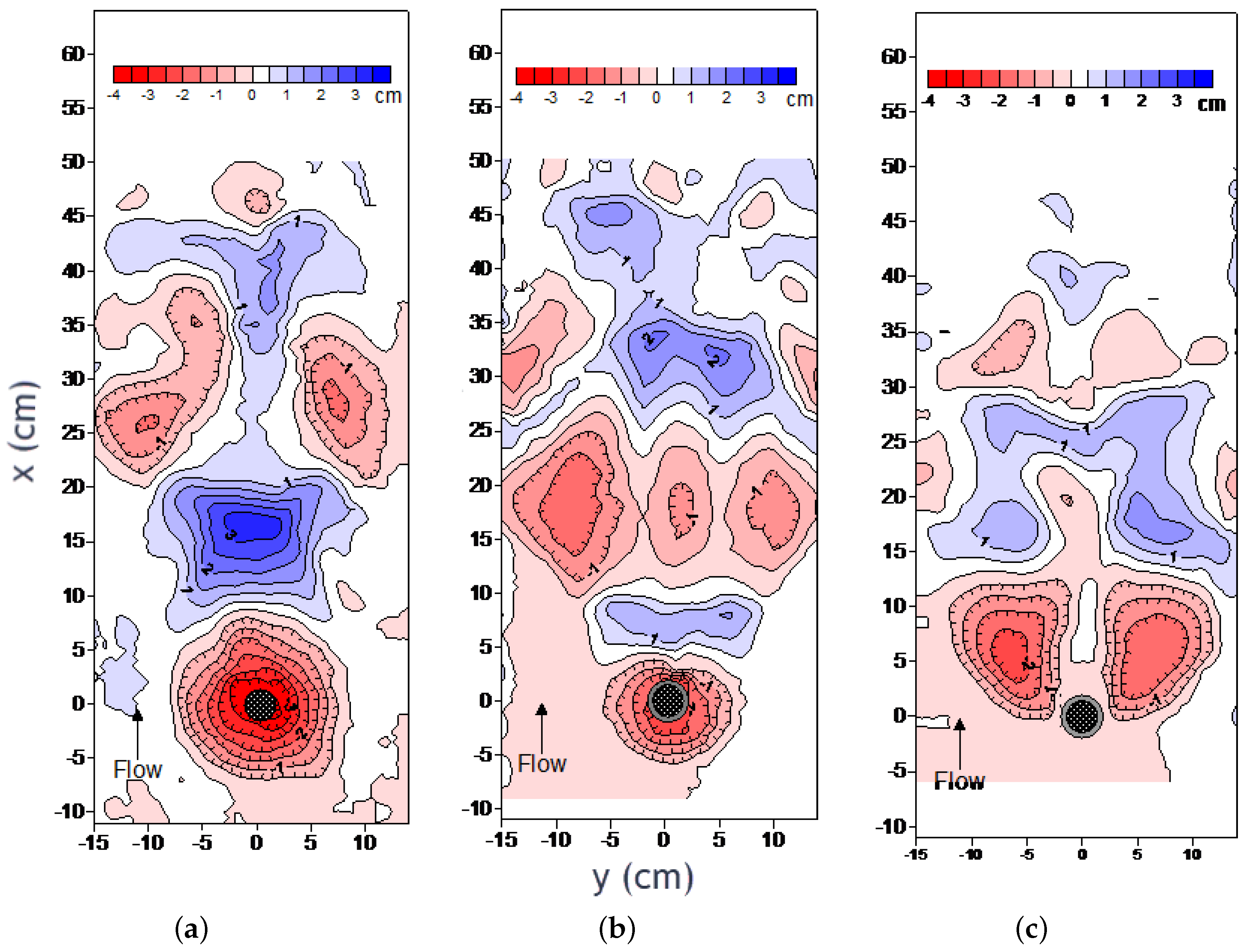

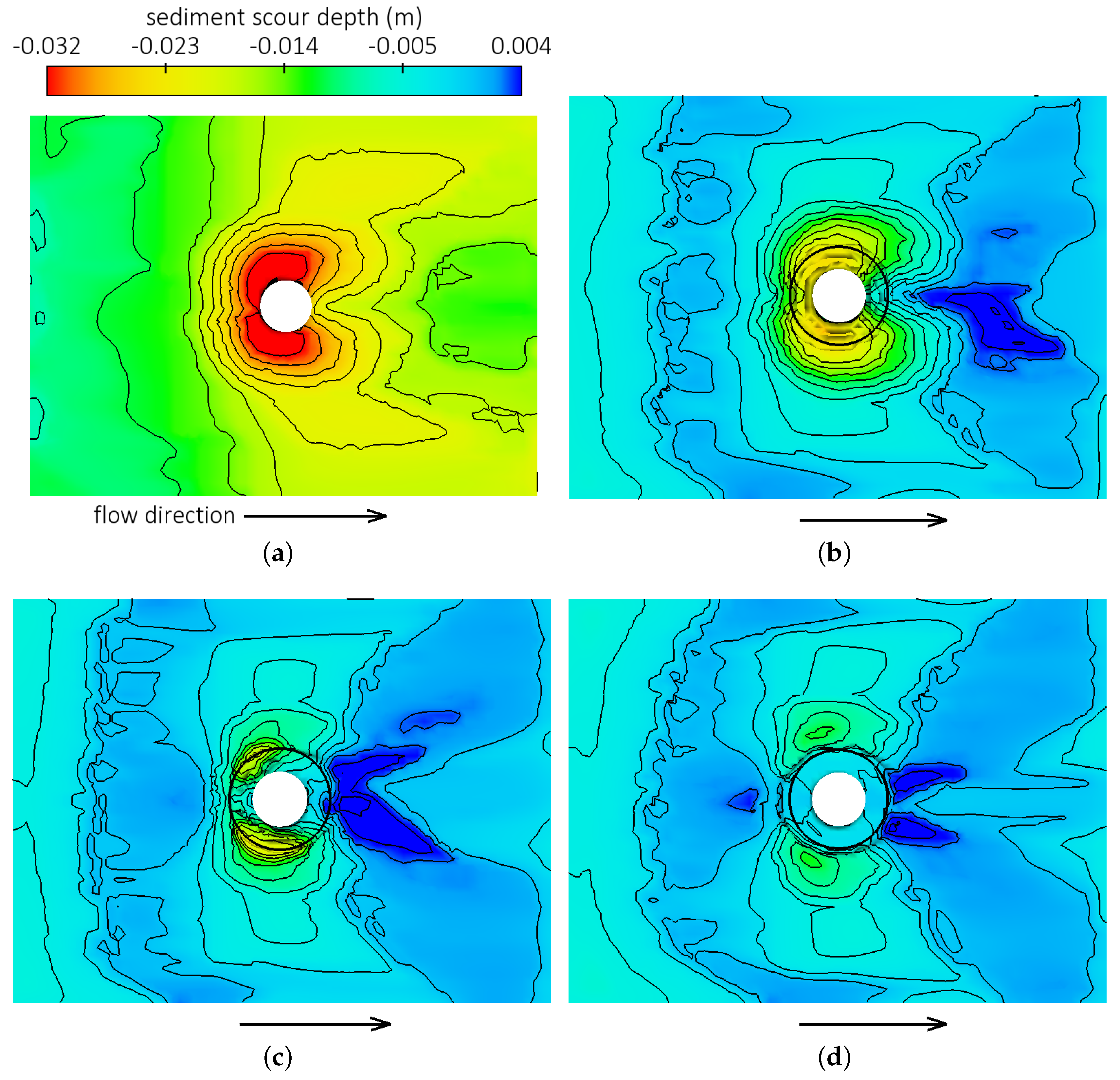

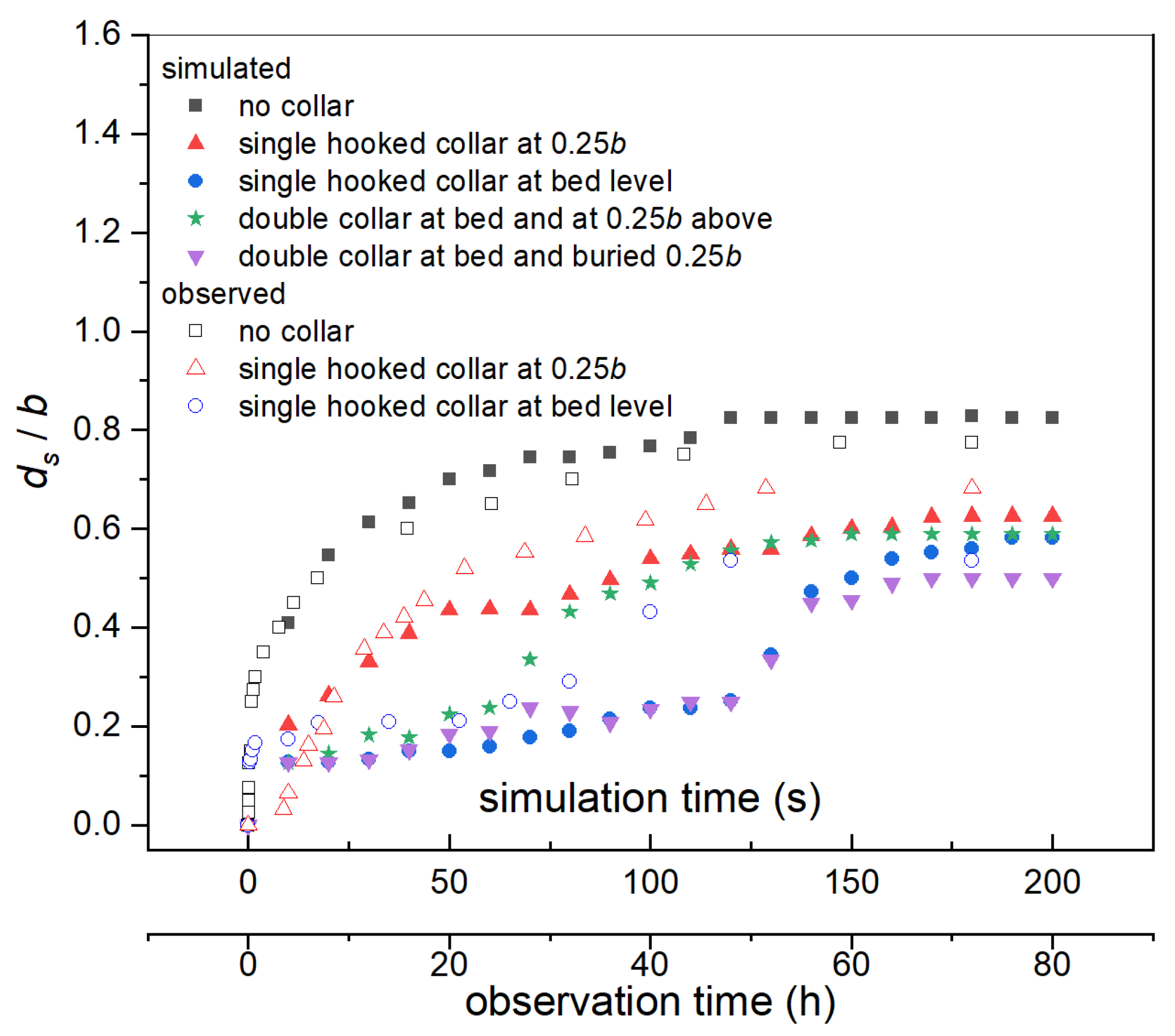

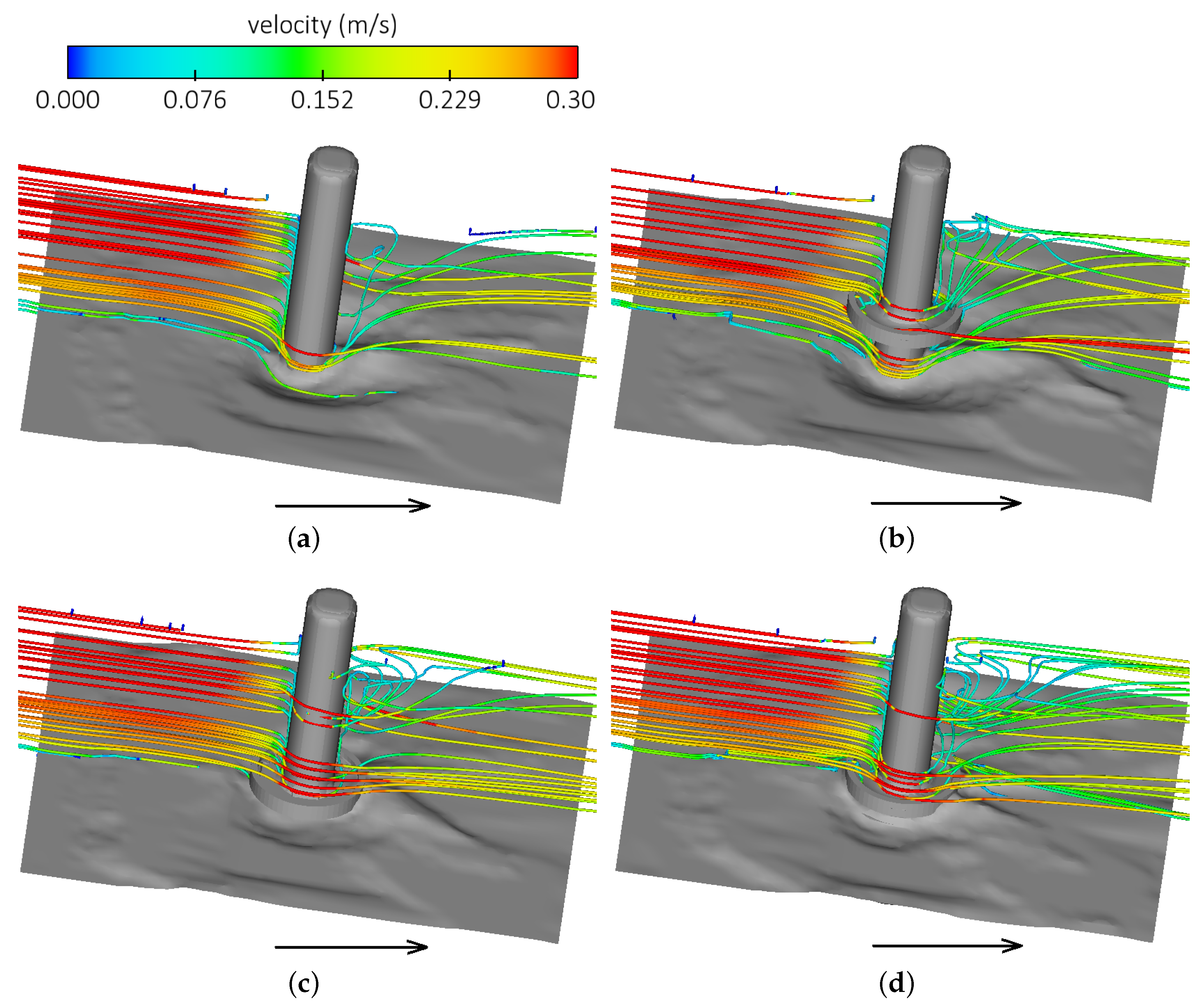

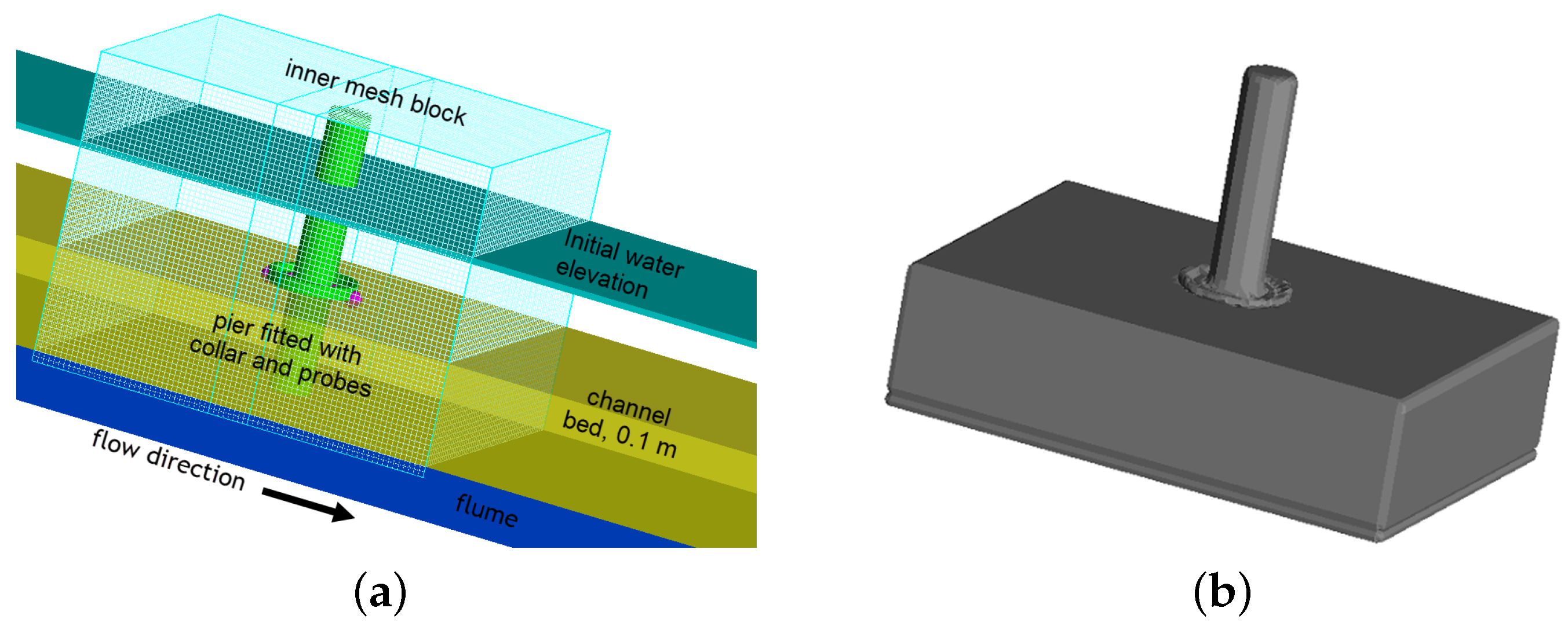

A new type of collar, the hooked-collar, was studied through experiments and numerical methods. Tests were conducted using a hooked collar of a width of 1.25b and a height of 0.25b, where b is the bridge-pier width. The hooked-collar efficiency was evaluated by testing different hooked-collar placements within the bridge-pier, which were compared to the bridge-pier without any collar. A double hooked-collar configuration, one placed at the bed level and the other buried 0.25b, was the most efficient at reducing the scour hole. In other cases, a hooked-collar positioned 0.25b above the bed slightly reduced the scour hole and had similar scour patterns when compared to the pier without the hooked-collar. The flow fields along the vertical symmetrical plane in the experiments are also presented. Laboratory experiments and numerical tests show that maximal downflow is highly reduced along with a corresponding decrease in horseshoe vortex strength for the experiments with the hooked-collar, compared to cases without the hooked-collar. The flow fields reveal that the maximum turbulent kinetic energy decreases with the installation of the hooked-collar. View Full-Text
