Atmosphere 2013, 4(1), 1-16; doi:10.3390/atmos4010001

Article
A Comparison of the Mineral Dust Absorptive Properties between Two Asian Dust Events
Timothy Logan 1, Baike Xi 1 and Xiquan Dong 1,2,*
1
Department of Atmospheric Sciences, University of North Dakota, 4149 University Avenue, Stop 9006, Grand Forks, ND 58202, USA; E-Mails: timothy.logan@my.und.edu (T.L.); baike@aero.und.edu (B.X.)
2
GCESS, Beijing Normal University, Beijing 100875, China
*
Author to whom correspondence should be addressed; E-Mail: dong@aero.und.edu; Tel: +1-701-777-6991; Fax: +1-701-777-5032.
Received: 14 November 2012; in revised form: 21 January 2013 / Accepted: 21 January 2013 /
Published: 28 January 2013

Abstract

: Asian dust events are generated by deep convection from strong low pressure systems that form over mineral dust source regions. This study compares the mineral dust optical properties of two strong Asian dust events from the winter (December 2007) and spring (March 2010) seasons using AERONET retrieved parameters from three sites along the dust event path: SACOL (dust source region), Xianghe (downwind mixed aerosol region), and Taihu (downwind pollution region). The parameters include: aerosol effective radius, optical depth (τ), absorptive optical depth (τabs), their respective wavelength dependences or Angstrom exponents (α and αabs), and the spectral single scattering albedo (ωo(λ)). The α440–870 values in both cases do not exceed 0.62 indicating coarse mode particle dominance at all three sites. The winter case is shown to have carbonaceous influences at all three sites as given by αabs440–870 between 1.3 and 1.8 with strong spectral τabs absorption. The spring case is more dust dominant with αabs440–870 of 1.7–2.5 (noting that the largest value occurred at Taihu) with strong τabs absorption primarily in the visible wavelengths. Comparison studies between the observed and theoretically calculated ωo(λ) for the winter and spring cases have shown an excellent agreement except for the winter case at Taihu due to pollution influences. The comparison studies also suggest that ωo(λ) is more sensitive to particle absorptive properties rather than particle size. The sharp increase in the aerosol radiative effect (ARE) during the dust events with AREBOA > ARETOA suggests a stronger aerosol cooling effect at the surface than at the TOA.
Keywords:
mineral dust; Asian dust events; aerosol absorptive properties

1. Introduction

Asian dust events are typically spring season events but have been known to occur at any time of the year [1,2,3,4]. Strong low pressure systems that create dry convection facilitate favorable conditions for surface winds to loft loose desert sand and soil into the mid-troposphere (~5 km or 500 hPa level) where it can be transported for thousands of kilometers [2,4,5,6,7]. Continuing urbanization and industrialization in Asia causes concern since anthropogenic carbonaceous particles such as black carbon (BC), organic carbon (OC), and biomass burning aerosols along with sulfates and nitrates have been known to mix and condense onto mineral dust, thus altering the optical properties of the particles [6,8,9,10]. Due to the variety of scattering and absorbing aerosols generated as a result of these secondary reactions, the radiative balance of the atmosphere is altered by the aforementioned first aerosol effect while the second aerosol effect deals with influences on cloud physical properties (e.g., lifetime, brightness, droplet size distribution and precipitation) [1,4,11,12,13,14,15]. Aerosol effects can also be locally detrimental as they create increased health risks especially for susceptible populations [16].

Two Asian dust events during the winter (24–31 December 2007) and spring (15–21 March 2010) seasons provide a unique opportunity to compare the seasonal and regional dependences of mineral dust absorptive properties. Both dust events passed over the same regions in northern, west-central, and eastern China before they exited the mainland, subsequently affecting the remote Pacific Ocean before dissipating (MODIS visible images not shown). However, the aerosol types in these regions have shown a diverse seasonal dependence [8,10,17]. For example, northern China usually has strongly absorbing aerosols in the winter due to BC and OC particle emissions from industrial and urban emissions (e.g., residential heating) while the spring season is dominated by emissions from the Gobi desert upwind of the area [18,19]. West-central China is not only plagued by episodic dust events (more common in the spring) but can also have pollution influences from the few mega-cities in that region [7,18,20]. Eastern China is dominated by large urban centers that generate pollution throughout the year and can also be affected by dust events from both the Gobi and Taklamakan deserts (though not as strongly as west-central China) [18,21].

This study uses the parameters of aerosol optical depth (τ), absorption aerosol optical depth (τabs), their respective spectral wavelength dependences: Angstrom exponent (α) and absorption Angstrom exponent (αabs), and the spectral single scattering albedo, (ωo(λ)), (ratio of the scattering and extinctive aerosol properties) in order to (1) illustrate the seasonal differences of the absorptive properties of the mineral dust, (2) use the spectral wavelength dependences to report the influences of anthropogenic carbonaceous particles on naturally occurring mineral dust, and (3) compare the single scattering properties from three selected ground-based AERONET (Aerosol Robotic Network) remote sensing platforms (SACOL, Xianghe, and Taihu) to theoretically calculated ones from a mineral dust model [22].

2. Data and Methodology

2.1. AERONET

The AErosol RObotic NETwork is a worldwide framework of CIMEL sun/sky photometers that retrieve aerosol optical data at discrete wavelengths ranging from 340 to 1,020 nm [19,23]. This study employs Level 2.0 data to ensure cloud screened, quality controlled retrievals of τ, τabs, α, αabs, and ωo in the wavelength range between 440 and 1,020 nm [24]. The retrievals are derived from inverted almucantar observations developed by [25] and [26]. We use the daily averaged data collected from three AERONET sites representing west-central, northern, and eastern China: 28 December 2007 and 20 March 2010 (SACOL) and 29 December 2007 and 21 March 2010 (Xianghe and Taihu). We use retrievals where τ440 > 0.4 to ensure the least amount of uncertainty [19].

From Figure 1, SACOL (35.95°N, 104.14°E), the Semi-Arid Climate and Environment Observatory of Lanzhou University, is within a mineral dust source region in the Gansu province downwind from the Taklamakan and Gobi Deserts as well as within the confines of the Loess Plateau [7,17]. It is also nearby to Lanzhou City which has a population of over 3 million inhabitants along with strong urban and industrial influences [18]. Xianghe (39.75°N, 116.96°E) is in an aerosol mixture region affected by mineral dust, biomass aerosols, and pollution from nearby Beijing and other urban areas in northeast China [4,18]. Taihu (31.4°N, 120.21°E) lies within a heavily polluted region upwind of Shanghai but is itself surrounded by numerous industrial influences [9,18].

Atmosphere 04 00001 g001 200
Figure 1. Locations of three selected AERONET sites and the desert source regions. Note that SACOL is directly downwind of three mineral dust sources while Xianghe is primarily influenced by the eastern Gobi Desert.

Click here to enlarge figure

Figure 1. Locations of three selected AERONET sites and the desert source regions. Note that SACOL is directly downwind of three mineral dust sources while Xianghe is primarily influenced by the eastern Gobi Desert.
Atmosphere 04 00001 g001 1024

2.2. Theoretical Mineral Dust Model

This study investigates the optical properties of mineral dust particles which are typically non-spherical in nature. In fact, the optical properties require special consideration since AERONET retrievals are primarily based on assumptions that atmospheric aerosols are homogeneous spherical particles [22,25,27]. As pointed out by [28], though there are shortcomings to using these assumptions in AERONET retrievals, it is still possible to gain useful information from the almucantar readings [25,28]. This study employs the use of a mineral dust model that is comprised of a spectral database calculated from mathematical and geometric theory [20,22]. The model contains theoretical calculations of the single scattering parameters of mineral dust aerosols by assuming a tri-axial ellipsoidal geometric shape which offers many advantages over calculations based on spherical (Mie Theory) and spheroidal assumptions which illustrates the most representative shape of mineral dust particles to date [20,22].

The [22] model uses a combination of Lorenz-Mie theory, the T-matrix method, discrete dipole approximation (DDA), and an improved geometric optics method (IGOM) to illustrate the optical properties of mineral dust-like aerosols. The results are compiled into a database that requires the knowledge of the particle aspect ratio (ratio of the semi-major to semi-minor axis assuming ellipsoidal geometry), size parameter (based on retrieved effective radius), and complex index of refraction. A more detailed discussion of the database as well as the methodology can be found in [22]. Though the database contains information about the phase matrix, extinction efficiency, extinction, scattering and absorption coefficients, and single scattering albedo, this study uses the latter to compare with AERONET retrievals.

We will consider the AERONET retrievals as truth and compare these retrievals with the theoretical calculations from the mineral dust model because the model will have inherent shortcomings when dealing with aerosol mixtures (e.g., external/internal mixtures and pollution coating). Since AERONET retrievals are based on spheroidal assumptions (rather than ellipsoidal) it would be informative to note the agreement between the two retrieval mechanisms in order to gain more insight on their limitations. This will be done by performing a comparison study using the AERONET retrieved effective radius and complex index of refraction (mr + mi) as inputs of the mineral dust model.

2.2.1. Comparison Study of ωo(λ) Involving the Aerosol Effective Radius and Complex Index of Refraction

The theoretical database is arranged in a manner that accounts for five dimensions regarding: two aspect ratios, one size parameter, and the complex index of refraction (real and imaginary parts) [22]. The complex index of refraction is obtained directly from the AERONET retrievals with an uncertainty of up to 30% when τ440 > 0.5 [26]. The size parameter (x) at each wavelength (λ) is calculated from the AERONET retrieved effective radius (reff) and is given by,

Atmosphere 04 00001 i001
where λ is in discreet wavelengths of 440, 675, 870, and 1,020 nm. In this way, a single value of ωo at each wavelength is obtained from the database to yield a theoretical spectral wavelength dependence to go along with the AERONET retrieved spectral dependence. The aspect ratios are assumed values based on the best fit between the theoretical and observational ωo spectral dependence curve to within one standard deviation. We will vary the effective radius and complex index of refraction while keeping one of these parameters constant in order to perform the comparison study and discuss the results in Section 3.3.

3. Results and Discussions

3.1. Synoptic Pattern of the Two Dust Events

Figure 2(a,b) shows the 850 hPa geopotential heights for the 24–31 December 2007 (winter case) and 15–21 March 2010 (spring case) time spans. The mean synoptic patterns of both cases have similar trough (darker purple) locations over Northeastern China/Southern Russia. However, the ridge (red and orange) locations differ by ten degrees of latitude with the winter case ridge position (43°N) being at a higher latitude than the spring case (33°N). The position of the ridge in relation to the trough is also different between the two cases suggesting different wind flow patterns [8,29]. For example, there is more of a northwesterly flow over Xianghe than at Taihu and SACOL in the winter case but a west-northwesterly flow pattern is evident in the spring case at all three sites. From backward trajectory analysis (not shown) both storms had origins in the Loess Plateau (Western Gobi Desert) region but the wind patterns suggest dust from the eastern Gobi Desert may have impacted Xianghe more than SACOL and Taihu for the winter case. In contrast, the spring case wind pattern and subsequent track of the low pressure system advected dust from the Loess Plateau to all sites. The synoptic patterns for both cases illustrate how the absorptive properties of the mineral dust aerosols can change depending on the season which is discussed in the following section [7,8,29].

Atmosphere 04 00001 g002 200
Figure 2. (a) 850 hPa geopotential heights showing the low pressure (purple) and high pressure systems (orange) and the inferred wind patterns as a result of their positions for the winter and (b) spring cases. Image provided by [30,31].

Click here to enlarge figure

Figure 2. (a) 850 hPa geopotential heights showing the low pressure (purple) and high pressure systems (orange) and the inferred wind patterns as a result of their positions for the winter and (b) spring cases. Image provided by [30,31].
Atmosphere 04 00001 g002 1024

3.2. Mineral Dust Properties Inferred from the Particle Volume Size Distribution, τ, τabs, α440–870, and αabs440–870 Parameters

Figure 3(a,b) shows the size distributions of the winter and spring cases, respectively. For the winter case, SACOL and Xianghe have similar volume coarse mode magnitudes and primarily have unimodal distributions. There is a small fine mode contribution (reff-fine ~ 0.085 μm) at SACOL indicating pollution from the nearby city of Lanzhou [18]. There is a smaller, yet discernible fine mode contribution at Xianghe (reff-fine ~ 0.15) which indicates anthropogenic influences from Beijing and surrounding areas [19]. The coarse mode magnitude at Taihu is nearly half compared to the other sites but the fine mode contribution (reff-fine ~ 0.45) is likely due to industrial influences in the vicinity as well as urban influences from Shanghai [9]. The spring case exhibits a strong mineral dust signature at all three sites as there is a more pronounced unimodal coarse mode contribution. The lack of a discernible fine mode peak suggests that mineral dust dominates the size distribution in this case though pollution particles may still be present in the atmosphere.

The wavelength dependences of τ for the winter and spring cases are shown in Figure 4. SACOL has the weakest wavelength dependence of all three sites for both the winter and spring cases indicating coarse mode particles (α440–870 of 0.29 and 0.11, respectively). This is due to a close proximity to various mineral dust source regions (Taklamakan and Gobi Desert and the Loess Plateau) [7,17]. However, the wavelength dependence for the winter case is stronger suggesting a noticeable more of a fine mode influence than in the spring case. At Xianghe, the stronger wavelength dependence and higher α440–870 values (0.42–0.48) suggest more of a fine mode influence for both cases than at SACOL. Taihu has the strongest wavelength dependence in the winter case with α440–870 of 0.62 indicating a mixture of coarse and fine modes due to an abundance of pollution particles resulting from stagnant winter season air patterns that allow for increased aerosol loading (τ440 ~ 1.3) [32]. In the spring, there is much less wavelength dependence at Taihu suggesting coarse mode particles dominate the aerosol extinctive properties similar to the SACOL case. It is interesting to note that the α440–870 value of 0.15 at Taihu illustrates the overwhelmingly large magnitude of dust particles in the spring as compared with the winter case. Since all sites have α440–870 values less than 0.62, it can be concluded that coarse mode particles dominated the aerosol size properties along with some influences from the fine mode (e.g., pollution).

Atmosphere 04 00001 g003 200

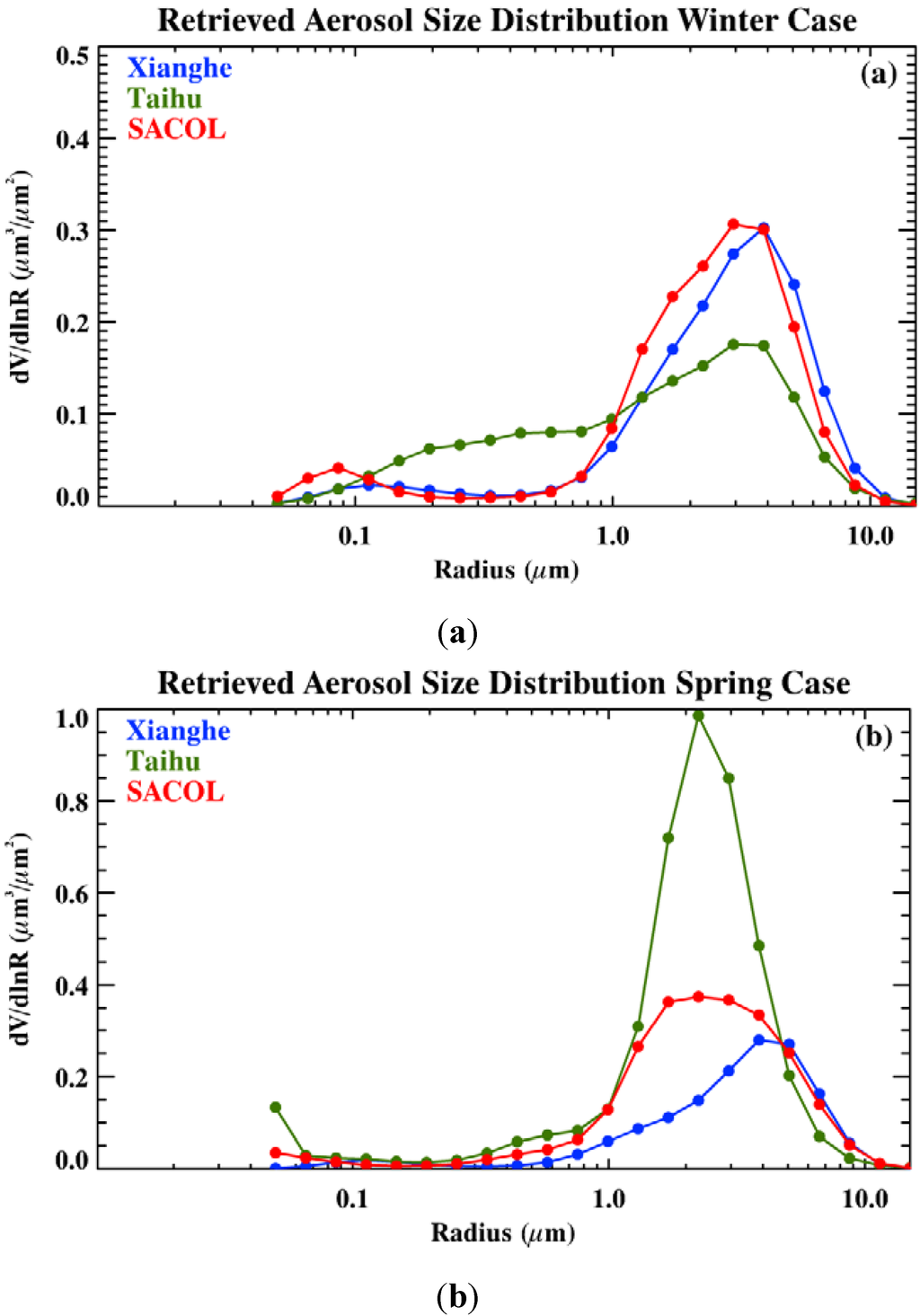

Figure 3. (a) Particle volume size distributions of the winter and (b) spring cases.

Click here to enlarge figure

Figure 3. (a) Particle volume size distributions of the winter and (b) spring cases.
Atmosphere 04 00001 g003 1024
Atmosphere 04 00001 g004 200

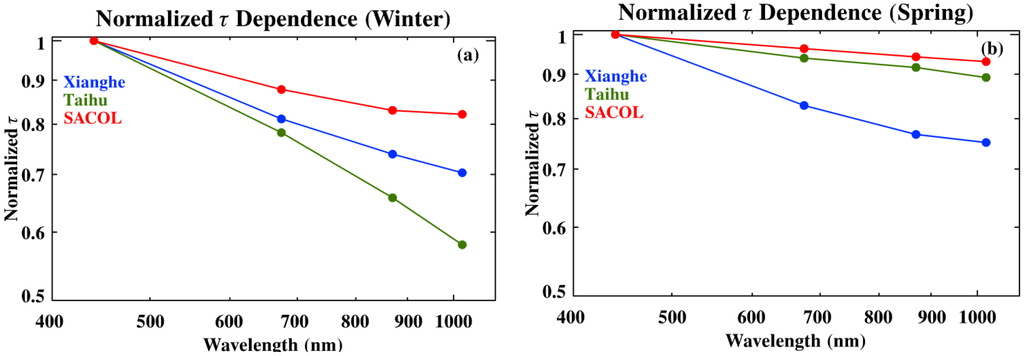

Figure 4. (a) Wavelength dependence of τ for the winter and (b) spring cases. The normalized τ values at each wavelength are ratios to the τ440 value in order to compare the wavelength dependences across the three sites.

Click here to enlarge figure

Figure 4. (a) Wavelength dependence of τ for the winter and (b) spring cases. The normalized τ values at each wavelength are ratios to the τ440 value in order to compare the wavelength dependences across the three sites.
Atmosphere 04 00001 g004 1024

Figure 5 shows the wavelength dependence of τabs. The wavelength dependence is slightly stronger for the winter case than for the spring case. The winter αabs440–870 value of 1.8 represents a typical value for dust due to the strong absorption in the visible and weak absorption in the near IR [32,33,34], while the spring αabs440–870 value of 1.6 indicates a mineral dust influence with possible carbonaceous influences [18,32,34]. Taihu has a weaker wavelength dependence than Xianghe and nearly identical to SACOL in the winter case. The lower αabs440–870 of 1.3 indicates a strong BC influence given by a weaker wavelength dependence across the visible and near IR [32]. It should be noted that OC tends to strengthen the absorption in the visible leading to an even higher αabs440–870 value [33]. For the spring case, Taihu has the strongest wavelength dependence in both the visible and near IR indicating a robust mineral dust influence (αabs440–870 ~ 2.5) [32,33,34]. The spring case at SACOL is more indicative of mineral dust influences with αabs440–870 of 1.7. Table 1 summarizes the AERONET retrieved parameters used in this study. The following section will discuss how well the theoretically calculated ωo(λ) at different wavelengths agree with AERONET retrievals at the three sites for the selected two cases.

Atmosphere 04 00001 g005 200

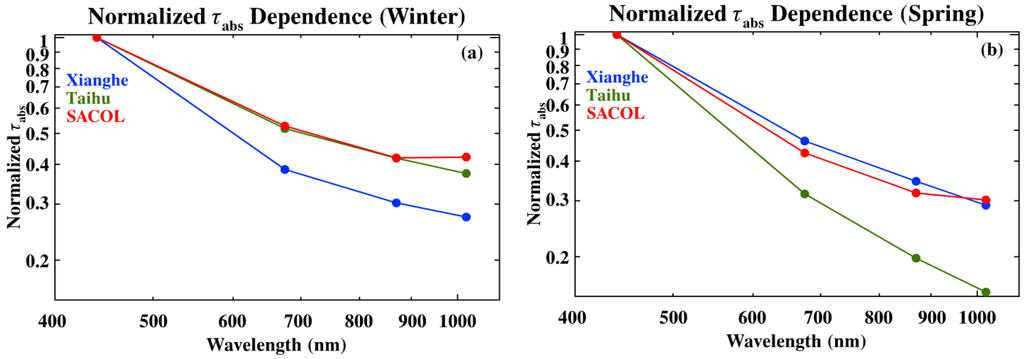

Figure 5. (a) Wavelength dependence of τabs for the winter and (b) spring cases. The normalized τabs values at each wavelength are ratios to the τabs400 value in order to compare the wavelength dependences across the three sites.

Click here to enlarge figure

Figure 5. (a) Wavelength dependence of τabs for the winter and (b) spring cases. The normalized τabs values at each wavelength are ratios to the τabs400 value in order to compare the wavelength dependences across the three sites.
Atmosphere 04 00001 g005 1024
Table 1. Summary of the AERONET retrieved aerosol optical properties for the winter and spring cases.

Click here to display table

Table 1. Summary of the AERONET retrieved aerosol optical properties for the winter and spring cases.
AERONET Siteτ440α440–870αabs440–870mrmireff
SACOL (winter)0.60.291.31.460.0030.77
SACOL (spring)0.80.111.71.570.0040.97
Xianghe (winter)0.60.481.81.600.0051.07
Xianghe (spring)0.50.421.61.600.0041.25
Taihu (winter)1.30.621.31.530.0220.59
Taihu (spring)1.40.152.51.530.0040.80

3.3. Comparisons of ωo(λ) between Theoretical Calculations and AERONET Retrievals

Figure 6 and Figure 7 present the comparisons of ωo(λ) values at wavelengths of 440–1,020 nm retrieved from three AERONET sites to those calculated by a mineral dust model for the winter and spring cases. In order to demonstrate the wavelength dependences of ωo to the index of refraction and aerosol particle size, the index of refraction is held constant while the effective radius varies in Figure 6 and vice versa in Figure 7. Although the model results are summarized in Table 2, we focus on the following key discussion points at the SACOL, Xianghe and Taihu sites.

Atmosphere 04 00001 g006 200

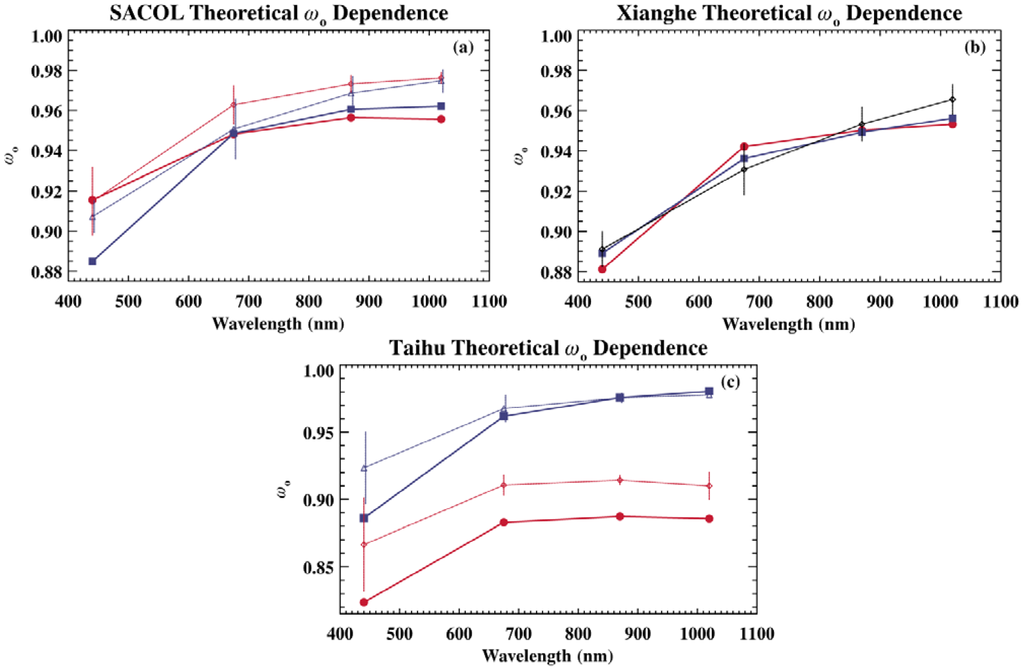

Figure 6. (a) Comparison between the observed (solid) and theoretically calculated (dashed) ωo for the winter (red circle) and spring (blue box) cases at SACOL, (b) Xianghe, and (c) Taihu. The measured complex index of refraction and the effective radii were used as inputs of the model calculation where the complex index of refraction is held constant while the effective radius varies.

Click here to enlarge figure

Figure 6. (a) Comparison between the observed (solid) and theoretically calculated (dashed) ωo for the winter (red circle) and spring (blue box) cases at SACOL, (b) Xianghe, and (c) Taihu. The measured complex index of refraction and the effective radii were used as inputs of the model calculation where the complex index of refraction is held constant while the effective radius varies.
Atmosphere 04 00001 g006 1024
Atmosphere 04 00001 g007 200
Figure 7. (a) Comparison between the observed (solid) and theoretically calculated (dashed) ωo for the winter (red circle) and spring (blue box) cases at SACOL, (b) Xianghe, and (c) Taihu. The measured complex index of refraction and the effective radii were used as inputs of the model calculation where the effective radius is held constant while the index of refraction varies.

Click here to enlarge figure

Figure 7. (a) Comparison between the observed (solid) and theoretically calculated (dashed) ωo for the winter (red circle) and spring (blue box) cases at SACOL, (b) Xianghe, and (c) Taihu. The measured complex index of refraction and the effective radii were used as inputs of the model calculation where the effective radius is held constant while the index of refraction varies.
Atmosphere 04 00001 g007 1024

At the SACOL site, the model calculated ωo(λ) agrees well with observation in the visible but overestimates in the longer wavelengths for the winter case (red) (Figure 6(a)). The spring case has slightly better agreement in the longer wavelengths (675 and 870 nm) but poor agreement otherwise. A possible explanation is due to the fact that two different real indices of refraction (mr of 1.46 and 1.57 for winter and spring, respectively) are used which decreases the sensitivity of the modeled results because the optical properties of aerosol mixtures are poorly taken into account using these criteria. The Xianghe site has nearly the same indices of refraction for both the winter and spring cases with only one theoretical calculation (Figure 6(b)) where the model calculation and observation agree to within one standard deviation suggesting more sensitivity of a variable effective radius. This is likely due the aerosols having similar optical properties during both dust events (i.e., similar source regions and carbonaceous influences).

Table 2. Summary of the theoretical model parameters used in this study.

Click here to display table

Table 2. Summary of the theoretical model parameters used in this study.
Aspect Ratiomrmireff (μm)
SACOL (Winter Case)
Fixed refractive index
1.5:1.81.500.0050.7
1.500.0050.8
1.500.0050.9
1.500.0051.0
SACOL (Spring Case)
Fixed refractive index
1.5:1.81.600.0050.7
1.600.0050.8
1.600.0050.9
1.600.0051.0
SACOL (Winter Case)
Fixed effective radius
1.5:1.81.400.0010.8
1.400.0050.8
1.400.0100.8
1.500.0010.8
1.500.0050.8
1.500.0100.8
1.600.0010.8
1.600.0050.8
1.600.0100.8
SACOL (Spring Case)
Fixed effective radius
1.5:1.81.400.0011.0
1.400.0051.0
1.400.0101.0
1.500.0011.0
1.500.0051.0
1.500.0101.0
1.600.0011.0
1.600.0051.0
1.600.0101.0
Xianghe (Both Cases)
Fixed refractive index
1.8:2.11.600.0051.0
1.600.0051.1
1.600.0051.2
1.600.0051.3
Xianghe (Both Cases)
Fixed effective radius
1.8:2.11.600.0011.0
1.600.0051.0
1.600.0101.0
Taihu (Winter Case)
Fixed refractive index
1.5:1.81.500.0200.5
1.500.0200.6
1.500.0200.7
1.500.0200.8
1.500.0200.9
Taihu (Spring Case)
Fixed effective radius
1.2:1.51.500.0050.5
1.500.0050.6
1.500.0050.7
1.500.0050.8
1.500.0050.9
Taihu (Winter Case)1.5:1.81.500.0100.6
1.500.0200.6
1.500.0500.6
Taihu (Spring Case)1.2:1.51.500.0010.8
1.500.0050.8
1.500.0100.8

At Taihu, there is scarcely any agreement between theory and observation for the winter case suggesting that using a fixed mi cannot account for the enhanced absorption from the large amount of carbonaceous aerosols present in this region (Figure 6(c)). In contrast, the spring case shows good agreement especially in the near IR due to the strong mineral dust influence that dominates the aerosol absorptive properties during this episode. It is interesting to note that the stronger absorption in the winter case has mi of nearly five times higher than the spring case (more absorbing pollution aerosols during winter season). In addition to varying the effective radius and holding the index of refraction constant, we now vary the index of refraction and hold the effective radius constant.

When we vary the index of refraction in the model calculations, it is obvious that there is better agreement between the calculations and observations with more variability. This is especially evident at the SACOL and Taihu sites which exhibited different indices of refraction for the winter and spring cases (Figure 7). The calculated ωo(λ) values at SACOL are still higher than the observed ones for the winter case, however, they are within one standard deviation (Figure 7(a)). There is also better agreement in the spring case as well. The Xianghe winter and spring cases do not drastically change because there are no big differences in particle size and index of refraction between the two cases (Figure 7(b)). At the Taihu site, it is evident that varying the index of refraction better accounts for the wide variety of absorbing aerosols in a mineral dust/carbonaceous mixture in both the winter and spring cases (Figure 7(c)).

3.4. Aerosol Radiative Effect

To quantitatively estimate the impact of the dust events on the surface and Top-of-Atmosphere (TOA) radiation budgets, we use the AERONET calculated shortwave (SW) aerosol radiative effects (ARE). It is defined as the difference between the net bottom and top of the atmosphere (BOA and TOA) fluxes when dust aerosols are present, as well as the nearby clear-sky days (FiBOA and FhTOA) and modeled SW fluxes without aerosol input (Fi0BOA and Fh0TOA), and is given by

ΔAREBOA = FiBOA – Fi0BOA
and
ΔARETOA = FhTOA – Fh0TOA
respectively [24,25]. This is a simulated product that uses a combination of sky radiance measurements and radiative transfer theory [24,25]. The criteria for selecting the clear days are: (1) τ440 ≤ 0.3 and (2) clear sky occurrence before and after the dust events.

We note that there is a sharp increase in ARE during the dust events with AREBOA > ARETOA which suggests a stronger aerosol cooling effect at the surface than at the TOA (Table 3). The strongest ARE is observed at the Taihu site where the ARE values exceed −155 W·m−2 near the surface and −60 W·m−2 for the TOA spring case. This is due to dust mixing with carbonaceous aerosols (local pollution) leading to an overall enhanced absorption [14]. This is consistent with the [13], [14], and [15] studies that used Shouxian ARM Mobile Facility (AMF), Zhangye AMF, and AERONET data, respectively.

Table 3. Summary of the AERONET calculated BOA (2 km) and TOA (120 km) aerosol radiative effect (ARE) values.

Click here to display table

Table 3. Summary of the AERONET calculated BOA (2 km) and TOA (120 km) aerosol radiative effect (ARE) values.
The clear-sky values were taken just before and after the dust event where τ440 < 0.3 and the ARE values for both clear-sky and dust events are calculated against the modeled fluxes without aerosol using Equation (2). Note that the Taihu site has the highest mean clear-sky ARE due to persistent haze from numerous nearby urban and industrial influences (i.e., very few “clear day” instances).
AERONET SiteBOA ARE Values (W·m−2)
Clear Sky (before)Dust EventClear Sky (after)
SACOL (winter)−52.9−101.1−60.6
SACOL (spring)−48.5−136.7−52.5
Xianghe (winter)−64.2−106.4−39.8
Xianghe (spring)−40.7−83.0−42.1
Taihu (winter)−45.5−177.3−60.0
Taihu (spring)−66.9−155.3−40.8
AERONET SiteTOA ARE Values (W·m−2)
Clear Sky (before)Dust EventClear Sky (after)
SACOL (winter)−17.0−40.9−13.1
SACOL (spring)−4.5−40.9−8.5
Xianghe (winter)−15.3−46.0−8.6
Xianghe (spring)−17.1−29.7−9.1
Taihu (winter)−19.0−21.0−17.2
Taihu (spring)−27.3−60.4−26.5

4. Conclusions

The optical properties of mineral dust from two dust events are analyzed and compared to theoretical calculations in this study. For the winter case, the aerosol properties at SACOL, Xianghe and Taihu are shown to be a mixture of carbonaceous particles (from local sources) and mineral dust as demonstrated by their α440–870 values of 0.29, 0.48, and 0.62, respectively. In contrast, for the spring case their aerosol properties are primarily mineral dust dominant with α440–870 of 0.11, 0.42, and 0.15, respectively. Carbonaceous particles are shown to influence the absorptive properties of the mineral dust in the winter case especially at SACOL and Taihu but less at Xianghe where the αabs440–870 values are 1.3, 1.3, and 1.8, respectively. During the spring, higher αabs440−870 values of 1.7 (SACOL) and 2.5 (Taihu) suggest that mineral dust dominates the absorptive properties of the aerosols. The lower αabs440–870 value of 1.6 at Xianghe indicates dust with some carbonaceous influences similar to SACOL and Taihu in the winter case.

A theoretical model based on geometric and mathematical calculations is used to compare with the AERONET retrieved aerosol parameters. The AERONET inversion algorithms employ a spheroidal particle shape assumption while the model assumes a tri-axial ellipsoidal shape. We conclude that although shape as well as size is important, the particle absorptive behavior should also be taken into account especially when mixtures of particle types are present. The winter cases at SACOL and Taihu show poor agreement between theory and observation when the effective radius is varied while holding the index of refraction constant. This is due to the wide variety of mineral dust and carbonaceous aerosols particles in the mixture that likely have different indices of refraction. Xianghe has similar indices of refraction for both winter and spring cases leading to good agreement between model and observation results. The spring cases exhibited better agreement than the winter cases because mineral dust was more dominant during the spring season at all three sites. Better agreement between theory and observation at all three sites is observed when the index of refraction is varied while holding the effective radius constant. This suggests the model is more sensitive to the particle absorptive properties rather than the size, especially when dealing with retrieving aerosol properties of mineral dust and carbonaceous particle mixtures. In light of these results it should be mentioned that when the index of refraction is held constant while the effective radius varies, there is less variability in the model than when the opposite is done. When aerosols have both similar size and composition (e.g., the Xianghe site), the model and observation results have sufficient agreement such that both scenarios can be used.
