Intrachromosomal Rearrangements in Rodents from the Perspective of Comparative Region-Specific Painting

1
Institute of Molecular and Cellular Biology, Siberian Branch of the Russian Academy of Sciences, 630090 Novosibirsk, Russia
2
Synthetic Biological Unit, Novosibirsk State University, 630090 Novosibirsk, Russia
3
A.N. Severtsov Institute of Ecology and Evolution, Russian Academy of Sciences, 119071 Moscow, Russia
4
Zoological Institute, Russian Academy of Sciences, 199034 Saint-Petersburg, Russia
5
Department of Biology, Anthropology Laboratories, University of Florence, 50122 Florence, Italy
*
Author to whom correspondence should be addressed.
Genes 2017, 8(9), 215; https://doi.org/10.3390/genes8090215
Submission received: 11 July 2017 / Revised: 22 August 2017 / Accepted: 23 August 2017 / Published: 30 August 2017
(This article belongs to the Special Issue Chromosomal Evolution)

Abstract

:
It has long been hypothesized that chromosomal rearrangements play a central role in different evolutionary processes, particularly in speciation and adaptation. Interchromosomal rearrangements have been extensively mapped using chromosome painting. However, intrachromosomal rearrangements have only been described using molecular cytogenetics in a limited number of mammals, including a few rodent species. This situation is unfortunate because intrachromosomal rearrangements are more abundant than interchromosomal rearrangements and probably contain essential phylogenomic information. Significant progress in the detection of intrachromosomal rearrangement is now possible, due to recent advances in molecular biology and bioinformatics. We investigated the level of intrachromosomal rearrangement in the Arvicolinae subfamily, a species-rich taxon characterized by very high rate of karyotype evolution. We made a set of region specific probes by microdissection for a single syntenic region represented by the p-arm of chromosome 1 of Alexandromys oeconomus, and hybridized the probes onto the chromosomes of four arvicolines (Microtus agrestis, Microtus arvalis, Myodes rutilus, and Dicrostonyx torquatus). These experiments allowed us to show the intrachromosomal rearrangements in the subfamily at a significantly higher level of resolution than previously described. We found a number of paracentric inversions in the karyotypes of M. agrestis and M. rutilus, as well as multiple inversions and a centromere shift in the karyotype of M. arvalis. We propose that during karyotype evolution, arvicolines underwent a significant number of complex intrachromosomal rearrangements that were not previously detected.

1. Introduction

Classical chromosome staining and banding allows some appreciation of the extent of chromosomal evolution across animal species. Molecular cytogenetics puts karyological comparisons onto a more secure footing. Chromosome painting has allowed researchers to access, with a high degree of confidence, interchromosomal rearrangements that differentiate mammalian karyotypes over evolutionary time. Well over 100 species of mammals were studied with chromosomal painting. The method has mapped evolutionary conserved syntenic segments, fusions, and fissions over a wide phylogenetic array of species. These data were sufficient to make reasonable hypotheses on a fundamental goal of comparative cytogenetics—the reconstruction of ancestral karyotypes at principal phylogenetic nodes on the placental mammalian tree.
The advent of whole-genomic sequencing has provided new tools for the analysis of genome-scale data and comparison of species genomes at the level of DNA sequence. Bioinformatics led to a series of attempts to reconstruct the architecture of the ancestral eutherian karyotype [1,2,3]. Although these early sequence level reconstructions of the ancestral genome of placental mammals supported most chromosome painting results, there was also a significant number of differences. It is necessary to carefully evaluate why these methods often yielded different results.
Both approaches reconstruct evolutionary genomic changes by identifying the most parsimonious number of rearrangements of ancestral building blocks, albeit on vastly different scales. As expected, bioinformatics revealed more conserved segments and a higher number of syntenic associations then cytogenetics. However, it is important to note that the differences did not correlate with increased resolution provided by DNA sequence comparisons [3]. The discrepancy between cytogenetic and bioinformatic models of the ancestral genome are better explained by the limited taxon sampling and/or algorithms in bioinformatic analysis that do not take into account evolutionary rate variation among lineages [3]. This conclusion is supported by the fact that over time, as more genome assemblies and better algorithms became available, the bioinformatics and cytogenetic views of the ancestral genome converged [4]. However, there still remain significant differences.
The main weakness of the most commonly used molecular cytogenetics method, chromosome painting, is that intrachromosomal rearrangements go undetected [5]. At the molecular cytogenetic level, intrachromosomal rearrangements can be identified by hybridizing cloned DNA such as bacterial artificial chromosomes (BACs) or probes specific for particular chromosome regions, such as those derived from microdissection. However, up to now, these methods were only used in a limited number of mammalian taxa: marsupials, Primates, Carnivora, Rodentia, Chiroptera, Perissodactyla (see Table 1 in [6,7,8]).
Probes obtained by microdissection were first applied to, and mainly used for clinical analysis, but they have also proved to be useful tools for comparative genomics. Microdissection-derived regional chromosome probes were efficiently used to determine the orientation of conserved blocks within a chromosome, the order of subchromosomal segments within large syntenic blocks, and were especially helpful in identifying intrachromosomal rearrangements [9,10].
The use of cloned DNA probes in fluorescence in situ hybridization (FISH) such as BACs not only permitted high-resolution investigations, but efficiently revealed intrachromosmomal rearrangements such as inversions at even a higher level of resolution. Results of BAC-FISH investigations of primate genomes led to the discovery of a new type of rearrangement—centromere repositioning or shift [11], that is, the movement of the centromere without a change in marker order (i.e., without inversions). It is notable that this phenomenon is very arduous to track, and was not discovered at the DNA sequence level. Later it was shown that this type of rearrangement is not rare, and centromere shifts have frequently led to the evolutionary emergence of new centromeres in many different groups of mammals [12,13,14,15].
Arvicolinae is a subfamily of more than 150 species of rodents characterized by great karyotypic variability. This variability was generated over a relatively short period of evolutionary time—less than 10 million years [16,17]. Arvicolinae is a taxonomically complex and debated group of rodents. Some researchers recognize 26 genera divided into ten tribes but with two genera of unknown positions [18]. A more recent publication taking Russian fauna into consideration recognized 30–32 genera, grouped into 10–11 tribes [19].
The entire subfamily represents a useful model to study chromosomal evolution. Comparative cytogenetic investigations have shown that many fusion/fission rearrangements occurred in the evolution of the subfamily [20,21,22,23]. Centromeric shifts were also suggested as a mechanism that helped differentiate the karyotypes of common voles of the Microtus arvalis group [24]. It was sometimes proposed that inversions, with variable contributions in different phylogenetic lineages, have probably played an important role in the karyotype evolution of Arvicolinae [20,21,23].
Here, we focused on the evolutionary conserved syntenic block 7 of the ancestral Arvicolinae karyotype (AAK, [25]). The region is homologous to the distal part of chromosome 1 of Microtus agrestis (MAGR) and is present as a separate chromosome in the majority of vole species studied and in some other arvicolines [20,21,22,25]. Although this chromosome varies little in G-banding, the position of the centromere varies considerably. The different morphologies of this conserved syntenic block suggest that it has been altered by centromere shifts, as well as other types of intrachromosomal rearrangements [20]. We generated a set of region-specific probes from the p-arm of Alexandromys oeconomus (tribe Arvicolini) chromosome 1 (AOEC1 = AAK7) by microdissection. For analysis, we chose Myodes rutilus (MRUT) and Dicrostonyx torquatus (DTOR) representing tribes Myodini and Dicrostonychini in Arvicolinae, and Microtus agrestis and Microtus arvalis (MARV), belonging to the Arvicolini. Comparative chromosome painting of this set of probes in four representative arvicoline species uncovered a number of cryptic intrachromosomal rearrangements, and provides an explanation for changes in centromere position.

2. Materials and Methods

2.1. Ethics Approval

All experiments were approved by the Ethics Committee on Animal Experiments of the Institute of Molecular and Cellular Biology, Siberian Branch of the Russian Academy of Sciences, Russia (approval No. 31 of August 6, 2015).

2.2. Species Sampled

M. agrestis, M. arvalis, A. oeconomus, M. rutilus, and D. torquatus cell lines were retrieved from the IMCB SB RAS cell bank (“The general collection of cell cultures”, No. 0310-2016-0002). The origin of each sample, establishment of cell lines, and karyotype description for each species studied were previously reported [20,22,26].

2.3. Chromosome Preparation and Chromosome Staining

Chromosome suspensions were obtained from cell lines according to earlier published protocols [27,28]. G-banding was performed on chromosomes of all species prior to FISH, using the standard trypsin/Giemsa treatment procedure [29].

2.4. Microdissection, Probe Amplification and Labeling

Microdissection of the p-arm of the A. oeconomus chromosome 1 was performed on G-banded chromosomes as described in [30]. Ten copies of each region were collected. Chromosomal DNA was amplified and labeled using WGA kits (Sigma-Aldrich, Saint Louis, MO, USA). In total, we obtained five region-specific painting probes covering the whole p-arm of the AOEC chromosome 1.

2.5. Fluorescence in situ Hybridization

The painting probes were labeled with either biotin or digoxigenin by degenerate oligonucleotide-primed polymerase chain reaction amplification as described previously [22,26,31,32]. We used dual-color FISH with different pairwise combinations of probes to establish their relative localization. FISH was performed according to previously published protocols [33,34]. Images were captured using VideoTest-FISH software (Zenit, Saint-Petersburg, Russia) with a JenOptic charge-coupled device (CCD) camera (Jena, Germany) mounted on an Olympus BX53 microscope (Shinjuku, Japan). Hybridization signals were assigned to specific chromosome regions defined by G-banding pattern captured by the CCD camera prior to FISH. All images were processed using Corel Paint Shop Pro X2 (Corel, Ottawa, ON, Canada).

3. Results

We made a set of region-specific painting probes of the p-arm of chromosome 1 of A. oeconomus (Arvicolini tribe). FISH was performed on metaphase chromosomes of selected species to define the precise localization of each probe. In total, we obtained five partly overlapping probes covering the whole p-arm of AOEC1 = AAK7 (Figure 1). Based on comparative chromosomal studies, the size of AOEC1p approximately corresponded to mouse chromosome 9 [26]. According to the assembly of the mouse genome GRCm38/mm10, the size of the chromosome is 124 Mbp, so a rough estimate of each microdissected probe size was about 25 Mb.
The set of probes was used for the comparison of the chromosomes of four species: M. agrestis and M. arvalis (both from the Arvicolini tribe), M. rutilus (Myodini), and D. torquatus (Dicrostonychini). In all cases, the probes produced clear and bright signals sufficient for comparative investigation. Examples of fluorescence in situ hybridizations are shown in Figure 2.
The set of probes marked chromosome 8 of D. torquatus. The pattern of the probe distribution was the same as in the karyotype of A. oeconomus (Figure 2). A similar localization of the probes was seen in the distal part of M. agrestis chromosome 1. However, probe 1.5. produced a small signal in the pericentromeric region of the chromosome of M. agrestis (Figure 2).
Five probes hybridized the q-arm of chromosome 2 in the karyotype of M. arvalis and demonstrated the presence of intrachromosomal rearrangements (Figure 3a). In the karyotype of M. rutilus, probes 1.1., 1.3., and 1.4. each produced two signals on chromosome 3 (Figure 3b).
In the karyotypes of D. torquatus, M. agrestis, and A. oeconomus, we detected a similar hybridization pattern by the probes (Figure 1). We suggest that the probe order found in D. torquatus, M. agrestis, and A. oeconomus could be considered as ancestral for at least the Microtus genus. Probe 1.5. produced small signals in the pericentromeric region of chromosome 1 of M. agrestis (Figure 2) which may have been due to repeat sequences. This probe was derived from the pericentromeric region of AOEC1, and could include some repeated sequences that had high homology to the pericentromeric region sequences of various arvicolines.
The localization of the five probes on M. arvalis chromosome 2 is best interpreted as due to intrachromosomal rearrangements. In Figure 3b we illustrated the hypothesized changes that may have led to formation of the hybridization pattern that we found, as compared to the ancestral pattern. We propose that a centromere shift has occurred. Apparently, two paracentric inversions reshuffled syntenic blocks of the M. arvalis chromosome 2q. In M. rutilus, multiple signals given by probes 1.1., 1.3., and 1.4. indicated the probable presence of two paracentric inversions, which gave origin to the chromosome MRUT3 (Figure 3a).

4. Discussion

Up to now, intrachromosomal rearrangements were identified by molecular cytogenetic methods in only a limited number of species. Whole chromosome-specific probes were mostly used to document interchromosomal rearrangements (translocations). Occasionally, chromosome paints also reveal intrachromosomal rearrangements such as inversions, but this is the exception, not the rule [23,35,36,37]. Most intrachromosomal rearrangements were identified according to the localization of different types of region-specific probes such as cloned DNA, microdissected probes, and bioinformatic approaches.
In mammals, the most thoroughly studied intrachromosomal rearrangements are those in primates, but data are available for some hoofed mammals, for which fine-scale comparative genomic data are available [38]. For example, the application of region-specific painting and BAC probes delineated the orientation of evolutionarily conserved segments with respect to centromere positions in Equidae [9,15,39]. FISH cohybridization experiments with BAC clones and bioinformatic methods clarified the mechanisms of karyotype evolution in the taxon, showing that the centromere indeed changed its position during evolution [40,41,42]. Extensive investigations of primates allowed researchers to identify a significant number of cryptic intrachromosomal rearrangements differentiating the karyotypes of monkeys and humans [6,43,44,45]. The mapping of mouse complementary DNA clones of X-linked genes showed that the X chromosomes of two species of Ryukyu spiny rat differed by centromere repositioning [46].
Microdissected derived probes showed that intrachromosomal rearrangements distinguished the X chromosomes of two African antelope species [47]. Investigations using microdissected probes also showed that the X chromosome of five Microtus species differed due to intrachromosomal rearrangements [48]. Cross-species comparative multicolor banding with probes obtained from mouse chromosomes allowed cytogeneticists to detect inversions and evolutionary new centromeres in nine muroid species [7]. It is important to note that in some cases, intrachromosomal rearrangements have provided important phylogenetic information, as for example in Bovidae [47,49].
The Arvicolinae present one of the best models to investigate intrachromosomal rearrangements. First of all, molecular data have recently resolved the main phylogenetic branches and eliminated long standing taxonomic problems in the subfamily [16,17,50]. Secondly, there are karyotypes for almost all species, conserved segments have been identified, and an ancestral karyotype of Arvicolinae has been reconstructed [20,22,25]. Finally, the presence of sibling species (morphologically similar, but with distinct karyotypes) makes cytogenetic data particularly important for the identification of some arvicoline species, particularly in voles [51]. However, cladistic analysis of chromosomal characters, in spite of the great karyotype variability between species, has not yet resolved phylogenomic relationships between some species. This lack of resolution was probably due to the predominance of Robertsonian rearrangements, which are prone to convergence [20,22]. To resolve this problem, it was proposed that documenting intrachromosomal rearrangements within large conserved syntenic blocks might help to resolve at least some of these complex relationships [20]. Further, the identification and description of rearrangements inside conserved segments may well contribute to a better understanding of the mechanisms of karyotype evolution.
AAK7 is a large ancestral segment that was preserved intact in the genomes of all arvicoline studied, and has similar G-banding patterns, but different centromere positions [20,25]. To identify rearrangements in the conserved syntenic block, we generated a set of region-specific probes from the p-arm of A. oeconomus chromosome 1 (AOEC1 = AAK7) by microdissection. This species was selected because its low chromosome number allows easy chromosome identification on a metaphase plate for microdissection. For analysis, we chose four species representing different arvicoline genera and tribes: (1) D. torquatus (tribe Dicrostonychini), (2) M. rutilus belonging to tribe Myodini, (3) M. agrestis, and (4) M. arvalis, which both belong to the Microtus subgenus inside the Arvicolini tribe. Genus Dicrostonyx is one of the most basal arvicolines, it diverged about 6.4 million years ago (MYA). The tribe Myodini diverged about 3.2. MYA. Probes were obtained from A. oeconomus, which belong to the Alexandromys subgenus (1.9 MYA) of the Arvicolini tribe and diverged earlier than the Microtus subgenus (1.4 MYA) which is part of the same tribe [16,17,50].
The considerable number of intrachromosomal rearrangements that were detected in the karyotypes of these four species supports the hypothesis that inversions and centromere shifts are frequent in the karyotype evolution of animals. The results also support the conclusion that the frequency and importance of intrachromosomal rearrangements is often significantly underestimated, especially in some groups of species [52,53,54].

5. Conclusions

Previously, it was proposed that intrachromosomal rearrangements may be up to four times more frequent than other chromosomal rearrangements; however, chromosome painting—the most commonly used molecular cytogenetic method—leaves almost all inversions undetected [20,55]. The application of region-specific probes has, up to now, been limited. Here, we investigated the so-called evolutionarily conserved syntenic autosomal elements in Arvicolinae by using region-specific paints. We were able to document numerous intrachromosomal rearrangements, and found that chromosomes have been subject to significant reshuffling in at least two of the four species studied. It is clear that inversions and centromere repositioning in mammalian species still remains poorly documented. A reliable evaluation of the importance of these types of rearrangements for karyotype evolution and their utility for phylogenomics will require further investigations involving a broader array of species, and wider application of region-specific probes.
Unfortunately, it is not yet possible to make broad bioinformatic comparisons of arvicoline genomes because of limited whole-genome sequencing data for the taxon. However, we need to stress that in some cases, it is very difficult to identify intrachromosomal rearrangements, even with the use of bioinformatics. This requires not only the data from full genome sequencing, but also a high quality and full chromosome assembly based on physical or optical mapping. Assemblies based on a reference genome are not sufficient. Furthermore, detection and investigation of intrachromosomal rearrangements in Arvicolinae with microdissection-derived or other region-specific probes will be useful not only for resolving complex phylogenetic relationships, but also for uncovering the mechanisms of chromosome evolution, and for the clarification of the role of chromosome rearrangements in the speciation of this spectacularly diverse taxon.

Acknowledgments

The cell culture part of this work and the whole range of molecular cytogenetics work were funded by RSF No. 16-14-10009 (A.S.G.), and the animal collection was funded by RFBR No. 16-04-00983-a (F.N.G.).

Author Contributions

S.A.R. established cell lines, made chromosome suspensions, carried out microdissections, probe amplification, microscopy analysis, and wrote the manuscript. N.A.S. extracted Cot DNA, labeled and prepared probes for FISH, optimized and carried out FISH experiments. F.N.G., N.S.B. and S.V.P. provided samples and helped to draft the manuscript. P.L.P. and R.S. both contributed to writing the manuscript. A.S.G. conceived and supervised the project, discussed the results, and helped to draft the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Murphy, W.J.; Larkin, D.M.; Everts-van der Wind, A.; Bourque, G.; Tesler, G.; Auvil, L.; Beever, J.E.; Chowdhary, B.P.; Galibert, F.; Gatzke, L. Others Dynamics of mammalian chromosome evolution inferred from multispecies comparative maps. Science 2005, 309, 613–617. [Google Scholar] [CrossRef] [PubMed]
  2. Ma, J.; Zhang, L.; Suh, B.B.; Raney, B.J.; Burhans, R.C.; Kent, W.J.; Blanchette, M.; Haussler, D.; Miller, W. Reconstructing contiguous regions of an ancestral genome. Genome Res. 2006, 16, 1557–1565. [Google Scholar] [CrossRef] [PubMed]
  3. Froenicke, L.; Caldés, M.G.; Graphodatsky, A.; Müller, S.; Lyons, L.A.; Robinson, T.J.; Volleth, M.; Yang, F.; Wienberg, J. Are molecular cytogenetics and bioinformatics suggesting diverging models of ancestral mammalian genomes? Genome Res. 2006, 16, 306–310. [Google Scholar] [CrossRef] [PubMed]
  4. Kim, J.; Farré, M.; Auvil, L.; Capitanu, B.; Larkin, D.M.; Ma, J.; Lewin, H.A. Reconstruction and evolutionary history of eutherian chromosomes. Proc. Natl. Acad. Sci. USA 2017. [Google Scholar] [CrossRef] [PubMed]
  5. Ferguson-Smith, M.A.; Trifonov, V. Mammalian karyotype evolution. Nat. Rev. Genet. 2007, 8, 950–962. [Google Scholar] [CrossRef] [PubMed]
  6. Rocchi, M.; Archidiacono, N.; Schempp, W.; Capozzi, O.; Stanyon, R. Centromere repositioning in mammals. Heredity 2012, 108, 59–67. [Google Scholar] [CrossRef] [PubMed]
  7. Trifonov, V.A.; Kosyakova, N.; Romanenko, S.A.; Stanyon, R.; Graphodatsky, A.S.; Liehr, T. New insights into the karyotypic evolution in muroid rodents revealed by multicolor banding applying murine probes. Chromosom. Res. 2010, 18, 265–275. [Google Scholar] [CrossRef] [PubMed]
  8. Volleth, M.; Eick, G. Chromosome evolution in bats as revealed by FISH: The ongoing search for the ancestral chiropteran karyotype. Cytogenet. Genome Res. 2012, 137, 165–173. [Google Scholar] [CrossRef] [PubMed]
  9. Musilova, P.; Kubickova, S.; Horin, P.; Vodička, R.; Rubes, J. Karyotypic relationships in Asiatic asses (kulan and kiang) as defined using horse chromosome arm-specific and region-specific probes. Chromosom. Res. 2009, 17, 783–790. [Google Scholar] [CrossRef] [PubMed]
  10. Goldammer, T.; Brunner, R.M.; Schwerin, M. Comparative analysis of Y chromosome structure in Bos taurus and B. indicus by FISH using region-specific, microdissected, and locus-specific DNA probes. Cytogenet. Genome Res. 1997, 77, 238–241. [Google Scholar] [CrossRef]
  11. Montefalcone, G.; Tempesta, S.; Rocchi, M.; Archidiacono, N. Centromere repositioning. Genome Res. 1999, 9, 1184–1188. [Google Scholar] [CrossRef] [PubMed]
  12. Capozzi, O.; Carbone, L.; Stanyon, R.R.; Marra, A.; Yang, F.; Whelan, C.W.; De Jong, P.J.; Rocchi, M.; Archidiacono, N. A comprehensive molecular cytogenetic analysis of chromosome rearrangements in gibbons. Genome Res. 2012, 22, 2520–2528. [Google Scholar] [CrossRef] [PubMed]
  13. Di-Nizo, C.B.; Ventura, K.; Ferguson-Smith, M.A.; O’Brien, P.C.; Yonenaga-Yassuda, Y.; Silva, M.J. Comparative Chromosome Painting in Six Species of Oligoryzomys (Rodentia, Sigmodontinae) and the Karyotype Evolution of the Genus. PLoS ONE 2015, 10, e0117579. [Google Scholar] [CrossRef] [PubMed]
  14. Chiatante, G.; Capozzi, O.; Svartman, M.; Perelman, P.; Centrone, L.; Romanenko, S.S.; Ishida, T.; Valeri, M.; Roelke-Parker, M.E.; Stanyon, R. Centromere repositioning explains fundamental number variability in the New World monkey genus Saimiri. Chromosoma 2017, 126, 519–529. [Google Scholar] [CrossRef] [PubMed]
  15. Musilova, P.; Kubickova, S.; Vahala, J.; Rubes, J. Subchromosomal karyotype evolution in Equidae. Chromosom. Res. 2013, 21, 175–187. [Google Scholar] [CrossRef] [PubMed]
  16. Galewski, T.; Tilak, M.; Sanchez, S.; Chevret, P.; Paradis, E.; Douzery, E.J.P. The evolutionary radiation of Arvicolinae rodents (voles and lemmings): Relative contribution of nuclear and mitochondrial DNA phylogenies-art. No. 80. BMC Evol. Biol. 2006, 6. [Google Scholar] [CrossRef] [PubMed]
  17. Abramson, N.I.; Lebedev, V.S.; Tesakov, A.S.; Bannikova, A.A. Supraspecies relationships in the subfamily Arvicolinae (Rodentia, Cricetidae): An unexpected result of nuclear gene analysis. Mol. Biol. 2009, 43, 834–846. [Google Scholar] [CrossRef]
  18. Wilson, D.E.; Reeder, D.M. Mammal Species of the World: A Taxonomic and Geographic Reference; JHU Press: Baltimore, MD, USA, 2005; Volume 1. [Google Scholar]
  19. Pavlinov, I.Y.; Lissovsky, A.A. The Mammals of Russia: A Taxonomic and Geographic Reference; KMK Scientific Press: Moscow, Russia, 2012. [Google Scholar]
  20. Lemskaya, N.A.; Romanenko, S.A.; Golenishchev, F.N.; Rubtsova, N.V.; Sablina, O.V.; Serdukova, N.A.; O’Brien, P.C.M.; Fu, B.; Yiğit, N.; Ferguson-Smith, M.A.; et al. Chromosomal evolution of Arvicolinae (Cricetidae, Rodentia). III. Karyotype relationships of ten Microtus species. Chromosom. Res. 2010, 18, 459–471. [Google Scholar] [CrossRef] [PubMed]
  21. Romanenko, S.A.; Sitnikova, N.A.; Serdukova, N.A.; Perelman, P.L.; Rubtsova, N.V.; Bakloushinskaya, I.Y.; Lyapunova, E.A.; Just, W.; Ferguson-Smith, M.A.; Yang, F. Others Chromosomal evolution of Arvicolinae (Cricetidae, Rodentia). II. The genome homology of two mole voles (genus Ellobius), the field vole and golden hamster revealed by comparative chromosome painting. Chromosom. Res. 2007, 15, 891–897. [Google Scholar] [CrossRef] [PubMed]
  22. Romanenko, S.A.; Lemskaya, N.A.; Trifonov, V.A.; Serdyukova, N.A.; O’Brien, P.C.M.; Bulatova, N.S.; Golenishchev, F.N.; Ferguson-Smith, M.A.; Yang, F.; Graphodatsky, A.S. Genome-wide comparative chromosome maps of Arvicola amphibius, Dicrostonyx torquatus, and Myodes rutilus. Chromosom. Res. 2016, 24, 145–159. [Google Scholar] [CrossRef] [PubMed]
  23. Lemskaya, N.A.; Kartavtseva, I.V.; Rubtsova, N.V.; Golenishchev, F.N.; Sheremetyeva, I.N.; Graphodatsky, A.S. Chromosome Polymorphism in Microtus (Alexandromys) mujanensis (Arvicolinae, Rodentia). Cytogenet. Genome Res. 2015, 146, 238–242. [Google Scholar] [CrossRef] [PubMed]
  24. Mazurok, N.A.; Rubtsova, N.V.; Isaenko, A.A.; Pavlova, M.E.; Slobodyanyuk, S.Y.; Nesterova, T.B.; Zakian, S.M. Comparative chromosome and mitochondrial DNA analyses and phylogenetic relationships within common voles (Microtus, Arvicolidae). Chromosom. Res. 2001, 9, 107–120. [Google Scholar] [CrossRef]
  25. Gladkikh, O.L.; Romanenko, S.A.; Lemskaya, N.A.; Serdyukova, N.A.; O’Brien, P.C.; Kovalskaya, J.M.; Smorkatcheva, A.V.; Golenishchev, F.N.; Perelman, P.L.; Trifonov, V.A. Others Rapid Karyotype Evolution in Lasiopodomys Involved at Least Two Autosome–Sex Chromosome Translocations. PLoS ONE 2016, 11, e0167653. [Google Scholar] [CrossRef] [PubMed]
  26. Sitnikova, N.A.; Romanenko, S.A.; O’Brien, P.C.M.; Perelman, P.L.; Fu, B.; Rubtsova, N.V.; Serdukova, N.A.; Golenishchev, F.N.; Trifonov, V.A.; Ferguson-Smith, M.A.; et al. Chromosomal evolution of Arvicolinae (Cricetidae, Rodentia). I. The genome homology of tundra vole, field vole, mouse and golden hamster revealed by comparative chromosome painting. Chromosom. Res. 2007, 15, 447–456. [Google Scholar] [CrossRef] [PubMed]
  27. Romanenko, S.A.; Biltueva, L.S.; Serdyukova, N.A.; Kulemzina, A.I.; Beklemisheva, V.R.; Gladkikh, O.L.; Lemskaya, N.A.; Interesova, E.A.; Korentovich, M.A.; Vorobieva, N.V.; et al. Segmental paleotetraploidy revealed in sterlet (Acipenser ruthenus) genome by chromosome painting. Mol. Cytogenet. 2015, 8. [Google Scholar] [CrossRef] [PubMed]
  28. Stanyon, R.; Galleni, L. A rapid fibroblast culture technique for high resolution karyotypes. Ital. J. Zool. 1991, 58, 81–83. [Google Scholar] [CrossRef]
  29. Seabright, M. A rapid banding technique for human chromosomes. Lancet Lond. Engl. 1971, 2, 971–972. [Google Scholar] [CrossRef]
  30. Yang, F.; Trifonov, V.; Ng, B.L.; Kosyakova, N.; Carter, N.P. Generation of Paint Probes from Flow-Sorted and Microdissected Chromosomes. In Fluorescence in Situ Hybridization (FISH); Liehr, T., Ed.; Springer Protocols Handbooks; Springer: Berlin/Heidelberg, Germany, 2017. [Google Scholar]
  31. Telenius, H.; Ponder, B.A.; Tunnacliffe, A.; Pelmear, A.H.; Carter, N.P.; Ferguson-Smith, M.A.; Behmel, A.; Nordenskjöld, M.; Pfragner, R. Cytogenetic analysis by chromosome painting using DOP-PCR amplified flow-sorted chromosomes. Genes. Chromosom. Cancer 1992, 4, 257–263. [Google Scholar] [CrossRef] [PubMed]
  32. Yang, F.; Carter, N.P.; Shi, L.; Ferguson-Smith, M.A. A comparative study of karyotypes of muntjacs by chromosome painting. Chromosoma 1995, 103, 642–652. [Google Scholar] [CrossRef] [PubMed]
  33. Graphodatsky, A.S.; Sablina, O.V.; Meyer, M.N.; Malikov, V.G.; Isakova, E.A.; Trifonov, V.A.; Polyakov, A.V.; Lushnikova, T.P.; Vorobieva, N.V.; Serdyukova, N.A.; et al. Comparative cytogenetics of hamsters of the genus Calomyscus. Cytogenet. Genome Res. 2000, 88, 296–304. [Google Scholar] [CrossRef]
  34. Yang, F.; O’Brien, P.C.M.; Milne, B.S.; Graphodatsky, A.S.; Solanky, N.; Trifonov, V.; Rens, W.; Sargan, D.; Ferguson-Smith, M.A. A Complete Comparative Chromosome Map for the Dog, Red Fox, and Human and Its Integration with Canine Genetic Maps. Genomics 1999, 62, 189–202. [Google Scholar] [CrossRef] [PubMed]
  35. Graphodatsky, A.S.; Yang, F.; Serdukova, N.; Perelman, P.; Zhdanova, N.S.; Ferguson-Smith, M.A. Dog chromosome-specific paints reveal evolutionary inter-and intrachromosomal rearrangements in the American mink and human. Cytogenet. Genome Res. 2000, 90, 275–278. [Google Scholar] [CrossRef]
  36. Robinson, T.J.; Wilson, V.; Gallagher, D.S., Jr.; Taylor, J.F.; Davis, S.K.; Harrison, W.R.; Elder, F.F. Chromosomal evolution in duiker antelope (Cephalophinae: Bovidae): Karyotype comparisons, fluorescence in situ hybridization, and rampant X chromosome variation. Cytogenet. Genome Res. 1996, 73, 116–122. [Google Scholar] [CrossRef]
  37. Kretschmer, R.; Gunski, R.J.; Garnero, A.D.V.; de Oliveira Furo, I.; O’Brien, P.C.; Ferguson-Smith, M.A.; de Oliveira, E.H.C. Molecular cytogenetic characterization of multiple intrachromosomal rearrangements in two representatives of the genus Turdus (Turdidae, Passeriformes). PLoS ONE 2014, 9, e103338. [Google Scholar] [CrossRef] [PubMed]
  38. Dobigny, G.; Britton-Davidian, J.; Robinson, T.J. Chromosomal polymorphism in mammals: An evolutionary perspective. Biol. Rev. 2015. [Google Scholar] [CrossRef] [PubMed]
  39. Raudsepp, T.; Lear, T.L.; Chowdhary, B.P. Comparative mapping in equids: The asine X chromosome is rearranged compared to horse and Hartmann’s mountain zebra. Cytogenet. Genome Res. 2002, 96, 206–209. [Google Scholar] [CrossRef] [PubMed]
  40. Purgato, S.; Belloni, E.; Piras, F.M.; Zoli, M.; Badiale, C.; Cerutti, F.; Mazzagatti, A.; Perini, G.; Della Valle, G.; Nergadze, S.G. Others Centromere sliding on a mammalian chromosome. Chromosoma 2015, 124, 277–287. [Google Scholar] [CrossRef] [PubMed]
  41. Carbone, L.; Nergadze, S.G.; Magnani, E.; Misceo, D.; Cardone, M.F.; Roberto, R.; Bertoni, L.; Attolini, C.; Piras, M.F.; de Jong, P. Others Evolutionary movement of centromeres in horse, donkey, and zebra. Genomics 2006, 87, 777–782. [Google Scholar] [CrossRef] [PubMed]
  42. Brooks, S.A.; Lear, T.L.; Adelson, D.L.; Bailey, E. A chromosome inversion near the KIT gene and the Tobiano spotting pattern in horses. Cytogenet. Genome Res. 2008, 119, 225–230. [Google Scholar] [CrossRef] [PubMed]
  43. Ventura, M.; Antonacci, F.; Cardone, M.F.; Stanyon, R.; D’Addabbo, P.; Cellamare, A.; Sprague, L.J.; Eichler, E.E.; Archidiacono, N.; Rocchi, M. Evolutionary formation of new centromeres in macaque. Science 2007, 316, 243–246. [Google Scholar] [CrossRef] [PubMed]
  44. Farré, M.; Micheletti, D.; Ruiz-Herrera, A. Recombination rates and genomic shuffling in human and chimpanzee—A new twist in the chromosomal speciation theory. Mol. Biol. Evol. 2013, 30, 853–864. [Google Scholar] [CrossRef] [PubMed]
  45. Navarro, A.; Barton, N.H. Chromosomal speciation and molecular divergence–accelerated evolution in rearranged chromosomes. Science 2003, 300, 321–324. [Google Scholar] [CrossRef] [PubMed]
  46. Kobayashi, T.; Yamada, F.; Hashimoto, T.; Abe, S.; Matsuda, Y.; Kuroiwa, A. Centromere repositioning in the X chromosome of XO/XO mammals, Ryukyu spiny rat. Chromosom. Res. 2008, 16, 587–593. [Google Scholar] [CrossRef] [PubMed]
  47. Robinson, T.J.; Harrison, W.R.; Ponce de León, A.; Elder, F.F.B. X chromosome evolution in the suni and eland antelope: Detection of homologous regions by fluorescence in situ hybridization and G-banding. Cytogenet. Genome Res. 1997, 77, 218–222. [Google Scholar] [CrossRef]
  48. Rubtsov, N.B.; Rubtsova, N.V.; Anopriyenko, O.V.; Karamysheva, T.V.; Shevchenko, A.I.; Mazurok, N.A.; Nesterova, T.B.; Zakian, S.M. Reorganization of the X chromosome in voles of the genus Microtus. Cytogenet. Genome Res. 2002, 99, 323–329. [Google Scholar] [CrossRef] [PubMed]
  49. Robinson, T.J.; Harrison, W.R.; Ponce de Leon, F.A.; Davis, S.K.; Elder, F.F.B. A molecular cytogenetic analysis of X chromosome repatterning in the Bovidae: Transpositions, inversions, and phylogenetic inference. Cytogenet. Genome Res. 1998, 80, 179–184. [Google Scholar] [CrossRef]
  50. Jaarola, M.; Martínková, N.; Gündüz, I.; Brunhoff, C.; Zima, J.; Nadachowski, A.; Amori, G.; Bulatova, N.S.; Chondropoulos, B.; Fraguedakis-Tsolis, S.; et al. Molecular phylogeny of the speciose vole genus Microtus (Arvicolinae, Rodentia) inferred from mitochondrial DNA sequences. Mol. Phylogenet. Evol. 2004, 33, 647–663. [Google Scholar] [CrossRef] [PubMed]
  51. Bulatova, N.S.; Pavlova, S.V.; Romanenko, S.A.; Serdiukova, N.A.; Golenishchev, F.N.; Malygin, V.M.; Lavrenchenko, L.A. Molecular cytogenetic markers of cryptic species and hybrids of the common vole superspecies complex Microtus arvalis s. l. Tsitologiia 2013, 55, 268–270. [Google Scholar] [PubMed]
  52. Romanenko, S.A.; Volobouev, V. Non-Sciuromorph Rodent Karyotypes in Evolution. Cytogenet. Genome Res. 2012, 137, 233–245. [Google Scholar] [CrossRef] [PubMed]
  53. Hoffmann, A.A.; Sgrò, C.M.; Weeks, A.R. Chromosomal inversion polymorphisms and adaptation. Trends Ecol. Evol. 2004, 19, 482–488. [Google Scholar] [CrossRef] [PubMed]
  54. Kirkpatrick, M.; Barton, N. Chromosome inversions, local adaptation and speciation. Genetics 2006, 173, 419–434. [Google Scholar] [CrossRef] [PubMed]
  55. Capozzi, O.; Archidiacono, N.; Lorusso, N.; Stanyon, R.; Rocchi, M. The 14/15 association as a paradigmatic example of tracing karyotype evolution in New World monkeys. Chromosoma 2016, 125, 747–756. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Localization of A. oeconomus region-specific probes onto chromosomes of members of the Arvicolinae. AOEC—A. oeconomus, MAGR—M. agrestis; MARV—M. arvalis; DTOR—D. torquatus. Colored lines and numerals correspond to individual microdissection-derived painting probes.
Figure 1. Localization of A. oeconomus region-specific probes onto chromosomes of members of the Arvicolinae. AOEC—A. oeconomus, MAGR—M. agrestis; MARV—M. arvalis; DTOR—D. torquatus. Colored lines and numerals correspond to individual microdissection-derived painting probes.
Genes 08 00215 g001
Figure 2. FISH of microdissection-derived painting probes on chromosomes of different species: (a) M. arvalis; (b) M. arvalis; (c) M. agrestis; (d) D. torquatus; (e) A. oeconomus; (f) D. torquatus. G-banded chromosomes are shown on the left, the image with localization of both probes—on the right. Separate images for the green and red signals are presented (e,f). Color-coded number of the probe is shown for each image.
Figure 2. FISH of microdissection-derived painting probes on chromosomes of different species: (a) M. arvalis; (b) M. arvalis; (c) M. agrestis; (d) D. torquatus; (e) A. oeconomus; (f) D. torquatus. G-banded chromosomes are shown on the left, the image with localization of both probes—on the right. Separate images for the green and red signals are presented (e,f). Color-coded number of the probe is shown for each image.
Genes 08 00215 g002

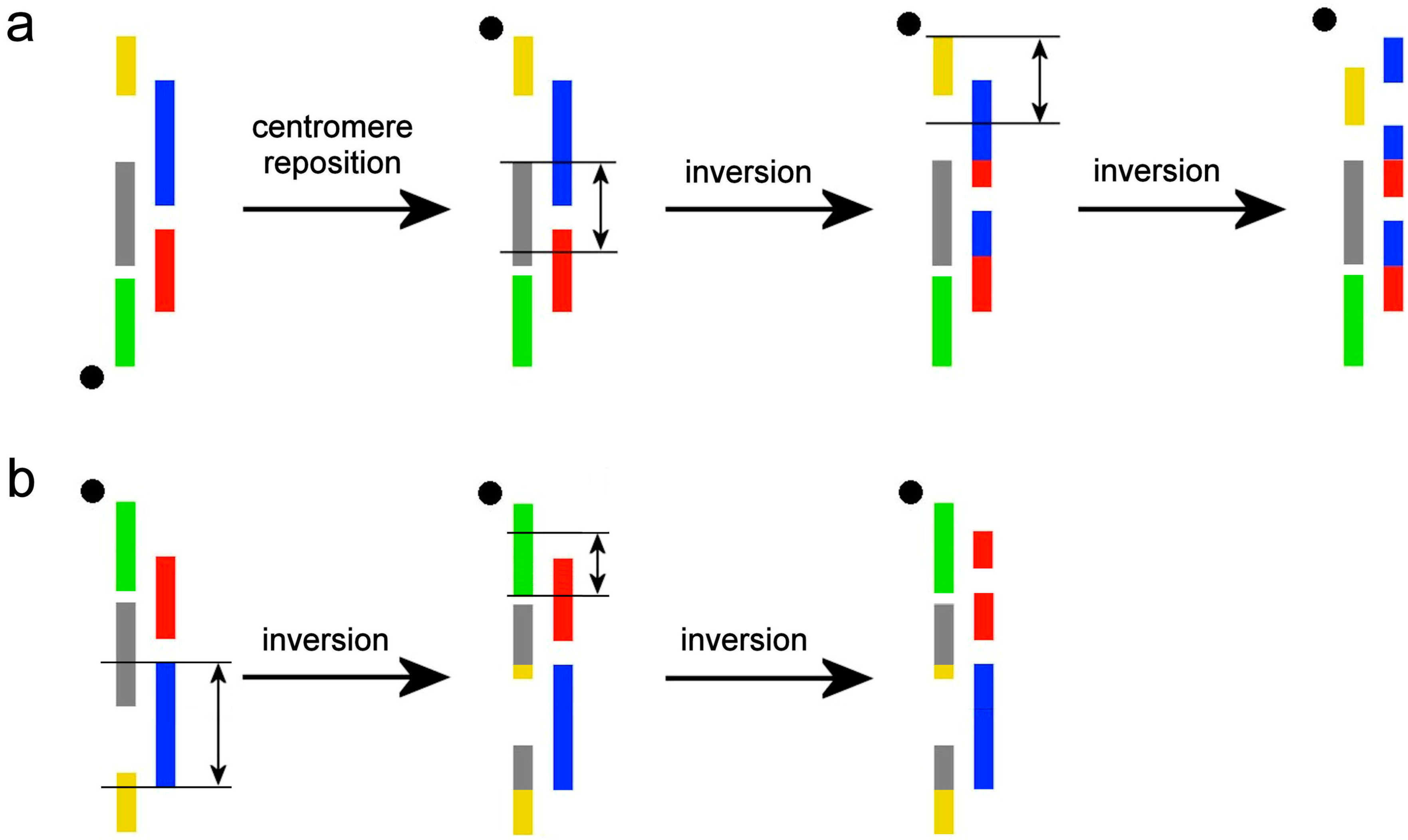

Figure 3. A putative scheme for intrachromosomal rearrangements (a) in the q-arm of M. arvalis chromosome 2; (b) in M. rutilus chromosome 3. The black circles mark the position of the centromere. The black lines and vertical arrows mark the regions of inversions. The colors of the microdissection-derived probes correspond to those on Figure 1.
