Article

Agronomic and Economic Benefits of Pea/Maize Intercropping Systems in Relation to N Fertilizer and Maize Density

1
College of Forestry, Gansu Agricultural University, Lanzhou 730070, China
2
Gansu Provincial Key Laboratory of Arid Land Crop Science/College of Agronomy, Gansu Agricultural University, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Agronomy 2018, 8(4), 52; https://doi.org/10.3390/agronomy8040052
Submission received: 15 March 2018 / Revised: 11 April 2018 / Accepted: 12 April 2018 / Published: 18 April 2018

Abstract

:
Intercropping has been shown to increase crop yields and improve land utilization in many cases but it is unknown how the interspecies relationship is enhanced with improved crop management schemes. In this study, we investigated the effect of different maize densities and N rates on the growth, crop yields and economic benefits of pea (Pisum sativum L.)/maize (Zea mays L.) intercropping. The results indicated that total yields of pea/maize intercropping were higher than the yield of maize alone, and that pea/maize intercropping improved land use efficiency significantly compared to sole crops, the partial land equivalent ratio (LER) of maize and pea with high planting density increased from 0.98% to 9.36% compared to low planting densities during 2012 and 2013. The pea strips provided significant compensatory effects on the growing maize after the earlier-sown, shorter-seasoned pea was harvested. The crop growth rate (CGR) of the intercropped maize was 18.5% to 216.9% greater than that of sole maize after pea harvest, the leaf area index (LAI) of pea/maize intercropping was 6.9% and 45.4% greater compared with the weighted average of sole maize and sole pea in 2012 and 2013, respectively. Net returns and benefit to cost ratios of pea/maize intercropping were increased with an increase of maize planting density. A low rate of N fertilizer was coupled with increased maize plant density, allowing interspecific facilitation to be fully expressed, thus improving the land utilization rate and increasing economic benefits. Overall, our findings show that a higher density of maize and lower N application can be used to increase grain production with no adverse effects on the growth components of either pea or maize crops. It could be considered an advanced farming system for agricultural sustainable development in the oasis region of northwest China.

1. Introduction

Legume/cereal intercropping has been broadly practiced in many short-season areas, such as the northern Great Plains of Latin America, North America, northwest Eurasia and northwest China where the temperatures only permit one crop per year [1,2,3]. The advantages of legume/cereal intercrops are often assumed to arise from the complementary use of N sources by intercropping with legumes, because intercropped legumes can meet their N demand due to the complementarities between symbiotic N2 fixation, soil N acquisition and intercropped cereals uptake of more N from the soil than they stand in sole cropping [4,5,6]. This is of particular interest for developing low-input and sustainable cropping systems. In addition, legume/maize (Zea mays L.) intercropping has higher land use efficiency, lower water consumption and more ecological and environmental benefits compared to a cereal-cereal intercropping [7,8]. For intercropping, interspecific interactions often occur, including interspecific facilitation (positive interaction) and interspecific competition (negative interaction) [9,10,11]. However, there is great yield advantage in intercropping compared with corresponding sole crops [12,13,14], this is largely because one component can enhance the survival, growth, or fitness of the other component [15]. Therefore, one component may influence the performance of the other components in the whole cropping system.
The Hexi Corridor of Gansu province in China is a typical oasis agricultural region with abundant sunlight and high temperatures and the traditional planting pattern is one crop per year [16]. In recent years, intercropping has been used to extend the growing season with a focus on producing more grains per year per unit land area. Pea/maize intercropping is one of the choices, as this system has high land use efficiency. More importantly, it is in harmony with ecological and environmental sustainability due to the benefits of N-fixation in pea crops [17]. Meanwhile, a substantial increase in grain yield and per capita food production in the last 50 years in China appeared mostly due to increased industrial energy inputs, especially nitrogen-based chemical fertilizer [18]. In this irrigation area, the amount of applied N fertilizer has risen to 450 kg ha−1 [19,20], yet N fertilizer in agricultural fields can be lost through many pathways, such as ammonia volatilization, nitrate leaching, and nitrous oxide (N2O) emissions, which leads to ecosystem degradation and environmental pollution [21,22,23]. In addition, they use large quantities of locally available non-commercial and commercial energies in direct and indirect forms, therefore farmers want maximum return from a limited area using their scare resources [24,25]. The reasons for low yield and input include conventional planting methods, costly inputs, improper planting density and imbalanced fertilizer application over the past few years. The main objective of intercropping is to achieve higher productivity per unit area [13], increase resource use efficiency [14,26], and potentially reduce the negative impacts of cropping on the environment [27,28]. However, little has been studied with regard to N fertilizer management and planting density manipulation in legume/cereal intercropping systems.
Therefore, the aim of this study on pea/maize intercropping systems was to quantify the agronomic productivity of pea and maize mono-cropping and intercropping systems and to assess the profitability of pea/maize intercropping systems for smallholder farmers.

2. Materials and Methods

2.1. Site Description

The field experiment was conducted in 2012 and 2013 at the Wuwei Experimental Station of Gansu Agricultural University in an arid oasis region (37°52′20″ N, 102°50′50″ E, and 1776 m a.s.l). This station is in the temperate arid zone in the hinterland of the Eurasia Continent, and is located in the eastern part of the Hexi Corridor in northwestern China. Long-term (1950–2012) weather data shows that the average annual sunshine duration is more than 2968 h, mean temperature is 7.3 °C with an accumulated temperature above 10 °C more than 2985 °C, and the frost-free period is 156 days. Mean annual precipitation is less than 156 mm, which occurs mainly from June to September, and potential evaporation is greater than 2400 mm. The soil at the research station is classified as Aridisol, a kind of desert soil filled with calcareous particles. At the start of the experiment, some of the properties are shown in Table 1 and Table 2. Daily rainfall and maximum and minimum temperature during the course of the experiment were recorded daily at the experimental site (Figure 1).

2.2. Experimental Design and Plot Management

The experiment was established with a randomized, incomplete block design and with three replicates. Three cropping systems, that is, sole pea (P), sole maize (M) and pea/maize intercropping (P/M), three planting density in maize, 73,500 plants ha−1 (D1), 85,900 plants ha−1 (D2), and 98,200 plants ha−1 (D3), two N fertilizer management systems, without nitrogen application (N0) and with nitrogen application and (N1), 0 and 450 kg N ha−1 for maize, 0 and 135 kg N ha−1 for pea respectively. The sole maize treatment received N fertilizer at 450 kg N ha−1 as urea (46-0-0 of N-P2O5-K2O), with 20% of the total N (i.e., 90 kg N ha−1) evenly spread and incorporated into the top 30 cm of soil using rotary tillage prior to seeding (as base fertilizer), and the remaining 80% (i.e., 360 kg N ha−1) was divided into three portions as topdressing (implemented at typical maize growth stages, i.e., at jointing, pre-tasseling and 15 d post-flowering). The sole pea treatment received the same amount of N fertilizer as the sole maize with base fertilizer N (pre-seeding) plus topdressing N at maize jointing (pea flowering). Intercrops received the same area-based N fertilizer as the corresponding sole crops.
Selected pea and maize cultivars were “MZ-1” and “Xian-yu 335”, respectively. Each plot size was 6.0 m × 9 m, with a 40 cm wide by 30 cm high ridge built between two neighboring plots to eliminate potential water movement. In the strip intercropping system, pea and maize were planted in a west-east row orientation in alternating 200 cm wide strips. In all years, pea/maize intercropping was planted in strips with four rows of pea (20-cm row space) alternated with three rows of maize (40-cm row space) in a set of 90:110 cm strips. There was a 30 cm wide gap between pea and maize strips (Figure 2). Planting density was 1,800,000 plants ha−1 for sole pea and 758,000 plants ha−1 for intercropped pea. Superphosphate (337.5 kg P2O5 ha−1) was spread and then incorporated into the soil prior to seeding in all plots.
Supplemental irrigation was applied because of low precipitation in the experimental area (less than 150 mm annually). We employed the irrigation schedule as locally practiced—all plots received an amount of 120 mm of irrigation in the previous fall just before soil freezing. During the growing season, five irrigations were applied to maize (90 mm at seedling, 120 mm at booting, 120 mm at pre-heading, and 120 mm at flowering and 90 mm at filling), and 210 mm of water was irrigated to sole pea (90 mm at maize seedling, 120 mm at maize booting). A hydrant low pressure pipe system was used for irrigation and a flow meter was installed at the discharging end of the pipe to measure and record the irrigation amounts entering each plot. The cultivar, fertilizing, insect control and strip form in all plots were the same for each year.
Pea (cv. MZ-1) was planted on 2 April and 1 April in 2012 and 2013 respectively and the maize (cv. Xian-yu 335) was planted 20 days after pea planting. Pea emerged on 16 April and 13 April, maize emerged on 30 April and 29 April in 2012 and 2013, respectively. Harvesting dates for pea were 8 July in both 2012 and 2013, while maize was harvested on 28 September and 30 September respectively for the two years. There were about 67–70 d of maize-pea co-growth.

2.3. Data Collection and Statistical Analysis

2.3.1. Grain Yield and Land Equivalent Ratio (LER)

At maturity, all plots were harvested by hand and the harvested grains were air-dried, cleaned, and weighed for grain yield. Land equivalent ratio (LER) was used to evaluate the success of intercropping using a concept proposed by Willey (1979) [29]—the total LER is defined as the total land area required under monoculture to give the yields obtained in the intercropping mixture. It is expressed as:
LER = ( LERpea + LERmaize ) = ( ( Yip Ysp ) + ( Yim Ysm ) )
where Ysp and Yip are grain yields of pea in monoculture and intercropping (kg ha−1), respectively; Ysm and Yim are grain yields of maize in monoculture and intercropping (kg ha−1), respectively. LERpea and LERmaize are the partial LER of intercropped pea and intercropped maize, respectively. LERpea and LERmaize indicates the efficiency of intercropping for using land resources compared with sole cropping [30]. A total LER greater than 1.0 indicates the presence of positive interferences among the crop components of the mixture [31].

2.3.2. Crop Growth Rate

A sample of 20 pea plants and 10 maize plants were randomly selected from each plot at ground level at different stages of crop growth. All plant samples were oven dried at 80 °C in an air forced oven until at a constant weight. Dry matter (DM) was determined based on the fresh weight of sample plants and the moisture content of the subsamples.
Crop growth rate [32] (CGR), viz., the increase in dry weight of crop per unit area per unit time was calculated using the following equation:
CGR = DM 2 DM 1 d
where DM1 is the DM measured at an earlier sampling time, DM2 is the DM measured at a later sampling time, and d is the number of days between the two sampling dates.

2.3.3. Leaf Area Index

Leaf area index (LAI) [33] was calculated as leaf area per plant/ground area per plant. For pea, 20 plants were randomly taken from each plot and the leaf area was measured using a leaf area meter (Model Li-3000, LI-COR, Lincoln, NE, USA). For maize, 10 plants were randomly taken from each plot, leaf length and the greatest leaf width were measured with a ruler, and leaf area was determined by following the formula: leaf area = leaf length × the greatest leaf width × 0.78. For intercropping systems, the LAI of pea and maize was measured separately, and total LAI for the intercropping system was set as the means of the LAIs for pea and maize.

2.3.4. Economic Efficiency

The economic performance of different treatments was assessed to determine which treatment was sufficient to convince farmers for practicing. Economic inputs include seed, chemical fertilizers, irrigation water, labors, fuel, and so forth. The economic outputs included the seed yield plus the by-product yield. The primary data on various inputs and management practices were used for the computation of economic output. For estimation of economic inputs and outputs, economy equivalents (Table 3) were utilized. The economic efficiency was calculated as [34]:
Net returns = Total output − Total input
Benefit Cost ratio = Net returns/Total input

2.3.5. Statistical Analysis

Data on yield, LER, CGR, LAI and economic outcome were analyzed using the analysis of variance (ANOVA) procedure of the Statistical Analysis Software (SPSS software, 16.0, SPSS Institute Ltd., Chicago, IL, USA). The comparisons among different treatments were made with the Least Significant Differences Test. Because of significant treatment × year interaction for most of the variables in this study, the treatment effect was assessed for each year separately. Significances were declared at the probability level of 0.05, unless otherwise stated.

3. Results

3.1. Yield Advantage

Total grain yields (mixed yields) of the pea/maize intercropping were similar to that of sole maize in 2012 and 2013, but they were significantly increased compared with sole pea (Table 4). It was consistent that total grain yields of pea/maize intercropping were significantly improved with the use of nitrogen in each of the two study years. Grain yield of intercropped maize with nitrogen applied (N1) was increased by 17.03% and 11.07% compared with the maize without nitrogen fertilization (N0) during the two years. Plant density also had a significant impact on grain yield of intercropped maize, the maize with medium plant-density (D2) increased grain yield by 15.20% and 11.83% relative to the low plant-density (D1), and the maize at high plant-density level (D3) increased yield by 27.43% and 22.89% than maize at medium plant-density in 2012 and 2013, respectively.
Similarly, the grain yields of intercropped pea were increased with nitrogen fertilization (Table 4). Yields of intercropped pea with fertilization were increased by 13.65% to 14.41% compared with the pea without nitrogen applied. Planting density of maize had a significant effect on grain yields of intercropped pea in 2013. On average, the yield of intercropped pea with high planting density of maize was decreased by 2.47% and 17.38% more than that of low planting density in 2012 and 2013, respectively. Overall, application of nitrogen fertilizer enhanced the grain yields of intercropped pea and intercropped maize. Grain yield of maize was significantly increased with increasing planting density, but slightly decreased the yield of intercropped pea.
Total land equivalent ratio (LER) for pea/maize intercropping was greater than 1 (Table 5), which indicating that there is an advantage of utilizing land resources by pea/maize intercropping systems relative to the corresponding sole crops. Partial LER for maize with application of nitrogen fertilizer was increased by 7.17% than that of maize without nitrogen fertilization in 2012. The treatment with high planting density of maize gave the maximum partial LER for maize. Partial LER for maize with the high planting density increased by 4.26%, 3.31% and 7.08%, 7.19% more than that of low and medium planting densities in 2012 and 2013, respectively.
The partial LER of pea without nitrogen fertilization decreased by 12.21% more than that of pea with nitrogen fertilization in 2013, but no significant difference was found in 2012. Compared to low maize planting density, high and medium maize planting density increased partial LER of pea by 9.38% and 4.55% in 2012, 2.36% and 0.98% in 2013, respectively. Total LER of the two component crops with application of nitrogen fertilizer was significantly reduced by 16.4% compared to the treatments without nitrogen fertilization in 2013, no significant difference was found in 2012.

3.2. Crop Growth Rates

There were some compensatory effects between the two intercrops, as revealed by the change of the crop growth rates (CGR) in intercropped maize and sole maize (Figure 3 and Figure 4). The CGR of sole maize was always greater than intercropped maize, and it increased by 3.2% to 93.6% during the period of 15 to 95 d after pea emergence in 2012 and 2013. However, the growth of maize plants increased rapidly after pea harvest (at 95 d after pea emergence) in pea/maize intercropping, the CGR of the intercropped maize was 18.5% to 216.9% greater than that of sole maize. The intercropped pea strips provided a significant compensatory effect on the growth of maize plants after the pea was harvested.

3.3. Leaf Area Index

Averaged over the four (for pea) and eight (for maize) measurements were conducted during the whole growth period, leaf area index (LAI) of pea/maize intercropping was 6.9% greater in 2012 and 45.4% greater in 2013 compared with the weighted average of sole maize and sole pea (Figure 5). The leaf area index was 11.0% to 19.3% higher for intercropping with N fertilization than that without use of N fertilizer, and 6.7% to 10.2% higher for sole maize and 21.0% to 24.1% higher for sole pea on average. Furthermore, LAI of pea/maize intercropping was increased on average by 17.2% in 2012 and 9.1% in 2013 with increased maize plant density from low to medium; the LAI increased by 15.1% in 2012 and 13.4% in 2013 as the maize density increased from medium to high.

3.4 Economic Outcome

We made an effort to assess the economic outcome of the pea/maize intercropping under different crop management schemes. Labor, net return and benefit-cost ratio were calculated for each treatment (Table 6). Pea/maize intercropping had the highest labor input (1696–1768 man-hours ha−1), which was 55.9% to 64.7% higher than sole maize, and 17.7% to 30.1% higher than sole pea. Net returns were improved by the use of nitrogen fertilizer regardless of intercropping or sole cropping. Pea/maize intercropping had a similar net return compared to corresponding sole maize with medium and high plant densities. However, the net returns of pea/maize intercropping were significantly higher than that of sole pea. In the treatment with zero N fertilization, both pea/maize intercropping and sole maize increased the net returns with increasing maize plant density. In the treatment with 450 kg ha−1 nitrogen fertilization, there was no significant difference in the net returns of pea/maize intercropping between medium and high plant densities of maize. In sole cropping systems with 450 kg ha−1 nitrogen fertilization, sole maize with medium plant density gave the maximum net returns of ¥2671 and ¥2772; it was significantly higher than that of sole maize at low and high planting densities. Large amounts of N fertilizer input reduced net returns with the increasing of maize planting density.
The benefit-cost ratio was improved by the use of N fertilizer. The benefit to cost ratio was lower than 1 in the treatments with 0 kg ha−1 N applied either in pea/maize intercropping or sole cropping systems. In the corresponding density treatment, no significant difference was found between intercropped maize and sole maize, but they were significantly higher than that in corresponding sole pea. In pea/maize intercropping systems with 450 kg ha−1 N applied, the benefit to cost ratio of intercropping increased with increasing planting density. Pea/maize intercropping with high maize planting density provided the maximum benefit to cost ratios, from 1.13 to 1.29, which was increased by 11.8% to 14.4% more than that of the low maize planting density.

4. Discussion

In pea/maize intercropping, the increase of planting density of intercropped maize could improve the yield of intercropped maize but decrease the grain yield of intercropped pea. This was probably due to increased competition between the two species [35]. Although total grain yields of pea/maize intercropping were higher than that of sole maize, it had a yield advantage of up to 72% compared to the corresponding sole crops, and the land equivalent ratio (LER) of pea/maize intercropping ranged from 1.03 to 1.72. The yield advantages of intercropping over sole cropping may arise from the complementary use of growth resources [36,37], such as N and light in space and time [38,39]. However, we found that the total LER of pea/maize intercropping with N fertilizer application was reduced by 3.9% to 16.4% compared with no fertilizer application. Our results suggest that lower N fertilization levels should be considered for legume/cereal intercropping as the low-N soil environment allows the interspecies to have a complementary effect with the advantages of cropping mixture. Our study showed that higher maize planting density can change the use of land resources—this was supported by the fact that the partial LER for pea was reduced by 8.4% at a high maize density compared to the low maize density. In contrast, partial LER for maize was significantly increased with the increase of maize plant density.
Interspecies interaction determines the balance and outcome of the competitiveness between the two intercrops and the dynamics of the outcome can be evaluated using the crop growth rates [40]. In the present study, we found significant compensatory effects between the two intercrops, as is shown by the change of the crop growth rates (CGR) of intercropped maize compared to sole maize, where the growth rate of intercropped maize was 18.5% to 216.9% greater than sole maize after pea was harvested, and the leaf area index (LAI) of pea/maize intercropping was greatly increased in both years, compared with the weighted average of sole maize and sole pea. Larger spaces left by early-harvested pea provide excellent aeration and light conditions that facilitate aboveground biomass accumulation of intercropped maize. Also, unused water and nutrients that were left by intercropped pea are available for intercropped maize in the mid-filling period. Increased biomass of maize during the later part of the growth period plays a key role in maize yield and in the total productivity of pea/maize intercropping.
Another important aspect for pea/maize intercropping is the efficient use of light because of complementary use of space between the shorter pea plants and the taller maize plants. The complementary effect is also shown for the length of the growth period because their life cycles are different, with the maturity of intercropped pea was about 30 to 50 days earlier than the intercropped maize. This claim is supported by the consistent results on leaf photosynthetic rate (Pn) in this study that have not been published. During the co-growth period, the Pn of intercropped maize was significantly lower compared to that of sole maize. However, after pea was harvested, the Pn of intercropped maize became 13.2% to 19.6% higher than that of the sole maize. Our result disagrees with the findings on cowpea and sorghum (sorghum bicolor L.) mixed culture that monoculture had higher photosynthetic rates in the leaves of plants relative to those in mixed culture [41]. These results suggest that proper coordination of the two intercrops plays a large role in enhancing plant growth and improving crop productivity. Detailed studies are required to establish the best-matching intercrop partners for full utilization of resources in the production advantages of intercropping.
The pea/maize intercropping achieved higher yields but required more labor in their production than sole cropping in the present study. Consequently, the pea/maize intercropping had a similar net return as the corresponding sole maize, but the net returns of intercropping were higher than sole pea. In all cases, the net returns were improved by the use of nitrogen fertilizer regardless of intercropping or sole cropping. Although the grain yield, net returns and benefit to cost ratios of pea/maize intercropping were similar or even lower than sole maize, the grain composition and quality from this cereal-legume intercropping is more valid for animal or human consumption compared to the sole maize because of the higher protein in pea [42]. Furthermore, the inclusion of annual legumes in cropping systems via either legume-cereal intercropping or cereal-legume rotations can significantly reduce the use of synthetic N fertilizer [43,44], as the legumes fix N2O from the atmosphere [45]. Such a legume-cereal system can provide significant ecological and environmental benefits by reducing carbon emissions [27,46], lowering the environmental footprint [47,48] and enhancing soil and ecological sustainability [49,50].
Furthermore, the pea/maize intercropping has more ecological benefits than sole maize, as the legume can fix N from the atmosphere and thus reduce the requirement for inorganic nitrogen in crop production [51].

5. Conclusions

Grain yield of pea/maize was increased, on average, by up to 71.9% compared to monoculture maize and monoculture pea on a per hectare basis. The increased yield with the intercropping was largely due to improved interspecies interaction and facilitation. Earlier sowing and faster growing of the intercropped pea allowed for greater dry matter accumulation before maize plants became large enough for a compatible competitiveness with the pea. Also, a strong compensatory effect occurred between the two intercrops after the early-sown, short-season pea was harvested, when the crop growth rate of the intercropped maize was increased by 18.53% to 216.89% over the sole maize. The use of nitrogen fertilizer decreased the total land equivalent ratio of the pea/maize intercropping significantly although the use of N improved the grain yield of intercropped maize. Furthermore, the interspecies facilitation and complementary effects were expressed better under the low fertility conditions. This suggests that relatively low N fertilization should be considered for pea/maize intercropping in order to improve land use efficiency, take advantage of intercropping facilitation and improve economic benefits. Also, linked with the higher yield, the associated higher amount of cereal-legume by-product is preferred for animal feed or human consumption. Therefore, pea/maize intercropping can be considered as an advanced farming system for agricultural development and environmental sustainability.

Acknowledgments

We are grateful to the National Natural Science Fund (grant number 41561062, 31360323, 31771738), the research grants provided by National Key Technology R&D Program (grant number 2015BAD22B04), Modern agriculture green manure industry technology system (CARS-22-G-12), Excellent Youth Foundation of Gansu Scientific Committee (1111RJDA006), and scientific research program in higher education of Gansu province (2017A-030).

Author Contributions

Qiang Chai conceived and designed the experiments; Zhilong Fan performed the experiments; Zhilong Fan and Caihong Yang analyzed the data; Qiang Chai contributed reagents/materials/analysis tools; Caihong Yang and Zhilong Fan wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yu, Y.; Stomph, T.J.; Makowski, D.; Zhang, L.Z.; Werf, W. A meta-analysis of relative crop yields in cereal/legume mixtures suggests options for management. Field Crops Res. 2016, 198, 269–279. [Google Scholar] [CrossRef]
  2. Oelbermann, M.; Regehr, A.; Echarte, L. Changes in soil characteristics after six seasons of cereal–legume intercropping in the Southern Pampa. Geoderma Reg. 2015, 4, 100–107. [Google Scholar] [CrossRef]
  3. Tang, X.Y.; Bernard, L.; Brauman, A.; Daufresne, T.; Deleporte, P.; Desclaux, D.; Souche, G.; Placella, S.A.; Hinsinger, P. Increase in microbial biomass and phosphorus availability in the rhizosphere of intercropped cereal and legumes under field conditions. Soil Biol. Biochem. 2014, 75, 86–93. [Google Scholar] [CrossRef]
  4. Hauggaard-Nielsen, H.; Gooding, M.; Ambus, P.; Corre-Hellou, G.; Crozat, Y.; Dahlmann, C.; Dibet, A.; Von Fragstein, P.; Pristeri, A.; Monti, M. Pea–barley intercropping for efficient symbiotic N2-fixation, soil N acquisition and use of other nutrients in European organic cropping systems. Field Crops Res. 2009, 113, 64–71. [Google Scholar] [CrossRef]
  5. Bedoussac, L.; Justes, E. The efficiency of a durum wheat-winter pea intercrop to improve yield and wheat grain protein concentration depends on N availability during early growth. Plant Soil 2010, 330, 19–35. [Google Scholar] [CrossRef]
  6. Musa, E.M.; Elsheikh, E.A.E.; Mohamed Ahmed, I.A.; Babiker, E.E. Effect of intercropping, Bradyrhizobium inoculation and N, P fertilizers on yields, physical and chemical quality of cowpea seeds. Front. Agric. China 2012, 5, 543–551. [Google Scholar] [CrossRef]
  7. Siddique, K.; Regan, K.; Tennant, D.; Thomson, B. Water use and water use efficiency of cool season grain legumes in low rainfall Mediterranean-type environments. Eur. J. Agron. 2001, 15, 267–280. [Google Scholar] [CrossRef]
  8. Li, C.J.; Li, Y.Y.; Yu, C.B.; Sun, J.H.; Christie, P.; An, M.; Zhang, F.S.; Li, L. Crop nitrogen use and soil mineral nitrogen accumulation under different crop combinations and patterns of strip intercropping in northwest China. Plant Soil 2011, 342, 221–231. [Google Scholar] [CrossRef]
  9. Park, S.; Watkinson, A. Estimating the optimal relative density combination of two crops in an intercrop. J. Appl. Ecol. 2002, 39, 416–426. [Google Scholar] [CrossRef]
  10. Dhima, K.; Lithourgidis, A.; Vasilakoglou, I.; Dordas, C. Competition indices of common vetch and cereal intercrops in two seeding ratio. Field Crop. Res. 2007, 100, 249–256. [Google Scholar] [CrossRef]
  11. Yang, C.H.; Chai, Q.; Huang, G.B. Root distribution and yield responses of wheat/maize intercropping to alternate irrigation in the arid areas of northwest China. Plant Soil Environ. 2010, 56, 253–262. [Google Scholar] [CrossRef]
  12. Li, L.; Sun, J.H.; Zhang, F.S.; Li, X.L.; Yang, S.C.; Rengel, Z. Wheat/maize or wheat/soybean strip intercropping: I. Yield advantage and interspecific interactions on nutrients. Field Crop. Res. 2001, 71, 123–137. [Google Scholar] [CrossRef]
  13. Hu, F.L.; Gan, Y.T.; Chai, Q.; Feng, F.X.; Zhao, C.; Yu, A.Z.; Mu, Y.P.; Zhang, Y. Boosting system productivity through the improved coordination of interspecific competition in maize/pea strip intercropping. Field Crop. Res. 2016, 198, 50–60. [Google Scholar] [CrossRef]
  14. Yin, W.; Yu, A.Z.; Chai, Q.; Hu, F.L.; Feng, F.X.; Gan, Y.T. Wheat and maize relay-planting with straw covering increases water use efficiency up to 46%. Agron. Sustain. Dev. 2015, 35, 815–825. [Google Scholar] [CrossRef]
  15. Chen, H.; Qin, A.; Chai, Q.; Gan, Y.; Liu, Z. Quantification of soil water competition and compensation using soil water differences between strips of intercropping. Agric. Res. 2014, 3, 321–330. [Google Scholar] [CrossRef]
  16. Chai, Q.; Gan, Y.; Turner, N.C.; Zhang, R.Z.; Yang, C.; Niu, Y.; Siddique, K.H.M. Water-saving innovations in Chinese agriculture. Adv. Agron. 2014, 126, 149–202. [Google Scholar]
  17. Hu, F.L.; Zhao, C.; Feng, F.X.; Chai, Q.; Mu, Y.P.; Zhang, Y. Improving N management through intercropping alleviates the inhibitory effect of mineral N on nodulation in pea. Plant Soil 2017, 412, 235–251. [Google Scholar] [CrossRef]
  18. Tong, C.; Hall, C.A.; Wang, H. Land use change in rice, wheat and maize production in China (1961–1998). Agric. Ecosyst. Environ. 2003, 95, 523–536. [Google Scholar] [CrossRef]
  19. Li, W.; Li, L.; Sun, J.; Guo, T.; Zhang, F.; Bao, X.; Peng, A.; Tang, C. Effects of intercropping and nitrogen application on nitrate present in the profile of an Orthic Anthrosol in Northwest China. Agric. Ecosyst. Environ. 2005, 105, 483–491. [Google Scholar] [CrossRef]
  20. Gao, Y.; Li, Y.; Zhang, J.; Liu, W.; Dang, Z.; Cao, W.; Qiang, Q. Effects of mulch, N fertilizer, and plant density on wheat yield, wheat nitrogen uptake, and residual soil nitrate in a dryland area of China. Nutr. Cycl. Agroecosyst. 2009, 85, 109–121. [Google Scholar] [CrossRef]
  21. Lam, S.K.; Chen, D.; Norton, R.; Armstrong, R.; Mosier, A.R. Nitrogen dynamics in grain crop and legume pasture systems under elevated atmospheric carbon dioxide concentration: A meta-analysis. Glob. Chang. Biol. 2012, 18, 2853–2859. [Google Scholar] [CrossRef] [PubMed]
  22. Roy, A.K.; Wagner-Riddle, C.; Deen, B.; Lauzon, J.; Bruulsema, T. Nitrogen application rate, timing and history effects on nitrous oxide emissions from corn (Zea mays L.). Can. J. Soil Sci. 2014, 94, 563–573. [Google Scholar] [CrossRef]
  23. Gregorich, E.; Janzen, H.H.; Helgason, B.; Ellert, B. Nitrogenous gas emissions from soils and greenhouse gas effects. Adv. Agron. 2015, 132, 39–74. [Google Scholar]
  24. Su, Y.Z.; Wang, F.; Zhang, Z.H.; Du, M.W. Soil Properties and Characteristics of Soil Aggregate in Marginal Farmlands of Oasis in the Middle of Hexi Corridor Region, Northwest China. Agric. Sci. China 2007, 6, 706–714. [Google Scholar] [CrossRef]
  25. Guan, Q.Y.; Wang, F.F.; Xu, C.Q.; Pan, N.H.; Lin, J.K.; Zhao, R.; Yang, Y.Y.; Luo, H.P. Source apportionment of heavy metals in agricultural soil based on PMF: A case study in Hexi Corridor, northwest China. Chemosphere 2018, 193, 189–197. [Google Scholar] [CrossRef] [PubMed]
  26. Chai, Q.; Gan, Y.T.; Zhao, C.; Xu, H.L.; Waskom, R.M.; Niu, Y.N.; Siddique, K.H.M. Regulated deficit irrigation for crop production under drought stress. A review. Agron. Sustain. Dev. 2016, 36, 1–21. [Google Scholar] [CrossRef]
  27. Chai, Q.; Qin, A.Z.; Gan, Y.T.; Yu, A.Z. Higher yield and lower carbon emission by intercropping maize with rape, pea, and wheat in arid irrigation areas. Agron. Sustain. Dev. 2013, 34, 535–543. [Google Scholar] [CrossRef]
  28. Hu, F.; Chai, Q.; Yu, A.; Yin, W.; Cui, H.; Gan, Y. Less carbon emissions of wheat–maize intercropping under reduced tillage in arid areas. Agron. Sustain. Dev. 2015, 35, 701–711. [Google Scholar] [CrossRef]
  29. Wiley, R. Intercropping-its importance and research needs. Part 1: Competition and yield advantage. Field Crops Abst. 1979, 32, 1–10. [Google Scholar]
  30. Mead, R.; Willey, R. The concept of a ‘land equivalent ratio’ and advantages in yields from intercropping. Exp. Agric. 1980, 16, 217–228. [Google Scholar] [CrossRef]
  31. Stephen, R. Agroecology: The Ecology of Sustainable Food Systems, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2014; pp. 213–215. [Google Scholar]
  32. Hunt, R. Plant Growth Analysis; Studies in Biology No. 96; Edward Arnold: London, UK, 1978. [Google Scholar]
  33. Asner, G.P.; Scurlock, J.M.O.; Hicke, J.A. Global synthesis of leaf area index observations: Implications for ecological and remote sensing studies. Glob. Ecol. Biogeogr. 2003, 12, 191–205. [Google Scholar] [CrossRef]
  34. Sahota, T.S.; Malhi, S.S. Intercropping barley with pea for agronomic and economic considerations in northern Ontario. Agric. Sci. 2012, 3, 889–895. [Google Scholar] [CrossRef]
  35. Wang, Y.Q.; Zhao, Z.G.; Li, J.P.; Zhang, M.; Zhou, S.L.; Wang, Z.M.; Zhang, Y.H. Does maize hybrid intercropping increase yield due to border effects? Field Crop. Res. 2017, 214, 283–290. [Google Scholar] [CrossRef]
  36. Agegnehu, G.; Ghizaw, A.; Sinebo, W. Yield potential and land-use efficiency of wheat and faba bean mixed intercropping. Agron. Sustain. Dev. 2008, 28, 257–263. [Google Scholar] [CrossRef]
  37. Aminifar, J.; Ghanbari, A. Biological facilitative interactions and their roles on maximize growth and productivity of crops in intercropping systems. Scientia 2014, 2, 90–95. [Google Scholar]
  38. Jahansooz, M.R.; Yunusa, I.A.M.; Coventry, D.R.; Palmer, A.R.; Eamus, D. Radiation-and water-use associated with growth and yields of wheat and chickpea in sole and mixed crops. Eur. J. Agron. 2007, 26, 275–282. [Google Scholar] [CrossRef] [Green Version]
  39. Liu, L.; Wang, Y.F.; Yan, X.W.; Li, J.W.; Jiao, N.Y.; Hu, S.J. Biochar amendments increase the yield advantage of legume-based intercropping systems over monoculture. Agric. Ecosyst. Environ. 2017, 237, 16–23. [Google Scholar] [CrossRef]
  40. Bedoussac, L.; Justes, E. A comparison of commonly used indices for evaluating species interactions and intercrop efficiency: Application to durum wheat–winter pea intercrops. Field Crop. Res. 2011, 124, 25–36. [Google Scholar] [CrossRef]
  41. Makoi, J.; Chimphango, S.; Dakora, F. Photosynthesis, water-use efficiency and δ13C of five cowpea genotypes grown in mixed culture and at different densities with sorghum. Photosynthetica 2010, 48, 143–155. [Google Scholar] [CrossRef]
  42. Knörzer, H.; Graeff-Hönninger, S.; Guo, B.; Wang, P.; Claupein, W. The rediscovery of intercropping in China: A traditional cropping system for future Chinese agriculture—A review. In Climate Change, Intercropping, Pest Control and Beneficial Microorganisms; Springer: Berlin, Germany, 2009; pp. 13–44. [Google Scholar]
  43. Grant, C.A.; O’Donovan, J.T.; Blackshaw, R.E.; Harker, K.N.; Johnson, E.N.; Gan, Y.; Lafond, G.P.; May, W.E.; Turkington, T.K. Residual effects of preceding crops and nitrogen fertilizer on yield and crop and soil N dynamics of spring wheat and canola in varying environments on the Canadian prairies. Field Crop. Res. 2016, 192, 86–102. [Google Scholar] [CrossRef]
  44. Walley, F.L.; Clayton, G.W.; Miller, P.R.; Carr, P.M.; Lafond, G.P. Nitrogen economy of pulse crop production in the Northern Great Plains. Agron. J. 2007, 99, 1710–1718. [Google Scholar] [CrossRef]
  45. Hossain, Z.; Wang, X.; Hamel, C.; Diane Knight, J.; Morrison, M.J.; Gan, Y. Biological nitrogen fixation by pulse crops on semiarid Canadian prairies. Can. J. Plant Sci. 2016, 97, 119–131. [Google Scholar]
  46. Gan, Y.; Liang, C.; Hamel, C.; Cutforth, H.; Wang, H. Strategies for reducing the carbon footprint of field crops for semiarid areas. A review. Agron. Sustain. Dev. 2011, 31, 643–656. [Google Scholar] [CrossRef]
  47. Liu, C.; Cutforth, H.; Chai, Q.; Gan, Y.T. Farming tactics to reduce the carbon footprint of crop cultivation in semiarid areas. A review. Agron. Sustain. Dev. 2016, 36, 69. [Google Scholar] [CrossRef]
  48. Gan, Y.T.; Liang, C.; Chai, Q.; Lemke, R.L.; Campbell, C.A.; Zentner, R.P. Improving farming practices reduces the carbon footprint of spring wheat production. Nat. Commun. 2014, 5, 5012. [Google Scholar] [CrossRef] [PubMed]
  49. Bainard, L.D.; Navarro-Borrell, A.; Hamel, C.; Braun, K.; Hanson, K.; Gan, Y.T. Increasing the frequency of pulses in crop rotations reduces soil fungal diversity and increases the proportion of fungal pathotrophs in a semiarid agroecosystem. Agric. Ecosyst. Environ. 2017, 240, 206–214. [Google Scholar] [CrossRef]
  50. Borrell, A.N.; Shi, Y.; Gan, Y.; Bainard, L.D.; Germida, J.J.; Hamel, C. Fungal diversity associated with pulses and its influence on the subsequent wheat crop in the Canadian prairies. Plant Soil 2017, 414, 1–19. [Google Scholar] [CrossRef]
  51. Pelzer, E.; Bazot, M.; Makowski, D.; Corre-Hellou, G.; Naudin, C.; Al Rifaï, M.; Baranger, E.; Bedoussac, L.; Biarnès, V.; Boucheny, P. Pea–wheat intercrops in low-input conditions combine high economic performances and low environmental impacts. Eur. J. Agron. 2012, 40, 39–53. [Google Scholar] [CrossRef] [Green Version]

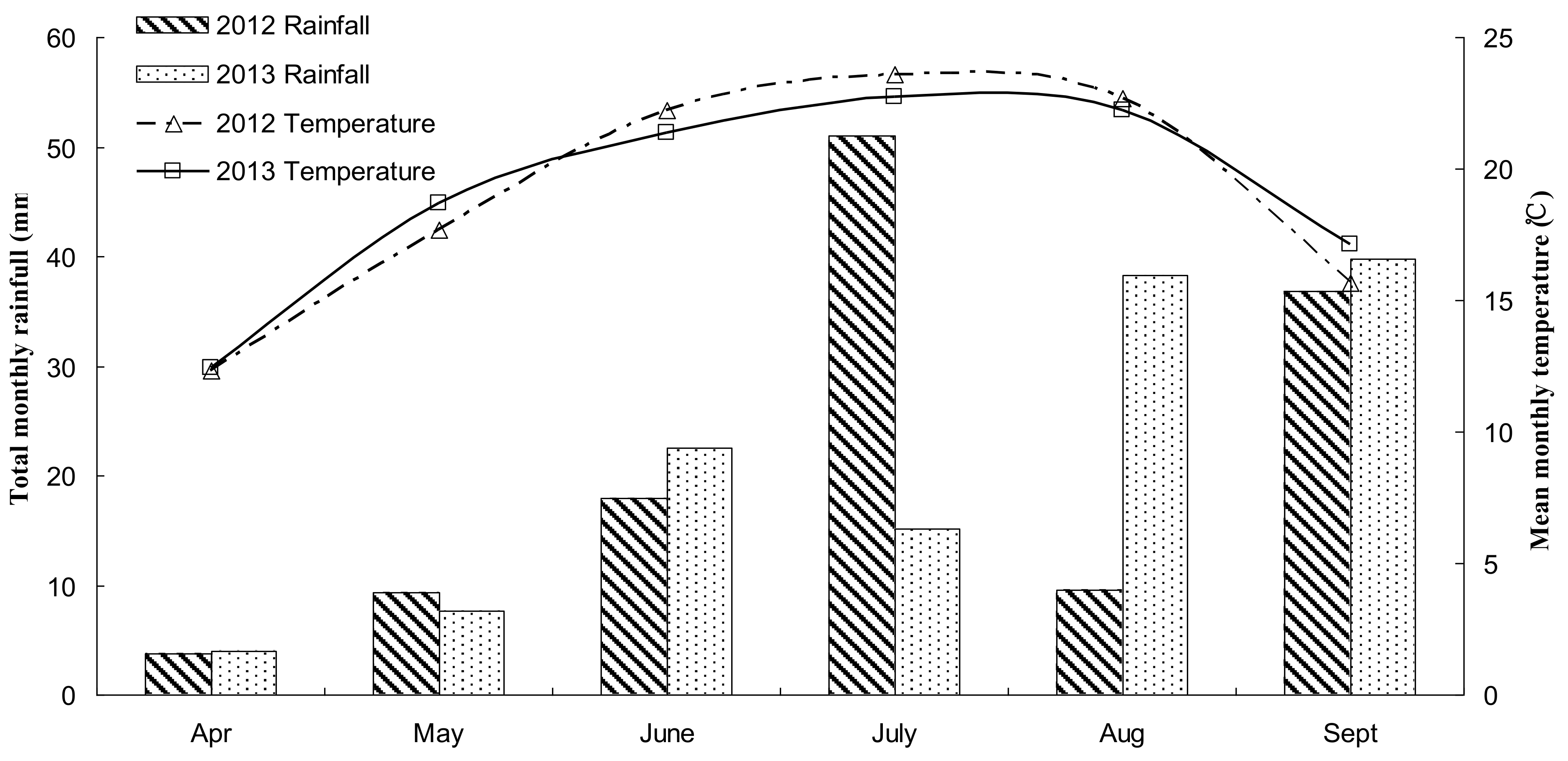

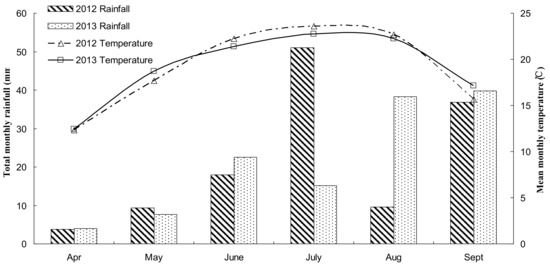

Figure 1. Monthly precipitation and mean air temperature of research station during growing seasons y in 2012 and 2013.
Figure 1. Monthly precipitation and mean air temperature of research station during growing seasons y in 2012 and 2013.
Agronomy 08 00052 g001

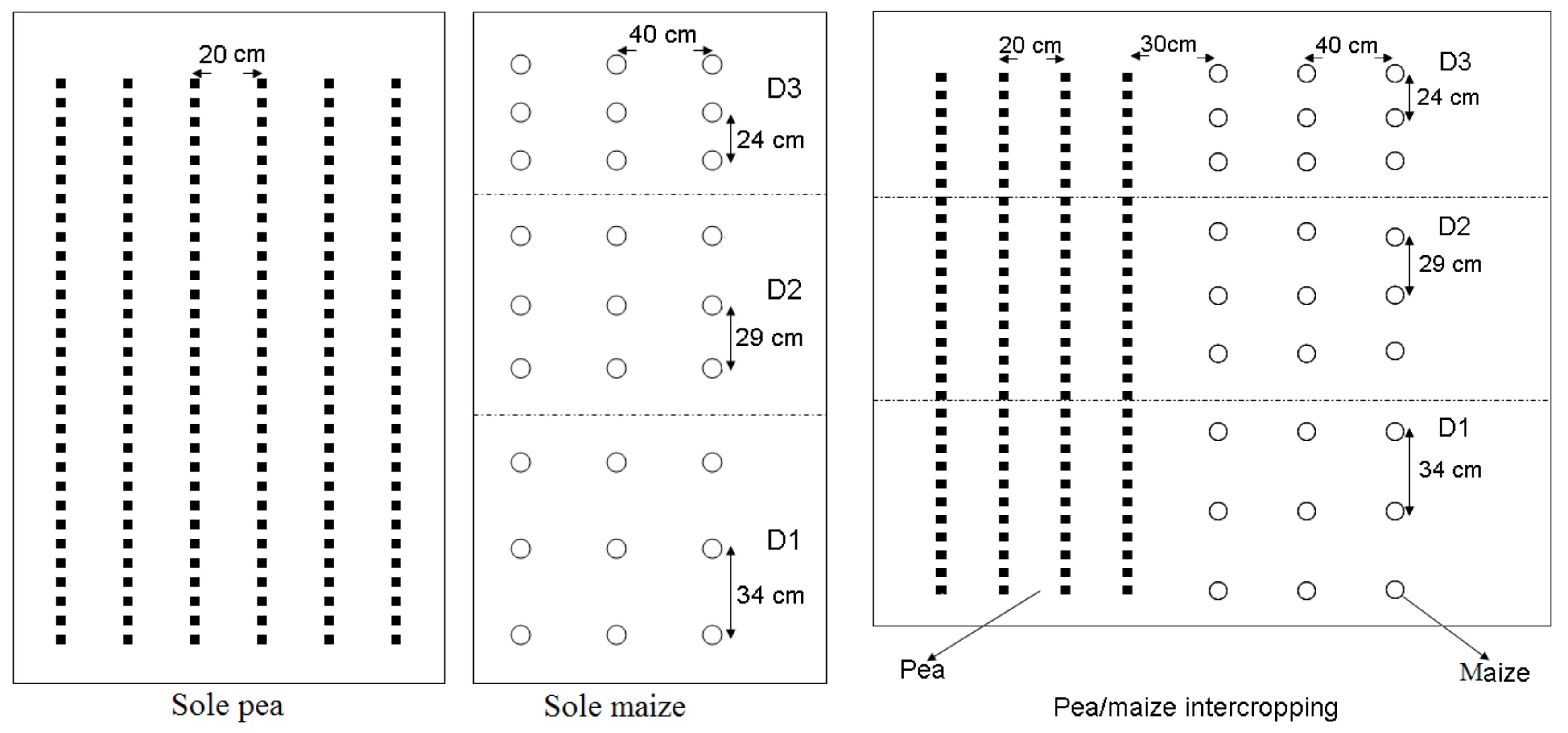

Figure 2. Planting pattern in pea/maize intercropping system.
Figure 2. Planting pattern in pea/maize intercropping system.
Agronomy 08 00052 g002

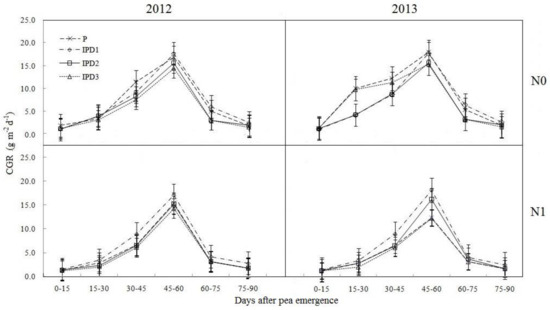

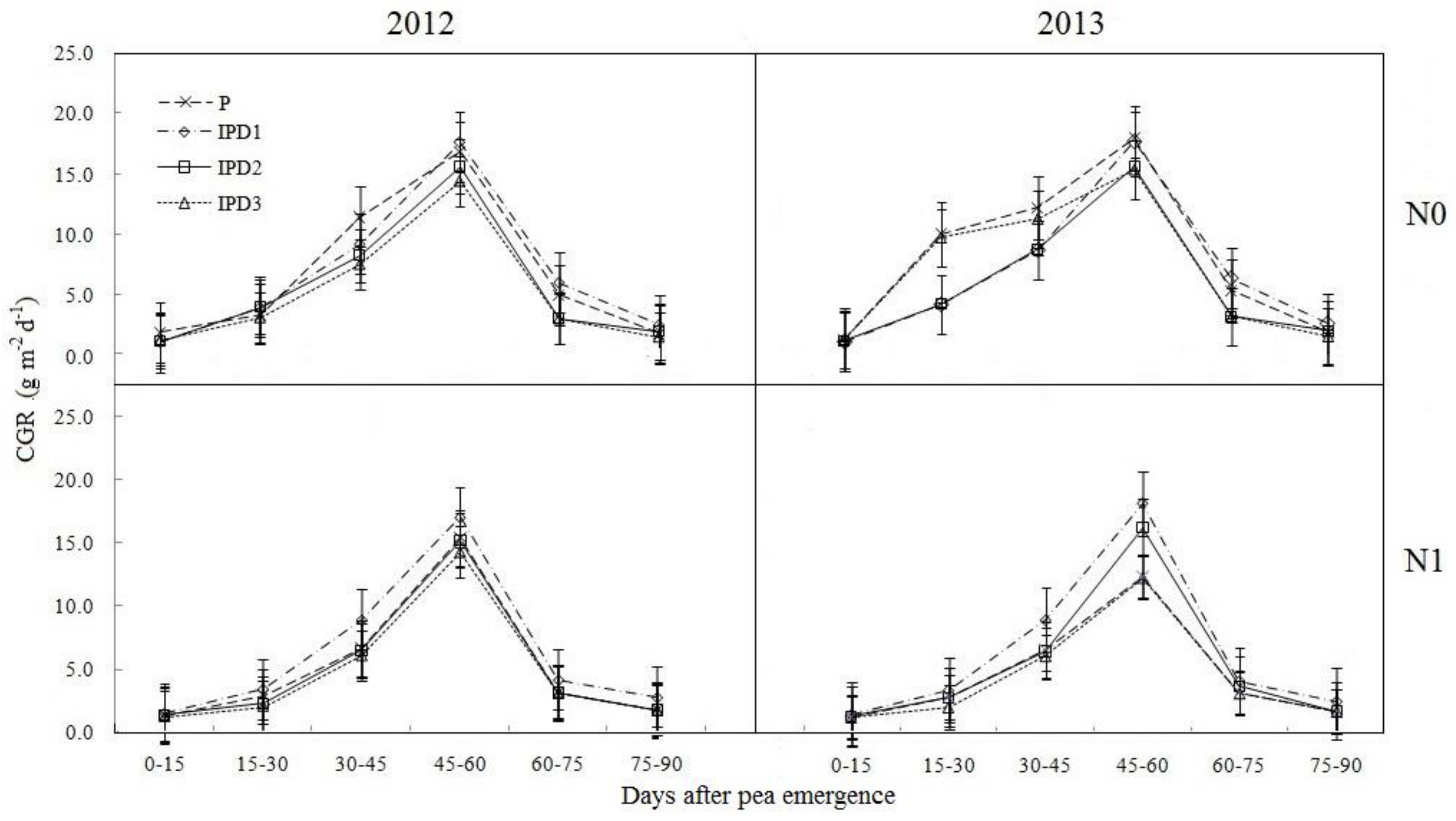

Figure 3. Crop growth rate (CGR) of sole pea (P) and intercropped pea (IP) grown under two nitrogen (N0 and N1) levels with three maize planting densities (D1, D2, and D3) throughout the 2012–2013 growing seasons, where error bars represent standard errors. The vertical bars represent ± SE.
Figure 3. Crop growth rate (CGR) of sole pea (P) and intercropped pea (IP) grown under two nitrogen (N0 and N1) levels with three maize planting densities (D1, D2, and D3) throughout the 2012–2013 growing seasons, where error bars represent standard errors. The vertical bars represent ± SE.
Agronomy 08 00052 g003

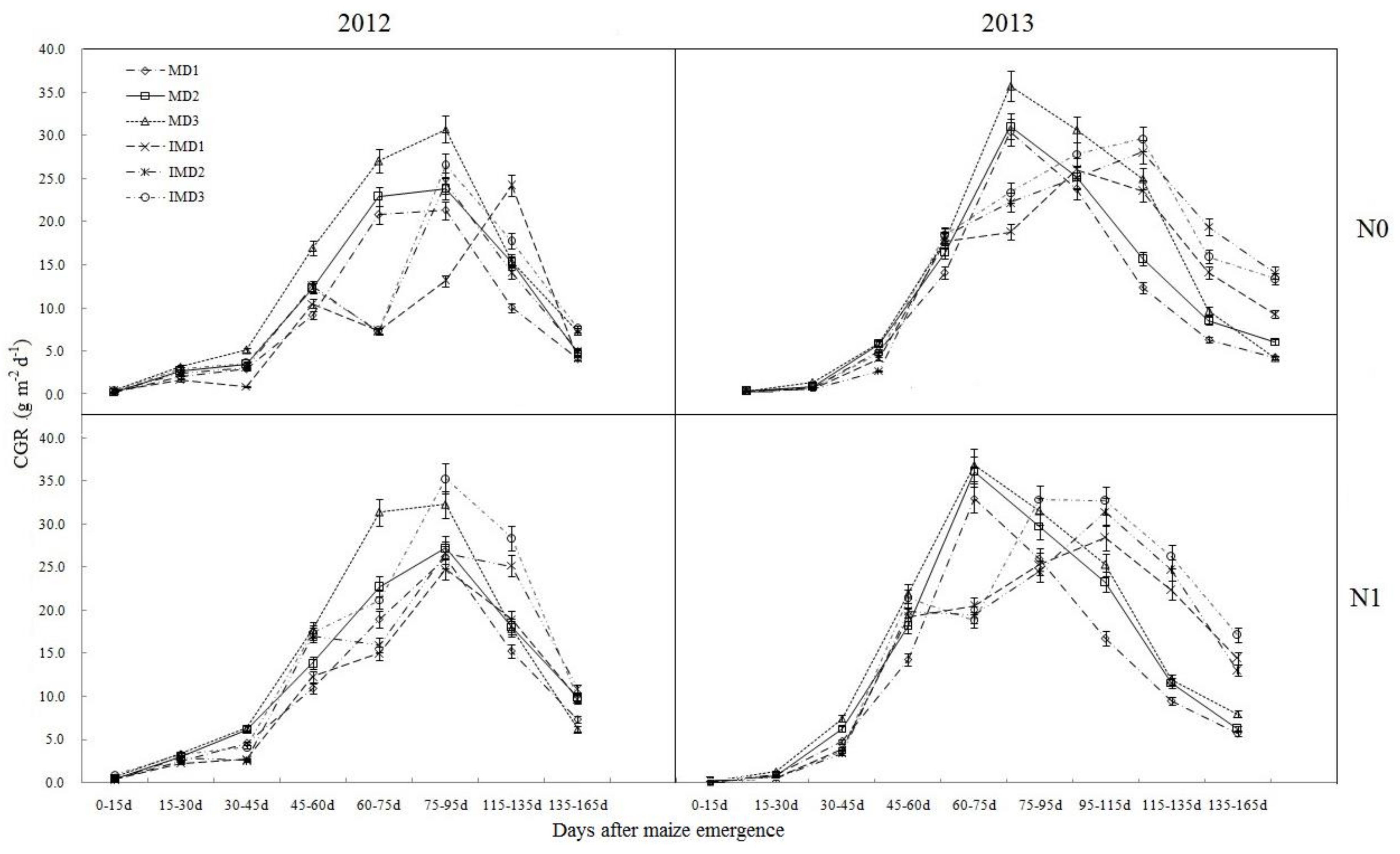

Figure 4. Crop growth rate (CGR) of sole maize (M) and intercropped maize (IM) grown under two nitrogen (N0 and N1) levels with three plant-densities (D1, D2, and D3) throughout the 2012 and 2013 growing seasons, where error bars represent standard errors. The vertical bars represent ± SE.
Figure 4. Crop growth rate (CGR) of sole maize (M) and intercropped maize (IM) grown under two nitrogen (N0 and N1) levels with three plant-densities (D1, D2, and D3) throughout the 2012 and 2013 growing seasons, where error bars represent standard errors. The vertical bars represent ± SE.
Agronomy 08 00052 g004

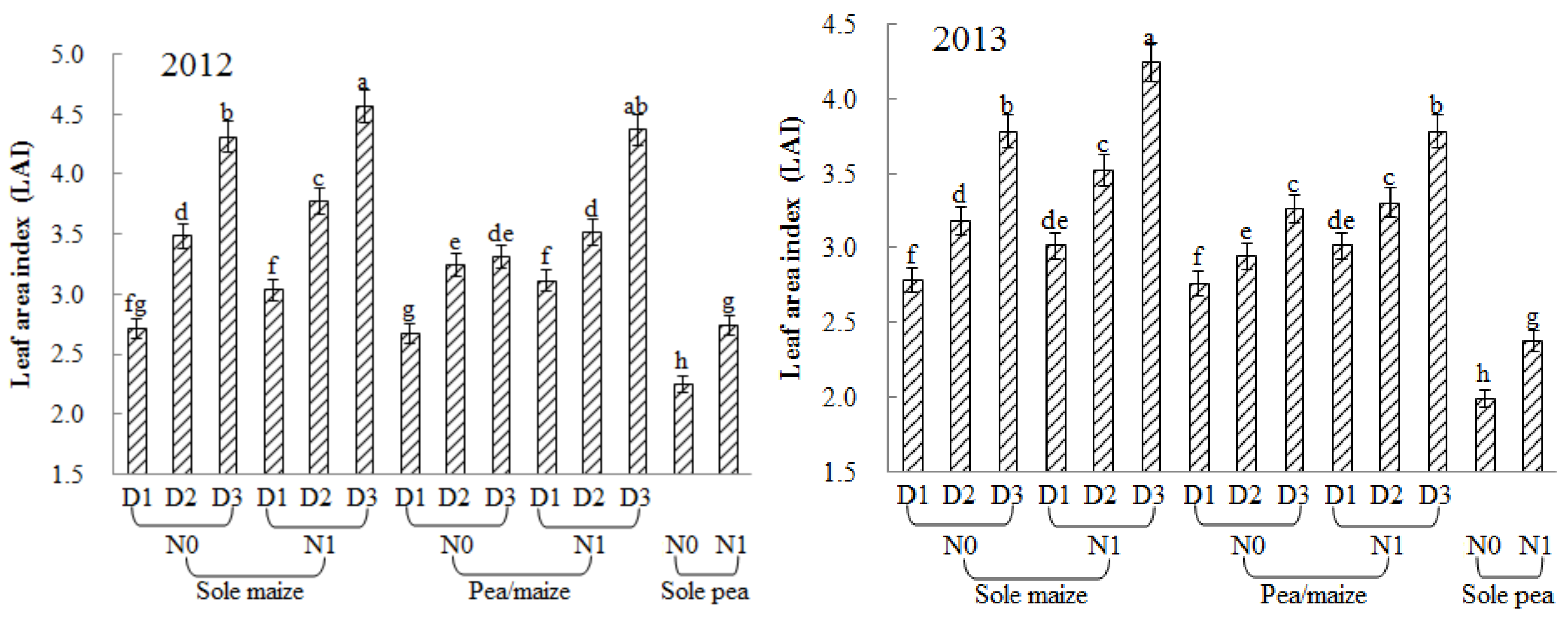

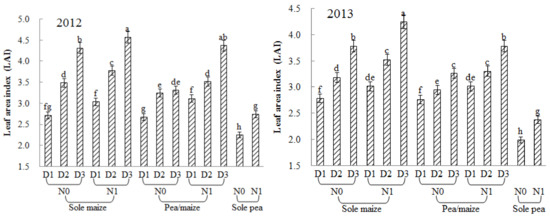

Figure 5. Leaf area index (LAI) of crops in different treatments. The letters above histogram indicate statistical significances within the same year at the 0.05 level using LSD tests. The vertical bars represent ± SE.
Figure 5. Leaf area index (LAI) of crops in different treatments. The letters above histogram indicate statistical significances within the same year at the 0.05 level using LSD tests. The vertical bars represent ± SE.
Agronomy 08 00052 g005
Table 1. Soil properties at the start of this experiment.
Table 1. Soil properties at the start of this experiment.
LayerBulk Density (g cm3)Wilting Point %Field Capacity %Soil Texture aParticle Size % b
Sand SiltClay
0–20 cm1.426.620.5Silt loam27.966.25.9
20–40 cm1.519.523.4Silt loam25.569.25.3
40–70 cm1.5510.426.1Silt17.178.64.3
70–110 cm1.4911.527.4Silt loam25.570.63.9
a Soil texture is determined using the soil particle percentage; b Soil particle fraction based on the USDA textural soil classification system.
Table 2. Soil properties at the experimental site, 2012–2013.
Table 2. Soil properties at the experimental site, 2012–2013.
YearLayerOrganic Matter (g kg−1)Total N (g kg−1)Available N (mg kg−1)Available P (mg kg−1)Available K (mg kg−1)pH
20120–20 cm17.820.79107.5830.92174.337.41
20–40 cm15.700.75106.5226.60121.007.70
20130–20 cm18.000.93108.1427.14184.517.35
20–40 cm15.860.71106.4919.54132.997.69
Table 3. Inputs and outputs of the production of pea and maize in an oasis region, northwest China, 2012–2013.
Table 3. Inputs and outputs of the production of pea and maize in an oasis region, northwest China, 2012–2013.
Item DescriptionUnitsValue in Chinese Yuan (¥) c
(B) Inputs
 1. Human labor
  (a) Adult manMan-hour15.00
  (b) WomanWoman-hour12.00
 2. Diesel aL13.60
 3. PetrolL15.20
 4. Irrigation waterm30.10
 5. ElectricitykWh0.55
 6. Chemical fertilizer
  (a) Nitrogenkg1.70
  (b) Phosphate(P2O5)kg1.80
  (c) Potash(K2O)kg15.00
 7. Seed
  (a) Peakg9.80
  (b) Maizekg17.6
(A) Outputs b
 Ⅰ. Main product
  1. Peakg3.60
  2. Maizekg2.40
 Ⅱ. By product
  1. Strawkg0.30
  2. Stoverkg0.20
a Includes lubricants; b Outputs are based on dry mass; c Averages of 2012 and 2013.
Table 4. Grain yields of pea and maize crops in intercrop- and sole-cropping systems with two rates of nitrogen and at three maize plant-density levels at an Oasis region, 2012–2013.
Table 4. Grain yields of pea and maize crops in intercrop- and sole-cropping systems with two rates of nitrogen and at three maize plant-density levels at an Oasis region, 2012–2013.
Treatment20122013
Component YieldMixed Yields aComponent YieldMixed Yields a
PeaMaizePeaMaize
(kg ha−1)
Inter-croppingRate of nitrogen effect
N01707845810,1652133834510,478
N1197710,19412,1712492938411,876
NNS b******
Planting density effect
D11868786597342418775110,169
D21835927511,1102459879111,249
D3182310,83812,661206010,05212,112
DNS*****
N × D (p-value)NS**NS*NS
Sole-croppingRate of nitrogen effect
N0314610,65233809835
N1460311,983475311,339
N**NS*
Planting density effect
D196778850
D211,44310,561
D312,83212,349
D**
N × D (p-value)*NS
a Mixed yields are the sum of the yields produced by the two component crops; b NS refers to no significant differences between treatments at the 0.05 level; * Significant difference between treatments at 0.05 levels. ** Significant difference between treatments at 0.01 levels.
Table 5. Partial land equivalent ratio (LER) for grain yields of intercropped pea and intercropped maize, total LER for grain yields of intercropping at an Oasis region, 2012–2013.
Table 5. Partial land equivalent ratio (LER) for grain yields of intercropped pea and intercropped maize, total LER for grain yields of intercropping at an Oasis region, 2012–2013.
TreatmentPartial LERTotal LER
PeaMaize
201220132012201320122013
Rate of nitrogen effect
N00.6990.6110.7950.8391.6341.466
N10.6830.6960.8520.8301.6941.226
NNS**NS*NS
Planting density effect
D10.6920.4970.8090.8141.6351.373
D20.7250.5090.8170.8131.6381.347
D30.7640.5020.8450.8761.7191.317
D*NS aNSNS*NS
N × DNSNSNSNSNSNS
a NS refers to no significant differences between treatments at the 0.05 level, * Significant difference between treatments at 0.05 levels.
Table 6. Economic contributions of sole pea (P), sole maize (M) and pea/maize intercropping (P/M) under various treatments in an Oasis region of northwest China, 2012–2013.
Table 6. Economic contributions of sole pea (P), sole maize (M) and pea/maize intercropping (P/M) under various treatments in an Oasis region of northwest China, 2012–2013.
TreatmentLabor
(Man-Hours ha−1)
Total Input a
(¥ ha−1)
Total Output a
(¥ ha−1)
Net Returns b
(¥ ha−1)
Benefit-Cost Ratio c
PN01396128818916030.47
N11341251511750.88
MN0D110762164386717030.79
D22275438021050.93
D32468494324751.01
N1D12309442921200.92
D22418514027221.13
D32593522926351.02
P/MN0D117242225390916850.76
D22379452621460.90
D32513488623740.94
N1D12370474823791.01
D22527518726601.06
D32618558029631.14
Significant test (p-value)
P: N0 vs. N1NS dNS****
M: N0 vs. N1NS****NS
P/M: N0 vs. N1NS*****
P vs. M (N0, N1 average)********
M: among D1, D2, D3NS***NS
P/M: among D1, D2, D3NS***NS
Economic contributions in 2012 and 2013 had the same varying tendency, all parameters are average value. a All the items listed in Table 2. b Net return is total outputs—total inputs. c Benefit ratio is net return divided by total input cost. d NS refers to no significant differences between treatments at the 0.05 level, * Significant difference between treatments at 0.05 levels, ** Significant difference between treatments at 0.01 levels.

Share and Cite

MDPI and ACS Style

Yang, C.; Fan, Z.; Chai, Q. Agronomic and Economic Benefits of Pea/Maize Intercropping Systems in Relation to N Fertilizer and Maize Density. Agronomy 2018, 8, 52. https://doi.org/10.3390/agronomy8040052

AMA Style

Yang C, Fan Z, Chai Q. Agronomic and Economic Benefits of Pea/Maize Intercropping Systems in Relation to N Fertilizer and Maize Density. Agronomy. 2018; 8(4):52. https://doi.org/10.3390/agronomy8040052

Chicago/Turabian Style

Yang, Caihong, Zhilong Fan, and Qiang Chai. 2018. "Agronomic and Economic Benefits of Pea/Maize Intercropping Systems in Relation to N Fertilizer and Maize Density" Agronomy 8, no. 4: 52. https://doi.org/10.3390/agronomy8040052

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
