Next Article in Journal
Dynamics of a Polymer Network Based on Dual Sierpinski Gasket and Dendrimer: A Theoretical Approach
Previous Article in Journal
Fracture Failure Mechanisms of Long Single PA6 Fibers
Article Menu
Issue 7 (July) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(7), 244; doi:10.3390/polym9070244

The Combined Effects of Environmental Conditioning and Sustained Load on Mechanical Properties of Wet Lay-Up Fiber Reinforced Polymer

1
The School of Civil Engineering, Wuhan University, Wuhan 430072, China
2
The School of Civil Engineering, Dalian University of Technology, Dalian 116024, China
*
Author to whom correspondence should be addressed.
Academic Editor: Russell E. Gorga
Received: 3 May 2017 / Revised: 19 June 2017 / Accepted: 20 June 2017 / Published: 23 June 2017
View Full-Text   |   Download PDF [2541 KB, uploaded 23 June 2017]   |

Abstract

The aim of this study was to investigate the combined effects of an aggressive environment and sustained load on the mechanical properties of wet lay-up fiber reinforced polymers (FRP). A total of 390 specimens, including 234 carbon fiber reinforced polymer (CFRP) specimens and 156 glass fiber reinforced polymer (GFRP) specimens, were exposed to freeze–thaw cycles, hygrothermal aging, and wet–dry cycles either in an unstressed state or loaded to about 30% or 60% of the initial ultimate load. Uniaxial tension tests were conducted on the samples after specific exposure time as well as on the control samples; and tensile properties were measured for each specimen. The results showed that the three environmental exposures, particularly hygrothermal aging, led to a significant decrease in tensile strength and elongation of the CFRP and GFRP specimens even for relatively short conditioning periods, and this decrease was markedly exacerbated by higher external loading levels. It was interesting to observe that the tensile modulus of the CFRP and GFRP specimens exhibited an excellent resistance and even appeared to increase slightly after exposure. Finally, predictive values of tensile strength based on the Arrhenius method were compared with the design values of ACI 440.2R-08 and GB 50608-2010. The results showed that both ACI 440.2R-08 and GB 50608-2010 were too conservative and significantly underestimated the tensile strength of FRP materials after an anticipated exposure period. View Full-Text
Keywords: fiber reinforced polymer; durability; environmental exposure; sustained load; mechanical properties fiber reinforced polymer; durability; environmental exposure; sustained load; mechanical properties

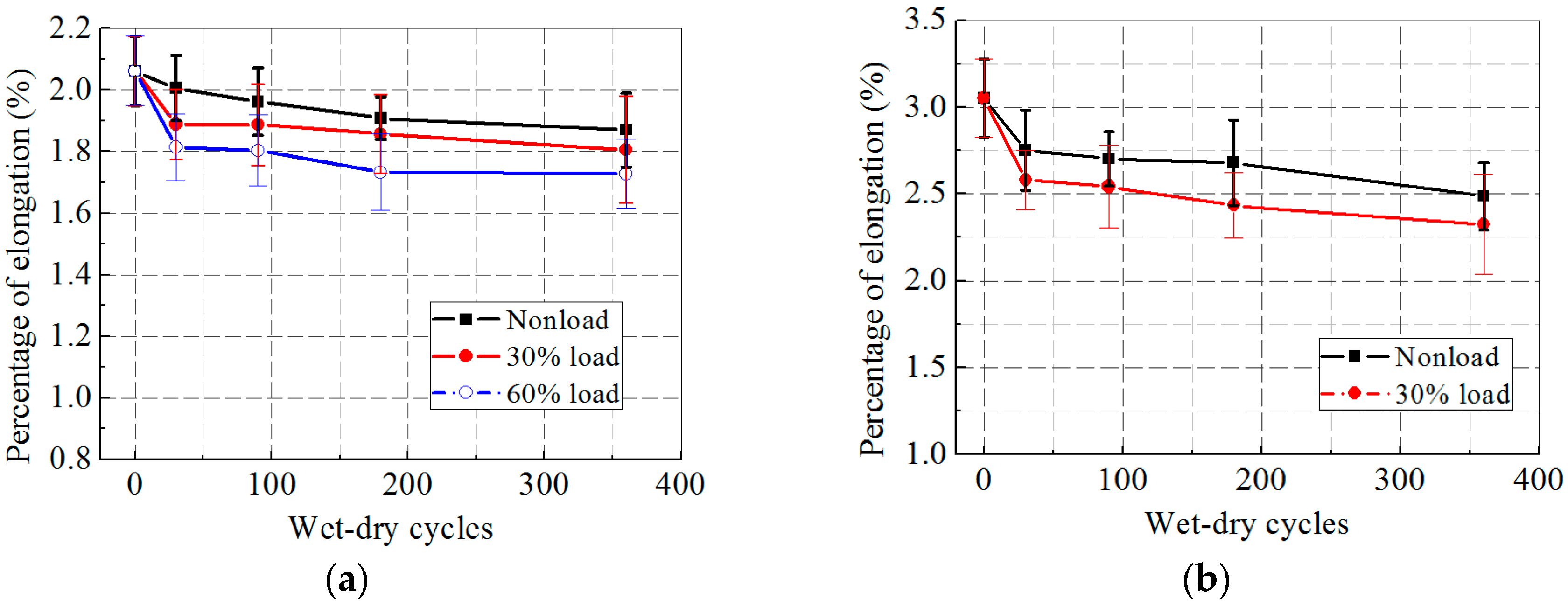

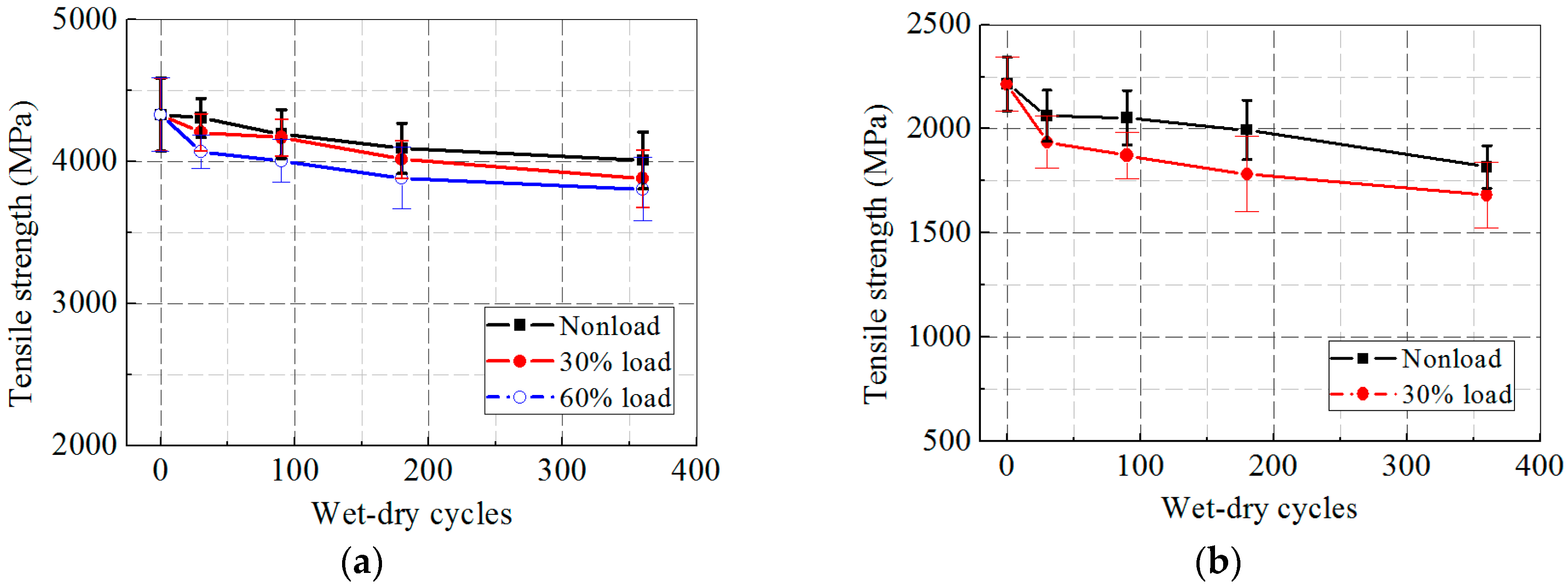

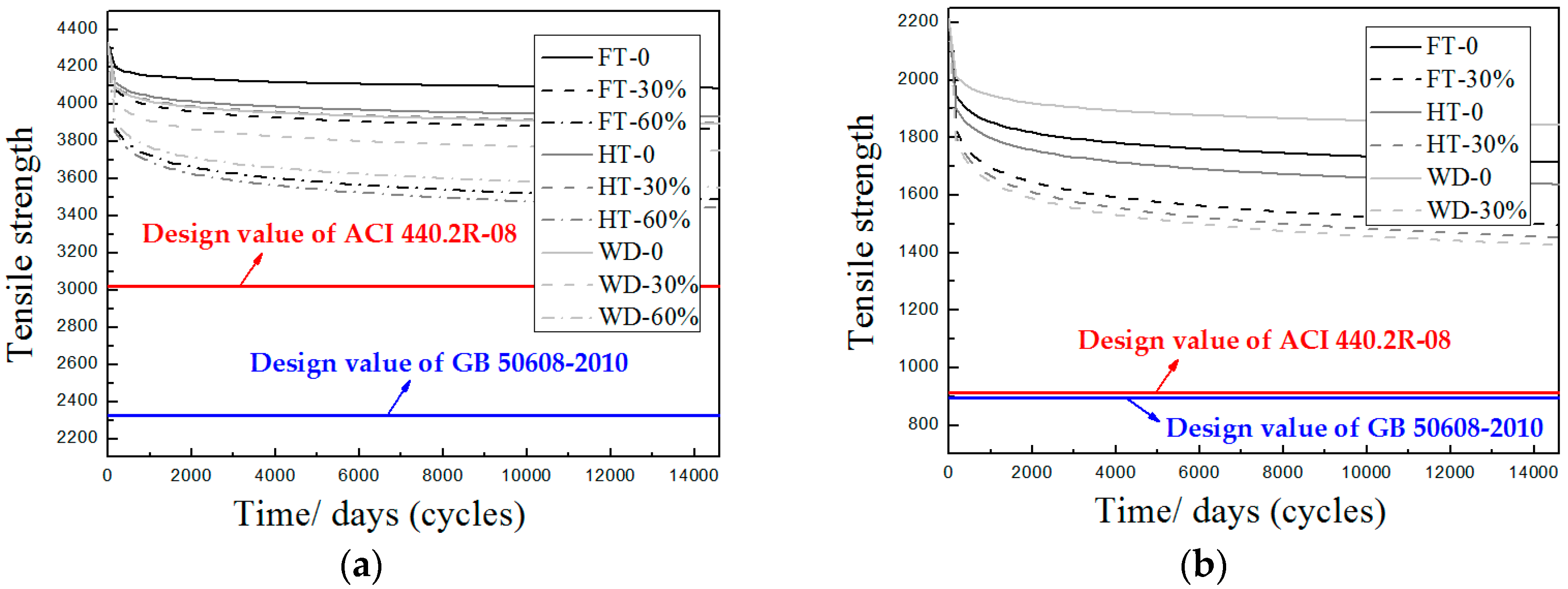

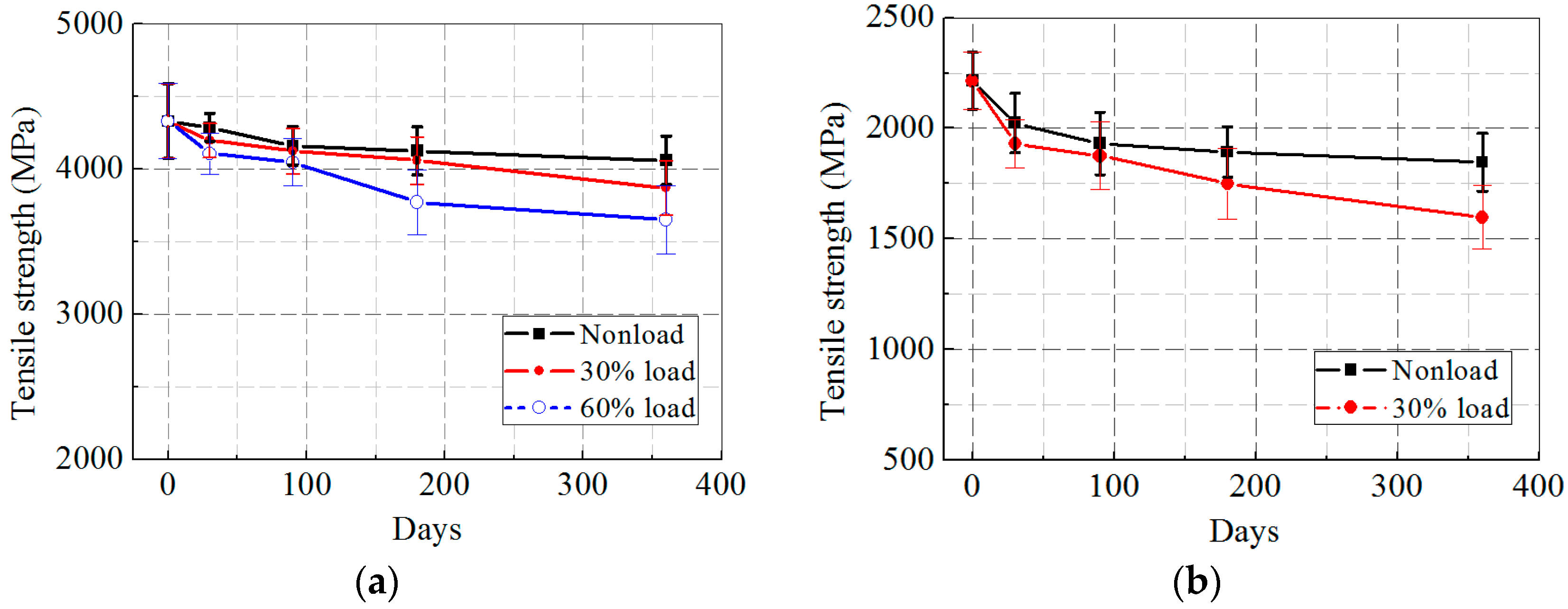

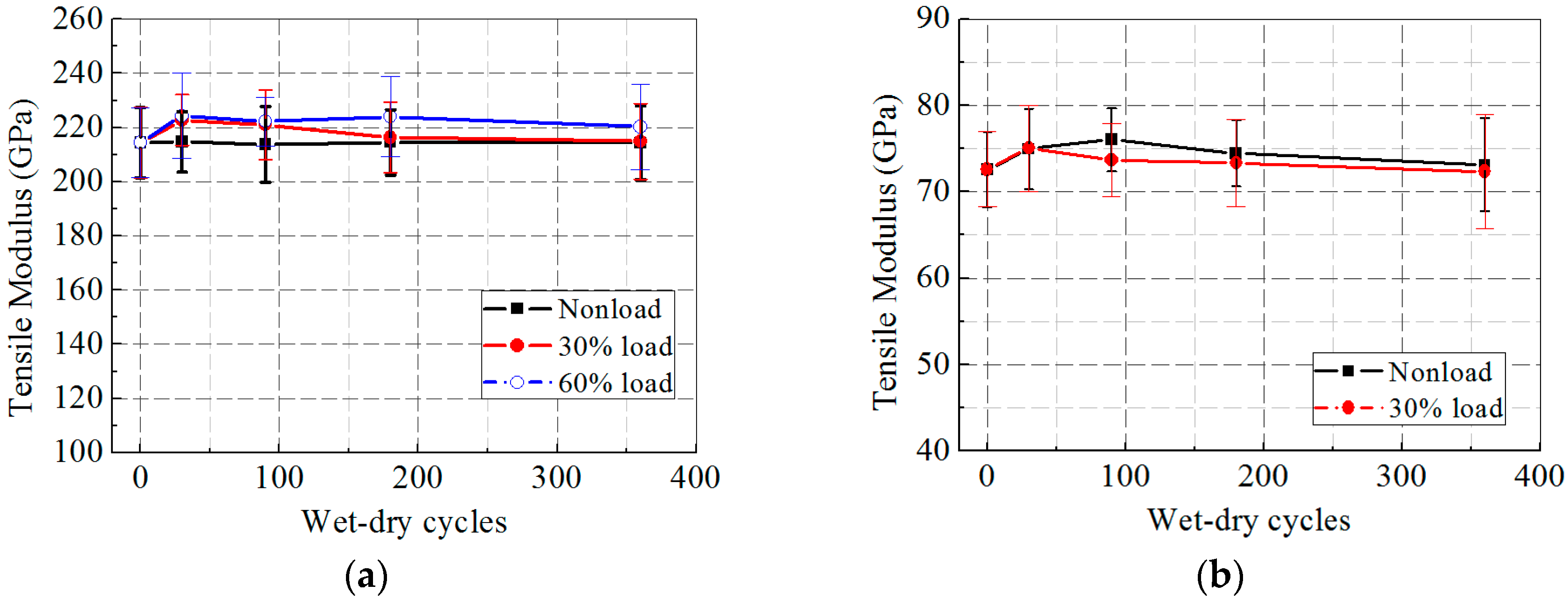

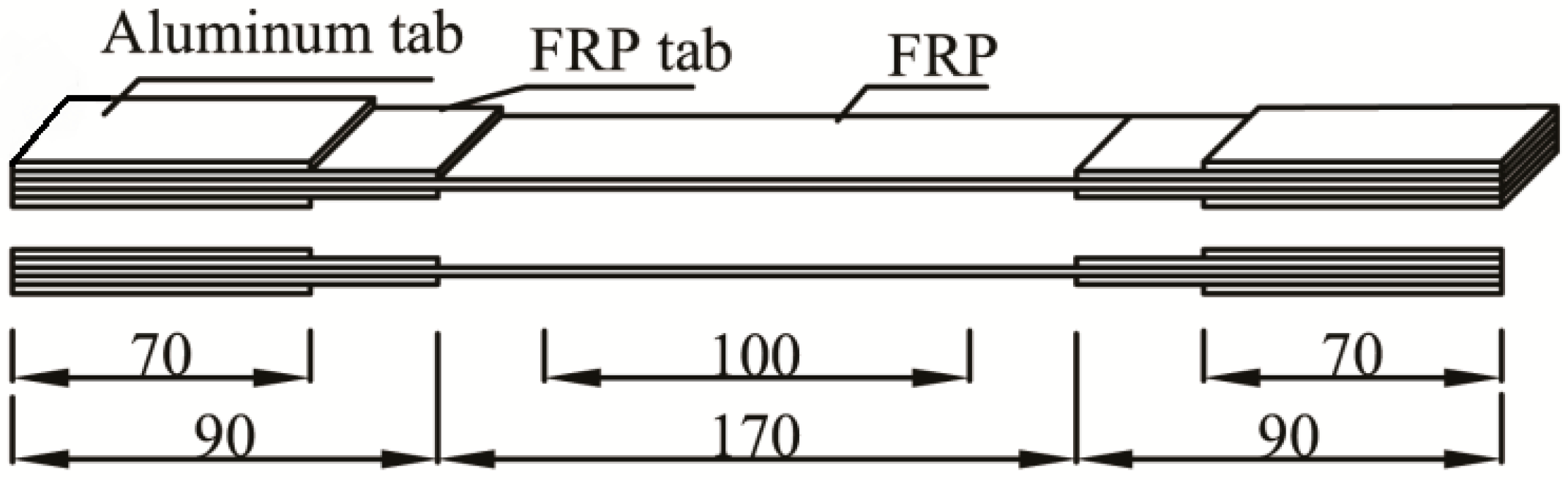

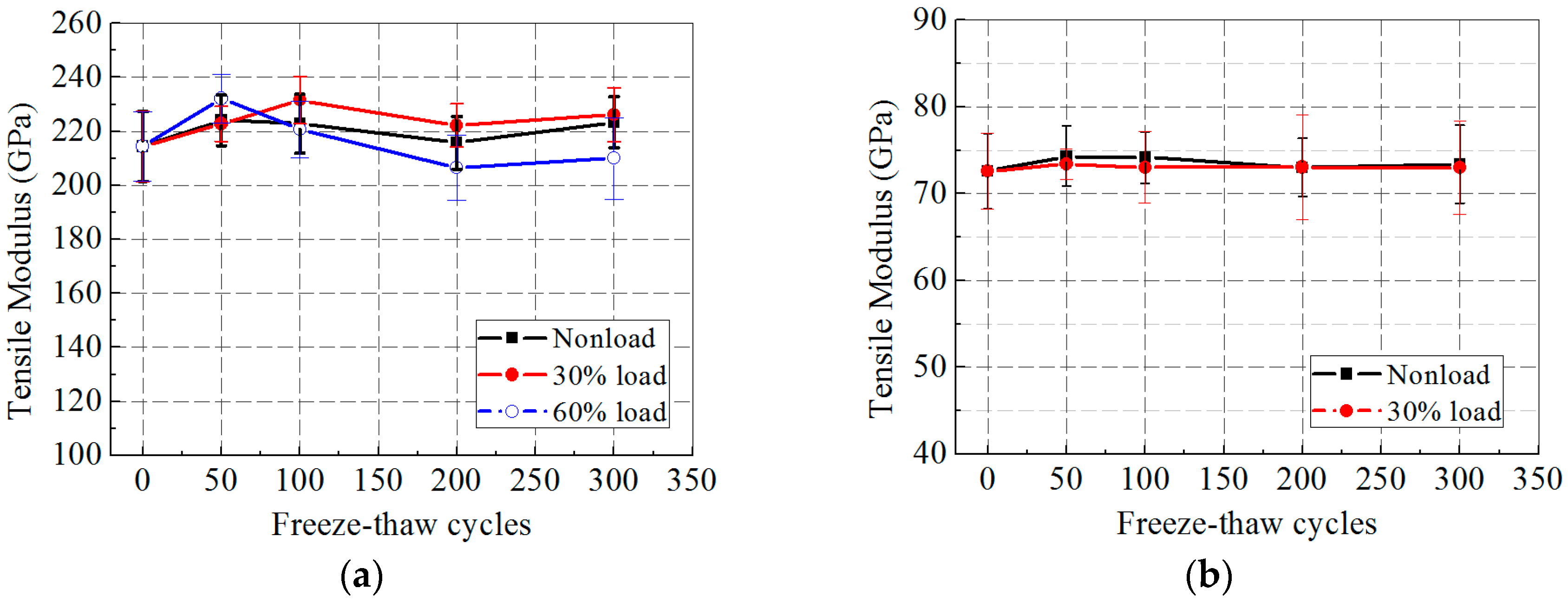

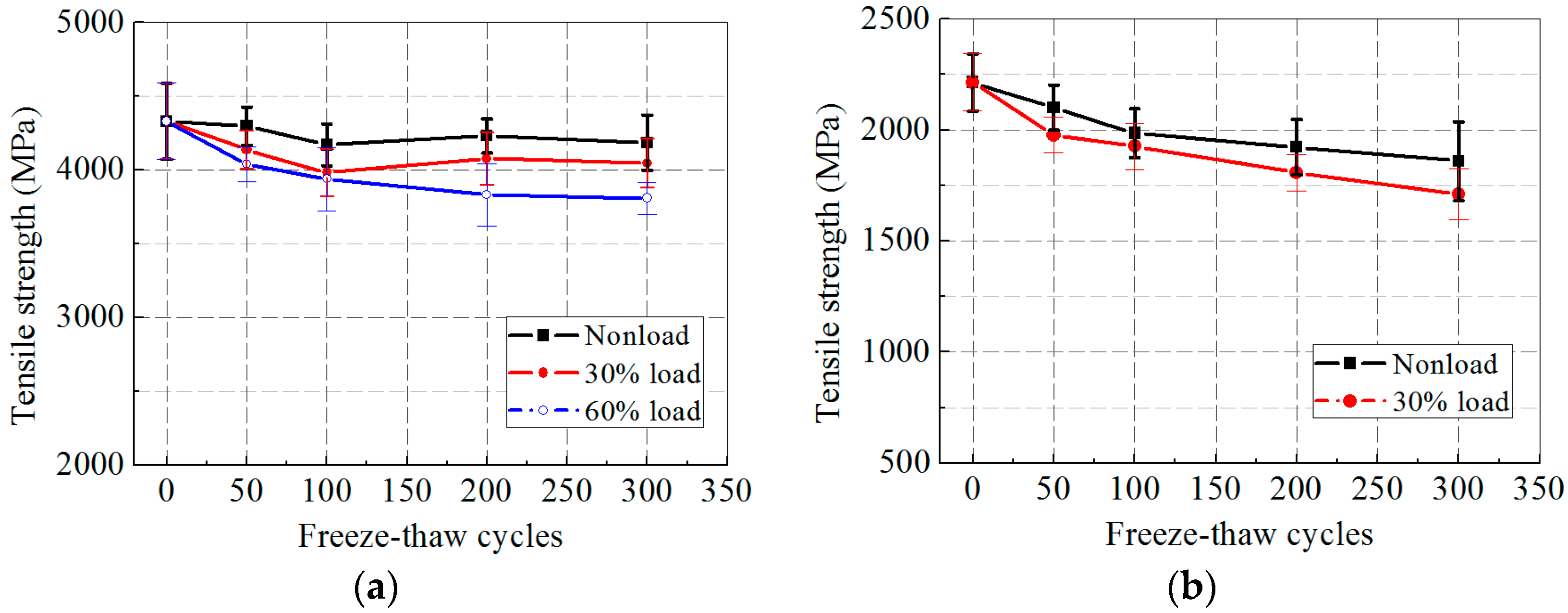

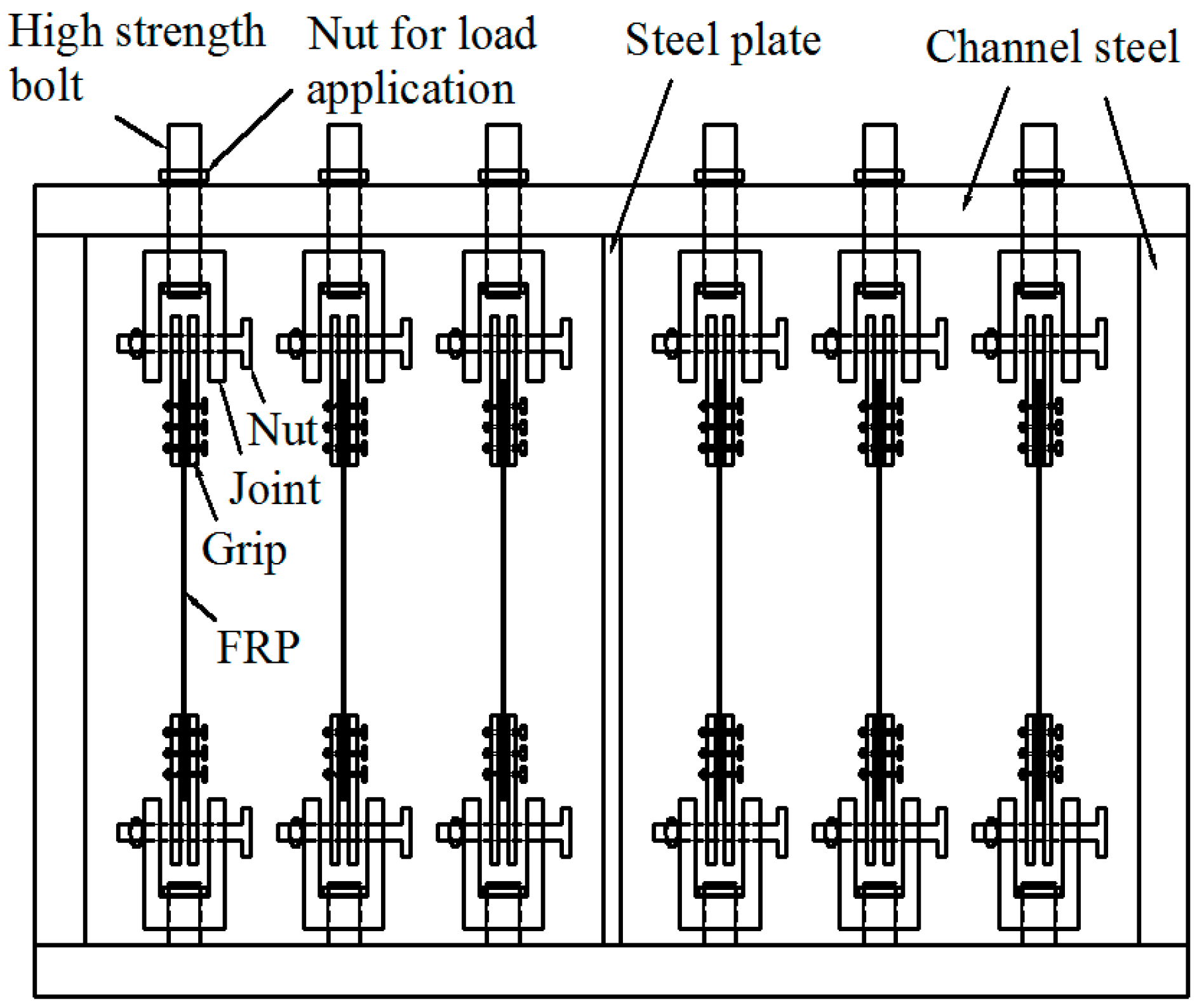

Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Li, S.; Hu, J.; Ren, H. The Combined Effects of Environmental Conditioning and Sustained Load on Mechanical Properties of Wet Lay-Up Fiber Reinforced Polymer. Polymers 2017, 9, 244.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
