Next Article in Journal
Recent Development on Narrow Bandgap Conjugated Polymers for Polymer Solar Cells
Next Article in Special Issue
Theoretical Confirmation of the Quinone Methide Hypothesis for the Condensation Reactions in Phenol-Formaldehyde Resin Synthesis
Previous Article in Journal
Design of Dithiobenzoate RAFT Agent Bearing Hydroxyl Groups and Its Application in RAFT Polymerization for Telechelic Diol Polymers
Previous Article in Special Issue
Polycondensation Resins by Flavonoid Tannins Reaction with Amines
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(2), 43; doi:10.3390/polym9020043

Ammoxidized Fenton-Activated Pine Kraft Lignin Accelerates Synthesis and Curing of Resole Resins

1
Department of Material Sciences and Process Engineering, Institute of Wood Technology and Renewable Materials; University of Natural Resources and Life Sciences Vienna, University and Research Center Tulln, Konrad-Lorenz-Strasse 24, 3430 Tulln an der Donau, Austria
2
Department of Chemistry, Division of Chemistry of Renewable Resources, University of Natural Resources and Life Sciences Vienna, University and Research Center Tulln, Konrad-Lorenz-Strasse 24, 3430 Tulln an der Donau, Austria
3
Kompetenzzentrum Holz GmbH, Altenberger Strasse 69, 4040 Linz, Austria
4
Chair of Chemistry of Polymeric Materials & Christian Doppler Laboratory for Functional and Polymer Based Ink-Jet Inks, University of Leoben, Otto-Glöckel-Strasse 2, A-8700 Leoben, Austria
*
Author to whom correspondence should be addressed.
Received: 30 December 2016 / Revised: 19 January 2017 / Accepted: 22 January 2017 / Published: 28 January 2017
(This article belongs to the Special Issue Renewable Polymeric Adhesives)
View Full-Text   |   Download PDF [1950 KB, uploaded 4 February 2017]   |

Abstract

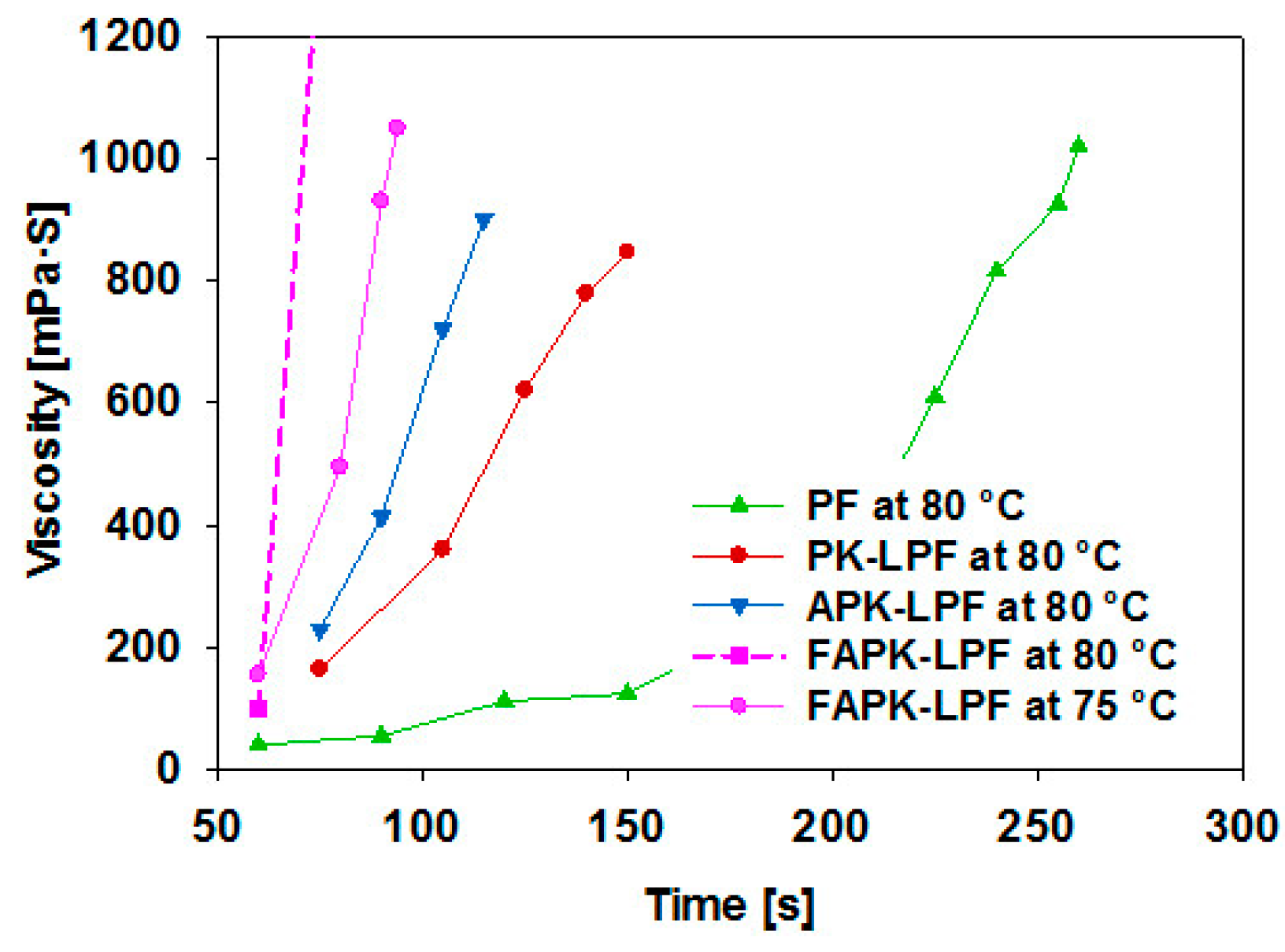

Ammoxidation of pine kraft lignin in aqueous 5 wt % ammonia affords a novel type of phenol substitute that significantly accelerates resole synthesis and curing as demonstrated for 40 wt % phenol replacement. Compared to non-ammoxidized lignin, which already shortens significantly the cooking time required to reach a resole viscosity of 1000 Pa·s (250 vs. 150 s) and reduces the typical curing B-time by about 25% at 100 °C, the use of ammoxidized lignin has an even more pronounced impact in this respect. Activation of lignin by Fenton-type oxidation prior to ammoxidation further boosts both synthesis and curing of the resole. This is presumably due to the intermediary formation of polyvalent cross-linkers like N,N,N-tris (methylol) trimethylene triamine triggered by saponification of a larger fraction of nitrogenous moieties present in such a treated lignin (ammonium salts, amide-type nitrogen, urea) and reaction of the released ammonia with formaldehyde. Except for the fact that phenol replacement by ammoxidized lignin results in a somewhat less brittle cured adhesive polymer and higher elastic modulus, the aforementioned acceleration in curing could no longer be observed in the presence of wood, where a significantly delayed wood-adhesive bond formation was observed for the lignin-containing adhesives as evident from the automated bonding evaluation system. View Full-Text
Keywords: lignin; phenol formaldehyde resin; lignin ammoxidation; Fenton-type oxidation; ligneous adhesive; automated bonding evaluation system (ABES) lignin; phenol formaldehyde resin; lignin ammoxidation; Fenton-type oxidation; ligneous adhesive; automated bonding evaluation system (ABES)

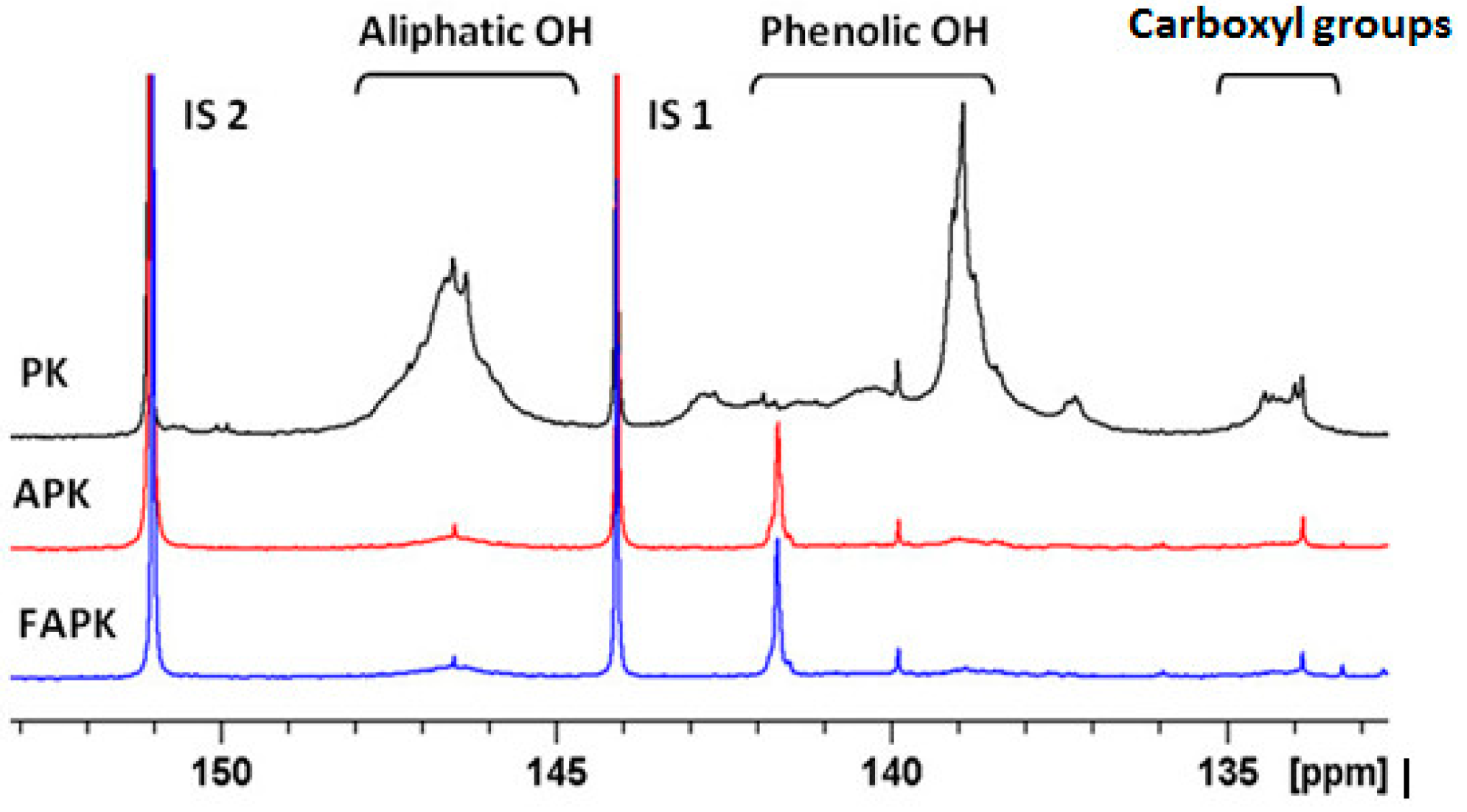

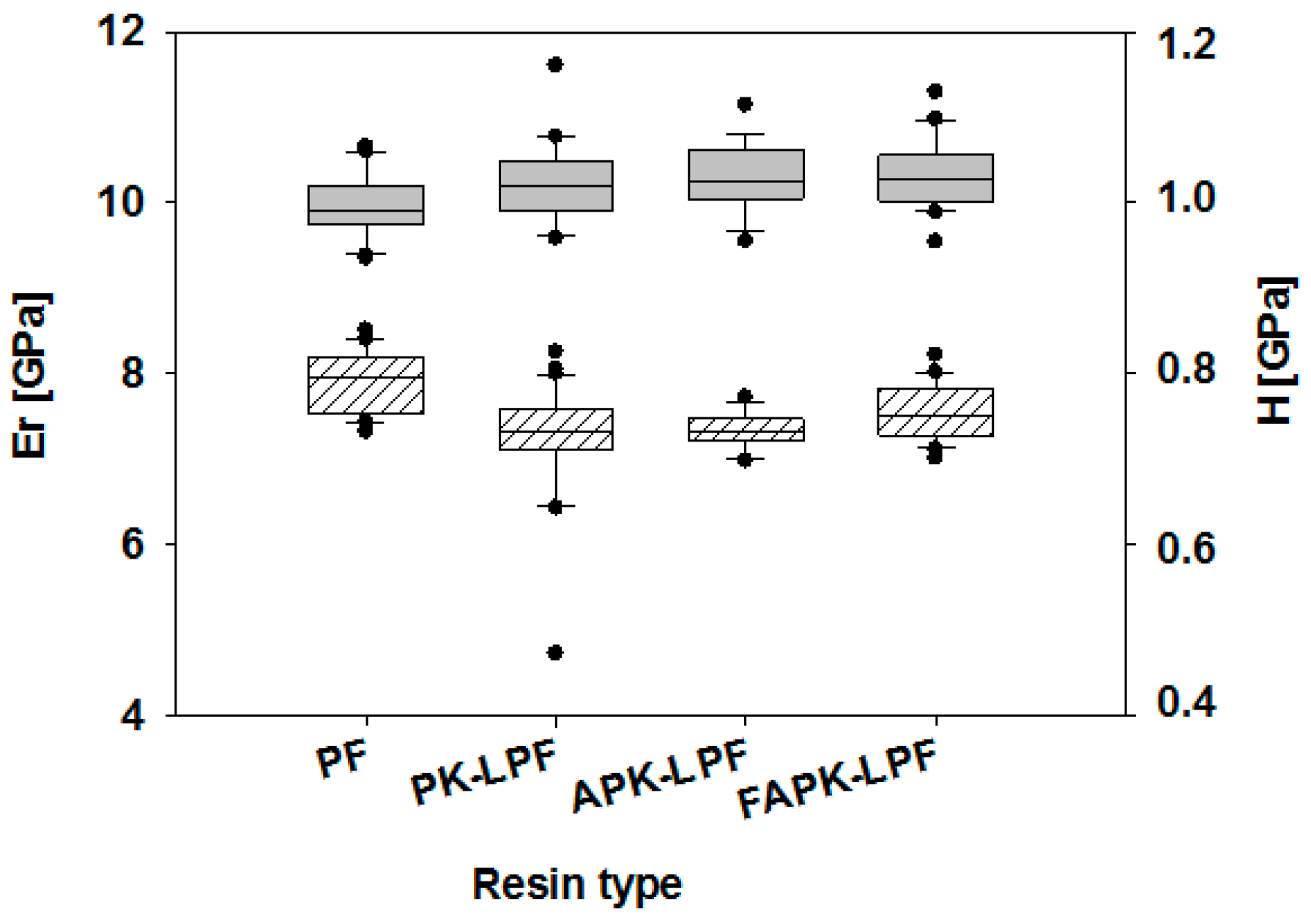

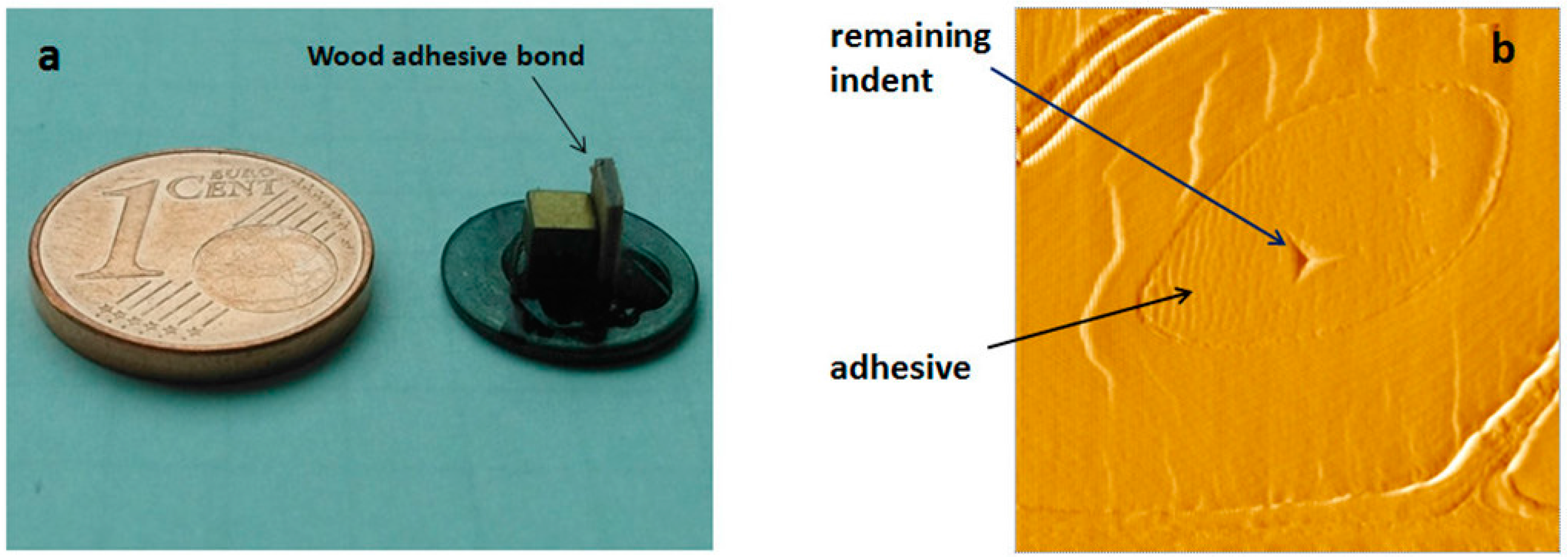

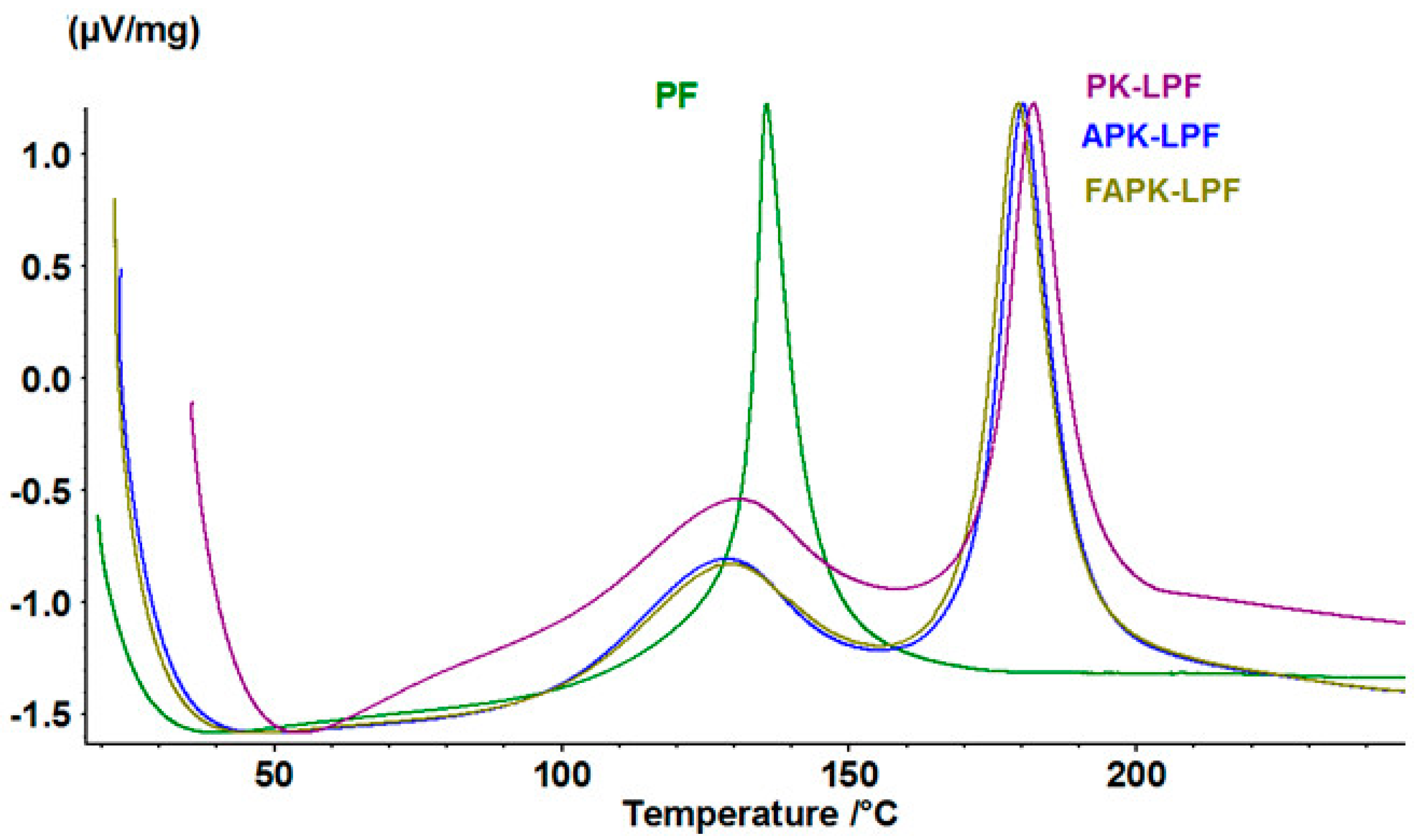

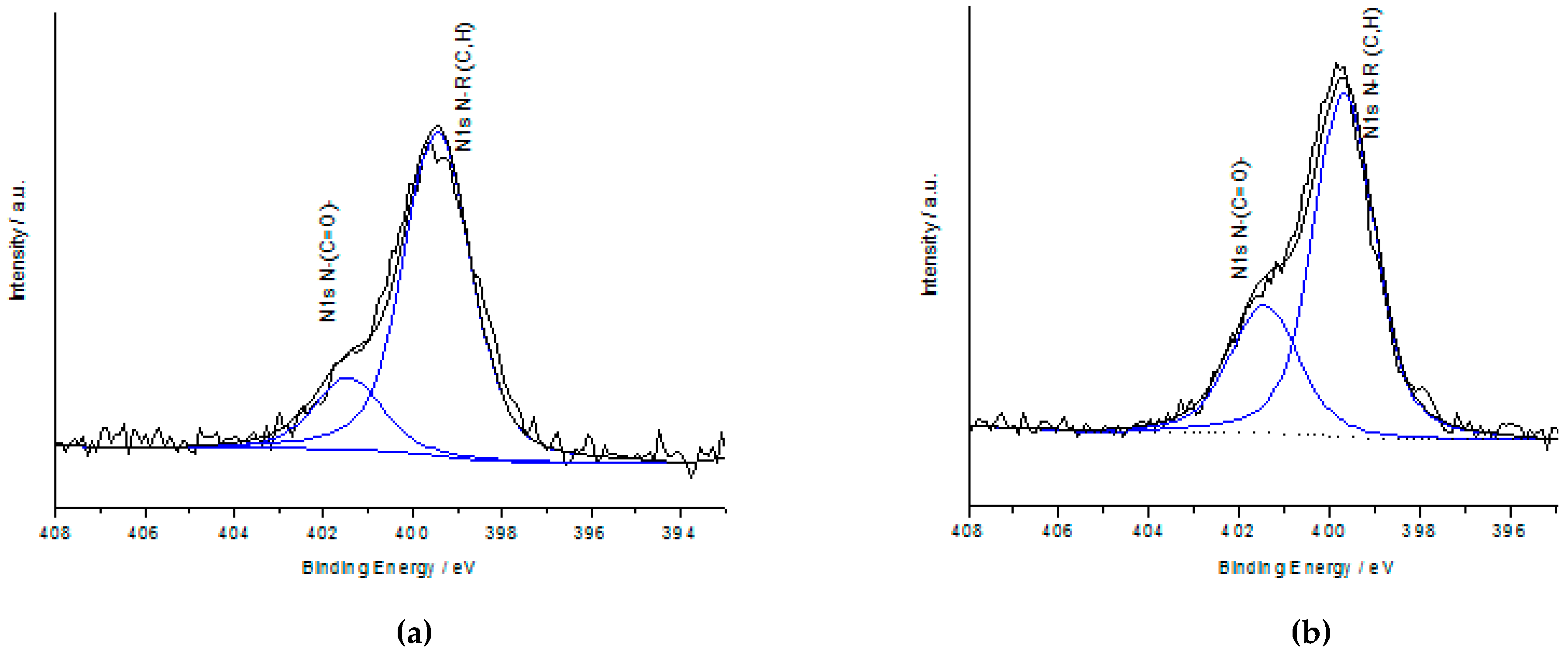

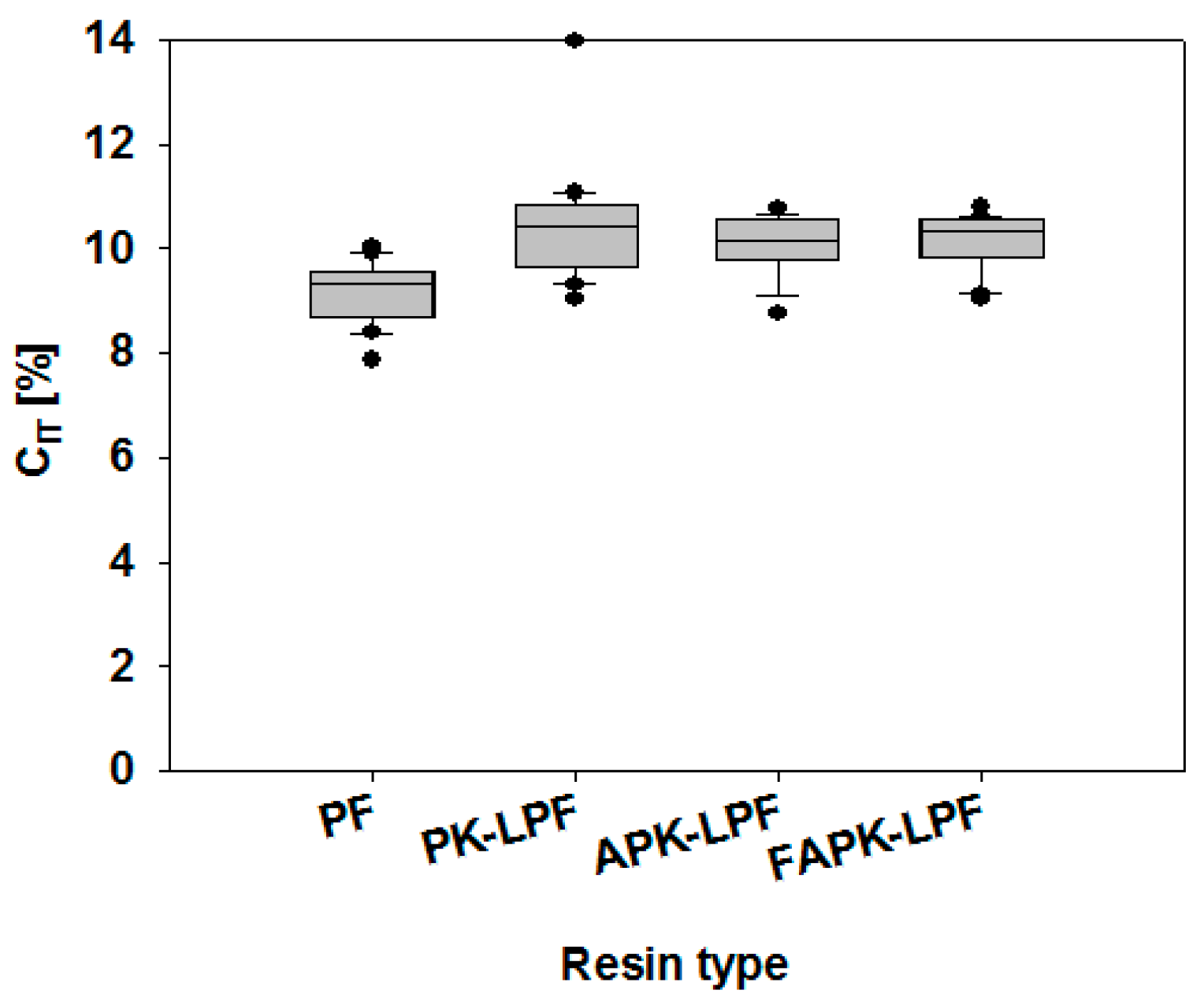

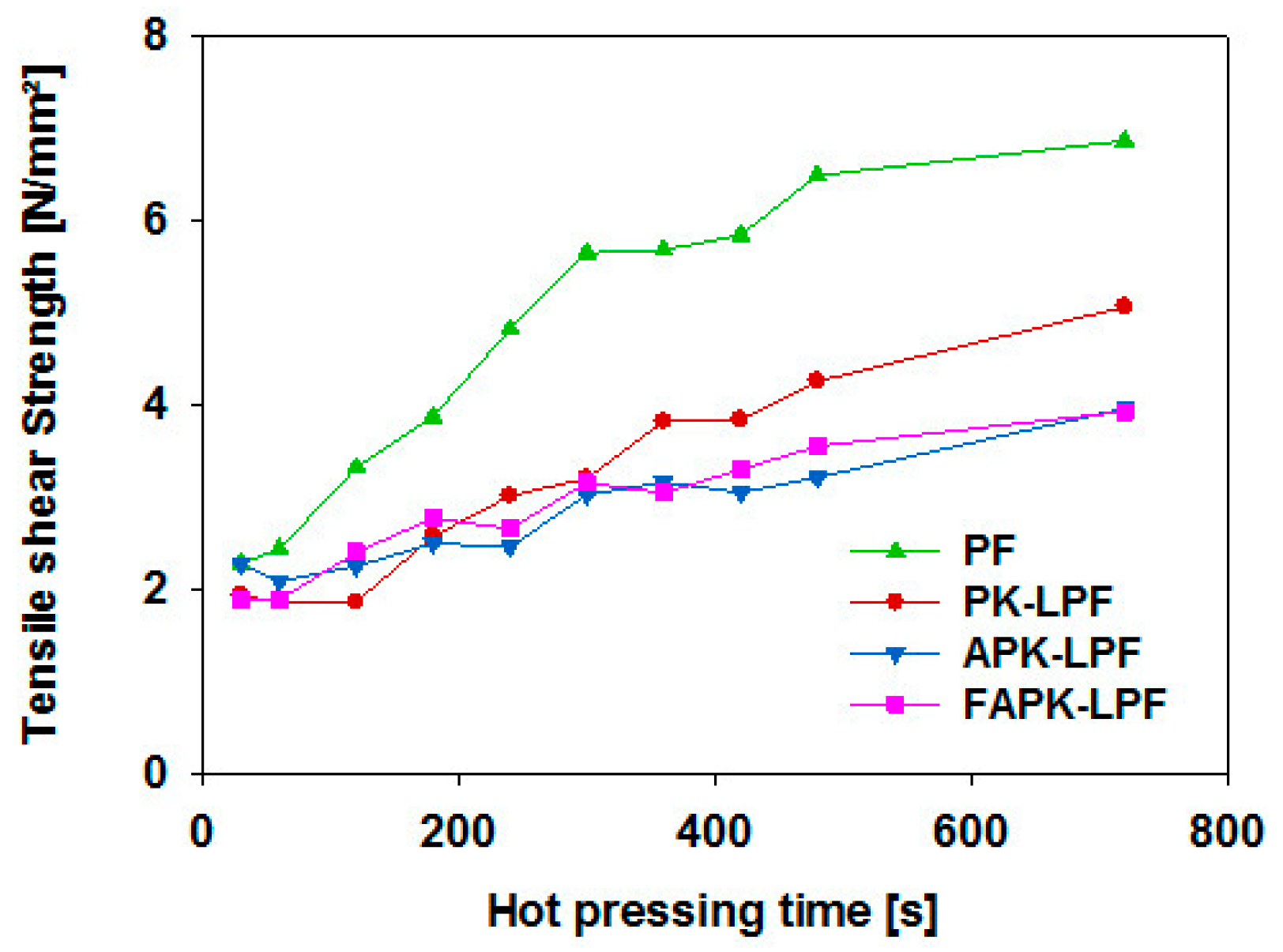

Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Ghorbani, M.; Konnerth, J.; Budjav, E.; Silva, A.R.; Zinovyev, G.; van Herwijnen, H.W.G.; Edler, M.; Griesser, T.; Liebner, F. Ammoxidized Fenton-Activated Pine Kraft Lignin Accelerates Synthesis and Curing of Resole Resins. Polymers 2017, 9, 43.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
