Open AccessArticle
Polymers 2017, 9(11), 571; https://doi.org/10.3390/polym9110571

The Effect of Donor and Nonfullerene Acceptor Inhomogeneous Distribution within the Photoactive Layer on the Performance of Polymer Solar Cells with Different Device Structures

1
State Key Laboratory of Alternate Electrical Power System with Renewable Energy Sources, North China Electric Power University, Beijing 102206, China
2
Department of Mathematics, Quiad-I-Azam University, Islamabad 44000, Pakistan
3
NAAM Research Group, Faculty of Science, King Abdulaziz University, Jeddah 21589, Saudi Arabia
*
Author to whom correspondence should be addressed.
Received: 12 September 2017 / Revised: 26 October 2017 / Accepted: 31 October 2017 / Published: 3 November 2017
(This article belongs to the Special Issue Polymer Solar Cells)
Full-Text   |   PDF [2693 KB, uploaded 3 November 2017]   |

Abstract

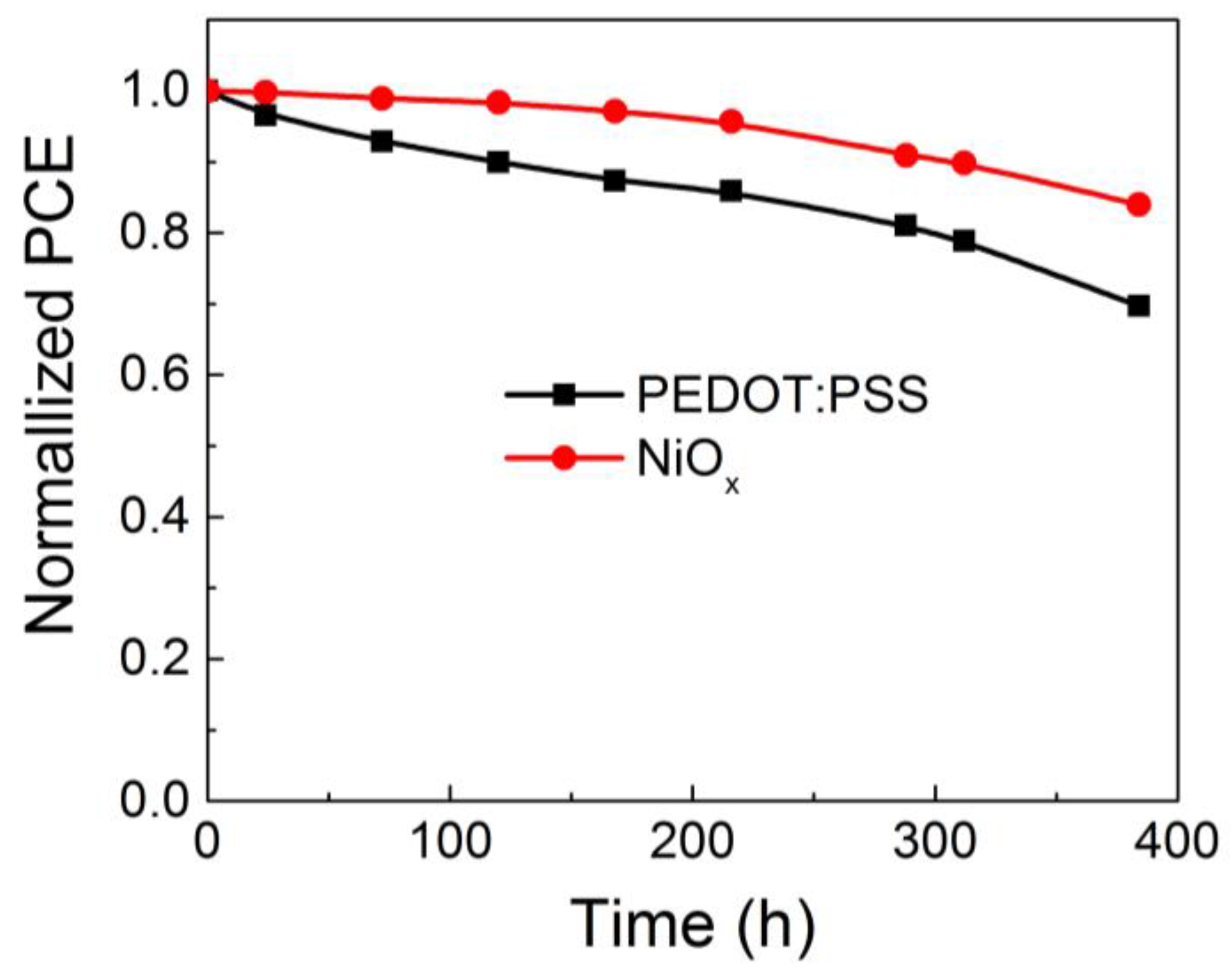

Due to the inhomogeneous distribution of donor and acceptor materials within the photoactive layer of bulk heterojunction organic solar cells (OSCs), proper selection of a conventional or an inverted device structure is crucial for effective exciton dissociation and charge transportation. Herein, we investigate the donor and acceptor distribution within the non-fullerene photoactive layer based on PBDTTT-ET:IEICO by time-of-flight secondary-ion mass spectroscopy (TOF-SIMS) and scanning Kelvin probe microscopy (SKPM), indicating that more IEICO enriches on the surface of the photoactive layer while PBDTTT-ET distributes homogeneously within the photoactive layer. To further understand the effect of the inhomogeneous component distribution on the photovoltaic performance, both conventional and inverted OSCs were fabricated. As a result, the conventional device shows a power conversion efficiency (PCE) of 8.83% which is 41% higher than that of inverted one (6.26%). Eventually, we employed nickel oxide (NiOx) instead of PEDOT:PSS as anode buffer layer to further enhance the stability and PCE of OSCs with conventional structure, and a promising PCE of 9.12% is achieved. View Full-Text
Keywords: organic solar cells; inhomogeneous distribution; non-fullerene photoactive layer; nickel oxide; anode buffer layer organic solar cells; inhomogeneous distribution; non-fullerene photoactive layer; nickel oxide; anode buffer layer
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
