Next Article in Journal
Reducing the Amount of Catalyst in TEMPO-Oxidized Cellulose Nanofibers: Effect on Properties and Cost
Next Article in Special Issue
Epoxy Vitrimers: The Effect of Transesterification Reactions on the Network Structure
Previous Article in Journal
Effect of Perfluoroalkyl Endgroups on the Interactions of Tri-Block Copolymers with Monofluorinated F-DPPC Monolayers
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(11), 552; https://doi.org/10.3390/polym9110552

Preparation, Characterization and Application of UV-Curable Flexible Hyperbranched Polyurethane Acrylate

Guangdong Provincial Key Laboratory of Functional Soft Condensed Matter, School of Materials and Energy, Guangdong University of Technology, Guangzhou 510006, China
*
Author to whom correspondence should be addressed.
Received: 28 September 2017 / Revised: 20 October 2017 / Accepted: 21 October 2017 / Published: 25 October 2017
(This article belongs to the Special Issue Thermosets)
View Full-Text   |   Download PDF [1617 KB, uploaded 25 October 2017]   |

Abstract

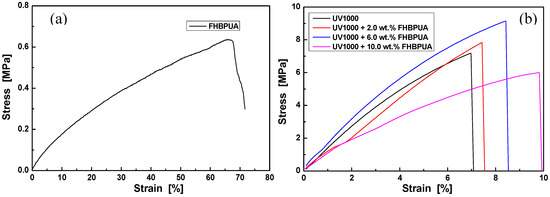

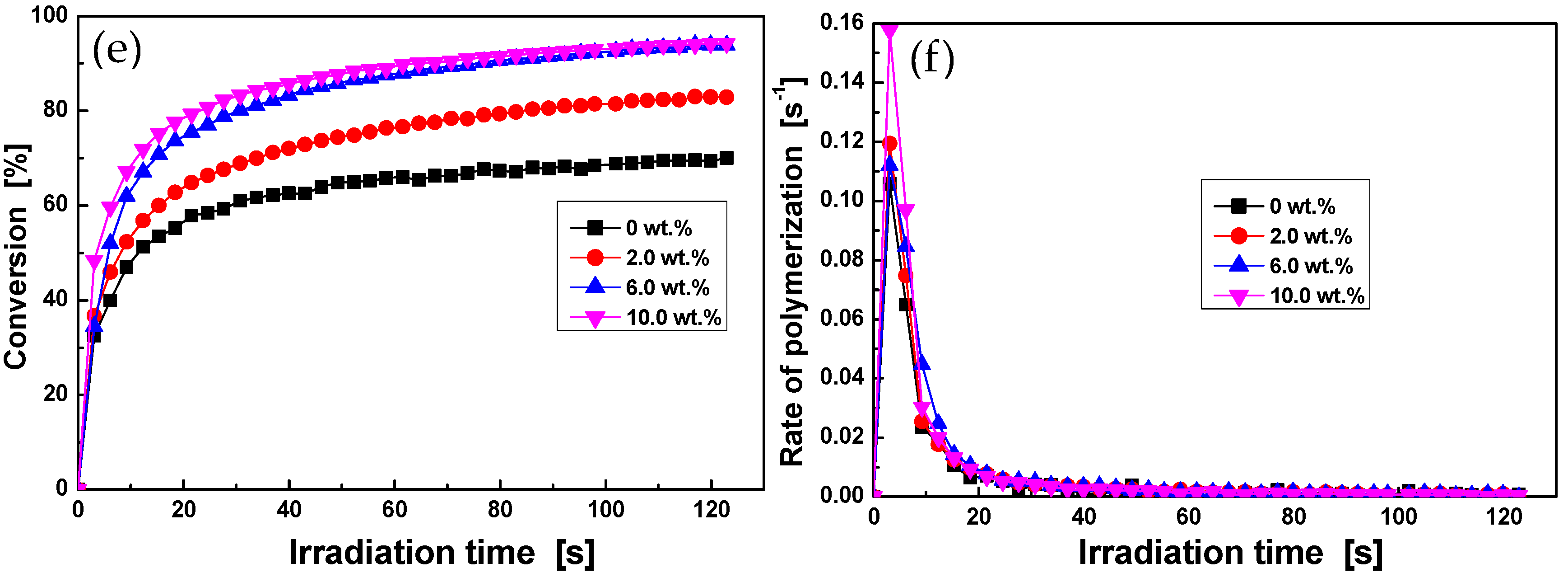

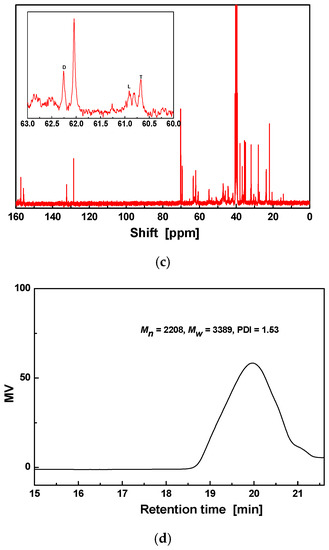

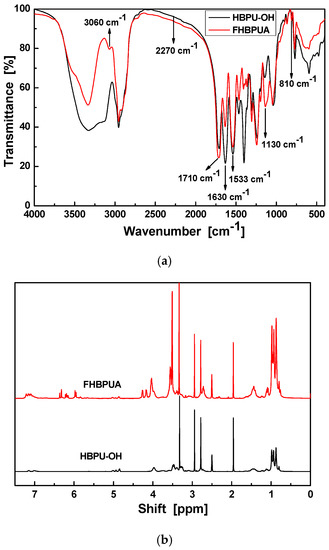

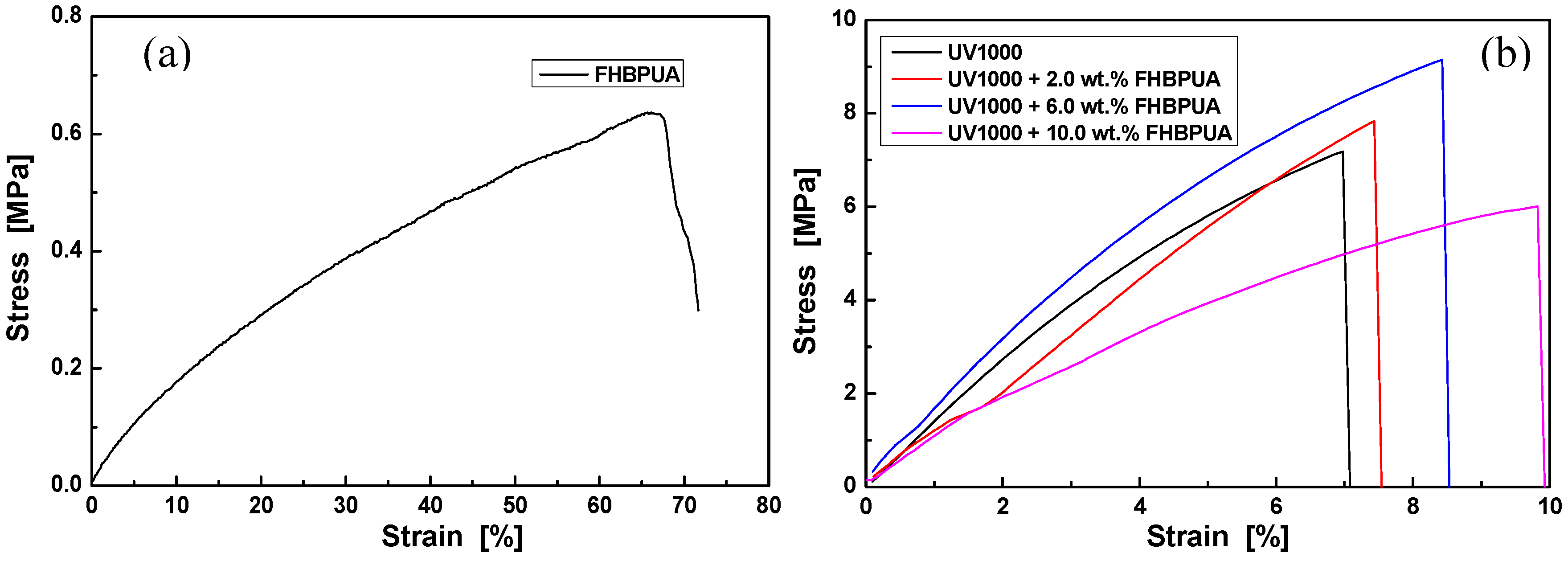

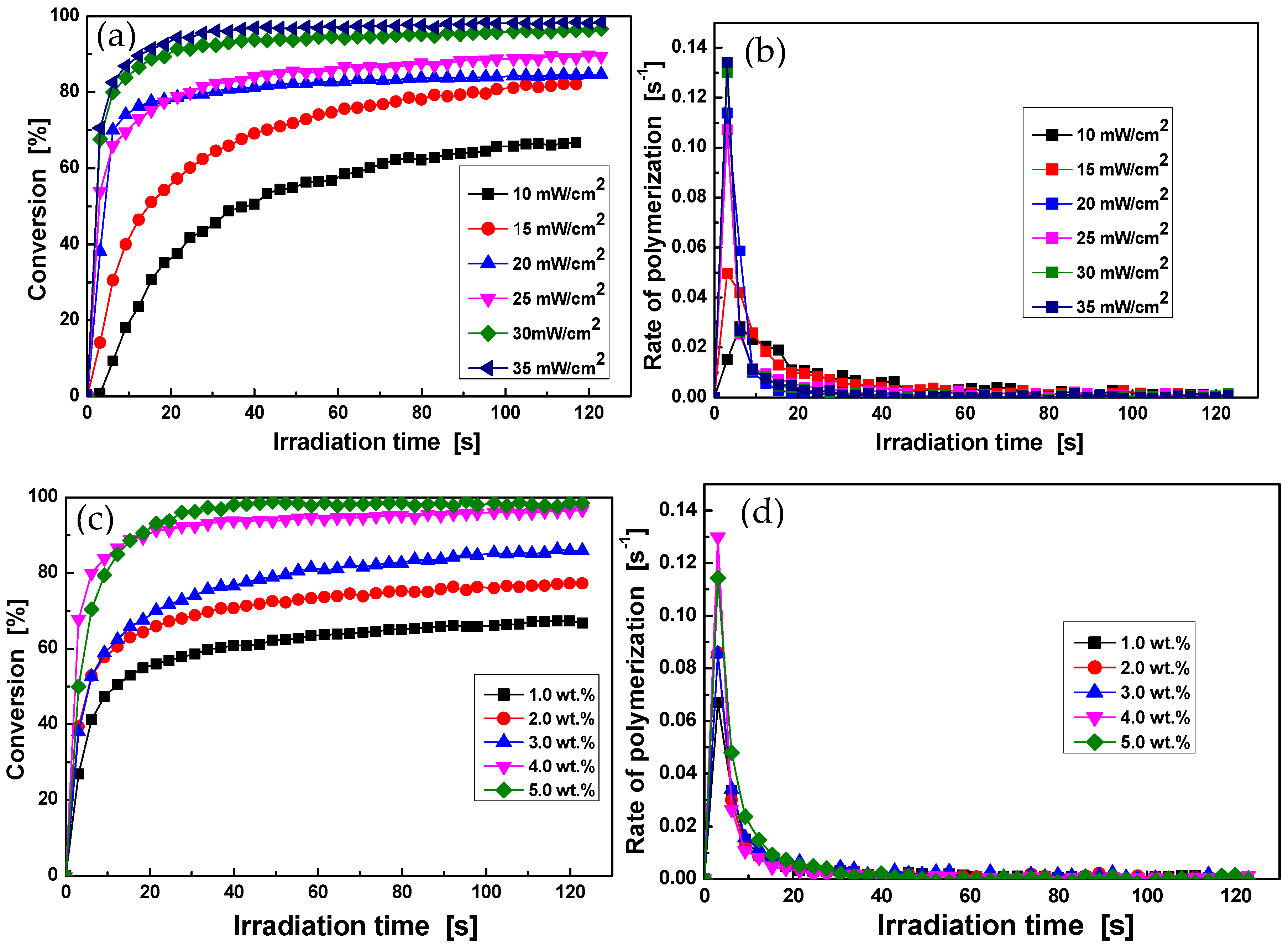

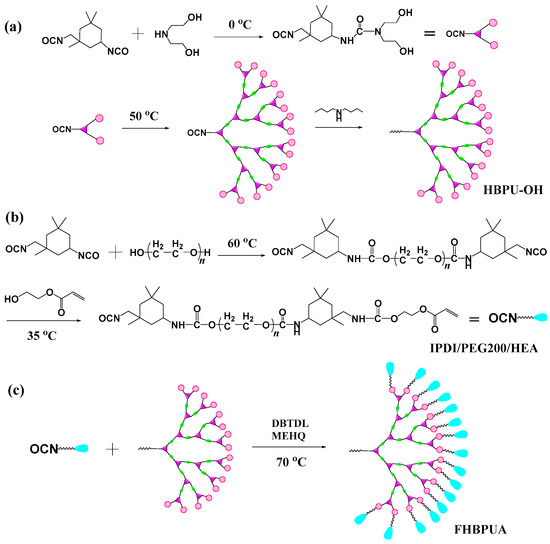

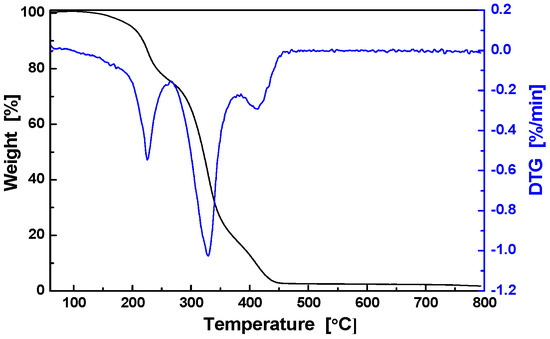

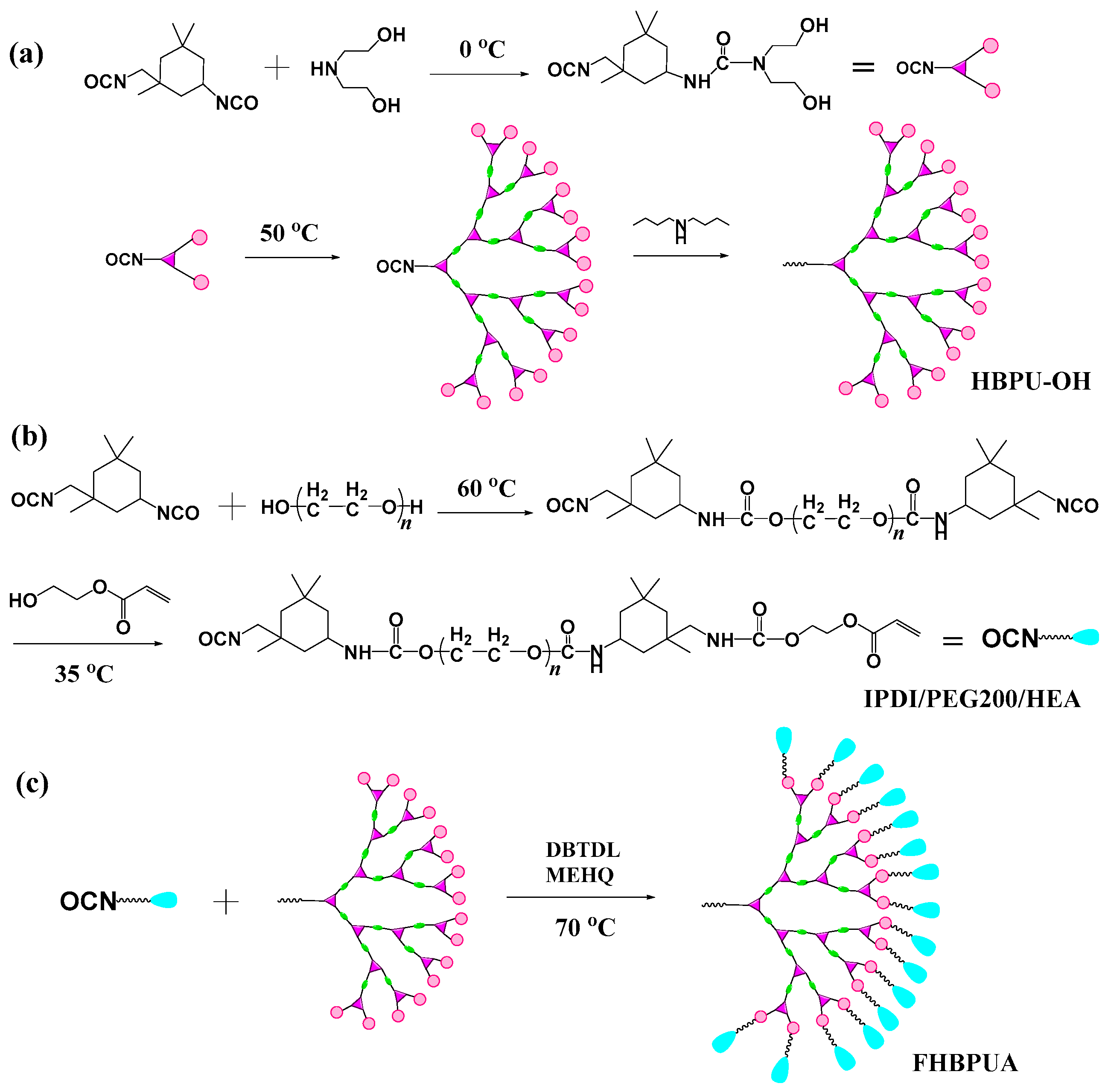

A novel UV-curable hyperbranched polyurethane acrylate (FHBPUA) with excellent flexibility is successfully synthesized based on a reaction of hydroxyl terminated hyperbranched polyurethane (regarded as core) with flexible semiadduct urethane monoacrylate (regarded as arms). The structure and property of FHBPUA is firstly analyzed and then utilized as functional additives to ameliorate the UV-curing and mechanical properties of epoxy acrylate resin. The degree of branching of FHBPUA turns out to be 0.82. Its thermal decomposition process consists of three different stages, and the glass transition temperature is around 65 °C. The freestanding FHBPUA film (~30 μm thickness) can be UV-cured within 3 s, and its flexibility is up to 1 mm. With the increase of FHBPUA content to 10 wt %, the UV-curing time of UV1000 film decreases from 6 to 3 s, flexibility strikingly increases from 10 to 1 mm, and adhesive force also improves from 5 to 3 grades, meanwhile its glossiness is not influenced by FHBPUA. In addition, a certain amount of FHBPUA can improve the tensile strength and elongation at break of UV1000 film. This novel FHBPUA can be used not only to develop flexible UV-curable freestanding films but also as functional additives to perfect other UV-curable compositions like coatings, inks and 3D printed parts. View Full-Text
Keywords: hyperbranched polyurethane acrylate; UV-curing; flexibility; coatings; reinforcements hyperbranched polyurethane acrylate; UV-curing; flexibility; coatings; reinforcements
Figures

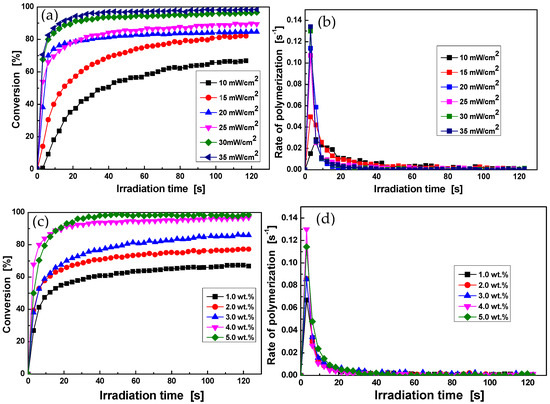

Figure 1a

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Xiang, H.; Wang, X.; Lin, G.; Xi, L.; Yang, Y.; Lei, D.; Dong, H.; Su, J.; Cui, Y.; Liu, X. Preparation, Characterization and Application of UV-Curable Flexible Hyperbranched Polyurethane Acrylate. Polymers 2017, 9, 552.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
