Polymers 2014, 6(6), 1756-1772; doi:10.3390/polym6061756
Published: 16 June 2014
Abstract: Complex coacervation is an electrostatically-driven phase separation phenomenon that is utilized in a wide range of everyday applications and is of great interest for the creation of self-assembled materials. Here, we utilized turbidity to characterize the effect of salt type on coacervate formation using two vinyl polyelectrolytes, poly(acrylic acid sodium salt) (pAA) and poly(allylamine hydrochloride) (pAH), as simple models for industrial and biological coacervates. We confirmed the dominant role of salt valence on the extent of coacervate formation, while demonstrating the presence of significant secondary effects, which can be described by Hofmeister-like behavior. These results revealed the importance of ion-specific interactions, which are crucial for the informed design of coacervate-based materials for use in complex ionic environments, and can enable more detailed theoretical investigations on the role of subtle electrostatic and thermodynamic effects in complex coacervation.
Electrostatically-driven self assembly can be tuned through a variety of parameters, including the chemical nature of the charged species, the size or length of the charged particle or molecule, particle shape, polydispersity, charge density, pH, and ionic strength [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. Consideration of these variables is critical in the design of self-assembled materials. For instance, electrostatic complexation between oppositely-charged polyelectrolytes has been used in drug and gene delivery [7,14,15,16,17,18], thin film coatings [19,20,21], processed food , and underwater adhesives [23,24,25,26]. Clearly, the functionality of the material must be considered in the context of the operational environment. As an example, the stability requirements for a material to be used in seawater (i.e., ~700 mM NaCl and pH ~7.4–8.4) are significantly different from the requirements for stability under physiological conditions (i.e., ~150 mM KCl, ~20%–40% proteins by mass, and pH ~7.4 in the cytosol) [25,27,28,29,30,31]. In order to achieve efficient materials design, it is necessary to develop a broader understanding of the role of individual parameters on materials self-assembly, rather than relying on application-specific investigations.
Complex coacervation is a specific type of polyelectrolyte complexation, defined by a liquid–liquid phase separation . When aqueous solutions of oppositely-charged polyelectrolytes are mixed, the resultant liquid complexes cause the solution to appear cloudy, due to the formation of a dispersion of dense, polymer rich droplets (Figure 1a). These droplets can then coalesce into a polymer rich coacervate phase in equilibrium with a polymer poor solution phase (Figure 1b) [1,2,3,4,5,6,7,8,9,33,34,35].
The overall formation of complex coacervates is strongly dependent upon solution conditions (i.e., pH and ionic strength), and is driven through a combination of attractive electrostatic forces and entropically-favorable molecular rearrangements, where the loss of configurational entropy caused by the electrostatic interaction of oppositely-charged polyelectrolytes is counterbalanced by the release of small, bound, counter-ions from the polyelectrolyte salts into solution [2,6,14,36,37,38,39,40,41]. This critical entropic dependence on the release of counter-ions is considered to be the main reason why complex coacervation is sensitive to the overall concentration of salt ions present. High salt concentrations decrease the entropic driving force for complex formation and ultimately destabilize the liquid–liquid phase separation [1,2,3,11,12,36,42,43,44]. In contrast to this inhibitory effect on complex formation under conditions of high salt, the presence of small amounts of salt may, in fact, enhance complex formation by softening electrostatic interactions, favoring more accessible polymer conformations, and enabling chain rearrangement [4,36,45].
While the effects of salt on complex coacervation have been well studied in model systems, the majority of these studies have focused only on the impact of NaCl as a simple monovalent salt [1,2,4,5,6,8,9,10,33,34,36,46,47,48,49,50,51]. Those studies which have examined the impact of multivalent salts on polyelectrolyte complexation have either investigated systems which form solid complexes rather than liquid coacervates , or have utilized biologically-derived polymers and/or proteins [22,52,53]. For instance, a wide range of polysaccharides have been utilized in coacervation, particularly for applications related to the food industry . However, these biologically-derived polysaccharides tend to be poorly defined chemically, as well as polydisperse. The use of proteins can also be challenging because of the difficulty in defining a charge density for the system and the potential for specific protein-salt interactions [14,45]. Thus, while the field has developed a primary quantitative understanding of the role of monovalent ions in coacervation processes, the effects of ionic species and higher valences remain unstudied. Although we can reasonably anticipate that the valence of the salt ions should dominate the electrostatics of the system, it is not known whether these type of effects do, in fact, scale directly with ionic strength. Additionally, more subtle effects (e.g., ion size, ion hydration, dispersion effects, and polarizability), which are inseparable and have been correlated to Hofmeister series effects) are even more challenging to predict [54,55].
In this report, we systematically examine the effects of various salts on the complex coacervation of two vinyl polyelectrolytes, poly(acrylic acid sodium salt) (pAA) and poly(allylamine hydrochloride) (pAH). By using this type of well-controlled model system, we eliminate effects that could be attributable to differences in the interaction of the polymer backbone with the environment, or differences in polymer hydrophobicity resulting from different side-chain lengths. The molecular weight of the polymers used in this study was also chosen to minimize potential variation associated with differences in polymer chain length. Turbidity was used to measure the extent of complex formation and investigate variations in the stability of coacervates with respect to the addition of salts of different ion type and valence, as well as polymer-based charge effects. In addition to examining the general effects of monovalent and divalent salts, we compare various sodium salts to test for subtle anionic effects, and a series of chloride salts to test for analogous cationic effects. Specific attention is given to sodium and potassium salts because of the relevance of these ions in biological systems. Finally, we also discuss the relationship between salt effects and polyelectrolyte charge density by examining the consequences of varying pH.
2. Experimental Section
Poly(acrylic acid sodium salt) (pAA) was purchased as a 35 wt% solution in water (Sigma-Aldrich, St. Louis, MO, USA) while poly(allylamine hydrochloride) (pAH) was purchased as a dry powder (Sigma-Aldrich). Both polymers have an average Mw ~ 15,000, as reported by the manufacturer, corresponding to a degree of polymerization N ~ 160. Polymers were used without further processing. pAA is a weak acid with a pKa around pH 4.5, while pAH is a weak base with a pKa around pH 8.5 . Stock solutions were prepared gravimetrically using Milli-Q water (resistivity of 18.2 MΩ cm, Millipore, Billerica, MA, USA) at a concentration of 10 mM with respect to the number of monomers (i.e., the number of acid or base groups) present in solution and then adjusted to their final pH (6.5 or 8.5) using concentrated solutions of HCl and NaOH, as needed. Monomer concentration was chosen as the experimental basis in order to easily enable direct stoichiometric comparison of the number of positively and negatively charged units present in solution, regardless of pH.
Stock solutions of various salts were prepared gravimetrically and adjusted to their final pH (6.5 or 8.5), as above. At pH 6.5 the following solutions were prepared: 2 M and 5 M sodium chloride (NaCl, ACS reagent, ≥99%, Acros Organics, Geel, Belgium), 2 M and 5 M sodium bromide (NaBr, certified ACS, ≥99%, Fisher Scientific, Waltham, MA, USA), 2 M and 5 M sodium iodide (NaI, molecular biology grade, ≥99%, Fisher Scientific), 2 M and 5 M sodium nitrate (NaNO3, biochemistry grade, ≥99%, Acros Organics), 2 M and 5 M sodium acetate trihydrate (NaCOOCH3∙3H2O, Fisher Scientific), 1 M sodium phosphate dibasic heptahydrate (Na2HPO4·7H2O, certified ACS, Fisher Scientific), 2 M sodium sulfate decahydrate (Na2SO4·10H2O, Acros Chemical), 2 M magnesium chloride hexahydrate (MgCl2·6H2O, BioXtra, ≥99%, Sigma-Aldrich), 2 M calcium chloride dehydrate (CaCl2·2H2O, ACS reagent, ≥99%, Acros Organics), 1 M trisodium citrate dehydrate (Na3C6H5O7·2H2O, certified, Fisher Scientific), 4.5 M potassium chloride (KCl, BioXtra, ≥99%, Sigma-Aldrich, St. Louis, MO), 3.5 M potassium nitrate (KNO3, ReagentPlus, ≥99%, Sigma-Aldrich), and 0.63 M potassium sulfate (K2SO4, ≥99%, Sigma-Aldrich). At pH 8.5, the following solutions were prepared: 2 M and 5 M NaCl, 1 M Na2HPO4·7H2O, 2 M Na2SO4·10H2O, 2 M CaCl2·2H2O, and 1 M Na3C6H5O7·2H2O.
2.2. Preparation of Polyelectrolyte Complexes
Complexation is achieved by mixing aqueous solutions of pAA and pAH, typically in the presence of salt. Samples were prepared by first mixing a concentrated salt solution with MilliQ water in a microcentrifuge tube (1.5 mL, Eppendorf, Hamburg, Germany), followed by sequential addition of the polycation (pAH) and then the polyanion (pAA) to a final volume of 500 µL. The mixture was vortexed for 5 s immediately after the addition of each solution. For all experiments, samples were prepared to a final concentration of 1 mM monomers (total cation and anion). An analysis of the effect of polyelectrolyte stoichiometry was performed at pH 6.5 and pH 8.5 in the presence of no salt and 100 mM NaCl over compositions ranging from 10/90 mol% to 90/10 mol% pAA/pAH. Taking into account the effects of pH, charge-neutral or isoelectric conditions correspond to a 50/50 mol% pAA/pAH mixture at pH 6.5 and a 33/67 mol% pAA/pAH composition at pH 8.5. The effect of salt was examined at these charge-neutral conditions at pH 6.5 and pH 8.5 over the range of 0 to 4.5 M salt. All samples were prepared immediately before analysis and studied at room temperature (25 °C).
2.3. Turbidity Measurements
Turbidity was used to qualitatively measure of the extent of coacervation as a function of charge stoichiometry and salt concentration. Turbidity measurements were made using a plate reader equipped with a UV spectrophotometer (Tecan, Infinite M200 P80, Männedorf, Switzerland). Turbidity was measured at a wavelength of 550 nm and a temperature of 25 °C. None of the polymers absorb light at this wavelength. Turbidity is defined as −ln(I/I0), with I0 = incident light intensity and I = intensity of light passed through the sample volume, and is measured in absorption units (a.u.).
After preparation, 100 µL of sample was pipetted in triplicate into a 96-well plate (black/clear with lid, BD Falcon, San Jose, CA, USA) for analysis. Triplicate measurements were made for each well, and all experiments were repeated three times. Error bars on turbidity plots represent the calculated standard deviation of the data. All samples were referenced to an empty well plate.
2.4. Visual Characterization of Complexes
Visual inspection and optical microscopy were used to confirm the presence of liquid coacervates and identify the critical salt transition where only no phase separation occurs. Optical phase contrast microscopy (Leica DMI 6000B using Leica Application Suite (LAS) image acquisition software, Wetzlar, Germany) enabled direct visualization of spherical coacervate droplets (Figure 1a). For the salt studies, samples with a final salt concentration of 50 mM, 300 mM, and 700 mM were pipetted onto a glass slide for imaging.
For visual inspection, samples were centrifuged (accuSpin Micro 17, Fisher Scientific) for 15 min at 10,000 rpm to coalesce the dispersed complexes to a single phase at the bottom of the microcentrifuge tube (Figure 1b).
3. Results and Discussion
Here, we begin with a brief characterization of complex coacervation in our model system as a function of charge stoichiometry (Section 3.1). Utilizing the optimal conditions for coacervate formation identified in Section 3.1, we then explore the effects of various salts on complex formation (Section 3.2). Finally, we examine the interplay between coacervate stability as a function of salt concentration and polymer charge density by examining the effects of varying pH (Section 3.3). In these studies, turbidimetry, coupled with optical microscopy, was used to provide a qualitative measure of the extent of complex formation.
3.1. The Effect of pH on Coacervate Stoichiometry

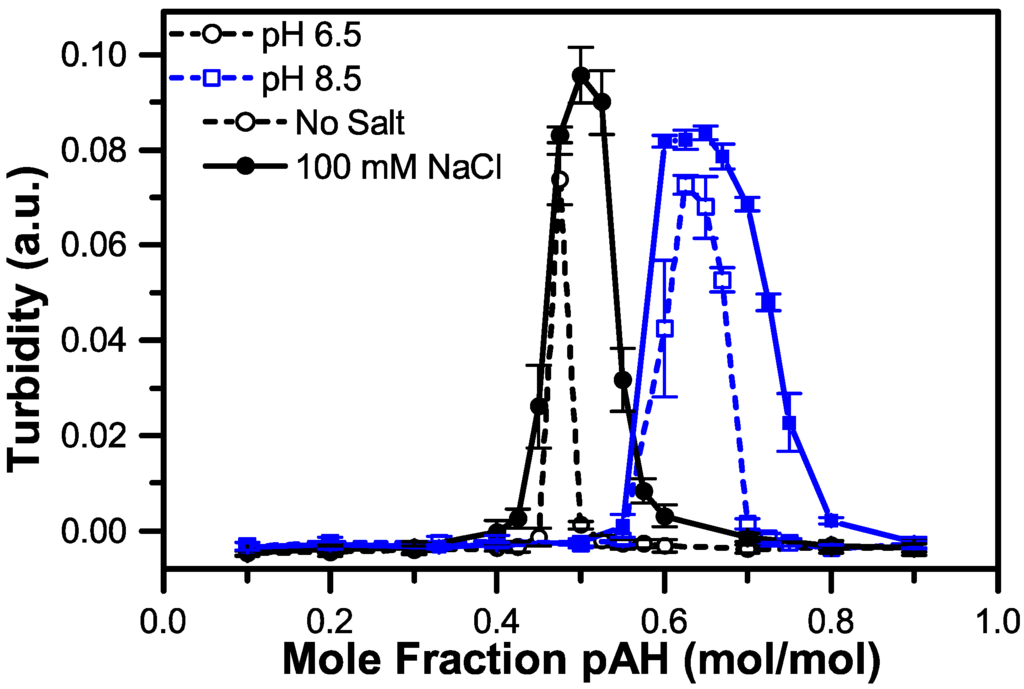

The most direct variable for controlling coacervate formation is the charge stoichiometry, or the molar ratio of polycation (pAH) to polyanion (pAA), in the system. Both of the polymers used in this study are weak polyelectrolytes; the pKa for pAA is around pH 4.5, while the pKa for pAH is around pH 8.5 . Consequently, we made the assumption that at pH 6.5, which is two pH units away from the pKa of each polymer, both polyelectrolytes should be both fully and equally charged. Additionally, the data reported here were obtained by adding pAA to a solution containing a mixture of pAH and the desired quantity of salt. However, we did not observe significant variation in our data as a result of reversing the order of polyelectrolyte addition.
For the symmetric case at pH 6.5 where both polymers are of equal length and equal charge, we observe a maximum in coacervate formation close to 50/50 mol% pAA/pAH (Figure 2, black circles). This composition corresponds to the condition of charge neutrality in the system, where the number of charges from the polycation (pAH) equals the number of charges from the polyanion (pAA). Furthermore, the turbidity signal is sharply peaked around this charge-neutral condition, in agreement with previous reports [4,5,9,10], indicating the critical role of electrostatic effects in facilitating complex formation. However, it should be noted that under conditions of no salt, the maximum turbidity appears to be slightly lower than the ideal 50/50 mol% pAA/pAH composition. This slight shift could be the result of local pH effects associated with the interaction of the two polymers with each other. The addition of 100 mM NaCl appears to mitigate this effect, suggesting the ability of salt to moderate local pH effects . However, further investigation of this phenomenon is beyond the scope of this work.
We further investigated the effects of charge stoichiometry by examining coacervate formation at pH 8.5, corresponding to the pKa value of pAH. By definition, at the pKa a polyelectrolyte is only half-charged. As shown in Figure 2, changing the pH from 6.5 to 8.5 caused the location of maximum coacervate formation to shift from approximately 50/50 mol% pAA/pAH to 33/67 mol% pAA/pAH (Figure 2, blue squares). The location of this peak again corresponds to the charge-neutral condition for optimal complexation. Due to the fact that pAH is only half-charged at pH 8.5, twice as much pAH is required to create a charge-neutral complex (i.e., two pAH chains for every one pAA, or a ratio of 33/67 mol% pAA/pAH).
We also examined the effect of salt on the extent of coacervate formation with respect to charge stoichiometry. Whereas the stoichiometry curves were very sharply peaked in the absence of salt, the addition of 100 mM NaCl resulted in an increase in both the overall turbidity signal and the range of compositions over which coacervation was observed. This broadening of the compositional range for coacervation is thought to be a result of charge screening effects, where salt is able to interact with the polyelectrolyte and provide local compensation for the charge imbalance [56,57]. Similarly, the increase in overall signal could be the result of enhanced complexation (i.e., more droplets in solution), or swelling due to increased water content (i.e., larger droplets) [4,47].
3.2. The Effect of Salt on Coacervate Formation
Building on the results obtained in Section 3.1, we examined the effects of increasing concentrations of various monovalent and divalent salts on complex coacervates formed at an optimal polymer stoichiometry (50/50 mol% pAA/pAH at pH 6.5 or 33/67 mol% pAA/pAH at pH 8.5).

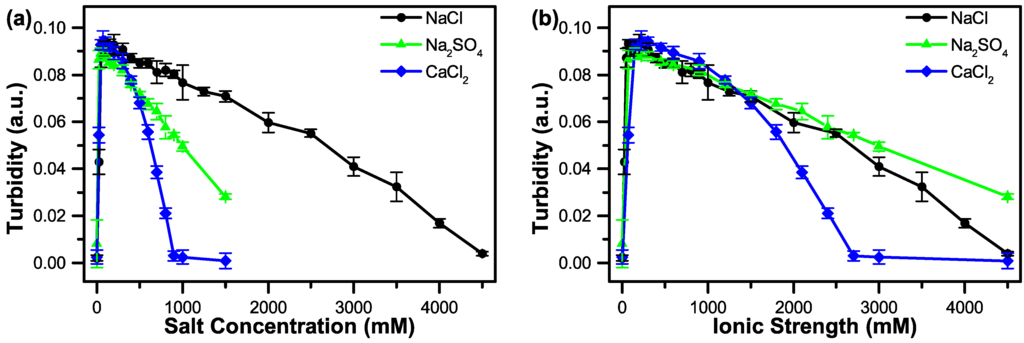

Figure 3a shows a plot of turbidity as a function of salt concentration for monovalent NaCl, as well as for Na2SO4 and CaCl2, which possess divalent anions and cations, respectively. In agreement with the enhancement of coacervation observed in Section 3.1, and with previous literature reports [4,5,9,10], the addition of small amounts of salt (<75 mM) increases the amount of complex formed (i.e., the size and number of droplets observed). However, further addition of salt causes a decrease in the turbidity signal until the point where phase separation is no longer observed. This concentration is referred to as the critical salt concentration [1,2,3,9,10,33,44].
Compared with previous reports, the pAA/pAH system examined here at pH 6.5 shows extremely high stability in NaCl. Examination of Figure 3 suggests that the critical NaCl concentration for this system is above 4.5 M NaCl. This is a significantly higher critical salt concentration than has been suggested previously [9,10]. This dramatic difference in critical salt concentration appears to be the result of subtle differences in the electrostatics of the system during mixing. In the experiments we report here, all solutions were adjusted to a pH of 6.5 prior to complexation, whereas in the previous work by Chollakup et al., the pH of the pAA and pAH were significantly different (i.e., pH 8.5 for pAA and pH 3.0 for pAH), but stabilized at a value near 6.5 after complexation [9,10]. Further investigations are needed to identify the mechanism responsible for this difference.
While the turbidity data suggests a critical salt concentration above 4.5 M for NaCl, divalent salts such as Na2SO4 and CaCl2 are much more efficient at preventing coacervate formation (Figure 3a). Despite the divalent nature of both salts, CaCl2 has a more inhibitory effect on coacervation per unit concentration than Na2SO4. Furthermore, Figure 3b reveals that, per unit of ionic strength, Na2SO4 has the smallest impact on coacervation, less than even NaCl. The difference in the impact of CaCl2 and Na2SO4 can be explained in terms of the “hardness” of the Ca2+ ion compared to SO42− [58,59]. Ca2+ is a very compact, “hard” ion, where the charge is localized around a single atomic point, creating an area of high charge density. This is in contrast to SO42−, which is a more diffuse molecular ion where the charge is spread out over multiple atoms.
The differences between the various ions at equivalent ionic strength can be further explained in terms of the Hofmeister series , or the strength of their interaction with the polymer. The Hofmeister series was originally formulated based on the tendency for various salts to aggregate or solubilize proteins . SO42− is considered to be a kosmotrope, which tends to “salt out,” or decrease the solubility of a polymer with increasing salt concentration. Cl−, on the other hand, is considered to be a relatively inert anion that has little effect on polymer solubility . In terms of coacervation, the kosmotropic tendency of SO42− to decrease polymer solubility would actually enhance phase separation, thus increasing the critical salt concentration compared to Cl−, as suggested in Figure 3b.
The opposite behavior is observed for Ca2+, which is considered to be more chaotropic than Na+. Chaotropic ions tend to “salt in,” or increase the solubility of polymers, thus disfavoring phase separation, and accounting for the lower critical salt ionic strength observed for Ca2+ as compared to Na+. Additionally, chaotropes tend to favor aqueous interfaces , which would result in an increased tendency to interact with the water–polyelectrolyte boundary, negating the entropic benefits associated with counter-ion release and further disfavoring coacervation.
The trends observed in the Hofmeister series correlate with the “hardness,” or the free energies of hydration of the various ions [58,59,61,62,63]. The Principle of Hard and Soft Acids and Bases (HSAB) states that “hard” acids prefer to interact with “hard” bases. Similarly, stronger electrostatic interactions are observed between ions with matching hydration energies [61,62,63]. Comparing the interactions between the cationic polymer side-chains and the anionic salts, the apparent dynamic hydration number (ADHN), or the number of tightly bound water molecules, is approximately zero for both amine groups (NH4+), as in pAH, and Cl− [61,64], suggesting the potential for a strong electrostatic interaction. However, the ADHN for SO42− is 1.8 [61,64], suggesting a weaker interaction with the amine side-chains of pAH.
We extended our investigation to include a wider range of sodium salts to further evaluate the effects of various monovalent anions. An examination of turbidity as a function of sodium halide concentration (Figure 4a) suggests a decrease in critical salt concentration with increasing atomic weight of the halide anion (i.e., Cl− > Br− > I−). This follows the Hofmeister series, which trends from Cl− as a moderately inert anion to I− as a chaotrope (i.e., tending to increase polymer solubility) [55,65]. This observation of decreasing critical salt concentration matches well with the concomitant increases in polymer solubility from the various ions. Higher polymer solubility will tend to destabilize the  phase separation and, thus, disfavor coacervate formation. These trends also match ordering of interactions predicted by HSAB  and ion-water affinity measurements [61,64].
Figure 4b shows a similar comparison of NaCl with the sodium salts of two molecular anions, NO3− and CH3COO−. Here, we observed very little difference in the turbidity plots for NaCl and NaNO3, in relative agreement with the ordering of the Hofmeister series of anions and HSAB designations [55,59]. Both Cl− and NO3− have ADHN of zero, but direct comparison of additional affinity parameters such as the Jones-Dole viscosity B-coefficient are complicated due to the differences in size between a Cl− ion and molecular NO3− [61,64]. Interestingly, the data for NaCOOCH3 (Figure 4b) suggest a significantly higher critical salt concentration, similar to the trends observed for Na2SO4 as a function of ionic strength (Figure 3b). Here, the kosmotropic tendency of SO42− and CH3COO− decreases polymer solubility, thus enhancing phase separation . The fact that very similar behavior is observed for SO42− and CH3COO− at equivalent ionic strengths (Figure 5) further confirms the idea that, while salt valence dominates interactions with coacervates, more subtle effects can be correctly predicted based on correlations, such as the Hofmeister series.

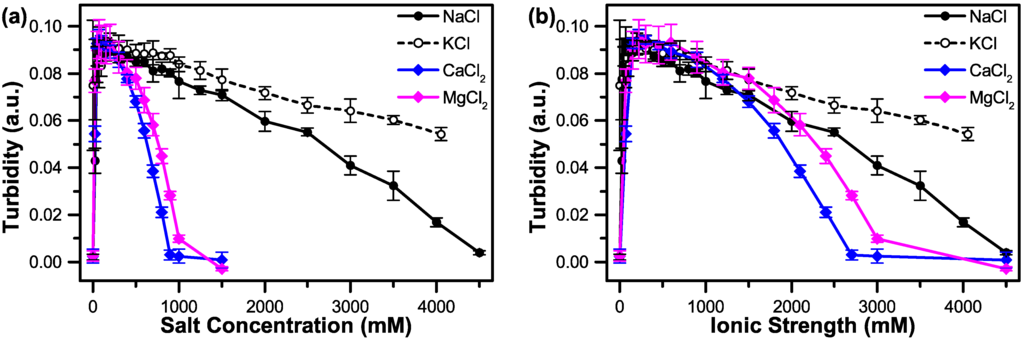

While Hofmeister effects are typically more pronounced for anions , we also investigated series of different chloride salts (i.e., NaCl, KCl, MgCl2, CaCl2) to examine cation effects (Figure 6). As was indicated previously, the overall charge of the ion dominates its interaction with the coacervate. However, examination of the turbidity data clearly demonstrates a difference in the interaction of the various cations with the pAA/pAH system. The observed trends in critical salt concentration (or critical ionic strength) correlate directly with the expected Hofmeister ordering (i.e., K+ > Na+ > Mg2+ > Ca2+), where K+ shows the highest salt stability and Ca2+ shows the lowest . It is interesting that the magnitude of the effect of the various cations on the critical salt concentration was comparable to that observed for anions, whereas typically anionic Hofmeister effects are expected to dominate a system.

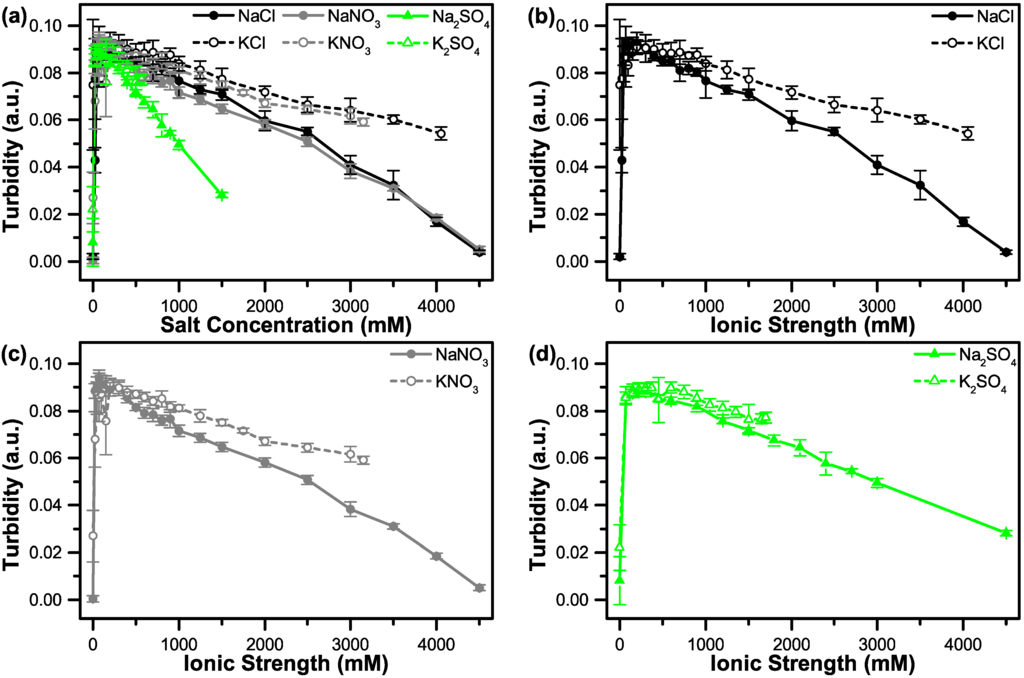

We further expanded our comparison of cation effects to include a variety of different sodium and potassium salts (Figure 7). These two cations are of particular biological interest because they are (i) the two most abundant monovalent cations in living organisms and (ii) the specificity of Na+ versus K+ is known to play a critical role in many biological processes . While the solubility of potassium salts limited the concentration range that could be examined, the same trends observed for NaCl/KCl (Figure 7b) were present for NaNO3/KNO3 (Figure 7c) and Na2SO4/K2SO4 (Figure 7d). Regardless of anion, the turbidity data consistently suggests enhancement of coacervate stability in the presence of potassium salts, compared to sodium salts. Furthermore, the overall trends discussed previously with regards to the effects of the various anions held true for both sodium and potassium salts, suggesting that the effects of the various ions can be treated in an additive fashion.
3.3. The Effect of pH on Coacervate Salt Stability
Finally, we returned to the idea of polymer charge density by investigating the effect of salt on coacervate formation at different pH conditions. The data presented in Section 3.2 was collected at pH 6.5, where both pAA and pAH are assumed to be fully charged. However, pH 8.5 corresponds to the pKa for pAH, meaning that pAH is only half-charged, while pAA remains fully charged. In Section 3.1 we demonstrated that an increase in complex formation and broadening of the coacervation window occurred in the presence of low concentrations of salt at both pH conditions. However, the data presented in Section 3.2 suggested that turbidity is only sensitive to variations in complexation in the high and low salt limits.

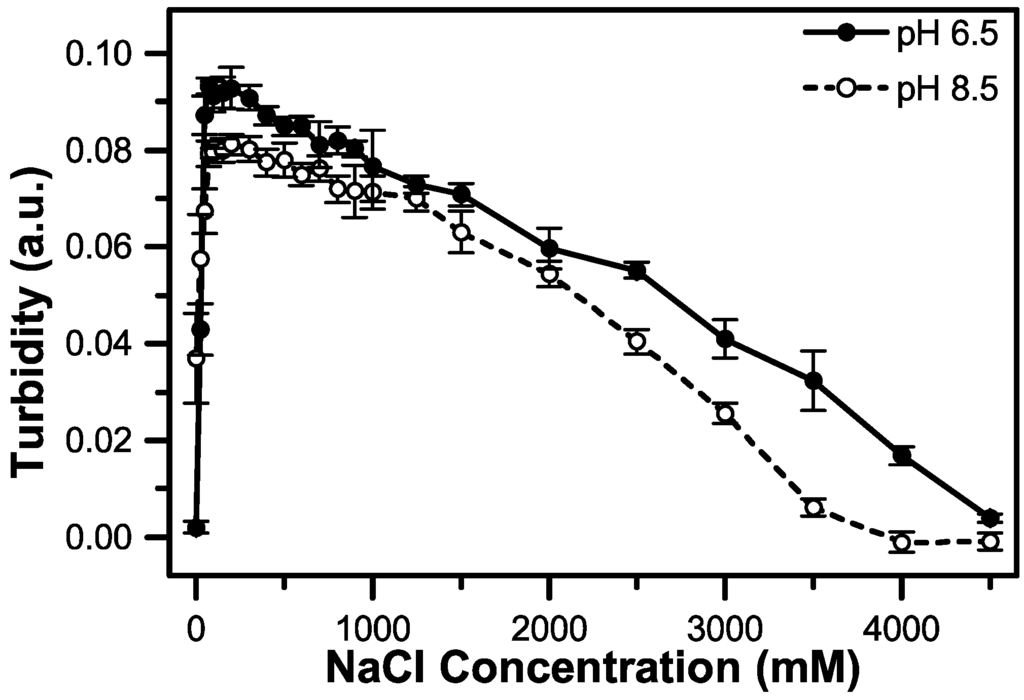

Figure 8 shows a plot of turbidity as a function of NaCl concentration for coacervates prepared at pH 6.5 (filled) and pH 8.5 (open). With increasing pH there is a distinct decrease in the observed critical salt concentration. This matches well with predictions based on the Voorn-Overbeek theory, which suggest that the critical salt concentration decreases with decreasing charge density [11,12,44]. However, the same trends regarding salt valence and type were observed at pH 8.5 (Figure 9) compared to pH 6.5 (Figure 3), albeit in convolution with the decreases in critical salt concentration resulting from polymer charge density effects.
Overall, we confirmed the dominant role that overall polyelectrolyte charge plays in determining the extent of complex coacervation via turbidimetric analysis of a matched pair of vinyl polyelectrolytes (pAA/pAH) at well-defined pH conditions to minimize the number of potential variables and allow for unambiguous interpretation of the data. Maximum complex formation was observed at polymer compositions corresponding to charge neutrality. In the symmetric case of two equally charged polymers this maximum occurred at 50/50 mol% pAA/pAH. However, for the asymmetric case where pAA remained fully charged, but pAH was only half-charged, the maximum shifted to 33/67 mol% pAA/pAH because of the increased number of pAH chains needed for charge neutrality.
The effect of salt on coacervation also depended strongly on the overall charge of the ions, although significant secondary, Hofmeister-like effects were also observed. For instance, a significant decrease in the critical salt concentration was observed for divalent as compared to monovalent salts. However, this decrease in the critical salt concentration could not be attributed solely to the effects of ionic strength. Divalent cations were found disfavor coacervate formation more strongly than divalent anions. These differences were explained based on the size and charge density of the ions, as well as their hardness and solvation. These observations based on HSAB theory also agreed well with trends expected from the Hofmeister series. In particular, chaotropic ions, such as I− and Ca2+, which are characterized by a tendency to “salt in,” or increase the solubility of polymers, tended to decrease the critical salt concentration. Conversely, kosmotropes were observed to increase the critical salt concentration by lowering the polymer solubility and thus favoring phase separation. Decreases in polymer charge density as a result of pH changes were also shown to affect the absolute value of the critical salt concentration, although not the overall trends observed for various salts.
These results have the potential to enable the informed design of coacervate-based systems for use in complex ionic environments. We have demonstrated that electrostatic effects related to the polymers and various combinations of cations and anions are, in fact, additive, and can be predicted based on a combination of overall charge and Hofmeister-like behavior. More detailed investigations of the effect of salt on the thermodynamics of complexation and the internal polymeric structure of the coacervate phases are underway, as are theoretical investigations designed to capture both overall charge effects and ion-specific subtleties. It would also be particularly informative to characterize transient effects, such as the addition of salt to a pre-equilibrated coacervate system. The development of a framework for the straightforward design of coacervate-based materials in complicated ionic environments has significant potential to improve their application in a wide range of fields.
This work benefited from discussions with Charles E. Sing, Jian Qin, Jonathan K. Whitmer, Matthew J. Kade, and Juan J. de Pablo. This work was supported by the University of Chicago and the U.S. Department of Energy Office of Science program in Basic Energy Sciences and the Materials Sciences and Engineering Division.
Sarah Perry designed all experiments, performed data analysis, and prepared the manuscript. Yue Li prepared all solutions and performed the experiments. Dimitris Priftis, Lorraine Leon, and Matthew Tirrell contributed to the interpretation of results and preparation of the manuscript.
