Polymers 2014, 6(3), 604-612; doi:10.3390/polym6030604

Injection Compression Molding of Replica Molds for Nanoimprint Lithography

1 Department of Mechanical Engineering, Graduate School of Engineering, The University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-8656, Japan 2 Precursory Research for Embryonic Science and Technology (PRESTO), Japan Science and Technology Agency (JST), 4-1-8 Honcho, Kawaguchi, Saitama 332-0012, Japan
Received: 3 February 2014 / Revised: 16 February 2014 / Accepted: 27 February 2014 / Published: 5 March 2014
(This article belongs to the Special Issue Patterning and Photosensitive Polymers)
View Full-Text   |   Download PDF [728 KB, uploaded 5 March 2014]   |   Browse Figures

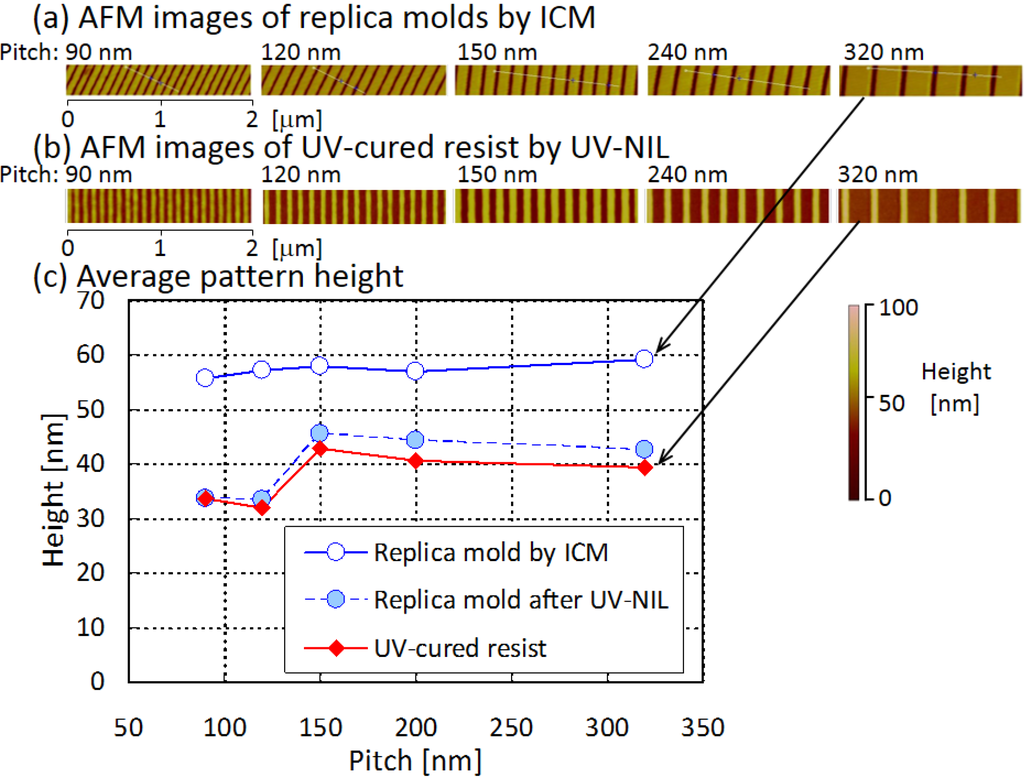

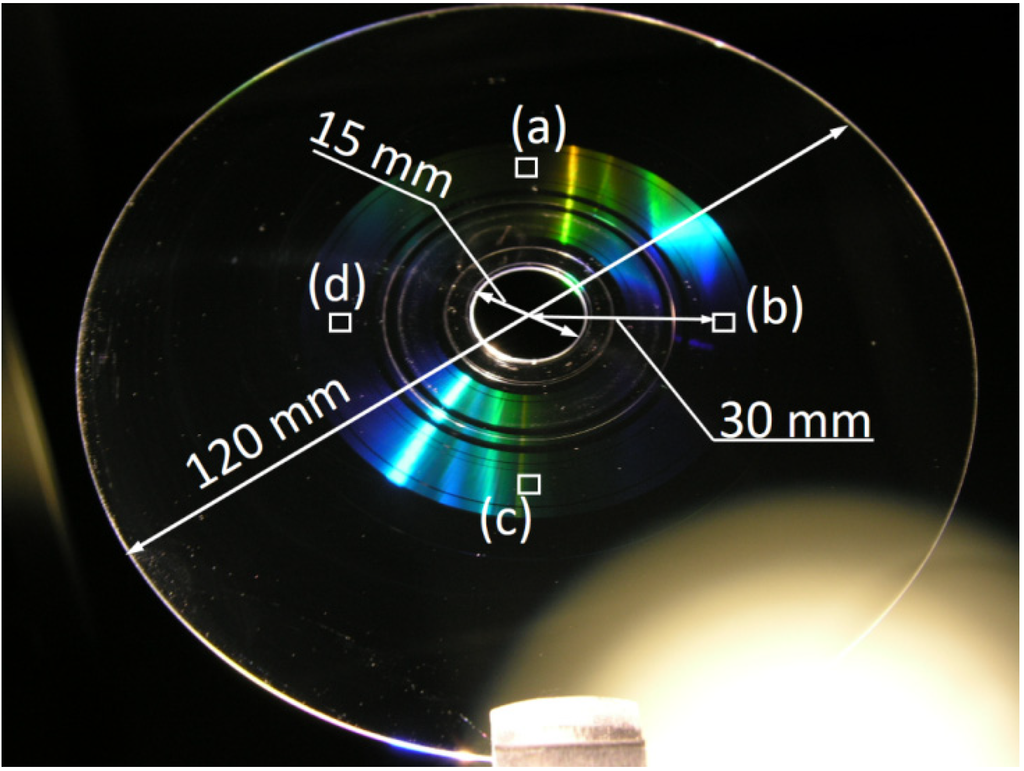

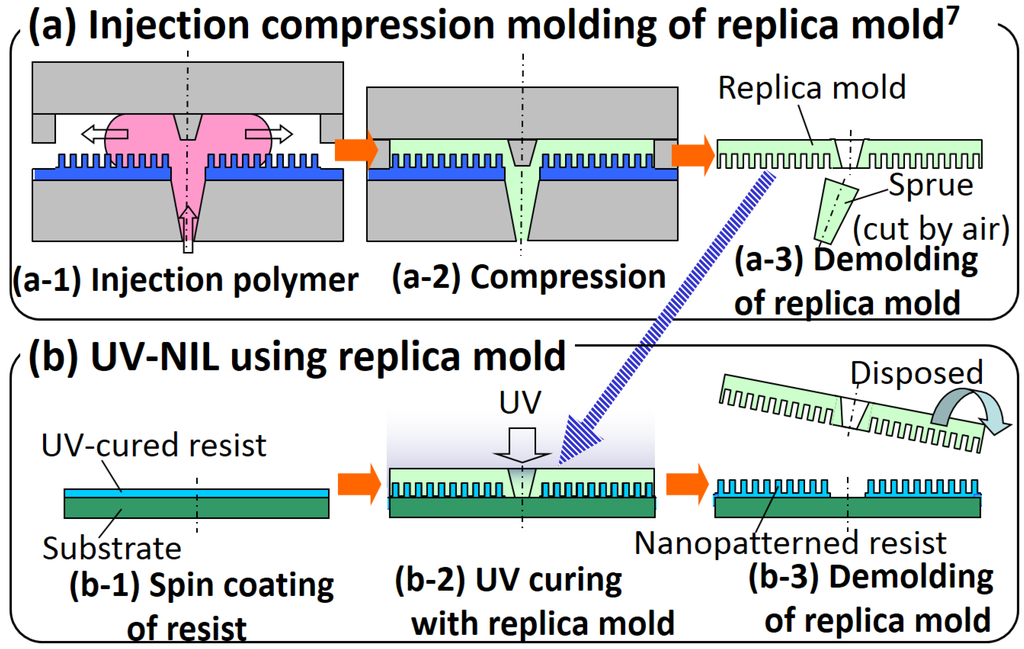

As a breakthrough in the cost and durability of molds for nanoimprint lithography (NIL), replica molds are fabricated by injection compression molding (ICM). ICM is commonly used for optical disks such as DVDs or Blu-ray disks and is also a practical fabrication method for nanostructures. In this paper, I successfully demonstrated the fabrication of cycloolefin polymer replica molds with structures smaller than 60 nm by ICM. Furthermore, ultraviolet (UV)-NIL using these replica molds was demonstrated. UV-cured resist was replicated over an area of 60 mm diameter. The degree of replication by UV-NIL in the first usage of each replica mold had good repeatability. Because ICM is a high-throughput, low-cost process, the replica mold can be disposed of after a certain time for UV-NIL. This method leads to a high-integrity UV-NIL process of patterned media because multiple large-area replica molds can be fabricated simultaneously.
Keywords: injection compression molding; replica mold; nanoimprint lithography injection compression molding; replica mold; nanoimprint lithography
This is an open access article distributed under the Creative Commons Attribution License (CC BY) which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
