Polymers 2014, 6(1), 76-92; doi:10.3390/polym6010076
Article

Epoxy Enhanced by Recycled Milled Carbon Fibres in Adhesively-Bonded CFRP for Structural Strengthening

1
, 2
, 1,*  and 1
Received: 27 November 2013; in revised form: 18 December 2013 / Accepted: 19 December 2013 / Published: 31 December 2013
(This article belongs to the Special Issue Selected Papers from "SMAR 2013")
View Full-Text   |   Download PDF [4434 KB, uploaded 31 December 2013]   |   Browse Figures

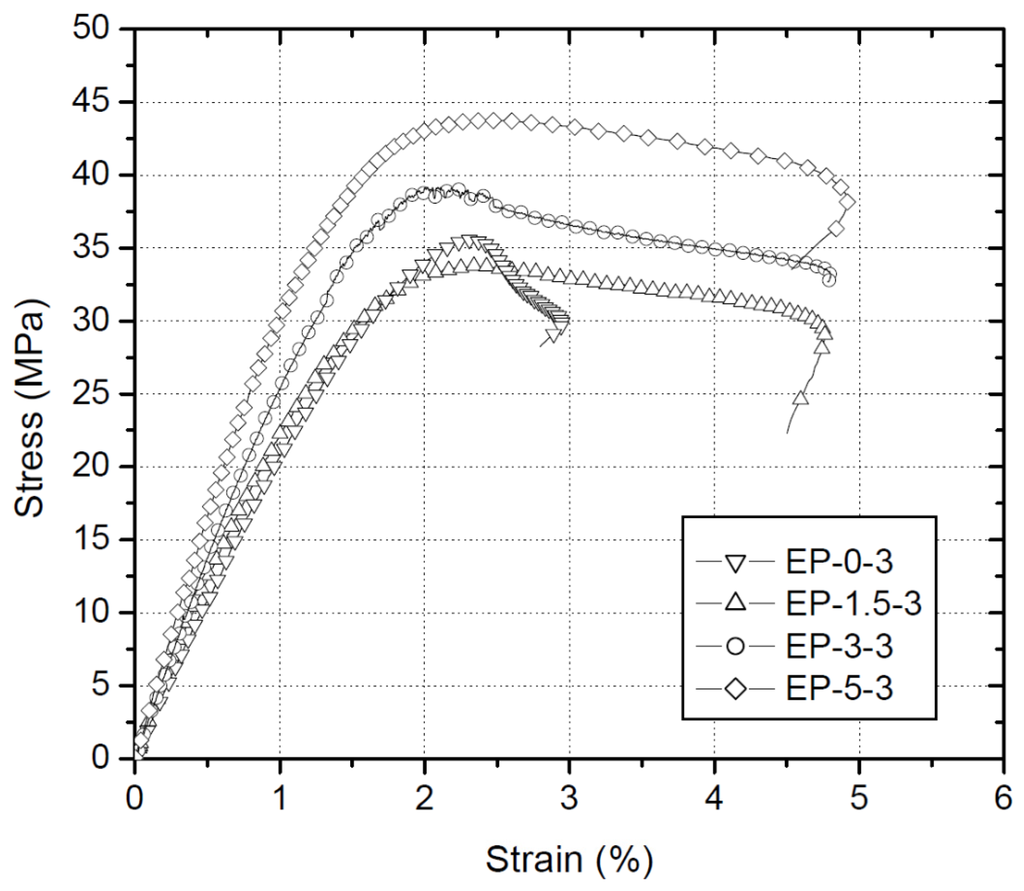

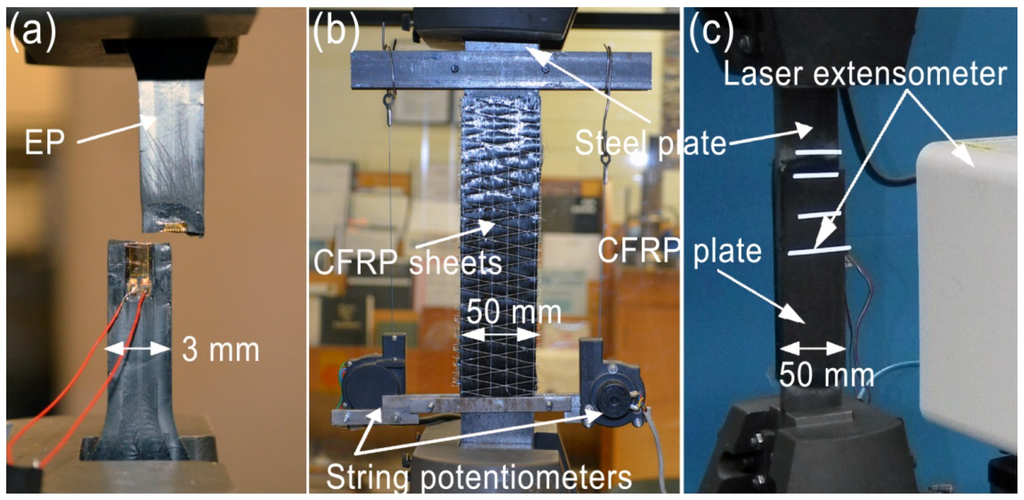

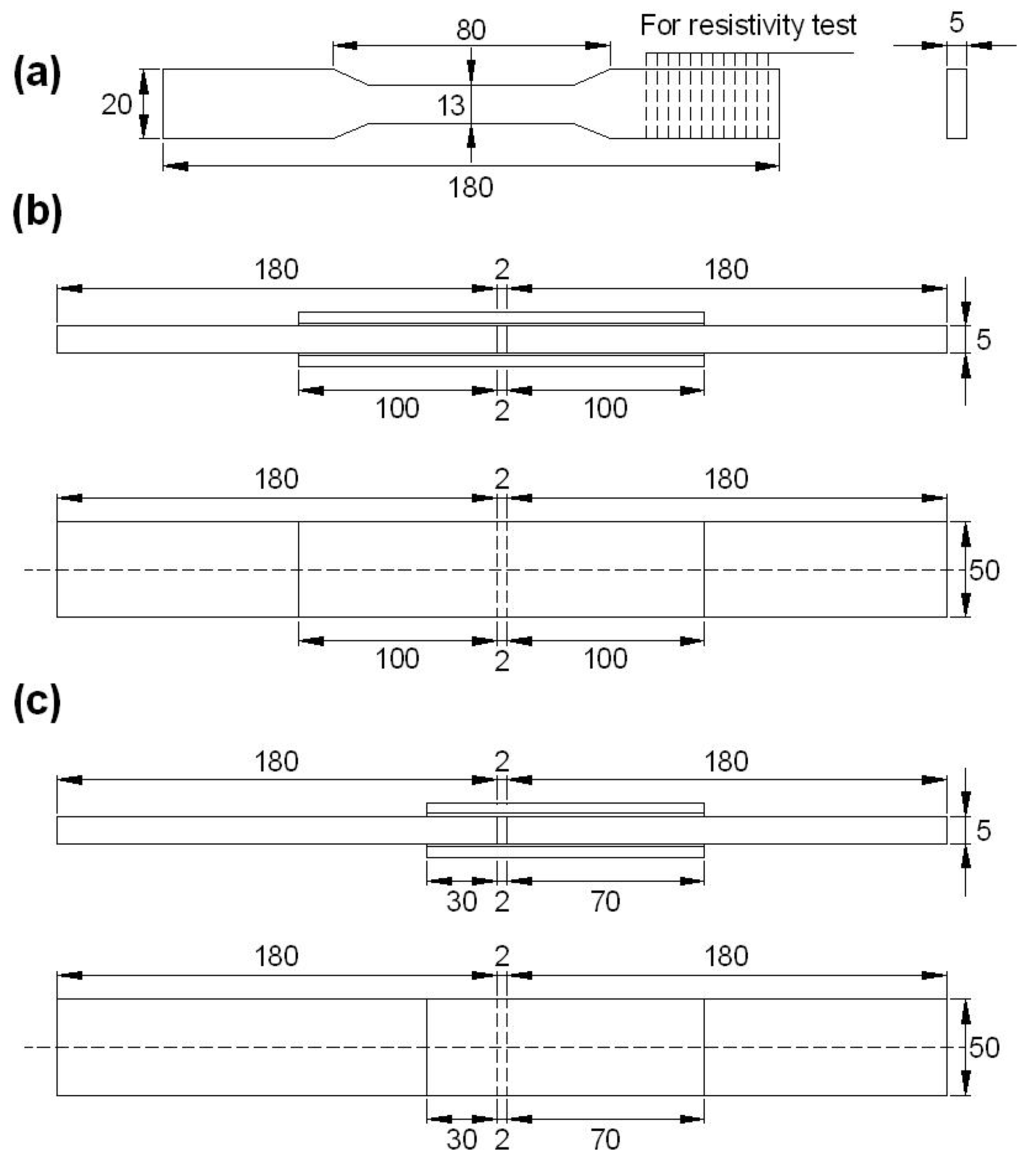

Abstract: This paper investigates the mechanical performance and electrical resistivity of a structural adhesive epoxy enhanced using milled carbon fibre (MCF) as well as the bond performance of carbon fibre reinforced polymers (CFRP) and steel adhesively bonded joints using the enhanced epoxy. The epoxy was enhanced using such MCFs with different weight ratios of 1.5%, 3% and 5%. Tensile experiments were performed on the original and enhanced epoxy specimens according to ASTM D638. More ductile process failure was found for the epoxy after modification and significant improvements of E-modulus and tensile strength were evidenced when the MCF weight ratio was larger than 1.5%. Scanning electron microscopy (SEM) revealed that the failure mechanism of short MCFs pulled out from the epoxy matrix contributed to the enhancement of the mechanical performance of the epoxy. The electrical resistivity of the epoxy with MCF weight ratio of 5% was reduced by at least four orders of magnitude compared to the original epoxy, due to the conductive network formed by MCFs. Steel/CFRP double strap joints (with either CFRP sheets or CFRP laminates) were prepared using the enhanced epoxy and then tested in tension, however no obvious increase in joint stiffness or strength was observed.
Keywords: polymer-matrix composites; mechanical properties; scanning electron microscopy (SEM); recycled milled carbon fibres; electrical resistivity polymer-matrix composites; mechanical properties; scanning electron microscopy (SEM); recycled milled carbon fibres; electrical resistivity
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Wu, C.; Feng, P.; Bai, Y.; Lu, Y. Epoxy Enhanced by Recycled Milled Carbon Fibres in Adhesively-Bonded CFRP for Structural Strengthening. Polymers 2014, 6, 76-92.

AMA Style

Wu C, Feng P, Bai Y, Lu Y. Epoxy Enhanced by Recycled Milled Carbon Fibres in Adhesively-Bonded CFRP for Structural Strengthening. Polymers. 2014; 6(1):76-92.

Chicago/Turabian Style

Wu, Chao; Feng, Peng; Bai, Yu; Lu, Ye. 2014. "Epoxy Enhanced by Recycled Milled Carbon Fibres in Adhesively-Bonded CFRP for Structural Strengthening." Polymers 6, no. 1: 76-92.
