Polymers 2012, 4(1), 590-599; doi:10.3390/polym4010590
Commentary

Reinforced Materials Based on Chitosan, TiO2 and Ag Composites

Soft Materials Group, School of Chemistry, University of Wollongong, Northfields Avenue, Wollongong, NSW 2522, Australia
* Author to whom correspondence should be addressed.
Received: 30 December 2011; in revised form: 30 January 2012 / Accepted: 8 February 2012 / Published: 16 February 2012
PDF Full-text Download PDF Full-Text [2085 KB, Updated Version, uploaded 17 February 2012 14:53 CET]
The original version is still available [597 KB, uploaded 16 February 2012 14:44 CET]

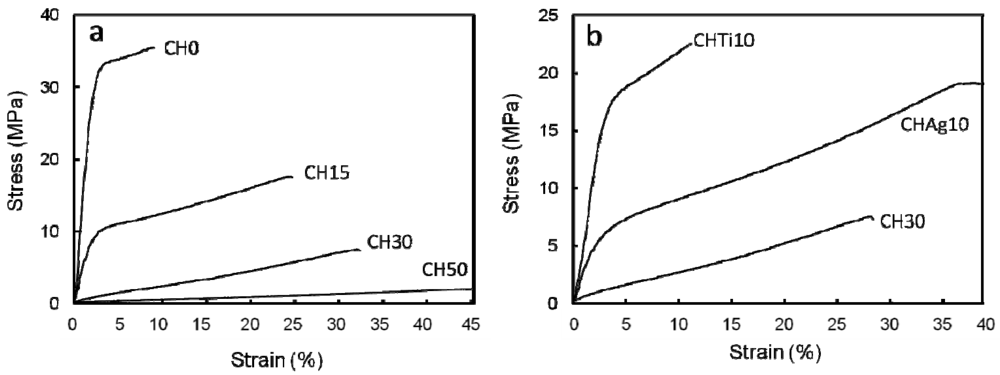

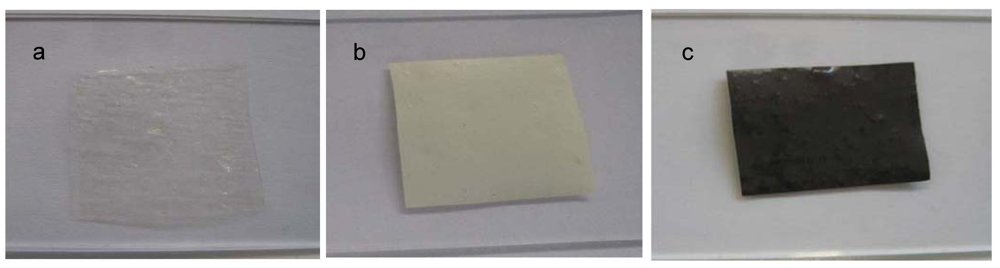

Abstract: This study investigates the mechanical reinforcement of chitosan with TiO2 and Ag nanoparticles, as well as their water vapour transmission rates and water resistance behaviour. The mechanical properties of chitosan were improved by addition of TiO2 or Ag, with significant increases in Young’s modulus (from 25 MPa to ~300 MPa), tensile strength (from 6 MPa to 18–35 MPa) and toughness (from 1.3 J g−1 to 7–8 J g−1). The water vapour transmission rates (368–413 g m−2 d−1) were found to be similar for both materials. Inclusion of Ag reduced the water resistance (from 823% to 1,000%), while inclusion of TiO2 yielded significant improvement in water resistance (from 823% to 100%).
Keywords: chitosan; Ag; TiO2; nanoparticles; mechanical reinforcement; composite

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Amin, K.A.M.; Panhuis, M. Reinforced Materials Based on Chitosan, TiO2 and Ag Composites. Polymers 2012, 4, 590-599.

AMA Style

Amin KAM, Panhuis M. Reinforced Materials Based on Chitosan, TiO2 and Ag Composites. Polymers. 2012; 4(1):590-599.

Chicago/Turabian Style

Amin, Khairul Anuar Mat; Panhuis, Marc in het. 2012. "Reinforced Materials Based on Chitosan, TiO2 and Ag Composites." Polymers 4, no. 1: 590-599.

Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
