Article

Identification and Evaluation of Hazardous Pyrolysates in Bio-Based Rigid Polyurethane-Polyisocyanurate Foam Smoke

1
Faculty of Chemistry, University of Latvia, LV-1004 Riga, Latvia
2
Latvian State Institute of Wood Chemistry, LV-1006 Riga, Latvia
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(19), 3205; https://doi.org/10.3390/polym13193205
Submission received: 12 July 2021 / Revised: 1 August 2021 / Accepted: 16 September 2021 / Published: 22 September 2021
(This article belongs to the Special Issue Polyurethane Foams: Current Advances and Future Perspectives)

Abstract

:
In this study, rigid polyurethane (PU) and polyisocyanurate (PIR) foam samples made from renewable material (tall oil fatty acid) based polyols were analyzed by pyrolysis gas chromatography mass spectrometry (Py-GC/MS) to obtain information about the full relative smoke content, with a focus on substance identification by their functional groups and hazardousness. The relative content of gaseous products produced during the thermal degradation was evaluated between the two samples, differenced by their assigned isocyanate (NCO) index value—150 and 300. The main thermal degradation components of the rigid PU-PIR foam were found to originate from the decomposition of isocyanate, primarily forming 4,4′-methylenedianiline, 3,3′-diaminodiphenylmethane, N-methylaniline, aniline, 4-benzylaniline and phenyl isocyanate. Hazard analysis revealed that the most common hazards were the hazards related to health: H315 (36%), H319 (28%), H335 (25%), and H302 (23%). The chemical compound with the highest relative content value—4,4′-methylenedianiline (45.3% for PU and 52.4% for PIR)—was identified to be a suspected carcinogen and mutagen. The focus of the study was identifying and evaluating the relative quantities of the produced gaseous products, examine their hazardousness, and provide information on the released thermal degradation products to form a renewable-source based rigid PU and PIR foam.

Graphical Abstract

1. Introduction

For more than a decade, bio-based rigid polyurethane (PU) and polyisocyanurate (PIR) foams have been investigated as promising building thermal insulation materials. With technological parameters often equal to or even better than those of conventionally produced foams [1,2,3,4,5,6,7,8,9,10], they are regarded as an environmentally safer alternative to the conventional oil-based rigid PU and PIR materials available in the market.
Although one of the two basic ingredients for producing rigid PU-PIR foams—polyols—can be fully sustainable when produced from renewable sources like vegetable oils and lignin [11,12,13,14], the other part—isocyanates (NCO)—are more difficult to find alternatives for. Therefore, NCO-based rigid PU-PIR foams are still the dominant PU-PIR foams in the PU industry [15]. The NCO prevalence in a thermal insulation material meant for public buildings and homes is a factor that must be acknowledged if an event like a house-fire occurs. The fumes excreted in fires where NCO-based materials are present are a great concern for the environment, and individual and public health. Their released fire gases are made of fully and partially oxidized products, as well as fuel and its degradation products [16]. Using the steady state tube furnace, Stec and Hull assessed the fire toxicity of building insulation materials, concluding that out of the six studied materials, PU and PIR foams produced the most of the toxic products [17].
Thermal decomposition of the PU itself is usually a reverse of polymerization, resulting in the formation of their precursor functional compounds—diisocyanates, diamines and dihydroxy compounds—and the products of decomposition can be predicted from the composition of the polymer [18]. However, these observations stem from the studies investigating conventional material-based PU. There is limited information about the thermal decomposition products from renewable source-based PU materials and their hazards. Thus far, the hazard reducing effects of smoke suppressants in the PU foam have been studied, either as solid inorganic additives [19,20,21] or aerogel composites [22,23]. Hiltz has determined that an analytical pyrolysis method consisting of a pyrolysis gas chromatograph coupled with a mass spectrometer (Py-GC/MS) can be used to differentiate the thermal degradation products of various polyether urethanes, polyureas and polyurethane ureas, and provide information on the materials used in their preparation [24]. This is a Py-GC/MS method application to determine material quality by analyzing its thermal degradation product composition and product relative content.
Hypothetically, due to the branched and long-chain structures from the fatty-acid based polyols (MW > 1000 g/mol) the polyols produced from bio-based sources could affect the overall thermal decomposition gaseous product chemical composition, producing different chemical products every time. Conventional polyols are normally short-chain polyether or polyester polyols (MW < 1000 g/mol), where the molecules tend to cleave through a predetermined pyrolysis mechanism, forming specific chemical compounds. Therefore, the present work is a comparative study where both the rigid PU and PIR foam samples were made from a bio-based material—a high-functionality tall-oil fatty acid polyol—in order to assess the differences in the thermal degradation gaseous compound composition and distribution between the rigid PU foam (NCO 150) and the rigid PIR foam (NCO 300). The produced pyrolytic products were fully identified for both the rigid PU foam and the rigid PIR foam. The identified pyrolytic products were evaluated from both their functional group distribution and the hazards identified with them using the hazard statements of the Globally Harmonized System of Classification and Labelling of Chemicals (GHS) [25].

2. Materials and Methods

The samples analyzed in this research have been studied earlier using thermogravimetric analysis [10], which, along with the obtained thermal degradation behavior data, allowed quantifying the volatile product and solid residue of the rigid PU-PIR foam samples. Additionally, these samples have been used in the assessment of gas excretion trends for specific chemical compounds by employing a differential thermal analysis method coupled with Fourier transform infrared spectrometry [26].

2.1. Materials

The rigid PU-PIR foam formulations were made by utilizing the chemicals presented in Table 1. The tall oil fatty acid (TOFA)-based polyol was produced by epoxidating the TOFAs (Forchem Oyj, Rauma, Finland), opening the introduced oxirane rings and esterificating them with a polyfunctional alcohol (trimethylolpropane). The full description of the synthesis method for the TOFA-based polyol is presented in this paper [27].

2.2. Methodology

The TOFA polyol-based PU-PIR formulations were designed according to their NCO indexes 150 and 300 (Table 2). The necessary components were weighted and stirred into a homogeneous mixture (1 min/2000 rpm). Afterwards, the polyol formulation mixture was de-gassed for no less than 2 h (Troom).
Once de-gassed, the polyol components and the respective NCO moieties were weighed and mixed (15 s/2000 rpm). The PU-PIR formulation was poured into an open top mold and cured in a curing oven (50 °C/2 h).
A Frontier Lab (Fukushima, Japan) free-fall mechanism Micro Double-shot Pyrolyzer Py-2020iD (Tpyrolysis 650 °C; v 650 °C/s), directly coupled with a Shimadzu GC/MS-QP 2010 apparatus (Shimadzu, Kyoto, Japan) (60 m × 0.25 mm × 0.25 mm capillary column RTX-1701 (Restec, Metairie, LA, USA)) was used to perform Py-GC/MS (Tinjector 250 °C; EI mode (70 eV); MS scan range 15–350 m/z; Qsample (He) 1 mL/min; split ratio 1:15). Oven program: isothermal at 60 °C/1 min, ramp rate 7 °C/min to 270 °C, final hold 270 °C for 15 min. Library MS NIST 147.LI13 was used for identifying individual compounds. The summed molar areas of the relevant peaks were normalized to 100%, and the data of repetitive pyrolysis experiments were averaged. The relative error of measurements was 1–3%. The results were from triplicate experiments (msample = 1.00 mg).

3. Results and Discussion

Overall, the Py-GC/MS results revealed that the main difference between the sample pyrolysates were the changes in the individual chemical compound output content, but not the hypothesized changes in the product chemical composition.
For a clearer understanding of the produced chemical component quantitative composition, the characteristics measured for F_HF95 NCO 150 and F_HF95 NCO 300 are referenced in Table 3 from one of the previous studies on the thermal degradation process analysis for these formulations [10].
The Fourier transform infrared spectral analysis (FTIR) data on the material composition are also available in the aforementioned study [10], but the thermogravimetric, differential thermal analysis and the FTIR data on the released gaseous compounds from these formulations are available in this paper [26].

3.1. Py-GC/MS Gaseous Product Characterization

The obtained Py-GC/MS curves of the two samples are shown in Figure 1 in an overlaid form to perceive the relative intensity differences better, while Figure 2 as an example of the obtained mass spectra shows the mass spectrum of the main thermal decomposition product 4,4′-methylenedianiline. Py-GC/MS provides chromatograms with information on the thermal degradation product distribution based on their retention time (Rt) and chemical information on the thermal decomposition products of PUs through their mass spectra.
The full list of the identified chemical compounds and GHS hazard statements is available in Table 4, the GHS hazard statements according to the Commission Regulation (EU) 2018/669 [25]. The values expressed are the relative quantities (%) for the chemical compounds out of the full obtained pyrolytic compound data, measured by the Shimadzu GC/MS-QP 2010 data processing program.
Quantity change Δ (%) was calculated using Equation (1):
( % ) = m rel NCO   300   ( % )   m rel NCO   150   ( % )
where mrel F_HF95 NCO 150 (%) is the percentual value of a chosen chemical compound quantity for F_HF95 NCO 150 formulation, mrel F_HF95 NCO 300 (%) is the percentual value of a chosen chemical compound quantity for F_HF95 NCO 300 formulation.
Relative quantity change Rel. Δ (%) was calculated using Equation (2):
Rel . ( % ) = | ( % ) | m rel NCO   150   ( % ) × 100
where |Δ (%)| is the absolute value of the calculated quantity change Δ (%), mrel F_HF95 NCO 150 (%) is the corresponding percentual value of a chosen chemical compound quantity for F_HF95 NCO 150 formulation.
In order to better discern the differences in the chemical compound relative quantity values, Figure 3 shows the main thermal degradation product fraction parts out of the full obtained pyrolysis data for the F_HF95 NCO 150 and F_HF95 NCO 300 samples.
The released chemical compounds contain a mixture of fully oxidized products like CO2, partially oxidized products like CO and aldehydes and ketones, as well as aliphatic or aromatic hydrocarbons. According to the changes in the product relative quantities, the compounds that originate from the MDI remain in higher concentration as the NCO index is increased, whereas the compounds that originate from the polyol moiety have an observable decrease in concentration. The compounds with the highest quantified relative amount—4,4′-methylenedianiline (Rt = 38.071 min), N-methylaniline (Rt = 16.175 min), 3,3′-diaminodiphenylmethane (Rt = 35.723 min), aniline (Rt = 14.278 min), and 4-benzylaniline (Rt = 29.557 min)—are direct MDI thermal decomposition products, cumulatively 61.4% for H_FH95 NCO 150 and 72.0% for H_FH95 NCO 300. The total amount of the compounds that have been traced to have originated from the MDI are 70.1% for H_FH95 NCO 150 and 81.3% for H_FH95 NCO 300, accounting for approximately 2/3 (NCO 150) and 4/5 (NCO 300) of the total generated compound content. Pyrolysis products derived from catalysts like diethylene glycol (Rt = 15.264 min), cross-linkers such as trimethylolpropane (Rt = 23.019 min), and TOFA-based polyol thermal decomposition products like 1-hexadecanol (Rt = 31.573 min) are present.
The quantities of inorganic gases—CO2 (Rt = 5.287 min), CO (Rt = 24.167 min), H2O (vapor) (Rt = 39.136 min), NO (Rt = 38.503 min) and NO2 (Rt = 40.054 min)—apart from NH3 (Rt = 38.813 min), have reduced observably. The ammonia exception occurs because, during the thermal decomposition process, NH3 is essentially the penultimate product in the NCO-containing compound thermal decomposition chain, that is ultimately oxidized to one of the NOx variety, the NO2:NO ratio depending on the available oxygen in the system. While acknowledging that CO2 and H2O can originate from other chemical ingredients used in the rigid PU-PIR foam production, these compounds are assumed to have originated mostly from the TOFA-based polyol during the thermal decomposition mid (T = 350–480 °C) and end (T ~ 600 °C) phases [26]. The observed trend for the relative amount of the generated inorganic gases and the sample NCO values is inversely proportional. This indicates that the added thermal stability to the rigid PU-PIR foam from the isocyanurate structures within the matrix is most likely responsible for the complication in the thermal decomposition processes by preventing the material from full decomposing under a high-temperature influence. Therefore, the excreted thermal decomposition products from the rigid PU-PIR foam with a higher NCO index will contain more of the volatile organic chemical compounds (VOCs) content-wise as can be seen from the Py-GC/MS results.

3.2. Functional Group Assessment for the Volatile Organic Compounds

The VOCs were also evaluated from their functional group aspect. The findings confirmed the presence of 38 alkene (of them 21 in benzene ring structure), 1 alkyne, 19 phenyl, 20 amine, 8 alcohol, 1 ether, 4 aldehyde, 2 ketone, 2 amide, 1 isocyanide, 1 isocyanate and 4 nitrile functional groups in the surveyed 63 organic chemical compounds. Chemical compound examples for each functional group are available in Table 5.
The majority (43) of the excreted compounds include a benzene ring structure somewhere within their structure, either possessing a phenyl group or being a substituted aromatic compound itself. Some of the identified compounds were even polycondensed aromatics and aromatic heterocyclic organic compounds, i.e., carbazole, well known for their effects on human health and the environment [28,29]. All these compounds have at least one GHS hazard code attributed to them from either the Health or Environmental hazard class.
A deeper insight in the properties of the identified thermal decomposition products, particularly the inherent danger to human health and the environment, was in order. Each compound was evaluated by the corresponding GHS hazard codes assigned to it from the physical, health, and environmental hazard classes (Table 6).
The results of the study are as follows: the identified chemical compounds possess 38 different hazard codes, i.e., eight physical hazard codes, 25 health hazards codes, and five environmental hazard codes. Twelve compounds have been assessed to be free of any assigned hazard codes at the time. Many of the evaluated chemical compounds possess more than one hazard code (phenyl isocyanate—a total of 12 hazard codes). The most common hazards in all the pyrolysis products are H315 “Causes skin irritation” (36%), H319 “Causes serious eye irritation” (28%), H335 “May cause respiratory irritation” (25%), and H302 “Harmful if swallowed” (23%). All the most commonly identified hazards are health hazards, and since upper respiratory tract irritants are believed to depend on the concentration alone [30], it makes the excreted chemical compounds innately harmful to human health. The chemical compound with the highest relative content value—4,4′-methylenedianiline (45.3% for PU and 52.4% for PIR)—is particularly dangerous, as it is one of the three identified compounds, that may cause cancer, and is also suspected of causing genetic defects. This chemical compound is found in abundance (Δ (%) ~ 55%) by Hiltz et al. [24] as well, where it is determined to be the primary thermal degradation product of the portion of the elastomer that incorporated MDI.
Overall, the results on the thermal degradation products that originate from the NCO moiety re-affirm the findings discovered by Stec and Hull regarding the chemical composition of fire gases of PU and PIR insulation materials [17]. Since both studied foams are nearly 100% organic materials, i.e., they consist of only carbon, oxygen, hydrogen, and nitrogen elements almost exclusively, the thermal degradation of the foams will produce a vast variety of chemical compounds, ranging from compounds formed primarily from the formulation ingredients like 4,4′-methylenedianiline from MDI to purely inorganic gases like CO2, NH3, and H2O. Comparing the obtained chemical compound compositions and quantities to the ones studied under under-ventilated or oxygen-poor conditions by Stec and Hull, H_FH95 NCO 150 produced almost twice (Rel. Δ (%) = 39.7%) the amount of the NO2 compared to H_FH95 NCO 300, similarly to the studied PU and PIR foam (Rel. Δ (%) = 51.3%) [17]. It happens due to the lower NCO content of the H_FH95 NCO 150, which would otherwise have inhibited the propagation of thermal degradation end products.
Due to the lack of analytical pyrolysis studies of renewable source-based PU and PIR materials, the chemical compound quantity comparison is not suitable to evaluate the effect of the TOFA-based polyol thermal degradation products on the overall chemical compound composition. Only the chemical compounds that originate from the pMDI can be objectively compared to other study results, specifically the studies that employ similar methodology for the chemical compound analysis. However, various thermal degradation studies where the conventionally produced (oil-based) polyols are replaced with renewable source-based polyols [1,4,5,8,31] show that these formulations possess distinctive thermal degradation trends. Therefore, it is reasonable to assume that the renewable source-based polyol has equally diminished the MDI thermal degradation product quantities during the initial thermal degradation stages (T from ~210 °C to ~230 °C) and facilitated the thermal degradation of the MDI derivatized products in the end-point pyrolytic thermal degradation stage (T from ~600 °C to ~650 °C), and this assumption is supported by conclusions made in a previous study on the rigid PU and PIR foam thermal degradation [26], that included the analysis on the formulations studied in this study, too. For these reasons, the presence of the renewable source-based polyols in the foam is beneficial for the insulation properties of the material because the diminishing of MDI thermal degradation product quantities equals increased thermal stability, and the additional oxygen from the polyol matrix allows for a greater output of inorganic gases like CO2 and H2O over VOCs.

4. Conclusions

In the study, two high-functionality tall-oil polyol based rigid polyurethane (PU) and polyisocyanurate (PIR) foam formulations with isocyanate (NCO) indexes 150 and 300 were obtained and thermal degradation products of them were studied by analytical pyrolysis (Py-GC/MS). The results show that the main pyrolysates originated from the decomposition of the isocyanate moiety part of the rigid PU-PIR foam, i.e., 4,4′-diphenylmethane diisocyanate (MDI), primarily forming 4,4′-methylenedianiline, 3,3′-diaminodiphenylmethane, N-methylaniline, aniline, 4-benzylaniline and phenyl isocyanate. The amount of certain chemical components increased by up to 29% when measured across the samples (NCO indexes 150–300). The majority (43 out of 69) of the excreted compounds included a benzene ring structure somewhere within their structure, either possessing a phenyl group or being a substituted aromatic compound itself. The total amount of the chemical compounds traced to have originated from the MDI was 70.1% for PUR foams NCO index 150 and 81.3% for PIR foams NCO index 300 of the total generated compound volume.
With nearly 4/5 of the pyrolysates originating from the isocyanate moiety, it can be concluded that the smoke from a bio-based rigid PU-PIR foam, where the foam contains no additives like flame retardants or smoke suppressants, could pose a potential threat to human health and the environment. Therefore, when studying either fully bio-based or partially bio-based materials, it is suggested to evaluate if the positive gains of including more bio-based material in non-renewable products during the material production stage outweigh the potential negative effects on health and the environment. This step should be imperative if the product could be potentially exposed to conditions unsuitable for maintaining its chemical and structural integrity.
A thorough pyrolysate hazard evaluation process led to the observation that most of the identified threats were hazards related to health. Therefore, when studying the rigid PU-PIR foam thermal degradation behavior or assessing the properties related to thermal stability, the use of appropriate personal safety equipment like respirators with chemical cartridges containing at least volatile organic compound (VOC) sorbents is strongly recommended. The respirator canisters ought to contain multiple protective sorbent types, because the released chemical compounds are highly varied, i.e., VOCs, inorganic gases (including CO, NO and NO2), ammonia and its organic derivatives. In addition to the use of respiratory protective equipment when assessing the thermal degradation behavior and properties of PU and PIR foams, a proper local exhaust ventilation should also be considered.

Author Contributions

Conceptualization, S.R.; methodology, S.R. and V.J.; software, S.R.; validation, S.R. and V.J.; formal analysis, S.R., V.J., U.C. and A.V.; investigation, S.R. and V.J.; resources, U.C. and A.V.; data curation, S.R.; writing—original draft preparation, S.R.; writing—review and editing, S.R., U.C. and A.V.; visualization, S.R.; supervision, U.C. and A.V.; funding acquisition, U.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Regional Development Fund under Contract No 1.1.1.1/16/A/031 “Rigid Polyurethane/Polyisocyanurate Foam Thermal Insulation Material Reinforced with Nano/Micro Size Cellulose”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Prociak, A.; Kurańska, M.; Cabulis, U.; Kirpluks, M. Rapeseed oil as main component in synthesis of bio-polyurethane-polyisocyanurate porous materials modified with carbon fibers. Polym. Test. 2017, 59, 478–486. [Google Scholar] [CrossRef]
  2. Kirpluks, M.; Kalnbunde, D.; Walterova, Z.; Cabulis, U. Rapeseed Oil as Feedstock for High Functionality Polyol Synthesis. J. Renew. Mater. 2017, 5, 258–270. [Google Scholar] [CrossRef]
  3. Kurańska, M.; Prociak, A.; Cabulis, U.; Kirpluks, M.; Ryszkowska, J.; Auguścik, M. Innovative porous polyurethane-polyisocyanurate foams based on rapeseed oil and modified with expandable graphite. Ind. Crop. Prod. 2017, 95, 316–323. [Google Scholar] [CrossRef]
  4. Fridrihsone-Girone, A.; Stirna, U. Characterization of polyurethane networks based on rapeseed oil derived polyol. Polimery 2014, 59, 333–338. [Google Scholar] [CrossRef]
  5. Pietrzak, K.; Kirpluks, M.; Cabulis, U.; Ryszkowska, J. Effect of the addition of tall oil-based polyols on the thermal and mechanical properties of ureaurethane elastomers. Polym. Degrad. Stab. 2014, 108, 201–211. [Google Scholar] [CrossRef]
  6. Kurańska, M.; Prociak, A.; Cabulis, U.; Kirpluks, M. Water-blown polyurethane-polyisocyanurate foams based on bio-polyols with wood fibers. Polimery 2015, 61, 705–712. [Google Scholar] [CrossRef]
  7. Kurańska, M.; Prociak, A.; Kirpluks, M.; Cabulis, U. Polyurethane-polyisocyanurate foams modified with hydroxyl derivatives of rapeseed oil. Ind. Crop. Prod. 2015, 74, 849–857. [Google Scholar] [CrossRef]
  8. Kurańska, M.; Cabulis, U.; Auguścik, M.; Prociak, A.; Ryszkowska, J.; Kirpluks, M. Bio-based polyurethane-polyisocyanurate composites with an intumescent flame retardant. Polym. Degrad. Stab. 2016, 127, 11–19. [Google Scholar] [CrossRef]
  9. Javni, I.; Zhang, W.; Petrović, Z.S. Soybean-oil-based polyisocyanurate rigid foams. J. Polym. Environ. 2004, 12, 123–129. [Google Scholar] [CrossRef]
  10. Reinerte, S.; Kirpluks, M.; Cabulis, U. Thermal degradation of highly crosslinked rigid PU-PIR foams based on high functionality tall oil polyol. Polym. Degrad. Stab. 2019, 167, 50–57. [Google Scholar] [CrossRef]
  11. Gadhave, R.V.; Kasbe, P.S.; Mahanwar, P.A.; Gadekar, P.T. Synthesis and characterization of lignin-polyurethane based wood adhesive. Int. J. Adhes. Adhes. 2019, 95, 102427. [Google Scholar] [CrossRef]
  12. García, J.L.; Pans, G.; Phanopoulos, C. Use of lignin in polyurethane-based structural wood adhesives. J. Adhes. 2018, 94, 814–828. [Google Scholar] [CrossRef]
  13. Aristri, M.A.; Lubis, M.A.R.; Yadav, S.M.; Antov, P.; Papadopoulos, A.N.; Pizzi, A.; Fatriasari, W.; Ismayati, M.; Iswanto, A.H. Recent Developments in Lignin- and Tannin-Based Non-Isocyanate Polyurethane Resins for Wood Adhesives—A Review. Appl. Sci. 2021, 11, 4242. [Google Scholar] [CrossRef]
  14. Tavares, L.B.; Boas, C.V.; Schleder, G.R.; Nacas, A.M.; Rosa, D.S.; Santos, D.J. Bio-based polyurethane prepared from Kraft lignin and modified castor oil. Express Polym. Lett. 2016, 10, 927–940. [Google Scholar] [CrossRef]
  15. Gama, N.V.; Ferreira, A.; Barros-Timmons, A. Polyurethane foams: Past, present, and future. Materials 2018, 11, 1841. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Kaplan, H.L.; Grand, A.F.; Hartzell, G.E. Toxicity and the smoke problem. Fire Saf. J. 1984, 7, 11–23. [Google Scholar] [CrossRef]
  17. Stec, A.A.; Hull, T.R. Assessment of the fire toxicity of building insulation materials. Energy Build. 2011, 43, 498–506. [Google Scholar] [CrossRef]
  18. McKenna, S.T.; Hull, T.R. The fire toxicity of polyurethane foams. Fire Sci. Rev. 2016, 5, 3. [Google Scholar] [CrossRef] [Green Version]
  19. Wang, B.; Sheng, H.; Shi, Y.; Song, L.; Zhang, Y.; Hu, Y.; Hu, W. The influence of zinc hydroxystannate on reducing toxic gases (CO, NOx and HCN) generation and fire hazards of thermoplastic polyurethane composites. J. Hazard. Mater. 2016, 314, 260–269. [Google Scholar] [CrossRef]
  20. Yuan, Y.; Wang, W.; Shi, Y.; Song, L.; Ma, C.; Hu, Y. The influence of highly dispersed Cu2O-anchored MoS2 hybrids on reducing smoke toxicity and fire hazards for rigid polyurethane foam. J. Hazard. Mater. 2019, 382, 121028. [Google Scholar] [CrossRef]
  21. Xu, W.; Wang, G.; Xu, J.; Liu, Y.; Chen, R.; Yan, H. Modification of diatomite with melamine coated zeolitic imidazolate framework-8 as an effective flame retardant to enhance flame retardancy and smoke suppression of rigid polyurethane foam. J. Hazard. Mater. 2019, 379, 120819. [Google Scholar] [CrossRef] [PubMed]
  22. Li, M.E.; Wang, S.H.; Han, L.X.; Yuan, W.J.; Cheng, J.B.; Zhang, A.N.; Zhao, H.B.; Wang, Y.Z. Hierarchically porous SiO2/polyurethane foam composites towards excellent thermal insulating, flame-retardant and smoke-suppressant performances. J. Hazard. Mater. 2019, 375, 61–69. [Google Scholar] [CrossRef] [PubMed]
  23. Wi, S.; Berardi, U.; Di Loreto, S.; Kim, S. Microstructure and thermal characterization of aerogel–graphite polyurethane spray-foam composite for high efficiency thermal energy utilization. J. Hazard. Mater. 2020, 397, 122656. [Google Scholar] [CrossRef] [PubMed]
  24. Hiltz, J.A. Analytical pyrolysis gas chromatography/mass spectrometry (py-GC/MS) of poly(ether urethane)s, poly(ether urea)s and poly(ether urethane-urea)s. J. Anal. Appl. Pyrolysis 2015, 113, 248–258. [Google Scholar] [CrossRef] [Green Version]
  25. European Commission. Commission Regulation (EU) 2018/669 of 16 April 2018 amending, for the purposes of its adaptation to technical and scientific progress, Regulation (EC) No 1272/2008 of the European Parliament and of the Council on classification, labelling and packaging of substances and mixtures. OJ 2018, L115, 1–755. [Google Scholar]
  26. Reinerte, S.; Avotina, L.; Zarins, A.; Cabulis, U.; Viksna, A. TG/DTA-FTIR as a method for analysis of tall oil based rigid polyurethane foam decomposition gaseous products in a low oxygen environment. Polym. Degrad. Stab. 2020, 180, 109313. [Google Scholar] [CrossRef]
  27. Kirpluks, M.; Vanags, E.; Abolins, A.; Michalowski, S.; Fridrihsone, A.; Cabulis, U. High Functionality Bio-Polyols from Tall Oil and Rigid Polyurethane Foams Formulated Solely Using Bio-Polyols. Materials 2020, 13, 1985. [Google Scholar] [CrossRef]
  28. Kim, K.H.; Jahan, S.A.; Kabir, E.; Brown, R.C.J. A review of airborne polycyclic aromatic hydrocarbons (PAHs) and their human health effects. Environ. Int. 2013, 60, 71–80. [Google Scholar] [CrossRef]
  29. Mumbo, J.; Henkelmann, B.; Abdelaziz, A.; Pfister, G.; Nguyen, N.; Schroll, R.; Munch, J.C.; Schramm, K.W. Persistence and dioxin-like toxicity of carbazole and chlorocarbazoles in soil. Environ. Sci. Pollut. Res. 2015, 22, 1344–1356. [Google Scholar] [CrossRef]
  30. Purser, D.A. The Application of Exposure Concentration and Dose to Evaluation of Effects of Irritants as Components of Fire Hazard. In Proceedings of the Interflam Conference Proceedings, London, UK, 3–5 September 2007; Available online: https://www.researchgate.net (accessed on 2 July 2021).
  31. Hejna, A.; Kirpluks, M.; Kosmela, P.; Cabulis, U.; Haponiuk, J.; Piszczyk, Ł. The influence of crude glycerol and castor oil-based polyol on the structure and performance of rigid polyurethane-polyisocyanurate foams. Ind. Crop. Prod. 2017, 95, 113–125. [Google Scholar] [CrossRef]

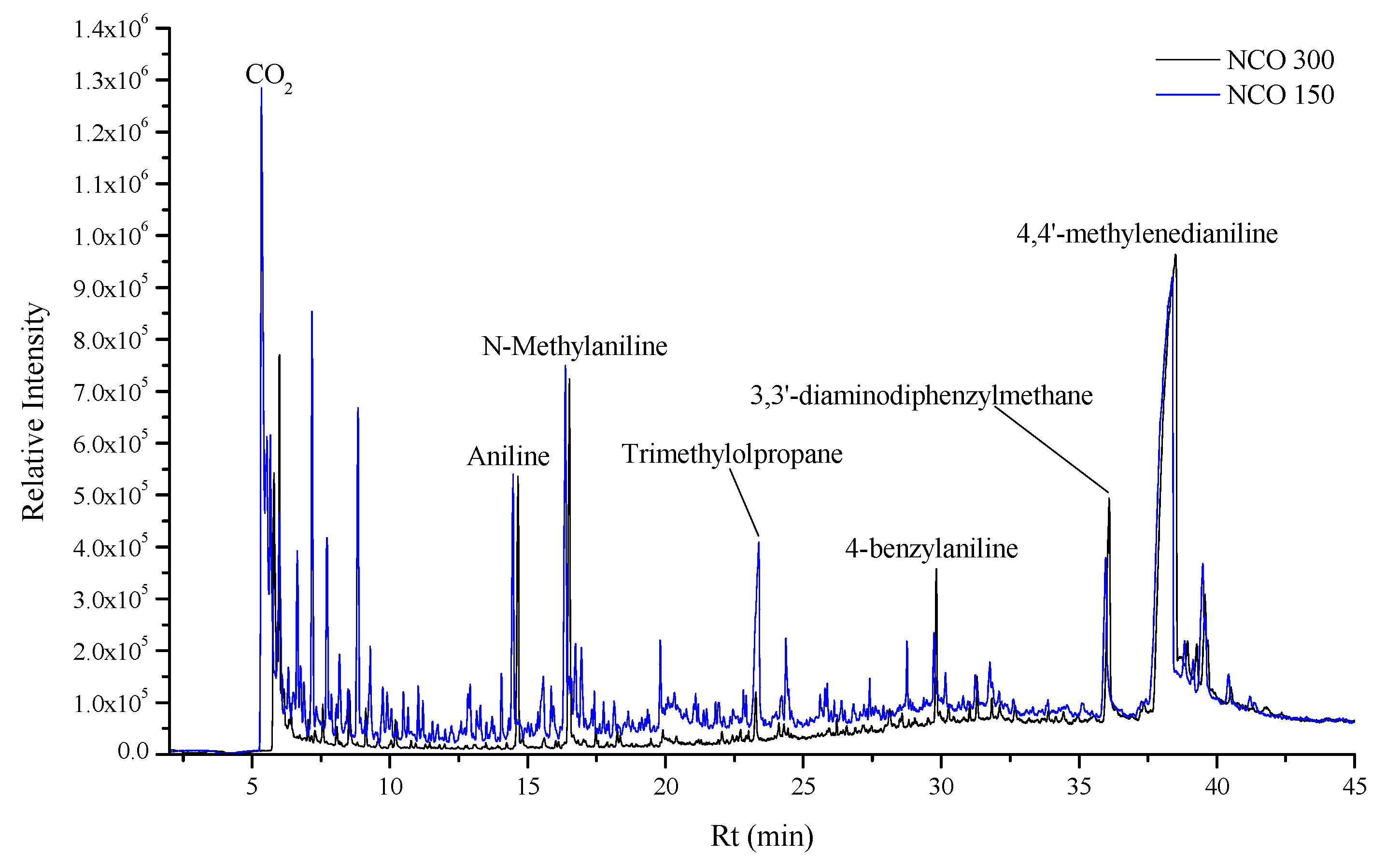

Figure 1. Py-GC/MS chromatograms obtained for F_HF95 samples.
Figure 1. Py-GC/MS chromatograms obtained for F_HF95 samples.
Polymers 13 03205 g001

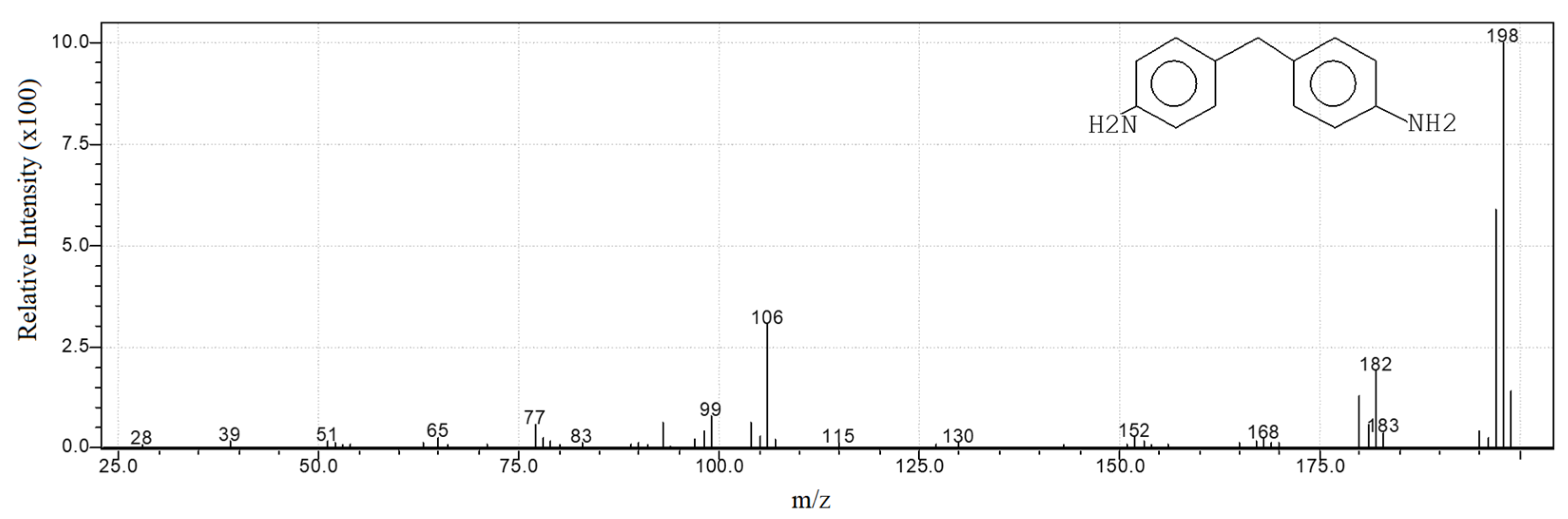

Figure 2. Mass spectrum of 4,4′-methylenedianiline.
Figure 2. Mass spectrum of 4,4′-methylenedianiline.
Polymers 13 03205 g002

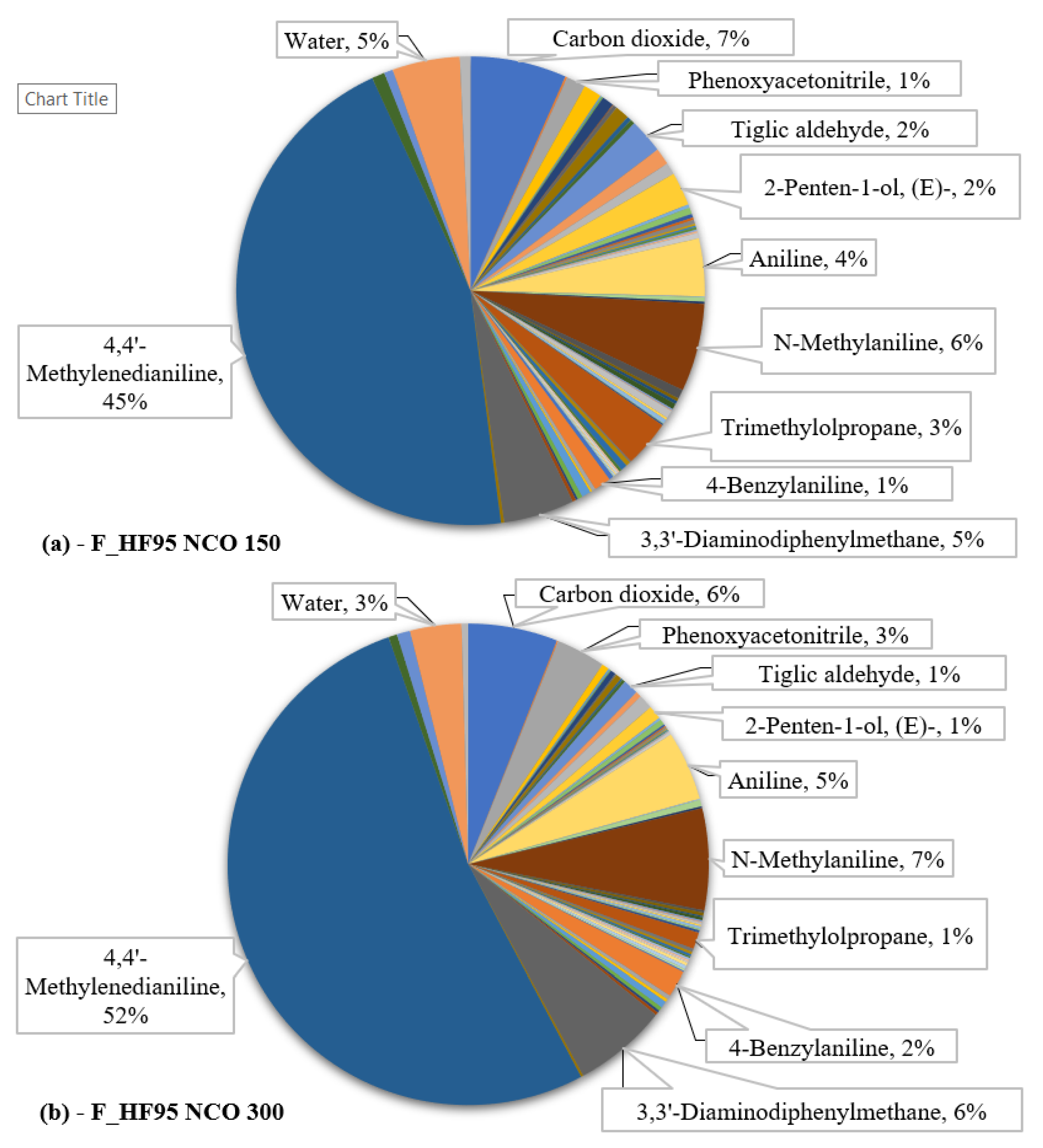

Figure 3. F_HF95 NCO 150 (a) and F_HF95 NCO 300 (b) compound fraction distribution according to the relative quantity values.
Figure 3. F_HF95 NCO 150 (a) and F_HF95 NCO 300 (b) compound fraction distribution according to the relative quantity values.
Polymers 13 03205 g003
Table 1. Materials used in the formulations.
Table 1. Materials used in the formulations.
Chemical ComponentStructure

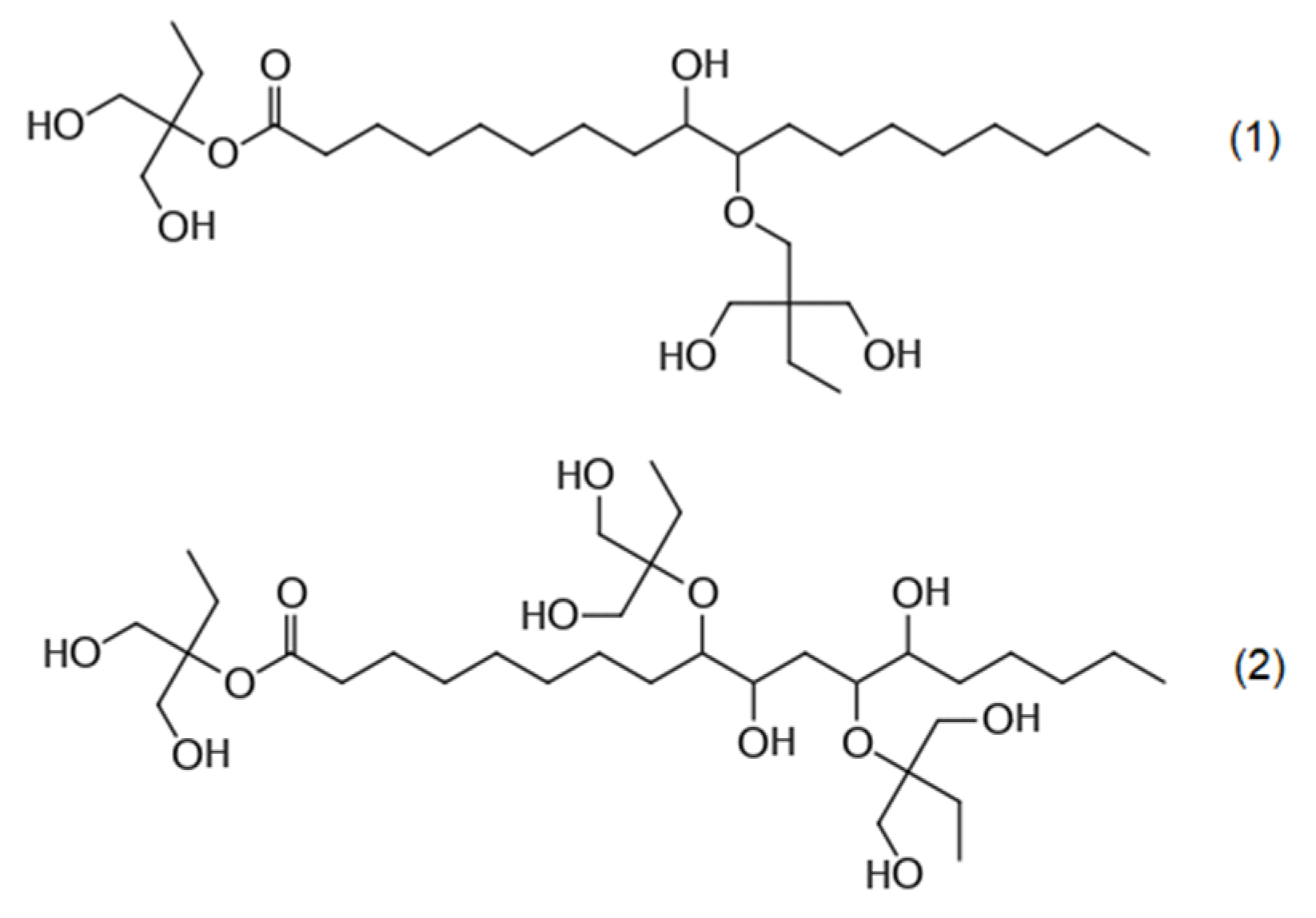

TOFA-based polyol [27], derived from:
(1) oleic acid;
(2) linoleic acid
Polymers 13 03205 i001
Lupranol® 3422 (sorbitol-based polyether polyol) (BASF, Ludwigshafen, Germany)(The exact chemical structure has not been disclosed)

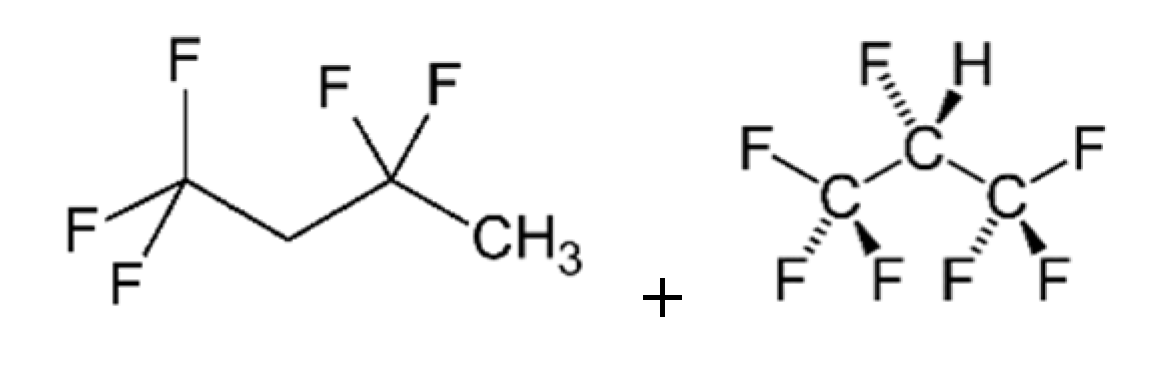

Solkane® 365/277 (86–92% of 1,1,1,3,3 pentafluorobutane; 8–14% of 1,1,1,2,3,3,3-heptafluoropropane) (Solvay Special Chemicals, Düsseldorf, Germany) Polymers 13 03205 i002
Water (deionized)H2O
Tertiary amine (Polycat® 5) N,N,N′,N′′,N′′-pentamethyldiethylenetriamine (PMDTA) (Evonik Industries, Essen, Germany) Polymers 13 03205 i003

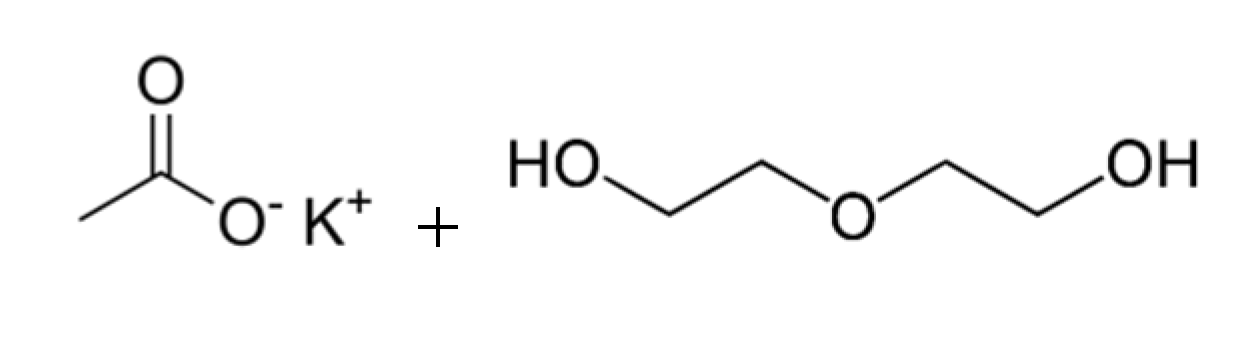

30% potassium acetate in DEG (PC CAT TKA 30 and PC CAT Q 7-2) catalysts (Air Products Europe Chemicals B.V., Utrecht, The Netherlands) Polymers 13 03205 i004
Niax Silicone L-6915 (Momentive Performance Materials Inc., Geesthacht, Germany)(The exact chemical structure has not been disclosed)

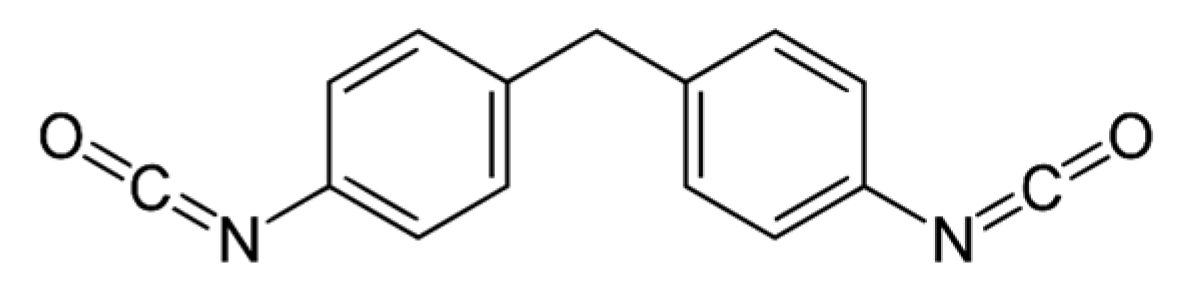

Desmodur 44V20L (Covestro, Leverkusen, Germany; NCO content is 30.5–32.5 wt%) Polymers 13 03205 i005

Table 2. Formulation additives in the rigid PU-PIR foams.
Table 2. Formulation additives in the rigid PU-PIR foams.
Polyol Formulation (pbw)
Sample Code *F_HF95 NCO 150F_HF95 NCO 300
NCO index150300
TOFA-based polyol95.095.0
Lupranol 34225.05.0
Blowing reagent (water)0.50.5
Blowing agent (Solkane 365/277)40.070.0
Catalyst (Polycat 5)2.02.0
Catalyst (PC CAT TKA 30)1.52.5
Catalyst (PC CAT Q 7-2)2.02.0
Surfactant (L-6915)2.02.0
pMDI (Desmodur 44V20L)150.0299.9
* Sample codes are retained as in articles [10,26].
Table 3. Characteristics of F_HF95 samples (NCO 150 and 300).
Table 3. Characteristics of F_HF95 samples (NCO 150 and 300).
CharacteristicF_HF95 NCO 150F_HF95 NCO 300
Start time, s2020
String time, s3775
Tack free time, s50125
Temperature of polyol component before foaming, °C2424
Apparent density of molded PU-PIR foams, kg/m331.635.6
Closed cell content, %9396
Mc, g/mol499549
Polyol moiety viscosity, mPa∙s62,560 ± 4062,560 ± 40
Table 4. Identification of the chromatographic peaks of F_HF95 samples (NCO 150 and 300).
Table 4. Identification of the chromatographic peaks of F_HF95 samples (NCO 150 and 300).
No.Peak IdentificationRt (Min)Mrel NCO 150 (%)Mrel NCO 300 (%)Δ (%)Rel. Δ (%)GHS Hazard Statements
1Carbon dioxide5.2876.656.02−0.63−9.5H280; H281
21-Butene5.4050.140.09−0.05−35.7H220; H221; H280
3Phenoxyacetonitrile5.4741.343.321.98147.8H302; H312; H332
4cis-1,2-Dimethylcyclopropane5.5751.250.49−0.76−60.8Not classified
5Isoprene5.6330.100.120.0220.0H224; H341; H350; H412
63-Penten-1-yne5.8260.110.07−0.04−36.4Not classified
71-Hexene5.8980.820.37−0.45−54.9H225; H304; H319
8Methyl isocyanide6.1200.06traceH302; H312; H332; H373
92-Butenal6.2180.270.09−0.18−66.7H225; H301; H310; H311; H315; H318; H330; H335; H341; H373; H400
101-Heptene6.5240.990.40−0.59−59.6H225; H304; H400; H410
111,2,5-Hexatriene6.6410.300.12−0.18−60.0Not classified
12Benzene6.7670.320.21−0.11−34.4H225; H304; H315; H319; H340; H350; H372
13Tiglic aldehyde7.0632.391.03−1.36−56.9H225; H315; H319; H335; H411
141-Octene7.5831.160.40−0.76−65.5H225; H304; H315; H400; H410; H411
15Toluene8.0290.810.960.1518.5H225; H304; H315; H336; H361d; H373
162-Penten-1-ol, (E)-8.6562.320.91−1.41−60.8H226
17M-Xylene9.5810.230.16−0.07−30.4H226; H304; H312; H315; H318; H332
18P-Xylene9.7360.450.37−0.08−17.8H226; H304; H312; H315; H319; H332; H335
19O-Xylene10.3250.260.13−0.13−50.0H225; H226; H304; H312; H315; H319; H332; H335
20Styrene10.4890.170.09−0.08−47.1H226; H315; H319; H332; H361d; H372
212-Heptanone10.8590.270.11−0.16−59.3H226; H302; H332
221-Decene11.0230.140.07−0.07−50.0H226; H304; H400; H410
23Propylbenzene11.3670.110.06−0.05−45.5H226; H304; H335; H411
243-Ethyltoluene11.5640.170.06−0.11−64.7H226; H304; H336; H411
251-Dodecene13.0940.110.07−0.04−36.4H304; H315
26Butylbenzene13.5090.120.04−0.08−66.7H226; H315; H319; H400; H410
272-Ethylhexanol13.8640.380.18−0.20−52.6H315; H319; H332; H335
28Aniline14.2783.994.680.6917.3H301; H311; H317; H318; H331; H341; H351; H372; H400
29Benzonitrile14.4390.050.070.0240.0H302; H312
30Diethylene glycol15.2640.310.440.1341.9H302
31Pentylbenzene15.6600.150.13−0.02−13.3H411; H412
32N-Methylaniline16.1756.086.830.7512.3H301; H311; H331; H373; H400; H410
332-Ethyl-2-methyl-1,3-propanediol16.7080.640.16−0.48−75.0Not classified
34Benzyl cyanide17.1290.210.220.014.8H301; H302; H311; H330
35N-Methyl-m-toluidine17.5540.220.09−0.13−59.1H301; H311 H331; H373; H412
362,5-Dimethylaniline17.9250.390.20−0.19−48.7H301; H311; H331; H373; H411
372-Ethylaniline18.0330.110.10−0.01−9.1H301; H302; H311; H319; H330; H331; H373;
38cis-3-Tetradecene19.1660.050.060.0120.0Not classified
39Carbazole19.6060.550.15−0.40−72.7H315; H341; H351; H400; H411; H413
404-Vinylaniline20.0900.160.11−0.05−31.3H302; H312; H315; H319; H332; H334; H335; H351; H373
417-Methylquinoline21.7500.290.17−0.12−41.4H315; H318; H319; H335
42Indolizine22.1360.050.100.05100.0H315; H319
435H-Cyclopenta[b]pyridine22.4310.100.160.0660.0Not classified
44Trimethylolpropane23.0193.261.12−2.14−65.6Not classified
454-Aminophenylacetonitrile23.8310.110.220.11100.0H302; H312; H315; H319; H332; H335
462,8-Dimethylquinoline24.0180.310.17−0.14−45.2H302; H315; H318; H335
47Carbon monoxide24.1670.440.16−0.28−63.6H220; H331; H360d; H372
488-Propylquinoline25.6570.190.11−0.08−42.1Not classified
491-Octadecene25.9750.000.140.14140.0H304
50Oxindole26.3060.100.120.0220.0Not classified
51N-Methylacetanilide26.6330.180.09−0.09−50.0H301
52Benzimidazole26.9220.090.210.12133.3H302; H315; H319; H335
53N-Formylindoline27.8700.100.220.12120.0Not classified
54N-Methyldiphenylamine28.3220.070.150.08114.3H315; H319; H335
559-Octadecanone28.5810.320.08−0.24−75.0Not classified
564-Benzylaniline29.5571.171.790.6253.0H302; H312; H315; H319; H332; H335;
57Acridine29.9920.260.280.027.7H302; H315; H319; H335;
58Acrolein30.7670.140.210.0750.0H225; H300; H311; H314; H330; H400; H410
59Phenol31.0350.630.46−0.17−27.0H301; H311; H314; H331; H341; H373
601-Hexadecanol31.5730.340.26−0.08−23.5H315; H319; H335; H400; H410; H411; H412; H413
619-Vinylcarbazole31.8740.140.160.0214.3H302; H312; H315; H317; H341; H400; H410
62Phenyl isocyanate32.3980.250.20−0.05−20.0H226; H302; H314; H317; H318; H330; H334; H335; H400; H410; H411; H412
633,3′-Diaminodiphenylmethane35.7234.896.311.4229.0H302; H312; H315; H319; H332; H335; H351
64Methanol36.9730.220.16−0.06−27.3H225; H301; H311; H331; H370
654,4′-Methylenedianiline38.07145.2652.417.1515.8H317; H341; H350; H370; H373; H411
66Nitric oxide38.5030.890.58−0.31−34.8H270; H280; H314; H318; H330; H331; H373
67Ammonia38.8130.610.890.2845.9H221; H314; H331; H400
68Water39.1364.673.46−1.21−25.9Not classified
69Nitrogen dioxide40.0540.730.44−0.29−39.7H270; H280; H314; H318; H330
Table 5. Functional group assessment in the rigid PU-PIR foam thermal decomposition products.
Table 5. Functional group assessment in the rigid PU-PIR foam thermal decomposition products.
Functional Group/BondCountsExamples
Alkene381-Butene, Isoprene, 1-Hexene, 1-Dodecene
Alkene incorporated in benzene ring structure21M-Xylene, P-Xylene, O-Xylene, 3-Ethyltoluene, 9-Vinylcarbazole, Carbazole
Alkyne13-Penten-1-yne
Phenyl194,4′-Methylenedianiline, N-Methyldiphenylamine
Amine20Aniline, N-Methylaniline, 2,5-Dimethylaniline
Alcohol82-Ethylhexanol, Trimethylolpropane, Diethylene glycol
Ether1Diethylene glycol
Aldehyde42-Butenal, Tiglic aldehyde, N-Formylindoline, Acrolein
Ketone22-Heptanone, 9-Octadecanone
Amide2N-Methylacetanilide, Oxindole
Isocyanide1Methyl isocyanide
Isocyanate1Phenyl isocyanate
Nitrile4Benzyl cyanide, Benzonitrile, Phenoxyacetonitrile
Table 6. Evaluation of the rigid PU-PIR foam thermal decomposition product hazards.
Table 6. Evaluation of the rigid PU-PIR foam thermal decomposition product hazards.
GHS HazardH CodePhraseCompounds with H CodeFraction of all Pyrolysis Products (%)
Physical hazardsH220Extremely flammable gas23
H221Flammable gas23
H224Extremely flammable liquid and vapor11
H225Highly flammable liquid and vapor1014
H226Flammable liquid and vapor1116
H270May cause or intensify fire; oxidizer23
H280Contains gas under pressure; may explode if heated46
H281Contains refrigerated gas; may cause cryogenic burns or injury11
Health hazardsH301Toxic if swallowed1014
H302Harmful if swallowed1623
H304May be fatal if swallowed and enters airways1319
H310Fatal in contact with skin11
H311Toxic in contact with skin1014
H312Harmful in contact with skin1116
H314Causes severe skin burns and eye damage69
H315Causes skin irritation2536
H317May cause an allergic skin reaction46
H318Causes serious eye damage812
H319Causes serious eye irritation1928
H330Fatal if inhaled710
H331Toxic if inhaled1014
H332Harmful if inhaled1217
H334May cause allergy or asthma symptoms or breathing difficulties if inhaled23
H335May cause respiratory irritation1725
H336May cause drowsiness or dizziness23
H340May cause genetic defects11
H341Suspected of causing genetic defects710
H350May cause cancer34
H351Suspected of causing cancer46
H361dSuspected of damaging the unborn child23
H370Causes damage to organs23
H372Causes damage to organs through prolonged or repeated exposure46
H373May cause damage to organs through prolonged or repeated exposure1116
Environmental hazardsH400Very toxic to aquatic life1319
H410Very toxic to aquatic life with long-lasting effects913
H411Toxic to aquatic life with long-lasting effects1014
H412Harmful to aquatic life with long-lasting effects57
H413May cause long-lasting harmful effects to aquatic life23
Not classified--1217
