Open AccessCommunication
Polymers 2018, 10(8), 916; https://doi.org/10.3390/polym10080916

Elucidating Tricin-Lignin Structures: Assigning Correlations in HSQC Spectra of Monocot Lignins

1
State Key Laboratory of Pulp and Paper Engineering, South China University of Technology, Guangzhou 510630, China
2
DOE Great Lakes Bioenergy Research Center, Wisconsin Energy Institute, University of Wisconsin, Madison, WI 53706, USA
3
Department of Biological System Engineering, University of Wisconsin, Madison, WI 53706, USA
4
Department of Biochemistry, University of Wisconsin, Madison, WI 53706, USA
5
Instituto de Recursos Naturales y Agrobiologia de Sevilla (IRNAS), CSIC, 003495 Seville, Spain
6
Department of Plant Systems Biology, VIB, 9052 Ghent, Belgium
7
Department of Plant Biotechnology and Bioinformatics, Ghent University, 9052 Ghent, Belgium
*
Author to whom correspondence should be addressed.
Received: 24 July 2018 / Accepted: 3 August 2018 / Published: 15 August 2018
(This article belongs to the Special Issue Lignin Polymers: Structures, Reactions and Applications)
Full-Text   |   PDF [6092 KB, uploaded 18 August 2018]   |

Abstract

Tricin [5,7-dihydroxy-2-(4-hydroxy-3,5-dimethoxyphenyl)-4H-chromen-4-one] is a flavone that has been found to be incorporated in grass lignin polymers via 4′–O–β coupling. Herein, we investigated the tricin-lignin structure using nuclear magnetic resonance (NMR) methods by comparing the 1H–13C heteronuclear correlation (HSQC) NMR spectra of the isolated lignin with a series of dimeric and trimeric tricin-4′–O–β-ether model compounds. Results showed that the tricin moiety significantly affects the chemical shift of the Cβ/Hβ of 4′–O–β unit, producing peaks at around δC/δH 82.5–83.5/4.15–4.45, that differ from the Cβ/Hβ correlations from normal 4–O–β units formed solely by monolignols, and that have to date been unassigned. View Full-Text
Keywords: tricin; lignin; model compound; HSQC; nuclear magnetic resonance (NMR); monocot tricin; lignin; model compound; HSQC; nuclear magnetic resonance (NMR); monocot
Figures

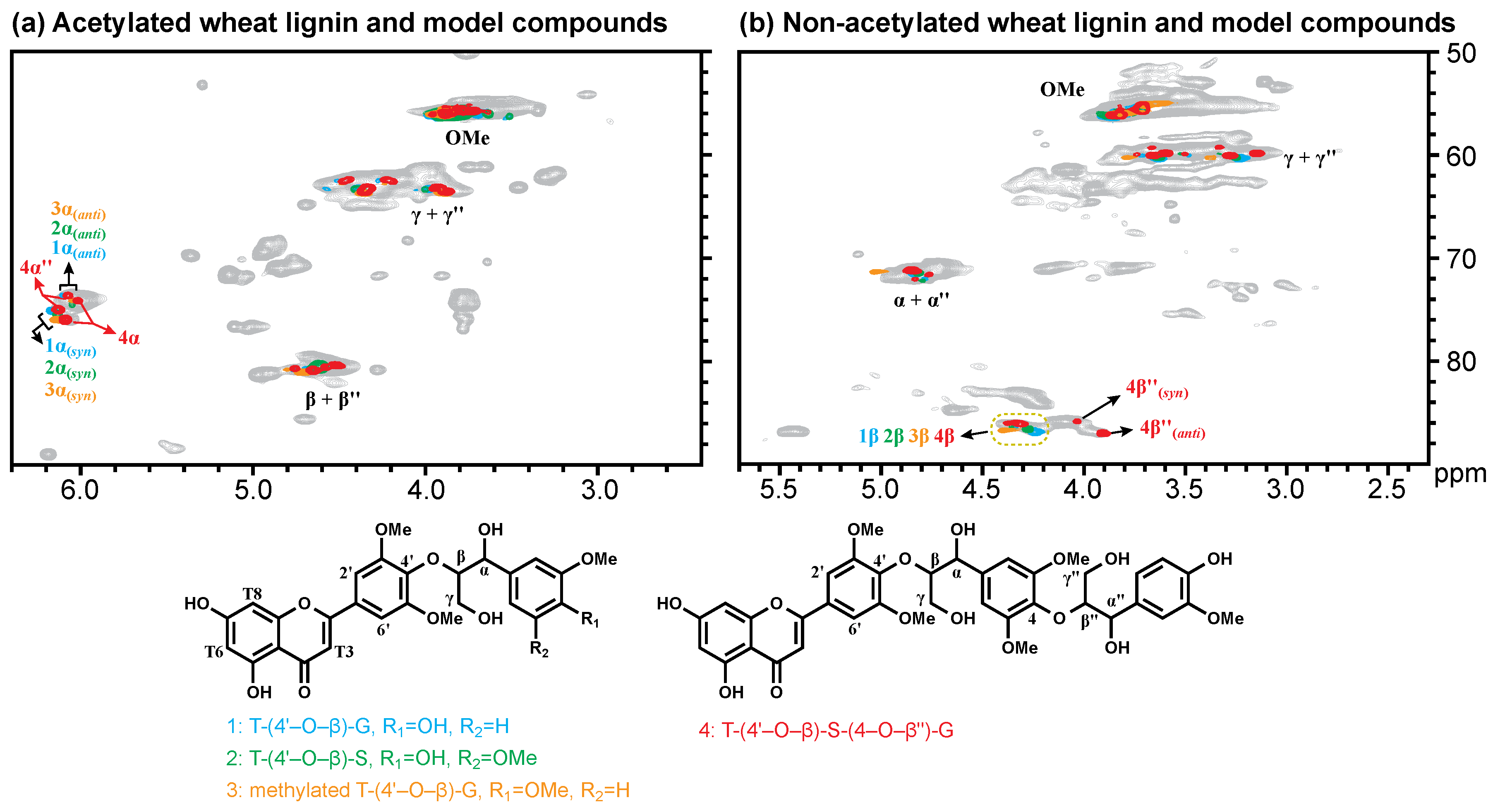

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Lan, W.; Yue, F.; Rencoret, J.; del Río, J.C.; Boerjan, W.; Lu, F.; Ralph, J. Elucidating Tricin-Lignin Structures: Assigning Correlations in HSQC Spectra of Monocot Lignins. Polymers 2018, 10, 916.
