Open AccessArticle
Polymers 2018, 10(8), 893; https://doi.org/10.3390/polym10080893

Punching Shear Behavior of Two-Way Concrete Slabs Reinforced with Glass-Fiber-Reinforced Polymer (GFRP) Bars

1
Department of Civil and Environmental Engineering, Yonsei University, 50 Yonsei-ro, Seodaemun-gu, Seoul 03722, Korea
2
Department of Civil Engineering, Kangwon National University, 346 Joongang-ro, Samcheok, Kangwon 25913, Korea
*
Author to whom correspondence should be addressed.
Received: 3 July 2018 / Revised: 1 August 2018 / Accepted: 7 August 2018 / Published: 9 August 2018
View Full-Text   |   Download PDF [4871 KB, uploaded 9 August 2018]   |

Abstract

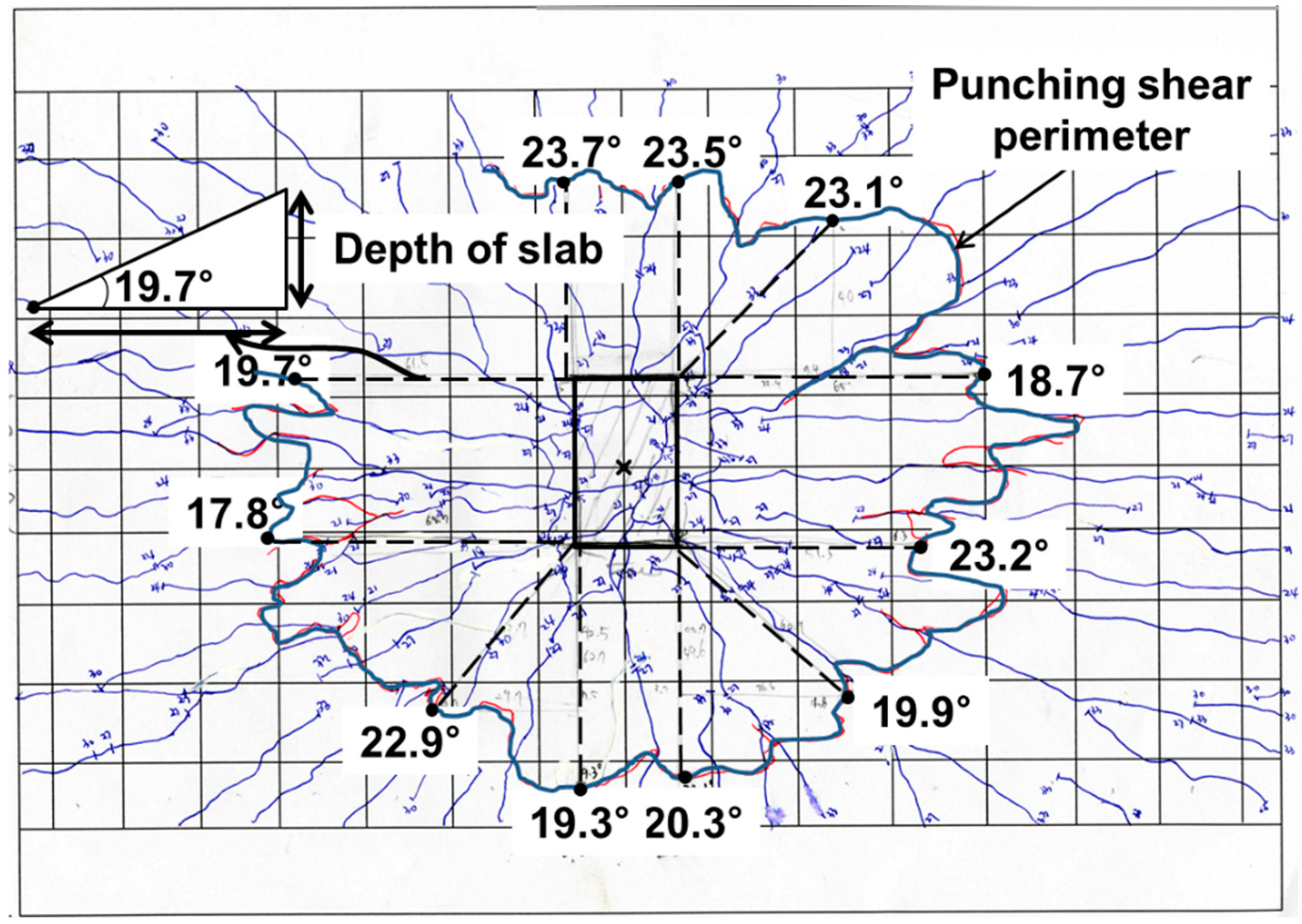

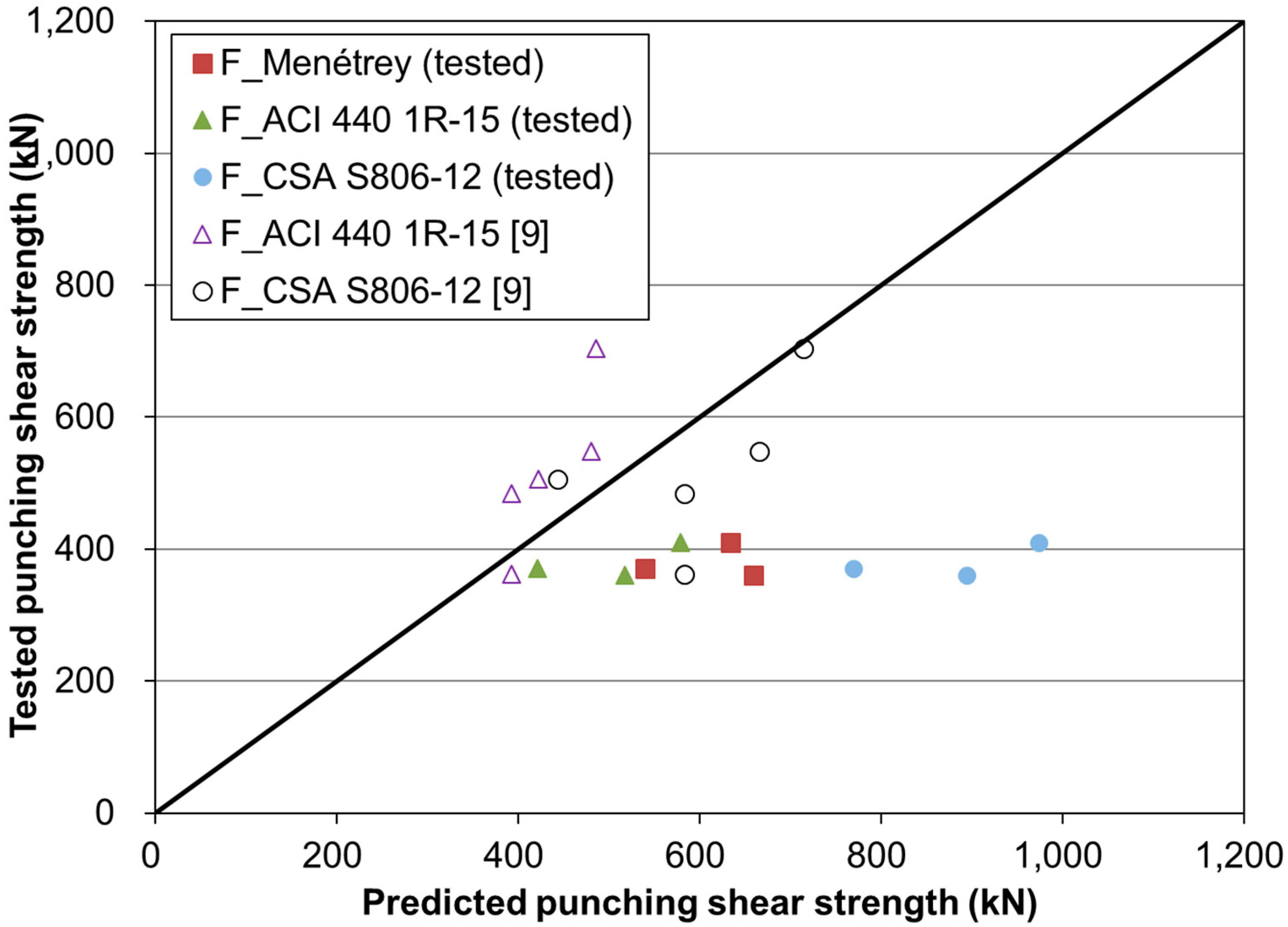

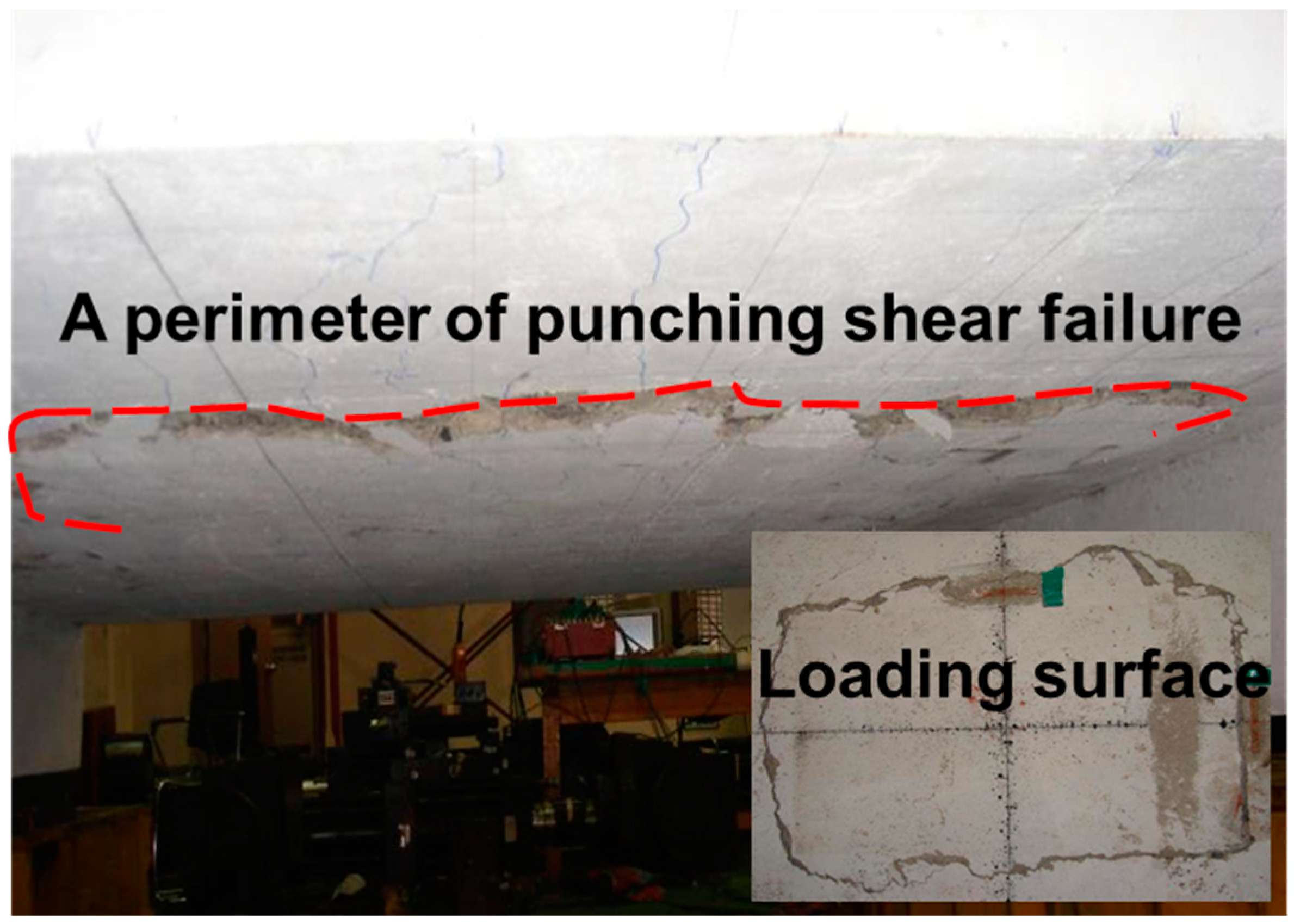

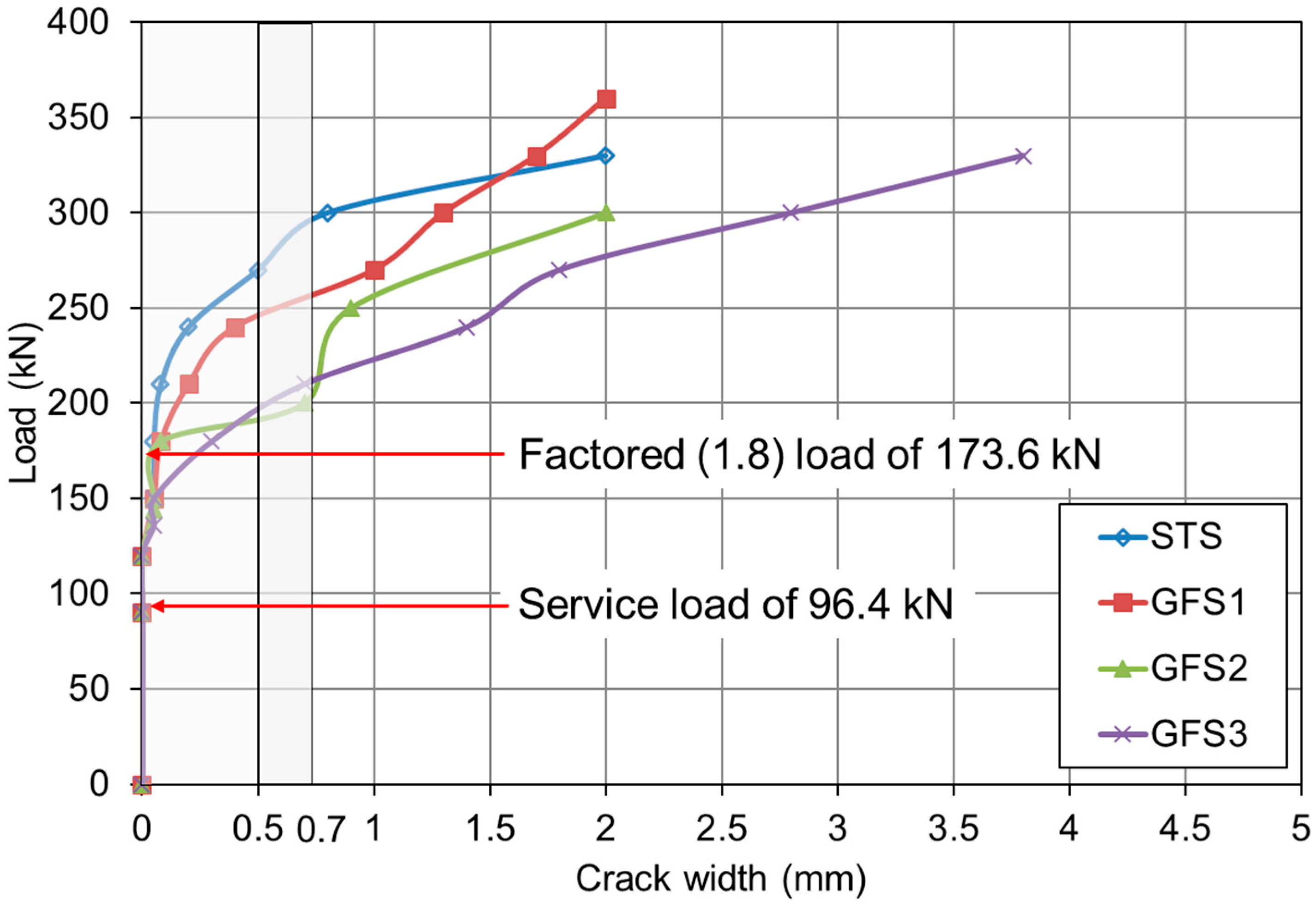

This study investigated the punching shear behavior of full-scale, two-way concrete slabs reinforced with glass fiber reinforced polymer (GFRP) bars, which are known as noncorrosive reinforcement. The relatively low modulus of elasticity of GFRP bars affects the large deflection of flexural members, however, applying these to two-way concrete slabs can compensate the weakness of the flexural stiffness due to an arching action with supporting girders. The test results demonstrated that the two-way concrete slabs with GFRP bars satisfied the allowable deflection and crack width under the service load specified by the design specification even in the state of the minimum reinforcement ratio. Previous predicting equations and design equations largely overestimated the measured punching shear strength when the slab was supported by reinforced concrete (RC) girders. The strength difference can be explained by the fact that the flexural behavior of the supporting RC beam girders reduces the punching shear strength because of the additional deflection of RC beam girders. Therefore, for more realistic estimations of the punching shear strength of two-way concrete slabs with GFRP bars, the boundary conditions of the concrete slabs should be carefully considered. This is because the stiffness degradation of supporting RC beam girders may influence the punching shear strength. View Full-Text
Keywords: two-way concrete slabs; GFRP bar; equivalent reinforcement ratio; punching shear strength two-way concrete slabs; GFRP bar; equivalent reinforcement ratio; punching shear strength
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
