Characterization of Lignin Extracted from Willow by Deep Eutectic Solvent Treatments

Abstract

Purity, morphology, and structural characterization of synthesized deep eutectic solvent (DES)-lignins (D_6h, D_9h, D_12h, D_18h, D_24h) extracted from willow (Salix matsudana cv. Zhuliu) after treatment with a 1:10 molar ratio of choline chloride and lactic acid at 120 °C for 6, 9, 12, 18, and 24 h were carried out. The purity of DES-lignin was ~95.4%. The proportion of hydrogen (H) in DES-lignin samples increased from 4.22% to 6.90% with lignin extraction time. The DES-lignin samples had low number/weight average molecular weights (1348.1/1806.7 to 920.2/1042.5 g/mol, from D_6h to D_24h) and low particle sizes (702–400 nm). Atomic force microscopy (AFM) analysis demonstrated that DES-lignin nanoparticles had smooth surfaces and diameters of 200–420 nm. Syringyl (S) units were dominant, and total phenolic hydroxyl content and total hydroxyl content reached their highest values of 2.05 and 3.42 mmol·g⁻¹ in D_12h and D_6h, respectively. β-Aryl ether (β-O-4) linkages were eliminated during DES treatment.

1. Introduction

As a substitute for fossil energy, biomass-based energy has received significant attention over the last decade [1,2]. Willow (Salix matsudana cv. Zhuliu), among the various biomass resources of interest, is a new hybrid plant variety (Salicaceae Salix spp.) that displays strong resistance and high survival rate. It is widely planted in desert areas for wind prevention and sand fixation. Moreover, particularly in China with scarce timber resources, it has great potential in pulp and papermaking operations, due to its fast-growing nature [3].

Lignin is one of the three components (cellulose, hemicellulose, and lignin) that make up biomass, and the only fully aromatic polymer found in nature. It is a bio-based raw material attracting intense research in conversion and modification, despite its complex structure [4,5,6]. The effective separation of lignin from lignocellulosic biomass, nonetheless, is key to subsequent utilization. A variety of isolation technologies have been developed to effect its isolation such as alkaline, enzymatic, and dilute acid hydrolysis, organosolv, ionic liquids, and deep eutectic solvent extraction [7,8,9,10,11,12,13].

Deep eutectic solvents (DESs) are a fundamentally new paradigm in the chemical sciences. Because of their highly tunable nature and exceptional properties, DESs have become essential tools within the fields of extraction, analytics, electrochemistry, biotechnology, catalysis, and synthesis amongst various disciplines [14,15,16]. Over the last decade, global research efforts have explored the possibilities for using them as environmentally benign alternatives for positioning lignocellulosic biomass and its derivatives as alternative green feedstocks to petroleum. Numerous research efforts have unearthed dissolution behaviors, processes, catalytic conversions, and modifications of carbohydrates using DESs, while the upgrading of lignin in DESs also promises a variety of chemical opportunities [17,18,19,20,21,22]. The use of DESs as alternative media for lignin extraction and isolation, upgrading, modification, and depolymerization have gained recent attention [22,23,24,25]. Previous studies have found that choline chloride can separate compounds, such as phenol, from solution by forming DESs through interactions with phenolic hydroxyl groups [22]. Recently, DES-based isolation of lignin by cleaving ether linkages has already been explored and showed some unique advantages compared to traditional ionic liquid treatment, such as low cost, non-toxicity, environmental friendliness, etc. [25,26]. Additionally, the lignin extracted by DES treatments has been reported to have high yield, high purity, and low molecular weight, which would be of benefit for future valorization [23]. However, the unique structural properties of lignin isolated by DESs were neither thoroughly studied nor discussed.

In the present examination, the purity, morphology, and structural characteristics of DES-lignin samples, i.e., lignin extracted from willow by DES treatment at a 1:10 molar ratio of choline chloride and lactic acid treatment at 120 °C for varied times, were investigated by acid hydrolysis, elemental analysis, GPC, nanoparticle size, AFM, ³¹P NMR, and 2D-HSQC NMR.

2. Materials and Methods

2.1. Materials

A five-year-old willow (Salix matsudana cv. Zhuliu) was harvested in a forest center in Dingxi, Gansu province, China. The sample of willow trunk (bark and branches removed, a length of 1.0 m, and diameter cross-section of 22 cm, approximately 17 kg) was air-dried for two months in a laboratory. The air-dried willow was cut to 1–1.5 cm in size and ground in a star mill. The fractions obtained by sifting through a 40–80 mesh sieve were used for the subsequent separation of the DES-lignin. The choline chloride and lactic acid used in the synthesis of the deep eutectic solvent were provided by Shanghai Maclean Biochemical Technology Co., Ltd. (Shanghai, China).

2.2. Isolation of DES-lignin

A deep eutectic solvent (DES) composed of choline chloride and lactic acid (molar ratio 1:10) was applied for isolating lignin from willow. Raw material was first extracted with organic solvents (v/v, benzene to 95% ethanol = 2/1) for 8 h to remove extracts. The extracted sample (2.5 g) was added to a round-bottomed flask containing DES (m/m of raw material to DES = 1 to 30). The mixture of willow sample and DES was heated to 120 °C by an oil bath with magnetic stirring, and treatment temperatures (6–24 h) effects were studied.

After treatment, the DES soluble fractions and solid residues were separated by filtration using a G2 glass crucible. The solid residues were thoroughly washed with anhydrous ethanol. The filtrate was combined and concentrated to recover ethanol, and was then added to deionized water (2000 mL) to precipitate lignin. After 24 h, the precipitate was collected after centrifugation, and washed with an ethanol/water mixture (1:9, v/v). The DES-lignin or the lignin extracted from willow by DES treatment, was obtained by vacuum freeze-drying [25]. The isolated DES-lignin samples were labeled D_6h, D_9h, D_12h, D_18h, D_24h (the DES-lignin extracted from willow by DES treatment for 6, 9, 12, 18, and 24 h).

2.3. Willow Enzymatic/Mild Acidolysis Lignin (EMAL) Preparation

The 40 to 60 mesh fractions of willow after acetone extraction for 48 h were used as raw material for the lignin separation. The dried raw material was placed in a roller ball mill (PM200, Retsch, Düsseldorf, Germany) for 72 h at a rotation frequency of 500 rpm. The ball-milled raw material was used for the preparation of EMAL after being subjected to ethanol and benzene extraction for 8 h. The preparation of EMAL was based on past research [3].

2.4. Purity Analysis of DES-lignin

The chemical composition of the DES-lignin samples was analyzed by NREL methods [27], and the purity of DES-lignin was calculated from the sum of acid insoluble lignin (%) and acid soluble lignin (%).

2.5. Elemental Analysis of DES-lignin

The carbon (C), hydrogen (H), nitrogen (N) contents (wt %) in the DES-lignin samples were analyzed by the elemental analyzer (Vario EL III, Elementar, Frankfurt, Hesse, Germany). The oxygen content (wt %) was determined by difference.

2.6. Molecular Weight Distribution Analysis of DES-lignin and EMAL

The molecular weight distribution of the DES-lignin and EMAL samples were identified using liquid gel permeation chromatography (GPC) 1200 (Agilent Technologies Inc., Palo Alto, CA, USA). Ten milligrams of each sample were completely dissolved in 10 mL high-performance liquid chromatography-grade THF, and 20 μL of resulting solutions were injected into the column. The eluent (THF) flow rate was kept as 1.0 mL/min, and the temperature was maintained at 30 °C. A set of polystyrene standards (200 to 30,000 Da, Aldrich, Shanghai, China) were used for calibration.

2.7. Particle Size Analysis of DES-lignin

A nanoparticle size analyzer (Zetasizer Nano S90, Malvern Instruments Ltd., London, UK) was used to measure the particle size of DES-lignin samples. Samples (10 mg) were dissolved in 10 mL THF with ultrasound, from which a 1 mL solution was added to a quartz cuvette for analysis. The sample was circulated three times for a total of 10 min to identify the average size for each sample.

2.8. Atomic Force Microscope (AFM) Analysis of DES-lignin

The DES-lignin sample was completely dissolved in acetone at a concentration of 0.1 g per liter, and a drop of diluted DES-lignin suspension was deposited onto a clean mica surface and air-dried overnight in ambient environment before examining the DES-lignin morphologies using atomic force microscope (AFM) imaging (AFM Workshop). The morphologies of DES-lignin sample were analyzed using the NanoScope analysis software (Bruker, Karlsruhe, Germany) with the AFM system. The resolution in the X-axis and Y-axis direction is 1 nm, and the resolution in the Z-axis direction is 0.1 nm.

2.9. ³¹P NMR Analysis of DES-Lignin

DES-lignin samples (25 mg) were completely dissolved in 400 μL deuterated chloroform and deuterated pyridine (1:1.6, v/v). Then, cyclohexanol (4 mg·mL⁻¹) and chromium(III) acetylacetonate (3.6 mg·mL⁻¹) were added into the solution as internal standard and relaxation reagent, respectively. The mixed solution was reacted with 75 μL of phosphating reagent (2-chloro-4,4,5,5-tetramethyl-1,3,2-dioxaphospholane, TMDP) for 10 min, and transferred into a 5 mm NMR tube for ³¹P NMR analysis on a 400 MHz Bruker AVANCE III 400 spectrometer (Bruker, Karlsruhe, Germany).

2.10. 2D-HSQC NMR Analysis of DES-Lignin and EMAL

Approximately 80 mg samples and 500 μL of dimethyl sulfoxide (DMSO)-d₆ were stirred at 25 °C for 30 min to obtain a solution. The solution was then analyzed by using an ADVANCE III 600 MHz spectrometer (Bruker, Karlsruhe, Germany) for 16 h. Matrices of 1024 data points for the ¹³C dimension and 2048 data points for the ¹H dimension were collected from 160 to 0 ppm and 13 to −1 ppm for the ¹³C and ¹H dimensions, respectively. Relaxation delay was set at 6 s.

3. Results and Discussion

3.1. Purity Analysis

To investigate the purity of DES-lignin samples (D_6h, D_9h, D_12h, D_18h, D_24h), the acid soluble lignin (ASL), acid insoluble lignin (AIL), sugars, and ash content in DES-lignin samples were measured (

Table 1. Purity of the DES-lignin samples (D_6h, D_9h, D_12h, D_18h, D_24h) extracted from willow by DES treatment at 120 °C for 6, 9, 12, 18, and 24 h.

Component	D6h (%)	D9h (%)	D12h (%)	D18h (%)	D24h (%)
Acid insoluble lignin (AIL)	88.54	90.86	92.57	93.45	93.69
Acid soluble lignin (ASL)	1.48	1.51	1.89	1.63	1.71
Glucose	1.12	0.77	0.21	0.11	-
Xylose	0.96	0.56	0.15	-	-
Arabinose	0.12	-	-	-	-
Galactose	0.05	-	-	-	-
Mannose	-	-	-	-	-
Ash	0.51	0.60	0.51	0.54	0.59
Lignin purity *	90.02	92.37	94.46	95.08	95.40

* Lignin purity is calculated from the sum up of AIL (%) and ASL (%) of willow.

). The purity of all lignin samples was >90%, and with extension of treatment time, the purity increased from 90.0% to 95.4%. This showed that 1.12% of glucose, 0.96% of xylose, 0.12% arabinose and 0.05% mannose were present in D_6h, which may be attributed to the presence of LCCs (lignin–carbohydrate complexes) from the plant cell wall [28,29,30]. It was interesting that only 0.21% of glucose and 0.15% of xylose were present in D_12h, suggesting that less carbohydrate remained in the DES-lignin at an extraction time of 12 h relative to 6 h, which may be the reason for the increased purity. The monosaccharides were not detected in the acid hydrolysis of D_24h, indicating that the residual carbohydrates in the separated lignin were negligible when extraction time was >24 h.

3.2. Element Analysis

The elemental compositions of the DES-lignin samples (D_6h, D_9h, D_12h, D_18h, D_24h) from DES treatments are listed in

Table 2. Elemental analysis of DES-lignin samples (D_6h, D_9h, D_12h, D_18h, D_24h).

DES-Lignin Samples	Elemental Analysis (wt %)				Element Molar Ratio
	C	H	N	O	O/C	H/C
D6h	59.01	4.22	0.39	35.87	0.46	0.86
D9h	59.42	4.78	0.45	34.75	0.44	0.97
D12h	60.08	5.50	0.41	33.50	0.42	1.10
D18h	59.59	6.04	0.43	33.40	0.42	1.22
D24h	58.84	6.90	0.41	33.26	0.42	1.42

. DES-lignin had a high carbon content (58.4–60.0%), and negligible amount of nitrogen (0.39–0.45%). With extraction time, the content of oxygen in the separated DES-lignin samples gradually decreased from 35.87% in D_6h to 33.26% in D_24h. The hydrogen content increased from 4.22% in D_6h to 6.90% in D₂₄, which may mean that the oxygen-containing functional groups or linkages, such as methoxy group and aryl ether bond in willow lignin, were eliminated during DES treatment. It has been previously proposed that both the cleavage of ether bonds and the solvent properties of DES played an important role on the depolymerization of lignin, which facilitated its separation from wood [23]. DES may provide a mild acid–base catalysis mechanism that would favorable for cleavage of labile ether linkages, and thus lead to generation of a low molecular weight lignin fragment [31]. This chemistry may affect the elemental composition of the isolated lignin.

3.3. Molecular Weight Distribution

The change of number average molecular weight ($\overline{M\mathrm{n}})$ and weight average molecular weight $\left(\overline{M\mathrm{w}}\right)$ distribution of DES-lignin samples (D_6h, D_9h, D_12h, D_18h, D_24h) are shown in Figure 1. In addition, the values of the $\overline{M\mathrm{n}}$ and $\overline{M\mathrm{w}}$ from the GPC curves and the polydispersity index ($\overline{M\mathrm{w}}$/$\overline{M\mathrm{n}}$) are listed in

Table 3. Average molecular weight and polydispersity of DES-lignin samples (D_6h, D_9h, D_12h, D_18h, D_24h) and EMAL. ($\overline{M\mathrm{n}}$): number average molecular weight which can be averaged according to the number of molecules; ($\overline{M\mathrm{w}}$): weight average molecular weight which can be averaged according to the weight of molecules; $\overline{M\mathrm{w}}$/$\overline{M\mathrm{n}}$: polydispersity.

Lignin Samples	$\overline{\mathit{M}\mathbf{n}}(\mathbf{g}/\mathbf{mol})$	$\overline{\mathit{M}\mathbf{w}}(\mathbf{g}/\mathbf{mol})$	$\overline{\mathit{M}\mathbf{w}}$/$\overline{\mathit{M}\mathit{n}}$
D6h	1348.1	1806.7	1.34
D9h	1212.3	1454.2	1.20
D12h	1071.1	1261.1	1.18
D18h	962.9	1106.3	1.15
D24h	920.2	1042.5	1.13
EMAL	3324.9	4127.0	1.24

. Compared with EMAL and lignin extracted by other methods, the number average and weight average molecular weight of DES-lignin were significantly reduced [3,32,33]. The $\overline{M\mathrm{w}}$ and $\overline{M\mathrm{n}}$ of DES-lignin samples extracted from willow by DES treatment at 120 °C at different times decreased from 1806.7 and 1348.1 g/mol of D_6h to 1042.5 and 920.2 g/mol of D_24h, which indicated that the average molecular weight of DES-lignin gradually decreased with increase of DES treatment time. The above results may be due to elimination of intermolecular linkages of lignin under DES, and with increase of time, the degradation of the lignin macromolecule was more significant, similar to traditional ionic liquids [10,34].

The polydispersity of DES-lignin samples and EMAL was calculated. It can be seen from Table 3 that the polydispersity value of DES-lignin samples decreased from 1.34 of D_6h to 1.13 of D_24h, which indicated that the distribution of DES-lignin gradually concentrated with treatment time. The polydispersity of the lignin extracted from willow by DES treatment was lower than EMAL when the DES treatment time was >9 h.

3.4. Particle Size Analysis

The lignin particle sizes by DES treatment are shown in

Table 4. Particle size of DES-lignin samples (D_6h, D_9h, D_12h, D_18h, D_24h) extracted from willow by DES treatment at 120 °C for 6, 9, 12, 18, and 24 h.

DES-Lignin Samples	D6h	D9h	D12h	D18h	D24h
Particle size (nm)	704.7	612.4	494.2	400.1	402.4

. The particle size of all the DES-lignin samples were lower than 1 μm and the particle size of DES-lignin samples decreased substantially from 704 to 400 nm with extraction time from 6 to 18 h. However, D_18h and D_24h had nearly the same particle size (~400 nm), which suggested that it was difficult to further reduce lignin particle size with more treatment time.

3.5. AFM Analysis of DES-lignin

The topic of lignin nanoparticles for green biobased functional materials is becoming more and more appealing [35,36]. Morphological regularity and small particle sizes are the key criteria for the successful preparation of lignin-based functional materials. To investigate the surface morphology of DES-lignin, the DES-lignin sample (D_12h) was dissolved in acetone at a concentration of 0.1 g per liter, after which a drop of liquid was air-dried and examined on clean mica by atomic force microscopy (AFM). Figure 2 confirmed that nanoscale lignin particles formed by self-assembly of dissolved lignin after precipitation via dilution. Aggregated particle indicated by multiple peaks in profile in Figure 2B, corresponding to the line in Figure 2A with diameters between 200 nm to 420 nm, were observed. There were broad peaks in the smooth curve of Figure 2B, which indicated that the surface of DES-lignin nanoparticles was relatively smooth.

3.6. ³¹P NMR Analysis of DES-lignin

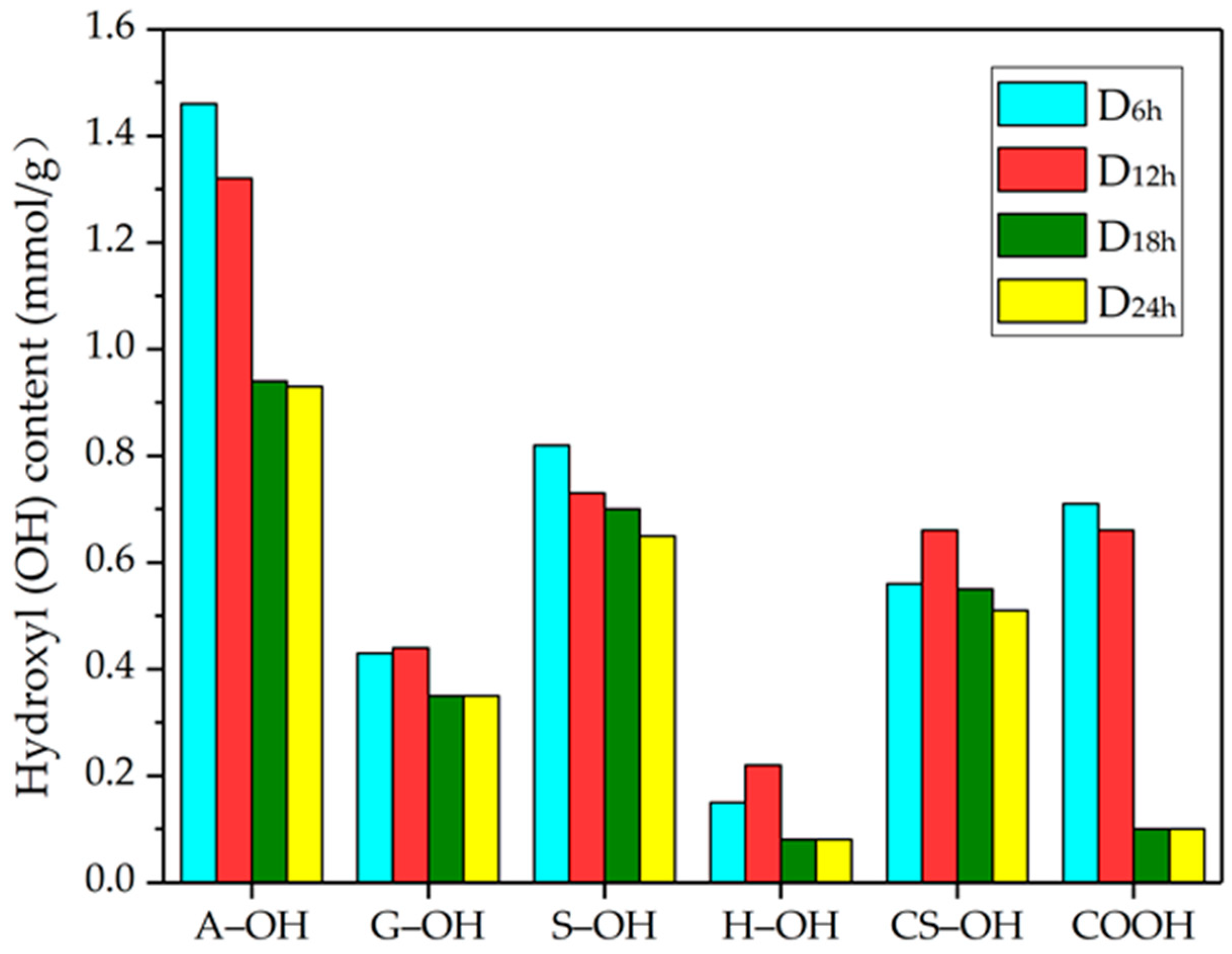

³¹P NMR can be used to quantitate hydroxyl groups on lignin [37,38]. In Figure 3, lignin extracted from willow by DES treatment is GSH (containing guaiacyl, syringyl, and p-hydroxyphenyl units) type lignin, and the syringyl units were dominant, consistent with the structure of hardwood lignin [39,40]. The content of the guaiacyl phenol hydroxyls (G–OH) and p-phenol hydroxyl (H–OH) of D_12h was highest compared to D_6h, D_18h, and D_24h. The content of the syringyl phenol hydroxyl (S–OH) decreased from 0.82 mmol·g⁻¹ in D_6h to 0.65 mmol·g⁻¹ in D_24h, indicating the content of S–OH in DES-lignin extracted by DES gradually decreased with treatment time (see

Table 5. ³¹P NMR analysis of DES-lignin samples (D_6h, D_12h, D_18h, D_24h) extracted from willow by DES treatment at 120 °C for 6, 12, 18, and 24 h.

Chemical Shift (ppm)	Assignment	Content (mmol·g−1)
		D6h	D12h	D18h	D24h
133.7–134.9	Carboxyl (COOH)	0.71	0.66	0.10	0.10
136.9–138.6	p-Ohenol hydroxyl (H–OH)	0.15	0.22	0.08	0.08
138.6–140.3	Guaiacyl phenol hydroxyl (G–OH)	0.43	0.44	0.35	0.35
142.3–143.8	Syringyl phenol hydroxyl (S–OH)	0.82	0.73	0.70	0.65
-	G:S:H	2.9:5.5:1	2.0:3.2:1	4.4:8.8:1	4.4:8.1:1
140.3–142.3 143.8–144.5	Condensation phenol hydroxyl (CS–OH)	0.56	0.66	0.55	0.51
145.2–150.2	Aliphatic hydroxyl (A–OH)	1.46	1.32	0.94	0.93
	Total phenol hydroxyl	1.96	2.05	1.68	1.59
	Total hydroxyl	3.42	3.37	2.62	2.52

). Generally, the content of total phenol hydroxyl reached its highest value for D_12h, and the content of total hydroxy groups in D_6h was the highest mainly due to the presence of aliphatic hydroxy (A–OH) in D_6h relative to other DES-lignin samples. Interestingly, the content of A–OH in the extracted DES-lignin samples decreased from 1.46 mmol·g⁻¹ in D_6h to 0.93 mmol·g⁻¹ in D_12h when the extraction times of DES-lignin increased from 6 to 24 h, which may be due to gradual decrease of the long carbon chains in the separated lignin and the carbohydrates attached to the lignin under the treatment of DES for a longer period of time [41,42]. It can also be seen from Figure 3 that the content of the carboxyl (COOH) in the extracted lignin was significantly reduced when the extraction time was extended to 18 h.

3.7. 2D-HSQC NMR Spectra of DES-lignin and EMAL

To investigate the structural characteristics of DES-lignin, 2D-HSQC NMR for DES-lignin sample (D_12h) extracted from willow by DES-treatment at 120 °C for 12 h and the EMAL of willow were obtained (Figure 4). Assignment of the peaks in the 2D-HSQC NMR spectra was conducted based on previous reports [32,43,44,45]. The peaks corresponding to methoxyl (3.81/56.7 parts per million (ppm)) and β-aryl ether are shown for A_α (4.91/70.3 ppm) and A_γ (4.05/87.5 ppm), β–β are shown for C_α (4.71/86.1 ppm), C_β (3.08/53.9 ppm) and C_γ (4.11/70.3 ppm), guaiacyl (G_5/6, 6.79/115.1 ppm), syringyl (S_2/6, 6.61/102.9 and 7.19/116.2 ppm), and p-hydroxybenzoate (P_2/6, 7.61/131.2 ppm) appeared in the DES-lignin (D_12h) NMR spectrum indicating functional groups associated with lignin were present and not severely damaged during DES treatment. Correlations for the syringyl β-aryl ether corresponding to A_β-S (4.05/87.5 ppm), and the guaiacyl β-aryl ether corresponding to A_β-G (4.23/83.5 ppm) were absent, suggesting that the β-aryl ether linkages in willow lignin were eliminated during DES treatment, similarly to the effect of ionic liquids on lignin [11,12,46]. From Figure 4, the correlation for the guaiacyl corresponding to the G₂ (6.97/110.7 ppm) and G_5/6 (6.83/118.9 ppm) disappeared in the DES-lignin spectrum compared to the EMAL spectrum, which may indicate that part of guaiacyl in willow lignin was eliminated during DES treatment.

4. Conclusions

High purity (90–95.4%) lignin can be obtained from willow (Salix matsudana cv. Zhuliu) after DES (the molar ratio of choline chloride to lactic acid was 1 to 10) treatment. The elemental composition of DES-lignin varies with the extraction time. The DES-lignin had low molecular weights and low particle sizes, and were reduced with extension of the extraction time. Atomic force microscopy (AFM) analysis results demonstrated that the lignin nanoparticles extracted from willow by DES treatment had smooth surfaces and diameters of 200–420 nm. DES-lignin is discernible as GSH lignin, and the syringyl (S) units were dominant while the total phenolic hydroxyl content and total hydroxyl content reached their highest values (2.05 and 3.42 mmol·g⁻¹) in D_12h and D_6h, respectively. In addition, the β-aryl ether (β-O-4) linkage was eliminated during DES treatment.
