Next Article in Journal
Stimuli-Responsive Polypeptides for Biomedical Applications
Next Article in Special Issue
A Methodologic Approach for the Selection of Bio-Resorbable Polymers in the Development of Medical Devices: The Case of Poly(l-lactide-co-ε-caprolactone)
Previous Article in Journal
Improved Hydrogen Separation Using Hybrid Membrane Composed of Nanodiamonds and P84 Copolyimide
Previous Article in Special Issue
Isophorone Diisocyanate (IPDI) Microencapsulation for Mono-Component Adhesives: Effect of the Active H and NCO Sources
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Polymers 2018, 10(8), 829; https://doi.org/10.3390/polym10080829

Influence of Hot Chlorinated Water and Stabilizer Package on the Fatigue Crack Growth Resistance of Glass Fiber Reinforced Polyamide

Johannes Kepler University Linz, Institute of Polymeric Materials and Testing, Altenberger Strasse 69, 4040 Linz, Austria
*
Author to whom correspondence should be addressed.
Received: 21 June 2018 / Revised: 16 July 2018 / Accepted: 22 July 2018 / Published: 27 July 2018
(This article belongs to the Special Issue Polymers: Design, Function and Application)
View Full-Text   |   Download PDF [3855 KB, uploaded 27 July 2018]   |

Abstract

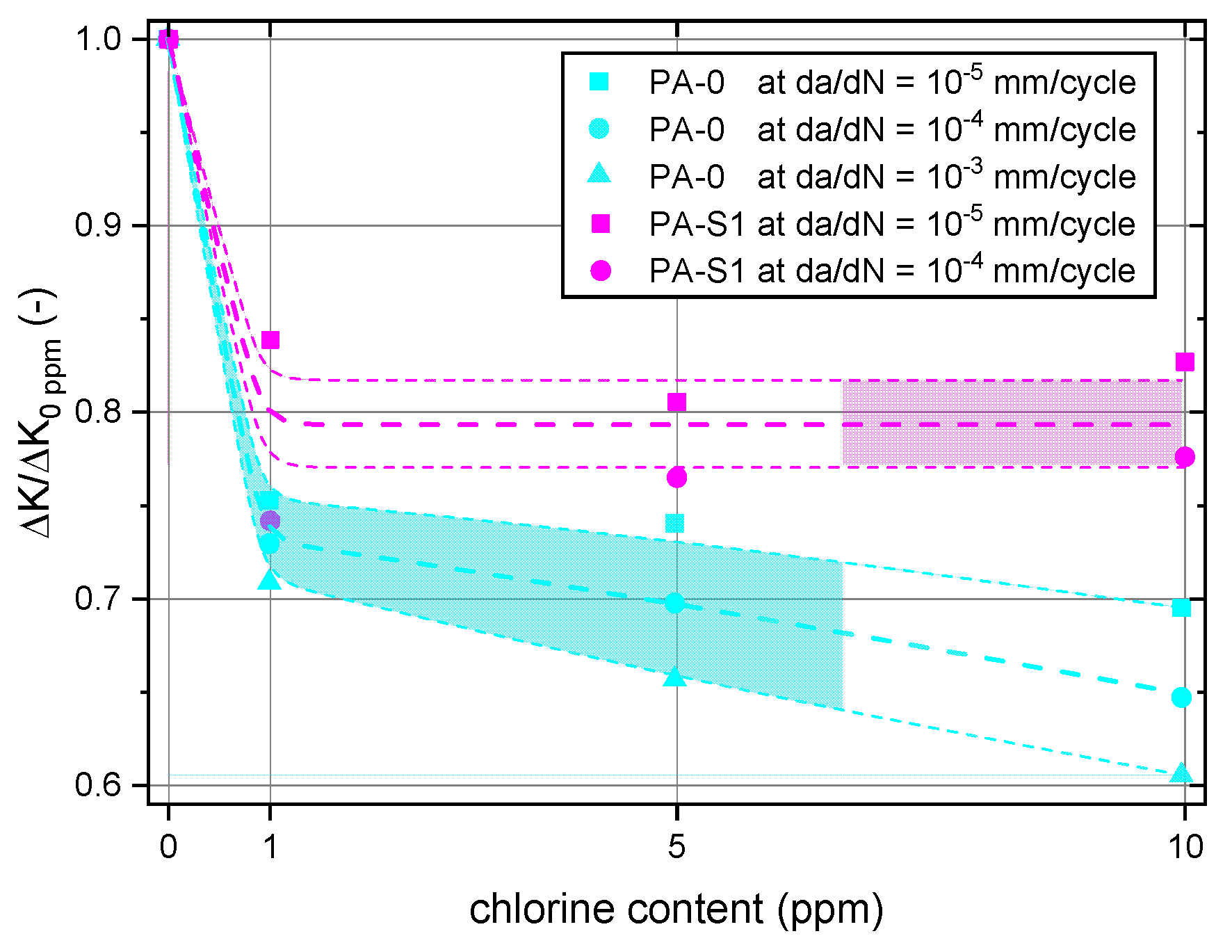

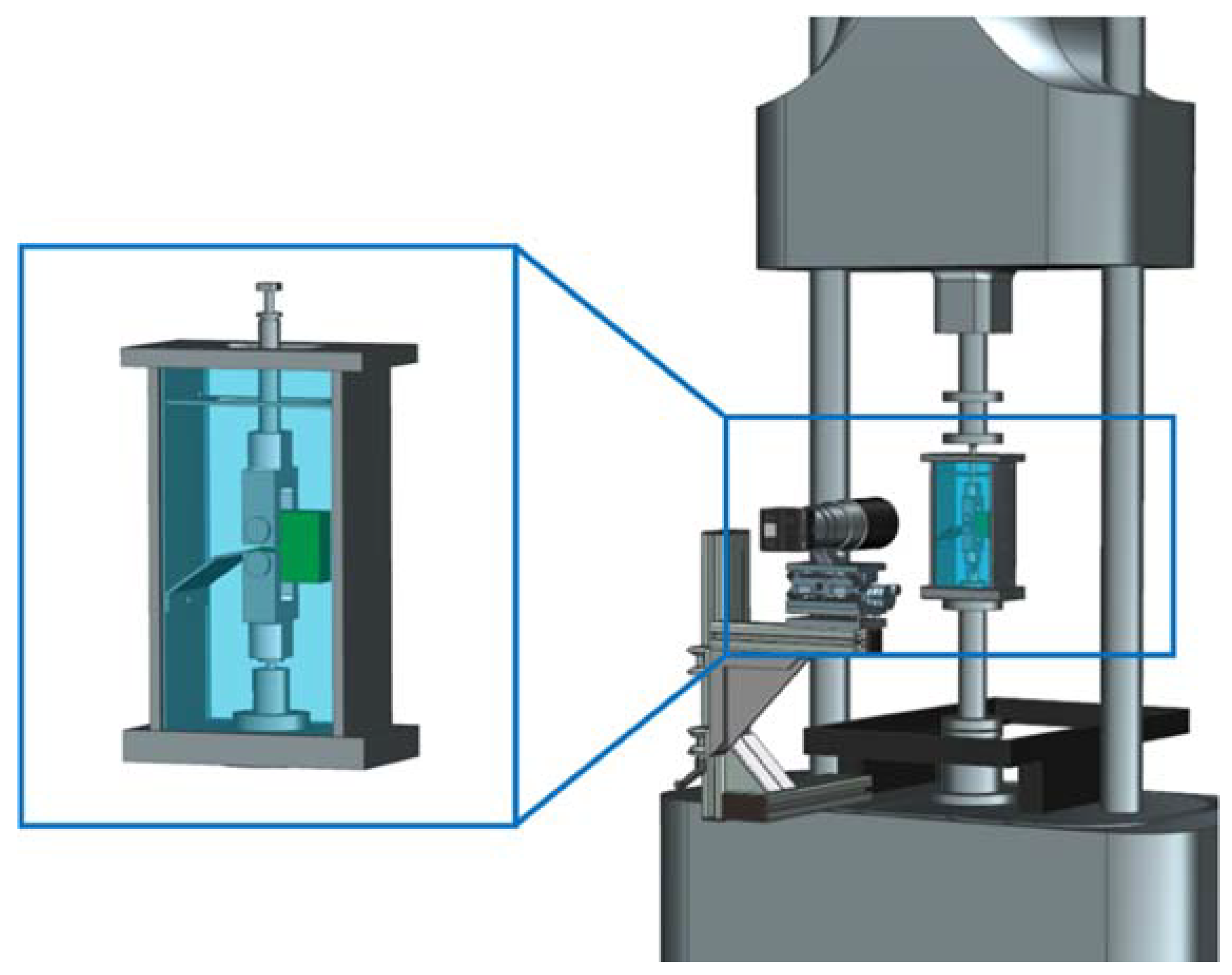

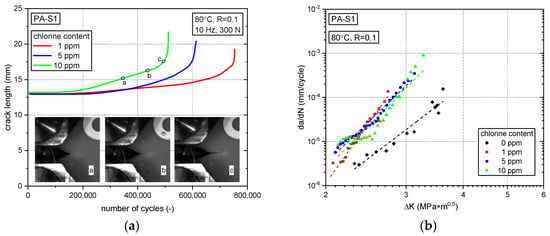

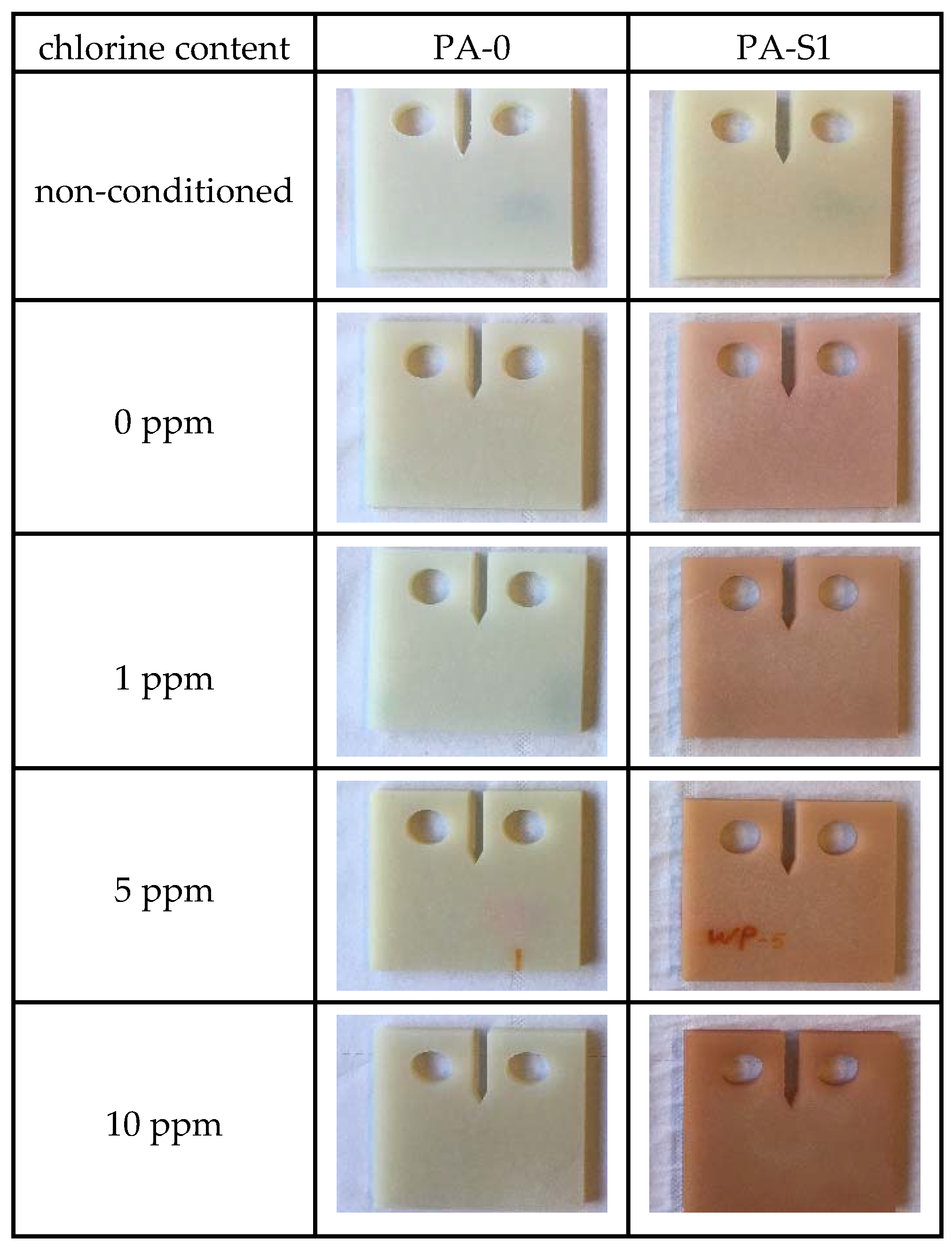

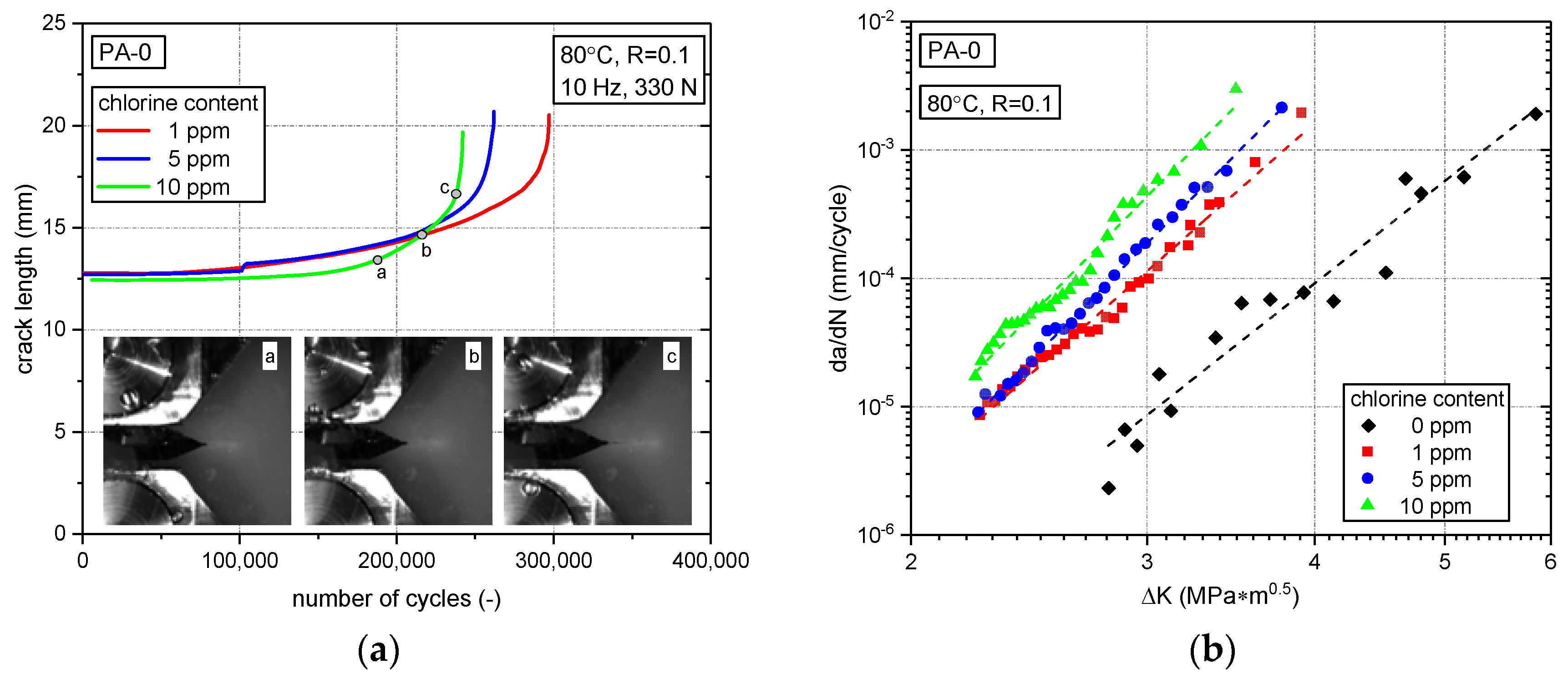

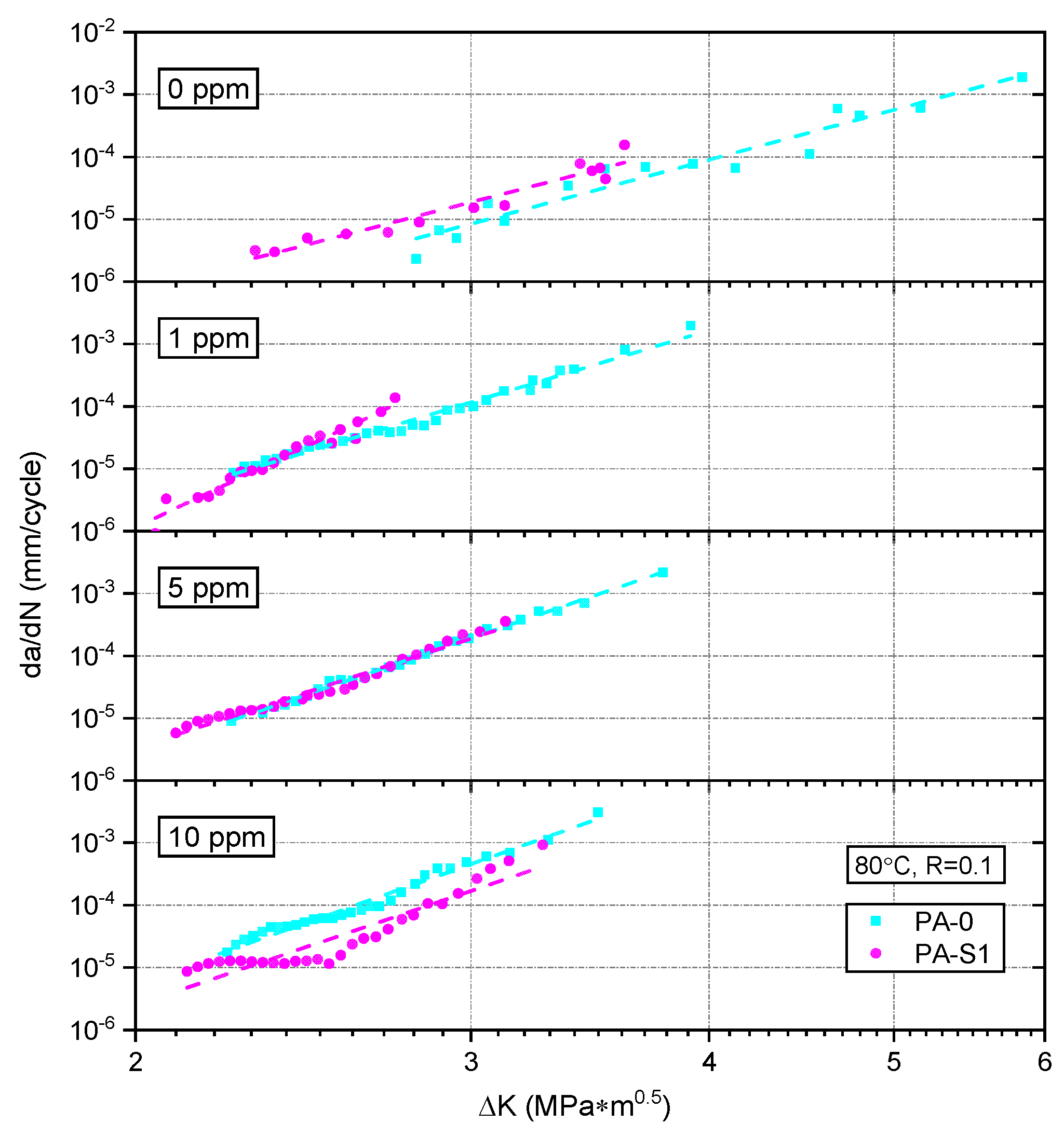

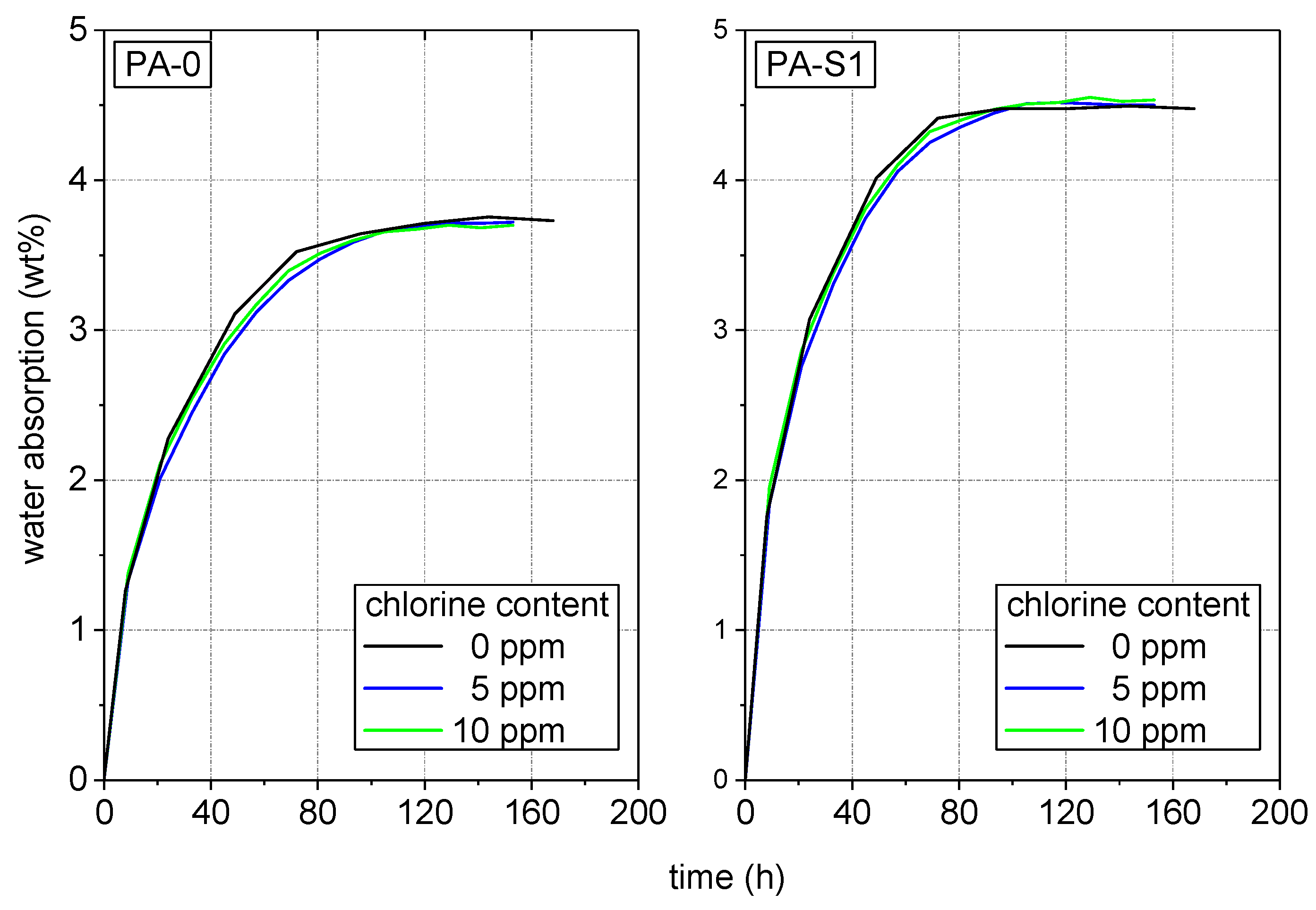

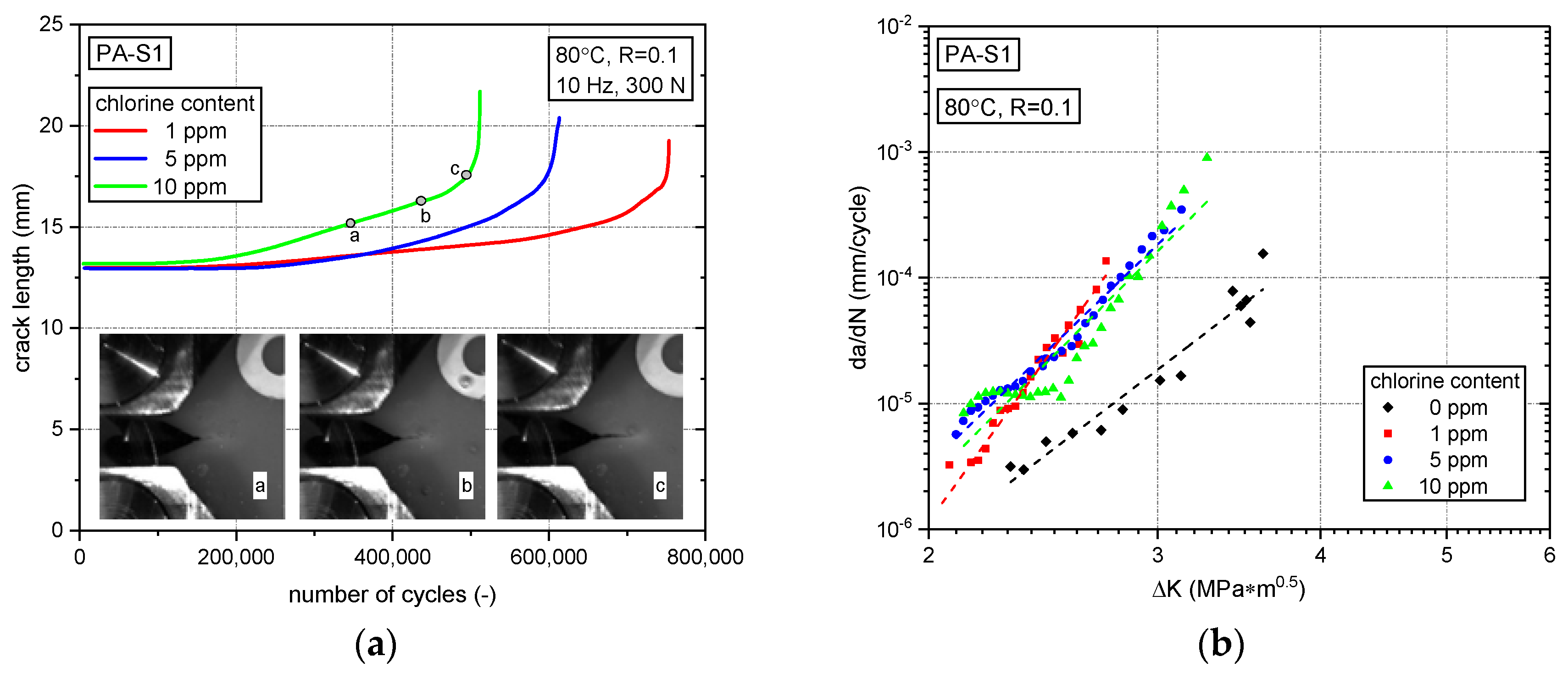

To assess the potential use of polyamide (PA) for solar-thermal systems applications, the effect of water with varying chlorine content on the fatigue crack growth (FCG) resistance of two PA formulations differing in their stabilizer packages was investigated at 80 °C. A commercial PA containing 30 wt % glass fibers and a standard stabilization package (PA-0) was used as the reference material. For the other formulation, the reference material PA-0 was compounded with two additional stabilizers (PA-S1). Keeping the specimen geometry and initial loading conditions the same, the total number of cycles to ultimate specimen failure was found to be reduced with an increase in chlorine content for both materials. As to the effect of the chlorine content on crack growth kinetics, the most pronounced effect in enhancing the crack growth rates or decreasing the FCG resistance was determined between 0 ppm and 1 ppm chlorine content. When comparing the relative change of FCG resistance in chlorinated water (10 ppm) to the FCG resistance in non-chlorinated water (0 ppm), the additional stabilization in the material PA-S1 appears beneficial over the stabilization in the reference material PA-0. View Full-Text
Keywords: fatigue crack growth resistance; glass fiber reinforced polyamide; superimposed mechanical-environmental testing; chlorinated water; elevated temperature; stabilizer system fatigue crack growth resistance; glass fiber reinforced polyamide; superimposed mechanical-environmental testing; chlorinated water; elevated temperature; stabilizer system

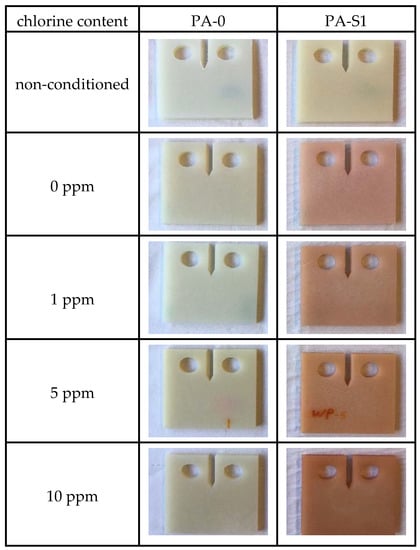

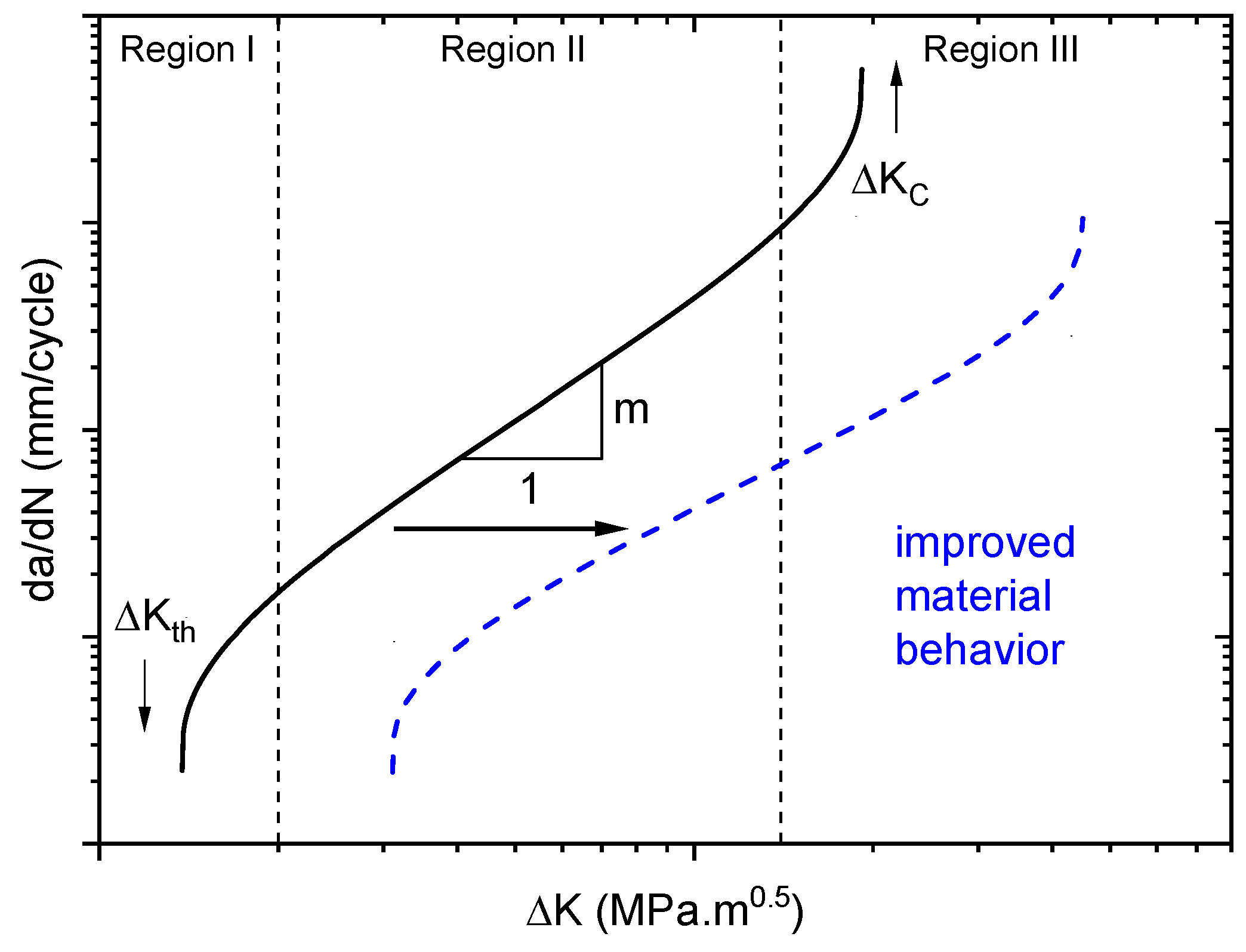

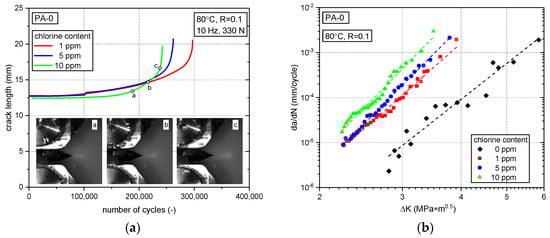

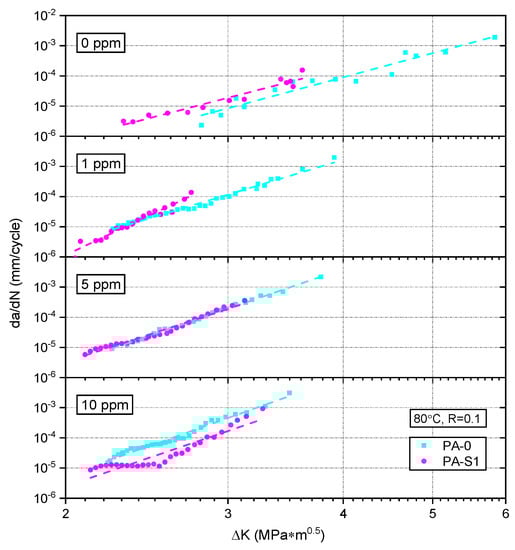

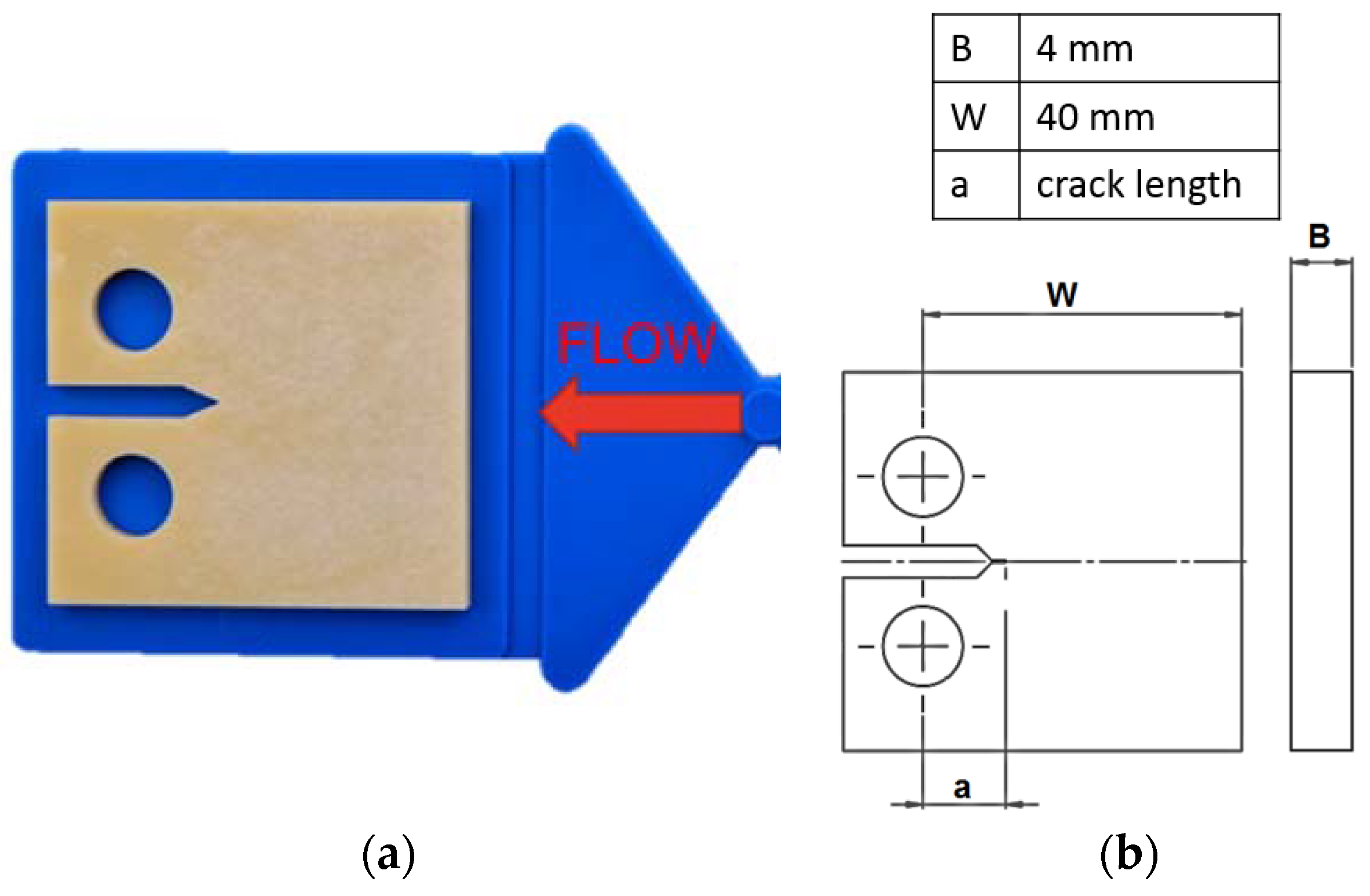

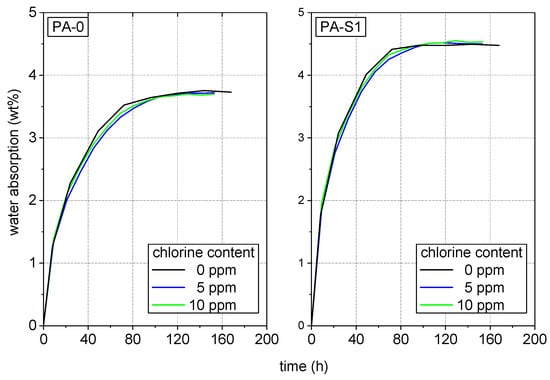

Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Fischer, J.; Bradler, P.R.; Akhras, M.H.; Wallner, G.M.; Lang, R.W. Influence of Hot Chlorinated Water and Stabilizer Package on the Fatigue Crack Growth Resistance of Glass Fiber Reinforced Polyamide. Polymers 2018, 10, 829.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
